Hikvision Ultra Series
Enterprise-Grade Access Security with Web-Based Management
The Hikvision DS-K2702X-P is an advanced 2-door access controller designed for demanding commercial, industrial, and high-density enterprise environments. Built on a resilient Linux architecture, this controller operates seamlessly via native web browser management, eliminating the need for standalone client software installations. Engineered for scalable deployments, it natively manages 2 doors and can expand to control up to 126 doors across complex facilities such as commercial towers, transit hubs, and banking centers.
Door Capacity
2-Door Native / Max 126 Doors
User & Event Storage
100k Users / 600k Events
Interface Integration
7x RS-485 & 4x Wiegand
Power & Climate
12 VDC / Battery Backup
Advanced Infrastructure Redundancy & Professional Access Logic
Featuring downstream RS-485 redundancy wiring across 5 dedicated communication channels, the Hikvision DS-K2702X-P 2-Door Controller ensures dual-bus loop isolation to prevent communication loss in critical security installations. It natively supports high-level access functions including 32 anti-passback routes, 32 multi-door interlocking groups, multi-factor authentication (card, fingerprint, PIN), and direct fire alarm relay integration for automatic emergency lock release.
Redundant Downstream Communication
Features 5-channel downlink RS-485 interface options that allow dual-bus loop connections with physical isolation, ensuring uninterrupted credential verification and signal stability across all sub-modules.
Embedded Web Configuration
Simplifies deployment by offering comprehensive system setup, access group management, time schedules, and diagnostic health monitoring directly through standard web browsers without requiring local management software.
Technical Specification Matrix
Camera Model
DS-K2702X-P
Operating System
Linux Embedded
Linked Door Capacity
Native: 2 Doors | Extended: Up to 126 Doors (via 62 RS-485 modules)
User & Credential Capacity
100,000 Users | 200,000 Cards | 10,000 Fingerprints
Event Log Storage
600,000 Offline Event Records
Reader Compatibility
4x RS-485 (OSDP Protocol) & 4x Wiegand (26/34-bit)
I/O Interfaces
2 Lock Relays, 2 Exit Buttons, 2 Door Contacts, 4 Alarm Inputs, 4 Alarm Outputs, 1 Fire Input, 1 Tamper
Network Interface
1x RJ45 10/100/1000 Mbps Self-Adaptive Ethernet
Power & Consumption
12 VDC ± 15%, Max. 72 W | Integrated Battery Charging/Discharging Support
How do I configure the Hikvision DS-K2702X-P controller?
The unit features a built-in web server. You can access all network settings, user privileges, access schedules, and diagnostic logs using any standard web browser by entering the unit's IP address.
How many doors can be expanded from this single unit?
While managing 2 doors out of the box, it can expand up to 126 total doors by connecting up to 62 Hikvision DS-K2M002X sub-access modules over RS-485 bus loops.
Does this controller support power backup in case of mains outage?
Yes, the controller includes integrated battery management terminals that support automatic charging and seamless switchover to standard 12V backup batteries during power failures.
What reader protocols are supported by this unit?
It supports up to 4 Wiegand readers (standard 26/34 format or custom) and up to 4 RS-485 readers utilizing secure OSDP protocol.
Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
3-Year Commercial Warranty
Aust-Wide Delivery
Hikvision Pro Series · 6MP DarkFighter · AcuSense · 80m IR · 120dB WDR · IK10
Hikvision 6MP DarkFighter Bullet
Hikvision DS-2CD2T66G2H-4I — 6MP DarkFighter AcuSense Fixed Bullet Camera with 80 m IR & IK10 Vandal Housing
The Hikvision DS-2CD2T66G2H-4I is a 6 MP AcuSense fixed bullet camera from Hikvision's Pro Series — the workhorse for commercial and residential perimeters where you need true monochrome night vision at long range and reliable human-and-vehicle classification without paying DeepinView pricing. A 1/1.8" progressive CMOS with DarkFighter ultra-low-light technology delivers clean imaging at just 0.003 lux, and when the light goes below that the 80 m Smart IR illuminator kicks in — one of the longest IR distances in the 6 MP Hikvision range. AcuSense H/V classification filters false alarms on animals, foliage and precipitation so your NVR only pushes notifications on actual humans and vehicles. Available in 2.8 mm wide-angle or 4 mm narrower-view lens, in White or Black finish. Backed by 3-year Australian warranty from CCTV Guru.
Resolution
6 MP · 3200 × 1800
Lens Options
2.8 mm (101°) or 4 mm (87°) · F1.6
Low-Light
DarkFighter · 0.003 lux · 80 m IR
WDR
120 dB True WDR
AcuSense AI
Human + Vehicle Classification
Protection
IK10 · IP67 · White or Black
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
Choose Your Lens — 2.8 mm Wide Angle or 4 mm Narrower View
Same camera body, same 6 MP DarkFighter sensor — pick the lens focal length that suits your scene. The 2.8 mm wide-angle covers a broader area with a shorter effective distance; the 4 mm narrower-view gives you more detail at longer range with a tighter frame. Both are F1.6 fixed-focus with an 80 m IR illuminator built in.
Lens Comparison — 2.8 mm vs 4 mm
2.8 mm Wide Angle (White SKU: DS-2CD2T66G2H-4I · Black SKU: DS-2CD2T66G2H-4I-BLK)
Horizontal FOV ~101° · Vertical ~55° · Diagonal ~122°. Best for entry doors, garages, small yards, driveways up to ~10 m, wall-mounted corners covering a broad approach. Wider, less-detailed at distance.
4 mm Narrower View (White SKU: DS-2CD2T66G2H-4I-4MM)
Horizontal FOV ~87° · Vertical ~46° · Diagonal ~105°. Best for longer driveways, side fences, boundary lines, car parks, commercial forecourts — the extra reach gives you readable faces and plates at 10-25 m where the 2.8 mm would only give a body-in-frame shot.
Rule of thumb: if the target is closer than ~8 m and you need broad coverage, go 2.8 mm. If the target is 8-25 m away and you want identification-level detail, go 4 mm. Not sure? Pick the 2.8 mm — you can always crop in on 6 MP footage.
What Makes This Camera Worth Its Price
1/1.8" Sensor + DarkFighter Ultra-Low-Light
The larger 1/1.8" progressive CMOS (vs 1/2.8" on entry cameras) collects more light per pixel — brighter night image, cleaner shadows, less noise. DarkFighter processing pushes minimum illumination to 0.003 lux before IR kicks in.
80 m Smart IR — One of the Longest in Hikvision 6 MP
80 metres of IR with Smart IR intensity + angle auto-adjust. Useful for long rural driveways, large commercial forecourts, and open-yard perimeters where cheaper cameras (30-40 m IR) leave dark zones at the far end.
120 dB True WDR
Real hardware WDR, not digital — handles the classic Australian problem scenes: sunlit garage door with dark interior, driveway staring into afternoon sun, front verandah under harsh backlight. Both bright and dark regions stay legible.
AcuSense — Human / Vehicle Classification
Onboard deep-learning filters false alarms on animals, wind-blown leaves, rain and headlight flare. Your NVR only fires an alert when the camera actually sees a person or vehicle — dramatically reduces phantom notifications.
IK10 Vandal-Proof + IP67 Weatherproof
Metal housing rated for 20-joule impact (IK10) and full dust-tight + immersion protection (IP67). Suitable for wall-mounted commercial installs where the camera is within reach of vandals, and outdoor mounting in rain, dust and full sun.
H.265+ Smart Compression
Reduces bandwidth and storage by ~50 % vs H.265 alone, and up to 75 % vs H.264. A single 6 MP stream at ~25 fps uses ~4-6 Mbps with H.265+ — a 4 TB HDD holds ~30-45 days on 4 cameras.
Where This Camera Belongs
Residential Driveways & Front Yards
4 mm covers a typical AU suburban driveway from front door to street. Number-plate readable at 10-15 m. 80 m IR blows out the phantom shadow zone at the street kerb that 30 m IR cameras can't reach.
Commercial Forecourts, Loading Docks
Long-range 4 mm variant with 80 m IR — reads plates and identifies drivers at the back of the loading bay, while illuminating enough of the yard to see vehicle movements through the frame.
Rural Properties & Farm Yards
The 80 m IR reach is what makes this camera work at rural scale — a house-corner mount can cover the driveway all the way out to the gate. 6 MP resolution means readable faces on approach.
Warehouse & Industrial Perimeter
IK10 rating survives contact with forklifts, pallet racking and industrial machinery. AcuSense classification stops the NVR from waking up every time a fork truck moves inside the yard.
Body Corp / Strata Common Areas
Black finish blends into modern architectural facades; white finish for older render / weatherboard. Vandal-rated for accessible ground-floor mounting near common entries.
Retail & Hospitality Exteriors
2.8 mm wide-angle covers a shopfront + full footpath in one frame. AcuSense filters foot traffic from actual approaches, letting the NVR flag genuine after-hours activity.
Technical Specifications
DS-2CD2T66G2H-4I · Full Specifications
SKU — White · 2.8 mm
DS-2CD2T66G2H-4I
SKU — White · 4 mm
DS-2CD2T66G2H-4I-4MM
SKU — Black · 2.8 mm
DS-2CD2T66G2H-4I-BLK
Camera Type
Hikvision Pro Series · 6MP AcuSense Fixed Bullet · DarkFighter · IK10
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3200 × 1800 (6 MP)
Main Stream
25/30 fps @ 3200 × 1800 · 2560 × 1440 · 1920 × 1080
Lens Options
2.8 mm F1.6 (H 101°) or 4 mm F1.6 (H 87°) — fixed focal length
Field of View (2.8 mm)
Horizontal 101° · Vertical 55° · Diagonal 122°
Field of View (4 mm)
Horizontal 87° · Vertical 46° · Diagonal 105°
Min. Illumination
Colour: 0.003 lux @ F1.6 (AGC ON) · 0 lux with IR
Wide Dynamic Range
120 dB True WDR
Shutter Speed
1 s to 1/100,000 s
IR Distance
Up to 80 m · Smart IR intensity + angle auto-adjust
Video Compression
H.265+ · H.265 · H.264+ · H.264 · MJPEG
Smart Functions
AcuSense: Human + Vehicle classification · Line crossing · Intrusion · Region entrance · Region exiting
Additional Analytics
Motion detection · Video tampering · Face detection · Scene change · Audio exception
Alarm I/O
1 input · 1 output
Ethernet
1× RJ-45 10/100 Mbps
Protocols
IPv4/IPv6 · HTTPS · 802.1X · QoS · FTP · SMTP · UPnP · SNMP · DNS · DDNS · NTP · RTSP · TCP · UDP · IGMP · DHCP · Bonjour · SRTP · TLS
Storage
microSD / SDHC / SDXC up to 256 GB · NAS · ANR (Auto Network Replenishment)
API
ISAPI · Hikvision SDK · ONVIF (Profile S / G / T)
Client Software
iVMS-4200 · Hik-Central Professional · Hik-Connect
Power
12 VDC · PoE 802.3af Class 3 (max ≈ 8 W)
Weatherproof
IP67 (IEC 60529)
Vandal Resistance
IK10 (20-joule impact resistance)
Operating Temperature
−40 °C to +60 °C · humidity ≤95 %
Dimensions / Weight
Ø 88 × 231.1 mm · ~600 g
Finish Options
White (2.8 mm + 4 mm) or Black (2.8 mm only)
Warranty
3-Year Australian Warranty (back-to-base)
Pair with a Hikvision M-Series or AcuSeek NVR
DS-7604NI-M1/4P — 4CH · 4 PoE
Four-channel M-Series NVR — ideal for a single-family home with 4 of these bullets on the perimeter. View DS-7604NI-M1/4P →
DS-7608NI-M2/8P — 8CH · 8 PoE · 2 HDD
Eight channels with 2 HDD bays — commercial small-site and larger residential. View DS-7608NI-M2/8P →
DS-7616NI-M2/16P — 16CH · 16 PoE · 2 HDD
Mid-tier commercial site with up to 16 bullets on the perimeter. View DS-7616NI-M2/16P →
DS-7608NXI-I2/8P/VPro — AcuSeek AI NVR
For sites that want natural-language search across recordings. Full AcuSense metadata indexing. View AcuSeek NVR →
Frequently Asked Questions
What's the difference between the 2.8 mm and 4 mm lens?The 2.8 mm is a wider view — 101° horizontal FOV. The 4 mm gives you narrower reach — 87° horizontal FOV — but each pixel covers less scene, so detail at 10-25 m is better. Same sensor, same IR range, same AcuSense AI on both.
Why is Black only offered in 2.8 mm?Hikvision's supply of the black-finish version is limited to the 2.8 mm SKU (DS-2CD2T66G2H-4I-BLK). If you need a 4 mm in black, contact us — we sometimes have alternative black-finish Hikvision bullets in the same 6 MP range that might suit.
Does it need a special PoE switch?No — PoE 802.3af Class 3 (max ~8 W). Runs on any standard Hikvision NVR PoE port or generic 802.3af PoE switch. Also accepts 12 VDC for legacy or off-grid installs.
Does AcuSense really cut false alarms?Yes — typical reduction is 80-90 % vs a motion-only camera. The camera classifies the target as human, vehicle or "other" before firing an alarm. Rain, foliage, insects, animals and passing headlights get filtered out.
What's the actual IR range in practice?Hikvision rates it at 80 m under ideal conditions (dark sky, no ambient reflection). In practice — Australian suburban driveway with some ambient street glow — expect 50-70 m of usable IR. Still one of the longer IR distances in the 6 MP range at this price point.
Can I integrate with a non-Hikvision VMS?Yes — the camera speaks ONVIF Profile S, G and T and RTSP. Compatible with Milestone XProtect, Genetec, Exacq, Immix and most other AU VMS platforms. Note that AcuSense metadata is only fully indexed on Hikvision NVRs.
Downloads & Resources
DS-2CD2T66G2H Datasheet
Quick Start Guide
User Manual
Order the Hikvision DS-2CD2T66G2H-4I from CCTV Guru
Select your lens (2.8 mm wide-angle or 4 mm narrower-view) and finish (White or Black — Black is 2.8 mm only) from the dropdowns above. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, project pricing for multi-camera installs and specialist pre-sales advice from our Sydney team. Request a free quote or contact our Australian team.
Hikvision ACCESS CONTROL ACCESSORIES
Professional Surface Mounting Base for Access Terminals
The Hikvision DS-KAB502-S2 surface mounting box provides a clean, robust, and reliable wall-mounting interface engineered specifically for the Hikvision DS-K1T502 series access control terminals. Built to streamline commercial entry deployments, this surface back box eliminates complex wall recessing while ensuring structural stability and protected cable routing across office lobbies, multi-residential entry points, and high-density secure facilities.
Mounting Type
Surface Mount Base
Material Build
Durable SECC Steel
Compatibility
DS-K1T502 Series
Dimensions
176 × 80 × 22.8 mm
Engineered for Fast Retrofits & Cable Protection
Designed as a purpose-matched mounting solution, the Hikvision DS-KAB502-S2 simplifies installation where recessed wall cutting is impractical or prohibited. Constructed from high-quality electrolytic zinc-coated cold-rolled steel (SECC), it maintains structural integrity and corrosion resistance over long-term operation. The low-profile back box securely encloses wire connections, mitigating cable strain and preventing tampering while preserving a sleek commercial finish.
Precision Alignment & Quick Installation
Custom-engineered mounting hole patterns directly match DS-K1T502 terminals, eliminating custom bracket fabrication and significantly cutting installation time for security technicians.
Rugged SECC Steel Construction
Manufactured with commercial-grade SECC steel to shield terminal wiring connections against accidental impact, wear, and physical tampering in busy access environments.
Technical Specification Matrix
Camera / Device Model
DS-KAB502-S2
Product Type
Surface Mounting Box / Wall Mounting Bracket
Compatible Devices
Hikvision DS-K1T502 Series Access Control Terminals
Material
SECC (Electrolytic Zinc-Coated Cold-Rolled Steel)
Dimensions (W × H × D)
176 mm × 80 mm × 22.8 mm (6.9" × 3.1" × 0.9")
Weight
Approx. 145.1 g (0.32 lb)
Mounting Method
Wall Surface Mount
Compatibility Note
Not compatible with rain shield DS-KAB502-S1
Which devices are compatible with the DS-KAB502-S2?
This surface mounting box is specifically designed for Hikvision DS-K1T502 series access control terminals and intercom units.
What material is used in the construction of this mounting back box?
The DS-KAB502-S2 is crafted from high-strength SECC steel (electrolytic zinc-coated cold-rolled steel), offering long-term durability and corrosion resistance.
Can this mounting box be used alongside the DS-KAB502-S1 rain shield?
No, this surface back box is not compatible with the DS-KAB502-S1 rain shield. Please verify your installation environment requirements before selection.
Why choose surface mounting over recessed installation?
Surface mounting avoids cutting or chasing walls, making it ideal for retrofits, solid concrete surfaces, or decorative walls where recessed mounting is impractical.
Technical Datasheet
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision DS-K1T502 Series
Commercial Grade Weather Protection for Access Control Terminals
The DS-KAB502-S1 is a high-durability protective rain shield engineered specifically for Hikvision DS-K1T502 series access control terminals. Constructed from heavy-duty Electro-Galvanized Cold-Rolled Steel (SECC), this protective accessory safeguards delicate authentication devices against driving rain, direct UV glare, dust, and physical impact. Designed for high-density commercial entries, perimeter gates, apartment building foyers, and outdoor staff access points, it provides an intentional, sleek installation finish while significantly extending hardware service life in harsh environments.
Material Build
SECC Steel Shell
Compatibility
DS-K1T502 Series
Environment
Weather Resistant
Form Factor
188.6 x 85 x 42mm
Seamless Surface Integration & Model-Matched Fit
Rather than using generic universal brackets, opting for the hikvision-ds-kab502-s1-protective-rain-shield ensures precise dimensional alignment with Hikvision terminal geometry. The shield's engineered canopy overhang diverts water away from the optical scanner and card reader interface, preventing water streak interference during biometrics processing. At a light weight of just 242.5g and a tight profile depth of 42mm, it installs neatly onto standard doorframes, concrete masonry, and hollow wall partitions without adding unnecessary bulk or obscuring terminal sightlines.
Industrial SECC Construction
Manufactured using high-grade SECC steel, providing superior structural integrity, wear resistance, and long-term protection against harsh exterior conditions and everyday physical impacts.
Optimized Canopy Angle
Custom-contoured overhang minimizes direct glare on card readers and reduces water drop accumulation across optical lenses, guaranteeing unhindered operation in stormy conditions.
Technical Specification Matrix
Camera Model
DS-KAB502-S1
Product Type
Protective Rain Shield / Surface Mount Bracket
Compatible Device Series
Hikvision DS-K1T502 Series Access Control Terminals
Construction Material
SECC Steel
Dimensions (H x W x D)
188.6 mm x 85.0 mm x 42.0 mm (7.4" x 3.3" x 1.7")
Item Weight
242.5 g (0.53 lbs)
Mounting Type
Surface Wall Mounting
Application Environment
Indoor / Outdoor Weather Protected Installation
Which access control models are compatible with this protective shield?
The DS-KAB502-S1 is custom-engineered specifically for the Hikvision DS-K1T502 access control terminal series (including card, biometric, and video models).
Does installing this rain hood affect terminal screen visibility or reader range?
No. The canopy overhang is precision-contoured to protect the terminal face from weather elements while leaving all optical sensors, keypads, screen areas, and card readers fully visible and accessible.
Is additional hardware required for mounting?
The shield aligns directly with standard wall mounting points for the DS-K1T502 terminal series, allowing straightforward installation using basic mounting hardware onto flat surfaces.
What material is used to prevent rust and corrosion?
It is fabricated from SECC (Electro-Galvanized Cold-Rolled Steel), offering high durability and corrosion resistance suitable for outdoor and commercial entryways.
Technical Datasheet
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Pro Series
Next-Gen Multi-Credential Security for High-Traffic Commercial Facilities
The DS-K1T502DBFWX-CE1 is a high-performance access control and video intercom terminal designed for demanding commercial, industrial, and multi-tenant residential environments. Engineered with a heavy-duty zinc alloy enclosure rating at IP65 weather resistance and IK09 vandal protection, this Pro Series terminal delivers robust perimeter defense against environmental hazards and unauthorized physical tampering. Combining high-capacity biometric fingerprint scanning, 13.56 MHz Mifare/DESFire card recognition, digital PIN entry, Bluetooth mobile credentials, and dynamic QR code authentication, the unit provides complete versatility for enterprise access management.
Camera & Capacity
2MP HD / 10,000 Fingerprints
Authentication
Biometric, Card, PIN, QR & BT
Connectivity
PoE, Wi-Fi & SIP Intercom
Protection
IP65 Weather / IK09 Vandal
Unified Video Security & Intelligent Access Protocols
Featuring an integrated 2MP full HD camera with wide field-of-view (110° HFOV) and two-way audio supporting SIP 2.0 protocols, the Hikvision DS-K1T502DBFWX-CE1 bridges the gap between traditional door controllers and smart video intercoms. Security operators can perform live video verification, communicate directly with visitors, and execute remote door releases via the Hik-Connect mobile app or iVMS-4200 management platform. Standard IEEE 802.3at/af PoE capability allows streamlined single-cable deployments, while full Wiegand and RS-485 interfaces ensure seamless backward compatibility with existing master access controllers.
Capacitive Biometrics & Multi-Factor Auth
Equipped with an advanced optical/capacitive fingerprint sensor processing fast matching under 1 second. Supports up to 10,000 fingerprints and 100,000 card records with dual-factor combinations for elevated security zones.
SIP 2.0 Two-Way Audio Intercom
Features built-in microphone and loudspeaker supporting standard SIP protocols for integration with IP-PBX systems, indoor master stations, or cloud mobile devices.
Technical Specification Matrix
Camera Model
DS-K1T502DBFWX-CE1
Operating System
Linux
Camera Resolution & Lens
2 MP HD, HFOV = 110°, VFOV = 81°, DFOV = 122°
Capacity
10,000 Fingerprints, 100,000 Cards, 300,000 Event Records
Credential Types
Fingerprint, Mifare (13.56 MHz), DESFire, PIN, Dynamic QR Code, Bluetooth
Network & Communication
TCP/IP (10/100M Ethernet), Wi-Fi 2.4G, RS-485, Wiegand (Hik 26/34 bit)
Door Interfaces
Lock Control Relays x2, Door Contact Input x1, Exit Button Input x1, Alarm Input x2, Alarm Output x1
Ingress & Impact Protection
IP65 Dust/Water Resistant, IK09 Anti-Vandal Cast Alloy Housing
Power Supply & Draw
Standard IEEE 802.3at/af PoE / 12 VDC to 24 VDC (1 A, Max 24 W)
Operating Temperature
-40 °C to +65 °C (-40 °F to 149 °F)
How does the DS-K1T502DBFWX-CE1 handle outdoor installations?
The unit features an IP65 ingress rating and an IK09 vandal-proof zinc alloy housing, making it resilient against continuous rain, extreme temperatures (-40°C to +65°C), dust, and physical impact.
Can this device operate direct door lock power?
Yes, when powered via standard PoE, the unit supports direct 12V 1A power output to trigger connected electronic door strikes or magnetic locks without requiring an additional local power supply.
What software platforms are compatible with this unit?
The terminal integrates directly with Hikvision iVMS-4200, HikCentral Enterprise software, and the Hik-Connect mobile app for cloud-based remote access and mobile notifications.
Does it support legacy access controllers via Wiegand?
Yes, it includes standard Wiegand (26/34 bit) output and RS-485 interfaces, allowing it to function as a slave biometric reader connected to existing master control panels.
Technical Datasheet
Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Value Series
Enterprise Biometric Access & Time Attendance Terminal
The Hikvision DS-K1T344MBWX-QRE1 is a high-performance, versatile face recognition access control terminal designed for high-density commercial facilities, corporate office towers, and financial institutions. Built around an advanced deep learning algorithm, this terminal delivers rapid authentication in under 0.2 seconds per user with an accuracy rate exceeding 99%. Featuring a vibrant 4.5-inch LCD color touchscreen, dual 2MP wide-angle lenses, and an integrated M1 card module, the unit supports seamless contactless authentication across diverse commercial environments.
Resolution / Key Spec
2MP Dual Lens / 4.5" Touch
Optics / Features
Face, M1 Card, QR & PIN
Connectivity
Wi-Fi, Bluetooth & PoE
Protection Rating
IP65 Weatherproof
Multi-Factor Authentication & System Integration
Engineered for modern security requirements, the Hikvision DS-K1T344MBWX-QRE1 combines biometric security with flexible access control options. Supporting dynamic QR codes, 13.56 MHz Mifare cards, PIN codes, and Bluetooth authentication via Hik-Connect, it ensures frictionless throughput for employees and guests alike. When deployed with standard PoE, the device delivers a dedicated 12V DC output to power direct electronic door locks, simplifying wiring architecture. Additionally, full two-way audio integration turns this terminal into a functional video door entry panel compatible with client software and indoor stations.
Deep Learning Anti-Spoofing Biometrics
Equipped with dual 2MP wide-angle lenses and anti-spoofing technology, the terminal prevents fraudulent access attempts using printed photos, video loops, or masks. Its intelligent recognition engine operates at distances between 0.3m and 1.5m with exceptional accuracy.
Robust Outdoor IP65 Construction
Designed to operate reliably in challenging exterior conditions, the IP65 weather-rated enclosure resists dust and rain while operating across an extreme temperature range of -30°C to +60°C (-22°F to 140°F).
Technical Specification Matrix
Camera Model
DS-K1T344MBWX-QRE1
Display Screen
4.5-inch LCD Color Touchscreen (480 x 854 resolution)
Camera Lens
Dual-Lens 2 Megapixel Wide-Angle Lens
Capacity
3,000 Faces, 3,000 Cards, 150,000 Event Records
Authentication Modes
Face, Mifare Card (13.56 MHz), Dynamic QR Code, PIN, Bluetooth
Facial Recognition Speed
< 0.2 seconds per user (> 99% accuracy rate)
Interfaces & Networks
TCP/IP, Wi-Fi, Bluetooth, Wiegand, RS-485, USB, Lock Relay, Tamper
Protection Rating & Temp
IP65 Weatherproof | -30 °C to 60 °C (-22 °F to 140 °F)
Power Supply
12 VDC / 1A or Standard PoE (IEEE 802.3af/at)
How does the facial recognition system handle spoofing attempts?
The DS-K1T344MBWX-QRE1 utilizes dual optical camera sensors and deep learning algorithms to analyze depth and optical texture, effectively blocking fake attempts via photos, videos, or 3D masks.
Can this access terminal power an electronic door lock directly?
Yes. When powered using standard PoE, the unit provides a 12V DC / 1A power output that can directly energize connected lock hardware without requiring an external power supply.
What software platforms can manage this device?
It integrates seamlessly with Hikvision iVMS-4200, iVMS-4200 AC, and the Hik-Connect mobile application for user management, schedule creation, and remote unlock functions.
Is the terminal suitable for outdoor building entrances?
Yes, its housing is IP65 weather-rated and designed to operate reliably in outdoor environments exposed to harsh weather between -30°C and +60°C.
Technical Datasheet
Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
DAHUA LIGHT SERIES · 27" 100Hz · 24/7 SURVEILLANCE MONITOR
DHI-LM27-L200N 27" Full HD 100Hz LED Monitor — Australian Stock & 3-Year Warranty
The Dahua DHI-LM27-L200N is a purpose-built 27-inch Full HD CCTV monitor from Dahua's Light Series, engineered for continuous 24/7 surveillance operation. A 1920×1080 VA panel at 100 Hz over HDMI with 178°/178° viewing angles, 3000:1 static contrast and 250 cd/m² ELED backlight delivers stable, judder-free playback from any recorder or IP camera live view — ideal for guardhouses, retail counters, IT rooms and small business control rooms.
Slim 51.9 mm depth, standard VESA 100×100 mount pattern, external 12 VDC power adapter and HDMI + VGA inputs make it a drop-in replacement for legacy PC monitors that aren't rated for round-the-clock use.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why this monitor for CCTV
Built for 24/7 duty
Rated for 7×24 h continuous operation — unlike consumer PC monitors that overheat or fail early when left on live-view for months. The right chassis for a guardhouse or unattended NVR display.
100 Hz over HDMI
100 Hz refresh smooths fast pans and cursor motion when you scrub timelines. Response time OD 5 ms keeps moving subjects clean without ghost trails.
VA panel, wide angle
178° horizontal + 178° vertical viewing so the picture stays true from any position around the counter. 3000:1 static contrast keeps night footage crisp instead of hazy.
Universal signal inputs
HDMI 1.4 (1080p @ 100 Hz) + VGA (1080p @ 60 Hz) covers current Dahua/Hikvision/UNV NVRs, older analogue DVRs and any PC-based VMS — no dongles.
Slim + VESA-mount ready
Just 51.9 mm deep and 3.8 kg net weight with a VESA 100×100 pattern — wall mount above a desk, arm-mount over a counter, or leave it on the included base.
Low power, low heat
18.5 W typical and <0.5 W standby off the external 12 VDC / 3 A supply. Runs cool 24/7 with no fan noise.
Display & picture
Screen size
27" (16:9)
Panel technology
VA LCD, ELED backlight
Native resolution
1920 × 1080 (Full HD)
Refresh rate
100 Hz over HDMI · 60 Hz over VGA
Response time
OD 5 ms
Brightness
250 cd/m² (typ.)
Contrast ratio
3000:1 (static)
Colour depth
8-bit
Colour gamut
72% NTSC (typ.)
Viewing angle
178° horizontal · 178° vertical
Duty cycle
7 × 24 h continuous operation
Bezel colour
Black
Connectivity & mount
Video inputs
1 × HDMI 1.4 · 1 × VGA
Built-in speakers
No
Audio jack
No
USB / DisplayPort
None
VESA mount pattern
100 × 100 mm
Included stand
Yes — desktop base
Power, physical & environment
Power supply
12 VDC / 3 A (external adapter, included)
Power consumption
14 W (basic) · 18.5 W (typical) · 19 W (max)
Standby power
< 0.5 W
Dimensions (W×H×D)
615.0 × 365.7 × 51.9 mm (without base)
Net weight
3.8 kg
Operating temperature
0 °C to +40 °C
Operating humidity
10% – 85% RH
Storage temperature
−20 °C to +60 °C
Certifications
CE EMC · CE LVD · CE ERP
Best used for
Guardhouse & reception
Continuous NVR live-view display beside a front-desk operator — runs 24/7 with a wall-mount arm.
Retail counter & back office
Compact 27" screen for split-view monitoring at POS, IT room or manager's desk.
Small business control room
Pair two side-by-side on a VESA arm for a 2-up 1080p wall — sub $ per pixel vs a dedicated video wall.
Legacy DVR replacement
VGA input keeps older HDCVI/analogue DVRs going while HDMI supports current 4K NVRs downscaled to 1080p.
Works with
Dahua NVRs & XVRs
HDMI output from every current Dahua WizSense / WizMind NVR and XVR series — native 1080p on this panel.
Hikvision & HiLook recorders
HDMI 1.4 input matches all M-Series and DeepinMind NVR HDMI outs at 1080p.
UNV & other IP NVRs
Standard HDMI signalling — works with any recorder that outputs 1080p or lower on HDMI.
Older analogue DVRs
VGA fallback for legacy HDCVI / analogue installs still on VGA-only outputs.
Installation notes
Included in box: monitor, desktop base, HDMI cable, external 12 VDC power adapter, QSG.
No built-in speakers — drive audio from your NVR's dedicated audio output to external speakers if you need sound at the display.
For wall/arm mount, source a VESA 100×100 bracket (not included). Screw specification per QSG.
HDMI cable run length: keep under 10 m using a standard HDMI 1.4 cable for reliable 1080p @ 100 Hz. For longer runs, use an HDBaseT or fibre HDMI extender.
Operating temperature is 0 – 40 °C — not suitable for un-cooled outdoor kiosks in AU summer without shade + ventilation.
Frequently asked questions
Is this monitor rated for 24/7 CCTV use?Yes — Dahua rate the LM27-L200N for 7×24 h continuous operation. That's the key difference vs a consumer desktop monitor, which is only warrantied for ~10 hrs/day of use.
What's the highest resolution it supports?Native 1920×1080 (Full HD) at 100 Hz over HDMI. If your NVR outputs 4K, it will downscale to 1080p on this panel.
Does it have built-in speakers?No — there are no speakers and no headphone jack on this model. Use your NVR's dedicated audio output to external powered speakers.
Can I wall-mount it?Yes — standard VESA 100×100 mm pattern. Any VESA 100 wall mount or monitor arm will fit. Bracket not included.
What's the difference between HDMI and VGA on this monitor?HDMI 1.4 supports 1080p at 100 Hz. VGA runs at 60 Hz max. Use HDMI wherever possible for smoother playback.
Will it work with my old analogue DVR?Yes — the VGA input keeps older HDCVI/analogue DVRs working. If your DVR has HDMI out, use HDMI instead for cleaner picture.
What warranty does it come with?3 years Australian warranty, supported locally by CCTV Guru. Return direct to us for RMA — no overseas shipping required.
Is the power supply included?Yes — a 12 VDC / 3 A external adapter is included in the box. Plugs into standard AU wall power via IEC cable.
Downloads
Datasheet (PDF)
Full user manual and installation guide are supplied in-box with the monitor (paper QSG + QR code to the online manual). Contact CCTV Guru if you need a digital copy for pre-sales review.
Hikvision ULTRA SERIES
Next-Generation 6MP Commercial Intelligence & Low-Light Performance
The DS-2CD3766G2HT-LIZSUY represents Hikvision's flagship Ultra Series engineering, engineered specifically for high-demand commercial environments, critical infrastructure, and harsh perimeter deployments. Combining a high-definition 6MP sensor with Hikvision DarkFighter technology, this motorized varifocal dome camera delivers exceptional image clarity even in near-total darkness. Enhanced by AcuSense deep-learning algorithms, it accurately classifies human and vehicle targets to dramatically reduce false alarms, making it the ideal security anchor for enterprise sites, transportation hubs, and industrial facilities.
Resolution & Imaging
6MP Ultra HD (3200 × 1800)
Optics & Zoom
2.8–12mm Motorized Varifocal
Night Vision Technology
Smart Hybrid Light (IR & White)
Protection & Climate
IP67 / IK10 / NEMA 4X
Advanced Smart Hybrid Illumination & Environmental Resilience
Designed to adapt dynamically to changing surveillance conditions, the Hikvision DS-2CD3766G2HT-LIZSUY integrates Smart Hybrid Light technology, allowing operators to choose between covert Infrared, full-color supplemental white light, or intelligent event-triggered illumination mode. Equipped with dynamic 140 dB Wide Dynamic Range (WDR), this model handles severe backlighting and extreme contrast effortlessly. Furthermore, its specialized anti-corrosion coating (NEMA 4X certified) ensures extreme durability against harsh chemicals, saltwater environments, and demanding outdoor climates while maintaining vandal resistance via its IK10 housing.
AcuSense Deep Learning Analytics
Utilizes advanced deep-learning hardware algorithms to distinguish humans and vehicles from benign motion sources like rain, leaves, or animals. Detections trigger precise alerts and streamline post-event investigation searching.
NEMA 4X Anti-Corrosion Protection
Engineered with specialized protective anti-corrosion treatment meeting NEMA 4X standard specifications. Safeguards internal components against corrosive maritime atmospheres, chemical environments, and extreme weather.
Smart Hybrid Light System
Offers three flexible light modes: discrete IR illumination for long-range night monitoring, bright white light for visual deterrence and full-color recording, or Smart Mode which automatically switches IR to white light upon target detection.
Efficient H.265+ Compression & Storage
Optimizes bandwidth utilization and storage consumption by up to 75% compared to standard H.264 without sacrificing image quality. Includes onboard microSD storage expansion up to 512 GB for redundant local retention.
Technical Specification Matrix
Camera Model
DS-2CD3766G2HT-LIZSUY
Max. Resolution
6 Megapixel (3200 × 1800 @ 30 fps)
Image Sensor
1/1.8" Progressive Scan CMOS (DarkFighter)
Lens & FoV
2.8 to 12 mm Motorized Varifocal Lens; Horizontal FoV 108.8° to 44.2°
Supplemental Light Range
IR Range: Up to 40 m; White Light Range: Up to 40 m
Wide Dynamic Range (WDR)
140 dB WDR (True Wide Dynamic Range)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Audio & Alarm Interfaces
Built-in Microphone; 1 Audio Input / 1 Output; 1 Alarm Input / 1 Output
On-Board Storage
Built-in microSD/SDHC/SDXC slot, up to 512 GB
Protection Standards
IP67 (Water & Dust), IK10 (Vandal Resistance), NEMA 4X (Anti-Corrosion)
Power Supply & Output
12 VDC ± 25% or PoE (802.3af, Class 3)
How does Smart Hybrid Light technology operate?
Smart Hybrid Light allows you to select between standard IR night vision, continuous full-color white light, or Smart Mode. In Smart Mode, the camera operates silently using invisible IR light until a human or vehicle is detected by AcuSense, at which point it activates visible white light to capture full-color evidence and deter intruders.
What benefits does the NEMA 4X anti-corrosion rating provide?
The NEMA 4X rating guarantees that the camera housing features special surface coatings and anti-corrosive treatments designed to withstand harsh elements such as salt spray, chemical airborne pollutants, and intense moisture, ensuring long-term hardware longevity in coastal or industrial settings.
How does the motorized varifocal lens function remotely?
The 2.8mm to 12mm motorized zoom lens allows security administrators to easily adjust the field of view and focal point remotely via the Hikvision Web Browser interface, iVMS-4200, or NVR software without requiring physical access to the camera mounting location.
Does this camera support built-in audio recording?
Yes, the DS-2CD3766G2HT-LIZSUY includes a high-sensitivity built-in microphone for real-time audio security monitoring along with physical external audio input and output terminal ports for two-way audio applications.
Technical Datasheet User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision EasyIP 2.0+ Series
Hikvision 4MP Dome
4MP AcuSense In-Ceiling Recessed Dome IP Camera with Built-in Microphone
Designed for architecturally sensitive commercial interiors, luxury retail boutiques, corporate offices, and hospitality venues, the Hikvision DS-2CD2E43G2-U (2.8mm) delivers high-definition 4MP (2560 × 1440) resolution in a ultra-discreet, flush-mount form factor. Engineered to blend seamlessly into drop ceilings and plasterboard surfaces, this recessed dome camera combines minimal visual intrusion with Hikvision's powerful AcuSense deep-learning target classification—providing accurate, real-time perimeter protection and audio monitoring without disrupting interior aesthetics.
Resolution / Optics
4MP (2560 × 1440) @ 2.8mm
Form Factor & Mounting
Recessed In-Ceiling / Flush
AI Intelligence
AcuSense Human/Vehicle
Audio & Dynamic Range
Built-in Mic / 120dB WDR
Deep Learning Target Filtering & Integrated Real-Time Audio
Significantly reducing false trigger notifications caused by moving shadows, air currents, or lighting shifts, the DS-2CD2E43G2-U incorporates AcuSense deep-learning analytics to differentiate between human subjects and vehicles with pinpoint precision. Equipped with a built-in microphone for synchronized real-time audio capture, 120 dB True WDR for balancing bright windows and shadowed interior areas, ultra-efficient H.265+ video encoding, and local microSD card backup up to 512 GB, this PoE-powered recessed dome provides comprehensive internal security without bulky hardware.
Architectural Flush-Mount Design
Installs directly into ceiling tiles or drywall with built-in retention spring clips, keeping the profile extremely low and maintaining clean interior lines in modern commercial spaces.
120 dB True WDR & Built-in Audio Capture
Master challenging indoor lighting near glass facades or bright entranceways while capturing localized environment audio with the integrated noise-filtering internal microphone.
Technical Specification Matrix
Camera Model
DS-2CD2E43G2-U
Image Sensor & Resolution
1/3" Progressive Scan CMOS; 4MP (2560 × 1440) @ 25/30fps
Lens Options & Field of View
2.8 mm Fixed Lens (Horizontal FOV: 103°, Vertical FOV: 55°, Diagonal FOV: 123°)
Low Light Sensitivity
0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR/Ambient light
Form Factor & Installation
In-Ceiling Recessed Dome; Integrated Spring Clip Mount
Wide Dynamic Range (WDR)
120 dB True WDR
Smart Analytics
AcuSense AI: Line Crossing & Intrusion Detection with Human/Vehicle Classification
Audio Capabilities
Built-in Microphone; Monaural Audio Compression (G.711/G.722.1/MP2L2/PCM)
On-Board Storage
MicroSD/SDHC/SDXC Slot, up to 512 GB
Environment & Housing
Indoor Recessed Plastic Housing
Power Supply & PoE
12 VDC ± 25% (Max 4.2 W) or PoE (802.3af, Class 3, Max 5.3 W)
Frequently Asked Questions
How is the DS-2CD2E43G2-U installed into a ceiling?
The camera features integrated spring-loaded ceiling clamps. After cutting a standard hole in a ceiling tile or drywall panel, the camera inserts directly and locks securely into place flush against the surface.
Does this camera have built-in Infrared (IR) night vision LEDs?
No, the DS-2CD2E43G2-U is designed specifically for low-profile indoor ambient lighting environments. It utilizes an ultra-sensitive sensor (0.005 Lux) and 120 dB WDR to capture clear images without bulky external IR LED rings.
Can this camera record ambient room sound?
Yes, it features an integrated internal microphone that captures clear mono audio, providing synchronized audio evidence along with the 4MP video feed.
What is the main benefit of AcuSense technology in an indoor camera?
AcuSense filters out false alarms caused by indoor environmental factors like ceiling fan motion, shifting sunlight through windows, or moving curtains, sending alerts only when a human or vehicle is detected.
Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Pro Series
Hikvision 8MP 4K Bullet
8MP 4K DarkFighter Extended-Range Bullet IP Camera with Active Deterrence Strobe & Audio Alarm
Engineered for critical perimeter protection across large-scale commercial facilities, industrial logistics hubs, and high-value yards, the Hikvision DS-2CD2T86G2H-IS2U/SL (2.8mm) captures crystal-clear 8MP 4K Ultra HD resolution (3840 × 2160) powered by Hikvision's flagship DarkFighter low-light architecture. Functioning as a proactive perimeter defense shield with powerful 60-metre Smart IR range, this heavy-duty bullet camera combines deep-learning target classification with real-time active deterrence—triggering red and blue flashing LED strobe lights alongside a 120 dB audible warning or custom voice prompt the moment an unauthorized intrusion is detected.
Resolution / Optics
8MP 4K (3840 × 2160) @ 2.8mm
Low Light & Deterrence
DarkFighter & Strobe/Audio
AI Intelligence
AcuSense Human/Vehicle
Protection / Night Vision
IP67 Weather / 60m IR
AcuSense Deep Learning & Dual-Microphone Environmental Noise Filtering
Built to eliminate costly false alarms, the DS-2CD2T86G2H-IS2U/SL uses AcuSense deep-learning algorithms to isolate human and vehicle activity from non-threatening environmental motion like sway, rain, or small animals. For comprehensive audio-visual evidence, an integrated dual-microphone array filters out harsh ambient noise (such as wind and traffic) to capture crisp directional audio. Supported by 120 dB True WDR for high-contrast lighting compensation, ultra-efficient H.265+ compression, onboard microSD storage up to 512 GB, and dedicated physical Alarm/Audio I/O interfaces, it offers an enterprise-grade security package.
Active Visual Strobe & 120 dB Audible Warning
Stop threats before damage occurs. Upon a confirmed perimeter breach, the camera activates high-visibility flashing red and blue LED lights while sounding an integrated 120 dB speaker alarm or voice prompt.
DarkFighter 8MP Low-Light Imaging & 60m Smart IR
Combining an ultra-sensitive 1/1.8" sensor with DarkFighter technology and an F1.0 super-aperture, it captures rich colour detail in low ambient light, backed by 60-metre IR illumination in complete darkness.
Technical Specification Matrix
Camera Model
DS-2CD2T86G2H-IS2U/SL
Image Sensor & Resolution
1/1.8" Progressive Scan CMOS; 8MP 4K (3840 × 2160) @ 24/25/30fps
Lens & Field of View
2.8 mm Fixed Lens (Horizontal FOV: 105°, Vertical FOV: 56°, Diagonal FOV: 130°)
Low Light Sensitivity & IR Distance
DarkFighter (0.0008 Lux @ F1.0, AGC ON); Smart IR up to 60 metres
Active Deterrence Features
Flashing Red & Blue Strobe Light; Built-in 2 W Speaker (120 dB Sound Pressure)
Wide Dynamic Range (WDR)
120 dB True WDR
Smart Analytics
AcuSense AI: Line Crossing, Intrusion, Region Entrance/Exiting with Human/Vehicle Target Filtering
Audio & Alarm Interfaces
Dual Microphones; Speaker; 1 Audio In/Out; 1 Alarm In/Out (24 VDC/VAC, 1 A)
On-Board Storage
MicroSD/SDHC/SDXC Card Slot, up to 512 GB
Housing & Protection Rating
IP67 Weatherproof Standard; Rugged All-Metal Body & Bracket
Power Supply & Consumption
12 VDC ± 25% (Max 10.5 W) or PoE (802.3at, Class 4, Max 17 W)
Frequently Asked Questions
What makes 8MP 4K resolution essential for active deterrence surveillance?
8MP (3840 × 2160) provides 4 times the resolution of 1080p, allowing security personnel to digitally zoom into distant targets along perimeter lines without pixelation, making subject identification clearer for legal evidence.
How do the active strobe light and audible alarms trigger?
When the camera's AcuSense engine detects a human or vehicle crossing a designated virtual boundary, it automatically activates the flashing red and blue LED strobe lights and sounds a high-decibel warning message or siren.
Does this camera support physical alarm inputs and outputs?
Yes, the DS-2CD2T86G2H-IS2U/SL includes physical Alarm I/O terminal blocks (1 input / 1 output), enabling direct connection to external security relays, gate triggers, or third-party strobe units.
What is the benefit of having dual built-in microphones?
Dual microphones allow the camera to use noise-cancellation algorithms, suppressing background environmental sound (like wind or highway noise) to record clear, foreground voice audio.
Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Pro Series · EasyIP 4.0
Hikvision 6MP Bullet
6MP DarkFighter Extended-Range Bullet IP Camera with Active Deterrence Strobe & Audio Alarm
Built for demanding perimeter protection across expansive commercial sites, logistics hubs, and industrial yards, the Hikvision DS-2CD2T66G2H-IS2U/SL (2.8mm) delivers ultra-high-definition 6MP (3200 × 1800) image clarity powered by Hikvision's flagship DarkFighter low-light architecture. Operating as a active perimeter defense unit with long-range 60-meter IR coverage, this robust bullet camera pairs deep-learning target classification with real-time active deterrence—flashing visual red and blue strobe lights and sounding custom voice warnings or sirens the moment an unauthorized intrusion is detected.
Resolution / Optics
6MP (3200 × 1800) @ 2.8mm
Low Light & Deterrence
DarkFighter & Strobe/Audio
AI Intelligence
AcuSense Human/Vehicle
Protection / Night Vision
IP67 Weather / 60m IR
AcuSense Deep Learning & Dual-Microphone Noise Reduction
Engineered to reduce false alarms by up to 90%, the DS-2CD2T66G2H-IS2U/SL leverages AcuSense AI algorithms to focus exclusively on human and vehicle classification, bypassing environmental triggers like rustling foliage or wildlife. Beyond visual monitoring, the unit features an integrated dual-microphone array that filters out ambient outdoor noise to capture clear, directional audio. Equipped with 120 dB True WDR for extreme contrast handling, ultra-efficient H.265+ video encoding, an alarm/audio I/O interface, and micro-SD card support up to 512 GB, it offers a total security solution for critical infrastructure.
Active Strobe Light & Voice Warning System
Instantly counter unauthorized access with bright red and blue flashing LED strobe lights combined with high-volume voice alerts or customizable sirens, stopping trespassers prior to entry.
DarkFighter 0.003 Lux Performance & 60m IR
Utilizes DarkFighter low-light technology to retain high color accuracy down to 0.003 Lux, backed by a powerful Smart IR illuminator reaching up to 60 meters in complete darkness.
Technical Specification Matrix
Camera Model
DS-2CD2T66G2H-IS2U/SL
Image Sensor & Resolution
1/1.8" Progressive Scan CMOS; 6MP (3200 × 1800) @ 25/30fps
Lens Options & Field of View
2.8 mm: Horizontal FOV 105°, Vertical FOV 57°, Diagonal FOV 127°
Low Light Sensitivity & IR Distance
DarkFighter (0.003 Lux @ F1.6); Smart IR Range up to 60 meters
Active Deterrence Features
Flashing Red & Blue Strobe Light; Built-in Speaker for Voice Prompts & Siren Alarms
Wide Dynamic Range (WDR)
120 dB True WDR
Smart Analytics
AcuSense AI: Line Crossing, Intrusion, Region Entrance/Exiting with Human/Vehicle Target Filtering
Audio & Alarm I/O
Dual Built-in Microphones with Noise Suppression; Speaker; 1 Input / 1 Output Alarm Interface
On-Board Storage
MicroSD/SDHC/SDXC Slot, up to 512 GB
Housing & Ingress Rating
IP67 Weatherproof Standard; Rugged All-Metal Body
Power Supply
12 VDC ± 25% or PoE (802.3af, Class 3)
What is the difference between this model and the smaller mini bullet (DS-2CD2066G2H-I2U/SL)?
The DS-2CD2T66G2H-IS2U/SL features a larger chassis engineered for extended reach, offering up to 60 meters of IR night vision (compared to 40 meters) and additional physical Alarm I/O interfaces for external relay connections.
How do the active deterrence light and audio triggers operate?
When the camera detects a classified human or vehicle target breaking a virtual perimeter rule, it triggers flashing red and blue LED lights alongside an audible alarm or voice prompt to deter intruders before entry.
Can I connect external security alarm sensors or relays to this camera?
Yes, this camera includes integrated physical Alarm I/O ports (1 input / 1 output), allowing you to link external strobe lights, gate triggers, or physical sensors directly to the unit.
How does the dual-microphone array improve sound recording?
By using dual microphone elements and signal processing, the camera filters out ambient outdoor noise like heavy wind and traffic, providing clearer sound for situational evidence.
Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
3-Year Commercial Warranty
Aust-Wide Delivery
Hikvision Video Intercom Accessories
Ergonomic Desk Mounting Solution for Video Intercom Indoor Stations
The DS-KABH8350-T is a premium tabletop mounting bracket purpose-built for Hikvision DS-KH8350 series indoor video intercom stations. Engineered specifically for reception desks, office workstations, security consoles, and residential side tables, this mounting accessory provides a stable, tilted display platform that transforms traditional wall-mounted indoor monitors into flexible, desk-ready communication terminals.
Compatibility
DS-KH8350 Series Monitors
Material & Build
SUS304 Stainless Steel
Form Factor
Angled Desktop Mount
Protection
Corrosion-Resistant Finish
Durable SUS304 Construction with Precision Angle Alignment
Crafted from high-grade SUS304 stainless steel, the Hikvision DS-KABH8350-T offers exceptional structural rigidity and resistance to daily wear and corrosion. Its precision-engineered inclination angle positions the intercom touchscreen for optimal viewing and touch responsiveness, reducing glare from overhead commercial lighting while ensuring effortless hands-free call handling and video previewing.
Seamless Cable & Structural Integration
Designed with dedicated pass-through routing channels, the DS-KABH8350-T keeps network and power wiring neatly concealed behind the mounting face. This prevents unsightly clutter on corporate reception desks and protects connection ports from strain or accidental disconnection.
Industrial Stainless Steel Durability
Unlike light plastic alternatives, the heavy-gauge SUS304 stainless steel construction provides a weighted, non-slip base that stays anchored in place during heavy touchscreen interaction in high-traffic administrative or security environments.
Technical Specification Matrix
Bracket Model
DS-KABH8350-T
Compatible Devices
Hikvision DS-KH8350 Series Indoor Stations (e.g., DS-KH8350-TE1)
Primary Material
SUS304 Stainless Steel
Mounting Type
Tabletop / Desktop Stand
Working Temperature
-10 °C to +55 °C (14 °F to 131 °F)
Working Humidity
10% to 90% (Non-condensing)
Dimensions (W x H x D)
194.5 mm × 106.3 mm × 115.8 mm (7.66" × 4.19" × 4.56")
Application Environment
Indoor (Reception, Security Desk, Office, Home)
Frequently Asked Questions
Which Hikvision indoor stations are compatible with the DS-KABH8350-T?
This table stand is specifically engineered to fit the Hikvision DS-KH8350 series indoor video intercom terminals, such as the DS-KH8350-TE1 model.
Is hardware required to secure the monitor to the bracket?
Yes. The bracket aligns directly with the standard mounting points on the back of the compatible indoor station for a secure, wiggle-free attachment using the included fixing screws.
Can the bracket be used outdoors?
No. The DS-KABH8350-T is designed strictly for indoor deployment on desks, counters, or tabletop surfaces within controlled ambient environments.
Does this stand require drilling into the desk surface?
No. It functions as a stable, free-standing desktop mount that allows easy repositioning without damaging commercial office furniture or counter surfaces.
Technical Datasheet
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Video Intercom Accessories
Professional Desktop Mounting Solution for Video Intercom Indoor Stations
The DS-KABH6350-T is an engineered desktop stand designed specifically for Hikvision indoor video intercom monitors. Built for environments where wall mounting is impractical or undesirable—such as reception desks, security control stations, office counters, and luxury apartment interiors—this bracket provides an optimal viewing angle and ultra-stable support. Constructed from heavy-gauge SECC zinc-coated steel with integrated silica gel contact pads, it ensures long-term structural durability while shielding both your intercom unit and desk surfaces from scratches.
Mounting Type
Desktop / Tabletop Stand
Compatibility
DS-KH6350 & KH6351 Series
Build Material
SECC Steel & Silica Gel
Operating Temp
-10 °C to +55 °C
Seamless Cable Integration & Surface Protection
Engineered to preserve clean aesthetics in high-visibility commercial and residential areas, the DS-KABH6350-T table bracket includes integrated rear cable passthroughs to route power and Ethernet cabling seamlessly. Its precision-cut SECC metal body provides a rigid base preventing tipping during touch interactions, while non-slip silica gel cushioning dampens vibration and holds the indoor station securely without scratching delicate furniture surfaces.
Electrogalvanized SECC Steel Construction
Manufactured from cold-rolled electrogalvanized steel (SECC), offering superior structural integrity, impact resistance, and rust protection for long-term commercial installations.
Silica Gel Cushioning & Cable Management
Integrated high-grade silica gel padding prevents scratches on the monitor body and tabletop, while discreet rear cutouts keep network and power cabling hidden and strain-relieved.
Technical Specification Matrix
Product Model
DS-KABH6350-T
Compatible Intercom Models
DS-KH6350-TE1, DS-KH6350-WTE1, DS-KH6351-TE1, DS-KH6351-WTE1, DS-KH7300EY-WTE2
Primary Material
SECC Steel (Electrogalvanized Cold-Rolled Steel)
Protective Elements
Silica Gel Non-Slip Contact Pads
Dimensions (W × H × D)
97.2 mm × 89.22 mm × 76.6 mm
Working Temperature
-10 °C to +55 °C (14 °F to 131 °F)
Mounting Type
Desktop / Tabletop Surface Mount
Colour / Finish
Commercial Matte Finish
Which Hikvision indoor stations are compatible with this bracket?
The DS-KABH6350-T is tailored specifically for the Hikvision DS-KH6350 and DS-KH6351 7-inch indoor video intercom series (including DS-KH6350-TE1, DS-KH6350-WTE1, DS-KH6351-TE1, DS-KH6351-WTE1) and DS-KH7300EY models.
Does this bracket require surface screws for installation?
No surface screwing is required. The bracket is designed as a free-standing desktop unit with non-slip silica gel pads that maintain stability on countertops, desks, and glass tables.
How are network cables managed with this desktop stand?
The bracket features pre-cut routing access points that allow Ethernet (PoE) or power cables to feed directly out the back of the bracket for a tidy cable-managed appearance.
Will the metal frame mark or scratch sensitive desktop surfaces?
No. Soft silica gel protective contact points prevent direct metal-to-surface contact, protecting delicate timber, veneer, or polished stone surfaces.
Technical Datasheet
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Pro Series
Hikvision 6MP Bullet
6MP DarkFighter Bullet IP Camera with Active Deterrence Strobe & Audible Warning
Engineered for high-risk commercial and residential perimeters, the Hikvision DS-2CD2066G2H-I2U/SL delivers high-definition 6MP (3200 × 1800) video powered by DarkFighter low-light architecture. Available in versatile 2.8mm (105° FOV) and 4mm (78° FOV) focal lengths, this compact mini bullet camera transforms passive surveillance into active prevention. When an intrusion is detected, the camera immediately activates red and blue strobe lights and triggers a customizable voice alarm or siren, deterring unauthorized access before security breaches occur in loading docks, outdoor storage lots, vehicle yards, and remote property lines.
Resolution / Lens
6MP @ 2.8mm or 4mm
Low Light & Active Defense
DarkFighter & Strobe/Audio
AI Intelligence
AcuSense Human/Vehicle
Protection / Audio
IP67 Weatherproof / Dual Mic
AcuSense Deep Learning & Dual-Microphone Environmental Noise Filtering
Eliminate false alarms caused by rain, falling leaves, or moving shadows with the integrated AcuSense deep-learning AI inside the DS-2CD2066G2H-I2U/SL. By classifying human and vehicle targets with precision, the camera streams relevant alerts directly to your monitoring software or mobile device. For complete situational awareness, it features an advanced dual-microphone array that filters out ambient background noise like wind and vehicle engine hums to record crystal-clear audio. Supported by 120 dB True WDR, 40-metre Smart IR range, efficient H.265+ compression, and on-board microSD storage up to 512 GB, it provides non-stop, high-grade security for demanding site conditions.
Active Strobe Light & Custom Voice Warnings
Instantly respond to perimeter intrusions with flashing red and blue LED strobe alerts accompanied by automated or custom audio messages, deterring potential intruders prior to property entry.
DarkFighter Ultra-Low Light & Dual Microphones
Capture detailed, colour-rich imagery in light conditions down to 0.003 Lux, paired with dual directional microphones for ambient noise suppression and clear audio evidence collection.
Technical Specification Matrix
Camera Model
DS-2CD2066G2H-I2U/SL
Image Sensor & Resolution
1/1.8" Progressive Scan CMOS; 6MP (3200 × 1800) @ 25/30fps
Lens Options & Field of View
2.8 mm (Horizontal: 105°, Vertical: 57°) | 4 mm (Horizontal: 78°, Vertical: 44°)
Min. Illumination & Night Vision
DarkFighter (0.003 Lux @ F1.6); Smart IR Range up to 40 metres
Active Deterrence
Visual Red & Blue Flashing Strobe Light; Built-in Speaker for Audio Warnings / Sirens
Wide Dynamic Range (WDR)
120 dB True WDR
Smart Analytics
AcuSense Deep Learning: Line Crossing, Intrusion, Region Entrance/Exiting with Human/Vehicle Target Classification
Audio Capabilities
Dual Built-in Microphones with Environmental Noise Suppression & Built-in Speaker
On-Board Storage
Built-in MicroSD/SDHC/SDXC Slot, up to 512 GB
Protection Rating & Enclosure
IP67 Weatherproof Standard; Full Metal Construction
Power Supply
12 VDC ± 25% or PoE (802.3af, Class 3)
Which lens option should I choose: 2.8mm or 4mm?
Select the 2.8mm lens if you need a wide 105° field of view for broad area coverage like open driveways or yard spaces. Choose the 4mm lens for a narrower 78° view that offers increased facial detail at longer detection distances along narrow fence lines or corridors.
How does Active Deterrence help prevent security incidents?
When the camera detects a classified human or vehicle intrusion, it triggers flashing strobe lights and plays sound warnings. This alerts intruders that they have been detected, deterring criminal behaviour before damage or entry occurs.
What is the benefit of the dual-microphone array?
The dual-microphone design uses directional sound sampling to filter out ambient background noise such as wind or environmental hums, ensuring crisp audio recording focused on nearby activity.
Can I customize the audio alarm messages?
Yes, you can select from preset warning sounds or upload custom voice audio clips through the camera web interface or Hik-Connect application to suit your site requirements.
Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision TandemVu Series
Hikvision 4MP TandemVu PTZ
4MP Dual-Channel TandemVu PTZ Camera with ColorVu Panoramic Lens & 4x Optical Zoom
Engineered for multi-scenario commercial surveillance and expansive area monitoring, the Hikvision DS-2SE3C404MWG-E/14 incorporates revolutionary TandemVu technology to capture both overall situational awareness and granular details simultaneously. Integrating a fixed 4MP ColorVu 2.0 panoramic channel alongside a 4MP pan-tilt-zoom channel with 4x optical zoom into a single compact housing, this dual-channel unit eliminates blind spots. Whether protecting commercial entryways, parking facilities, retail concourses, or perimeter boundary fencing, operators maintain continuous wide-angle coverage even while taking advantage of motorised optical tracking.
Resolution & Zoom
Dual 4MP (2560 × 1440) / 4x Zoom
Dual Night Illumination
30m ColorVu / 30m IR PTZ
AI Detection
AcuSense Human & Vehicle
Housing Rating
IP66 Weatherproof Standard
AcuSense Perimeter Analytics & Dual-Channel Synchronization
Beyond dual-camera optics, the DS-2SE3C404MWG-E/14 features Hikvision's AcuSense deep-learning engine across both channels to drastically minimise false triggers caused by environmental motion such as wind-blown foliage or rain. The fixed panoramic lens acts as an automated scout, detecting human or vehicle presence and commanding the PTZ channel to zoom in, lock on, and capture detail. Outfitted with a high-fidelity built-in microphone for synchronized audio verification, 120 dB True WDR for high-contrast backlit scene clarity, and H.265+ compression, this unit optimizes network bandwidth without compromising evidentiary quality.
ColorVu 2.0 24/7 Colour Panoramic Field
The upper panoramic lens incorporates an F1.0 super-aperture lens and warm white supplemental light to capture full-colour 4MP video 24/7, keeping overall contextual activity visible even in complete darkness.
AcuSense Target Classification & Active Linking
Deep-learning algorithms classify human and vehicle targets with precision. Panoramic analytics trigger target linkage to the PTZ module for automated close-up tracking, recording, and rapid forensic retrieval.
Technical Specification Matrix
Camera Model
DS-2SE3C404MWG-E/14
Panoramic Channel Spec
1/3" Progressive Scan CMOS; 4MP (2560 × 1440); 2.8 mm Fixed Lens (FOV 97°); ColorVu 24/7 Full-Colour
PTZ Channel Spec
1/2.8" Progressive Scan CMOS; 4MP (2560 × 1440); 2.8 to 12 mm Motorised Lens; 4x Optical / 16x Digital Zoom
Illumination Range
Panoramic: Warm White Light up to 30 m; PTZ: Smart IR up to 30 m
Wide Dynamic Range (WDR)
120 dB True WDR
Pan & Tilt Range
Pan: 0° to 350°; Tilt: 0° to 90°
Smart Analytics
AcuSense Deep Learning Target Classification (Human & Vehicle), Line Crossing, Intrusion Detection
Audio & On-Board Storage
Built-in Microphone; MicroSD/SDHC/SDXC Card Slot up to 512 GB
Environmental Rating
IP66 Weatherproof Standard; TVS 6000V Lightning & Surge Protection
Power Input
12 VDC ± 20% / PoE (802.3at, Class 4)
Frequently Asked Questions
What is the primary advantage of a TandemVu PTZ camera?
Traditional PTZ cameras lose wide-angle coverage when zoomed in. TandemVu solves this by using a fixed 24/7 wide-angle panoramic lens alongside the motorised PTZ lens, providing simultaneous wide-area oversight and zoomed target detail.
Does the DS-2SE3C404MWG-E/14 support full-colour night vision?
Yes, the panoramic channel features ColorVu technology with a warm white supplementary light that delivers full-colour 4MP video 24/7, while the PTZ channel uses adaptive smart IR illumination up to 30 metres.
Can I power this dual-channel camera using standard PoE?
Yes, the camera can be powered using Power over Ethernet+ (PoE+ 802.3at, Class 4) over a single network cable or via a conventional 12 VDC external power adapter.
How does AcuSense AI target classification assist security personnel?
AcuSense uses deep-learning algorithms to categorize movement into human, vehicle, or non-target events. This minimizes nuisance alarms caused by small animals or blowing foliage and allows faster recorded video searches.
Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision KH6 Series
Streamlined Residential Entry & Intercom Management
The DS-KH6110-WE1 is an entry-level 4.3-inch IP video intercom indoor station engineered to deliver intuitive, reliable access management for modern residential apartments, villas, and small commercial offices. Featuring a sleek white housing with a responsive capacitive touch display, the DS-KH6110-WE1 integrates seamless two-way audio communication with remote opening capabilities and mobile connectivity. Designed for fast deployment, this unit combines cost-effective hardware architecture with flexible network options to suit budget-conscious projects without compromising on core performance or user experience.
Display & Control
4.3" Touch (480×272)
Audio Processing
2-Way Noise Cancelled
Connectivity
Wi-Fi & 100M Ethernet
Power Architecture
Standard PoE / 12 VDC
Advanced Networking & Remote Control Integration
Engineered with versatile communication architecture, the hikvision-ds-kh6110-we1-4-3-ip-video-intercom-indoor-station supports standard SIP, TCP/IP, and RTSP protocols for unified integration across door stations and linked IP security cameras. Users can effortlessly view live camera feeds, answer incoming visitor calls, and unlock entryways directly from the station or remotely via the Hik-Connect mobile application. Equipped with 4 customizable touch buttons and standard IEEE 802.3af Power over Ethernet (PoE), installation is simplified to a single network cable run, reducing system overhead while maximizing operational reliability.
Customizable Quick Touch Controls
Features 9 total touch buttons, including 4 configurable shortcuts that allow occupants to instantly trigger unlock functions, call security, or access preferred camera views with a single tap.
Crystal-Clear Two-Way Audio
Integrated omnidirectional microphone and built-in loudspeaker utilize acoustic echo cancellation and hardware noise suppression for clear voice communication in dynamic indoor environments.
Technical Specification Matrix
Camera Model
DS-KH6110-WE1
Display Screen
4.3-inch Colorful TFT Capacitive Touch Screen (480 × 272 resolution)
Operating System
Embedded Linux Operating System
Audio Parameters
Built-in Omnidirectional Mic & Speaker, G.711 U/A, Noise Suppression & Echo Cancellation
Network Interfaces
1× RJ45 10/100 Mbps Adaptive Ethernet + Wi-Fi 802.11 b/g/n (2.4 GHz)
Communication Protocols
TCP/IP, SIP, RTSP, Hik-Connect P2P
Power Supply
IEEE 802.3af Standard PoE or 12 VDC (Power consumption ≤ 4 W)
Dimensions & Mounting
120 mm × 120 mm × 21 mm; Surface Wall or Table Mounting
How is the DS-KH6110-WE1 powered?
The unit can be powered using standard Power over Ethernet (IEEE 802.3af PoE) via a direct network connection or through a standard 12 VDC external power adapter.
Can I connect this indoor station to the Hik-Connect mobile app?
Yes, the station features built-in Wi-Fi and Ethernet connectivity, allowing complete remote access via the Hik-Connect app for answering calls and remotely opening doors.
How many extensions can be linked to this unit?
The DS-KH6110-WE1 supports linking up to 16 indoor extensions for multi-room communication within a single residence or office network.
Can I view external IP cameras on this screen?
Yes, through RTSP protocol integration, you can stream live video feeds from linked Hikvision door stations and compatible network security cameras directly on the 4.3" screen.
Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Ultra Series · Commerical Grade
Enterprise Multi-Authentication IP Video Intercom Station
The DS-KD9203-ME6 is a flagship IP facial recognition door station engineered by Hikvision for high-density residential towers, commercial office complexes, and gated facilities. Housed in a durable metallic enclosure with an IP65 ingress protection rating, it combines biometrics, RFID card verification, and direct numerical dialing into a streamlined access management terminal. Featuring dual 2 MP wide-angle optical sensors and a high-brightness 4.3-inch colour LCD display, this unit ensures crisp visual communication and anti-spoofing security at high-traffic entry points.
Resolution / Screen
Dual 2MP / 4.3" LCD
Auth Modes
Face, Card, PIN
Face Capacity
Up to 5,000 Users
Protection Rating
IP65 Weatherproof
Advanced Biometric Access & Network Integration
The Hikvision DS-KD9203-ME6 is powered by an embedded Linux OS to provide zero-latency local facial recognition with built-in anti-spoofing technology. Capable of storing up to 5,000 face templates and 50,000 M1 (13.56 MHz) RFID cards, it effortlessly manages entry permissions for thousands of occupants. Equipped with 120 dB Wide Dynamic Range (WDR) and built-in IR supplement lighting effective up to 3 metres, the terminal maintains accurate face detection even under severe backlight or nighttime outdoor conditions. Integrated web-based remote management, dual RS-485 interfaces, and 2 relay lock controls make it an adaptable hub for enterprise access topologies.
Deep Learning Facial Recognition
Equipped with dual 2MP optics and live body detection to eliminate photo and video spoofing, delivering rapid verification speed under varying light conditions.
Dual Relay Door Control
Includes 2 relay outputs (30 VDC, 2 A) allowing independent management of pedestrian gates, automatic doors, or turnstiles from a single terminal.
Technical Specification Matrix
Camera Model
DS-KD9203-ME6
Display Screen
4.3-inch Colorful LCD (800 × 480 Resolution)
Camera Sensor
2 × 2 MP HD Camera with 120 dB WDR
Supplement Light
IR Light, up to 3 m range
Authentication Modes
Face Recognition, Mifare Card (13.56 MHz), PIN Code
System Capacity
5,000 Faces, 50,000 Cards, 10,000 Users
Network & Control Interfaces
1x RJ-45 (10/100/1000 Mbps), 2x RS-485, 4x Alarm Input, 2x Lock Relays
Environmental Rating
IP65 Weatherproof, -30 °C to 60 °C Operating Temperature
How many doors can the DS-KD9203-ME6 control directly?
The unit features 2 integrated relay outputs (Max 30 VDC, 2A), enabling direct trigger and pulse control for up to two separate door strikes or gate actuators.
Does the camera perform effectively in low-light and high-glare environments?
Yes. It integrates 120 dB WDR along with IR supplement illumination, allowing clear image capture and biometrics up to 3 metres in total darkness or direct backlight.
Which RFID card formats are compatible with the built-in reader?
The door station has an integrated M1 card module operating on the 13.56 MHz Mifare standard, supporting up to 50,000 credentials.
How is the device configured and managed?
Configuration can be performed remotely via a standard Web browser, Hikvision iVMS-4200 software, or integrated into HikCentral management platforms.
Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision EasyIP Pro Series
Hikvision 8MP Turret
Next-Generation 8MP 4K ColorVu Turret Camera with Smart Hybrid Light & AcuSense AI
Engineered for high-security commercial and perimeter protection applications, the Hikvision DS-2CD2387G3-LIS2UY/SRB (2.8mm) delivers ultra-high-definition 4K 8MP resolution with ColorVu 3.0 technology. Equipped with a large F1.0 aperture and an advanced sensor, this camera captures vibrant full-colour imagery day and night. Hikvision’s innovative Smart Hybrid Light system dynamically toggles between covert infrared illumination and supplementary warm white light upon human or vehicle detection, offering crystal-clear colour verification when events occur while maintaining a discreet profile during quiet hours.
Resolution / Optics
8MP (3840 × 2160) @ 2.8mm
Night Vision / Light
Smart Hybrid Light (IR/White)
AI Analytics
AcuSense Human/Vehicle
Protection / Housing
IP67 Weatherproof / Metal
Precision Perimeter Security Powered by Deep Learning AI
Beyond exceptional visual performance, the DS-2CD2387G3-LIS2UY/SRB features advanced AcuSense deep-learning algorithms designed to filter out up to 90% of false alarms triggered by foliage, rain, shadows, or animals. System operators receive actionable real-time alerts only when humans or vehicles cross defined boundaries. Integrated with a high-fidelity built-in microphone for synchronized audio-visual monitoring, 130 dB True WDR for high-contrast lighting balance, and efficient H.265+ compression to optimize bandwidth and storage, this turret camera sets a high standard for modern IP video surveillance.
ColorVu 3.0 & F1.0 Super-Aperture
Combining an F1.0 super-aperture lens with a high-performance image sensor, ColorVu technology maximizes available light to capture full-colour surveillance footage in near-total darkness without relying solely on bright spotlight illumination.
AcuSense False-Alarm Reduction & Built-in Audio
Deep-learning algorithms classify targets precisely to eliminate false triggers from environmental noise. An integrated microphone enables real-time situational audio capture alongside high-resolution video streams.
Technical Specification Matrix
Camera Model
DS-2CD2387G3-LIS2UY/SRB
Image Sensor & Max. Resolution
1/1.8" Progressive Scan CMOS; 8MP (3840 × 2160)
Focal Length & FOV
2.8 mm: Horizontal FOV 108.8°, Vertical FOV 56.4°, Diagonal FOV 134.3°
Lighting & Night Vision
Smart Hybrid Light (IR & Warm White Light); Up to 30 m Range
Wide Dynamic Range (WDR)
130 dB True WDR
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Smart Features & Analytics
AcuSense Deep Learning: Human & Vehicle Target Classification, Line Crossing, Intrusion Detection
Audio Interface
Built-in Microphone for Real-Time Audio Security
On-Board Storage
Built-in MicroSD/SDHC/SDXC Slot, up to 512 GB
Operating Conditions & Protection
-30 °C to 60 °C (-22 °F to 140 °F); IP67 Weatherproof Rated; Metal Housing
Power Supply
12 VDC ± 25% or PoE (802.3af, Class 3)
Frequently Asked Questions
How does the Smart Hybrid Light feature work?
The camera uses IR light for invisible monitoring in dark conditions. When AcuSense detects a human or vehicle, the camera automatically switches to warm white light to capture full-colour event footage, returning to IR mode once the target leaves.
Does this camera record audio out of the box?
Yes, the DS-2CD2387G3-LIS2UY/SRB features a built-in microphone that captures clear environmental audio along with 8MP video without requiring an external microphone kit.
Can I power this camera over a single Ethernet cable?
Yes, the camera supports Power over Ethernet (PoE 802.3af), allowing power and data transmission through a single network cable, as well as a standard 12 VDC power connection.
Is this camera suitable for harsh outdoor conditions?
With an IP67 weather resistance rating and a durable metal housing, this camera is built to withstand heavy rain, dust, extreme heat, and freezing temperatures down to -30 °C.
Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

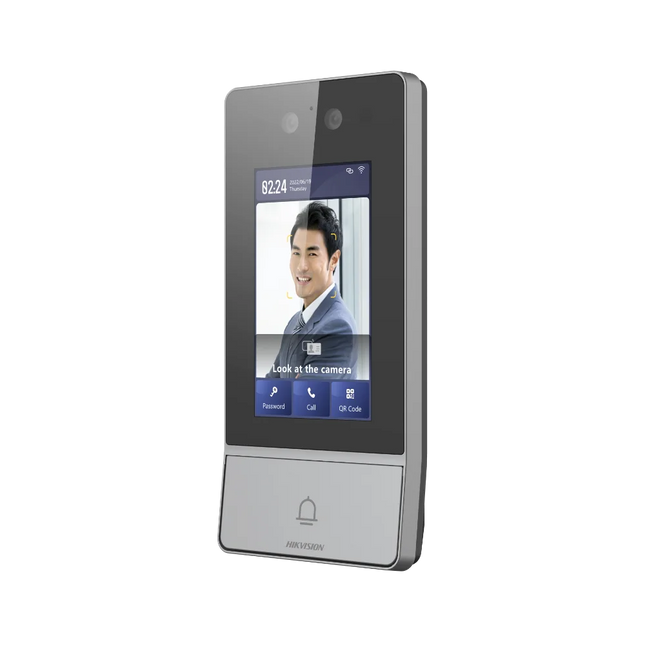

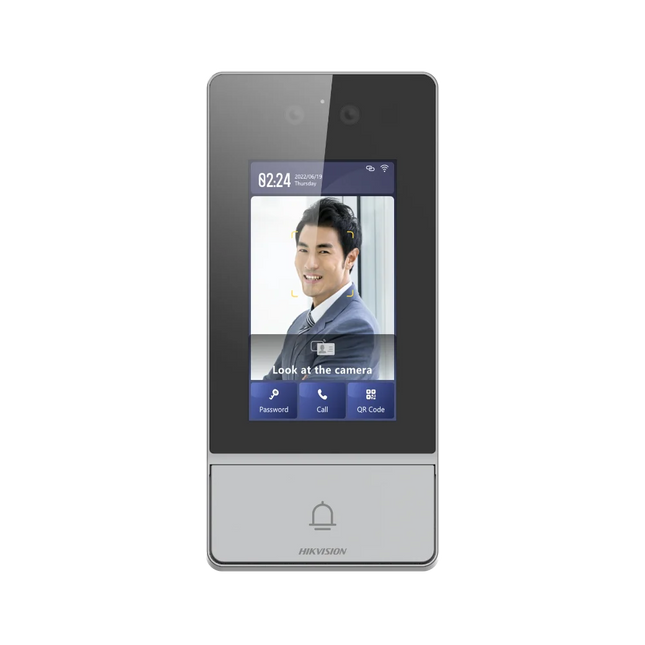

Hikvision Ultra Series
Commercial-Grade Access Control & Multi-Modal Video Intercom
The DS-KV9503-WBE1 is Hikvision’s flagship Ultra Series IP facial recognition villa door station, engineered to deliver ultra-secure access control and high-definition video communication for luxury residences, commercial office buildings, and high-density multi-tenant environments. Featuring a sleek industrial metal housing and a bright 4.3-inch IPS capacitive touchscreen display, this station combines enterprise-grade biometric authentication with intuitive, multi-subscriber user interaction.
Resolution / Screen
Dual 2MP / 4.3" IPS Touch
Optics & Dynamic Range
120 dB WDR / IR Night
Network & Power
Wi-Fi & Standard PoE
Protection Rating
IP65 Weather / IK08 Vandal
Advanced Multi-Factor Authentication & Seamless Network Integration
Equipped with deep learning facial recognition algorithms capable of identifying authorized users in under 0.2 seconds with greater than 99% accuracy, the Hikvision DS-KV9503-WBE1 delivers versatile access control options including facial biometrics, Mifare 13.56 MHz RFID cards, temporary QR codes, PIN codes, and Bluetooth access. With built-in Wi-Fi and Ethernet connectivity, native Hik-Connect integration allows tenants to receive live video calls, communicate via full-duplex two-way audio, and remotely unlock entry points directly from smartphones.
Multi-Modal Biometric & Access Control
Supports up to 10,000 face templates, 20,000 registered users, and 100,000 RFID cards. Provides high throughput for multi-tenant and office environments while maintaining strict security via multi-factor authentication modes.
Vandal-Resistant Weatherproof Construction
Encased in an IK08 vandal-resistant alloy structure with IP65 weather sealing, operating seamlessly across temperatures from -40°C to +60°C. Designed for single-cable standard Power over Ethernet (PoE) deployment.
Technical Specification Matrix
Camera Model
DS-KV9503-WBE1
Display Screen
4.3-inch IPS Capacitive Touchscreen (800 × 480 Resolution, 425 cd/m²)
Camera & Lens
2 × 2 MP Dual Lens (H: 88°, V: 44°)
Wide Dynamic Range & IR
120 dB True WDR, Built-in IR Light (Up to 3 m)
Authentication Modes
Facial Recognition, Mifare Card (13.56 MHz), PIN, QR Code, Bluetooth
System Capacity
20,000 Users / 10,000 Faces / 100,000 Cards
Facial Recognition Speed
< 0.2 s per person (Accuracy Rate ≥ 99%)
Network & Interfaces
10/100 Mbps Ethernet, 2.4GHz Wi-Fi, 2 Relays, 4 Alarm Inputs, 1 RS-485
Protection & Power
IP65, IK08, Standard PoE (IEEE 802.3af) or 12 VDC
Can the DS-KV9503-WBE1 operate without an indoor station monitor?
Yes. The station natively supports direct call routing to the Hik-Connect mobile application via Wi-Fi or Ethernet, allowing users to receive calls and unlock doors from anywhere on smart devices.
How fast and reliable is the facial recognition feature?
The unit features deep learning biometrics capable of authenticating faces in under 0.2 seconds with an accuracy rate of over 99%, performing reliably even in low-light conditions using IR supplementation.
How is the unit powered during installation?
It supports Standard Power over Ethernet (PoE 802.3af), receiving power and data through a single network cable, or can be powered via a traditional 12 VDC power supply.
Is this door station suitable for harsh outdoor conditions?
Absolutely. It features an IP65 ingress protection rating against rain and dust, along with IK08 vandal resistance and an operating temperature range of -40°C to +60°C.
Technical Datasheet Quick Start Guide
Installation Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Smart Industrial Series
Rugged 8-Port Gigabit Industrial Smart Managed Hi-PoE Switch with 4 SFP Optical Uplinks
Engineered for mission-critical video surveillance networks, factory automation, and extreme outdoor cabinet deployments, the Hikvision DS-3T1512HP-SI-8P4F delivers uncompromising industrial-grade performance. Housed in an IP40-rated heavy-duty metal enclosure, this Layer 2 smart managed switch combines 8 Full Gigabit PoE RJ45 ports with 4 dedicated Gigabit SFP fibre optic slots for long-distance trunk backhauls. Ports 1 through 4 adopt the ultra-high-power IEEE 802.3bt Hi-PoE standard—supplying up to 90 W on a single port—allowing heavy-duty PTZ cameras, thermal imagers, and multi-sensor units to be powered directly over network cabling without external field power supplies.
Port Configuration
8 × 1G PoE + 4 × 1G SFP Fibre
Power & Standard
90 W Hi-PoE (802.3bt) / 300 W Budget
Transmission Range
300m Extended Range Mode
Industrial Protection
-40°C to 75°C & 6 kV Surge
ERPS Ring Redundancy & Smart Remote Topology Management
Built for extreme thermal conditions ranging from -40 °C to +75 °C, the DS-3T1512HP-SI/8P4F supports G.8032 ERPS (Ethernet Ring Protection Switching) to ensure sub-50ms network failover recovery in critical ring topologies. System administrators can remotely monitor network topology, inspect PoE power loads, execute port diagnostics, and receive real-time fault alerts via Hik-Partner Pro or Hik-Central Pro cloud platforms. Automated hardware PoE Watchdog continuously polls connected devices and automatically reboots frozen cameras without site visits. Dual redundant DC power inputs with hot backup guarantee unbroken operations during primary supply disruptions.
Quad 90 W IEEE 802.3bt Hi-PoE Ports & 300 W Budget
Ports 1 through 4 output up to 90 W per port using 802.3bt Hi-PoE technology, backed by a total 300 W PoE budget. Long Range mode extends power and data delivery up to 300 metres across Cat5e/Cat6 wiring.
IP40 Fanless Metal Shell & Dual Power Inputs
Hardened, fanless IP40 metal chassis withstands severe shock, vibration, and extreme temperature swings. Dual 48–57 VDC terminal block inputs provide hot-backup power redundancy for mission-critical installations.
Technical Specification Matrix
Switch Model
DS-3T1512HP-SI-8P4F
Network Interfaces
8 × Gigabit PoE RJ45 Ports, 4 × Gigabit SFP Fibre Slots
PoE Standard
Ports 1–4: IEEE 802.3af/at/bt (Hi-PoE); Ports 5–8: IEEE 802.3af/at
Max Output Power per Port
Ports 1–4: Up to 90 W; Ports 5–8: Up to 30 W
Total PoE Power Budget
300 W
Switching Capacity
56 Gbps (Whole-Device) / 24 Gbps (Port Performance)
Packet Forwarding Rate
41.66 Mpps (Whole-Device)
Redundancy & Loop Prevention
G.8032 ERPS, IEEE 802.1D STP, IEEE 802.1w RSTP
Operating Temperature & Protection
-40 °C to +75 °C (-40 °F to +167 °F); 6 kV Surge; IP40 Metal Shell
Power Input & Mounting
48 to 57 VDC Dual Inputs with Hot Backup; DIN-Rail or Desk Mounting
Frequently Asked Questions
What equipment can be powered by the 90 W Hi-PoE ports?
Ports 1 to 4 support IEEE 802.3bt Hi-PoE up to 90 W per port, making them ideal for high-draw hardware like outdoor PTZ speed domes with internal heaters, multi-sensor panos, and illuminators.
Does this switch come with an included power supply?
Industrial switches utilize external 48–57 VDC DIN-rail power supplies (such as Mean Well NDR-240-48 or NDR-480-48) connected to its terminal blocks, allowing power capacity selection based on total system PoE load.
How does G.8032 ERPS ring protection benefit industrial security networks?
G.8032 ERPS creates redundant ring network topologies that automatically recover from fibre optic or copper link failures in less than 50 milliseconds, ensuring uninterrupted camera feeds.
Can I monitor this switch remotely via Hik-Partner Pro?
Yes, the switch integrates natively with Hik-Partner Pro and Hik-Central Pro, enabling technicians to inspect visual topology, check PoE consumption, perform cable health tests, and power-cycle ports remotely.
Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Industrial Series
Heavy-Duty 240W 48V Industrial DIN Rail Power Supply
Ensure uninterrupted operation across critical security infrastructure and industrial networks with the Hikvision NDR-240-48. Designed for demanding commercial and industrial enclosures, this high-performance 240W single-output power supply converts universal AC input voltages into a stable 48 VDC output. Engineered with an ultra-slim metal housing to conserve valuable enclosure rail space, it delivers continuous power to PoE network switches, security controllers, PTZ cameras, and edge computing equipment deployed in extreme environments.
Power & Output
240W / 48V DC / 5A
AC Input Range
90 to 264 VAC Universal
Operating Efficiency
Up to 88.5% High Efficiency
Protection Suite
Short Circuit / Overload / OVP / Temp
Built-in Active PFC & TS-35 Rail Mountability
Engineered for maximum electrical stability, the NDR-240-48 features built-in active Power Factor Correction (PFC) to maintain power efficiency and comply with strict industrial power standards. Its robust metal chassis easily snaps onto standard TS-35/7.5 or TS-35/15 DIN rails, drastically reducing installation time in control panels and outdoor NEMA-rated field cabinets. With convection cooling operating from -20°C to +70°C, this power supply provides dependable operation without requiring active fan ventilation.
Slimline Metal Enclosure Design
Featuring a narrow 63mm width, this power unit maximizes space on crowded DIN rails, allowing security integrators to fit more transmission components, circuit breakers, and terminal blocks within a single enclosure.
Comprehensive Electrical Protections
Includes automated protection against short circuits, overloads, overvoltage, and over-temperature conditions, safeguarding connected surveillance hardware against grid fluctuations and field electrical anomalies.
Technical Specification Matrix
Power Supply Model
NDR-240-48
Rated Power Output
240 W
DC Output Voltage
48 VDC
Rated Current
5 A
Input Voltage Range
90 to 264 VAC / 127 to 370 VDC
Efficiency (Typ.)
88.5%
Voltage Adjustment Range
48 to 55 VDC
Mounting Format
DIN Rail TS-35/7.5 or TS-35/15
Operating Temperature
-20°C to +70°C (-4°F to +158°F)
Dimensions (W × H × D)
63 mm × 125.2 mm × 113.5 mm
Frequently Asked Questions
Can the output voltage be adjusted on the NDR-240-48?
Yes, the front panel includes an adjustable DC voltage potentiometer allowing fine-tuning of the output voltage between 48 VDC and 55 VDC to account for long cable runs.
Is active cooling required for this power supply?
No, the unit relies on free air convection cooling within its rugged metal chassis, allowing fanless operation across a wide temperature range from -20°C to +70°C.
What equipment can be powered by this 48V power supply?
It is designed to power industrial PoE switches, hardened media converters, access controllers, and 48V security equipment mounted inside DIN rail field cabinets.
Does this unit feature Power Factor Correction (PFC)?
Yes, it includes built-in active PFC (Power Factor Correction), providing an optimized power factor under full load to reduce harmonic distortion and energy losses.
Technical Datasheet
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision IP Intercom Series
Comprehensive Villa Security with HD Video Access Control
The DS-KIS606-P IP Video Intercom Kit delivers an all-in-one perimeter security and access control solution tailored for residential homes, villas, and small commercial offices. Anchored by a high-definition 2MP outdoor door station and a sleek 4.3-inch indoor station monitor, this kit ensures seamless visitor communication, remote lock release, and real-time visual verification. Engineered for simple setup and dependable daily operation, the system enables property owners to manage entryway calls directly from the indoor monitor or remotely through smart devices.
Resolution
2MP 1080p HD
Field of View
131° Horizontal
Connectivity
Wi-Fi & Standard PoE
Protection
IP65 Weatherproof
Advanced Integration & Mobile Control with Hik-Connect
Designed for flexible networking, the DS-KIS606-P kit incorporates 2.4 GHz Wi-Fi connectivity and standard IEEE 802.3af PoE power support across system components. With built-in noise suppression and echo cancellation algorithms, two-way audio conversations remain crisp and intelligible regardless of surrounding ambient noise. The outdoor station features an integrated Mifare card reader supporting up to 10,000 cards for convenient keyless entry, while instant mobile notifications and live preview streaming via the Hik-Connect application keep you connected to your entryways anywhere in the world.
Ultra-Wide 131° Lens with 120 dB WDR
Capture expansive doorway angles without missing critical peripheral activity. Equipped with 120 dB True WDR and 3-metre IR light supplementation, the door station provides clear video quality under extreme backlight conditions and pitch-black nocturnal environments.
Versatile Keyless Entry & Lock Control
Featuring a built-in 13.56 MHz Mifare proximity card reader and relay control output, the outdoor panel functions as both an intercom and an access controller. Unlock connected electronic door locks directly via access cards, the indoor monitor, or the Hik-Connect mobile application.
Technical Specification Matrix
Intercom Kit Model
DS-KIS606-P
Included Components
DS-KV6113-PE1(C) Door Station, DS-KH6110-WE1 Indoor Station, Rain Shield, Power Supply
Door Station Camera
2MP HD Camera (1920 × 1080p resolution)
Field of View (FOV)
Horizontal: 131°, Vertical: 78°
Dynamic Range & Night Vision
120 dB True WDR, IR Supplement Light up to 3 metres
Indoor Station Display
4.3-inch colorful TFT screen (480 × 272 resolution) with 9 touch buttons
Audio Capabilities
Two-way audio with built-in mic/speaker, noise suppression & echo cancellation
Access Control Capacity
Built-in Mifare reader (13.56 MHz), supports up to 2,000 users & 10,000 cards
Network & Wireless
10/100 Mbps Ethernet, Wi-Fi 802.11 b/g/n (Indoor Station), TCP/IP, RTSP, SIP
Power Supply & Protection
Standard IEEE 802.3af PoE / 12 VDC; Outdoor unit IP65 weatherproof rated
Can I receive video calls on my smartphone when I'm away from home?
Yes. The DS-KIS606-P kit integrates with the Hik-Connect mobile app. When a visitor presses the door station call button, call alerts and live video streams are pushed directly to your smartphone for remote viewing and two-way talk.
How are the door station and indoor monitor powered?
Both system devices support standard Power over Ethernet (IEEE 802.3af PoE) for single-cable power and network transmission, as well as local 12 VDC power adapters.
Is the outdoor door station weather resistant for direct outdoor installation?
Yes. The DS-KV6113-PE1(C) outdoor door station features an IP65 ingress protection rating and comes equipped with a protective rain shield, ensuring reliable operation in rain and dusty conditions.
Can additional indoor monitors be added to the system?
Yes. The kit supports expansion up to 16 linked indoor extensions, allowing you to install multiple monitors across different floors or rooms within the property.
Technical Datasheet Quick Start Guide
Installation Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision AX Hybrid Pro Series
Commercial Security Expansion with High-Density Zone Integration
The DS-PM1-I8O2-H is a high-performance wired zone expander specifically engineered for the HikvisionAX Hybrid Pro intrusion alarm control panel. Designed for demanding commercial, retail, and residential installations requiring reliable hardwired detector integration, the DS-PM1-I8O2-H expands overall system capacity while delivering robust, tamper-resistant perimeter protection and centralized output control across long-distance cable runs.
Zone Capacity
8 Hardwired Inputs
Bus Protocol
Dual Speed-X (900m)
ECL Protection
3EOL Multi-State
Auxiliary Output
12VDC / 500mA Power
Advanced Speed-X Bus Communication & Cascade Topology
Utilizing proprietary high-speed RS-485 architecture, the Hikvision DS-PM1-I8O2-H establishes a stable, interference-resistant connection to the control panel at distances up to 900 metres. Equipped with dual Speed-X bus ports (1 input and 1 output), the module supports direct expansion cascading, allowing installers to link subsequent expanders along a single bus line up to another 900m without complex intermediate hubs. Comprehensive 3EOL wiring configurations deliver enhanced signal detection for alarm triggering, anti-masking, short circuits, and tamper monitoring across every zone.
3EOL Signal & Tamper Monitoring
Supports sophisticated 3EOL resistor wiring (Alarm 1kΩ, Tamper 1kΩ, Fault 2.2kΩ) to distinguish between legitimate intrusion signals, physical enclosure tampering, wire masking, and line shorts. Front and rear anti-tamper protection ensures immediate panel alerts if the module is opened or unmounted.
On-Board Collector Outputs & Aux Power
Features 2 collector outputs for triggering external relay modules, strobes, or sirens alongside a dedicated 12 VDC / 500mA auxiliary power output. This eliminates the need for external power supplies when running short-range wired motion sensors or beam detectors.
Technical Specification Matrix
Camera / Expander Model
DS-PM1-I8O2-H
Hardwired Zone Inputs
8 On-board Wired Zones
Collector Outputs
2 On-board Open Collector Outputs (Connects to relay modules)
Communication Interface
2x Speed-X Bus (1 Control Panel Input, 1 Expander Cascade Output)
Maximum Transmission Distance
Up to 900 m per Speed-X segment
EOL Wiring Support
3EOL Connection (Alarm: 1kΩ, Tamper: 1kΩ, Fault: 2.2kΩ)
Auxiliary Power Output
9 to 12 VDC, Maximum 500 mA
Power Input & Current
11 to 24 VDC; Max 119 mA @ 12 VDC (Quiescent: 45 mA @ 12 VDC)
Enclosure & Dimensions
Plastic Housing, 110 mm × 155 mm × 32 mm, Weight: 252.5 g
Which Hikvision main control panels are compatible with this expander?
The DS-PM1-I8O2-H is designed specifically for compatibility with the Hikvision AX Hybrid Pro intrusion alarm control panel series using Speed-X bus technology.
How far can I place the expander from the main control panel?
The Speed-X bus protocol supports wiring distances of up to 900 metres from the control panel to the expander. An additional 900 metres can be extended when cascading to the next expander via the output Speed-X port.
Does this expansion module power external detectors?
Yes, it features 1 auxiliary power output providing 9 to 12 VDC at up to 500 mA, which can directly power connected hardwired motion detectors or sensors.
What types of zone states can the DS-PM1-I8O2-H detect?
Thanks to 3EOL connection support, the module can simultaneously detect zone alarm, tamper state, sensor masking, wiring fault, and short-circuit conditions.
Technical Datasheet Installation Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Transmission Series
High-Power 8-Port Unmanaged Hi-PoE Switch with Dual Gigabit Uplinks
Streamline high-power IP camera installations, PTZ speed domes, and edge surveillance networks with the Hikvision DS-3E0310HP-E(C). Engineered to deliver reliable power and data transmission in plug-and-play environments, this Layer 2 unmanaged switch features 8 Fast Ethernet PoE ports alongside 2 dedicated Full Gigabit RJ45 uplink ports. Ports 1 and 2 conform to the ultra-high-power IEEE 802.3bt Hi-PoE standard, supplying up to 90 W on a single port to drive heavy-duty outdoor heating PTZs and access control panels with ease.
Port Configuration
8 × 10/100M PoE + 2 × 1G Uplink
Power Delivery
90 W Hi-PoE (Ports 1-2) / 110 W Budget
Transmission Range
300m Extended Mode Support
Protection & Self-Healing
6 kV Surge & PoE Watchdog
Hardware DIP Switch Control & Automated Camera Recovery
Built for maximum reliability in harsh installation sites, the DS-3E0310HP-E(C) incorporates hardware DIP switches for instant feature toggling without software setup. Engage Long Range mode to extend power and data transmission up to 300 metres on ports 1 through 8 over Cat5e/Cat6 cabling. Turn on Port Isolation to prevent broadcast storms and insulate camera feeds from internal network sniffing. With built-in hardware PoE Watchdog, the switch continuously checks connected IP cameras and automatically performs a port power reset if a camera stops responding, preventing unnecessary maintenance callouts.
Dual 90 W IEEE 802.3bt Hi-PoE Ports
Ports 1 and 2 deliver up to 90 W output per port using 802.3bt Hi-PoE technology, providing high power to PTZ domes, long-range infrared illuminators, and multi-sensor cameras without requiring external power injectors.
Fanless Metal Housing & 6 kV Surge Rating
Encased in a durable, fanless metal shell designed for silent, reliable heat dissipation. Integrated 6 kV surge protection shields all network interfaces against outdoor lighting strikes and high electrical surges.
Technical Specification Matrix
Switch Model
DS-3E0310HP-E(C)
Network Ports
8 × 10/100 Mbps PoE RJ45, 2 × 10/100/1000 Mbps RJ45 Uplinks
PoE Standard
Ports 1-2: IEEE 802.3af/at/bt; Ports 3-8: IEEE 802.3af/at
Max Output Power per Port
Ports 1-2: Up to 90 W per port; Ports 3-8: Up to 30 W per port
Total PoE Power Budget
110 W
Switching Capacity
5.6 Gbps
Packet Forwarding Rate
4.17 Mpps
Long Range PoE Mode
Up to 300 metres (Ports 1 to 8)
Surge Protection
6 kV (PoE Ports)
Housing & Power Supply
Metal Shell (Fanless); 54 VDC, 2.22 A Power Adapter Included
Frequently Asked Questions
What type of devices should I connect to the Hi-PoE ports?
Ports 1 and 2 support IEEE 802.3bt Hi-PoE up to 90 W per port, making them ideal for power-hungry devices like motorised PTZ speed domes, thermal cameras, or multi-sensor cameras.
How does the 300-metre Long Range mode function?
When Long Range mode is enabled via the front-panel switch, ports 1 through 8 extend network and power delivery up to 300 metres at a stabilized 10 Mbps connection speed.
How does PoE Watchdog prevent camera downtime?
PoE Watchdog continuously monitors communication with connected IP devices. If an IP camera becomes unresponsive, the switch automatically cycles power on that port to force a hard reboot.
Why are Gigabit uplink ports important on this switch?
The 2 dedicated Gigabit RJ45 uplink ports provide high-bandwidth connections directly to your NVR or core network router, preventing video bottlenecking from the 8 Fast Ethernet camera ports.
Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Smart Managed Series
Enterprise High-Density 24-Port Gigabit Smart Managed PoE Switch with 4 SFP Fibre Uplinks
Optimize multi-site enterprise video networks, commercial IP infrastructure, and high-density surveillance setups with the Hikvision DS-3E1528P-EI. Engineered for high-throughput backbone connections, this smart managed 1U rackmount switch features 24 Full Gigabit PoE RJ45 ports paired with 4 dedicated Gigabit SFP optical fibre uplink ports, supported by a heavy-duty 370 W total PoE power budget for long-distance, high-bandwidth deployments.
Port Configuration
24 × 1G PoE + 4 × 1G SFP Fibre
PoE Power Budget
370 W Total (30 W Max/Port)
Transmission Range
300m Extended PoE Support
Protection & Management
6 kV Surge & PoE Watchdog
Quad SFP Uplinks & Intelligent Remote Cloud Topology
Designed for seamless integration into enterprise networks, the DS-3E1528P-EI connects directly to Hikvision’s Hik-Partner Pro cloud management platform. Network administrators gain real-time access to visual topology maps, remote port control, cable diagnostics, and instant system alerts. Equipped with quad Gigabit SFP slots, it enables long-distance fibre optic trunk links between server rooms and remote campus buildings. Intelligent PoE Watchdog continuously monitors active camera links, automatically power-cycling frozen endpoints to minimise system downtime. Comprehensive Layer 2 features—such as 802.1Q VLANs, STP/RSTP, port isolation, link aggregation, and 6 kV surge protection—ensure maximum reliability and bandwidth efficiency.
Quad SFP Slots & 370 W PoE Power
Features 4 dedicated Gigabit SFP slots for fibre optic backbones alongside 24 Gigabit PoE ports backed by a robust 370 W total power budget. Extended PoE mode supports power and data transmission up to 300 metres.
PoE Watchdog & Cloud Maintenance
Automated PoE Watchdog detects non-responsive IP devices and automatically restarts port power. Full Hik-Partner Pro cloud integration allows remote topology viewing, cable health testing, and batch updates.
Technical Specification Matrix
Switch Model
DS-3E1528P-EI
Network Ports
24 × Gigabit PoE RJ45, 4 × Gigabit SFP Fibre Uplink Slots
PoE Standard
IEEE 802.3af, IEEE 802.3at (PoE+)
PoE Power Budget
370 W Total (30 W Max per port)
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.66 Mpps
MAC Address Table
8 K
Long Range PoE Mode
Up to 300 metres (Ports 1 to 24)
Surge Protection
6 kV (PoE Ports)
Chassis Form Factor
Solid Metal 1U 19-inch Rack-Mountable (Mounting ears included)
Frequently Asked Questions
What is the advantage of having 4 SFP fibre ports on the DS-3E1528P-EI?
The 4 dedicated SFP slots allow high-speed fibre optic trunk connections to core switches or NVRs across large campuses and multi-floor buildings without consuming any of the 24 copper Gigabit PoE ports.
Can I run cameras at long distances with this switch?
Yes, by toggling Extend mode via the cloud or web management interface, power and data transmission on ports 1 through 24 can reach distances of up to 300 metres over standard Cat5e/Cat6 cabling.
How does PoE Watchdog improve network reliability?
PoE Watchdog continuously monitors communication with connected devices. If a camera becomes unresponsive, the switch automatically resets power to that specific port to bring the device back online.
How do I remotely monitor the switch health and network topology?
The switch integrates natively with Hikvision’s Hik-Partner Pro platform, letting you inspect visual network topology, check power loads, perform remote cable diagnostics, and receive instant alert notifications.
Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Smart Managed Series
Enterprise High-Density 24-Port Gigabit Smart Managed Power over Ethernet Switch
Streamline large-scale IP surveillance networks, commercial access controls, and high-density camera deployments with the Hikvision DS-3E1526P-EI. Purpose-built for robust multi-channel video distribution, this smart managed 1U rack-mountable switch delivers 24 Full Gigabit PoE RJ45 ports alongside dedicated Gigabit uplink options (1× Gigabit RJ45 + 1× Gigabit SFP Optical Fibre), supported by a high-capacity 370 W total PoE power budget.
Port Configuration
24 × 1G PoE + 1G RJ45 / SFP Uplink
PoE Power Budget
370 W Total (30 W Max/Port)
Transmission Range
300m Extended PoE Support
Protection & Management
6 kV Surge & PoE Watchdog
Unified Cloud Topology Management & Self-Healing Network Security
The DS-3E1526P-EI seamlessly connects to Hikvision’s Hik-Partner Pro cloud platform, providing network visualizer mapping, real-time bandwidth and PoE consumption monitoring, and instant device alarm pushes. Featuring automated PoE Watchdog functionality across all 24 ports, the switch continuously checks camera connectivity and automatically reboots unresponsive IP cameras to prevent system downtime without requiring manual technician intervention. Layer 2 management tools including 802.1Q VLANs, STP/RSTP loop prevention, static link aggregation, port isolation, and 6 kV surge protection ensure secure and stable operation across critical enterprise networks.
High-Capacity 370 W Power & 300m Extended Range
Generous 370 W PoE budget easily powers a full system of up to 24 HD IP cameras. Extend mode allows data and power transmission over distances up to 300 metres across Cat5e/Cat6 cables on all 24 PoE ports.
PoE Watchdog & Cloud Maintenance
Self-healing PoE Watchdog automatically power-cycles frozen camera ports. Integration with Hik-Partner Pro allows remote device status checks, cable diagnostics, port rebooting, and firmware upgrades anywhere.
Technical Specification Matrix
Switch Model
DS-3E1526P-EI
Network Ports
24 × Gigabit PoE RJ45, 1 × Gigabit RJ45 Uplink, 1 × Gigabit SFP Fibre Optical Port
PoE Standard
IEEE 802.3af, IEEE 802.3at (PoE+)
PoE Power Budget
370 W Total (30 W Max per port)
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.66 Mpps
MAC Address Table
8 K
Long Range PoE Mode
Up to 300 metres (Ports 1 to 24)
Surge Protection
6 kV (PoE Ports)
Chassis Form Factor
Solid Metal 1U 19-inch Rack-Mountable (Mounting ears included)
Compare Hikvision Smart PoE Switches
Model
PoE Ports
Speed
Best For
DS-3E1105P-EI
4
Fast Ethernet
Compact camera and intercom systems
DS-3E1506P-EI
4
Gigabit
Small high-throughput systems
DS-3E1510P-EI
8
Gigabit
Growing small-to-medium systems
DS-3E1318P-EI
16
Fast Ethernet
Medium camera systems with Gigabit uplinks
DS-3E1518P-EI
16
Gigabit
High-throughput 16-camera networks
DS-3E1326P-EI
24
Fast Ethernet
High-density surveillance networks
DS-3E1526P-EI
24
Gigabit
Large high-bandwidth deployments
Frequently Asked Questions
How many cameras can the DS-3E1526P-EI power simultaneously?
With a total PoE power budget of 370 W, the DS-3E1526P-EI can easily power 24 standard IP cameras (drawing around 6 W to 12 W each) across all PoE ports at full Gigabit speeds.
How far can power and data travel using Long Range mode?
When Long Range mode is enabled, power and network data transmission distances can reach up to 300 metres across Cat5e or Cat6 cables on ports 1 through 24.
What happens if a connected camera freezes or loses connection?
The integrated PoE Watchdog continuously tests responsiveness on ports 1 through 24 and automatically performs an individual port power cycle to restart frozen cameras.
What uplink connections are included on the DS-3E1526P-EI?
The switch includes two dedicated Gigabit uplinks: one 10/100/1000 Mbps RJ45 copper port and one Gigabit SFP fibre optical port for long-distance backbone connectivity to NVRs or core switches.
Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Smart Managed Series
Intelligent 4-Port Gigabit Smart Managed Power over Ethernet Switch
Simplify deployment, monitoring, and remote network maintenance across commercial and residential IP surveillance systems with the Hikvision DS-3E1506P-EI. Designed to deliver enterprise-class stability in a compact footprint, this smart managed Layer 2 Gigabit switch provides 4 Gigabit PoE ports alongside 2 dedicated Gigabit RJ45 uplink ports, delivering up to 60 W of total PoE power budget for high-demand IP security cameras and access points.
Port Configuration
4 × 1G PoE + 2 × 1G Uplink
PoE Power Budget
60 W Total (30 W Max/Port)
Transmission & Range
300m Extended PoE Support
Protection & Health
6 kV Surge & PoE Watchdog
Remote Cloud Management & Automated Self-Healing Architecture
The DS-3E1506P-EI integrates seamlessly with Hikvision’s Hik-Partner Pro platform, allowing system integrators to remotely monitor network health, inspect topology visualizer maps, and receive instant alarm notifications on mobile or desktop interfaces. Featuring automated PoE Watchdog technology, the switch continuously detects offline cameras and performs intelligent port power reboots without requiring onsite technician intervention. Integrated 802.1Q VLAN support, port isolation, STP/RSTP loop prevention, and 6 kV surge protection ensure maximum system uptime even during severe electrical surges or adverse outdoor wiring conditions.
Automated PoE Watchdog & Long-Range PoE
Continuous monitoring auto-detects unresponsive IP cameras and soft-resets individual ports to restore connection. Extended long-range transmission mode extends power and data connectivity up to 300 metres on ports 1 through 4.
Hik-Partner Pro Cloud Topology Visualizer
Visualizes network topology in real time, displays bandwidth utilisation and PoE consumption, and enables remote device upgrades and cable health diagnostics directly from the cloud platform.
Technical Specification Matrix
Switch Model
DS-3E1506P-EI
Network Ports
4 × Gigabit PoE RJ45, 2 × Gigabit RJ45 Uplink
PoE Standard
IEEE 802.3af, IEEE 802.3at (PoE+)
PoE Power Budget
60 W Total (30 W Max per port)
Switching Capacity
14 Gbps
Packet Forwarding Rate
10.42 Mpps
MAC Address Table
2 K
Long Range PoE
Up to 300 metres (Ports 1 to 4)
Surge Protection
6 kV (PoE and Power Ports)
Construction & Mounting
Solid Metal Shell; Desk or Wall-Mounted
Compare Hikvision Smart PoE Switches
Model
PoE Ports
Speed
Best For
DS-3E1105P-EI
4
Fast Ethernet
Compact camera and intercom systems
DS-3E1506P-EI
4
Gigabit
Small high-throughput systems
DS-3E1510P-EI
8
Gigabit
Growing small-to-medium systems
DS-3E1318P-EI
16
Fast Ethernet
Medium camera systems with Gigabit uplinks
DS-3E1518P-EI
16
Gigabit
High-throughput 16-camera networks
DS-3E1326P-EI
24
Fast Ethernet
High-density surveillance networks
DS-3E1526P-EI
24
Gigabit
Large high-bandwidth deployments
Frequently Asked Questions
How does the PoE Watchdog feature work on the DS-3E1506P-EI?
The PoE Watchdog continuously sends ping requests to connected IP cameras. If a camera stops responding due to a system crash, the switch automatically power-cycles that specific port to reboot and re-establish camera connectivity.
Can this switch transmit power and data over long distances?
Yes, by enabling Long Range mode via the Hik-Partner Pro platform or web UI, power and data transmission distance on ports 1 to 4 can be extended up to 300 metres.
Can I manage this switch remotely without being on-site?
Yes, the switch supports cloud management via Hik-Partner Pro, allowing technicians to inspect network topology, check PoE consumption, perform cable diagnostics, and restart ports remotely.
Is the DS-3E1506P-EI protected against lighting and electrical surges?
Yes, it features 6 kV surge protection across all network ports to safeguard connected IP security equipment against voltage spikes.
Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Ultra Series · DeepinMind
Enterprise-Grade 128-Channel High-Density AI Network Video Recorder
Built for large-scale enterprise infrastructure, transportation hubs, and critical security command centers, the Hikvision DS-96128NXI-S24R provides massive video decoding capabilities and deep learning analytics integration. Supporting up to 128 IP camera channels with video recording resolutions up to 8K, this Ultra Series DeepinMind recorder guarantees maximum operational uptime through 24 hot-swappable SATA drive bays, dual redundant power supplies, and multi-tier RAID storage configurations.
Decoding / Resolution
Up to 8K / 32 MP Recording
Storage Capacity
24 SATA Interfaces (Hot-Swap)
Incoming Bandwidth
512 Mbps High-Throughput
System Redundancy
Dual Power & RAID 0/1/5/6/10
DeepinMind Structural AI Analytics & High-Density Storage Management
The DS-96128NXI-S24R utilizes GPU-accelerated deep learning processing to deliver high-precision perimeter defense, face recognition, and multi-target classification across continuous camera streams. Designed into a high-density 4U rack enclosure, it supports 24 hot-swappable SATA hard drives with comprehensive RAID 0, 1, 5, 6, 10, and N+1 hot spare redundancy options. Hot-swappable dual redundant power supply units ensure uninterrupted operation, rendering it ideal for mission-critical video surveillance centers.
High-Density 24-Bay RAID Array Redundancy
Features 24 hot-swappable SATA drive bays supporting enterprise RAID 0, 1, 5, 6, and 10 configurations. Drive replacement and storage expansion can be executed on-the-fly without service interruption or video recording downtime.
DeepinMind Structural Deep Learning Analytics
Hardware-accelerated AI algorithms significantly filter out false alarms triggered by environmental factors, enabling target detection, human/vehicle classification, and ultra-fast forensic search across high-channel deployments.
Technical Specification Matrix
NVR Model
DS-96128NXI-S24R
IP Video Input
128 Channels
Incoming / Outgoing Bandwidth
512 Mbps / 512 Mbps
Recording Resolution
Up to 32 MP / 8K Resolution Support
HDMI Output
2-ch HDMI (HDMI 1 supports up to 8K resolution)
SATA Storage Interfaces
24 SATA Interfaces (Up to 16 TB capacity per HDD)
RAID Configurations
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, N+1 Hot Spare
Network Interfaces
4 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Ports
Power Supply Redundancy
100–240 VAC, Dual Redundant Power Supply Units
Chassis Form Factor
4U Rack-Mounted Installation Chassis
Frequently Asked Questions
How many camera streams can the DS-96128NXI-S24R decode and record?
It supports up to 128 IP video channels with an incoming bandwidth capacity of 512 Mbps, capable of handling high-density 4K and 8K resolution video streams simultaneously.
What drive capacity and RAID levels does this recorder support?
The system features 24 hot-swappable SATA bays supporting up to 16 TB per drive, with RAID 0, 1, 5, 6, 10, and N+1 hot spare support for high data redundancy.
Does this model include redundant power supplies?
Yes, the DS-96128NXI-S24R includes dual hot-swappable redundant power supply units, ensuring operational continuity if a power module needs replacement.
What is the difference between the S16R and S24R models?
The DS-96128NXI-S24R provides 24 SATA drive bays in a 4U rack chassis for expanded storage retention, whereas the S16R offers 16 SATA drive bays in a 3U chassis.
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision Ultra Series · DeepinMind
Enterprise-Grade 128-Channel High-Density AI Network Video Recorder
Engineered for ultra-large-scale commercial deployments, critical infrastructure, and high-density surveillance hubs, the Hikvision DS-96128NXI-S16R delivers unprecedented decoding power and AI analytics integration. Capable of supporting up to 128 IP camera channels with resolution support up to 8K, this DeepinMind series recorder ensures high-availability recording with redundant power supplies, hot-swappable hard drive bays, and robust RAID storage array configurations.
Decoding / Resolution
Up to 8K / 32 MP Recording
Storage Capacity
16 SATA Interfaces (Hot-Swap)
Incoming Bandwidth
512 Mbps High-Throughput
System Redundancy
Dual Power & RAID 0/1/5/6/10
DeepinMind Deep Learning Video Analytics & High-Availability Architecture
The DS-96128NXI-S16R leverages advanced deep-learning algorithms to perform real-time perimeter protection, facial recognition, and human/vehicle target classification across multi-channel streams. Built on a server-class 3U rack chassis, it accommodates 16 SATA hard drives with hot-swappable HDD arrays supporting RAID 0, 1, 5, 6, 10, and N+1 hot spare configurations. Dual redundant power units guarantee non-stop system operation even during primary power supply maintenance.
Hot-Swappable RAID Array Protection
Supports enterprise storage configurations including RAID 0, 1, 5, 6, and 10 across 16 SATA interfaces. Drives can be replaced on-the-fly without taking the recording server offline or interrupting critical footage capture.
DeepinMind Structural Video Analytics
Reduces false alarms caused by environmental noise using hardware-accelerated deep learning algorithms, enabling high-accuracy perimeter protection, face identification, and target search capabilities across connected streams.
Technical Specification Matrix
NVR Model
DS-96128NXI-S16R
IP Video Input
128 Channels
Incoming / Outgoing Bandwidth
512 Mbps / 512 Mbps
Recording Resolution
Up to 32 MP / 8K Resolution Support
HDMI Output
2-ch HDMI (HDMI 1 supports up to 8K output)
SATA Storage Interfaces
16 SATA Interfaces (Up to 16 TB capacity per HDD)
RAID Configurations
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, N+1 Hot Spare
Network Interfaces
4 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Ports
Power Supply Redundancy
100–240 VAC, Dual Redundant Power Supply Units
Chassis Form Factor
3U Rack-Mounted Installation Chassis
Frequently Asked Questions
How many camera channels can the DS-96128NXI-S16R manage simultaneously?
It supports up to 128 IP video channels with an total incoming bandwidth capacity of up to 512 Mbps, accommodating high-resolution 4K and 8K streams across enterprise camera deployments.
What storage redundancy options are supported on this NVR?
The unit features 16 hot-swappable SATA bays supporting RAID 0, 1, 5, 6, 10, and N+1 hot spare, protecting continuous footage against individual hard drive failures.
Does the unit feature redundant power supplies?
Yes, the DS-96128NXI-S16R incorporates dual redundant power supply modules to maintain operational continuity in the event of a power supply module failure.
What video outputs are available for multi-monitor display setup?
It provides dual independent HDMI outputs (with HDMI 1 supporting up to 8K resolution display output) alongside VGA ports for multi-screen monitoring centers.
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision General Wired Detectors
Proactive Penetration Detection for Critical Infrastructure
The DS-PDSKM-VG3 is a high-precision wired seismic shock detector engineered to safeguard high-security assets including safes, ATMs, vaults, and reinforced concrete or brick walls. Powered by a high-sensitivity G-sensor and intelligent digital signal processing, the DS-PDSKM-VG3 identifies early structural vibrations caused by drilling, hammering, cutting, or mechanical attack long before physical penetration occurs, ensuring rapid incident mitigation.
Detection Method
High-Sensitivity G-Sensor
Coverage Radius
Up to 5m Detection Radius
Sensitivity Control
8 DIP Switch Levels
Housing Rating
IK10 Die-Cast Metal
Advanced Digital Signal Processing and Environmental Filtering
Engineered for mission-critical commercial applications, the Hikvision DS-PDSKM-VG3 wired seismic detector incorporates advanced background-noise digital filtering to distinguish legitimate forced-entry threats from ambient facility vibrations. Equipped with dual LED indicators (blue for alarm status, red for noise threshold monitoring), front and rear anti-tamper protection, and rapid temperature rise detection, this robust sensor provides uncompromising reliability in high-risk financial, commercial, and industrial environments.
Gross Attack Override & Multi-Level Sensitivity
Featuring 8 discrete DIP switch sensitivity settings, the detector can be fine-tuned to the exact resonant characteristics of steel, concrete, or composite barriers. Built-in gross attack override ensures immediate alarm trigger during sudden high-impact attempts.
IK10 Heavy-Duty Die-Cast Metal Enclosure
Housed in a rugged die-cast metal shell with an IK10 impact resistance rating, the device offers complete physical protection against sabotage. Front and rear tamper switches ensure immediate alert generation if the casing is opened or detached from the surface.
Technical Specification Matrix
Detector Model
DS-PDSKM-VG3
Detection Technology
High-Precision G-Sensor (Shock & Vibration)
Detection Radius
Up to 5 Metres Radius (Ø10m Coverage Area)
Sensitivity Adjustment
8 Levels via On-Board DIP Switches
Digital Processing
Advanced Background Noise Filter & Gross Attack Override
Tamper Protection
Front Cover & Rear Wall Pull-Off Switches
Special Detection Features
Displacement Detection & Rapid Temperature Rise Detection
Alarm Output & Status LEDs
Normally Closed (NC); Blue (Alarm) & Red (Noise Indication)
Power Supply & Consumption
9 to 16 VDC (Typical 12 VDC); 17 mA Max Current
Operating Temperature & Housing
-40 °C to +70 °C; IK10 Die-Cast Metal Casing (Indoor)
Where should the DS-PDSKM-VG3 seismic detector be installed?
The DS-PDSKM-VG3 is optimized for mounting directly onto physical structures requiring high-security intrusion monitoring, such as bank vaults, ATMs, commercial safes, security doors, concrete walls, and brick enclosures.
How does the background noise filter prevent false alarms?
Integrated digital signal processing (DSP) continually filters out background environmental vibration frequencies (such as traffic or HVAC rumble). The red LED offers real-time noise indication during installation to help technicians select optimal sensitivity levels.
Does the DS-PDSKM-VG3 support End-of-Line (EOL) resistors?
Yes, the unit features selectable jumper-configurable EOL resistors for Alarm (1K, 2K2, 4K7, 5K6, 6K8), Tamper (1K, 2K2, 4K7, 5K6), and Fault outputs for simple integration with security control panels.
What happens if someone attempts to pry the detector off the wall?
The unit features both front cover anti-tamper and rear wall-removal tamper protection, triggering an immediate tamper alarm to the security control panel upon physical interference.
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision AX Pro Series
Slim Weatherproof Curtain Motion Detector for Windows & Perimeters
The DS-PDC10AM-EG2-WB is an advanced 433 MHz wireless narrow-beam PIR curtain detector from Hikvision's AX PRO security ecosystem. Specifically engineered for window frames, balconies, corridors, and perimeter walls, its narrow 5° detection angle creates an invisible narrow barrier across vulnerable entry points. Featuring an IP65 weatherproof rating and active IR anti-masking technology, it delivers reliable outdoor intrusion detection without triggering false alarms from weather or surrounding activity.
Detection Area
10m Wall / 5m Ceiling
Anti-Masking & IP Rating
Active IR | IP65 Rated
Battery Lifespan
Up to 5 Years (2× CR123A)
Wireless Range
1,000m Open Area
Active IR Anti-Masking & Directional Detection Support
Equipped with Active Infrared (IR) anti-masking technology, the Hikvision DS-PDC10AM-EG2-WB continuously scans its optical lens for obstruction attempts (such as spray paint, paper, or foil), instantly raising an alarm if tampered with. Its intelligent directional detection algorithm allows users to configure motion triggers based on directional travel, letting occupants walk out to a patio without triggering alarms while instantly detecting unwanted entry from the outside.
IP65 Weatherproof Housing & Pet Immunity
Built to withstand harsh weather conditions from -25°C to +60°C. Includes digital temperature compensation and up to 12 kg pet immunity when wall-mounted to prevent false triggers from small animals.
Tri-X Two-Way Wireless Communication
Operates on 433 MHz two-way wireless technology with AES-128 encryption and frequency hopping against radio jamming, ensuring reliable long-range connection to AX PRO hubs.
Technical Specification Matrix
Detector Model
DS-PDC10AM-EG2-WB
Detection Method & Range
Passive Infrared (PIR) | Wall Mount: 10 m, Ceiling Mount: 5 m
Detection Angle & Zones
5° Narrow Curtain Angle | 32 Zones
Detectable Speed & Sensitivity
0.3 m/s to 2.0 m/s | Auto, Pet Immunity (up to 12 kg wall mounted)
Anti-Masking & Anti-Jamming
Active IR Anti-Masking | Frequency Hopping & AES-128 Encryption
Wireless Frequency & Range
433 MHz Tri-X Two-Way Wireless | 1,000 m Open Field
Power Source & Lifespan
2 × CR123A 3V Batteries | Up to 5 Years Standby Life
Ingress Protection & Operating Temp
IP65 Weather Resistance | -25 °C to +60 °C (-13 °F to 140 °F)
Dimensions & Mounting
29.2 mm × 134.4 mm × 39.5 mm | Wall or Ceiling Mount (L-Bracket Included)
Frequently Asked Questions
Can the DS-PDC10AM-EG2-WB be installed outdoors?
Yes. With its IP65 ingress protection rating and wide operating temperature range (-25°C to +60°C), it is designed for outdoor window frames, doorways, and covered perimeters.
How does directional detection benefit my security system?
Directional detection allows the detector to distinguish whether motion is moving inside-to-outside or outside-to-inside, letting occupants walk out without triggering an alarm while blocking incoming intrusions.
What does Active IR anti-masking do?
Active IR anti-masking detects any attempt to blind or cover the sensor lens with spray paint, plastic, tape, or objects, sending an immediate tamper signal to the AX PRO control panel.
Is a mounting bracket included in the box?
Yes, the detector comes supplied with a versatile L-shaped bracket adapter suitable for both wall and ceiling mounting configurations.
Technical Datasheet User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision AX Hybrid Pro Series
Flexible Output Expansion for AX Hybrid Pro Intrusion Alarm Systems
The DS-PM1-O4L-H is a professional wired 4-way low current relay expander engineered by Hikvision to extend the control capabilities of the AX Hybrid Pro intrusion alarm panel. Operating via Hikvision's high-speed Speed-X bus technology, this output module provides four onboard low current relays supporting 6 VDC to 30 VDC and up to 5A per channel. Designed for commercial, retail, and residential security automation, it enables seamless control of external devices such as strobe lights, sirens, access control gates, door strikes, and automation triggers.
Relay Outputs
4 Low Current Relays (5A)
Bus Communication
Speed-X Technology
Aux Power Output
12 VDC / Max 500mA
Anti-Tamper Shield
Front & Rear Tamper
High-Speed Speed-X Bus Cascading & Distributed Power Control
Engineered for complex alarm architectures, the Hikvision DS-PM1-O4L-H features dedicated uplink and downlink Speed-X bus ports. This allows installers to easily cascade multiple expander modules across long wiring runs back to the main AX Hybrid Pro panel. Additionally, the unit incorporates an auxiliary power output delivering up to 500mA (9 to 12 VDC) for directly powering low-voltage peripheral sensors, sirens, or status LEDs without requiring separate external power supplies.
4 Onboard Programmable Low Current Relays
Supports switching loads between 6 VDC and 30 VDC at up to 5A per output, allowing tailored response programming such as auto-locking doors, activating floodlights, or triggering external emergency dialers upon alarm events.
Dual Front & Rear Tamper Protection
Integrated micro-switches detect both front cover removal and wall-tear detachment, transmitting an immediate tamper alert signal via Speed-X bus to the control panel to prevent physical sabotage.
Technical Specification Matrix
Expander Model
DS-PM1-O4L-H
Relay Outputs
4 × Low Current Relays (6-30 VDC, up to 5A per relay)
Bus Interface
2 × Speed-X Bus (1 Uplink for panel, 1 Downlink for cascade)
Auxiliary Power Output
1 × 9 to 12 VDC output (Maximum 500 mA)
Power Supply Input
11 to 24 VDC, 1A
Power Consumption
Max current 153 mA @ 12 VDC; Quiescent current 70 mA @ 12 VDC
Tamper-Proof Protection
Supported (Front cover and rear wall tear-off protection)
LED Status Indicators
2 × LEDs (1 for Power status, 1 for Fault/Communication)
Dimensions & Weight
110 mm × 155 mm × 32.5 mm | Weight: 285 g
Frequently asked questions
What control panels are compatible with the DS-PM1-O4L-H?
The DS-PM1-O4L-H is designed specifically for Hikvision AX Hybrid Pro intrusion panels (such as DS-PHA48-EP / DS-PHA64-Kit) utilizing Speed-X bus communication.
How many relay expanders can be cascaded together?
Multiple expander modules can be chained sequentially using the dedicated Speed-X uplink and downlink ports up to the maximum bus address limit (addresses 0 to 63) supported by the control panel.
What type of loads can the relays handle?
Each onboard relay supports low voltage DC circuits between 6V and 30V with a maximum current of 5A, making it ideal for electronic locks, buzzers, status LEDs, and relay coils.
Does the expander require separate power configuration?
It operates on 11 to 24 VDC supplied via the bus or local power supply, drawing maximum 153 mA at 12 VDC during full relay activation.
Technical Datasheet
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Hikvision DS-UPS-R/AU · Line-Interactive · AVR · Cold Start · 600 / 1000 / 2000 VA
Hikvision DS-UPS-R/AU Range
Hikvision DS-UPS-R/AU Series — Line-Interactive Back-Up UPS with AVR for CCTV & NVR Systems
The Hikvision DS-UPS-R/AU range is a line of line-interactive tower UPS units designed to keep your CCTV recording running through mains dropouts, brownouts and dirty power. Available in 600 VA / 360 W (small residential NVRs), 1000 VA / 600 W (mainstream commercial NVR + camera load) and 2000 VA / 1200 W (large PoE switches, multi-HDD NVRs, larger sites). Built-in Automatic Voltage Regulation (AVR) corrects mains sag and surge without dropping to battery, so the batteries only discharge during actual outages — extending battery life. Cold start lets you power the NVR from battery even when there's no mains at all (useful for planned outages). Every unit is rated at 230 VAC 50 Hz, ships with Australian mains plug + AU-standard IEC outlets, and is backed by 3-year Australian warranty from CCTV Guru.
Topology
Line-Interactive · AVR
Capacity Range
600 VA · 1000 VA · 2000 VA
Input / Output
230 VAC 50 Hz · AU Plug + IEC
Cold Start
Power on from Battery · No Mains Needed
Protection
Surge · Overload · Short-Circuit · RJ11
Warranty
3-Year AU · Battery Replaceable
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
Why a UPS Matters for a CCTV or NVR System
Every CCTV recorder has a hard drive that's writing continuously. When the mains flicks off mid-write — a lightning strike, a substation dip, someone tripping the RCD — the HDD doesn't get to flush its cache before the power dies. The result is corrupted footage, index errors, or in the worst case a bricked RAID array. A UPS gives the NVR 5-15 minutes of clean battery power on an outage; the NVR shuts down cleanly (via USB signalling on models that support it), the HDD flushes properly, and there's no corruption when the power comes back. Line-interactive UPS units go one better — they use AVR (Automatic Voltage Regulation) to smooth out mains sag and surge without discharging the battery, so battery life is preserved for the times you actually need it.
Line-Interactive Topology with AVR
Automatic Voltage Regulation corrects ±25% mains sag and surge without switching to battery. Extends battery lifespan (typical AU regional grid has 30-50 minor sag events per week that would otherwise cycle a cheap standby UPS to battery).
Cold Start Capability
Start the load from battery even when there's no mains at all. Useful for planned outages (running a camera off-grid for a temporary site check) or bringing up the NVR after an extended power failure while the mains is still being restored.
USB Auto-Shutdown Signalling
Micro-USB connection to the NVR — when battery drops below the safe threshold, the UPS signals the NVR to shut down cleanly. Works with most Hikvision NVRs out of the box (may require enabling in NVR settings).
Full Range of Protections
Overload, short-circuit, over-discharge, over-charge, and mains surge protection — plus RJ11 telephone / network surge protection pass-through on all models to protect ADSL/NBN modems.
Replaceable Battery
Sealed lead-acid battery module accessible via bottom cover — replaceable at end of life (typical 3-5 years, faster in high ambient temp). Uses standard 12 V SLA batteries (600 VA: 12 V 4.5 Ah, 1000 VA: 12 V 9 Ah, 2000 VA: 2 × 12 V 9 Ah).
Silent Fan-Free Operation (600 & 1000 VA)
The 600 VA and 1000 VA models are fan-free — silent when running from mains. Suitable for reception desks, home offices, sleeping areas. The 2000 VA has a low-noise thermally-controlled fan that only runs at high load or on battery.
Capacity Guide — Which VA Rating for Which NVR?
UPS runtime is capped by the smaller of two things: the load in watts (must be under the UPS's watt rating) and the battery capacity. Below is a practical sizing guide based on Hikvision's own NVR power consumption.
Sizing Guide · Which UPS for Which NVR
600 VA / 360 W · $101
4-8 channel M-Series NVRs with 1 HDD. Small residential / single-camera commercial. NVR draw ~40-60 W → ~15-20 min runtime.
1000 VA / 600 W · $149 (most popular)
8-16 channel NVRs with 1-2 HDD + a small PoE switch. Mainstream commercial. NVR + 8 cameras ~120-180 W → ~15-25 min runtime.
2000 VA / 1200 W · $269
16-32 channel NVRs with 2-4 HDD, larger PoE-heavy sites, DeepinMind AI NVRs. Also fits sites with modem + NVR + monitor + PoE switch. ~15-30 min runtime at typical load.
Rule of thumb: add up the wattage of everything you want protected (NVR + PoE switch + modem + a small monitor if used), then pick the UPS that's at least 1.5× that number in watts. Sizing headroom = longer runtime + longer battery life.
Full Specifications Comparison
DS-UPS-R/AU Range · Specification Comparison
Spec
600 VA · 360 W · $101 | 1000 VA · 600 W · $149 | 2000 VA · 1200 W · $269
SKU
DS-UPS600-R/AU · DS-UPS1000-R/AU · DS-UPS2000-R/AU
Topology
Line-Interactive with AVR (all three)
Capacity
600 VA / 360 W · 1000 VA / 600 W · 2000 VA / 1200 W
Input Voltage
230 VAC (140-300 VAC operating range) 50 Hz (all three)
Output Voltage
230 VAC ±10% (battery mode) · simulated sine wave
Transfer Time
Typically ≤ 6 ms (all three)
Battery
12 V 4.5 Ah SLA · 12 V 9 Ah SLA · 2× 12 V 9 Ah SLA
Recharge Time
≤ 8 hours to 90% (all three)
Output Sockets
2× IEC (AU) · 3× IEC (AU) · 4× IEC (AU) + optional 15 A AU socket on 2000 VA
Communication
USB (auto-shutdown) · RJ11 surge pass-through (all three)
Cold Start
Yes (all three)
Cooling
Passive (fan-free) · Passive (fan-free) · Low-noise thermal fan
Efficiency (AC mode)
≥ 92% (all three)
Operating Temperature
0 °C to +40 °C · humidity ≤90 % (non-condensing)
Dimensions (approx.)
90×140×195 mm · 100×145×280 mm · 145×195×340 mm
Weight
~4.5 kg · ~7.5 kg · ~14 kg
Certifications
RCM (AU) · CE · RoHS
Warranty
3-Year Australian Warranty (all three)
Frequently Asked Questions
What's the difference between VA and Watts?VA (volt-amps) is the apparent power rating; Watts is the real power the UPS can deliver. For CCTV/NVR loads, the wattage number is what actually matters — that's what you compare against the actual draw of your equipment. VA is what UPS marketing leads with because it's a bigger number.
How long will the UPS run my NVR for?Depends on load. A typical 8-camera Hikvision NVR draws ~120-180 W. At half load, the 1000 VA runs 15-25 min, the 2000 VA runs 25-40 min, and the 600 VA runs 5-10 min. Enough for a clean shutdown; not enough to keep recording through a multi-hour outage. For that, you want a larger UPS or a solar / genset solution.
Can it auto-shutdown my NVR?Yes — connect the USB cable from the UPS to the NVR's USB port and enable UPS shutdown in the NVR settings. When the battery drops to the safe threshold, the UPS signals the NVR to save-and-shutdown. Works with most Hikvision NVRs; check the NVR's user manual for the exact menu path.
Does it protect my ADSL/NBN modem too?Yes — plug the modem into one of the UPS's IEC outlets to power-protect it, AND run your ADSL/phone line through the RJ11 surge pass-through ports on the back to protect against surges coming down the phone line (lightning strikes on the copper network often destroy modems).
How often do I need to replace the battery?Typical SLA battery life is 3-5 years in Australian ambient conditions. Batteries in hot spaces (comms cabinets in summer) may only last 2-3 years. The UPS beeps when the battery fails its self-test — that's your signal. Replacement batteries are standard 12 V SLA sizes available from any battery supplier.
What's a "sine wave" vs "simulated sine wave" output?Pure sine wave outputs are true smooth AC — required by some sensitive equipment (medical, some audio gear). Simulated sine wave (also called modified sine wave) is what the DS-UPS-R/AU uses — perfectly fine for NVRs, PoE switches, modems, monitors, computers and 99% of home / commercial IT gear.
Order the Hikvision DS-UPS-R/AU from CCTV Guru
Australian stock across the entire DS-UPS-R/AU range — 600 VA, 1000 VA and 2000 VA. Select your capacity from the dropdown above. Free tech advice on sizing for your specific NVR + camera load — contact us with your parts list and we'll spec the right UPS for your project. Multi-unit and installer pricing available for site rollouts and body-corp maintenance contracts. Request a free quote or contact our Australian team.
Hikvision DeepinView · 8MP 4K · DarkFighter · 120 dB WDR · Face Capture
Hikvision DeepinView 4K Dome
Hikvision iDS-2CD7186G0-IZS — 8MP 4K DeepinView Motorised Varifocal Dome with DarkFighter, Deep Learning Face Capture & Perimeter Protection
The Hikvision iDS-2CD7186G0-IZS is a premium DeepinView intelligent dome camera engineered for critical infrastructure, commercial campuses, transport hubs and high-security enterprise sites where a standard AcuSense camera isn't enough. A 1/1.8" progressive CMOS streams true 4K UHD (3840 × 2160), and a 2.8-12 mm motorised varifocal lens gives you remote scene setup without a ladder. Backed by DarkFighter ultra-low-light (0.003 lux colour), 120 dB True WDR and 30 m Smart IR for round-the-clock imaging. Onboard deep-learning analytics deliver face capture, human/vehicle perimeter protection, multi-target detection and queue management — trained models running natively on the camera, no server needed. 3-year Australian warranty, back-to-base through Hikvision Australia by CCTV Guru.
Resolution
8 MP · 3840 × 2160 · 4K UHD
Lens
2.8-12 mm Motorised Varifocal · F1.2
Low-Light
DarkFighter · 0.003 lux · 30 m Smart IR
Wide Dynamic Range
120 dB True WDR
DeepinView AI
Face Capture · Perimeter · Multi-Target
Protection
IK10 · IP67 · Vandal-Resistant
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
DeepinView — What Actually Makes This Camera Different
DeepinView is Hikvision's dedicated AI camera family — one step above AcuSense in the range hierarchy. Where AcuSense filters false alarms on humans and vehicles, DeepinView runs trained deep-learning models on the camera itself: face capture with attribute detection, multi-target tracking across the frame, queue-length analytics, and perimeter classification tuned per-scene. The camera reduces false alarms by up to 90% versus a conventional analytics camera because it's actually recognising the object type — not just detecting motion. For sites where an operator can't afford to chase phantom alerts (retail loss prevention, transport terminals, campus perimeters), DeepinView pays for itself in labour hours saved.
DarkFighter Ultra-Low-Light Imaging
0.003 lux colour sensitivity at F1.2 with AGC on, 0 lux with IR. Full colour imaging in near-total darkness — useful for retail, hospitality and public spaces where night IR washout looks unwelcoming. Auto switch to monochrome IR when ambient drops further.
Face Capture with Attribute Detection
Onboard face capture with age / gender / glasses / mask attribute detection. Faces are extracted, cropped and timestamped in real time — reduces bandwidth compared to full-frame recording and simplifies post-incident search on the NVR side.
Perimeter Protection with H/V Classification
Line crossing, intrusion, region entrance and exit rules — all with human and vehicle classification so the alarm only fires on what actually matters. Ignores animals, foliage, headlights and precipitation.
Multi-Target Detection & Queue Management
Tracks multiple people or vehicles simultaneously across the frame — useful for entry counts, dwell-time analytics, and monitoring queue lengths at checkouts, boarding gates and reception areas.
120 dB True WDR
Handles high-contrast scenes — sunlit doorways backed by dark interiors, sunrise glare, indoor-to-outdoor transitions. Preserves detail in both the bright and dark regions of the frame simultaneously.
2.8-12 mm Motorised Varifocal Lens
Remote-adjustable focal length and auto-focus. Installers set the frame once from a laptop or NVR — no lens twiddling on a ladder. Wide 2.8 mm for entry monitoring; 12 mm long-throw for corridor or lot-boundary detail.
Ideal Deployments — Where DeepinView Earns Its Price
Retail Loss Prevention
Face capture at entries and checkout aisles, plus queue-length monitoring for staffing decisions. Deep-learning classification catches the shoplifter walk-out pattern that simple motion analytics misses.
Transport Terminals & Boarding Gates
High-throughput environments where operators can't watch every screen. Face capture streams the metadata to the NVR for later search; multi-target detection tracks flow rates and dwell times.
Campus Perimeters & Building Approaches
Human/vehicle classified line-crossing along fences, boundaries and access driveways — filters out wildlife, wind-blown vegetation and headlight reflections. Alerts operations only on real events.
Financial & Enterprise Reception
Face capture at building entries with attribute detection — feeds into visitor management workflows and after-hours access review. IK10 vandal resistance for public-space installs.
Technical Specifications
iDS-2CD7186G0-IZS · Full Specifications
SKU
iDS-2CD7186G0-IZS (AU stock)
Camera Type
Hikvision DeepinView Series · 4K Motorised Varifocal Dome · Deep Learning AI
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160 (8 MP / 4K UHD)
Main Stream
25/30 fps @ 3840 × 2160 · 2560 × 1440 · 1920 × 1080
Lens
2.8-12 mm Motorised Varifocal · Auto-Focus · F1.2
Field of View
111°–43.7° (horizontal, wide to tele)
Min. Illumination
Colour: 0.003 lux @ F1.2 (AGC ON) · 0 lux with IR
Wide Dynamic Range
120 dB True WDR
Shutter Speed
1 s to 1/100,000 s
IR Distance
Up to 30 m · Smart IR intensity + angle auto-adjust
Video Compression
H.265+ · H.265 · H.264+ · H.264 · MJPEG
Deep Learning Functions
Face Capture · Perimeter Protection (H/V classified) · Multi-Target Detection · Queue Management
Face Capture
Attribute detection (age / gender / glasses / mask) · Face library matching (via NVR)
Perimeter Rules
Line crossing · Intrusion · Region entrance · Region exiting · Human + Vehicle classification
Audio
1× audio in, 1× audio out (3.5 mm) · G.711 / G.722.1 / G.726 / MP2L2 · Audio detection
Alarm I/O
1 input · 1 output
Ethernet
1× RJ-45 10/100 Mbps
Protocols
IPv4/IPv6 · HTTPS · 802.1X · QoS · FTP · SMTP · UPnP · SNMP · DNS · DDNS · NTP · RTSP · TCP · UDP · IGMP · DHCP · Bonjour · SRTP · TLS
Storage
microSD / SDHC / SDXC up to 256 GB · NAS · ANR (Auto Network Replenishment)
API
ISAPI · Hikvision SDK · ONVIF (Profile S / G / T)
Client Software
iVMS-4200 · Hik-Central Professional · Hik-Connect
Power
12 VDC · 24 VAC · PoE 802.3af Class 3 (max ≈ 12 W with IR)
Weatherproof
IP67 (IEC 60529)
Vandal Resistance
IK10
Operating Temperature
−30 °C to +60 °C · humidity ≤95 %
Warranty
3-Year Australian Warranty (back-to-base)
Pair with a Hikvision AcuSeek or DeepinMind NVR
DeepinView cameras generate rich metadata — face captures, attribute tags, human/vehicle detections. That metadata is only fully useful if your NVR indexes it. Standard M-Series NVRs record the camera reliably, but for natural-language search across the recording, step up to an AcuSeek (VPro) or DeepinMind NVR that indexes the DeepinView metadata for post-incident search.
AcuSeek VPro Series
Natural-language search across recordings — "show me all people wearing red between 2 pm and 4 pm at Camera 3." Indexes face-capture metadata from DeepinView cameras. Browse AcuSeek NVRs →
DeepinMind AI NVRs
Enterprise AI NVR family — face-library matching, cross-camera tracking, alarm correlation. For 4-16+ DeepinView cameras. Browse DeepinMind range →
Frequently Asked Questions
What's the difference between DeepinView and AcuSense?AcuSense filters false alarms with human/vehicle classification. DeepinView runs deep-learning trained models on the camera — face capture with attribute detection, multi-target tracking, queue analytics, plus everything AcuSense does. DeepinView is the tier above AcuSense in Hikvision's range.
How does the motorised varifocal lens work?The 2.8-12 mm zoom and focus are controlled remotely via the NVR, web interface, iVMS-4200 or Hik-Connect app. Installers set the frame once from a laptop, then leave the camera alone. No ladder needed for scene adjustments.
Does face capture require a separate face-recognition server?Face capture (detection + attribute tagging + cropping) runs on the camera itself. Face recognition / matching against a library requires a DeepinMind NVR or Hik-Central server. The camera streams the captured face images for the server to match.
What power supply options does the camera support?PoE 802.3af Class 3, 12 VDC, or 24 VAC. Runs on any standard Hikvision NVR PoE port — no Hi-PoE injector needed. Full max power draw approximately 12 W with IR at full range.
Is the camera vandal- and weather-rated?Yes — IP67 weather-rated (dust-tight + immersion) and IK10 vandal-rated (20-joule impact resistance). Suitable for outdoor mounting under eaves, on approach paths, in car parks, on wall mounts and at accessible ceiling heights in indoor public spaces.
Can I integrate with a non-Hikvision VMS?Yes — the camera speaks ONVIF Profile S, G and T and RTSP. Compatible with Milestone XProtect, Genetec, Exacq, Immix and most other Australian VMS platforms. Note: DeepinView-specific metadata (face captures, attribute tags) is only fully indexed on Hikvision NVRs / Hik-Central.
Downloads & Resources
iDS-2CD7186G0-IZS Datasheet
Quick Start Guide
Network Camera User Manual
Order the Hikvision iDS-2CD7186G0-IZS from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision DeepinView range. The iDS-2CD7186G0-IZS is a specialist AI camera — for buyers who understand the DeepinView tier and know why they want it. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, and specialist pre-sales advice on face-capture / perimeter deployments from our Sydney team. Request a free quote or contact our Australian team.
Hikvision Pro IP Intercom · 7" Android Touchscreen · PoE + Wi-Fi · Flush Mount
Hikvision 7" IP Intercom Station
Hikvision DS-KH8381-WTE1/Flush — 7" Android IP Intercom Indoor Station with PoE, Wi-Fi, Echo Cancellation & Flush Mount Design
The Hikvision DS-KH8381-WTE1/Flush is a premium 7-inch Android-powered IP video-intercom indoor monitor — the in-room answering device paired with Hikvision's IP door stations for villas, apartments, luxury estates and commercial reception. A 1024 × 600 IPS touchscreen, embedded Android OS, and built-in echo cancellation deliver a phone-like conversation quality on the intercom call, while PoE 802.3af and dual-band Wi-Fi 802.11 b/g/n give you a single-cable install or fully wireless retrofit. Integrates with any Hikvision IP door station, unlocks the door on a tap, and shows live video from any Hikvision IP camera on your NVR so you can verify a visitor before granting access. 3-year Australian warranty from CCTV Guru.
Display
7" IPS Touch · 1024 × 600
Operating System
Embedded Android
Connectivity
PoE 802.3af + Wi-Fi b/g/n
Audio
Full-Duplex · AEC + Noise Suppression
Alarm I/O
8 Inputs · 2 Relay Outputs · RS-485
Mounting
Flush · Low-Profile Architectural
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
Why This Is the Indoor Station to Choose
The DS-KH8381-WTE1/Flush is the top-tier indoor answering unit in Hikvision's IP intercom range — chosen for premium builds where a plain 4-inch monitor won't cut it. The 7-inch IPS touchscreen sits flush with the wall behind an included architectural bracket; there's no protruding chassis to catch the eye. Android under the hood means the UI feels like a phone — swipe, tap, quick response. Full-duplex audio with echo cancellation gives you natural conversation with the person at the door, and you can pull up a live feed from any Hikvision IP camera on your NVR to verify a visitor before you unlock. Alarm inputs (8) and relay outputs (2) turn the monitor into a small building-management panel — connect door sensors, glass-break sensors, or trigger a driveway light on visitor arrival.
Full-Duplex Audio with Echo Cancellation
Acoustic Echo Cancellation (AEC) plus digital noise reduction. Two-way conversation without the walkie-talkie "you have to stop talking" awkwardness — critical for a commercial reception setting where the impression matters.
Camera Preview from the Intercom
Tap through to any Hikvision IP camera on your network. Verify a visitor from the driveway camera before you unlock the door, or check the delivery bay from the reception monitor. Cameras don't need to be on the same door station.
PoE + Wi-Fi Flexibility
PoE 802.3af for a single-cable retrofit; Wi-Fi 802.11 b/g/n for locations where running Ethernet is impractical. Also accepts 12 VDC for legacy or off-grid installs.
8 Alarm Inputs + 2 Relay Outputs
Wired inputs for door sensors, glass break, PIR or panic buttons. Two relay outputs to trigger driveway lights, sirens, gates or auxiliary door strikes. RS-485 bus for larger integrations.
Flush Architectural Mount
Included bracket sits the monitor cleanly in the wall cavity — no protruding chassis. Suits luxury villa entries, boutique-hotel reception, high-end apartment lobbies where visible-tech looks unwelcome.
Multi-Tenant Scalability
Fits Hikvision's IP intercom system for buildings up to 4,000 monitors across a single site — apartment complexes, mixed-use developments, campuses. Works with entrance stations, villa door stations, master stations and Hik-Connect for remote answer on smartphone.
Where This Indoor Station Belongs
Luxury Villas & Estates
The 7-inch touchscreen sitting flush in an entry-hall wall — natural answering point without a chunky corded handset. Pair with an outdoor DS-KV8x13 or DS-KV6x13 IP villa door station.
Apartment Buildings & Body Corp
One indoor station per unit answering to a shared IP entrance station. Individual call routing per apartment, master station for building manager, Hik-Connect for smartphone answer when tenants are out.
Boutique Reception & Hospitality
Hotel front desk, day spa reception, medical practice — anywhere you want a discreet, premium-looking answering device with integrated camera preview.
Small Commercial & Serviced Offices
Suite entry monitoring — check the corridor camera from the desk before buzzing someone in. RS-485 and relay outputs let you integrate with electric strike locks and driveway barriers.
Technical Specifications
DS-KH8381-WTE1/Flush · Full Specifications
SKU
DS-KH8381-WTE1/Flush (AU stock)
Device Type
Hikvision Pro IP Video Intercom · Indoor Answering Monitor · Flush Mount
Operating System
Embedded Android
Display
7-inch Colour IPS Touchscreen
Display Resolution
1024 × 600
Audio Input / Output
Built-in omnidirectional microphone + built-in loudspeaker
Audio Enhancement
Acoustic Echo Cancellation (AEC) + Digital Noise Reduction · Full-Duplex
Ethernet
1× RJ-45 10/100 Mbps self-adaptive
Wi-Fi
802.11 b/g/n (2.4 GHz)
Alarm Inputs
8 channels · dry/wet contact configurable
Alarm Outputs
2× relay outputs (configurable per event)
Serial Interface
1× RS-485
Power
PoE 802.3af · or 12 VDC (2 A) local input
Power Consumption
≤ 12 W typical
Mounting
Flush mount · architectural bracket included
System Capacity
Fits Hikvision IP intercom systems up to 4,000 indoor stations per site
Camera Preview
Live view from any Hikvision IP camera on the same network
Remote Access
Hik-Connect (smartphone answer, remote unlock, snapshot review)
Client Software
iVMS-4200 · Hik-Central Professional
Compatible Door Stations
DS-KV8x13, DS-KV6x13, DS-KD8003-IME, DS-KD-ACF3 series and other Hikvision IP door stations
Operating Temperature
−10 °C to +55 °C
Operating Humidity
≤90 %
Warranty
3-Year Australian Warranty (back-to-base)
What You'll Need to Complete the System
Outdoor IP Door Station
Pair with a Hikvision IP door station — DS-KV8x13 or DS-KV6x13 for villas, DS-KD8003-IME for apartments. Handles the visitor-side call, camera and unlock command. Browse Hikvision IP door stations →
PoE Switch (Optional)
Single Ethernet cable powers and connects the indoor station via any PoE 802.3af port. If you don't have a PoE switch yet, a small unmanaged PoE switch is the cheapest way to power the whole intercom system. View network switches →
Frequently Asked Questions
Does it need a separate power supply if I use PoE?No. A single Cat 5e/6 Ethernet run from a PoE 802.3af switch carries both data and power. The 12 VDC input is only needed if you're powering the monitor over Wi-Fi (no Ethernet) or in a legacy install.
Can I view Hikvision IP cameras from the indoor station?Yes. Tap into any Hikvision IP camera on your network — during a call, or standby. Useful for checking the driveway camera before unlocking the front door, or the loading dock from the reception monitor.
What are the benefits of the flush-mount design?The flush bracket recesses the monitor into the wall cavity so the screen sits nearly flush with the plaster — no protruding chassis. Better aesthetics for luxury villas, boutique reception, apartment lobbies. Also more resistant to knocks and tampering than a surface mount.
Can I answer the intercom from my phone if I'm not home?Yes — the indoor station links to Hik-Connect on Android and iOS. Incoming door calls forward to your phone, you can talk to the visitor from anywhere and unlock the door remotely. Works over Wi-Fi or mobile data.
How many door stations can I connect?The Hikvision IP intercom system supports up to 8 door stations per indoor station and up to 4,000 indoor stations per project — from a single-villa install to a large apartment complex. Master stations can be added for a concierge / building manager.
What door strikes and locks does it work with?The 2 relay outputs are dry-contact and configurable — compatible with any standard electric strike, magnetic lock or gate motor that accepts a dry-contact input. Some door stations also have their own relay outputs — you can wire the strike from the door station side instead if it's closer to the door.
Downloads & Resources
DS-KH8381-WTE1/Flush Datasheet
Quick Start Guide
User Manual
Order the Hikvision DS-KH8381-WTE1/Flush from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision IP video intercom range. The DS-KH8381-WTE1/Flush is the premium indoor answering monitor for luxury residential, apartment developments and boutique commercial installs. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, project pricing for multi-unit installs, and specialist intercom advice from our Sydney team. Request a free quote or contact our Australian team.
Hikvision 8MP 4K · ColorVu · Smart Hybrid Light · Live-Guard · F1.0
Hikvision 8MP 4K Live-Guard Bullet
Hikvision DS-2CD2086G2H-I2U/SL — 8MP 4K ColorVu Smart Hybrid Light Live-Guard Bullet Camera with F1.0 Lens, White Strobe & Two-Way Audio (2.8mm or 4mm, IP67)
The Hikvision DS-2CD2086G2H-I2U/SL is Hikvision's Pro Series Gen-2H bullet camera — the bullet-form counterpart to the popular G2H turret line. A 1/1.8" progressive-scan CMOS sensor combined with a fixed F1.0 super-aperture lens delivers true ColorVu 24/7 colour at 0.0008 lux; Smart Hybrid Light integrates white and 850 nm IR LEDs into a single 40 m array with three modes; AcuSense deep-learning classifies every motion event as human, vehicle or "other" and filters out ~90 % of foliage / rain / possum false alarms; and the /SL Live-Guard package adds a white strobe light, a built-in speaker for audible warnings and two-way audio via a built-in microphone. 120 dB WDR, IP67 weather protection, three variants available (2.8 mm White, 4 mm White, 2.8 mm Black) — same $379 for all three. Runs on standard PoE 802.3at Class 4 (18 W) from any Hikvision NVR PoE+ port. Australian stock, 3-year Australian warranty.
Resolution
8 MP · 3840 × 2160 · 4K UHD
Super-Aperture Lens
F1.0 · 2.8 mm or 4 mm
Smart Hybrid Light
White + IR · 3 modes · 40 m
AI Engine
AcuSense · Human + Vehicle
Live-Guard Deterrence
White Strobe · Speaker · 2-Way Audio
Protection
IP67 · 120 dB WDR · 3-Year AU
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
See Smart Hybrid Light + ColorVu in Action
The Hikvision Smart Hybrid Light demonstration shows the three illumination modes — IR-only at night for covert recording, white-light-only for 24/7 colour, or smart auto-blend where the white light burst is triggered only when AcuSense detects a human or vehicle. Same illuminator architecture powers this DS-2CD2086G2H-I2U/SL bullet.
Why the G2H Bullet Is the Right Camera for Commercial Sites
ColorVu — True 24/7 Colour at 0.0008 lux
1/1.8" CMOS + F1.0 super-aperture = 0.0008 lux colour imaging. Retains full natural colour under moonlight, dock lighting, forecourt lights or driveway lighting — no IR cut-over, no black-and-white night mode.
Smart Hybrid Light — 40 m Range
Combined white + 850 nm IR LEDs deliver up to 40 m of night-time illumination. Three modes: IR-only (covert), white-only (24/7 colour), or smart blend (white-light burst on AcuSense events).
AcuSense — Real Notifications, Not False Alarms
Deep-learning classification on the camera itself filters ~90 % of alerts caused by foliage, rain, possums and headlight glare — only human / vehicle detections trigger recording and Live-Guard deterrents.
Live-Guard /SL — Active Deterrence
White strobe + built-in speaker + built-in microphone for two-way audio. When AcuSense detects an intruder, the strobe flashes, the speaker plays the warning, and you can open a live talk-down via Hik-Connect.
Bullet Form for Long-Range Framing
The bullet housing (Ø 74 mm × 176 mm, 515 g) is ideal for wall-mount installs where you want the lens pointed along a specific axis — driveways, carparks, warehouse aisles, loading docks. Sun-shroud handles Australian glare.
Three Variants — One Price
Choose White 2.8 mm (widest), White 4 mm (longer reach) or Black 2.8 mm (blends with dark eaves and modern black cladding). All three variants are $379 — pick by what suits the install best, not by budget.
2.8 mm vs 4 mm — Which Lens for Your Install?
This camera ships with the buyer's choice of 2.8 mm or 4 mm fixed lens. Both have the same F1.0 super-aperture; they differ in field of view and how far they reach.
Lens-by-Use-Case Decision Guide
2.8 mm — Field of view
Horizontal 105.1° · Vertical 54.8° · Diagonal 128.2° — the widest option
2.8 mm — DORI (approx.)
Detect 89 m · Observe 35 m · Recognise 17 m · Identify 8 m
2.8 mm — Best for
Shopfront overview, retail entrance, driveway, small carpark, warehouse aisle, loading dock, front door of small commercial building. Captures the whole scene in one shot.
4 mm — Field of view
Horizontal ~90° · Vertical ~48° · Diagonal ~109° — narrower but reaches further
4 mm — DORI (approx.)
Detect 109 m · Observe 43 m · Recognise 21 m · Identify 10 m
4 mm — Best for
Long driveway, carpark aisle, gateway / approach view, warehouse loading zone with vehicles at the far end. More pixels on the target when you need face / plate identification at the far end.
Not sure which lens? For most Australian commercial installs, 2.8 mm is the safe starting point. Choose 4 mm when the scene is longer than ~15 m and you need to identify a face or read a plate at the far end.
White vs Black Housing — Which Colour?
Classic White
The default Hikvision commercial finish. Blends with pale eaves, off-white cladding, brick and light-coloured facades. Best for typical Australian residential and light commercial installs.
Midnight Black
Blends with dark eaves, black cladding, powder-coated aluminium, tinted-glass facades and modern architectural black exteriors. Popular for high-end retail, hospitality and premium commercial installs where the camera should disappear visually.
Technical Specifications
DS-2CD2086G2H-I2U/SL · Full Specifications
SKUs
DS-2CD2086G2H-I2U/SL (White · 2.8 mm) · DS-2CD2086G2H-I2U/SL-4MM (White · 4 mm) · DS-2CD2086G2H-I2U/SL-BLK (Black · 2.8 mm)
Camera Type
Hikvision Pro Series G2H · 8 MP / 4K UHD ColorVu Smart Hybrid Light AcuSense Live-Guard Fixed Bullet
Image Sensor
1/1.8" Progressive Scan CMOS · ColorVu
Max Resolution
3840 × 2160 (8 MP · 4K UHD)
Min. Illumination
Colour 0.0008 lux @ F1.0 (AGC ON) · 0 lux with supplement light
Shutter Speed
1/3 s to 1/100,000 s · Slow Shutter
Lens Options
2.8 mm fixed · F1.0 (105.1° H FOV) OR 4 mm fixed · F1.0 (~90° H FOV)
Day & Night
ICR (IR cut filter, mechanical)
Wide Dynamic Range
120 dB True WDR
Image Enhancement
BLC · HLC · 3D DNR · digital defog · EIS
SNR
≥ 52 dB
Supplement Light
Smart Hybrid Light — white + 850 nm IR · up to 40 m · 3 modes (IR / White / Smart Blend)
Angle Adjustment
Pan 0°-360° · Tilt 0°-90° · Rotation 0°-360°
Frame Rate (Main)
50 Hz: 25 fps @ 8 MP · 60 Hz: 30 fps @ 8 MP (4K UHD)
Streams
3 simultaneous (main / sub / third)
Video Compression
H.265+ · H.265 · H.264+ · H.264 · MJPEG (sub-stream)
Video Bit Rate
32 Kbps – 16 Mbps · CBR / VBR · SVC (H.264 + H.265) · ROI
AI — AcuSense
Human + vehicle classification · perimeter protection (line crossing / intrusion / region entry / region exit) · scene change · face capture
Live-Guard /SL Package
White strobe · audible warning · built-in speaker · built-in microphone · two-way audio
Basic Events
Motion (human + vehicle filter) · video tampering · exception
Linkage
FTP / NAS / microSD upload · centre notify · email · trigger recording · strobe flash · audible warning
Audio
Built-in microphone · built-in speaker · 2-way audio · G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Alarm I/O
1 input · 1 output
Ethernet
1 × RJ-45 10/100 Mbps self-adaptive
On-Board Storage
microSD / SDHC / SDXC up to 512 GB · NAS (NFS / SMB-CIFS) · ANR auto network replenishment
API & Protocols
ONVIF (Profile S / G / T) · ISAPI · SDK · ISUP
Cyber Security
HTTPS · 802.1X · IP filter · watermark · MAC host authentication · audit log · password protection
Client Software
iVMS-4200 · Hik-Connect · HikCentral Pro
Power Source
12 VDC ±25% (1.25 A, max 15 W) OR PoE 802.3at Class 4 (max 18 W) — runs on any Hikvision NVR PoE+ port
Material
Metal housing (aluminium alloy) · White or Black finish variant
Dimensions / Weight
Ø 74.4 mm × 176.3 mm · ≈ 515 g
Operating Temperature
−30 °C to +60 °C · ≤95 % humidity (non-condensing)
Weatherproof Rating
IP67 (IEC 60529-2013)
Approvals
CE-EMC · CE-LVD · UL · RCM (AS/NZS CISPR 32:2015) · IC · KC · CB · RoHS
Warranty
3-Year Australian Warranty (back-to-base)
DS-2CD2086G2H-I2U/SL (G2H Bullet) vs DS-2CD2387G3-LIS2UY/SL (G3 Turret)
Both are 8 MP / 4K ColorVu Live-Guard cameras with Smart Hybrid Light. The G2H bullet reaches further with 40 m Smart Hybrid Light and a longer-range form factor; the G3 turret has a slightly better low-light floor (0.0005 vs 0.0008 lux) and NEMA 4X anti-corrosion housing. Pick by form factor and site conditions.
DS-2CD2086G2H-I2U/SL (Bullet) vs DS-2CD2387G3-LIS2UY/SL (Turret)
Feature
DS-2CD2086G2H-I2U/SL (this — G2H Bullet)
DS-2CD2387G3-LIS2UY/SL (G3 Turret)
Form Factor
Bullet (Ø 74 × 176 mm, 515 g)
Turret (Ø 138 × 115 mm, 820 g)
Series
Pro Series G2H
Pro Series G3
Resolution
8 MP · 3840 × 2160 (4K UHD)
8 MP · 3840 × 2160 (4K UHD)
Image Sensor
1/1.8" CMOS · ColorVu
1/1.8" CMOS · ColorVu 3.0
Min. Illumination
0.0008 lux @ F1.0
0.0005 lux @ F1.0
Lens Options
2.8 mm or 4 mm · F1.0
2.8 mm or 4 mm · F1.0
Smart Hybrid Light
Up to 40 m · 3 modes
Up to 30 m · 3 modes
WDR
120 dB True WDR
130 dB Scene-Adaptive WDR
AI Engine
AcuSense human + vehicle
AcuSense human + vehicle
Live-Guard /SL
Strobe + speaker + 2-way audio
Strobe + speaker + 2-way audio
Anti-Corrosion
Not rated
NEMA 4X (Y suffix)
Colour Options
White or Black
White or Black
Power
PoE 802.3at Class 4 · 18 W
PoE 802.3at Class 4 · 17 W
Best For
Long, narrow scenes: driveways, warehouse aisles, loading docks, carpark rows, road frontages. Bullet form points the lens along a specific axis.
Coastal sites, wide-scene installs, ceiling / eave mounts. Turret is more compact and NEMA 4X-rated for saltwater environments.
View the G3 turret sibling: DS-2CD2387G3-LIS2UY/SL (8 MP 4K ColorVu Live-Guard Turret) →
Recording NVRs — Pair with an Affordable M-Series PoE NVR
This bullet runs on standard PoE 802.3at Class 4 and plugs directly into any Hikvision NVR's PoE+ port. For most Australian commercial installs, the M-Series NVRs are the right pairing.
DS-7604NI-M1/4P — 4CH · 4 PoE
Four-channel M-Series NVR with 4 PoE ports and single HDD bay. Right size for a small install with this bullet as the centrepiece. View DS-7604NI-M1/4P →
DS-7608NI-M2/8P — 8CH · 8 PoE · 2 HDD
Eight-channel NVR with 8 PoE ports and 2 HDD bays. Sweet spot for retail, hospitality and small commercial installs running 4-8 bullets. View DS-7608NI-M2/8P →
DS-7616NI-M2/16P — 16CH · 16 PoE · 2 HDD
Sixteen channels at full PoE for larger sites, body-corporate and multi-shop strata running 10-16 bullets. View DS-7616NI-M2/16P →
Need AI Search? AcuSeek / DeepinMind NVRs
For natural-language search across the fleet, step up to AcuSeek (VPro) or DeepinMind AI NVRs. Overkill for most SMB installs. Browse the AI NVR range →
Frequently Asked Questions
Bullet or turret — which should I choose?A bullet like this DS-2CD2086G2H-I2U/SL is best for long, narrow scenes — driveways, warehouse aisles, loading docks, carpark rows. The lens points along a specific axis. A turret is more compact and better for wider scenes mounted on an eave or ceiling. Both are IP67, both do ColorVu + Live-Guard — the choice is form factor + install geometry.
What's the difference between the three variants?Only lens focal length and housing colour. All three variants use the same sensor, same AcuSense AI, same Live-Guard package, same F1.0 aperture, same IP67 rating. 2.8 mm White (default) and 4 mm White differ in field of view (105° vs 90°); 2.8 mm Black has the identical lens as the White 2.8 mm but in a black metal housing.
What does "-SL" mean in the SKU?The /SL suffix is Hikvision's Live-Guard active-deterrence package. When AcuSense detects a human or vehicle, the camera flashes the white strobe, plays a warning through the built-in speaker, and lets you open two-way audio via Hik-Connect. Turns a passive recorder into an active deterrent.
What does "G2H" mean vs G2 or G3?G2 = original Pro Series Gen-2 (IR only, no ColorVu). G2H = Pro Series Gen-2 Hybrid (ColorVu + Smart Hybrid Light + Live-Guard added). G3 = latest Pro Series Gen-3 (ColorVu 3.0 + HikAI-ISP + slightly better low-light floor). The G2H sits between G2 and G3 in features and price.
Does it run on a standard Hikvision NVR PoE port?Yes — PoE 802.3at Class 4 (max 18 W), the standard PoE+ rating delivered by every Hikvision PoE NVR port. Single Cat 6 cable from NVR to camera. No special supply needed.
Is there anti-corrosion protection for coastal sites?Not on this specific model — this camera does not have the NEMA 4X anti-corrosion housing (there's no -Y variant). For genuinely coastal installs within ~2 km of the shoreline, choose the G3 turret with -Y suffix instead, or mount this bullet under deep cover so it doesn't see direct salt-spray exposure.
How does AcuSense filter false alarms?On-camera deep-learning classifies each motion event as human, vehicle or "other" (animals, foliage, rain, headlight glare). Only human / vehicle detections trigger alerts and Live-Guard deterrents. Typical sites see ~90% fewer false alerts than motion-only cameras.
Downloads & Resources
DS-2CD2086G2H-I2U/SL Datasheet
Hikvision Bullet Quick Start Guide
Hikvision Bullet User Manual
Order the Hikvision DS-2CD2086G2H-I2U/SL from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision ColorVu Live-Guard cameras. The DS-2CD2086G2H-I2U/SL bullet is our top pick for Australian commercial sites needing ColorVu 24/7 colour, 40 m Smart Hybrid Light, AcuSense AI filtering, and the /SL Live-Guard active-deterrence package in a bullet form factor. Choose from three variants at the same $379 price: 2.8 mm White, 4 mm White or 2.8 mm Black. Australian stock, 3-year Australian warranty. Building a complete system? Request a free quote or contact our Australian team.
Hikvision PREMISES DISTRIBUTION · NDAA & TAA COMPLIANT
Commercial-Grade 12U Storage for Critical Infrastructure
The DS-XS6412-S/B from Hikvision delivers a reliable, organized, and secure housing solution tailored for enterprise networking equipment, NVR systems, PoE switches, and patch panels. Engineered specifically for commercial security installations, telecommunications rooms, and edge computing environments, this 12U rack unit combines heavy-duty cold-rolled steel construction with a compact wall-mounting footprint. It keeps critical hardware safe, well-ventilated, and easy to maintain in space-constrained operational hubs.
Rack Standard
12U 19-Inch
Dimensions
600 × 450 × 635mm
Load Capacity
40 kg Static Rating
Enclosure Security
Lockable Glass Door
Optimized Thermal Management and Seamless Accessibility
Building high-uptime security and network deployments requires intuitive cable routing and efficient thermal control. The Hikvision DS-XS6412-S/B Enclosure features top and bottom closeable cable entry ports alongside 78% front-door ventilation cutouts to keep operational temperatures low under continuous load. Equipped with a 4mm toughened safety-glass door and quick-release side panels, technicians gain rapid visual inspection and 360-degree maintenance access while maintaining complete lockable physical security against unauthorized access.
Industrial SPCC Cold-Rolled Steel Construction
Manufactured using heavy-gauge SPCC steel (1.5mm vertical rails, 1.2mm frame beams, and 1.0mm side panels) to support active electronic workloads up to 40 kg without chassis deflection.
Simplified Cable Routing & Maintenance
Features top and bottom cable knockouts and removable snap-in side panels, simplifying complex fiber and Ethernet patching during initial installation or system upgrades.
Technical Specification Matrix
Camera Model
DS-XS6412-S-B
Rack Capacity
12U (19-inch ETSI standard compliant)
External Dimensions (W × D × H)
600 mm × 450 mm × 635 mm
Static Load Rating
40 kg (88 lbs)
Front Door Type
4mm Tempered Glass with 1.0mm SPCC Steel Frame
Door Opening Angle
78% Front Door Opening Angle
Steel Thickness Specifications
Rails: 1.5mm | Frame: 1.2mm | Panels: 1.0mm
Color & Finish
Black Powder Coat (RAL 9005)
Net Enclosure Weight
21 kg (empty)
Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
How much total equipment weight can the DS-XS6412-S/B support safely?
The cabinet supports a maximum static load of 40 kg. Always verify that your wall mounting hardware and substrate are rated to carry the combined weight of the cabinet (21 kg) and internal equipment (up to 61 kg total).
Will standard 19-inch rackmount NVRs and PoE switches fit inside this depth?
Yes. With a 450mm outer depth, it comfortably accommodates standard 19-inch patch panels, managed PoE switches, and short-depth NVR/DVR units along with rear cable bend clearance.
Are fans, shelves, or Power Distribution Units (PDUs) included?
No, active cooling fan kits, internal cantilever shelves, and rack-mount PDUs are optional modular accessories ordered separately based on specific thermal and power requirements.
Is the front tempered glass door reversible and lockable?
Yes, the front 4mm tempered glass door comes with a dedicated key lock assembly to safeguard your active networking hardware against unauthorized tampering.
Official Hikvision Stock
NDAA & TAA Certified
Aust-Wide Delivery
Hikvision HeatPro · 256×192 Thermal + 4MP Optical · Fire Detection · 287m Range
Hikvision HeatPro Bi-Spectrum Thermal
Hikvision DS-2TD1228-7/QA — HeatPro Bi-Spectrum Thermal + Optical Turret Camera with 256×192 Thermal Sensor, 4MP Optical, Fire Detection & Temperature Measurement
The Hikvision DS-2TD1228-7/QA is a bi-spectrum thermal and optical turret camera from Hikvision's HeatPro Series — designed for Australian commercial and industrial sites that need both long-range perimeter detection and early fire / temperature-exception alarms from a single, cost-effective device. A 256 × 192 uncooled VOx thermal sensor paired with a 4 MP (2688 × 1520) optical CMOS gives you two synchronised video streams: the thermal image detects intruders, vehicles, fires and abnormal heat signatures regardless of ambient light; the optical image gives operators the visual confirmation they need to verify the alarm and dispatch a response. Vehicle detection out to 881 m, human detection out to 287 m, and fire detection out to 82.8 m — all on a single PoE 802.3af drop, no special power or cabling required. Backed by 3-year Australian warranty from CCTV Guru.
Thermal Sensor
256 × 192 · VOx · <40 mK NETD
Optical Sensor
4 MP · 2688 × 1520 · 120 dB WDR
Detection Range
881 m Vehicle · 287 m Human
Temperature Alarm
−20 °C to +150 °C · ±8 °C
Deterrence
30 m White Light + Voice Alarm
Protection
IP67 · −40 °C to +65 °C · PoE 802.3af
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
Why Bi-Spectrum Thermal Is the Right Camera for Certain Sites
A conventional visible-light camera has two problems that a thermal camera solves outright: it can't see through smoke, fog or total darkness, and it can't measure temperature. For sites where early fire detection, perimeter protection out to 287 m in complete darkness, or temperature-based loss prevention matter, a bi-spectrum thermal camera is a targeted tool — not a general-purpose surveillance camera. The DS-2TD1228-7/QA gives you both channels: the thermal camera detects, and the optical camera verifies. When the thermal sensor triggers an alarm on a human at 200 m or a fire at 80 m, the optical channel gives the operator or NVR the colour picture needed to make the response call.
256 × 192 Uncooled VOx Thermal Sensor
Vanadium Oxide Uncooled Focal Plane Arrays with 12 μm pixel pitch, NETD < 40 mK, spectral range 8–14 μm. Uncooled means no maintenance and long life — Hikvision offers a 10-year guarantee on the detector itself.
4 MP (2688 × 1520) Optical Verification Channel
Second sensor is a 1/2.7" progressive-scan CMOS at 4 MP with 120 dB True WDR and 0.0089 lux minimum illumination. Both channels stream simultaneously to the same NVR — operators see the thermal alarm AND the visual context at the same time.
Fire & Smoke Detection Algorithms
Built-in fire detection to 82.8 m and smoking detection to 10.35 m. Useful at warehouses, waste incineration plants, waste-processing sites, manufacturing workshops, timber yards, chemical stores and any site where an ignition source could go unnoticed until it's a serious fire.
Temperature Exception Alarms
Configurable temperature range from −20 °C to +150 °C with ±8 °C accuracy. Set up to 21 measurement rules (10 point rules, 10 area rules, 1 line rule) — alarm when a machine bearing runs hot, when refrigeration fails, when a battery bank overheats, when insulation catches or an exhaust exceeds safe limits.
VCA — Human + Vehicle Classification
Deep-learning video content analysis with line crossing, intrusion, region entrance and region exiting rules (up to 8 in total). Human/vehicle classification to filter out foliage, animals and lighting changes. VCA range up to 144.9 m for vehicles, 55.2 m for humans.
Active Deterrent — White Light + Voice
Built-in 30 m white-light strobe with adjustable flashing frequency and audio alarm with 2 preset voice alerts + 6 importable custom voice alerts. Triggered independently on VCA events or temperature exceptions.
Where This Camera Actually Belongs — Real Australian Use Cases
Waste, Recycling & Landfill Sites
The classic HeatPro use case — early fire detection in waste piles, tyre stockpiles, timber yards, greenwaste and lithium-battery recycling. A hot spot detected at 80 m gives you the time to intervene before it becomes a fire; a conventional camera would only see smoke once combustion is already established.
Construction Sites & Building Yards
Perimeter protection out to 287 m in total darkness. Thermal doesn't need any ambient light, so no floodlights on the site — cheaper on power, less community light-pollution complaints, and no dark corners for someone to hide in.
Warehouses, Manufacturing & Cold Storage
Temperature exception alarms on refrigeration compressors, freezer entrances, battery banks, transformer enclosures and any machinery where an overheat means expensive downtime. Combined with the optical verification channel, you get both the alarm and the visual record.
Substations, Utility & Solar Farms
Unmanned utility sites benefit from long-range perimeter detection and thermal monitoring of critical equipment. Detect an intruder at 287 m or a transformer developing a hot fault — both from one camera on one PoE run.
Villas, Rural Properties & Boundary Fences
Long rural fence lines that a standard optical camera can't monitor. Thermal detects a human at up to 287 m regardless of moon phase, cloud cover or vegetation shadowing.
Parking Lots, Loading Docks & Perimeter Roads
Where the perimeter is longer than a standard IP camera can cover, and where you want vehicle detection to 881 m (with narrow-angle 24.9° thermal lens) — useful at industrial estates, port fringes, mining site entrances and haul-road boundaries.
Detection Range Table (per EN 62676 & Johnson's Criteria)
Detection · Recognition · Identification Distances
Vehicle Detection (1.4 × 4.0 m target)
881 m — enough pixels to detect the vehicle exists
Vehicle Recognition (1.4 × 4.0 m target)
220 m — enough to classify as car / truck / larger vehicle
Vehicle Identification (1.4 × 4.0 m target)
110 m — enough to identify make / model detail
Human Detection (1.8 × 0.5 m target)
287 m — enough to detect a human is present
Human Recognition (1.8 × 0.5 m target)
72 m — enough to describe body type / posture
Human Identification (1.8 × 0.5 m target)
36 m — enough to identify individual features
VCA Analytics Range — Vehicles
144.9 m — reliable line-crossing / intrusion alarms
VCA Analytics Range — Humans
55.2 m — reliable human-classified alarms
Temperature Measurement (0.2 × 0.2 m object)
23.3 m — small hot spot on machinery
Temperature Measurement (1 × 1 m object)
116.7 m — large hot area (e.g. waste pile)
Fire Detection Range (0.2 × 0.2 m ignition)
82.8 m
Smoking Detection Range
10.35 m — cigarette-level heat signature
Technical Specifications
DS-2TD1228-7/QA · Full Specifications
SKU
DS-2TD1228-7/QA (AU stock)
Camera Type
Hikvision HeatPro Series · Bi-Spectrum (thermal + optical) Network Turret
THERMAL MODULE
Thermal Sensor
Vanadium Oxide Uncooled Focal Plane Arrays (VOx UFPA)
Thermal Resolution
256 × 192
Pixel Pitch
12 μm
Spectral Range
8 μm to 14 μm
NETD
< 40 mK (25 °C, F1.1)
Thermal Focal Length
6.9 mm
Thermal IFOV
1.74 mrad
Thermal Field of View
24.9° × 18.7° (H × V)
Thermal Aperture
F1.0
Min. Focusing Distance
1.3 m
Thermal Digital Zoom
×2, ×4
Detector Warranty
10-year manufacturer guarantee on the thermal detector
OPTICAL MODULE
Optical Sensor
1/2.7" Progressive Scan CMOS
Optical Resolution
2688 × 1520 (4 MP)
Min. Illumination
0.0089 lux @ F1.6 (AGC ON) · 0 lux with IR
Shutter Speed
1 s to 1/100,000 s
Optical Focal Length
6.4 mm
Optical Field of View
53.0° × 28.0° (H × V)
Optical Aperture
F1.6
Wide Dynamic Range
120 dB True WDR
ILLUMINATOR & DETERRENCE
IR Distance
Up to 15 m · 850 nm · smart IR intensity + angle auto-adjust
White Light Range
Up to 30 m · adjustable flashing frequency
Audio Alarm
2 preset voice alerts (VCA + Temperature Exception) + 6 importable custom voice alerts
SMART FUNCTIONS
VCA Rules
Up to 8 rules across 4 types: line crossing · intrusion · region entrance · region exiting · human + vehicle classification
Temperature Measurement
Up to 21 rules across 3 types (10 points, 10 areas, 1 line) · configurable per rule
Temperature Range
−20 °C to +150 °C (−4 °F to +302 °F)
Temperature Accuracy
±8 °C (±14.4 °F)
Additional Analytics
Fire detection · Smoking detection · Sun-reflection filter
Image Processing
Linear · histogram · self-adaptive thermal AGC · DDE · 3D DNR
VIDEO & AUDIO
Thermal Main Stream
25 fps @ 1280 × 720 / 704 × 576 / 640 × 512 / 320 × 240
Optical Main Stream
25/30 fps @ 2688 × 1520 / 1920 × 1080 / 1280 × 720
Video Compression
H.265 · H.264 (main) · MJPEG (sub-stream)
Audio Compression
G.722.1 · G.711u/a · MP2L2 · G.726 · PCM
Audio Input
1 × 3.5 mm Mic in / Line in
Audio Output
Linear level, 600 Ω
Alarm I/O
1 input (0–5 VDC) · 1 output (configurable actions)
NETWORK
Ethernet
1 × RJ-45 10/100 Mbps self-adaptive
Protocols
IPv4/IPv6 · HTTPS · 802.1X · QoS · FTP · SFTP · SMTP · UPnP · SNMP · DNS · DDNS · NTP · RTSP · RTCP · RTP · TCP · UDP · IGMP · ICMP · DHCP · PPPoE · Bonjour · SRTP · TLS
Storage
microSD / SDHC / SDXC up to 256 GB · NAS (NFS · SMB/CIFS) · ANR (Auto Network Replenishment)
API
ISAPI · Hikvision SDK · ISUP · ONVIF (Profile S / G)
Simultaneous Live View
Up to 20 channels
Users
Up to 32 users · 3 levels (Administrator / Operator / User)
Security
User authentication · MAC binding · HTTPS · 802.1X (EAP-MD5, EAP-TLS) · IP address filter
Client Software
iVMS-4200 · Hik-Connect
GENERAL
Power Source
12 VDC (max 6 W) OR PoE 802.3af Class 3 (max 6.5 W) — standard PoE, runs on any Hikvision NVR
Communication Interface
RS-485 (half-duplex)
Weatherproof
IP67 (IEC 60529)
Lightning Protection
TVS 6,000 V · surge + voltage transient protection
Operating Temperature
−40 °C to +65 °C · humidity ≤95 %
Dimensions / Weight
138.3 mm × 138.3 mm × 123.1 mm · ≈ 940 g
Web Browser
Chrome 57+ · Firefox 52+ · IE 11 (plug-in)
Warranty
3-Year Australian Warranty (back-to-base)
Recording NVRs — Pair with an M-Series or AcuSeek NVR
The bi-spectrum thermal camera streams two channels (thermal + optical) but only consumes one channel on your NVR via the primary IP stream. Runs on standard PoE 802.3af — plugs directly into any Hikvision NVR PoE port. For thermal metadata (temperature exception events, fire alarms, VCA rules), the M-Series NVRs record everything reliably; the AcuSeek / DeepinMind AI NVRs additionally index the AI metadata for post-incident search.
DS-7604NI-M1/4P — 4CH · 4 PoE
Four-channel M-Series NVR with 4 built-in PoE ports and 4K HDMI output. Sized for a single thermal camera plus 3 verification cameras — typical single-perimeter thermal install. View DS-7604NI-M1/4P →
DS-7608NI-M2/8P — 8CH · 8 PoE · 2 HDD
Eight-channel M-Series NVR with 8 PoE ports and two HDD bays. Suits a multi-thermal industrial site — 2-3 thermal cameras plus 4-5 conventional coverage cameras. View DS-7608NI-M2/8P →
DS-7616NI-M2/16P — 16CH · 16 PoE · 2 HDD
Sixteen channels for larger sites — multiple thermal cameras around a fence line, plus verification cameras at every gate. View DS-7616NI-M2/16P →
AcuSeek / DeepinMind — for AI Metadata Search
For sites running multiple HeatPro cameras and wanting natural-language search across the recording ("show me all human perimeter alarms between 10 pm and 4 am on Fence 3"), step up to an AcuSeek (VPro) or DeepinMind NVR. Browse the AI NVR range →
Compatible Mounts & Accessories
DS-1273ZJ-140 — Wall Mount
Standard wall-mount bracket sized for the HeatPro turret. Common install pattern for fence-line perimeter cameras where the housing sits on a mid-height wall or column bracket. Also available in black (DS-1273ZJ140-BLACK).
DS-1271ZJ-140 — Pendant Mount
Pendant mount for hanging the camera from an overhead structure — gantry, canopy, roof edge or dedicated pole cross-arm. Suits sites where you want the camera looking down along a perimeter.
DS-1275ZJ-SUS / DS-1276ZJ-SUS — Pole & Corner
Stainless-steel-banded pole mount and corner-of-building bracket for perimeter-fence poles, gate columns, tower mounts and building corners overlooking two perimeter zones.
DS-1280ZJ-DM21 — Junction Box
Anti-corrosion junction box for clean cable termination behind the wall or pendant mount. Recommended for any exposed outdoor install to keep conduit joins out of weather.
Frequently Asked Questions
What is "bi-spectrum" and why do I need two sensors?Bi-spectrum = one thermal sensor + one optical (visible-light) sensor in the same housing. The thermal sensor detects at distances and in conditions where a visible camera can't see (total darkness, smoke, fog, glare). The optical sensor verifies — gives you the colour picture needed to identify who or what triggered the alarm. Both stream simultaneously to your NVR.
How accurate is the temperature measurement?±8 °C accuracy across a range of −20 °C to +150 °C. Precise enough for exception alarms (a bearing running 40 °C hot, a battery bank overheating, a waste pile igniting) — but not a substitute for a calibrated industrial pyrometer if you need medical-grade or metrology-grade accuracy. For loss-prevention and fire-prevention use cases, ±8 °C is more than enough.
Will fire detection actually trigger on a small fire at 82.8 m?Yes for a hot spot of at least 0.2 × 0.2 m (per Hikvision's spec). That covers a typical ignition source — a burning cardboard box, a smouldering tyre, a hot piece of lithium-battery debris. A single flickering flame or a lit cigarette is below this threshold — for that, the smoking detection algorithm works up to about 10 m.
What's the low-light performance of the optical channel?0.0089 lux at F1.6 — good for suburban night ambient lighting. Below that, the optical channel uses its 15 m built-in IR illuminator to see; the thermal channel doesn't need any light at all and runs at full detection range 24/7.
Does it run on standard PoE?Yes — PoE 802.3af Class 3 (max 6.5 W). Runs on any Hikvision NVR built-in PoE port, no special injector or Hi-PoE switch needed. Also accepts 12 VDC for solar / battery-powered remote installs.
How high should I mount the camera for the full 287 m human detection range?For maximum detection range along a flat perimeter, mount the camera at 3-4 m height with a slight downward tilt of 5-10°. Higher mounts extend the horizon but reduce the vertical FOV at close range. For fence-line coverage, aim the thermal FOV (24.9°) parallel to the fence — that gives you the longest detection stripe along the line.
Can I integrate this with an existing non-Hikvision VMS?Yes. The camera speaks ONVIF Profile S and Profile G and RTSP for both thermal and optical streams. Compatible with most Australian VMS platforms — Milestone XProtect, Genetec, Exacq, Immix Central Station, etc. Note that some advanced Hikvision-specific analytics (temperature exception metadata) only surface fully on Hikvision NVRs and iVMS-4200.
What warranty covers the thermal detector specifically?Hikvision offers a 10-year guarantee on the thermal detector itself (per the datasheet) — the most expensive part of the camera. The full camera assembly ships with a 3-year Australian Hikvision warranty, serviced back-to-base through Hikvision Australia by CCTV Guru.
Downloads & Resources
DS-2TD1228-7/QA Datasheet
Hikvision Thermal Camera Quick Start Guide
Hikvision Thermal Camera User Manual
Order the Hikvision DS-2TD1228-7/QA from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision HeatPro thermal camera range. The DS-2TD1228-7/QA is the right camera for Australian sites needing genuine thermal perimeter detection, fire prevention or temperature exception monitoring — waste sites, construction, warehouses, manufacturing, substations, solar farms, rural properties. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, multi-camera project pricing, and specialist thermal-imaging pre-sales advice from our Sydney team. Request a free quote or contact our Australian team — thermal camera specification requires more thought than a standard IP camera, and we're happy to walk you through the range calculations for your specific site.
Hikvision AcuSense DVR · 16CH · 5MP · 5-in-1 Hybrid · 4K HDMI Hikvision 16CH AcuSense Turbo DVR
Hikvision iDS-7216HUHI-M2/XT — 16-Channel AcuSense Turbo HD DVR with 5MP Recording, 2 SATA HDD Bays, 4K HDMI Output & 5-in-1 Hybrid Input
The Hikvision iDS-7216HUHI-M2/XT is a Gen-2 AcuSense Turbo HD DVR for Australian sites that want to bring modern AI to existing analogue camera cabling — or run a hybrid analogue-plus-IP install without replacing the whole system. 16 BNC video inputs accept any mix of HDTVI, AHD, HDCVI or CVBS analogue cameras up to 8 MP (5-signal auto-detect), plus up to 32 channels of IP camera input (each up to 8 MP) for a hybrid mix of new IP + legacy coax. The on-board AcuSense deep-learning engine runs Motion Detection 2.0 across all 16 analogue channels for human + vehicle classification, plus Perimeter Protection on up to 8 channels, Face Recognition on up to 4 channels, and AcuSearch technology on 8 channels — dramatically cutting false alarms from foliage, rain, possums and headlight glare compared with legacy motion-only DVRs. H.265 Pro+ compression, 4K HDMI output, 2 SATA HDD bays (up to 12 TB each = 24 TB total), Gigabit Ethernet, ONVIF and Hik-Connect. Australian stock, 3-year Australian warranty.
Channel Count
16CH Analog + 32CH IP Hybrid
Storage
2 SATA · 12 TB per bay · 24 TB max
AI Engine
AcuSense · Face + Perimeter
Hybrid Input
5-in-1: TVI · AHD · CVI · CVBS · IP
Video Output
4K HDMI · VGA · CVBS
Compression
H.265 Pro+ · 3-Year AU
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
Why Choose the Turbo HD DVR Path over a Pure IP NVR
An AcuSense Turbo HD DVR is the right recorder for one specific scenario: you have (or plan to install) analogue cameras over coax, and you want modern AI on top. Analogue is still the cheapest way to run video signal over long distances — no PoE budget to manage, no network segmentation to plan, no VLAN debugging. Bring an existing analogue install into 2026 by putting an AcuSense DVR at the head-end. Or spec a hybrid install with the coax cameras where the wiring is easy, and IP cameras where the extra features (ColorVu, Live-Guard) actually matter.
5-Signal Hybrid Input
Every BNC input auto-detects and adapts to HDTVI, AHD, HDCVI, CVBS or IP — no jumpers, no per-channel configuration. Mix camera brands and standards freely across the 16 analogue channels; add up to 32 IP cameras on top over Gigabit Ethernet.
Motion Detection 2.0 with Human + Vehicle Filter
Hikvision's deep-learning motion detection runs by default on all 16 analogue channels, classifying every event as human, vehicle or "other" (leaves, lights, rain). Cuts false alarms by ~90% vs a legacy DVR while giving you searchable metadata by object type.
Perimeter Protection + Face Recognition
Enable Perimeter Protection on up to 8 channels (line crossing, intrusion, region entry / exit — human + vehicle filtered) and Face Recognition on up to 4 channels against a face picture library of up to 16 libraries with picture comparison alarms.
AcuSearch — Fast Post-Incident Review
8-channel AcuSearch lets you jump through recorded footage by object type or event class — find every vehicle that entered a driveway, every face captured at a gate, every perimeter breach event on a specific channel, in a fraction of the time a linear timeline scrub takes.
See Hikvision AcuSense in Action
AcuSense is the on-device deep-learning engine that classifies every motion event as human, vehicle or "other" and filters out the false alarms. The same AI runs on this DVR (recording side) as on Hikvision's current-generation cameras.
Recording, Encoding & Playback
H.265 Pro+ Compression
H.265 Pro+ significantly reduces the storage footprint vs H.264 or standard H.265 while preserving image quality. Enable it per-channel to double the retention on the same HDD without touching bitrate or resolution.
Recording Up to 8 MP
Records each analogue channel at its native resolution up to 8 MP / 4K (at 8 fps) or 5 MP / 3K (at 12 fps) or 4 MP (at 15 fps) or 1080p / 720p at full frame rate. Match the recording profile to what each camera actually needs.
2 SATA HDD Bays · Up to 24 TB
Two SATA HDD bays, each accepting up to 12 TB drives — 24 TB maximum onboard storage. Use dual drives for RAID / mirroring at the site, or single-drive for cost-optimised retention.
4K HDMI + VGA Simultaneous Output
Local monitor output supports 4K (3840 × 2160) @ 30 Hz HDMI and 1080p VGA simultaneously — useful for a wall-mounted 4K spot monitor plus an operator VGA workstation running the same live view.
Technical Specifications
iDS-7216HUHI-M2/XT · Full Specifications
SKU
iDS-7216HUHI-M2/XT (AU stock)
Recorder Type
Hikvision AcuSense Series Gen-2 · 16-Channel 1U Turbo HD DVR (Hybrid analogue + IP)
Analog Video Input
16-ch BNC (1.0 Vp-p, 75 Ω) · supports coaxitron connection
IP Camera Input
Up to 32-ch IP, each up to 8 MP
5-Signal Auto-Detect
HDTVI · AHD · HDCVI · CVBS · IP (per channel)
HDTVI Input Support
8 MP @ 12/15 fps · 3K @ 20/25 fps · 5 MP @ 20 fps · 4 MP @ 25/30 fps · 1080p @ 25/30 fps · 720p @ 25/30 fps
AHD Input Support
5 MP @ 20 fps · 4 MP @ 25/30 fps · 1080p @ 25/30 fps · 720p @ 25/30 fps
HDCVI Input Support
8 MP @ 12/15 fps · 3K @ 25 fps · 5 MP @ 20 fps · 4 MP @ 25/30 fps · 1080p @ 25/30 fps · 720p @ 25/30 fps
CVBS Input
PAL / NTSC
Video Compression
H.265 Pro+ · H.265 Pro · H.265 · H.264+ · H.264
Encoding Resolution
8 MP / 5 MP / 3K / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Encoding Frame Rate (Main)
8 MP @ 8 fps · 3K @ 12 fps · 5 MP @ 12 fps · 4 MP @ 15 fps · 8 MP Lite @ 15 fps · 3 MP @ 18 fps · 1080p/720p/lower @ 25/30 fps
Encoding Frame Rate (Sub)
WD1 / 4CIF / CIF @ 25 fps (PAL) or 30 fps (NTSC)
Video Bit Rate
32 Kbps – 10 Mbps
Audio Compression
G.711u · 64 Kbps
Decoding Capability
Up to 24-ch 1080p @ 30 fps
Synchronous Playback
16 channels simultaneously
AI — Motion Detection 2.0
All 16 analogue channels · human + vehicle classification · filters foliage / rain / lights false alarms
AI — Perimeter Protection
Up to 8 channels (line crossing / intrusion / region entry & exit · human + vehicle filter)
AI — Face Recognition
Up to 4 channels face capture + comparison · up to 16 face picture libraries · face DB backed up on flash
AI — AcuSearch
8 channels · quick search by object / event type on the timeline
AI — Facial Detection
4-ch face picture capture
HDMI Output
1 × HDMI · 4K (3840 × 2160) @ 30 Hz · 2K @ 60 Hz · 1080p @ 60 Hz · lower
VGA Output
1 × VGA · 1080p / 1280 × 1024 / 720p @ 60 Hz
Simultaneous Output
HDMI + VGA can output independent or mirrored views
CVBS Output
1 × BNC · PAL 704 × 576 / NTSC 704 × 480
Audio Output
1 × RCA (linear, 1 KΩ)
Audio Input
1 × RCA (2.0 Vpp, 1 KΩ) · up to 16-ch via coaxial cable
Two-Way Audio
1-ch RCA (via audio input) · all-channel HDTVI two-way audio via coax
Network
1 × RJ-45 10/100/1000 Mbps Gigabit self-adaptive
Network Protocols
TCP/IP · PPPoE · DHCP · Hik-Connect · DNS · DDNS · NTP · SADP · NFS · iSCSI · UPnP · HTTPS · ONVIF · ISUP
Total Network Bandwidth
256 Mbps
Remote Connections
128
HDD Bays
2 × SATA · up to 12 TB per drive = 24 TB max onboard
Serial Interface
RS-485 (half-duplex)
USB Interfaces
Front: 1 × USB 2.0 · Rear: 2 × USB 3.0
Alarm I/O
Not standard — optional to support
Client Software
iVMS-4200 · Hik-Connect · HikCentral Pro
Power Supply
12 VDC, 5 A · consumption ≤ 60 W
Working Temperature
−10 °C to +55 °C · 10 % to 90 % humidity (indoor equipment room)
Dimensions (W × D × H)
385 × 315 × 52 mm (1U form factor)
Weight
≤ 2.1 kg (bare unit)
Approvals
RCM (AS/NZS) · CE-EMC · CE-LVD · FCC
Warranty
3-Year Australian Warranty (back-to-base)
iDS-7216HUHI-M2/XT (DVR) vs DS-7616NI-M2/16P (IP NVR) — Which Recorder Path?
If you're starting from scratch with all new IP cameras, an IP NVR like the DS-7616NI-M2/16P is the simpler pick — PoE built-in, no analogue cabling to plan, current-generation feature set. If you have existing analogue coax you want to keep, or you're adding cameras to a site with long cable runs where new Cat 6 isn't practical, the Turbo HD DVR is the right recorder. This DVR also hybrid-supports up to 32 IP cameras on top of the 16 analogue channels — so you're not locked out of IP.
iDS-7216HUHI-M2/XT (Turbo HD DVR) vs DS-7616NI-M2/16P (IP NVR)
Feature
iDS-7216HUHI-M2/XT (this — Turbo HD DVR)
DS-7616NI-M2/16P (IP NVR sibling)
Recorder Type
Hybrid DVR (analogue + IP)
Pure IP NVR
Analogue Camera Support
16 BNC channels · 5-in-1 hybrid (TVI/AHD/CVI/CVBS/IP)
None
IP Camera Support
Up to 32 IP channels @ 8 MP each
16 IP channels with 16 built-in PoE ports
PoE Ports
None (needs external PoE switch for IP cameras)
16 built-in PoE ports (plug-and-play)
AI Engine
AcuSense · face recognition (4-ch) · perimeter (8-ch) · AcuSearch (8-ch)
AcuSense per-camera (AI runs on the camera itself)
Max Recording Resolution
8 MP @ 8 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 1080p full-rate
8 MP @ 30 fps per channel (native IP)
Compression
H.265 Pro+ · H.264+
H.265+ · H.264+
HDD Bays
2 SATA · up to 24 TB total
2 SATA · up to 20 TB total
HDMI Output
4K @ 30 Hz
4K @ 30 Hz
Best For
Legacy analogue upgrades, hybrid installs, sites with long coax runs, retail chains still on TVI/AHD/CVI cameras, budget commercial where new Cat 6 isn't practical.
Greenfield IP installs, homes / small business with plug-and-play PoE setup, sites installing all-new Hikvision IP cameras.
For the IP NVR sibling: DS-7616NI-M2/16P (16-channel IP NVR with 16 built-in PoE) →
Compatible HDDs, Cameras & Accessories
HDD — WD Purple / Seagate SkyHawk
Fits any 3.5" SATA HDD up to 12 TB per bay. Use surveillance-grade drives (WD Purple, Seagate SkyHawk) for 24/7 recording duty. Two bays for RAID 1 mirroring or dual-drive parallel recording.
Hikvision Turbo HD Analogue Cameras
Compatible with any Hikvision Turbo HD (HDTVI) analogue camera — 5 MP, 4 MP, 3K, 8 MP, 1080p. Also accepts other-brand AHD, HDCVI and legacy CVBS analogue cameras via the 5-signal auto-detect BNC inputs.
Hikvision IP Cameras (up to 32)
Add up to 32 IP camera channels over the Gigabit Ethernet — modern G3 turrets, DeepinView cameras, Value PTZs, TandemVu — any Hikvision IP camera Hik-Connect supports.
External PoE Switch (for IP cameras)
This DVR does not have built-in PoE. Add a separate PoE switch if you're running IP cameras — sized to your channel count and PoE budget. Talk to us if you're not sure what capacity you need.
Frequently Asked Questions
What's the difference between a DVR and an NVR?
A DVR (Digital Video Recorder) records from analogue cameras connected by coaxial (BNC) cable. An NVR (Network Video Recorder) records from IP cameras over Ethernet. This unit is a hybrid DVR — it does both: 16 analogue BNC inputs + up to 32 IP channels over Gigabit.
Will it work with my existing analogue cameras?
Almost certainly yes. The DVR's BNC inputs are 5-signal auto-detect — they'll adapt to HDTVI, AHD, HDCVI or CVBS automatically. If your existing cameras use any of those four standards (nearly all analogue cameras from the last decade do), plug them in and they'll work.
Does AcuSense work on all cameras?
The AcuSense AI runs on the DVR itself (Motion Detection 2.0 with human/vehicle classification) on all 16 analogue channels. Perimeter Protection is limited to 8 channels, Face Recognition to 4 channels. The AI works with any analogue camera plugged in — it doesn't require an AcuSense-branded camera.
How much recording storage do I need?
At 4 MP @ 15 fps H.265+ per channel, 16 channels recording 24/7 for 1 month uses roughly 10-14 TB. With 24 TB total capacity (two 12 TB drives), you can retain 6-8 weeks of continuous recording or 3-4 months on motion-only recording. Ask us for a sizing estimate for your specific setup.
Can I mix analogue and IP cameras?
Yes — that's the point of a hybrid DVR. You can run any combination of the 16 analogue inputs and up to 32 IP inputs simultaneously. Common install pattern: existing coax cameras kept on the analogue side, new outdoor cameras added as IP where you want ColorVu or Live-Guard features.
Does the DVR have built-in PoE for IP cameras?
No — unlike an NVR with built-in PoE ports, this DVR only has a single Gigabit uplink. If you're running IP cameras, plug them into a separate PoE switch on the same network. The DVR will discover and add them via ONVIF or Hik-Connect.
What's the audio capability?
1 line-in audio (RCA), 1 line-out audio (RCA), 1 two-way audio channel. Plus audio-over-coax on all 16 HDTVI channels if your cameras support it — no separate audio cable needed for HDTVI cameras with a built-in mic.
Downloads & Resources
iDS-7216HUHI-M2/XT Datasheet Hikvision DVR Quick Start Guide Hikvision DVR User Manual
Order the Hikvision iDS-7216HUHI-M2/XT from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision Turbo HD AcuSense DVR range. The iDS-7216HUHI-M2/XT is the right recorder for Australian sites with existing analogue camera cabling that want modern AI, or for hybrid analogue + IP installs. 16 analogue channels, 32 IP channels, 4K HDMI output, AcuSense face recognition and perimeter protection, 2 SATA HDD bays for up to 24 TB storage. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, multi-camera project pricing. Designing a hybrid or analogue upgrade system? Request a free quote or contact our Australian team for tailored recorder + camera + HDD sizing.
Dahua Ultra Series · IP & Wi-Fi Face-Recognition Villa Door Station
The Dahua VTO6631QB(S)-WP is a premium IP & Wi-Fi villa door station with an ultra-thin tempered-glass face and a 5-inch IPS touchscreen. Its dual 2MP wide-angle cameras and face recognition unlock the door in 0.2 seconds, alongside IC/ID card, Bluetooth card and password entry. Connect over PoE or Wi-Fi, control access and elevators, and manage everything through the Dahua app. IP65-rated for the front gate. Available in two finishes — choose the VTO6631QB-WP (black) or VTO6631QS-WP (silver) above; both are the same door station with identical features. Genuine Dahua, Australian stock and local support.
Unlock
Face · Card · Bluetooth · Password
Display
5″ IPS Touch · 720×1280
Camera
Dual 2MP · 119° Wide · WDR
Connectivity
PoE · Wi-Fi · IP65
Why Choose the Dahua VTO6631QB(S)-WP
Fast, Accurate Face Recognition
Recognises faces from 0.3–2m at 99.9% accuracy in just 0.2 seconds, for genuinely hands-free entry.
Four Ways In
Unlock by face, IC/ID card, Bluetooth card or password — flexible access for family, staff and guests.
Wide, Clear Vision
Dual 2MP low-light cameras with a 119° horizontal view, 120dB WDR and auto IR keep visitors sharp day and night.
Premium, Weatherproof Build
An ultra-thin tempered-glass front, IP65-rated with a tamper alarm for exposed gates and entries.
Huge Capacity
Stores 20,000 users and faces, 100,000 IC/ID cards, 20,000 Bluetooth cards and 200,000 records.
Access & Elevator Control
Drives a lock, exit button and door sensor, and can call elevators or grant floor access for apartments.
VTO6631QB-WP vs VTO6631QS-WP
Both models share the same hardware and features — the difference is the finish. Pick the one that best matches your entrance.
Model Comparison
Feature
VTO6631QB-WP
VTO6631QS-WP
Finish
Black
Silver
Display
5″ IPS · 720×1280
5″ IPS · 720×1280
Camera
Dual 2MP · 119° · 120dB WDR
Dual 2MP · 119° · 120dB WDR
Unlock Methods
Face · Card · Bluetooth · Password
Face · Card · Bluetooth · Password
Capacity
20,000 users · 100,000 cards
20,000 users · 100,000 cards
Connectivity
PoE · Wi-Fi
PoE · Wi-Fi
Weather Rating
IP65
IP65
SKU
DHI-VTO6631QB-WP
DHI-VTO6631QS-WP
Technical Specifications
Camera & Display
Screen
5-inch IPS capacitive touchscreen
Resolution
720 (H) × 1280 (V)
Camera
Dual 1/2.8″ 2MP CMOS, low illumination
Field of View
H 119° · V 66° · D 142°
WDR / NR
120 dB WDR · 3D NR · auto IR
Video Coding
H.264 / H.265
Audio
Two-way, echo suppression & noise reduction
Access & Recognition
Unlock Methods
Face, IC/ID card, Bluetooth card, password
Face Recognition
0.3–2m · 99.9% accuracy · 0.2s
Card Types
IC (13.56 MHz) & ID (125 kHz)
Bluetooth
BLE, BT 5.2
Capacity
20,000 users · 20,000 faces · 100,000 cards · 200,000 records
Elevator Control
Supported
Storage
microSD up to 128GB
Ports, Power & General
Ports
RS-485, Wiegand, 2 alarm in / 1 out, exit button, door status, lock control
Network
1 × 10/100 Ethernet · ONVIF / CGI
Wi-Fi
IEEE 802.11 b/g/n, 2.4 GHz
Power Output
12V 1.5A (adapter) · 12V 0.5A (PoE)
Power Supply
Standard PoE or 12 VDC 3A
Casing
Tempered glass + PC/ABS
Protection
IP65 (silicone sealant required) · tamper alarm
Installation
Surface mount
Dimensions
186.8 × 81.4 × 23.3 mm
Operating Temp.
-30°C to +60°C
Certification
CE
Datasheets & Guides
VTO6631QB(S)-WP Datasheet
VTO6631QS-WP Datasheet
Dahua VTO User Manual
Dahua Video Door Phone Quick Start Guide
Frequently Asked Questions
What's the difference between the QB and QS?They're the same door station with identical features — the VTO6631QB-WP and VTO6631QS-WP differ only in finish (black vs silver).
How can visitors unlock the door?By face recognition, IC/ID card, Bluetooth card or password — you choose which methods to enable.
How fast and accurate is face unlock?It recognises faces from 0.3–2m at 99.9% accuracy in about 0.2 seconds.
Does it work over Wi-Fi?Yes. It connects via standard PoE or 2.4GHz Wi-Fi.
Is it weatherproof?Yes. It's IP65-rated (with the supplied silicone sealant) and has a tamper alarm for outdoor gates.
How many users and cards does it hold?Up to 20,000 users and faces, 100,000 IC/ID cards, 20,000 Bluetooth cards and 200,000 records.
Can it control a lock and exit button?Yes. It has lock control, an exit button input, door status detection and Wiegand/RS-485 for access control.
Is a door lock included?No. Electric strikes, magnetic locks and exit buttons are chosen separately to suit your door.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua Ultra Series · Android 14 Smart Control Panel
The Dahua SCP3044A-BZ is a premium 10.1-inch smart control panel that runs the latest Android 14 on an edge-to-edge IPS touchscreen. As a hybrid indoor monitor it works over IP, Wi-Fi 6 or 4-wire cabling, answers your Dahua door station, controls access and even monitors room temperature and humidity from the home screen. Proximity wake, auto-brightness and multi-colour breathing indicators make it a genuinely smart hub for modern homes and apartments. Genuine Dahua, Australian stock and local support.
Operating System
Android 14
Display
10.1″ IPS Touch · 1280×800
Connectivity
IP · Wi-Fi 6 · 4-Wire
Smart Sensors
Temperature & Humidity
Why Choose the Dahua SCP3044A-BZ
Android 14 Performance
The latest Android platform delivers a fast, app-like experience with a clean, user-friendly interface for everyday control.
Edge-to-Edge 10.1″ IPS
A full-screen design with ultra-narrow black border and 80° wide viewing angles both ways for a bright, premium look.
Hybrid IP + 4-Wire
Connect over IP, Wi-Fi or Dahua 4-wire cabling — flexible for new builds and retrofits alike.
Wi-Fi 6, Bluetooth & Zigbee
Dual-band Wi-Fi 6 (802.11ax), Bluetooth and reserved Zigbee 3.0 make it a future-ready smart-home hub.
Effortless Interaction
Proximity auto-wake, a light sensor for auto-brightness and multi-colour breathing indicators keep status clear at a glance.
Built-In Climate Monitoring
Onboard temperature and humidity detectors let you check room conditions straight from the home screen.
See the Dahua Smart Control Panel in action
Dahua Smart Control Panel Highlight
Add-Ons & Accessories
Compatible door stationPair the panel with a Dahua IP door station such as the DHI-VTO4202F-P-S3 modular apartment door station, then add call buttons and access modules to suit the property.
PoE switchPower and connect the panel over a single network cable with the IP-COM F1106P-4-63W 4-port PoE switch.
microSD storageAdd local storage for snapshots and leave-video messages with a WD Purple 128GB/256GB microSD card; the panel supports up to 512GB.
Door release hardwareComplete access control with a compatible electric strike or magnetic lock plus an exit button, selected to suit your door.
Need compact 7-inch and digital two-wire instead?
The DHI-SCP3044A-BZ is the larger 10.1-inch model for IP, Wi-Fi 6 or analog four-wire installations. If your project needs a compact 7-inch panel or a compatible Dahua digital two-wire system, see the Dahua DHI-SCP3022A-B Android 14 2-Wire IP Smart Control Panel.
Choose the Correct Smart Control Panel
DHI-SCP3044A-BZ
10.1-inch 1280 × 800 panel for IP, Wi-Fi 6 or analog four-wire connectivity
DHI-SCP3022A-B
Compact 7-inch 1024 × 600 panel for IP, 2.4GHz Wi-Fi or digital two-wire connectivity
Installation decision
Confirm the specified cabling, panel size and power design before ordering; these smart panels support different wired intercom modes.
Technical Specifications
System & Display
Operating System
Android 14
Screen
10.1-inch IPS capacitive multi-touch
Resolution
1280 (H) × 800 (V)
Viewing Angle
Up to 80° horizontal & vertical
Network Protocols
IPv4, RTSP, UDP, DNS, FTP, RTP, TCP, SIP
Communication
Full digital & analog 4-wire
Audio
Two-way, echo suppression & noise reduction
Extensions
Villa: 1 main + 9 · Apartment: 1 main + 4
Smart Sensors
Temperature & humidity, light sensor, proximity wake
Storage
microSD up to 512GB
Wireless
Wi-Fi
IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Wi-Fi Bands
2.4 GHz & 5 GHz
Bluetooth
BR / EDR / BLE
Zigbee
Zigbee 3.0 (reserved for third-party access)
Sub-1G
868–868.6 MHz
Ports, Power & General
Ports
1 × RS-485, 1 × USB, 1 × 10/100 Ethernet, 1 × 4-wire
Alarm I/O
8 inputs / 1 output · 12V 200mA power output
Power Supply
12 VDC 2A or standard PoE
Power Consumption
≤ 12W standby, ≤ 15W working
Casing
PC + ABS, grey
Installation
Flush mount (bracket included)
Dimensions
246.5 × 156.1 × 33.0 mm
Operating Temp.
-10°C to +55°C
Certification
CE
Datasheets & Guides
DHI-SCP3044A-BZ Datasheet
Dahua Smart Control Panel User Manual
Dahua Video Door Phone Quick Start Guide
Dahua Smart Control Panel Privacy Policy
Dahua Software License Agreement
Dahua Open Source Software Notice
Frequently Asked Questions
What is the SCP3044A-BZ?A Dahua Ultra Series Android 14 smart control panel — a 10.1-inch touchscreen indoor monitor for video intercom, access and smart-home control.
How does it connect?Over IP, dual-band Wi-Fi 6 or Dahua 4-wire cabling, so it suits both new installs and retrofits.
Does it monitor room conditions?Yes. Built-in temperature and humidity detectors show live readings on the home screen.
Can I expand to more monitors?Yes. It supports 1 main plus 9 extensions in villa mode, or 1 main plus 4 in apartment mode.
How is it powered?By 12 VDC 2A or standard PoE over a single network cable.
How is it mounted?Flush-mounted, with the bracket and cabling accessories included in the box.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 16 × 8MP 4K Smart Dual Light · 16CH AI NVR · AcuPick-Ready
16 × 8MP Kit
Dahua 16 × 8MP (4K) Full-Colour CCTV Kit with 16-Channel AI NVR
The Dahua 16 × 8MP (4K) Full-Colour CCTV Kit pairs sixteen DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turret cameras with a 16-channel WizSense AI NVR for true 24/7 colour surveillance across large Australian sites — supermarkets, schools, warehouses, factories and multi-building estates. Smart Dual Light runs silent 30 m IR by night, then snaps a warm white LED on the instant WizSense AI detects a person or vehicle, capturing full-colour, evidence-grade 4K footage of every incident. Choose the standard NVR4216-16P-AI/ANZ, or step up to the NVR5216-16P-AI/ANZ to unlock AcuPick attribute search.
Cameras
16 × 8MP Smart Dual Light
Recorder
16CH AI NVR · 16 PoE
Resolution
8MP · 4K 3840×2160
AI Search
AcuPick-Ready
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated
True 24/7 Full Colour
Smart Dual Light blends a 30 m IR illuminator with a 30 m warm-white LED. IR holds the scene at night with minimal light pollution; the warm light triggers on AI detection to record full-colour evidence of faces, clothing and number plates. Prefer no visible light? Switch to IR mode for discreet black-and-white night recording.
8MP 4K Detail
A 1/2.8" 8MP sensor outputs 3840×2160 — forensic-quality detail on faces and licence plates, well beyond standard HD, meeting evidential needs for insurance and law enforcement.
AcuPick-Ready Search
Pair the cameras with the 5-Series NVR5216-16P-AI/ANZ to unlock AcuPick — attribute-based search that finds every red car or every person in a hoodie across hours of footage in seconds.
Fully-Loaded 16-Channel NVR
All 16 built-in PoE ports drive all 16 cameras — a complete large-site system. Dual SATA bays for high-capacity storage, 4K HDMI output and remote viewing via the DMSS app.
What's Included
16 × Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP 4K Smart Dual-Light WizSense turret, 2.8 mm, IR 30 m, built-in mic, IP67. Each ships with eave/soffit bracket, drill template, screw pack, waterproof RJ-45 connector & quick start guide.
1 × Recorder
DHI-NVR4216-16P-AI/ANZ (16CH AI NVR, 16 PoE) with power adaptor, USB mouse, SATA cables & quick start guide — or upgrade to DHI-NVR5216-16P-AI/ANZ for AcuPick.
Power
16 × PoE+ ports built into the NVR — all 16 used by this kit. Each camera runs on a single Cat6 cable that carries both power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Included brackets suit eave/soffit installs. For brick or flush-wall mounting, add a Dahua DH-PFB204W wall-mount bracket per camera; a DH-PFA139 junction box is also available for tidy cable management.
Storage
Dual SATA bays — HDD not included. Sixteen 8MP cameras generate a lot of data: fit 2 × 16 TB Seagate SkyHawk or WD Purple (up to 32 TB total) for roughly 2–3 weeks of 24/7 recording; motion-only stretches this much further.
Warranty
3-Year Australian warranty · local CCTV Guru tech support.
Best For
Supermarkets & grocery
Full-colour 4K faces and number plates across tills, aisles and the loading dock.
Schools & childcare
Cover every entrance, corridor, hall and play area in clear colour, day and night.
Warehouses & factories
Wide 105° 4K views of racking, roller doors and yards with vehicle detection.
Offices & commercial
Identify visitors and deliveries in colour, with AI alerts triggered after hours.
Strata & multi-building
Sixteen channels cover shared entries, car parks, bin areas and perimeters.
Car parks & yards
Person and vehicle AI detection with plate-readable 4K detail over open areas.
Camera Specifications — DH-IPC-HDW3867EM-S-IL-ANZ
Camera Type
8MP 4K Smart Dual-Light Turret (Eyeball) WizSense Network Camera
Image Sensor
1/2.8" 8MP Progressive CMOS
Max. Resolution
3840 × 2160 (8MP / 4K) @ 20 fps
Lens
Fixed 2.8 mm · 105° horizontal FOV
Night Vision
Smart Dual-Light · IR up to 30 m · Warm White LED up to 30 m
AI Features
AcuPick (with 5-Series NVR) · SMD · IVS (Tripwire, Intrusion, Abandoned Object)
Audio
Built-in microphone (one-way)
Compression
H.265+ / H.265 / H.264+ / H.264
Ingress Protection
IP67 · –30 °C to +60 °C
Power
12 VDC · PoE (IEEE 802.3af)
Colours
White · Black
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 16-Channel AI NVR
NVR4216-16P-AI/ANZ
16CH 4K WizSense AI NVR · 16 PoE+ (130 W) · 2 SATA bays (to 32 TB) · Face, IVS/Perimeter, SMD Plus, ANPR · Quick Pick target search · ONVIF 21.12
NVR5216-16P-AI/ANZ
16CH AI NVR · 16 PoE · 2 SATA bays · 1U · higher bandwidth · AI by recorder & by camera · AcuPick search supported
Pick the 5216 if…
You want AcuPick attribute search and higher recording bandwidth. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Storage sizing: sixteen 8MP cameras need serious capacity — fit both SATA bays (e.g. 2 × 16 TB) for weeks of retention.
›NVR placement: mount the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add IP cameras to your NVR — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW3867EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR4216-16P-AI/ANZ (16CH) Datasheet
DHI-NVR5216-16P-AI/ANZ (16CH AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
Is this kit really full colour at night?Yes. Smart Dual Light runs IR by default, then switches to a 30 m warm-white LED the moment AI detects a person or vehicle — recording full-colour 4K footage of the event before returning to IR.
Can I turn off the white light at night?Yes. Smart Dual Light has three modes — Smart Dual (IR by default, warm light only on AI detection), full-colour (warm light always on) and IR-only. Set IR mode for discreet black-and-white footage with no visible light.
What's the difference between the two NVR options?The NVR4216 is the standard 16CH AI recorder with Quick Pick. The NVR5216 adds AcuPick attribute search and higher bandwidth. AcuPick only runs on the 5-Series.
Does a hard drive come included?No — the NVR has two SATA bays but ships without storage. For sixteen 8MP cameras we recommend 2 × 16 TB surveillance-grade Seagate SkyHawk or WD Purple, available as an add-on.
Is this a complete 16-camera system?Yes — sixteen cameras on a 16-channel NVR with all 16 PoE ports used. Just add hard drives and Cat6 cabling to finish the install.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 6 × 8MP TiOC 3.0 · 8CH NVR4108 or AcuPick NVR5208
6× TiOC + 8CH NVR
Dahua 6 × 8MP TiOC 3.0 Full-Colour CCTV Kit — 8-Channel AI NVR (NVR4108)
This Dahua 6-camera 8MP (4K) TiOC 3.0 kit doesn't just record — it actively warns intruders off. Each of the 6 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 turrets fires a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle, and films in true full colour around the clock. Choose your recorder: the standard DHI-NVR4108HS-8P-AI/ANZ (8-channel WizSense AI NVR, Quick Pick target search), or step up to the DHI-NVR5208-8P-AI/ANZ AcuPick NVR for full attribute search — find a person or vehicle by clothing colour, vehicle type and direction. Both have 8 PoE ports and the TiOC cameras are AcuPick-native. Add a surveillance hard drive from the storage selector below to suit your retention needs.
Cameras
6 × 8MP TiOC 3.0
Recorder
8CH · Standard or AcuPick
Resolution
8MP · 4K 3840×2160
Active Deterrence
Strobe + Siren
Night Vision
24/7 Full Colour
Storage
Add HDD Below
TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, each camera fires a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Talk down visitors live from the DMSS app.
24/7 Full Colour
A warm-light illuminator delivers true full-colour footage in complete darkness — capturing clothing colour, vehicle colour and faces that IR-only cameras miss.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
Your Choice of NVR — Quick Pick or AcuPick
The standard NVR4108 gives fast Quick Pick target search; the AcuPick NVR5208 adds attribute smart search (find people or vehicles by colour, clothing and direction). Both have 8 PoE ports (2 free). Add a surveillance hard drive from the storage selector below to suit your retention needs.
What's Included
6 × TiOC Cameras
DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Available in white or black — ask our team.
1 × Recorder (your choice)
Standard: DHI-NVR4108HS-8P-AI/ANZ — 8CH 4K WizSense AI NVR, 8 PoE, Quick Pick target search.AcuPick upgrade: DHI-NVR5208-8P-AI/ANZ — 8CH 5-Series AcuPick AI NVR, 8 PoE, 2 SATA bays, attribute smart search. 6 channels used, 2 spare either way.
Storage
Ships without a hard drive. Add a surveillance-grade Seagate SkyHawk or WD Purple drive from the storage selector below (1 SATA bay, up to 10 TB); ~4 TB suits six 8MP cameras for around 2–3 weeks on motion-only.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Homes & acreage
Active deterrence at every entry, driveway, side gate and yard, in full colour.
Retail & hospitality
Visible siren and strobe deter shoplifters; full colour captures faces at the counter.
Warehouses & yards
Deterrence at loading docks and gates; 8MP detail across large open areas.
Offices & commercial
Full-colour footage captures clothing and vehicle colour for insurance and police reports.
Childcare & schools
24/7 colour footage for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Airbnb & rentals
Active deterrence at entry points discourages damage; remote monitoring via DMSS.
TiOC 3.0 Camera — DH-IPC-HDW3849H-AS-PV-ANZ-S2 (×6)
Camera Type
8MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
8MP · 3840 × 2160 @ 25/30 fps
Lens
Fixed 2.8 mm
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection
WDR / Compression
120 dB WDR · Smart H.265+
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 8-Channel AI NVR
Standard AI NVR — NVR4108
8CH 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · SMD 4.0 · Quick Pick target search. 2 channels spare.
AcuPick AI NVR — NVR5208
8CH 5-Series AI NVR · 8 PoE · 2 SATA bays · AcuPick attribute search — search by clothing colour, vehicle type & direction; the TiOC cameras are AcuPick-native.
Pick the 5208 if…
You want AcuPick attribute search across hours of footage. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Camera placement: position each TiOC camera to cover an entry or approach — the active deterrence works best where people pass close to the lens.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air.
›Audio & alarm: set siren volume to suit the site, and check local audio-recording laws before enabling sound recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add IP cameras to your NVR — Dahua Technology (official)
TiOC active deterrence in action — Dahua Technology (official)
DMSS app & remote viewing overview — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What does TiOC 3.0 mean?TiOC stands for Three-in-One Camera: full-colour night vision, active deterrence (siren + red/blue strobe) and two-way audio in a single device — so the camera responds to intruders rather than just recording them.
How much footage does 4TB hold?Roughly 2–3 weeks for six 8MP cameras on motion-only recording with Smart H.265+. Fit a larger drive for continuous recording or longer retention.
Does this kit do AcuPick?Yes — choose the AcuPick NVR5208 option for full AcuPick attribute search (find a person or vehicle by clothing colour, vehicle type and direction). The standard NVR4108 option gives Quick Pick target search. The TiOC cameras are AcuPick-native.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Genuine Hikvision · Monitor Mount · Steel · VESA 200Hikvision DS-DM1940WA Solid Wall Mount for Your CCTV Monitor
The Hikvision DS-DM1940W is a genuine steel base bracket for wall-mounting LCD monitors. Its solid SPCC cold-rolled steel build prevents screen bending or twisting, and the VESA 200 × 200 pattern makes installation quick and easy.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
Solid steel structure — prevents screen bending or twisting for a secure hold.
VESA 200 × 200 — standard pattern fits a wide range of compatible monitors.
Cold-rolled SPCC steel — strong, durable construction.
Quick & easy install — straightforward wall mounting.
Specifications
Model
DS-DM1940W
Category
LCD Monitor Base Bracket
Material
Cold-Rolled Steel Plate (SPCC)
VESA
200 × 200 mm
Dimensions (W × H × D)
250 × 220 × 25 mm (9.84" × 8.66" × 0.98")
Net Weight
0.75 kg (1.65 lb)
Colour
Black
Warranty
3 Years (AU)
DS-DM1940W Datasheet
Frequently Asked Questions
What monitors does it fit?Any monitor with a standard VESA 200 × 200 mm mounting pattern.
Is it sturdy?Yes — it's built from solid SPCC cold-rolled steel to prevent screen bending or twisting.
Is it easy to install?Yes — it's designed for quick and easy wall mounting.
Is this a genuine Hikvision part?Yes — this is the genuine Hikvision DS-DM1940W LCD monitor base bracket.
WizSense PTZ TiOC · 4 MP · 25× Zoom · Active Deterrence · 150 m IRDahua WizSense TiOC PTZ · 25× ZoomDahua DH-SD6C3425GB-HNR-A-PV1 — 4 MP 25× Optical Zoom Pro AI TiOC Network PTZ Camera WizSense (6-Series, 150 m IR + Active Deterrence)
The Dahua DH-SD6C3425GB-HNR-A-PV1 is the 6-Series flagship WizSense PTZ with TiOC Active Deterrence — combining a project-grade 4 MP Starlight PTZ with red/blue strobe warning lights, a 50 m white-light supplement and a customisable voice alarm in one chassis. Built around a 1/2.8" CMOS sensor capturing 2560 × 1440 (4 MP) at 25/30 fps. The 25× optical zoom lens (5–125 mm motorised vari-focal, F1.6–F3.6) delivers a wide 52° field at the wide end down to a tight 3° pull at full zoom — identification-grade reach at well over 150 m. Dual-light fusion — two 150 m IR LEDs paired with two 50 m white-light LEDs — lets the camera switch seamlessly between stealth IR and full-colour active deterrence. WizSense Pro AI runs Auto Tracking 3.0, SMD 4.0, AcuPick attribute search, face detection with attributes, video metadata capture, construction safety detection (helmet/uniform) and the full perimeter protection IVS suite with human/vehicle classification. Red/blue police-style warning lights activate on AI alarm; customisable voice prompts deter intruders. The metal housing is IP66 sealed across an alpine −40 °C to +70 °C operating range with TVS 6000 V surge protection. Pan-tilt-zoom controlled via DMSS, Dahua DSS or any ONVIF VMS. Built for project-grade Australian deployments where active deterrence matters — carparks, council reserves, sports fields, council CCTV programs, freight yards, transport corridors, large retail and high-risk perimeter sites. Backed by a 3-year Australian warranty through CCTV Guru. SKU SD6C3425 series.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua SD6C3425GB-HNR-A-PV1 TiOC Pro AI PTZ
TiOC Active Deterrence on a PTZ
Red/blue police-style strobe lights plus customisable voice alarm trigger automatically when WizSense classifies a human or vehicle inside a protected zone — not passive recording, active prevention.
25× Optical Zoom — ANPR-Grade Reach
5–125 mm motorised vari-focal optical zoom resolves licence plates and faces at well over 150 m. Wide-to-tight surveillance from a single PTZ install.
150 m IR + 50 m White Light
Dual-light fusion — two 150 m IR LEDs paired with two 50 m white-light LEDs. Stealth IR at idle, full-colour white light on alarm. Configurable 5–30 second flash pattern.
Auto Tracking 3.0 + Full IVS Suite
WizSense Auto Tracking 3.0 locks on people and vehicles automatically. Full IVS: tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking, people gathering — all with human/vehicle classification.
Video Metadata + Construction Safety
Vehicle metadata capture (10 attributes), face attributes (6 + 8 expressions), human attributes and construction safety detection (helmet/uniform compliance) — on-camera.
Alpine-Rated IP66 Metal Housing
−40 °C to +70 °C operating range, IP66 sealed, TVS 6000 V surge protection — built for harsh outdoor Australian sites, tropical or alpine.
Important Install Note
This is a full project-grade PTZ — pan-tilt-zoom controlled via DMSS, Dahua DSS or any third-party ONVIF VMS. Power supply requires either the supplied 24 VDC 2.5 A PSU or PoE+ (802.3at) — not standard 802.3af. The TiOC active-deterrence settings (red/blue strobe pattern, voice prompt content) are fully configurable via DMSS. Best mounted high (pole or building-corner, 6–10 m above ground) for unobstructed sight lines and effective deterrence projection. For end-to-end AI workflow including AcuPick attribute search, pair with a Dahua 5-Series AcuPick AI NVR.
AI & Smart Detection
Auto Tracking 3.0
WizSense automatic pan-tilt-zoom follow for people and vehicles — locks on and tracks the target across the scene.
Perimeter Protection (Full IVS)
Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking, people gathering — all with human/vehicle classification and linkage tracking.
AcuPick + SMD 4.0
AcuPick attribute search via Dahua AcuPick NVR — search recorded video by clothing colour, vehicle type. SMD 4.0 motion classification for humans and vehicles.
Face & Video Metadata
Face detection with 6 attributes + 8 expressions. Video metadata: 10 vehicle attributes (type, colour, brand, etc.), human attributes.
Construction Safety Detection
On-camera detection of helmet and uniform compliance — for construction sites, mine sites and WHS-regulated industrial environments.
Auto Patrol + Privacy Masking
300 presets, 8 tours (up to 32 presets per tour), 5 patterns, 5 scans with privacy masking for sensitive zones.
Technical Specifications
Camera, Sensor & Optical Zoom
Model
DH-SD6C3425GB-HNR-A-PV1
Form Factor
Network PTZ TiOC (SD6 chassis)
Image Sensor
1/2.8" CMOS Starlight
Maximum Resolution
2560 × 1440 (4 MP)
Frame Rate
4 MP @ 25/30 fps
WDR
Yes (true WDR)
S/N Ratio
≥ 55 dB
Day / Night
Auto (ICR) / Colour / B&W
Optical Zoom
25× (16× digital)
Focal Length
5–125 mm motorised vari-focal
Aperture
F1.6 – F3.6
Field of View
H: 52° – 3° · V: 40° – 2°
IR Illumination
Up to 150 m (2 IR LEDs)
White Light Illumination
Up to 50 m (2 white LEDs)
Dual-Light Fusion
Yes — IR + white light
TiOC Active Deterrence
Red/Blue Strobe
Yes · configurable 5–30 sec flash
Flash Frequency
High / medium / low
White Light Range
Up to 50 m
Voice Alarm
Customisable sound alarm
Built-in Speaker
Yes
PTZ Performance
Pan Range
0°–360° endless continuous
Tilt Range
−20° to +90° (auto flip 180°)
Pan Speed
0°/s – 300°/s
Tilt Speed
0°/s – 100°/s
Presets
300
Tours
8 (up to 32 presets per tour)
Patterns
5
Scans
5
Protocol
DH-SD
Pro AI, Audio & Network
AI Engine
WizSense PTZ (6-Series)
Auto Tracking
Auto Tracking 3.0
IVS
Tripwire · intrusion · crossing fence · loitering · abandoned/missing object · fast moving · parking · people gathering (human/vehicle classification · linkage tracking)
SMD
SMD 4.0
AcuPick
Yes (with Dahua AcuPick NVR)
Face Detection
Yes · 6 attributes + 8 expressions
Video Metadata
Vehicle (10 attributes) · face · human
Construction Safety
Helmet · uniform detection
Audio I/O
1 in / 1 out
Alarm I/O
2 in / 1 out
Built-in Speaker
Yes
Network Port
RJ-45 (10/100 Base-T)
Interoperability
ONVIF (Profile S, G, T) · CGI · SDK
Storage
Micro SD up to 512 GB · FTP/SFTP · NAS
Mobile Client
DMSS
Power, Environment & Build
Power Supply
24 VDC / 2.5 A (included) or PoE+ (802.3at)
Power Consumption
Basic 13 W · Max 23 W
Operating Temperature
−40 °C to +70 °C
Humidity
≤ 95%
Protection
IP66
Surge Protection
TVS 6000 V
Casing
Metal
Certifications
CE · FCC · RCM (AU)
Australian Warranty
3 Years (via CCTV Guru)
Typical Applications
Carparks & Council Reserves
25× zoom + red/blue strobe deterrent on intruders. One TiOC PTZ replaces 4–6 fixed cameras + strobe lights.
Sports Fields & Town Centres
Wide-area situational awareness with PTZ tracking + voice warnings for after-hours trespass.
Freight Yards & Mine Sites
Long-range 150 m IR + construction safety detection (helmet/uniform compliance) for WHS-regulated sites.
Council CCTV & Public Spaces
Active deterrence with customisable voice prompts — not passive recording, real-time prevention.
Recommended NVR Pairings
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays.
View Dahua NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 PoE+ ports.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports.
View Dahua NVR4216-16P-AI →
Frequently Asked Questions
What is TiOC active deterrence?
Red/blue police-style strobe lights + 50 m white light + customisable voice alarm that activates automatically when WizSense AI classifies a human or vehicle in a protected zone — not just passive recording.
Will standard PoE run it?
No — requires PoE+ (802.3at) or the supplied 24 VDC 2.5 A power supply. Standard 802.3af is not sufficient.
Auto Tracking 3.0?
WizSense automatic pan-tilt-zoom follow for people and vehicles — the PTZ locks on and tracks the target across the scene.
Number plate reading?
At 25× optical zoom, licence plates are readable at well over 150 m under daylight; for ANPR-grade workflow at high speed, pair with a dedicated Dahua ANPR camera.
IR range?
Up to 150 m IR + 50 m white light. Dual-light fusion auto-switches.
Construction safety detection?
Yes — on-camera detection of helmet and uniform compliance for WHS-regulated industrial sites.
Third-party VMS?
Yes — ONVIF Profile S, G, T. AI features (AcuPick, attribute search) only work end-to-end on Dahua AI NVRs.
Temperature?
−40 °C to +70 °C — full alpine and tropical Australia rated.
Privacy zones & sensitive areas?
Yes — the PTZ supports multiple configurable privacy masks for windows, neighbouring properties or restricted zones.
Mobile viewing?
Yes — DMSS app with full PTZ control.
Downloads
DH-SD6C3425GB-HNR-A-PV1 DatasheetDahua PTZ Camera Quick Start GuideDahua PTZ Camera User Manual (Web 5.0)Dahua PTZ Camera Operational Manual
Order Your Dahua SD6C3425GB-HNR-A-PV1 from CCTV Guru
This is a project-grade TiOC PTZ — please contact our Australian team to discuss site design, mounting, networking, NVR sizing and active-deterrence configuration. We are authorised Australian Dahua resellers, hold stock locally, and back every 6-Series PTZ with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries answered the same business day.
Genuine Dahua · Mount Adapter · AluminiumDahua DH-PFA114The Link Between Your Camera and Its Bracket
The Dahua DH-PFA114 is a genuine aluminium mount adapter that connects your camera to a wall or ceiling bracket. Compact and strong, it makes for a tidy, secure install in almost any environment.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
Connects camera to bracket — pairs cameras with wall or ceiling mount brackets.
Aluminium-alloy build — strong, corrosion-resistant and lightweight at 0.15 kg.
7kg load capacity — securely holds the camera in place.
G1½ thread — standard fitment for fast, reliable installation.
Specifications
Model
DH-PFA114
Category
Camera Mount Adapter
Material
Aluminium Alloy
Dimensions
79.0 × 72.0 × 50.0 mm (3.11" × 2.84" × 1.97")
Net Weight
0.15 kg (0.33 lb)
Load Bearing
7.0 kg (15.43 lb)
Thread Type
G1½
Operating Temperature
−40°C to +60°C
Colour
White
Warranty
3 Years (AU)
DH-PFA114 Datasheet
Frequently Asked Questions
What is the PFA114 for?It's an adapter that joins a camera to a wall or ceiling mount bracket — check your Dahua camera's accessory selection guide to confirm the PFA114 is listed.
Can it be used outdoors?Yes — it's rated −40°C to +60°C and built from corrosion-resistant aluminium alloy.
What thread does it use?It uses a standard G1½ thread for connecting to compatible Dahua brackets.
Is this a genuine Dahua part?Yes — this is the genuine Dahua DH-PFA114 aluminium mount adapter.
Clearance. Limited supplier stock, available while stocks last.
Genuine Dahua · Junction Box · IP66 AluminiumDahua DH-PFA126Tidy, Weatherproof Cable Management for Your Camera
The Dahua DH-PFA126 is a genuine IP66-rated aluminium junction box that hides and protects your camera cabling for a clean, professional finish. Its quick-install, anti-dropping design makes mounting fast and safe, indoors or out.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
IP66 weatherproof — sealed against dust and rain for reliable outdoor use.
Aluminium-alloy build — strong, corrosion-resistant and built to last.
8kg load capacity — securely supports the camera and its bracket.
Quick, anti-drop install — fast to fit with a safe anti-dropping structure.
Specifications
Model
DH-PFA126
Category
Camera Junction Box
Material
Aluminium Alloy
IP Rating
IP66
Dimensions
228.4 × 160.4 × 84.7 mm (8.99" × 6.31" × 3.33")
Weight
1.56 kg (3.44 lb)
Load Bearing
8.0 kg (17.64 lb)
Operating Temperature
−40°C to +60°C
Colour
White
Warranty
3 Years (AU)
DH-PFA126 Datasheet
Frequently Asked Questions
Is it suitable for outdoors?Yes — it's IP66 rated and operates from −40°C to +60°C, ideal for outdoor camera installs.
Which cameras does it fit?It's a camera-mount junction box — check your Dahua camera's accessory selection guide to confirm the PFA126 is listed.
What's in the box?The junction box, M8 screws and metal expansion bolts, two water joints, a wrench and instructions.
Is this a genuine Dahua part?Yes — this is the genuine Dahua DH-PFA126 aluminium junction box.
Genuine Dahua · Surface Mount Box · AluminiumDahua DH-VTM115Surface-Mount Your Dahua Video Door Station
The Dahua DH-VTM115 is a genuine aluminium surface-mounting box for Dahua VTO video door stations. It lets you mount a flush-design door station neatly onto a wall surface, with a waterproof gel pad and sealing rings included for a weather-resistant outdoor install.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
Surface-mount conversion — mounts a flush-design Dahua VTO door station onto a wall surface.
Weather-resistant — includes a waterproof silica gel pad and sealing rings for outdoor use.
Durable AL5052 aluminium — strong 2.0mm aluminium-alloy box built to last.
Complete fixing kit — supplied with expansion screws, self-tapping screws and waterproof rings.
Specifications
Model
DH-VTM115
Category
Surface Mount Box (Video Door Station)
Material
AL5052 Aluminium Alloy (2.0mm)
Dimensions
129.0 × 95.0 × 28.5 mm (5.08" × 3.74" × 1.12")
Application
Surface mounting for Dahua VTO video door stations
Warranty
3 Years (AU)
DH-VTM115 Datasheet
Frequently Asked Questions
What is the VTM115 for?It's a surface-mounting box that lets a flush-design Dahua VTO video door station be mounted on a wall surface. Check your VTO model's mounting spec to confirm the VTM115 is listed.
Is it suitable for outdoors?Yes — it ships with a waterproof silica gel pad and sealing rings for a weather-resistant outdoor installation.
What's included for installation?Expansion screws, ST4×25 self-tapping screws, waterproof rings and M3×8 fixing screws, per the datasheet.
Is this a genuine Dahua part?Yes — this is the genuine Dahua DH-VTM115 aluminium surface-mount box.
