Dahua DH-XVR5108HS-4KL-I3-S2, 8 Channel Penta-brid XVR, Record Up to 4K, IVS, Face Detection, Smart Search, Smart Fan, P2P
This conventional Digital Video Recorder, DVR can connect up to 8 x HDCVI or IP cameras with coaxial cables. Work with DMSS app and SmartPSS.
H.265+/H.265 dual-stream video compression
Supports Full-channel AI Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 8 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Specifications
Dahua DVR HD-RECORDER
Number of Channels
8 Channel
Number of BNC Ports
8 x BNC Ports
Number of Hard Disk Bay
1 x Hard Disk Bay
Technology
DVR, XVR, HD-Recorder
Incoming Bandwidth
128 Mbps Incoming
Maximum Resolution Support
4K
Downloads
XVR5108HS-4KL-I3_datasheet_20220315Digital Video Recorder_Quick Start Guide_V1.0.0-EngDahua HDCVI AI DVR_User's Manual_V2.1.0-EngDH-XVR5108HS-4KL-I3_DIMENSIONSDH-XVR5108HS-4KL-I3_PORT
Dahua 5MP Starlight IP Black Turret 2.8mm lens, Built-in Mic, IVS, WDR (120dB), IR 30m, Micro SD, IP67, PoE
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in MIC
12V DC/PoE power supply
IP67 protection
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
LITE SERIES
PoE
PoE
Downloads
DH-IPC-HDW2531EMP-AS-0280B-S2-AUS DatasheetEyeball Network Camera Installation Guide_V1.0.0Dahua Active Deterrence Eyeball Network Camera_QSG_V1.0.1Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Dahua 4 Channel Penta-brid 4K-N/5MP Compact 1U 1HDD WizSense DVR / XVR Digital Video Recorder, DH-XVR5104HS-4KL-I3
H.265+/H.265 dual-stream video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth
Up to 1 channel video stream (analog channel) Perimeter Protection
Up to 4 channels video stream (analog channel) SMD Plus
Up to 1 channel video stream (analog channel) human face recognition
IoT & POS functionalities
Specifications
NUMBER OF CHANNELS
4CH
NUMBER OF BNC PORTS
4*BNC PORTS
NUMBER OF HARD DISK BAY
1*HDD
TECHNOLOGY
RECORDERS
INCOMING BANDWIDTH
64 Mbps incoming
MAXIMUM RESOLUTION SUPPORT
4K
Downloads
dh-xvr5104hs-4kl-i3 datasheetdigital video recorder mini 1u compact qsgcompact mini hdd installation guidedahua hdcvi ai dvr user s manual
Dahua 16 Channel Penta-brid Record Up to 4K, IVS, Face Detection, Smart Search, Smart Fan, P2P
H.265+/H.265 dual-stream video compression.
Supports Full-channel AI-Coding.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.
Up to 2 channels video stream (analog channel) Perimeter Protection.
Up to 16 channels video stream (analog channel) SMD Plus.
Up to 2 channels video stream (analog channel) human face recognition.
IoT & POS functionalities.
Specifications
HD-RECORDER
Number of Channels
16 Channel
Number of BNC Ports
16 x BNC Ports
Number of Hard Disk Bay
2 x HDD Bay
Technology
XVR, NVR, HD Recorder
Incoming Bandwidth
128 Mbps Incoming
Maximum Resolution Support
4K
Downloads
XVR5216A-4KL-I3_datasheet_20220412Digital Video Recorder_Quick Start Guide_V1.0.0-EngDahua HDCVI AI DVR_User's Manual_V2.1.0-EngDH-XVR5216A-4KL-I3_DIMENSIONSDH-XVR5216A-4KL-I3_PORT
Dahua 5MP Starlight Pro HDCVI Turret Fixed Camera, WDR, ICR, 2.8mm lens, IR 50m, DC12V, IP67
The parameters and datasheets below can only be applied to 2501-S2 series.
In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Quick-to-install eyeball saves installation time
2.8 mm fixed lens
Built-in mic
Max. IR length 60 m, Smart IR
IP67, DC12V
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HAC-HDW2501TMQ-A Datasheet 20201123HDCVI Camera_User's Manual_V1.0.0-EngDAHUA_HDCVI CAMERA_OPEN SOURCE SOFTWARE NOTICE _VERSION A_V1.0.0-EngHDCVI Eyeball Camera_Installation Guide_V1.0.4-Eng
Dahua 5MP Starlight Pro HDCVI IR Eyeball, WDR, ICR, Motorised 2.7~13.5mm, IR 60m, DC12V, IP67, DH-HAC-HDW2501TP-Z-A-DP-27135-S2
Features
* The parameters and data sheet below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max. 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Built-in mic
2.7 mm~13.5 mm motorised lens
Max. IR length 60 m, Smart IR
IP67, 24V AC/12V DC
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorized
TECHNOLOGY
HDCVI
POWER
AC 24V/ DC 12V
Downloads
DH-HAC-HDW2501T-Z-A-DP Datasheet 20201127HDCVI Camera_User's Manual_V1.0.0-EngHDCVI Eyeball Camera_Installation Guide_V1.0.4-EngDAHUA_HDCVI CAMERA_OPEN SOURCE SOFTWARE NOTICE _VERSION A_V1.0.1-Eng
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, 3.6mm, IR 80m, DC12V, IP67
Starlight, 120dB true WDR, 3DNR
Max. 20fps@5MP
HD/SD output switchable
Audio in interface, built-in mic
3.6mm fixed lens
Max. IR length 80m, Smart IR
IP67, DC12Vx30%
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HFW2501TP-I8 DatasjeetUser Manual of HFW2501TP-I8
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, Motorised 2.7~13.5mm, IR 80m, DC12V, IP67, Built-in Mic* The parameters and datasheets below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max. 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Built-in mic
2.7 mm~13.5 mm motorized lens
Max. IR length 80 m, Smart IR
IP67, 24V AC/12V DC
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDCVI
POWER
AC 24V/ DC 12V
Downloads
HAC-HFW2501TU-Z-A-DP Datasheet 20201127HDCVI Bullet Camera Installation Guide_V1.0.2-EngHDCVI Camera User's Manual V1.0.0-Eng
HiLook DVR-208U-M1 8 Channel Recorder, 1 x HDD Bay, 5 MP Resolution, 1U, H.265 DVR
The HiLook DVR-208U-M1 offers a robust security solution with advanced features such as deep learning-based motion detection 2.0, human and vehicle classification, and efficient H.265 Pro+ compression technology. With 8 analog channels and 1 HDD bay, it supports up to 8 MP@8 fps and 5 MP@12 fps encoding, and can connect up to 16 network cameras. Protect your property with confidence and reduce false alarms with this 1U DVR.
Features
Deep learning based human and vehicle targets classification of Motion Detection 2.0
8 analog channels and 1 HDD 1U DVR
Efficient H.265 Pro+ compression technology
Up to 8 MP@8 fps and 5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 16 network cameras can be connected.
Motion Detection 2.0
Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Network
Total Bandwidth: 128 Mbps
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection: 64
Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA: 1 SATA interface
Capacity: Up to 10 TB capacity for each disk
USB Interface: Rear panel: 2 × USB 2.0
General
Power Supply: 12 VDC, 2 A
Consumption: ≤ 10 W (without HDD)
Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight: ≤ 1.6 kg (without HDD, 3.5 lb.)
Downloads
Data SheetQuick Start GuideUser Manual
Dahua 4 Channel DVR, Penta-brid Record Up to 4K, IVS, Face Detection, Smart Search, Smart Fan, P2P
This conventional Digital Video Recorder, DVR can connect up to 6 x HDCVI or IP cameras with coaxial cables. Work with DMSS app and SmartPSS.
H.265+/H.265 dual-stream video compression
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 6 channels IP camera inputs, each channel up to 8MP; Max 24Mbps Incoming Bandwidth
Smart Search and Intelligent Video System
Specifications
HD-RECORDER
Number of Channesl
4 Channel
Number of BNC Ports
4 x BNC Ports
Nubmber of Hard Disk Bay
1 x HDD Bay
Technology
HD Recorder, DVR, XVR
Incoming Bandwidth
24 Mbps Incoming
Maximum Resolution Support
4K
Downloads
Datasheet of XVR5104HUser Manual of XVR5104H
Hikvision TVI 2CE78U7T-IT3F 8MP Turret HD Camera, Ultra Low Light, Fixed 2.8mm, 4 in 1, IR 60m
8 MP high performance turret camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Downloads
TVI 2CE78U7T-IT3F Datasheet
Hikvision TVI 2CE79H8T-AIT3ZF 5MP Turret HD Camera, Motorised Vari-focal 2.7-13m, IR 60m, 4 in 1, AC/DC
5 MP high performance turret camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Lens focuses automatically when zooming in or out
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Downloads
Hikvision TVI 2CE79H8T-AIT3ZF DatasheetHikvision TVI 2CE79H8T-AIT3ZF Quick Start GuideHikvision TVI 2CE79H8T-AIT3ZF User Manual
Hikvision AcuSense DVR 7216HUHI-M2-S 16CH, 2 x Hard Disk Bay, 8MP Resolution
Deep learning-based motion detection 2.0 for all analog channels
Deep learning-based perimeter protection
Efficient H.265 pro+ compression technology
Up to 8 MP@8 fps/5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 32-ch IP camera inputs (up to 8 MP)
Downloads
DVR 7216HUHI-M2-S DatasheetDVR 7216HUHI-M2-S Quick Start GuideDVR 7216HUHI-M2-S User ManualDVR 7216HUHI-M2-S Communication Matrix
Dahua 5MP Starlight Pro HDCVI Vandal Dome, WDR, ICR, 2.8mm lens, IR 30m, DC12V, IP67
* The parameters and data sheet below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
2.8 mm fixed lens
Max. IR length 30 m, Smart IR
IP67, IK10, DC12Vx30%
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
DH-HAC-HDBW2501EP DatasheetDH-HAC-HDBW2501EP User Manual

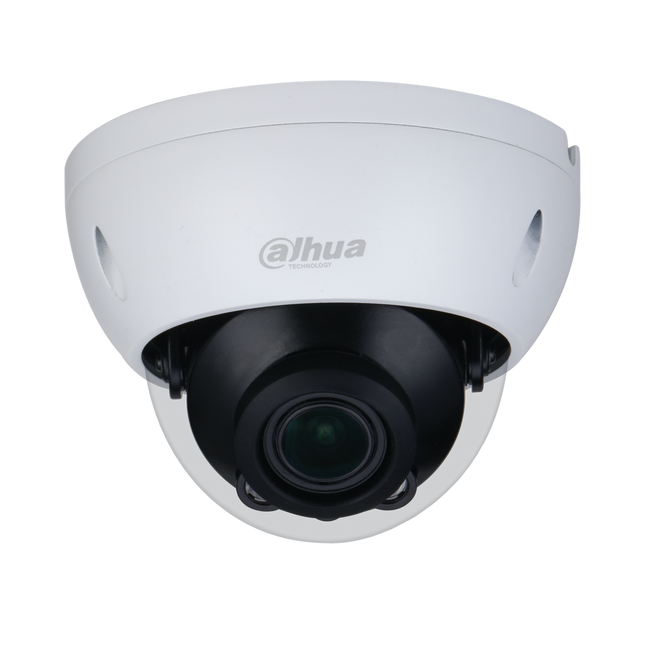

Dahua 5MP Starlight Pro HDCVI IR Vandal Dome, WDR, ICR, Motorised 2.7~13.5mm, IR 30m, DC12V, IP67* The parameters and data sheet below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
2.7 mm-13.5 mm motorised lens
Max. IR length 30 m, Smart IR
IP67, IK10, 12V DCx30%
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HDBW2501R DatasheetHDBW2501R User Manual
HiLook DVR-216U-M2 16 Channel Recorder, 2 x HDD Bay, 5 MP Resolution, 1U, H.265 DVR
The HiLook DVR-216U-M2 16 Channel Recorder offers advanced features such as deep learning-based motion detection 2.0, which can accurately classify human and vehicle movements while reducing false alarms. With support for up to 24 IP camera inputs and H.265 video compression, this 1U DVR provides high-quality recording and quick search capabilities.
Features
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability
Motion Detection 2.0
Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Network
Total Bandwidth: 128 Mbps
Remote Connection: 128
Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA: 2 SATA interfaces
Capacity: Up to 10 TB capacity for each disk
USB Interface: Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
General
Power Supply: 12 VDC, 5 A
Consumption: ≤ 25 W (without HDD)
Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight: ≤ 2 kg (without HDD, 4.4 lb.)
Downloads
Data SheetQuick Start GuideUser Manual
HiLook DVR-204U-M1 4 Channel Recorder, 1 x HDD Bay, 5 MP Resolution, 1U, H.265 DVR
The HiLook DVR-204U-M1 offers 4-channel recording with 1x HDD bay and 5 MP resolution. Utilizing deep learning technology, it provides Motion Detection 2.0 for accurate human and vehicle target classification. With H.265 Pro+ and H.265 video compression, this DVR supports multiple video inputs and up to 8 MP encoding.
Features
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 6-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability
Motion Detection 2.0
Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:
Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Video And Audio
IP Video Input: 2-ch (up to 6-ch)
Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps
Up to 8 MP resolution: Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Network
Total Bandwidth: 96 Mbps
Remote Connection: 32
Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interfac
Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA: 1 SATA interface
Capacity: Up to 10 TB capacity for each disk
Alarm In/Out: N/A
USB Interface: 2 × USB 2.0
General
Power Supply: 12 VDC, 1.5 A
Consumption: ≤ 15 W (without HDD)
Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight: ≤ 1.16 kg (without HDD, 2.6 lb.)
Downloads
Data SheetQuick Start GuideUser Manual
Dahua 2MP Starlight HDCVI PTZ Camera comes with 1/2.8'' STARVIS CMOS, Powerful 25× optical zoom, Starlight technology, 120 dB true WDR, 3D NR, Max. 25/30 fps@1080p, 25/30/50/60 fps@720p, IR distance up to 100 m, IP66.
The Dahua 2MP Starlight HDCVI PTZ Camera offers advanced features such as 25× optical zoom, Starlight technology, and 120 dB true WDR for superior image quality. With Max. 25/30 fps@1080p and 25/30/50/60 fps@720p, this camera captures smooth and clear video. With an impressive 100m IR distance and IP66 rating, it is perfect for outdoor surveillance.
Features
/2.8" 2Megapixel STARVIS™ CMOS.
Powerful 25× optical zoom.
Starlight technology.
120 dB true WDR, 3D NR.
Max. 25/30 fps@1080p, 25/30/50/60 fps@720p.
IR distance up to 100 m.
IP66.
Specifications
Dahua HD-Camera
MEGAPIXELS
2MP
CAMERA STYLE
PTZ
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDCVI PTZ
POWER
DC 12V
Downloads
SD49225DB-HC_S0 Datasheet 20231024
Dahua Camera Installation Guide
HDCVI Speed_Dome & PTZ Camera User's Manual V1.0.0
Speed Dome PTZ Camera Installation_Manual
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, 3.6mm, IR 80m, DC 12V, IP67
Features
Max 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
3.6 mm fixed lens (6 mm, 8 mm optional)
Built-in mic
Max. IR length 80 m, Smart IR
IP67, DC12V
Specifications
Dahua HD-Camera
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
HDCVI
POWER
AC 24V/ DC 12V
Downloads
DH-HAC-HFW2501TUP-A DatasheetDahua HDCVI Camera User ManualDahua HDCVI Camera Quick Installation Guide
Hikvision TVI 2CE79U7T-AIT3ZF 8MP Turret HD Motorised Vari-focal Camera, 2.7-13.5mm, 4 in 1, IR 60m, VDC/VAC
8 MP high performance turret camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Lens focuses automatically when zooming in or out
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Downloads
2CE79U7T-AIT3ZF Datasheet2CE79U7T-AIT3ZF Quick Start Guide2CE79U7T-AIT3ZF User Manual
Hikvision TVI 2CE78H8T-IT3F 5MP Turret HD Camera, Fixed 2.8mm, IR 60m, 4 in 1, 12VDC
5 MP high performance turret camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Downloads
Hikvision TVI 2CE78H8T-IT3F DatasheetHikvision TVI 2CE78H8T-IT3F User Manual
NEW easy to install IP camera compatible with ismartgate controllers (PRO/LITE). Includes 2 Megapixel resolution, Dual band Wi-Fi connectivity (2.4 & 5Ghz), wide 103º angle, two-way audio, motion detection and night vision. 1 YEAR FREE VIDEO PLUGIN INCLUDED!
*1 Year free video plugin sent via email after product's purchase confirmation.
In the box
1 x Wireless Indoor IP Camera
1 x USB Cable (2m)
1 x USB Power adaptor
1 x Quick Start Guide
1 x Support CD
3 x Mounting screw
1 x Ethernet Cable
1 x Warranty Card
Specifications
Resolution: 1920x1080 pixels (1080p)
Image: HD Color CMOS sensor
Night Vision: Yes (8m)
Motion Sensor: Yes
Two-Way Audio: Yes (from App or web client)
Wi-Fi: 802.11 b/g/n (2.4Ghz) - 802.11 ac/a/n (5Ghz)
Ethernet: RJ45 output
Storage: 1x micro SD card slot (max. 32GB)
View Angle: 103º D / 99º H
Operating Tempº: -10ºC / +40ºC (14ºF / 104ºF)
Operating Humidity: 30%-85%
Power Supply: 100-240V to 5V1A
Waterproof: NO
Dimensions: 70(L)x70(W)x120(H) mm
Weight: 165g
2MP resolution (1080p)
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
Night Vision
Watch your garage from your phone even in the dark. Night Vision for up to 8m. Feature available with ismartgate controllers (PRO/LITE).
Wide Angle
Diagonal angle of 103º for a panoramic view of your garage. Feature available with ismartgate controllers (PRO/LITE).
Two-Way Audio
Speak with your visitors and hear what they say from the ismartgate Cam.
Motion Detection alerts
The ismartgate Cam will sense motion and send real time alerts so you know what happens in the garage.
Sound Detection alerts
The ismartgate Cam will make sure your garage is silent. If not, It will alert you!
Wi-Fi (802.11 b/g/n)
Connect the NEW ismartgate Indoor cam to your preferred Wi-Fi band for increased signal quality. No cables to pull (Ethernet connection available).
Easy Set Up
Scan a QR code with your phone and put your Wi-Fi password. That's it!
Free iSmartgate Cam app
Download the ismartgate Cam to enjoy all the features from this great smart camera!
Local storage
The NEW ismartgate indoor cam includes an SD card slot for local storage of video recordings. Supports SD card with 128GB capacity.
Eve Outdoor Cam - Secure Floodlight Camera with Two-way Audio and Motion Sensor Plus Apple HomeKit Secure Video, EV10ECA8101
Eve Outdoor Cam packs advanced technology into a sleek metal enclosure and is designed exclusively for Apple HomeKit Secure Video, built from the ground up to keep your data secure and your private space safe.
Specifications:
Wireless Connection: Wi-Fi (2.4 GHz 802.11b/g/n)
Video Quality: 1080p/24fps H.264 video
Motion Detection Range: 100° FOV & up to 8 Metres
Waterproof Rating: IP55
Power: AC 100-240 V | 50/60 Hz
Dimensions: 170 x 65 x 76mm
Notes: Eve Outdoor Cam requires both a neutral wire and a connection to a ground wire.
Features:
FHD 1080p Video Quality (24fps)
Connects via WiFi (2.4GHz)
Dimmable Floodlight
100% Privacy: HomeKit Secure Video
Rich & Instant Notifications
Customize notifications & recordings
People / Pet / Vehicle detection
Activity Zones
Package detection
157° field of view
Night Vision
Two-way Communication
Can be installed to replace existing light
IP55 Water & Dust resistant
Three-axis camera angle adjustment
What's in the box?:
1 x EVE Outdoor Cam
1 x Mounting kit and connection terminal
1 x Video surveillance sticker set
1 x Manual
Eve Cam - Wireless Home Security Camera
Eve Secure Surveillance Smart Cam allows you to keep a eye on your home. Receive notifications on your iPhone immediately when something is up in your home and protect the privacy of your personal space in the process. Works with Apple homekit.
Specifications:
Power: 100-240V ~ 50/60 Hz - 50mA
Wireless Connection: Bluetooth with Thread
Dimensions: 65 x 65 x 45mm
Sensor Cable Length: 2 Metres
Requirements: iPhone or iPad with the latest version of iOS / iPadOS
Notes: Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod or an Apple TV (4th generation or later)
Features:
Wireless Connection: WiFi (2.4 or 5GHz 802.11a/b/g/n)
Field of view: 150°
Video Quality: 1080p/24fps H.264 Video
Power: 5 V / 1A max (USB)
Night Vision Range: Up to 5 Metres
Stand: 360° x 180° flexible with magnetic base
Dimensions: 122 x 65 x 60mm
Requirements: iPhone or iPad with the latest version of iOS/iPadOS | HomePod or Apple TV (4th generation or later) as a home hub
What's in the box?:
1 x EVE Cam
1 x USB Power Supply
1 x 2.2m USB cable
1 x Metal Plate for Magnetic Wall installation
1 x Bag of Screws & Anchors
1 x Adhesive pad
1 x Quick start guide
Aqara Camera Hub G2H Pro
Built-in Zigbee 3.0 Hub
NAS and larger capacity microSD support
146° Wide-Angle Lens and 1080p Sensor
360° Stand and Flexible Placement
Support Aqara Home, Apple Home, Google, Alexa as Hub
Aqara Camera Hub G2H Pro
An updated version of our best-selling camera hub.Aqara Camera Hub G2H Pro is an intelligent product that integrates dual functions of a camera and a hub. It has functions such as video intercom, motion detection, sound detection, MicroSD card recording, NAS storage, timelapse, privacy area covering and so on. It can also be used as a Zigbee hub in collaboration with other sensors, controllers, and other accessories for functions such as home guard, data reporting, and smart control. It also supports HomeKit Secure Video.
Key Features:
Built-in Zigbee 3.0 Hub: Connect up to 128 Aqara sensors and controllers and enjoy home automation, remote control, and third-party ecosystem support.1
Fullest HomeKit Support: The G2H Pro HomeKit support has improved. Apart from HomeKit Secure Video* and HomeKit-enabled 2-way audio, it now supports all 4 modes of the HomeKit Security System which is also automatically synced with the Aqara Security Guard.
All-Round Compatibility: Apart from HomeKit, the G2H Pro also supports Amazon Alexa, and Google Home (including streaming to smart displays), and connects compatible devices to HomeKit, Alexa, Google Assistant, and more.
NAS** and larger capacity microSD support: Apart from the microSD card, which now has an increased maximum capacity of up to 512 GB, the G2H Pro also supports local NAS storage that uses the Samba protocol.
Custom Ringtones and Timelapse: Custom ringtones are finally here! Users' favorite feature allows the G2H Pro to play uploaded recordings and use them in automations. Apart from that, the camera now supports a timelapse clips generation, which allows summarizing the day in one short video.
Subscription-Free Alerts and Built-in Siren: The G2H Pro Camera Hub will notify you via smartphone and built-in siren and record a short clip in case an abnormal sound or motion is detected. A short clip will be sent to the cloud immediately (can be disabled in settings) while the full footage will be recorded locally.
Invisible IR Night LEDs: Thanks to 940 nm infrared night vision LEDs, the G2H Pro Camera Hub doesn't have an annoying glow that could disturb your sleep during the night.
146° Wide-Angle Lens and 1080p Sensor: The G2H Pro now supports an even wider viewing angle (diagonal) due to the absent distortion correction, which gives the image, captured by a crisp 1080p sensor, a more "fish-eye" look.
360° Stand and Flexible Placement: The base has a built-in strong magnet, which can be attached to the surface of metal objects. The package includes an iron wall mount and screws, which support multiple installation methods.
Event Timeline and Notifications***: With the G2H Pro, when your Aqara sensors are triggered by an event such as opening the door, it will be marked on the video timeline, and you will be able to see video notifications.
Activity and Privacy Masking Zones: Apart from the configurable activity zones, that can be set within the Aqara Home app in order to reduce unnecessary alerts, the G2H Pro has a local privacy masking, that can prevent certain parts of the image to be recorded or sent to third-party servers such as Google or Amazon.
Face and Package Recognition*: Thanks to the HomeKit Secure Video, the G2H Pro also supports face and package recognition and notifications that are processed locally on your HomeKit hub such as HomePod.
RGB LED: Compared to the G2H, the G2H Pro now has a colorful indicator LED.
1 Repeaters such as Wall Switch with Neutral or Smart Plug are required to achieve this number of connected devices* To support HomeKit Secure Video, an iCloud subscription, HomeKit hub and up-to-date iOS/iPad OS/ tvOS are required.** To use NAS storage, a supported microSD card as well as SMB1.0-compatible software are required.*** Aqara sensors required for this functionality
Automations:
1. Personalized greetings using the new custom ringtone function
Surprise your loved ones by playing an uploaded recording once the smart lock detects that the specific person enters the room by recognizing a fingerprint. At the same time, the Alert System will be automatically disarmed.(Camera Hub G2H Pro + Smart Lock + Sensors)
Specifications
Product Model: CH-C01
Video Coding: H.264
Resolution: 1080p
Power Supply Input: 5V⎓1A
Viewing Angle: 146° (diagonal)
Overall Power Consumption: 5 W
Product Dimensions: 82.4×56.5×50.5 mm (3.24×2.33×1.99 in.)
Working Temperature: -10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity: 15% ~ 85% RH, no condensation
Wireless Protocols: Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Local Storage: MicroSD card (CLASS 4 or above is supported, up to 512 GB storage)
Supported Device: Android 4.0 or iOS 13.2 and above
What is in the Box: G2H Pro Camera Hub × 1, User Manual × 1, Screw × 2, Metal Plate × 1, Micro USB to USB-A Cable × 1, Ejector Tool × 1, Sticker × 1
Dahua 2MP Starlight Ultra HDSDI/CVI/CVBS IR Dome, WDR, ICR, Motorised 2.7~12mm, IR 50m, AC24V/DC12V, IK10, IP67
Starlight, 120dB true WDR, 3DNR
Max 30fps@1080P
HD, SD & SDI tri-output
2.7-12mm motorised lens
Max. IR length 50m, Smart IR
IP67, IK10, AC24V/DC12V
Specifications
HD-CAMERA
MEGAPIXELS
2MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDSDI
POWER
AC 24V / DC 12V
Downloads
HAC-HDBW3231E-ZT DatasheetHAC-HDBW3231E-ZT User Manual
Dahua UTC Controller for Switching Different Formats (HDCVI/AHD/HDTVI/CVBS) of Video Signal
Support different formats (HDCVI/AHD/HDTVI/CVBS) switch, which is to satisfy the requirements of different storage device environments for clients.
Various format indicator lights, which makes it convenient for users to check the current format status and prompt if the format switch is successful.
Support OSD control and the electric zoom function control in CVBS mode.
Downloads
PFM820_datasheet
UTC Controller_User's Manual_V1.0.3
Dahua 2MP Starlight PTZ HDCVI 25X Optical, WDR, ICR, Motorised 4.8~120mm, IR 100m, DC12V, IP66, wall mount bracket included
1/2.8'' 2 Megapixel STARVIS? CMOS
Powerful 25x optical zoom
Starlight technology
120 dB true WDR, 3D DNR
Max. 25/30 fps@1080P, 25/30/50/60 fps@720P
IR distance up to 100 m
IP66
Specifications
HD-CAMERA
MEGAPIXELS
2MP
CAMERA STYLE
PTZ
COLOUR
WHITE
LENS TYPE
MOTORISED
TECHNOLOGY
HDCVI
POWER
DC 12V/3A
Downloads
DH-SD49225-HC-LA1 DatasheetInstallation Guide_V1.0.1Network Speed Dome & PTZ Camera Installation Manual_V1.0.0HDCVI_Speed_Dome&PTZ_Camera_User's_Manual_V1.0.0
Dahua 5MP Starlight Pro HDCVI IR Eyeball, WDR, ICR, Motorised 2.7~13.5mm, IR 60m, DC12V, IP67* The parameters and data sheet below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Starlight, 120dB true WDR, 3DNR · Max. 20fps@5MP
HD/SD output switchable
Audio in interface, built-in mic
2.7-13.5mm motorized lens
Max. IR length 60m, Smart IR · IP67, DC12V±30%
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HDW2501TP-Z-A DatasheetHDW2501TP-Z-A User Manual
Dahua 1-CH Passive Video Balun, support 4K
1-CH Passive Video Balun
Real-time transmission over UTP CAT5E/6 cable;
Passive, no need for power supply;
Excellent anti-thunder, anti-static and anti-interference capabilities;
Compatible format: HDCVI/TVI/AHD/CVBS;
With female BNC connector, and pluggable screw terminal connections.
Downloads
DH-PFM800-4K_datasheet_20210323
