Ubiquiti UniFi Protect Camera G5-Bullet, Next-gen indoor/outdoor 2K HD PoE Camera
Features:
2K (4MP) video resolution Flexible 3-axis adjust mount 9 m (30 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Without mount: Ø75.5 x 74.4 mm (Ø3 x 2.9")With mount: Ø75.5 x 150 mm (Ø3 x 5.9")
Weight
Without mount: 225 g (8 oz)With mount: 315 g (11.1 oz)
Enclosure material
Polycarbonate, aluminum alloy
Mount material
Wall mount: aluminum alloy, polycarbonatePole mount: aluminum alloy
Weatherproofing
IPX4
Resistance
IK04
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 84.4°, V: 45.4°, D: 99.8°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
Installation Guide
Image Performance
Ubiquiti UniFi Protect UVC-G5-PRO, IR Night Vision, 4K Resolution, 3x Optical Zoom, Intergrated microphone, PoE
G5 Professional
Indoor/outdoor 4K PoE Camera with exceptional image performance and 3x optical zoom lens.
4K (8MP) video resolution 3x optical zoom 25 m (82 ft) IR night vision AI event detections Built-in IR LEDs and an automatic IR cut filter Record audio with an integrated microphone Connect and power using PoE Optional Enhancer for integrated floodlight and extended IR* Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Ø86 x 154.3 mm (Ø3.4 x 6.1")
Weight
650 g (1.4 lb)
Enclosure materials
UV stabilized polycarbonate, aluminum alloy
Mount material
Aluminum alloy
Weatherproofing
IP65
Resistance
IK04
Optics
Sensor
1/2" 8MP sensor
Lens
F 4.1 - 12.3 mm; f/1.53 - f/3.3
View angle
Wide: H 109.9°, V 60°, D 127.7°Zoom: H 35°, V 19.8°, D 40°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Video compression
H.264
Resolution
8MP 3840 x 2160 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A53 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
Device: 10WDevice with the Enhancer: 12.95W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Operating temperature
-20 to 50º C (-4 to 122º F)
Operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
Downloads
Installation Guide
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Bullet, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD 4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE
8MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866TP-ZAS-AUS DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4=Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Bullet, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, POE
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WizSense
POE
POE
Downloads
DH-IPC-HFW3866EP-AS-AUS Datasheet 20220415Dahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Bullet, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, POE, Black
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866EP-AS-AUS-BLK DatasheetDahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua 4MP AI Starlight + IP Bullet Fixed 2.8mm, Mic, ICR+White Light, WDR (120dB), Micro SD, IP67, POE, SMD Plus
4MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688x1520) @ 30 fps
H.265 codec, high compression rate, low bit rate
Built-in Warm LED, max. LED distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power support
IP67 protection
SMD Plus
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3449EP-AS-LED-0360B DatasheetQuick Start Guide of DH-IPC-HFW3449EP-AS-LED-0360BInstallation Guide of DH-IPC-HFW3449EP-AS-LED-0360BInstallation Example of DH-IPC-HFW3449EP-AS-LED-0360BLeaflet_Dahua-Full-Color-Camera_V1.0_EN_202002-(6P)
Dahua 5MP Lite AI Fixed Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR50m, Built-in Mic, IP67, POE
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 4MP (2688x1520) @25/30 fps
H.265 codec, high compression rate, low bit rate x Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 G Micro SD card, built-in Mic
12V DC/POE power supply
IP67 protection
SMD Plus
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3541EP-SA-0280B Datasheet

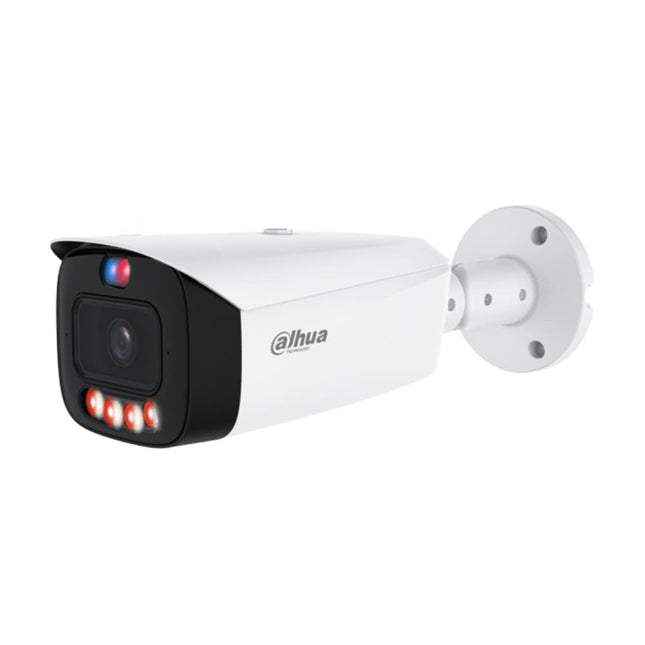

This Dahua 8MP TiOC Bullet Security Cameras, Active Deterrence, Fixed 2.8mm, Two-way Audio, Full Colour Night Vision features SMD 4.0, Built-in Speaker, WDR, Micro SD, IP67, PoE DH-IPC-HFW3849T1-AS-PV-ANZ
8MP 1/2.8'' CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 x 2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One-click arming/disarming through alarm input.
Specifications
Megapixels
8MP
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
WizSense Series
POE
PoE
Downloads
IPC-HFW3849T1-AS-PV Datasheet_20220826Bullet Network Camera Installation Guide_V1.0.0Dahua Bullet Network Camera_Quick Start Guide_V1.0.2Dahua Network Camera Web 5.0_Operation Manual_V1.0.5Dahua Network Camera Web 3.0_OperationManual_V2.1.5
Dahua 8MP Smart Dual Illumination Active Deterrence Vari-focal Bullet WizSense Network Camera DH-IPC-HFW3849T1-ZAS-PV
8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160) @25/30 fps. · H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One-click arming/disarming through alarm input.
Specifications
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
WIZSENSE SERIES
PoE
PoE
Downloads
DH-IPC-HFW3849T1-ZAS-PV DatasheetDahua Eyeball Network Camera_QSG_V1.0.2Dahua Network Camera Web 3.0 Operation Manual_V2.1.1DH-IPC-HDW3849HP-AS-PV-0280B-S3_DIMENSIONSDH-IPC-HDW3849HP-AS-PV-0280B-S3_INSTALLATION_METHOD_EN
Dahua Security Camera 6MP WizSense Motorised Starlight Bullet, 2.7–13.5 mm, Perimeter, SMD4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3666TP-ZAS-AUS Datasheet 20220718Bullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, 3.6mm, IR 80m, DC12V, IP67
Starlight, 120dB true WDR, 3DNR
Max. 20fps@5MP
HD/SD output switchable
Audio in interface, built-in mic
3.6mm fixed lens
Max. IR length 80m, Smart IR
IP67, DC12Vx30%
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HFW2501TP-I8 DatasjeetUser Manual of HFW2501TP-I8
TP-Link VIGI 4MP C340I(4mm) Outdoor IR Bullet Network Camera, 4mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor IR Bullet Network Camera
4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI's s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Dahua 8MP (4K) WizSense Fixed Starlight Bullet, 3.6mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, PoE DH-IPC-HFW3866EP-AS-AUS-36
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
POE
PoE
Downloads
DH-IPC-HFW3866EP-AS-AUS Datasheet 0220415Dahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Bullet, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD 4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE, black
8MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866TP-ZAS-AUS-BLK DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera 6MP WizSense Fixed Starlight Bullet, 2.8mm, Perimeter, SMD4.0, SD Card, WDR, IR50m, Built-in Mic, IP67, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3666EP-AS-AUS Datasheet 20220718Dahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
AXIS P1467-LE Bullet Camera
Fully featured, all-around 5 MP surveillance
Lightfinder 2.0, Forensic WDR, OptimizedIR
Analytics with deep learning
Audio and I/O connectivity
Built-in cybersecurity features
Impact and weather resistant
AXIS P1467-LE offers excellent image quality and advanced analytics based on deep learning on the edge. Including built-in cybersecurity features, this robust, outdoor-ready camera is ideal for a variety of surveillance scenarios.
Feature-packedBased on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. With edge-to-edge technology, it can be connected to an Axis network speaker enabling two-way audio. Furthermore, it can be powered with DC power and PoE. And, even if there’s a power outage, redundant DC power ensures a reliable power supply to safeguard your data.
Excellent image quality day or nightThis fully featured camera delivers excellent image quality regardless of the light conditions. It offers 5 MP resolution at a frame rate of up to 30 fps. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. OptimizedIR enables surveillance in total darkness up to 40 m (131 ft) without the need for extra lighting. And, motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
We’ve got you securedAXIS P1467-LE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware even after a factory default. Furthermore, this robust, outdoor-ready camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts, and can withstand winds up to 50 m/s.
Downloads
P1467-LE Datasheet
AXIS M2035-LE - Network surveillance camera - bullet - outdoor - dust resistant / weather resistant - colour (Day&Night) - 2 MP - 1920 x 1080 - 1080p - fixed iris - fixed focal - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-H Part 2 - PoE Class 3
2 MP affordable camera with deep learning
HDTV 1080p
Compact, lightweight design
Analytics with deep learning
Zipstream supporting H.264/H.265
Outdoor-ready with IR illumination
Ideal for tough environments, this outdoor-ready bullet-style camera offers affordable Axis excellence. Lightweight and compact in design, it’s easy to install and supports analytics with deep learning. Available in two lens alternatives.
With a deep learning processing unit (DLPU), you can benefit from applications based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This outdoor-ready bullet-style camera features built-in IR illumination, enabling unobtrusive surveillance in total darkness. Wide Dynamic Range (WDR) ensures clarity even when there’s both dark and light areas in the scene.
Top performance in tough conditionsIdeal for both hot and cold environments, this IK08-rated bullet camera can withstand temperatures from -30 °C to 50 °C (-22 °F to 122 °F). It includes an integrated sunshield and with IP66, IP67, and NEMA 4X ratings, it’s resistant to rough weather, dust, sand, salt spray, ice formation, and high-water pressure. AXIS M2035-LE is available in two variants with a choice of lenses; a wide 3 mm lens with a 101° horizontal field of view for wide-area surveillance and a tele 8 mm lens with a 39° horizontal field of view for surveillance from a distance. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis outdoor horn speaker.
Installation that’s as easy as 1,2,3…This small, lightweight bullet-style camera offers cost-efficient installation both indoors and outdoors. A spacious, sealed back box ensures secure cable management and offers installers greater accessibility, freedom of movement, and future serviceability. Delivered with a factory-focused lens, there’s no need for hands-on fine-tuning saving you time and effort. This easy-to-handle camera supports Power over Ethernet (PoE) so you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, AXIS M2035-LE offers flexible installation; outdoors or indoors, on walls, ceilings, poles, or in corners.
Specifications
Product Description
AXIS M2035-LE - network surveillance camera - bullet
Device Type
Network surveillance camera - fixed - bullet - outdoor - dust resistant / weather resistant
Dimensions (WxDxH)
10.1 cm x 17 cm x 10.1 cm
Weight
491 g
Colour
White, NCS S 1002-B
Connectivity Technology
Wired
Camera
Colour - Day&Night
Max Resolution
1920 x 1080
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Video Modes
1080p
Optical Sensor Type
PS RGB CMOS - 1/2.9" - 2 MP
Minimum Illumination
0.16 lux - colour - F1.4 - 50 IRE ? 0.03 lux - B&W - F1.4 - 50 IRE ? 0 lux - IR
Focal Length Control
Fixed focal
Focal Length
3.2 mm
Focus Adjustment
(min distance 1.2 m)
Lens Iris
F/1.4 - fixed iris
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
PoE Class 3
Features
Sharpness control, white balance, colour control, progressive scanning, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, Video Motion Detection Technology, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Edge Storage, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, plastic housing, digest authentication, IP address filtering, HTTPs encryption, aluminium housing, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, motion-adaptive exposure, compression, text overlay, 180? image rotation, 90? image rotation, 270? image rotation, user access log, centralised certificate management, brute force delay protection, ONVIF (Profile M) support, remote zoom, Axis Edge Vault
Manufacturer Warranty
5-year warranty
Environmental Parameters (operating)
-30 ?C - 50 ?C; 10 - 100% RH relative humidity
Download
Hikvision 8MP AcuSense Bullet DS-2CD2T86G2-ISU-SL-2, IP67, IR 60m, 2.8mm, Built-in Mic, Speaker, Strobe Light (2T86)
Experience high-quality imaging with the Hikvision 8MP AcuSense Bullet camera. Its 8 MP resolution and powered-by-DarkFighter technology ensure excellent low-light performance, while 120 dB true WDR technology delivers clear imaging against strong backlight. With efficient H.265+ compression and deep learning-based human and vehicle target classification, this camera provides effective security. Plus, its active strobe light and audio alarm warn intruders, while the built-in two-way audio allows real-time communication. Water and dust-resistant (IP67), this camera is perfect for outdoor use.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2T86G2-ISU/SL Datasheet
DS-2CD2T86G2-ISU/SL Quick Start GuideDS-2CD2T86G2-ISU/SL User ManualDS-2CD2T86G2-ISU/SL FAQ
Dahua Security Camera 4MP WizSense Fixed Starlight Bullet, 2.8mm, Perimeter, SMD4.0, SD Card, WDR, IR50m, Built-in Mic, IP67, POE
4MP 1/3'' CMOS image sensor, excellent low luminance performance and high definition of images
Outputs max. 4 MP (2688 x 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3466EP-AS-AUS DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua 8MP Lite IR Fixed-focal 4K Starlight IP Bullet Network Camera, ICR, WDR, IR 30m, IP67, PoE
8MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 8MP (3840x2160) @15 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwirexAbnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access,voltage detection
Supports max. 256 GB Micro SD card
12V DC/PoE power supply
IP67 protection
Specifications
Megapixels
8MP
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
LITE SERIES
Connection
PoE
Downloads
DH-IPC-HFW2831SP-S-0280B-S2 DatasjeetDH-IPC-HFW2831SP-S-0280B-S2 Dahua IR Bullet Network Camera_QSG_V1.0.1DH-IPC-HFW2831SP-S-0280B-S2 Bullet Network Camera Installation Guide_V1.0.0 DH-IPC-HFW2831SP-S-0280B-S2 Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, Motorised 2.7~13.5mm, IR 80m, DC12V, IP67, Built-in Mic* The parameters and datasheets below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max. 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Built-in mic
2.7 mm~13.5 mm motorized lens
Max. IR length 80 m, Smart IR
IP67, 24V AC/12V DC
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDCVI
POWER
AC 24V/ DC 12V
Downloads
HAC-HFW2501TU-Z-A-DP Datasheet 20201127HDCVI Bullet Camera Installation Guide_V1.0.2-EngHDCVI Camera User's Manual V1.0.0-Eng
Uniarch 8MP Starlight Fixed Bullet Network Camera, Min. illumination 0.005lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 50M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB05-B-IN, Pole mount TR-UP06-C-IN
High quality image with 8MP, 1/2.7''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-B1E8-AF28K 4K HD Fixed Bullet Network Camera Datasheet V1.1Uniarch Network Camera User Manual-V1.00
Hikvision 8MP 4K AcuSense Fixed Mini Bullet DS-2CD2086G2-I, 30m IR, 2.8mm (2086)
High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
Datasheet Quick Start Guide User Manual FAQ
Ubiquiti UniFi Protect AI DSLR Indoor/outdoor 4K PoE Camera,17 or 45 mm Lens, 4K (8MP) Video Resolution, Weatherproof, 2-way Audio
Indoor/outdoor 4K PoE camera with 17 or 45 mm lens.
4K (8MP) video resolution High-sensitivity imaging sensor Wide aperture M4/3 f/1.2 prime lens included Advanced AI: Detect people, read license plates, and more Integrated 2-way audio* Connect and power using PoE+ Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Without mount: Ø80 x 89 mm (Ø3.1 x 3.5")With mount: Ø80 x 153 mm (Ø3.1 x 6")M. Zuiko Digital ED 17 mm PRO: Ø68.2 x 87 mm (Ø2.7 x 3.4")M. Zuiko Digital ED 45 mm PRO: Ø70 x 84.9 mm (Ø2.8 x 3.3")Outdoor case: Ø91.6 x 196.3 mm (Ø3.6 x 7.7")
Weight
Without mount: 660 g (1.5 lb)With mount: 820 g (1.8 lb)M. Zuiko Digital ED 17 mm PRO: 390 g (0.9 lb)M. Zuiko Digital ED 45 mm PRO: 410 g (0.9 lb)Outdoor case: 510 g (1.1 lb)
Enclosure material
Aluminum alloy
Mount material
Wall mount: aluminum alloyPole mount: aluminum alloy
Weatherproofing
IPX5 (With the outdoor case)
Optics
Sensor
4/3" 10MP CMOS
Lens
UVC-AI-DSLR: M. Zuiko Digital ED 17 mm ƒ/1.2 PROUVC-AI-DSLR-LD: M. Zuiko Digital ED 45 mm ƒ/1.2 PRO
View angle
Wide: H: 52°, V: 39°, D: 65° (UVC-AI-DSLR)Telephoto: H: 21.6°, V: 16.2°, D: 27° (UVC-AI-DSLR-LD)
Video
Resolution
UVC-AI-DSLR/UVC-AI-DSLR-LD: 8MP 3840 x 2160 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay
System
Processor
Quad-core Arm® Cortex®-A53 based chip
Networking interface
GbE RJ45 port
Max. power consumption
17.77W (With lens working)
Power method
PoE+
Supported voltage range
37—57V DC
Buttons
Factory resetLens release key
Mounting
Wall, pole mount (Included)Tripot mount (Optional)
Ambient operating temperature
-20 to 40° C (-4 to 104° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes* (Can be disabled)*Audio function will be disabled when using its outdoor case.
Speaker
Yes**Audio function will be disabled when using its outdoor case.
Software
Web application
UniFi Protect: Version 2.2.2 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.7.0 and later
Downloads
Installation Guide
Hikvision AcuSense, 2CD2T86G2-2I, 8MP Bullet Camera, Fixed 2.8mm, IR 60m
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light by 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67)
Downloads
2CD2T86G2-2I Datasheet2CD2T86G2-2I Quick Start Guide2CD2T86G2-2I User Manual
Hikvision Hybrid ColorVu, 8MP, Strobe, Audio, Bullet Camera, 2.8mm, IR 60m, Mic,
DS-2CD2T87G2H-LISU/SL
Experience the best in security with the Hikvision Hybrid ColorVu Bullet Camera! Boasting 8MP resolution and advanced technology, it provides clear imaging even in low light conditions. With human and vehicle classification, active strobe light and audio alarms, and IP67 rating, you can trust in its efficiency and reliability.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Provide real-time security via built-in two-way audio
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
DS-2CD2T87G2H-LISU/SL DatasheetDS-2CD2T87G2H-LISU/SL Quick Start GuideDS-2CD2T87G2H-LISU/SL User Manual
Hikvision Smart Hybrid ColorVu 8MP Fixed, Strobe. Audio, Mini Bullet, 2.8mm, IR 40m, Mic Network Camera, 2CD2087G2H-LIU-SL
The Hikvision 2CD2087G2H-LIU-SL Smart Hybrid ColorVu 8MP Fixed Network Camera offers high-quality 8 MP resolution imaging with advanced technology for long-range viewing and clear imaging against strong backlight. Its efficient H.265+ compression technology and deep learning-based human and vehicle classification make it a reliable security solution. With an active strobe light and audio alarm, as well as built-in two-way audio and up to 512 GB of on-board storage capability, this camera provides real-time security. It is also water and dust resistant for added durability.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Downloads
2CD2087G2H-LIU-SL Datasheet2CD2087G2H-LIU-SL Quick Start Guide2CD2087G2H-LIU-SL User Manual
Hikvision Hybrid ColorVu 6MP Bullet Network Camera, Motorised Varifocal, 2.8-12mm, IR 60m, DS-2CD2667G2HT-LIZS
The Hikvision DS-2CD2667G2HT-LIZS Hybrid ColorVu 6MP Bullet Network Camera offers high quality imaging with 6 MP resolution and advanced Smart Hybrid Light technology for long range visibility. With 130 dB WDR technology, it provides clear imaging against strong back light. The motorized varifocal lens and deep learning-based human and vehicle classification make for easy installation and monitoring. This camera is also water and dust resistant (IP67) and vandal resistant (IK10).
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
2CD2667G2HT-LIZS Datasheet2CD2667G2HT-LIZS Quick Start Guide2CD2667G2HT-LIZS User Manual
Hikvision Smart Hybrid ColorVu, 6MP Fixed, Strobe, Audio, Bullet Network Camera, 2.8mm, IR 60m, Mic, 2CD2T67G2H-LISU-SL
Get ready to take your security to the next level with the Hikvision 2CD2T67G2H-LISU-SL Smart Hybrid ColorVu Camera! With high quality 6 MP resolution and advanced Smart Hybrid Light technology, this camera delivers clear imaging even in long range and strong back light situations. Thanks to its efficient compression technology, on-board storage up to 512 GB is supported for real-time security. The active strobe light and audio alarm also make this camera the perfect choice to warn off intruders and protect your space. So why wait? Take the challenge and secure your surroundings now!
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
2CD2T67G2H-LISU-SL Datasheet2CD2T67G2H-LISU-SL Quick Start Guide2CD2T67G2H-LISU-SL User Manual
Hikvision Smart Hybrid ColorVu Mini Bullet Camera, 6MP Fixed, Strobe, Audio, 2.8MM, IR 40M, Mic, DS-2CD2067G2H-LIU/SL
The Hikvision DS-2CD2067G2H-LIU/SL Smart Hybrid ColorVu Mini Bullet Camera offers high-quality imaging with 6 megapixel resolution and advanced technology for long-range surveillance. With 130 dB WDR technology, this camera provides clear imaging against strong backlights. Featuring efficient H.265+ compression technology, deep learning-based human and vehicle classification, and built-in two-way audio, this camera provides effective real-time security. Its active strobe light and audio alarm warn intruders, while IP67 water and dust resistance ensures durability.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Downloads
DS-2CD2067G2H-LIU/SL DatasheetDS-2CD2067G2H-LIU/SL Quick Start GuideDS-2CD2067G2H-LIU/SL User Manual
Hikvision 6 MP AcuSense Motorised Varifocal Bullet Network Camera, DS-2CD2666G2T-IZS
High quality imaging with 6 MP resolution
Motorized varifocal lens for easy installation and monitoring
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Downloads
DS-2CD2666G2T-IZS Datasheet
DS-2CD2666G2T-IZS Quick Start Guide
DS-2CD2666G2T-IZS User Manual
Easy to install, waterproof IP camera compatible with ismartgate controllers. Includes 2MP (1080p) resolution, motion detection, SD card slot for local storage, Wi-Fi and Ethernet connectivity and night vision. 1 YEAR FREE VIDEO PLUGIN INCLUDED!
*1 Year free video plugin sent via email after product's purchase confirmation.
In the box
1 x Wireless Outdoor IP Camera
1 x Detachable Wi-Fi antenna
1 x Power adaptor
1 x Quick Start Guide
1 x Support CD
3 x Mounting screw
1 x Ethernet Cable
1 x Warranty Card
1 x Allen wrench
Specifications
Resolution: 1920x1080 pixels (1080p)
Image: HD Color CMOS sensor
Night Vision: Yes (20m)
Motion Sensor: Yes
Two-Way Audio: No. External RCA interface for two-way audio
Wi-Fi: 802.11 b/g/n (2.4Ghz)
Ethernet: RJ45 output
Storage: 1x micro SD card slot (max. 32GB)
View Angle: 105º D / 90º H
Operating Tempº: -20ºC / +60ºC (-4ºF / 104ºF)
Operating Humidity: 0%-90%
Power Supply: 100-240V to 12V1A
Waterproof: Yes (IP66 enclosure)
Dimensions: 98(L)x65(W)x62(H) mm
Weight: 350g
2MP resolution (1080p)
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
Night Vision
Watch your gate from your phone even in the dark. Night Vision for up to 20m. Feature available with ismartgate controllers (PRO/LITE)
Waterproof (IP66)
The iSmartgate Outdoor Cam has an IP66 enclsure ideal for outdoor use.
Motion Detection alerts
The iSmartgate Cam will sense motion and send real time alerts so you know what happens at your gate.
Wi-Fi (802.11 b/g/n)
This IP camera connects to your home network wirelessly. No cables to pull.
Easy Set Up
Scan a QR code with your phone and put your Wi-Fi password. That's it!
Free iSmartgate Cam app
Download the iSmartgate Cam to enjoy all the features from this great smart camera!
Ethernet input
Our IP camera comes with multiple inputs for audio and an Ethernet port for wired connection to local network.
Local storage
The NEW ismartgate outdoor cam includes an SD card slot for local storage of video recordings. Supports SD card with 128GB capacity.
D-Link Vigilance 4MP Outdoor Bullet PoE Network Camera, DLDCS4714E
A high-definition surveillance & security solution with a high-sensitivity 4MP progressive scan CMOS sensor to deliver superior quality video, with up to 30m night vision. An all-in-one rugged design, optional power supply is available DLP101-12V1.5A
Specifications:
Max Resolution: Quad HD
Camera Type: Bullet
Design: Outdoor | Night Vision | PoE
Housing Type: Bullet
Indoor / Outdoor: Indoor | Outdoor
Megapixels: 4 MP
Max. Video Resolution: 2592 x 1520 @ 30fps
Image Sensor: 1/2.8 Inch Progressive CMOS
Night Vision: Yes
Night Vision Range: 30m
Motorised Pan / Tilt: No
Optical Zoom: Digital zoom magnifies image area up to 10 times
Motion Detection: Yes
Email Notification: Yes
Video Compression: MJPEG | H.264 | H.265
Lens Type: Fixed
Horizontal Field of View: 100 degrees
Lens Focal Length: 2.8mm
Image Enhancement: 3D Filter | WDR | BLC | AES | AGC | AWB
Vandal-proof: No
Power: PoE, Optional Power Supply
Memory Card Slot: Micro SD
ONVIF Compliant: Yes
Dimensions (Size): 188 x 64 x 64 mm
Warranty: Limited Lifetime
Features:
4 Megapixel resolution, up to 2592 x 1520 at 30 fps
High-quality fixed lens with 2.8 mm focal length
H.265, H.264, and MJPEG codec support
ONVIF Profile S compliant
Compact and robust IP66 weatherproof housing
Built-in IR LED illumination
Sony Night Vision technology
Wide Dynamic Range image enhancement
Built-in 802.3af PoE
D-Link Vigilance 2MP Outdoor Bullet PoE Network Camera, DLDCS4712E
A high-definition surveillance & security solution with a high-sensitivity 2MP progressive scan CMOS sensor to deliver superior quality video, with up to 30m night vision. An all-in-one rugged design, optional power supply is available DLP101-12V1.5A
Specifications:
Max Resolution: Full HD
Camera Type: Bullet
Design: Outdoor | Night Vision | PoE
Housing Type: Bullet
Indoor / Outdoor: Indoor | Outdoor
Megapixels: 2 MP
Max. Video Resolution: 1920x1080 @ 30fps
Image Sensor: 1/2.8 Inch Progressive CMOS
Night Vision: Yes
Night Vision Range: 30m
Motorised Pan / Tilt: No
Optical Zoom: Digital zoom magnifies image area up to 10 times
Motion Detection: Yes
Email Notification: Yes
Video Compression: MJPEG | H.264 | H.265
Lens Type: Fixed
Horizontal Field of View: 106.8 degrees
Lens Focal Length: 2.8mm
Image Enhancement: 3D Filter | WDR | BLC | AES | AGC | AWB
Vandal-proof: No
Power: PoE, Optional Power Supply
Memory Card Slot: Micro SD
ONVIF Compliant: Yes
Dimensions (Size): 188 x 64 x 64 mm
Warranty: Limited Lifetime
Features:
Full HD resolution, up to 1920 x 1080 at 30 fps
High-quality fixed lens with 2.8 mm focal length
H.265, H.264, and MJPEG codec support
ONVIF Profile S compliant
Compact and robust IP66 weatherproof housing
Built-in IR LED illumination
Sony Night Vision technology
Wide Dynamic Range image enhancement
Built-in 802.3af PoE
TP-Link VIGI 5MP Full-Colour Bullet Network Camera - VIGI C350. Please choose lens options.
5MP Super-High Definition: The camera comes with 5MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
IP67 Waterproof: Reliable IP67 for stable outdoor performance.
H.265+△: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.
Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB).
24/7 Stunning Visual Experience 5MP Super-High DefinitionMonitor 24-hour clear and colourful details even in pitch dark night. VIGI Full-Colour camera provides maximum 5MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.Comprehensive AI Detection with Pre-Set Rules SupportedBy setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.People & Vehicle AnalyticsQuickly find people and vehicles of interest using a series of attributes.People AnalyticsFilter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency.Vehicle AnalyticsIdentify and search for vehicles of interest based on vehicle colour and type for targeting meaningful events in a short time.Active DefenseWarn potential intruders instantly with sound and light when abnormal events.Every Event is Under Your ControlVIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.Outdoor PoE Connection, IP67 ProtectionJust connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.One system. Full security. Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
DownloadDatasheet
Dahua 2 X 4MP TIOC 2.0 Bullet Fixed Camera, DH-IPC-PFW3849S-A180-AS-PV-ANZ
2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera
Outputs 180 wide angle splicing image.
Outputs max. 8 MP (4096 x 1860)@20 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
Sound and light alarm (red and blue lights).
EPTZ: Enlarge and track the targets of intelligent alarms.
SMD 4.0.
One-tap arming/disarming through alarm input.
Specification
NETWORK CAMERA
Megapixels
5MP
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
WizSense Series
PoE
PoE
Downloads
IPC-PFW3849S-A180-AS-PV_S0 DatasheetDahua Network Camera Web 5.0_Operation Manual_V1.0.7Bullet Network Camera Installation Guide_V1.0.0Dahua Bullet Network Camera_Quick Start Guide_V1.0.0Dahua Network Camera Web 3.0_OperationManual_V2.1.5
Axis P1465-LE Bullet Camera, P1465-LE is a Compact Outdoor, NEMA 4x, IP66, IP67 and IK10-rated 2MP /1080P Resolution, Day/night, Fixed Bullet Camera With Deep Learning Processing Unit (DLPU), 02339-001
Fully featured, all-around 2 MP surveillance
Lightfinder 2.0, Forensic WDR, OptimizedIR
Analytics with deep learning
Audio and I/O connectivity
Built-in cybersecurity features
Two lens alternatives
DownloadP1465-LE Datasheet
Axis P1465-LE Bullet Camera, P1465-LE 29mm is a Compact Outdoor, NEMA 4x, IP66, IP67 and IK10-rated 2MP /1080P Resolution, Day/night, Fixed Bullet Camera With Deep Learning Processing Unit (DLPU), 02340-001
Fully featured, all-around 2 MP surveillance
Lightfinder 2.0, Forensic WDR, OptimizedIR
Analytics with deep learning
Audio and I/O connectivity
Built-in cybersecurity features
Two lens alternatives
DownloadP1465-LE Datasheet
Axis Q1785-LE Network Camera, Robust Outdoor, 2 MP/HDTV, Day/night Fixed Bullet Camera With 32x Optical Zoom, 01161-001
Robust, first-class 2 MP video with 32x optical zoom
HDTV 1080p at up to 60 fps
-40 °C to 60 °C operating temperature
OptimizedIR with up to 80 m (262 ft) range
Electronic image stabilization
AXIS Guard Suite included
Downloads
Q1785-LE Datasheet
Axis Q1700-LE License Plate Camera, Robust Outdoor, Color 2 MP/1080P HDTV License Plate Camera for Sharp License Plate Images Day and Night, 01782-001
Dedicated camera for sharp images at high speeds
Designed for third-party software
Sharp license plate images day and night
Handle speeds of up to 130 km/h (81 mph)
Capture range of up to 100 m (328 ft)
Robust design for rough weather
Download
Q1700-LE Datasheet
HIKVISION 8MP AcuSense Bullet DS-2CD2686G2-IZSU-SL, 2.8-12mm, IR, Built-in Mic, Speaker, 4K, Strobe Light and Audible Warning Varifocal Bullet Network Camera, JBox Included (2686)
High quality imaging with 8 MP resolution
Motorized varifocal lens for easy installation and monitoring
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP66) and vandal resistant (IK10)
Downloads
DS-2CD2686G2-IZSU/SL Datasheet
DS-2CD2686G2-IZSU/SL Quick Start Guide
DS-2CD2686G2-IZSU/SL User Manual
TP-Link VIGI 4MP C340I(6mm) Outdoor IR Bullet Network Camera,6mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor IR Bullet Network Camera
4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
TP-Link VIGI 4MP C340I(2.8mm) Outdoor IR Bullet Network Camera, 2.8mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor IR Bullet Network Camera
4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI's s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
