The DH‑PFM378‑B125‑CB is an integrated solar power solution designed to deliver reliable power for security cameras and accessories in locations without mains power. It features a 125 W monocrystalline solar panel, robust aluminum alloy frame, and adjustable pole‑mount setup built to withstand wind loads up to 117 km/h.
Key Features
125 W monocrystalline solar panel with high solar cell efficiency (~0.21)
Flexible angle adjustment for solar panel and camera mount (pan: 360°, tilt: selectable angles 10°, 20°, 30°, 40°, 50°)
MPPT (Maximum Power Point Tracking) controller for efficient charging (when used with battery)
Output power: 18.8 VDC, supports 12 V operation and 10 A rated charge/discharge current
RS‑485 communication supported (when battery present) for remote monitoring & electric protection functions
Built to IP65 rating with steel/aluminum body; survives storms up to sustained winds of 117 km/h
Technical Specifications
Specification
Detail
Model / SKU
DH‑PFM378‑B125‑CB
Solar Panel Type
Monocrystalline silicon
Max Power
125 W
Output Voltage
18.8 V DC
Solar Cell Efficiency
~0.21
Controller Type
MPPT
Rated Charge / Discharge Current
10 A
Max Mechanical Load
5400 Pa
Protection Rating
IP65, Aluminum Alloy / Q235 Steel
Operating Temp.
‑20 °C to +60 °C (‑4 °F to +140 °F)
Operating Humidity
<95 % RH
Dimensions
875 × 761.9 × 951.9 mm (34.45″ × 30.00″ × 37.48″) [oai_citation:6‡Dahua Technology](https://www.dahuasecurity.com/products/All-Products/Accessories/Solar-Power/Integrated-Solar-Series/PFM378-B125-CB?utm_source=chatgpt.com)
Net Weight
20.1 kg (44.31 lb) [oai_citation:7‡Dahua Technology](https://www.dahuasecurity.com/products/All-Products/Accessories/Solar-Power/Integrated-Solar-Series/PFM378-B125-CB?utm_source=chatgpt.com)
Gross Weight
26.0 kg (57.32 lb) [oai_citation:8‡Dahua Technology](https://www.dahuasecurity.com/products/All-Products/Accessories/Solar-Power/Integrated-Solar-Series/PFM378-B125-CB?utm_source=chatgpt.com)
Installation
Pole mount, pole diameter Φ80–Φ150 mm; panel adjustable tilt
More Information
DH-PFM378-B125-CB DatasheetDahua Solar Monitoring System Installation Guide
TP-Link VIGI Solar Power System
VIGI SP6020 — Intelligent Solar Power Supply System
Off-grid, all-weather power for outdoor surveillance and networking. A high-efficiency 60 W monocrystalline panel, smart lithium battery with auxiliary heating, and MPPT controller keep VIGI cameras and wireless devices running reliably — even in harsh Australian conditions.
60 W Grade-A solar panel
20.8 Ah / 10.8 V smart lithium battery
IP66 weatherproof housing
5°–55° adjustable tilt (6 presets)
MPPT charging (+20% vs PWM)
3× DC outputs + RJ45
Remote management (VIGI App) Auxiliary battery heating 500+ charge cycles -30 °C to 60 °C operating
Key Features
High-efficiency solar60 W Grade-A monocrystalline panel for dependable energy harvest.
Smart battery with heating20.8 Ah lithium pack charges/discharges safely in low temperatures.
MPPT charge controllerOptimises panel output and improves charging efficiency.
All-weather buildIP66 enclosure, SGCC steel mount, 3.2 mm tempered glass.
Flexible outputsThree 5.5 mm DC ports for 12 V loads (two 9–12.6 V/2 A, one 12 V/2 A).
App-based controlView power stats, get low-battery alerts, update firmware & reboot remotely.
Technical Specifications
Category
Details
Solar Panel
Power / Voltage
60 W / 18 V
Dimensions
690 × 516 × 30 mm
Tilt Adjustment
Manual presets: 5°, 15°, 25°, 35°, 45°, 55°
Battery
Type / Capacity
Lithium, 20.8 Ah @ 10.8 V (500+ cycles)
Max Output Voltage
12.6 V
Charging Temperature
0 °C to 45 °C (down to −30 °C with auxiliary heating)
Discharging Temperature
−20 °C to 60 °C (down to −30 °C with auxiliary heating)
Battery Module Size
242 × 70 × 55 mm
Interfaces & Indicators
Data/Power I/O
1× 10/100 Mb RJ45; 1× PV connector
DC Outputs
#1 & #2: 9–12.6 V DC / 2 A each; #3: 12 V DC / 2 A; 3× 5.5 mm DC plugs
LEDs
SYS, LAN, PV, BAT (blue)
Software & Protection
Controls
Load control, smart charging (−30 °C to 5 °C), schedule saving
Protections
High/low temperature, over-discharge
Management
VIGI App (remote stats/alerts, firmware update, reboot), local LAN & web
Environmental & General
Ingress Rating
IP66
Operating Range
−30 °C to 60 °C; 10–90% RH (non-condensing)
Certifications
CB, PSE (battery), CE, FCC, VCCI, IC, IP66
Box / Weight
800 × 615 × 225 mm; Product 13 kg (Package 14.5 kg)
What’s in the Box
VIGI SP6020 controller + battery module
60 W solar panel with mount
Waterproof cable attachments
3× 5.5 mm DC plugs
Mounting accessories
Quick Start Guide
Note: Camera / EAP devices shown in marketing images are not included.
Typical Applications
4G Solar Camera SiteVIGI C540-4G + SP6020 for remote properties, farms, or construction sites.
Wireless Bridge + IP CameraSP6020 powering a bridge and a bullet/dome for off-grid perimeter coverage.
FAQs
Can the SP6020 power more than one device?
Yes — it has three DC outputs (two 9–12.6 V/2 A and one 12 V/2 A) to power cameras or wireless gear within budgeted load.
How do I manage the system remotely?
Use the TP-Link VIGI App to view power statistics, get alerts, update firmware, and reboot remotely. Local web/LAN management is also supported.
What is the weather rating?
IP66 — dust-tight and protected against powerful water jets; designed for outdoor installations.
Add to Cart
Need a matching VIGI 4G camera or wireless bridge? Pair it with VIGI C540-4G or a TP-Link bridge for complete off-grid setups.
EZVIZ Solar Charging Panel‑E | 6.18 W Type‑C Solar Panel for Battery Cameras
Effortlessly power your EZVIZ battery-powered cameras with the Solar Charging Panel‑E. Delivering up to 6.18 W of clean, renewable energy, this compact solar panel (Model CS‑CMT‑Solar Panel‑E) is built for year‑round outdoor use.
High-efficiency monocrystalline silicon cells deliver consistent power under optimal lighting
6.18 W max output, 6 V ±5%, ~1030 mA—optimized for Type‑C battery camera charging.
Built tough for the outdoors: IP65 certified housing with stainless steel mount and 360° bracket.
4‑meter cable allows flexible positioning—install your panel in full sun, even if the camera is in shade.
Compact & lightweight: 283.7 × 185.7 × 2.4 mm, weighing only **484 g**.
Includes everything needed for quick install: panel, adjustable bracket, screws, drill template, and guide.
Certified safe and compliant: **CE, FCC, UKCA, WEEE, REACH, RoHS**.
Specifications
Feature
Details
Model
CS‑CMT‑Solar Panel‑E
Max Power
6.18 W
Voltage
6 V ± 5%
Current
~1030 mA ± 5%
Conversion Efficiency
21.6% (monocrystalline)
Operating Temp
-20 °C to 60 °C
Recommended Charging Temp
0 °C to 45 °C
Ingress Protection
IP65
Dimensions
283.7 × 185.7 × 2.4 mm
Weight
Net: 484 g • With packaging: 854 g
Included in Box
Solar Panel‑E, Mounting Bracket, Screw Kit, Drill Template, Quick Guide
Certifications
CE, FCC, UKCA, WEEE, REACH, RoHS
More Information
EZVIZ CS-CMT Solar Panel-E Datasheet
EZVIZ CS-CMT Solar Panel-E User Manual

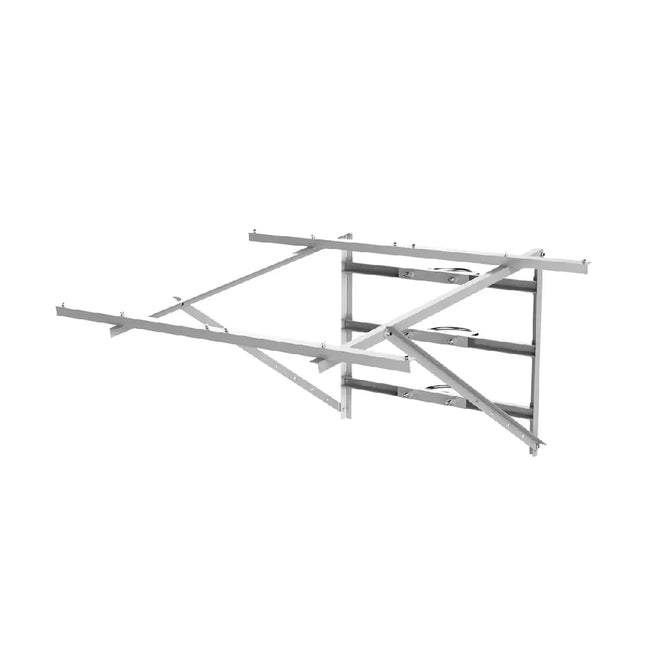

Dahua DH-PFM376-G Solar Panel Mount Bracket supports up to 2 x 275W Dahua solar panels
Features
Q235 carbon structural steel with hot-dip galvanization and anti-corrosion protection.
Adjusts to multiple inclination angles, making it suitable for use in different latitudes.
Pole mount: supports being mounted to poles that are 150 to 220 mm in diameter.
Supports carrying up to 2 solar panels, and is only suitable for use with DH-PFM371-M275 solar panels.

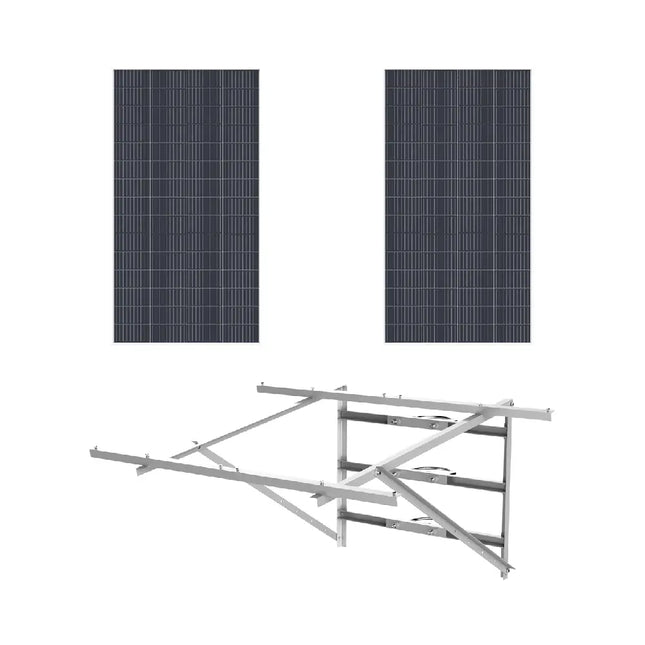

Dahua 2 x Solar Panel Kit, Totalling 550W, KIT_2XDH-PFM371-M275_1XDH-PFM376-G
Dahua's 550W Solar Panel Kit provides reliable energy savings with its high-quality and durable components. The 2 x DH-PFM371-M275 panels utilize advanced busbar solar cells, while the DH-PFM376-G bracket can withstand extreme conditions. With a lifespan of up to 25 years, this kit offers a cost-effective and efficient solution for sustainable energy production.
Dahua Solar Panel Kit includes:
2 x DH-PFM371-M275275W Mono-crystalline Silicon Solar panels
Effectively saves energy, consuming no more than 275 W.
Absorbs light and converts the energy of light into electricity in a balanced way using multiple busbar solar cells.
Designed with high-quality glass and an etching treatment on the surface of the cells, the device remains stable in different environment.
Built to be durable, the device can withstand extreme conditions such as places that are in high altitudes, or that have high salt density and low temperatures.
Long lifespan of up to 25 years.
1 x DH-PFM376-GSolar Mount Bracket Fitting Two Panels
Q235 carbon structural steel with hot-dip galvanization and anti-corrosion protection.
Adjusts to multiple inclination angles, making it suitable for use in different latitudes.
Pole mount: supports being mounted to poles that are 150 to 220 mm in diameter.
Supports carrying up to 2 solar panels, and is only suitable for use with DH-PFM371-M275 solar panels.
TP-Link Solar Panel - Tapo A200
Non-Stop Solar Power-Captures free, clean solar energy and provides non-stop power supply for your Tapo battery-powered cameras (Tapo C425, Tapo C420, and Tapo C400) to ensure they protect you all year round.
Up to 4.5W Charging Power-Made of premium monocrystalline silicon cells, Tapo A200 captures plentiful solar energy and provides continuous power supply efficiently.
IP65 Weatherproof-Offers excellent waterproof and dustproof performance for outdoor scenarios.
4m Charging Cable-Offers flexible installation with a 13ft/4m charging cable.
360° Adjustable Mounting Bracket-Adjust your solar panel for the perfect angle to capture sufficient light.
Up to 4.5W* Charging Power, Non-Stop Power SupplyMade of premium monocrystalline silicon cells, Tapo A200 provides high-power(up to 4.5W*), which means only 30min† of standard sunlight every day can keep your Tapo battery cameras working around the clock.Works with Tapo Battery CamerasCompatible with Tapo C425, Tapo C420, and Tapo C400, enabling your Tapo battery camera to protect you all year round. More products will be supported in the future.360° Angle Adjustable for Sufficient SunlightMount your solar panel on the wall or roof and adjust its angle flexibly to capture enough sunlight with an angle-adjustable bracket.4m Charging Cable for Flexible InstallationNo need to worry about the distance limit of your solar panel and camera. Just find the best position, place it there, and enjoy free solar energy.IP65 WeatherproofOffers reliable performance and keeps your battery cameras stay charged even in harsh environments with rain and dust.
DownloadDatasheet
