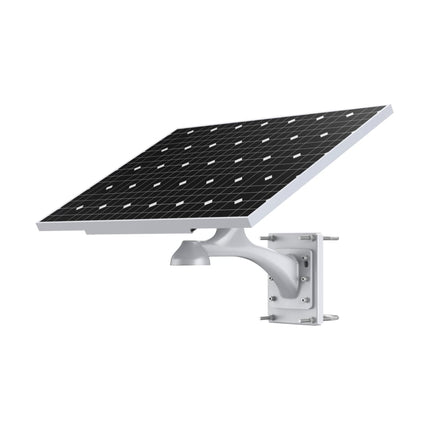

The DH‑PFM378‑B125‑CB is an integrated solar power solution designed to deliver reliable power for security cameras and accessories in locations without mains power. It features a 125 W monocrystalline solar panel, robust aluminum alloy frame, and adjustable pole‑mount setup built to withstand wind loads up to 117 km/h.
Key Features
- 125 W monocrystalline solar panel with high solar cell efficiency (~0.21)
- Flexible angle adjustment for solar panel and camera mount (pan: 360°, tilt: selectable angles 10°, 20°, 30°, 40°, 50°)
- MPPT (Maximum Power Point Tracking) controller for efficient charging (when used with battery)
- Output power: 18.8 VDC, supports 12 V operation and 10 A rated charge/discharge current
- RS‑485 communication supported (when battery present) for remote monitoring & electric protection functions
- Built to IP65 rating with steel/aluminum body; survives storms up to sustained winds of 117 km/h
Technical Specifications
| Specification |
Detail |
| Model / SKU |
DH‑PFM378‑B125‑CB |
| Solar Panel Type |
Monocrystalline silicon |
| Max Power |
125 W |
| Output Voltage |
18.8 V DC |
| Solar Cell Efficiency |
~0.21 |
| Controller Type |
MPPT |
| Rated Charge / Discharge Current |
10 A |
| Max Mechanical Load |
5400 Pa |
| Protection Rating |
IP65, Aluminum Alloy / Q235 Steel |
| Operating Temp. |
‑20 °C to +60 °C (‑4 °F to +140 °F) |
| Operating Humidity |
<95 % RH |
| Dimensions |
875 × 761.9 × 951.9 mm (34.45″ × 30.00″ × 37.48″) [oai_citation:6‡Dahua Technology](https://www.dahuasecurity.com/products/All-Products/Accessories/Solar-Power/Integrated-Solar-Series/PFM378-B125-CB?utm_source=chatgpt.com) |
| Net Weight |
20.1 kg (44.31 lb) [oai_citation:7‡Dahua Technology](https://www.dahuasecurity.com/products/All-Products/Accessories/Solar-Power/Integrated-Solar-Series/PFM378-B125-CB?utm_source=chatgpt.com) |
| Gross Weight |
26.0 kg (57.32 lb) [oai_citation:8‡Dahua Technology](https://www.dahuasecurity.com/products/All-Products/Accessories/Solar-Power/Integrated-Solar-Series/PFM378-B125-CB?utm_source=chatgpt.com) |
| Installation |
Pole mount, pole diameter Φ80–Φ150 mm; panel adjustable tilt |
