Explore the full range of Uniview (UNV) Security Cameras at CCTV Guru. As a leader in IP video surveillance, Uniview delivers professional-grade solutions including 4K Ultra HD resolution, Active Deterrence strobe technology, and ColorHunter 24/7 full-color night vision. From residential Easy series to high-end Pro series PTZs, our Uniview selection is NDAA Compliant and built for reliable performance in Australian conditions.
Uniview UNV IPC3616LE-ADF28KM 6MP Easy Series Turret – White & Black
The Uniview UNV IPC3616LE-ADF28KM is a 6 MP Easy Series turret IP camera that delivers clear images in challenging light with 120 dB True WDR and Easystar low‑light enhancement. Smart IR provides night vision up to 30 m, while a built‑in microphone, PoE power, and IP67 weather rating make installation simple and reliable. Available in both finishes:
• White (SKU): IPC3616LE-ADF28KM-G• Black (SKU): IPC3616LE-ADF28KM-BK
Key Features
6 MP (3072×2048) resolution at up to 25 fps
Easystar low‑light tech + Smart IR night vision to 30 m
120 dB True WDR, 3D DNR, BLC/HLC, corridor mode (9:16)
2.8 mm fixed lens (wide field of view)
Built‑in microphone for scene audio
Ultra 265 / H.265 / H.264 encoding
PoE (IEEE 802.3af); IP67 weatherproof housing
Micro‑SD storage up to 256 GB (model/region dependent)
Technical Specifications
Specification
Details
Brand / Series
Uniview UNV / Easy Series
Model (White)
IPC3616LE-ADF28KM-G
Model (Black)
IPC3616LE-ADF28KM-BK
Image Sensor / Resolution
6 MP up to 3072×2048 @ 25/20 fps
Lens
2.8 mm fixed
Low‑Light / IR
Easystar + Smart IR (approx. 30 m)
Wide Dynamic Range
120 dB True WDR
Audio
Built‑in microphone
Compression
Ultra 265 / H.265 / H.264
Storage
Micro‑SD up to 256 GB (slot availability varies)
Network
RJ45 10/100M; ONVIF‑friendly; RTSP/HTTPS
Power
PoE (IEEE 802.3af)
Ingress Protection
IP67
Form Factor
Turret (3‑axis adjustment)
Colour Options
White (‑G) / Black (‑BK)
What’s Included
Uniview UNV IPC3616LE-ADF28KM camera (choose White or Black)
Mounting kit & quick guide
Customer Requirements
RJ45 Cat6 cable and PoE switch/NVR
Surveillance‑grade HDD in NVR (if recording to NVR)
Wall/junction bracket if wall‑mounting; eaves installs typically don’t require brackets
More Information
Uniview UNV IPC3616LE-ADF28KM-G DatasheetUniview UNV Camera Quick Start GuideUniview UNV Camera User Manual

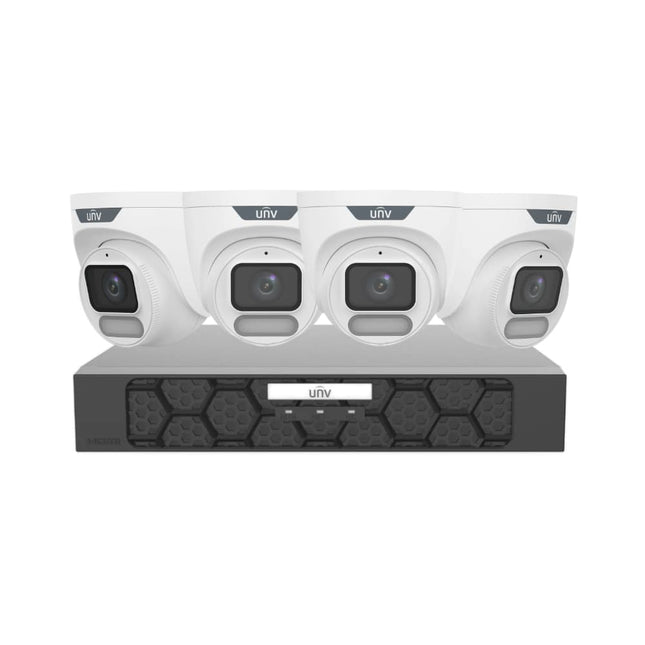

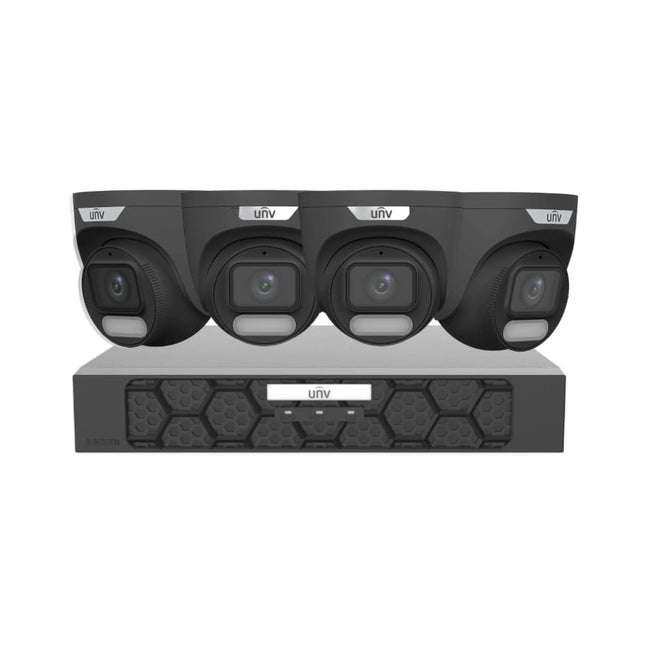

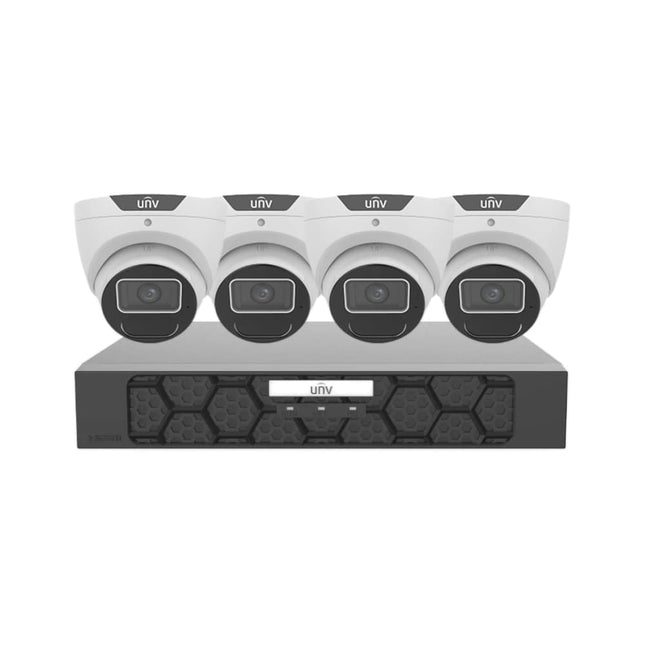

Uniview UNV 6MP OwlView CCTV Kit comes with 4 x 6MP OwlView Full 24/7 Colour Security Cameras with 8-Channel AI IQ NVR Recorder.
The Uniview UNV 6MP OwlView CCTV Kit includes four 6MP OwlView ColorHunter turret cameras and an 8-channel AI IQ NVR recorder. Each camera delivers true full-color video 24/7 with a 1/1.8" CMOS sensor, F1.0 aperture, and a 2.8mm fixed wide-angle lens. Advanced features like 120 dB true WDR, 2D/3D DNR, and digital defog ensure clear footage in challenging conditions, while smart warm light illumination extends visibility up to 30 meters at night. The system supports high-efficiency Ultra 265 video compression, local storage up to 512 GB, and remote ANR/NAS backup for reliable security monitoring.
This UNV CCTV kit includes:
4 x IPC3626LE-ADF28K-WP (White or Black Option Available)
1 x NVR501-08B-P8-IQ
Uniview UNV IPC3626LE-ADF28K-WP 6MP ColorHunter Turret – White & Black
6 MP (3072×2048) @ up to 25/20 fps; multiple sub-resolutions supported
1/1.8″ CMOS sensor, F1.0, 2.8 mm fixed lens (wide FoV)
ColorHunter + Wise-ISP for true full-colour at night
120 dB true WDR, 2D/3D DNR, BLC/HLC, Digital Defog
Warm light range up to 30 m (smart illumination)
Built-in microphone; micro-SD up to 512 GB; ANR/NAS support
Ultra 265 / H.265 / H.264 / MJPEG; dual streams
PoE (802.3af); IP67 weatherproof; −30 °C ~ 60 °C

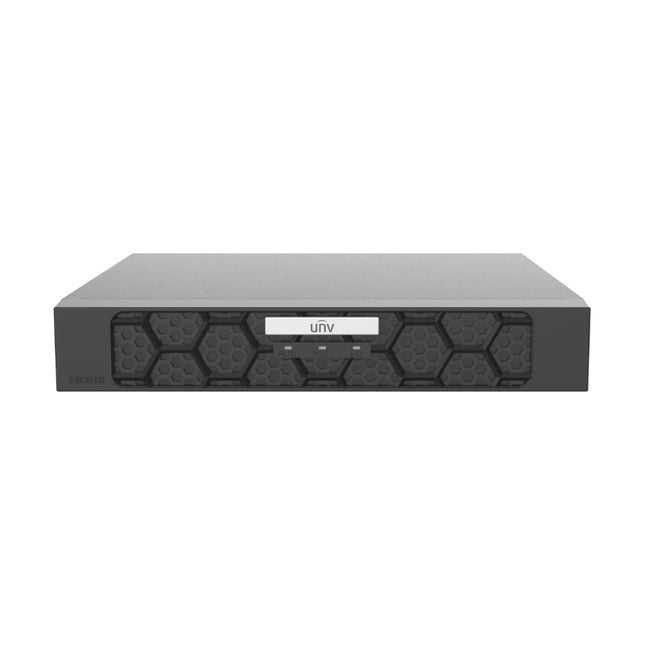

Uniview UNV NVR501-08B-P8-IQ 8-Channel PoE AI Network Video Recorder
8 IP channels with 8× PoE (30 W/port; 75 W total)
1× HDMI (up to 4K) + 1× VGA, simultaneous output
Recording up to 16 MP; Ultra 265 / H.265 / H.264 decoding
NVR-level analytics & rich search (face/vehicle/person, SIP/UMD)
1× SATA HDD bay (up to 16 TB); ANR for network outages
Compact 1U chassis; low power; ONVIF Profiles S/G/T; RTSP
Uniview UNV NVR501-08B-P8-IQ 8-Channel PoE AI Network Video Recorder
The NVR501-08B-P8-IQ delivers Ultra 265/H.265/H.264 efficiency, HDMI up to 4K local display and recording up to 16 MP. With 8 independent PoE ports (30 W per port; 75 W total), ONVIF S/G/T and ANR for outage resilience, plus a 1×SATA bay (up to 16 TB), it’s a compact, reliable NVR for homes and small businesses.
Key Features
8 IP channels with 8× PoE (30 W/port; 75 W total)
1× HDMI (up to 4K) + 1× VGA, simultaneous output
Recording up to 16 MP; Ultra 265 / H.265 / H.264 decoding
NVR-level analytics & rich search (face/vehicle/person, SIP/UMD)
1× SATA HDD bay (up to 16 TB); ANR for network outages
Compact 1U chassis; low power; ONVIF Profiles S/G/T; RTSP
Technical Specifications
Specification
Details
Model (SKU)
NVR501-08B-P8-IQ
Channels / PoE
8 IP channels; 8× PoE (30 W/port; 75 W total)
Video Outputs
1× HDMI (up to 4K), 1× VGA; simultaneous
Max Recording
Up to 16 MP
Video Formats
Ultra 265 / H.265 / H.264
Storage
1× SATA bay, up to 16 TB (surveillance-grade HDD)
Smart / Search
Face detection/compare; SIP/UMD; face/vehicle/person search
Network
ONVIF Profiles S/G/T; RTSP; TCP/IP, HTTPS, IPv6
Bandwidth (ref.)
Typical 80 Mbps in / 80 Mbps out
Power Supply
DC 52 V / 1.8 A (adapter)
Consumption
≤ 8–10 W (without HDD)
Dimensions / Weight
260 × 215 × 46.6 mm; ≤ 1.1 kg (without HDD)
Certifications
CE, FCC, UL, RoHS, WEEE
What’s Included
Uniview UNV NVR501-08B-P8-IQ unit
Power adapter, mouse, quick start guide
Customer Requirements
Surveillance-grade SATA HDD (up to 16 TB)
RJ45 Cat6 network cables for cameras/NVR
More Information
Uniview UNV NVR501-08B-P8-IQ DatasheetUniview UNV NVR Quick Start GuideUniview UNV NVR User Manual
Uniview UNV IPC3626LE-ADF28K-WP 6MP ColorHunter Turret – White & Black
The Uniview UNV IPC3626LE-ADF28K-WP is a 6 MP ColorHunter fixed eyeball/turret camera engineered for ultra-low-light, full-colour performance. A large 1/1.8″ CMOS sensor pairs with a fast F1.0 2.8 mm lens, Wise-ISP processing and 120 dB true WDR to deliver bright, detailed video up to 3072×2048 @ 25 fps. Warm-light LEDs extend up to 30 m for vivid colour at night. Now available in White and Black finishes to match your install.
SKU: IPC3626LE-ADF28K-WP (6MP ColorHunter Turret)
Colour Options: White / Black
Built-in Mic, PoE, IP67, Ultra 265/H.265/H.264/MJPEG
Onboard Storage: micro-SD up to 512 GB
Key Features
6 MP (3072×2048) @ up to 25/20 fps; multiple sub-resolutions supported
1/1.8″ CMOS sensor, F1.0, 2.8 mm fixed lens (wide FoV)
ColorHunter + Wise-ISP for true full-colour at night
120 dB true WDR, 2D/3D DNR, BLC/HLC, Digital Defog
Warm light range up to 30 m (smart illumination)
Built-in microphone; micro-SD up to 512 GB; ANR/NAS support
Ultra 265 / H.265 / H.264 / MJPEG; dual streams
PoE (802.3af); IP67 weatherproof; −30 °C ~ 60 °C
Technical Specifications
Specification
Details
Brand / Series
Uniview UNV / ColorHunter
Model (SKU)
IPC3626LE-ADF28K-WP
Colour Options
White / Black
Sensor / Resolution
1/1.8″ CMOS / 6 MP (3072×2048) up to 25 fps
Lens / Aperture
2.8 mm fixed / F1.0
Low-Light Tech
ColorHunter + Wise-ISP (full-colour at night)
Illumination
Warm light up to 30 m
Wide Dynamic Range
120 dB true WDR
Video Encoding
Ultra 265 / H.265 / H.264 / MJPEG
Audio
Built-in microphone
Onboard Storage
micro-SD up to 512 GB; ANR/NAS
Network / Security
IPv4/IPv6, RTSP/HTTPS/TLS 1.2, ONVIF-friendly
Power
PoE (IEEE 802.3af); max ~2.8 W
Protection
IP67; surge 4 kV
Operating Temp
−30 °C ~ 60 °C; ≤95% RH (non-cond.)
Dimensions / Weight
Ø118 × 106 mm; ~0.48 kg
What’s Included
IPC3626LE-ADF28K-WP camera (select White or Black)
Mounting hardware & quick guide
Customer Requirements
RJ45 Cat6 cable and PoE switch/NVR
Optional micro-SD card (up to 512 GB) for edge recording
Wall/junction bracket if mounting on walls (eaves installs often don’t require a bracket)
More Information
Uniview UNV IPC3626LE-ADF28K-WP Datasheet Uniview UNV Camera User Manual Uniview UNV Camera Quick Start Guide

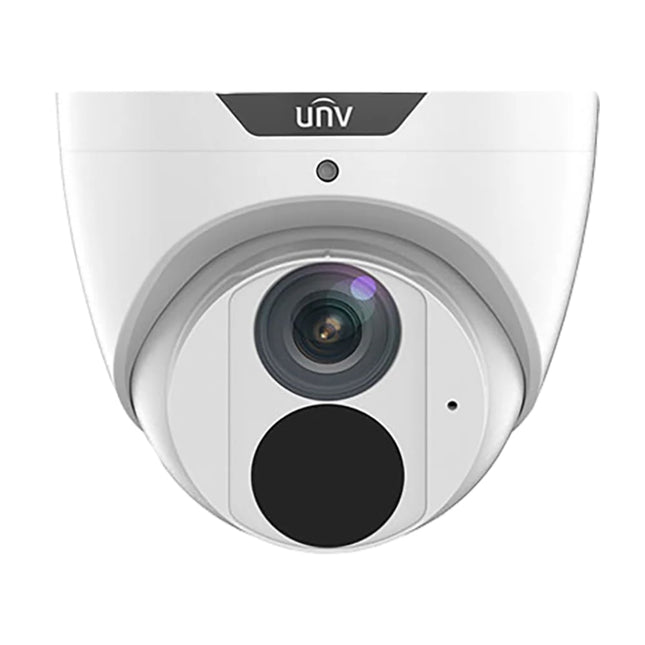

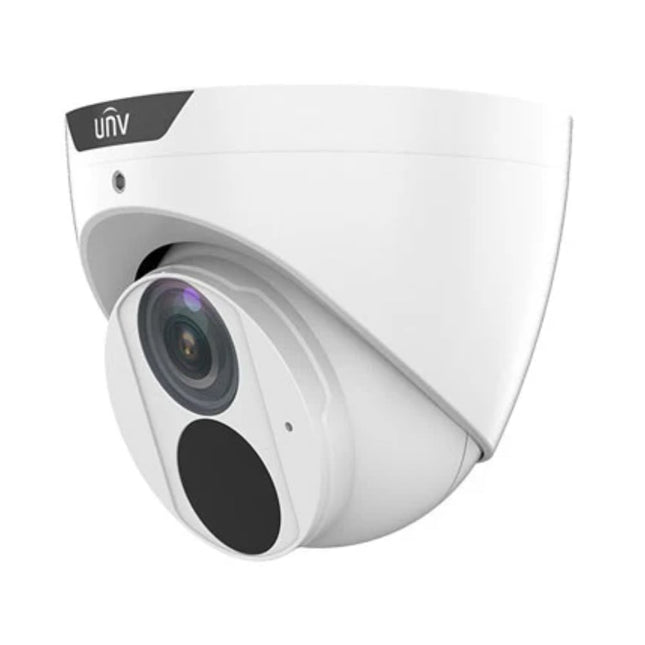

Uniview UNV 8 MP Easy Series Fixed Easystar Turret IP Camera
The Uniview UNV 8 MP Easy Series Turret Camera (model IPC3618LE-ADF28K-GM) delivers ultra-clear 4K surveillance with Easystar low-light imaging, true 120 dB WDR, Smart IR up to 30 m, and a rugged IP67 build. It includes a built-in microphone, PoE for single-cable installs, and a micro-SD slot (up to 256 GB) — ideal for homes, offices, and small business security.
Key Features
Resolution & Sensor: 8 MP (3840 × 2160) @ 20 fps; 1/2.7″ CMOS
Low-Light Imaging: Easystar technology for vivid colour in dim scenes
Dynamic Range: True 120 dB WDR for high-contrast environments
Night Vision: Smart IR illumination up to 30 m
Audio: Built-in microphone
Storage: micro-SD card support up to 256 GB
Protection: IP67 weatherproof rating
Power: PoE (IEEE 802.3af) for single-cable power & data
Mounting: 3-axis turret housing for easy alignment
Compression: Ultra 265 / H.265 / H.264 / MJPEG
Integration: ONVIF Profiles S/G/T, RTSP
Highlights
Ultra HD Clarity: 8 MP resolution captures rich detail across wide scenes
Superior Low-Light: Easystar delivers colour and clarity without extra lighting
Balanced Exposure: 120 dB WDR keeps bright and dark areas visible
Smart Night Vision: Adaptive IR prevents over-exposure at close range
Fast Install: PoE and compact turret design simplify setup
Built to Last: IP67 housing for dependable outdoor use
Technical Specifications
Specification
Details
Model
IPC3618LE-ADF28K-GM (Easy Series Turret)
Image Sensor
8 MP, 1/2.7″ CMOS
Max Resolution / Frame Rate
3840 × 2160 @ 20 fps (plus 5 MP / 4 MP / 2 MP options)
Low-Light Technology
Easystar
WDR
120 dB True WDR
Night Vision
Smart IR up to 30 m
Audio
Built-in microphone
Storage
micro-SD up to 256 GB
Video Compression
Ultra 265, H.265, H.264, MJPEG
Ingress Protection
IP67
Power
PoE (IEEE 802.3af)
Mounting
3-axis turret housing; easy alignment
Optional Accessories

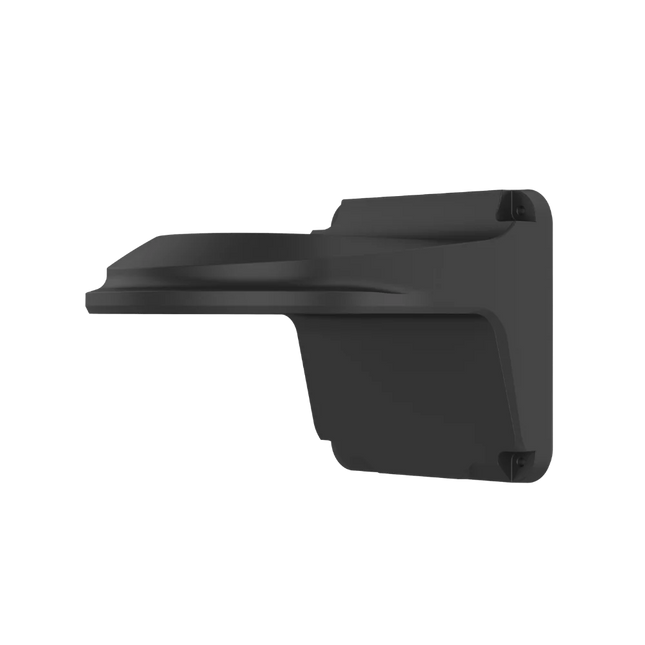

TR-JB03-G-IN junction box; TR-WM03-D-IN wall mount
What’s Included
Camera unit (IPC3618LE-ADF28K-GM)
Mounting hardware & documentation
Note: Network (RJ45) cable, PoE switch/injector, and storage (NVR or micro-SD) sold separately.
More Information
Uniview UNV IPC3618LE-ADF28K-GM DatasheetUniview UNV Camera User Manual
Uniview UNV Junction Box TR-JB03-I-IN for IPC36XXL Series (Wall-Mount)
The Uniview UNV junction box for IPC36XXL series provides a clean, secure way to mount Uniview fixed dome/turret cameras while concealing and protecting cables. Built from durable aluminum alloy with tidy rear/side cable entries, it delivers a professional finish for indoor or sheltered outdoor installations.
Key Features
Brand: Uniview UNV; made for IPC36XXL series (and selected UNV turrets/domes)
Integrated junction box cavity for neat cable management
Aluminum construction for strength and longevity
Suitable for indoor or sheltered outdoor wall installations
Compact profile; pre-drilled pattern for fast mounting
Technical Specifications
Specification
Details
Brand
Uniview UNV
Compatibility
UNV IPC36XXL series (and selected fixed dome/turret models)
Mount Type
Wall-mount bracket with integrated junction box
Material
Aluminum alloy
Cable Management
Rear/side cable entries; internal junction cavity
Environment
Indoor or sheltered outdoor use
Finish/Color
White (UNV standard finish)
Typical Use
Neat wall installations under eaves, entries, and corridors
What’s Included
Uniview UNV junction box & wall-mount bracket
Mounting hardware & quick guide
Customer Requirements
Compatible UNV camera (e.g., IPC36XXL series)
RJ45 Cat6 network cable (if camera uses PoE)
Appropriate fasteners for your wall surface
Sealant/gasket where required for weather protection

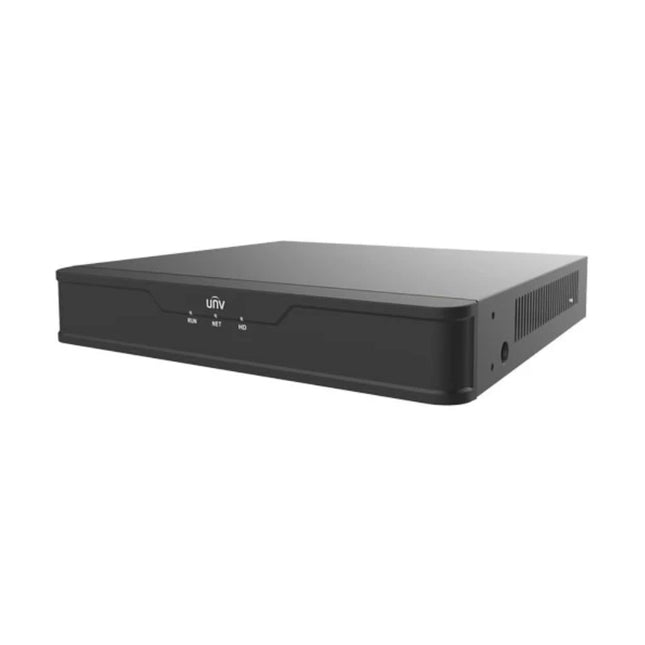

Uniview UNV NVR501-08B-P8 8-Channel PoE NVR
The NVR501-08B-P8 delivers reliable plug-and-play recording for up to 8 IP cameras, with 8 independent PoE ports. It supports Ultra 265/H.265/H.264, simultaneous HDMI (up to 4K) + VGA output, up to 16 MP recording, and ANR to safeguard video during network outages. Compact and efficient, it’s ideal for small to mid-size systems.
Key Features
Channels / PoE: 8-ch IP input; 8× PoE ports (IEEE 802.3af/at)
Codecs: Ultra 265 / H.265 / H.264; up to 16 MP recording
Display: HDMI up to 4K + VGA (simultaneous)
Throughput: 80 Mbps incoming / 64 Mbps outgoing
Playback: up to 8-channel synchronous
Storage: 1×SATA, up to 8 TB HDD
Smart: VCA search (vehicle, human, people counting; IPC-dependent); SIP/UMD by camera (total 8-ch)
Reliability: ANR (Automatic Network Replenishment); cloud upgrade
Specifications per Uniview datasheet. [oai_citation:2‡20230809_1884931_UNV_Datasheet_NVR501-B-P_Series_V1.05-EN_957154_168459_0.pdf](file-service://file-93ReZxcojv23H58UbPH9yd)
Technical Specifications
Brand / Model (SKU)
Uniview UNV / NVR501-08B-P8
IP Video Inputs
8-channel
PoE Interfaces
8 × RJ45 10/100M (independent PoE)
PoE Power
Max 30 W/port; 75 W total; IEEE 802.3af/at
Video Formats
Ultra 265 / H.265 / H.264
Max Recording
Up to 16 MP
Local Outputs
1 × HDMI (up to 3840×2160@30), 1 × VGA
Throughput
Incoming 80 Mbps; Outgoing 64 Mbps
Synchronous Playback
8-ch
Audio I/O
1-in / 1-out (RCA); G.711A/U
Storage
1 × SATA; up to 8 TB per disk
USB
Rear: 1 × USB2.0 & 1 × USB3.0
LAN
1 × RJ45 10/100M (LAN)
Power Supply
52 V DC / 1.8 A; ≤10 W (without HDD)
Working Environment
−10 °C ~ +55 °C; ≤90% RH (non-cond.)
Dimensions / Weight
260 × 222 × 47 mm; ≤0.98 kg (w/o HDD)
Certifications
CE, FCC, UL, RoHS, WEEE
What’s Included
Uniview UNV NVR501-08B-P8 8-ch PoE NVR
Power adaptor, mouse, quick guide
Customer Requirements
Surveillance-grade HDD (up to 8 TB) for recording
RJ45 Cat6 cabling to cameras; PoE budget planning
HDMI/VGA cable for local display (optional)
More Information
Uniview UNV NVR501-04B-P4 Datasheet Uniview UNV NVR501-04B-P4 Product Page Uniview UNV Quick Start Guide

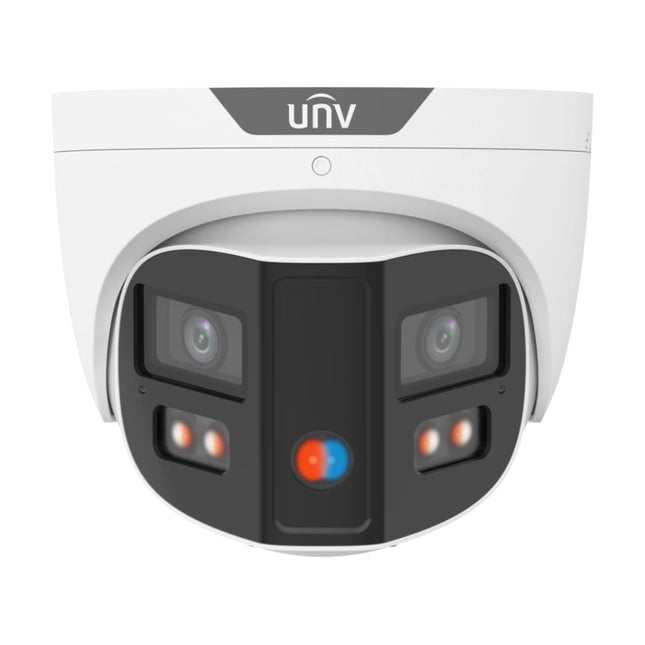

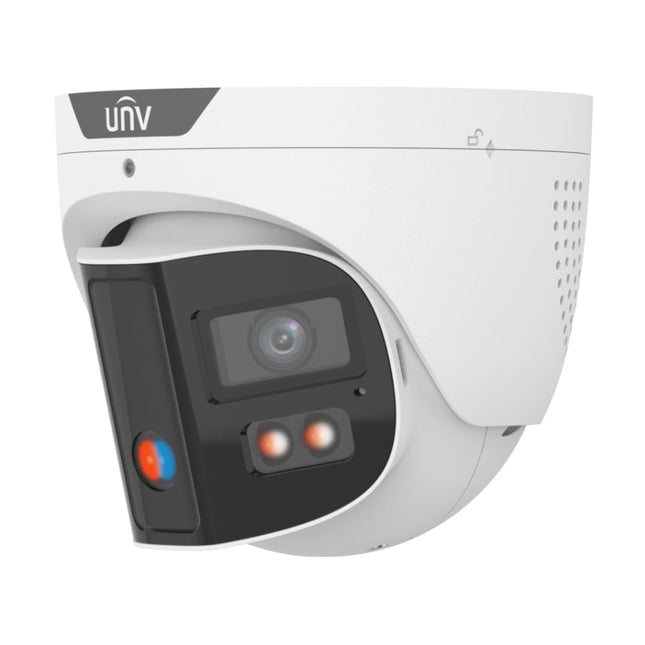

The Uniview IPC3K28SE-ADF28KMC-DL-I0 is a premier 8MP (4K) panoramic solution from the OmniView Series. Engineered with Binocular Dual-Lens Splicing, this camera provides a seamless 180-degree field of view, effectively replacing the need for two separate 90-degree cameras. It is the ultimate choice for covering wide perimeters, parking lots, and open-plan storefronts with a single PoE connection.
Next-Generation Surveillance Features
180° Ultra-Wide Panoramic View: Utilises two lenses to create one high-resolution 4K image (4096 x 1860) with virtually zero edge distortion.
Red & Blue Active Deterrence: Features a high-visibility flashing strobe (Police-style) and a built-in siren to instantly alert intruders that they have been detected.
Smart Dual Light Technology: Maintains a discreet profile with IR night vision until a human or vehicle triggers the Warm White LEDs for full-colour 24/7 evidence.
Deep Learning AI (SIP): Smart Intrusion Prevention focuses strictly on real threats, eliminating false alarms from pets, birds, or moving foliage.
Professional Two-Way Audio: Equipped with dual microphones for superior noise cancellation and a high-power speaker for remote communication via the EZView app.
Vandal & Weather Resistant: Built for the Australian climate with an IP67 weatherproof rating and IK10 vandal-resistant housing.
Direct Comparison & Technical Data
Specification
UNV OmniView Performance
Image Resolution
8MP 4K (4096 x 1860) @ 20fps
Lens Configuration
Dual 4.0mm Binocular Splicing
Deterrence Type
Red & Blue Strobe + Audible Siren
Lighting Distance
30m IR / 30m White Light
Storage Support
MicroSD Slot (up to 256GB)
CCTV Guru Pro Tip:
Standard 4K cameras create a "tunnel vision" effect. For large driveways or commercial shopfronts, the IPC3K28SE-ADF28KMC-DL-I0 is far more cost-effective because it eliminates the blind spots typically found between two standard cameras. For best results, mount this unit at a height of 2.8m to achieve a perfect 180° horizon view.
Recommended Mounting Accessories:
Junction Box: TR-JB03-H-IN
Wall Mount Bracket: TR-WM03-B-IN
More Information
Uniview UNV IPC3K28SE-ADF28KMC-DL-I0 DatasheetUniview UNV Camera Quick Start GuideUniview UNV Camera User Manual

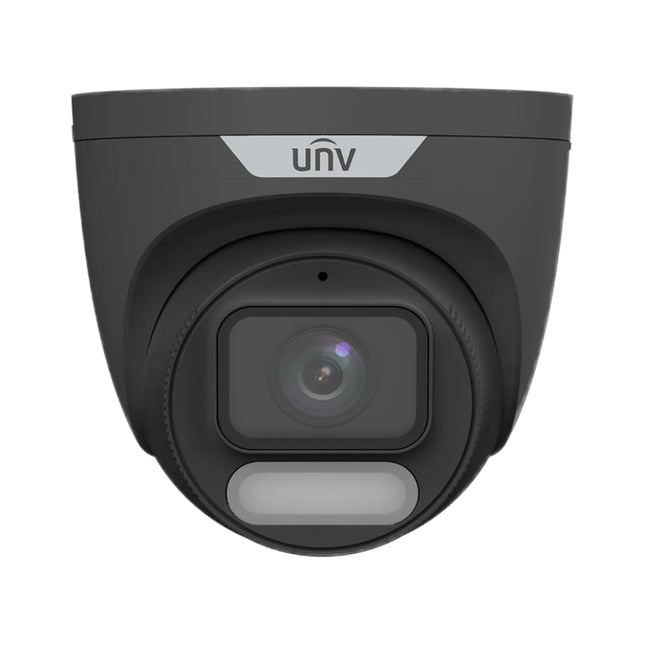

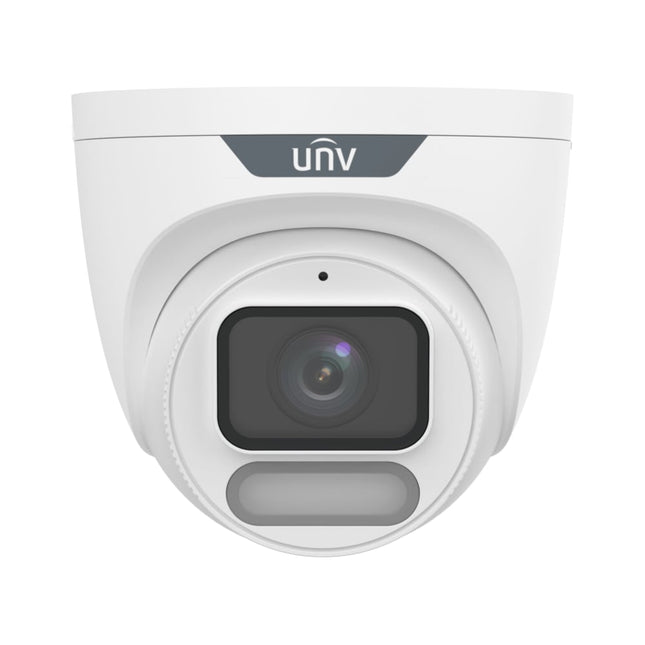

Uniview UNV IPC3628LE-ADF28K-WP 8MP OwlView ColorHunter – White & Black
The Uniview UNV IPC3628LE-ADF28K-WP is an 8 MP OwlView ColorHunter turret camera built for outstanding low-light color performance. A large 1/1.8″ CMOS sensor pairs with a fast F1.0 2.8 mm lens and Wise-ISP processing to deliver bright, detailed images day and night. Smart warm-light LEDs extend visibility up to 30 m, while 120 dB true WDR balances scenes with harsh contrast. Available in White and Black finishes to suit any install.
SKU: IPC3628LE-ADF28K-WP (8MP OwlView ColorHunter Turret)
Colour Options: White / Black
Built-in Mic, PoE, IP67, Ultra 265/H.265/H.264/MJPEG
Onboard Storage: micro-SD up to 512 GB (ANR/NAS supported)
Key Features
8 MP 4K (3840×2160) @ up to 20 fps; multiple sub-resolutions
1/1.8″ CMOS sensor, F1.0 aperture, 2.8 mm fixed lens (wide FoV)
OwlView ColorHunter + Wise-ISP for true full-colour at night
120 dB true WDR, 2D/3D DNR, BLC/HLC, Digital Defog
Warm-light illumination up to 30 m (smart/auto)
Audio recording via built-in microphone
Ultra 265 / H.265 / H.264 / MJPEG; dual streams
PoE (802.3af); IP67 weatherproof; −30 °C ~ 60 °C
Technical Specifications
Specification
Details
Brand / Series
Uniview UNV / OwlView ColorHunter
Model (SKU)
IPC3628LE-ADF28K-WP
Colour Options
White / Black
Sensor / Resolution
1/1.8″ CMOS / 8 MP (3840×2160) up to 20 fps
Lens / Aperture
2.8 mm fixed / F1.0
Low-Light Tech
OwlView ColorHunter + Wise-ISP (full-colour at night)
Illumination
Warm-light LEDs up to 30 m
Wide Dynamic Range
120 dB true WDR
Video Encoding
Ultra 265 / H.265 / H.264 / MJPEG
Audio
Built-in microphone
Onboard Storage
micro-SD up to 512 GB; ANR/NAS
Network / Security
IPv4/IPv6, RTSP/HTTPS/TLS 1.2, ONVIF-friendly
Power
PoE (IEEE 802.3af)
Protection
IP67; surge protection (typ. 4 kV)
Operating Temp
−30 °C ~ 60 °C; ≤95% RH (non-cond.)
Dimensions / Weight
Turret body; compact form factor (series standard)
What’s Included
IPC3628LE-ADF28K-WP camera (White or Black)
Mounting hardware & quick guide
Customer Requirements
RJ45 Cat6 cable and PoE switch/NVR
Optional micro-SD card (up to 512 GB) for edge recording
Wall/junction bracket if wall-installing (eaves installs often don’t require a bracket)
More Information
Uniview UNV IPC3628LE-ADF28K-WP Datasheet Uniview UNV Camera User Manual Uniview UNV Camera Quick Start Guide
Uniview UNV IPC3636LE-ADZK-G 6MP Varifocal Eyeball/Turret IP Camera
The IPC3636LE-ADZK-G is a 6 MP varifocal turret with a motorized
2.8–12 mm AF lens for flexible framing and fast setup. It delivers up to
3072×2048 @ 25 fps with Ultra 265/H.265/H.264/MJPEG compression,
balances tough lighting via 120 dB true WDR, and uses Smart IR to
40 m for clear night footage. A built-in microphone, micro-SD up to 256 GB,
PoE, and IP67 metal housing make it a dependable 24/7 choice.
Key Features
6 MP 1/2.7" CMOS; up to 3072×2048 @ 25/20 fps
Motorized varifocal 2.8–12 mm lens with auto-focus (AF)
Smart IR up to 40 m; IR-cut (ICR)
120 dB true WDR; 2D/3D DNR; digital defog; BLC/HLC
Built-in microphone; Ultra 265 / H.265 / H.264 / MJPEG
9:16 corridor mode; motion detection; privacy mask; ROI
Edge storage: micro-SD up to 256 GB; ANR/NAS
PoE (IEEE 802.3af); IP67 metal housing; 3-axis adjustment
Technical Specifications
Specification
Details
Brand / Series
Uniview UNV / Easy Series
Model (SKU)
IPC3636LE-ADZK-G
Sensor / Resolution
1/2.7" CMOS / 6 MP (3072×2048 @ 25 fps)
Lens
Motorized varifocal 2.8–12 mm; auto-focus (AF)
IR Range
Up to 40 m; 850 nm; Smart IR
Dynamic Range
120 dB true WDR
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Audio
Built-in microphone; G.711
Storage
Micro-SD up to 256 GB; ANR/NAS
Smart Functions
Cross line & intrusion (human-based), motion, tamper, audio
Network/Protocols
IPv4, TCP/UDP, RTP/RTSP, HTTP/HTTPS, SNMP, 802.1x; ONVIF S/G/T
Power
DC 12 V ±25% or PoE (IEEE 802.3af), Max ~8.0 W
Protection
IP67; 6 kV surge
Operating Conditions
−30 °C ~ 60 °C; ≤95% RH (non-cond.)
Dimensions / Weight
Ø129 × 110 mm; 0.67 kg
Adjustment
Pan 0–360°, Tilt 0–75°, Rotate 0–360°
DORI (Approx.)
Focal Length
Detect
Observe
Recognize
Identify
2.8 mm
63 m
25.2 m
12.6 m
6.3 m
12 mm
270 m
108 m
54 m
27 m
What’s Included
Uniview UNV IPC3636LE-ADZK-G camera
Mounting hardware & quick guide
Customer Requirements
RJ45 Cat6 cable and PoE switch/NVR
Surveillance-grade HDD in NVR or micro-SD card (up to 256 GB) for recording
Optional junction/wall mounts depending on surface
More Information
Uniview UNV IPC3636LE-ADZK-G Datasheet
Uniview UNV IPC3636LE-ADZK-G User Manual
Uniview UNV Junction Box Bracket – White & Black Variants
The Uniview UNV Junction Box Bracket delivers a professional, secure mounting solution for Uniview dome
and bullet cameras. Available in white and black, it blends with your camera finish for
a clean, coordinated look while protecting and hiding cables.
Built from durable aluminum alloy, the bracket features an internal junction cavity with
rear and side cable entries for neat routing. Ideal for indoor or
sheltered outdoor installations, it provides quick service access and a polished result on walls,
eaves, and façades.
Key Features
Brand: Uniview UNV
Color options: White or Black to match your camera
Aluminum alloy construction with weather-resistant finish
Internal cavity conceals wiring; rear & side cable entries
Pre-drilled mounting pattern for fast, secure installs
Compatible with Uniview dome & bullet camera bases (model dependent)
Technical Specifications
Specification
Details
Brand
Uniview UNV
Product Type
Junction Box Bracket
Color Options
White / Black
Material
Aluminum alloy
Cable Routing
Internal cavity; rear & side entries
Mounting
Pre-drilled hole pattern; wall/eave installs
Environment
Indoor / Sheltered outdoor
Finish
Weather-resistant powder coating
Compatibility
Uniview UNV dome & bullet bases (check specific model)
In the Box
Junction box bracket, mounting screws, quick guide
What’s Included
Uniview UNV junction box bracket (White or Black)
Mounting hardware
Quick guide
Customer Requirements
Compatible Uniview UNV camera/base
RJ45 Cat6 cable (for PoE cameras)
Appropriate wall fasteners and sealant for your surface
The Uniview UNV TR‑JB03‑G‑IN is a robust aluminum junction box tailored for IPC32X, IPC31X, and IPCD1XX series fixed dome cameras. Designed for sleek and safe wall mounting, it offers clean cable routing from both the back and side, ensuring a tidy and durable installation.
Key Features
Compatibility: IPC32X, IPC31X, and IPCD1XX fixed dome cameras
Dimensions: Ø108.6 × 36 mm (Ø4.28″ × 1.42″)
Weight: 0.2 kg (0.44 lb)
Material: Lightweight, durable aluminum alloy
Mounting Support: Supports wiring from behind; neat cable concealment
Environmental Protection: Waterproof gasket and optional conduit threading allow reliable use in varied installations
Highlights
Tailored Design: Engineered to perfectly fit Uniview IPC32X, IPC31X, and IPCD1XX dome cameras.
Compact & Lightweight: Minimal bulk — compact size and only 0.2 kg.
Effortless Cable Management: Back and side cable entries keep wiring organized and secure.
Solid Construction: Durable aluminum alloy ensures installation longevity.
Weather-Ready Installation: Includes waterproofing measures and conduit-ready side/top threading for added protection.
Specificartions
Specification
Details
Model
TR-JB03-G-IN
Product URL
Official Uniview Page
Compatible Cameras
IPC32X, IPC31X & IPCD1XX series fixed dome
Dimensions
Ø108.6 × 36 mm (Ø4.28″ × 1.42″)
Weight
0.2 kg (0.44 lb)
Material
Aluminum alloy
Cable Routing
Back and side entries
Waterproofing
Gasket included; conduit threading (3/4″ NPS)
Use Case
Indoor wall-mount installation of fixed dome cameras

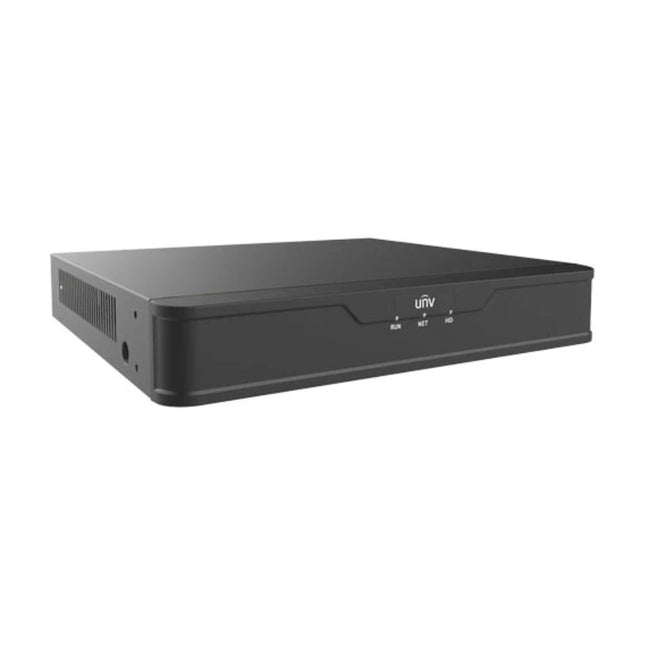

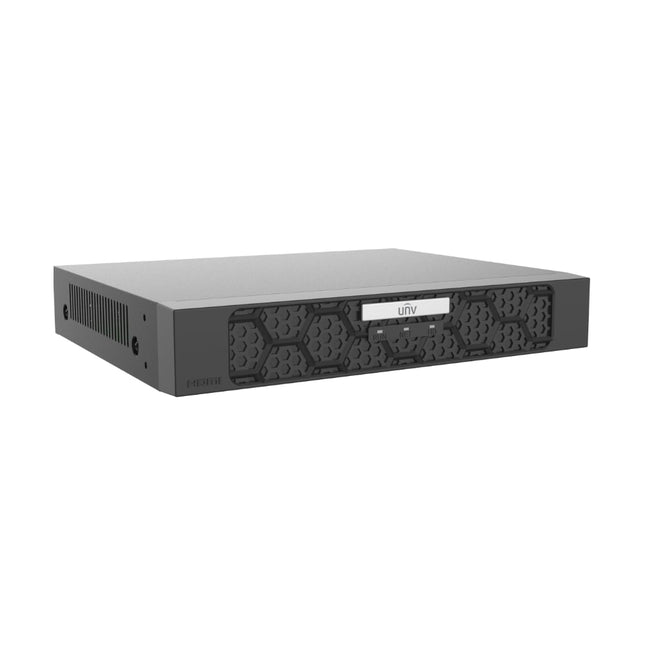

The Uniview NVR501-04B-P4-IQ is a professional-grade 4-channel Network Video Recorder from the Prime Series, engineered for high-performance security. Equipped with 4 independent PoE interfaces and support for up to 4K (8MP) resolution, this NVR is designed for users who need a compact yet powerful recording solution. Its integrated IQ (Intelligent Analysis) features allow for advanced search and smart event filtering, making it easier than ever to manage your security footage.
Key Performance Features
4K Ultra-HD Output: Supports recording and playback of up to 4K (3840 x 2160) resolution for maximum detail.
Plug & Play PoE: 4 independent PoE network interfaces allow for easy installation—simply plug in your UNV cameras and the NVR does the rest.
Ultra 265 Compression: Save up to 75% on storage space and bandwidth without losing image quality compared to standard H.264.
Intelligent AI Analysis: Supports advanced features such as human and vehicle detection, intrusion zones, and smart search, allowing you to find critical events in seconds.
ANR Technology: Automatic Network Replenishment ensures video is stored on the camera's SD card if the connection to the NVR is lost, then synced back once restored.
Cloud Upgrade: Stay up-to-date with one-click cloud firmware updates via the EZView mobile app.
Technical Specifications
IP Video Input
4 Channels
PoE Interfaces
4 Ports (IEEE 802.3at/af)
Incoming Bandwidth
40Mbps
Outgoing Bandwidth
64Mbps
SATA Interface
1 SATA up to 8TB
HDMI Output
4K (3840 x 2160) @30Hz
Compression
Ultra 265 / H.265 / H.264
More Information
Download Official Data Sheet
Uniview UNV NVR Quick Start Guide
Uniview UNV NVR501-04B-P4-IQ Dimension
Guru Tip: The "IQ" in the model name means this NVR is optimized for AI. To get the best results, pair this with UNV Prime series cameras. It will allow you to filter recordings by human or vehicle, saving you from scrolling through hours of "empty" motion footage.

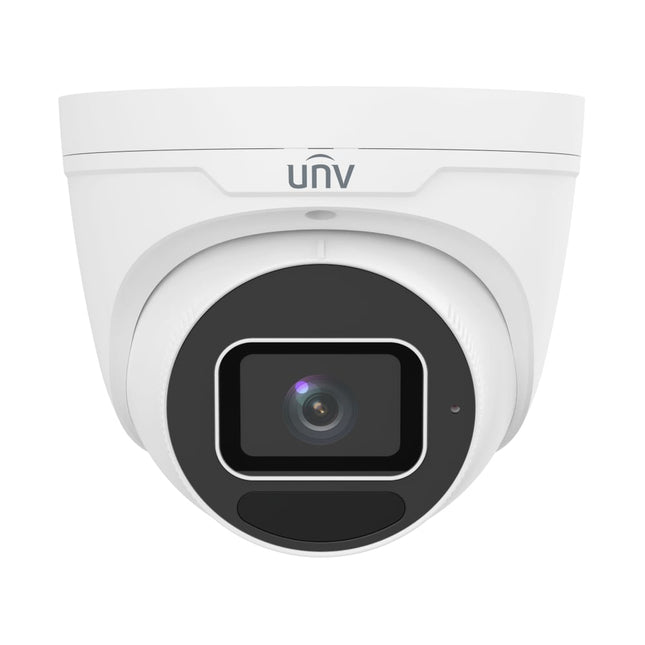

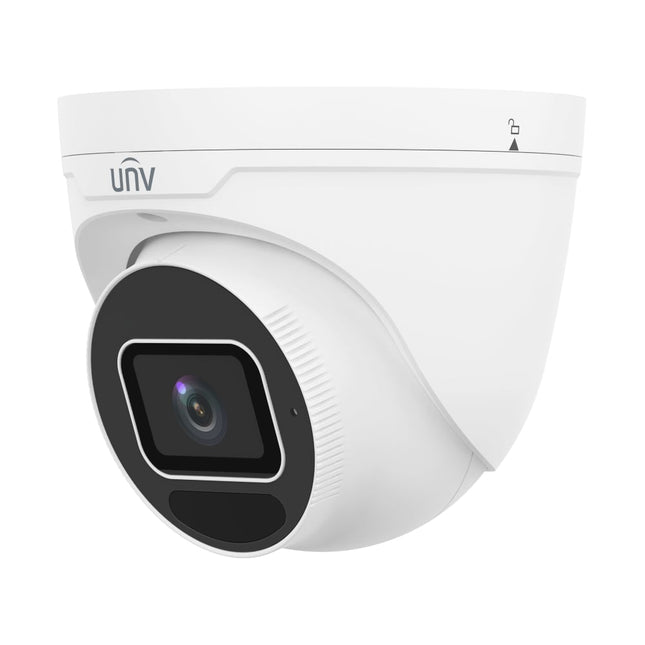

Uniview UNV IPC3638SB-ADZK-I0 8MP LightHunter Motorized Varifocal Turret
The IPC3638SB-ADZK-I0 delivers crisp 8 MP (4K) video with
LightHunter low-light imaging and 120 dB true WDR for balanced scenes.
A 2.7–13.5 mm motorized varifocal lens (≈5×) lets you frame wide areas or zoom into detail,
while Smart IR provides clear night vision up to 40 m. With a
built-in microphone, IK10 vandal resistance, IP67 weather rating,
and microSD up to 512 GB, it’s a versatile indoor/outdoor choice for commercial and residential sites.
Key Features
8 MP 1/2.8″ CMOS; 3840×2160 up to 20/25/30 fps (profile-dependent)
Motorized VF lens 2.7–13.5 mm, autofocus (≈5× optical)
LightHunter imaging; 120 dB WDR; 2D/3D DNR; digital defog
Smart IR up to 40 m; ICR day/night; 9:16 corridor mode
Built-in mic; Ultra 265 / H.265 / H.264 / MJPEG; U-Code; ROI
AI events: human/vehicle filtering for intrusion/line-cross; tamper & audio detection
Edge storage: microSD up to 512 GB; ANR/NAS
IK10 impact rating; IP67 weather resistance; 3-axis adjust
Power: DC 12 V or PoE (802.3af)
Technical Specifications
Brand / Model (SKU)
Uniview UNV / IPC3638SB-ADZK-I0
Sensor / Max Resolution
1/2.8″ CMOS / 8 MP (3840×2160)
Lens
Motorized 2.7–13.5 mm (≈5×) AF
Low-light / WDR
LightHunter; 120 dB true WDR; 2D/3D DNR
IR / Night
Smart IR up to 40 m; ICR day/night
Compression
Ultra 265 / H.265 / H.264 / MJPEG; U-Code; ROI
Audio
Built-in microphone; G.711
Analytics
Perimeter (line, intrusion, enter/leave) with human/vehicle classification
Edge Storage
microSD up to 512 GB; ANR/NAS
Ingress / Impact
IP67; IK10
Power
DC 12 V or PoE (IEEE 802.3af)
What’s Included
Uniview UNV IPC3638SB-ADZK-I0 camera
Mounting kit & quick guide
More Information
PC3638SB-ADZK-I0 Datasheet
UNV Eyeball IP Camera Quick Start Guide
UNV Network Cameras User Manual

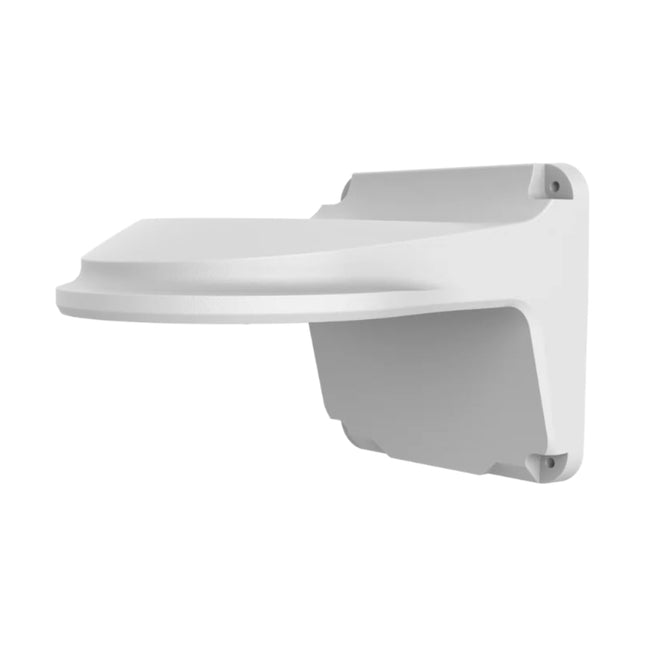

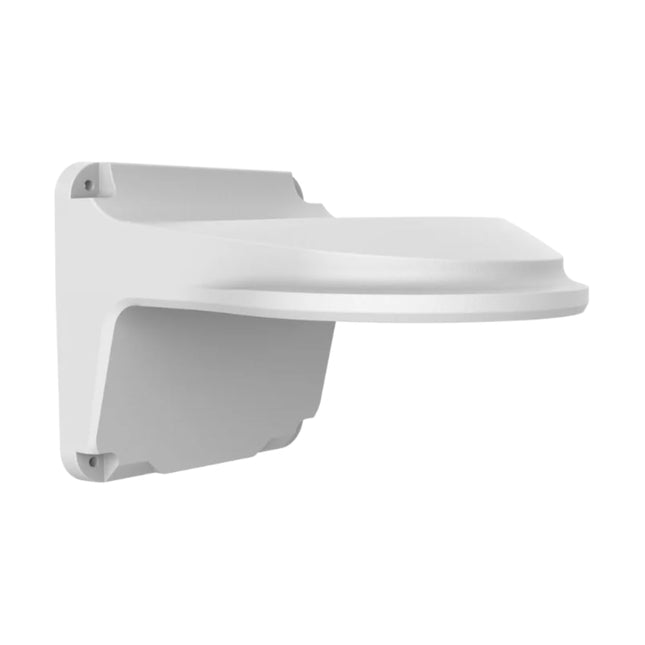

The Uniview TR‑WM03‑D‑IN is a robust aluminum wall-mount bracket designed for Uniview fixed dome and mini dome cameras including the IPC32XS/E/L and IPCT1XX series. With a streamlined profile for both indoor and sheltered outdoor use, it enables clean installations and precise alignment.
Key Features
Compatibility: Uniview IPC32XS/E/L and IPCT1XX series fixed dome cameras
Compact Dimensions: 126.7 × 126.4 × 183.4 mm (approx. 127 × 127 × 183 mm)
Lightweight Design: Around 0.52 kg (1.15 lb)
Durable Material: High-grade aluminum alloy ensures corrosion resistance and longevity
Versatile Use: Suitable for indoor and sheltered outdoor installations
Highlights
Customized Fit: Specifically built to support Uniview fixed dome camera models, ensuring perfect alignment and compact integration.
Space-Efficient Design: Slim and lightweight profile optimizes real-world installation spaces.
Easy Installation: Durable aluminum construction simplifies mounting with a sleek aesthetic.
Flexible Application: Rated for indoor or sheltered outdoor use in various environments.
Technical Specifications
Specification
Details
Model
TR-WM03-D-IN
Product URL
Official Uniview Page
Compatible Cameras
IPC32XS/E/L & IPCT1XX fixed dome cameras
Dimensions (W × H × D)
126.7 × 126.4 × 183.4 mm (approx. 127 × 127 × 183 mm)
Weight
0.52 kg (1.15 lb)
Material
Aluminum alloy
Installation Type
Indoor or sheltered outdoor wall mount
More Informations
TR-WM03-D-IN Fixed Dome Mount V1.0
Uniview UNV 8MP OwlView CCTV Kit comes with 4 x 8MP OwlView Full 24/7 Colour Security Cameras with 8-Channel AI IQ NVR Recorder
The Uniview UNV 8MP OwlView CCTV Kit features four IPC3626LE-ADF28K-WP turret cameras with 8MP ColorHunter technology, delivering true full-colour video around the clock. Each camera boasts a 1/1.8″ CMOS sensor, F1.0 aperture, 2.8mm wide-angle lens, and smart warm light illumination up to 30 meters for clear night vision. Advanced imaging enhancements include 120dB true WDR, digital defog, and 2D/3D noise reduction. Equipped with built-in microphones and micro-SD card support up to 512GB, these cameras offer comprehensive monitoring. The package includes the NVR501-08B-P8-IQ, an 8-channel AI IQ recorder supporting Ultra 265 and standard codecs for efficient, high-quality video storage and playback.
This UNV CCTV kit includes:
4 x IPC3626LE-ADF28K-WP (White or Black Option Available)
1 x NVR501-08B-P8-IQ
Uniview UNV IPC3626LE-ADF28K-WP 8MP ColorHunter Turret – White & Black
6 MP (3072×2048) @ up to 25/20 fps; multiple sub-resolutions supported
1/1.8″ CMOS sensor, F1.0, 2.8 mm fixed lens (wide FoV)
ColorHunter + Wise-ISP for true full-colour at night
120 dB true WDR, 2D/3D DNR, BLC/HLC, Digital Defog
Warm light range up to 30 m (smart illumination)
Built-in microphone; micro-SD up to 512 GB; ANR/NAS support
Ultra 265 / H.265 / H.264 / MJPEG; dual streams
PoE (802.3af); IP67 weatherproof; −30 °C ~ 60 °C
Uniview UNV NVR501-08B-P8-IQ 8-Channel PoE AI Network Video Recorder
8 IP channels with 8× PoE (30 W/port; 75 W total)
1× HDMI (up to 4K) + 1× VGA, simultaneous output
Recording up to 16 MP; Ultra 265 / H.265 / H.264 decoding
NVR-level analytics & rich search (face/vehicle/person, SIP/UMD)
1× SATA HDD bay (up to 16 TB); ANR for network outages
Compact 1U chassis; low power; ONVIF Profiles S/G/T; RTSP

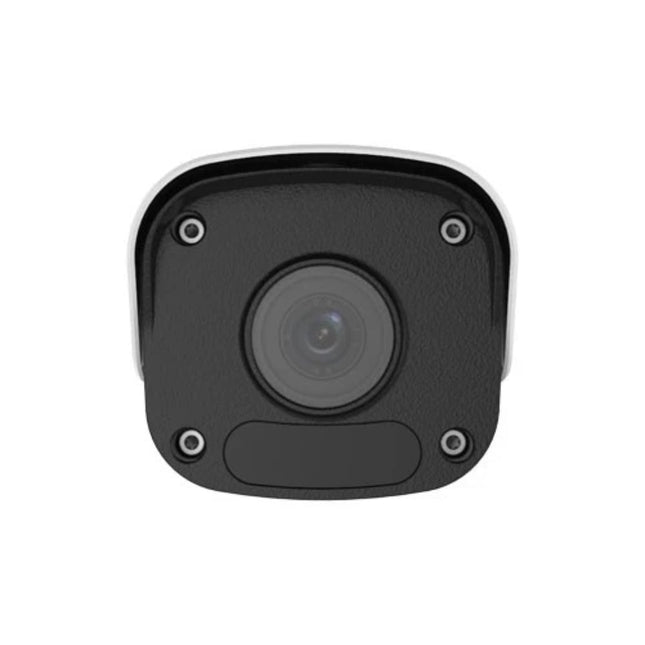

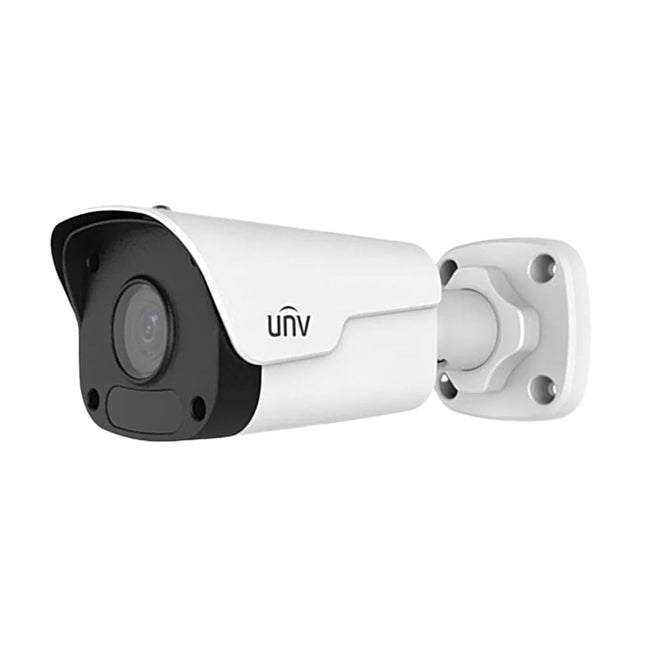

Uniview UNV IPC2125LR3-PF40M-D 5MP Mini Fixed Bullet Camera – Specs & Resources
Uniview UNV IPC2125LR3-PF40M-D 5MP Mini Fixed Bullet IP Camera
The IPC2125LR3-PF40M-D is a compact 5 MP mini fixed bullet camera that
balances clarity, reliability, and value. Equipped with a 4 mm fixed lens,
Smart IR for clean night images, efficient H.265 compression, and simple
PoE installation in a rugged IP67 housing.
Key Features
5 MP class imaging (approx. 2592×1944)
Fixed 4 mm lens
Smart IR for even illumination at night
Wide Dynamic Range (WDR), 2D/3D DNR
Ultra 265 / H.265 / H.264 compression
PoE (IEEE 802.3af) for one-cable install
Weatherproof IP67 construction
Technical Specifications
Specification
Details
Brand
Uniview UNV
Model (SKU)
IPC2125LR3-PF40M-D
Resolution
5 MP class (2592×1944)
Lens
Fixed 4 mm
Night Vision
Smart IR (range per datasheet)
Dynamic Range
WDR
Compression
Ultra 265 / H.265 / H.264
Power
PoE (IEEE 802.3af)
Ingress Protection
IP67
Operating Conditions
Outdoor rated; wide temp range
Use Cases
Entrances, driveways, shopfronts, carparks
What’s Included
Uniview UNV IPC2125LR3-PF40M-D camera
Mounting hardware & quick guide
Customer Requirements
RJ45 Cat6 cable & PoE switch/NVR
Surveillance-grade HDD in NVR (if recording to NVR)
Optional junction/wall bracket depending on surface
More Information
Uniview UNV IPC2125LR3-PF40M-D Datasheet
The Uniview UNV TR‑JB07/WM03‑G‑IN is a rugged outdoor wall mount bracket featuring a built-in junction box, tailored for Uniview IPC36XXL, IPCD1XX, and IPCT1XX fixed dome cameras. Made of durable aluminum alloy and engineered for clean cable routing via an extra back outlet, it delivers both aesthetic appeal and reliable protection for professional camera installations.
Key Features
Application: Wall mounting for IPC36XXL, IPCD1XX, and IPCT1XX fixed dome and plastic turret cameras
Dimensions: 126.7 × 126.4 × 228.4 mm (4.99” × 4.98” × 8.99”)
Weight: Approximately 1 kg (2.20 lb)
Material: High-quality aluminum alloy for durability
Cable Management: Integrated junction box with extra back outlet ensures tidy cable routing and protection
Highlights
Dual Function Design: Combines a solid wall mount with an integrated junction box for streamlined installation.
Clean & Professional Placement: Built-in back outlet hides and protects wiring for a polished look.
Weather & Wear Resistant: Robust aluminum construction ensures longevity in outdoor environments.
Perfect Fit for Specific Series: Optimized for Uniview IPC36XXL, IPCD1XX, and IPCT1XX fixed dome cameras.
Technical Specifications
Specification
Details
Model
TR-JB07/WM03-G-IN
Product URL
Official Uniview Page
Compatible Cameras
IPC36XXL, IPCD1XX & IPCT1XX fixed dome/turret cameras
Dimensions
126.7 × 126.4 × 228.4 mm (4.99″ × 4.98″ × 8.99″)
Weight
~1 kg (2.20 lb)
Material
Aluminum alloy
Cable Management
Integrated junction box with extra back outlet
Mount Type
Outdoor wall mount
Uniview UNV IPC675LFW-AX4DUPKC-VG 5MP LightHunter Active Deterrence Mini PTZ
The IPC675LFW-AX4DUPKC-VG is a compact 5 MP LightHunter mini PTZ with 4× motorized zoom (2.8–12 mm), auto-tracking, and active deterrence via warm light up to 10 m plus Smart IR to 50 m. It delivers 120 dB WDR, triple streams (Ultra 265/H.265/H.264/MJPEG), and built-in mic & speaker for two-way audio—powered by PoE (802.3af) in an IP66 housing.
Key Features
5 MP 1/2.7" CMOS; main stream up to 2880×1620 @ 30 fps
LightHunter low-light imaging; 120 dB WDR
4× optical zoom (2.8–12 mm), AF; FOV H: 106.9°–30.6°
Smart IR 50 m & warm light 10 m deterrence
Built-in microphone & speaker; two-way audio (G.711)
Auto-tracking, motion/audio/tamper events; 256 presets, 16 patrols
Triple streams; Ultra 265 / H.265 / H.264 / MJPEG
Edge storage: microSD up to 256 GB; ANR/NAS
IP66; −20 °C ~ 60 °C; DC12 V or PoE (802.3af)
Technical Specifications
Brand / Series
Uniview UNV / LightHunter Mini PTZ
Model (SKU)
IPC675LFW-AX4DUPKC-VG
Sensor / Resolution
1/2.7" CMOS / 5 MP (2880×1620 @ 30 fps)
Lens / Zoom
2.8–12 mm motorized AF / 4× optical
Illumination
IR up to 50 m; Warm light up to 10 m
Dynamic Range
120 dB WDR
Audio
Built-in mic & speaker; two-way audio (G.711)
Analytics
Auto-tracking; motion, audio, tamper events
Video Encoding
Ultra 265 / H.265 / H.264 / MJPEG; triple streams
Storage
microSD up to 256 GB; ANR/NAS
Pan / Tilt
Pan 0°–345° (≤50°/s); Tilt −10°~110° (≤40°/s)
Presets / Patrols
256 presets; 16 patrols (≤64 presets each)
Protection
IP66; surge 2 kV
Power
DC12 V or PoE (IEEE 802.3af), Max 18 W
Environment
−20 °C ~ 60 °C; ≤95% RH
Dimensions / Weight
Φ133 × 269 mm; 0.87 kg
What’s Included
Uniview UNV IPC675LFW-AX4DUPKC-VG camera
Mounting hardware & quick guide
Customer Requirements
RJ45 Cat6 cable & PoE switch/NVR
Surveillance-grade HDD/NVR or microSD card (up to 256 GB)
Optional junction/pole/pendant mounts (see accessories)
More Information
Uniview UNV IPC675LFW-AX4DUPKC-VG Datasheet Uniview UNV PTZ Camera User Manual Uniview UNV Official Website

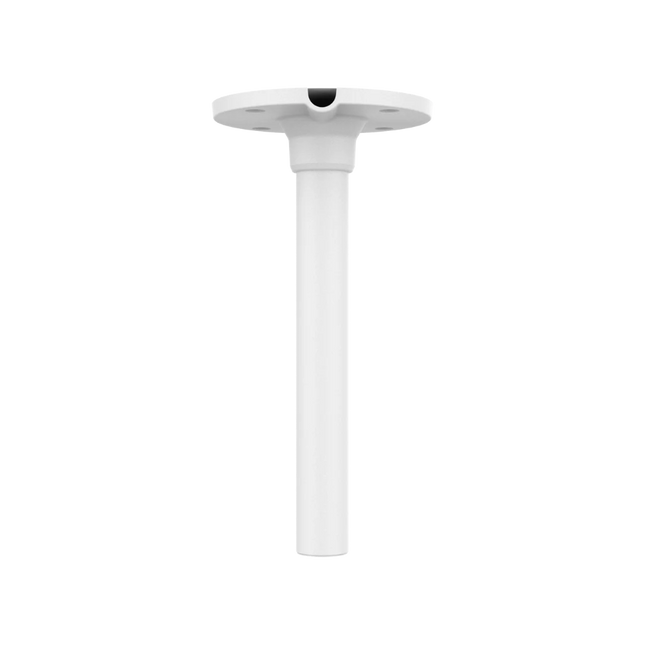

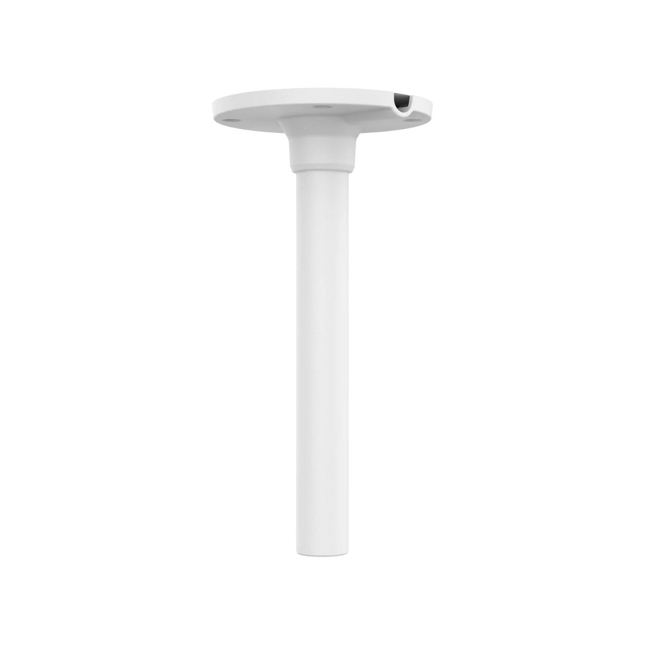

The Uniview TR-CM24-IN is a professional-grade indoor pendant mount specifically engineered for the IPC323X Series fixed dome cameras. Constructed from high-quality aluminum alloy, this bracket provides a stable and secure overhead mounting solution for indoor surveillance applications.
Key Features
Dedicated Compatibility: Expertly designed for seamless integration with the Uniview IPC323X Series fixed dome cameras.
Durable Construction: Built from robust aluminum alloy to ensure long-term stability and reliability in indoor environments.
Lightweight Design: Weighing only 0.25kg (0.55lb), it offers a sturdy yet manageable solution for pendant installations.
Standardized Threading: Features a 3/4" NPS thread for compatibility with standard mounting poles and accessories[cite: 177].
Professional Aesthetics: The sleek, industrial design ensures it blends perfectly into modern indoor commercial and residential settings.
Technical Specifications
Model
TR-CM24-IN
Application
Pendant mount for IPC323X Series fixed dome
Material
Aluminum alloy
Dimensions
110.0 mm x 223.5 mm (4.3" x 8.8")
Weight
0.25kg (0.55lb)
More Information
For a complete mounting solution, the TR-CM24-IN is compatible with the following accessories:
TR-SE24-IN: Dome Pendant Mounting Pole 200mm[cite: 190].
TR-SE24-A-IN: Dome Pendant Mounting Pole 500mm[cite: 192].
TR-JB08: Junction Box for 322x Dual-lens Dome[cite: 196, 197].
Download TR-CM24-IN Datasheet (PDF)

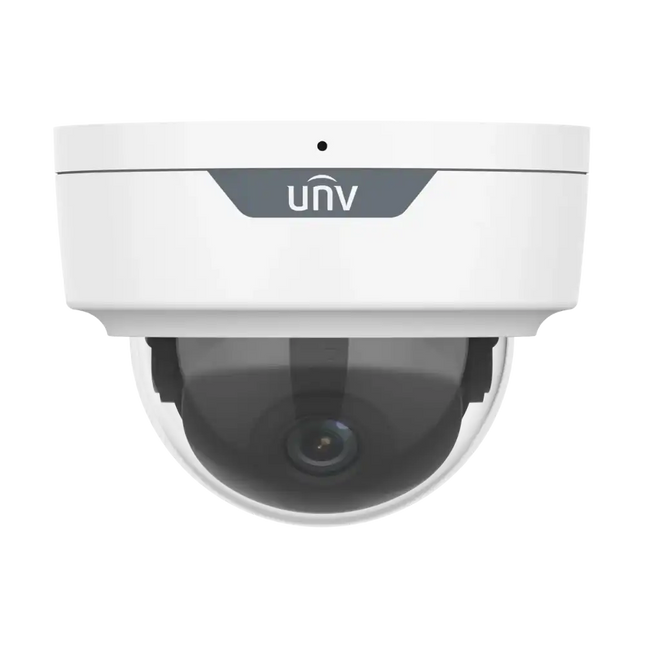

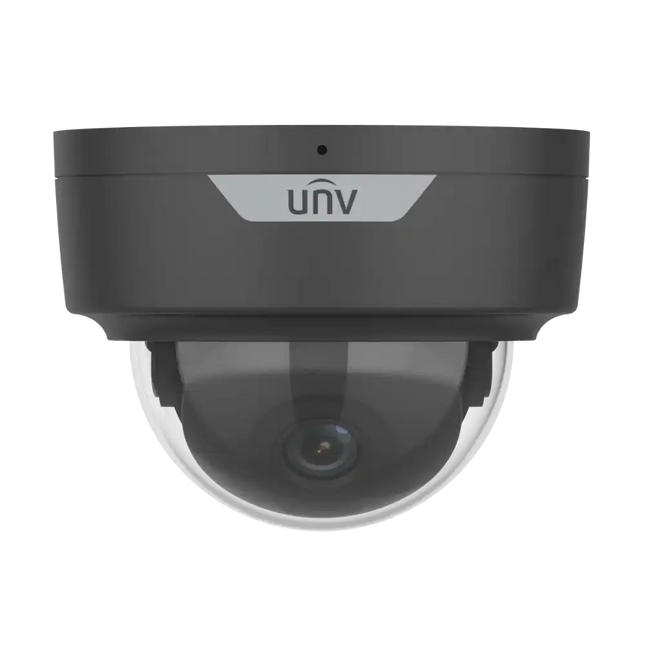

The Uniview UNV IPC326SS-ADF28K-I1 is a 6MP Intelligent LightHunter fixed dome network camera designed for demanding indoor and outdoor surveillance applications.
Powered by LightHunter technology and a 1/2.7″ CMOS sensor, this camera delivers excellent low-light performance with sharp detail and accurate colour reproduction.
With 130 dB true WDR, advanced AI-based intrusion detection, and people flow counting, the IPC326SS-ADF28K-I1 provides reliable monitoring in environments with strong backlight, heavy foot traffic, or frequent false-alarm triggers.
Its IK10 vandal resistance and IP67 weatherproof rating make it suitable for public areas, retail, offices, schools, and commercial premises.
Key Features
6MP resolution (3072 × 2048) at up to 30fps
LightHunter technology for ultra-high image quality in low illumination
130 dB true WDR for strong backlight scenes
2.8mm fixed lens (F1.6) with wide viewing angle
Smart IR up to 40m with automatic IR control
AI intelligent perimeter protection
(line crossing, intrusion, enter/leave area with human/vehicle classification)
People flow counting & crowd density monitoring
Audio I/O 1/1 and Alarm I/O 1/1, built-in microphone
microSD edge storage up to 512GB
Ultra 265 / H.265 / H.264 / MJPEG compression
IK10 vandal resistant & IP67 weatherproof
PoE (IEEE 802.3af) or 12V DC power
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC326SS-ADF28K-I1
Camera Type
6MP Fixed Dome Network Camera
Image Sensor
1/2.7" CMOS
Maximum Resolution
6MP (3072 × 2048)
Lens
2.8mm fixed lens, F1.6
Field of View
H: 110°, V: 58.7°, D: 130°
Low Light Performance
0.002 lux (colour), 0 lux with IR on
WDR
130 dB true WDR
IR Illumination
Smart IR, up to 40m (850nm)
Video Compression
Ultra 265, H.265, H.264, MJPEG
AI Functions
Line crossing, intrusion, people counting, crowd density
Audio / Alarm
Audio 1 in / 1 out, Alarm 1 in / 1 out
Edge Storage
microSD up to 512GB
Network
1 × RJ45 10/100 Mbps Ethernet
Power
DC 12V ±25% or PoE (IEEE 802.3af)
Power Consumption
Max 6.5W
Protection Rating
IP67, IK10
Operating Temperature
-30°C to 60°C
Material
Metal
Dimensions
Ø111 × 83 mm
Weight
0.42 kg
More Information
IPC326SS-ADF28K-I1 Datasheet
UNV Camera User Manual
The Uniview UNV IPC3638SE-ADF28K-WP-I1 is an 8MP OwlView Plus (4K) turret IP camera built for true full-colour surveillance in ultra-low light. It combines a large 1/1.2” CMOS sensor with ColorHunter + Wise-ISPprocessing and a fixed F1.0 2.8mm lens for bright, detailed images day or night. With 130 dB true WDR, warm white light up to 30m, intelligent perimeter protection (human/vehicle filtering), people flow counting, plus IK10/IP67/NEMA 4X protection, it’s ideal for retail, offices, warehouses, car parks, and perimeter coverage.
Key Features
8MP (3840×2160) recording plus multiple sub-stream options
ColorHunter + Wise-ISP for 24-hour full-colour images
130 dB true WDR for harsh backlight scenes
2.8mm fixed lens, F1.0, wide viewing angle
Warm light up to 30m (white light)
Intelligent perimeter protection: line crossing, intrusion, enter/leave area + false alarm filtering(human/vehicle/non-motor vehicle)
People flow counting + crowd density monitoring
Audio I/O 1/1, Alarm I/O 1/1, built-in mic
microSD up to 512GB, plus ANR/NAS support
IK10, IP67, NEMA 4X durability
Specifications
Brand / Model (SKU)
Uniview UNV / IPC3638SE-ADF28K-WP-I1
Series
OwlView Plus Eyeball (Turret) Network Camera
Max Resolution
8MP (3840 × 2160)
Image Sensor
1/1.2" CMOS
Min. Illumination
Color: 0.0003 Lux (F1.0, AGC ON)
WDR
130 dB true WDR
Lens
2.8mm fixed, F1.0 (fixed iris)
Field of View
H: 105.0° / V: 56.1° / D: 121.0°
Supplemental Light
Warm white light, up to 30m
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Video Streams
Triple streams
Smart Analytics
Smart intrusion prevention (human/vehicle/non-motor vehicle classification), people flow counting, crowd density
Audio
Built-in mic; Audio I/O 1/1; Two-way audio supported
Alarm I/O
1/1
Edge Storage
microSD up to 512GB
Network
1 × RJ45 10/100M Base-TX; ONVIF (S/G/T/M)
Protection Ratings
IP67, IK10, NEMA 4X
Mount Adjustment
Pan 0°–360° / Tilt 0°–75° / Rotate 0°–360°
Recommended Use Cases
Retail & Hospitality – 24/7 full-colour evidence, excellent face and clothing detail under low light.
Car Parks & Perimeters – Wide 2.8mm view with warm white light (30m) for colour identification at night.
Offices & Warehouses – 130 dB WDR handles backlight; IK10/IP67/NEMA 4X suits harsh environments.
Schools & Public Spaces – People flow counting and crowd density analytics for safety and operations.
Residential (Premium) – Bright F1.0 lens with quiet illumination (white light) for clear night footage.
Pair With: Uniview UNV AI NVRs (Prime IQ series) to unlock advanced analytics, Smart Search, and efficient Ultra 265 storage.
More Information
IPC3638SE-ADF28K-WP-I1 Datasheet
UNV PoE Camera Quick Start Guide
UNV Network Camera User Manual
Uniview UNV 8MP TriGuard CCTV Kit comes with 4 x 8MP All-in-One — 24/7 Full Colour, Two-way Audio & Alarm, Security Cameras with 8-Channel AI IQ NVR Recorder
The Uniview UNV 8MP TriGuard CCTV Kit features four 8MP All-in-One turret cameras with smart AI detection for humans and vehicles, delivering clear full-colour images 24/7. Each camera offers smart IR up to 30 meters, true 120 dB WDR for superior image quality, built-in microphones, and local storage via Micro-SD up to 256GB. The kit includes an 8-channel AI-powered NVR with 8 PoE ports supporting up to 4K HDMI output and simultaneous VGA display. This complete system ensures reliable, high-resolution surveillance with advanced analytics for enhanced security management.
This UNV CCTV kit includes:
4 x IPC3638SS-ADF28KMC-I1
1 x
NVR501-08B-P8-IQ
Uniview UNV IPC3638SS-ADF28KM-I0 8MP Turret Fixed Camera
Model / SKU: IPC3638SS-ADF28KM-I0
Resolution: 8 MP (3840×2160) @ up to 25 fps
AI detection for humans & vehicles
Smart IR up to 30 m
120 dB true WDR
Built-in microphone
Micro-SD slot up to 256 GB
PoE (IEEE 802.3af); IP67 rated
Uniview UNV NVR501-08B-P8-IQ 8-Channel PoE AI Network Video Recorder
8 IP channels with 8× PoE (30 W/port; 75 W total)
1× HDMI (up to 4K) + 1× VGA, simultaneous output
Recording up to 16 MP; Ultra 265 / H.265 / H.264 decoding
NVR-level analytics & rich search (face/vehicle/person, SIP/UMD)
1× SATA HDD bay (up to 16 TB); ANR for network outages
Compact 1U chassis; low power; ONVIF Profiles S/G/T; RTSP

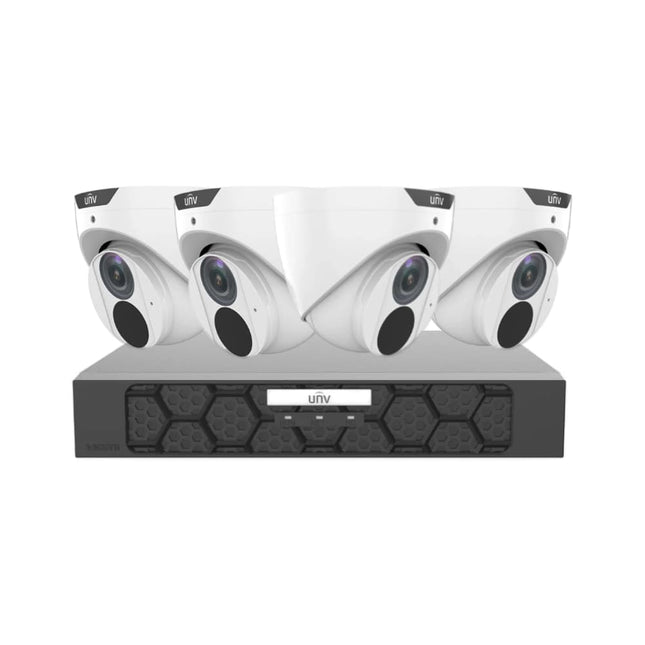

Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8‑Channel AI NVR (Expandable to 8 TB)
The Uniview UNV CCTV Kit combines four 6MP IR turret cameras with a 4-channel AI-enabled NVR, providing sharp 3072×2048 resolution at 25fps for detailed surveillance. Advanced features like Easystar low-light technology and 120 dB true WDR ensure clear images in challenging lighting and environments. Corridor Mode enhances monitoring of narrow spaces, while smart IR LEDs deliver effective night vision. With expandable storage up to 8 TB, this system is well-suited for small homes and businesses seeking dependable, scalable security solutions.
This UNV Security System includes:
4 x IPC3616LE-ADF28KM-G
1 x NVR501-04B-P4-IQ or NVR501-08B-P8-IQ
Features
Uniview UNV IPC3616LE-ADF28KM-G 6MP Turret IP Camera
6MP, 1/2.7″ CMOS sensor with 3072×2048 @25fps resolution
Easystar low-light performance for vivid color in poor lighting
120 dB true WDR & Corridor Mode for complex lighting
Smart IR LEDs with 30 m range for balanced night vision
IP67 weatherproof housing & 3-axis mounting design
PoE (802.3af) and DC 12 V power options
Built-in microphone for audio capture
Supports Ultra 265, H.265, H.264, MJPEG video compression
Local storage via micro-SD (up to 256 GB) and NAS support
ONVIF S/G/T compatibility
Intelligent detection: motion, intrusion, line-crossing, tamper, audio
Operating temp: –30°C to +60°C; surge protection 4 kV
Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE Network Video Recorder, ONVIF Support
Channels: 4 IP video inputs
PoE Ports: 4 × PoE (IEEE 802.3at/af), up to 30 W per port, 50 W total
Video Compression: Ultra 265, H.265, H.264
Max Recording Resolution: Up to 16 MP
Video Output: 1 × HDMI (up to 4K) and 1 × VGA – simultaneous display
Storage: 1 × SATA HDD bay, supports up to 8 TB (some models up to 16 TB)
Smart Functions: Face detection, SIP, UMD, people counting (via NVR)
Compatibility: ONVIF Profiles S/G/T, RTSP
ANR Support: Yes – prevents recording loss during network outages
USB Ports: 1 × USB2.0 (front), 1 × USB3.0 (rear)
Power Consumption: ≤ 8 W (without HDD)
Operating Temperature: –10 °C to 50 °C
Certifications: CE, FCC, UL, RoHS, WEEE
Uniview UNV NVR501-08B-P8-IQ 8-Channel PoE AI Network Video Recorder
8 IP channels with 8× PoE (30 W/port; 75 W total)
1× HDMI (up to 4K) + 1× VGA, simultaneous output
Recording up to 16 MP; Ultra 265 / H.265 / H.264 decoding
NVR-level analytics & rich search (face/vehicle/person, SIP/UMD)
1× SATA HDD bay (up to 16 TB); ANR for network outages
Compact 1U chassis; low power; ONVIF Profiles S/G/T; RTSP
Highlights
All-in-One Plug-and-Play Kit: Instant setup with two turret cameras and an AI-ready 4 or 8-channel NVR.
Expandable Recording: Add a hard drive up to 8 TB for weeks of continuous footage.
Exceptional Night Vision: Smart IR and Easystar tech ensure clear images 24/7.
Smart Analytics Built-In: Utilize intelligent detection right from the NVR without special cameras.
Seamless Integration: ONVIF and RTSP support ensure compatibility across CCTV systems.
Resilient Performance: Weatherproof hardware and ANR functionality for uninterrupted operation, even during outages.
Customer Requirements: Storage HDD must be purchased separately, along with RJ45 Cat6 network cables for camera/NVR connections. If installing on walls, wall mount brackets are required (no brackets needed for eaves mounting).
Technical Specification
Specification
Details
Product Name
Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8-Channel AI NVR
Cameras
4 × IPC3616LE-ADF28KM-G (6MP, Easystar, Smart IR, IP67, PoE, built-in mic)
NVR
1 x NVR501-04B-P4-IQ or NVR501-08B-P8-IQ 4 or 8 Channel AI NVR, PoE, Ultra 265, 4K HDMI, ANR
Expandable Storage
Up to 8 TB (via SATA HDD)
Smart Analytics
Face detection, people counting, UMD, SIP
Video Output
HDMI (up to 4K) + VGA, simultaneous
Compression
Ultra 265, H.265, H.264
Network Compatibility
ONVIF S/G/T, RTSP
Operating Temp
Cameras: –30 °C to +60 °C; NVR: –10 °C to 50 °C
Certifications
Cameras: IP67; NVR: CE, FCC, UL, RoHS, WEEE
Warranty
36 months (Australian stock, express delivery)
Uniview UNV TR-JB07/WM03-F-IN Fixed Dome Outdoor Wall Mount Bracket
The Uniview UNV TR-JB07/WM03-F-IN Fixed Dome Outdoor Wall Mount Bracket offers a professional-grade solution for securely mounting Uniview fixed dome cameras.
Made from durable aluminum alloy with a powder-coated finish, it is built to withstand harsh outdoor conditions while keeping camera wiring concealed and protected.
Key Features
Brand: Uniview UNV
Model: TR-JB07/WM03-F-IN
Outdoor wall mount for Uniview fixed dome cameras
Durable aluminum alloy construction
Weatherproof housing for long-lasting performance
Internal cable management for neat, secure installs
Pre-drilled mounting holes for fast installation
Technical Specifications
Specification
Details
Brand
Uniview UNV
Model
TR-JB07/WM03-F-IN
Product Type
Outdoor Wall Mount Bracket
Material
Aluminum Alloy
Finish
Powder-coated
Cable Management
Internal routing for concealed wiring
Weather Resistance
Yes – outdoor rated
Mounting Type
Pre-drilled wall mount
Compatibility
Uniview fixed dome cameras (model-specific)
What's Included
TR-JB07/WM03-F-IN wall mount bracket
Mounting hardware
User guide
Customer Requirements
Compatible Uniview fixed dome camera
RJ45 Cat6 cable if camera uses PoE
Appropriate wall fasteners for your surface type

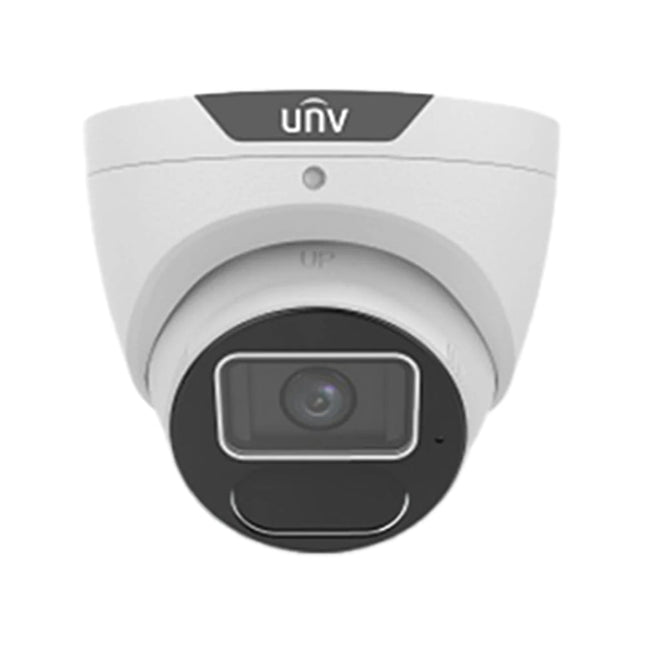

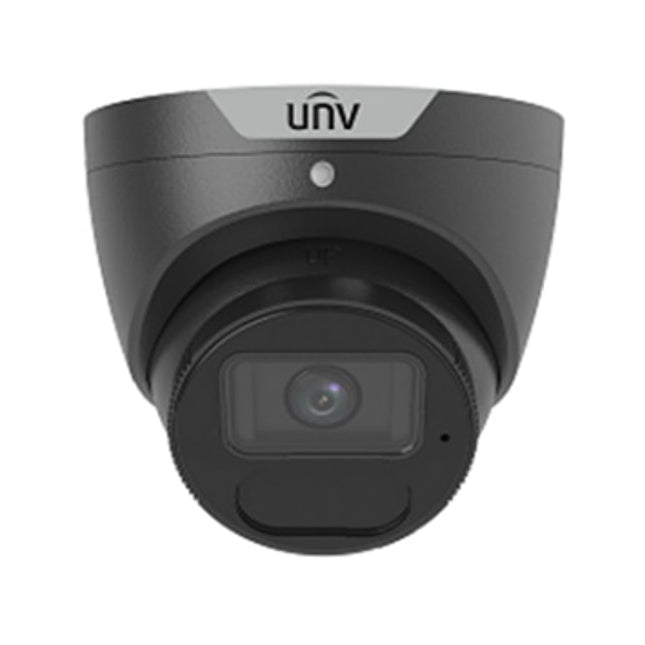

Uniview UNV IPC3618SS-ADF28K-I1 / IPC3618SS-ADF28K-I1-BK 8MP LightHunter Turret Camera
The Uniview UNV IPC3618SS-ADF28K-I1 and IPC3618SS-ADF28K-I1-BK combine 8MP 4K resolution with LightHunter technology to deliver clear, detailed images in any lighting condition. Their 1/2.8” CMOS sensor and 130dB True WDR handle complex lighting environments effectively. Advanced smart intrusion prevention features—including line crossing and area intrusion detection—reduce false alarms with human/vehicle classification. Additionally, the cameras support people flow counting and crowd density monitoring, ideal for retail, restaurants, and events. With smart IR up to 40 meters and ONVIF compliance, these turret cameras are designed for professional, high-performance security applications.
Key Features
8MP resolution (3840×2160) at 30fps
1/2.8” CMOS sensor with LightHunter technology
Smart Intrusion Prevention: line crossing, intrusion, enter/leave area detection
False alarm reduction with human/vehicle classification
130dB True WDR for strong light environments
Smart IR with up to 40m IR distance
Built-in Mic for audio recording
Supports up to 512GB MicroSD card
IP67 weatherproof housing
People flow counting and crowd density monitoring
Specifications
Lens: 2.8mm, F1.6 fixed
Field of View: 97° (H), 52° (V)
DORI Distance: Detect 86.9m | Recognize 17.4m | Identify 8.7m
Compression: Ultra 265, H.265, H.264, MJPEG
Video Streams: Triple stream up to 30fps
Protection: IP67 weatherproof
Power: DC12V ±25% or PoE (IEEE 802.3af)
Dimensions: Ø129 × 110 mm
Weight: 0.42kg
More Information
Uniview UNV IPC3618SS-ADF28K-I1 DatasheetUniview UNV Camera User ManualUniview UNV Camera Quick Start Guide
Uniview UNV IPC3616SS-ADF28K-I1 6MP LightHunter IR Fixed Eyeball Network Camera
Brand: Uniview UNVSKU: IPC3616SS-ADF28K-I1
Product Overview
The Uniview UNV IPC3616SS-ADF28K-I1 is a 6MP HD Intelligent LightHunter IR Fixed Eyeball Camera designed for professional surveillance. Featuring a high-performance 1/2.7" CMOS sensor, 130dB WDR, and LightHunter technology, it delivers superior image quality even in low light conditions. With intelligent perimeter protection, face capture, and crowd density monitoring, this camera ensures accurate security monitoring for business and residential applications.
Key Features
6MP resolution (3072x2048) at up to 25fps
1/2.7" CMOS progressive scan sensor
Ultra 265, H.265, H.264, MJPEG compression
130dB True WDR for clear imaging in strong light
Smart intrusion prevention with human & vehicle classification
Built-in mic for audio capture
Smart IR with up to 40m infrared range
IP67 weatherproof protection
Supports up to 256GB MicroSD card
People flow counting and crowd density monitoring
Specifications
Lens: 2.8mm fixed, F1.6
Horizontal FOV: 107.2°
Minimum Illumination: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR
IR Distance: Up to 40m (131ft)
Ingress Protection: IP67
Operating Conditions: -30°C to 60°C
Power: DC 12V ±25%, PoE (802.3af)
Power Consumption: Max 6.5W
Dimensions: Φ129 x 110mm
Weight: 0.43kg
More Information
Uniview UNV IPC3616SS-ADF28K-I1 DatasheetUniview UNV IPC3616SS-ADF28K-I1 User Manual

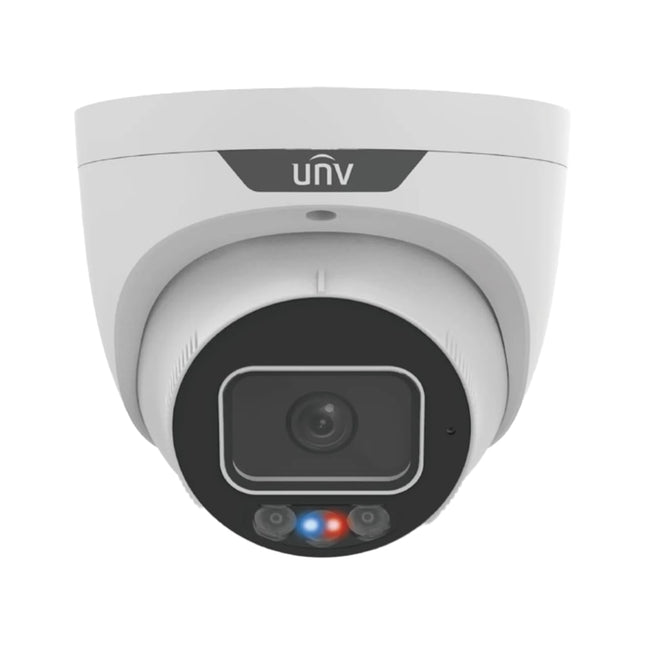

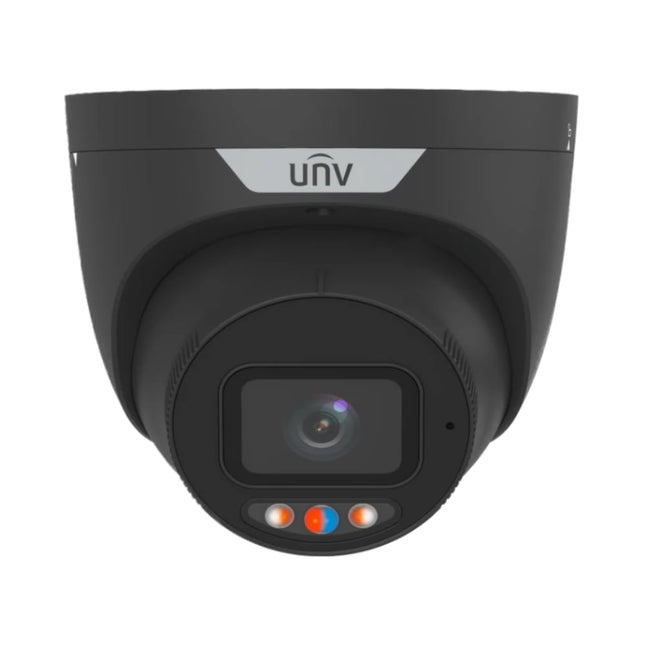

The Uniview IPC3638SS-ADF28KMC-I1 is a high-performance 8MP (4K) turret camera from the Prime III Series. Designed as a comprehensive "3-in-1" security solution, it features UNV’s Tri-Guard technology: integrating Smart Intrusion Prevention (SIP), ColorHunter for 24/7 vivid color, and Active Deterrence to proactively stop intruders using light and sound. It is the perfect choice for home or business owners seeking a proactive defense system.
Tri-Guard Proactive Security Features
8MP 4K Ultra-HD: Crystal-clear 3840 x 2160 resolution for superior evidence gathering and facial identification.
24/7 ColorHunter Technology: An F1.0 super-aperture and advanced sensor provide full-color video even in pitch-black conditions—no more grainy black-and-white footage.
Active Deterrence: Built-in red/blue or white strobe lights and an audible siren trigger instantly upon AI detection to warn off trespassers.
Smart Intrusion Prevention (SIP): Advanced AI filters false alarms from pets, wind, and rain, focusing only on human and vehicle movement.
Full Two-Way Audio: Communicate with visitors or warn off intruders directly through the built-in high-output speaker and sensitive microphone via the EZView app.
Ultra 265 Compression: Reduce your storage requirements and bandwidth usage by up to 75% without losing 4K image quality.
Technical Specifications
Model Number
IPC3638SS-ADF28KMC-I1
Resolution
8MP 4K (3840 x 2160)
Lens / FOV
2.8mm @F1.0 (110° Horizontal FOV)
Night Performance
24/7 Full Color (ColorHunter)
Deterrence
Built-in Strobe & Siren Alarm
WDR
120dB True WDR
Protection
IP67 Weatherproof
More Information
Download Official Data Sheet
Uniview UNV Camera Quick Start Guide
Uniview UNV Camera User Manual
Guru Tip: For the best proactive results, set the camera to play a custom voice recording (e.g., "Warning, you are being recorded") when a person enters your driveway. This provides a clear verbal warning before the louder siren is needed.
Prime Series | Active Deterrence | Tri-Guard
UNV 6MP Intelligent Light and Audible Warning Fixed Eyeball Camera
The UNV IPC3636SS-ADF is a professional-grade 6MP security powerhouse designed for proactive protection. Featuring Tri-Guard technology, it combines 24/7 ColorHunter imaging, Smart Intrusion Prevention (SIP), and active deterrence strobe lights to stop intruders before they enter. Fully NDAA Compliant, it is the ideal choice for high-security Australian residential and commercial applications.
Resolution
6MP HD
Night Vision
ColorHunter
Deterrence
Siren/Light
Pro-Active Security Features
Deep Learning AI (SIP) Significantly reduce false alarms. The camera uses Smart Intrusion Prevention to accurately classify humans and vehicles while ignoring animals and leaves.
Active Strobe Deterrence When a perimeter is breached, the camera triggers Red and Blue warning lights and a built-in speaker to warn off trespassers instantly.
130dB True WDR Perfect for high-glare environments. True Wide Dynamic Range ensures clear footage in both bright Australian sunlight and deep shadows.
DORI Distance Guide
Identify targets with precision. The DORI distances below help you choose between the wide 2.8mm or the longer-range 4.0mm lens.
Performance Detail
2.8mm Lens (109°)
4.0mm Lens (97°)
Detect (Identify Movement)
63.0m
90.0m
Observe (Clothing/Type)
25.2m
36.0m
Recognize (Known Face)
12.6m
18.0m
Identify (Proof/Evidence)
6.3m
9.0m
Full Technical Specifications
Sensor & Resolution
1/2.7" 6MP CMOS (2880 x 1620) @ 30fps [cite: 75, 76]
Video Compression
Ultra 265, H.265, H.264, MJPEG [cite: 77]
Wide Dynamic Range
130dB True WDR [cite: 83, 91]
Minimum Illumination
0.001 Lux (F1.0, AGC ON) | 0 Lux with Light [cite: 91]
Intelligent SIP
Cross Line, Intrusion, Enter Area, Leave Area Detection [cite: 78, 94]
Audio Features
Two-way Audio (Built-in Mic & Speaker) [cite: 86, 94]
Local Storage
Micro SD Slot, up to 256 GB [cite: 88, 99]
Weather Protection
IP67 Rated Full-Metal Housing [cite: 73, 89, 101]
Working Temperature
-30°C to 60°C (-22°F to 140°F) [cite: 101]
Power Options
DC 12V±25% or PoE (IEEE 802.3af) [cite: 99]
FAQs
What is Corridor Mode? The 9:16 Corridor Mode allows you to flip the image vertically, maximizing coverage for narrow hallways, fences, or side-passages.
How does Active Deterrence work? Upon detecting a human in a restricted zone, the camera flashes red/blue lights and plays a warning sound through the built-in speaker.
Imaging & Video Supports 6MP (2880 x 1620) @ 30fps. Powered by Ultra 265 compression to save up to 75% on bandwidth and UNV NVR storage.
Durability & Build Rated IP67 Weatherproof with a rugged full-metal housing. Operates in extreme temperatures from -30°C to 60°C.
Audio Capabilities Built-in Microphone and high-power Speaker for two-way talk via the EZView mobile app.
Storage Options Supports edge storage via MicroSD card (up to 256GB) and is fully compatible with Uniview CCTV Kits.
Resources & Documentation
Download Datasheet Full Technical Specifications Quick Start Guide Installation Basics User Manual UNV Security Cameras
NDAA Compliant
AI Human Detection
3-Year Warranty

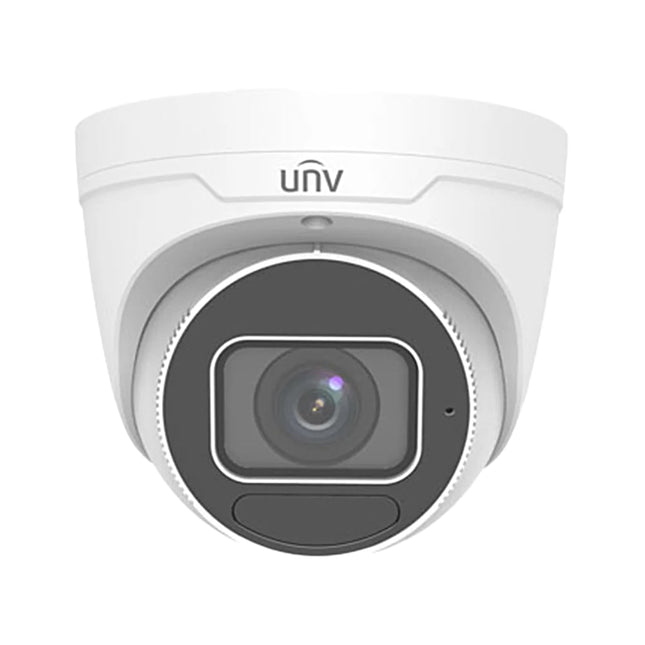

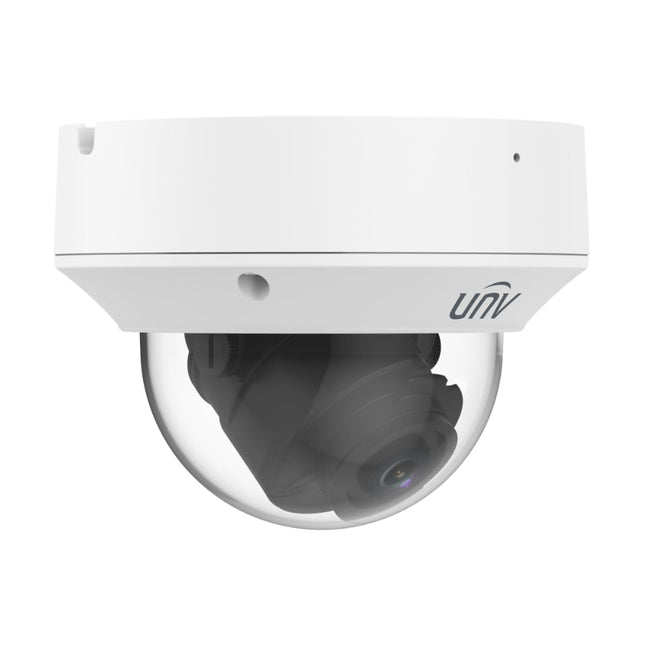

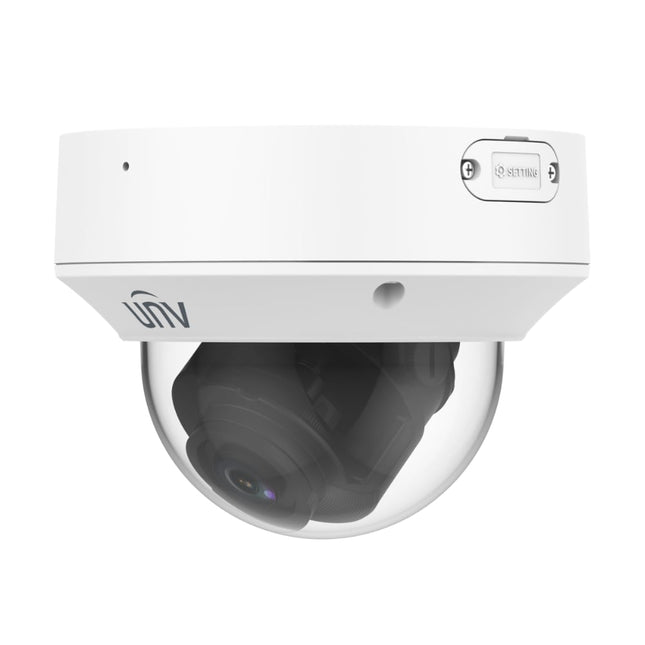

Uniview UNV IPC3235SB-ADZK-I0 5MP LightHunter Motorized Varifocal Dome
The IPC3235SB-ADZK-I0 is a professional-grade 5MP LightHunter dome camera
designed for reliable day and night surveillance. Equipped with a 2.7–13.5 mm motorized varifocal lens,
it offers flexible coverage and autofocus for precise details. With 120 dB WDR, Smart IR up to 40 m,
and a built-in microphone, this camera ensures superior clarity and audio capture in demanding environments.
Key Features
5MP 1/2.7″ CMOS, resolution up to 2592×1944
Motorized varifocal lens 2.7–13.5 mm with autofocus
LightHunter low-light imaging technology
120 dB true WDR, 2D/3D DNR, digital defog
Smart IR up to 40 m, ICR day/night
Built-in microphone for audio recording
Ultra 265 / H.265 / H.264 / MJPEG compression
AI events: intrusion, line-cross, human/vehicle classification
Edge storage with microSD up to 256 GB
IK10 vandal-resistant and IP67 weatherproof
PoE (802.3af) or 12V DC power
Technical Specifications
Brand / Model (SKU)
Uniview UNV / IPC3235SB-ADZK-I0
Image Sensor
1/2.7″ CMOS, 5MP (2592×1944)
Lens
Motorized 2.7–13.5 mm, autofocus
WDR / DNR
120 dB true WDR, 2D/3D DNR
IR Range
Smart IR up to 40 m
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Audio
Built-in microphone
AI Analytics
Human/vehicle detection, intrusion, line crossing
Edge Storage
MicroSD up to 256 GB
Ingress / Impact
IP67 weatherproof / IK10 vandal-proof
Power
12V DC / PoE (802.3af)
What’s Included
Uniview UNV IPC3235SB-ADZK-I0 camera
Mounting accessories
Quick start guide
More Information
IPC3235SB-ADZK-I0 DatasheetUniview UNV Dome Cameras Quick Guide
UNV Network Cameras User Manual
Uniview UNV IPC3635SB-ADZK-I0 5MP LightHunter Motorized Varifocal Turret
The IPC3635SB-ADZK-I0 delivers sharp 5 MP video with
LightHunter low-light imaging, 120 dB true WDR, and a
2.7–13.5 mm motorized varifocal lens (≈5×) for flexible framing.
Smart IR provides night vision up to 40 m, while a
built-in microphone, IK10 vandal resistance, IP67 weather rating,
and microSD up to 512 GB make it a robust all-rounder for indoor/outdoor deployments.
Key Features
5 MP 1/2.7″ CMOS; up to 2880×1620 @ 30/25 fps
Motorized VF lens 2.7–13.5 mm (≈5× optical)
LightHunter & 120 dB WDR for challenging light scenes
Smart IR up to 40 m; 9:16 corridor mode
Built-in mic; Ultra 265 / H.265 / H.264 / MJPEG
Intelligent intrusion prevention (human/vehicle filtering), people flow & crowd density
Edge storage: microSD up to 512 GB
IK10 vandal resistance; IP67 weather protection
Technical Specifications
Brand / Model (SKU)
Uniview UNV / IPC3635SB-ADZK-I0
Image Sensor / Max Res
1/2.7″ CMOS / 5 MP (2880×1620 @ 30/25 fps)
Other Resolutions
4 MP 2560×1440; 3 MP 2304×1296; 1080p 1920×1080 @ 30/25 fps
Lens
Motorized 2.7–13.5 mm, AF (≈5× optical)
Low-light / WDR
LightHunter; 120 dB true WDR
IR / Night
Smart IR up to 40 m; ICR day/night
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Audio
Built-in microphone
Analytics
Perimeter protection (line, intrusion, enter/leave), human/vehicle classification; people flow & crowd density
Edge Storage
microSD up to 512 GB
Ingress / Impact
IP67; IK10
Power
DC 12 V or PoE (802.3af)
What’s Included
Uniview UNV IPC3635SB-ADZK-I0 camera
Mounting hardware & quick guide
More Information
Uniview UNV IPC3635SB-ADZK-I0 Datasheet
Uniview UNV IPC3635SB-ADZK-I0 Product Page
Prime-II Series | Active Deterrence
UNV 6MP Intelligent Active Deterrence Fixed Bullet Camera
The UNV IPC2B16SS-ADF28KMC-I1 is a high-performance 6MP surveillance solution designed to stop intruders in their tracks. Available in Professional Black and Classic White, this camera features Active Deterrence technology, utilizing red and blue warning lights and a built-in speaker to provide audible and visual warnings. With LightHunter low-light performance and a 40m Dual Light system, it ensures total protection day and night.
Resolution
6MP HD @ 25fps
Deterrence
Red/Blue Light + Siren
Night Vision
40m Dual Light
Audio
Two-Way Talk
Frequently Asked Questions
How does the "Active Deterrence" work?
When the camera detects a human or vehicle, it triggers flashing Red and Blue warning lights and a customizable siren to discourage intruders.
What is "Dual Light" technology?
It uses both Infrared and Warm White Light. It can switch to white light upon detection to capture full-color evidence while acting as a security floodlight.
Can I use this for two-way communication?
Yes. With a built-in microphone and speaker, you can listen and speak back through the app to warn trespassers or greet visitors.
Does the White Light stay on all night?
You can choose! Set it to "Dual-Light Mode" so the white light only turns on when a person is detected, or keep it on constant for better area lighting.
DORI Distance Guide
Performance Detail
2.8mm Wide Lens (112.8°)
4.0mm Narrow Lens (91.2°)
Detect
63.0m (206.7ft)
90.0m (295.3ft)
Observe
25.2m (82.7ft)
36.0m (118.1ft)
Recognize
12.6m (41.3ft)
18.0m (59.1ft)
Identify
6.3m (20.7ft)
9.0m (29.5ft)
Full Technical Specifications
Sensor & Resolution
1/2.7" 6MP CMOS (3072 x 2048) @ 25fps
Wide Dynamic Range
130dB True WDR
Low Light Rating
0.001 Lux (F1.0) LightHunter Tech
Deterrence Features
Red/Blue Flashing Lights | Built-in Siren
Audio
Built-in Mic & Speaker (Two-Way Audio)
Night Vision
40m IR & 40m Warm White Light (Dual Light)
Smart Features
SIP (Human/Vehicle Class), People Counting
Protection
IP67 Weatherproof | Rugged Housing
Downloads & Resources
Download Datasheet Official UNV 6MP KMC PDF
NDAA Compliant
Proactive AI
3-Year Warranty
Prime-II Series | LightHunter
UNV 6MP Intelligent LightHunter IR Fixed Bullet Camera
The UNV IPC2B16SS-ADF28K-I1 is a high-performance 6MP bullet camera designed for long-range perimeter protection and superior night-time clarity. Available in Professional Black and Classic White, this model features an expansive 80m Smart IR range and 130dB True WDR, making it the ideal solution for large residential driveways and expansive commercial yards[cite: 25, 28, 32].
Resolution
6MP @ 30fps
Low Light
LightHunter
Night Vision
80m Smart IR
Frequently Asked Questions
Which colors are available for this SKU?
This model is available in two finishes: Classic White (IPC2B16SS-ADF28K-I1) and Stealth Black (IPC2B16SS-ADF28K-I1-BK). Both feature the same high-spec 6MP internals.
How far can this camera see at night?
Equipped with powerful 850nm LEDs, this camera provides a Smart IR distance of up to 80 meters (262 feet), allowing for clear identification even in total darkness[cite: 28, 32].
What is Smart Intrusion Prevention (SIP)?
SIP uses deep learning AI to significantly reduce false alarms by accurately classifying humans, motor vehicles, and non-motor vehicles[cite: 19, 20, 36].
DORI Distance Guide
Performance Detail
2.8mm Lens (110.0° Field of View) [cite: 32]
Detect (Identify Movement)
63.0m (206.7ft) [cite: 32]
Observe (Clothing/Type)
25.2m (82.7ft) [cite: 32]
Recognize (Known Face)
12.6m (41.3ft) [cite: 32]
Identify (Proof/Evidence)
6.3m (20.7ft) [cite: 32]
Full Technical Specifications
Sensor & Resolution
1/2.7" 6MP CMOS (3072 x 2048) @ 30fps [cite: 15, 16, 32]
Wide Dynamic Range
130dB True WDR [cite: 25, 32]
Min. Illumination
Color: 0.002 Lux (F1.6, AGC ON) [cite: 32]
Video Compression
Ultra 265, H.265, H.264, MJPEG [cite: 17, 32]
Audio Features
Built-in Microphone for real-time audio [cite: 11, 27]
Local Storage
Micro SD Slot, up to 512 GB [cite: 29, 40]
Environmental
IP67 Weatherproof | Rugged Metal Housing [cite: 30, 40]
Power Options
DC 12V±25% or PoE (IEEE 802.3af) [cite: 40]
Downloads & Resources
Download Datasheet Official UNV 6MP Bullet PDF
Download User Manual Official UNV 6MP Bullet User Manual PDF
NDAA Compliant
Smart Intrusion
3-Year Warranty
Prime-II Series | LightHunter
UNV 8MP Intelligent LightHunter IR Fixed Dome Camera
The UNV IPC328SS-ADF28K-I1 is a high-performance 8MP 4K dome camera available in both Professional Black and Classic White finishes. Engineered with a superior 1/2.8" sensor and LightHunter technology, it delivers vivid color imaging in ultra-low light conditions. With its robust IK10 vandal-proof housing and 40m Smart IR, it provides uncompromising security for high-end residential and commercial estates.
Resolution
8MP 4K HD
Low Light
LightHunter
Night Vision
40m Smart IR
Frequently Asked Questions
Is this camera available in different colors?
Yes, this model is available in both Classic White and Stealth Black (IPC328SS-ADF28K-I1-BK). Use the dropdown menu to select the finish that best fits your environment.
What makes the Prime-II Series different?
The Prime-II series features a larger 1/2.8" CMOS sensor compared to the 1/3" sensors found in entry-level 4K cameras, resulting in significantly better light intake and image clarity.
Can it filter false alarms?
Yes. It utilizes Smart Intrusion Prevention (SIP) to classify humans and vehicles, ensuring you only receive alerts for genuine security threats rather than moving trees or rain.
DORI Distance Guide
Performance Detail
2.8mm Lens (97.5°)
4.0mm Lens (88.4°)
Detect
86.9m (285.1ft)
124.1m (407.2ft)
Observe
34.8m (114.2ft)
49.7m (163.1ft)
Recognize
17.4m (57.1ft)
24.8m (81.4ft)
Identify
8.7m (28.5ft)
12.4m (40.7ft)
Full Technical Specifications
Sensor & Resolution
1/2.8" 8MP CMOS (3840 x 2160) @ 30fps
Wide Dynamic Range
130dB True WDR
Min. Illumination
Color: 0.002 Lux (F1.6, AGC ON)
Video Compression
Ultra 265, H.265, H.264, MJPEG
Intelligent Features
SIP, Human/Vehicle Classification, People Counting
Audio & Alarm
Built-in Mic | 1 In / 1 Out Alarm & Audio I/O
Protection
IP67 Weatherproof | IK10 Vandal-Resistant
Local Storage
Micro SD Slot, up to 512 GB
Downloads & Resources
Download Datasheet Official UNV Prime-II PDF
NDAA Compliant
Human/Vehicle AI
3-Year Warranty
Prime-I Series | 180° OmniView
UNV 8MP Intelligent OmniView 180° Fixed IR Dome Camera
The UNV IPC3608SB-ADF16KM-I0 is an ultra-wide surveillance powerhouse that delivers a seamless 180° horizontal field of view. Built with 8MP 4K resolution, it eliminates blind spots by covering massive areas with a single lens. Featuring Smart Intrusion Prevention (SIP) and IK10 vandal resistance, it is the ultimate solution for monitoring car parks, building facades, and wide-open retail spaces.
Field of View
180° Panoramic
Resolution
8MP 4K HD
Durability
IK10 Vandal
DORI Distance Guide
Performance Detail
1.68mm Ultra-Wide Lens (180°)
Detect (Identify Movement)
37.8m (124.0ft)
Observe (Clothing/Type)
15.1m (49.6ft)
Recognize (Known Face)
7.6m (24.9ft)
Identify (Proof/Evidence)
3.8m (12.5ft)
*Note: 180° lenses prioritize massive area coverage over long-distance identification.
Full Technical Specifications
Sensor & Resolution
1/2.7" 8MP CMOS (3840 x 2160) @ 30fps
Field of View
Horizontal: 180° | Vertical: 100°
Video Compression
Ultra 265, H.265, H.264, MJPEG
Wide Dynamic Range
120dB True WDR
Minimum Illumination
0.01 Lux (F2.0, AGC ON) | 0 Lux with IR
Smart IR Distance
Up to 20m (66ft) Night Vision
Audio Features
Built-in Microphone for audio recording
Intelligent SIP
Line Crossing, Intrusion (Human & Vehicle Filter)
Local Storage
Micro SD Slot, up to 512 GB
Environmental
IP67 Weatherproof | IK10 Vandal-Resistant
Power Options
DC 12V±25% or PoE (IEEE 802.3af)
Frequently Asked Questions
Does the 180° view look distorted?
This model uses advanced 1.68mm panoramic optics to provide a natural wide-view. While there is a slight "fisheye" effect at the edges, the dewarping is built-in to ensure a flat, usable 180° perspective for security monitoring.
How many standard cameras does this replace?
Typically, one 180° OmniView camera can replace two standard 90° cameras. This saves you money on cabling, NVR channel licensing, and installation time.
Where is the best place to mount it?
For maximum effect, mount this camera on flat walls or above wide entrances. It is designed to capture everything from far-left to far-right, making it perfect for monitoring the entire front of a building or a wide fence line.
Can I record audio with this camera?
Yes. The IPC3608SB-ADF16KM-I0 features a built-in high-sensitivity microphone, allowing you to capture environmental audio alongside your 4K video footage.
Downloads & Resources
Download Datasheet Official UNV 180° Series PDF
NDAA Compliant
180° Panoramic
3-Year Warranty
Prime-I Series | LightHunter
UNV 8MP Intelligent LightHunter IR Fixed Mini Dome Camera
The UNV IPC318SB-ADF28K-I0 is a high-performance 4K security solution engineered for superior clarity in challenging environments. Featuring LightHunter technology, it delivers vivid images in ultra-low light conditions where standard cameras fail. With its compact, vandal-resistant (IK10) design and 120dB True WDR, this camera is the professional choice for high-end Australian residential and commercial monitoring.
Resolution
8MP 4K Ultra HD
Low Light
LightHunter
Durability
IK10 Vandal-Proof
DORI Distance Guide
Performance Detail
2.8mm Wide Angle Lens (101.1°)
Detect (Identify Movement)
63.0m (206.7ft)
Observe (Clothing/Type)
25.2m (82.7ft)
Recognize (Known Face)
12.6m (41.3ft)
Identify (Proof/Evidence)
6.3m (20.7ft)
*DORI distances are based on 8MP sensor performance specifications.
Full Technical Specifications
Sensor & Resolution
1/3" 8MP CMOS (3840 x 2160) @ 20fps
Low-Light Tech
LightHunter: 0.002 Lux (F1.6) for color imaging in near-darkness
Video Compression
Ultra 265, H.265, H.264, MJPEG
Wide Dynamic Range
120dB True WDR
Audio Features
Built-in Microphone for real-time audio monitoring
Local Storage
Micro SD Slot, up to 512GB
Vandal Resistance
IK10 Rated Vandal-Resistant Housing
Weather Protection
IP67 Rated Weatherproof
Adjustment
3-Axis for flexible wall or ceiling mounting
Power Options
DC 12V±25% or PoE (IEEE 802.3af)
Downloads & Resources
Download Datasheet Official 8MP Mini Dome PDF
NDAA Compliant
Ultra Motion Detection
3-Year Warranty
UNV Pro Series · MultiView · IPC8645EA-ADZKM-I1
Uniview 20MP 4×5MP MultiView LightHunter Varifocal Dome CameraIPC8645EA-ADZKM-I1 — Four Cameras. One Cable. Total Coverage.
The Uniview IPC8645EA-ADZKM-I1 is a landmark product — a single dome housing containing four independent 5MP LightHunter sensors, delivering 20MP of combined resolution across four fully adjustable channels, all through a single PoE++ cable run. Each lens can be independently panned, tilted, rotated and zoomed via a 2.7–13.5 mm motorised varifocal optic, enabling one camera to replace what would traditionally require four separate installs — saving cabling, labour, NVR ports and ongoing maintenance costs. With 130 dB WDR, Wise-ISP processing, AI Smart Intrusion Prevention, built-in microphones and robust IP67/IK10 construction, this is the definitive multi-sensor camera for complex commercial, retail and enterprise deployments in Australia.
Resolution
4×5MP · 20MP Total
Channels
4 Independent · 1 IP
Lens (each)
2.7–13.5 mm Motorised
IR Distance
50 m Smart IR (each)
AI Detection
SIP · Per-Channel Analytics
Power
PoE++ (802.3bt) · 1 Cable
Free AU Shipping Over $199
3-Year Manufacturer Warranty
Sydney-Based Expert Support
Four Cameras in One — The MultiView Advantage
Traditional multi-point coverage requires running four separate cable home-runs, four IP addresses, four NVR channels configured individually, four sets of mounting hardware and — when something goes wrong — four service callouts. The IPC8645EA-ADZKM-I1 collapses all of that into a single PoE++ cable, a single IP address and a single mounting point. The four lenses sit on an internal rail system that allows each to be independently adjusted across a full 360° pan, 0–90° tilt and full rotation during installation, then locked in position. After installation, zoom and autofocus are controlled remotely via the NVR or UNV-Link app — no trades visit required to refine the framing.
1 IP Address · 4 Channels All four lenses share one IP address on your network, but each presents as a separate Remote Camera ID on your NVR — plug-and-play setup with any Uniview NVR and most ONVIF recorders.
360° Scene Coverage With four independently aimed lenses, a single ceiling mount can simultaneously cover every corridor, all four corners of a room, or an entire carpark intersection — no blind spots.
Single PoE++ Cable Run IEEE 802.3bt PoE++ delivers up to 90W through one Cat6 cable — powering all four sensors, IR illuminators and electronics without any additional power supply or junction box.
Independent Per-Channel Analytics Each of the four channels can run a different AI function simultaneously — cross line on channel 1, intrusion detection on channel 2, people counting on channel 3, and tamper detection on channel 4.
Motorised 5× Optical Zoom (each lens) The 2.7–13.5 mm motorised varifocal lens on each sensor provides 5× optical zoom, adjustable remotely — wide enough to cover a full room at 2.7 mm, tight enough to identify faces at distance at 13.5 mm.
Significant Labour & Cost Savings Four separate cameras require four cable runs, four mounting brackets, four NVR licences and four times the ongoing maintenance. The IPC8645EA-ADZKM-I1 eliminates all of that with a single install.
LightHunter × Wise-ISP — Exceptional Low-Light on Every Channel
Each of the four sensors in the IPC8645EA-ADZKM-I1 is a full 1/2.7" LightHunter CMOS, achieving 0.001 Lux minimum illumination — producing vivid, full-colour footage in near-total darkness. This is complemented by Uniview's Wise-ISP (Wise Image Signal Processing) engine, which applies intelligent scene analysis to suppress noise, reduce motion blur and maintain colour accuracy as lighting changes throughout the day and night. The result is four channels of exceptional image quality that remains consistent whether the scene is brightly lit, in mixed light, or virtually dark.
0.001 Lux Per Channel Each 5MP sensor achieves 0.001 Lux minimum illumination — producing usable colour footage in conditions that would reduce a standard camera to grainy black-and-white.
130 dB True WDR Industry-leading dynamic range handles extreme contrast scenes — vehicle headlights against dark backgrounds, bright sunlit entrances, and mixed indoor/outdoor lighting — on all four channels simultaneously.
50 m Smart IR (per lens) Each lens has dedicated Smart IR illuminators that automatically adjust intensity at close range to prevent overexposure while maintaining illumination at 50 m — giving 200 m of combined IR reach across the four channels.
Wise-ISP Processing Uniview's Wise-ISP engine delivers intelligent adaptive image processing per-channel — reducing blur on moving objects, suppressing digital noise in low light, and maintaining true colour reproduction throughout the day.
2D/3D Digital Noise Reduction Combined DNR across all four channels keeps recordings clean and file sizes manageable even in challenging lighting — reducing storage pressure on connected NVRs.
HLC / BLC / Digital Defog Highlight compensation, backlight compensation and digital defog are independently configurable per channel — each lens can be optimised for its specific viewing direction and lighting environment.
Per-Channel AI Analytics — Different Functions Running Simultaneously
One of the most powerful aspects of the IPC8645EA-ADZKM-I1 is its ability to run different AI analytics functions on each channel at the same time. Channel 1 might run people counting at the entrance, channel 2 intrusion detection in the stockroom, channel 3 cross line at the loading dock, and channel 4 crowd density monitoring in the main hall — all from a single device, with no additional processing hardware required.
Smart Intrusion Prevention Cross line, intrusion, enter area and leave area detection per channel, with AI classification filtering out birds, leaves and lights — triggering only on verified humans, vehicles and non-motor vehicles.
People Counting & Crowd Density Track foot traffic flow and set occupancy alerts on a per-channel basis — enabling real-time monitoring of multiple zones from a single camera.
Motion & Ultra Motion Detection Standard motion detection and advanced Ultra Motion Detection available per channel for scenarios where AI classification is not required — maximising flexibility across different zones.
Tamper & Audio Detection Per-channel tampering alerts trigger if any individual lens is obscured or repositioned. Audio detection is available across all channels via the built-in microphones.
Pro-Grade Construction for Demanding Environments
The IPC8645EA-ADZKM-I1 is a professional-series product and its physical construction reflects that. The housing weighs approximately 5 kg, is constructed primarily from metal, and carries IP67 weatherproof and IK10 vandal-resistant ratings — making it equally suitable for indoor ceiling mounts in retail environments and exposed outdoor installs on building perimeters. The wide −30°C to +60°C operating range covers every Australian climate from alpine to tropical.
IP67 Weatherproof Complete protection against dust ingress and sustained water exposure — suitable for covered outdoor mounting on building soffits, canopies and entry porticos.
IK10 Vandal Resistant The highest standardised impact protection rating — the reinforced dome cover resists deliberate strikes and accidental impacts at the full 20-joule test level.
Built-in Microphones Factory-fitted microphones capture ambient audio across all channels — providing the critical contextual audio that silent footage cannot, without requiring any additional cabling.
Full Technical Specifications
Model
IPC8645EA-ADZKM-I1
Sensor (per channel)
1/2.7" CMOS LightHunter · 5MP
Number of Sensors
4 independent sensors
Combined Resolution
20MP (4 × 5MP)
Max Resolution (each)
5MP (2880 × 1620) @ 30fps
Min. Illumination
0.001 Lux (F1.6, AGC ON) · 0 Lux with IR
WDR
130 dB True WDR
Wise-ISP
Support
Focal Length (each)
2.7–13.5 mm motorised varifocal (5× optical zoom)
H. Field of View (each)
110.3° (wide) → 31° (tele)
Lens Adjustment
Pan 0–360° · Tilt 0–90° · Rotate 0–360° (each, independent)
IR Distance (each)
Smart IR up to 50 m (164 ft)
IR Wavelength
850 nm
Video Compression
Ultra 265 · H.265 · H.264 · MJPEG
Video Streams
Triple streams per channel
Video Bit Rate
128 Kbps – 16 Mbps
AI — Per Channel
Cross line · Intrusion · Enter/Leave area · People counting · Crowd density · Tamper · Audio detection · Motion · UMD
Simultaneous Analytics
Different functions per channel enabled simultaneously
Built-in Mic
Yes (all channels)
Audio I/O
1 in / 1 out · Two-way audio · G.711U/A
Alarm I/O
1 in / 1 out
Edge Storage
MicroSD up to 512 GB (1TB noted by some distributors)
Network Storage
ANR · NAS (NFS)
Network
RJ45 · PoE++ (IEEE 802.3bt) · AC/DC 24V
Max Power
34 W (PoE++)
Protocols
IPv4/6 · ONVIF S/G/T/M · RTSP · RTMP · HTTPS · 802.1x · SNMP · SSH
Protection
IP67 · IK10
Operating Temp
−30°C to +60°C · ≤95% RH non-condensing
Weight
~5 kg
Certifications
CE · FCC · CB · UL/CUL · NDAA Compliant
Compatible NVR
Uniview Pro/Prime NVR · ONVIF VMS (4 channels per camera)
Client Software
UNV-Link · UNV-Link Pro · EZStation
Ideal Applications
Retail & Shopping Centres A single ceiling mount at an intersection covers all four aisles simultaneously. People counting per channel delivers accurate foot traffic analytics across multiple zones without any additional hardware.
Warehouses & Distribution Centres Cover loading docks, pick zones, exit points and general aisles from a single high-ceiling mount — saving dozens of cable runs in large-span facilities while running different AI events per zone.
Transport Hubs & Stations Ideal for concourse, platform and entry coverage where wide-area monitoring is needed from limited mounting points — four independent 5MP channels provide the resolution and coverage needed for high-traffic public spaces.
Hospitals & Healthcare Facilities Minimise cable penetrations through clinical areas by replacing multiple camera runs with a single conduit feed — while independently monitoring waiting rooms, corridors, dispensary zones and exits.
Car Parks & Multi-Level Facilities Mount at ramp intersections or ceiling columns to cover all approach directions simultaneously — each lens can be independently zoomed to capture plates on entry lanes while covering general movement on others.
Enterprise & Government Campuses NDAA-compliant hardware, IK10 impact resistance, and per-channel AI analytics satisfy enterprise procurement requirements while dramatically reducing infrastructure costs across large campuses.
Important NVR Channel Requirement
Please note: although the IPC8645EA-ADZKM-I1 uses a single IP address and a single cable, it occupies 4 channels on your NVR — one per sensor. Before purchasing, ensure your NVR has at least 4 available channels. The camera uses the same IP address for all four lenses, but each is assigned a different Remote Camera ID (1–4) when added to the recorder. It is compatible with Uniview Pro and Prime series NVRs, as well as any ONVIF Profile S/G/T/M recorder with sufficient channel capacity.
Frequently Asked Questions
Does this camera really replace four separate cameras? For most installations, yes. Each of the four 5MP sensors is a fully independent, full-featured channel with its own IR illumination, AI analytics and motorised zoom lens. The main consideration is that each lens still occupies one NVR channel — so you need 4 free channels on your recorder, even though only one cable is run to the camera.
What PoE switch or injector does this camera need? The IPC8645EA-ADZKM-I1 requires IEEE 802.3bt PoE++ (Type 4), which delivers up to 90W. Standard PoE (802.3af, 15.4W) or PoE+ (802.3at, 30W) switches will not provide sufficient power. Use a PoE++ capable switch or injector, or power via the AC/DC 24V input.
Can each lens run a different AI detection function? Yes — this is one of the camera's key differentiators. Each channel can be independently configured with a different Smart Intrusion Prevention event, people counting zone, or motion detection setting, all running simultaneously from the single device.
Can I adjust the zoom of each lens after installation? Yes. The motorised varifocal lens on each sensor can be zoomed and autofocused remotely via the NVR interface, EZStation desktop software or the UNV-Link mobile app — no physical access to the camera is required after mounting.
Is this camera suitable for outdoor installation? Yes. The IP67 rating provides complete protection against dust and sustained water exposure. However, for exposed outdoor installations where the camera body will be directly rained on, we recommend using the compatible junction box and ensuring cable entry points are properly sealed.
What is Wise-ISP? Wise-ISP (Wise Image Signal Processing) is Uniview's advanced per-channel image processing engine. It analyses the scene in real time and applies adaptive noise reduction, motion de-blur, and colour correction — producing consistently sharper and more colour-accurate footage compared to standard ISP processing, particularly in low-light and mixed-light conditions.
Is this camera NDAA compliant? Yes. The IPC8645EA-ADZKM-I1 is NDAA (National Defense Authorization Act) compliant, making it suitable for security-sensitive procurement requirements in both government and enterprise contexts.
Which Uniview NVRs are compatible? The camera is natively compatible with all current Uniview Pro and Prime series NVRs that have at least 4 available channels. It is also ONVIF Profile S/G/T/M compliant for use with third-party VMS platforms including Milestone, Genetec, Blue Iris and others.
Downloads & Resources
Download Datasheet IPC8645EA-ADZKM-I1 · PDF User Manual UNV MultiView Network Camera · PDF Quick Start Guide UNV · Quick Start Guide PDF
Genuine UNV Product · AU Stock
Fast Dispatch · Sydney Warehouse
Pre-Sales & Tech Support Available
UNV Prime Series · IPC2B26SS-ADZK-I1
Uniview 6MP LightHunter Varifocal IR Bullet CameraIPC2B26SS-ADZK-I1 — Smarter Detection. Sharper Night Vision.
The Uniview IPC2B26SS-ADZK-I1 is a professional-grade 6MP varifocal bullet camera that takes everything installers love about the Prime series and pushes it further. An ultra-fast F1.2 aperture combined with Uniview's LightHunter technology delivers full-colour images at an extraordinary 0.002 Lux — capturing clothing colours, vehicle makes and facial detail in conditions that render standard cameras completely blind. With 60 m Smart IR, a 130 dB true WDR engine, AI-powered Smart Intrusion Prevention with colour retrieval, and a built-in microphone, this is one of the most capable mid-resolution bullet cameras available in Australia today.
Resolution
6MP · 3K HD
Lens
2.7–13.5 mm · F1.2
IR Night Vision
60 m Smart IR
Protection
IP67 · IK10 · 6 kV Surge
AI Detection
SIP + Colour Retrieval
Audio
Built-in Mic + Two-Way
Free AU Shipping Over $199
3-Year Manufacturer Warranty
Sydney-Based Expert Support
LightHunter + F1.2 Aperture — The Brightest Eyes at Night
The IPC2B26SS-ADZK-I1 takes low-light performance a step further than the standard Prime-I range. Its F1.2 large-aperture lens — one of the fastest apertures available on a production bullet camera — admits significantly more light than a conventional F1.6 lens, working in concert with the LightHunter 1/2.7" CMOS sensor to achieve a minimum illumination of just 0.002 Lux. The result is vivid, full-colour night footage at 0.002 Lux — a level of darkness where the human eye itself struggles to see. Add 130 dB true WDR (10 dB more than many competing cameras) and Uniview's Auto Scene Match (ASM) technology, and you have a camera that handles every lighting challenge the Australian environment can throw at it.
0.002 Lux Minimum Illumination
One of the lowest lux ratings in the Prime series. Captures full-colour detail in near-total darkness — ideal for unlit car parks, rural laneways and dimly lit building approaches.
130 dB True WDR
Industry-leading dynamic range simultaneously handles the glare of direct sunlight and deep shadow in the same frame — critical for gate entries, shopfronts and lobby areas.
60 m Smart IR
When ambient light drops to absolute zero, adaptive Smart IR takes over — automatically adjusting LED intensity to prevent overexposure at close range while maintaining reach at 60 m.
Auto Scene Match (ASM)
Uniview's ASM technology intelligently analyses the scene and adjusts WDR processing in real time — reducing motion blur and colour shift as lighting conditions change throughout the day.
2D/3D Digital Noise Reduction
Combined DNR eliminates the colour noise and grain that plague cameras in low light, ensuring recordings remain clean and file sizes stay manageable even in challenging conditions.
Digital Defog
Built-in defog processing cuts through haze, smoke and fog to restore contrast and detail — valuable for coastal sites, industrial facilities and early-morning monitoring.
Smart Intrusion Prevention with Colour Retrieval
The IPC2B26SS-ADZK-I1 goes beyond standard AI classification with a standout feature not found on every Prime-I model: SIP with Colour Retrieval. When an intrusion event is triggered, the camera doesn't just log that a human was detected — it also captures and stores colour attribute data including clothing colour, enabling security operators to rapidly search recorded footage by suspect description. Combined with the full suite of Smart Intrusion Prevention analytics, this camera dramatically reduces both false alarms and investigation time.
Cross Line Detection
Define a virtual tripwire in any direction across the scene. Alerts trigger only when a classified human or vehicle crosses in the direction you specify — not on reverse movement.
Intrusion Detection
Draw a custom polygon zone anywhere in the frame. Receive alerts only when a classified target enters and dwells within that zone for a minimum configurable duration.
Enter / Leave Area Detection
Independently trigger on targets entering or exiting a zone — critical for restricted-access areas like plant rooms, server rooms and after-hours monitoring of warehouse yards.
Colour Retrieval
A unique attribute-collection feature that records the dominant clothing or vehicle colour of detected targets, enabling rapid forensic search — find a person in a red jacket across hours of footage in seconds.
People Counting & Crowd Density
Track foot traffic flow and trigger alerts when occupancy exceeds a set threshold — useful for compliance monitoring, retail analytics, and building management in high-traffic venues.
Object Left Behind / Removed
Detect unattended bags or removed assets within a monitored zone — an advanced event type particularly useful for transport hubs, reception areas and high-value storage zones.
2.7–13.5 mm Motorised Varifocal Lens
The motorised 2.7–13.5 mm lens provides an exceptional zoom range that covers virtually every common surveillance scenario from a single camera model. At 2.7 mm the horizontal field of view opens to 106.3° for wide-area coverage of car parks, yards or open spaces. At 13.5 mm the field narrows to 32.5° for tight identification coverage of entry points, gates and distant areas of interest. Crucially, both zoom and autofocus are adjusted remotely — no need to physically access the camera body after installation.
Horizontal FOV: 106.3° → 32.5°
Wide enough at 2.7 mm to cover an entire car park entrance, narrow enough at 13.5 mm to identify faces and plate numbers at meaningful distances.
DORI Identify Range: 6.1–30.4 m
Positively identify individuals at up to 6.1 m at wide angle and up to 30.4 m at full zoom — suitable for pedestrian entry points, lobbies and gated driveways.
DORI Detect Range: up to 303.8 m
At 13.5 mm, movement is detectable at over 300 m — making this camera viable for large open areas, rural properties and perimeter fence lines.
Built-in Microphone & Two-Way Audio
Unlike the IPC2328SB-DZK-I0, this model includes a factory-fitted built-in microphone, removing the need for a separate external audio input in most installations. Audio is captured continuously alongside video, providing the critical context that silent footage cannot — raised voices, breaking glass, vehicle engines, or verbal exchanges near the camera. The camera also supports full two-way audio via the audio I/O terminals, enabling live voice communication through a connected speaker when integrated with a VMS or NVR that supports the feature.
Built for Australian Conditions
The IPC2B26SS-ADZK-I1 is housed in a metal and reinforced plastic body rated to IP67 for complete dust and water protection and IK10 for maximum impact resistance. A 6 kV surge protector guards the electronics against lightning strikes — an important consideration for Queensland and regional installations. Operating range of −30°C to +60°C covers everything from alpine locations to the hottest Australian summer days.
IP67 Weatherproof
Total protection against dust and sustained water exposure — suitable for exposed eaves, coastal properties and open industrial sites.
IK10 Vandal Resistant
The highest standardised impact protection level, capable of withstanding a 20-joule strike — resistant to deliberate tampering and accidental contact.
6 kV Surge Protection
Factory-fitted surge protection on the network port guards against lightning-induced voltage spikes — reducing costly camera replacements in storm-prone regions.
Ultra 265 Compression, Triple Streams & 512 GB Edge Storage
Uniview's Ultra 265 codec reduces storage and bandwidth requirements by up to 90% compared with H.264, dramatically extending recording retention on any given NVR hard drive. The camera outputs three simultaneous independent streams — a full-resolution main stream for NVR recording, a reduced stream for remote mobile viewing, and a third for analytics platforms or integrations. On-camera MicroSD storage up to 512 GB provides automatic backup recording if the network connection is interrupted, ensuring no footage is lost during an outage.
Full Technical Specifications
Model
IPC2B26SS-ADZK-I1
Sensor
1/2.7" CMOS
Max Resolution
6 MP (3072 × 2048)
Frame Rate
6MP @ 25fps · 5MP @ 30fps · 4MP @ 30fps · 3MP @ 30fps · 1080P @ 30fps
Min. Illumination
Colour: 0.002 Lux (F1.2, AGC ON) · 0 Lux with IR
WDR
130 dB True WDR
S/N Ratio
> 56 dB
Day/Night
IR-cut filter with auto switch (ICR)
Auto Scene Match
Support (WDR mode)
Focal Length
2.7–13.5 mm motorised varifocal
Aperture
F1.2
H. Field of View
106.3° (2.7 mm) → 32.5° (13.5 mm)
IR Distance
Smart IR, up to 60 m (196.9 ft)
IR Wavelength
850 nm
Video Compression
Ultra 265 · H.265 · H.264 · MJPEG
Video Streams
Triple streams simultaneous
Video Bit Rate
128 Kbps – 16 Mbps
AI — Smart IVS
Cross line · Intrusion · Enter area · Leave area (human / vehicle / non-motor vehicle classification)
Colour Retrieval
SIP with colour attribute collection
People Counting
Flow counting & crowd density monitoring
Basic Detection
Motion · Ultra motion · Tampering · Audio detection · Object removed · Object left behind
Built-in Mic
Yes
Audio I/O
1 in / 1 out · Two-way audio · G.711U/A · Echo suppression
Alarm I/O
1 in / 1 out
Edge Storage
MicroSD up to 512 GB
Network Storage
ANR · NAS (NFS)
Network
RJ45 10/100 M · PoE (IEEE 802.3af) · DC 12V±25%
Max Power
9.5 W
Protocols
IPv4/6 · ONVIF S/G/T/M · RTSP · RTMP · HTTPS · 802.1x · SNMP · QoS · SSH
Client Software
UNV-Link · UNV-Link Pro · EZStation
Corridor Mode
9:16 supported
Privacy Mask
Up to 4 areas
OSD
Up to 8 on-screen displays
Protection
IP67 · IK10 · 6 kV surge
Operating Temp
−30°C to +60°C · ≤95% RH non-condensing
Dimensions
324 × 126 × 130 mm · Weight: 1.48 kg
Housing Material
Metal + Plastic
Reset Button
Yes
Certifications
CE · FCC · CB · UL/CUL · IP67 (IEC 60529) · IK10 (IEC 62262) · RoHS · WEEE · NDAA Compliant
Ideal Applications
Commercial Perimeters & Fencelines
60 m Smart IR and a 303.8 m detection range at full zoom make this the go-to camera for large perimeter runs where long-distance detection and close-range identification both matter.
Retail & Shopping Centres
Colour Retrieval lets loss-prevention teams search footage by suspect clothing colour instantly. People counting and crowd density monitoring add valuable foot traffic analytics on the same device.
Transport Hubs & Car Parks
The Object Left Behind detection, combined with 130 dB WDR for handling the extreme contrast of covered car parks near open exits, makes this camera well-suited to high-traffic transit environments.
Schools & Government Campuses
NDAA-compliant hardware, IK10 vandal resistance and the built-in microphone satisfy the strict procurement, safety and compliance requirements of education and government facilities.
Strata & Multi-Tenancy Buildings
The built-in mic simplifies installation in stairwells, lift lobbies and entry points where running a separate audio cable is impractical. Triple streaming ensures compatibility with any VMS platform.
Industrial & Remote Sites
The −30°C to +60°C operating range, IP67 dust and water sealing, 6 kV surge protection and 512 GB local edge storage make this camera ready for off-grid and harsh-environment deployments.
Frequently Asked Questions
What is the difference between this camera and the IPC2328SB-DZK-I0?
The IPC2B26SS-ADZK-I1 offers a faster F1.2 aperture (vs F1.6), higher 130 dB WDR (vs 120 dB), longer 60 m IR (vs 50 m), a factory-fitted built-in microphone, Colour Retrieval, Object Left/Behind detection, and Auto Scene Match. The IPC2328SB-DZK-I0 offers higher 8MP resolution. Choose this model when low-light performance, audio and forensic search matter most; choose the IPC2328SB-DZK-I0 when maximum resolution is the priority.
What is Colour Retrieval and why does it matter?
Colour Retrieval is an AI attribute-collection feature that records the dominant colour of a detected target's clothing or vehicle at the moment of an intrusion event. This lets operators search recorded footage by colour description — dramatically reducing the time needed to locate a specific individual or vehicle across hours of recordings.
Does the built-in microphone work without an external NVR?
Yes — the microphone records audio to the on-camera MicroSD card alongside video when edge storage is configured. When connected to a Uniview NVR or ONVIF-compatible recorder, audio is also recorded centrally. Two-way audio requires a compatible NVR or VMS with speaker output capability.
Is this camera NDAA compliant?
Yes. The IPC2B26SS-ADZK-I1 is NDAA (National Defense Authorization Act) compliant, meaning it is approved for installation on US government properties and meets the requirements of security-sensitive sites in Australia that follow similar procurement guidelines.
Can I zoom and focus remotely after installation?
Yes. The motorised varifocal lens allows both zoom and autofocus to be adjusted remotely via the camera's web interface, EZStation, UNV-Link, or any compatible VMS — no physical access to the camera body required after mounting.
What is Auto Scene Match (ASM)?
ASM is a Uniview technology that automatically detects the current lighting conditions in the scene and adjusts WDR processing parameters in real time. This prevents the colour shift and motion blur that can occur when a camera transitions between different lighting states — for example, from direct sunlight to deep shadow.
Does this camera support PoE?
Yes — it supports IEEE 802.3af Power over Ethernet, allowing a single Cat6 cable to deliver both data and power. DC 12V via the coaxial power plug is also supported for installations where PoE is not available.
What software can I use to manage this camera?
The IPC2B26SS-ADZK-I1 is natively supported by Uniview's UNV-Link (mobile), UNV-Link Pro and EZStation (desktop) applications. It is also fully ONVIF Profile S/G/T/M compatible for use with Milestone, Genetec, iSpy, Blue Iris and most other third-party VMS platforms.
Downloads & Resources
Download Datasheet
IPC2B26SS-ADZK-I1 · PDF
Genuine UNV Product · AU Stock
Fast Dispatch · Sydney Warehouse
Pre-Sales & Tech Support Available
UNV Prime Series · IPC2328SB-DZK-I0
Uniview 8MP LightHunter Varifocal IR Bullet CameraIPC2328SB-DZK-I0 — See Everything, Miss Nothing
The Uniview IPC2328SB-DZK-I0 is an enterprise-grade 8MP (4K) varifocal bullet camera engineered for demanding outdoor surveillance. Featuring Uniview's proprietary LightHunter technology and a fast F1.6 motorised lens, it delivers strikingly bright, full-colour imagery even in near-zero-light environments — without switching to grainy black-and-white. Pair that with AI-powered Smart Intrusion Prevention that filters out leaves, birds and passing headlights to focus exclusively on humans, vehicles and motorbikes, and you get one of the most accurate and intelligent bullet cameras available in Australia today.
Resolution
8MP · 4K UHD
Lens
2.8–12 mm Motorised
IR Night Vision
50 m Smart IR
Protection
IP67 · IK10 · 6 kV Surge
AI Detection
Smart Intrusion Prevention
Local Storage
MicroSD up to 512 GB
Free AU Shipping Over $199
3-Year Manufacturer Warranty
Sydney-Based Expert Support
LightHunter Technology — True Colour in Darkness
Most cameras switch to black-and-white the moment light levels drop. The IPC2328SB-DZK-I0 is different. Its LightHunter sensor (1/2.8" CMOS) combined with an ultra-fast F1.6 aperture captures enough light at just 0.0025 Lux to produce vivid, full-colour images throughout the night — capturing clothing colours, vehicle colours, and skin tones that are critical for incident investigation and prosecution.
0.0025 Lux Minimum Illumination
Captures usable colour footage in conditions that render standard cameras completely blind — moonlit car parks, dimly lit driveways, and shadowed building perimeters.
120 dB True WDR
Simultaneously exposes both the blinding glare of a vehicle's headlights and the shadow behind them — ideal for entrance gates, carparks and loading docks.
50 m Smart IR
When there is genuinely zero ambient light, the adaptive Smart IR automatically adjusts intensity to prevent overexposure at close range while maintaining reach at distance.
AI-Powered Smart Intrusion Prevention
Traditional motion detection sends false alerts every time a tree branch moves, a cat walks past or a car headlight sweeps across the frame. The IPC2328SB-DZK-I0 uses an on-camera deep-learning engine that classifies moving objects into humans, vehicles, and non-motor vehicles in real time, then filters out everything else before the alert is ever triggered. The result is a dramatically lower false-alarm rate and an alert you can actually trust.
Cross Line Detection
Define a virtual tripwire across any part of the scene. Trigger an alert only when a human or vehicle crosses it in the direction you specify.
Intrusion Detection
Draw a polygon zone anywhere in the frame. Receive alerts only when a classified target enters and remains within that zone for a set duration.
Enter / Leave Area Detection
Separately trigger on targets entering or exiting a restricted zone — perfect for after-hours monitoring of yards, warehouses and plant rooms.
People Counting & Crowd Density
Track the flow of foot traffic and receive alerts when occupancy thresholds are exceeded — useful for retail analytics, queue management and safety compliance.
Ultra Motion Detection (UMD)
A secondary motion engine that works alongside AI classification to catch rapid movement events with exceptional speed and accuracy.
Tamper & Audio Detection
Receive instant alerts if the camera is obscured, repositioned, or if a loud event like breaking glass or raised voices is detected.
2.8–12 mm Motorised Varifocal Lens
The motorised zoom lens is one of the IPC2328SB-DZK-I0's most practical advantages for installers and end-users alike. Rather than needing to manually loosen, adjust and re-tighten a lens barrel at height, the zoom and focus can be controlled remotely via the web interface or your VMS. The 107.4° wide-angle at 2.8 mm covers full-room or wide-entrance scenes, while zooming to 12 mm narrows the field to 29.2° for detailed identification at range.
Horizontal FOV: 107.4° → 29.2°
Flexible coverage from wide-area monitoring to a focused corridor or entry point — all from a single camera model.
DORI Identify Range: 8.7–37.2 m
At the widest setting, positively identify faces at up to 8.7 m. At full zoom, that extends to 37.2 m — covering medium-distance gate and perimeter scenarios.
Detect Range: up to 372.4 m
At 12 mm, movement can be detected at over 370 m, making this camera viable for large open areas like industrial yards and rural properties.
Built for Australian Conditions
Mounted on a coastal property, a mine site or an inner-city car park, the IPC2328SB-DZK-I0 is engineered to endure. Its full-metal housing carries IP67 weather resistance (total dust ingress protection, submersion-proof to 1 m) and IK10 vandal resistance — the highest impact rating, able to withstand a 20-joule strike. A built-in 6 kV surge protector guards the electronics against lightning and power spikes — especially important in Queensland and other high-lightning-strike regions.
IP67 Weatherproof
Total protection against dust and sustained water exposure. Suitable for exposed outdoor installations including coastal environments.
IK10 Impact Rated
The highest standardised impact protection level. Resists deliberate tampering and accidental strikes from tools or debris.
–30°C to +60°C Operating Range
Works in the coldest alpine locations and the hottest Australian summer conditions without performance degradation.
Ultra 265 Compression & Flexible Storage
Uniview's proprietary Ultra 265 codec reduces bandwidth and storage requirements by up to 90% compared with H.264 while maintaining equivalent image quality — dramatically extending how far back your recordings go on a given hard drive. The camera supports triple simultaneous streams, so your 4K main stream goes to the NVR, a reduced-bitrate stream serves remote mobile viewing, and a third stream feeds analytics or a VMS platform. On-camera edge storage via MicroSD up to 512 GB provides backup recording if the network goes down.
Full Technical Specifications
Model
IPC2328SB-DZK-I0
Sensor
1/2.8" CMOS
Max Resolution
8 MP (3840 × 2160)
Frame Rate
8MP @ 20fps · 5MP @ 30fps · 4MP @ 30fps · 1080P @ 30fps
Min. Illumination
Colour: 0.0025 Lux (F1.6, AGC ON) · 0 Lux with IR
WDR
120 dB True WDR
S/N Ratio
> 56 dB
Day/Night
IR-cut filter with auto switch (ICR)
Focal Length
2.8–12 mm motorised varifocal
Aperture
F1.6
H. Field of View
107.4° (2.8 mm) → 29.2° (12 mm)
IR Distance
Smart IR, up to 50 m (164 ft)
IR Wavelength
850 nm
Video Compression
Ultra 265 · H.265 · H.264 · MJPEG
Video Streams
Triple streams simultaneous
Video Bit Rate
128 Kbps – 16 Mbps
AI — Smart IVS
Cross line · Intrusion · Enter area · Leave area (human / vehicle / non-motor vehicle classification)
People Counting
Flow counting & crowd density monitoring
Audio
1-in / 1-out · Two-way audio · G.711U/A · Echo suppression
Alarm I/O
1 in / 1 out
Edge Storage
MicroSD up to 512 GB
Network Storage
ANR · NAS (NFS)
Network
RJ45 10/100 M · PoE (IEEE 802.3af) · DC 12V±25%
Max Power
10.5 W
Protocols
IPv4/6 · ONVIF S/G/T/M · RTSP · RTMP · HTTPS · 802.1x · SNMP · SSH
Corridor Mode
9:16 supported
Privacy Mask
Up to 4 areas
OSD
Up to 8 on-screen displays
Protection
IP67 · IK10 · 6 kV surge
Operating Temp
−30°C to +60°C · ≤95% RH non-condensing
Dimensions
245 × 86 × 72 mm · Weight: 0.92 kg
Housing Material
Metal
Certifications
CE · FCC · CB · UL/CUL · IP67 (IEC 60529) · IK10 (IEC 62262) · RoHS · WEEE
Compatible Software
EZStation · EZAccess · UniEase · ONVIF VMS
Ideal Applications
Commercial Perimeters
Long-range detection and AI intrusion alerts make this the ideal choice for warehouse yards, industrial facilities and construction sites where perimeter breaches need to trigger immediate response.
Retail & Car Parks
People counting, crowd density monitoring and full-colour night vision help retailers understand traffic patterns while maintaining after-hours security across large, poorly lit car parks.
School & Government Campuses
IK10 vandal resistance and AI classification with people counting satisfy the strict requirements of education and government procurement, reducing liability from false alarms.
Residential Estates & Driveways
Motorised remote zoom means the camera can be precisely aligned to a long driveway or gate from the comfort of an app — no trades visit required once installed.
Strata & Multi-Tenancy Buildings
Triple streaming and ONVIF compatibility integrate seamlessly with any major VMS platform, while 512 GB local MicroSD provides redundant recording during network interruptions.
Mining & Remote Sites
The −30°C to +60°C operating range, IP67 dust sealing and 6 kV surge protection make this one of the toughest production-ready cameras available for harsh-environment deployment.
Frequently Asked Questions
Does this camera work with my existing Uniview NVR?
Yes. The IPC2328SB-DZK-I0 is fully compatible with all current Uniview NVRs (Prime and Pro series) and with any ONVIF Profile S/T/G/M-compliant recorder, including Hikvision, Dahua and Axis NVRs.
Can I zoom and focus the lens remotely after installation?
Yes — that is one of the key advantages of the motorised varifocal lens. Once mounted, zoom and autofocus are adjusted via the web interface or VMS without needing to physically access the camera body.
What is the difference between LightHunter and standard IR cameras?
Standard cameras switch to black-and-white when light drops below roughly 0.1–1.0 Lux. LightHunter cameras like the IPC2328SB-DZK-I0 maintain full colour at 0.0025 Lux thanks to the large-aperture F1.6 lens and a high-sensitivity CMOS sensor — meaning clothing colour and vehicle colour are visible all night.
How does Smart Intrusion Prevention reduce false alarms?
The camera's on-board deep learning engine analyses every detected object and classifies it as a human, vehicle, non-motor vehicle, or "other" before sending any alert. Tree branches, animals, rain and passing headlights all fall into "other" and are silently ignored — only verified human or vehicle activity triggers your alarm.
Does the IPC2328SB-DZK-I0 support PoE?
Yes. It supports IEEE 802.3af Power over Ethernet — a single Cat6 cable provides both data and power, simplifying installation and reducing cabling costs. DC 12V is also supported via the coaxial power plug.
What codec should I use to save storage space?
Use Ultra 265 — Uniview's proprietary codec that delivers the same image quality as H.265 but with up to 50% less bandwidth and storage consumption. This extends your recording retention significantly on any given NVR hard drive size.
Is the camera suitable for coastal or high-humidity environments?
Yes. IP67 certification guarantees complete protection against dust ingress and sustained water exposure. The operating humidity range of ≤95% RH (non-condensing) and the metal housing make it well-suited to coastal Australian conditions.
What software can I use to manage this camera?
The IPC2328SB-DZK-I0 is compatible with Uniview's EZStation (PC), EZAccess, and UniEase mobile apps. It also integrates with any ONVIF-compatible VMS such as Milestone, Genetec, iSpy and many others.
Downloads & Resources
Download Datasheet
IPC2328SB-DZK-I0 · PDF
User Manual
UNV Network Camera · PDF
Quick Start Guide
Installation Reference · PDF
Genuine UNV Product · AU Stock
Fast Dispatch · Sydney Warehouse
Pre-Sales & Tech Support Available
The Uniview UNV IPC2B18SE-ADF28KMC-WP-I1 is a high-performance 8MP OwlView Plus Tri-Guard fixed bullet IP camera engineered for demanding perimeter and long-range surveillance. Powered by a 1/1.8″ CMOS sensorand F1.0 large-aperture 2.8 mm lens, it delivers sharp 4K (3840×2160) images with outstanding low-light colour performance.
With ColorHunter + Wise-ISP, intelligent Tri-Guard dual-light illumination (IR + warm light), and advanced AI target classification, this camera provides accurate intrusion detection while dramatically reducing false alarms. Built-in people flow counting and crowd density monitoring make it ideal for retail, logistics, and commercial environments. Its IK10 vandal resistance, IP67 / NEMA 4X weatherproofing, and NDAA compliance ensure reliability for professional and government-grade deployments.
Key Features & Highlights
8MP 4K Resolution – up to 3840 × 2160 @ 30 fps
2.8 mm Fixed Lens, F1.0 large aperture (wide-angle)
ColorHunter + Wise-ISP for 24/7 full-colour imaging
Tri-Guard Dual-Light – IR + warm light, up to 40 m
130 dB True WDR for strong backlight scenes
AI Smart Intrusion Prevention – human / vehicle / non-motor vehicle classification
People Flow Counting & Crowd Density Monitoring
Built-in dual microphone & speaker (two-way audio)
Alarm I/O 1/1, Audio I/O 1/1
microSD edge storage up to 512 GB
Ultra 265 / H.265 / H.264 / MJPEG compression
IK10, IP67, NEMA 4X, metal + plastic housing
NDAA Section 889 compliant
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC2B18SE-ADF28KMC-WP-I1
Camera Type
8MP OwlView Plus Tri-Guard Fixed Dual-light Bullet IP Camera
Image Sensor
1/1.8" Progressive CMOS
Max Resolution
8MP (3840 × 2160) @ 30 fps
Lens
2.8 mm Fixed Lens, F1.0
Field of View
H 108.1° / V 59.5° / D 130.2°
Minimum Illumination
0.0005 Lux (Colour, F1.0, AGC ON)
Illumination
Dual-light (IR + Warm Light), up to 40 m
WDR
130 dB True WDR
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
AI Analytics
Line crossing, intrusion, enter/leave area, people counting, crowd density
Audio
Built-in dual mic & speaker, two-way audio
Alarm I/O
1 / 1
Edge Storage
microSD up to 512 GB
Network
1 × RJ45 10/100 Mbps Ethernet
Power
PoE (IEEE 802.3af) / DC 12 V
Power Consumption
Max. 6.2 W
Protection
IP67, IK10, NEMA 4X
Operating Temperature
-40 °C to 60 °C
Compliance
NDAA Section 889 compliant
Recommended Applications
Perimeter & fence-line protection
Retail stores (people counting & analytics)
Warehouses & logistics hubs
Commercial car parks
NDAA-compliant government projects
More Information
Uniview UNV IPC2B18SE-ADF28KMC-WP-I1 Datasheet Uniview UNV IPC2B18SE Series User Manual
The Uniview UNV IPC2B16SE-ADF28KMC-WP-I1 is a professional 6MP OwlView Plus Tri-Guard fixed bullet IP camera designed for long-range, full-colour surveillance and intelligent analytics. Featuring a 1/1.8″ CMOS sensor, F1.0 large-aperture 2.8 mm lens, and ColorHunter with Wise-ISP, it delivers clear, vibrant images even in extremely low-light environments.
This model combines dual-light illumination (IR + warm white light) with advanced AI-based intrusion prevention, people flow counting, and crowd density monitoring, dramatically reducing false alarms by accurately classifying humans, vehicles, and non-motor vehicles. With IK10 vandal resistance, IP67 weatherproofing, NEMA 4X protection, and NDAA compliance, it is ideal for demanding commercial, industrial, and government installations.
Key Features & Highlights
6MP High Resolution – 3072 × 2048 @ up to 30 fps
2.8 mm Fixed Wide-Angle Lens, F1.0 aperture
ColorHunter + Wise-ISP – 24/7 full-colour images
Tri-Guard Dual-Light – Smart IR + warm light, up to 40 m
130 dB True WDR – Excellent backlight handling
AI Smart Intrusion Prevention – Human / vehicle / non-motor classification
People Flow Counting & Crowd Density Monitoring
Built-in Dual Microphones & Speaker – Two-way audio
Alarm I/O 1/1, Audio I/O 1/1
microSD Edge Storage up to 512 GB
IK10, IP67, NEMA 4X – Vandal-resistant & outdoor-ready
Ultra 265 / H.265 / H.264 / MJPEG compression
PoE (IEEE 802.3af) or 12 V DC power
NDAA Section 889 compliant
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC2B16SE-ADF28KMC-WP-I1
Camera Type
6MP OwlView Plus Tri-Guard Fixed Bullet IP Camera
Image Sensor
1/1.8" Progressive CMOS
Maximum Resolution
6MP (3072 × 2048) @ 30 fps
Lens
2.8 mm Fixed Lens, F1.0
Field of View
H: 111.0° / V: 61.4° / D: 133.0°
Minimum Illumination
0.0003 Lux (Colour, F1.0, AGC ON)
Illumination
Dual-light: IR + Warm Light, up to 40 m
WDR
130 dB True WDR
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
AI Analytics
Line crossing, intrusion, enter/leave area, people counting, crowd density
Audio
Built-in dual mic & speaker, Audio I/O 1/1
Alarm I/O
1 / 1
Edge Storage
microSD up to 512 GB
Network Interface
1 × RJ45 10/100 Mbps Ethernet
Power
PoE (IEEE 802.3af) / DC 12 V
Power Consumption
Max. 5.0 W
Protection Rating
IP67, IK10, NEMA 4X
Operating Temperature
-40 °C to 60 °C
Compliance
NDAA Section 889 compliant
Recommended Applications
Retail & shopping centres (people counting)
Warehouses & logistics facilities
Car parks & perimeter security
Commercial & industrial sites
Government & NDAA-required projects
More Information
Uniview UNV IPC2B16SE-ADF28KMC-WP-I1 Datasheet Uniview UNV IPC2B16SE Series User Manual
The Uniview UNV IPC3638SE-ADZKMC-WP-I1 is a high-performance 8MP Tri-Guard varifocal turret IP cameradesigned for advanced perimeter protection, people analytics, and 24/7 colour surveillance. Featuring ColorHunter with Wise-ISP technology and an F1.2 large-aperture motorised lens, it delivers bright, detailed images even in extremely low-light environments.
This camera combines dual-light illumination (IR + warm white light) with intelligent AI intrusion prevention, people flow counting, and crowd density monitoring, dramatically reducing false alarms by accurately classifying humans, vehicles, and non-motor vehicles. With IK10 vandal resistance, IP67 weatherproofing, and NEMA 4X protection, it is ideal for demanding outdoor and commercial installations.
Key Features & Highlights
8MP Ultra-HD Resolution – Up to 3840 × 2160 @ 30 fps
1/1.8″ Progressive CMOS Sensor – Superior image quality
Motorised Varifocal Lens – 2.8–12 mm, F1.2
ColorHunter + Wise-ISP – 24/7 full-colour imaging
Tri-Guard Dual-Light System – Smart IR + warm light up to 30 m
130 dB True WDR – Clear images in strong backlight scenes
AI Smart Intrusion Prevention – Human / vehicle / non-motor classification
People Flow Counting & Crowd Density Monitoring
Built-in Dual Microphones & Speaker – Two-way audio
Alarm I/O 1/1, Audio I/O 1/1
MicroSD Edge Storage up to 512 GB
IK10, IP67 & NEMA 4X Rated – Vandal-resistant & outdoor-ready
Ultra 265 / H.265 / H.264 / MJPEG Compression
ONVIF Profile S / G / T / M Compatible
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC3638SE-ADZKMC-WP-I1
Camera Type
8MP Tri-Guard Varifocal Dual-Light Turret IP Camera
Image Sensor
1/1.8" Progressive CMOS
Maximum Resolution
8MP (3840 × 2160) @ 30 fps
Lens
Motorised varifocal 2.8–12 mm, F1.2
Field of View (H)
111.5° – 54.1°
Minimum Illumination
0.0005 Lux (Colour, F1.2, AGC ON)
Illumination
Dual-light: IR + Warm Light (30 m)
WDR
130 dB True WDR
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
AI Analytics
Line crossing, intrusion, enter/leave area, people counting, crowd density
Audio
Built-in dual mic & speaker, Audio I/O 1/1
Alarm I/O
1 / 1
Edge Storage
MicroSD up to 512 GB
Network
1 × RJ45 10/100 Mbps Ethernet
Power
PoE (IEEE 802.3af) / DC 12 V
Power Consumption
Max. 7 W
Protection Rating
IP67, IK10, NEMA 4X
Housing
Metal
Operating Temperature
-30 °C to 60 °C
Recommended Applications
Retail stores & shopping centres
Commercial buildings & offices
Warehouses & logistics facilities
Schools & campuses
Car parks & perimeter security
High-risk vandal-prone locations
More Information
Uniview UNV IPC3638SE-ADZKMC-WP-I1 Datasheet Uniview UNV IPC3638SE Series User Manual IPC3638SE-ADZKMC-WP-I1 Dimension
The Uniview UNV IPC3636SE-ADZKMC-WP-I1 is a professional-grade 6MP Tri-Guard turret network cameradesigned for high-risk and high-value surveillance environments. Powered by ColorHunter with Wise-ISP, it delivers 24/7 full-colour imaging, even in ultra-low-light scenes.
This model features a motorised 2.8–12 mm varifocal lens, dual-light illumination (IR + warm light), and advanced AI analytics, including people flow counting, crowd density monitoring, and intelligent perimeter protection with human and vehicle classification.
Key Features
6MP (3072 × 2048) resolution at up to 30fps
1/1.8” CMOS sensor with F1.2 large-aperture lens
ColorHunter + Wise-ISP for 24-hour full-colour images
Motorised varifocal lens: 2.8–12 mm
Tri-Guard dual-light system (IR + warm white light, up to 30 m)
130 dB True WDR for strong backlight scenes
Intelligent perimeter protection with human / vehicle classification
People flow counting & crowd density monitoring
Built-in dual microphone and speaker (two-way audio)
Alarm I/O 1/1, Audio I/O 1/1
microSD support up to 512 GB
IK10 vandal-resistant, IP67, NEMA 4X rated
Ultra 265 / H.265 / H.264 / MJPEG compression
ONVIF Profile S / G / T / M support
NDAA compliant
Technical Specifications
Model
IPC3636SE-ADZKMC-WP-I1
Resolution
6MP (3072 × 2048)
Image Sensor
1/1.8" CMOS
Minimum Illumination
0.0005 Lux (F1.2, AGC ON)
Lens
Motorised varifocal 2.8–12 mm, F1.2
Field of View (H)
113.5° – 54.6°
WDR
130 dB True WDR
Illumination
Dual-light (IR + Warm Light)
Light Distance
IR: 30 m / Warm Light: 30 m
Video Compression
Ultra 265, H.265, H.264, MJPEG
AI Functions
Perimeter protection, people counting, crowd density
Audio
Built-in mic & speaker, 2-way audio
Alarm I/O
1 In / 1 Out
Edge Storage
microSD up to 512 GB
Network
RJ45 10/100 Mbps Ethernet
Power
DC 12 V ±25% / PoE (802.3af)
Power Consumption
Max. 5 W
Protection Rating
IP67, IK10, NEMA 4X
Material
Metal
Operating Temperature
-40 °C to +60 °C
Dimensions
Ø129 × 110 mm
Weight
0.85 kg
Compliance
NDAA Compliant
IDEAL APPLICATIONS
Retail analytics & people counting
Shopping centres & supermarkets
Warehouses & logistics hubs
Schools, campuses & hospitals
Commercial car parks & perimeters
NDAA-compliant government projects
More Information
Uniview UNV IPC3636SE-ADZKMC-WP-I1 Datasheet Uniview User Manual – IPC3636SE Series
The Uniview UNV IPC3638SE-ADF28KMC-WP-I1 is a premium 8MP OwlView Plus Tri-Guard fixed turret IP camera designed for 24/7 full-colour surveillance with advanced AI analytics.
Powered by a 1/1.8″ CMOS sensor, F1.0 large-aperture 2.8 mm lens, and ColorHunter with Wise-ISP technology, this camera delivers bright, detailed images even in extremely low-light environments.
Its dual-light system (IR + warm white light) automatically adapts to scene conditions, while intelligent intrusion prevention, people flow counting, and crowd density monitoring provide accurate analytics with minimal false alarms. Built with IK10 vandal resistance, IP67 weatherproofing, and NEMA 4X protection, it is ideal for demanding commercial and outdoor installations.
Key Features & Highlights
8MP Ultra-HD Resolution – Up to 3840 × 2160 @ 30 fps
2.8 mm Fixed Wide-Angle Lens – 108.1° horizontal field of view
F1.0 Large Aperture – Exceptional low-light performance
ColorHunter + Wise-ISP – True 24/7 full-colour imaging
Tri-Guard Dual-Light – Smart IR + warm light up to 30 m
130 dB True WDR – Clear images in strong backlight scenes
AI Smart Intrusion Prevention – Human / vehicle / non-motor classification
People Flow Counting & Crowd Density Monitoring
Built-in Dual Microphone & Speaker – Two-way audio supported
Audio I/O 1/1, Alarm I/O 1/1
MicroSD Storage up to 512 GB + ANR / NAS
IK10, IP67 & NEMA 4X – Vandal-resistant and outdoor-ready
PoE (IEEE 802.3af) or 12 V DC Power
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC3638SE-ADF28KMC-WP-I1
Camera Type
8MP OwlView Plus Tri-Guard Fixed Turret IP Camera
Image Sensor
1/1.8" Progressive CMOS
Maximum Resolution
8MP (3840 × 2160) @ 30 fps
Lens
2.8 mm Fixed Lens, F1.0
Field of View
H: 108.1° / V: 59.5° / D: 130.2°
Minimum Illumination
0.0005 Lux (Colour, F1.0, AGC ON)
Illumination
Dual-light: IR + Warm Light, up to 30 m
WDR
130 dB True WDR
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
AI Analytics
Line crossing, intrusion, enter/leave area, people counting, crowd density
Audio
Built-in dual-mic & speaker, Audio I/O 1/1
Alarm I/O
1 / 1
Edge Storage
MicroSD up to 512 GB
Network Interface
1 × RJ45 10/100 Mbps Ethernet
Power
PoE (IEEE 802.3af) / DC 12 V
Protection Rating
IP67, IK10, NEMA 4X
Operating Temperature
-40 °C to 60 °C
Housing
Metal
Recommended Applications
Retail stores & shopping centres
Commercial buildings & offices
Warehouses & logistics facilities
Schools & campuses
Car parks & perimeters
High-risk vandal-prone locations
More Information
Uniview UNV IPC3638SE-ADF28KMC-WP-I1 Datasheet Uniview UNV OwlView Plus Series User Manual
