Description

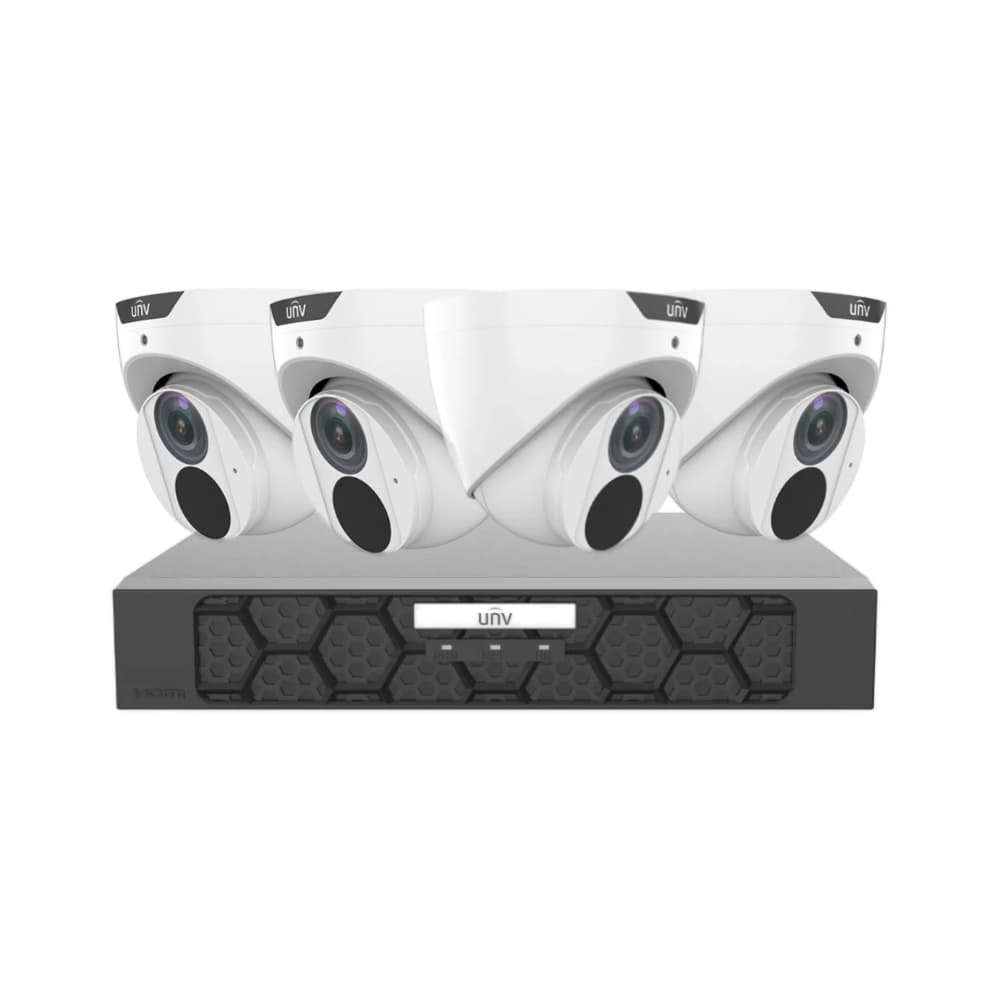

Uniview UNV CCTV Kit: 4 × 8MP IR Cameras + 8‑Channel AI NVR (Expandable to 8 TB)
The Uniview UNV 4K CCTV Kit combines four 8MP IR turret cameras with a 4-channel AI-enabled NVR, delivering ultra-clear 4K UHD surveillance at 3840 × 2160 resolution. Equipped with Easystar low-light technology and Smart IR, it ensures crisp images in various lighting conditions. The system supports plug-and-play PoE connectivity and an expandable hard drive capacity up to 8TB, making it ideal for professional-grade monitoring of homes, offices, or commercial spaces requiring intelligent, high-resolution security solutions.
This UNV Security System includes:
Features
Uniview 8 MP Easy Series Fixed Easystar Turret IP Camera
-
Resolution & Sensor: 8 MP (3840 × 2160) @ 20 fps; 1/2.7″ CMOS
-
Low-Light Imaging: Easystar technology for vivid colour in dim scenes
-
Dynamic Range: True 120 dB WDR for high-contrast environments
-
Night Vision: Smart IR illumination up to 30 m
-
Audio: Built-in microphone
-
Storage: micro-SD card support up to 256 GB
-
Protection: IP67 weatherproof rating
-
Power: PoE (IEEE 802.3af) for single-cable power & data
-
Mounting: 3-axis turret housing for easy alignment
-
Compression: Ultra 265 / H.265 / H.264 / MJPEG
-
Integration: ONVIF Profiles S/G/T, RTSP
Uniview UNV NVR501-08B-P8-IQ 8-Channel PoE AI Network Video Recorder
- 8 IP channels with 8× PoE (30 W/port; 75 W total)
- 1× HDMI (up to 4K) + 1× VGA, simultaneous output
- Recording up to 16 MP; Ultra 265 / H.265 / H.264 decoding
- NVR-level analytics & rich search (face/vehicle/person, SIP/UMD)
- 1× SATA HDD bay (up to 16 TB); ANR for network outages
- Compact 1U chassis; low power; ONVIF Profiles S/G/T; RTSP
Highlights
-
4K Ultra HD Clarity: Crisp, high-resolution footage from two 8 MP IR cameras.
-
Smart Analytics & Alerts: NVR-level AI detection with minimal false alarms.
-
Efficient Live & Recorded Video: Ultra 265 compression conserves bandwidth and storage.
-
Expandable Storage: Up to 8 TB.
-
Reliable PoE Installation: One cable per camera for power and data simplifies setup.
-
Full Feature Set: WDR, Smart IR, built-in mic, ONVIF compatibility—all in one package.
Customer Requirements: Storage HDD must be purchased separately, along with RJ45 Cat6 network cables for camera/NVR connections. If installing on walls, wall mount brackets are required (no brackets needed for eaves mounting).
Technical Specification
| Specification |
Details |
| Product Name |
Uniview UNV CCTV Kit: 4 × 8 MP IR Cameras + 8-Channel AI NVR |
| Cameras |
4 × IPC3618LE-ADF28K-GM (8 MP IR turrets, Easystar, Smart IR, PoE, IP67, built-in mic) |
| NVR |
NVR501-08B-P8-IQ (8-channel AI NVR, PoE, Ultra 265, HDMI 4K, ANR, ONVIF/RTSP) |
| Video Resolution |
Up to 4K (3840×2160) |
| Power |
PoE (IEEE 802.3af) for both cameras |
| Audio |
Built-in microphones included |
| Smart Features |
AI analytics: intrusion, cross-line, people counting (via NVR) |
| Compression |
Ultra 265, H.265, H.264, MJPEG |
| Recording Continuity |
ANR technology for network outages |
| Certifications |
IP67-rated cameras; NVR supports Australian/NZ standards |
