Dahua 5MP Starlight IP Turret 2.8mm lens, Built-in Mic, IVS, WDR (120dB), IR 30m, Micro SD, IP67, PoE
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in MIC
12V DC/PoE power supply
IP67 protection
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
LITE SERIES
PoE
PoE
Downloads
DH-IPC-HDW2531EMP-AS-0280B-S2-AUS DatasheetEyeball Network Camera Installation Guide_V1.0.0Dahua Active Deterrence Eyeball Network Camera_QSG_V1.0.1Dahua Network Camera Web 3.0 Operation Manual_V2.1.1

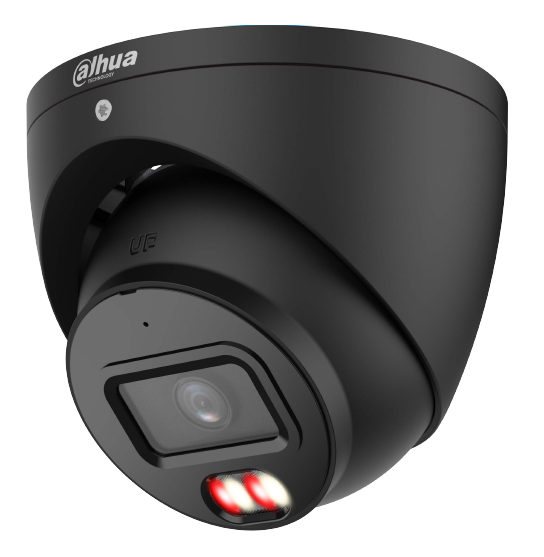

Dahua 5MP Starlight IP Black Turret 2.8mm lens, Built-in Mic, IVS, WDR (120dB), IR 30m, Micro SD, IP67, PoE
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in MIC
12V DC/PoE power supply
IP67 protection
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
LITE SERIES
PoE
PoE
Downloads
DH-IPC-HDW2531EMP-AS-0280B-S2-AUS DatasheetEyeball Network Camera Installation Guide_V1.0.0Dahua Active Deterrence Eyeball Network Camera_QSG_V1.0.1Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Dahua 6MP Security Camera, Turret, Black, IR Night Vision, 2.8mm Fixed-focal Eyeball WizSense Starlight
The Dahua DH-IPC-HDW3666EMP-S-AUS-BLK is a 6MP IR fixed-focal eyeball WizSense black turret network camera from the starlight series. With a 2.8mm lens, PoE connection, and SD Card storage capacity of up to 256GB, this camera is perfect for capturing clear footage both day and night. Its advanced features, including Perimeter and SMD4.0 for motion detection, WDR for wide dynamic range, and a built-in microphone, make it a top choice for security needs. Additionally, the built-in infrared LED provides night vision coverage of up to 50 meters. The IP67 enclosure ensures high-grade water and dust resistance, making it suitable for outdoor use. With a resolution of 3072 x 2048 pixels and frame rate of 25/30 fps, this camera provides superb image clarity.
The Dahua 6MP Turret Security Camera features advanced WizSense AI technology, providing highly accurate detection of humans and vehicles. With AI Coding and Starlight technology, this camera saves storage space while delivering clear footage even in low light conditions. Its intelligent functions and easy usability make it an inclusive and reliable choice for security surveillance.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritising the highest matches.
AI SSA Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, Wide Voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
Features
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
Network Security Camera
Megapixels
6MP
Camera Style
Turret
Colour
Black
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket Black DH-PFB204W-B
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3666EMP-S-AUS Datasheet 20220713Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0 Operation Manual_V1.0.4Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
Ubiquiti UniFi Protect Camera G5-Bullet, Next-gen indoor/outdoor 2K HD PoE Camera
Features:
2K (4MP) video resolution Flexible 3-axis adjust mount 9 m (30 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Without mount: Ø75.5 x 74.4 mm (Ø3 x 2.9")With mount: Ø75.5 x 150 mm (Ø3 x 5.9")
Weight
Without mount: 225 g (8 oz)With mount: 315 g (11.1 oz)
Enclosure material
Polycarbonate, aluminum alloy
Mount material
Wall mount: aluminum alloy, polycarbonatePole mount: aluminum alloy
Weatherproofing
IPX4
Resistance
IK04
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 84.4°, V: 45.4°, D: 99.8°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
Installation Guide
Image Performance
Ubiquiti UniFi G5 Turret Ultra, Ultra-compact, Tamper-resistant IK04, IP66 Weatherproof 2K HD PoE Camera, Long-range Night Vision
Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.
Features
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 30 m (98 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Ø90 x 71.2 mm (Ø3.5 x 2.8")
Weight
330 g (11.6 oz)
Enclosure material
Aluminum alloy, UV-stabilized polycarbonate
Weatherproofing
IP66
Resistance
IK04
Cable jacket enclosure dimensions
Ø20 x 70.6 mm (0.8 x 2.8")
Cable jacket enclosure materials
Thermoplastic elastomer, polycarbonate, silicone rubber
Cable length
30 cm (1 ft)
Cable diameter
5 mm (0.2")
Cable jacket material
Polycarbonate
Cable connector type
RJ45
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Surface mount
Ambient operating temperature
-30 to 50º C (-22 to 122º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Downloads
UniFi G5 Turret Ultra Installation Guide
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Turret, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, POE
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
WizSense Series
CONNECTION
PoE
Downloads
DH-IPC-HDW3866TP-ZS-AUS Datasheet 20220718Dahua Eyeball Network Camera Quick Start Guide V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Ubiquiti Versatile 4 MP (1440p) indoor/outdoor bullet camera with 24 FPS video for day or night surveillance with infrared LEDs.The UniFi Camera G4 Bullet delivers clear 4MP, 24 fps video over Gigabit Ethernet. The ball joint mount design allows indoor or outdoor installation and offers flexible 3-axis adjustment. The camera has infrared LEDs with an automatic IR cut filter for day and night surveillance. It features a built-in microphone and supports PoE for power.Features:
4MP, 24 FPS video
Day or night with infrared LEDs
Weatherproof enclosure
Built-in microphone
Powered by PoE
Downloads
Datasheet Installation Guide
Ubiquiti UniFi Protect UVC-G5-PRO, IR Night Vision, 4K Resolution, 3x Optical Zoom, Intergrated microphone, PoE
G5 Professional
Indoor/outdoor 4K PoE Camera with exceptional image performance and 3x optical zoom lens.
4K (8MP) video resolution 3x optical zoom 25 m (82 ft) IR night vision AI event detections Built-in IR LEDs and an automatic IR cut filter Record audio with an integrated microphone Connect and power using PoE Optional Enhancer for integrated floodlight and extended IR* Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Ø86 x 154.3 mm (Ø3.4 x 6.1")
Weight
650 g (1.4 lb)
Enclosure materials
UV stabilized polycarbonate, aluminum alloy
Mount material
Aluminum alloy
Weatherproofing
IP65
Resistance
IK04
Optics
Sensor
1/2" 8MP sensor
Lens
F 4.1 - 12.3 mm; f/1.53 - f/3.3
View angle
Wide: H 109.9°, V 60°, D 127.7°Zoom: H 35°, V 19.8°, D 40°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Video compression
H.264
Resolution
8MP 3840 x 2160 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A53 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
Device: 10WDevice with the Enhancer: 12.95W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Operating temperature
-20 to 50º C (-4 to 122º F)
Operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
Downloads
Installation Guide
Ubiquiti UniFi Protect Cam Dome Camera G5 2K HD PoE ceiling camera NHU-UVC-G5-DOME
Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 9 m (30 ft) IR night vision AI event detections Integrated 2-way audio Connect and power using PoE Weather-resistant (outdoor covered) Vandal resistant
Technical Specifications
Mechanical
Dimensions
Ø109.2 x 64.5 mm (Ø4.3 x 2.5")
Weight
Without mount: 370 g (13.1 oz)With mount: 390 g (13.8 oz)
Enclosure material
Aluminum alloy, polycarbonate, hard-coated dome
Mount material
Polycarbonate, stainless steel
Weatherproofing
IPX4
Resistance
IK08
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
5W
Power method
PoE
Supported voltage range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Wall, ceiling mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Speaker
Yes
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
DatasheetInstallation Guide
Uniarch 8MP Starlight Fixed Turret Network Camera, Min. illumination 0.005lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB03-G-IN, Wall mount TR-WM03-D-IN
High quality image with 8MP, 1/2.7''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-T1E8-AF28K 4K HD Fixed Turret Network Camera Datasheet V1.1Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01Uniarch Network Camera User Manual-V1.00
Hikvision DS-2CD2386G2-ISU/SL AcuSense Gen 2, Turret, 8MP, 4K, 2.8mm, AcuSense, Turret Network Camer
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2386G2-ISU/SL Datasheet
Dahua 2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera, DH-IPC-PDW3849-A180-AS-PV-ANZ
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Features
Outputs 180° wide angle splicing image.
Outputs max. 8 MP (4096 × 1860)@20 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
Sound and light alarm (red and blue lights)
EPTZ: Enlarge and track the targets of intelligent alarms.
SMD 4.0.
One-tap arming/disarming through alarm input
Specifications
Dahua Network Security Camera
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
IPC-PDW3849-A180-AS-PV DatasheetEyeball Network Camera Installation Guide_V1.0.2Dahua Network Camera Web 3.0_OperationManual_V2.1.5Dahua Network Camera Web 5.0_Operation Manual_V1.0.7Dahua Eyeball Network Camera_Quick Start Guide_V1.0.2IPC-PDW3849-A180-AS-PV INSTALLATION METHOD ENIPC-PDW3849-A180-AS-PV DIMENSIONS5IPC-PDW3849-A180-AS-PV_A&E_20230922151424
Dahua 4MP 5x TiOC WizSense Network PTZ Camera, DH-SD3E405DB-GNY-A-PV1
1/2.8" 4Megapixel CMOS.
5x optical zoom.
Max. 25/30fps@4M.
IR distance up to 50 m.
Warm light illumination distance up to 30 m.
SMD 3.0.
Perimeter protection.
Face detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out.
Built-in Mic and Speaker for Two-way Talk.
12 VDC/PoE power supply.
IP66.
Sound and light alarm (red and blue lights).
Downloads
DH-SD3E405DB-GNY-A-PV1 Datasheet Installation Guide (SD3E)_V1.0.1 Network Speed Dome & PTZ Camera Installation Manual_V1.0.1 Dahua Network Speed Dome and PTZ Camera Web 5.0_User's Manual_V1.0.1 SD3E405DB-GNY-A-PV1_INSTALLATION_METHOD_EN SD3E405DB-GNY-A-PV1_DIMENSIONS SD3E405DB-GNY-A-PV1_A&E_20230403163820
Hikvision 6MP DS-2CD2366G2-I Outdoor AcuSense Gen 2 Turret Camera, H.265, WDR, 30m IR, IP67, 2.8mm (2366)
Capture crystal clear images day and night with the Hikvision 6MP Outdoor AcuSense Gen 2 Turret Camera. Its powered-by-DarkFighter technology ensures excellent low-light performance, while efficient H.265+ compression technology reduces storage needs. With deep learning-based human and vehicle target classification and a built-in microphone for audio security, this camera provides comprehensive security. Its IP67 waterproof and dust-proof rating makes it perfect for outdoor use.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Camera
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
3200 × 1800
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type
Fixed lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°;
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m;
6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region(s) for main stream and sub-stream
Audio
Audio Type
-U: Mono sound
Audio Compression
-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Face Capture
Yes
General
Power
12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material
Metal except for trim ring
Dimension
Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 740 g (1.6 lb.)
With Package Weight
Approx. 1070 g (2.4 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
Download
DS-2CD2366G2-I Datasheet
Dahua 5MP Lite AI Fixed Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR50m, Built-in Mic, IP67, PoE
The Dahua 5MP IR Fixed focal Bullet WizSense Network Camera offers high image definition with its 5MP image sensor and outputs a maximum of 5MP at 20 fps. It features a H.265 codec for efficient compression and built-in IR LED with a max distance of 50m. Its intelligent detection and abnormality detection make it suitable for various monitoring scenarios.
Features
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 4MP (2688x1520) @25/30 fps
H.265 codec, high compression rate, low bit rate x Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 G Micro SD card, built-in Mic
12V DC/POE power supply
IP67 protection
SMD Plus
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3541EP-SA-0280B Datasheet
Hikvision ColorVu Turret DS-2CD2347G2-LU-4, 4MP, White Light, AcuSense, Mic, 4mm (2347)
High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Built-in microphone for real-time audio security(-U)
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Water and dust resistant (IP67)
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth Of Field
2.8 mm, 2.5 m to ∞
4 mm, 3.5 m to ∞
6 mm, 7.5 m to ∞
DORI
DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
Linkage
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture
Yes
General
Power
12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W
Dimension
Ø138.3 mm × 125.2 mm (Ø5.4" × 4.9")
Package Dimension
170 mm × 170 mm × 150 mm (7" × 7" × 5.9")
Weight
Approx. 750 g (1.7 lb.)
With Package Weight
Approx. 1055 g (2.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
Download
DS-2CD2347G2-LU Datasheet
DS-2CD2347G2-LU Quick Start GuideDS-2CD2347G2-LU User Manual
Hikvision HIK-DS-2CD2386G2-I 8MP AcuSense Turret, IP67, IR, 4K, 2.8mm (2386)
For exceptional security, trust the Hikvision HIK-DS-2CD2386G2-I 8MP AcuSense Turret. With 8 MP resolution and DarkFighter technology, it captures high quality images even in low-light conditions. Its advanced features, such as deep learning and true WDR technology, provide clear imaging and accurate target classification. This IP67 rated camera also features a built-in microphone for added security.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light by 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
DS-2CD2386G2-I DatasheetDS-2CD2386G2-I Quick GuideDS-2CD2386G2-I Manual
Hikvision DS-2CD2366G2-IU 6MP AcuSense Turret, IP67, IR, Built-in Mic, Fixed, 2.8mm (2366)
Experience high-quality imaging with the Hikvision DS-2CD2366G2-IU 6MP AcuSense Turret. Powered by DarkFighter technology, it offers excellent low-light performance. Its 120 dB true WDR technology ensures clear imaging against strong backlight. With deep learning-based classification, it focuses on human and vehicle targets. Enjoy real-time audio security with the built-in microphone and IP67 water and dust resistance.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
DS-2CD2366G2-IU DatasheetDS-2CD2366G2-IU Quick GuideDS-2CD2366G2-IU Manual
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Dome, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, IK10, POE
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec allows high compression ratio and ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HDBW3866EP-AS-AUS Datasheet 20220718Dahua Dome Network_ Camera Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Bullet, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, POE, Black
The Dahua Security Camera 8MP (4K) IR Fixed-focal Bullet WizSense Network Camera offers excellent low luminance performance and high definition images with its 8MP 1/2.8'' CMOS sensor. With its built-in IR LED, it can capture images up to 30m even in low light conditions. Its advanced features, such as intelligent detection and flexible coding, make it versatile for various monitoring scenarios. Experience reliable and high-quality surveillance with Dahua.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866EP-AS-AUS-BLK DatasheetDahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Ubiquiti Full HD (1080p) Mini Turret Camera with Infrared LEDs and Versatile Mounting Options for Indoor and Outdoor InstallationsThe UniFi Camera G3 Flex is a Day/Night security camera that features crisp 1080p video with IR capability. The flexibility of mount allow to put the camera anywhere, like on-table, on the indoor wall, on the outdoor wall, on pole, even put them in or on the ceiling.Features:
1080p, 25 FPS video
Day and night recording with integrated IR LEDs
Weather-resistant with plastic injection parts
Versatile mounts for table, in/outdoor on-wall, pole, & in/on ceiling
Built-in microphone
PoE compliant
Managed with the UniFi Protect application
Downloads
Datasheet Installation Guide
Dahua 4MP Starlight IP PTZ 4X 2.8mm~12mm VF lens, ICR, WDR, IR 15m, IP66, PoE
1/2.8'' 4Megapixel STARVIS CMOS
Starlight technology
Max. 25/30fps@4MP
4x optical zoom
Face Detection, People Counting, Perimeter Protection
IR distance up to 15m
SMD Plus
PoE
IP66, IK08
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
PTZ
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
PTZ SERIES
POE
POE
Downloads
DH-SD1A404XB-GNR Datasheet 20200605Dahua Network Speed Dome & PTZ Camera Web 3.0 User's Manual_V2.0.2Installation Guide_V1.0.0Network Speed Dome & PTZ Camera Installation Manual_V1.0.0
Dahua 5MP Starlight Pro HDCVI IR Eyeball, WDR, ICR, Motorised 2.7~13.5mm, IR 60m, DC12V, IP67, DH-HAC-HDW2501TP-Z-A-DP-27135-S2
Features
* The parameters and data sheet below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max. 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Built-in mic
2.7 mm~13.5 mm motorised lens
Max. IR length 60 m, Smart IR
IP67, 24V AC/12V DC
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorized
TECHNOLOGY
HDCVI
POWER
AC 24V/ DC 12V
Downloads
DH-HAC-HDW2501T-Z-A-DP Datasheet 20201127HDCVI Camera_User's Manual_V1.0.0-EngHDCVI Eyeball Camera_Installation Guide_V1.0.4-EngDAHUA_HDCVI CAMERA_OPEN SOURCE SOFTWARE NOTICE _VERSION A_V1.0.1-Eng
Hikvision 6MP AcuSense Mini Bullet Fixed DS-2CD2066G2-IU, 30m IR, Built-in Mic, (2066) network camera comes with 2.8mm, 4mm and 6mm.
Experience high-quality imaging with the Hikvision 6MP AcuSense Mini Bullet Fixed DS-2CD2066G2-IU. Powered by DarkFighter technology, this network camera boasts excellent low-light performance. Featuring deep learning-based classification, active strobe light and audio alarm, and built-in two-way audio, this camera provides real-time security with efficient H.265+ compression and IP67 water and dust resistance.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-IU Datasheet
DS-2CD2066G2-IU Quick Start Guide
DS-2CD2066G2-IU User Manual
Hikvision 180 Degree Wide Angle Indoor Turret Camera DS-2CD2345G0P-I, 4MP, IR, 1.68MM, (2345)
High quality imaging with 4 MP resolution
180°super wide field of view
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Distortion correction
Robust structure design with full metal materials
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.028 Lux @ (F2.0, AGC ON)
B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed lens, 1.68 mm
FOV
1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°
Aperture
F2.0
Lens Mount
M12
Illuminator
IR Range
Up to 10 m
Wavelength
850 nm
Video
Max. Resolution
2688 × 1520
Main Stream
50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding support
Region Of Interest (ROI)
1 fixed region for main stream, sub-stream and third stream
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users, 3 levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Day/Night Switch
Day/Night/Auto/Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Interface
On-Board Storage
Built-in micro SD slot, up to 256 GB
Hardware Reset
Reset via reset button on camera body, web browser and client software
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
General
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Storage Conditions
-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Startup And Operating Conditions
-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
Power Consumption And Current
12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
Camera Dimension
Camera: Φ 127.3 × 104.1 mm (Φ 5" × 4.1\")
With package: 150 × 150 × 141 mm (5.9 × 5.9\" × 5.6\")
Camera Weight
Camera: Approx. 520 g (1.1 lb.)
With package: Approx. 700 g (1.5 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Download
DS-2CD2345G0P-I Data SheetQuick Start GuideUser Manual
Dahua 4MP AI Starlight + IP Bullet Fixed 2.8mm, Mic, ICR+White Light, WDR (120dB), Micro SD, IP67, POE, SMD Plus
4MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688x1520) @ 30 fps
H.265 codec, high compression rate, low bit rate
Built-in Warm LED, max. LED distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power support
IP67 protection
SMD Plus
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3449EP-AS-LED-0360B DatasheetQuick Start Guide of DH-IPC-HFW3449EP-AS-LED-0360BInstallation Guide of DH-IPC-HFW3449EP-AS-LED-0360BInstallation Example of DH-IPC-HFW3449EP-AS-LED-0360BLeaflet_Dahua-Full-Color-Camera_V1.0_EN_202002-(6P)
Hikvision HIK-DS-2CD2387G2-LSU/SL 8MP ColorVu Turret, White Light, AcuSense, Built-in Mic, Speaker, Strobe Light, 2.8mm (2387)
Experience premium surveillance with Hikvision HIK-DS-2CD2387G2-LSU/SL-2 ColorVu Turret. Boasting 8 MP resolution, 130 dB WDR technology, and deep learning-based target classification, this camera delivers clear and efficient imaging. With 24/7 colorful imaging, active strobe light and audio alarm, and built-in two-way audio, it provides real-time security and scares off intruders. Water and dust resistant (IP67) for long-lasting use.
Features
High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
DS-2CD2387G2-LSU/SL DatasheetDS-2CD2387G2-LSU/SL Quick Start GuideDS-2CD2387G2-LSU/SL User Manual
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Dome, 2.8mm, 4K@25/30fps, Perimeter, SMD 4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, IK10, POE, black
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec allows high compression ratio and ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
CONNECTION
PoE
Downloads
DH-IPC-HDBW3866EP-AS-AUS-BLK DatasheetDahua Dome Network_ Camera_Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Ubiquiti high-resolution PoE camera designed for overhead and wide-area surveillance.
Compact 4MP vandal-resistant (IK08) and weatherproof (IPx4) dome camera with integrated IR LEDs for crystal clear day and night vision.Features:
4MP, 24 FPS Video
Day or Night with Infrared LEDs
IPx4 weatherproof Enclosure
Built-in Microphone & Speaker
Powered by Power over Ethernet (PoE)
Managed by UniFi Protect Software
IK08 vandal resistant
Note: UniFi Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine Pro or UniFi Protect Network Video Recorder
Downloads
Datasheet Installation Guide
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, 3.6mm, IR 80m, DC12V, IP67
Starlight, 120dB true WDR, 3DNR
Max. 20fps@5MP
HD/SD output switchable
Audio in interface, built-in mic
3.6mm fixed lens
Max. IR length 80m, Smart IR
IP67, DC12Vx30%
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HFW2501TP-I8 DatasjeetUser Manual of HFW2501TP-I8
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, Motorised 2.7~13.5mm, IR 80m, DC12V, IP67, Built-in Mic* The parameters and datasheets below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max. 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Built-in mic
2.7 mm~13.5 mm motorized lens
Max. IR length 80 m, Smart IR
IP67, 24V AC/12V DC
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDCVI
POWER
AC 24V/ DC 12V
Downloads
HAC-HFW2501TU-Z-A-DP Datasheet 20201127HDCVI Bullet Camera Installation Guide_V1.0.2-EngHDCVI Camera User's Manual V1.0.0-Eng
Dahua 8MP TiOC 3.0 AcuPick Turret Camera with Deterrence Full Colour Night Vision, Built-in Mic & Speaker & Siren, Starlight IP Turret Fixed 2.8mm, SMD 4.0, 8MP, WDR, Micro SD, IP67, PoE
White SKU: DH-IPC-HDW3849H-AS-PV-ANZ-S2Black SKU: DH-IPC-HDW3849H-AS-PV-ANZ-S2-BLK
The Dahua 8MP TiOC 3.0 AcuPick Turret Camera combines advanced features such as Full Colour Night Vision, Built-in Mic & Speaker & Siren, and Starlight IP Turret Fixed Lens for superior surveillance. With a max. IR illumination distance of 30m and H.265 codec for high compression rate, this camera delivers clear and detailed images even in low light conditions. Its intelligent monitoring capabilities, including Intrusion and Tripwire detection, make it an ideal choice for diverse surveillance environments.
What is AcuPick?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Features
8MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840x2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms
Dahua TiOC 3.0 AcuPick Security Camera
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WIZSENSE SERIES
Connection
PoE
Downloads
DH-IPC-HDW3849H-AS-PV-ANZ-S2 DatasheetDahua Network Camera Web 3.0 Operation Manual V2.1.8Eyeball Network Camera Installation Guide_V1.0.3Dahua Eyeball Network Camera Quick Start Guide V1.0.5Dahua Network Camera Web 5.0 Operation Manual V1.2.1
Hikvision DS-2CD2367G2H-LISU/SL 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
Capture crystal clear images with the Hikvision 6 megapixel Smart Hybrid Light with ColorVu Fixed Turret Network Camera. Featuring advanced technology, including long range Smart Hybrid Light and 130 dB WDR, this camera provides high-quality imaging in any situation. With deep learning-based human and vehicle classification, real-time security via two-way audio, and built-in strobe light and audio alarm, you'll have peace of mind knowing your property is protected. Plus, with IP67 water and dust resistance, on-board storage up to 512 GB, and audio and alarm interface, this camera is designed for reliable security.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Audio and alarm interface available
Accessories
Wall Mount Brackets
Downloads
DS-2CD2367G2H-LISU/SL DS-2CD2367G2H-LISU/SL DatasheetDS-2CD2367G2H-LISU/SL User’s Manual DS-2CD2367G2H-LISU/SL Quick Start Guide
Hikvision DS-2CD2387G2P-LSU/SL 8mp ColorVu Panoramic Turret, 180 Degree, White Light, Acusense, Built in Mic, Speaker, Strobe Light, 4mm (2387g2p)
Experience crystal clear 8 MP imaging, day or night, with the Hikvision DS-2CD2387G2P-LSU/SL-4 8mp ColorVu Panoramic Turret. Its 180-degree view captures all scenes, while advanced technologies such as H.265+ compression and 130 dB WDR provide optimal image quality. Using deep learning, this camera can detect and classify humans and vehicles, triggering active strobe lights and audio alarms to deter intruders. With IP67 resistance to water and dust, this camera is built to last.
Features
High quality imaging with 8 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)
Downloads
DS-2CD2387G2P-LSU/SL-4 DatasheetDS-2CD2387G2P-LSU/SL-4 Quick Start GuideDS-2CD2387G2P-LSU/SL-4 ManualDS-2CD2387G2P-LSU/SL-4 Installation Guide
TP-Link VIGI 4MP C440I(4mm) IR Turret Network Camera, 4mm Lens, Corridor Mode, Smart Detection, 2YW (LD)
VIGI 4MP IR Turret Network Camera
4MP Super-High Definition: The VIGI C440I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
H.265+: Without extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
12V DC/PoE: Two types of power supply give you more convenience and make your wiring remarkably easy.
4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C440I comes with two different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
TP-Link VIGI 4MP C540-W(4mm) Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera, 4mm Lens, Smart Detection,2YW (LD)
VIGI 4MP Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera
4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
Powerful Pan Tilt: Customised patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
VIGI App: Manage your security from the palm of your hand with the VIGI app.
TP-Link VIGI 4MP C340I(4mm) Outdoor IR Bullet Network Camera, 4mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor IR Bullet Network Camera
4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI's s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Dome, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, IK10, POE, black
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
WizSense Series
PoE
PoE
Downloads
DH-IPC-HDBW3866RP-ZAS-AUS-BLK DatasheetDahua Dome Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua 8MP Lite IR Fixed-focal 4K Starlight IP Bullet Network Camera, ICR, WDR, IR 30m, IP67, PoE
8MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 8MP (3840x2160) @15 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwirexAbnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access,voltage detection
Supports max. 256 GB Micro SD card
12V DC/PoE power supply
IP67 protection
Specifications
Megapixels
8MP
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
LITE SERIES
Connection
PoE
Downloads
DH-IPC-HFW2831SP-S-0280B-S2 DatasjeetDH-IPC-HFW2831SP-S-0280B-S2 Dahua IR Bullet Network Camera_QSG_V1.0.1DH-IPC-HFW2831SP-S-0280B-S2 Bullet Network Camera Installation Guide_V1.0.0 DH-IPC-HFW2831SP-S-0280B-S2 Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Dahua 8MP (4K) WizSense Fixed Starlight Turret, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR 30m, Warm light 30m, Built-in Mic, IP67, POE, Support AcuPick
Upgrade to the Dahua 8MP (4K) Fixed Turret Camera for advanced deep learning algorithm and intelligent functions like perimeter protection and smart motion detection. With WizSense 3 Series, Starlight technology, a better image effect even in low light conditions. With built-in mic, IP67, and PoE support, AcuPick compatible.
What is AcuPick?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Features
8MP 1/2.7'' CMOS image sensor, low luminance, and highdefinition image
Outputs max. 8 MP (3840 x 2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function supportthe classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scenechanging, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltagedetection
Max. 512 G Micro SD card; built-in Mic
12 VDC/PoE power supply
IP67 protection
SMD 4.0
Supports AI SSA
SMD area can be set in warm light areas that support triggering alarms
Specifications
Dahua Security Cameras
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
DH-IPC-HDW3867EM-S-IL-ANZ Datasheet Eyeball Network Camera Installation Guide_V1.0.0 Dahua Eyeball Network Camera_Quick Start Guide_V1.0.2 Dahua Network Camera Web 3.0_OperationManual_V2.1.4 Dahua Network Camera Web 5.0_Operation Manual_V1.0.4
Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera, DH-IPC-HDW3849H-ZAS-PV-ANZ-S2
Features
8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160 )@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
Supports AI SSA and one-tap arming and disarming.
SMD area can be set in warm light areas that support triggering alarms.
Dahua Security Camera
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Tye
Motorised
Technology
WizSense Series
Connection
PoE
Downloads
IPC-HDW3849H-ZAS-PV-ANZ-S2 Datasheet Eyeball Network Camera Installation Guide_V1.0.0 Dahua Network Camera Web 3.0_Operation Manual_V2.1.8 Dahua Eyeball Network Camera_Quick Start Guide_V1.0.0 Dahua Network Camera Web 5.0_Operation Manual_V1.2.1
HiLook T262H-MU 6MP AI Turret Camera, Fixed 2.8mm, IR 30m, Mic, F1.6 Aperture
The HiLook T262H-MU 6MP AI Turret Camera offers high quality imaging with 6 MP resolution, dual IR lights for enhanced night vision, and a built-in microphone for real-time audio security. Its intelligent detection feature accurately identifies humans and vehicles, and its IP67 rating makes it suitable for outdoor use. With efficient H.265+ compression technology, it provides top-notch security while saving on storage space.
Features
High quality imaging with 6 MP resolution
Support Human and Vehicle Intelligent Detection
Dual IR lights to enhance night vision
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Downloads
IPC-T262H-MU Datasheet
HiLook PTZ-N2404I-DE3 2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome
Two-inch 4 MP camera with pan, tilt and zoom (4x) ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Great night-time performance with up to 20 m enhanced IR
Water and dust resistant (IP66), and vandal proof (IK10)
Lens
FOV: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Focal Length: 2.8 mm to 12 mm, 4× optical zoom
Zoom Speed: Approx. 2 s (optical lens, wide-tele)
Working Distance: 10 mm to 1500 mm (wide-tele)
Aperture Range: F1.6 to F2.7
Network
Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
Simultaneous Live View: Up to 20 channels
User/Host: Up to 32 users,3 levels: Administrator, Operator and User
Client: iVMS-4200, HikCentral, HiLookVision
Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Audio Input: 1-ch audio input (line in)
Audio Output: 1-ch audio output (line out)
Network Interface: 1 RJ45 10 M/100 M Ethernet, PoE
Built-In Microphone: 1 built-in microphone, picking up sounds in the radius up to 5 meters
Camera Module
Image Sensor: 1/3" progressive scan CMOS
Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain: Auto/Manual
Shutter Time: 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
Day & Night: IR Cut Filter
Digital Zoom: 16×
Privacy Mask: 24 programmable privacy masks
Focus Mode: Auto/Semi-automatic/Manual
WDR: 120 dB WDR
General
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight: Approx. 0.53 kg (1.17 lb)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power: 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR)
PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
Working Temperature: -20°C to 60°C (-4°F to 140°F)
Working Humidity: ≤ 90%
Supplement Light
IR Distance: 20 m
Smart IR: Support
PTZ
Movement Range (Pan): 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
Movement Range (Tilt): From 0° to 90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
Proportional Zoom: Support
Presets: 300
Power-Off Memory: Support
Downloads
Data SheetQuick Start GuideUser Manual
TP-Link VIGI 4MP C540-4G(4mm) Outdoor Full-Color 4G Pan Tilt Network Camera, 4mm Lens, 4G Mobile Networking, Automatic Tracking, 360° Monitoring
Features
4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Experience clear, vibrant 24-hour monitoring, even in total darkness.
4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
360° Monitoring: Cover every corner and eliminate blind spots.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance.
Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
Onboard Storage: Support on-board storage up to 256 GB (SD card slot).*
Clarity and Colours, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Colour camera. Its 4MP resolution, large-aperturelens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colourful surveillance.
Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.
Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.
Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.
Four-Way Management
Easily control your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager. The VIGI app and VIGI Security Manager also allow for remote management.
One system. Full security. Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Dahua AI access ANPR 4 Megapixel Full HD WDR ANPR Camera, IR, max 120km/hr, 8 mm-32 mm Motorised Lens
Experience advanced security with the Dahua AI access ANPR camera. With its high-performance CMOS image sensor and intelligent deep learning algorithms, it can recognize unlicensed vehicles and their type, brand, and color. Plus, with its built-in ports and LED, controlling external devices and installation is made simple. Its all-in-one structure and IP67 and IK10 ratings make it durable and low power consumption ensures continuous operation. Protect your property with intrusion and loitering detection and light and voice alarms.
Features
High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.
Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.
Built-in LED for simplified installation and commissioning.
All-in-one structure with junction box and bracket, and it is also low power consumption.
IP67 and IK10 rated.
Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.
Easily adapts to scenarios through its motorized vari-focal lens.
Downloads
DHI-ITC413-PW4D-IZ3 DatasheetDHI-ITC413-PW4D-IZ3 Operational ManualDHI-ITC413-PW4D-IZ3 Installation GuideDHI-ITC413-PW4D-IZ3 User Manual
Hikvision 8MP AcuSense Motorised Varifocal Turret DS-2CD2H86G2T-IZS, 2.8-12mm, Pigtail (2H86)
Get precision surveillance and enhanced security with the Hikvision 8MP AcuSense Motorised Varifocal Turret DS-2CD2H86G2T-IZS. This advanced camera features an 8 MP resolution, motorized varifocal lens for easy installation, and excellent low-light performance with Powered-by-DarkFighter technology. With 120 dB true WDR technology, H.265+ compression, and deep learning-based human and vehicle target classification, you'll get clear, efficient surveillance and protection. Plus, with water and dust resistance (IP67) and vandal proofing (IK10), this camera can withstand any environment.
Features
High quality imaging with 8 MP resolution
Motorised varifocal lens for easy installation and monitoring
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Downloads
DS-2CD2H86G2T-IZS DatasheetDS-2CD2H86G2T-IZS Quick Start GuideDS-2CD2H86G2T-IZS User Manual
Hikvision DS-2CD2T67G2H-LISU/SL Smart Hybrid ColorVu, 6MP Fixed, Strobe, Audio, Bullet Network Camera, 2.8mm, IR 60m, Mic Security Camera
Get ready to take your security to the next level with the Hikvision 2CD2T67G2H-LISU-SL Smart Hybrid ColorVu Camera! With high quality 6 MP resolution and advanced Smart Hybrid Light technology, this camera delivers clear imaging even in long range and strong back light situations. Thanks to its efficient compression technology, on-board storage up to 512 GB is supported for real-time security. The active strobe light and audio alarm also make this camera the perfect choice to warn off intruders and protect your space. So why wait? Take the challenge and secure your surroundings now!
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
2CD2T67G2H-LISU-SL Datasheet2CD2T67G2H-LISU-SL Quick Start Guide2CD2T67G2H-LISU-SL User Manual
