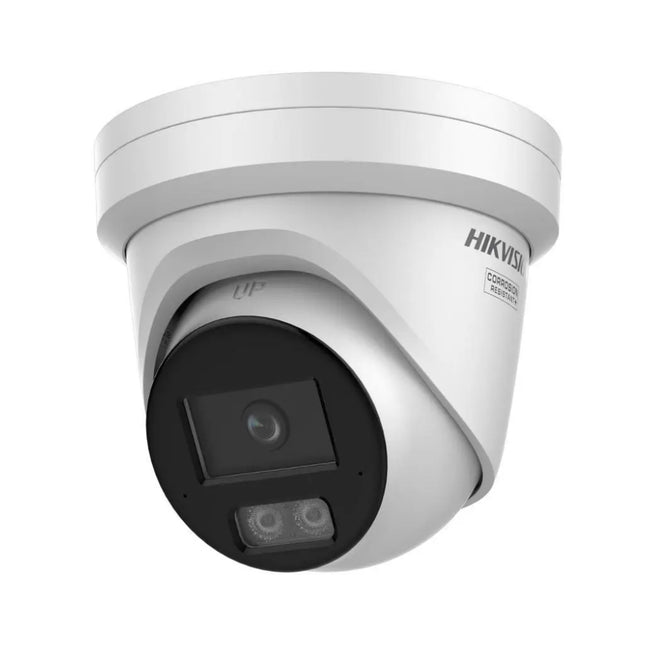

Hikvision 8 MP Smart Hybrid Light with ColorVu, 2.8mm Fixed Lens, Turret Network Camera, DS-2CD2387G2H-LISU/SL
Capture clear and detailed images with the Hikvision 8 MP Smart Hybrid Light Camera. Its advanced technology provides long range and effectively combats strong back lighting with 130 dB WDR technology. This camera also utilizes efficient H.265+ compression and deep learning for human and vehicle classification. Equipped with a two-way audio system, strobe light, and audio alarm, this camera offers real-time security and deterrence against intruders. Plus, with its IP67 water and dust resistance, on-board storage up to 512 GB, and audio and alarm interface, this camera is a reliable choice for any space.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Audio and alarm interface available
Downloads
DS-2CD2387G2H-LISU/SL DatasheetDS-2CD2387G2H-LISU/SL Quick Start GuideDS-2CD2387G2H-LISU/SL User Manual
Hikvision DS-2CD2386G2-ISU/SL AcuSense Gen 2, Turret, 8MP, 4K, 2.8mm, AcuSense, Turret Network Camer
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2386G2-ISU/SL Datasheet
Hikvision 6MP DS-2CD2366G2-I Outdoor AcuSense Gen 2 Turret Camera, H.265, WDR, 30m IR, IP67, 2.8mm (2366)
Capture crystal clear images day and night with the Hikvision 6MP Outdoor AcuSense Gen 2 Turret Camera. Its powered-by-DarkFighter technology ensures excellent low-light performance, while efficient H.265+ compression technology reduces storage needs. With deep learning-based human and vehicle target classification and a built-in microphone for audio security, this camera provides comprehensive security. Its IP67 waterproof and dust-proof rating makes it perfect for outdoor use.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Camera
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
3200 × 1800
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type
Fixed lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°;
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m;
6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region(s) for main stream and sub-stream
Audio
Audio Type
-U: Mono sound
Audio Compression
-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Face Capture
Yes
General
Power
12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material
Metal except for trim ring
Dimension
Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 740 g (1.6 lb.)
With Package Weight
Approx. 1070 g (2.4 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
Download
DS-2CD2366G2-I Datasheet
Hikvision HIK-DS-2CD2386G2-I 8MP AcuSense Turret, IP67, IR, 4K, 2.8mm (2386)
For exceptional security, trust the Hikvision HIK-DS-2CD2386G2-I 8MP AcuSense Turret. With 8 MP resolution and DarkFighter technology, it captures high quality images even in low-light conditions. Its advanced features, such as deep learning and true WDR technology, provide clear imaging and accurate target classification. This IP67 rated camera also features a built-in microphone for added security.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light by 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
DS-2CD2386G2-I DatasheetDS-2CD2386G2-I Quick GuideDS-2CD2386G2-I Manual
Hikvision DS-2CD2366G2-IU 6MP AcuSense Turret, IP67, IR, Built-in Mic, Fixed, 2.8mm (2366)
Experience high-quality imaging with the Hikvision DS-2CD2366G2-IU 6MP AcuSense Turret. Powered by DarkFighter technology, it offers excellent low-light performance. Its 120 dB true WDR technology ensures clear imaging against strong backlight. With deep learning-based classification, it focuses on human and vehicle targets. Enjoy real-time audio security with the built-in microphone and IP67 water and dust resistance.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
DS-2CD2366G2-IU DatasheetDS-2CD2366G2-IU Quick GuideDS-2CD2366G2-IU Manual
Hikvision ColorVu Turret DS-2CD2347G2-LU-4, 4MP, White Light, AcuSense, Mic, 4mm (2347)
High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Built-in microphone for real-time audio security(-U)
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Water and dust resistant (IP67)
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth Of Field
2.8 mm, 2.5 m to ∞
4 mm, 3.5 m to ∞
6 mm, 7.5 m to ∞
DORI
DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
Linkage
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture
Yes
General
Power
12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W
Dimension
Ø138.3 mm × 125.2 mm (Ø5.4" × 4.9")
Package Dimension
170 mm × 170 mm × 150 mm (7" × 7" × 5.9")
Weight
Approx. 750 g (1.7 lb.)
With Package Weight
Approx. 1055 g (2.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
Download
DS-2CD2347G2-LU Datasheet
DS-2CD2347G2-LU Quick Start GuideDS-2CD2347G2-LU User Manual
Hikvision 6MP AcuSense Mini Bullet Fixed DS-2CD2066G2-IU, 30m IR, Built-in Mic, (2066) network camera comes with 2.8mm, 4mm and 6mm.
Experience high-quality imaging with the Hikvision 6MP AcuSense Mini Bullet Fixed DS-2CD2066G2-IU. Powered by DarkFighter technology, this network camera boasts excellent low-light performance. Featuring deep learning-based classification, active strobe light and audio alarm, and built-in two-way audio, this camera provides real-time security with efficient H.265+ compression and IP67 water and dust resistance.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-IU Datasheet
DS-2CD2066G2-IU Quick Start Guide
DS-2CD2066G2-IU User Manual
Hikvision 180 Degree Wide Angle Indoor Turret Camera DS-2CD2345G0P-I, 4MP, IR, 1.68MM, (2345)
High quality imaging with 4 MP resolution
180°super wide field of view
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Distortion correction
Robust structure design with full metal materials
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.028 Lux @ (F2.0, AGC ON)
B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed lens, 1.68 mm
FOV
1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°
Aperture
F2.0
Lens Mount
M12
Illuminator
IR Range
Up to 10 m
Wavelength
850 nm
Video
Max. Resolution
2688 × 1520
Main Stream
50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding support
Region Of Interest (ROI)
1 fixed region for main stream, sub-stream and third stream
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users, 3 levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Day/Night Switch
Day/Night/Auto/Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Interface
On-Board Storage
Built-in micro SD slot, up to 256 GB
Hardware Reset
Reset via reset button on camera body, web browser and client software
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
General
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Storage Conditions
-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Startup And Operating Conditions
-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
Power Consumption And Current
12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
Camera Dimension
Camera: Φ 127.3 × 104.1 mm (Φ 5" × 4.1\")
With package: 150 × 150 × 141 mm (5.9 × 5.9\" × 5.6\")
Camera Weight
Camera: Approx. 520 g (1.1 lb.)
With package: Approx. 700 g (1.5 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Download
DS-2CD2345G0P-I Data SheetQuick Start GuideUser Manual
Hikvision HIK-DS-2CD2387G2-LSU/SL 8MP ColorVu Turret, White Light, AcuSense, Built-in Mic, Speaker, Strobe Light, 2.8mm (2387)
Experience premium surveillance with Hikvision HIK-DS-2CD2387G2-LSU/SL-2 ColorVu Turret. Boasting 8 MP resolution, 130 dB WDR technology, and deep learning-based target classification, this camera delivers clear and efficient imaging. With 24/7 colorful imaging, active strobe light and audio alarm, and built-in two-way audio, it provides real-time security and scares off intruders. Water and dust resistant (IP67) for long-lasting use.
Features
High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
DS-2CD2387G2-LSU/SL DatasheetDS-2CD2387G2-LSU/SL Quick Start GuideDS-2CD2387G2-LSU/SL User Manual
Hikvision DS-2CD2367G2H-LISU/SL 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
Capture crystal clear images with the Hikvision 6 megapixel Smart Hybrid Light with ColorVu Fixed Turret Network Camera. Featuring advanced technology, including long range Smart Hybrid Light and 130 dB WDR, this camera provides high-quality imaging in any situation. With deep learning-based human and vehicle classification, real-time security via two-way audio, and built-in strobe light and audio alarm, you'll have peace of mind knowing your property is protected. Plus, with IP67 water and dust resistance, on-board storage up to 512 GB, and audio and alarm interface, this camera is designed for reliable security.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Audio and alarm interface available
Accessories
Wall Mount Brackets
Downloads
DS-2CD2367G2H-LISU/SL DS-2CD2367G2H-LISU/SL DatasheetDS-2CD2367G2H-LISU/SL User’s Manual DS-2CD2367G2H-LISU/SL Quick Start Guide
Hikvision PTZ DS-2DE4425IW-DE(T5), 4MP, 25x (4.8-120mm) Powered by DarkFighter IR Network Speed Dome, 100m, AcuSense (4425)
The Hikvision PTZ DS-2DE4425IW-DE(T5) is a powerful and advanced network speed dome camera, featuring a 4MP resolution and up to 25x optical zoom. With powered-by-DarkFighter technology, it offers excellent low-light performance and up to 100m of IR distance for expansive night views. The camera also supports the latest video compression technology for efficient storage and features a deep learning algorithm for accurate classification of human and vehicle targets, including the ability to capture up to 5 faces at once.
Features
Focuses on human and vehicle targets classification based on deep learning
Support face capture. Up to 5 faces captured at the same time
1/2.8" progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
25× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 100m IR distance
Support H.265+/H.265 video compression
Downloads
DS-2DE4425IW-DE(T5) DatasheetDS-2DE4425IW-DE(T5) Quick Start GuideDS-2DE4425IW-DE(T5) User ManualDS-2DE4425IW-DE(T5) FAQ
Hikvision DS-2CD2387G2P-LSU/SL 8mp ColorVu Panoramic Turret, 180 Degree, White Light, Acusense, Built in Mic, Speaker, Strobe Light, 4mm (2387g2p)
Experience crystal clear 8 MP imaging, day or night, with the Hikvision DS-2CD2387G2P-LSU/SL-4 8mp ColorVu Panoramic Turret. Its 180-degree view captures all scenes, while advanced technologies such as H.265+ compression and 130 dB WDR provide optimal image quality. Using deep learning, this camera can detect and classify humans and vehicles, triggering active strobe lights and audio alarms to deter intruders. With IP67 resistance to water and dust, this camera is built to last.
Features
High quality imaging with 8 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)
Downloads
DS-2CD2387G2P-LSU/SL-4 DatasheetDS-2CD2387G2P-LSU/SL-4 Quick Start GuideDS-2CD2387G2P-LSU/SL-4 ManualDS-2CD2387G2P-LSU/SL-4 Installation Guide
Hikvision 4-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
Hikvision DS-2DE4A425IWG-E 4 MP Network IR PTZ Camera adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details overexpansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.
Features
High quality imaging with 4 MP resolution, up to 30 fps
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25 × optical zoom allows for closer viewing of subjects in expansive areas
Up to 50 m IR range ensures safety at night
Water and dust resistant (IP66)
Focuses on human and vehicle targets classification based on deep learning
Downloads
DS-2DE4A425IWG-E DatasheetUserGuideQuick Installation Guide
Hikvision DS-2CD63C5G1-IVS, 12 MP DeepinView Fisheye Network Camera, Panoramic 1.29mm, Mic, IR 15m
Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed
Panomorph lens RPL: 89VVT
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
DS-2CD63C5G1-IVS DatasheetDS-2CD63C5G1-IVS Quick Start GuideDS-2CD63C5G1-IVS User Manual
Hikvision Hybrid ColorVu, 8MP, Strobe, Audio, Bullet Camera, 2.8mm, IR 60m, Mic, DS-2CD2T87G2H-LISU/SL
Experience the best in security with the Hikvision Hybrid ColorVu Bullet Camera! Boasting 8MP resolution and advanced technology, it provides clear imaging even in low light conditions. With human and vehicle classification, active strobe light and audio alarms, and IP67 rating, you can trust in its efficiency and reliability.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Provide real-time security via built-in two-way audio
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
DS-2CD2T87G2H-LISU/SL DatasheetDS-2CD2T87G2H-LISU/SL Quick Start GuideDS-2CD2T87G2H-LISU/SL User Manual
Hikvision DS-2CD2T67G2H-LISU/SL Smart Hybrid ColorVu, 6MP Fixed, Strobe, Audio, Bullet Network Camera, 2.8mm, IR 60m, Mic Security Camera
Get ready to take your security to the next level with the Hikvision 2CD2T67G2H-LISU-SL Smart Hybrid ColorVu Camera! With high quality 6 MP resolution and advanced Smart Hybrid Light technology, this camera delivers clear imaging even in long range and strong back light situations. Thanks to its efficient compression technology, on-board storage up to 512 GB is supported for real-time security. The active strobe light and audio alarm also make this camera the perfect choice to warn off intruders and protect your space. So why wait? Take the challenge and secure your surroundings now!
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
2CD2T67G2H-LISU-SL Datasheet2CD2T67G2H-LISU-SL Quick Start Guide2CD2T67G2H-LISU-SL User Manual
Hikvision Smart Hybrid ColorVu Mini Bullet Camera, 6MP Fixed, Strobe, Audio, 2.8MM, IR 40M, Mic, DS-2CD2067G2H-LIU/SL
The Hikvision DS-2CD2067G2H-LIU/SL Smart Hybrid ColorVu Mini Bullet Camera offers high-quality imaging with 6 megapixel resolution and advanced technology for long-range surveillance. With 130 dB WDR technology, this camera provides clear imaging against strong backlights. Featuring efficient H.265+ compression technology, deep learning-based human and vehicle classification, and built-in two-way audio, this camera provides effective real-time security. Its active strobe light and audio alarm warn intruders, while IP67 water and dust resistance ensures durability.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Downloads
DS-2CD2067G2H-LIU/SL DatasheetDS-2CD2067G2H-LIU/SL Quick Start GuideDS-2CD2067G2H-LIU/SL User Manual
Hikvision 6 MP Varifocal 2.8mm Turret Network Camera, DS-2CD2H65G1-IZS
High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP66) and vandal proof (IK10)
Motorized vari-focal lens for easy installation and monitoring
Audio and alarm interface available
Robust structure design with full metal materials
Downloads
DS-2CD2H65G1-IZS User Manual
Hikvision 8MP AcuSense Turret DS-2CD2386G2-IU, IP67, IR, Built-in Mic, 2.8mm (2386)
The Hikvision 8MP AcuSense Turret DS-2CD2386G2-IU-2 is a top-of-the-line surveillance camera designed for high-quality imaging with 8 MP resolution. With advanced features such as powered-by-DarkFighter technology and 120 dB true WDR technology, it delivers excellent low-light performance and clear imaging even against strong backlighting. Additionally, its deep learning technology allows for the classification of human and vehicle targets. The built-in microphone provides real-time audio security, and its IP67 rating makes it water and dust resistant for outdoor use.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light by 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
DS-2CD2386G2-IU DatasheetDS-2CD2386G2-IU Quick GuideDS-2CD2386G2-IU Manual
Hikvision PTZ DS-2DE4A425IW-DE, 4MP, 5 -120mm, 25x Optical, 16x Digital, 50m Powered by DarkFighter IR Network Speed Dome (4A425)
The Hikvision PTZ DS-2DE4A425IW-DE offers high quality 4 MP resolution imaging, powered-by-DarkFighter technology for excellent low-light performance, and 120 dB WDR technology for clear imaging against strong back lighting. With pan, tilt, and 25x optical zoom capabilities, this camera can monitor zones of interest with ease. Its 50 m IR range and IP66 water and dust resistance provide safety at night.
Features
High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25× optical zoom allows for closer viewing of subjects in expansive areas
Up to 50 m IR range ensures safety at night
Water and dust resistant (IP66)
Downloads
DS-2DE4A425IW-DE DatasheetDS-2DE4A425IW-DE Quick Start GuideDS-2DE4A425IW-DE User Manual
Hikvision 6MP AcuSense Mini Fixed Bullet DS-2CD2066G2-I, 30m IR (2066) security comes with 2.8mm, 4mm and 6mm
Enhance your security with Hikvision 6MP AcuSense Mini Fixed Bullet DS-2CD2066G2-I. Its 6 MP resolution provides high quality imaging, while the powered-by-DarkFighter technology ensures excellent low-light performance. With efficient H.265+ compression technology and 120 dB true WDR technology, this camera delivers clear imaging against strong back light. It also features built-in microphone for real-time audio security, and is water and dust resistant (IP67). Choose from 2.8mm, 4mm, and 6mm lens options to focus on human and vehicle targets classification based on deep learning.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-I DatasheetDS-2CD2066G2-I Quick Start GuideDS-2CD2066G2-I User Manual
Hikvision 8MP AcuSense Motorised Varifocal Turret DS-2CD2H86G2T-IZS, 2.8-12mm, Pigtail (2H86)
Get precision surveillance and enhanced security with the Hikvision 8MP AcuSense Motorised Varifocal Turret DS-2CD2H86G2T-IZS. This advanced camera features an 8 MP resolution, motorized varifocal lens for easy installation, and excellent low-light performance with Powered-by-DarkFighter technology. With 120 dB true WDR technology, H.265+ compression, and deep learning-based human and vehicle target classification, you'll get clear, efficient surveillance and protection. Plus, with water and dust resistance (IP67) and vandal proofing (IK10), this camera can withstand any environment.
Features
High quality imaging with 8 MP resolution
Motorised varifocal lens for easy installation and monitoring
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Downloads
DS-2CD2H86G2T-IZS DatasheetDS-2CD2H86G2T-IZS Quick Start GuideDS-2CD2H86G2T-IZS User Manual
Pre-order wait time: 7-9 weeks
Hikvision Covert Camera DS-2CD6425G1-30-8M-6, 2MP, 6mm single tube Lens, 8M Cable, Audio (6425)
High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available
3D DNR technology delivers clean and sharp images
Downloads
DatasheetQuick Start GuideUser ManualFAQ
Pre-order wait time: 7-9 weeks
Hikvision Covert Camera DS-2CD6425G1-30-2M-3, 2MP, 3.7mm Tube Pin Hole Lens, 2m Lens Cable, Audio (6425)
High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available
3D DNR technology delivers clean and sharp images
Downloads
DatasheetQuick Start GuideUser ManualFAQ
Pre-order wait time: 7-9 weeks
Hikvision Covert Camera DS-2CD6425G1-20-2M-3, 2MP, 3.7mm Block-shaped Pin Hole Lens, 2m Lens Cable, Audio (6425)
High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available
3D DNR technology delivers clean and sharp images
Downloads
DatasheetQuick Start GuideUser ManualFAQ
Hikvision Covert Camera DS-2CD6425G1-10-2M-3, 2MP, 3.7mm Cylindrical Pin Hole Lens, 2m Lens Cable, Audio, with One Cylindrical Lens (6425)
High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available
3D DNR technology delivers clean and sharp images
Downloads
DS-2CD6425G1-10-2M-3 User Manual
Hikvision 8MP AcuSense Bullet DS-2CD2T86G2-ISU-SL-2, IP67, IR 60m, 2.8mm, Built-in Mic, Speaker, Strobe Light (2T86)
Experience high-quality imaging with the Hikvision 8MP AcuSense Bullet camera. Its 8 MP resolution and powered-by-DarkFighter technology ensure excellent low-light performance, while 120 dB true WDR technology delivers clear imaging against strong backlight. With efficient H.265+ compression and deep learning-based human and vehicle target classification, this camera provides effective security. Plus, its active strobe light and audio alarm warn intruders, while the built-in two-way audio allows real-time communication. Water and dust-resistant (IP67), this camera is perfect for outdoor use.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2T86G2-ISU/SL Datasheet
DS-2CD2T86G2-ISU/SL Quick Start GuideDS-2CD2T86G2-ISU/SL User ManualDS-2CD2T86G2-ISU/SL FAQ
Hikvision 6MP AcuSense Mini Dome Camera DS-2CD2566G2-IS, Mic, IR, 2.8mm (2566) comes with 2.8mm and 4mm.
The Hikvision 6MP AcuSense Mini Dome Camera offers high quality imaging with 6 MP resolution and excellent low-light performance thanks to powered-by-DarkFighter technology. It uses deep learning to focus on human and vehicle classification and has 120 dB WDR technology for clear imaging against strong back light. With H.265+ compression technology and audio and alarm interfaces available, this camera also boasts water and dust resistance (IP67) and vandal proofing (IK08).
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Focusing on human and vehicle classification based on deep learning
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
-S: audio and alarm interface available
Water and dust resistant IP67 and vandal proof IK08
Downloads
DS-2CD2566G2-IS DatasheetDS-2CD2566G2-IS Quick Start GuideDS-2CD2566G2-IS User Manual
Hikvision ColorVu Turret DS-2CD2347G2-LSU/SL, 4MP, White Light, AcuSense, Built-in Mic, Speaker, Strobe Light, 2.8mm (2347)
The Hikvision ColorVu Turret DS-2CD2347G2-LSU/SL offers high-quality 4 megapixel resolution imaging with efficient H.265+ compression technology. With 130 dB WDR technology, it can take clear images even in strong backlight. It features deep learning based classification for human and vehicle targets and provides 24/7 colorful imaging. The built-in two-way audio, strobe light, and audio alarm help enhance security measures. This IP67 water and dust resistant camera is perfect for both indoor and outdoor use.
Features
High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
DS-2CD2347G2-LSU/SL DatasheetDS-2CD2347G2-LSU/SL Quick Start GuideDS-2CD2347G2-LSU/SL User ManualDS-2CD2347G2-LSU/SL FAQ
Hikvision 6MP AcuSense Dome DS-2CD2166G2-I, IP67, IR, 2.8mm (2166)
The Hikvision 6MP AcuSense Dome DS-2CD2166G2-I provides high quality imaging with 6 MP resolution and excellent low-light performance thanks to DarkFighter technology. Its efficient H.265+ compression and 120 dB true WDR technology ensure clear images even in challenging lighting conditions. With deep learning-based classification of human and vehicle targets, and built-in microphone and alarm interface options, this dome camera offers real-time audio security and is water, dust, and vandal resistant for reliable outdoor use.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security (-SU)
Audio and alarm interface available(-SU)
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
DS-2CD2166G2-I Datasheet
DS-2CD2166G2-I Quick Start Guide
DS-2CD2166G2-I User Manual
DS-2CD2166G2-I FAQ
Hikvision Bullet iDS-2CD7A46G0-IZHSY( 2.8-12mm), 4MP, Deep in View, 50m IR, Heater, 2.8-12mm (7A46)
High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
Downloads
iDS-2CD7A46G0-IZHSY( 2.8-12mm) DatasheetiDS-2CD7A46G0-IZHSY( 2.8-12mm) User Manual
Hikvision DS-2CD2T87G2P-LSU/SL-4 8MP ColorVu Panoramic 180 Degree Bullet, White Light, AcuSense, Built in Mic, Speaker, Strobe Light, IP66 (2T87G2P)
Discover unparalleled, vivid visuals day and night with the Hikvision DS-2CD2T87G2P-LSU/SL. This 8MP ColorVu panoramic camera boasts a 4mm lens and 180 degree bullet design for maximum coverage. Utilizing cutting-edge features such as AcuSense technology, WDR, and deep learning, this IP66 rated camera can precisely detect and classify humans and vehicles. Additionally, the built-in mic, speaker, and strobe light act as powerful deterrents against unwanted trespassers.
Features
High quality imaging with 8 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)
Downloads
DS-2CD2T87G2P-LSU/SL DatasheetDS-2CD2T87G2P-LSU/SL Quick Start GuideDS-2CD2T87G2P-LSU/SL User Manual
Hikvision DS-2CD2387G2-LU 8MP ColorVu Turret Security Camera, White Light, AcuSense, Built-in Mic (2387) comes with 2.8mm and 4mm lens.
Capture clear images day and night with the Hikvision DS-2CD2387G2-LU 8 megapixel ColorVu Turret Security Camera. With 8 MP resolution and efficient H.265+ compression technology, it provides high quality imaging while saving storage space. The built-in mic and 130 dB WDR technology make for effective audio and backlighting security. IP67 water and dust resistance ensure durability.
High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Built-in microphone for real-time audio security(-U)
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Water and dust resistant (IP67)
Downloads
DS-2CD2387G2-LUD Datasheet
Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic ColorVu Fixed Turret Network Camera comes with 2.8mm lens
Capture every detail with the Hikvision DS-2CD2367G2P-LSU/SL 6 megapixel Panoramic ColorVu Fixed Turret Network Camera. Its 2.8mm lens provides high quality 6 MP resolution imaging. Experience 24/7 colorful imaging and clear images even in strong backlight with 130 dB WDR technology. With advanced features like human and vehicle classification and active strobe light and audio alarm, this camera is the perfect security solution. Water and dust resistant (IP67).
Features
High quality imaging with 6 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)
Downloads
DS-2CD2367G2P-LSU/SL Quick Start GuideDS-2CD2367G2P-LSU/SL ManualDS-2CD2367G2P-LSU/SL Installation Guide
Hikvision DS-2CD2367G2H-LIU-2 6MP ColorVu Turret, Hybrid Light, Built-in Mic, 2.8mm Lens
Capture clear and detailed footage with the Hikvision DS-2CD2367G2H-LIU 6MP ColorVu Turret camera. Its advanced Hybrid Light technology provides long range vision, while the 130 dB WDR technology ensures clear imaging even in strong back light. With efficient H.265+ compression technology, focus on human and vehicle classification, and a built-in microphone for real-time audio security, this camera is perfect for protecting your home or business. Its water and dust resistant design (IP67) ensures durability and reliability.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Downloads
DS-2CD2367G2H-LIU DatasheetDS-2CD2367G2H-LIU Quick Start GuideDS-2CD2367G2H-LIU Manual
Hikvision DS-2CD2555FWD-I 5MP Fixed Mini Dome Network Camera
The Hikvision DS-2CD2555FWD-I Mini Dome Camera offers high-quality imaging with 5 MP resolution and efficient H.265+ compression technology. Its 120 dB true WDR technology ensures clear imaging even in strong back light. With an IP66 rating for water and dust resistance and IK08 rating for vandal-proofing, it's suitable for various environments. Its mini size makes it perfect for limited space.
Features
High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP66) and vandal proof (IK08)
Mini size suitable for limited space.
Downloads
DS-2CD2555FWD-I User ManualQuick Start GuideFAQ
Hikvision DS-2CD2H46G2T-IZS, DS-2CD2H46G2-IZS 4MP Acusense Motorised Varifocal Turret Network Camera
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Features
High quality imaging with 4MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Motorized Varifocal lens for easy installation and monitoring
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP66) and vandal proof (IK10)
Downloads
DS-2CD2H46G2-IZS Datasheet
Hikvision ColorVu Acusense 4MP 2.8mm DS-2CD2047G2-LU/SL Live-Guard Gen 2 Outdoor Mini Bullet Camera with Mic 30m White LED
As an industry leader, the Hikvision ColorVu Acusense 4MP 2.8mm DS-2CD2047G2-LU/SL Live-Guard Gen 2 Outdoor Mini Bullet Camera with Mic 30m White LED offers high quality imaging with 4 MP resolution. Its advanced features include efficient H.265+ compression technology, 130 dB WDR technology for clear imaging, and deep learning classification for human and vehicle targets. With 24/7 colorful imaging, active strobe light and audio alarm, and built-in two-way audio, this camera provides real-time security. Plus, its IP67 rating makes it water and dust resistant for outdoor use.
Features
High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2047G2-LU/SL Datasheet
DS-2CD2047G2-LU/SL Quick Start Guide
DS-2CD2047G2-LU/SL User Manual
Hikvision DeepinView 2CD7146G0 4MP Indoor Motorised Varifocal Dome Camera, 2.8-12MM, IR 40m
Enhance your security with the Hikvision DeepinView 2CD7146G0 4MP Indoor Motorised Varifocal Dome Camera. With 4 MP resolution and DarkFighter technology, you can capture high quality images even in low-light conditions. The camera also features 140 dB WDR technology for clear imaging against strong back light. Plus, its efficient H.265+ compression technology saves bandwidth and storage. With 5 streams and vandal-proof design, this camera is a reliable choice for a wide range of applications.
Features
High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Vandal proof (IK10)
Downloads
DatasheetUser Manual
Hikvision DS-2DE3A404IWG-E/W 4MP, IR Wi-Fi Mini PT Dome Camera, Vari-focal 2.8-12mm, 4 x Zoom IR 50m
The Hikvision DS-2DE3A404IWG-E/W 4MP IR Wi-Fi Mini PT Dome Camera delivers top-of-the-line imaging with 4 MP resolution, Deep Learning-based classification, DarkFighter technology for low-light conditions, and 120 dB WDR technology for clear imaging in strong backlight.
This Hikvision PTZ Camera is highly versatile and suitable for use in various indoor and outdoor settings, including corridors, homes, offices, convenience stores, and restaurants. With its vari-focal 2.8-12mm lens and 4x zoom capability, it offers a range of features and functions for professional surveillance and monitoring.
Features
High quality imaging with 4 MP resolution
Focuses on human and vehicle targets classification based on deep learning
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4 × optical zoom allows for closer viewing of subjects in expansive areas
Up to 50 m IR range ensures safety at night
Wi-Fi connection and easy installation
Support audio visual alarm
Downloads
DS-2DE3A404IWG-E/W Datasheet
Hikvision AcuSense 2CD2586G2-IS 8MP Mini Dome Camera, Fixed 2.8mm, IR 30m, Mic
Experience high quality imaging with the Hikvision 8MP Mini Dome Camera. Featuring DarkFighter technology, this camera excels in low-light conditions. With intelligent human and vehicle classification, and advanced WDR technology, capture clear images no matter the lighting. Plus, with H.265+ compression and audio/alarm interfaces available, this camera is both efficient and versatile. IP67 and IK08 ratings ensure durability against water, dust, and vandalism.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Focusing on human and vehicle classification based on deep learning
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
-S: audio and alarm interface available
Water and dust resistant (IP67) and vandal resistant (IK08)
Downloads
2CD2586G2-IS Datasheet2CD2586G2-IS Quick Start Guide2CD2586G2-IS User Manual
Hikvision TVI 2CE79U7T-AIT3ZF 8MP Turret HD Motorised Vari-focal Camera, 2.7-13.5mm, 4 in 1, IR 60m, VDC/VAC
8 MP high performance turret camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Lens focuses automatically when zooming in or out
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Downloads
2CE79U7T-AIT3ZF Datasheet2CE79U7T-AIT3ZF Quick Start Guide2CE79U7T-AIT3ZF User Manual
Hikvision TVI 2CE78U7T-IT3F 8MP Turret HD Camera, Ultra Low Light, Fixed 2.8mm, 4 in 1, IR 60m
8 MP high performance turret camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Downloads
TVI 2CE78U7T-IT3F Datasheet
Hikvision TVI 2CE79H8T-AIT3ZF 5MP Turret HD Camera, Motorised Vari-focal 2.7-13m, IR 60m, 4 in 1, AC/DC
5 MP high performance turret camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Lens focuses automatically when zooming in or out
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Downloads
Hikvision TVI 2CE79H8T-AIT3ZF DatasheetHikvision TVI 2CE79H8T-AIT3ZF Quick Start GuideHikvision TVI 2CE79H8T-AIT3ZF User Manual
Hikvision TVI 2CE78H8T-IT3F 5MP Turret HD Camera, Fixed 2.8mm, IR 60m, 4 in 1, 12VDC
5 MP high performance turret camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Downloads
Hikvision TVI 2CE78H8T-IT3F DatasheetHikvision TVI 2CE78H8T-IT3F User Manual
Hikvision 2CD6365G1 6MP DeepinView Fisheye Network Camera, Panoramic, 1.16mm, Mic, IR 15m
Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
DS-2CD6365G1-IVS DatasheetDS-2CD6365G1-IVS Quick Start GuideDS-2CD6365G1-IVS User Manual
Hikvision AcuSense, 2CD2T86G2-2I, 8MP Bullet Camera, Fixed 2.8mm, IR 60m
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light by 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67)
Downloads
2CD2T86G2-2I Datasheet2CD2T86G2-2I Quick Start Guide2CD2T86G2-2I User Manual
Hikvision Smart Hybrid ColorVu 8MP Fixed, Strobe. Audio, Mini Bullet, 2.8mm, IR 40m, Mic Network Camera, 2CD2087G2H-LIU-SL
The Hikvision 2CD2087G2H-LIU-SL Smart Hybrid ColorVu 8MP Fixed Network Camera offers high-quality 8 MP resolution imaging with advanced technology for long-range viewing and clear imaging against strong backlight. Its efficient H.265+ compression technology and deep learning-based human and vehicle classification make it a reliable security solution. With an active strobe light and audio alarm, as well as built-in two-way audio and up to 512 GB of on-board storage capability, this camera provides real-time security. It is also water and dust resistant for added durability.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Downloads
2CD2087G2H-LIU/SL Datasheet2CD2087G2H-LIU/SL Quick Start Guide2CD2087G2H-LIU/SL User Manual
