Find a better deal for Dahua Accessories? We will beat it by 5% OFF on all security & surveillance products here. Guarantee!Live chat with us or call 1800 228 848.
Dahua Waterproof Wall Mount Bracket White
The Dahua Waterproof Wall Mount Bracket White DH-PFB205W-E is crafted from durable aluminum alloy, offering a cost-effective and sturdy solution for mounting specific Dahua cameras. Its sleek, white design complements any installation environment while providing reliable protection against the elements. Measuring 161.6 mm x 125.6 mm x 76.0 mm, this bracket ensures a secure and precise fit, enhancing both the functionality and aesthetics of your surveillance setup. Ideal for professional installations requiring both durability and style.
Features
Aluminium alloy material, cost-effective
Dedicated for particular cameras, beautiful and elegant designed
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum
COLOUR
White
DIMENSION
161.6 mmx125.6 mmx76.0 mm (6.36''x4.94''x2.99'')
Downloads
DH-PFB205W_datasheet
Dahua DH-PFB204W Waterproof Wall Mount Bracket for CCTV Cameras
The Dahua DH-PFB204W is a durable waterproof wall mount bracket designed specifically for CCTV cameras. Crafted from high-quality aluminum and SECC materials, it ensures robust support and long-lasting performance. Its sleek white finish and compact dimensions (160mm x 122mm x 76mm) provide an unobtrusive, professional installation. Ideal for secure outdoor mounting, this bracket combines aesthetic design with reliable protection against the elements, making it a trusted choice for expert surveillance setups.
Features
Aesthetic design
Wall mount bracket
Material: aluminum & SECC
Specifications
Dahua Security Camera Bracket
TYPE
Wall Mount Bracket
MATERIAL
Aluminum & SECC
COLOUR
White
DIMENSION
160mmx122mmx76mm (6.30''x4.80''x2.99'')
Downloads
DH-PFB204W Datasheet
The Dahua PFA137 is an essential accessory for any professional security installation. This waterproof junction box provides a secure, weatherproof enclosure for camera pigtails and connectors, ensuring long-term reliability by preventing water ingress and cable corrosion. Now available in both Classic White and Midnight Black to perfectly match your camera housing and building aesthetics.
Key Performance Features
Rugged Construction: Built from high-quality aluminum alloy, providing excellent structural strength and durability.
IP66 Waterproof Rating: Engineered for harsh outdoor environments, keeping your electrical connections bone-dry in heavy rain and dust.
Seamless Integration: Designed specifically for Dahua dome and turret cameras, ensuring a perfect physical fit and easy alignment.
Color Options: Choose White for standard residential installs or Black (PFA137-B) for modern architectural finishes or dark soffits.
Technical Specifications
Model
DH-PFA137 (White) / DH-PFA137-B (Black)
Material
Aluminum Alloy
Dimensions
Φ122.0mm x 34.0mm (4.80” x 1.34”)
Pipe Thread
G1/2"
Load Bearing
1.0kg (2.2lb)
Ingress Protection
IP66 Rated
Operating Temp.
-40ºC to +60ºC
Why Use a PFA137 Junction Box?
Cable Protection: Protects your RJ45 and power connectors from tampering and environmental damage.
Clean Aesthetics: Hides messy cables behind the camera for a tidy, professional look.
Serviceability: Provides a convenient access point for future maintenance without needing to re-run cables.
Downloads
DH-PFA137_datasheet
Installation Tip: For high-exposure outdoor areas, we recommend using the included waterproof gasket and applying a small amount of silicone sealant to the screw holes for maximum protection.

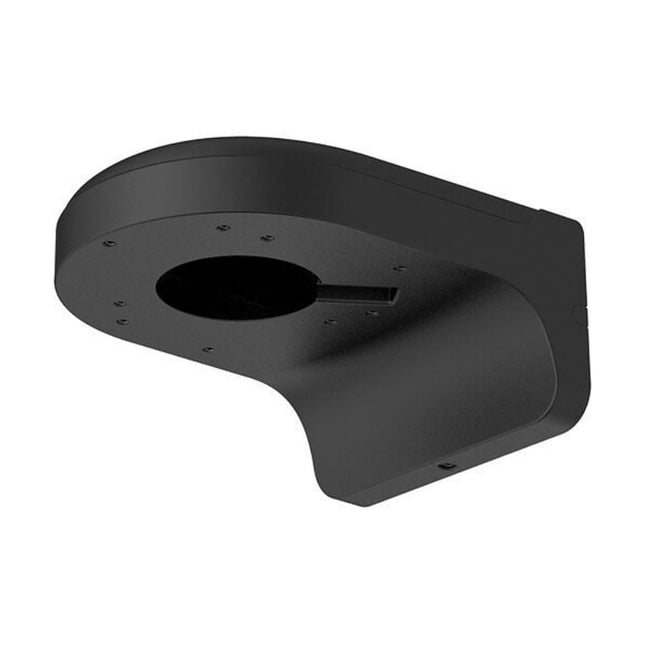

Dahua Waterproof Wall Mount Bracket Black
Aesthetic design
Wall mount bracket
Material: aluminum & SECC
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum & SECC
COLOUR
Black
DIMENSION
160mmx122mmx76mm (6.30''x4.80''x2.99'')
Downloads
DH-PFB204W_datasheet
Dahua Waterproof Wall Mount Bracket White
Aesthetic design
Wall mount bracket
Material: aluminum & SECC
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum & SECC
COLOUR
White
DIMENSION
160mmx122mmx76mm (6.30''x4.80''x2.99'')
Downloads
DH-PFB203W_datasheet
Dahua Pole Mount Bracket
Material: aluminum & SUS304
Pole mount bracket
Aesthetic design
Specifications
CAMERA BRACKETS
TYPE
Pole Mount Bracket
MATERIAL
Aluminum & SUS304
COLOUR
White
DIMENSION
125.6mmx114mmx20mm (4.94''x4.49''x0.79'')
Downloads
DH-PFA152-E_datasheet
Dahua Waterproof Wall Mount Bracket Black
Aesthetic design
Wall mount bracket
Material: aluminum & SECC
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum & SECC
COLOUR
Black
DIMENSION
160mmx122mmx76mm (6.30''x4.80''x2.99'')
Downloads
DH-PFB203W_datasheet
Dahua PoE Extender Passive work with PFT1200, connect up to 3x IPC
Support passive PoE cascade power supply and Ethernet data exchange
Support IEEE 802.3af/at standard power supply IP Camera
Cooperate with High PoE Midspan PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (total power consumption <=25W), max transmission distance 300m
1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
Installation mode: junction box internal mounting, DIN rail mounting
Downloads
PFT1300_datasheetPoE Extender_User's Manual_V1.0.3
The Dahua LR1002-1ET & LR1002-1EC Kit is a high-performance Ethernet-over-Coax (ePoC) extender set designed to transmit IP data and PoE power over existing coaxial cables. This kit is the perfect solution for upgrading legacy analog surveillance systems to high-definition IP systems without the massive cost and labor of replacing old RG59/RG6 cabling.
Key Performance Features
Extreme Long Reach: Supports network transmission up to 1000 meters at 10Mbps or 400 meters at 100Mbps over high-quality coaxial cable.
PoE Over Coax: Transmits Power over Ethernet (PoE) alongside data, allowing you to power your IP cameras directly through the old coax line.
Plug-and-Play: No software configuration required. Simply connect the Transmitter (ET) at the camera end and the Receiver (EC) at the switch/NVR end.
Industrial Design: Compact, high-durability metal construction with excellent heat dissipation for 24/7 reliability.
Technical Specifications
Function
Ethernet over Coax (Transmitter & Receiver)
Port
1x 10/100 Mbps Base-TX, 1x BNC
Transmission Distance
100Mbps: 400m | 10Mbps: 1000m
Power Consumption
< 2W per unit
Lightning Protection
Common Mode 4KV, Differential Mode 2KV
Operating Temp.
-30°C to +65°C
Why Use This Extender Kit?
Replacing underground or in-wall coaxial cable with Cat6 can be expensive and disruptive. The Dahua LR1002 series allows you to leverage your existing infrastructure to deploy the latest IP camera technology instantly. It is especially useful for large sites like warehouses, parking lots, and multi-story buildings.
More Information
Download Data Sheet
Download Single-Port-Long-Reach-Ethernet-over-Coaxial-Extender_Users-Manual_V1.0.5
Dahua Single-Port Long Reach Ethernet over Coaxial Extender_User's Manual_V1.0.4
Guru Tip: Transmission distance and bandwidth are dependent on the quality of your existing coax cable. For distances over 400m, the bandwidth will automatically throttle to 10Mbps to ensure a stable connection.
Dahua Mount Junction Box DH-PFA134
Dahua Mount Box Features
Aesthetic design
Material: aluminum & SECC
Junction box
Specifications
CAMERA BRACKETS
TYPE
Junction Box
MATERIAL
Aluminum & SECC
COLOUR
White
DIMENSION
90.0mmx35.0mm (3.54''x1.38'')
Downloads
DH-PFA134_datasheet
Dahua Corner Mount Bracket
Material: SECC
Corner mount bracket
Aesthetic design
Specifications
CAMERA BRACKETS
TYPE
Corner Mount Bracket
MATERIAL
SECC
COLOUR
White
DIMENSION
243mmx170mmx138mm (9.57''x6.69''x5.43'')
Downloads
DH-PFA151_datasheet
Dahua Wall Mount Bracket
Neat & Integrated design
Wall mount bracket
Material: Aluminum
Safety rope hook attached, secure and reliable
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum
COLOUR
White
DIMENSION
200mmx160mmx115mm
(7.87''x6.3''x4.53'')
Downloads
DH-PFB305W Datasheet
Dahua Wall Mount Bracket
Aesthetic design
Wall mount bracket
Material: aluminum
Specifications
CAMERA BRACKETS
TYPE
Water-proof Wall Mount Bracket
MATERIAL
Aluminum
COLOUR
White
DIMENSION
115mmx160mmx255mm (4.53''x6.3''x10.04'')
Downloads
DH-PFB303W Datasheet
Dahua HDMI Extender
The Dahua HDMI Extender DH-PFM700-E enables real-time transmission of HDMI video signals up to 50 meters using a single CAT6 cable, ensuring minimal delay and strong anti-interference performance. Designed for HDMI 1.3 compatibility, it supports local loop output and EDID management. The device also includes one-way infrared remote control signal transmission and offers robust protection against thunder, static, and interference without needing driver installation or network configuration. Powered by DC5V, it is optimized for reliable and straightforward HDMI extension in professional setups.
Features
Power supply: Input voltage DC5V, only supply for transmitter.
Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
Transmission distance: HDMI transmission distance 50m (max.164ft), with CAT6 of pure copper cable(DC impedance is less than 9.5 ohm for every 100 meters(328ft)).
Infrared function: support to transmit one-way infrared remote control signal.
Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID.
Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install.
Downloads
PFM700-E Datasheet_20190906
Dahua Pole Mount Bracket
Material: SECC & SUS304
Pole mount bracket
Aesthetic design
Specifications
CAMERA BRACKETS
TYPE
Pole Mount Bracket
MATERIAL
SECC & SUS304
COLOUR
White
DIMENSION
130.4mmx170mmx45mm (5.13''x6.69''x1.77'')
Downloads
DH-PFA150_datasheet
Dahua PoE Switch for IP System with Dahua Network Protocol, Connect up to 6 Indoor Monitor
Features
Decent appearance
Protocol network power supply switch
Connect max 6 indoor monitors with the Cat 5e cable, transfer the signal and power together
Specifications
PoE SWITCH
ETHERNET PORT
6
OPTICAL PORT
Not support
UPLINK PORT
2
POE BUDGET
Max 45W
LAYER
Layer 2
TYPE
Unmanaged
Downloads
Datasheet of DHI-VTNS1060A-A
User Manual

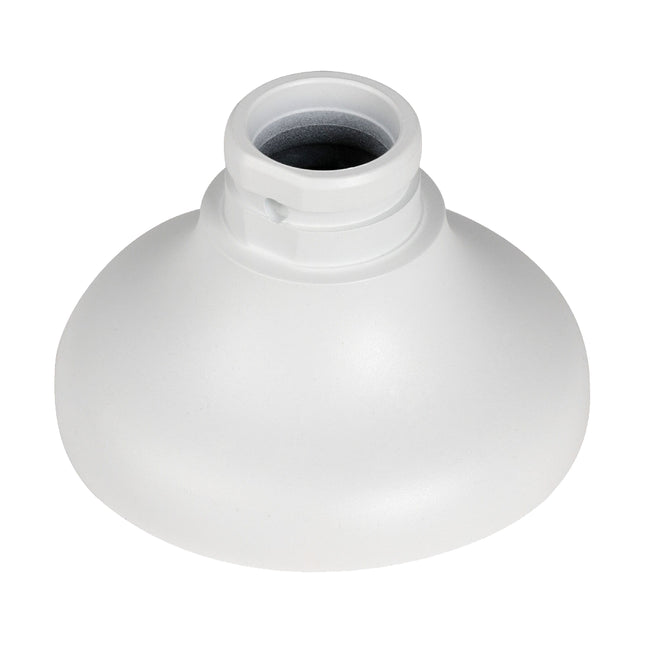

Dahua Mount Adapter
Neat & Integrated design
Material: Aluminum
Specifications
CAMERA BRACKETS
TYPE
Adapter Plate of PT Network Camera
MATERIAL
Aluminum
COLOUR
White
DIMENSION
134.1mmx83.5mm(5.28''x3.29'')
Downloads
DH-PFA107_datasheet
Dahua Wall Mount Bracket
Aesthetic design
Wall mount bracket
Material: aluminum
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum
COLOUR
White
DIMENSION
58mmx88mmx190.5mm (2.28''x3.46''x7.50'')
Downloads
DH-PFB121W Datasheet
Dahua Mount Adapter
Aesthetic design
Material: aluminum
Mount adapter
Specifications
CAMERA BRACKETS
TYPE
Mount Adapter
MATERIAL
Aluminum
COLOUR
White
DIMENSION
60mmx49mm (2.36''x1.93'')
Downloads
DH-PFA111_datasheet
Dahua Ceiling Mount Bracket
Neat & Integrated design
Ceiling mount bracket
Material: Aluminum
Specifications
CAMERA BRACKETS
TYPE
Ceiling Mount Bracket of Mini Dome & Eyeball Camera
MATERIAL
Aluminum
COLOUR
White
DIMENSION
128.8mmx767.0mm(5.07''x30.2'')
Downloads
DH-PFB220C_datasheet
Dahua DH-PFH101 Rack Mount Tray
The Dahua DH-PFH101 Rack Mount Tray is made of durable SPCC material and is highly compatible with standard storage devices. Designed to fit into a 19'' rack, this tray provides convenient and organized storage for your equipment. Streamline your setup with this reliable and versatile rack mount tray.
Features
Material: SPCC
High compatibility for standard storage device
19'' standard rack mount tray
Downloads
DH-AC-PFH101 Datasheet
Dahua Ceiling Mount Bracket
Aesthetic design
Material: aluminium & PC
Ceiling mount bracket
Specifications
CAMERA BRACKETS
TYPE
Ceiling Mount Bracket
MATERIAL
Aluminum & PC
COLOUR
White
DIMENSION
133.6mm x 235.5mm (5.26''x16.54'')
Downloads
DH-PFB300C_datasheet
Dahua Hi-PoE Midspan, Support PoE for Hi-PoE 60W high power consumption speed dome
Support PoE for Hi-PoE 60W high power consumption speed dome
Indicator status: power (normal power on), PoE (normal power supply)
Cooperate with PoE Extender (PFT1300), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption Installation mode: wall mount
Downloads
PFT1200_Datasheet_20170728PFT1200_User Manual
Dahua Mount Adapter DH-PFA108
Aesthetic design
Material: aluminum
Special adapter plate for 4*2MP IR dome camera
Specifications
CAMERA BRACKETS
TYPE
Mount Adapter
MATERIAL
Aluminum
COLOUR
White
DIMENSION
140mmx39.5mm (5.51''x1.56'')
Downloads
DH-PFA108 Datasheet 20181109
Dahua Mini Dome and Turret Mount Adapter
Neat & Integrated design
Material: Aluminum
Specifications
CAMERA BRACKETS
TYPE
Adapter Plate of Mini Dome & Eyeball Camera
MATERIAL
Aluminum
COLOUR
White
DIMENSION
134.1mm x 83.5mm (5.28''x3.29'')
Downloads
DH-PFA106 Datasheet
The Dahua PFB5310C is a reliable in-ceiling mount bracket designed to provide a clean and secure mounting solution for compatible network and PTZ cameras. The bracket supports a variety of recessed ceiling installations, offering a neat finish with minimal intrusion into the camera’s field of view. Built with rugged materials and an anti-drop safety rope, it ensures secure, safe installation even in commercial environments.
Installation is quick and simple, and the bracket design allows easy disassembly and maintenance when needed — making it ideal for offices, retail spaces, warehouses, schools, and other professional CCTV installations.
Key Features
Designed for in-ceiling mounting of compatible Dahua cameras
Screws embedded in the frame — clean installation with full visual range
Includes anti-drop rope for added safety
Works with standard recessed ceiling types
Durable SECC & PC construction for long-lasting reliability
White finish blends with most ceilings
Easy to install and maintain
Specifications
Specification
Details
Model / SKU
PFB5310C
Mount Type
In-ceiling mount bracket
Material
SECC and PC (polycarbonate)
Colour
White
Product Dimensions
Ø 238.0 mm × 78.0 mm (Ø 9.37″ × 3.07″)
Net Weight
0.35 kg (0.77 lb)
Gross Weight
0.62 kg (1.37 lb)
Load Bearing Capacity
Up to 3.0 kg (6.61 lb)
Installation
In-ceiling mount for recessed ceilings
Operating Temp.
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
< 90 % RH
Storage Temp.
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
10 %–90 % RH
Anti-corrosion Level
Basic Protection

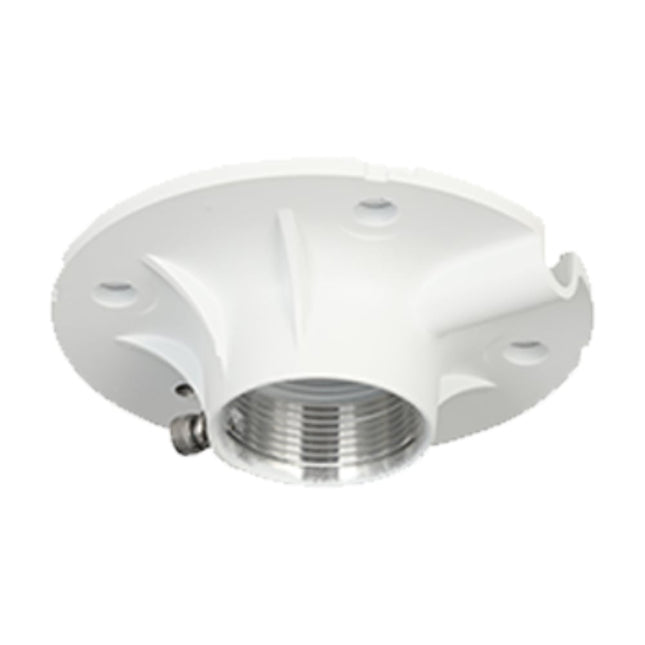

Dahua Pendant Mount Bracket Suits Speed Dome PTZ White Aluminium Alloy 10 KG Max Load 0.21 KG
The Dahua Pendant Mount Bracket is designed for secure ceiling installation of Speed Dome PTZ cameras. Constructed from durable white aluminium alloy, it supports up to 10 kg, ensuring robust performance. This bracket features a clean, elegant design with integrated wiring for a neat setup. It includes an 8-inch ball joint and requires a mount adapter for compatibility. Ideal for professional surveillance installations, it offers convenient installation and reliability.
Features
Aluminium alloy.
Convenient Installation.
Simple and elegant design.
Wires in the bracket.
8-inch ball, need to be used with mount adapter.
Dahua PFA101 Mount Adapter
Features
Aesthetic design
Material: aluminum
Mount adapter
Specifications
Dahua Camera Bracket
Type
Mount adapter
Material
Aluminum
Colour
White
Dimension
159mmx159mmx35mm (6.26''x6.26''x1.38'')
Downloads
DH-AC-PFA101 Datasheet
Dahua Water-Proof Junction Box DH-AC-PFA5300R
Features
Built of aluminum alloy
Suitable for a variety of cameras and is elegant
IP66 junction box
Specifications
CAMERA BRACKETS
TYPE
Junction Box
MATERIAL
Aluminum alloy
COLOUR
White
DIMENSION
123.4 mm x 123.4 mm x 44.9 mm (4.86'' x 4.86'' x 1.77'')
Downloads
PFA5300R_datasheet_20221020
Dahua Mini Dome and Turret Mount Adapter
Aluminum alloy material
Matched with particular cameras, beautiful and elegant designed
Specifications
CAMERA BRACKETS
TYPE
Mount Adapter
MATERIAL
Aluminum alloy
COLOUR
White
DIMENSION
134.1 mmx134.1 mmx83.5 mm (5.28''x5.28''x3.29'')
Downloads
DH-PFA109 Datasheet
Parapet Mount Bracket of PTZ Camera
Parapet/plane mount and hidden line design
Material: Aluminum
10kg high load-bearing capacity
Reserved the anti-drop structure, secure and reliable
Specifications
CAMERA BRACKETS
TYPE
Parapet Mount Bracket of PTZ Camera
MATERIAL
Aluminum
COLOUR
White
DIMENSION
343.6mmx121.9mmx700.0mm (15.53''x4.8''x27.56'')
Downloads
DH-PFB301S-E Datasheet
Dahua In-ceiling Mount Bracket
Aesthetic design
In-ceiling mount bracket
Material: SECC & PC
Specifications
CAMERA BRACKETS
TYPE
In-ceiling Mount
MATERIAL
SECC & PC
COLOUR
White
DIMENSION
166mm x 75.8mm
Downloads
DH-PFB200C DatasheetCamera Accessories Selection
The Dahua DH-PFA156 is a professional-grade, heavy-duty pole mount bracket designed for the secure installation of security cameras and outdoor intercom stations. Constructed from high-quality SECC steel, this bracket provides a stable mounting platform for devices in both residential and commercial environments, ensuring long-lasting performance in outdoor conditions.
Key Features
Heavy-Duty Construction: Manufactured from SECC (Steel Electro-galvanized Cold-rolled Coil) for superior strength and corrosion resistance.
High Load Capacity: Engineered to support a structural load of up to 10.0 kg (22.05 lb), making it suitable for larger cameras and heavy outdoor stations.
Versatile Pole Compatibility: Designed to fit a wide range of pole diameters, from 80mm to 150mm (3.15" to 5.91"), using adjustable stainless steel hoops.
All-Weather Reliability: Built to operate in extreme temperature ranges from -40 °C to +60 °C (-40 °F to +140 °F) with up to 90% relative humidity.
Seamless Integration: Features a clean, aesthetic design in Dahua White that matches professional security hardware.
Technical Specifications
Material
SECC Steel
Dimensions
130.4 mm x 170.0 mm x 45.0 mm
Pole Diameter
Φ80 mm to Φ150 mm
Load Bearing
10.0 kg (22.05 lb)
Color
Dahua White
Operating Temp
-40 °C to +60 °C
More Information
For detailed dimensions and compatibility charts for Dahua cameras and brackets, please refer to the official documentation:
Download Technical Data Sheet
Dahua DH-PFA112 Extension Pole 200mm Suits Box/ Fisheye/ Dome/ Speed Dome PTZ/ Mini PTZ/ UFO White Aluminium 7kg Max. Load 0.51kg
The Dahua DH-PFA112 Extension Pole is a 200mm aluminum mounting solution designed for various camera types including box, fisheye, dome, speed dome PTZ, mini PTZ, and UFO models. Its sleek white finish and aesthetic design integrate seamlessly with ceiling setups. Constructed from durable aluminum, it supports a maximum load of 0.51kg, providing reliable stability. Ideal for secure ceiling mounting, this extension pole enhances camera positioning flexibility while maintaining a professional appearance.
Features
Aesthetic design
Material: aluminum
Ceiling mount bracket
Dahua Surface Mounted Box with Rain Cover DH-AC-VTM57R
The Dahua Surface Mounted Box with Rain Cover DH-AC-VTM57R is designed specifically for the DHI-VTO6521K video intercom. Constructed from lightweight AL5052 aluminum with an anti-rust finish, it ensures durability and protection against harsh weather. Measuring 410.4 mm x 147.4 mm x 107 mm, this silver rain cover safeguards your device from moisture while maintaining a sleek, professional appearance. Ideal for reliable outdoor installation, it enhances the longevity and performance of your security system.
Features
Suitable for DHI-VTO6521K; VTO6521K
Light material
Anti-rust design
Specification
Dahua Security Camera Bracket
TYPE
Rain Cover
MATERIAL
AL5052
COLOUR
Silver
DIMENSION
410.4 mm x 147.4 mm x 107 mm (16.16'' x 5.80'' x 4.21'')
Downloads
VTM57R_datasheet_20211028
Dahua Mount Adapter
Aesthetic design
Material: USU304
Mount adapter
Specifications
CAMERA BRACKETS
TYPE
Mount Adapter
MATERIAL
SUS304
COLOUR
White
DIMENSION
49mmx77mm
Downloads
DH-PFA118_datasheet
Dahua Mount Adapter
Aesthetic design
Material: aluminum
Mount adapter
Specifications
CAMERA BRACKETS
TYPE
Mount Adapter
MATERIAL
Aluminum
COLOUR
White
DIMENSION
59mmx53mm (2.32''x2.09'')
Downloads
DH-PFA110_datasheet
The Dahua PFB2203W is a professional-grade wall mount bracket designed to provide a secure and aesthetically pleasing mounting solution for Dahua dome cameras. Constructed from high-quality aluminum, this bracket is built to withstand harsh environments while ensuring your surveillance equipment remains stable and correctly positioned.
Key Performance Features
High-Quality Material: Manufactured from durable aluminum alloy, providing excellent structural integrity and corrosion resistance.
Weatherproof Design: With an IP66 rating, this bracket is ideal for both indoor and outdoor installations, protecting connections from dust and water.
Integrated Junction Box: Features a hollow center design that allows for clean cable management, hiding connectors and wires from view and protecting them from tampering.
High Load Capacity: Engineered to support up to 1.0kg (2.2lb), ensuring compatibility with a wide range of Dahua mini-dome and turret cameras.
Why Use the PFB2203W Bracket?
Professional Finish: Provides a clean, "factory" look for residential and commercial security installations.
Easy Installation: The bracket features pre-drilled holes for standard wall mounting and simple camera attachment points.
Optimized Viewing: Extends the camera away from the wall to reduce reflections and provide a better angle of the monitored area.
The Dahua PFB2203W wall mount bracket is highly versatile, designed primarily for dome and eyeball (turret)cameras. Based on Dahua’s technical compatibility data, it is compatible with a wide range of series.
Compatible Camera Series & Models
The PFB2203W is typically used for cameras with a base diameter that matches its mounting plate (approx. 122mm to 129mm). Key compatible series include:
WizMind & WizSense Series:
IPC-HDW5X59 Series: (e.g., IPC-HDW5859H-ZE-PV-PRO, IPC-HDW5459TM-ASE-IL)
IPC-HDBW5X41 Series: (e.g., IPC-HDBW5441R-ASE)
IPC-HDW3X49 Series: (e.g., IPC-HDW3849QM-S-IL TiOC models)
IPC-HDBW3X41/3X49 Series: (e.g., IPC-HDBW3849E-AS-IL)
IPC-HDW2X49 Series: (e.g., IPC-HDW2549T-S-IL)
HDCVI (Analog) Series:
HAC-HDW1249 Series: (e.g., HAC-HDW1249X-A-PRO)
HAC-HDBW Series: Most standard size vandal-proof domes.
Specialty Models:
IPC-PDW3849-A180-AS-PV: 180° Duo Splicing cameras.
How to Confirm Compatibility
Because Dahua frequently updates their camera housings, the most accurate way to confirm is to check the Camera Accessory Selection guide or the specific camera's datasheet under the "Accessories" section.
General Compatibility Rule: If your camera is compatible with the PFA137 or PFA130-E junction boxes, it is almost certainly compatible with the PFB2203W wall mount, as they share the same mounting hole patterns.
Key Specs for Installation:
Load Bearing: Supports up to 1.0 kg (2.2 lb).
Material: Aluminum alloy & SGCC (provides high durability and corrosion resistance).
Dimensions: 162.0 mm × 129.4 mm × 80.0 mm.
Technical Specifications
Feature
Specification
Model
PFB2203W
Material
Aluminum Alloy
Dimensions
160.0mm x 122.0mm x 76.0mm
Pipe Thread
G1/2"
Load Bearing
1.0kg (2.2lb)
Weight
0.49kg (1.08lb)
Color
White
Operating Temp.
-40ºC to +60ºC (-40ºF to +140ºF)
Protection Rating
IP66
Guru Tip: To ensure a fully waterproof seal for outdoor use, always use the included G1/2” pipe thread or applicable conduit and apply waterproof tape to the cable entry points.
