Aqara Smart Door Lock D100
Fully-Automatic Lock Body
Li-Ion Battery
9 Unlock Methods
Remote Unlock via Aqara Home App
Support Aqara Home, Apple Home, Google via Aqara Hub
Aqara Smart Door Lock D100
The flagship fully automatic door lock with premium design.The Aqara Smart Door Lock D100 incorporates multiple ways of unlocking including: fingerprint, password, bluetooth via mobile phone, NFC and mechanical key. The integrated lock body can enable the full-automatic function of opening (automatic unlock) at one touch as well as automatic locking. The door lock is featured with functions such as lock state inspection, low battery reminders, lockpicking warning and error trial warning. Aqara Home and Apple HomeKit are supported, which means that the lock can cooperate with other smart devices that support Aqara or HomeKit to fulfill multiple functions in smart home applications like smart automation control and alarm.
Key Features:
Fully-Automatic Lock Body: No need to push the handle, the lock will open automatically. D100 is our first fully automatic smart door lock that is sold globally.
Google Assistant and HomeKit (incl. Home Key) Support: The Door Lock D100 is designed to work with HomeKit including the newest Apple Home Key feature and also supports unlocking via Google Assistant or Google Home app.
1-Year Li-Ion Battery: The newest and more sustainable Lithium-Ion battery pack provides for about one year of battery life and is equipped with a USB-C port for easy charging.
9 Unlock Methods: Permanent, one-time and periodic passwords, fingerprint, NFC card, mechanical key, Aqara Home app (via Bluetooth or Zigbee), HomeKit (incl. Home Key), Google Assistant.
Louder Speaker and Doorbell Button: A pair of speakers located from both sides of the lock provide a rich and clear sound with an output of up to 103 dB, which also grants the D100 with a doorbell function.
Metal Unibody with Premium Design: The D100's housing made of glass and metal incorporates the best build quality we can currently offer. The lock feels extremely solid and does not have any moving parts thanks to its fully automatic lock body.
Wider Door Thickness Support: The D100 now supports a much wider range of door thickness. It can be installed onto the doors from 40 to 120 mm.
Mechanical Key and Emergency Type-C Port: Even if the batteries run out, you can still open the D100 by using a mechanical key or by charging it via the hidden Type-C port.
Zigbee 3.0 and Bluetooth Protocols: Zigbee, the most stable and reliable smart home technology, is used to support automations and cloud integrations, while Bluetooth allows to connect directly to the phone.
Keypad with Away Mode Button: Apart from a keypad that is invisible until you touch it, the D100 has a separate Away Mode button that can be used in automations.
Remote Unlock via Aqara Home App: The D100 can now be opened remotely via Aqara Home app. For example, you can open the door and watch* the delivery person leaving a parcel inside.*
Remotely-Configurable Passwords and Settings: Finally, the passwords and lock settings can be configured remotely via Zigbee, which allows the D100 to be used in property rentals or the hotel industry.
NFC Cards and Protection Covers Included: We have included two Aqara NFC cards with enhanced security for even simpler unlocking. Also, we have added two detachable covers to protect the user's fingers from being jammed.
Ergonomic Fingerprint Reader with Sapphire Coating: A fast fingerprint reader is embedded into the housing so that your thumb will naturally touch it when opening the door.
Child Lock Switch: The unlock button is coupled with a small unlock switch. When it is on, that enhances the protection by not letting small children open the door accidentally.
* Aqara camera hub is required
Automations:
1. Trigger different scenes depending on who has entered the room!
IF Person 1 opens the door THEN turn on the cold ceiling light, set A/C to 18 CIF Person 2 opens the door THEN turn on the warm pendant light, set A/C to 24 C, turn on the music.( Smart Door Lock D100 Zigbee + Hub + Lights + Sonos Speaker)
2. Open the lock remotely, monitor and talk when the guest enters your home!
Just open the Aqara Home app, start the camera stream in a minimized window, open the D100 remotely, and you will be able to see how the guest such as a dog walker enters the house, and even talk with him/her using the intercom function.(Smart Door Lock D100 Zigbee + Camera Hub)
3. Increase the security by starting to record and initiating face recognition in case an unknown person enters the house
IF the lock was opened using a mechanical key, THEN the Camera Hub G3 will turn to the door, start recording and will send you a notification in case no familiar face was detected.(Smart Door Lock D100 Zigbee + Camera Hub G3)
Specifications
Product Name: Smart Door Lock D100 Zigbee Edition
Product Model: ZNMS20LM
Product Size: 393.8*74.2*58.6 mm
Net Weight: 4.2kg
Power Supply Mode: 2480mAh lithium-ion battery (7.2V),
USB-C emergency power supply (5V)
Wireless Protocols: Zigbee, Bluetooth 5.0, NFC
Fire Rated: No
IP Rating: IP52
Operating Humidity: 0-93% RH, non-condensing
Operating Temperature: -10°C -55°C
Kit for garage door. Includes Wi-Fi controller and waterproof wireless tilt sensor. ismartgate PRO will remotely open, close and control your garage door through HomeKit, Google Home, Samsung SmartThings and iFTTT or with native iOS/Android App. Includes key features such as video, user management, audio player, 3 doors control, compatibility with wireless and wired sensors.
Up to 3 x Garage Doors Notes: Use Gate PRO Kit for Roller Garage Doors.
In the box
1 x ismartgate PRO controller
3 x peeled connection cables
1 x Power supply
1 x Double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless tilt sensor (for garage door)
2 x Type-N 1.5V batteries (for sensor)
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 3, to control up to 3 doors/ gates
Dry contact inputs: 3, to connect up to 3 wired sensors
Speaker: Play your music when door is moving
Light: Dual LED
USB: type A
System: 512Mhz CPU / 4GB eMMC / 128MB RAM
Universal Power Supply: 110-240V AC (50-60 hz) to 5V2A DC
Receiver: 2401 Mhz
Transmitter:2401 Mhz
Type: Gravity sensor
Temperature indicator: Included
Range: 50 ft
Operating temperature: -25ºC / 70ºC
Batteries: 2x Type-N (1.5V)
Life span: 18 months
Waterproof: Yes
Apple HomeKit Compatible (voice control)
The most complete garage door controller compatible with HomeKit. Integrate your garage in an Apple eco-system through HomeKit and voice control with Siri.
Google Home Compatible (voice control)
ismartgate PRO integrates with a Google eco-system too. Make your garage part of a Google home and enjoy voice control with Google Assistant.
SmartThings Compatible
With SmartThings app you can control your ismargate device combined with other devices to automate your home. Open, close, check door status and create scenes.
iFTTT Compatible (Free!)
ismartgate PRO is compatible with iFTTT (visit GarageWifi & Gates channel) for free. Integrate your ismartgate with Amazon Alexa through iFTTT, to enjoy voice control of your garage with Amazon devices. You can also create unlimited applets with both our new triggers and actions!
Remote Access
Open and close your garage door remotely from an app or web-link. Internet conection required.
Real time alerts
Receive alerts when door is open, closed or left open on your Smartphone or via email. The garage kit also monitors your garage temperature and sensor's battery condition. With HomeKit, you will receive alerts when door is stopped.
Video monitoring (optional)
Watch and record events in your garage remotely from your phone, tablet or PC using the ismartgate app. Additional IP Camera required.
User Management
Grant and deny access to different users remotely. Restrict access by time, door and location. 10 users for free.
Control 3 gates with 1 device
One iSmartgate PRO device can control a combination of up to 3 garage doors or gates. The ismartgate app can control unlimited devices and doors.
Calendar of events
Check what happens in your garage from the distance with a built-in calendar of events.
Audio player
ismartgate PRO includes audio. Add your preferred music or tone and ismartgate PRO will play it when your are coming or leaving home.
LED light
ismartgate PRO includes two powerful LED lights to provide extra illumination when parking home. These lights will activate when system is used remotely too.
Multiplatform
You can use and edit your ismartgate system from an app on your Smartphone (iOS/Android) or via web from your Tablet, Laptot or PC.
Easy to install
ismartgate PRO only requires a screwdriver and 20 minutes of your time. Easy to link with your Apple, Google or Amazon eco-system too!
Automatic open/close
ismartgate PRO will open and close your garage automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
Time to close
ismartgate PRO will open and close your garage automatically at a given time thanks to iFTTT, so you do not wonder if you closed the garage at night!
Kit for garage door. Includes Wi-Fi controller and waterproof wireless tilt sensor. ismartgate LITE will remotely open, close and control your garage door through HomeKit, Google Home, Samsung SmartThings and iFTTT or with native iOS/Android App. Includes key features such as video, user management compatibility., automatic open/close with GPS location or time (with iFTTT).
Only for 1 garage door control.Notes: Use Gate Kit for Roller Garage Doors.
In the box
1 x ismartgate LITE controller
1 x Peeled connection cable
1 x Power supply
2 x Double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless tilt sensor (for garage door)
2 x Type-N 1.5V batteries (for sensor)
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 1, to control 1 door/ gate
Dry contact inputs: 0, no wired sensor supported
Speaker: Not included
Light: Not included
USB: type A
System: 512Mhz CPU / 4GB eMMC / 128MB RAM
Universal Power Supply: 110-240V AC (50-60 hz) to 5V2A DC
Receiver: 2401 Mhz
Transmitter:2401 Mhz
Type: Gravity sensor
Temperature indicator: Included
Range: 50 ft
Operating temperature: -25ºC / 70ºC
Batteries: 2x Type-N (1.5V)
Life span: 18 months
Waterproof: Yes
Apple HomeKit Compatible (voice control)
A cost-effective garage door controller compatible with HomeKit. Integrate your garage in an Apple eco-system through HomeKit and voice control with Siri.
Google Home Compatible (voice control)
ismartgate LITE also integrates with a Google eco-system. Make your garage part of a Google home and enjoy voice control with Google Assistant.
SmartThings Compatible
With SmartThings app you can control your ismargate device combined with other devices to automate your home. Open, close, check door status and create scenes.
iFTTT Compatible (Free!)
ismartgate LITE is compatible with iFTTT for free (visit GarageWifi & Gates channel). Integrate your ismartgate with Amazon Alexa through iFTTT, to enjoy voice control of your garage with Amazon devices. You can also create unlimited applets with both our new triggers and actions!
Remote Access
Open and close your garage door remotely from an app or web-link. Internet conection required.
Real time alerts
Receive alerts when door is open, closed or left open on your Smartphone or via email. The garage kit also monitors your garage temperature and sensor's battery condition. With HomeKit, you will receive alerts when door is stopped.
Video monitoring (optional)
Watch and record events in your garage remotely from your phone, tablet or PC using the ismartgate app. Additional IP Camera required.
User Management
Grant and deny access to different users remotely. Restrict access by time, door and location. 10 users for free.
ONLY 1 DOOR
ismartgate LITE garage kit will only control 1 door. For two or three doors garage, we strongly recommend the use of our PRO version. The ismartgate app can control unlimited ismartgate devices.
Calendar of events
Check what happens in your garage from the distance with a built-in calendar of events.
Multiplatform
You can use and edit your ismartgate system from an app on your Smartphone (iOS/Android) or via web from your Tablet, Laptot or PC.
Easy to install
ismartgate LITE only requires a screwdriver and 20 minutes of your time. Easy to link with your Apple, Google or Amazon eco-system too!
Automatic open/close
ismartgate LITE will open and close your garage automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
Time to close
ismartgate LITE will open and close your garage automatically at a given time thanks to iFTTT, so you do not wonder if you closed the garage at night!
Kit for gate. Includes Wi-Fi controller and waterproof wireless magnetic sensor. ismartgate LITE will remotely open, close and control your gate through HomeKit, Google Home, Samsung SmartThings and iFTTT or with native iOS/Android App. Includes key features such as video, user management compatibility, automatic open/close with GPS location or time (with iFTTT).
Only for 1 gate control.
In the box
1 x ismartgate LITE controller
1 x Peeled connection cable
1 x Power supply
2 x Double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless magnetic sensor (for gates and roller doors)
1 x Magnet (for sensor)
2 x Type-N 1.5V batteries (for sensor)
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 1, to control 1 door/ gate
Dry contact inputs: 0, no wired sensor supported
Speaker: Not included
Light: Not included
USB: type A
System: 512Mhz CPU / 4GB eMMC / 128MB RAM
Universal Power Supply: 110-240V AC (50-60 hz) to 5V2A DC
Receiver: 2401 Mhz
Transmitter:2401 Mhz
Type: Magnet
Temperature indicator: Included
Range: 50 ft
Operating temperature: -25ºC / 70ºC
Batteries: 2x Type-N (1.5V)
Life span: 18 months
Waterproof: Yes
Apple HomeKit Compatible (voice control)
A cost-effective gate controller compatible with HomeKit. Integrate your gate in an Apple eco-system through HomeKit and voice control with Siri.
Google Home Compatible (voice control)
ismartgate LITE also integrates with a Google eco-system. Make your gate part of a Google home and enjoy voice control with Google Assistant.
SmartThings Compatible
With SmartThings app you can control your ismargate device combined with other devices to automate your home. Open, close, check door status and create scenes.
iFTTT Compatible (Free!)
ismartgate LITE is compatible with iFTTT for free (visit GarageWifi & Gates channel). Integrate your ismartgate with Amazon Alexa through iFTTT, to enjoy voice control of your gate with Amazon devices. You can also create unlimited applets with both our new triggers and actions!
Remote Access
Open and close your gate remotely from an app or web-link. Internet conection required.
Real time alerts
Receive alerts when gate is open, closed or left open on your Smartphone or via email. The gate kit also monitors your garage temperature and sensor's battery condition.
Video monitoring (optional)
Watch and record events in your gate remotely from your phone, tablet or PC using the ismartgate app. Additional IP Camera required.
User Management
Grant and deny access to different users remotely. Restrict access by time, gate and location. 10 users for free.
ONLY 1 DOOR
ismartgate LITE gate kit will only control 1 roller door or gate. For two or three gates/roller doors, we strongly recommend the use of our PRO version. The ismartgate app can control unlimited ismartgate devices.
Calendar of events
Check what happens in your gate from the distance with a built-in calendar of events.
Multiplatform
You can use and edit your ismartgate system from an app on your Smartphone (iOS/Android) or via web from your Tablet, Laptot or PC.
Easy to install
ismartgate LITE only requires a screwdriver and 20 minutes of your time. Easy to link with your Apple, Google or Amazon eco-system too!
Automatic open/close
ismartgate LITE will open and close your gate automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
New wireless gate sensor
ismartgate PRO kit gate includes a new waterproof wireless sensor to monitor the status of your gate.
Time to close
ismartgate LITE will open and close your gate automatically at a given time thanks to iFTTT, so you do not wonder if you closed the garage at night!
Kit for garage door. Includes Wi-Fi controller and waterproof wireless tilt sensor. ismartgate Mini will remotely open, close and control your garage door through Amazon Alexa, Google Home, iFTTT or with native iOS/Android App. Includes key features such as remote access, door status alerts, temperature alerts and automatic open/close with GPS location or time (with iFTTT).
Only for 1 garage door control.
In the box
1 x ismartgate Mini controller
1 x Peeled connection cable
1 x Power supply
2 x double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless tilt sensor (for garage door)
2 x Type-N 1.5V batteries (for sensor)
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 1 from 60V 2A
Port USB type B
Universal Power Supply: 110-240V AC to 5V2A DC (50-60 hz)
2.4Ghz RF receiver
2.4Ghz RF transmitter
Accelerometer
Temperature indicator
Amazon Alexa Compatible
A cost-effective garage door controller compatible with Amazon Alexa. Integrate your garage with Amazon Alexa.
Google Home Compatible
ismartgate Mini also integrates with a Google eco-system. Make your garage part of a Google home!
iFTTT Compatible (Free!)
ismartgate Mini is compatible with iFTTT for free (visit GarageWifi & Gates channel). Integrate your ismartgate with other smart home platforms through iFTTT, to enjoy full home automation with other smart devices. You can also create unlimited applets with our channel's triggers and actions!
Remote Access
Open and close your garage door remotely from an app. Internet conection required.
Real Time Alerts
Receive alerts when door is open, closed or left open on your Smartphone or via email. The garage kit also monitors your garage temperature and sensor's battery condition.
For One Door Garage
ismartgate Mini garage kit will only control 1 door. For two or three doors garage, we strongly recommend the use of our PRO version. The ismartgate app can control unlimited ismartgate devices.
Compatible with Wired Sensors
ismartgate Mini is compatible both with wireless sensors (included) or wired sensors.
Voice Control
You can open and close your garage by asking Alexa or the Google Assistant.
Easy to Install
ismartgate Mini only requires a screwdriver and 20 minutes of your time. Easy to pair with your Google or Amazon eco-system!
Automatic Open/Close
ismartgate Mini will open and close your garage automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
Time to close
ismartgate Mini will open and close your garage automatically at a given time thanks to iFTTT, so you never have to wonder if you closed the garage at night.
User Management
The iSmartgate MINI allows you to add up to 100 users. However, unlike the LITE and PRO models, the iSmartgate MINI does not allow you to restrict each user by access time or location.Each user will be able to OPEN/CLOSE the garage door or gate at any time from the iSmartgate app.
Kit for gate. Includes Wi-Fi controller and waterproof wireless magnetic sensor. ismartgate Mini will remotely open, close and control your gate through Amazon Alexa, Google Home, iFTTT or with native iOS/Android App. Includes key features such as remote access, remote gate status alerts, temperature alerts and automatic open/close with GPS location or time (with iFTTT). Only for 1 gate control.
In the box
1 x ismartgate Mini controller
1 x Peeled connection cable
1 x Power supply
2 x double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless magnetic sensor (for gate or roller door)
1 x Magnet (for sensor)
2 x Type-N 1.5V batteries (for sensor)
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 1 from 60V 2A
Port USB type B
Universal Power Supply: 110-240V AC to 5V2A DC (50-60 hz)
2.4Ghz RF receiver
2.4Ghz RF transmitter
Reed switch with magnet
Temperature indicator
Amazon Alexa Compatible
A cost-effective gate controller compatible with Amazon Alexa. Integrate your garage with Amazon Alexa.
Google Home Compatible
ismartgate Mini also integrates with a Google eco-system. Make your gate part of a Google home!
iFTTT Compatible (Free!)
ismartgate Mini is compatible with iFTTT for free (visit GarageWifi & Gates channel). Integrate your ismartgate with other smart home platforms through iFTTT, to enjoy full home automation with other smart devices. You can also create unlimited applets with our channel's triggers and actions!
Remote Access
Open and close your gate remotely from an app. Internet conection required.
Real Time Alerts
Receive alerts when gate is open, closed or left open on your Smartphone or via email. The gate kit also monitors your gate temperature and sensor's battery condition.
For One Gate
ismartgate Mini gate kit will only control 1 gate. For two or three doors gates, we strongly recommend the use of our PRO version. The ismartgate app can control unlimited ismartgate devices.
Compatible with Wired Sensors
ismartgate Mini is compatible both with wireless sensors (included) or wired sensors.
Voice Control
You can open and close your gate by asking Alexa or the Google Assistant.
Easy to Install
ismartgate Mini only requires a screwdriver and 20 minutes of your time. Easy to pair with your Google or Amazon eco-system!
Automatic Open/Close
ismartgate Mini will open and close your gate automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
Time to close
ismartgate Mini will open and close your gate automatically at a given time thanks to iFTTT, so you never have to wonder if you closed the gate at night.
User Management
The iSmartgate MINI allows you to add up to 100 users. However, unlike the LITE and PRO models, the iSmartgate MINI does not allow you to restrict each user by access time or location.Each user will be able to OPEN/CLOSE the garage door or gate at any time from the iSmartgate app.

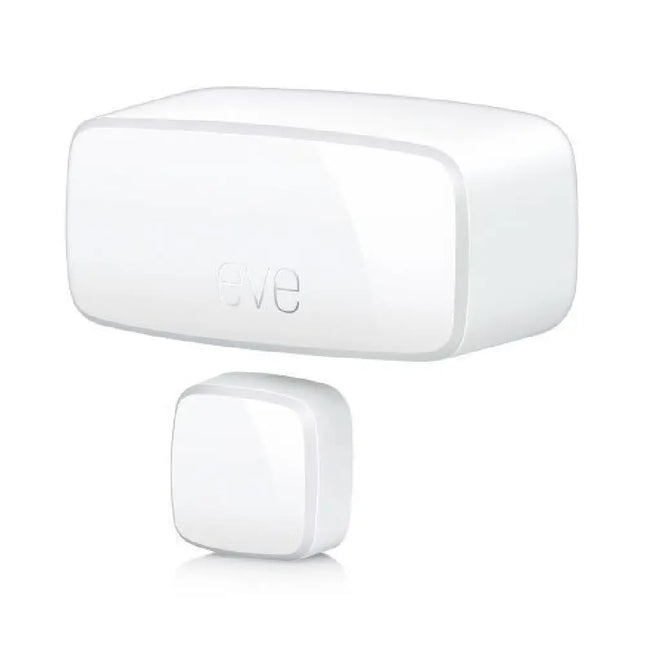

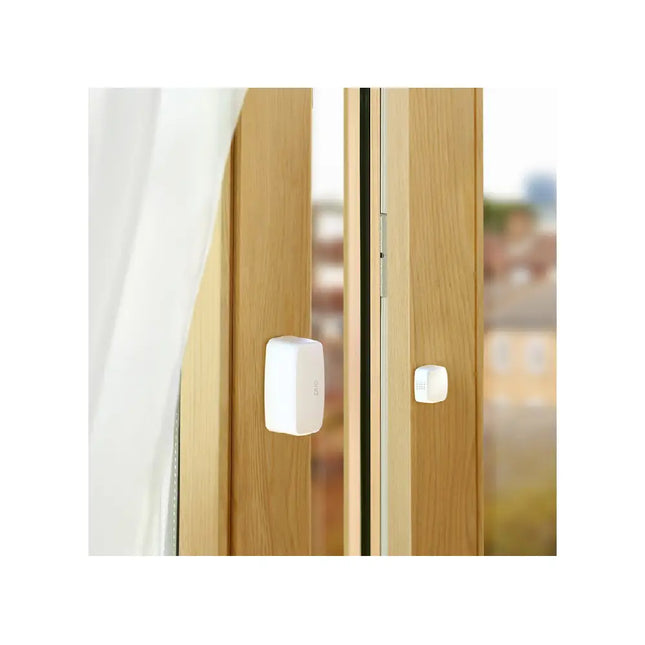

Eve Door & Window (Matter)
Know the status of your door or window. Unassuming and a breeze to install with no tools required, Eve Door & Window fuses cutting-edge convenience with everyday peace of mind.
Specifications:
Power: Replaceable Battery R14250
Requirements: iOS 16.4 or later | Android 8.1 or later
Control: Matter Controller | Thread Border Router
Features:
Check your door or window: See the current open/closed state at a glance
Create automations to control other connected devices in your home whenever doors or windows are opened or closed
Receive activity notifications to stay informed
Truly wireless: Powered by a long-lasting, replaceable battery
Matter-enabled
Quick & easy set up requires EVE hub
View time and duration statistics to make smarter choices
Cutting-edge Thread network technology for a robust smart home
100% Privacy: No Eve cloud | no registration | no tracking
Local communication without cloud dependency
What's in the Box?
1 x Eve Door & Window
1 x Replaceable Battery ER14250 3.6V
1 x Quick Start Guide
Aqara Roller Shade Driver E1
Easy Installation
USB Type-C for Charging or Constant Power Supply
4 Adapters for Different Types of Beaded Cords
2-Month Battery Life
Support Aqara Home, Apple Home, Google, Alexa via Aqara Hub
Aqara Roller Shade Driver E1
The Aqara Roller Shade Driver E1 is a retrofit roller shade controller that does not require a complicated installation and can work with your existing Roller Shade by operating the beaded cord. It does not require dedicated wiring and can run both wirelessly from the built-in battery or being plugged into a power supply via the provided USB Type-C cable.
Key Features:
Easy Installation: Just screw the device to the wall, attach the adapter, insert the beaded cord of your roller shade, and the device will be ready to be connected.
Zigbee 3.0 Protocol: Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology. Better stability and compatibility (more standardized protocol), longer support, and more features.
All-Round Compatibility: Compatible with most popular ecosystems and can be controlled by voice. HomeKit, Alexa, Google, IFTTT, Alice, Marusya are supported.
User-Defined Opening/Closing: The user will be able to pre-set a number of desired open/close percentages and switch between them easily.
2-Month Battery Life*: Thanks to Aqara battery-saving technologies, industry-leading battery life is achieved. You don't need to worry about charging the device every few weeks.
USB Type-C for Charging or Constant Power Supply: You can choose between two installation modes: wired and wireless. For charging or powering the device constantly, the most modern and versatile Type-C port is used.
One-Button Control: Thanks to the Aqara Home app, the full operation of your roller shade can be done by pressing only one button such as the Aqara Mini Switch.
Smart Home Automations: Connect the device to the Aqara Home app, and you will be able to forget about operating the device manually: after configuring the automations, it will just work by itself!
4 Adapters for Different Types of Beaded Cords: The majority of roller shades with beaded cords are supported due to a variety of included adapters.
* Supposed to roll and unroll a roller shade of 1.8m*1.8m once a day
Automations:
1. If the sun is too bright, the roller shade will unroll automatically.
When the sunlight is too bright in the afternoon, it is detected by the M1S Hub's built-in illumination sensor and the roller shade will unroll automatically, making you more comfortable and saving energy on cooling. In the evening, the roller shade will open automatically when the Door and Window Sensor detects that you are back home.(Aqara Roller Shade Driver E1 + Hub M1S + Door and Window Sensor)
2. The roller shade will close when you go to bed.
The Motion Sensor located at the top of your bed will detect when you are going to bed and will trigger the Roller Shade Driver E1 to close your roller blinds to make your sleep more comfortable.(Aqara Roller Shade Driver E1 + Hub + Motion Sensor)
3. Roller shades will roll up automatically by the schedule.
On weekday mornings, the roller shades will roll up right before you wake up in order to make it more pleasant. At the same time, they will be kept down during the weekends so you can sleep a little later.(Aqara Roller Shade Driver E1 + Hub)
Specifications
Model: RSD-M01
Wireless Protocol: Zigbee 3.0 IEEE 802.15.4
Dimensions: 42×37×165 mm (1.69×1.52×6.89 in.)
Operating Temperature: -10°C ~ 55℃ (14°F ~ 131°F)
Operating humidity: 0-95% RH, no condensation
What is in the box: Aqara Roller Shade Driver E1 × 1, Screw × 2, Expansion Tube × 2, Double-Faced Adhesive Tape × 1, Spare Rotating Plate × 3, USB-C to USB-A Cable × 1
Battery Type: Lithium battery (not replaceable)
Rated Input: 5V-1A
Total Power Consumption: 5W
Standby Time: Two months (based on controlling a roller shade of 1.8m x 1.8m up and down once a day)
Standard: GB/T 12350-2009
Aqara Hub M2
Zigbee 3.0 Hub
360° Infrared Control
Ethernet RJ-45 Port
Built-in Speaker
Support Aqara Home, Apple Home, Google, Alexa as Hub
Aqara Hub M2
The Aqara Hub M2 is a smart home control center. It can be connected to a WiFi or Ethernet network, and supports interaction and connection with Aqara Zigbee accessories. It also has an IR remote control function, which can add and manage the control of different IR devices. The Aqara Hub M2 allows you to control your Aqara accessories more conveniently.
Key Features:
Zigbee 3.0 Support, up to 128 devices*: Supports all the latest Aqara devices based on the fastest, most stable, and energy-efficient technology.
360° Infrared Control: Control your existing IR devices from any part of your room by voice** and via local automations.
Ethernet RJ-45 Port: Wired connection via Ethernet RJ-45 for extra stability and lower response time.
Built-in Speaker: Can be used as an alarm or doorbell via configurable automations.
USB Power: More flexible installation and optional battery backup thanks to Micro-USB 5V 1A power support.
All-Round Compatibility: Use your favorite voice assistant** or smart home ecosystem together with Aqara Home app automations.
Support for all 4 Apple HomeKit native alarm modes.
*Up to 128 Aqara Zigbee devices can be connected to the hub (repeater devices such as Smart Plug and Wall Switch (with Neutral) are required).**Apple Siri, Amazon Alexa, Google Assistant, and more are supported.
Automations:
1. Personalized greetings using the new custom ringtone function
Surprise your loved ones by playing an uploaded recording once the smart lock detects that the specific person enters the room by recognizing a fingerprint. At the same time, the Alert System will be automatically disarmed.(Camera Hub G2H Pro + Smart Lock + Sensors)
Specifications
Model: HM2-G01
Dimensions:φ100.5×30.75mm(φ3.95×1.21 in.)
Input Power: 5V 1A or 5V 2A
Wireless Protocol: Wi-Fi IEEE 802.11 b/g /n 2.4GHz, Zigbee3.0 IEEE 802.15.4, BLE 5.0
Operating Temperature: -5°C~+50°C(23°F~122°F)
Operating Humidity: 0%-95%RH, no condensation
Support System: Android 6.0 or iOS 12.0 and above
Wi-Fi Operation Frequency: 2412-2472 MHz
Wi-Fi Maximum Output Power < 20 dBm
Bluetooth Operation Frequency: 2402-2480 MHz
Bluetooth Maximum Output Power < 13 dBm
Zigbee Operation Frequency: 2405-2480 MHz
Zigbee Maximum Output Power < 13 dBm
TP-Link Tapo Smart Temperature & Humidity Monitor - Tapo T315
Real-Time & Accurate Monitoring - Detects real-time temperature and humidity with great accuracy. (Measurement Accuracy: ±0.54 ºF, ±3% RH).
2.7" E-ink Display - Indicates temperature & humidity, comfort level with facial expressions, battery condition, and signal.
Home Automation - Automatically turn on/off home electronics (e.g. heater, fan, humidifier and more) to maximize conformity and save energy.
Instant App Notification - Receive app alert notification when conditions fall outside the preset range.
Free Data Storage & Visual Graphs - Record temperature and humidity data and generate periodic data summaries.
Flexible Installation- Just place it on the desk or mount it on the wall.
Hub Required - The Tapo Hub is required to support smart features, like remote monitoring, home automation, data export and more.
High-Accuracy SensorThe built-in Swiss-made sensor features a typical accuracy of ±3%RH, ±0.3°C / 0.54°F. By obtaining and updating data every 2 seconds, the sensor gives you accurate current information.Instant App AlertsReceive instant app notifications when temperature or humidity levels fall outside your customized ranges. React promptly to sudden air condition changes whenever the need arises.Maximise Comfort & Save EnergyThe sensor automatically turns on/off appliances connected to Tapo devices, such as heaters, fans, and humidifiers, to adjust the comfort level in the room. It also helps to save on your energy bills.2-Year Data Storage & Export for FreeUnderstand your home environment with up to 2 years of cloud data logging and storage. Export all the data to a CSV file sent to your email to review at any time.Long-Lasting PerformanceThe Tapo Smart Temperature and Humidity Monitor uses two AAA batteries and lasts for up to 2 years.Display as You LikePress the side button once to switch the temperature unit. Double press to switch the display position of temperature and humidity.Comfort Level IndicatorKeep an eye on your home’s comfort levels at a glance. You can also customize your comfort zones in the Tapo app.Flexible PlacementPlace your monitor anywhere in your home quickleasilyd easy. Sit it on a table or shelf, stick it to a wall with the included adhesive, or attach it to any metallic surface.All-in-One AppExperience your next-level smart home with the Tapo line all in a single app. Create a more secure, convenient, and comfortable living space for you and your loved ones.
DownloadInstallation Guide
TP-Link Tapo D230S1 Smart Battery Video Doorbell
2K 5MP Live View: Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.
Color Night Vision: With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and color at night.
Head-to-Toe View: With the camera’s ultra-wide FOV(160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m†, which shows more vertical details than other 16:9 doorbells'.
Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.
Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.
Smart AI Detection and Notification: Smart AI algorithms identify people and cars, and notify users as needed.
Multiple Ways to Answer: With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.
Flexible Storage Choice: Save recorded videos on the hub-installed microSD card§ (up to 512 GB) or by using Tapo Care△ cloud storage services.
Anti-theft Alarm: Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.
Water & Dust Resistant IP64: Operates well on rainy days and in damp environments.
CAMERA
Image Sensor
1/2.7“
Resolution
2K 5MP (2560 × 1920px)
Lens
F/NO: 2.1
Viewing Angle
160° Diagonal
Night Vision
850 nm IR LED up to 25 ft
Weatherproof Rating
IP64
NETWORK
Standards and Protocols
IEEE 802.11b/g/n, 2.4 GHz
Security
128 bit AES encryption with SSL/TLS
Protocol
TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Frequency
2.4 GHz
Wireless Security
WPA/WPA2-PSK
ACTIVITY NOTIFICATIONS
Input Trigger
Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection.
Output Notification
Notification,Snapshot(Tapo Care),Clips(Tapo Care).
VIDEO
Video Compression
H.264
Frame Rate
15 fps
Video Streaming
2K 5MP
Audio Compression
G.711
ENVIRONMENT
Operating Temperature
-20℃~45℃(-4°F ~113 °F )
Storage Temperature
-20℃~45℃(-4°F ~113 °F )
Operating Humidity
10%~90%RH, Non-condensing
Storage Humidity
5%~90%RH, Non-condensing
HARDWARE
Button
Doorbell Button: Reset/SYNC/Anit-Theft ButtonHub Button: Reset Button; SYNC Button
Indicator LED
Doorbell Indicator LED: System LEDHub Indicator LED: System LED
Adapter Input
Doorbell Adapter Input: 100-240V, 50/60HzHub Adapter Input: 100-240V, 50/60Hz, 0.3A
Adapter Output
Doorbell Adapter Output: 5.0V, 1.0AHub Adapter Output: 9.0V, 0.85A
Product Dimensions (W x D x H)
Camera Dimensions (Lx W x H): 5.7*0.21*1.3in(146*54.5*35.5mm)· Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in (71.45*71.45*31.25mm)
AUDIO
Audio Communication
2-way audio
Audio Input & Output:
Built-in microphone and speaker

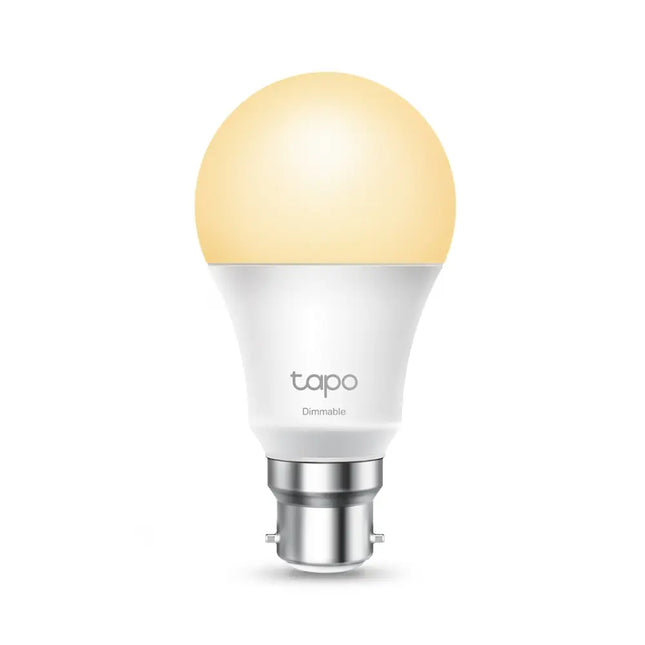

TP-Link Tapo Dimmable Smart Light Bulb L510B Bayonet Fitting Dimmable, No Hub Required, Voice Control, Schedule & Timer 2700K 8.7W 2.4 GHz 802.11b/g/nAdjust with Ease – Manage the lighting at your fingertips to create the perfect atmosphere in your home at any timePreset for Convenience– Found your favourite lighting for watching movies? Save it as a setting you can simply select for future movie nightsSet Your Times – Create a regular schedule to turn on/off with the brightness you setSunrise and Sunset Modes – Automatically activate your light according to your time zoneVoice Control – Mange the lights with your voice commands as Tapo works with Amazon Alexa and Google AssistantRemote Control – Take your phone out of your pocket and open the Tapo app to control your light remotelyAway Mode – Automatically simulate someone being at home to deter any unwanted visitorsCOMMUNICATION
Wi-Fi Protocol IEEE 802.11b/g/n
Wi-Fi Frequency 2.4 GHz Wi-Fi
GENERAL
Certification CE, RCM ,RoHS
Package Contents 1. Tapo L510B
2. Quick Start Guide
Lamp Base B22
WORKING STATUS
Input 220–240 V, 50/60 Hz, 73 mA
Typical Lumen Output 806 lumens
Input Power (Actual power draw in Watts) 8.7 W
Color Temperature 2,700 K
Beam Angle 220 degrees
Dimmable Yes
The most complete solution for the garage of your smart home. Integrates with Apple HomeKit, Google Home natively, Samsung SmartThings and Amazon Alexa through iFTTT. Remotely control, monitor and watch your garage door from anywhere from your Smartphone. Includes the ismartgate PRO device, waterproof wireless garage door sensor and wireless indoor IP camera with night vision.
1 YEAR FREE VIDEO PLUGIN INCLUDED!Check if this is the right kit for me >
Up to 3 x Garage DoorsNotes: Use Gate Ultimate Kit for Roller Garage Doors.
In the box
1 x ismartgate PRO controller
3 x peeled connection cables
1 x Power supply
2 x Double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless tilt sensor (for garage door)
2 x Type-N 1.5V batteries (for sensor)
1 x Wireless Indoor IP Camera
1 x USB Cable (2m)
1 x USB Power adaptor
1 x Quick Start Guide
1 x Support CD
3 x Mounting screws
1 x Ethernet Cable
1 x Warranty Card
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 3, to control up to 3 doors/ gates
Dry contact inputs: 3, to connect up to 3 wired sensors
Speaker: Play your music when door is moving
Light: Dual LED
USB: type A
System: 512Mhz CPU / 4GB eMMC / 128MB RAM
Universal Power Supply: 110-240V AC (50-60 hz) to 5V2A DC
Receiver: 2401 Mhz
Transmitter:2401 Mhz
Type: Gravity sensor
Temperature indicator: Included
Range: 50 ft
Operating temperature: -25ºC / 70ºC
Batteries: 2x Type-N (1.5V)
Life span: 18 months
Waterproof: Yes
Resolution: 1920x1080 pixels (1080p)
Image: HD Color CMOS sensor
Night Vision: Yes (8m)
Motion Sensor: Yes
Two-Way Audio: Yes (from App or web client)
Wi-Fi: 802.11 b/g/n (2.4Ghz) - 802.11 ac/a/n (5Ghz)
Ethernet: RJ45 output
Storage: 1x micro SD card slot (max. 32GB)
View Angle: 103º D / 99º H
Operating Tempº: -10ºC / +40ºC (14ºF / 104ºF)
Operating Humidity: 30%-85%
Power Supply: 100-240V to 5V1A
Waterproof: NO
Dimensions: 70(L)x70(W)x120(H) mm
Weight: 165g
Features
HomeKit Compatible (voice control)
The most complete garage door controller compatible with HomeKit. Integrate your garage in an Apple eco-system through HomeKit and voice control with Siri.
Google Home Compatible (voice control)
ismartgate PRO integrates with a Google eco-system too. Make your garage part of a Google home and enjoy voice control with Google Assistant.
SmartThings Compatible
With SmartThings app you can control your ismargate device combined with other devices to automate your home. Open, close, check door status and create scenes.
iFTTT Compatible (Free!)
ismartgate PRO is compatible with iFTTT (visit GarageWifi & Gates channel) for free. Integrate your ismartgate with Amazon Alexa through iFTTT, to enjoy voice control of your garage with Amazon devices. You can also create unlimited applets with both our new triggers and actions!
Remote Access
Open and close your garage door remotely from an app or web-link. Internet conection required.
Real time alerts
Receive alerts when door is open, closed or left open on your Smartphone or via email. The garage kit also monitors your garage temperature and sensor's battery condition. With HomeKit, you will receive alerts when door is stopped.
Video monitoring (optional)
Watch and record events in your garage remotely from your phone, tablet or PC using the ismartgate app. Additional IP Camera required.
User Management
Grant and deny access to different users remotely. Restrict access by time, door and location. 10 users for free.
Control 3 gates with 1 device
One iSmartgate PRO device can control a combination of up to 3 garage doors or gates. The ismartgate app can control unlimited devices and doors.
Calendar of events
Check what happens in your garage from the distance with a built-in calendar of events.
Audio player
ismartgate PRO includes audio. Add your preferred music or tone and ismartgate PRO will play it when your are coming or leaving home.
LED light
ismartgate PRO includes two powerful LED lights to provide extra illumination when parking home. These lights will activate when system is used remotely too.
Multiplatform
You can use and edit your ismartgate system from an app on your Smartphone (iOS/Android) or via web from your Tablet, Laptot or PC.
Easy to install
ismartgate PRO only requires a screwdriver and 20 minutes of your time. Easy to link with your Apple, Google or Amazon eco-system too!
Automatic open/close
ismartgate PRO will open and close your garage automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
Time to close
ismartgate PRO will open and close your garage automatically at a given time thanks to iFTTT, so you do not wonder if you closed the garage at night!
CAM - HD resolution (HD)
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
CAM - Night Vision
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
CAM - Wide Angle
Diagonal angle of 116º for a panoramic view of your garage. Feature available with ismartgate controllers (PRO/LITE).
The most complete solution for the gate of your smart home. Integrates with Apple HomeKit, Google Home natively, Samsung SmartThings and Amazon Alexa through iFTTT. Remotely control, monitor and watch your automatic gate from anywhere from your Smartphone. Includes the ismartgate PRO device, waterproof wireless gate sensor and wireless outdoor IP camera with night vision and motion detection.
1 YEAR FREE VIDEO PLUGIN INCLUDED!Check if this is the right kit for me >
In the box
1 x ismartgate PRO controller
3 x peeled connection cables
1 x Power supply
2 x Double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless magnetic sensor (for gates and roller doors)
1 x Magnet (for sensor)
2 x Type-N 1.5V batteries (for sensor)
1 x Wireless Outdoor IP Camera
1 x Wireless Outdoor IP Camera
1 x Power adaptor
1 x Quick Start Guide
1 x Support CD
3 x Mounting screws
1 x Ethernet Cable
1 x Warranty Card
1 x Allen wrench
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 3, to control up to 3 doors/ gates
Dry contact inputs: 3, to connect up to 3 wired sensors
Speaker: Play your music when door is moving
Light: Dual LED
USB: type A
System: 512Mhz CPU / 4GB eMMC / 128MB RAM
Universal Power Supply: 110-240V AC (50-60 hz) to 5V2A DC
Receiver: 2401 Mhz
Transmitter:2401 Mhz
Type: Magnet
Temperature indicator: Included
Range: 50 ft
Operating temperature: -25ºC / 70ºC
Batteries: 2x Type-N (1.5V)
Life span: 18 months
Waterproof: Yes
Resolution: 1920x1080 pixels (1080p)
Image: HD Color CMOS sensor
Night Vision: Yes (20m)
Motion Sensor: Yes
Two-Way Audio: No. External RCA interface for two-way audio
Wi-Fi: 802.11 b/g/n (2.4Ghz)
Ethernet: RJ45 output
Storage: 1x micro SD card slot (max. 32GB)
View Angle: 105º D / 90º H
Operating Tempº: -20ºC / +60ºC (-4ºF / 104ºF)
Operating Humidity: 0%-90%
Power Supply: 100-240V to 12V1A
Waterproof: Yes (IP66 enclosure)
Dimensions: 98(L)x65(W)x62(H) mm
Weight: 350g
Apple HomeKit Compatible (voice control)
The most complete gate controller compatible with HomeKit. Integrate your gate in an Apple eco-system through HomeKit and voice control with Siri.
Google Home Compatible (voice control)
ismartgate PRO integrates with a Google eco-system too. Make your gate part of a Google home and enjoy voice control with Google Assistant.
SmartThings Compatible
With SmartThings app you can control your ismargate device combined with other devices to automate your home. Open, close, check door status and create scenes.
iFTTT Compatible (Free!)
ismartgate PRO is compatible with iFTTT (visit GarageWifi & Gates channel) for free. Integrate your ismartgate with Amazon Alexa through iFTTT, to enjoy voice control of your gate with Amazon devices. You can also create unlimited applets with both our new triggers and actions!
Remote Access
Open and close your gate remotely from an app or web-link. Internet conection required.
Real time alerts
Receive alerts when gate is open, closed or left open on your Smartphone or via email. The gate kit also monitors your gate temperature and sensor's battery condition.
Video monitoring (optional)
Watch and record events in your garage remotely from your phone, tablet or PC using the ismartgate app. Additional IP Camera required.
User Management
Grant and deny access to different users remotely. Restrict access by time, gate and location. 10 users for free.
Control 3 gates with 1 device
One ismartgate PRO device can control a combination of up to 3 garage doors or gates. The ismartgate app can control unlimited devices and doors.
Calendar of events
Check what happens in your garage from the distance with a built-in calendar of events.
Audio player
ismartgate PRO includes audio. Add your preferred music or tone and iSmartgate PRO will play it when your are coming or leaving home.
LED light
ismartgate PRO includes two powerful LED lights to provide extra illumination when parking home. These lights will activate when system is used remotely too.
Multiplatform
You can use and edit your ismartgate system from an app on your Smartphone (iOS/Android) or via web from your Tablet, Laptot or PC.
Easy to install
ismartgate PRO only requires a screwdriver and 20 minutes of your time. Easy to link with your Apple, Google or Amazon eco-system too!
Automatic open/close
ismartgate PRO will open and close your gate automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket.
New wireless gate sensor
ismartgate PRO kit gate includes a new waterproof wireless sensor to monitor the status of your gate. The device is compatible with wired sensors too!
Time to close
ismartgate PRO will open and close your gate automatically at a given time thanks to iFTTT, so you do not wonder if you closed the property at night!
CAM - HD resolution (HD)
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
CAM - Night Vision
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
The most complete solution for the garage of your smart home. Integrates with Apple HomeKit, Google Home natively, Samsung SmartThings and Amazon Alexa through iFTTT. Remotely control, monitor and watch your garage door from anywhere from your Smartphone. Includes the ismartgate LITE device, waterproof wireless garage door sensor and wireless indoor IP camera with night vision.
1 YEAR FREE VIDEO PLUGIN INCLUDED!Check if this is the right kit for me >
Only for 1 garage door control.Notes: Use Gate Kit for Roller Garage Doors.
In the box
1 x ismartgate LITE controller
1 x peeled connection cable
1 x Power supply
2 x Double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless tilt sensor (for garage door)
2 x Type-N 1.5V batteries (for sensor)
1 x Wireless Indoor IP Camera
1 x USB Cable (2m)
1 x Power adaptor
1 x Quick Start Guide
1 x Support CD
3 x Mounting screws
1 x Ethernet Cable
1 x Warranty Card
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 1, to control 1 door/ gate
Dry contact inputs: 0, no wired sensor supported
Speaker: Not included
Light: Not included
USB: type A
System: 512Mhz CPU / 4GB eMMC / 128MB RAM
Universal Power Supply: 110-240V AC (50-60 hz) to 5V2A DC
Receiver: 2401 Mhz
Transmitter:2401 Mhz
Type: Gravity sensor
Temperature indicator: Included
Range: 50 ft
Operating temperature: -25ºC / 70ºC
Batteries: 2x Type-N (1.5V)
Life span: 18 months
Waterproof: Yes
Resolution: 1920x1080 pixels (1080p)
Image: HD Color CMOS sensor
Night Vision: Yes (8m)
Motion Sensor: Yes
Two-Way Audio: Yes (from App or web client)
Wi-Fi: 802.11 b/g/n (2.4Ghz) - 802.11 ac/a/n (5Ghz)
Ethernet: RJ45 output
Storage: 1x micro SD card slot (max. 32GB)
View Angle: 103º D / 99º H
Operating Tempº: -10ºC / +40ºC (14ºF / 104ºF)
Operating Humidity: 30%-85%
Power Supply: 100-240V to 5V1A
Waterproof: NO
Dimensions: 70(L)x70(W)x120(H) mm
Weight: 165g
HomeKit Compatible (voice control)
A cost-effective garage door controller compatible with HomeKit. Integrate your garage in an Apple eco-system through HomeKit and voice control with Siri.
Google Home Compatible (voice control)
ismartgate LITE also integrates with a Google eco-system. Make your garage part of a Google home and enjoy voice control with Google Assistant.
SmartThings Compatible
With SmartThings app you can control your ismargate device combined with other devices to automate your home. Open, close, check door status and create scenes.
iFTTT Compatible (Free!)
ismartgate LITE is compatible with iFTTT for free (visit GarageWifi & Gates channel). Integrate your ismartgate with Amazon Alexa through iFTTT, to enjoy voice control of your garage with Amazon devices. You can also create unlimited applets with both our new triggers and actions!
Remote Access
Open and close your garage door remotely from an app or web-link. Internet conection required.
Real time alerts
Receive alerts when door is open, closed or left open on your Smartphone or via email. The garage kit also monitors your garage temperature and sensor's battery condition. With HomeKit, you will receive alerts when door is stopped.
Video monitoring (optional)
Watch and record events in your garage remotely from your phone, tablet or PC using the ismartgate app. Additional IP Camera required.
User Management
Grant and deny access to different users remotely. Restrict access by time, door and location. 10 users for free.
ONLY 1 GATE
ismartgate LITE garage kit will only control 1 door. For two or three doors garage, we strongly recommend the use of our PRO version. The ismartgate app can control unlimited ismartgate devices.
Calendar of events
Check what happens in your garage from the distance with a built-in calendar of events.
Multiplatform
You can use and edit your ismartgate system from an app on your Smartphone (iOS/Android) or via web from your Tablet, Laptot or PC.
Easy to install
ismartgate LITE only requires a screwdriver and 20 minutes of your time. Easy to link with your Apple, Google or Amazon eco-system too!
Automatic open/close
ismartgate LITE will open and close your garage automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
Time to close
ismartgate LITE will open and close your garage automatically at a given time thanks to iFTTT, so you do not wonder if you closed the garage at night!
CAM - HD resolution (HD)
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
CAM - Night Vision
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
CAM - Wide Angle
Diagonal angle of 116º for a panoramic view of your garage. Feature available with ismartgate controllers (PRO/LITE).
The most complete solution for the gate of your smart home. Integrates with Apple HomeKit, Google Home natively, Samsung SmartThings and Amazon Alexa through iFTTT. Remotely control, monitor and watch your roller door and gate from anywhere from your Smartphone. Includes the ismartgate LITE device, waterproof wireless magnetic sensor and waterproof wireless outdoor IP camera with night vision.
1 YEAR FREE VIDEO PLUGIN INCLUDED!Check if this is the right kit for me >
In the box
1 x ismartgate LITE controller
1 x peeled connection cable
1 x Power supply
2 x Double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless magnetic sensor (for gates and roller doors)
1 x Magnet (for sensor)
2 x Type-N 1.5V batteries (for sensor)
1 x Wireless Outdoor IP Camera
1 x Power adaptor
1 x Quick Start Guide
1 x Support CD
3 x Mounting screws
1 x Ethernet Cable
1 x Warranty Card
1 x Allen wrench
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 1, to control 1 door/ gate
Dry contact inputs: 0, no wired sensor supported
Speaker: Not included
Light: Not included
USB: type A
System: 512Mhz CPU / 4GB eMMC / 128MB RAM
Universal Power Supply: 110-240V AC (50-60 hz) to 5V2A DC
Receiver: 2401 Mhz
Transmitter:2401 Mhz
Type: Magnet
Temperature indicator: Included
Range: 50 ft
Operating temperature: -25ºC / 70ºC
Batteries: 2x Type-N (1.5V)
Life span: 18 months
Waterproof: Yes
Resolution: 1920x1080 pixels (1080p)
Image: HD Color CMOS sensor
Night Vision: Yes (20m)
Motion Sensor: Yes
Two-Way Audio: No. External RCA interface for two-way audio
Wi-Fi: 802.11 b/g/n (2.4Ghz)
Ethernet: RJ45 output
Storage: 1x micro SD card slot (max. 32GB)
View Angle: 105º D / 90º H
Operating Tempº: -20ºC / +60ºC (-4ºF / 104ºF)
Operating Humidity: 0%-90%
Power Supply: 100-240V to 12V1A
Waterproof: Yes (IP66 enclosure)
Dimensions: 98(L)x65(W)x62(H) mm
Weight: 350g
Features
HomeKit Compatible (voice control)
A cost-effective gate controller compatible with HomeKit. Integrate your gate in an Apple eco-system through HomeKit and voice control with Siri.
Google Home Compatible (voice control)
ismartgate LITE also integrates with a Google eco-system. Make your gate part of a Google home and enjoy voice control with Google Assistant.
SmartThings Compatible
With SmartThings app you can control your ismargate device combined with other devices to automate your home. Open, close, check door status and create scenes.
iFTTT Compatible (Free!)
ismartgate LITE is compatible with iFTTT for free (visit GarageWifi & Gates channel). Integrate your ismartgate with Amazon Alexa through iFTTT, to enjoy voice control of your gate with Amazon devices. You can also create unlimited applets with both our new triggers and actions!
Remote Access
Open and close your gate remotely from an app or web-link. Internet conection required.
Real time alerts
Receive alerts when gate is open, closed or left open on your Smartphone or via email. The gate kit also monitors your garage temperature and sensor's battery condition.
Video monitoring (optional)
Watch and record events in your gate remotely from your phone, tablet or PC using the ismartgate app. Additional IP Camera required.
User Management
Grant and deny access to different users remotely. Restrict access by time, gate and location. 10 users for free.
ONLY 1 GATE
ismartgate LITE gate kit will only control 1 roller door or gate. For two or three gates/roller doors, we strongly recommend the use of our PRO version. The ismartgate app can control unlimited ismartgate devices.
Calendar of events
Check what happens in your gate from the distance with a built-in calendar of events.
Multiplatform
You can use and edit your ismartgate system from an app on your Smartphone (iOS/Android) or via web from your Tablet, Laptot or PC.
Easy to install
ismartgate LITE only requires a screwdriver and 20 minutes of your time. Easy to link with your Apple, Google or Amazon eco-system too!
Automatic open/close
ismartgate LITE will open and close your gate automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
Time to close
ismartgate LITE will open and close your gate automatically at a given time thanks to iFTTT, so you do not wonder if you closed the garage at night!
New wireless gate sensor
ismartgate PRO kit gate includes a new waterproof wireless sensor to monitor the status of your gate.
CAM - HD resolution (HD)
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
CAM - Night Vision
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
Kit for gate. Includes Wi-Fi controller and wireless magnetic sensor. ismartgate PRO will remotely open, close and control your gate through HomeKit, Google Home, Samsung SmartThings and iFTTT or with native iOS/Android App. Includes key features such as video, user management, audio player, 3 gates control, compatibility with wireless sensor and wired sensors.
In the box
1 x ismartgate PRO controller
3 x peeled connection cables
1 x Power supply
2 x Double sided tape
1 x Quick Start Guide
1 x Waterproof Wireless magnetic sensor (for gates and roller doors)
1 x Magnet (for sensor)
2 x Type-N 1.5V batteries (for sensor)
Specifications
Wi-Fi 2.4Ghz (802.11 b/g/n)
Relay outputs: 3, to control up to 3 doors/ gates
Dry contact inputs: 3, to connect up to 3 wired sensors
Speaker: Play your music when door is moving
Light: Dual LED
USB: type A
System: 512Mhz CPU / 4GB eMMC / 128MB RAM
Universal Power Supply: 110-240V AC (50-60 hz) to 5V2A DC
Receiver: 2401 Mhz
Transmitter:2401 Mhz
Type: Magnet
Temperature indicator: Included
Range: 50 ft
Operating temperature: -25ºC / 70ºC
Batteries: 2x Type-N (1.5V)
Life span: 18 months
Waterproof: Yes
Apple HomeKit Compatible (voice control)
The most complete gate controller compatible with HomeKit. Integrate your gate in an Apple eco-system through HomeKit and voice control with Siri.
Google Home Compatible (voice control)
ismartgate PRO integrates with a Google eco-system too. Make your gate part of a Google home and enjoy voice control with Google Assistant.
SmartThings Compatible
With SmartThings app you can control your ismargate device combined with other devices to automate your home. Open, close, check door status and create scenes.
iFTTT Compatible (Free!)
ismartgate PRO is compatible with iFTTT (visit GarageWifi & Gates channel) for free. Integrate your ismartgate with Amazon Alexa through iFTTT, to enjoy voice control of your gate with Amazon devices. You can also create unlimited applets with both our new triggers and actions!
Remote Access
Open and close your garage door or gate remotely from an app or web-link. Internet conection required.
Real time alerts
Receive alerts when gate is open, closed or left open on your Smartphone or via email. The gate kit also monitors your gate temperature and sensor's battery condition. NOTE: Additional sensor required.
Video monitoring (optional)
Watch and record events in your garage remotely from your phone, tablet or PC using the ismartgate app. Additional IP Camera required.
User Management
Grant and deny access to different users remotely. Restrict access by time, gate and location. 10 users for free.
Control 3 gates with 1 device
One ismartgate PRO device can control a combination of up to 3 garage doors or gates. The ismartgate app can control unlimited devices and doors.
Calendar of events
Check what happens in your garage from the distance with a built-in calendar of events. NOTE: Additional sensor required.
Audio player
ismartgate PRO includes audio. Add your preferred music or tone and ismartgate PRO will play it when your are coming or leaving home.
LED light
ismartgate PRO includes two powerful LED lights to provide extra illumination when parking home. These lights will activate when system is used remotely too.
Multiplatform
You can use and edit your ismartgate system from an app on your Smartphone (iOS/Android) or via web from your Tablet, Laptot or PC.
Easy to install
ismartgate PRO only requires a screwdriver and 20 minutes of your time. Easy to link with your Apple, Google or Amazon eco-system too!
Automatic open/close
ismartgate PRO will open and close your garage automatically thanks to iFTTT app and phone's GPS signal. No need to use remote controls or pull your phone from your pocket. Link to iFTTT instructions.
New wireless gate sensor
ismartgate PRO kit gate includes a new waterproof wireless sensor to monitor the status of your gate. The device is compatible with wired sensors too!
Time to close
ismartgate PRO will open and close your garage automatically at a given time thanks to iFTTT, so you do not wonder if you closed the garage at night!
D-Link DCS-8630LH Full HD Outdoor Wi-Fi Spotlight Camera + built-in Smart Home Hub
Boasts a wide-angle lens accompanied by a 400 lumen spotlight and colour night vision, easily capturing an entire outdoor area in high-quality 1080p. It's a built-in Smart Home Hub, turning the Camera into the brain of your mydlink DIY smart home.
Specifications:
Maximum Video Resolution: 1920 x 1080 @30fps
Video Compression: H.264
Night Vision Range: Colour 7m
Digital Zoom: Pinch to Zoom
Wireless Connectivity: 802.11n
Ethernet Port: No
Two-way Audio: Yes
Built-in Speaker: Yes
Built-in Microphone: Yes
Motorised Pan / Tilt: No
MicroSD Card Slot: Yes
Motion Detection: Yes
Sound Detection: Yes
Indoor / Outdoor: Indoor | Outdoor
Smart Home Compatible: Amazon Alexa | Google Assistant | mydlink
Video Recording Option: microSD Card | mydlink Cloud Subscription | ONVIF Profile S
Camera Advanced Feature: Person Detection | Glass Breaking Detection | Spotlight built-in | Siren built-in | Smart Home Hub built-in | WPA3 Encryption | IPv6 Ready
Power: Included Power Supply
Warranty: 1-Year Limited Warranty
Dimensions (Size): 126.2 x 83.7 x 60.3 mm
Eve Water Guard - Leak Detector (Thread)
Protect your home. Get alerted as soon as water leaks out, and protect your home from expensive water damage visually, audibly and via an app on your iPhone.
Specifications:
Power: 100-240V ~ 50/60 Hz - 50mA
Wireless Connection: Bluetooth with Thread
Dimensions: 65 x 65 x 45mm
Sensor Cable Length: 2 Metres
Requirements: iPhone or iPad with the latest version of iOS / iPadOS
Notes: Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod or an Apple TV (4th generation or later)
Features:
Protect your home & belongings from water damage
100 dB Siren & Visual Alert
App Notifications
2 Metre Sensing Cable (Extendable up to 150m)
Siren Test Mode
Bluetooth with Thread
Complete Data Privacy
Eve Energy (Matter)
Switch your lights and appliances on and off using your voice or an app, and control them from afar.
Specifications:
Input|Output: AC240V 50Hz
Rated Current: Max. 11A 2500W
Load: Max. 1A | 240W
Temperature: 0 - 35C
Internal Fuse: 12.5A
Standby Power Consumption: < 1 W
Requirements: iOS 16.4 or later | Android 8.1 or later
Control: Matter Controller | Thread Border Router
Features:
Switch your lights and appliances on and off using your voice or an app.
Control your appliances on the go or based on presence.
Matter-enabled to let you seamlessly control your home across smartphones and voice assistants of all major platforms.
Get up and running in a flash with quick & easy set up requires home hub
Cutting-edge Thread network technology
100% Privacy: No Eve cloud | no registration | no tracking
Local communication without cloud dependency
Track power consumption
What's in the Box?
1 x Eve Energy
1 x Quick Start Guide
Eve Motion (Matter)
Smart Motion Sensor with Light Sensor, IPX3 Water Resistance, Automatic Activation of Lights and Devices, Thread
Specifications:
Field of view: 120 Degrees
Distance: 9 m max at 2 m mounting height
Operating temperature: -18C to +55C
Indoors and outdoors: Certified IPX3
Twilight setting: 0 - 15000 lux
Power: 2 x AAA Batteries
Requirements: iOS 16.4 or later | Android 8.1 or later
Control: Matter Controller | Thread Border Router
Features:
Control your lights and appliances via movement and receive notifications when motion is detected
Indoors or outdoors with wireless battery operation and IPX3 water resistance
Monitor large areas thanks to 120Deg field of view and up to 9 m detection range
Matter-enabled
Quick & easy set up requires Eve hub
Motion time | set the sensitivity | refine automations by brightness
100% Privacy: No Eve cloud | no registration | no tracking
Local communication without cloud dependency
What's in the Box?
1 x Eve Motion
2 x AAA Batteries
1 x Quick Start Guide
Eve Energy - Wireless Power Controller (Thread)
Control your lights and appliances with a simple tap or by asking Siri, and see how much power they?re using. Or effortlessly set up schedules that put your appliances on autopilot. Now with Thread.
Specifications:
Input / Output: AC 100-240 V / 50/60 Hz
Max Power: 10 A / 2300 W
Dimensions: 77 x 77 x 60 mm
Requirements: iPhone or iPad with the latest version of iOS / iPadOS
Features:
Autonomous Schedules
Siri Voice Control
Monitor Power Consumption
Bluetooth with Thread
Easy to setup without Bridge
Complete Data Privacy
Premium Quality & Safety
Control lights & appliances with a simple tap
Eve Aqua - Smart Water Controller (Thread)
With Eve Aqua smart water controller, activate your irrigation system via your iPhone, Siri, or the onboard button. You can set up schedules easily, and have it take care of watering your plants automatically without any wifi, a bridge, or a gateway.
Specifications:
Thread: 26.5 mm / G¾ Inch
Pressure: Min 1 bar / 14.5 psi - Max 5 bar / 72.5 psi
Water Resistance: IPX4
UV Protection
Power 2 x AA Replaceable Batteries
Wireless Connection: Bluetooth Low Energy, Thread
Dimensions: 77 x 95 x 128 mm
Features:
Autonomous Schedules
7 Water periods/day
No Bridge Required
Compatible with all popular hose systems
Bluetooth & Thread
Highest Data Privacy
Siri Integration
UV Protection
Water Resistant
Package Contents:
1 x Eve Aqua Smart Water Controller
2 x AA Batteries
1 x Hose Connector
1 x Quick Start Guide
Eve Outdoor Cam - Secure Floodlight Camera with Two-way Audio and Motion Sensor Plus Apple HomeKit Secure Video, EV10ECA8101
Eve Outdoor Cam packs advanced technology into a sleek metal enclosure and is designed exclusively for Apple HomeKit Secure Video, built from the ground up to keep your data secure and your private space safe.
Specifications:
Wireless Connection: Wi-Fi (2.4 GHz 802.11b/g/n)
Video Quality: 1080p/24fps H.264 video
Motion Detection Range: 100° FOV & up to 8 Metres
Waterproof Rating: IP55
Power: AC 100-240 V | 50/60 Hz
Dimensions: 170 x 65 x 76mm
Notes: Eve Outdoor Cam requires both a neutral wire and a connection to a ground wire.
Features:
FHD 1080p Video Quality (24fps)
Connects via WiFi (2.4GHz)
Dimmable Floodlight
100% Privacy: HomeKit Secure Video
Rich & Instant Notifications
Customize notifications & recordings
People / Pet / Vehicle detection
Activity Zones
Package detection
157° field of view
Night Vision
Two-way Communication
Can be installed to replace existing light
IP55 Water & Dust resistant
Three-axis camera angle adjustment
What's in the box?:
1 x EVE Outdoor Cam
1 x Mounting kit and connection terminal
1 x Video surveillance sticker set
1 x Manual
Eve Room - Indoor Air Quality Monitor (Thread)
Eve Room is an award-winning indoor air quality monitor with built-in Apple HomeKit technology. The key to keeping your home healthy. Every day. Works with Apple homekit and now supports Thread.
Specifications:
Operating Temp Range: -0°C - 50°C
Operating Humidity Range: 5% - 95%
Battery Life: 6 Weeks (USB Rechargable)
Reading Accuracy: Typical ± 0.3°C | Typical ± 3% humidity
Charging Port: Micro-USB
Display: E-ink 200 x 200 pixels
Wireless Connection: Bluetooth with thread
Dimensions: 54 x 54 x 15mm
Features:
Temperature / humidity & air quality sensor(VOC)
Live a healthier life with fewer pollutants
High-Contrast Display
Wireless & Rechargable
Bluetooth with Thread
Complete Data Privacy
Crafted from anodized aluminium
Siri Integration
EVE Flare - Portable Smart LED Lamp with Apple HomeKit technology
Eve Flare is a waterproof smart LED lamp with wireless charging, 6 hours of light and Siri or tap control. Endless colour options, Bluetooth and Thread compatibl. Future-proofed via a free Matter firmware update. Ideal for indoor and outdoor use.
Specifications:
Light: 90 Lumens LED
Runtime: 6+ Hours
Wireless Charging Input: AC 100-240V | 50/60 Hz
Operating Range: 0° - 40° C | 0% - 80% Humidity
Energy Efficiency Class: A++ - A
Connection: Bluetooth (Thread)
Dimensions: 25cm x 25cm
Features:
Invigorate any space with beautiful light moods
Control your ambience via your iPhone, iPad, Apple Watch, and Siri
Set the perfect outdoor atmosphere thanks to IP65 water resistance
Enjoy 6 hours of illumination and charge wirelessly
Transport easily using the carry-and-hang handle
Joins your Thread network automatically / supports Bluetooth and Thread
Get up and running in a flash with quick & easy installation and setup, and no need for a bridge or gateway
Apple HomeKit-enabled for outstanding ease of use and advanced security
100% Privacy: No Eve cloud, no registration, no tracking
What's in the box?
1 x Eve Flare
1 x Wireless Charging Base
1 x Power Supply
1 x Quick Start Guide
Eve Weather - Temperature & Humidity Monitor
Eve Weather Temperature & Humidity Monitor tracks local outdoor temperature, humidity and barometric pressure trends. It features IPX3 water resistance and future-proof Thread network technology. Works with Apple homekit.
WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.
If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.
Specifications:
Wireless Connection: Bluetooth
Temperature Operating Range: -18°C to 55°C
Humidity Operating Range: 0% - 100%
Waterproof Rating: IPX4
Reading Accuracy: ± 0.3°C | ± 3% Humidity
Power: CR2450 Replaceable Battery
Dimensions: 54 x 54 x 16mm
Features:
Check Temperature & Humidity
Provides 12-hour Weather Trends
Beautiful Display
Bluetooth connection
Highest Data Privacy
Works with Apple Home
Crafted from anodized aluminum
IPX4 Water resistant
Wall Mountable
What's in the box?:
1 x EVE Weather
1 x CR2450 battery
1 x Quick Start Guide
Eve Door & Window - Contact Sensor
Eve Door & Window Wireless Contact Sensor understands whether your door or window is open or closed. See the current open/closed state at a glance and view statistics on time & duration to make smarter choices. Works with Apple homekit.
Specifications:
Wireless Connection: Bluetooth
Power: 1x ½ AA (ER14250 3.6V) Replaceable Battery
Reader Dimensions: 52 x 24 x 23mm
Tag Dimensions: 18 x 18 x 8mm
Requirements: iPhone or iPad with the latest version of iOS/iPadOS
Notes: Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod or an Apple TV (4th generation or later) as a home hub. Notifications away from home require a home hub.
Features:
Open / Closed state detection
Instant Notifications
Activate Scenes
Easy Installation
Highest data privacy
Bluetooth connection
Works with Apple Home
Trigger your connected comforts such as your mood lighting and media center
What's in the box?:
1 x EVE Door & Window (Reader & Tag)
1 x ½ AA (ER14250 3.6V) Replaceable Battery
1 x Quick Start Guide
Eve Water Guard - Cable Extension
Eve Smart Water & Leak Detector Extension (2m). Will detect water anywhere along the cable. Works with Apple homekit.
Eve Cam - Wireless Home Security Camera
Eve Secure Surveillance Smart Cam allows you to keep a eye on your home. Receive notifications on your iPhone immediately when something is up in your home and protect the privacy of your personal space in the process. Works with Apple homekit.
Specifications:
Power: 100-240V ~ 50/60 Hz - 50mA
Wireless Connection: Bluetooth with Thread
Dimensions: 65 x 65 x 45mm
Sensor Cable Length: 2 Metres
Requirements: iPhone or iPad with the latest version of iOS / iPadOS
Notes: Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod or an Apple TV (4th generation or later)
Features:
Wireless Connection: WiFi (2.4 or 5GHz 802.11a/b/g/n)
Field of view: 150°
Video Quality: 1080p/24fps H.264 Video
Power: 5 V / 1A max (USB)
Night Vision Range: Up to 5 Metres
Stand: 360° x 180° flexible with magnetic base
Dimensions: 122 x 65 x 60mm
Requirements: iPhone or iPad with the latest version of iOS/iPadOS | HomePod or Apple TV (4th generation or later) as a home hub
What's in the box?:
1 x EVE Cam
1 x USB Power Supply
1 x 2.2m USB cable
1 x Metal Plate for Magnetic Wall installation
1 x Bag of Screws & Anchors
1 x Adhesive pad
1 x Quick start guide
Aqara Smart Door Lock A100
Stylish and Reliable Aluminum Unibody
Zigbee 3.0* and Bluetooth Protocols
Fast and Ergonomic Fingerprint Reader
9 Unlock Methods
Support Aqara Home, Apple Home, Google via Aqara Hub
Aqara Smart Door Lock A100
The updated version of our first global smart door lockSmart Door Lock A100 is a smart door lock that can be unlocked via fingerprint, password, temporary password, NFC, emergency key, etc. It supports features like low-battery reminder, lock picking warning and multiple verification failure alarm. Meanwhile, with the Aqara Home app, the lock can be configured and work with other Aqara smart devices to fulfill the multiple functions in smart home applications like smart automation control and alarm.
Key Features:
18-Month Battery Life: The included 8 AA-type batteries will last for more than 1.5 years.
9 Unlock Methods: Fingerprint, permanent password, one-time password, periodic password, NFC, mechanical key, Aqara Home app, HomeKit / Siri, Google Assistant
Fast and Ergonomic Fingerprint Reader: A fast fingerprint reader is embedded into the handle so that your thumb will naturally touch it when opening the door.
Mechanical Key and Type-C Port: Even if the batteries run out, you can still open the lock by using a mechanical key or by charging it via the hidden Type-C port.
Google Assistant and HomeKit Support: The Door Lock A100 is designed to work with HomeKit and will also support the unlock via Google Assistant.
Zigbee 3.0* and Bluetooth Protocols: Zigbee, the most stable and reliable smart home technology, is used to support automations and cloud integrations while Bluetooth allows to connect directly to the phone.
Keypad with Away Mode Buttons: Apart from a keypad that is invisible until you touch it, the A100 has a separate Away Mode button that can be used in automations.
Stylish and Reliable Aluminum Unibody: Compared to the previous-generation Aqara door locks, the A100 has a more complete aluminum housing that does not attract fingerprints so easily.
Remotely-Configurable Passwords and Settings: Finally, the passwords and lock settings can be configured remotely via Zigbee, which allows the A100 to be used in the property rentals and hotels.
Remote Unlock via Aqara Home App: The A100 can now be opened remotely via Aqara Home app. For example, you can open the door and watch* the delivery person leaving a parcel inside.**
* Aqara Zigbee 3.0 hub is required** Aqara camera hub is required*** After installation, please update your lock to the latest version for better user experience
Automations:
1. Trigger different scenes depending on who has entered the room
IF Person 1 opens the door THEN turn on the cold ceiling light, set A/C to 18 CIF Person 2 opens the door THEN turn on the warm pendant light, set A/C to 24 C, turn on the music.( Smart Door Lock A100 Zigbee + Hub + Lights + Sonos Speaker)
2. Arm and disarm Aqara Alarm System automatically without pressing any buttons by lifting the handle
IF Door is locked by lifting the handle from outside THEN Arm the security system, turn off the lights and heater * Alternatively, you can press the "Away" button separately and increase the level of security(Smart Door Lock A100 Zigbee + Hub + Sensors + Lights + Smart Plug)
3. Increase the security by starting to record and initiating face recognition in case an unknown person enters the house
IF the lock was opened using a mechanical key, THEN the Camera Hub G3 will turn to the door, start recording and will send you a notification in case no familiar face was detected
(Smart Door Lock A100 Zigbee + Camera Hub G3)
Specifications
Name: Smart Door Lock A100 Zigbee
Model: ZNMS02ES
Dimensions: 375 × 77 × 23.6 mm
Power Supply Modes: Replaceable AA Battery; USB-C Emergency Power Supply (5 V⎓)
Manufacturer: Lumi United Technology Co., Ltd.
Net Weight: 3.6 kg
Wireless Protocols: Zigbee, Bluetooth 5.0, NFC
Fire Rated: No
IP Rating: IP53
Operating Temperature: -25°C ~ 55°C
Operating Humidity: 0 ~ 93% RH, non-condensing
What is in the Box: User Manual × 1, Front plate × 1, Rear Plate × 1, Lock Body × 1, Mechanical Lock Cylinder × 1, Emergency Key × 2, Strike Plate × 1, Accessory Package × 1, AA Battery × 1, Installation Diagram × 1
Aqara Smart Video Doorbell G4 with Chime (Black)
Local AI Face Recognition
Free Cloud and Local Storage
On-demand Video and Two-Way Talk
Battery and Wired 2-in-1
Support Aqara Home, Apple Home, Google, Alexa via Aqara Hub
Aqara Smart Video Doorbell G4
Aqara G4 is a unique video doorbell that can be wired or battery- powered. It is also the first battery-powered option to work with Apple’s HomeKit Secure Video and supports streaming to Google and Alexa smart displays, featuring local AI used for facial recognition alerts, automations, and much more.
Key Features:
Local AI Face Recognition: The Aqara doorbell's most significant strength is its built-in local face algorithm, which enables rapid identification of individuals outside the door. Users can assign a name to a specific face, and receive push notifications through the app or set unique automations* based on the person's identity. Even if the network connection is occasionally disrupted, the recognition function remains unaffected.
Works with Apple Home etc. : This is Australia's first battery-based HomeKit Secure Video doorbell**. Its primary strength is the HomeKit Secure Video feature that enables video analysis and notifications to occur on Apple devices such as iPad, iPhone, and Apple TV. All data is encrypted before it's stored in Apple's iCloud***, ensuring reliable security. Additionally, the doorbell can integrate audio and video with Google and Alexa, allowing for interconnection.
Free Cloud and Local Storage: The Aqara G4 is designed to provide an optimal storage experience while helping users save money. With seven days of free cloud storage, users can save up to $60 annually on subscription fees. The G4 also features an indoor chime that allows for local MicroSD card storage, offering a safer and more convenient option.
On-demand Video and Two-Way Talk: With the Aqara G4, users can easily answer the door from anywhere using their smartphones. Whether at home or on the other side of the world, they can see and talk to visitors in real-time. The app sends a notification when a visitor arrives, allowing users to check the situation outside their door via video, converse, or simply check. The G4 is equipped with a 162° super wide-angle field of view, 1080p HD video, and a full glass (4 Glass) lens, providing clear and stable video quality. Moreover, the G4 is suitable for outdoor use, thanks to its higher ambient temperature stability and IPX3 waterproof rating.
Battery and Wired 2-in-1: For those looking for a long-term power solution, a wired power supply may be the best option. If wired power installation isn't suitable, then a battery power supply may be preferable. Additionally, users can wire the G4 to a transformer so that the batteries are only used in case of power outages. The G4 features a 6-battery pack that allows it to operate for up to 4 months****. The doorbell can be powered by detachable AA batteries and an external power supply of 12-24V AC or DC, ensuring it meets most installation requirements.
Chime-Repeater Included : The G4 doorbell includes an indoor Wi-Fi chime. With a volume of up to 95 dB, the chime ensures that you won't miss any visitors. In case of a sudden network disconnection, the chime's stable network connection ensures that it will continue to function. Additionally, the G4 supports MicroSD card storage of up to 512GB for doorbell video, which can be securely stored in the indoor chime and cannot be easily stolen (MicroSD card must be purchased separately by the user)
Voice Changing Option:G4 doorbell includes a unique voice-changing dialogue technology, setting it apart from other video doorbells. With this feature, users can alter the voice of the intercom audio to sound like an uncle, a robot, or a clown, which provides an extra layer of privacy and identity protection.
Support Do Not Disturb Mode: Users have the ability to customize both the ringing period and ringing volume. Furthermore, with the Do Not Disturb mode feature, even if someone maliciously rings the doorbell in the middle of the night, users can rest assured that they won't be disturbed.
Personalized Custom Ringtones: This function allows users to upload personalized custom ringtones, which can be automatically configured to play on either the outdoor doorbell or indoor repeater. Additionally, the doorbell supports automatic linkage configuration, such as identifying strangers and broadcasting a message on the outdoor doorbell
Various Abnormal State Alarms: The G4 doorbell offers flexible alarm state configurations to remind owners of potential safety concerns and equipment status, such as when the doorbell is forcefully removed, the outdoor temperature is abnormal, someone remains at the door, or the battery power is low.
Set Masking Area: The device includes a privacy protection feature that allows users to block up to 3 designated areas on the live and recorded video screen. This protects the privacy of neighbors, especially those living in apartment buildings.
Disclaimers Need Aqara Hub and other accessories to achieve** To control this HomeKit-enabled accessory, the latest version of IOS or iPadOS is recommended. HomeKit Secure Video also requires a supported iCloud+ plan.*** iCloud or other supported third-party cloud storage may require additional subscription from the users**** The calculation based on 35 device wake-ups and 6-second event video recording a day. Battery life may vary in different scenario
Automation:
No more lights suddenly turning off while you are in the restroom.
IF Contact sensor was opened (i.e., the toilet cover was opened, which indicates that the toilet is used)
THEN Turn off the automation “Turn off the light if no motion was detected for 2 minutes”
Devices: Door and Window Sensor P2 + Border Router* + Motion Sensor
Specifications
Doorbell Main Module:
Model: SVD-C03/4
Video Resolution: 1080p
Viewing Angle: 162° (diagonal)
PIR Detection Angle: Horizontal 120°, vertical 80°
Wireless Protocols: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Battery: 6 * LR6 AA alkaline battery (Replaceable)
Wired Input: 12V-24V AC 0.2A 50/60Hz 8V-24V DC 0.5A
Operating Temperature: -18°C ~ 50°C (-0.4°F ~ 122°F)
Operating Humidity: 0 ~ 95% RH, no condensation
Chime Repeater:
Loudspeaker Power: 2 W
Wireless Protocols: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz + WPA3
Ports: USB-C, can use and recommended to use 5V USB DC UPS
Input Power: 5 V⎓1 A
Total Power Consumption: 5 W
Local Storage: Support up to 512 GB microSD card local storage
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity: 0 ~ 95% RH, no condensation
Video:
Codec: H.264
Frame rate: 1080p@20fps/720p@20fps/360p@20fps (Adjustable)
Audio:
Audio: AAC coding, bidirectional voice
Overall Product:
Color: Black
Dimensions (Main module): 141.5×65×30.4mm
Doorbell net weight: 163g (no battery)
Repeater size: 65.2×65×28.4mm
Repeater net weight: 68g
Packing box size: 148×96×73mm
Gross weight: 550g
Installation: The outdoor doorbell can be wall mounted, and the indoor unit can be wall mounted or placed on flat ground
What is in the Box: Smart Video Doorbell G4×1, Chime Repeater×1, AA Battery×6, User Manual× 1, Screwdriver×1, Wall Screws & Anchors kit×1, 20° Wedge Bracket×1, Wedge Screws Kit×1, Cable for Chime×1
Aqara Camera Hub G3
AI Facial and Gesture Recognition
Built-in Zigbee 3.0 Hub
Local Infrared Control
360° Viewing Angle via Pan and Tilt
2K 1296p Resolution
Support Aqara Home, Apple Home, Google, Alexa
Aqara Camera Hub G3
A High-End, Subscription-Free Camera Hub with Local Facial and Gesture Recognition.The Camera Hub G3 is a HomeKit Secure Video camera with facial and gesture recognition that also includes our most powerful Zigbee 3.0 smart home hub that can control existing IR-enabled devices.
Key Features:
AI Facial and Gesture Recognition: Thanks to a powerful NPU-equipped processor, the Camera Hub G3 is capable of recognizing faces and gestures that can be used in notifications and home automation.
Built-in Zigbee 3.0 Hub: Connect up to 128 Aqara sensors and controllers and enjoy home automation, remote control, and third-party ecosystem support.1
Local Infrared Control: The G3 has a built-in IR controller that can make your existing infrared-compatible devices smart and support local automations. Even if the device is not in the G3 infrared code database, you can program it using the existing remote. Moreover, all the IR automations are local and will run even if there is no internet connection.
All-Round Compatibility: Supports HomeKit Secure Video, Amazon Alexa, and Google Home (including streaming to smart displays), and makes compatible devices support HomeKit, Alexa, Google Assistant, and more.
360° Viewing Angle via Pan and Tilt*: 110° wide-angle lens coupled with the Pan and Tilt motors provides up to 360° rotation angle, supports automatic cruising, and face and pet tracking.
2K 1296p Resolution**: The Camera Hub G3 incorporates a high-resolution 2304 x 1296 pixel sensor that results in better image quality with more details.
Dual-Band 2.4 / 5 GHz Wi-Fi: No more worrying about network type compatibility: the Camera Hub G3 supports both of the most popular Wi-Fi frequencies, and uses them to connect your Aqara devices to the network.
Type-C Port with Video Out: The Camera Hub G3 uses the most modern and universal connector that supports low-latency, high-definition video output via UVC protocol.
Focus on Privacy: Your privacy will be protected by a hardware shutter that can be easily distinguished by its cute sleepy face. Moreover, the camera can stop recording automatically in case it recognizes any of your family members.
IR Night Vision with Invisible LEDs: Thanks to 940 nm infrared night vision LEDs, the G3 Camera Hub doesn't have an annoying glow that could disturb your sleep during the night.
1/4 in. Threaded Screw: The G3 can be placed almost everywhere thanks to its 1/4" threaded screw, which supports myriads of third-party accessories such as stands, tripods, and mounts.
One-Button Video Call: Long press the camera button to push a video message notification that can be used in case of emergency.
1 Zigbee routers/repeaters such as Smart Wall Switch (with Neutral), Smart Plug, etc are required*The feature may be unavailable or partly available in third-party integrations such as HomeKit Secure Video.**In HomeKit Secure Video mode, the camera records in Full HD 1080p due to the current limitations of HomeKit technology.
Automations:
1. Automatic control of lights, TV, AC and other appliances as well as 24x7 Security Guard
The Camera Hub G3 will connect all of your Aqara sensors, controllers, and IR-enabled devices to control them via smart home automations. At the same time, it will guard your security by turning on the siren and notifying you in case an unknown person arrives at your home or any of your sensors are triggered while you are out. All of these incidents will be recorded to your local or cloud storage.(Camera Hub G3 + Aqara Controllers + Aqara Sensors + IR-Enabled Devices)
2. Facial and gesture recognition in automations
When you come home, the camera will recognize your face, disarm the alarm, adjust the AC according to your preference, stop cruising and switch to gesture recognition mode, so that you will be able to trigger scenes using any of the pre-configured gestures.(Camera Hub G3)
3. Advanced event timeline and notifications
Configure the positions of your Aqara sensors in the Aqara Home app, so that when you are away from home, G3 will turn to the sensor that was triggered in order to record all the events and notify you. Moreover, all these events can be automatically marked on the video timeline.(Camera Hub G3 + Aqara Sensors)
Specifications
Product Name: Camera Hub G3
Color: White
Model: CH-H03
Wireless Protocols: Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n/a/ac 2.4/5 GHz
Dimensions: 123.4×85.1×67.8 mm (4.86×3.35×2.67 in.)
Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity: 0 ~ 95% RH, no condensation
What is in the Box: Camera Hub G3 × 1, User Manual × 1, Power Adapter × 1, Power Cable × 1
Ports: USB-C
Input Power: 5V⎓2A
Total Power Consumption: 10W (MAX)
Local Storage: microSD card (not included). CLASS 4 or above is supported, up to 128 GB storage.
Video Resolution: 2K 2304×1296p
Viewing Angle: 110°
Pan/Tilt Angle: Horizontal 340°, vertical 45° (upward 30°, downward 15°)
Aqara Camera Hub G2H Pro
Built-in Zigbee 3.0 Hub
NAS and larger capacity microSD support
146° Wide-Angle Lens and 1080p Sensor
360° Stand and Flexible Placement
Support Aqara Home, Apple Home, Google, Alexa as Hub
Aqara Camera Hub G2H Pro
An updated version of our best-selling camera hub.Aqara Camera Hub G2H Pro is an intelligent product that integrates dual functions of a camera and a hub. It has functions such as video intercom, motion detection, sound detection, MicroSD card recording, NAS storage, timelapse, privacy area covering and so on. It can also be used as a Zigbee hub in collaboration with other sensors, controllers, and other accessories for functions such as home guard, data reporting, and smart control. It also supports HomeKit Secure Video.
Key Features:
Built-in Zigbee 3.0 Hub: Connect up to 128 Aqara sensors and controllers and enjoy home automation, remote control, and third-party ecosystem support.1
Fullest HomeKit Support: The G2H Pro HomeKit support has improved. Apart from HomeKit Secure Video* and HomeKit-enabled 2-way audio, it now supports all 4 modes of the HomeKit Security System which is also automatically synced with the Aqara Security Guard.
All-Round Compatibility: Apart from HomeKit, the G2H Pro also supports Amazon Alexa, and Google Home (including streaming to smart displays), and connects compatible devices to HomeKit, Alexa, Google Assistant, and more.
NAS** and larger capacity microSD support: Apart from the microSD card, which now has an increased maximum capacity of up to 512 GB, the G2H Pro also supports local NAS storage that uses the Samba protocol.
Custom Ringtones and Timelapse: Custom ringtones are finally here! Users' favorite feature allows the G2H Pro to play uploaded recordings and use them in automations. Apart from that, the camera now supports a timelapse clips generation, which allows summarizing the day in one short video.
Subscription-Free Alerts and Built-in Siren: The G2H Pro Camera Hub will notify you via smartphone and built-in siren and record a short clip in case an abnormal sound or motion is detected. A short clip will be sent to the cloud immediately (can be disabled in settings) while the full footage will be recorded locally.
Invisible IR Night LEDs: Thanks to 940 nm infrared night vision LEDs, the G2H Pro Camera Hub doesn't have an annoying glow that could disturb your sleep during the night.
146° Wide-Angle Lens and 1080p Sensor: The G2H Pro now supports an even wider viewing angle (diagonal) due to the absent distortion correction, which gives the image, captured by a crisp 1080p sensor, a more "fish-eye" look.
360° Stand and Flexible Placement: The base has a built-in strong magnet, which can be attached to the surface of metal objects. The package includes an iron wall mount and screws, which support multiple installation methods.
Event Timeline and Notifications***: With the G2H Pro, when your Aqara sensors are triggered by an event such as opening the door, it will be marked on the video timeline, and you will be able to see video notifications.
Activity and Privacy Masking Zones: Apart from the configurable activity zones, that can be set within the Aqara Home app in order to reduce unnecessary alerts, the G2H Pro has a local privacy masking, that can prevent certain parts of the image to be recorded or sent to third-party servers such as Google or Amazon.
Face and Package Recognition*: Thanks to the HomeKit Secure Video, the G2H Pro also supports face and package recognition and notifications that are processed locally on your HomeKit hub such as HomePod.
RGB LED: Compared to the G2H, the G2H Pro now has a colorful indicator LED.
1 Repeaters such as Wall Switch with Neutral or Smart Plug are required to achieve this number of connected devices* To support HomeKit Secure Video, an iCloud subscription, HomeKit hub and up-to-date iOS/iPad OS/ tvOS are required.** To use NAS storage, a supported microSD card as well as SMB1.0-compatible software are required.*** Aqara sensors required for this functionality
Automations:
1. Personalized greetings using the new custom ringtone function
Surprise your loved ones by playing an uploaded recording once the smart lock detects that the specific person enters the room by recognizing a fingerprint. At the same time, the Alert System will be automatically disarmed.(Camera Hub G2H Pro + Smart Lock + Sensors)
Specifications
Product Model: CH-C01
Video Coding: H.264
Resolution: 1080p
Power Supply Input: 5V⎓1A
Viewing Angle: 146° (diagonal)
Overall Power Consumption: 5 W
Product Dimensions: 82.4×56.5×50.5 mm (3.24×2.33×1.99 in.)
Working Temperature: -10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity: 15% ~ 85% RH, no condensation
Wireless Protocols: Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Local Storage: MicroSD card (CLASS 4 or above is supported, up to 512 GB storage)
Supported Device: Android 4.0 or iOS 13.2 and above
What is in the Box: G2H Pro Camera Hub × 1, User Manual × 1, Screw × 2, Metal Plate × 1, Micro USB to USB-A Cable × 1, Ejector Tool × 1, Sticker × 1
TP-Link Solar Panel - Tapo A200
Non-Stop Solar Power-Captures free, clean solar energy and provides non-stop power supply for your Tapo battery-powered cameras (Tapo C425, Tapo C420, and Tapo C400) to ensure they protect you all year round.
Up to 4.5W Charging Power-Made of premium monocrystalline silicon cells, Tapo A200 captures plentiful solar energy and provides continuous power supply efficiently.
IP65 Weatherproof-Offers excellent waterproof and dustproof performance for outdoor scenarios.
4m Charging Cable-Offers flexible installation with a 13ft/4m charging cable.
360° Adjustable Mounting Bracket-Adjust your solar panel for the perfect angle to capture sufficient light.
Up to 4.5W* Charging Power, Non-Stop Power SupplyMade of premium monocrystalline silicon cells, Tapo A200 provides high-power(up to 4.5W*), which means only 30min† of standard sunlight every day can keep your Tapo battery cameras working around the clock.Works with Tapo Battery CamerasCompatible with Tapo C425, Tapo C420, and Tapo C400, enabling your Tapo battery camera to protect you all year round. More products will be supported in the future.360° Angle Adjustable for Sufficient SunlightMount your solar panel on the wall or roof and adjust its angle flexibly to capture enough sunlight with an angle-adjustable bracket.4m Charging Cable for Flexible InstallationNo need to worry about the distance limit of your solar panel and camera. Just find the best position, place it there, and enjoy free solar energy.IP65 WeatherproofOffers reliable performance and keeps your battery cameras stay charged even in harsh environments with rain and dust.
DownloadDatasheet
TP-Link Tapo C420S2 4MP Smart Wire-Free Security Camera System, 2-Camera System, 2K QHD, 1080P, Night Vision, Two-Way Audio, Tapo C420S2
Smart Wire-Free Security Camera System, 2-Camera System
2K QHD-Now with 1.7 times more pixels than 1080p, providing clearer videos and photos.
180-Day Battery Life-The rechargeable and removable battery with a low-power protocol extend your usage.
Full-Colour Night Vision-Reveal high-fidelity details and colour at night with the starlight sensor.
Smart AI Detection and Notification-Smart AI identify people, pets, and cars, notifying users as needed.
Wire-Free Placement-No wires mean you can place the cameras almost anywhere inside or outside-whatever works for you!
Light and Sound Alarm-Triggers sound and light as an alarm when motion is detected.
Two-Way Audio-Enables communication through a built-in microphone and speaker.
Flexible Storage Choices-Save recorded videos on the hub-installed MicroSD card (up to 512 GB) or by using Tapo Care cloud storage services.
IP65 Water&Dust Resistant-Offers excellent waterproof and dustproof performance for outdoor scenarios.
Downloads
Tapo C420S2(US)_V1_DatasheetTapo C420S2(US)_V1_Quick Installation Guide(English)2.4G+Sub-G_Wireless Power Information CardTapo C420S2(US)_V1_User Guide
TP-Link Tapo C320WS Outdoor Security Wi-Fi Camera• Ultra-High-Definition Video-Records every image in crystal-clear 4MP definition.• Wired or Wireless Networking-Connect your camera to the network through Ethernet or WiFi for more flexible installation.• Starlight Colour Night Vision-Provides a visual distance of up to 30 metres in colour, even in total darkness.• Motion Detection and Notifications-Notifies you when the camera detects movement.• Sound and Light Alarm-Trigger light and sound effects to frighten away unwanted visitors.• Two-Way Audio-Enables communication through a built-in microphone and speaker.• Safe Storage-Locally stores up to 256 GB of 4MP video on a microSD card, offering convenient access to your video footage.• Voice Control-Free Up Your Hands with Voice Control: Works with the Google Assistant andNETWORKSecurity 128 bit AES encryption with SSL/TLSWireless Rate 11Mbps(802.11b)54Mbps(802.11g)150Mbps(802.11n)Frequency 2.4 GHzWireless Security WPA/WPA2-PSKACTIVITY NOTIFICATIONSInput Trigger Motion detectionOutput Notification Push notificationVIDEOVideo Compression H.264Frame Rate 15fpsVideo Streaming 4MPSYSTEMRegulatory Certification CE, NCCSystem Requirements iOS 9+, Android 4.4+ENVIRONMENTOperating Temperature -20°C~45°C (-4°F~113°F)Storage Temperature -20°C~60°C (-4°F~140°F)Operating Humidity 10%~90%RH non-condensingStorage Humidity 0%~90%RH non-condensingPACKAGE CONTENTSPackage Contents Tapo C320WSPower AdapterMounting TemplateAnchors and ScrewsWaterproof SealWaterproof Cable AttachmentsQuick Start GuideHARDWAREButton Reset buttonIndicator LED System LED, 2×White light LEDAdapter Input 100-240VAC, 50/60Hz, 0.3AAdapter Output 9.0V/0.6A (DC Power)Dimensions (W x D x H) 5.6 x 4.1 x 2.5 in. (142.3 x 103.4 x 64.3 mm)CAMERAImage Sensor 1/3“Resolution 4 MP (2560 × 1440)Lens F/NO: 1.61; Focal Length: 3.18 mmNight Vision 850 nm IR LED up to 98 ft
TP-Link Tapo P110 Mini Smart Wi-Fi Socket, Energy MonitoringRemote Control – Instantly turn connected devices on/off wherever you are through the Tapo appSchedule – Preset a schedule to automatically manage devicesTimer - Create countdown timer lists for connected electronicsVoice Control – Manage your smart plug with voice commands via Amazon Alexa or the Google AssistantAway Mode – Automatically turns devices on and off at different times to give the appearance that someone is homeCompact Design - Mini-sized to avoid blocking adjacent socketsEasy Setup and Use - No hub required, set up quickly and manage easily through the free appNETWORK
Protocol IEEE 802.11b/g/n
Wireless Type 2.4 GHz
System Requirements Android 4.4 or higher, iOS 9.0 or higher
GENERAL
Dimensions( H X W X D ) 3.01 * 1.71 * 1.65 in (76.5 * 43.5 * 42 mm)
Materia PC
Buttons Power Button
Status LED
Power Requirements AC 220-240 V~50/60 Hz
WORKING STATUS
Maximum Load 2300W, 10A
OTHERS
Package Contents Mini Smart Wi-Fi Socket Tapo P110
Quick Start Guide
Certifications RCM, SAA, RoHS
Environment 0 ºC–40 ºC
TP-Link Tapo P100(1-pack) Mini Smart Wi-Fi SocketRemote Control – Instantly turn connected devices on/off wherever you are through the Tapo appSchedule – Preset a schedule to automatically manage devicesTimer - Create countdown timer lists for connected electronicsVoice Control – Manage your smart plug with voice commands via Amazon Alexa or the Google AssistantAway Mode – Automatically turns devices on and off at different times to give the appearance that someone is homeCompact Design - Mini-sized to avoid blocking adjacent socketsEasy Setup and Use - No hub required, set up quickly and manage easily through the free appNETWORK
Protocol IEEE 802.11b/g/n, Bluetooth 4.2 (for onboarding only)
Wireless Type 2.4 GHz
System Requirements Android 4.4 or higher, iOS 9.0 or higher
GENERAL
Dimensions( H X W X D ) 2.0* 2.8* 1.6 in (51*72.0*40 mm)
Materia PC
Buttons Power Button
Status LED
Power Requirements AC 220-240 V~50/60 Hz 10 A
WORKING STATUS
Maximum Load 2300 W, 10 A
OTHERS
Package Contents Mini Smart Wi-Fi Socket Tapo P100
Quick Start Guide
Certifications CE, RoHS
Environment Operating Temperature: 0 ºC–35 ºC
Operating Humidity: 10%–90%RH, Non-condensing
TP-Link Tapo Dimmable Smart Light Bulb L510E Edison Fitting, Dimmable, No Hub Required, Voice Control, Schedule & Timer 2700K 8.7W 2.4 GHz 802.11b/g/nAdjust with Ease – Manage the lighting at your fingertips to create the perfect atmosphere in your home at any timePreset for Convenience – Found your favourite lighting for watching movies? Save it as a setting you can simply select for future movie nightsSet Your Times – Create a regular schedule to turn on/off with the brightness you setSunrise and Sunset Modes – Automatically activate your light according to your time zoneVoice Control – Mange the lights with your voice commands as Tapo works with Amazon Alexa and Google AssistantRemote Control – Take your phone out of your pocket and open the Tapo app to control your light remotelyAway Mode – Automatically simulate someone being at home to deter any unwanted visitorsCOMMUNICATION
Wi-Fi Protocol IEEE 802.11b/g/n
Wi-Fi Frequency 2.4 GHz Wi-Fi
GENERAL
Certification CE, RCM ,RoHS
Package Contents 1. Tapo L510B
2. Quick Start Guide
Lamp Base B22
WORKING STATUS
Input 220–240 V, 50/60 Hz, 73 mA
Typical Lumen Output 806 lumens
Input Power (Actual power draw in Watts) 8.7 W
Color Temperature 2,700 K
Beam Angle 220 degrees
Dimmable Yes
TP-Link Tapo L530E Smart Wi-Fi Light Bulb, Multicolour (B22 / E27)Multicolour – Easily design scenarios for your daily routine or activities by customizing brightness, light temperature, and colours–with 16,000,000 hues to choose from.60-watt equivalent – LED bulb produces up to 806 lumens white brightness and has a dimming range from 1% to 100%.Preset for Convenience – Found your favourite lighting for watching movies? Save it as a setting you can simply select for future movie nights.Schedule & Timer – Create schedules and count plans to turn on/off with the brightness/colour you set.Sunrise and Sunset Modes – Automatically activate your light according to your time zone.No Hub Required – Connect the L530B light to your home wifi, then you are all set.Voice Control – Manage the lights with your voice commands as Tapo works with Amazon Alexa and Google Assistant.Remote Control – Take your phone out for the pocket and open the Tapo app to control your light remotely.Away Mode – Automatically simulate someone being at home to frighten away, unwanted visitors.Restore Last Light State – the bulb automatically returns to its previous power-off state.TECHNICAL SPECIFICATIONS
Colour Rendering Index ≥ 80
Warm-up Time up to 95% ≤1 s
Switching Circles 15,000
Weighted Energy Consumption 8.7 kWh/1000h
GENERAL
Package Contents 1. Tapo L530E
2. Quick Start Guide
Certification CE, RoHS
Lamp Base B22
Dimensions( H X W X D ) 115 × 60 mm
Lifetime 15,000 Hrs
COMMUNICATION
Wi-Fi Protocol IEEE 802.11b/g/n
Wi-Fi Frequency 2.4 GHz Wi-Fi
WORKING STATUS
Input 220–240 V, 50/60 Hz, 73 mA
Typical Lumen Output 806 lumens
Input Power (Actual power draw in Watts) 8.7 W
Color Temperature 2,500 K~6,500 K
Beam Angle 220 degrees
Dimmable Yes
TP-Link Tapo L900-5 Smart Wi-Fi Light Strip
Connect It Your Way - Use it with your smart assistant, a hub, or connect directly to the Tapo App. Control the Light Strip however you want.
Wind Down at Night - Install the Light Strip to relax your body and mind through a mood-setting atmosphere.
Voice Control - Use simple voice commands to control your light strip with Alexa or Google Assistant.
No Hub Required - Connect to your home’s secure Wi-Fi network. No need for a hub or extra equipment.
Flexible Installation - Cut it to whatever length you want and attach it to any surface with the 3Madhesive.
Preset for Convenience - Found your favourite lighting for watching movies? Save it as a setting you can simply select for future movie nights.
Schedule & Timer - Create schedules and count plans to turn on/off with the brightness/colour you set.
Away Mode - Simulate someone being at home to frighten away, unwanted visitors.
GENERAL
Product Dimensions 5000*10*1.6 mm
Certification CE
Operating Temperature -15 ºC~ 40 ºC
Operating Humidity 10%~90% RH, Non-condensing
Weight 57 g
Packaging Dimensions 144.5*68.5*119.5
Power Consumption 13.5 W
COMMUNICATION
Wi-Fi Protocol IEEE 802.11 b/g/n
Wi-Fi Frequency 2.4 GHz
Wi-Fi Requirements Secured home Wi-Fi connection
WORKING STATUS
Input voltage 220-240 V, 50/60 Hz
Input Power (Actual power draw in Watts) 13.5 W
Dimmable 1%-100% (via app and cloud only)
