Dahua 8MP 4K WizSense Eyeball IP Camera – Black | DH-IPC-HDW3866EMP-S-AUS-BLK
The Dahua HDW3866EMP-S-AUS-BLK is a sleek 8MP 4K network eyeball camera from Dahua’s WizSense series, purpose-built for high-performance AI-enhanced surveillance. Featuring a fixed 2.8mm lens, advanced Smart Motion Detection (SMD+), and IR night vision up to 30m, it delivers crystal-clear video day and night.
The camera supports AI-based human/vehicle detection, making alerts more accurate and efficient. Its black casingblends discreetly into dark environments, ideal for modern homes, commercial premises, carparks, warehouses, and retail shops.
With H.265+ compression, IP67 weatherproofing, PoE support, and a built-in microphone, this camera is a powerful yet cost-effective solution for modern security systems.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Technical Specifications
Specification
Details
Model
DH-IPC-HDW3866EMP-S-AUS-BLK
Resolution
8MP (3840 × 2160) @ 20fps
Lens
2.8mm fixed (approx. 110° FOV)
Image Sensor
1/2.8” Progressive CMOS
Night Vision
IR LEDs up to 30m
AI Features
Smart Motion Detection+, Human/Vehicle Classification
Audio
Built-in microphone
Compression
H.265+, H.264, MJPEG
Image Enhancements
WDR, 3DNR, BLC, HLC
Weather Rating
IP67 (outdoor weatherproof)
Power
12V DC / PoE (802.3af)
Operating Temperature
-30°C to +60°C
Colour
Matte Black
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket Black DH-PFB204W-B
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3866EMP-S-AUS-BLK Datasheet
Dahua Eyeball Network Camera Quick Start Guide_V1.0.4
Eyeball Network Camera Installation Guide_V1.0.0
Dahua Network Camera Web 5.0 Operation Manual_V1.0.4
Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
Dahua 8MP TiOC 3.0 Turret AcuPick Security Camera with Active Deterrence, Full-colour Night Vision, Mic & Speaker, Siren, Strobe Light, 2.8mm Fixed Lens, 30m IR
The Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 is a cutting-edge 8MP TiOC 3.0 turret camera that combines AcuPick AI search, dual-light full-colour night vision, and active deterrence features including a built-in siren, spotlight, and two-way audio.
Powered by TiOC (Three-in-One Camera) technology, this camera merges AI analytics, infrared and white light switching, and audio-visual deterrence into a single smart surveillance device. With its AcuPick search engine, you can rapidly identify targets by filtering footage based on AI metadata—saving hours of video review.
Perfect for proactive security in homes, retail, and warehouses, the camera also supports IP67 protection, H.265+ compression, and seamless integration with Dahua NVR
Designed for the Australian market, it offers unparalleled protection and peace of mind.
Key Features & Benefits
TiOC 3.0 (Three-in-One Camera):
Experience the pinnacle of active deterrence with Dahua TiOC 3.0. This system integrates full-colour monitoring, active deterrence with red and blue strobe lights, and two-way audio communication into one powerful device, providing immediate response capabilities.
Full-Color Night Vision 24/7: Thanks to advanced optics and larger aperture, this camera delivers vivid, full-colour images even in extreme low-light conditions, ensuring no detail is missed.
Red and Blue Strobe Light & Siren: Upon detection of an intruder, the camera activates highly visible red and blue flashing lights and a built-in loud siren to immediately warn off trespassers.
Two-Way Audio Communication: Utilise the integrated microphone and speaker for real-time two-way talk. Speak directly to visitors or issue vocal warnings to potential threats from anywhere via your mobile device.
8MP (4K) Ultra HD Resolution: Capture crystal-clear, highly detailed footage with 8MP (3840 × 2160) resolution. This 4K security camera ensures every detail is sharp, crucial for identification and evidence.
AcuPick Technology: Significantly reduce search times with Dahua AcuPick. This innovative feature allows you to quickly select target objects (humans or vehicles) from surveillance footage, making event retrieval incredibly fast and efficient.
SMD 4.0 (Smart Motion Detection 4.0): Powered by Dahua WizSense AI, SMD 4.0 provides highly accurate human and vehicle detection, drastically reducing false alarms caused by animals, leaves, or weather. Focus only on what matters.
IP67 Weatherproof Rating: Built for the harsh Australian climate, the IP67-rated outdoor camera is fully protected against dust and water ingress, guaranteeing reliable performance in rain, dust, and extreme temperatures.
Advanced Video Compression (H.265+): Benefit from H.265+ compression, which intelligently reduces bandwidth and storage requirements by up to 90% compared to standard H.264, without compromising video quality.
Wide Dynamic Range (120dB WDR): Ensure clear images in challenging lighting conditions, such as strong backlighting or glare, with 120dB Wide Dynamic Range (WDR).
Built-in Storage (MicroSD Card Slot): "Support for a microSD card (up to 256GB) allows for convenient local video storage and backup.
Ideal Applications/Use Cases: This camera would be most effective for warehouse, entry points, driveways, critical outdoor areas.
Technical Specifications – DH-IPC-HDW3849H-AS-PV-ANZ-S2
DH-IPC-HDW3849H-AS-PV-ANZ-S2
8MP TiOC 3.0 Fixed Turret Camera
1/2.8" CMOS
High-quality low-light imaging
3840 × 2160 (8MP)
Ultra HD 4K video
2.8mm Fixed
Wide-angle coverage
IR 30m / White Light 30m
Dual light for full-colour night vision
Yes
Metadata filtering for fast video retrieval
Yes
Three-in-One Camera: AI, Light, and Siren
Built-in Mic & Speaker
Two-way audio communication
Yes
Strobe light and audible siren
120 dB
True Wide Dynamic Range
Smart H.265+, H.264+
High-efficiency video coding
12V DC / PoE (802.3af)
Flexible power options
Max. 7.8W
Including LED and speaker
IP67
Weatherproof outdoor-rated
-30°C to +60°C
Rugged for all climates
109.9 × 121.8 mm
Compact turret design
~460g
Lightweight, easy to install
Downloads
DH-IPC-HDW3849H-AS-PV-ANZ-S2 DatasheetDahua Network Camera Web 3.0 Operation Manual V2.1.8Eyeball Network Camera Installation Guide_V1.0.3Dahua Eyeball Network Camera Quick Start Guide V1.0.5Dahua Network Camera Web 5.0 Operation Manual V1.2.1
Dahua 6MP Security Camera, Turret, Black, IR Night Vision, 2.8mm Fixed-focal Eyeball WizSense Starlight
The Dahua DH-IPC-HDW3666EMP-S-AUS-BLK is a 6MP IR fixed-focal eyeball WizSense black turret network camera from the starlight series. With a 2.8mm lens, PoE connection, and SD Card storage capacity of up to 256GB, this camera is perfect for capturing clear footage both day and night. Its advanced features, including Perimeter and SMD4.0 for motion detection, WDR for wide dynamic range, and a built-in microphone, make it a top choice for security needs. Additionally, the built-in infrared LED provides night vision coverage of up to 50 meters. The IP67 enclosure ensures high-grade water and dust resistance, making it suitable for outdoor use. With a resolution of 3072 x 2048 pixels and frame rate of 25/30 fps, this camera provides superb image clarity.
The Dahua 6MP Turret Security Camera features advanced WizSense AI technology, providing highly accurate detection of humans and vehicles. With AI Coding and Starlight technology, this camera saves storage space while delivering clear footage even in low light conditions. Its intelligent functions and easy usability make it an inclusive and reliable choice for security surveillance.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritising the highest matches.
AI SSA Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, Wide Voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
Features
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
Network Security Camera
Megapixels
6MP
Camera Style
Turret
Colour
Black
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket Black DH-PFB204W-B
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3666EMP-S-AUS Datasheet 20220713Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0 Operation Manual_V1.0.4Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
Please see the replacement model. Thanks. Dahua 5MP Starlight IP Black Turret 2.8mm lens, Built-in Mic, IVS, WDR (120dB), IR 30m, Micro SD, IP67, PoE
Features
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in MIC
12V DC/PoE power supply
IP67 protection
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
LITE SERIES
PoE
PoE
Downloads
DH-IPC-HDW2531EMP-AS-0280B-S2-AUS DatasheetEyeball Network Camera Installation Guide_V1.0.0Dahua Active Deterrence Eyeball Network Camera_QSG_V1.0.1Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Dahua 8MP Smart Dual-Light 4K Turret Camera with AcuPick AI – Intelligent Full-Colour Surveillance, Day or Night
The Dahua 8MP Fixed Turret Camera with Smart Dual-Light and AcuPick AI delivers exceptional 4K resolution and smart target search capabilities for proactive and accurate surveillance. This camera is designed to capture high-quality colour footage even at night using its Smart Dual-Light technology, which intelligently switches between IR and warm white LED lighting based on real-time activity — ensuring full-colour images only when necessary, without causing light pollution.
The integrated AcuPick AI enables rapid search of human and vehicle targets from recorded video streams, significantly reducing the time required to locate critical events. The 2.8mm wide-angle lens provides a 105° field of view, while IR night vision up to 30 metres, built-in microphone, and IP67-rated weatherproofing ensure reliable performance in all conditions.
This camera supports PoE installation, H.265+ compression, and works seamlessly with Dahua NVRs and ONVIF-compatible systems. It’s ideal for both residential and commercial CCTV systems where smart analytics, clear night vision, and efficient playback matter.
AcuPick NVR Recorder?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Features
8MP resolution (3840 × 2160 @ 20fps)
Smart Dual-Light: IR + warm light with auto-switching
AcuPick AI for fast human/vehicle target search
2.8mm fixed lens with 105° wide-angle view
IR night vision range: up to 30 metres
Built-in microphone for one-way audio recording
IP67-rated weatherproof metal housing
H.265+ video compression for storage efficiency
Supports PoE (Power over Ethernet)
Compatible with Dahua NVRs & ONVIF systems
Specifications
Model
Dahua 8MP Fixed Turret with Smart Dual Light & AcuPick
Image Sensor
1/2.8” 8MP Progressive CMOS
Lens
2.8mm fixed lens (105° horizontal FOV)
Max Resolution
3840 × 2160 (8MP) @ 20fps
Night Vision
Smart Dual-Light (IR & warm LED), up to 30m
AI Features
AcuPick, SMD, IVS (tripwire, intrusion, etc.)
Audio
Built-in microphone
Weather Rating
IP67 (dust and water resistant)
Power Supply
12V DC or PoE (802.3af)
Compression
H.265+, H.265, H.264
Compatibility
Dahua NVRs, ONVIF-compliant systems
Operating Temperature
-30°C to +60°C
Dimensions
Φ109.9 × 100.9 mm
Downloads
DH-IPC-HDW3867EM-S-IL-ANZ DatasheetDahua Eyeball Network Camera Quick Start GuideDahua Network Camera Web Operation Manual
Hikvision 8MP Smart Hybrid Light Turret Camera DS-2CD2387G2H-LISU/SL with Live-Guard — Microphone & Speaker, Strobe & Audible Warning Alarm
The Hikvision 8MP Smart Hybrid Light Turret Camera combines ColorVu full-colour night vision and infrared (IR) in one smart surveillance solution. Its Smart Hybrid Light technology automatically switches between IR and white light illumination, depending on ambient conditions and motion detection, providing clear 24/7 visibility.
This model features a 2.8mm fixed lens, H.265+ video compression, and AI-powered human/vehicle classification, reducing false alarms while capturing detailed footage. With an IP67 weatherproof rating, it’s ideal for residential, retail, or commercial outdoor CCTV systems.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Audio and alarm interface available
Downloads
DS-2CD2387G2H-LISU/SL DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual
Hikvision HiLook Pro 8MP 180° 4K All-in-One Turret Security Camera T289PH-MU-SL, Fixed 2mm, IR 30m, Microphone & Speaker
The HiLook Pro 8MP 180° 4K Turret Security Camera T289PH-MU-SL delivers exceptional image clarity with its 8MP resolution and wide 180-degree field of view. Equipped with advanced Person and Vehicle Detection, it enhances security monitoring by reducing false alarms. Its Smart Hybrid Light technology ensures clear night vision up to 30 meters, while H.265+ compression optimizes storage and bandwidth. Featuring built-in microphone and speaker for real-time two-way audio, plus active strobe light and audio alarms to deter intruders. Durable IP67-rated housing and Power over Ethernet (PoE) support make it ideal for reliable, professional-grade surveillance.
Features
High quality imaging with 8 MP resolution
Support Person and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot)
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
180 degree Field of view
Active strobe light and audio alarm to warn intruders off
HiLook 180 Degree 4K Network Camera
Resolution
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
Pro Series
Connection
PoE
More Information
IPC-T289PH-MU/SL Datasheet
User Manual
HiLook IPC‑T361H‑MU 6MP AI Turret IP Camera
The HiLook IPC‑T361H‑MU is a powerful 6MP turret network camera offering smart detection, built-in microphone, and crisp image quality in various lighting conditions. Ideal for both residential and commercial surveillance, it delivers intelligent security monitoring with enhanced analytics and reliable outdoor performance.
Key Features
6 MP high-resolution (3200 × 1800)
AI-powered detection for human & vehicle classification
Built-in microphone for real-time audio monitoring
IR night vision up to 30 m for 24/7 visibility
Efficient H.265+/H.265 compression
Weatherproof IP67 rated metal housing
PoE support for easy installation
Applications
This camera is perfect for outdoor entrances, driveways, shops, schools, warehouses, and general perimeter monitoring where smart AI filtering and audio capture are essential.
Technical Specifications
Specification
Details
Image Sensor
1/2.7" Progressive Scan CMOS
Max Resolution
3200 × 1800 (6 MP)
Lens
Fixed 2.8 mm
Field of View
Horizontal: 102.4°, Vertical: 55.2°, Diagonal: 121.4°
Night Vision
Infrared up to 30 m
Smart Detection
Human & Vehicle Classification
Audio
Built-in Microphone
Video Compression
H.265+/H.265/H.264+/H.264
Ingress Protection
IP67
Operating Temperature
−30°C to 60°C
Power Supply
12 VDC ±25% / PoE (802.3af)
Power Consumption
Max 4.5 W
Why Buy From CCTV Guru?
100% Genuine HiLook Products
Expert Local Support
Fast Shipping Australia Wide
5% Price Beat Guarantee
More Information
HiLook IPC-T361H-MU Datasheet
HiLook IPC-T269H-MU/SL – 6MP Turret IP Camera with Strobe Light, Two-Way Audio & Smart Detection
The HiLook IPC-T269H-MU/SL is a compact yet powerful 6MP smart turret IP camera, designed for active deterrence and smart surveillance. Equipped with a strobe light and built-in microphone and speaker, this camera helps deter intruders while providing clear audio and video capture.
Ideal for both residential and commercial use, it features infrared night vision up to 30m, motion detection, and H.265+ compression for efficient storage and bandwidth usage. Its compact turret design ensures discreet installation without compromising performance.
Features
Resolution: 6MP (3072 × 2048)
Strobe Light: Visual deterrent for active security
Two-Way Audio: Built-in microphone and speaker
Night Vision: IR range up to 30 metres
Smart Features: Motion detection, video tampering alerts
Compression: H.265+/H.264+ for efficient streaming
Weather Rating: IP67 for outdoor use
Power Supply: 12V DC or PoE (802.3af)
Technical Specifications
Specifications – HiLook IPC-T269H-MU/SL
Turret IP Camera
Smart Detection with Audio & Strobe
1/2.5" Progressive Scan CMOS
High sensitivity 6MP
3072 × 2048
6MP UHD
Fixed 2.8mm
Wide-angle coverage
Up to 30m
Smart IR for night vision
Yes
Active deterrence with flashing light
Built-in Mic & Speaker
Two-way audio supported
Motion, Line Crossing, Intrusion
Event-based alerts
H.265+/H.264+
Efficient bandwidth & storage
IP67
Dust and water resistant
12V DC / PoE (802.3af)
Flexible powering options
-30°C to +60°C
Wide operating range
Download
HiLook IPC-T269H-MU/SL Datasheet
HiLook All-in-one Security Camera Brochure
Hikvision 8MP AcuSense Live-Guard Turret DS-2CD2386G2-ISU/SL with Strobe Light, Alarm, Mic & Speaker and Fixed 2.8mm Lens
The Hikvision DS-2CD2386G2-ISU/SL is an advanced 8MP (4K) AcuSense Gen 2 turret network camera built for high-performance, AI-powered surveillance. With a 2.8mm wide-angle lens, it captures ultra-HD video while offering smart motion detection using human and vehicle classification, reducing false alarms from animals, wind, or shadows.
Equipped with a built-in microphone, strobe light, and audible alarm, this camera enables Live-Guard functionality to actively deter intruders in real time. It’s perfect for home security, commercial applications, or industrial perimeter protection.
The camera also features infrared night vision up to 30 metres, H.265+ compression, and is enclosed in a durable IP67 weatherproof housing. Backed by a 3-year warranty, it’s a powerful and reliable choice for proactive video surveillance.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Hikvision DS-2CD2386G2-ISU/SL Specifications
Technical Specifications
DS-2CD2386G2-ISU/SL
8MP AcuSense Gen 2 Turret Camera
1/1.8" Progressive Scan CMOS
High-sensitivity CMOS for ultra HD
3840 × 2160 (8MP)
4K Ultra HD
2.8mm Fixed
Wide-angle coverage
102° (H), 55° (V), 121° (D)
Excellent coverage area
Up to 30m
Night vision support
120dB
True Wide Dynamic Range
Built-in Mic & Speaker
Two-way communication
Strobe Light & Siren
Active deterrence
MicroSD up to 256GB
Onboard video storage
IP67
Outdoor weatherproof
12V DC or PoE
Max. 7.5W consumption
-30°C to 60°C
Weather-resistant range
Ø138.3 × 126.4 mm
Compact turret design
Approx. 600g
Lightweight for easy install
Downloads
DS-2CD2386G2-ISU/SL Datasheet
Hikvision Camera Quick Start Guide
Hikvision Camera User Manual
Hikvision 6MP Smart Hybrid Light ColorVu 3.0 Turret Camera DS-2CD2367G3-LIS2UY/SL with Live-Guard — Strobe Light, Microphone & Speaker, Audible Warning
The Hikvision DS-2CD2367G3-LIS2UY-SL is a feature-rich 6MP IP turret camera combining Smart Hybrid Light, ColorVu 3.0 full-colour night vision, and AI-powered detection in one compact form factor. With a built-in strobe light, two-way audio, and infrared up to 30m, it delivers superior protection for residential and commercial properties.
Thanks to Smart Hybrid Light, this camera automatically switches between IR and warm white light based on lighting conditions and motion. Human and vehicle detection ensures accurate alerts, while the siren and strobe provide visible and audible deterrence.
Its 2.8mm fixed lens captures wide-angle views in stunning 6MP resolution, and the IP67 rating ensures reliable performance in harsh outdoor environments.
Features
HikAI-ISP for excellent noise reduction effect
24/7 colorful imaging via ColorVu technology
Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
Provide real-time security via built-in two-way audio
Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Water and dust resistant (IP67)
Audio and alarm interface available
Active strobe light and audio alarm to warn intruders off
Downloads
DS-2CD2367G3-LIS2UY/SL DatasheetHikvision Quick Start GuideHikvision User Manual
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Bullet, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, POE, Black
The Dahua Security Camera 8MP (4K) IR Fixed-focal Bullet WizSense Network Camera offers excellent low luminance performance and high definition images with its 8MP 1/2.8'' CMOS sensor. With its built-in IR LED, it can capture images up to 30m even in low light conditions. Its advanced features, such as intelligent detection and flexible coding, make it versatile for various monitoring scenarios. Experience reliable and high-quality surveillance with Dahua.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866EP-AS-AUS-BLK DatasheetDahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Hikvision 8MP Smart Hybrid Light ColorVu 3.0 Turret Camera, DS-2CD2387G3-LIS2UY/SL with Live-Guard — Strobe Light, Mic & Speaker, Alarm, IR 30m
The Hikvision DS-2CD2387G3-LIS2UY-SL is a premium 8MP ColorVu 3.0 turret camera, built for proactive deterrence and ultra-clear 24/7 full-colour video. Featuring a built-in microphone, strobe light, siren alarm, and infrared night vision (up to 30m), it’s ideal for protecting homes, businesses, and commercial properties.
Powered by ColorVu 3.0 and Smart IR, this camera switches between white light and IR based on ambient lighting and motion. With AI-powered human and vehicle detection, it reduces false alerts and enables smarter notifications.
Its siren and strobe can automatically trigger during intrusion events or be manually activated via the Hik-Connect appor NVR.
Features
Hik AI-ISP for excellent noise reduction effect
24/7 colorful imaging via ColorVu technology
Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
Provide real-time security via built-in two-way audio
Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Water and dust resistant (IP67)
Audio and alarm interface available
Active strobe light and audio alarm to warn intruders off
Key Technology
High-Resolution Imaging: 8MP (3840 × 2160) resolution for detailed video capture.
ColorVu 3.0 Technology: Provides full-color imaging in extremely low-light conditions.
Smart Hybrid Light: Automatically switches between IR and white light based on the environment.
Advanced Detection: Deep learning-based human and vehicle classification for accurate alerts.
Built-in Audio: Dual microphones and speaker for two-way audio communication.
Active Deterrence: Strobe light and audio alarm to alert and deter intruders.
Durability: IP67-rated and anti-corrosion (NEMA 4X) housing for harsh environments.
Storage: Supports microSD cards up to 512 GB for local recording.
Downloads
DS-2CD2387G3-LIS2UY/SL DatasheetHikvision Turret Camera Quick Start GuideHikvision Camera User Manual
Hikvision HiLook IPC-T289H-MU-SL 8MP Turret, Blue & Red Strobe Light, Fixed 2.8MM, IR 30M, Mic & Audio
The HiLook T289H-MU-SL 8MP Turret offers high quality imaging with 8 MP resolution, human and vehicle classification based on deep learning, and efficient H.265+ compression technology. It also features a smart hybrid light, built-in dual-microphone for real-time high quality audio security, and 120 dB true WDR technology for clear imaging against strong back light. With its IP67 water and dust resistance, and active red and blue flashing light and audio alarm, this turret is the perfect security solution.
Features
Resolution: 8MP (3840 × 2160) Ultra HD
Blue & Red Strobe: Active visual deterrent
Two-Way Audio: Built-in mic and speaker
Night Vision: Up to 30m IR range
Lens: 2.8mm fixed wide-angle
Smart Detection: Motion, line crossing, intrusion
Compression: H.265+/H.264+
Weatherproof: IP67-rated
Power: 12V DC / PoE (802.3af)
Ideal For: Home security, shops, offices, driveways, and perimeter protection
Specifications
Specifications – HiLook IPC-T289H-MU/SL
Turret IP Camera
Smart with strobe and audio
1/2.5″ Progressive Scan CMOS
High-quality 8MP
3840 × 2160
Ultra HD 4K
Fixed 2.8mm
Wide-angle field of view
Up to 30m
Smart IR for night surveillance
Red and Blue
Active deterrence visual alarm
Built-in Microphone and Speaker
Two-way audio communication
Motion, Line Crossing, Intrusion
AI-enhanced video analytics
H.265+/H.264+
Optimised bandwidth and storage
IP67
Water and dust resistant
12V DC / PoE (802.3af)
Dual power options
-30°C to +60°C
Designed for harsh environments
More Information
HiLook IPC-T289H-MU/SL DatasheetHiLook All-in-one Security Camera Brochure
Hikvision DS-2CD2386G2-IU – 8MP AcuSense Turret IP Camera
The Hikvision DS-2CD2386G2-IU is a high-performance 8MP AcuSense turret camera, designed for smart and reliable video surveillance. Featuring advanced AI technology, this camera uses human and vehicle classification to reduce false alarms, enhancing security accuracy.
Its IR night vision delivers clear images up to 30 metres in total darkness, while the built-in microphone supports high-quality one-way audio recording. Housed in a durable IP67-rated casing, this camera is ideal for both indoor and outdoor environments.
Perfect for homes, businesses, and retail applications, the DS-2CD2386G2-IU combines professional-grade performance with plug-and-play PoE simplicity.
Key Features
Resolution: 8MP (3840 × 2160) Ultra HD
Lens: 2.8mm fixed lens
Night Vision: IR up to 30 metres
AcuSense AI: Human and vehicle classification
Audio: Built-in microphone (1-way audio)
Protection: IP67 weatherproof design
Power Supply: 12V DC & PoE (802.3af)
Video Compression: H.265+, H.264+
Remote Access: Hik-Connect app & web interface
Security: Motion detection, tamper alarm, and event alerts
Hikvision DS-2CD2386G2-IU Specifications
Technical Specifications – DS-2CD2386G2-IU
Fixed Turret
Compact outdoor IP camera
8MP (3840 × 2160)
Ultra HD 4K
2.8mm fixed
Wide-angle viewing
Up to 30m
Infrared (IR) illumination
Yes
Human & vehicle classification
Built-in Microphone
1-way audio recording
H.265+, H.264+
Efficient storage use
IP67
Outdoor-ready and dustproof
120 dB
True wide dynamic range
12V DC & PoE (802.3af)
Flexible power options
Motion Detection, Tamper Alarm
Plus smart filtering with AcuSense
Hik-Connect App
Live view & playback on mobile
Downloads
DS-2CD2386G2-IU DatasheetHikvision Camera Quick GuideHikvision Camera User Manual
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Turret, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, PoE, Black
Professional-grade 8MP 4K security camera engineered for demanding surveillance applications. Features a 1/2.8" CMOS sensor with exceptional low-light performance and motorised 2.7-13.5mm vari-focal lens for flexible coverage. Delivers 4K resolution at 25/30fps with H.265 codec compression for efficient storage and bandwidth management. Advanced WizSense AI detection identifies intrusions and tripwire events with human/vehicle classification. Built-in 40m IR illumination, IP67 weatherproofing, and POE power simplify installation. Includes SD card backup, digital watermarking, and intelligent image processing (WDR, 3D NR, HLC, BLC) for reliable performance across varied lighting conditions. Ideal for perimeter protection and critical security deployments.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
WizSense Series
Connection
PoE
Downloads
DH-IPC-HDW3866TP-ZS-AUS-BLK DatasheetDahua Eyeball Network Camera Quick Start Guide V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Hikvision DS-2CD2366G2-IU – 6MP AcuSense Fixed Turret Security Camera with Built-in Mic, IR, and IP67 Rating
The Hikvision DS-2CD2366G2-IU is a professional-grade 6MP AcuSense fixed turret camera designed for smart security systems. Powered by AcuSense Gen 2 AI technology, it can accurately detect and classify humans and vehicles, helping reduce false alarms and improve response accuracy.
With its infrared night vision capability of up to 30 metres, and a built-in microphone for high-quality audio recording, the DS-2CD2366G2-IU is ideal for both indoor and outdoor use. It supports H.265+ compression, which optimizes storage and bandwidth without sacrificing image quality.
Whether you’re upgrading your home system or deploying cameras across a commercial site, this camera delivers crisp 6MP video and reliable performance in any condition.
Features
Resolution: 6MP (3072 × 2048)
Lens: 2.8mm fixed wide-angle lens
Night Vision: Up to 30m IR range
AI Detection: AcuSense human & vehicle classification
Audio: Built-in microphone (1-way audio)
Weatherproof Rating: IP67 – Suitable for outdoor use
Power: 12V DC & PoE (802.3af)
Video Compression: H.265+, H.264+
Remote Monitoring: Hik-Connect App, Web access
Installation: Wall or ceiling mountable
Specifications
Technical Specifications – DS-2CD2366G2-IU
Fixed Turret
Indoor/Outdoor IP Camera
6MP (3072 × 2048)
High-definition video
2.8mm Fixed Lens
Wide-angle view
Up to 30m
IR with Smart IR technology
1/2.4″ Progressive Scan CMOS
Low-light sensitivity
120 dB
True Wide Dynamic Range
Built-in Microphone
1-way audio recording
AcuSense
Human & vehicle classification
H.265+, H.264+
Efficient bandwidth and storage
RJ-45 10/100Mbps
PoE supported
IP67
Dust and water resistant
12V DC & PoE (802.3af)
Dual power options
Hik-Connect App
Mobile & web monitoring
Wall / Ceiling
Flexible installation
Downloads
DS-2CD2366G2-IU DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Dome, 2.8mm, 4K@25/30fps, Perimeter, SMD 4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, IK10, POE, black
The Dahua 8MP WizSense Fixed Starlight Dome Camera delivers ultra-clear 4K resolution at 25/30fps, powered by a 1/2.8" CMOS sensor optimized for low light conditions. Featuring advanced AI perimeter protection with intrusion and tripwire detection, it distinguishes humans and vehicles accurately. The camera supports flexible video encoding with H.265 for efficient bandwidth and storage use. Its robust design includes built-in IR LEDs with a 30m range, IP67 weather resistance, IK10 vandal protection, and Power over Ethernet for simplified installation. Additional enhancements like WDR, 3D noise reduction, and a built-in microphone ensure reliable, high-quality surveillance in diverse environments.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec allows high compression ratio and ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
CONNECTION
PoE
Downloads
DH-IPC-HDBW3866EP-AS-AUS-BLK DatasheetDahua Dome Network_ Camera_Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Dome, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, IK10, POE, black
The Dahua 8MP 4K WizSense Motorised Dome Camera delivers crystal-clear surveillance with a 1/2.8" CMOS sensor and 3840 x 2160 resolution at 25/30 fps. Its vari-focal lens (2.7-13.5mm) allows precise zooming, while built-in IR LEDs provide up to 40 meters of night vision. Advanced features include perimeter protection with human and vehicle classification, SMD 4.0, WDR, 3D noise reduction, and digital watermarking. The camera supports H.265 compression for efficient storage and bandwidth use, is IP67 and IK10 rated for durability, and includes PoE and a built-in microphone for comprehensive monitoring.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
WizSense Series
PoE
PoE
Downloads
DH-IPC-HDBW3866RP-ZAS-AUS-BLK DatasheetDahua Dome Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua IPC-HDW3849H-ZAS-PV-ANZ-S2 – 8MP TiOC 3.0 Smart Dual-Light AI Motorised Turret Camera with Active Deterrence, 24/7 Full-colour
The Dahua IPC-HDW3849H-ZAS-PV-ANZ-S2 is an advanced 8MP turret camera from the TiOC 3.0 series, integrating full-colour surveillance, active deterrence, and AI capabilities. Featuring a motorised 2.7–13.5mm vari-focal lens, it delivers ultra-HD 4K resolution and adapts to various monitoring scenarios.
Equipped with Smart Dual-Light technology, the camera intelligently switches between IR and warm white LED illumination based on real-time activity, ensuring clear colour images at night while minimizing light pollution. The AcuPick AI feature enables rapid search of human and vehicle targets from recorded video streams, significantly reducing the time required to locate critical events.
Additional features include SMD 4.0 for accurate motion detection, AI Scene Self-Adaption (AI SSA) for optimal image quality, and active deterrence with red/blue warning lights and customizable voice alerts. With IP67-rated weather resistance, two-way audio, and support for up to 512GB microSD storage, this camera is ideal for both residential and commercial applications.
Features
8MP 1/2.8” CMOS sensor delivering 3840 × 2160 resolution at 25/30 fps
Motorised 2.7–13.5mm vari-focal lens with 108°–34° horizontal field of view
Smart Dual-Light: IR illumination up to 50m; warm light up to 40m
AcuPick AI for efficient human/vehicle target search
SMD 4.0 for accurate motion detection with reduced false alarms
Active deterrence with red/blue lights and customizable voice alerts
Two-way audio with built-in dual microphone and speaker
AI SSA for automatic scene optimization
IP67-rated weatherproof housing for outdoor use
Supports up to 512GB microSD card for local storage
Power options: 12V DC or PoE (802.3af)
Specifications
Category
Details
Model
IPC-HDW3849H-ZAS-PV-ANZ-S2
Image Sensor
1/2.8” 8MP Progressive CMOS
Effective Pixels
3840 × 2160 (8MP)
Frame Rate
25/30 fps @ 3840 × 2160
Lens
2.7–13.5mm motorised vari-focal lens
Field of View
H: 108°–34°, V: 56°–19°, D: 130°–39°
Illumination
IR up to 50m; Warm light up to 40m (Smart Dual-Light)
Day/Night
Auto (ICR) / Color / B/W / Smart Dual-Light
AI Functions
AcuPick, SMD 4.0, Perimeter Protection, AI SSA
Audio
Built-in dual microphone & speaker (two-way audio)
Compression
H.265, H.264, Smart H.265+, Smart H.264+
Storage
Supports microSD card up to 512GB
Ingress Protection
IP67 rated
Power Supply
12V DC ±30% or PoE (802.3af)
Operating Temperature
-30°C to +60°C (-22°F to +140°F)
Dimensions
Φ127.6 × 122.0 mm
Weight
Net: 0.885 kg, Gross: 1.060 kg
Downloads
IPC-HDW3849H-ZAS-PV-ANZ-S2 DatasheetEyeball Network Camera Installation GuideDahua Network Camera Web Operation Manual
Please see the replacement model: DS-2CD2367G3-LIS2UY-SL
Hikvision 6MP Smart Hybrid Light ColorVu Turret Camera DS-2CD2367G2H-LISU/SL with Live-Guard — Microphone & Speaker, Strobe & Audible Warning, Fixed 2.8mm Lens
The Hikvision 6MP Smart Hybrid Light Turret Camera delivers advanced day & night surveillance using ColorVu technology and intelligent hybrid lighting. This model offers automatic switching between infrared (IR) and warm white light, ensuring clear, detailed footage in all lighting conditions.
Featuring a 2.8mm fixed lens, built-in microphone, and smart motion detection with human/vehicle classification, it’s perfect for driveways, entrances, warehouses, and perimeter protection. Fully compatible with Hikvision NVRs, this turret camera combines AI detection, full-colour night vision, and IP67-rated weatherproofing.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Audio and alarm interface available
Accessories
Wall Mount Brackets
Downloads
DS-2CD2367G2H-LISU/SL DS-2CD2367G2H-LISU/SL DatasheetDS-2CD2367G2H-LISU/SL User’s Manual DS-2CD2367G2H-LISU/SL Quick Start Guide
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Bullet, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD 4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE, black
The Dahua 8MP 4K WizSense Motorised Starlight Bullet Camera delivers exceptional image clarity with its 1/2.7” CMOS sensor and maximum 6MP output at 30fps. Featuring a vari-focal 2.7-13.5mm lens and built-in IR LEDs with 60m range, it ensures reliable surveillance day and night. Advanced H.265 compression optimizes bandwidth and storage, while intelligent perimeter protection detects intrusion and tripwire events, distinguishing between humans and vehicles. Additional features include WDR, 3D NR, digital watermarking, built-in microphone, IP67 weatherproofing, and Power over Ethernet for easy installation—ideal for high-security monitoring environments.
Features
8MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866TP-ZAS-AUS-BLK DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3

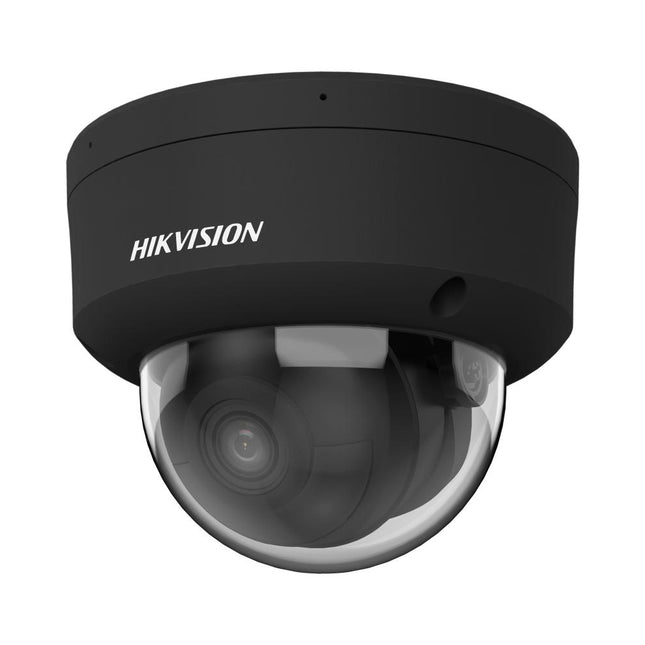

Hikvision DS-2CD2166G2H-ISU – 6MP AcuSense Smart Dome Camera with Microphone and I/O
The Hikvision DS-2CD2166G2H-ISU is a high-performance 6MP AcuSense fixed dome IP camera designed for professional surveillance environments. It features a 2.8mm fixed lens, smart IR up to 30m, and advanced AcuSense technology for accurate human and vehicle detection.
This model includes a built-in microphone for audio recording and alarm I/O interface for integrating with external devices. Its IP67-rated metal dome design makes it ideal for both indoor and outdoor use. With H.265+ compression, it minimizes bandwidth and storage needs without compromising video quality.
A perfect solution for perimeter monitoring, office security, retail stores, and warehouses requiring audio and smart detection.
Features
Resolution: 6MP (3072 × 2048 @ 20fps)
Lens: 2.8mm Fixed Wide-Angle
Audio: Built-in Microphone
IR Distance: Smart IR up to 30m
AcuSense Technology: Human/Vehicle classification, line crossing, intrusion detection
I/O Interface: 1 Alarm In, 1 Alarm Out
Compression: H.265+, H.265, H.264+, H.264
Remote Access: Hik-Connect app, iVMS-4200, Web browser
Weather Rating: IP67 & IK10 vandal resistant
Storage: microSD/SDHC/SDXC slot up to 256GB
Power Supply: 12V DC ±25% / PoE (802.3af)
Operating Conditions: -30°C to +60°C
Specifications
Specifications – Hikvision DS-2CD2166G2-ISU(2)
Fixed Dome IP Camera
AcuSense Series
1/2.4″ Progressive Scan CMOS
High sensitivity sensor
6MP (3072 × 2048)
20 fps main stream
2.8mm Fixed
Horizontal FOV: 101°
Built-in Microphone
High-quality audio capture
Up to 30m
Smart IR technology
120dB
Wide Dynamic Range for contrast enhancement
AcuSense
Human/Vehicle classification, intrusion/line crossing
1 In / 1 Out
Integrate with external devices
IP67 & IK10
Outdoor & vandal-resistant
H.265+, H.265, H.264+, H.264
Efficient storage & bandwidth
microSD/SDHC/SDXC slot
Up to 256GB local storage
12V DC ±25% / PoE (802.3af)
Flexible installation options
-30°C to +60°C
Reliable in harsh climates
Downloads
DS-2CD2166G2-ISU DatasheetHikvision Dome Camera Quick Start GuideHikvision Dome Camera User Manual
Dahua TIOC 2.0, 6MP Security Camera, Active Deterrence, Full Colour Night Vision & Two-way Audio, 2.8mm Fixed-focal Lens, Black
The Dahua 6MP TIOC 2.0, DH-IPC-HDW3649H-AS-PV-ANZ-BLK, Fixed IP Black Security Camera offers advanced capabilities like two-way audio, full-colour night vision, and audible warnings to deter intruders. This camera also has a 2K resolution and can be easily integrated with an NVR recorder through an Ethernet Network Cable, ensuring stable connections and consistent recordings with PoE port for power.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Siren and Light Active DeterrenceDahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realise the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customised voice importing.
Smart Dual IlluminatorsDahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD 4.0Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Features
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
Outputs max. 6 MP (3200 x 1800) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One press arming/disarming through alarm input
Specifications
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
POE
PoE
Downloads
IPC-HDW3649H-AS-PV-ANZ DatasheetDahua Eyeball Network Camera Installation Guide_V1.0.2Dahua Eyeball Network Camera_Quick Start Guide_V1.0.4Dahua Network Camera Web 5.0_Operation Manual_V1.0.5Dahua Network Camera Web 3.0_OperationManual_V2.1.5
HiLook IPC‑T381H‑MU 8 MP (4K) AI Turret Network Camera
The HiLook IPC‑T381H‑MU is a high-resolution 4K turret camera featuring deep-learning AI (AcuSense) for human/vehicle detection, dual IR illumination, true WDR, and crystal-clear audio via dual mic. Engineered for demanding environments, it's perfect for outdoor and indoor surveillance with high-fidelity monitoring.
Key Features
8 MP Ultra HD (3840 × 2160) resolution
Deep-learning AI for human & vehicle classification (AcuSense)
Dual-array built-in microphones for real-time audio
Powerful dual IR night vision—up to 30 m
120 dB True WDR for high-contrast light compensation
Efficient H.265+/H.265/H.264+/H.264 video compression
Rugged IP67-rated metal housing suitable for outdoor use
Optional fixed lens: 2.8 mm or 4 mm
Technical Specifications
Specification
Details
Image Sensor
1/2.8" Progressive Scan CMOS
Max Resolution
3840 × 2160 (8 MP)
Lens Options
Fixed 2.8 mm (108° HFOV) or 4 mm (88° HFOV)
Aperture / Iris
F1.6 / Fixed
Field of View (2.8 mm)
H:108°, V:59°, D:127°
Depth of Field
2.8 mm: from 1.7 m to ∞; 4 mm: from 2.6 m to ∞
DORI (2.8 mm)
Detect 84 m, Observe 33 m, Recognise 16 m, Identify 8 m
IR Illumination
Infrared up to 30 m, Smart IR (850 nm)
Minimum Illumination
Color: 0.005 Lux (F1.6, AGC ON); B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Video Compression
H.265+/H.265/H.264+/H.264
Audio
Built‑in dual-part microphone, supports multiple codecs
WDR
120 dB True WDR
Storage
microSD up to 512 GB
Ingress Protection
IP67
Power Supply
12 VDC ±25%, PoE (802.3af)
Power Consumption
Max ~9.5 W
Operating Temp
–30 °C to 60 °C, ≤95% RH
Dimensions (Ø × H)
Approximately Ø127.3 × 96.3 mm
Downloads
HiLook IPC‑T381H‑MU Datasheet (PDF)
Why Choose Us?
Authorised HiLook dealer
3‑year warranty & local support
Fast shipping across Australia
Outstanding price & tech assistance
More Information
HiLook IPC-T381H-MU DatasheetHiLook Turret Camera User Manual
Hikvision 8MP Smart Hybrid Light ColorVu Motorised Bullet Camera with 2.8–12mm Varifocal Lens For Robust Outdoor Surveillance
Elevate your surveillance capabilities with the Hikvision DS-2CD2687G2HT-LIZS, an 8MP Smart Hybrid Light ColorVu Motorised Varifocal Bullet Network Camera designed for exceptional image quality and adaptability.
Equipped with a 2.8–12mm motorised varifocal lens, this camera offers flexible field-of-view adjustments, ensuring optimal coverage for various monitoring scenarios. The Smart Hybrid Light technology intelligently switches between infrared and white light illumination, providing up to 60 meters of visibility in complete darkness.
Combined with ColorVu technology, it delivers vibrant, full-colour images even in low-light conditions. Built to withstand harsh environments, the camera boasts an IP67 weatherproof and IK10 vandal-resistant housing, making it ideal for outdoor installations.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
Key Specifications
Feature
Specification
Model
DS-2CD2687G2HT-LIZS
Image Sensor
1/1.8” Progressive Scan CMOS
Resolution
8 MP (3840 × 2160) @ 20fps
Lens
2.8–12mm motorised varifocal lens
Field of View
109.1°–34.3° (Horizontal)
Min. Illumination
0.0005 Lux (F1.0, AGC ON), 0 Lux with IR
Night Vision
Smart Hybrid Light (IR White Light up to 60m)
WDR
130 dB True WDR
Audio
Built-in microphone
Compression
H.265+, H.264+, MJPEG
Smart Features
Human/Vehicle Detection, Motion Detection
Onboard Storage
microSD slot, up to 512 GB
Ingress Protection
IP67 (weatherproof)
Vandal Protection
IK10 (impact resistant)
Power Supply
12V DC / PoE (802.3af)
Power Consumption
Max. 12 W
Operating Temp
-30°C to 60°C
Housing
Metal bullet body
More Information
DS-2CD2687G2HT-LIZS DatasheetQuick Start GuideHikvision Camera User Manual
Dahua 6MP TiOC IP Turret Fixed 2.8mm, SMD 4.0, Built-in Mic & Speaker, Siren, Full-Colour Night Vision, WDR, Micro SD, IP67, PoE, Support AcuPick
White SKU: DH-IPC-HDW3649H-AS-PV-ANZ-S2Black SKU: DH-IPC-HDW3649H-AS-PV-ANZ-S2-BLK
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), AcuPick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Features
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 6 MP (3072x2048)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms
Specifications
Dahua SMD 4.0 AcuPick Network Camera
Megapixels
6MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
Dahua IPC-HDW3649H-AS-PV-ANZ-S2 Datasheet Dahua Network Camera Web 3.0_Operation Manual_V2.1.8 Eyeball Network Camera Installation Guide_V1.0.3 Dahua Eyeball Network Camera_Quick Start Guide_V1.0.5 Dahua Network Camera Web 5.0_Operation Manual_V1.2.1
HiLook IPC-T261H-MU 6 MP AI Fixed Turret Network Camera
Features
High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120 dB WDR technology
Focusing on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
P/N: P/N
Wide Dynamic Range: 120 dB
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Max. Resolution: 3200 × 1800
Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°, 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
Iris Type: Fixed
Aperture: F1.6
Lens Mount: M12
DORI
DORI: 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m, 4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m
Illuminator
Supplement Light Type: IR
Smart Supplement Light: Yes
IR Wavelength: 850 nm
IR Range: Up to 30 m
Supplement Light Range: Up to 30 m
Audio
Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
SNR: ≥ 52 dB
Wide Dynamic Range (WDR): 120 dB
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-In Microphone: -U: yes
Hardware Reset: Yes
Download
HiLook IPC-T261H-MU Datasheet
Dahua DH-IPC-HFW3649T1-AS-PV-ANZ-S2 6MP TiOC 3.0 Active Deterrence Bullet Network Camera with 2.8mm Fixed Lens, Built-in Mic & Speaker, Siren Alarm, WDR, Micro SD, IP67, PoE and Support AcuPick
White SKU: DH-IPC-HFW3649T1-AS-PV-ANZ-S2Black SKU: DH-IPC-HFW3649T1-AS-PV-ANZ-S2-BLK
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), AcuPick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens alsoallow the camera to produce clear, vivid images even in poor lighting conditions.
What is AcuPick?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Features
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 6 MP (3072 x 2048) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms
Specifications
Dahua AcuPick Network Camera
Megapixels
6MP
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
Dahua IPC-HFW3649T1-AS-PV-ANZ-S2 Datasheet Dahua Bullet Network Camera_Quick Start Guide_V1.0.2 Dahua Network Camera Web 3.0_Operation Manual_V2.1.8 Bullet Network Camera Installation Guide_V1.0.0 Dahua Network Camera Web 5.0_Operation Manual_V1.2.1
Hikvision DS-2CD2366G2-ISU/SL – 6MP AcuSense Turret IP Camera with Strobe Light, Siren & Audio
The Hikvision DS-2CD2366G2-ISU/SL is a powerful 6MP turret IP camera designed to deliver proactive deterrence and intelligent security. Featuring AcuSense technology, it can accurately distinguish between humans and vehicles, significantly reducing false alerts.
With a built-in strobe light and siren, this camera is ideal for real-time deterrence. It also includes a microphone and speaker for two-way audio, allowing remote communication through your surveillance system. Its IP67-rated metal housing ensures reliable performance in harsh outdoor environments.
Features
Image Sensor: 1/2.4” Progressive Scan CMOS
Smart Detection: AcuSense with human and vehicle classification
Proactive Deterrence: Built-in strobe light and audible siren
Audio: Two-way audio with microphone and speaker
Resolution: 6MP (3072 × 2048 @ 20fps)
Lens: 2.8mm Fixed Lens
Night Vision: Up to 30m IR with Smart IR
Construction: Metal housing
Weather Rating: IP67 for outdoor use
Storage: Supports microSD/SDHC/SDXC (up to 512GB)
Compression: H.265+/H.265/H.264+/H.264
Power Supply: 12V DC ±25% or PoE (802.3af)
Operating Conditions: -30°C to +60°C
DS-2CD2366G2-ISU/SL – Key Specifications
Model
DS-2CD2366G2-ISU/SL
Camera Type
Fixed turret network camera
Image Sensor
1/2.4" Progressive Scan CMOS
Effective Pixels
6 MP (3200 × 1800)
Lens
2.8 mm fixed lens
Field of View
Horizontal: 97°, Vertical: 51°, Diagonal: 114°
Minimum Illumination
0.003 Lux @ (F1.6, AGC ON); 0 Lux with IR
WDR
120 dB True WDR
Day/Night Function
IR cut filter with auto switch
IR Range
Up to 30m EXIR 2.0
Smart Features
AcuSense (Human & Vehicle Detection), Motion Detection, Tampering Alarm
Audio
Built-in microphone & speaker (two-way audio support)
Alarm Interface
1 input / 1 output
Strobe/Audio Alert
Yes – configurable visual & audible warning
Video Compression
H.265+, H.265, H.264+, H.264, MJPEG
Max Frame Rate
20 fps (3200 × 1800), 25/30 fps at lower resolutions
Onboard Storage
microSD/SDHC/SDXC slot (up to 256 GB)
Network Interface
1 × RJ-45 10M/100M Ethernet port
Protocols Supported
TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, FTP, NTP, SMTP, SNMP, IGMP, etc.
Operating Conditions
-30°C to +60°C (-22°F to +140°F), Humidity ≤95% (non-condensing)
Weatherproof Rating
IP67 (dust & waterproof)
Vandal Protection
Not rated for IK vandal resistance (turret design)
Power Supply
12V DC ±25%, or PoE (802.3af)
Power Consumption
Max. 7.5 W
Dimensions
Ø138.3 × 125.2 mm
Weight
Approx. 670 g
Downloads
DS-2CD2366G2-ISU/SL DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual
Dahua TiOC 8MP Smart Dual Illumination Active Deterrence Fixed-focal Bullet WizSense Network Camera, Black, DH-IPC-HFW3849T1-AS-PV-ANZ-BLK
Get advanced security with Dahua TiOC 8MP Smart Dual Illumination Network Camera. Its 8-MP CMOS image sensor provides high-definition images with low luminance. With features like H.265 codec, smart coding, and intelligent monitoring, feel secure in any environment. The built-in warm light and IR LED provide a maximum distance of 30m.
Features
* The parameters and datasheets below can only be applied to 3849-PV-ANZ series.
8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One-click arming/disarming through alarm input.
Specifications
NETWORK CAMERA
Megapixels
8MP
Camera Style
Bullet
Colour
Black
Lens Type
Fixed
Technology
WizSense Series
PoE
PoE
Downloads
IPC-HFW3849T1-AS-PV-ANZ DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Bullet Network Camera_Quick Start Guide_V1.0.2Dahua Network Camera Web 5.0_Operation Manual_V1.0.5Dahua Network Camera Web 3.0_OperationManual_V2.1.5DH-IPC-HFW3849T1P-AS-PV-ANZ DIMENSIONSDH-IPC-HFW3849T1P-AS-PV-ANZ INSTALLATION METHOD ENDH-IPC-HFW3849T1P-AS-PV-ANZ A&E 20221205123053
Hikvision HiLook Pro 6MP Turret Security Camera, IPC-T561H-MU, Hi-Color, White Light 30m, Fixed 2.8mm
The Hikvision HiLook Pro 6MP Turret Security Camera (IPC-T561H-MU) features Hi-Color technology for continuous vivid, full-color imaging, supported by F1.0 advanced lenses, high-performance sensors, and optimized lighting. Its F1.0 super-aperture enhances light capture for brighter images, while advanced sensor technology maximizes available light efficiency. Key features include 24/7 ColorVu imaging, scene-adaptive WDR, deep learning-based person and vehicle classification, built-in dual-array microphones for high-quality audio, white supplementary lighting for nighttime visibility, and IP67-rated water and dust resistance. This 6MP turret camera with a fixed 2.8mm lens is designed for reliable, expert-level surveillance.
Features
24/7 colorful imaging via ColorVu technology
Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
White Supplement Light for dark night
Water and dust resistant (IP67)
HiLook Network Camera
Megapixels
6MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
ProSeries
Connection
PoE
More Information
IPC-T561H-MU Datasheet
User Manual
Hikvision HiLook Pro 8MP Turret Security Camera, IPC-T581H-MU , Hi-Color, White Light 30m, Fixed 2.8mm
The Hikvision HiLook Pro 8MP Turret Security Camera IPC-T581H-MU features Hi-Color technology that delivers vivid, full-color images 24/7 using F1.0 advanced lenses, high-performance sensors, and optimized lighting. Its F1.0 super-aperture captures more light for brighter visuals, while advanced sensor technology enhances the effective use of available light. Key features include continuous colorful imaging through ColorVu technology, scene-adaptive WDR, and deep learning-based person and vehicle classification. It also offers real-time high-quality audio via a built-in dual-microphone array, white supplement lighting for nighttime clarity, and an IP67 rating for water and dust resistance. This turret-style camera combines robust performance with reliable durability for professional surveillance needs.
Features
24/7 colorful imaging via ColorVu technology
Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
White Supplement Light for dark night
Water and dust resistant (IP67)
HiLook Network Camera
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
ProSeries
Connection
PoE
More Information
IPC-T581H-MU DatasheetUser Manual
Dahua WizSense Series 8MP TiOC 3.0 Active Deterrence Bullet Network Camera with 2.8mm Fixed Lens, Built-in Mic & Speaker, WDR, Micro SD, IP67, PoE, Support AcuPick
White SKU: DH-IPC-HFW3849T1-AS-PV-ANZ-S2Black SKU: DH-IPC-HFW3849T1-AS-PV-ANZ-S2-BLK
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), AcuPick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens alsoallow the camera to produce clear, vivid images even in poor lighting conditions.
What is AcuPick?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Features
8MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 x 2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms.
Specifications
Dahua AcuPick Network Camera
Megapixels
8MP
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
Dahua IPC-HFW3849T1-AS-PV-ANZ-S2 Datasheet Dahua Bullet Network Camera_Quick Start Guide_V1.0.2 Dahua Network Camera Web 3.0_Operation Manual_V2.1.8 Bullet Network Camera Installation Guide_V1.0.0 Dahua Network Camera Web 5.0_Operation Manual_V1.2.1
Dahua TiOC 6MP Motorised Security Camera, Active Deterrence, Full Colour, Two-way Audio with Alarm, Vari-focal 2.7-13.5mm, Built-in Mic & Speaker, WDR, Micro SD, IP67, PoE. Black colour is available.
Enhance your security with Dahua TiOC 6MP Motorised Security Camera. Featuring Active Deterrence, Full Colour, Two-way Audio with Alarm, and Vari-focal lens, this camera provides clear and detailed images. Built-in Mic & Speaker allows for two-way communication while WDR and IR LED ensure image clarity in any light.
Features
SKU: DH-IPC-HDW3649H-ZAS-PV-ANZ
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 6MP (3200 x 1800@25/30 fps 5MP (2960 x 1668) @20 fps and supports 4 MP (2688 x 1520)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED
Specifications
NETWORK CAMERA
Megapixels
6MP
Camera Style
Turret
Colour
White
Lens Type
Motorised
Technology
WizSense Series
Connection
PoE
Downloads
DH-IPC-HDW3649H-ZAS-PV-ANZ DatasheetDH-IPC-HDW3649H-ZAS-PV-ANZ Installation GuideDH-IPC-HDW3649H-ZAS-PV-ANZ Quick Start GuideDH-IPC-HDW3649H-ZAS-PV-ANZ Operational ManualDH-IPC-HDW3649H-ZAS-PV-ANZ Operational Manual v2.1.5
Hikvision Bullet Mini DS-2CD2085G1-I-2, 8MP, 2.8mm, 30m IR 4K Powered-by-DarkFighter Fixed Mini Bullet Network Camera (2085G1)
Capture high quality images with the Hikvision Bullet Mini DS-2CD2085G1-I-2 Network Camera. Featuring 8 MP resolution and powered-by-DarkFighter technology, it delivers excellent low-light performance. Enjoy efficient data compression with H.265+ and clear imaging in strong backlights with 120 dB true WDR technology. Designed with a robust structure and IP67 rating, it is resistant to water and dust for reliable outdoor use.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Robust structure design with full metal material.
Downloads
DS-2CD2085G1-I DatasheetDS-2CD2085G1-I Quick Start GuideDS-2CD2085G1-I User Manual
Dahua 6MP TiOC 2.0 Active Deterrence Bullet Camera – IPC-HFW3649T1-AS-PV-BLK
The Dahua IPC-HFW3649T1-AS-PV-BLK is a powerful 6MP TiOC 2.0 IP bullet camera, built for active deterrence and smart surveillance. Featuring red & blue warning lights, a built-in speaker, and AI-powered SMD 4.0 human/vehicle detection, this camera offers proactive security like never before.
Its 2.8mm fixed lens, Wide Dynamic Range (WDR), and infrared night vision ensure clear images in all lighting conditions. With IP67 weather resistance, PoE support, and onboard microSD storage, it’s ideal for outdoor protection of homes, offices, and commercial sites.
Overviews
6MP resolution (3072 × 2048) @ 20fps
TiOC 2.0 (Three-in-One Camera: red/blue lights, siren, full-colour)
Smart Motion Detection 4.0 (SMD 4.0) with AI filtering
Built-in mic & speaker for two-way audio
Active deterrence: warning lights + siren
MicroSD slot (up to 256GB), H.265+, PoE
Black housing, IP67-rated for outdoor use
Features
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
Outputs max. 6 MP (3200 x 1800) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One-click arming/disarming through alarm input.
Downloads
IPC-HFW3649T1-AS-PV-ANZ DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Bullet Network Camera_Quick Start Guide_V1.0.2Dahua Network Camera Web 5.0_Operation Manual_V1.0.5Dahua Network Camera Web 3.0_OperationManual_V2.1.5
Dahua 8MP TiOC Active Deterrence 2.0 IP Bullet Fixed 2.8mm, Built-in Speaker, WDR, Micro SD, IP67, PoE, Black
Empower your security with the Dahua 8MP TiOC Active Deterrence 2.0 IP Bullet Fixed 2.8mm camera. With a high-resolution 8MP 1/2.8'' CMOS image sensor and advanced features such as WDR, intelligent monitoring, and low-light capabilities, this camera ensures comprehensive surveillance. Its built-in warm light and IR LED provide clear visibility up to 30m. Plus, its compact design and easy PoE installation make it the ideal choice for any outdoor security needs.
Features
8MP 1/2.8'' CMOS image sensor, low luminance, and high definition
Outputs max. 8 MP (3840 x 2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
Intelligent monitoring: Intrusion, tripwire (the two function support the
Abnormality detection: Motion detection, privacy masking, scene
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 3.0.
One-click arming/disarming through alarm input.
Specifications
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
PoE
PoE
Downloads
DH-IPC-HFW3849T1P-AS-PV-S3-BLK DatasheetDahua Eyeball Network Camera_QSG_V1.0.2Dahua Network Camera Web 3.0 Operation Manual_V2.1.1DH-IPC-HDW3849HP-AS-PV-0280B-S3_DIMENSIONSDH-IPC-HDW3849HP-AS-PV-0280B-S3_INSTALLATION_METHOD_EN
Dahua 5MP TiOC 2.0 Active Deterrence IP Bullet Fixed 2.8mm, Built-in Speaker, WDR, Micro SD, IP67, PoE, Black Security Camera
The Dahua 5MP TiOC 2.0 Active Deterrence IP Bullet Fixed 2.8mm Camera Black provides high-quality, 5MP resolution images with low luminance and 30m IR illumination distance. With features such as intelligent monitoring, intrusion detection, and alarm capabilities, this camera offers comprehensive security for any setting. Its compact design and built-in speaker make it a versatile and effective solution for your surveillance needs.
Features
5MP 1/2.7'' CMOS image sensor, low luminance, and high definition
Outputs max. 5 MP (2592 x 1944)@20 fps and supports 4 MP
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
Intelligent monitoring: Intrusion, tripwire (the two function support the
Abnormality detection: Motion detection, privacy masking, scene
network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 3.0.
One-click arming/disarming through alarm input.
SKU: DH-IPC-HFW3549T1P-AS-PV-S3-BLK
Specifications
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
PoE
PoE
Downloads
DH-IPC-HFW3549T1P-AS-PV-S3-BLK DatasheetDahua Eyeball Network Camera_QSG_V1.0.2Dahua Network Camera Web 3.0 Operation Manual_V2.1.1DH-IPC-HDW3849HP-AS-PV-0280B-S3_DIMENSIONSDH-IPC-HDW3849HP-AS-PV-0280B-S3_INSTALLATION_METHOD_EN
Dahua 5MP TiOC 2.0 IP Turret Fixed Camera Black 2.8mm, Built-in Mic & Speaker, WDR, Micro SD, IP67, POE, Black
5 MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
Outputs max. 5 MP (2592 x 1944)@20 fps and supports 4 MP (2688 x 1520)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the m
Specifications
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
POE
POE
Downloads
DH-IPC-HDW3549HP-AS-PV-S3-BLK DatasheetDahua Eyeball Network Camera_QSG_V1.0.2Dahua Network Camera Web 3.0 Operation Manual_V2.1.1DH-IPC-HDW3849HP-AS-PV-0280B-S3 DIMENSIONSDH-IPC-HDW3849HP-AS-PV-0280B-S3 INSTALLATION METHOD EN
