Dahua WizSense 3 · 8MP 4K · Smart Dual Light · AcuPick · IK10

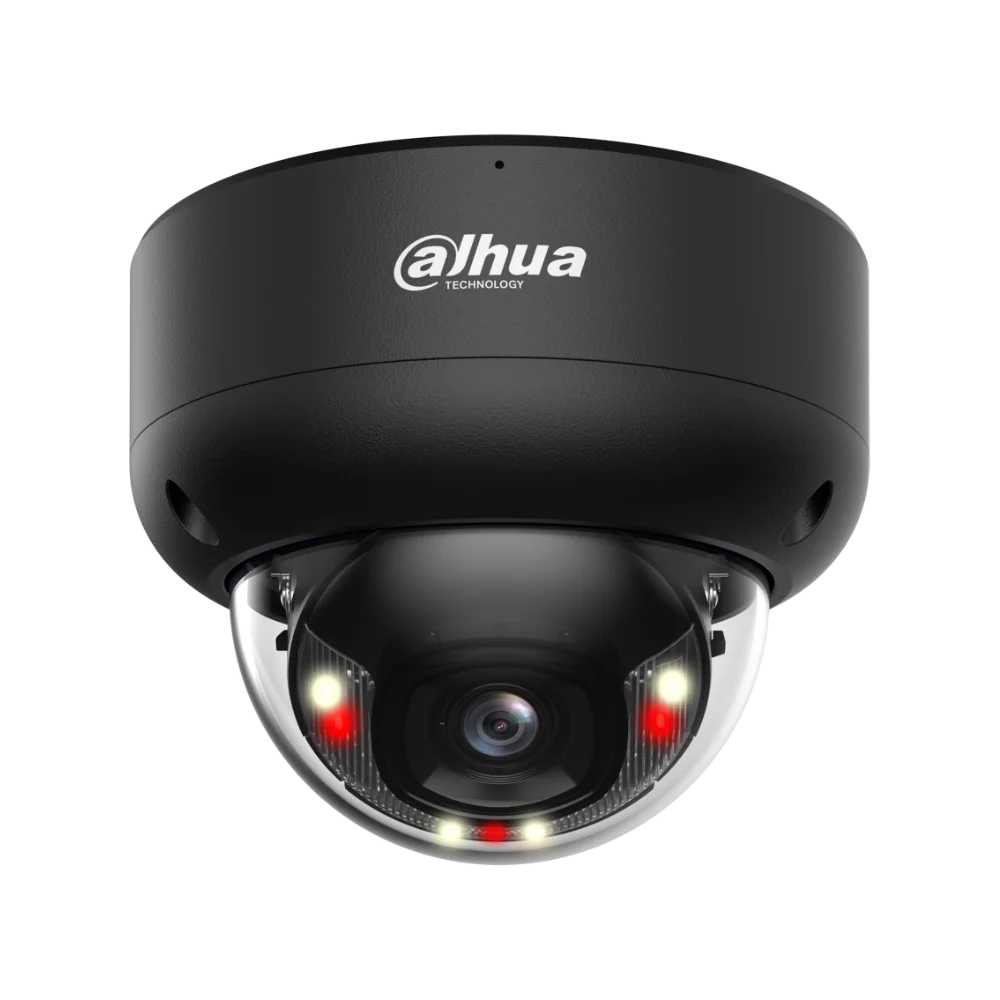

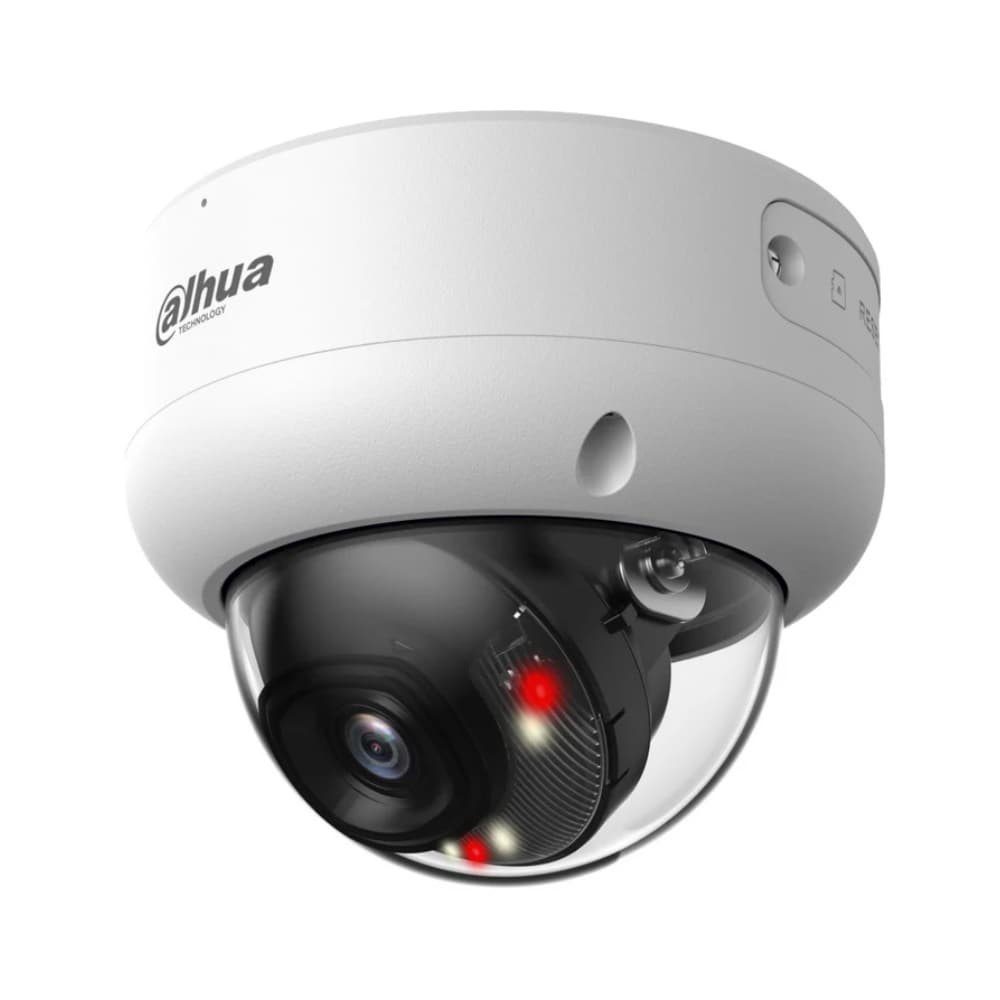

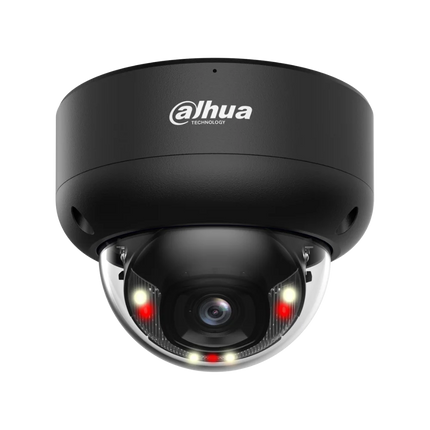

Dahua DH-IPC-HDBW3867E-AS-IL-ANZ — 8MP 4K Smart Dual Light AcuPick Vandal Dome Camera
The Dahua DH-IPC-HDBW3867E-AS-IL-ANZ is an 8MP 4K Smart Dual Light fixed-lens vandal dome from Dahua's WizSense 3 Series — engineered for Australian commercial, retail, school, healthcare, government and industrial sites that need 4K detail, full-colour night image, AI search and a tamper-resistant IK10 housing, all in a compact ceiling-flush package. Built around a 1/2.7" CMOS sensor with an F1.4 large aperture, the camera captures crisp 3840 × 2160 footage in a 110° wide field of view, then switches between 30 m invisible IR and 30 m warm-light LED automatically based on what's in the scene — invisible monitoring by default, full-colour evidence the instant a person or vehicle is detected.
Powered by Dahua's WizSense AI, the 3867E adds AcuPick attribute search, SMD 4.0 human/vehicle classification, IVS tripwire + intrusion, AI Coding (≥25% extra compression efficiency), AI SSA scene adaptation and Quick Pick rapid-event search to the surveillance workflow. The all-metal IP67 + IK10 housing takes a 20 J hammer strike without breaking. Available in White (DH-IPC-HDBW3867E-AS-IL-ANZ) and Black (DH-IPC-HDBW3867E-AS-IL-ANZ-BLK). Australian stock, 3-year Australian warranty.
Resolution
8MP · 4K · 3840 × 2160
Aperture & FOV
F1.4 · 110° H · 2.8 mm
Smart Dual Light
30 m IR · 30 m Warm
AI Engine
AcuPick · SMD 4.0 · IVS
Protection
IP67 · IK10 Vandal-Rated
Power
PoE 802.3af · Max 8.2 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Why Choose the Dahua 8MP Smart Dual Light Vandal Dome in Australia
Australian integrators specify the HDBW3867E-AS-IL-ANZ when the install needs to combine three things at once — 4K resolution for evidence-grade detail, full-colour night image on detection, and a vandal-resistant flush-mount housing. School corridors, hospital wards, undercover carparks, retail back-of-house, government foyers and high-traffic commercial spaces all share the same install constraint: the camera has to disappear into the ceiling and survive being grabbed, hit or kicked, while still capturing forensic-quality colour video at night. The 3867E is built for exactly that brief.
Smart Dual Light — Colour Evidence on Detection
By default the camera runs invisible IR illumination out to 30 m for silent monitoring. The instant SMD 4.0 detects a human or vehicle, it switches to the warm-light LED (also 30 m) and records full-colour 4K — capturing clothing colour, hair colour, vehicle paint and signage detail that IR alone cannot deliver. Once the target leaves, the warm light turns off and the IR returns — minimising light pollution and LED wear.
AcuPick AI Target Search
Paired with a Dahua 5-Series AcuPick NVR, AcuPick indexes every human and vehicle event by attribute — clothing colour, vehicle type, direction of travel — so you can search a week of recorded footage in seconds rather than scrubbing timelines. Critical for retail loss-prevention, school incident review and any site with high event volume.
IK10 Vandal Resistance — Built In as Standard
The all-metal dome housing is rated IK10: it withstands more than 5 strikes from a 5 kg hammer falling 40 cm — 20 J of impact energy — without cracking or losing function. Translation: a teenager swinging a brick, a trolley hit in a carpark, or a fist swung in a corridor won't take the camera offline.
F1.4 Large Aperture + 1/2.7" Sensor
An F1.4 maximum aperture pulls in significantly more light than a typical F1.6 lens, delivering clean colour image at low ambient light and reducing how often the warm-light LED needs to fire.
110° Wide Angle — Whole-Room Coverage
The 2.8 mm fixed lens covers a 110° horizontal field of view — enough to cover a full corridor, an open-plan office, a school classroom or a retail aisle from a single mounting point. (3.6 mm variant also available with an 86° narrower field for targeted views.)
Built Tough for Australia
All-metal IP67 chassis with EIS stabilisation, ±30% wide-voltage tolerance, and an operating range engineered for every Australian climate — coastal salt, outback heat, Tasmanian frost and unstable rural mains.
Smart Features for Real-World Australian Sites
Dahua Smart Dual Illuminators — Official English Overview
SMD 4.0 — Near-Zero False Alarms
On-camera Smart Motion Detection 4.0 classifies humans and vehicles while filtering out animals, foliage, weather and shadows. Sleep through the night, not through the alarm.
IVS Tripwire & Intrusion Zones
Define a virtual line across a corridor or a no-go zone around a service door — get a notification only when a human or vehicle actually crosses it. No false alarms from cleaners or moving shadows.
AI Coding — 25%+ Less Storage
Dahua's AI Coding (AI H.265 / AI H.264) analyses the scene and dedicates bitrate only to objects of interest, delivering ≥25% additional compression efficiency over standard Smart H.265+. Longer retention on the same NVR drive.
AI SSA Scene Self-Adaptation
AI SSA detects environmental conditions — rain, fog, backlight, low light, flicker — and adjusts image parameters in real time. The camera always produces a usable image, even when the weather doesn't cooperate.
Two Lens Options (2.8 mm and 3.6 mm)
Choose 2.8 mm for wide-area coverage (110° H — whole rooms and corridors) or 3.6 mm for narrower targeted views (86° H — entries, counters, specific zones). Same camera, two install patterns.
External Audio & Alarm I/O
The AS variant supports 1 audio in / 1 audio out (RCA) plus 1 alarm in / 1 alarm out — connect an external speaker, PIR or door contact to extend the camera's capability. Built-in microphone included on-camera.
Pair with a Dahua 5-Series NVR for the Full AcuPick Experience
SMD 4.0, IVS rules, Smart Dual Light auto-switching and human/vehicle classification all run on-camera and work with any Dahua AI NVR. But to unlock AcuPick — attribute-based human and vehicle target search, similar-image cross-camera tracking and AI-accelerated playback — you need a compatible Dahua 5-Series AcuPick NVR. For any new installation we strongly recommend pairing the 3867E with one of the recorders below.
DHI-NVR5208-8P-AI/ANZ — 8 Channel · 8 PoE
Compact 1U 5-Series AcuPick NVR with 8 built-in PoE ports — ideal for a single-building or small-business install with 4–8 WizSense cameras. Full AcuPick target search and AI playback. View NVR5208-8P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 5-Series AcuPick NVR with 16 PoE ports and dual-HDD bays — the sweet-spot recorder for most residential and SMB Dahua fleets. Plug-and-play with the 3867E. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 16 PoE
32-channel 1.5U AcuPick NVR with 16 PoE and 4 HDD bays — the standard choice for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P →
DHI-NVR5432-AI/ANZ — 32 Channel · No PoE
32-channel AcuPick NVR without built-in PoE — for sites running a separate managed PoE switch (preferred in larger commercial deployments). Same AcuPick capability, more flexible network design. View NVR5432-AI →
Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation based on your camera count, retention and AcuPick search workload.
Best Applications for the 8MP Smart Dual Light Vandal Dome
The DH-IPC-HDBW3867E-AS-IL-ANZ is the right tool when a project brief calls out vandal resistance, discreet ceiling-flush form factor, full-colour night image and AI-powered search. Typical Australian deployments include:
-
Schools and tertiary campuses — corridors, halls, common rooms and entries where IK10 takes student-grade abuse
-
Hospitals, GP clinics and aged-care — wards, reception areas, dispensaries where silent IR + colour-on-detection is critical
-
Retail interiors — store floor, back-of-house, counter zones — AcuPick speeds incident review for loss-prevention
-
Government foyers and councils — public-facing entrances and corridors needing tamper-resistant 4K coverage
-
Carparks and loading docks — undercover, exposed-ceiling installs where IK10 protects against trolleys, vehicles and weather
-
Hotels, motels and student accommodation — common areas, corridors and lobbies where the camera must blend into the architecture
-
Warehouses, factories, gyms — high-ceiling install with wide-area coverage and AI motion filtering
-
Apartment building common areas — lift lobbies, bin rooms, foyers — IK10 + 4K + colour-on-detection
Technical Specifications
DH-IPC-HDBW3867E-AS-IL-ANZ · Full Specifications
| SKU |
DH-IPC-HDBW3867E-AS-IL-ANZ (White) · DH-IPC-HDBW3867E-AS-IL-ANZ-BLK (Black) |
| Camera Type |
8MP 4K Smart Dual Light Fixed-Focal Vandal Dome · WizSense 3 Series · AcuPick |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max Resolution |
3840 × 2160 (8MP / 4K) @ 25/30 fps |
| Lens Type |
Fixed-focal · 2.8 mm (110° H) or 3.6 mm (86° H) · M12 mount |
| Maximum Aperture |
F1.4 |
| Field of View (2.8 mm) |
H: 110° · V: 58° · D: 132° |
| Field of View (3.6 mm) |
H: 86° · V: 49° · D: 100° |
| Dynamic Range |
120 dB True WDR |
| Day & Night |
Auto (ICR) / Colour / B&W |
| Illuminators |
Multi-core IR + Warm-light LED · IR up to 30 m · Warm light up to 30 m · Smart Dual Light auto switching |
| Image Enhancement |
WDR · 3D NR · HLC · BLC · Defog · AFSA · AI SSA · Smart Illumination · Smart Dual Light · EIS · Image Rotation · Digital watermarking |
| Active Deterrence |
Not included — silent Smart Dual Light surveillance camera |
| Intelligent Video |
WizSense AI · AcuPick · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · Quick Pick (with AI NVR) · Smart Search · AI SSA |
| Video Compression |
H.265 · H.264 · H.264H · H.264B · MJPEG (sub-stream) · Smart H.265+ / H.264+ · AI H.265 / AI H.264
|
| AI Coding |
≥25% additional compression efficiency |
| Audio |
Built-in microphone · G.711a / G.711Mu / G.726 / G.723 / PCM compression |
| Audio I/O (AS variant) |
1 audio in (RCA) · 1 audio out (RCA) |
| Alarm I/O (AS variant) |
1 alarm in · 1 alarm out |
| IP Camera Protocol |
ONVIF Profile S / G / T / M · CGI · P2P |
| Network Protocols |
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP |
| Cyber Security |
Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Edge Storage |
MicroSD up to 512 GB · NAS · FTP / SFTP |
| Weatherproof Rating |
IP67 |
| Vandal Resistance |
IK10 (20 J impact energy) |
| Power Source |
12 V DC / PoE (IEEE 802.3af) · ±30% wide voltage |
| Power Consumption |
Basic 3.7 W (12 V DC) / 5.1 W (PoE) · Max 6.2 W (12 V DC) / 8.2 W (PoE) |
| Memory |
ROM 256 MB · RAM 1 GB |
| Mobile App |
DMSS · Smart PSS · DSS (iOS & Android) |
| Approvals |
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU |
| Housing |
Metal · White or Black |
| Dimensions |
89.1 × Φ 111.7 mm (compact dome) |
| Weight |
528 g (net) · 690 g (gross) |
| Warranty |
3-Year Australian Warranty (back-to-base) |
HDBW3867E (Smart Dual Light + AcuPick) vs HDBW3866RP (IR-Only) — Which Vandal Dome?
Both cameras are 8MP 4K IK10 vandal-rated domes in the WizSense 3 Series, sharing the same SMD 4.0, IVS perimeter protection and AI Coding. The deciding question is illumination and AI tier: do you want Smart Dual Light with full-colour evidence on detection and AcuPick AI search, or IR-only silent monitoring with a longer DORI reach via motorised zoom? The 3867E adds Smart Dual Light, AcuPick attribute search and a fixed lens at a more affordable price point. The 3866RP is the motorised long-range alternative without warm light or AcuPick.
HDBW3867E-AS-IL-ANZ (Smart Dual Light + AcuPick) vs HDBW3866RP-ZAS-AUS (IR Motorised)
Compatible Mounts & Accessories

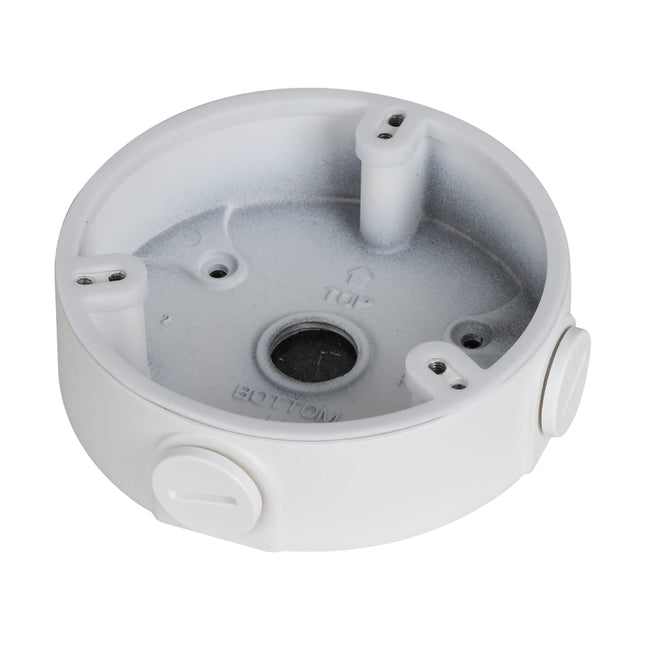

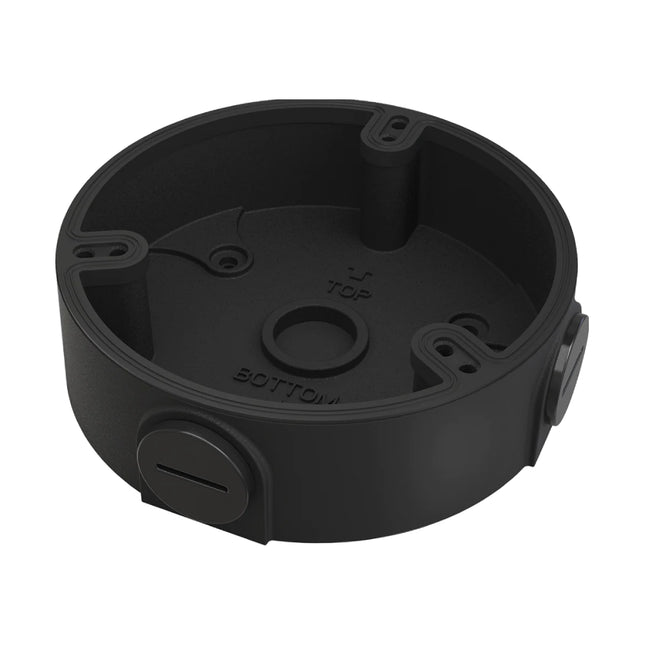

Dahua PFA137 Junction Box Bracket
Recessed IP66 junction box for clean cable concealment on exposed brick, render or weatherboard. View product →
Dahua PFA109 Mount Adapter
Required adapter to fit the 3867E dome onto Dahua wall and pole brackets. View product →
Dahua PFB220C Ceiling Mount Bracket
Drop-down ceiling bracket for retail awnings, undercover car parks and warehouse interiors. View product →

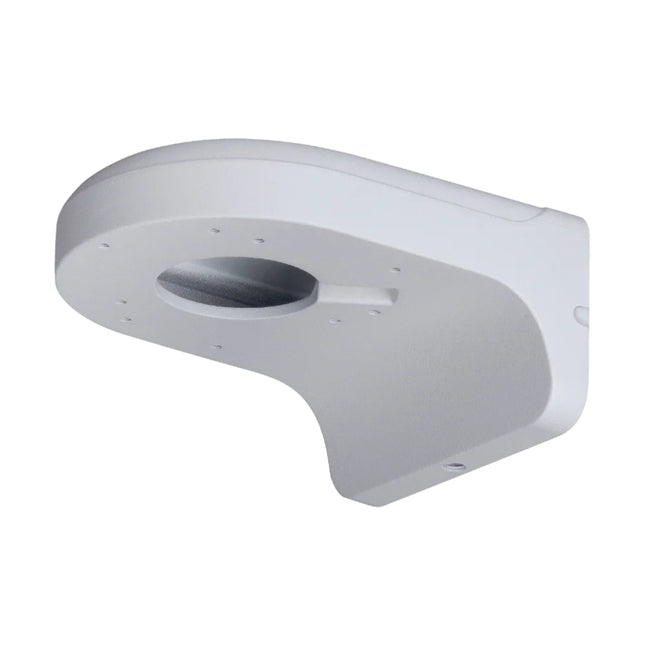

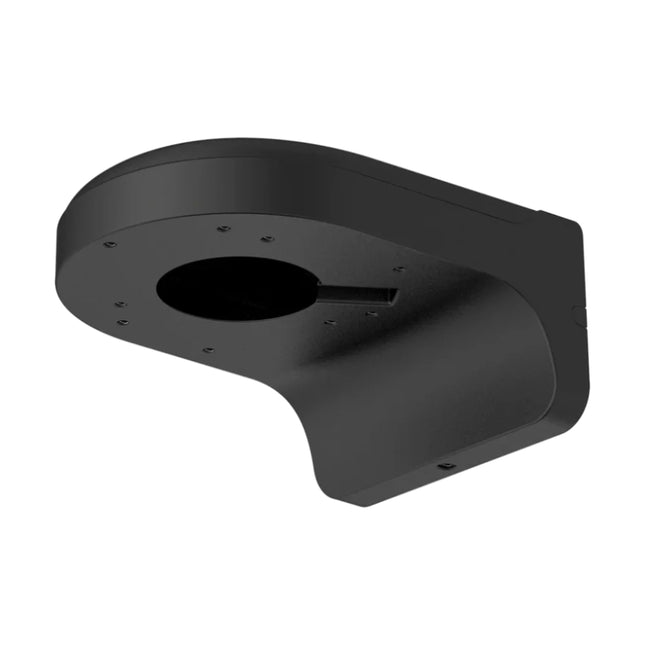

Dahua PFB203W Wall Mount
Wall-mount bracket specifically for vandal dome cameras — projects the dome out from the wall to widen field of view past the building line. View Dahua accessories →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with the PFA109 adapter for dome mounting. View product →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. The 3867E accepts cards up to 512 GB. View WD Purple 256 GB →
Frequently Asked Questions
What is Smart Dual Light and how does it work?
Smart Dual Light is Dahua's technology for combining invisible IR illumination with a warm-light LED in one camera. By default the camera uses IR (invisible, no light pollution) for normal night monitoring. The instant on-camera AI detects a human or vehicle, the warm-light LED fires and the camera captures full-colour 4K — clothing colour, vehicle paint, facial detail. Once the target leaves the scene, the warm light turns off and IR returns. Less light pollution than a full-time full-colour camera, full-colour evidence when it matters.
Does this camera support AcuPick AI search?
Yes — AcuPick is supported when paired with a compatible Dahua 5-Series AcuPick NVR. AcuPick indexes attribute metadata (clothing colour, vehicle type, direction) so you can search hours of footage in seconds rather than scrubbing timelines. Shop AcuPick NVRs here →
What does IK10 vandal resistance mean in practice?
IK10 is the highest rating in the IEC 62262 impact-resistance standard. The dome housing withstands more than 5 strikes from a 5 kg hammer falling 40 cm — 20 J of impact energy — without cracking or losing function. In real terms: brick throws, fist strikes, trolley impacts and accidental hits won't take the camera offline.
Should I pick the 2.8 mm or 3.6 mm lens variant?
Choose 2.8 mm (110° H FOV) for whole-room coverage — open-plan offices, retail floors, classrooms, hospital wards, undercover carparks. Choose 3.6 mm (86° H FOV) for narrower targeted views — counter zones, entry doors, specific aisles or zones where you want a tighter shot at the same camera distance. The 3.6 mm trades width for slightly better digital detail on the target.
Does this camera have active deterrence (strobe / siren)?
No. The HDBW3867E-AS-IL is a silent Smart Dual Light surveillance camera — no red/blue strobe, no built-in siren, no voice broadcast. The warm-light LED only fires when AI confirms a human/vehicle — it's an illumination tool, not a deterrence visual. For active deterrence (strobe + siren + voice), look at the Dahua TiOC line (HDW3849H-AS-PV-ANZ-S2 turret is the closest equivalent).
Why pick the dome over a bullet or turret?
Three reasons. First, vandal resistance — IK10 built-in housing is designed to take impact; bullets and turrets are easier to grab and tear off. Second, discreet flush-mount profile — the compact 89 mm × Φ112 mm dome sits neatly into ceilings and soffits. Third, architectural fit — domes blend into commercial interior design where a bullet would look industrial.
How does the camera record at night?
By default, invisible IR illumination (30 m) — captures clear monochrome 4K with no light pollution. When SMD 4.0 detects a real human or vehicle, the warm-light LED (also 30 m) switches on automatically and the camera records full-colour 4K. Once the target leaves the scene, the camera reverts to IR. You get the best of both: silent IR for normal monitoring, colour for actual events.
Does it have a built-in microphone?
Yes — the camera has a built-in microphone for capturing scene audio. The AS variant also adds external audio in / out (RCA) for connecting an external mic or speaker, plus alarm in / out for PIRs or door contacts.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 512 GB and records 4K footage independently of the NVR. Combined with DMSS cloud push notifications, you have redundant recording paths.
What's the difference between the White and Black versions?
Specifications are identical. DH-IPC-HDBW3867E-AS-IL-ANZ is white; DH-IPC-HDBW3867E-AS-IL-ANZ-BLK is black. Choose Black for dark ceilings, charcoal soffits and modern industrial aesthetics; White for traditional cream/render ceilings.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 (fully dust-tight, withstands 30 minutes submerged in 1 m of water) and IK10 vandal-resistant. The all-metal housing and ±30% wide-voltage tolerance handle coastal salt, outback heat and unstable rural mains. Suitable for under-eave, undercover and exposed outdoor installs alike.
Does it work with Hikvision NVRs or third-party VMS?
Yes — recording, streaming, motion and the WizSense AI metadata work over ONVIF Profile S/G/T/M on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, AcuPick attribute search requires a Dahua 5-Series AcuPick NVR.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
