Customers' favourite, 6MP Security IP Cameras offer 2K resolution with clarity and world-class surveillance features. Shop the best CCTV brands available in Australia: Axis, Dahua, Hikvision, Ubiquiti UniFi, HiLook, Uniarch, D-Link, TP-Link and more...
The Dahua DH-IPC-HDW3666EMP-S-AUS is a high-performance 6MP WizSense network turret camera designed to deliver elite-level security with simplified management. Powered by advanced AI algorithms, this camera excels at distinguishing between humans and vehicles, virtually eliminating false alarms from wind, rain, or animals. Now available in both Classic White and a sleek Midnight Black finish to suit any architectural style.
Advanced AI & Imaging Features
6MP Ultra-HD Resolution: Provides superior image clarity (3072 x 2048) for capturing critical details like faces and clothing textures.
SMD 4.0 (Smart Motion Detection): Intelligent AI filtering that focuses on human and vehicle targets, ensuring you only get alerted when it matters.
Perimeter Protection: Draw digital tripwires and intrusion zones to monitor specific areas with high-precision AI accuracy.
Starlight Technology: Produces clear, usable video in low-light conditions before switching to IR mode.
Built-in Microphone: High-fidelity audio recording adds an extra layer of evidence to your video footage.
Weatherproof Reliability: IP67 rated to withstand the harsh Australian sun and heavy rain.
Technical Specifications
Resolution
6MP (3072 × 2048)
Image Sensor
1/2.7" CMOS
Night Vision
Smart IR (Up to 30 meters)
Lens / FOV
2.8mm Fixed (97° Horizontal)
WDR
120dB True WDR
Audio
Built-in Mic (G.711 / G.726)
Storage
Micro SD Card Slot (Up to 256GB)
Color Options
White (S-AUS) / Black (S-AUS-B)
More Information
Download Data Sheet
Download Installation Guide
Download Quick Start Guide
Professional Tip: For the best AI performance, mount the camera between 2.5m and 3.5m high. This ensures the SMD 4.0 algorithm has the best angle for human and vehicle classification.

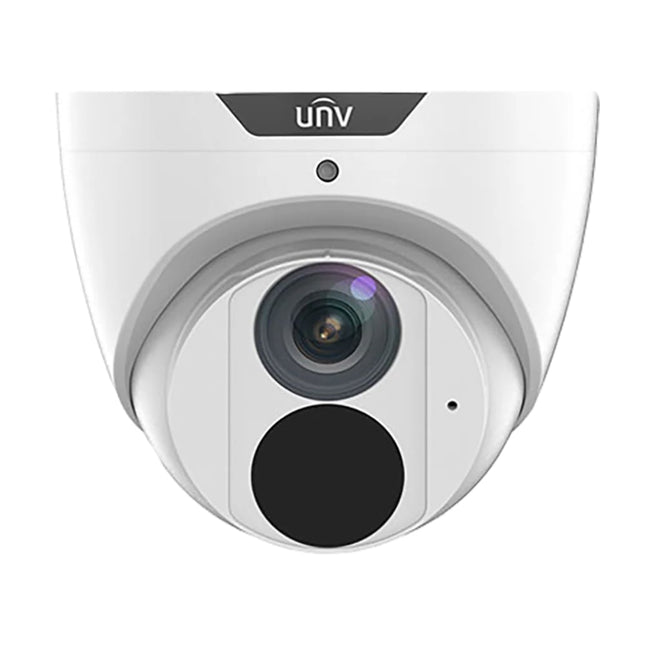

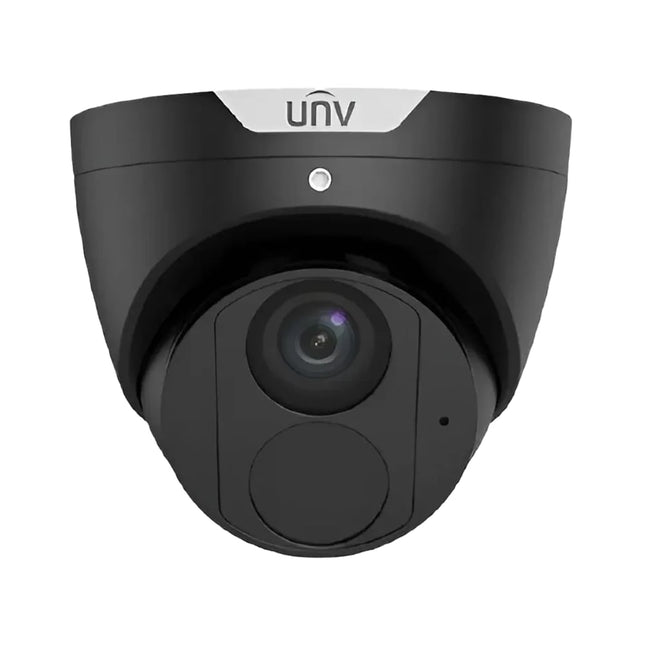

Uniview UNV IPC3616LE-ADF28KM 6MP Easy Series Turret – White & Black
The Uniview UNV IPC3616LE-ADF28KM is a 6 MP Easy Series turret IP camera that delivers clear images in challenging light with 120 dB True WDR and Easystar low‑light enhancement. Smart IR provides night vision up to 30 m, while a built‑in microphone, PoE power, and IP67 weather rating make installation simple and reliable. Available in both finishes:
• White (SKU): IPC3616LE-ADF28KM-G• Black (SKU): IPC3616LE-ADF28KM-BK
Key Features
6 MP (3072×2048) resolution at up to 25 fps
Easystar low‑light tech + Smart IR night vision to 30 m
120 dB True WDR, 3D DNR, BLC/HLC, corridor mode (9:16)
2.8 mm fixed lens (wide field of view)
Built‑in microphone for scene audio
Ultra 265 / H.265 / H.264 encoding
PoE (IEEE 802.3af); IP67 weatherproof housing
Micro‑SD storage up to 256 GB (model/region dependent)
Technical Specifications
Specification
Details
Brand / Series
Uniview UNV / Easy Series
Model (White)
IPC3616LE-ADF28KM-G
Model (Black)
IPC3616LE-ADF28KM-BK
Image Sensor / Resolution
6 MP up to 3072×2048 @ 25/20 fps
Lens
2.8 mm fixed
Low‑Light / IR
Easystar + Smart IR (approx. 30 m)
Wide Dynamic Range
120 dB True WDR
Audio
Built‑in microphone
Compression
Ultra 265 / H.265 / H.264
Storage
Micro‑SD up to 256 GB (slot availability varies)
Network
RJ45 10/100M; ONVIF‑friendly; RTSP/HTTPS
Power
PoE (IEEE 802.3af)
Ingress Protection
IP67
Form Factor
Turret (3‑axis adjustment)
Colour Options
White (‑G) / Black (‑BK)
What’s Included
Uniview UNV IPC3616LE-ADF28KM camera (choose White or Black)
Mounting kit & quick guide
Customer Requirements
RJ45 Cat6 cable and PoE switch/NVR
Surveillance‑grade HDD in NVR (if recording to NVR)
Wall/junction bracket if wall‑mounting; eaves installs typically don’t require brackets
More Information
Uniview UNV IPC3616LE-ADF28KM-G DatasheetUniview UNV Camera Quick Start GuideUniview UNV Camera User Manual
HiLook IPC‑T361H‑MU 6MP AI Turret IP Camera
The HiLook IPC‑T361H‑MU is a powerful 6MP turret network camera offering smart detection, built-in microphone, and crisp image quality in various lighting conditions. Ideal for both residential and commercial surveillance, it delivers intelligent security monitoring with enhanced analytics and reliable outdoor performance.
Key Features
6 MP high-resolution (3200 × 1800)
AI-powered detection for human & vehicle classification
Built-in microphone for real-time audio monitoring
IR night vision up to 30 m for 24/7 visibility
Efficient H.265+/H.265 compression
Weatherproof IP67 rated metal housing
PoE support for easy installation
Applications
This camera is perfect for outdoor entrances, driveways, shops, schools, warehouses, and general perimeter monitoring where smart AI filtering and audio capture are essential.
Technical Specifications
Specification
Details
Image Sensor
1/2.7" Progressive Scan CMOS
Max Resolution
3200 × 1800 (6 MP)
Lens
Fixed 2.8 mm
Field of View
Horizontal: 102.4°, Vertical: 55.2°, Diagonal: 121.4°
Night Vision
Infrared up to 30 m
Smart Detection
Human & Vehicle Classification
Audio
Built-in Microphone
Video Compression
H.265+/H.265/H.264+/H.264
Ingress Protection
IP67
Operating Temperature
−30°C to 60°C
Power Supply
12 VDC ±25% / PoE (802.3af)
Power Consumption
Max 4.5 W
Why Buy From CCTV Guru?
100% Genuine HiLook Products
Expert Local Support
Fast Shipping Australia Wide
5% Price Beat Guarantee
More Information
HiLook IPC-T361H-MU Datasheet
HiLook IPC-T269H-MU/SL – 6MP Turret IP Camera with Strobe Light, Two-Way Audio & Smart Detection
The HiLook IPC-T269H-MU/SL is a compact yet powerful 6MP smart turret IP camera, designed for active deterrence and smart surveillance. Equipped with a strobe light and built-in microphone and speaker, this camera helps deter intruders while providing clear audio and video capture.
Ideal for both residential and commercial use, it features infrared night vision up to 30m, motion detection, and H.265+ compression for efficient storage and bandwidth usage. Its compact turret design ensures discreet installation without compromising performance.
Features
Resolution: 6MP (3072 × 2048)
Strobe Light: Visual deterrent for active security
Two-Way Audio: Built-in microphone and speaker
Night Vision: IR range up to 30 metres
Smart Features: Motion detection, video tampering alerts
Compression: H.265+/H.264+ for efficient streaming
Weather Rating: IP67 for outdoor use
Power Supply: 12V DC or PoE (802.3af)
Technical Specifications
Specifications – HiLook IPC-T269H-MU/SL
Turret IP Camera
Smart Detection with Audio & Strobe
1/2.5" Progressive Scan CMOS
High sensitivity 6MP
3072 × 2048
6MP UHD
Fixed 2.8mm
Wide-angle coverage
Up to 30m
Smart IR for night vision
Yes
Active deterrence with flashing light
Built-in Mic & Speaker
Two-way audio supported
Motion, Line Crossing, Intrusion
Event-based alerts
H.265+/H.264+
Efficient bandwidth & storage
IP67
Dust and water resistant
12V DC / PoE (802.3af)
Flexible powering options
-30°C to +60°C
Wide operating range
Download
HiLook IPC-T269H-MU/SL Datasheet
HiLook All-in-one Security Camera Brochure
Dahua 6MP WizSense Smart Dual-Light Turret Camera with AcuPick AI – 2.8mm, IR 30m, Mic, PoE
Dahua DH-IPC-HDW3667EM-S-IL-ANZ – 6MP Smart Dual-Light WizSense AI Turret Camera for Advanced 24/7 Surveillance
The Dahua IPC-HDW3667EM-S-IL-ANZ is a high-performance 6MP WizSense turret camera with Smart Dual-Light technology that combines IR and warm white LED illumination to deliver intelligent full-colour imaging at night only when activity is detected. This reduces light pollution while enhancing evidence capture quality.
Equipped with AcuPick AI, the camera supports accurate human/vehicle search from recorded footage, streamlining investigations. Additional AI functions include Smart Motion Detection (SMD 4.0), perimeter protection, and advanced image optimisation with 120dB WDR, BLC, and 3DNR.
Built tough with IP67 weatherproof housing, this camera features a 2.8mm fixed lens, up to 30m IR distance, built-in microphone, and H.265+ compression, making it ideal for smart home systems, offices, driveways, retail stores, and more.
Features
6MP resolution (3072 × 2048) @ 25fps
Smart Dual-Light: switches between IR & white LED
AcuPick AI for intelligent target search
Smart Motion Detection 4.0 (SMD+)
2.8mm fixed lens with 104° wide-angle view
IR night vision up to 30m
Built-in microphone for audio monitoring
WDR (120dB), 3DNR, BLC, HLC image enhancements
H.265+/H.264 compression for storage efficiency
IP67-rated weatherproof housing
PoE support for simple installation
Compatible with Dahua NVRs and ONVIF systems
AcuPick NVR Recorder?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Technical Specifications
Model
IPC-HDW3667EM-S-IL-ANZ
Image Sensor
1/2.7” 6MP Progressive CMOS
Max Resolution
3072 × 2048 @ 25fps
Lens
2.8mm fixed lens (104° horizontal FOV)
Illumination
Smart Dual-Light: IR (30m) + warm LED
AI Features
AcuPick, SMD 4.0, IVS (Tripwire, Intrusion)
Audio
Built-in microphone
Image Enhancements
120dB WDR, BLC, HLC, 3DNR
Video Compression
Smart H.265+, H.264
Ingress Protection
IP67 (weatherproof)
Power Supply
12V DC or PoE (802.3af)
Operating Temperature
-40°C to +60°C
Dimensions
Φ109.9 × 100.9 mm
More Information
DH-IPC-HDW3667EM-S-IL-ANZ DatasheetDahua Camera Quick Start GuideDahua Camera Installation Guide
The Hikvision DS-2CD2367G3-LIS2UY/SL is the ultimate all-in-one security solution. Combining 6MP Ultra-HD resolution with three of Hikvision's most powerful technologies—ColorVu, AcuSense, and Live-Guard—this camera doesn't just record crime; it actively works to prevent it. With its built-in strobe light and audible siren, it provides a proactive defense for your home or business.
Proactive Security Features
6MP High-Resolution: Delivers 3200 × 1800 resolution for crystal-clear imaging and digital zoom capabilities.
Live-Guard Active Deterrence: Features a built-in white strobe light and a customizable audio siren to warn off intruders the moment they are detected.
24/7 ColorVu Technology: Equipped with an F1.0 super-aperture lens to capture vivid, full-color images even in total darkness.
AcuSense AI Analytics: Advanced deep-learning algorithms distinguish between humans, vehicles, and other moving objects, reducing false alarms by up to 90%.
Smart Hybrid Light: Choose between IR mode, White Light (Color) mode, or Smart Mode which stays in IR until a human is detected, then switches to color and activates deterrence features.
Two-Way Audio: Built-in microphone and speaker allow you to listen in and speak back through the Hik-Connect app.
Technical Specifications
Resolution
6MP (3200 × 1800)
Image Sensor
1/1.8" Progressive Scan CMOS
Min. Illumination
0.0005 Lux (F1.0, AGC ON)
Lens
2.8mm Fixed (105° Horizontal FOV)
Supplement Light
IR & White Light (Up to 30m)
Active Deterrence
Visual Strobe & Audible Alarm
Protection
IP67 Weatherproof
More Information
Download Data Sheet
Hikvision Quick Start Guide
Hikvision User Manual
Guru Tip: Use the "Smart Mode" lighting setting. It keeps the camera discreet with invisible IR at night, but triggers the brilliant white light and siren only when a human/vehicle is detected—maximizing the "fright factor" for intruders while providing you with a full-color mugshot.
Dahua Security Camera 6MP WizSense Fixed Starlight Dome, 2.8mm, Perimeter, SMD 4.0, SD Card, WDR, IR50m, Built-in Mic, IP67, IK10, POE
The Dahua 6MP WizSense Fixed Starlight Dome Camera delivers exceptional image clarity with its 1/2.7" CMOS sensor and 6MP resolution at 30fps. Equipped with advanced AI features, it accurately detects intrusion and tripwire events, distinguishing between humans and vehicles. Its built-in IR LEDs provide up to 50 meters of night vision, while WDR and 3D noise reduction ensure clear images in challenging lighting. The camera supports flexible H.265 compression for efficient storage and bandwidth use. Ruggedly designed with IP67 and IK10 ratings, plus PoE and an integrated microphone, it’s ideal for reliable perimeter security in diverse environments.
Features
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec allows high compression ratio and ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HDBW3666EP-AS-AUS Datasheet 20220718Dahua Dome Network Camera_Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Uniarch 6MP Starlight Fixed Turret Network Camera, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB03-G-IN, Wall mount TR-WM03-D-IN
Features
High quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specifications
Uniarch Security Camera
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-T1E6-AF28K 6MP HD Fixed Turret Network Camera Datasheet V1.1Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01Uniarch Network Camera User Manual-V1.00
Hikvision DS-2CD2366G2-I – 6MP AcuSense Turret Camera, 2.8mm Lens, IR 30m, No Microphone
The Hikvision DS-2CD2366G2-I(2) is a 6MP fixed lens AcuSense turret camera designed for intelligent security and high-quality video surveillance. With its 2.8mm wide-angle lens, this model offers excellent coverage and clarity.
AcuSense technology allows for accurate human and vehicle target classification, reducing false alarms from motion detection. Equipped with Smart IR up to 30 meters, IP67-rated weatherproof housing, and WDR, it’s ideal for outdoor and indoor deployments.
Compression efficiency is maximized with H.265+, and remote access is enabled via Hik-Connect. This camera is part of Hikvision’s 2nd generation AcuSense lineup, providing real-time alerts with improved accuracy for perimeter protection.
Features
Resolution: 6MP (3072 × 2048) at 20fps
Lens: 2.8mm fixed wide-angle
Night Vision: Smart IR up to 30m
AcuSense Technology: Human & vehicle classification, line crossing, intrusion detection
Compression: H.265+/H.265/H.264+/H.264
WDR: 120dB wide dynamic range
Weather Protection: IP67 rated, dust and waterproof
Remote Access: Hik-Connect, iVMS-4200
Installation: 3-axis turret design for flexible mounting
Power Supply: 12V DC ± 25% / PoE (802.3af)
Technical Specifications
Specifications – Hikvision DS-2CD2366G2-I(2)
Fixed Turret IP Camera
Compact AcuSense design
1/2.4″ Progressive Scan CMOS
Delivers sharp and clear images
6MP (3072 × 2048)
High-definition recording
2.8mm Fixed
Wide-angle coverage
Up to 30m
Smart IR for night visibility
120dB
Wide Dynamic Range for better contrast
H.265+/H.265/H.264+/H.264
Efficient bandwidth & storage
AcuSense
Human & vehicle classification, intrusion & line crossing detection
IP67
Dust and waterproof, suitable for outdoor use
12V DC ±25%, PoE (802.3af)
Flexible power options
-30°C to 60°C
Rugged outdoor performance
Hik-Connect, iVMS-4200
Mobile and PC compatible
More Information
DS-2CD2366G2-I DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual

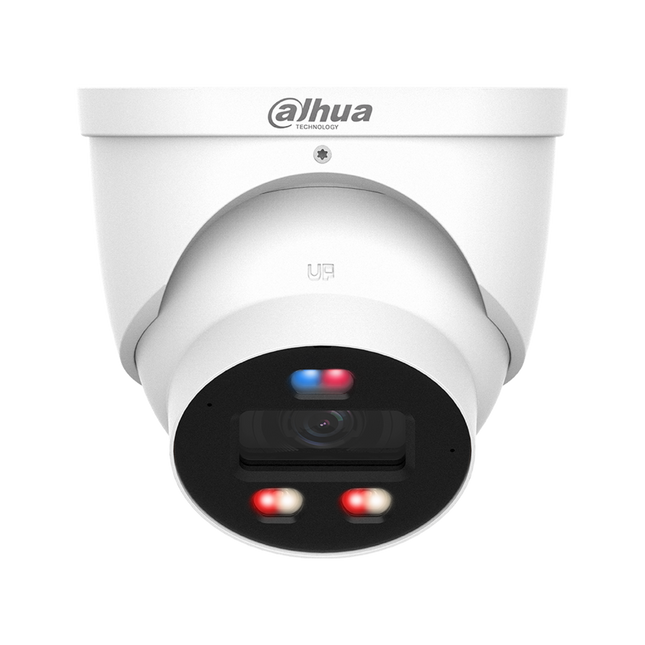

Dahua IPC-HDW3649H-AS-PV-ANZ-S2 6MP TiOC WizSense Camera (White / Black)
The Dahua IPC-HDW3649H-AS-PV-ANZ-S2 is a powerful 6MP WizSense TiOC network camera designed for intelligent perimeter protection and active deterrence. Available in white and black, this model combines high-resolution imaging, Smart Dual Light, AI analytics and built-in warning systems for superior day and night surveillance.
With Smart Dual Light (IR + warm white LED), the camera automatically switches lighting modes to provide full-colour video when a target is detected. Its TiOC (Three-in-One Camera) design integrates video monitoring, red/blue flashing warning lights and a built-in siren to actively deter intruders.
Key Features
6MP high-resolution imaging
Smart Dual Light (IR + warm LED)
TiOC active deterrence: red/blue lights + siren
WizSense AI with human & vehicle classification (SMD 4.0)
Intrusion & tripwire perimeter protection
Built-in microphone & speaker (two-way audio)
MicroSD support (up to 512GB)
Smart H.265+ compression
PoE & 12V DC power options
IP67 weatherproof housing
What is TiOC?
TiOC (Three-in-One Camera) combines:
AI detection (human & vehicle classification)
Active visual deterrence (red/blue flashing lights)
Audible deterrence (built-in siren & voice broadcast)
This allows the camera not only to detect events — but to actively warn intruders in real time.
What is AcuPick?
AcuPick is Dahua’s advanced AI search technology. When paired with a compatible Dahua 5-Series NVR, AcuPick allows you to:
Quickly search recorded footage for specific people or vehicles
Filter by attributes
Reduce playback time dramatically
Compatible Dahua Recorders
DHI-NVR4216-16P-AI/ANZ – 16CH WizSense PoE NVR
DHI-NVR5216-16P-AI/ANZ – 16CH AI NVR (Supports AcuPick)
DHI-NVR5432-16P-AI/ANZ – 32CH AI NVR
DHI-NVR5464-AI/ANZ – 64CH enterprise AI NVR
For full AcuPick functionality, pair this camera with a Dahua 5-Series NVR.
Technical Specifications
Specification
Details
Model
IPC-HDW3649H-AS-PV-ANZ-S2
Resolution
6MP
Camera Type
TiOC WizSense Network Turret
Lens
2.8mm fixed (wide angle)
Dual Light
IR + Warm LED (auto switching)
AI Features
Human/Vehicle Classification (SMD 4.0), Intrusion, Tripwire
Active Deterrence
Red/Blue Warning Lights + Siren
Audio
Built-in Mic & Speaker
Storage
MicroSD up to 512GB
Video Compression
Smart H.265+ / H.264+
Power
PoE / 12V DC
Weather Rating
IP67
Colour Options
White / Black
More Information
Dahua IPC-HDW3649H-AS-PV-ANZ-S2 Datasheet Dahua Network Camera Web 3.0_Operation Manual_V2.1.8 Eyeball Network Camera Installation Guide_V1.0.3 Dahua Eyeball Network Camera_Quick Start Guide_V1.0.5 Dahua Network Camera Web 5.0_Operation Manual_V1.2.1
Hikvision 6MP ColorVu Panoramic Turret Camera with 180° View, Microphone, Strobe Light, Alarm, 2.8mm Lens
The Hikvision DS-2CD2367G2P-LSU/SL is a cutting-edge 6MP ColorVu panoramic turret camera designed for wide-area monitoring with full-colour clarity day and night. Featuring dual 2.8mm lenses, this IP camera delivers a true 180° horizontal field of view, ideal for covering driveways, yards, warehouses, or retail fronts with a single device.
Equipped with ColorVu technology, the camera ensures vivid full-colour images even in low light using its supplemental white light. It also includes a built-in microphone, speaker, strobe light, and siren—enabling Live-Guard deterrence for real-time intrusion prevention.
Features
High quality imaging with 6 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)
Hikvision DS-2CD2367G2P-LSU/SL Technical Specifications
Technical Specifications – Hikvision DS-2CD2367G2P-LSU/SL
DS-2CD2367G2P-LSU/SL
6MP ColorVu Dual-Lens Panoramic Turret Camera
1/1.8" Progressive Scan CMOS
High-performance low-light sensor
6MP (3072 × 2048)
High-definition panoramic capture
Dual 2.8mm lenses
Wide-angle panoramic view
180° (Horizontal)
Panoramic coverage without blind spots
0.0005 Lux (Color)
Full-colour at night with white light
Up to 30 m
Always full-colour footage at night
120 dB
True Wide Dynamic Range
AcuSense AI
Human & vehicle detection
Built-in Mic & Speaker
Two-way audio, alarm deterrent
Yes
Live-Guard active deterrence
H.265+/H.264+
Efficient storage with high quality
MicroSD up to 256GB
Onboard edge recording
IP67
Weatherproof for outdoor use
12V DC or PoE (802.3af)
Flexible installation
Max. 10W
Energy efficient
-30°C to 60°C
Outdoor-ready build
Ø138.3 mm × 123.9 mm
Compact turret body
~ 700g
Durable and lightweight
Downloads
DS-2CD2367G2P-LSU/SL DatasheetHikvision Camera Quick Start GuideHikvision Camera User ManualDS-2CD2367G2P-LSU/SL Installation Guide

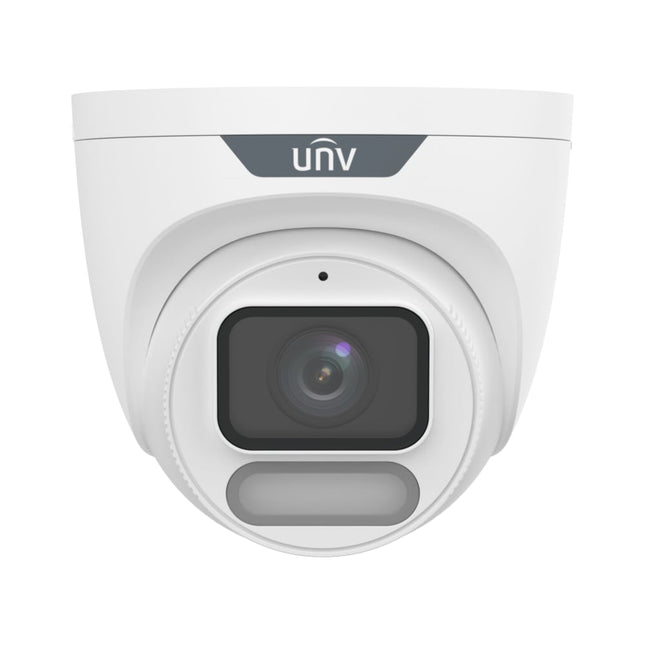

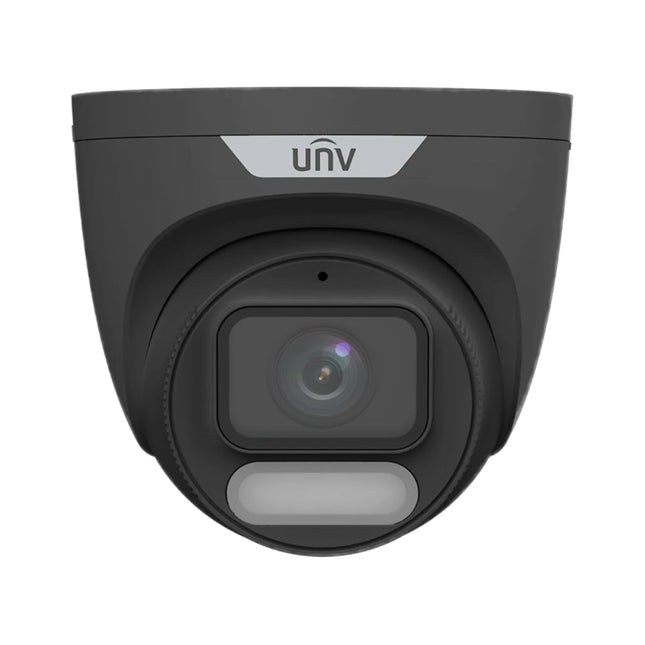

Uniview UNV IPC3626LE-ADF28K-WP 6MP ColorHunter Turret – White & Black
The Uniview UNV IPC3626LE-ADF28K-WP is a 6 MP ColorHunter fixed eyeball/turret camera engineered for ultra-low-light, full-colour performance. A large 1/1.8″ CMOS sensor pairs with a fast F1.0 2.8 mm lens, Wise-ISP processing and 120 dB true WDR to deliver bright, detailed video up to 3072×2048 @ 25 fps. Warm-light LEDs extend up to 30 m for vivid colour at night. Now available in White and Black finishes to match your install.
SKU: IPC3626LE-ADF28K-WP (6MP ColorHunter Turret)
Colour Options: White / Black
Built-in Mic, PoE, IP67, Ultra 265/H.265/H.264/MJPEG
Onboard Storage: micro-SD up to 512 GB
Key Features
6 MP (3072×2048) @ up to 25/20 fps; multiple sub-resolutions supported
1/1.8″ CMOS sensor, F1.0, 2.8 mm fixed lens (wide FoV)
ColorHunter + Wise-ISP for true full-colour at night
120 dB true WDR, 2D/3D DNR, BLC/HLC, Digital Defog
Warm light range up to 30 m (smart illumination)
Built-in microphone; micro-SD up to 512 GB; ANR/NAS support
Ultra 265 / H.265 / H.264 / MJPEG; dual streams
PoE (802.3af); IP67 weatherproof; −30 °C ~ 60 °C
Technical Specifications
Specification
Details
Brand / Series
Uniview UNV / ColorHunter
Model (SKU)
IPC3626LE-ADF28K-WP
Colour Options
White / Black
Sensor / Resolution
1/1.8″ CMOS / 6 MP (3072×2048) up to 25 fps
Lens / Aperture
2.8 mm fixed / F1.0
Low-Light Tech
ColorHunter + Wise-ISP (full-colour at night)
Illumination
Warm light up to 30 m
Wide Dynamic Range
120 dB true WDR
Video Encoding
Ultra 265 / H.265 / H.264 / MJPEG
Audio
Built-in microphone
Onboard Storage
micro-SD up to 512 GB; ANR/NAS
Network / Security
IPv4/IPv6, RTSP/HTTPS/TLS 1.2, ONVIF-friendly
Power
PoE (IEEE 802.3af); max ~2.8 W
Protection
IP67; surge 4 kV
Operating Temp
−30 °C ~ 60 °C; ≤95% RH (non-cond.)
Dimensions / Weight
Ø118 × 106 mm; ~0.48 kg
What’s Included
IPC3626LE-ADF28K-WP camera (select White or Black)
Mounting hardware & quick guide
Customer Requirements
RJ45 Cat6 cable and PoE switch/NVR
Optional micro-SD card (up to 512 GB) for edge recording
Wall/junction bracket if mounting on walls (eaves installs often don’t require a bracket)
More Information
Uniview UNV IPC3626LE-ADF28K-WP Datasheet Uniview UNV Camera User Manual Uniview UNV Camera Quick Start Guide
Hikvision DS-2CD2366G2-IU – 6MP AcuSense Fixed Turret Security Camera with Built-in Mic, IR, and IP67 Rating
The Hikvision DS-2CD2366G2-IU is a professional-grade 6MP AcuSense fixed turret camera designed for smart security systems. Powered by AcuSense Gen 2 AI technology, it can accurately detect and classify humans and vehicles, helping reduce false alarms and improve response accuracy.
With its infrared night vision capability of up to 30 metres, and a built-in microphone for high-quality audio recording, the DS-2CD2366G2-IU is ideal for both indoor and outdoor use. It supports H.265+ compression, which optimizes storage and bandwidth without sacrificing image quality.
Whether you’re upgrading your home system or deploying cameras across a commercial site, this camera delivers crisp 6MP video and reliable performance in any condition.
Features
Resolution: 6MP (3072 × 2048)
Lens: 2.8mm fixed wide-angle lens
Night Vision: Up to 30m IR range
AI Detection: AcuSense human & vehicle classification
Audio: Built-in microphone (1-way audio)
Weatherproof Rating: IP67 – Suitable for outdoor use
Power: 12V DC & PoE (802.3af)
Video Compression: H.265+, H.264+
Remote Monitoring: Hik-Connect App, Web access
Installation: Wall or ceiling mountable
Specifications
Technical Specifications – DS-2CD2366G2-IU
Fixed Turret
Indoor/Outdoor IP Camera
6MP (3072 × 2048)
High-definition video
2.8mm Fixed Lens
Wide-angle view
Up to 30m
IR with Smart IR technology
1/2.4″ Progressive Scan CMOS
Low-light sensitivity
120 dB
True Wide Dynamic Range
Built-in Microphone
1-way audio recording
AcuSense
Human & vehicle classification
H.265+, H.264+
Efficient bandwidth and storage
RJ-45 10/100Mbps
PoE supported
IP67
Dust and water resistant
12V DC & PoE (802.3af)
Dual power options
Hik-Connect App
Mobile & web monitoring
Wall / Ceiling
Flexible installation
Downloads
DS-2CD2366G2-IU DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual
Dahua TIOC 2.0, 6MP Security Camera, Active Deterrence, Full Colour Night Vision & Two-way Audio, 2.8mm Fixed-focal Lens, Black
The Dahua 6MP TIOC 2.0, DH-IPC-HDW3649H-AS-PV-ANZ-BLK, Fixed IP Black Security Camera offers advanced capabilities like two-way audio, full-colour night vision, and audible warnings to deter intruders. This camera also has a 2K resolution and can be easily integrated with an NVR recorder through an Ethernet Network Cable, ensuring stable connections and consistent recordings with PoE port for power.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Siren and Light Active DeterrenceDahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realise the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customised voice importing.
Smart Dual IlluminatorsDahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD 4.0Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Features
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
Outputs max. 6 MP (3200 x 1800) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One press arming/disarming through alarm input
Specifications
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
POE
PoE
Downloads
IPC-HDW3649H-AS-PV-ANZ DatasheetDahua Eyeball Network Camera Installation Guide_V1.0.2Dahua Eyeball Network Camera_Quick Start Guide_V1.0.4Dahua Network Camera Web 5.0_Operation Manual_V1.0.5Dahua Network Camera Web 3.0_OperationManual_V2.1.5
HiLook IPC-T363H-MU is a 6MP fixed-lens turret with Smart Hybrid Light (IR/white) up to 30 m, built-in mic, Human/Vehicle detection and H.265+ efficiency in an IP67 metal body with PoE.
Key Features
6 MP (3200 × 1800), H.265+
Smart Hybrid Light to 30 m (colour on events)
Human & Vehicle intelligent detection
Built-in microphone (mono)
120 dB WDR, 3D DNR, BLC/HLC
2.8 mm (119.6°) or 4 mm (96.8°) fixed lens
PoE (802.3af), IP67 metal housing
ONVIF Profiles S/T/G; HiLookVision & iVMS-4200
Technical Specifications
Model / SKU
IPC-T363H-MU (2.8 mm), also available in Black
Image Sensor / Resolution
1/2.4" Progressive CMOS, 6 MP (3200 × 1800)
Min. Illumination
Colour: 0.001 Lux @ F1.2 (AGC ON); B/W: 0 Lux with IR
Lens / FOV
2.8 mm HFOV 119.6°; 4 mm HFOV 96.8°; M12; F1.2 (fixed)
Smart Illumination
IR & White Light (Smart Hybrid), range up to 30 m
DORI (2.8 mm)
D:76 m • O:30 m • R:15 m • I:7 m
DORI (4 mm)
D:115 m • O:45 m • R:23 m • I:11 m
WDR / Image
120 dB WDR, 3D DNR, BLC, HLC; day/night IR-cut
Stream / Codec
Main: up to 20 fps @ 6 MP/4 MP/1080p/720p; Sub: up to 20 fps @ 720p/VGA/360p; H.265+/H.265/H.264+/H.264, MJPEG (sub)
Bitrate
32 Kbps–16 Mbps; CBR/VBR; SVC (H.264/H.265)
Audio
Built-in mic; noise filtering; G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Analytics
Human/Vehicle-based motion; line crossing; intrusion
Network
RJ45 10/100M; ONVIF Profiles S/T/G; TCP/IP, RTSP, RTP, IPv6, QoS, etc.
Users / Live View
Up to 32 users; up to 6 live-view channels
Power
12 VDC (max 5 W) or PoE 802.3af Class 3 (max 6.5 W)
Ingress / Build
IP67 metal housing
Operating Temperature
−30 °C to 60 °C; ≤95% RH (non-condensing)
Dimensions / Weight
Ø127.3 × 95.9 mm; approx. 600 g (box: 909 g)
Compliance
RCM (AS/NZS CISPR 32), CE, IEC 62368-1, RoHS, WEEE, REACH
Software
HiLookVision (mobile) & iVMS-4200 (client)
Mount Options
Wall/Pendant/Junction/Corner/Pole (various DS- brackets)
FAQs
Q: Does it record in colour at night?A: Yes—Smart Hybrid Light uses IR for stealth and switches on white light during events for full-colour detail (up to ~30 m).
Q: Is it weatherproof and PoE-powered?A: Yes, IP67 metal housing and PoE 802.3af Class 3 for single-cable install.
Q: Does it have audio?A: It includes a built-in microphone with noise filtering.
More Information
HiLook IPC-T363H-MU DatasheetHiLook IP Camera User Manual
Please see the replacement model: DS-2CD2367G3-LIS2UY-SL
Hikvision 6MP Smart Hybrid Light ColorVu Turret Camera DS-2CD2367G2H-LISU/SL with Live-Guard — Microphone & Speaker, Strobe & Audible Warning, Fixed 2.8mm Lens
The Hikvision 6MP Smart Hybrid Light Turret Camera delivers advanced day & night surveillance using ColorVu technology and intelligent hybrid lighting. This model offers automatic switching between infrared (IR) and warm white light, ensuring clear, detailed footage in all lighting conditions.
Featuring a 2.8mm fixed lens, built-in microphone, and smart motion detection with human/vehicle classification, it’s perfect for driveways, entrances, warehouses, and perimeter protection. Fully compatible with Hikvision NVRs, this turret camera combines AI detection, full-colour night vision, and IP67-rated weatherproofing.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Audio and alarm interface available
Accessories
Wall Mount Brackets
Downloads
DS-2CD2367G2H-LISU/SL DS-2CD2367G2H-LISU/SL DatasheetDS-2CD2367G2H-LISU/SL User’s Manual DS-2CD2367G2H-LISU/SL Quick Start Guide

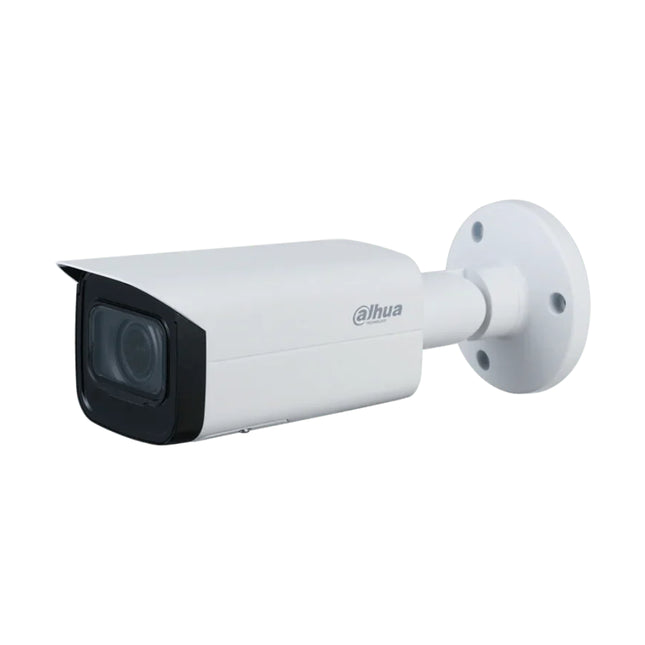

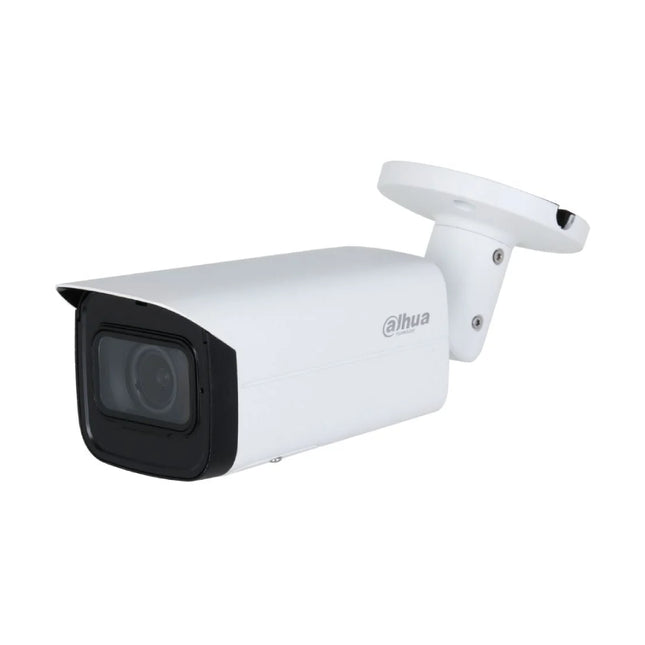

Dahua Security Camera 6MP WizSense Motorised Starlight Bullet, 2.7–13.5 mm, Perimeter, SMD4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3666TP-ZAS-AUS Datasheet 20220718Bullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3

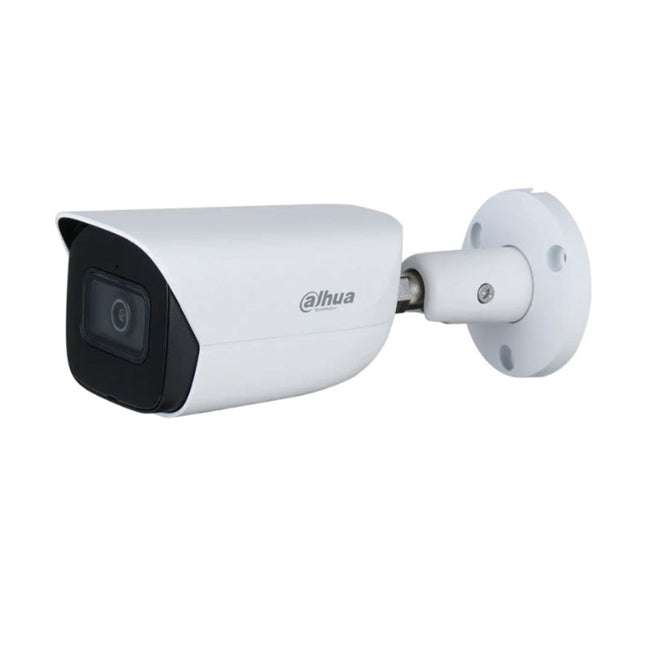

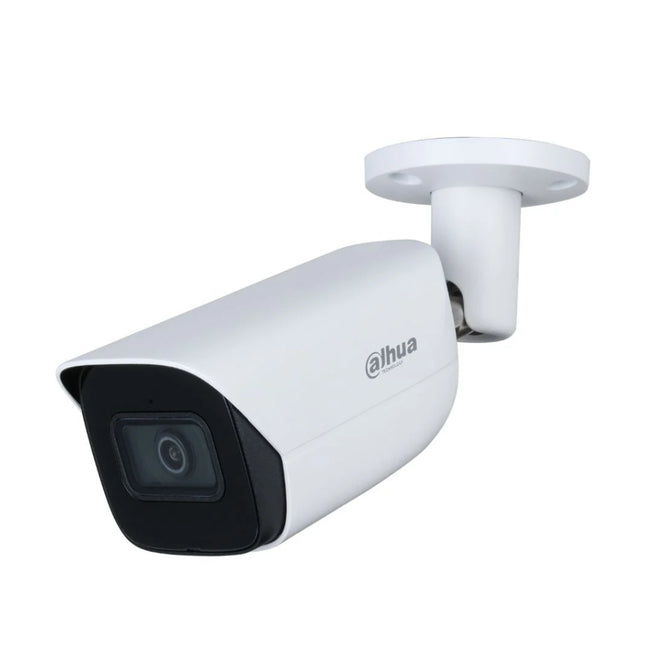

The DH-IPC-HFW3666EP-AS-AUS is a professional-grade 6-Megapixel WizSense network camera featuring an advanced 1/2.7" CMOS sensor. Designed for high-clarity surveillance, it utilizes Dahua's WizSense technology to focus specifically on human and vehicle targets, significantly reducing false alarms and improving security efficiency.
Key Features
6MP Ultra-High Definition: Captures crystal-clear imagery at 3072 × 2048 resolution, providing 50% more detail than standard 4MP cameras.
WizSense AI (SMD 4.0): Advanced Smart Motion Detection that accurately distinguishes humans and vehicles from animals, rustling leaves, and light interference.
Perimeter Protection: Supports Tripwire and Intrusion functions with high-accuracy classification to secure property boundaries.
Starlight Technology: Provides clear, detailed color video in extremely low-light conditions where standard cameras would switch to black and white.
Built-in Microphone: High-fidelity integrated mic for synchronized audio recording, adding an extra layer of evidence to your footage.
Rugged External Design: Rated IP67 for superior protection against dust and water, making it ideal for harsh Australian outdoor conditions.
Smart H.265+ Compression: Reduces bandwidth and storage costs by up to 70% while maintaining high video quality.
Technical Specifications
Image Sensor
1/2.7" 6-Megapixel Progressive CMOS
Max. Resolution
3072 (H) × 2048 (V)
IR Distance
Up to 50 Meters (164 ft)
WDR
120 dB True WDR
Audio Interface
Built-in MIC; 1-ch Audio In/Out
Storage
Micro SD Slot (up to 256GB)
Ingress Protection
IP67 Weatherproof
More Information
For full technical details, installation requirements, and setup procedures, please refer to the official documentation below:
DH-IPC-HFW3666EP-AS-AUS Datasheet 20220718Dahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Hikvision 6MP DeepinView Fisheye DS-2CD6365G1-IVS, Panoramic, 1.16mm, Mic, IR 15m
The Hikvision 2CD6365G1 6MP DeepinView Fisheye Network Camera offers advanced features for comprehensive security monitoring. With deep learning-based heatmap technology, it accurately counts and maps people for easy tracking. The built-in mic and speaker allow for two-way audio communication, while the IR light provides clear visibility in low-light environments. With a high-resolution 6MP and multiple dewarping modes, each image captured is detailed and easily viewable. Plus, its water and dust resistant design make it durable in any environment.
Features
Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
DS-2CD6365G1-IVS DatasheetDS-2CD6365G1-IVS Quick Start GuideDS-2CD6365G1-IVS User Manual
Hikvision 6MP AcuSense Mini Bullet Fixed DS-2CD2066G2-IU, 30m IR, Built-in Mic, (2066) network camera comes with 2.8mm, 4mm and 6mm.
Experience high-quality imaging with the Hikvision 6MP AcuSense Mini Bullet Fixed DS-2CD2066G2-IU. Powered by DarkFighter technology, this network camera boasts excellent low-light performance. Featuring deep learning-based classification, active strobe light and audio alarm, and built-in two-way audio, this camera provides real-time security with efficient H.265+ compression and IP67 water and dust resistance.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-IU Datasheet
DS-2CD2066G2-IU Quick Start Guide
DS-2CD2066G2-IU User Manual
Hikvision DS-2CD2166G2H-ISU – 6MP AcuSense Smart Dome Camera with Microphone and I/O
The Hikvision DS-2CD2166G2H-ISU is a high-performance 6MP AcuSense fixed dome IP camera designed for professional surveillance environments. It features a 2.8mm fixed lens, smart IR up to 30m, and advanced AcuSense technology for accurate human and vehicle detection.
This model includes a built-in microphone for audio recording and alarm I/O interface for integrating with external devices. Its IP67-rated metal dome design makes it ideal for both indoor and outdoor use. With H.265+ compression, it minimizes bandwidth and storage needs without compromising video quality.
A perfect solution for perimeter monitoring, office security, retail stores, and warehouses requiring audio and smart detection.
Features
Resolution: 6MP (3072 × 2048 @ 20fps)
Lens: 2.8mm Fixed Wide-Angle
Audio: Built-in Microphone
IR Distance: Smart IR up to 30m
AcuSense Technology: Human/Vehicle classification, line crossing, intrusion detection
I/O Interface: 1 Alarm In, 1 Alarm Out
Compression: H.265+, H.265, H.264+, H.264
Remote Access: Hik-Connect app, iVMS-4200, Web browser
Weather Rating: IP67 & IK10 vandal resistant
Storage: microSD/SDHC/SDXC slot up to 256GB
Power Supply: 12V DC ±25% / PoE (802.3af)
Operating Conditions: -30°C to +60°C
Specifications
Specifications – Hikvision DS-2CD2166G2-ISU(2)
Fixed Dome IP Camera
AcuSense Series
1/2.4″ Progressive Scan CMOS
High sensitivity sensor
6MP (3072 × 2048)
20 fps main stream
2.8mm Fixed
Horizontal FOV: 101°
Built-in Microphone
High-quality audio capture
Up to 30m
Smart IR technology
120dB
Wide Dynamic Range for contrast enhancement
AcuSense
Human/Vehicle classification, intrusion/line crossing
1 In / 1 Out
Integrate with external devices
IP67 & IK10
Outdoor & vandal-resistant
H.265+, H.265, H.264+, H.264
Efficient storage & bandwidth
microSD/SDHC/SDXC slot
Up to 256GB local storage
12V DC ±25% / PoE (802.3af)
Flexible installation options
-30°C to +60°C
Reliable in harsh climates
Downloads
DS-2CD2166G2-ISU DatasheetHikvision Dome Camera Quick Start GuideHikvision Dome Camera User Manual
Hikvision DS-2CD2T66G2-2I – 6MP AcuSense Outdoor Bullet IP Camera
The Hikvision DS-2CD2T66G2-2I is a 6MP AcuSense fixed bullet camera designed for outdoor surveillance with advanced smart features and long-range night vision. Featuring a 2.8mm wide-angle lens and Smart IR up to 60m, it delivers clear imaging day or night.
Equipped with Hikvision’s AcuSense technology, this model supports human and vehicle classification, reducing false alarms and improving event accuracy. Built with an IP67-rated metal housing, it withstands extreme weather conditions.
Ideal for perimeter protection, driveways, parking lots, warehouses, and industrial facilities requiring high-resolution and intelligent detection.
Features
Image Sensor: 1/2.4″ Progressive Scan CMOS
Resolution: 6MP (3072 × 2048) @ 20fps
Lens: 2.8mm Fixed (horizontal FOV 106°)
Night Vision: Smart IR up to 60 metres
AcuSense Technology: Human and vehicle detection, line crossing, and intrusion detection
Compression: H.265+, H.265, H.264+, H.264
Weatherproof: IP67-rated housing for outdoor use
WDR: 120dB for clear imaging in high-contrast lighting
Storage Support: microSD card slot (up to 512GB)
Power Supply: 12V DC ±25% or PoE (802.3af)
Operating Temperature: -30°C to +60°C
Remote Access: iVMS-4200, Hik-Connect, Web client
Specifications
Specifications – Hikvision DS-2CD2T66G2-2I(2)
Fixed Bullet IP Camera
AcuSense series, compact design
1/2.4″ Progressive Scan CMOS
High-quality imaging
6MP (3072 × 2048)
20 fps at max resolution
2.8mm Fixed
Wide-angle view (106° horizontal FOV)
Up to 60 metres
Smart IR for night vision
120dB
Clear imaging under strong backlight
AcuSense Technology
Human/Vehicle detection, line crossing, intrusion detection
H.265+/H.265/H.264+/H.264
Efficient storage & bandwidth usage
IP67 Rated
Dustproof and waterproof for outdoor use
microSD/SDHC/SDXC slot
Supports up to 512GB
12V DC ±25%, PoE (802.3af)
Flexible power options
-30°C to +60°C
Reliable in extreme environments
Hik-Connect, iVMS-4200
Mobile and PC access
More Information
DS-2CD2T66G2-2I Datasheet
Hikvision Camera Quick Start Guide
Hikvision Camera User Manual
Uniarch 6MP Starlight Fixed Turret Network Camera Black, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB03-G-IN- BLACK, Wall mount TR-WM03-D-IN- BLACK
High quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-T1E6-AF28K-B 6MP HD Fixed Turret Network Camera Datasheet V1.1
Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01
Uniarch Network Camera User Manual-V1.00

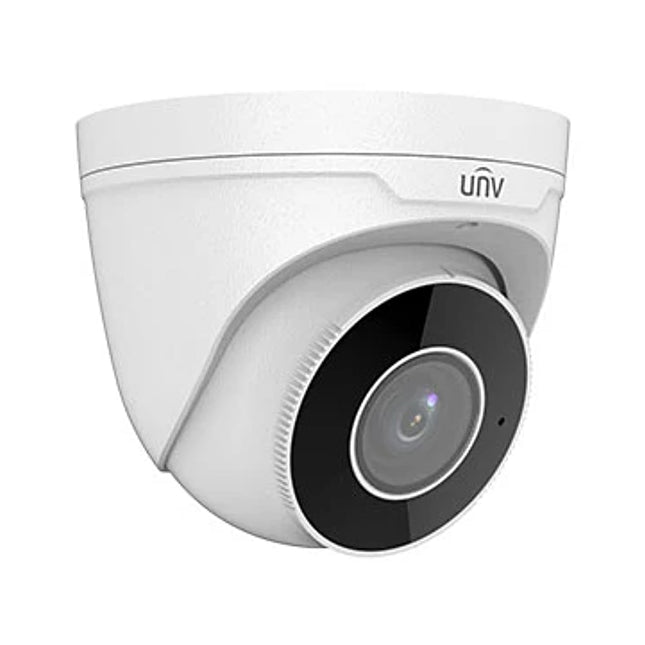

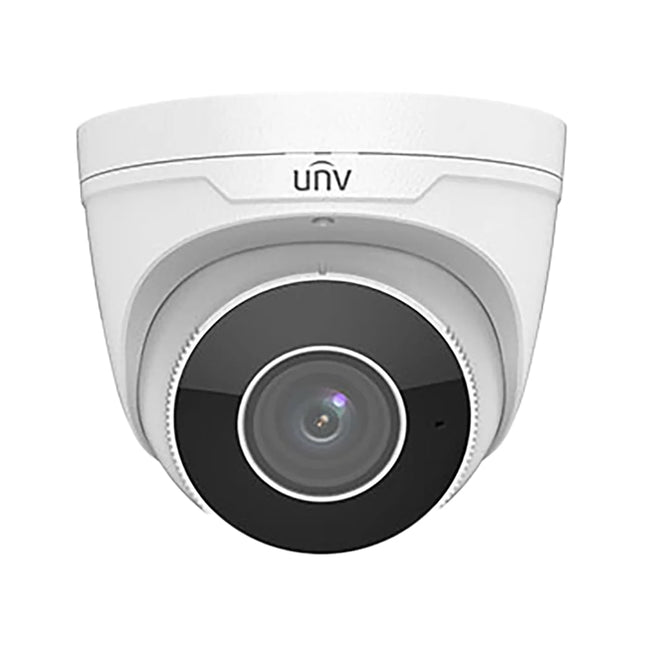

Uniview UNV IPC3636LE-ADZK-G 6MP Varifocal Eyeball/Turret IP Camera
The IPC3636LE-ADZK-G is a 6 MP varifocal turret with a motorized
2.8–12 mm AF lens for flexible framing and fast setup. It delivers up to
3072×2048 @ 25 fps with Ultra 265/H.265/H.264/MJPEG compression,
balances tough lighting via 120 dB true WDR, and uses Smart IR to
40 m for clear night footage. A built-in microphone, micro-SD up to 256 GB,
PoE, and IP67 metal housing make it a dependable 24/7 choice.
Key Features
6 MP 1/2.7" CMOS; up to 3072×2048 @ 25/20 fps
Motorized varifocal 2.8–12 mm lens with auto-focus (AF)
Smart IR up to 40 m; IR-cut (ICR)
120 dB true WDR; 2D/3D DNR; digital defog; BLC/HLC
Built-in microphone; Ultra 265 / H.265 / H.264 / MJPEG
9:16 corridor mode; motion detection; privacy mask; ROI
Edge storage: micro-SD up to 256 GB; ANR/NAS
PoE (IEEE 802.3af); IP67 metal housing; 3-axis adjustment
Technical Specifications
Specification
Details
Brand / Series
Uniview UNV / Easy Series
Model (SKU)
IPC3636LE-ADZK-G
Sensor / Resolution
1/2.7" CMOS / 6 MP (3072×2048 @ 25 fps)
Lens
Motorized varifocal 2.8–12 mm; auto-focus (AF)
IR Range
Up to 40 m; 850 nm; Smart IR
Dynamic Range
120 dB true WDR
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Audio
Built-in microphone; G.711
Storage
Micro-SD up to 256 GB; ANR/NAS
Smart Functions
Cross line & intrusion (human-based), motion, tamper, audio
Network/Protocols
IPv4, TCP/UDP, RTP/RTSP, HTTP/HTTPS, SNMP, 802.1x; ONVIF S/G/T
Power
DC 12 V ±25% or PoE (IEEE 802.3af), Max ~8.0 W
Protection
IP67; 6 kV surge
Operating Conditions
−30 °C ~ 60 °C; ≤95% RH (non-cond.)
Dimensions / Weight
Ø129 × 110 mm; 0.67 kg
Adjustment
Pan 0–360°, Tilt 0–75°, Rotate 0–360°
DORI (Approx.)
Focal Length
Detect
Observe
Recognize
Identify
2.8 mm
63 m
25.2 m
12.6 m
6.3 m
12 mm
270 m
108 m
54 m
27 m
What’s Included
Uniview UNV IPC3636LE-ADZK-G camera
Mounting hardware & quick guide
Customer Requirements
RJ45 Cat6 cable and PoE switch/NVR
Surveillance-grade HDD in NVR or micro-SD card (up to 256 GB) for recording
Optional junction/wall mounts depending on surface
More Information
Uniview UNV IPC3636LE-ADZK-G Datasheet
Uniview UNV IPC3636LE-ADZK-G User Manual
Hikvision DS-2CD2067G2H-LIU/SL 6MP Smart Hybrid ColorVu Mini Bullet Camera with Live-Guard – Mic & Speaker, Alarm & Strobe
The Hikvision 6MP Smart Hybrid ColorVu Mini Bullet Camera is a compact, intelligent deterrent camera equipped with two-way audio, strobe light, siren alarm, and hybrid IR + ColorVu technology for 24/7 clarity and protection.
Featuring a 2.8mm wide-angle lens, this camera delivers crisp 6MP video and supports AI-based human/vehicle classification to minimize false alerts. The built-in microphone and speaker enable audio recording and real-time communication, while the siren alarm and flashing strobe provide immediate deterrence against intruders.
Smart Hybrid Light allows the camera to switch between IR and warm white light automatically, depending on motion and lighting conditions—ideal for residential entrances, small business exteriors, and carparks.
Key Features of the Hikvision Smart Hybrid ColorVu Camera — DS-2CD2067G2H-LIU/S
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Downloads
DS-2CD2067G2H-LIU/SL DatasheetDS-2CD2067G2H-LIU/SL Quick Start GuideDS-2CD2067G2H-LIU/SL User Manual
Dahua 6MP IP Turret Fixed 2.8mm, Built-in Mic, ICR, WDR, IVS, IP67, PoE
The Dahua 6MP IP Turret Fixed Camera boasts a superior 6MP resolution, low light capabilities, and a maximum IR distance of 50m. With advanced features such as built-in mic, WDR, and intelligent detection, it ensures high image definition and efficient storage. Ideal for various monitoring scenarios, this camera is a top choice for professionals.
Features
6MP, 1/2.7'' progressive scan CMOS, low illuminance, high image definition
Outputs max. 6MP (3072x1728) @20 fps, and supports 4MP(2688x1520)@30fps
H.265 codec, high compression rate, low bit rate
Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Tripwire, intrusion
Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power supply
IP67 protection
SMD Plus
Specifications
Dahua PoE Camera
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
Datasheet of DH-IPC-HDW3641TMP-AS-0280B-AUS
Eyeball Network Camera Installation Guide_V1.0.0
Dahua Eyeball Network Camera_QSG_V1.0.1
Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Hikvision 6MP AcuSense Dome Camera DS-2CD2166G2-I, IP67, IR 30m, No Microphone 2.8mm
The Hikvision 6MP AcuSense Dome DS-2CD2166G2-I provides high quality imaging with 6 MP resolution and excellent low-light performance thanks to DarkFighter technology. Its efficient H.265+ compression and 120 dB true WDR technology ensure clear images even in challenging lighting conditions. With deep learning-based classification of human and vehicle targets, and built-in microphone and alarm interface options, this dome camera offers real-time audio security and is water, dust, and vandal resistant for reliable outdoor use.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security (-SU)
Audio and alarm interface available(-SU)
Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
DS-2CD2166G2-I DatasheetDS-2CD2166G2-I Quick Start GuideDS-2CD2166G2-I User ManualDS-2CD2166G2-I FAQ
Dahua IPC-EBW5641-AS 6MP WizMind Fisheye Network Camera
The IPC-EBW5641-AS is a professional-grade 6MP fisheye network camera designed for comprehensive situational awareness. As part of the Dahua WizMind series, it combines high-resolution imaging with powerful artificial intelligence to provide both security and business intelligence data from a single ceiling or wall-mounted device.
Advanced Hardware Capabilities
6MP Ultra-High Definition: Equipped with a 1/1.8" Progressive Scan CMOS sensor delivering a maximum resolution of 3072 × 2048 at 25/30 fps.
Full 360° Surround View: The 1.4mm fisheye lens provides a zero-blind-spot coverage area, ideal for replacing multiple fixed cameras in lobbies, warehouses, and retail floors.
Enhanced Night Vision: Three integrated IR LEDs provide effective illumination up to 10 meters (33 ft) while maintaining image balance in low-light environments.
Professional Audio Integration: Features a built-in microphone for immediate audio recording, plus dedicated ports for external audio and alarm I/O integration.
Extreme Environment Protection: Housed in an IK10 vandal-proof and IP67 weather-proof enclosure, engineered to withstand physical impact and harsh outdoor conditions.
WizMind AI & Business Intelligence
Intelligent People Counting: Automatically counts entries, exits, and pass-through numbers. Supports regional counting and loitering filtered by human detection.
Advanced Heat Mapping: Generates visual data to identify "hot zones" with the highest traffic density, perfect for optimizing retail layouts.
Smart Motion Detection (SMD): Reduces false alarms by focusing specifically on human and vehicle shapes within the panoramic field of view.
Technical Specifications
Sensor Size
1/1.8" 6-Megapixel CMOS
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG
Wide Dynamic Range
Digital WDR
Power
12V DC / PoE (802.3af) | Max 12W
On-Board Storage
MicroSD Slot (Supports up to 256GB)
Operating Temp
-30°C to +50°C (-22°F to +122°F)
More Information
To view the full technical datasheet and installation instructions, please use the link below:
Dahua FishEye DH-IPC-EBW5641-AS Datasheet
Dahua FishEye Camera Quick Start Guide
Dahua FishEye Camera Installation Guide
Note: For full AI analytics functionality, use with a Dahua WizMind NVR is recommended.

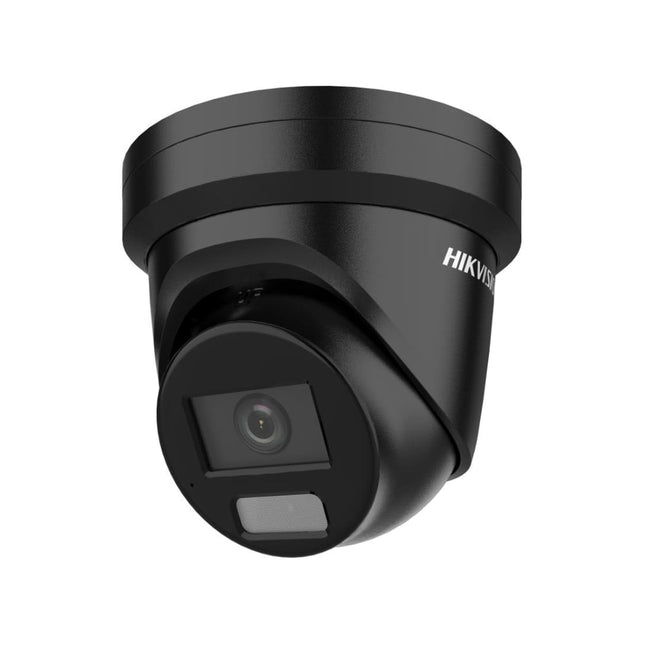

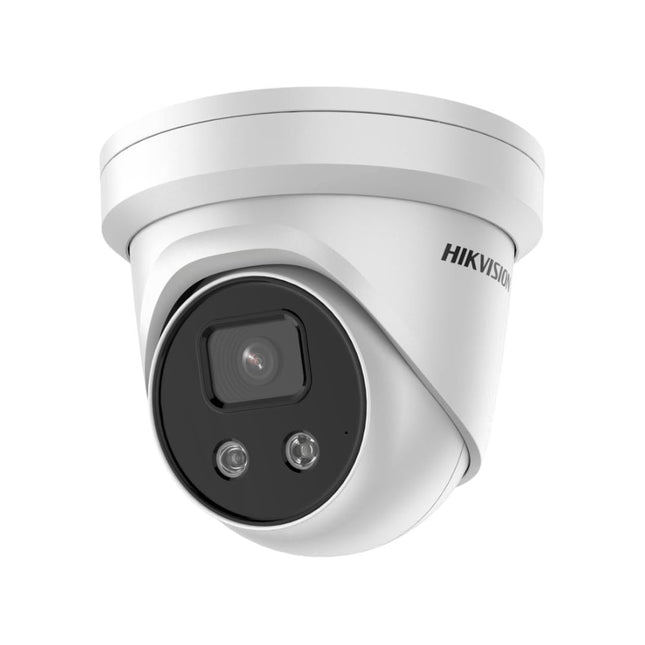

The Hikvision DS-2CD2366G2H-IU is a 6MP AcuSense turret IP camera with a 2.8mm fixed lens, built-in microphone, advanced motion detection, and excellent low-light performance via EXIR 2.0. Ideal for homes and businesses needing smart, reliable surveillance.
Features
6MP high-resolution image sensor for detailed video
AcuSense technology with human & vehicle classification
Built-in microphone for real-time audio recording
Up to 30m IR with EXIR 2.0 for night vision
IP67-rated weatherproof housing
H.265+ video compression for efficient storage
2.8mm fixed lens with 112.1° horizontal FOV
Smart detection: motion, tampering, intrusion
Supports microSD card up to 512GB
NDAA compliant
Technical Specifications
Hikvision DS-2CD2366G2H-IU Technical Specifications
Image Sensor
1/2.4" Progressive Scan CMOS
Max Resolution
3072 × 2048 @ 20fps
Lens
2.8mm fixed lens (horizontal FOV: 112.1°)
IR Range
Up to 30m (EXIR 2.0)
Audio
Built-in microphone
Video Compression
H.265+/H.265/H.264+/H.264
Smart Features
AcuSense - Human/Vehicle classification
Storage
MicroSD card slot (up to 512GB)
Ingress Protection
IP67 weatherproof
Power
12 VDC ±25% or PoE (802.3af)
Dimensions
Ø 138.3 × 125.2 mm
Weight
Approx. 645g
More Information
DS-2CD2366G2H-IU Datasheet
Hikvision Camera Quick Start Guide
Hikvision Camera User Manual
A high‑performance 6 MP outdoor bullet camera featuring DarkFighter imaging for low light clarity, human & vehicle deep‑learning classification, fixed 2.8 mm lens, and weatherproof IP67 build. Ideal for both residential and commercial surveillance.
Key Features
6 MP resolution (3200 × 1800) for sharp image detail.
DarkFighter technology delivers excellent performance in ultra‑low light.
Human & vehicle classification via deep learning to reduce false alarms.
120 dB WDR for handling strong backlight and high contrast scenes.
Fixed 2.8 mm lens option (also available in 4 mm) with wide field of view (114.8° horizontal for 2.8 mm).
IR illumination range up to 60 m in this model (2I version).
Durable weather‑proof metal housing rated IP67.
Efficient video compression (H.265+/H.265/H.264+/H.264) to save bandwidth and storage.
On‑board storage support via microSD up to 512 GB.
Technical Specifications
Specification
Details
Model
DS‑2CD2T66G2H‑2I
Image Sensor
1/2.4″ Progressive Scan CMOS
Max. Resolution
3200 × 1800 (6 MP)
Lens
Fixed 2.8 mm (optional 4 mm)
Field of View (H)
2.8mm: 114.8°
Min. Illumination
0.001 Lux @ F1.0 (Colour), 0 Lux with IR
Wide Dynamic Range (WDR)
120 dB
Smart Analytics
Human & Vehicle Classification
Compression
H.265+/H.265/H.264+/H.264
IR Illumination Range
Up to 60 m (2I version)
Ingress Protection
IP67 Weatherproof
Operating Temperature
–30 °C to +60 °C
More Information
DS-2CD2T66G2H-2I DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual

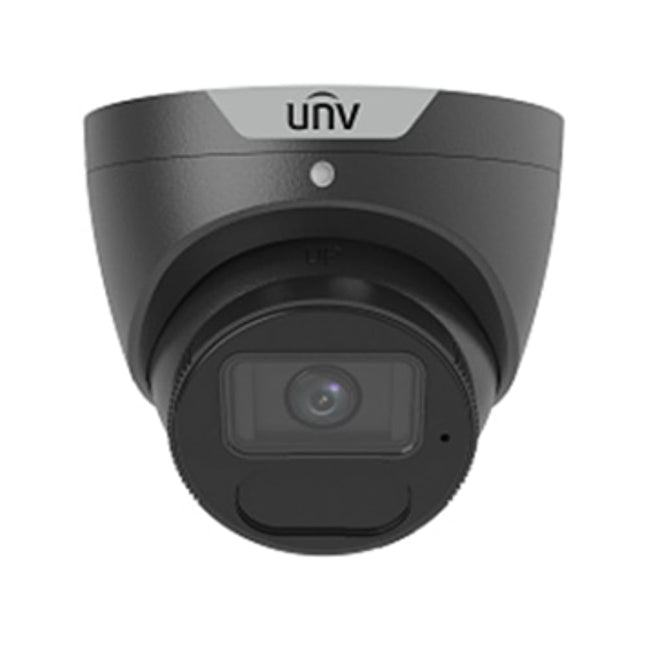

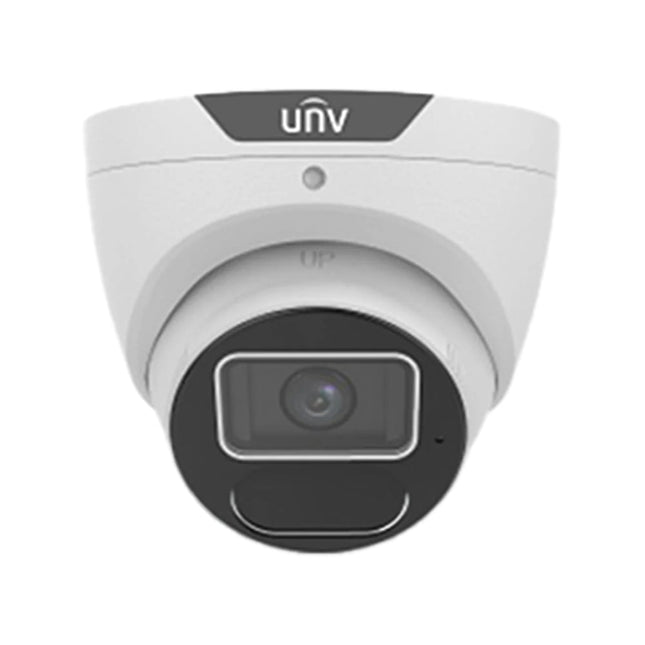

Uniview UNV IPC3616SS-ADF28K-I1 6MP LightHunter IR Fixed Eyeball Network Camera
Brand: Uniview UNVSKU: IPC3616SS-ADF28K-I1
Product Overview
The Uniview UNV IPC3616SS-ADF28K-I1 is a 6MP HD Intelligent LightHunter IR Fixed Eyeball Camera designed for professional surveillance. Featuring a high-performance 1/2.7" CMOS sensor, 130dB WDR, and LightHunter technology, it delivers superior image quality even in low light conditions. With intelligent perimeter protection, face capture, and crowd density monitoring, this camera ensures accurate security monitoring for business and residential applications.
Key Features
6MP resolution (3072x2048) at up to 25fps
1/2.7" CMOS progressive scan sensor
Ultra 265, H.265, H.264, MJPEG compression
130dB True WDR for clear imaging in strong light
Smart intrusion prevention with human & vehicle classification
Built-in mic for audio capture
Smart IR with up to 40m infrared range
IP67 weatherproof protection
Supports up to 256GB MicroSD card
People flow counting and crowd density monitoring
Specifications
Lens: 2.8mm fixed, F1.6
Horizontal FOV: 107.2°
Minimum Illumination: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR
IR Distance: Up to 40m (131ft)
Ingress Protection: IP67
Operating Conditions: -30°C to 60°C
Power: DC 12V ±25%, PoE (802.3af)
Power Consumption: Max 6.5W
Dimensions: Φ129 x 110mm
Weight: 0.43kg
More Information
Uniview UNV IPC3616SS-ADF28K-I1 DatasheetUniview UNV IPC3616SS-ADF28K-I1 User Manual

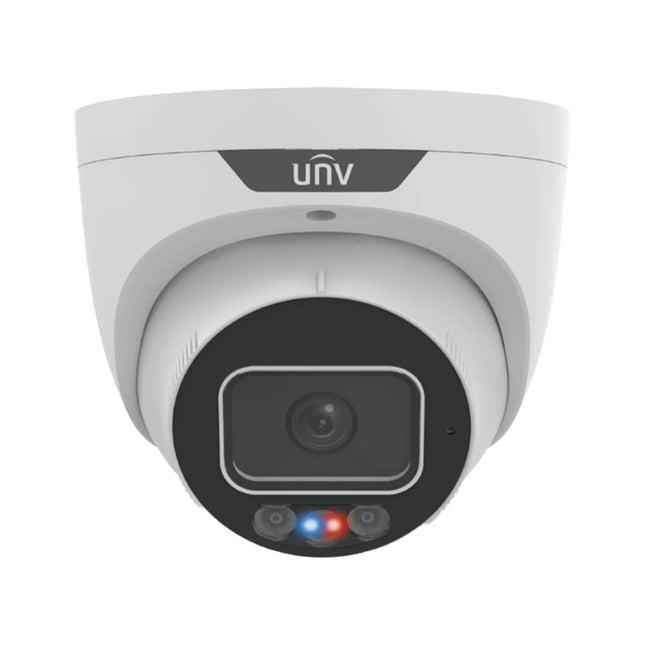

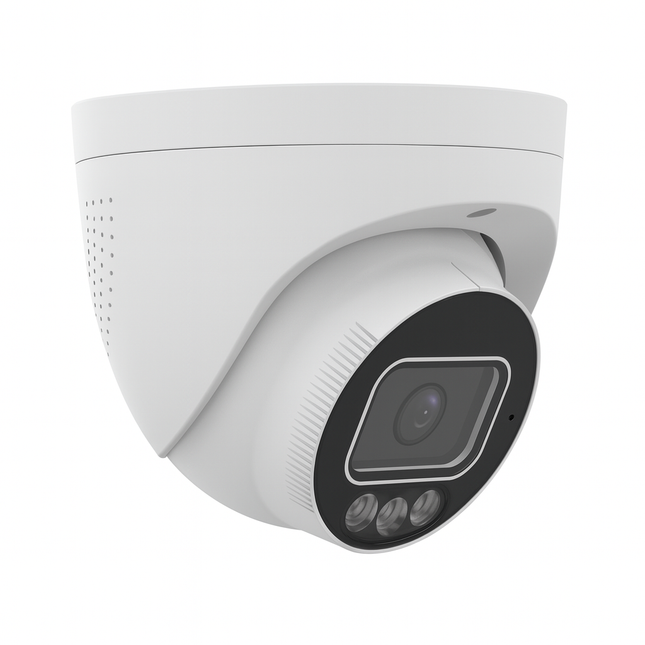

The Uniview UNV IPC3636SS-ADF28KMC-I1 is a high-performance 6MP security solution from the elite Prime Series. Featuring Tri-Guard technology, this camera integrates Smart Intrusion Prevention (SIP), ColourHunter for 24/7 vivid colour, and Active Deterrence to proactively stop intruders. With 6MP resolution, you capture significantly more detail than standard 4MP cameras, making it the perfect choice for high-stakes Australian surveillance.
Tri-Guard Proactive Security Features
6MP Ultra-HD Resolution: High-quality 2880 x 1620 imaging at 30fps for crystal-clear video evidence and superior digital zoom.
Red & Blue Active Deterrence: "Police-style" red and blue flashing lights and a high-decibel audible siren trigger automatically to ward off trespassers.
ColourHunter 24/7 Technology: An F1.0 super-aperture lens and 30m warm light distance ensure full-colour images even in total darkness—no more grainy black and white.
Smart Intrusion Prevention (SIP): Deep-learning AI filters false alarms from birds, leaves, and rain, focusing strictly on humans and vehicles to minimise nuisance alerts.
Full Two-Way Audio: Built-in sensitive microphone and high-power speaker for real-time talk-back and customisable voice warnings via the EZView app.
130dB True WDR: Perfect image balance in high-contrast lighting, such as harsh Australian afternoon sun or dark garage entries.
Technical Specifications
Model / SKU
IPC3636SS-ADF28KMC-I1
Resolution
6MP (2880 x 1620) @ 30fps
Lens / FOV
2.8mm @ F1.0 (109° Wide Angle)
Night Performance
24/7 Full Colour Night Vision (30m)
Storage Support
MicroSD Slot up to 256GB
Ingress Protection
IP67 Weatherproof (Metal Body)
CCTV Guru Professional Verdict:
The IPC3636SS-ADF28KMC-I1 is our top-selling active deterrence camera. The 6MP sensor strikes the perfect balance between high-detail evidence and efficient storage usage. We recommend this for front porches, loading docks, and retail entry points where preventing a crime is just as important as recording it.
More Information
Uniview UNV IPC3636SS-ADF28KMC-I1 Datasheet
Uniview UNV Camera Quick Start Guide
Uniview UNV Camera User Manual
Dahua DH-IPC-HFW3649T1-AS-PV-ANZ-S2 6MP TiOC 3.0 Active Deterrence Bullet Network Camera with 2.8mm Fixed Lens, Built-in Mic & Speaker, Siren Alarm, WDR, Micro SD, IP67, PoE and Support AcuPick
White SKU: DH-IPC-HFW3649T1-AS-PV-ANZ-S2Black SKU: DH-IPC-HFW3649T1-AS-PV-ANZ-S2-BLK
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), AcuPick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens alsoallow the camera to produce clear, vivid images even in poor lighting conditions.
What is AcuPick?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Features
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 6 MP (3072 x 2048) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms
Specifications
Dahua AcuPick Network Camera
Megapixels
6MP
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
Dahua IPC-HFW3649T1-AS-PV-ANZ-S2 Datasheet Dahua Bullet Network Camera_Quick Start Guide_V1.0.2 Dahua Network Camera Web 3.0_Operation Manual_V2.1.8 Bullet Network Camera Installation Guide_V1.0.0 Dahua Network Camera Web 5.0_Operation Manual_V1.2.1
Hikvision 8MP Smart Hybrid Light ColorVu Mini Bullet Camera DS-2CD2087G2H-LIU/SL with Live-Guard – Microphone & Speaker, Alarm & Strobe Light, IR 40m
The Hikvision 8MP Smart Hybrid ColorVu Mini Bullet Camera combines 4K clarity, ColorVu full-colour night vision, Smart Hybrid Light, and active deterrence features in a compact bullet design. It supports both infrared (IR) and white light illumination with automatic switching based on real-time conditions.
This powerful camera includes a built-in microphone, speaker, strobe light, and siren alarm, making it ideal for proactive intrusion deterrence. It also features AI-based smart detection for human and vehicle filtering, reducing false alerts. The 2.8mm wide-angle lens provides broad coverage, while the IP67 weatherproof housing ensures reliable outdoor performance.
Features
High quality imaging with 8 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Downloads
2CD2087G2H-LIU/SL DatasheetHikvision Min Bullet Quick Start GuideHikvision Camera User Manual
Hikvision 6MP Smart Hybrid Light ColorVu Motorised Bullet Camera with 2.8-12mm Varifocal Lens, Microphone and 60m IR
The Hikvision DS-2CD2667G2HT-LIZS is a high-performance 6MP bullet network camera designed for advanced security applications. Equipped with Smart Hybrid Light technology, it intelligently switches between infrared and white light to ensure optimal image clarity in varying lighting conditions. The ColorVu feature delivers vivid, full-color imaging even in low-light scenarios, enhancing detail recognition and overall security.
This camera incorporates a motorised 2.8–12mm varifocal lens, allowing for flexible field of view adjustments to suit different monitoring needs. With a 60-meter IR range, it ensures clear visibility over extended distances. Advanced deep learning algorithms enable accurate human and vehicle classification, reducing false alarms and improving monitoring efficiency.
Built to withstand challenging environments, the DS-2CD2667G2HT-LIZS boasts an IP67-rated weatherproof and IK10-rated vandal-resistant housing, making it suitable for both indoor and outdoor installations.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
Technical Specifications
Image Sensor: 1/1.8” Progressive Scan CMOS
Minimum Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Speed: 1/3 s to 1/100,000 s
Lens: 2.8–12mm motorised varifocal lens
Field of View: Horizontal: 108°–34°, Vertical: 56°–19°
Day/Night Mode: IR Cut Filter with Smart Hybrid Light
Video Compression: H.265+/H.265/H.264+/H.264
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Input: Built-in microphone
Ingress Protection: IP67
Vandal Resistance: IK10
Power Supply: 12 VDC ±25%, PoE (802.3af, class 3)
Power Consumption: Maximum 8.5 W
Operating Conditions: -30°C to 60°C (-22°F to 140°F), humidity ≤95% (non-condensing)
Dimensions: Ø 138.3 mm × 125.2 mm (Ø 5.4” × 4.9”)
Weight: Approximately 820 g (1.81 lb)
Downloads
2CD2667G2HT-LIZS DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual
Hikvision 6MP Smart Hybrid Light ColorVu Bullet Camera DS-2CD2T67G2H-LISU/SL with Live-Guard – Mic & Speaker, Strobe Light & Alarm, Fixed 2.8mm Lens
The Hikvision 6MP Smart Hybrid ColorVu Bullet Camera is a powerful outdoor IP camera combining full-colour night vision, infrared (IR) up to 60m, strobe light, and two-way audio in one smart deterrence system.
Equipped with a 2.8mm wide-angle lens, built-in microphone and speaker, and AI-based human/vehicle detection, this camera delivers crystal-clear 6MP footage day and night. It intelligently switches between ColorVu white light and IR mode, depending on the scene, and provides a strobe light for active intrusion warnings.
Perfect for driveways, shopfronts, warehouses, and perimeters that need recorded audio, smart alerts, and visible deterrence.
Features
High quality imaging with 6 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Audio and alarm interface available
Water and dust resistant (IP67)
Downloads
2CD2T67G2H-LISU-SL DatasheetHikvision Security Cameara Quick Start GuideHikvision Camera User Manual
HiLook IPC-B261H-MU(2.8mm) 6MP AI Fixed Bullet Network Camera
The HiLook IPC-B261H-MU(2.8mm) is a 6MP AI fixed bullet network camera designed for advanced surveillance needs. It delivers high-resolution 3200×1800 imaging with efficient H.265+ compression, ensuring clear video with reduced bandwidth. The camera features 120 dB WDR for excellent visibility in challenging lighting, and AI-powered human and vehicle classification enhances security monitoring. Equipped with a built-in microphone, it supports real-time audio capture. Its IP67 rating guarantees reliable operation in harsh environments. The 2.8mm fixed lens offers a wide field of view, while flexible angle adjustments enable precise positioning.
Features
High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120 dB WDR technology
Focusing on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Resolution: 3200 × 1800
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8 mm
Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
DORI
DORI: 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream: 50 Hz: 20 fps (3200 × 1800), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 960×540, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
Built-In Microphone: -U: Yes
Reset Key: Yes
Download
Data Sheet
Hikvision 6MP AcuSense Mini Fixed Bullet DS-2CD2066G2-I, 30m IR (2066) security comes with 2.8mm, 4mm and 6mm
Enhance your security with Hikvision 6MP AcuSense Mini Fixed Bullet DS-2CD2066G2-I. Its 6 MP resolution provides high quality imaging, while the powered-by-DarkFighter technology ensures excellent low-light performance. With efficient H.265+ compression technology and 120 dB true WDR technology, this camera delivers clear imaging against strong back light. It also features built-in microphone for real-time audio security, and is water and dust resistant (IP67). Choose from 2.8mm, 4mm, and 6mm lens options to focus on human and vehicle targets classification based on deep learning.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
No Audio
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-I DatasheetDS-2CD2066G2-I Quick Start GuideDS-2CD2066G2-I User Manual
Hikvision DS-2CD2566G2-IS – Compact 6MP AcuSense Mini Dome Network Camera
The Hikvision DS-2CD2566G2-IS is a 6MP AcuSense mini dome network camera offering compact form, intelligent detection, and powerful performance. Ideal for both indoor and outdoor surveillance, it features a 2.8mm fixed lens, smart IR up to 30 metres, and built-in microphone for clear audio capture.
Built with AcuSense technology, it provides accurate human and vehicle detection, reducing false alarms and increasing security accuracy. The camera is IP67 weatherproof and IK08 vandal-resistant, making it suitable for environments such as small businesses, elevators, corridors, and entrances.
Features
Resolution: 6MP (3072 × 2048) @ 20fps
Lens: 2.8mm Fixed – Wide coverage angle
IR Night Vision: Up to 30m Smart IR
Audio: Built-in Microphone for real-time recording
AcuSense: Human/Vehicle classification, line crossing & intrusion detection
WDR: 120dB True WDR for backlight handling
Storage: microSD/SDHC/SDXC slot (up to 512GB)
Video Compression: H.265+, H.265, H.264+, H.264
Weatherproof Rating: IP67
Vandal Resistance: IK08 rated dome housing
Power: 12V DC ±25%, or PoE (802.3af)
Operating Temp: -30°C to 60°C
Specifications
Mini Dome IP Camera
AcuSense Series
1/2.4" Progressive Scan CMOS
High sensitivity
6MP (3072 × 2048)
Up to 20fps
2.8mm Fixed
Wide-angle view
Horizontal: 102.2°, Vertical: 55.6°
Diagonal: 120.5°
Up to 30m
Smart IR for night vision
120dB
Wide Dynamic Range
Built-in Microphone
Real-time recording
AcuSense Technology
Human/Vehicle classification, intrusion, line crossing
H.265+/H.265/H.264+/H.264
Efficient bandwidth usage
microSD/SDHC/SDXC
Up to 512GB
IP67
Weatherproof
IK08
Anti-tamper design
12V DC ±25% or PoE (802.3af)
Flexible installation
-30°C to +60°C
Indoor/Outdoor use
110 mm × 92 mm
Compact form factor
Downloads
DS-2CD2566G2-IS DatasheetHikvision Mini Dome Quick Start GuideHikvision Mini Dome User Manual
Hikvision DS-2CD2366G2-ISU/SL – 6MP AcuSense Turret IP Camera with Strobe Light, Siren & Audio
The Hikvision DS-2CD2366G2-ISU/SL is a powerful 6MP turret IP camera designed to deliver proactive deterrence and intelligent security. Featuring AcuSense technology, it can accurately distinguish between humans and vehicles, significantly reducing false alerts.
With a built-in strobe light and siren, this camera is ideal for real-time deterrence. It also includes a microphone and speaker for two-way audio, allowing remote communication through your surveillance system. Its IP67-rated metal housing ensures reliable performance in harsh outdoor environments.
Features
Image Sensor: 1/2.4” Progressive Scan CMOS
Smart Detection: AcuSense with human and vehicle classification
Proactive Deterrence: Built-in strobe light and audible siren
Audio: Two-way audio with microphone and speaker
Resolution: 6MP (3072 × 2048 @ 20fps)
Lens: 2.8mm Fixed Lens
Night Vision: Up to 30m IR with Smart IR
Construction: Metal housing
Weather Rating: IP67 for outdoor use
Storage: Supports microSD/SDHC/SDXC (up to 512GB)
Compression: H.265+/H.265/H.264+/H.264
Power Supply: 12V DC ±25% or PoE (802.3af)
Operating Conditions: -30°C to +60°C
DS-2CD2366G2-ISU/SL – Key Specifications
Model
DS-2CD2366G2-ISU/SL
Camera Type
Fixed turret network camera
Image Sensor
1/2.4" Progressive Scan CMOS
Effective Pixels
6 MP (3200 × 1800)
Lens
2.8 mm fixed lens
Field of View
Horizontal: 97°, Vertical: 51°, Diagonal: 114°
Minimum Illumination
0.003 Lux @ (F1.6, AGC ON); 0 Lux with IR
WDR
120 dB True WDR
Day/Night Function
IR cut filter with auto switch
IR Range
Up to 30m EXIR 2.0
Smart Features
AcuSense (Human & Vehicle Detection), Motion Detection, Tampering Alarm
Audio
Built-in microphone & speaker (two-way audio support)
Alarm Interface
1 input / 1 output
Strobe/Audio Alert
Yes – configurable visual & audible warning
Video Compression
H.265+, H.265, H.264+, H.264, MJPEG
Max Frame Rate
20 fps (3200 × 1800), 25/30 fps at lower resolutions
Onboard Storage
microSD/SDHC/SDXC slot (up to 256 GB)
Network Interface
1 × RJ-45 10M/100M Ethernet port
Protocols Supported
TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, FTP, NTP, SMTP, SNMP, IGMP, etc.
Operating Conditions
-30°C to +60°C (-22°F to +140°F), Humidity ≤95% (non-condensing)
Weatherproof Rating
IP67 (dust & waterproof)
Vandal Protection
Not rated for IK vandal resistance (turret design)
Power Supply
12V DC ±25%, or PoE (802.3af)
Power Consumption
Max. 7.5 W
Dimensions
Ø138.3 × 125.2 mm
Weight
Approx. 670 g
Downloads
DS-2CD2366G2-ISU/SL DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual
Dahua Security Camera 6MP WizSense Motorised Starlight Dome, 2.7–13.5 mm, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, IK10, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human); face detection.
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HDBW3666RP-ZAS-AUS Datasheet 20220718Dahua Dome Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Uniarch 6MP Starlight Fixed Bullet Network Camera, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 50M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB05-B-IN, Pole mount TR-UP06-C-IN
High-quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048)@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-B1E6-AF28K 6MP HD Fixed Bullet Network Camera Datasheet V1.1Uniarch Network Camera User Manual-V1.00
The Dahua IPC-HDW3649H-AS-PV-PRO-ANZ is the flagship 6MP turret in the TiOC (Three-in-One Camera) lineup. While standard models offer great security, the Pro Series is engineered for high-performance low-light environments and advanced forensic searching via AcuPick AI.
Pro vs. Standard: What is the difference?
Many retailers sell the S2 (Standard) version, but here is why the PRO-ANZ model is the superior choice:
Larger Sensor: The Pro features a 1/1.8" CMOS sensor, which is physically larger than the 1/2.7" sensor in the S2. This means significantly cleaner images and less "motion blur" at night.
Superior Lens: Equipped with an F1.0 Super Aperture lens, the Pro pulls in nearly double the light of the S2 (F1.4), maintaining vivid colour in near-pitch-black conditions.
Advanced AI (AcuPick): Only the Pro series fully leverages AcuPick technology for high-speed target searching across your entire NVR system.
Processing Power: The Pro model has higher RAM (2GB) and ROM (256MB) for faster AI analytics and smoother high-bitrate streaming.
Core TiOC 3.0 Features
Active Deterrence: Built-in Red & Blue flashing "Police-style" lights and a 110dB siren proactively stop intruders before they reach your door.
Smart Dual Light: Intelligently switches from discreet IR to Warm LED "Full-Colour" mode only when a human or vehicle is detected.
Two-Way Talk: Enhanced "VoiceCatcher" dual-mic array and high-power speaker for crystal-clear remote communication via the DMSS app.
SMD 4.0: Smart Motion Detection 4.0 reduces false alarms from pets, rain, and trees by 99%, focusing only on real threats.
Full Technical Specifications
Feature
IPC-HDW3649H-AS-PV-PRO-ANZ
Image Sensor
1/1.8" Progressive Scan CMOS (Pro Grade)
Max. Resolution
6MP (3288 × 1850) @ 25/30 fps
Min. Illumination
0.0005 Lux @ F1.0 (Color, 30 IRE)
Lens / Aperture
2.8mm Fixed Focal / F1.0 Super Aperture
Field of View
Horizontal: 109°; Vertical: 58°; Diagonal: 131°
Illumination
IR (30m) + Warm Light (30m) - Smart Dual Light
AI Intelligence
AcuPick, SMD 4.0, IVS (Tripwire & Intrusion), AI SSA
Audio Interface
Built-in Dual Mic + Built-in Speaker
Alarm I/O
1 Channel In / 1 Channel Out
Storage
MicroSD Card Slot (Up to 512GB), FTP, SFTP, NAS
Casing / Protection
Full Metal Body / IP67 Weatherproof
Frequently Asked Questions
Is this an official Australian (ANZ) model?Yes. This is the genuine -ANZ model. It includes local firmware that is compatible with Australian NVRs and provides full local warranty support.
What is AcuPick?AcuPick is a smart search technology that allows you to click on a person or vehicle in your footage and instantly find every other time they appeared on any of your cameras. It is 90% faster than manual searching.
This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Can I use this without an NVR?Yes. You can use this camera as a standalone device by inserting a MicroSD card and using the Dahua DMSS mobile app for live viewing and notifications.
More Information
Download Datasheet
Quick Installation Guide
The Uniview UNV IPC2B16SE-ADF28KMC-WP-I1 is a professional 6MP OwlView Plus Tri-Guard fixed bullet IP camera designed for long-range, full-colour surveillance and intelligent analytics. Featuring a 1/1.8″ CMOS sensor, F1.0 large-aperture 2.8 mm lens, and ColorHunter with Wise-ISP, it delivers clear, vibrant images even in extremely low-light environments.
This model combines dual-light illumination (IR + warm white light) with advanced AI-based intrusion prevention, people flow counting, and crowd density monitoring, dramatically reducing false alarms by accurately classifying humans, vehicles, and non-motor vehicles. With IK10 vandal resistance, IP67 weatherproofing, NEMA 4X protection, and NDAA compliance, it is ideal for demanding commercial, industrial, and government installations.
Key Features & Highlights
6MP High Resolution – 3072 × 2048 @ up to 30 fps
2.8 mm Fixed Wide-Angle Lens, F1.0 aperture
ColorHunter + Wise-ISP – 24/7 full-colour images
Tri-Guard Dual-Light – Smart IR + warm light, up to 40 m
130 dB True WDR – Excellent backlight handling
AI Smart Intrusion Prevention – Human / vehicle / non-motor classification
People Flow Counting & Crowd Density Monitoring
Built-in Dual Microphones & Speaker – Two-way audio
Alarm I/O 1/1, Audio I/O 1/1
microSD Edge Storage up to 512 GB
IK10, IP67, NEMA 4X – Vandal-resistant & outdoor-ready
Ultra 265 / H.265 / H.264 / MJPEG compression
PoE (IEEE 802.3af) or 12 V DC power
NDAA Section 889 compliant
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC2B16SE-ADF28KMC-WP-I1
Camera Type
6MP OwlView Plus Tri-Guard Fixed Bullet IP Camera
Image Sensor
1/1.8" Progressive CMOS
Maximum Resolution
6MP (3072 × 2048) @ 30 fps
Lens
2.8 mm Fixed Lens, F1.0
Field of View
H: 111.0° / V: 61.4° / D: 133.0°
Minimum Illumination
0.0003 Lux (Colour, F1.0, AGC ON)
Illumination
Dual-light: IR + Warm Light, up to 40 m
WDR
130 dB True WDR
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
AI Analytics
Line crossing, intrusion, enter/leave area, people counting, crowd density
Audio
Built-in dual mic & speaker, Audio I/O 1/1
Alarm I/O
1 / 1
Edge Storage
microSD up to 512 GB
Network Interface
1 × RJ45 10/100 Mbps Ethernet
Power
PoE (IEEE 802.3af) / DC 12 V
Power Consumption
Max. 5.0 W
Protection Rating
IP67, IK10, NEMA 4X
Operating Temperature
-40 °C to 60 °C
Compliance
NDAA Section 889 compliant
Recommended Applications
Retail & shopping centres (people counting)
Warehouses & logistics facilities
Car parks & perimeter security
Commercial & industrial sites
Government & NDAA-required projects
More Information
Uniview UNV IPC2B16SE-ADF28KMC-WP-I1 Datasheet Uniview UNV IPC2B16SE Series User Manual
The Uniview UNV IPC3636SE-ADZKMC-WP-I1 is a professional-grade 6MP Tri-Guard turret network cameradesigned for high-risk and high-value surveillance environments. Powered by ColorHunter with Wise-ISP, it delivers 24/7 full-colour imaging, even in ultra-low-light scenes.
This model features a motorised 2.8–12 mm varifocal lens, dual-light illumination (IR + warm light), and advanced AI analytics, including people flow counting, crowd density monitoring, and intelligent perimeter protection with human and vehicle classification.
Key Features
6MP (3072 × 2048) resolution at up to 30fps
1/1.8” CMOS sensor with F1.2 large-aperture lens
ColorHunter + Wise-ISP for 24-hour full-colour images
Motorised varifocal lens: 2.8–12 mm
Tri-Guard dual-light system (IR + warm white light, up to 30 m)
130 dB True WDR for strong backlight scenes
Intelligent perimeter protection with human / vehicle classification
People flow counting & crowd density monitoring
Built-in dual microphone and speaker (two-way audio)
Alarm I/O 1/1, Audio I/O 1/1
microSD support up to 512 GB
IK10 vandal-resistant, IP67, NEMA 4X rated
Ultra 265 / H.265 / H.264 / MJPEG compression
ONVIF Profile S / G / T / M support
NDAA compliant
Technical Specifications
Model
IPC3636SE-ADZKMC-WP-I1
Resolution
6MP (3072 × 2048)
Image Sensor
1/1.8" CMOS
Minimum Illumination
0.0005 Lux (F1.2, AGC ON)
Lens
Motorised varifocal 2.8–12 mm, F1.2
Field of View (H)
113.5° – 54.6°
WDR
130 dB True WDR
Illumination
Dual-light (IR + Warm Light)
Light Distance
IR: 30 m / Warm Light: 30 m
Video Compression
Ultra 265, H.265, H.264, MJPEG
AI Functions
Perimeter protection, people counting, crowd density
Audio
Built-in mic & speaker, 2-way audio
Alarm I/O
1 In / 1 Out
Edge Storage
microSD up to 512 GB
Network
RJ45 10/100 Mbps Ethernet
Power
DC 12 V ±25% / PoE (802.3af)
Power Consumption
Max. 5 W
Protection Rating
IP67, IK10, NEMA 4X
Material
Metal
Operating Temperature
-40 °C to +60 °C
Dimensions
Ø129 × 110 mm
Weight
0.85 kg
Compliance
NDAA Compliant
IDEAL APPLICATIONS
Retail analytics & people counting
Shopping centres & supermarkets
Warehouses & logistics hubs
Schools, campuses & hospitals
Commercial car parks & perimeters
NDAA-compliant government projects
More Information
Uniview UNV IPC3636SE-ADZKMC-WP-I1 Datasheet Uniview User Manual – IPC3636SE Series
The Uniview UNV IPC3636SE-ADF28KMC-WP-I1 is a professional-grade 6MP OwlView Plus Tri-Guard fixed turret IP camera designed for high-accuracy, full-colour surveillance day and night.
Equipped with a 2.8 mm F1.0 large-aperture lens, ColorHunter with Wise-ISP, and dual-light illumination (IR + warm light), this camera delivers exceptional clarity even in near-dark conditions.
Advanced AI-powered intrusion prevention, people flow counting, and crowd density monitoring significantly reduce false alarms by accurately classifying humans, vehicles, and non-motor vehicles. With IK10 vandal resistance, IP67 weatherproofing, and NEMA 4X protection, this camera is ideal for demanding commercial and outdoor environments.
Key Features
6MP High-Resolution Imaging – Up to 3072 × 2048 @ 30 fps
2.8 mm Fixed Lens (Wide Angle) – 111° horizontal field of view
F1.0 Large Aperture – Superior low-light performance
ColorHunter + Wise-ISP – 24/7 full-colour images
Tri-Guard Dual-Light – Smart IR + warm white light up to 30 m
130 dB True WDR – Excellent performance in strong backlight scenes
AI Intrusion Prevention – Human / vehicle / non-motor classification
People Counting & Crowd Density Monitoring
Built-in Dual Microphone & Speaker – Two-way audio support
MicroSD Support up to 512 GB – Edge recording & ANR/NAS support
IK10 + IP67 + NEMA 4X – Vandal-resistant & outdoor-ready
PoE (802.3af) – Single-cable installation
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC3636SE-ADF28KMC-WP-I1
Camera Type
6MP OwlView Plus Tri-Guard Fixed Turret IP Camera
Image Sensor
1/1.8" Progressive CMOS
Maximum Resolution
6MP (3072 × 2048) @ 30fps
Lens
2.8mm Fixed Lens, F1.0
Field of View
H: 111.0° / V: 61.4° / D: 133.0°
Minimum Illumination
0.0003 Lux (Color, F1.0, AGC ON)
Illumination
IR + Warm Light, up to 30 m
WDR
130 dB True WDR
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
AI Analytics
Line crossing, intrusion, enter/leave area, people counting, crowd density
Audio
Built-in dual-mic & speaker, Audio I/O 1/1
Alarm I/O
1 / 1
Edge Storage
MicroSD up to 512 GB
Network Interface
1 × RJ45 10/100 Mbps Ethernet
Power
PoE (IEEE 802.3af) / DC 12 V
Protection Rating
IP67, IK10, NEMA 4X
Operating Temperature
-40 °C to 60 °C
Material
Metal Housing
Recommended Applications
Commercial buildings & offices
Retail stores & shopping centres
Warehouses & logistics facilities
Schools & education campuses
Perimeter and outdoor surveillance
High-risk vandal-prone areas
More Information
UNV IPC3636SE-ADF28KMC-WP-I1 Datasheet
UNV Camera Quick Start Guide
The Uniview UNV IPC326SS-ADF28K-I1 is a 6MP Intelligent LightHunter fixed dome network camera designed for demanding indoor and outdoor surveillance applications.
Powered by LightHunter technology and a 1/2.7″ CMOS sensor, this camera delivers excellent low-light performance with sharp detail and accurate colour reproduction.
With 130 dB true WDR, advanced AI-based intrusion detection, and people flow counting, the IPC326SS-ADF28K-I1 provides reliable monitoring in environments with strong backlight, heavy foot traffic, or frequent false-alarm triggers.
Its IK10 vandal resistance and IP67 weatherproof rating make it suitable for public areas, retail, offices, schools, and commercial premises.
Key Features
6MP resolution (3072 × 2048) at up to 30fps
LightHunter technology for ultra-high image quality in low illumination
130 dB true WDR for strong backlight scenes
2.8mm fixed lens (F1.6) with wide viewing angle
Smart IR up to 40m with automatic IR control
AI intelligent perimeter protection
(line crossing, intrusion, enter/leave area with human/vehicle classification)
People flow counting & crowd density monitoring
Audio I/O 1/1 and Alarm I/O 1/1, built-in microphone
microSD edge storage up to 512GB
Ultra 265 / H.265 / H.264 / MJPEG compression
IK10 vandal resistant & IP67 weatherproof
PoE (IEEE 802.3af) or 12V DC power
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC326SS-ADF28K-I1
Camera Type
6MP Fixed Dome Network Camera
Image Sensor
1/2.7" CMOS
Maximum Resolution
6MP (3072 × 2048)
Lens
2.8mm fixed lens, F1.6
Field of View
H: 110°, V: 58.7°, D: 130°
Low Light Performance
0.002 lux (colour), 0 lux with IR on
WDR
130 dB true WDR
IR Illumination
Smart IR, up to 40m (850nm)
Video Compression
Ultra 265, H.265, H.264, MJPEG
AI Functions
Line crossing, intrusion, people counting, crowd density
Audio / Alarm
Audio 1 in / 1 out, Alarm 1 in / 1 out
Edge Storage
microSD up to 512GB
Network
1 × RJ45 10/100 Mbps Ethernet
Power
DC 12V ±25% or PoE (IEEE 802.3af)
Power Consumption
Max 6.5W
Protection Rating
IP67, IK10
Operating Temperature
-30°C to 60°C
Material
Metal
Dimensions
Ø111 × 83 mm
Weight
0.42 kg
More Information
IPC326SS-ADF28K-I1 Datasheet
UNV Camera User Manual
The Uniview UNV IPC3636SE-ADF28K-WP-I1 is a premium 6 MP OwlView Plus turret network cameraengineered for vivid 24/7 full-colour surveillance and advanced smart detection. Featuring Wise-ISP ColorHuntertechnology and a bright F1.0 2.8 mm wide-angle lens, this camera delivers rich, detailed footage in low-light conditions without sacrificing colour integrity. It supports Ultra 265/H.265/H.264/MJPEG compression, intelligent perimeter protection with false alarm filtering, people flow counting, and warm white light illumination up to ~30 m. With IK10, IP67, and NEMA 4X durability, plus support for microSD up to 512 GB, it’s ideal for retail, commercial, perimeter, and property monitoring.
Key Features
6 MP (3072×2048) high-resolution imaging with triple stream support.
ColorHunter + Wise-ISP for true full-colour day/night video.
Bright F1.0 2.8 mm wide-angle lens for broad coverage.
130 dB true WDR improves detail in high-contrast scenes.
Warm white light up to ~30 m for colour night visibility.
Smart perimeter protection: cross line, intrusion, enter/leave area with target classification and false alarm reduction.
People flow counting and crowd density analytics.
Smart IR / warm light day/night transition.
Audio & alarm I/O (1/1) with built-in mic.
Edge storage: microSD up to 512 GB (ANR/NAS).
Durability: IK10 impact, IP67 water/dust, NEMA 4X.
Power options: PoE (802.3af) or 12 V DC.
Specifications
Brand / Model (SKU)
Uniview UNV / IPC3636SE-ADF28K-WP-I1
Camera Type
OwlView Plus fixed turret
Max Resolution
6 MP (3072×2048)
Image Sensor
High-quality CMOS with ColorHunter + Wise-ISP
Lens
Fixed 2.8 mm, F1.0
Wide Dynamic Range
130 dB true WDR
Warm Light Distance
Up to ~30 m
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
Smart Analytics
Perimeter protection (line/intrusion/enter/leave), people count, crowd density
Audio & I/O
Audio I/O 1/1; built-in microphone; Alarm I/O 1/1
Edge Storage
microSD up to 512 GB; ANR/NAS
Protection
IP67, IK10, NEMA 4X
Power
PoE (802.3af) / 12 V DC
Recommended Use Cases
Retail & Hospitality – 24/7 full-colour evidence, excellent face and clothing detail under low light.
Car Parks & Perimeters – Wide 2.8mm view with warm white light (30m) for colour identification at night.
Offices & Warehouses – 130 dB WDR handles backlight; IK10/IP67/NEMA 4X suits harsh environments.
Schools & Public Spaces – People flow counting and crowd density analytics for safety and operations.
Residential (Premium) – Bright F1.0 lens with quiet illumination (white light) for clear night footage.
Pair With: Uniview UNV AI NVRs (Prime IQ series) to unlock advanced analytics, Smart Search, and efficient Ultra 265 storage.
More Information
IPC3636SE-ADF28K-WP-I1 DatasheetUNV PoE Camera Quick Start GuideUNV Network Camera User Manual
