Description

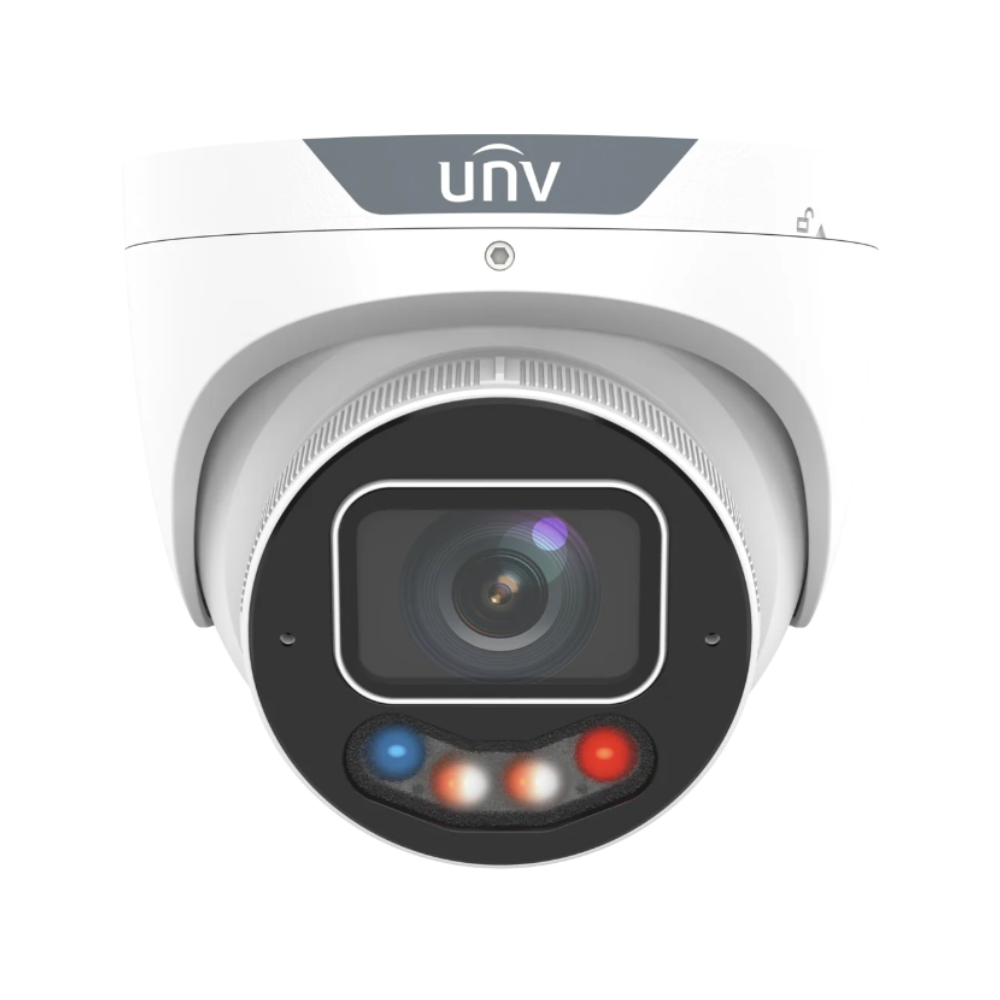

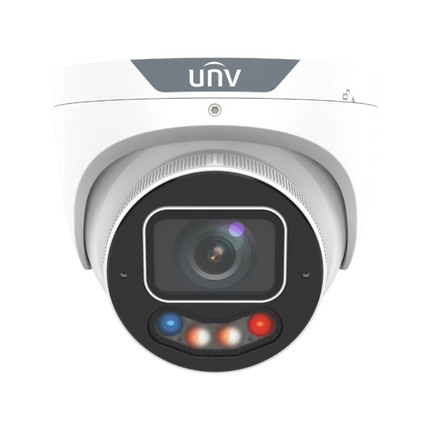

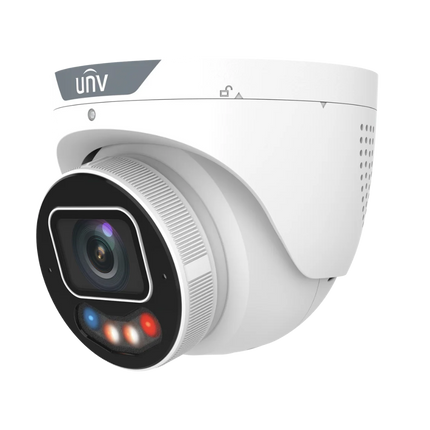

The Uniview UNV IPC3636SE-ADF28KMC-WP-I1 is a professional-grade 6MP OwlView Plus Tri-Guard fixed turret IP camera designed for high-accuracy, full-colour surveillance day and night.
Equipped with a 2.8 mm F1.0 large-aperture lens, ColorHunter with Wise-ISP, and dual-light illumination (IR + warm light), this camera delivers exceptional clarity even in near-dark conditions.
Advanced AI-powered intrusion prevention, people flow counting, and crowd density monitoring significantly reduce false alarms by accurately classifying humans, vehicles, and non-motor vehicles. With IK10 vandal resistance, IP67 weatherproofing, and NEMA 4X protection, this camera is ideal for demanding commercial and outdoor environments.
Key Features
-
6MP High-Resolution Imaging – Up to 3072 × 2048 @ 30 fps
-
2.8 mm Fixed Lens (Wide Angle) – 111° horizontal field of view
-
F1.0 Large Aperture – Superior low-light performance
-
ColorHunter + Wise-ISP – 24/7 full-colour images
-
Tri-Guard Dual-Light – Smart IR + warm white light up to 30 m
-
130 dB True WDR – Excellent performance in strong backlight scenes
-
AI Intrusion Prevention – Human / vehicle / non-motor classification
-
People Counting & Crowd Density Monitoring
-
Built-in Dual Microphone & Speaker – Two-way audio support
-
MicroSD Support up to 512 GB – Edge recording & ANR/NAS support
-
IK10 + IP67 + NEMA 4X – Vandal-resistant & outdoor-ready
-
PoE (802.3af) – Single-cable installation
Technical Specifications
| Brand |
Uniview UNV |
| Model / SKU |
IPC3636SE-ADF28KMC-WP-I1 |
| Camera Type |
6MP OwlView Plus Tri-Guard Fixed Turret IP Camera |
| Image Sensor |
1/1.8" Progressive CMOS |
| Maximum Resolution |
6MP (3072 × 2048) @ 30fps |
| Lens |
2.8mm Fixed Lens, F1.0 |
| Field of View |
H: 111.0° / V: 61.4° / D: 133.0° |
| Minimum Illumination |
0.0003 Lux (Color, F1.0, AGC ON) |
| Illumination |
IR + Warm Light, up to 30 m |
| WDR |
130 dB True WDR |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| AI Analytics |
Line crossing, intrusion, enter/leave area, people counting, crowd density |
| Audio |
Built-in dual-mic & speaker, Audio I/O 1/1 |
| Alarm I/O |
1 / 1 |
| Edge Storage |
MicroSD up to 512 GB |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Power |
PoE (IEEE 802.3af) / DC 12 V |
| Protection Rating |
IP67, IK10, NEMA 4X |
| Operating Temperature |
-40 °C to 60 °C |
| Material |
Metal Housing |
Recommended Applications
- Commercial buildings & offices
- Retail stores & shopping centres
- Warehouses & logistics facilities
- Schools & education campuses
- Perimeter and outdoor surveillance
- High-risk vandal-prone areas
