Description

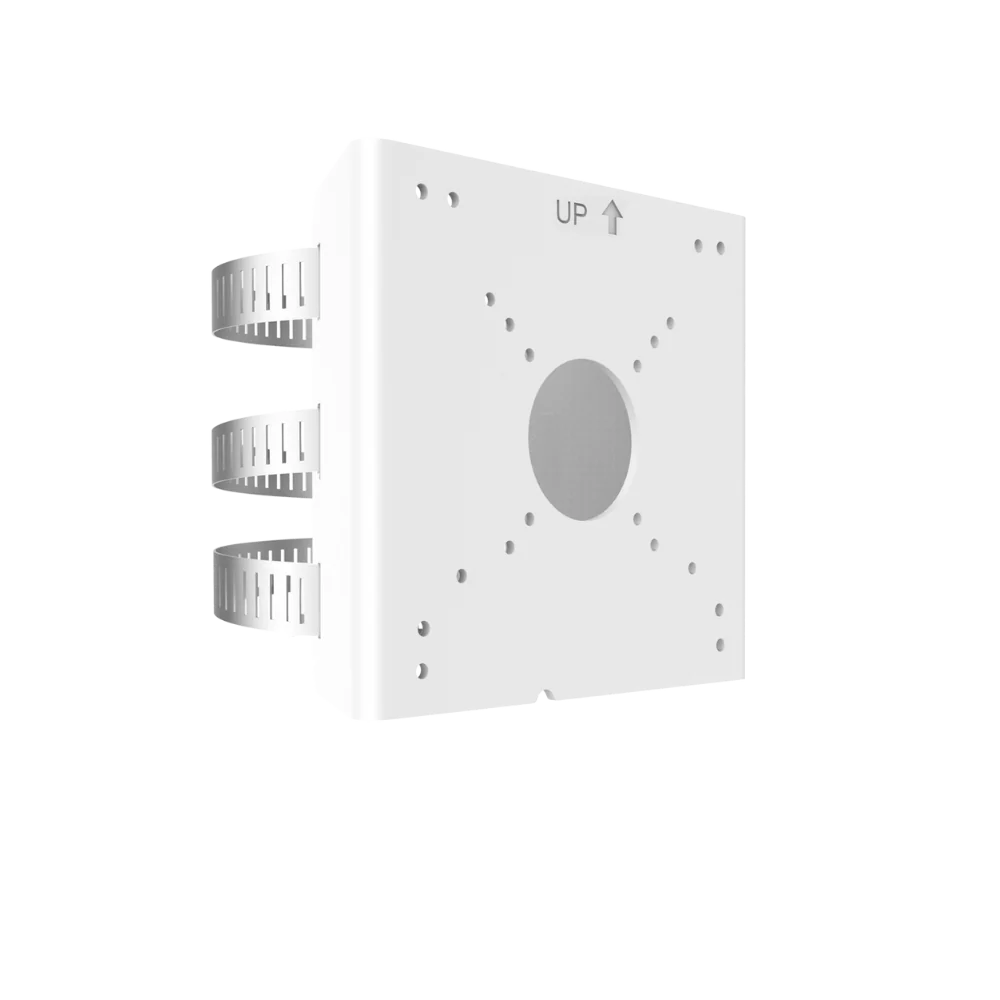

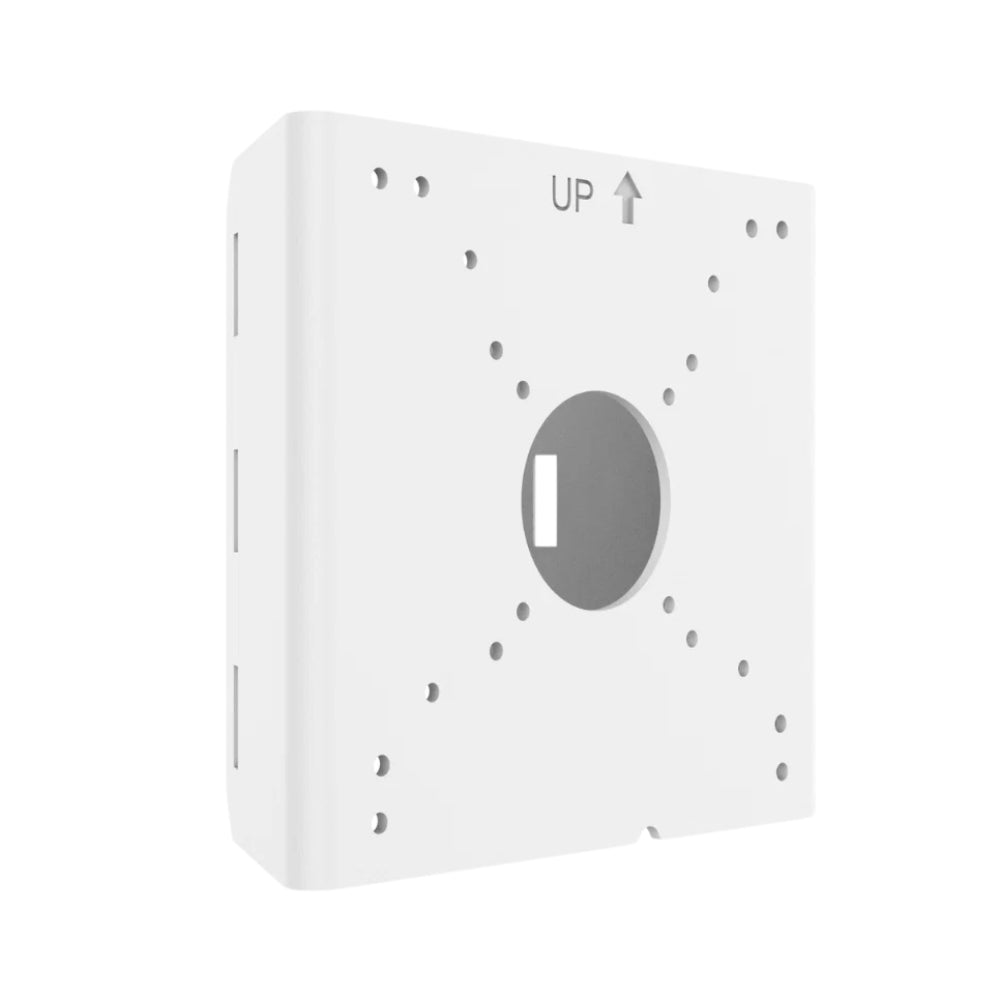

Uniarch Pole Mount Bracket for CCTV Cameras
The Uniarch Pole Mount Bracket provides a secure, clean way to install bullet or dome CCTV cameras on
round poles and columns. A rugged aluminum plate and stainless steel straps handle outdoor
conditions, while cable pass-throughs keep wiring neat for a professional finish.
Key Features
- Brand: Uniarch
- Mount type: Pole/column mount for bullet & dome cameras
- Adjustable pole diameter range: 67–127 mm
- Aluminum alloy plate with stainless steel banding
- Rear/side cable routing for tidy installs
- Outdoor-ready, corrosion-resistant materials

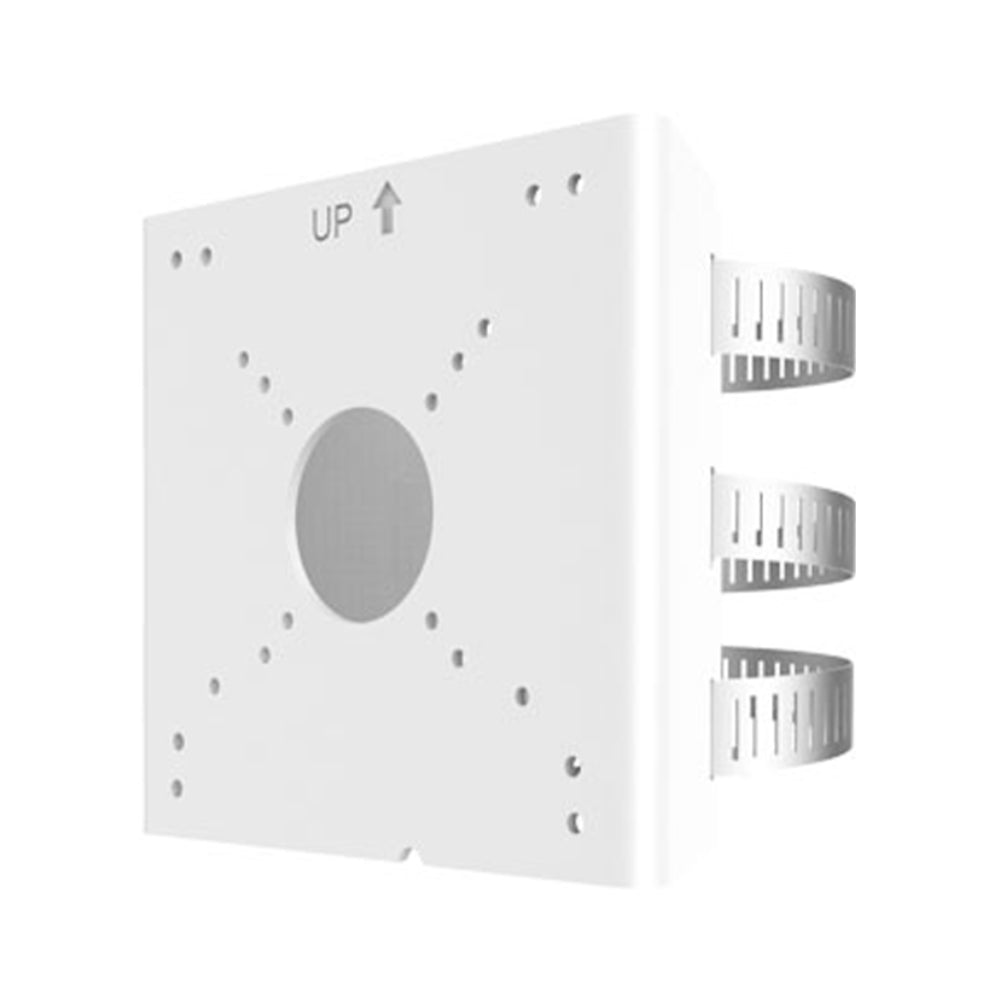

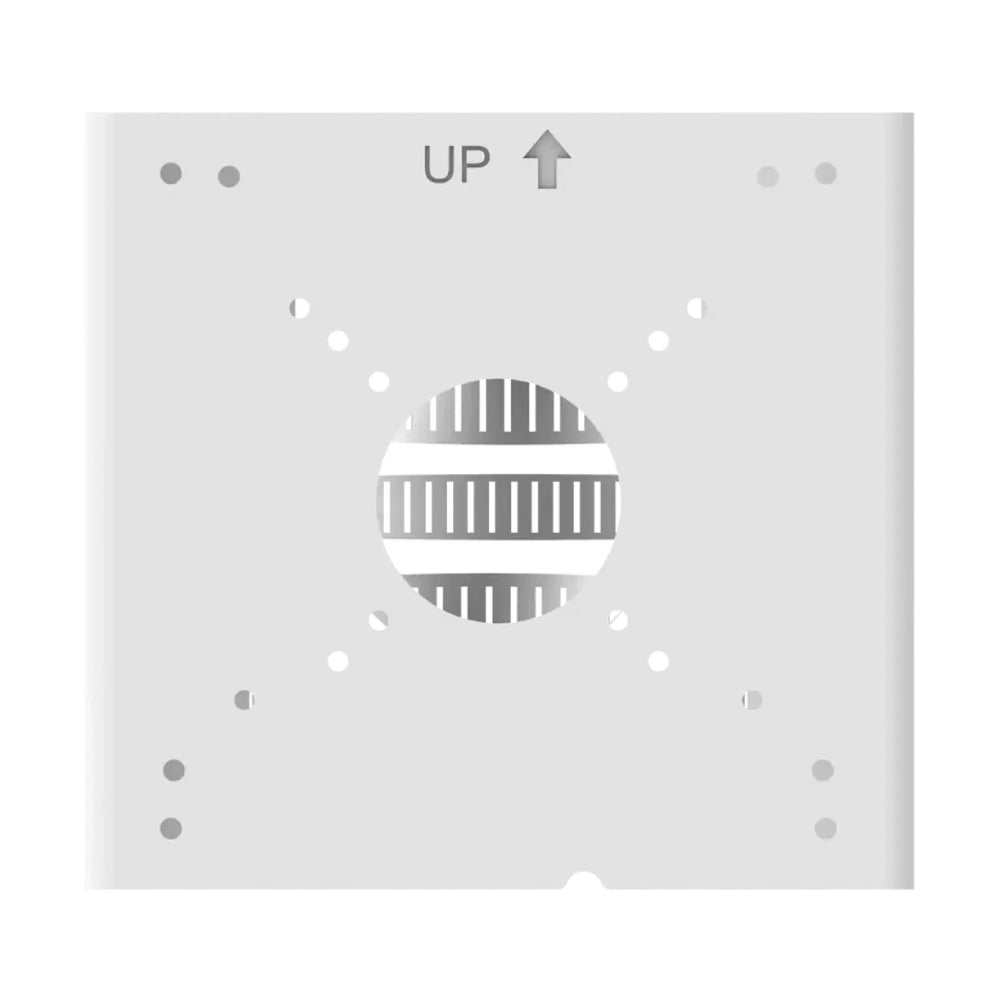

- Compatible hole pattern for common junction boxes
Technical Specifications
| Specification |
Details |
| Brand |
Uniarch |
| Product Type |
Pole/column mounting bracket |
| Camera Compatibility |
Uniarch/UNV bullet & dome bases (via compatible junction boxes) |
| Pole Diameter Range |
67–127 mm (adjustable stainless bands) |
| Material |
Aluminum alloy plate; stainless steel straps |
| Cable Management |
Rear/side pass-through to conceal wiring |
| Environment |
Outdoor/sheltered outdoor use |
| Finish/Color |
White (powder-coat) |
| Typical Applications |
Car parks, perimeter fencing, driveways, warehouses |
| In the Box |
Pole plate, 2× stainless straps, mounting screws |
What’s Included
- Uniarch pole mount plate
- Two stainless steel straps
- Mounting screws
Customer Requirements
- Compatible camera & junction box (if required by the camera base)
- RJ45 Cat6 cable if using PoE cameras
- Correct fasteners/tools for the pole type and height safety equipment
- Weatherproofing (gasket/sealant) where needed
Downloads
TR-UP06-C-IN Pole Mount Adapter V1.0
