Dahua WizColor Cameras

DAHUA TiOC PRO · 8 MP 4K · WIZCOLOR F1.0 · STROBE + SIREN + VOICE · ANZ DH-IPC-HDW3849H-AS-PV-PRO-ANZ 8 MP TiOC PRO WizColor AcuPick Turret — Australian Stock & 3-Year Warranty The Dahua DH-IPC-HDW3849H-AS-PV-PRO-ANZ is the PRO-tier 8 MP TiOC turret from Dahua's WizSense 3 range — the eyeball-form counterpart to the HFW3849 bullet, with the same premium 1/1.8″ sensor and F1.0 lens. Purpose-built for the Australian and New Zealand market with local firmware and a 3-year AU warranty. Available in White and Black at the same price. The PRO tier gathers roughly 2.5× more light than a standard F1.6 camera and resolves usable colour down to 0.0008 Lux — clean 4K colour footage on moonless suburban streets, in undercover carparks and across long dark driveways where lesser cameras would fall back to grainy IR. When the AI detects a person or vehicle, the multi-core LEDs fire up to 30 m warm light, the red/blue strobe activates, the 110 dB SPL speaker plays a voice warning, and the SMD 4.0 event log fires an alarm to your NVR — all in the split-second before an intruder can reach the front door. Dual built-in microphones + built-in speaker enable two-way audio through DMSS. WizSense 3 Pro AI runs on-camera Perimeter Protection with human/vehicle classification, SMD 4.0, face detection (full image), Lens Distortion Correction, AI Coding (~25% smaller files at same 4K quality) and AcuPick attribute search when paired with a Dahua 5-Series AcuPick NVR. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why the HDW3849H-AS-PV-PRO-ANZ PRO tier — 1/1.8″ sensor + F1.0 Larger 1/1.8″ CMOS and F1.0 aperture gathers ~2.5× more light than a standard 1/2.7″ F1.6 turret — usable colour at 0.0008 Lux, one of the industry's lowest ratings. Active deterrence — strobe + siren + voice On-camera red/blue strobe, siren and 110 dB SPL speaker with pre-loaded voice warnings. Triggers automatically the moment SMD 4.0 confirms a human or vehicle in the alarm zone. WizColor 24/7 full-colour Multi-core LEDs blend warm light + IR for 30 m warm light full-colour identification and 30 m IR stealth reach. Colour identification of clothing, plates and vehicles all night. WizSense 3 Pro AI + AcuPick On-camera Perimeter Protection (tripwire, intrusion) with human/vehicle classification, face detection, plus AcuPick attribute search when paired with a Dahua 5-Series AcuPick NVR. AI Coding + LDC AI Coding shrinks file sizes by ~25% at the same 4K image quality — longer NVR retention on the same drive. LDC auto-corrects wide-angle barrel distortion so straight walls stay straight. Turret form — discreet & low profile Compact Φ122 × 116 mm eyeball chassis sits flush under eaves and soffits. Available in White or Black to blend with any wall colour. Camera, lens & illumination Model DH-IPC-HDW3849H-AS-PV-PRO-ANZ (White) · DH-IPC-HDW3849H-AS-PV-PRO-ANZ-BLK (Black) Form factor TiOC PRO fixed-lens turret (HDW chassis, metal) Image sensor 1/1.8″ CMOS progressive (PRO-tier large format) Maximum resolution 3840 × 2160 (8 MP / 4K) Frame rate 8 MP @ 25/30 fps · 1080p @ 25/30 fps WDR 120 dB True WDR · HLC · BLC · 3D-NR · Defog · SSA Minimum illumination 0.0008 Lux @ F1.0 (Colour) · 0.0004 Lux @ F1.0 (B/W) · 0 Lux (with illuminator) Day / night Auto (ICR) / Colour / B&W Lens type Fixed focal, M16 mount, fixed iris Focal length 2.8 mm Maximum aperture F1.0 Field of view H: 109° · V: 59° · D: 131° DORI (2.8 mm) Detect 82 m · Observe 32.8 m · Recognise 16.4 m · Identify 8.2 m IR illumination Up to 30 m (multi-core LED) Warm-light illumination Up to 30 m (multi-core LED, WizColor) Smart Dual-Light / WizColor Yes — auto or manual switching for 24/7 full-colour TiOC active deterrence, Pro AI & audio Active deterrence Red/blue warning strobe · siren · voice broadcast (custom audio supported) Speaker Built-in speaker · 110 dB SPL @ 10 cm Two-way audio Yes (dual mic + speaker via DMSS) AI engine WizSense 3-Series (TiOC PRO / Pro AI) Perimeter Protection Tripwire · Intrusion (with human / vehicle classification) SMD SMD 4.0 AcuPick Yes — with a compatible Dahua 5-Series AcuPick NVR Face detection Yes (full image, snapshot + enhancement + one-inch photo) Lens Distortion Correction Yes (LDC on-camera) AI Coding Yes — ~25% additional compression efficiency Video compression AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · MJPEG (sub-stream) Streaming 3 streams · Main 3840×2160 · Sub 1920×1080 · Third 1920×1080 Video bitrate 3 – 16,384 kbps (16 Mbps) Built-in microphone Yes — dual mic Audio I/O 1 in / 1 out (RCA) Alarm I/O 1 in / 1 out Network port RJ-45 10/100 Base-T ONVIF Profile S, G, T · CGI · P2P · RTMP Storage microSD up to 512 GB · FTP / SFTP / NAS Mobile client DMSS · Smart PSS Lite · DoLynk Care (iOS / Android) Power, environment & build Power supply 12 VDC / PoE (802.3af) · ±30% wide voltage · dual-power backup Power consumption Basic 4.1 W (12 VDC) / 6 W (PoE) · Max 10 W (PoE) / 8.2 W (12 VDC) Operating temperature −40 °C to +60 °C Humidity ≤ 95% RH non-condensing Protection IP67 Casing Metal · White or Black Dimensions Φ 122.0 × 116.1 mm Net weight 0.8 kg Memory ROM 256 MB · RAM 2 GB Certifications CE-LVD (EN 62368-1) · CE-EMC (2014/30/EU) Australian warranty 3 years (via CCTV Guru) Best used for Premium residential frontage Discreet turret form under the front eave. Full-colour night vision + strobe + voice deterrence covers driveway, front door and letterbox from a single position. Retail & hospitality after-hours Overnight self-defence for shops, cafes and workshops. Voice broadcast warns off would-be thieves without needing a monitored alarm. Undercover carparks & loading docks 1/1.8″ sensor + F1.0 lens delivers clean colour where standard cameras go grainy. AcuPick makes vehicle-attribute review fast on a 5-Series NVR. Commercial perimeter (low light) Alpine-to-tropical −40 °C to +60 °C rating. IP67 metal build. Right pick for sites at the edge of street lighting where colour identification matters overnight. Pair with a Dahua 5-Series AcuPick NVR SMD 4.0, IVS rules, two-way audio and the full TiOC PRO deterrence chain all run on-camera — they work with any Dahua AI NVR or ONVIF third-party recorder. But to unlock AcuPick (attribute-based human and vehicle target search, similar-image cross-camera tracking, AI-accelerated playback), you need a compatible Dahua 5-Series AcuPick NVR. DHI-NVR5208-8P-AI/ANZ 8 channels · 8 built-in PoE · 1U compact — ideal for a single-home or small-business fleet of 4–8 TiOC PRO cameras. View NVR5208-8P → DHI-NVR5216-16P-AI/ANZ 16 channels · 16 PoE · dual HDD — the sweet-spot recorder for most residential and SMB Dahua TiOC fleets. View NVR5216-16P → DHI-NVR5432-16P-AI/ANZ 32 channels · 16 PoE · 4 HDD — standard for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P → DHI-NVR5432-AI/ANZ 32 channels · no built-in PoE — for sites running a separate managed PoE switch. Same AcuPick capability, more flexible network design. View NVR5432-AI → Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation. Compatible mounts & accessories Dahua PFA137 Waterproof Junction Box Recessed IP66 junction box for clean cable concealment on brick, render or weatherboard. White or black to match the camera. View product → Dahua PFB205W-E Wall Mount Bracket Purpose-built wall arm for soffit, eave and external-wall mounting. White or black. View product → Dahua PFA109 Mount Adapter Adapter for fitting the 3849H PRO turret onto Dahua wall and pole brackets. View product → WD Purple 256 GB Surveillance MicroSD Purpose-built for 24/7 surveillance read/write cycles — recommended edge-recording card for TiOC PRO turrets. View WD Purple 256 GB → Installation notes This SKU is the 2.8 mm version (109° wide). CCTV Guru does not stock the 3.6 mm variant — contact us for special-order pricing if you need a narrower field of view. The active deterrence chain can be armed/disarmed on a schedule via DMSS or the web UI — e.g. deterrence off during business hours, on overnight and weekends. Voice broadcast supports pre-loaded warnings; custom voice files upload via the web UI. Powered by PoE 802.3af or 12 VDC — max draw only 10 W. Fits any budget PoE switch or Dahua NVR PoE port. microSD up to 512 GB for edge recording. Recommended: endurance-rated card for 24/7 recording. Mount using the included base or a Dahua PFA109 adapter with PFB205W-E wall arm / PFA137 junction box for cable concealment. Frequently asked questions What does "PRO" mean on the 3849H-AS-PV-PRO-ANZ?PRO designates the higher-tier hardware variant. Compared to the standard 3849, PRO uses a larger 1/1.8″ sensor, an F1.0 aperture (vs F1.6), 2 GB RAM (vs 512 MB), adds AI Coding, face detection and Lens Distortion Correction, and produces clean colour image at 0.0008 Lux (vs 0.003 Lux). Is the PRO worth the extra cost over the standard 3849?For sites where night-time image quality matters — dark driveways, undercover carparks, commercial perimeters at the edge of street lighting — yes, the F1.0 aperture and 1/1.8″ sensor make a visible difference. For well-lit sites, the standard 3849 delivers most of the same TiOC capability at a lower price. Do I need a special NVR for AcuPick?Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. The TiOC PRO deterrence chain, SMD 4.0, IVS, face detection and two-way audio all work on any Dahua AI NVR. Does the PRO have face recognition?The PRO supports face detection (full image) — it detects and indexes faces as metadata for fast search and event tagging. It does not perform face recognition (watchlist matching) — that needs a dedicated face-recognition camera or a Dahua face-DB server. Will the camera deter intruders automatically?Yes. The TiOC PRO deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe, siren and voice broadcast all run on-camera 24/7, without any operator, NVR command or mobile-app interaction. What's the difference between the White and Black versions?Specifications are identical. DH-IPC-HDW3849H-AS-PV-PRO-ANZ is white; DH-IPC-HDW3849H-AS-PV-PRO-ANZ-BLK is black. Choose black for dark eaves and charcoal fascia; white for cream/render walls. Do you stock the 3.6 mm lens version?No — CCTV Guru stocks the 2.8 mm version only (109° wide field of view). The 3.6 mm version is a special-order item — contact us if you need one for a narrower shot. Will it keep recording if the NVR or internet goes down?Yes. The on-board microSD slot accepts cards up to 512 GB and records 4K footage independently of the NVR. Dual-power backup (PoE + 12 VDC) keeps the camera running if one power source fails. Is the camera suitable for Australian outdoor conditions?Yes. Rated IP67 and −40 °C to +60 °C — covers every AU climate from a Hobart winter to a Karratha summer. Does it work with Hikvision NVRs or third-party VMS?Basic recording, streaming and motion work over ONVIF Profile S/G/T on Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris and Synology. However, TiOC deterrence, AcuPick, SMD 4.0 and two-way audio require a Dahua NVR or DMSS to be triggered correctly. Downloads DH-IPC-HDW3849H-AS-PV-PRO-ANZ Datasheet (PDF) Dahua Turret Quick Start Guide (PDF)

Read more less

Dahua TiOC PRO · WizColor · AcuPick · 1/1.8″ SensorTiOC PRO Camera Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ — 6MP TiOC PRO WizColor AcuPick Active Deterrence Turret The Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ is the PRO step-up of Dahua's 6MP TiOC line — same red/blue strobe, siren and voice deterrence chain as the standard 3649, but built around a much larger 1/1.8" CMOS sensor and an extraordinary F1.0 aperture. Translation: the PRO gathers more than 2.5× as much light as the standard 3649 and resolves usable colour down to 0.0005 lux — a 6× improvement that produces clean, low-noise colour footage on moonless suburban streets, in undercover carparks and across long dark driveways where the standard model would need to fall back to IR. Combined with WizColor full-colour night vision, AcuPick attribute target search, SMD 4.0 false-alarm filtering, and Dahua's latest AI Coding (≥25% additional compression efficiency), the PRO is the camera to specify for premium residential frontages, commercial perimeters and any site where image quality at night is the deciding factor — without paying the 4K-storage premium of the 8MP PRO. Available in White (DH-IPC-HDW3649H-AS-PV-PRO-ANZ) and Black (DH-IPC-HDW3649H-AS-PV-PRO-ANZ-BLK). Australian stock with 3-year warranty. Resolution & Sensor 6MP · 1/1.8″ CMOS Aperture & FOV F1.0 · 109° H · 2.8 mm Low-Light 0.0005 Lux · WizColor Active Deterrence Strobe · Siren · Voice Protection IP67 · −40 °C to +60 °C Power PoE 802.3af · Max 10 W 3-Year Australian Warranty Fast Australia-Wide Shipping Australian Tech Support Why Choose the Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ in Australia The PRO is for installers and customers who refuse to compromise on night-time image quality but don't need the 4K resolution of the 8MP PRO. A larger 1/1.8" sensor, an F1.0 aperture and Dahua's newest WizColor illumination together deliver clean colour at light levels where most cameras have long fallen back to grainy black-and-white. Combined with the full TiOC PRO active-deterrence chain and AcuPick AI, this is the camera Australian integrators reach for on premium homes, perimeters, commercial frontages and high-value loading docks — at a more accessible price point than the 8MP PRO sibling. 1/1.8″ Sensor — A Genuine Image-Quality Upgrade The PRO swaps the standard 3649's 1/2.7" sensor for a much larger 1/1.8" CMOS. Bigger pixels mean more light per pixel, lower noise, higher dynamic range and noticeably better colour fidelity — especially in dawn, dusk and mixed-light conditions. F1.0 Aperture — 2.5× More Light Than F1.6 Dahua's largest aperture in the WizSense 3-Series. F1.0 lets in more than 2.5× the light of the standard 3649's F1.6 lens — the single biggest factor in why this camera produces clean colour where others can't. 0.0005 Lux Colour · WizColor Full Colour Minimum colour illumination drops to 0.0005 Lux (vs 0.003 Lux on the standard 3649) — a 6× improvement that produces usable full-colour footage on a moonless suburban street with nothing but distant streetlight. Even better low-light than the 8MP PRO thanks to larger per-pixel area. TiOC PRO Active Deterrence — Strobe + Siren + Voice Same proven TiOC 3.0 deterrence chain: red/blue strobe, on-board siren and custom voice broadcast fire the instant SMD 4.0 confirms a human or vehicle — no operator, no extra hardware required. AcuPick AI Target Search AcuPick attribute search runs with a 5-Series NVR — clothing colour, vehicle type, direction — locate any face or plate across a week of footage in seconds rather than hours. AI Coding — 25%+ Less Storage Dahua's AI Coding analyses the scene and dedicates bitrate only to objects of interest (people, vehicles) — delivering ≥25% additional compression efficiency over standard Smart H.265+. Longer retention on the same NVR drive. Smart Features for Real-World Australian Sites Dahua TiOC PRO Highlight — WizColor · AcuPick · SMD 4.0 (English) IVS Tripwire & Intrusion Zones Define a virtual line across the driveway or a no-go zone around the shed — get a notification (and trigger the deterrence chain) only when a human or vehicle actually crosses it. Two-Way Audio & Custom Voice Dual built-in microphones and an on-board speaker support live two-way talk via DMSS or a Dahua NVR. Pre-loaded plus uploadable voice files let you record a site-specific warning in your own voice. Edge Recording — MicroSD up to 512 GB On-camera MicroSD records days of 6MP footage independently of the NVR — a critical redundancy layer if the network drops, the recorder is stolen or power is cut. Lens Distortion Correction (LDC) The PRO adds on-camera LDC — automatic correction of the slight barrel distortion natural to wide-angle 2.8 mm lenses. Straight walls stay straight on playback, especially important for evidential footage. Cyber-Hardened by Design Trusted boot, HTTPS, 802.1x, IP/MAC filtering, X.509 certificate import and syslog — the same enterprise hardening Dahua deploys on government and critical-infrastructure cameras. Plug & Play + Third-Party VMS Drops into any Dahua NVR via plug-and-play, and works over ONVIF Profile S/G/T with Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris and Synology Surveillance Station. Pair with a Dahua 5-Series NVR for the Full AcuPick Experience SMD 4.0, IVS rules, two-way audio and the full TiOC PRO deterrence chain all run on-camera — they work with any Dahua AI NVR, or even an ONVIF third-party recorder. But to unlock AcuPick — attribute-based human and vehicle target search, similar-image cross-camera tracking and AI-accelerated playback — you need a compatible Dahua 5-Series AcuPick NVR. For any new installation we strongly recommend pairing the 3649H-AS-PV-PRO-ANZ with one of the recorders below. DHI-NVR5208-8P-AI/ANZ — 8 Channel · 8 PoE Compact 1U 5-Series AcuPick NVR with 8 built-in PoE ports — ideal for a single-home or small-business install with 4–8 TiOC PRO cameras. Full AcuPick target search and AI playback. View NVR5208-8P → DHI-NVR5216-16P-AI/ANZ — 16 Channel · 16 PoE 16-channel 5-Series AcuPick NVR with 16 PoE ports and dual-HDD bays — the sweet-spot recorder for most residential and SMB Dahua TiOC fleets. Plug-and-play with the 3649H PRO. View NVR5216-16P → DHI-NVR5432-16P-AI/ANZ — 32 Channel · 16 PoE 32-channel 1.5U AcuPick NVR with 16 PoE and 4 HDD bays — the standard choice for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P → DHI-NVR5432-AI/ANZ — 32 Channel · No PoE 32-channel AcuPick NVR without built-in PoE — for sites running a separate managed PoE switch (preferred in larger commercial deployments). Same AcuPick capability, more flexible network design. View NVR5432-AI → Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation based on your camera count, recording retention and AcuPick search workload. Technical Specifications DH-IPC-HDW3649H-AS-PV-PRO-ANZ · Full Specifications SKU DH-IPC-HDW3649H-AS-PV-PRO-ANZ (White) · DH-IPC-HDW3649H-AS-PV-PRO-ANZ-BLK (Black) Camera Type 6MP TiOC PRO WizColor WizSense IP Network Turret · Active Deterrence Image Sensor 1/1.8" Progressive Scan CMOS Max Resolution 3288 × 1850 (6MP) @ 25/30 fps Lens Type Fixed-focal, 2.8 mm · M16 mount (3.6 mm option available) Maximum Aperture F1.0 (2.5× the light gathering of F1.6) Angular Field of View H: 109° · V: 59° · D: 131° (2.8 mm) DORI Distance (2.8 mm) Detect 70.2 m · Observe 28.1 m · Recognise 14.0 m · Identify 7.0 m Min. Illumination Colour: 0.0005 Lux @ F1.0 · B/W: 0.0004 Lux · 0 Lux (Illuminator on) S/N Ratio > 56 dB Dynamic Range 120 dB True WDR Day & Night Auto (ICR) / Colour / B&W Illuminators 2 × Multi-core (IR + warm) light · 30 m IR · 30 m warm light · WizColor Smart Dual-Light auto switching Image Enhancement 3D NR · HLC · BLC · Defog · AI SSA · Smart Illumination · LDC · Image Rotation Active Deterrence Red/blue flashing warning lights · Built-in siren · Voice broadcast (custom audio supported) Intelligent Video AcuPick · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · AI SSA · Smart Search Video Compression AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · H.265 · H.264 · MJPEG (sub-stream) AI Coding ≥25% additional compression efficiency Streaming 3 streams — Main 3288×1850 · Sub 1920×1080 · Third 1920×1080 Video Bitrate H.264 / H.265: 3 kbps – 16,384 kbps Audio Compression G.711a · G.711Mu · G.726 · G.723 · PCM (Two-Way Audio) IP Camera Protocol ONVIF Profile S/G/T · CGI · P2P · RTMP Network Protocols IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · PPPoE · SNMP · 802.1x Cyber Security Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout Ethernet RJ-45 (10/100BASE-T) Alarm I/O 1 alarm in (wet contact) · 1 alarm out (wet contact) Audio I/O Dual built-in MIC · 1-channel built-in speaker · 1 × RCA in / 1 × RCA out Edge Storage MicroSD up to 512 GB · NAS · FTP / SFTP Weatherproof Rating IP67 Operating Temperature −40 °C to +60 °C · ≤ 95% RH Power Source 12 V DC · PoE (IEEE 802.3af) · ±30% wide voltage · Dual-power backup Power Consumption Basic 4.1 W (12 V DC) / 6 W (PoE) · Max 10 W (PoE) / 8.2 W (12 V DC) Memory ROM 256 MB · RAM 2 GB Mobile App DMSS · Smart PSS Lite · DSS · DoLynk Care (iOS & Android) Approvals CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU Housing Metal · White or Black Dimensions Φ 122.0 mm × 116.1 mm Weight 0.8 kg (net) · 1.0 kg (gross) Warranty 3-Year Australian Warranty (back-to-base) 3649 PRO vs 3649 Standard — Is the PRO Worth the Upgrade? Both cameras share the same chassis, the same TiOC 3.0 deterrence chain, the same AcuPick AI and the same Smart Dual-Light system. The PRO's upgrades are concentrated in the parts that matter at night and at long range — the sensor, the lens, the AI engine and the image processing. If the camera's main job is to capture clean colour evidence in low light, the PRO is the right call. If the site has plenty of ambient light or the budget is tight, the standard 3649 still does the job. Dahua 3649H-AS-PV-PRO-ANZ vs 3649H-AS-PV-ANZ-S2 Feature DH-IPC-HDW3649H-AS-PV-PRO-ANZ (this PRO model) DH-IPC-HDW3649H-AS-PV-ANZ-S2 (standard) Image Sensor 1/1.8" CMOS 1/2.7" CMOS Max Aperture F1.0 F1.6 Light Gathering vs Standard ~2.5× more light Baseline Min Illumination (Colour) 0.0005 Lux @ F1.0 0.003 Lux @ F1.6 Max Resolution 6MP · 3288 × 1850 6MP · 3200 × 1800 Horizontal FOV (2.8 mm) 109° 97° DORI Detect (2.8 mm) 70.2 m 66 m DORI Identify (2.8 mm) 7.0 m 6.6 m WizColor Branding Yes — TiOC PRO + WizColor TiOC 3.0 Smart Dual-Light Yes — multi-core IR + warm Yes — IR + warm Red/Blue Strobe · Siren · Voice Yes Yes Two-Way Audio Yes — dual MIC + speaker Yes — dual MIC + speaker AcuPick AI Search Yes — with 5-Series NVR Yes — with 5-Series NVR AI Coding Yes — ≥25% extra efficiency Smart H.265+ only Lens Distortion Correction (LDC) Yes No Memory (RAM) 2 GB 512 MB Max Video Bitrate 16,384 kbps (16 Mbps) 8,192 kbps (8 Mbps) Sub-Stream Resolution 1920 × 1080 (Full HD) 704 × 576 (D1) WDR 120 dB True WDR 120 dB True WDR MicroSD Up to 512 GB Up to 512 GB Power (Max PoE) 10 W 8.8 W Ingress Protection IP67 IP67 Operating Temperature −40 °C to +60 °C −40 °C to +60 °C Colour Options White & Black White & Black Australian Warranty 3 years back-to-base 3 years back-to-base Best For Premium homes, commercial frontages, undercover carparks, long dark driveways — any site where night-time colour image quality is the deciding factor. Solid all-round 6MP TiOC choice for sites with reasonable ambient lighting where the budget is tighter. Compatible Mounts & Accessories Dahua PFA137 Waterproof Junction Box Recessed IP66 junction box for clean cable concealment on exposed brick, render or weatherboard. Available in white and black to match the camera. View product → Dahua PFB205W-E Wall Mount Bracket Purpose-built wall arm for soffit, eave and external wall mounting. Available in white and black. View product → Dahua PFA109 Mount Adapter Required adapter to fit the 3649H PRO turret onto Dahua wall and pole brackets. View product → Dahua PFB220C Ceiling Mount Drop-down ceiling bracket for retail awnings, undercover car parks and warehouse interiors. View product → Dahua PFA152-E Pole Mount Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with PFB205W-E and PFA137. View product → WD Purple 256 GB Surveillance MicroSD Card Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. The recommended edge-recording card for Dahua TiOC PRO turrets. View WD Purple 256 GB → Frequently Asked Questions What does "PRO" mean on the 3649H-AS-PV-PRO-ANZ? PRO designates the higher-tier hardware variant in the 3649 line. Compared to the standard 3649, the PRO uses a larger 1/1.8" sensor, an F1.0 aperture (vs F1.6), 2 GB RAM (vs 512 MB), adds AI Coding and Lens Distortion Correction, and produces clean colour image at 0.0005 Lux (vs 0.003 Lux — a 6× improvement). Is the PRO worth the extra cost over the standard 3649? For sites where night-time image quality is critical — dark driveways, undercover carparks, commercial perimeters at the edge of street lighting — yes, the F1.0 aperture and 1/1.8" sensor make a visible difference. For well-lit sites, the standard 3649 delivers most of the same TiOC 3.0 capability at a lower price. Why pick the 6MP PRO over the 8MP PRO? Two reasons. First, better low-light — 0.0005 Lux on the 6MP PRO vs 0.0008 Lux on the 8MP PRO, because larger pixels gather more light. Second, cheaper storage — 6MP files are about 30% smaller than 4K files, so the same NVR drive holds 30% more days of footage. If you don't need 4K-level zoom-in capability, the 6MP PRO often makes more sense. What is WizColor? WizColor is Dahua's branding for full-colour night vision powered by a high-CRI warm-light LED combined with a large-aperture lens and high-sensitivity sensor. The 3649H-AS-PV-PRO is one of the WizSense 3-Series cameras that carries the WizColor designation. Do I need a special NVR for AcuPick? Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. The TiOC PRO deterrence chain, SMD 4.0, IVS and two-way audio all work on any Dahua AI NVR. Shop AcuPick NVRs here → Will the camera deter intruders automatically? Yes. The TiOC PRO deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe lights, siren and voice broadcast all run on-camera, 24/7, without any operator, NVR command or mobile-app interaction. What is the difference between the White and Black versions? Specifications are identical. DH-IPC-HDW3649H-AS-PV-PRO-ANZ is white; DH-IPC-HDW3649H-AS-PV-PRO-ANZ-BLK is black. Choose black for dark eaves and charcoal fascia; white for traditional cream/render walls. Will it keep recording if the NVR or internet goes down? Yes. The on-board MicroSD slot accepts cards up to 512 GB and records 6MP footage independently of the NVR. The PRO also supports dual-power backup (PoE + 12 V DC) so the camera keeps running if one power source fails. Is the camera suitable for Australian outdoor conditions? Yes. It is rated IP67 and −40 °C to +60 °C — comfortably covering every Australian climate from a Hobart winter to a Karratha summer. The metal housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites. Does it work with Hikvision NVRs or third-party VMS? Basic recording, streaming and motion work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, TiOC deterrence, AcuPick, SMD 4.0 and two-way audio require a Dahua NVR or DMSS to be triggered correctly. What is the warranty and where is it serviced? This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product. Do you ship Australia-wide and is stock genuine? Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses. Downloads & Resources DH-IPC-HDW3649H-AS-PV-PRO-ANZ Datasheet Dahua Turret Quick Start Guide Order the Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ from CCTV Guru CCTV Guru is an authorised Australian reseller of Dahua TiOC PRO cameras. Order the 6MP TiOC PRO WizColor AcuPick turret today in White or Black for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts and full local warranty support. For multi-camera projects, contact our Australian team for a tailored quote, NVR sizing and installation guidance — request a free quote or contact the team.

Read more less

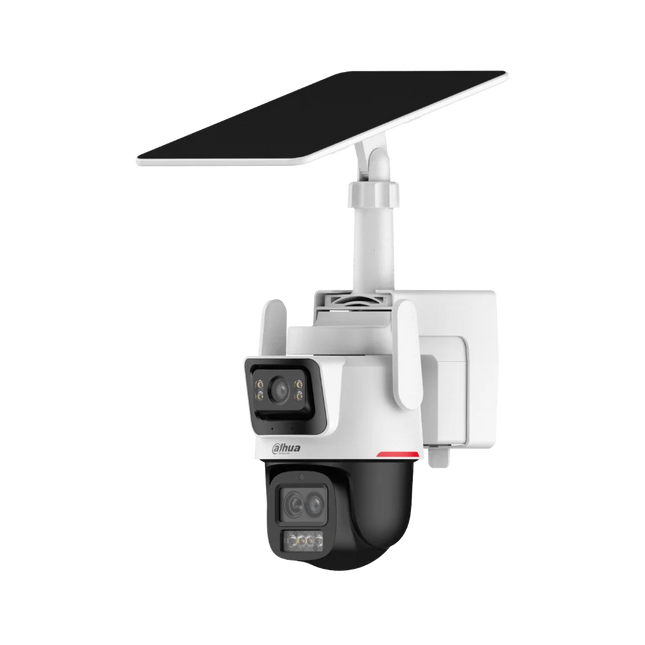

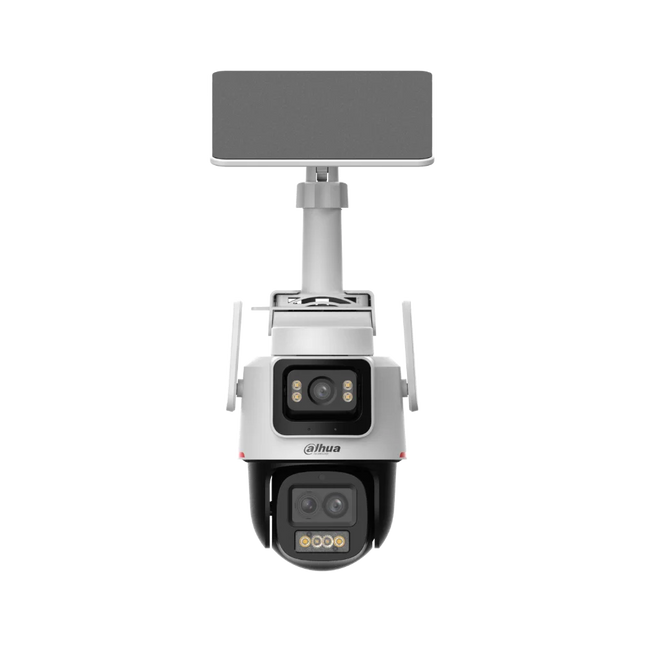

4G LTE · Solar + Battery · 3+3 MP · WizColor · Hybrid-Zoom PTDahua DH-IPC-PTS2649C-3E3Z-4GB20 — 3+3 MP WizColor Hybrid-Zoom Pan-Tilt 4G LTE Solar-Powered Network Camera with Battery (2649 Series) The Dahua DH-IPC-PTS2649C-3E3Z-4GB20 is a fully off-grid surveillance camera that runs on a built-in 65 Wh lithium battery recharged by an included 8 W solar panel and connects to the internet via 4G LTE on Australian mobile networks (Telstra, Optus, Vodafone) using a standard data SIM. The dual-lens design pairs a 2.8 mm fixed wide-angle lens for permanent scene awareness with a motorised pan-tilt 3.6 mm / 8.4 mm hybrid-zoom lens that slews up to 350° horizontally and 90° vertically — when the fixed lens detects a target, the PT lens auto-tracks it. Both lenses are 3 MP 1/2.8" CMOS with Dahua's brightest F1.0 WizColor large-aperture optics, pulling usable colour video down to 0.0005 lux. Smart Dual Light pairs the warm-light arrays (30 m on the fixed lens, 50 m on the PT lens) with white-light active deterrence and a built-in speaker with 3 sound alarms. AOV Mode (Always-On Video) enables 24/7 recording on ultra-low power — yes, battery and solar do actually record around the clock. Built for Australian sites with no mains power and no Wi-Fi — rural farms, remote sheds, holiday properties, construction sites, building yards, weekenders, boat ramps and bush blocks where running a PoE cable or installing a Wi-Fi extender simply isn't an option. IP66 sealed, TVS 2000 V lightning protection, operating range −20 °C to +60 °C. SMD 3.0 with human and vehicle classification filters animal motion (kangaroos, cattle, possums) so only the right type of target raises alerts. View, talk back, control pan-tilt and review footage from anywhere via the free DMSS mobile app on 4G or Wi-Fi. Backed by a 3-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. SKU 2649 series — the off-grid 4G solar PT solution for Australian rural, remote and project sites. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why Choose the Dahua PTS2649C-3E3Z-4GB20 — Off-Grid 4G Solar PT Camera Truly Off-Grid — Solar + Battery + 4G Built-in 65 Wh lithium battery recharged by the included 8 W solar panel. Connects to the internet via 4G LTE on any Australian mobile carrier (Telstra, Optus, Vodafone) using a standard data SIM. No mains power, no Wi-Fi, no Ethernet cable — install it on a paddock fence post, a builder's site shed, a holiday-house gable or a remote shed and walk away. Dual Lens — Always Watching + Auto-Tracking The fixed 2.8 mm wide-angle lens monitors the whole scene 24/7. When SMD 3.0 detects a person or vehicle, the motorised 3.6 / 8.4 mm pan-tilt lens automatically pans (0–350°), tilts (0–90°) and slews onto the target to capture detail. F1.0 WizColor — Best Low-Light in Class Both lenses use 1/2.8" CMOS sensors paired with Dahua's brightest F1.0 large-aperture WizColor optics. Minimum illumination of 0.0005 lux colour — usable full-colour video at twilight and under moonlight. AOV Mode — 24/7 Recording on Battery Always-On Video mode keeps the camera recording continuously, not just on motion events, while sipping battery at a low enough rate that the 8 W solar panel can keep up indefinitely in normal Australian sun conditions. Active Deterrence — Built-In White-light warning array plus a built-in speaker with 3 configurable sound alarms (volume 1–100%, play 1–10 times). When SMD detects a person or vehicle inside an IVS zone, the camera challenges them on the spot. Built for Harsh Australian Outdoor IP66 sealed, TVS 2000 V lightning + surge protection, −20 °C to +60 °C operating range. The solar panel pre-warms the battery in cold conditions to prevent damage at low temperatures. Important Install Note — 4G SIM & Solar Orientation This camera needs a standard nano-SIM with a data plan on a 4G LTE Australian carrier — Telstra, Optus or Vodafone. A 5 GB/month plan is plenty for AOV-Mode recording; heavier remote-viewing usage may push to 10–20 GB. Most Australian rural carriers offer "M2M" or "device" SIM plans at low cost — confirm 4G coverage at the install site first using your carrier's coverage map. Solar orientation: for year-round AU sun, face the 8 W panel north (Southern Hemisphere) at roughly local-latitude tilt — for example, ~33° in Sydney, ~28° in Brisbane. The mount allows directional adjustment. Standard charging is USB Type-C with QC 2.0 support. AI & Smart Detection Capabilities SMD 3.0 Smart Motion Detection On-device deep-learning algorithms classify every motion event as human, vehicle or "other". Filters out kangaroos, cattle, wallabies, sheep, possums and wind-blown branches — the rural Australian false-alarm sources that overwhelm generic 4G cameras. Auto Tracking Lite + Linkage Tracking When the fixed wide-angle lens detects a classified target, the PT lens auto-slews onto it and follows. Linkage tracking maintains the target across the camera's full 350° pan range. White-Light Active Deterrence Configurable white-light warning array triggers on detected human/vehicle events. Combined with the built-in speaker's 3 sound alarms, the camera challenges intruders the moment they enter the scene. Two-Way Audio via DMSS Built-in microphone and speaker support full-duplex two-way audio through Dahua's free DMSS mobile app over 4G. Instruct delivery drivers, warn off trespassers, or talk to family at the holiday house. 50 Presets + Power-off Memory Store up to 50 named pan-tilt positions for quick recall. Power-off memory keeps positions on battery cycles. Ideal for "driveway view", "shed door", "front gate" and "horse paddock" as one-tap presets in DMSS. Edge Recording — Micro SD Up to 512 GB Records locally to a Micro SD card (up to 512 GB). AOV-Mode 24/7 recording at 1080p sub-stream stretches a 512 GB card to roughly 4–6 weeks of continuous footage. Technical Specifications Camera & Dual Lens System Model DH-IPC-PTS2649C-3E3Z-4GB20 Form Factor Hybrid-zoom Pan-Tilt (PTS) 4G LTE outdoor Image Sensors Fixed lens: 1/2.8" CMOS · PT lens: 1/2.8" CMOS Resolution (each) 3 MP — 2304 × 1296 (Fixed) · 3 MP — 2304 × 1296 (PT) Minimum Illumination 0.0005 lux @ F1.0 (colour) · 0 lux (illuminator on) WDR DWDR (both lenses) WizColor Yes — F1.0 large-aperture full-colour low-light AOV Mode (Always-On Video) Yes — 24/7 recording on battery Lens & Illumination Fixed Lens 2.8 mm · F1.0 · FOV H 93.5° / V 51.9° / D 110.1° PT Lens Hybrid-zoom 3.6 mm + 8.4 mm · F1.0 · FOV at 3.6 mm H 81.5° / V 44.3°; at 8.4 mm H 15.1° / V 8.4° Warm Light (Fixed) Up to 30 m Warm Light (PT) Up to 50 m Illuminators 4 × warm-light LEDs per lens Pan-Tilt & Intelligence PT Lens Pan 0° to 350° (electric) PT Lens Tilt 0° to +90° (electric) Fixed Lens Pan/Tilt 0° to 210° pan / −7° to +20° tilt (manual) Manual + Preset Speed Pan 40°/s · Tilt 40°/s Presets 50 Power-off Memory Yes Smart Tracking Auto Tracking Lite + Linkage Tracking (fixed → PT) SMD SMD 3.0 Alarm Events Motion · human detection · vehicle detection Active Deterrence — Light White-light warning array Active Deterrence — Sound Built-in speaker · 3 sound alarms · volume 1–100% · play 1–10 times Audio, Connectivity & Storage Built-in Microphone Yes Built-in Speaker Yes Two-Way Talk Yes (via DMSS app) Carrier Network 4G LTE Wireless Bands (EAU) LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28 · LTE-TDD: B38 / B40 / B41 SIM Standard nano-SIM (Telstra / Optus / Vodafone data SIM) Storage Micro SD card up to 512 GB Resolutions 3 MP · 1080p · 720p · 640 × 360 (both lenses) Mobile Client DMSS (iOS / Android) Power, Battery & Environment Power Supply Built-in lithium battery + included 8 W solar panel · USB Type-C charging (QC 2.0) Battery Capacity 65 Wh lithium Operating Temperature Unit: −20 °C to +60 °C Battery Charging Temp −10 °C to +50 °C (solar panel pre-heats battery to 0 °C before charging in cold conditions) Battery Discharging Temp −20 °C to +60 °C Protection IP66 · TVS 2000 V lightning protection · surge protection · voltage transient protection Product Dimensions 223.2 mm × 130.0 mm × 215.0 mm (L × W × H) Net Weight 1.8 kg Gross Weight 2.5 kg Australian Warranty 3 Years (via CCTV Guru) How It Compares — 4G Solar PT vs Traditional Wired Install Factor PTS2649C-3E3Z-4GB20 (this camera) Traditional Wired Camera Install Power Source Solar + battery — fully off-grid 240 V mains power point required Internet Connection 4G LTE SIM — works anywhere with mobile coverage Wired Ethernet or Wi-Fi extender from the house Trade Required One install pass — bolt to a fence post or pole, insert SIM, scan QR code Electrician for power + tradesperson for cable run Time to First Footage ~30 minutes from box-open to live view in DMSS 1–3 days depending on site complexity Best For Rural farms, holiday homes, weekenders, construction sites, builders' yards, sheds, paddocks, jetties, boat ramps Permanent installations near the house with mains power and existing network infrastructure Recommended Australian Use Cases Rural Farms & Cattle Paddocks Mount on a fence post overlooking the gate, the cattle race, the bore pump or the equipment shed. 4G LTE works wherever Telstra rural coverage reaches. Holiday Houses & Weekenders The classic off-grid use case. Install at the holiday house and check on it any time from Sydney/Melbourne/Brisbane. Two-way talk lets you greet rental guests or warn off trespassers. Construction & Building Sites Powered up before site infrastructure is. Bolt to scaffolding, a builder's compound fence, a portable office or a temporary shed. Active deterrence + DMSS push alerts catch tool theft and unauthorised after-hours access. Remote Sheds, Stables & Storage Sheds at the back of the property, horse stables 200 m from the house, container storage in the paddock — anywhere a Cat6 cable would cost more than the camera. Jetties, Boat Ramps & Marinas Watch your boat, jet ski or trailer when it's stored off-property. IP66 + TVS 2000 V protects against marine spray and lightning. Builders & Trades Yards Watch the back lot at the builder's yard, the panel beater's overflow car park, the landscaping supplies yard or the wrecker. Frequently Asked Questions Does it really run on solar alone? Yes — under normal Australian sun conditions, the included 8 W solar panel keeps the 65 Wh battery topped up indefinitely while running AOV-Mode 24/7 recording at 1080p sub-stream. Heavy remote-viewing usage on 4G consumes more battery. What 4G carriers does it work on in Australia? The camera supports all major LTE bands used by Australian carriers — Telstra (B1, B3, B5, B7, B8, B28, B40), Optus and Vodafone. Use a standard nano-SIM with a data plan from any carrier with coverage at your install site. How much mobile data does it use? Typical AOV-Mode 24/7 recording with cloud thumbnail upload + occasional DMSS viewing: ~3–6 GB/month. Heavy remote viewing via DMSS on 4G: 10–20 GB/month. Most Australian M2M / "device" SIM plans offer 5–10 GB/month at $10–25/month. Why dual-lens instead of a single zoom lens? The fixed wide-angle lens continuously monitors the scene at full sensor resolution. When SMD detects a target, the PT zoom lens slews onto it. Single-lens PT cameras lose situational awareness when the lens zooms in — the dual-lens design solves that. Can I view it on my phone? Yes — Dahua's free DMSS app on iOS and Android. Add the camera by scanning the QR code on the housing. You get live view, PT control, two-way talk, motion alerts and recorded-footage playback over 4G or Wi-Fi. Will the battery survive Australian winter cold? Yes — operating temperature is −20 °C to +60 °C. The solar panel pre-warms the battery to 0 °C before charging in cold conditions, preventing the damage that low-temperature charging would cause to a lithium cell. Can I record locally as well as cloud? Yes — the camera records to a Micro SD card (up to 512 GB) inside the housing. AOV-Mode 24/7 sub-stream gives roughly 4–6 weeks of continuous footage on a 512 GB card before overwrite. What's the warranty in Australia? 3 years, supplied through CCTV Guru as an authorised Australian Dahua reseller. We handle warranty claims locally — no overseas shipping required. How long does install take? About 30 minutes for someone comfortable with a cordless drill. Bolt the pole bracket to a fence post or pole, attach the camera, mount the solar panel north-facing, insert the SIM and SD card, scan the QR code in DMSS — done. No electrician, no cable run. Downloads DH-IPC-PTS2649C-3E3Z-4GB20 DatasheetDahua Hybrid-zoom PT 4G Quick Start GuideDahua Hybrid-zoom PT 4G Installation MethodDahua 4G Camera Dimensions Order Your Dahua PTS2649C-3E3Z-4GB20 from CCTV Guru "Add to cart" to order online, or contact our Australian team for project pricing, multi-camera fleet deployments, rural property advice or 4G carrier selection guidance. We are authorised Australian Dahua resellers, hold stock locally, and back every 2649 series 4G solar PT camera with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.

Read more less

WizSense 2 · 5 MP · WizColor F1.0 · 30 m Warm Light Dahua 5MP WizColor Turret Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ — 5 MP WizColor PRO Fixed-Focal Eyeball Turret WizSense Network Camera with Built-In Mic (2549 Series) The Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ is the 2549 series 5 MP WizColor turret — built around a 1/1.8" CMOS Starlight sensor paired with Dahua's brightest F1.0 large-aperture WizColor lens for class-leading full-colour low-light performance. The native 5 MP output (2960 × 1668) captures more than twice the pixel density of 1080p; a 30 m warm-light array delivers full-colour 24/7 surveillance without the harsh white-light pop-on of an active-deterrence camera, while the WizSense 2 deep-learning chip runs SMD Plus (Smart Motion Detection) with human and vehicle classification at the edge. The compact eyeball turret form factor (HDW chassis) mounts cleanly under Australian eaves, soffits, awnings and undercover ceilings; built-in microphone, 120 dB WDR, IP67 sealing and standard PoE (802.3af) round out the spec. Backed by a 3-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support How to Add the HDW2549EMP-S-PRO-ANZ to a Dahua NVR Dahua's official walkthrough for adding any Dahua IP camera to a Dahua AI NVR. Why Choose the Dahua HDW2549EMP-S-PRO-ANZ WizColor Turret F1.0 WizColor — 24/7 Full Colour The 1/1.8" CMOS Starlight sensor paired with Dahua's brightest F1.0 large-aperture WizColor optics captures usable full-colour video at low light levels where standard cameras flip to IR black-and-white. The 30 m warm-light array kicks in when ambient drops below the F1.0 sensitivity threshold. True 5 MP Detail Native 2960 × 1668 at 20 fps (4 MP at 25/30 fps) — more than twice the pixel density of 1080p. Discreet Eyeball Turret Compact HDW chassis mounts cleanly to eaves, soffits, awnings and undercover ceilings. SMD Plus — Human / Vehicle Classification WizSense 2 deep-learning chip runs Smart Motion Detection at the edge, classifying every motion event as human, vehicle or "other". 120 dB WDR for AU Sun Wide dynamic range holds detail in both the bright sky and the dark interior in a single frame. Standard PoE — Runs on Anything IEEE 802.3af compliant with a modest power budget. Works on any quality PoE switch. Important Install Note The HDW2549EMP is a fixed-focal turret — frame the camera carefully at install time, as there's no remote re-framing later. The eyeball gimbal allows ±75° pan, ±75° tilt and 0–360° rotation. For outdoor installs in exposed coastal or humid positions, pair with the DH-PFA137 in-ceiling junction box. AI & Smart Detection Capabilities WizSense 2 Edge AI Dedicated AI chip running Dahua's deep-learning algorithms for human and vehicle classification. SMD Plus — Smart Motion Detection Motion alerts triggered only by humans and vehicles. Perimeter Protection (IVS) Configurable tripwire and intrusion zones with human-and-vehicle classification. WizColor Full-Colour Night Mode The F1.0 large-aperture lens captures colour video at minimum illumination far below standard IR cameras. Abnormality Detection SD card status, network disconnection, IP conflict, illegal access, video tampering, audio detection. Built-In Microphone — Audio Recording Built-in mic captures audio alongside video for forensic playback. Technical Specifications Camera & Image Sensor Model DH-IPC-HDW2549EMP-S-PRO-ANZ Form Factor Eyeball turret (HDW chassis) Image Sensor 1/1.8" CMOS Starlight Maximum Resolution 2960 × 1668 (5 MP) Frame Rate 5 MP @ 20 fps · 4 MP @ 25/30 fps WDR 120 dB Day / Night Auto (ICR) / Colour / B&W BLC / HLC Yes / Yes Noise Reduction 3D NR WizColor Yes — F1.0 large-aperture full-colour low-light Lens & Illumination Lens Type Fixed-focal Focal Length 2.8 mm (standard) · 3.6 mm variant also available Maximum Aperture F1.0 (WizColor large aperture) Warm Light Illumination Up to 30 m Smart Illumination Yes Intelligence & Video AI Engine WizSense 2 Series (WizColor PRO) IVS — Perimeter Protection Tripwire, intrusion (with human + vehicle classification) Smart Motion Detection SMD Plus (SMD 3.0) Video Compression H.265 · H.264 · Smart H.265+ · Smart H.264+ · MJPEG Main Stream 2960 × 1668 @ 1–20 fps Audio & Network Built-in Microphone Yes Audio Compression G.711a · G.711Mu · G.726 · AAC Network Port RJ-45 (10/100 Base-T) Interoperability ONVIF (Profile S, G, T) · CGI Storage FTP · SFTP · NAS · Micro SD card up to 256 GB Mobile Client DMSS (iOS / Android) Power, Environment & Build Power Supply 12 VDC / PoE (IEEE 802.3af) Power Consumption Basic ~4 W · Max ~7 W Operating Temperature −30 °C to +60 °C Protection Rating IP67 Certifications CE-LVD · CE-EMC · RCM (AU) Australian Warranty 3 Years (via CCTV Guru) Frequently Asked Questions What does "WizColor" mean? WizColor is Dahua's name for cameras built around a large-aperture lens (F1.0 here) paired with a 1/1.8" or larger Starlight CMOS. The result is class-leading full-colour low-light performance. Does the camera support AcuPick attribute search? No. AcuPick is reserved for the higher-tier WizSense 3 Smart Dual Light cameras. Does it have IR or just warm light? Warm light only — 30 m built-in warm-light array for full-colour night vision. Can I run this camera on standard PoE? Yes — it is 802.3af-compliant. How far can it see at night? The 30 m warm-light array delivers usable full-colour video at the lit zone. Does it have a microphone? Yes — the "EM" in the SKU indicates built-in microphone. Does it work with third-party NVRs? Yes — ONVIF Profile S, G and T are supported. What temperature range is it rated for? −30 °C to +60 °C. Can I view the camera live on my phone? Yes — the camera works with Dahua's free DMSS app on iOS and Android. Downloads DH-IPC-HDW2549EMP-S-PRO-ANZ Datasheet Order Your Dahua HDW2549EMP-S-PRO-ANZ from CCTV Guru "Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing, multi-camera configuration advice or NVR compatibility check. Phone, email or live chat us through cctvguru.com.au/pages/contact.

Read more less

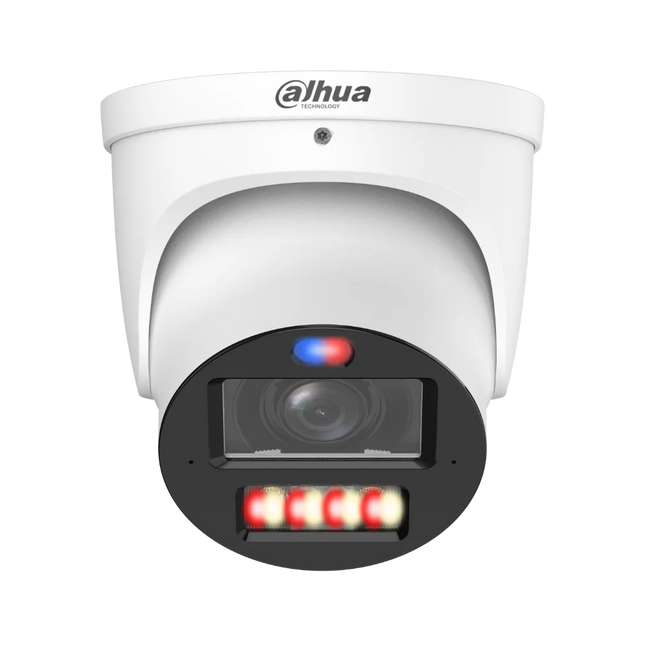

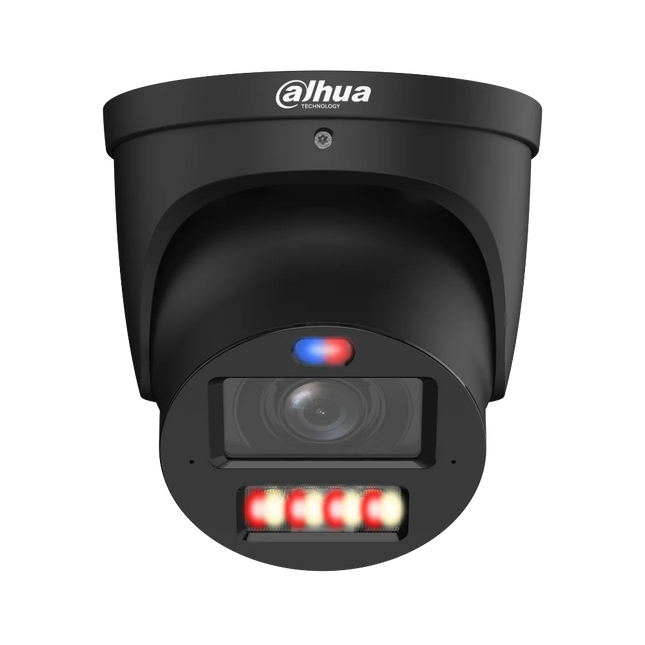

TiOC PRO · WizColor · 8 MP 4K · AcuPick · Motorised Dahua 8MP 4K TiOC Turret Dahua DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ — 8 MP 4K TiOC PRO WizColor AcuPick Motorised Vari-focal Eyeball Turret WizSense Network Camera (3849 PRO Series) The Dahua DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ is the top-of-tier TiOC PRO turret in the 3849 series — combining Dahua's brightest F1.2 large-aperture WizColor lens with motorised 2.7–12 mm vari-focal optics, full 8 MP 4K (3840 × 2160) imaging, native AcuPick attribute search, and the complete TiOC PRO active-deterrence stack (red/blue strobe, 110 dB built-in siren, dual-mic two-way talk). The 1/1.8" CMOS Starlight sensor pulls usable colour down to 0.0006 lux through the F1.2 aperture. The motorised vari-focal range covers 112° wide down to a 48° tight pull, with smart dual-light (50 m IR + 50 m warm light) handing off the moment WizSense classifies a target. WDR is 120 dB; the housing is IP67 sealed; power is 12 VDC or PoE+ (802.3at) with 13.8 W peak draw. Edge AcuPick lets a paired Dahua 5-Series AcuPick NVR search recorded footage by colour, top/bottom clothing, vehicle type and direction. Built for Australian premium residential, commercial frontage, school grounds, NDIS sites, council reserves and retail back-of-house. Backed by a 3-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. Optical Zoom 2.7–12 mm Motorised Resolution 8 MP 4K @ 25/30 fps F1.2 WizColor 0.0006 lux Colour AI Engine WizSense 3 + AcuPick Active Deterrence TiOC PRO · 110 dB Siren Power PoE+ 802.3at / 12 VDC 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support See the Dahua TiOC PRO Active Deterrence Platform in Action Dahua's official TiOC PRO highlight — the same active-deterrence platform that runs on the HDW3849H-ZAS-PV-PRO-ANZ. Red/blue strobe lighting, a 110 dB audible siren, dual-mic two-way talk and WizSense human/vehicle classification working together to challenge intruders the moment they're detected. Why Choose the Dahua HDW3849H-ZAS-PV-PRO-ANZ TiOC PRO Turret F1.2 WizColor — Brightest Lens in Class The 2.7–12 mm motorised vari-focal lens opens to F1.2 — a stop and a half wider than the standard 3849 series. Combined with the 1/1.8" CMOS Starlight sensor, the camera captures 0.0006 lux colour at the wide end. Real-world result: usable full-colour evidence at twilight and under moonlight. True 8 MP 4K Detail The 1/1.8" CMOS captures a native 3840 × 2160 raster — four times the pixel density of 1080p. Combined with the motorised tele setting and AcuPick attribute search, faces, number plates and signage stay readable across the camera's full hemisphere. Re-Frame Remotely via DMSS App The motorised 2.7–12 mm vari-focal is fully app-controllable. Re-frame the scene from anywhere with internet — no ladder visits, no tradesperson callout. TiOC PRO — Built-In 110 dB Siren Most active-deterrence cameras integrate an external speaker amplifier. The HDW3849H-ZAS-PV-PRO has the speaker built into the housing — peaking at 110 dB at 10 cm. Combined with red/blue strobe and dual-mic two-way talk, this is the loudest TiOC PRO package in Dahua's WizSense 3 catalogue. AcuPick Attribute Search Native Paired with a Dahua 5-Series AcuPick NVR, the camera lets you search hours of recorded video by attributes — "red top, white sedan, walking east" — and pull matching clips in seconds. Smart Dual Light — 50 m IR + 50 m Warm 4 multi-core LEDs deliver the longest dual-light reach in the 3849 family. The camera runs invisible IR after dark until WizSense classifies a person or vehicle, then the warm-light array switches on the target. Important Install Note — PoE+ Required This camera draws up to 13.8 W on PoE. It requires 802.3at PoE+, not standard 802.3af, or a local 12 VDC supply. For coastal or humid Australian installs, pair with the DH-PFA137 in-ceiling junction box. Network: 100 Base-T RJ-45. AI & Smart Detection Capabilities WizSense 3 Edge AI Independent AI chip running Dahua's latest deep-learning algorithms for human and vehicle classification. AcuPick Attribute Search Deep-learning attribute matching across people and vehicles when paired with a compatible Dahua 5-Series AcuPick NVR. Face Detection (Full Image) Face-detection mode supports full-image face capture across the scene. Perimeter Protection (IVS) Tripwire, intrusion, stay detection, loitering detection — all with human-and-vehicle classification. SMD 4.0 Smart Motion Smart Motion Detection 4.0 filters wind-blown branches, possums on fences, shadows and small animals at the edge. Two-Way Talk — Dual Mic + 110 dB Speaker The dual built-in microphone array supports clearer two-way audio, and the 110 dB built-in speaker means you can challenge intruders without an external amplifier. Technical Specifications Camera & Image Sensor Model DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ Form Factor Eyeball turret (HDW chassis) Image Sensor 1/1.8" CMOS (Starlight) Maximum Resolution 3840 × 2160 (8 MP 4K) Minimum Illumination 0.0006 lux @ F1.2 (Colour) · 0.0003 lux @ F1.2 (B/W) · 0 lux (illuminator on) S/N Ratio > 56 dB WDR 120 dB Day / Night Auto (ICR) / Colour / B&W WizColor Yes (F1.2 large-aperture full-colour low-light) Lens & Illumination Lens Type Motorised vari-focal Focal Length 2.7 mm – 12 mm Maximum Aperture F1.2 (WizColor) Field of View H: 112° – 48° · V: 58° – 27° · D: 137° – 55° IR Illumination Up to 50 m Warm Light Illumination Up to 50 m Illuminator Configuration 4 × multi-core LEDs (IR + warm light) Intelligence, Active Deterrence & Video AI Engine WizSense 3 (TiOC PRO platform · AcuPick-native) IVS — Perimeter Protection Tripwire · intrusion · stay detection · loitering · face detection · human + vehicle classification Smart Motion Detection SMD 4.0 AcuPick Yes (with compatible Dahua AcuPick NVR) Active Deterrence — Light Red & blue strobe warning Active Deterrence — Sound Built-in speaker, max 110 dB at 10 cm Video Compression Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG Main Stream 3840 × 2160 @ 1 – 25/30 fps Audio, Alarm & Network Built-in Microphone Yes — dual mic Built-in Speaker Yes — max 110 dB at 10 cm · 2 W max Two-Way Talk Yes (via DMSS app) Alarm Input / Output 1 in / 1 out Network Port RJ-45 (10/100 Base-T) Interoperability ONVIF (Profile S, G, T) · CGI Storage FTP · SFTP · NAS · Micro SD card up to 512 GB Mobile Client DMSS (iOS / Android) Power, Environment & Build Power Supply 12 VDC / PoE+ (IEEE 802.3at) Power Consumption (Max.) 11.3 W (12 VDC) · 13.8 W (PoE+) Operating Temperature –30 °C to +60 °C Protection Rating IP67 Product Dimensions 127.6 mm × Φ122.0 mm Net Weight 0.94 kg Australian Warranty 3 Years (via CCTV Guru) Recommended AcuPick NVR Pairings Dahua DHI-NVR5208-8P-AI/ANZ 5-Series AcuPick NVR · 8 channels · 8 built-in PoE+ ports · 2 HDD bays. View → Dahua DHI-NVR5216-16P-AI/ANZ 5-Series AcuPick NVR · 16 channels · 16 PoE+ ports · 2 HDD bays. View → Dahua DHI-NVR4216-16P-AI/ANZ 4-Series WizSense AI NVR · 16 channels · 16 PoE ports. View → Dahua DHI-NVR5432-AI/ANZ 5-Series AcuPick NVR · 32 channels · 4 HDD bays. View → Frequently Asked Questions What does "TiOC PRO" mean? TiOC stands for "Three-in-One Camera" — combining 24/7 video surveillance, real-time AI alarms and active deterrence. TiOC PRO adds WizColor F1.2 optics, longer-reach Smart Dual Light, dual built-in microphones and a 110 dB built-in speaker. What does "WizColor" mean? WizColor pairs an F1.0/F1.2 lens with a 1/1.8" or larger Starlight CMOS for class-leading full-colour low-light. This camera's 0.0006 lux colour minimum is the practical advantage. Does it include AcuPick attribute search? Yes — built into the WizSense 3 firmware. To search recorded footage by attributes you must record to a compatible Dahua 5-Series AcuPick NVR running V5 firmware. Does it require PoE+ or will standard PoE work? PoE+ (IEEE 802.3at) is required. The camera draws up to 13.8 W. Use an 802.3at PoE+ switch or a local 12 VDC supply. Can I re-frame the camera after install without a ladder? Yes — the 2.7 – 12 mm vari-focal lens is motorised and fully controllable from the DMSS mobile app. How loud is the built-in siren? Maximum 110 dB at 10 cm. Volume and play count are configurable via the DMSS app. Does it work with third-party NVRs? Yes — ONVIF Profile S, G and T. Note AcuPick attribute search and SMD 4.0 alarm push work end-to-end only on Dahua AI NVRs. Can I view the camera live on my phone? Yes — via Dahua's free DMSS app on iOS and Android. Downloads DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ Datasheet Dahua IP Turret Camera Installation Guide Dahua Camera Installation Method Order Your Dahua HDW3849H-ZAS-PV-PRO-ANZ from CCTV Guru "Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing or NVR compatibility check. We are authorised Australian Dahua resellers and back every 3849 PRO series camera with a 3-year Australian warranty and Australian-based tech support. Contact us via cctvguru.com.au/pages/contact.

Read more less

DAHUA TiOC 3.0 · 6 MP · WIZSENSE 3 · SMART DUAL LIGHT · ACUPICK · ANZ DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 6 MP TiOC 3.0 Motorised Vari-Focal Bullet — Australian Stock & 3-Year Warranty The Dahua DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 is the S2 chassis refresh of Dahua's 6 MP TiOC bullet, upgraded from TiOC 2.0 to TiOC 3.0 on the WizSense 3-Series Pro AI engine. Motorised 2.7–13.5 mm F1.0 vari-focal lens lets you re-frame the shot remotely from DMSS — wide 104° at 2.7 mm down to a tight 33° pull at 13.5 mm. Purpose-built for the Australian and New Zealand market with local firmware and a 3-year AU warranty. Available in White and Black at the same price. Smart Dual Light pairs 50 m IR + 40 m warm light for auto-switching stealth or full-colour identification based on SMD 4.0 classified events. When the AI confirms a person or vehicle, the red/blue strobe activates, the built-in siren + speaker plays a voice warning, and the event fires an alarm to your NVR — all on-camera, no operator required. AcuPick attribute search works end-to-end with a Dahua 5-Series AcuPick NVR to find footage by clothing colour, vehicle type or direction. Dual built-in microphones + built-in speaker enable two-way audio through DMSS. Standard PoE (802.3af) or 12 VDC — max draw only 12.1 W with siren + strobe + warm light firing. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why the HFW3649T1-ZAS-PV-ANZ-S2 TiOC 3.0 (not 2.0) on WizSense 3 The S2 chassis refresh moves this bullet up to TiOC 3.0 on Dahua's WizSense 3 Pro AI engine — adding SMD 4.0, AcuPick attribute search, and Smart Dual Light (auto-switching IR + warm) over the original TiOC 2.0 platform. Motorised 2.7–13.5 mm F1.0 5× motorised vari-focal remote-controlled via DMSS — install wide (104°) then pull tight (33°) on the area of interest. F1.0 aperture is unusually wide for this class — more light on the sensor for cleaner low-light footage. Smart Dual Light — 50 m IR + 40 m warm Two IR LEDs + two warm-light LEDs auto-switch based on SMD 4.0 event. Stealth IR when quiet, warm-light full-colour when a person or vehicle enters the alarm zone. Active deterrence — strobe + siren + voice On-camera red/blue strobe, siren and speaker with pre-loaded voice warnings. Triggers automatically when SMD 4.0 confirms a human or vehicle — no operator, no phone, no NVR command needed. AcuPick + Perimeter Protection Pair with a Dahua 5-Series AcuPick NVR for attribute search across recorded footage — find someone by clothing colour or a vehicle by type. Perimeter Protection with tripwire, intrusion and H/V classification runs on-camera. Two-way audio + standard PoE Dual built-in mics + built-in speaker — talk to visitors, warn intruders, brief couriers via DMSS. Runs on standard 802.3af PoE — max 12.1 W with everything firing. No PoE+ needed. Camera, lens & illumination Model DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 (White) · DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2-BLK (Black) Form factor TiOC 3.0 motorised vari-focal bullet (HFW chassis, metal) Image sensor 1/2.7″ CMOS progressive Maximum resolution 3072 × 2048 (6 MP) Frame rate 6 MP @ 25/30 fps · 1080p @ 25/30 fps WDR 120 dB True WDR · HLC · BLC · 3D-NR · Defog Day / night Auto (ICR) / Colour / B&W Lens type Motorised vari-focal, fixed iris Focal length 2.7 – 13.5 mm (5× zoom) Maximum aperture F1.0 Field of view H: 104° – 33° IR illumination Up to 50 m (2 multi-core IR LEDs) Warm-light illumination Up to 40 m (2 warm-light LEDs) Smart Dual Light Yes — auto or manual switching TiOC 3.0 deterrence, Pro AI & audio Active deterrence Red/blue warning strobe · siren · voice broadcast (custom audio supported) Two-way audio Yes (dual mic + speaker via DMSS) AI engine WizSense 3-Series (TiOC 3.0 / Pro AI) Perimeter Protection Tripwire · Intrusion (with human / vehicle classification) SMD SMD 4.0 AcuPick Yes — with a compatible Dahua 5-Series AcuPick NVR Video compression AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · MJPEG (sub-stream) Built-in microphone Yes — dual mic Audio I/O 1 in / 1 out (RCA) Alarm I/O 1 in / 1 out Network port RJ-45 10/100 Base-T ONVIF Profile S, G, T, M · CGI Storage microSD up to 512 GB · FTP / SFTP / NAS Mobile client DMSS (iOS / Android) Power, environment & build Power supply 12 VDC / PoE (802.3af) Power consumption Basic 5.8 W (PoE) / 4.5 W (12 VDC) · Max 12.1 W (PoE) / 10.3 W (12 VDC) with siren + strobe + warm light on Operating temperature −30 °C to +60 °C Humidity ≤ 95% RH non-condensing Protection IP67 Casing Metal · White or Black Certifications CE-LVD (EN 62368-1) · CE-EMC (2014/30/EU) Australian warranty 3 years (via CCTV Guru) See TiOC 3.0 & AcuPick in action Dahua AcuPick — attribute-based person & vehicle search (@DahuaUKIreland) Compatible mounts & accessories Dahua PFA130-E Waterproof Junction Box Recessed IP66 junction box for clean cable concealment on brick, render or weatherboard. White or black to match. White → · Black → Dahua PFA135 Junction Box Slim aluminium junction ring for tidy flush installs where full IP66 depth isn't required. View PFA135 → Dahua PFA152-E Pole Mount Heavy-duty pole bracket for fence posts, light poles and gate columns. View PFA152-E → 8ware Cat6 CCTV Patch Lead Blue slim-shielded outdoor Cat6 patch lead in 0.5 m / 1 m / 2 m / 3 m. View 8ware Cat6 → Frequently asked questions Is this camera TiOC 2.0 or TiOC 3.0?The S2 chassis is TiOC 3.0 on the WizSense 3 Pro AI engine — adds SMD 4.0, AcuPick attribute search and Smart Dual Light (auto-switching IR + warm) over the older TiOC 2.0 platform. Older marketing copy calling this "TiOC 2.0" is out of date. Do I need a special NVR for AcuPick?Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. TiOC deterrence, SMD 4.0, IVS and two-way audio all work on any Dahua AI NVR or via ONVIF on third-party recorders. Will it deter intruders automatically?Yes. The TiOC 3.0 deterrence chain fires the instant SMD 4.0 confirms a human or vehicle in the rule zone — strobe, siren and voice all run on-camera 24/7 without any operator, NVR command or mobile-app interaction. Can I zoom or re-frame remotely after install?Yes — the motorised 2.7–13.5 mm vari-focal lens is fully remote-controlled via DMSS. No ladder revisits. Can I turn off the strobe or siren for daytime?Yes — per-schedule arming/disarming via DMSS. Common setup: deterrence off during business hours, on overnight and weekends. How far does the night vision reach?50 m IR (stealth) or 40 m warm light (full colour). Smart Dual Light auto-switches based on SMD 4.0 event. What's the difference between the White and Black versions?Specifications are identical. -ANZ-S2 is white; -ANZ-S2-BLK is black. Same price. Choose black for dark eaves and charcoal fascia; white for cream/render walls. Will it work with my existing Hikvision or UNV NVR?Yes for live view + recording via ONVIF Profile S/T. AcuPick and human/vehicle metadata only work end-to-end with a Dahua AI NVR. Downloads DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 Datasheet (PDF) Bullet Network Camera Quick Start Guide (PDF) Bullet Network Camera Installation Guide (PDF)

Read more less

DAHUA TiOC PRO · 8 MP 4K · WIZCOLOR F1.0 · STROBE + SIREN + VOICE · ANZ DH-IPC-HFW3849T1-AS-PV-PRO-ANZ 8 MP TiOC PRO WizColor Active Deterrence Bullet — Australian Stock & 3-Year Warranty The Dahua DH-IPC-HFW3849T1-AS-PV-PRO-ANZ is the PRO-tier 8 MP TiOC (Three-in-One Camera) bullet from Dahua's WizSense 3 range — combining Pro AI perimeter protection with on-camera active deterrence (red/blue strobe, siren and two-way voice broadcast) plus WizColor 24/7 full-colour night vision. Purpose-built for the Australian and New Zealand market with local firmware and 3-year AU warranty. The PRO tier upgrades to a 1/1.8" large-format CMOS sensor and an F1.0 ultra-fast lens — delivering usable colour images at just 0.0008 Lux. When the AI detects a person or vehicle, four multi-core LEDs fire up to 50 m warm light, the red/blue strobe activates, the 110 dB SPL speaker plays a voice warning, and the SMD 4.0 event log fires an alarm to your NVR — all in the split-second before an intruder can reach the front door. Dual built-in microphones + built-in 2 W speaker enable two-way audio through DMSS. WizSense 3 Pro AI runs on-camera Perimeter Protection (tripwire, intrusion, loitering, stay) with human/vehicle classification, SMD 4.0, face detection, and AcuPick attribute search when paired with a compatible Dahua AI NVR. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why the HFW3849T1-AS-PV-PRO-ANZ PRO tier — 1/1.8" sensor + F1.0 Larger 1/1.8" CMOS and F1.0 aperture gathers ~4× more light than a standard 1/2.7" F1.6 camera — delivers usable colour at 0.0008 Lux, one of the industry's lowest ratings. Active deterrence — strobe + siren + voice On-camera red/blue strobe, siren and 110 dB SPL speaker with pre-loaded voice warnings. Triggers automatically the moment SMD 4.0 confirms a human or vehicle in the alarm zone — no operator, no NVR, no phone required. WizColor 24/7 full-colour Four multi-core LEDs blend warm light + IR for 50 m warm light full-colour identification and 60 m IR stealth reach. Colour identification of clothing, plates and vehicles all night. WizSense 3 Pro AI + AcuPick On-camera Perimeter Protection (tripwire, intrusion, loitering, stay) with human/vehicle classification. AcuPick attribute search when paired with a Dahua AI NVR — find footage by clothing colour, vehicle type or direction. Two-way audio Dual built-in microphones + built-in 2 W speaker — talk to visitors, warn intruders, or brief couriers from your phone via DMSS. ANZ regional variant The -ANZ suffix ships with Australian firmware and is officially supported by the Dahua Australia distribution channel — backed by CCTV Guru's local 3-year warranty and same-day RMA. Camera, lens & illumination Model DH-IPC-HFW3849T1-AS-PV-PRO-ANZ Form factor TiOC PRO fixed-lens bullet (HFW chassis, metal + plastic) Image sensor 1/1.8" CMOS progressive (PRO-tier large format) Maximum resolution 3840 × 2160 (8 MP / 4K) Frame rate 8 MP @ 25/30 fps · 1080p @ 25/30 fps WDR 120 dB True WDR · HLC · BLC · 3D-NR · Defog · SSA Minimum illumination 0.0008 Lux @ F1.0 (Colour) · 0.0004 Lux @ F1.0 (B/W) · 0 Lux (with illuminator) Day / night Auto (ICR) / Colour / B&W Lens type Fixed focal, M16 mount, fixed iris Focal length 2.8 mm (also available as 3.6 mm variant) Maximum aperture F1.0 Field of view (2.8 mm) H: 109° · V: 59° · D: 131° Minimum focus distance 3.2 m (2.8 mm) · 4.4 m (3.6 mm) IR illumination Up to 60 m (multi-core LED) Warm-light illumination Up to 50 m (multi-core LED, WizColor) WizColor Yes — 24/7 full-colour night vision TiOC active deterrence, Pro AI & audio Active deterrence Red/blue warning strobe · siren · voice broadcast Speaker Built-in 2 W speaker · 110 dB SPL @ 10 cm Two-way audio Yes (dual mic + speaker via DMSS) AI engine WizSense 3-Series (TiOC PRO / Pro AI) Perimeter Protection Tripwire · Intrusion · Loitering · Stay (with human / vehicle classification) SMD SMD 4.0 AcuPick Yes — with a compatible Dahua AI NVR AI SSA Yes Face detection Yes (full image, snapshot + enhancement) Video compression AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · MJPEG (sub-stream) Built-in microphone Yes — dual mic Audio I/O 1 in / 1 out (RCA) Alarm I/O 1 in / 1 out Audio codec PCM · G.711a/Mu · G.726 · G.723 Network port RJ-45 10/100 Base-T ONVIF Profile S, G, T, M · CGI Storage microSD up to 512 GB · FTP / SFTP / NAS Mobile client DMSS (iOS / Android) Power, environment & build Power supply 12 VDC / PoE+ (802.3at) Power consumption Basic 6.2 W (PoE) / 4.3 W (12 VDC) · Max 15.1 W (PoE) / 11.8 W (12 VDC) with WDR + warm light + siren + AI on Operating temperature −40 °C to +60 °C Humidity ≤ 95% RH non-condensing Protection IP67 Casing Metal + plastic Dimensions (L×W×H) 288.4 × 94.4 × 84.7 mm Net weight 1.0 kg Certifications CE-LVD (EN 62368-1) · CE-EMC (2014/30/EU) Australian warranty 3 years (via CCTV Guru) Best used for Residential frontage / driveway Turn a driveway into a hostile environment for intruders — strobe + voice warning fires as soon as anyone crosses the tripwire, not after they've broken in. Retail & commercial after-hours Overnight self-defence for shops, workshops, storage yards. Voice broadcast lets you tell would-be thieves you're watching without dispatching a guard. Construction site perimeter Warm light + strobe deters copper theft. IP67 metal build handles dust and rain year-round. Rural & farm gate approach Alpine-to-tropical −40 °C to +60 °C rating for exposed rural sites. 60 m IR + 50 m warm light covers long approaches. Works with Dahua WizSense NVRs Full AI feature parity with any Dahua 4-Series or 5-Series WizSense AI NVR. AcuPick works end-to-end with an AcuPick NVR. Third-party NVRs (ONVIF) ONVIF Profile S, G, T, M — drops onto Hikvision, HiLook, UNV and Milestone NVRs for live view + record. Active deterrence still triggers on-camera. DMSS mobile app Free iOS / Android app for remote view, playback, live two-way audio and one-tap arming/disarming of the deterrence chain. PoE+ switch (802.3at) Requires PoE+ due to peak 15.1 W draw with siren + strobe + warm light active. Any 802.3at-compliant switch or Dahua AI NVR PoE port. Compatible mounts & accessories Dahua PFA130-E Waterproof Junction Box Recessed IP66 junction box for clean cable concealment on brick, render or weatherboard — the recommended cable-hide box for this bullet. Available in white or black to match the camera colour. White → · Black → Dahua PFA135 Junction Box Slim aluminium junction ring — lighter, lower-profile cable-hiding option for tidy flush installs where full IP66 depth isn't required. View PFA135 → Dahua PFA152-E Pole Mount Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with the bullet's built-in wall arm for pole-mounted installs. View PFA152-E → 8ware Cat6 CCTV Patch Lead Blue slim-shielded outdoor Cat6 patch lead in 0.5 m / 1 m / 2 m / 3 m — the runs we install on every Dahua PoE camera. View 8ware Cat6 → Wall-mount note: the HFW3849T1 has an integrated wall arm on the bullet chassis, so no separate wall bracket is required for standard flat-wall installs — the PFA130-E or PFA135 simply recesses the cable through the wall for a tidy finish. For fence posts or poles, add the PFA152-E. Installation notes PoE+ (802.3at) required — standard 802.3af PoE will NOT power the deterrence chain at full output. Check your NVR/switch supports 802.3at per port. Lens variants: This SKU is the 2.8 mm version (109° wide). A 3.6 mm version is available separately (93° narrower). The active deterrence chain can be armed/disarmed per-schedule via DMSS or the camera web UI — e.g. deterrence off during business hours, on overnight. Voice broadcast supports pre-loaded warnings; custom voice files can be uploaded via the web UI. microSD up to 512 GB for edge recording. Recommended: endurance-rated card for 24/7 continuous recording. No IK rating listed on this chassis — mount above 3 m for anti-tamper if used in high-vandalism positions. Frequently asked questions What's the difference between the standard 3849 and the 3849 PRO?The PRO tier uses a larger 1/1.8" sensor (vs 1/2.7" on standard) and a much faster F1.0 lens (vs F1.6) — delivering usable colour night vision at 0.0008 Lux vs 0.003 Lux. If you install cameras in genuinely dark positions (rural, undercover, unlit driveways), the PRO is worth the extra cost. Will it deter intruders automatically without me doing anything?Yes. The TiOC deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe, siren and voice all run on-camera 24/7, without any operator, NVR command or mobile-app interaction. Can I turn off the strobe or siren for daytime?Yes — per-schedule arming/disarming via DMSS or the web UI. Common setup: deterrence off business hours, on overnight and weekends. How loud is the siren?110 dB SPL @ 10 cm from a 2 W built-in speaker — loud enough to be uncomfortable at close range without being neighbour-nuisance from across the street. Does it need PoE+ or will standard PoE work?PoE+ (802.3at) is required at full output (15.1 W peak with siren + strobe + warm light active). Standard 802.3af PoE may power the base camera but will cause the deterrence chain to under-perform or reset. What's the difference between the "-ANZ" and standard IPC-HFW3849T1-AS-PV-PRO?The -ANZ is the Australia / New Zealand regional variant with local firmware, supported by Dahua AU — that's what carries the local 3-year warranty. Non-ANZ grey-market units are not warranted by AU distributors. Can I remotely re-frame or zoom?No — this is a fixed 2.8 mm lens (or 3.6 mm). Pick focal length up front. For remote zoom, use the motorised 5559 series. Will it work with my existing Hikvision or UNV NVR?Yes for live view + recording via ONVIF Profile S/T, and the on-camera deterrence still triggers automatically. AI features (AcuPick, human/vehicle metadata) only work end-to-end with a Dahua AI NVR. Downloads DH-IPC-HFW3849T1-AS-PV-PRO-ANZ Datasheet (PDF) Bullet Network Camera Quick Start Guide (PDF) Bullet Network Camera Installation Guide (PDF)

Read more less
