Uniview UNV KIT/201S/372S/NSW2020 Video Intercom & PoE Switch Kit
The Uniview UNV KIT/201S/372S/NSW2020 is a complete video intercom solution featuring a door station, 7-inch indoor touchscreen monitor, and a 6-port PoE switch. With Wi-Fi support, tamper alarms, HD video, and IP65/IK08 protection, this kit provides secure and convenient communication for residential or commercial entry systems.

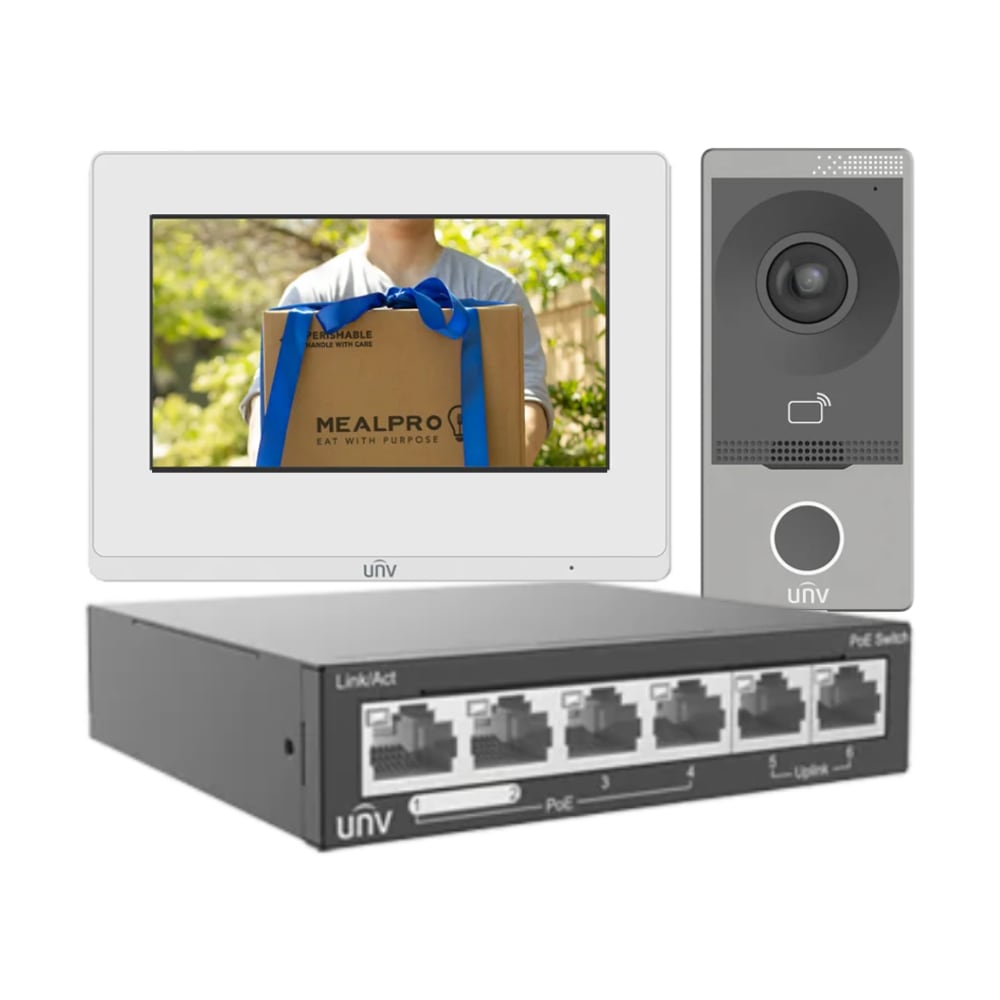

Kit Components
-
OEU-201S-HMK-W – Outdoor door station with 2MP camera, IR illumination, IC card reader, IP65, IK08, PoE/Wi-Fi
-
OEI-372S-H-W – 7-inch indoor station with 1024×600 HD touchscreen, built-in mic & speaker, Wi-Fi, PoE
-
NSW2020-6T-POE-IN – 6-port PoE switch (4 PoE + 2 uplink), 60W max PoE budget, VLAN/Extend mode, 250m transmission
-
32GB TF card included
Key Features
- 2MP door station camera with wide FOV (124° H / 67.5° V / 147° D)
- Supports call, intercom, remote unlock, and app integration
- Built-in mic & speaker with noise suppression and echo cancellation
- 7″ indoor TFT LCD (1024×600), supports live view of door stations and cameras
- Up to 20 linked devices, including NVRs, doorbells, and IP cameras
- 6-port PoE switch with VLAN isolation, extend mode up to 250m, and priority ports
- Durable design with IP65 weatherproofing and IK08 vandal protection
- Edge storage with 32GB TF card (expandable)
Technical Specifications
| Brand / Model (SKU) |
Uniview UNV / KIT/201S/372S/NSW2020 |
| Outdoor Station |
OEU-201S-HMK-W / 2MP, IR, IP65, IK08, PoE/Wi-Fi, IC card reader |
| Indoor Station |
OEI-372S-H-W / 7″ TFT LCD 1024×600, built-in mic & speaker, PoE/Wi-Fi |
| PoE Switch |
NSW2020-6T-POE-IN / 6-port, 4 PoE, 60W budget, VLAN/Extend |
| Storage |
32GB TF card included (expandable) |
| Power Supply |
DC 12V ±25% / IEEE 802.3af PoE |
| Operating Temp |
Outdoor station: -30°C ~ 60°C / Indoor station: -10°C ~ 55°C |
| Ingress Protection |
Outdoor station: IP65 / IK08 |
What’s Included
- OEU-201S-HMK-W Outdoor Door Station
- OEI-372S-H-W Indoor Touchscreen Station
- NSW2020-6T-POE-IN 6-Port PoE Switch
- 32GB TF Card
- Mounting accessories & quick start guide
More Information
UNV KIT/201S/372S/NSW2020 Datasheet
UNV Intercom Quick Guide & User Manual
