HiLook NVR‑108MH‑C/8P 8‑Channel PoE Network Video Recorder The HiLook NVR‑108MH‑C/8P delivers powerful, efficient, and flexible recording for small to mid-sized surveillance systems. With built-in PoE for up to 8 cameras, 4K HDMI output, high-efficiency compression, and advanced smart analytics, this NVR is designed for performance and ease of use. Key Features 8 PoE-enabled IP camera inputs—plug & play simplicity Supports H.265+/H.265/H.264+/H.264 compression for efficient storage Simultaneous HDMI (up to 4K) and VGA outputs Smart playback and search for fast video review Robust 80 Mbps incoming/outgoing bandwidth Expandable storage: single SATA bay supports up to 8 TB HDD Technical Specifications Specification Details IP Video Input 8‑channel PoE (IEEE 802.3af/at) Incoming / Outgoing Bandwidth Up to 80 Mbps Video Compression H.265+/H.265/H.264+/H.264 Decoding Capability 4‑ch @ 1080p Synchronous Playback Up to 8 channels Recording Resolutions Up to 8 MP, including 5 MP, 4 MP, 1080p, etc. HDMI Output 1‑channel, up to 4K (3840×2160) @ 30 Hz VGA Output 1‑channel, up to 1080p @ 60 Hz Audio 1‑ch RCA output (linear); 1‑ch RCA two‑way audio Storage 1 × SATA interface, up to 8 TB USB Ports 2 × USB 2.0 Network Interface 1 × RJ‑45 10/100 Mbps Power Supply / Consumption 48 VDC, 1.88 A; ≤ 10 W (PoE off) Operating Temperature / Humidity –10 °C to 55 °C; 10–90 % RH Dimensions (W × D × H) 265 × 225 × 48 mm Weight (without HDD) ≤ 1 kg Why Choose This NVR? Connect and power up to 8 IP cameras with built‑in PoE Capture ultra HD surveillance with 4K output capability Efficient compression saves storage and bandwidth Smart search and playback boosts retrieval speed Durable 1U chassis with Australian support options More Information HiLook NVR-108MH-C/8P DatasheetHilook NVR 7 Steps Setup

Read more less

HiLook NVR-108MH-K/8P – 8-Channel AI-Powered 4K PoE Network Video Recorder The HiLook NVR-108MH-K/8P is a high-performance 8-channel network video recorder designed for reliable and smart video surveillance. Supporting up to 8 IP cameras with integrated Power over Ethernet (PoE), it simplifies your system by powering and connecting devices with a single cable. This model delivers ultra HD 4K output, efficient H.265+ video compression, and AI-powered human and vehicle classification for smarter search and playback. With ONVIF compliance, the NVR supports third-party camera integration, and up to 10TB of HDD storage makes it suitable for extended retention. Features Channels: 8 IP camera inputs PoE: 8 PoE ports (IEEE 802.3af/at compliant) Output: HDMI up to 4K, VGA up to 1080p AI Capabilities: Human and vehicle detection with smart playback Video Compression: H.265+/H.265/H.264+/H.264 Remote Access: Via Hik-Connect, iVMS-4200, or browser Storage: 1 SATA interface, up to 10TB capacity Playback: 4-channel simultaneous playback ONVIF: Compatible with 3rd-party IP cameras Form Factor: 1U compact desktop size Technical Specifications HiLook NVR-108MH-K/8P – Technical Specifications 8 Channels Up to 8MP resolution IP cameras 8 × RJ45 Ports IEEE 802.3af/at compliant 1x HDMI Up to 4K (3840×2160) 1x VGA Up to 1080p Video Compression H.265+, H.265, H.264+, H.264 Simultaneous Playback 4 Channels HDD Support 1x SATA, up to 10TB Smart Detection Human and Vehicle classification 1-ch, RCA Optional 2-way audio 48V DC ≤ 100 W with PoE 315 × 240 × 48 mm 1U Compact Metal Housing ~1.5 kg Without HDD More Information HiLook Pro NVR-108MH-K/8P DatasheetHilook NVR 7 Steps SetupHiLook K-Series NVR Brochure

Read more less

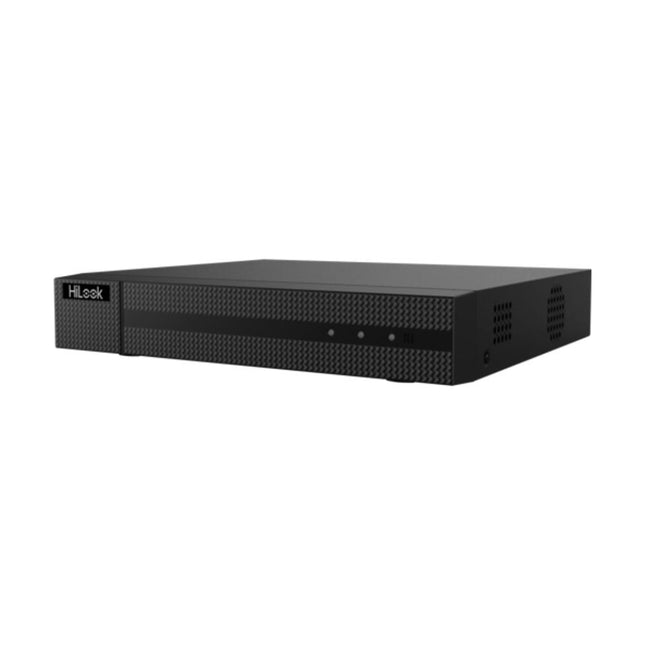

HiLook NVR‑104MH‑C/4P 4‑Channel PoE Network Video Recorder The HiLook NVR‑104MH‑C/4P is a professional-grade 4-channel NVR with built-in PoE ports, capable of delivering high-performance recording and advanced smart analytics in a compact unit—perfect for small to medium surveillance setups. Key Features Up to 4 IP camera inputs with built-in PoE (IEEE 802.3af/at) Supports efficient H.265+/H.265/H.264+/H.264 video compression Simultaneous HDMI (up to 4K resolution) and VGA outputs Smart VCA analytics: motion detection, line crossing, intrusion, heat map, ANPR, people counting Supports up to 1‑ch @ 8 MP or 5‑ch @ 1080p decoding Smart search and smart playback for quick video access Expandable storage via one SATA bay—up to 8 TB HDD Technical Specifications Specification Details IP Camera Inputs 4‑channel PoE (RJ‑45, IEEE 802.3af/at) Max Incoming Bandwidth 40 Mbps Video Decoding 1‑ch @ 8 MP (30 fps) or 5‑ch @ 1080p (30 fps) Video Compression H.265+/H.265/H.264+/H.264 Smart VCA Functions Motion, line crossing, intrusion, heat map, ANPR, people counting Video Output HDMI: up to 4K (4096×2160 @30 Hz); VGA: up to 1080p @60 Hz Audio 1‑ch input (RCA), 1‑ch output (RCA); supports G.711ulaw/alaw, G.722, G.726 Storage 1 SATA (up to 8 TB HDD) USB 2× USB 2.0 (rear panel) Network 1× RJ‑45 10/100 Mbps + 4× PoE ports Power Supply 48 VDC, 1.35 A Power Consumption ≤ 10 W (without HDD, PoE off) Operating Temp / Humidity –10 °C to 55 °C, 10 % to 90 % RH Dimensions (W×D×H) 265 × 225 × 48 mm Weight (without HDD) ≤ 1 kg Why Choose This NVR? Trusted HiLook NVR with comprehensive VCA analytics Built‑in PoE simplifies camera setup Future‑proof 4K HDMI output Easy to navigate smart playback Australian stock and support available More Informations HiLook NVR-104MH-C/4P DatasheetHiLook NVR 7 Steps Setup

Read more less

HiLook NVR-216MH-C/16P 16 Channel CCTV Recorder, 1U, 16 x PoE, 2 x HDD Bay, 4K NVR The HiLook NVR-216MH-C/16P is a 16-channel CCTV recorder, designed for efficient and high-quality video surveillance. With up to 16 IP camera inputs and support for multiple video formats, it offers versatile and powerful decoding capabilities. Featuring a 4K NVR, up to 160 Mbps incoming bandwidth, and HDMI/VGA simultaneous output, this recorder is perfect for professional surveillance applications. Features Up to 16-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity Up to 160 Mbps incoming bandwidth Video And Audio IP Video Input: 16-ch Incoming Bandwidth: 160 Mbps Outgoing Bandwidth: 80 Mbps HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Video Output Mode: HDMI/VGA simultaneous output Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω) Decoding Decoding Format: H.265+,H.265,H.264+,H.264 Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Decoding Capability: 4-ch@1080p Synchronous Playback: 16-ch Network Remote Connection: 32 Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface: 16-ch Power: ≤ 150 W Standard: IEEE 802.3 af/at Auxiliary Interface SATA: 2 SATA interfaces Capacity: Up to 8 TB capacity for each disk USB Interface: 2 × USB 2.0 General Power Supply: 100 to 240 VAC, 50 to 60 Hz Consumption: ≤ 15 W (without HDD and PoE off) Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) Working Humidity: 10 to 90 % Chassis: 1U chassis Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") Weight: ≤ 2.6 kg (without HDD, 5.7 lb.) Downloads  NVR-216MH-C/16P DatasheetHilook NVR 7 Steps Setup

Read more less

HiLook NVR-108MH-C/8P(D) is an 8-channel PoE NVR with H.265+, 80 Mbps throughput, 4K HDMI output and 1× SATA (up to 8 TB). Motion Detection 2.0 (Human/Vehicle, 4-ch) and smart playback make finding events fast—perfect for homes, offices and retail. Key Features 8-ch IP inputs, 80 Mbps in / 80 Mbps out H.265+/H.265/H.264+/H.264 recording Decoding: 1-ch @ 8 MP; 3-ch @ 4 MP; 6-ch @ 1080p (30 fps) 4K HDMI + VGA simultaneous outputs 1× SATA up to 8 TB; smart search / smart playback 8× PoE ports (IEEE 802.3 af/at), PoE budget ≤ 75 W Motion Detection 2.0 with Human/Vehicle (4-ch) Audio in/out (RCA), two-way audio; 2× USB 2.0 Technical Specifications Model / SKU NVR-108MH-C/8P (D) IP Video Inputs 8-channel Incoming / Outgoing Bandwidth 80 Mbps / 80 Mbps Decoding Capability 1-ch @ 8 MP (30 fps) / 3-ch @ 4 MP (30 fps) / 6-ch @ 1080p (30 fps) Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Video Formats H.265+, H.265, H.264+, H.264 Outputs HDMI up to 4096×2160@30 Hz (also 3840×2160@30 Hz, 2560×1440@60 Hz, 1080p@60 Hz etc.); VGA up to 1080p@60 Hz; HDMI/VGA simultaneous Audio Audio IN 1-ch RCA; Audio OUT 1-ch RCA; Two-way audio supported Smart Functions Motion Detection 2.0 (Human/Vehicle analysis, 4-ch); multiple VCA events; smart search/playback Storage 1× SATA interface; up to 8 TB per disk Network 1× RJ-45 10/100 Mbps; protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, UPnP™, HTTP/HTTPS, SMTP, SNMP, NFS, iSCSI, ISUP PoE 8× RJ-45 10/100 Mbps; IEEE 802.3 af/at; PoE power ≤ 75 W Remote Connections Up to 32 USB 2× USB 2.0 Power 48 VDC, 1.88 A; consumption ≤ 10 W (without HDD and PoE off) Operating Conditions −10 °C to 55 °C; 10–90% RH Dimensions / Weight 265 × 225 × 48 mm; ≤ 1 kg (without HDD) Certification FCC, CE (EN 55032/61000/50130-4/55035) FAQs Q: How many cameras can I connect?A: Up to 8 IP cameras, with 8× PoE ports built in for single-cable installs.  Q: Does it support 4K displays?A: Yes, the HDMI output supports up to 4096×2160 @ 30 Hz (4K).  Q: What is the max recording throughput?A: 80 Mbps incoming bandwidth and 80 Mbps outgoing.  Q: How much storage can I add?A: 1× SATA bay supporting up to 8 TB.  Q: Are there smart analytics?A: Motion Detection 2.0 with Human/Vehicle analysis on 4 channels, plus multiple VCA events. More Information HiLook NVR-108MH-C/8P(D) DatasheetHiLook NVR-108MH-C/8P(D) User ManualHiLook NVR-108MH-C/8P(D) User Manual

Read more less

HiLook NVR-104MH-K/4P 4 Channel, 4 x PoE, 1U, 1 x HDD Bay, K Series, AI 4K NVR Recorder The HiLook NVR-104MH-K/4P is a 4-channel NVR recorder with 1 x HDD bay and 4 power-over-Ethernet interfaces. With up to 40 Mbps incoming bandwidth, it supports high-quality video formats such as H.265+/H.265/H.264+/H.264. Using HiLook AI technology, it offers intelligent analytics for facial recognition, perimeter protection, and motion detection, reducing manual effort and security costs. Features Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces H.265+/H.265/H.264+/H.264 video formats Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity Up to 40 Mbps incoming bandwidth Adopt HiLook AI technology to minimize manual effort and security costs Intelligent Analytics AI By Device: Facial recognition, perimeter protection, motion detection 2.0 AI By Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA Facial Recognition Face Attributes: N/A Facial Detection And Analytics: Face picture comparison, human face capture, face picture search Face Picture Comparison (Captured From Camera): 2-ch Motion Detection 2.0 By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm By Camera: All channels Perimeter Protection By Device: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm By Camera: All channels Video And Audio IP Video Input: 4-ch Incoming Bandwidth: 40 Mbps Outgoing Bandwidth: 80 Mbps HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output Mode: HDMI1/VGA simultaneous output CVBS Output: N/A Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) Decoding Decoding Format: H.265/H.265+/H.264+/H.264 Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback: 4-ch Decoding Capability: AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps), AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) Stream Type: Video, Video & Audio Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC Network Remote Connection: 128 API: ONVIF (profile S/G); SDK; ISAPI Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power: ≤ 50 W Standard: IEEE 802.3af/at Auxiliary Interface SATA: 1 SATA interface Capacity: Up to 10 TB capacity for each HDD USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Downloads NVR-104MH-K/4P DatasheetHilook NVR 7 Steps Setup

Read more less

Hikvision HiLook Recorder, NVR-232MH-K-16P, 32 Channel, 2 x Hard Disk Bay, 16 x PoE, 8MP Resolution Features Up to 32-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces H.265+/H.265/H.264+/H.264 video formats Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity Up to 256 Mbps incoming bandwidth HiLook 32 Channel, 16 PoE Ports NVR Recorder Number of Channels 32 Channel Number of PoE Ports 16 x PoE Ports Number of Hard Disk Bay 2 x SATA Interface Technology Pro Series Network Bandwidth 256 Mbps Maximum Resolution Support 4K More Information NVR-232MH-K/16P Datasheet
