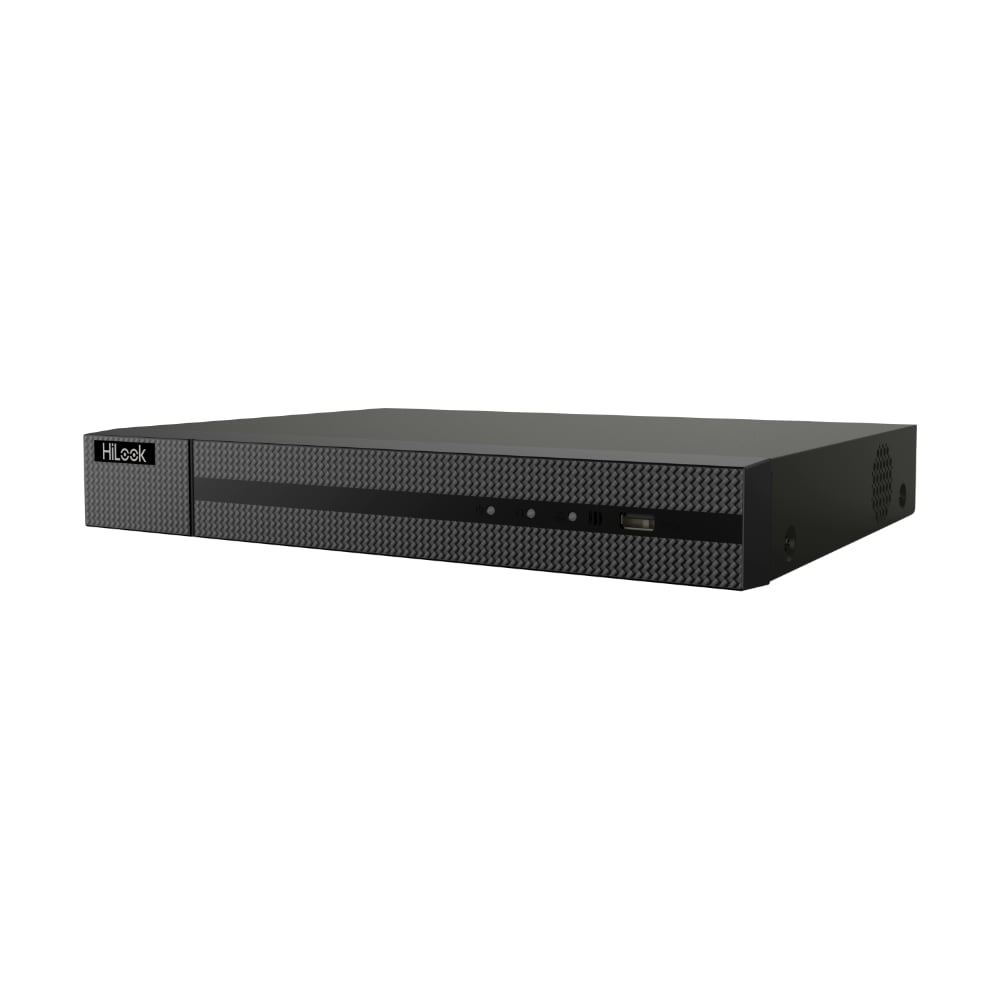

HiLook NVR-108MH-C/8P(D) 8-Channel PoE Network Video Recorder, 80 Mbps, ONVIF

Description

HiLook NVR-108MH-C/8P(D) is an 8-channel PoE NVR with H.265+, 80 Mbps throughput, 4K HDMI output and 1× SATA (up to 8 TB). Motion Detection 2.0 (Human/Vehicle, 4-ch) and smart playback make finding events fast—perfect for homes, offices and retail.

Key Features

  • 8-ch IP inputs, 80 Mbps in / 80 Mbps out
  • H.265+/H.265/H.264+/H.264 recording
  • Decoding: 1-ch @ 8 MP; 3-ch @ 4 MP; 6-ch @ 1080p (30 fps)
  • 4K HDMI + VGA simultaneous outputs
  • 1× SATA up to 8 TB; smart search / smart playback
  • 8× PoE ports (IEEE 802.3 af/at), PoE budget ≤ 75 W
  • Motion Detection 2.0 with Human/Vehicle (4-ch)
  • Audio in/out (RCA), two-way audio; 2× USB 2.0

Technical Specifications

Model / SKU NVR-108MH-C/8P (D)
IP Video Inputs 8-channel
Incoming / Outgoing Bandwidth 80 Mbps / 80 Mbps
Decoding Capability 1-ch @ 8 MP (30 fps) / 3-ch @ 4 MP (30 fps) / 6-ch @ 1080p (30 fps)
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Video Formats H.265+, H.265, H.264+, H.264
Outputs HDMI up to 4096×2160@30 Hz (also 3840×2160@30 Hz, 2560×1440@60 Hz, 1080p@60 Hz etc.); VGA up to 1080p@60 Hz; HDMI/VGA simultaneous
Audio Audio IN 1-ch RCA; Audio OUT 1-ch RCA; Two-way audio supported
Smart Functions Motion Detection 2.0 (Human/Vehicle analysis, 4-ch); multiple VCA events; smart search/playback
Storage 1× SATA interface; up to 8 TB per disk
Network 1× RJ-45 10/100 Mbps; protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, UPnP™, HTTP/HTTPS, SMTP, SNMP, NFS, iSCSI, ISUP
PoE 8× RJ-45 10/100 Mbps; IEEE 802.3 af/at; PoE power ≤ 75 W
Remote Connections Up to 32
USB 2× USB 2.0
Power 48 VDC, 1.88 A; consumption ≤ 10 W (without HDD and PoE off)
Operating Conditions −10 °C to 55 °C; 10–90% RH
Dimensions / Weight 265 × 225 × 48 mm; ≤ 1 kg (without HDD)
Certification FCC, CE (EN 55032/61000/50130-4/55035)

FAQs

Q: How many cameras can I connect?
A: Up to 8 IP cameras, with 8× PoE ports built in for single-cable installs.

Q: Does it support 4K displays?
A: Yes, the HDMI output supports up to 4096×2160 @ 30 Hz (4K).

Q: What is the max recording throughput?
A: 80 Mbps incoming bandwidth and 80 Mbps outgoing.

Q: How much storage can I add?
A: 1× SATA bay supporting up to 8 TB.

Q: Are there smart analytics?
A: Motion Detection 2.0 with Human/Vehicle analysis on 4 channels, plus multiple VCA events.

More Information

HiLook NVR-108MH-C/8P(D) Datasheet
HiLook NVR-108MH-C/8P(D) User Manual
HiLook NVR-108MH-C/8P(D) User Manual
