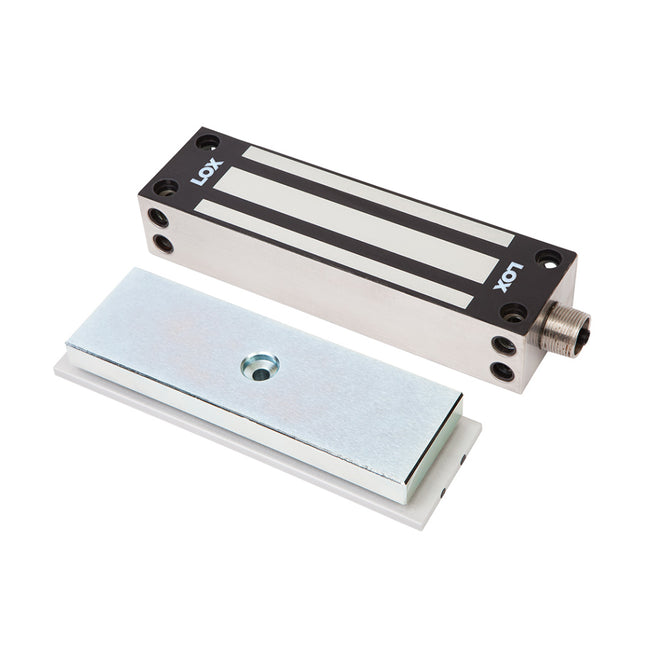

LOX EM5000 IP67 Weatherproof Magnetic Gate Lock – 630kg Holding Force Overview The LOX EM5000 is the most powerful weather-resistant electromagnetic lock in the LOX outdoor range. Engineered for high-security commercial and industrial perimeter gates, it delivers a formidable 630kg holding force inside a fully sealed 304-grade stainless steel body rated IP67. Whether it’s a tropical downpour, coastal salt air, or a dust storm in the outback, the EM5000 keeps performing where lesser locks fail. It is the go-to choice for security installers and facilities managers across Australia who need maximum gate security without compromise. Key Features 630kg Holding Force – The highest holding force in the LOX outdoor gate lock range; engineered for heavy-duty commercial and industrial gate applications. IP67 Weatherproof Rating – Fully encapsulated electronics; completely sealed against dust ingress and water immersion for reliable operation in the harshest Australian outdoor conditions. 304-Grade Stainless Steel Body – Superior corrosion resistance compared to standard zinc-plated locks; built for coastal, tropical, and high-humidity environments. Hall Effect Lock Status Monitoring (LSS) – Built-in sensor provides real-time lock status feedback to your access control system for remote monitoring and alarm integration. Zero Residual Magnetism – Instant, clean gate release on power-off; no sticking or delayed egress. Fail-Safe Operation – Automatically releases during power loss for emergency egress compliance. Dual Voltage Operation – Accepts 12VDC or 24VDC for flexible integration with existing access control infrastructure. Dual Fixing Arrangement – Supports both front and header mounting to suit a wide range of heavy gate configurations. Lifetime Warranty – Manufacturer-backed for long-term confidence in the most demanding outdoor installations. Use Cases High-security industrial and commercial perimeter gates Data centres, utilities, and critical infrastructure entry points Coastal and marine facilities including ports, marinas, and surf lifesaving clubs Mining, resources, and remote site access gates Government, defence, and correctional facility perimeter gates Heavy swing gates and sliding gate applications requiring maximum holding force Technical Specifications Specification Details Model EM5000 (Monitored) Housing Material 304-Grade Stainless Steel (Fully Sealed) IP Rating IP67 (Dust & Water Immersion) Holding Force 630kg (approx. 1,380lbs) Monitoring Output Hall Effect Sensor (Lock Status Sensing) Anti-Residual Magnetism Yes (Instant Release) Input Voltage 12VDC / 24VDC Current Draw (12V) 460mA Current Draw (24V) 230mA Mounting Options Front Mount / Header Mount (Dual Fixing) Fail-Safe Operation Yes (Releases on Power Loss) Warranty Lifetime Downloads LOX EM5000 Installation Manual (PDF) LOX EM5000 Data Sheet (PDF) LOX Accessories Guide (PDF) Frequently Asked Questions How does the EM5000 compare to the EM4700? Both are IP67-rated stainless steel gate locks with Hall Effect LSS monitoring, but the EM5000 delivers 630kg holding force versus the EM4700’s 380kg. The EM5000 is the preferred choice for heavy industrial gates, high-security perimeters, and applications where maximum resistance to forced entry is required. Is the EM5000 suitable for coastal and marine environments? Yes. The fully sealed 304-grade stainless steel body and IP67 rating make it one of the most corrosion-resistant electromagnetic locks available. It is widely used at ports, marinas, surf lifesaving clubs, and other high-exposure coastal sites across Australia. What does IP67 mean in practice? IP67 means the lock is fully protected against dust ingress (6) and can withstand temporary water immersion up to 1 metre for 30 minutes (7). This makes it suitable for gates subject to heavy rain, hose-down cleaning, or occasional flooding. What brackets are compatible with the EM5000? The EM5000 requires a rigid mounting surface. For swinging gates, use compatible LOX L & Z Brackets to maintain the full 630kg holding force integrity. Refer to the LOX Accessories Guide above for the correct bracket for your gate configuration. Does the EM5000 provide lock status monitoring? Yes. The built-in Hall Effect Sensor outputs a Lock Status Sensing (LSS) signal to your access control panel, providing real-time confirmation of whether the lock is energised and secured. Is this lock fail-safe or fail-secure? The EM5000 is a fail-safe (fail-open) device — it releases automatically when power is removed. This is the standard and required behaviour for fire egress compliance on designated exit paths. For fail-secure applications, a different locking mechanism is required. What power supply do I need for the EM5000? The EM5000 operates on 12VDC (460mA) or 24VDC (230mA). For outdoor installations, use a weatherproof power supply enclosure rated for continuous outdoor use. Ensure your supply can deliver sufficient current for the lock plus any other devices on the same circuit. Installer Note: Due to its 630kg holding force, the EM5000 requires a rigid, structurally sound mounting surface. For swinging gates, always use compatible LOX L & Z Brackets to maintain full holding force integrity. Use a weatherproof power supply enclosure for all outdoor installations.

Read more less

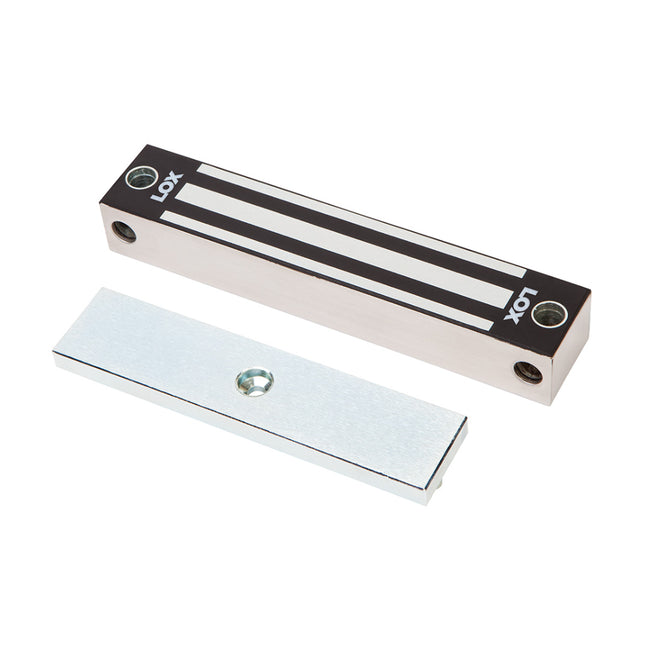

LOX EM4500 IP67 Weatherproof Magnetic Gate Lock – 200kg Holding Force Overview The LOX EM4500 is a compact, heavy-duty electromagnetic gate lock engineered specifically for outdoor and harsh-environment applications. Built from 304-grade stainless steel and rated IP67 for full dust and water immersion protection, it delivers reliable 200kg holding force on gates and external doors exposed to Australia’s toughest weather conditions — from coastal salt spray to tropical downpours. Key Features IP67 Weatherproof Rating – Fully sealed against dust ingress and water immersion; suitable for exposed outdoor gate installations. 304-Grade Stainless Steel Housing – Corrosion-resistant construction designed to withstand coastal, tropical, and high-humidity environments. 200kg Holding Force – Reliable security in a compact mini form factor, ideal for pedestrian gates and access-controlled perimeters. Monitored Reed Switch (DSS) – Built-in Door Status Sensor provides real-time open/closed gate monitoring via your access control system. Zero Residual Magnetism – Instant gate release on power-off; no sticking or delayed egress. Dual Voltage Operation – Accepts 12VDC or 24VDC for flexible integration with existing access control infrastructure. Dual Fixing Arrangement – Supports both front and header mounting to suit a wide range of gate configurations. Wide Operating Temperature – Rated from -20°C to +60°C for reliable performance in extreme Australian climates. Lifetime Warranty – Manufacturer-backed for long-term confidence in demanding outdoor installations. Use Cases Pedestrian access gates at commercial and industrial sites Perimeter security gates in coastal or high-humidity environments School and childcare facility entry gates requiring monitored access control Residential estate and apartment complex gates Car parks, loading docks, and service yard entry points Any outdoor gate application where IP67 protection is required Technical Specifications Specification Details Model EM4500 (Monitored) Housing Material 304-Grade Stainless Steel IP Rating IP67 (Dust & Water Immersion) Holding Force 200kg Monitoring Output Reed Switch (Door Status Sensor) Input Voltage 12VDC / 24VDC Current Draw (12V) 360mA Current Draw (24V) 180mA Operating Temperature -20°C to +60°C Mounting Options Front Mount / Header Mount (Dual Fixing) Warranty Lifetime Downloads LOX EM4500 Installation Manual (PDF) LOX EM4500 Data Sheet (PDF) LOX Accessories Guide (PDF) Frequently Asked Questions Is the EM4500 suitable for coastal environments? Yes. The 304-grade stainless steel housing and IP67 rating make it highly resistant to corrosion and salt spray. It is one of the most suitable electromagnetic locks available for coastal Australian installations. What does the IP67 rating mean in practice? IP67 means the lock is fully protected against dust ingress (6) and can withstand temporary water immersion up to 1 metre for 30 minutes (7). This makes it suitable for exposed outdoor gates subject to heavy rain, hose-down cleaning, or flooding risk. Does the EM4500 require a specific bracket? The EM4500 supports dual fixing (front and header mount). For inward-opening gates, the LOX AMZB3 L & Z Bracket is commonly required for a secure fit. Refer to the LOX Accessories Guide above for compatible bracket options. Can I monitor whether the gate is open or closed? Yes. The EM4500 includes a built-in Reed Switch (Door Status Sensor) that outputs an open/closed signal to your access control panel, enabling real-time gate status monitoring and alarm integration. What power supply do I need? The EM4500 operates on 12VDC (360mA) or 24VDC (180mA). Ensure your power supply is rated for continuous outdoor use and can deliver sufficient current. A weatherproof enclosure for the power supply is recommended for fully exposed installations. Is this lock fail-safe or fail-secure? The EM4500 is a fail-safe (fail-open) device — it releases when power is removed. This is the standard and required behaviour for fire egress compliance on designated exit paths. For fail-secure applications, a different locking mechanism is required. Installer Note: For inward-opening gates, pair the EM4500 with the LOX AMZB3 L & Z Bracket to achieve correct armature plate alignment. Always use a weatherproof power supply enclosure for fully exposed outdoor installations.

Read more less

The FSH FES10 Electric Strike is engineered for light commercial and residential access control — delivering a 1000kg holding force in a compact, IP56-rated stainless steel body. Whether you're securing a strata entry, office door, or retail premises, the FES10 gives you reliable, low-maintenance electric strike performance backed by a 5-year FSH warranty. Why Choose the FSH FES10? 1000kg Superior Holding Strength — Engineered to resist forced entry on standard commercial and residential doors. IP56 Weather Resistance — Dust-tight and protected against powerful water jets, suitable for exposed entry points. Stainless Steel Faceplate & Keeper — Corrosion-resistant construction for long-term durability in high-traffic environments. 12V or 24VDC Operation — Flexible voltage compatibility integrates with virtually any access control panel or intercom system. Barbell Mechanism — Simple field-changeable locking function (fail-safe / fail-secure) without tools or special hardware. Low Power Consumption — Reduces load on your power supply, ideal for multi-door installations. Compatible with Door Latch Depth up to 15mm — Fits standard mortice latches across most door profiles. Pre-Drilled for Extension Lips — Ready for narrow-stile aluminium frames and glass door applications. CE & C-Tick Certified — Meets Australian EMC compliance requirements. 5-Year Warranty — Industry-leading coverage from FSH, Australia's trusted access hardware brand. Technical Specifications Model FSH FES10 Holding Force Up to 1000kg Operating Voltage 12VDC / 24VDC IP Rating IP56 Faceplate Material Stainless Steel Latch Depth Compatibility Up to 15mm Locking Mode Fail-Safe / Fail-Secure (field changeable) Certifications CE, C-Tick Warranty 5 Years SKU FES10 Ideal Applications Strata and apartment building entry doors Office and commercial premises Retail shopfronts with aluminium narrow-stile frames Intercom-integrated residential gates and doors Schools, childcare centres, and healthcare facilities In the Box 1 × FSH FES10 Electric Strike Mounting hardware and fixings Installation guide Downloads 📄 FSH FES10 Product Brochure (PDF) 📄 FSH FES10 Installation Instructions (PDF) Buy the FSH FES10 in Australia CCTV Guru is an authorised Australian supplier of FSH access control hardware. We stock the FES10 locally for fast dispatch, and our team can assist with compatibility questions, wiring diagrams, and multi-door project quotes. Contact us or add to cart now.

Read more less

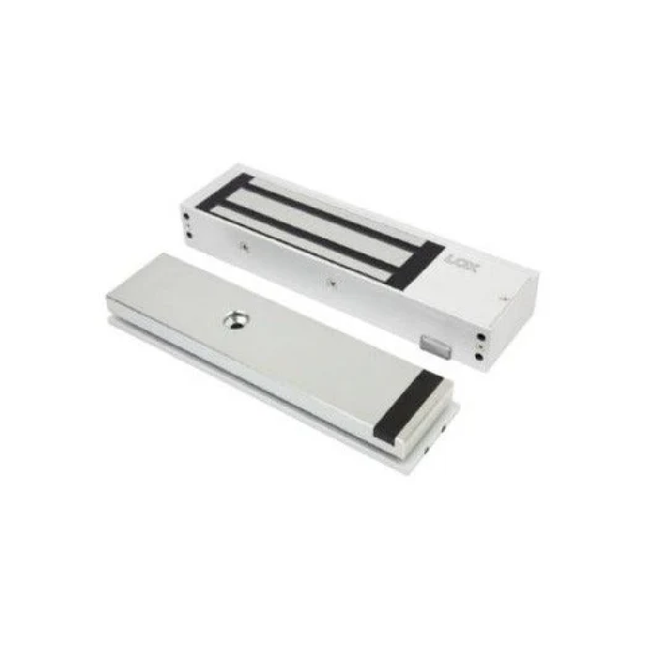

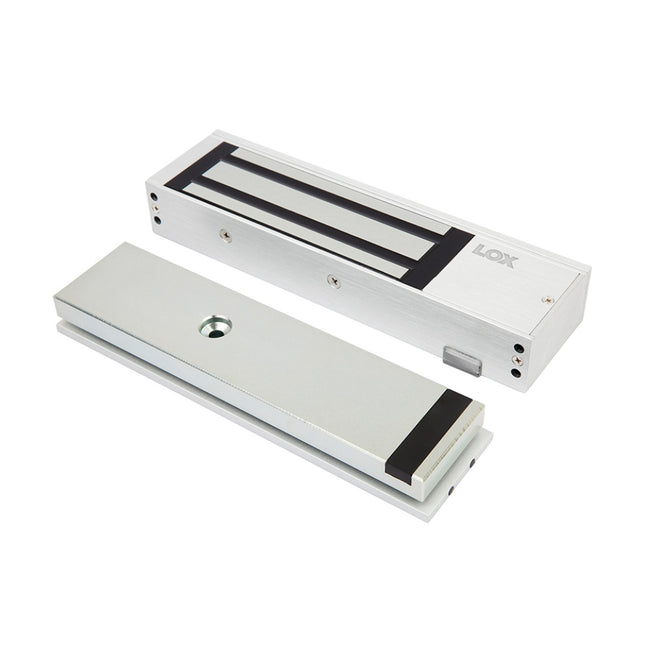

LOX EM5700M Monitored Single Electromagnetic Lock – 580kg Holding Force, Dual Voltage, Fire Rated Overview The LOX EM5700M is a heavy-duty, monitored single electromagnetic lock built for high-security commercial and industrial access control across Australia. Delivering a formidable 580kg (1,200 lb) holding force and featuring an integrated Hall Effect Lock Status Sensor (LSS), the EM5700M is engineered for perimeter doors, government facilities, data centres, and critical infrastructure where standard maglocks simply aren't enough. Dual 12V/24VDC voltage compatibility and a 4-hour fire rating make it one of the most versatile and compliant electromagnetic locks available in Australia today. Description Where security cannot be compromised, the EM5700M delivers. Its slimline anodised aluminium housing conceals a powerful electromagnetic coil capable of resisting nearly double the force of a standard 280kg maglock. The built-in Hall Effect sensor continuously monitors lock engagement, feeding real-time status back to your access control panel — so you know instantly if a door is ajar, forced, or the lock has failed to engage. Selectable 12VDC or 24VDC operation means the EM5700M integrates cleanly into virtually any existing access control infrastructure without additional power conditioning. The anti-tamper mounting plate conceals all fixings once installed, and the high-visibility red/green LED panel gives security staff and installers immediate visual confirmation of lock status. With a 4-hour fire rating, it meets Australian building code requirements for fire-rated door assemblies. Key Features 580kg (1,200 lb) Holding Force: Nearly double the strength of standard maglocks — built for high-risk, high-traffic entry points. Hall Effect Lock Status Sensor (LSS): Real-time monitoring output alerts your access control panel if the door is forced or the lock fails to engage. Dual Voltage – 12VDC / 24VDC: Selectable operating voltage for seamless integration with existing access control and security systems. 4-Hour Fire Rating: Certified for use on fire door assemblies, compliant with Australian building and safety standards. Fail-Safe Operation: Releases instantly when power is removed — correct configuration for commercial and fire-rated door applications. No Residual Magnetism: Innovative coil design ensures immediate door release on power loss, critical for safe egress in emergencies. Red/Green LED Indicator: High-visibility panel provides instant visual confirmation of locked or unlocked status. Anti-Tamper Mounting Plate: Conceals internal fixings once installed, deterring unauthorised removal and forced entry attempts. Slimline Anodised Aluminium Housing: Durable, corrosion-resistant finish suited to 24/7 commercial operation in Australian conditions. Use Cases Government buildings and council facilities Data centres and server rooms Hospitals, aged care facilities, and medical centres Schools, universities, and TAFE campuses Commercial office buildings and corporate headquarters Warehouses, logistics hubs, and industrial facilities Retail stores and shopping centre back-of-house doors Strata and apartment building common area entry points Technical Specifications Specification Detail Model LOX EM5700M (Monitored) Holding Force Up to 580kg (1,200 lbs) Operating Voltage 12VDC / 24VDC (Selectable) Current Draw 500mA @ 12VDC  |  250mA @ 24VDC Monitoring Type Hall Effect Lock Status Sensor (LSS) Lock Body Dimensions 268mm (L) × 73mm (H) × 40mm (D) Fire Rating Up to 4 Hours Lock Type Single Electromagnetic (Fail-Safe) LED Indicator Red/Green High-Visibility Panel Mounting Surface Mount with Anti-Tamper Plate (Included) Residual Magnetism None (Instant Release) Suitable Door Types Timber, Aluminium, Steel Frame Doors Recommended Accessories & Compatible Products LOX AMZB4-LP L & Z Bracket Kit – Required for inward-opening door installations; ensures correct armature alignment. Armature Plate – Matching LOX armature plate for maximum surface contact and optimal holding force. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup to keep the lock operational during outages. Exit Button / Request-to-Exit (RTE) – Surface-mount or flush exit buttons for safe, compliant egress on commercial maglock installations. Door Controller / Access Panel – Single or multi-door panels compatible with the EM5700M's LSS monitoring output. Door Closer – Overhead door closer to ensure the door returns to the locked position; required for fire door compliance in Australia. Frequently Asked Questions What is the difference between the LOX EM5700M and the EM3500 series?The EM5700M delivers 580kg of holding force — nearly double the 280kg of the EM3500 series. It also includes built-in Hall Effect LSS monitoring, making it the right choice for high-security or monitored access control applications. Does the EM5700M come with a mounting plate?Yes. The EM5700M includes an anti-tamper mounting plate and all necessary fixings for standard surface mounting. Additional Z-brackets or L-brackets may be required depending on your door configuration. Is the LOX EM5700M fail-safe or fail-secure?The EM5700M is a fail-safe electromagnetic lock — it releases (unlocks) when power is removed. This is the standard configuration for most commercial and fire-rated door applications in Australia. What voltage does the EM5700M operate on?The EM5700M supports both 12VDC and 24VDC operation, selectable via an internal switch. This makes it compatible with the vast majority of access control power supplies used in Australian installations. Is the EM5700M suitable for fire-rated doors?Yes. The EM5700M is rated for use on fire door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware. How does the Hall Effect monitoring work?The integrated Hall Effect sensor detects whether the armature plate is in contact with the lock body. It outputs a signal to your access control panel confirming the lock is properly engaged — or triggers an alert if the door is ajar or the lock has been forced. Do you ship the LOX EM5700M Australia-wide?Yes. We ship to all states and territories across Australia, including metro and regional areas. Contact us for bulk order pricing and project quotes.

Read more less

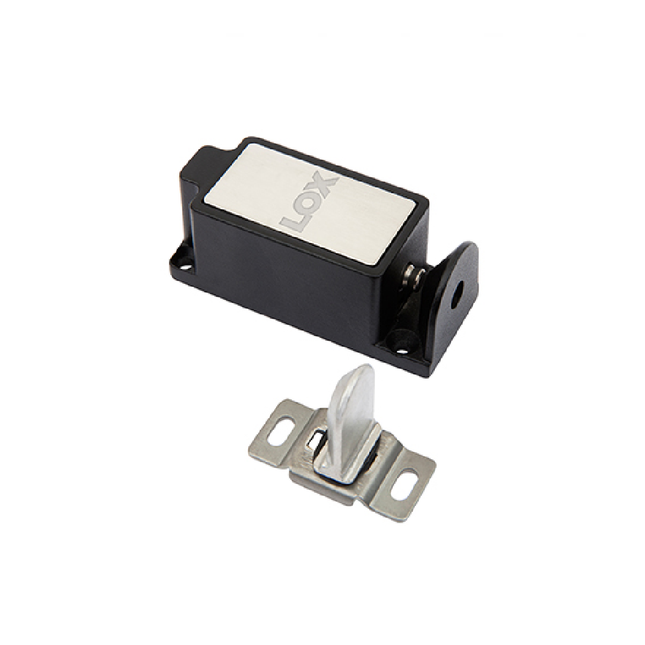

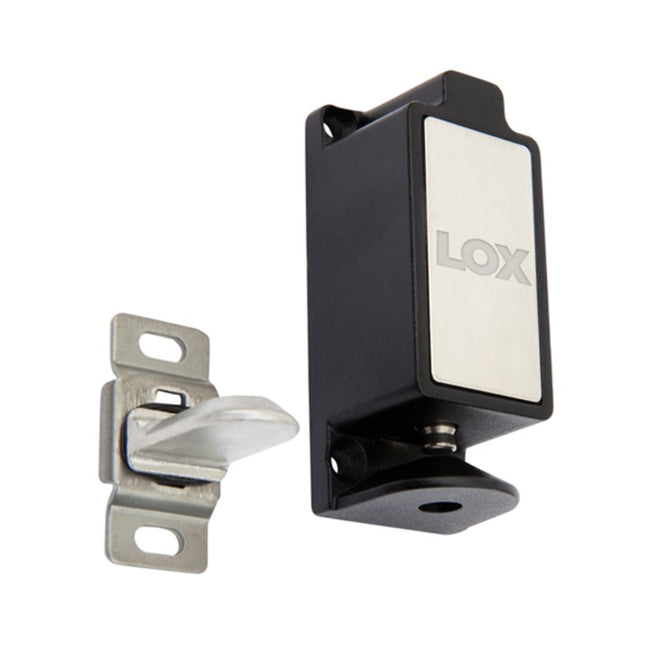

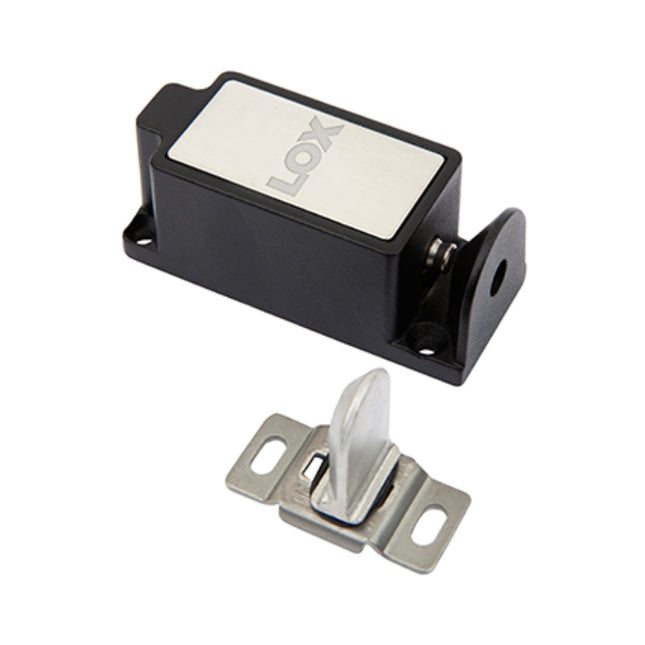

LOX CL0001 Surface Mount Cabinet Lock – 150kg Holding Force, Fail-Safe & Fail-Secure, 12/24VDC Overview The LOX CL0001 is a compact, professional-grade electromechanical cabinet lock built for securing lockers, drawers, retail displays, medicine cabinets, and office enclosures. With a 150kg holding force, field-selectable Fail-Safe or Fail-Secure operation, and dual 12V/24VDC compatibility, the CL0001 delivers reliable access control in a discreet surface-mount form factor — trusted by installers and facilities managers across Australia. Description Where a standard padlock or mechanical latch isn’t enough, the CL0001 steps in. Its compact 100 × 50 × 50mm body fits inside small enclosures where space is tight, while its 150kg holding force provides serious resistance against forced entry. The field-selectable operating mode is a standout feature — switch between Fail-Safe and Fail-Secure on-site without tools, giving installers the flexibility to adapt to changing site requirements without replacing hardware. Rated to 400,000 cycles and certified to CE, C-Tick, and 4-hour fire rating standards, the CL0001 is built for long-term commercial reliability. It integrates with virtually any access control panel, card reader, keypad, or intercom system that outputs 12VDC or 24VDC — making it a versatile addition to any security installation across Australia. Fail-Safe vs Fail-Secure – Which Mode Do You Need? Fail-Safe (Power to Lock): The lock engages when power is applied and releases when power is cut. Best for emergency egress applications where doors must open freely during a power outage or fire alarm event. Fail-Secure (Power to Open): The lock remains locked when power is cut and releases only when power is applied. Ideal for securing high-value storage where security must be maintained even during a power failure. The CL0001 lets you choose the right mode for your site — and change it in the field if requirements evolve. Key Features 150kg Holding Force: Robust resistance against forced entry, ideal for securing high-value assets in lockers, cabinets, and enclosures. Field-Selectable Fail-Safe / Fail-Secure: Switch operating modes on-site without tools — no need to replace hardware if site requirements change. Dual Voltage – 12VDC / 24VDC: Integrates seamlessly with most access control panels, card readers, and intercom systems. Compact Surface Mount Design: 100 × 50 × 50mm body fits inside small enclosures where space is at a premium. Versatile Door Compatibility: Installs on hinged, sliding, or double-action (swing-through) doors. 400,000-Cycle Rated: Built for long-term commercial reliability in high-use environments. CE, C-Tick & 4-Hour Fire Rated: Compliant with Australian and international standards for commercial and fire-rated installations. Optional 8m Cable: Extended cable version available for installations where the control panel is located further from the lock. Use Cases Retail display cabinets and jewellery showcases Office and workplace lockers Medicine and pharmaceutical cabinets IT equipment enclosures and server racks School and gym lockers Hospitality and hotel room safes Government and secure facility storage Strata and apartment building parcel lockers Technical Specifications Specification Detail Model LOX CL0001 Holding Force Up to 150kg Operating Voltage 12VDC @ 190mA  |  24VDC @ 90mA Operating Mode Field Selectable – Fail-Safe or Fail-Secure Monitoring Non-Monitored Lock Dimensions 100mm (L) × 50mm (W) × 50mm (H) Cable Length 200mm standard (optional 8m version available) Cycle Rating 400,000 cycles Certifications CE, C-Tick, 4-Hour Fire Rated Mounting Type Surface Mount Door Compatibility Hinged, Sliding, Double-Action (Swing-Through) Product Video Overview of the LOX CL0001 electromechanical cabinet lock. Frequently Asked Questions Can I change the operating mode after installation?Yes. The CL0001 is field-selectable, meaning you can switch between Fail-Safe and Fail-Secure modes on-site without returning the unit or requiring specialist tools. What access control systems is the CL0001 compatible with?The CL0001 works with any access control panel that outputs 12VDC or 24VDC. It is compatible with most card readers, keypads, and intercom systems available in Australia. Is the CL0001 suitable for fire-rated doors?Yes. The CL0001 carries a 4-hour fire rating, making it suitable for use on fire-rated door assemblies where required by Australian building codes. Does this lock provide door position monitoring?This is the non-monitored version of the CL0001. If lock status monitoring is required for your access control system, please contact us about the monitored variant. What is the standard cable length and can it be extended?The standard cable is 200mm. An optional 8-metre cable version is available for installations where the control panel is located further from the lock. Is this product covered by a warranty?Yes. LOX products are backed by a manufacturer’s warranty. Contact CCTV Guru for full warranty terms and after-sales support.

Read more less

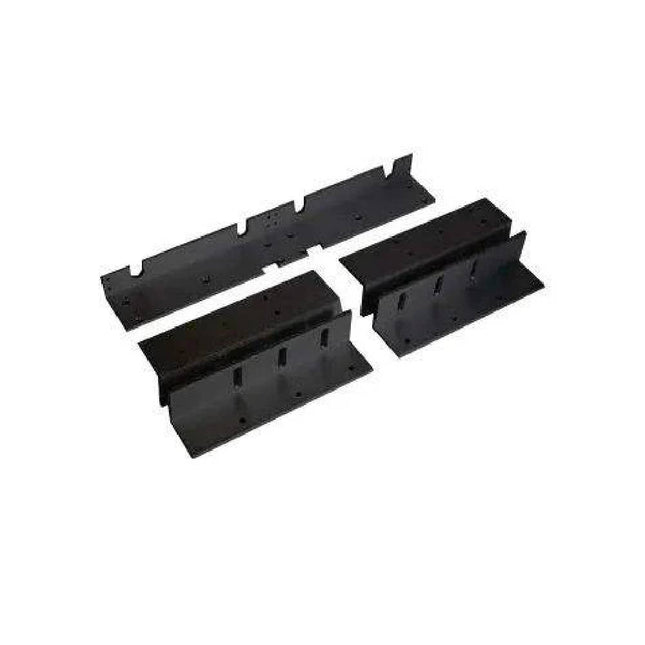

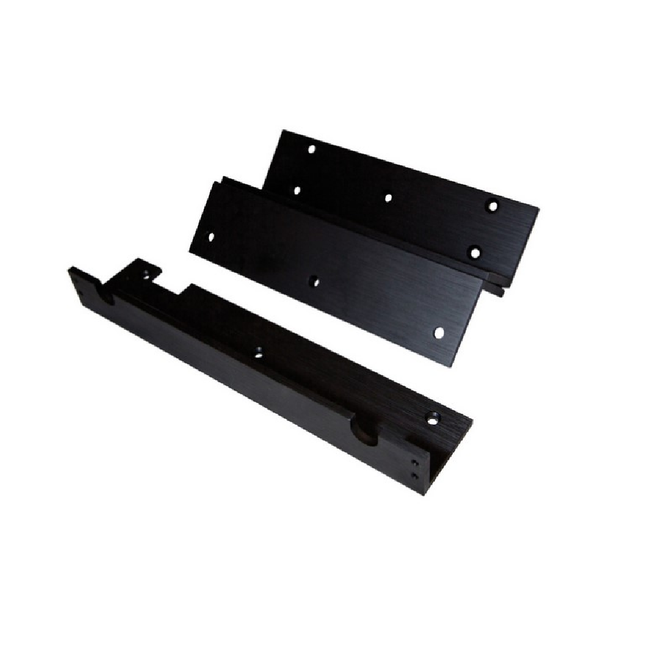

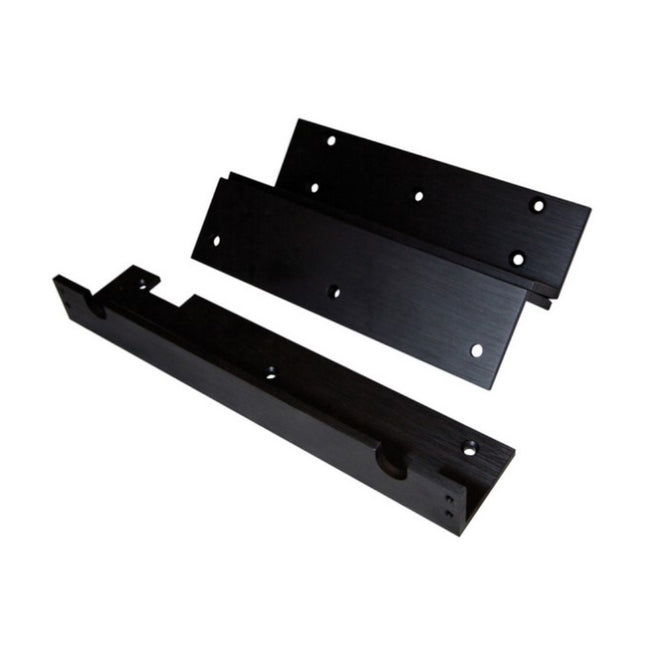

LOX AMZB4D-BLK Matte Black Double L & Z Bracket – For EM3500D & EM3500DM Inward-Opening Double Door Maglocks Overview The LOX AMZB4D-BLK is the purpose-built mounting bracket for the LOX EM3500D-BLK and EM3500DM-BLK double electromagnetic locks. Finished in an architectural matte black powder coat, it delivers a clean, professional installation on inward-opening double doors — ideal for commercial, industrial, and high-end residential projects across Australia where aesthetics and security both matter. Description When a double door swings inward, correct bracket geometry is critical. The AMZB4D-BLK’s L & Z configuration provides the precise offset needed to keep the armature plates flush against the magnets, ensuring the full 560kg combined holding force of the EM3500DM-BLK system is maintained. Without the right bracket, even the best maglock will underperform. Constructed from high-tensile aluminium alloy with a durable matte black powder coat, the bracket is lightweight yet rigid — resisting flex under load and corrosion in coastal and high-humidity Australian environments. Full horizontal and vertical adjustability accommodates minor frame irregularities without custom fabrication, saving installers time on site. The complete kit includes the L-bracket, Z-bracket, and all fixing screws. Key Features Architectural Matte Black Finish: Matches black aluminium and timber door frames for a seamless, professional appearance. Double Door Configuration: Sized specifically for the LOX EM3500D-BLK and EM3500DM-BLK double maglock systems (560kg combined holding force). Inward-Opening Door Design: L & Z geometry provides the correct offset for doors that swing into the building. Full Adjustability: Horizontal and vertical adjustment compensates for uneven or non-standard door frames. High-Tensile Aluminium Alloy: Lightweight yet rigid, resisting flex under load. Corrosion-Resistant Powder Coat: Suitable for coastal and high-humidity Australian environments. Fire-Rated Compatibility: Maintains the fire safety certification of the LOX EM-Series lock system. Complete Hardware Kit: Includes L-bracket, Z-bracket, and all fixing screws — ready to install. Use Cases Commercial office building entry and exit double doors Retail shopfronts with inward-opening double glass or aluminium doors Schools and universities with secure access zones Healthcare facility controlled entry points Strata and apartment complex common area double doors Industrial facilities requiring high-security double door access control High-end residential entry gates and double doors Technical Specifications Specification Detail Model AMZB4D-BLK Compatible Locks LOX EM3500D-BLK & EM3500DM-BLK (Double) Door Type Inward-Opening Double Doors Finish Architectural Matte Black Powder Coat Material High-Tensile Aluminium Alloy Weight Approx. 1.3kg Hardware Included L-Bracket, Z-Bracket & Fixing Screws Fire-Rated Compatibility Yes – maintains LOX EM-Series fire rating Brand LOX Recommended Accessories & Compatible Products LOX EM3500DM-BLK – Double monitored electromagnetic lock (560kg combined) designed to pair with this bracket. LOX EM3500D-BLK – Double non-monitored maglock variant for this bracket series. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup for reliable maglock operation. Exit Button / Request-to-Exit (RTE) – Surface-mount egress button for compliant exit hardware on double door installations. Door Closer – Overhead door closer to ensure both leaves return to the locked position; required for fire door compliance in Australia. Frequently Asked Questions Which maglocks is the AMZB4D-BLK compatible with?It is engineered specifically for the LOX EM3500D-BLK and EM3500DM-BLK double electromagnetic locks. The dimensions are matched to these models to ensure correct armature alignment and full holding force. Can this bracket be used on outward-opening doors?No — the L & Z geometry is designed for inward-opening (swing-in) double doors. For outward-opening doors, a different bracket configuration is required. Contact us if you need help selecting the correct bracket. Is the matte black finish durable in outdoor or coastal environments?Yes. The powder coat finish is corrosion resistant and suitable for Australian coastal and high-humidity conditions. For fully exposed outdoor installations, additional weatherproofing of the lock itself is recommended. Does the bracket come with all necessary fixings?Yes — the kit includes the L-bracket, Z-bracket, and all required fixing screws for a complete installation. Will this bracket work with the silver (non-BLK) EM3500DM?The dimensions are identical so it will fit mechanically, however it is aesthetically matched to the BLK series for a uniform finish. For silver locks, the standard silver bracket is recommended. Do you ship Australia-wide?Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

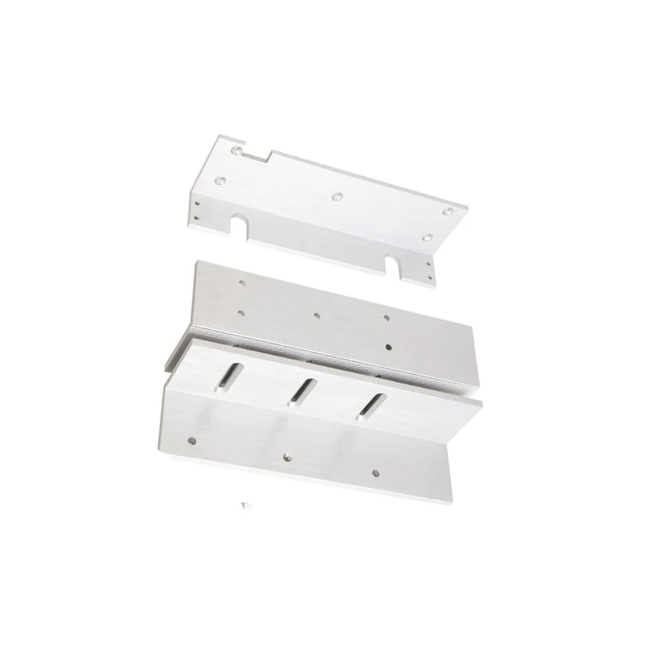

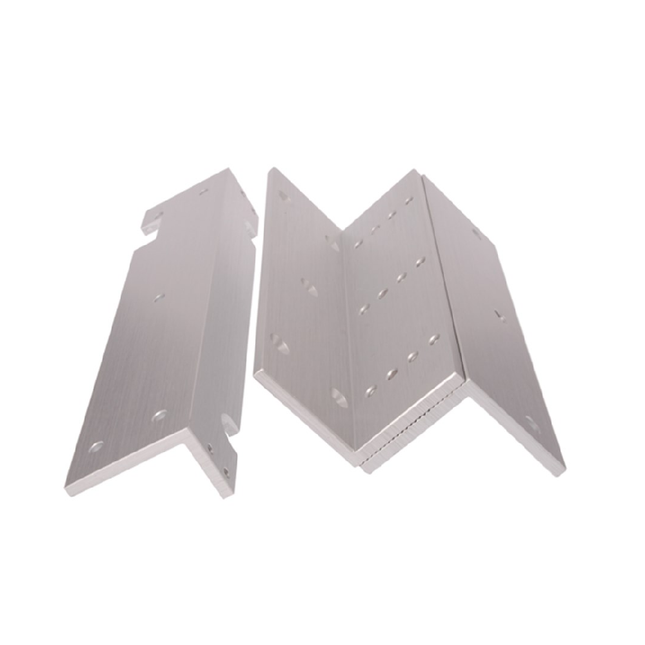

LOX AMZB4-LP L & Z Bracket Kit – Single Electromagnetic Lock Mounting for Inward-Opening Doors Overview The LOX AMZB4-LP is a professional-grade L & Z bracket kit engineered for mounting single electromagnetic locks on inward-opening (swing-in) doors. Designed specifically for the LOX EM3500, EM3500M, and EM5700 maglock series, this kit delivers precise armature alignment, a clean architectural finish, and compliance with fire-rated door assemblies — making it the go-to choice for Australian security installers and facility managers. Description When a door swings inward, a standard L bracket simply won't do the job. The AMZB4-LP solves this with its combined L and Z plate design, allowing the magnet to sit on the door frame while the armature plate remains correctly positioned on the door leaf. The result is full holding force, a flush finish, and a reliable installation that stands up to daily use in commercial and government environments. Constructed from high-grade anodised aluminium, the bracket resists corrosion in humid Australian conditions and blends seamlessly with modern door hardware. Multiple adjustment slots accommodate varying door and frame thicknesses, reducing installation time and eliminating the need for custom fabrication. Key Features Designed for Inward-Opening Doors: The L & Z configuration is the correct and reliable solution when the door swings into the secured area. Compatible with LOX EM3500, EM3500M & EM5700: Purpose-built fitment ensures full holding force and no compromise on lock performance. Adjustable Z-Plate: Multiple mounting slots allow precise armature alignment across different door and frame profiles. Anodised Aluminium Construction: Corrosion-resistant satin silver finish suits commercial interiors and withstands Australian humidity. Fire-Rated & CE Approved: Suitable for use on fire-rated door assemblies, maintaining building compliance and safety integrity. Anti-Tamper Design: Fixings are concealed once installed, deterring unauthorised removal. Low-Profile Build: Minimises protrusion from the door frame for a clean, professional appearance. Use Cases Commercial office entry and server room doors Retail store back-of-house and stockroom access Government and healthcare facility secure zones Educational institutions and childcare centres Strata and apartment building common area doors Any inward-opening door requiring a LOX EM3500 or EM5700 maglock installation Technical Specifications Specification Detail Model AMZB4-LP (Single) Compatible Locks LOX EM3500, EM3500M, EM5700 Door Configuration Inward Opening (Swing-In) Material High-Grade Anodised Aluminium Finish Satin Anodised Silver Adjustment Adjustable Z-Plate for armature alignment Certification Fire Rated, CE Approved Profile Low Profile (LP) Quantity Single Kit Frequently Asked Questions What is the difference between a standard L bracket and this L & Z kit?A standard L bracket is designed for outward-opening doors. The L & Z kit is required for inward-opening doors — it allows the armature plate to remain on the door leaf while the magnet is fixed to the frame, maintaining correct alignment and full holding force. Will this bracket work with other brands of maglocks?The AMZB4-LP is purpose-built for the LOX EM3500 and EM5700 series. It may physically fit other 280 kg (600 lb) maglocks with similar mounting hole patterns, but we recommend pairing it with LOX locks for guaranteed compatibility and performance. Is this bracket suitable for fire-rated doors?Yes. The AMZB4-LP is approved for use on fire-rated door assemblies, making it compliant for use in buildings where fire door integrity must be maintained. Do I need any special tools to install this bracket?Standard installation tools are sufficient. The adjustable slots reduce the need for custom drilling, and the concealed fixings provide a clean finish once installed. Always refer to the LOX installation guide for your specific lock model.

Read more less

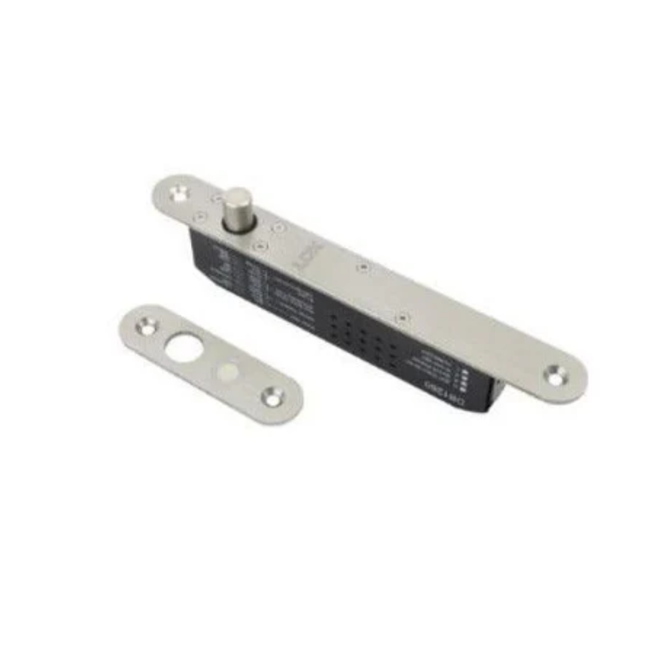

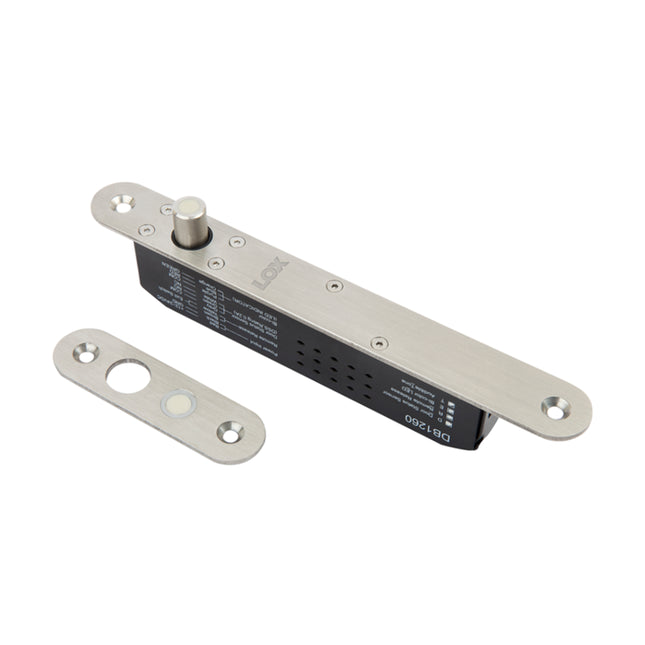

LOX DB1260PTL Electric Drop Bolt – Narrow Style, Fail-Safe (Power to Lock), 300kg, Fire Rated Overview The LOX DB1260PTL is a premium electric drop bolt engineered for narrow-frame swing doors and glass door installations where a standard-width lock simply won’t fit. With a slimline 25mm faceplate and just 35mm body depth, it slots cleanly into a 44mm door frame while delivering a formidable 300kg holding force via a 14.5mm stainless steel bolt. Operating in Fail-Safe (Power to Lock) mode, it automatically releases during a power failure — keeping occupants safe and your installation compliant with Australian fire egress requirements. Description Drop bolts are the preferred locking solution for swing doors where a maglock isn’t suitable — particularly on narrow aluminium frames, frameless glass doors, and timber doors where a recessed mortice mount is required. The DB1260PTL’s slimline profile solves the most common installation challenge: fitting a high-security electric lock into a frame that’s too narrow for standard hardware. The built-in Door Status Sensor (DSS) uses a reed switch to provide real-time door position feedback to your access control panel, while the selectable 0, 3, 6, or 10-second re-lock time delay gives installers flexibility to match the lock behaviour to the door closer speed. Integrated surge protection (MOV varistor) guards the internal circuitry against voltage spikes — a practical feature in Australian commercial environments where power quality can vary. Dual 12VDC/24VDC compatibility and a 4-hour fire rating round out a specification sheet that covers virtually every commercial installation scenario. Key Features 300kg Holding Force: High-security bolt retention tested to 400,000 cycles for long-term commercial reliability. Slimline 25mm Faceplate: 35mm body depth fits into 44mm narrow door frames — ideal where standard locks won’t fit. Fail-Safe (Power to Lock): Automatically releases when power is cut, ensuring safe emergency egress and fire compliance. 4-Hour Fire Rating: Certified to Australian Standards (AS) for use on fire-rated door assemblies. Selectable Re-Lock Time Delay: Choose 0, 3, 6, or 10 seconds to match your door closer speed and site requirements. Door Status Sensor (DSS): Integrated reed switch provides real-time door position monitoring to your access control panel. Built-In Surge Protection: MOV varistor protects internal circuits from voltage spikes — extends product life in variable power environments. Dual Voltage – 12VDC / 24VDC: Compatible with most access control power supplies and panels used across Australia. Mortice Mount (Recessed): Clean, flush installation into the door frame edge for a professional finish. Wide Operating Temperature: -20°C to +60°C — suitable for both air-conditioned interiors and exposed Australian outdoor environments. Use Cases Narrow aluminium-frame swing doors in commercial office buildings Frameless and semi-frameless glass door installations Timber door frames in heritage and residential buildings Fire-rated door assemblies requiring fail-safe electric locking School and university secure access doors Healthcare facility controlled entry points with door monitoring Retail and hospitality back-of-house doors Strata and apartment building common area doors with narrow frames Technical Specifications Specification Detail Model LOX DB1260PTL Mounting Type Mortice Mount (Recessed) Configuration Fail-Safe – Power to Lock (PTL) Holding Force Up to 300kg Operating Voltage 12VDC / 24VDC (Dual Voltage) Current Draw @ 12VDC Initial: 1.15A  |  Standby: 250mA Current Draw @ 24VDC Initial: 0.62A  |  Standby: 140mA Bolt Diameter 14.7mm Bolt Throw 14.5mm Faceplate Size 210mm (L) × 25mm (W) Body Depth 35mm (fits 44mm door frame) Re-Lock Time Delay Selectable: 0, 3, 6, or 10 seconds Door Monitoring DSS via Reed Switch Surge Protection MOV Varistor (Built-In) Operating Temperature -20°C to +60°C Cycle Rating 400,000 cycles Certifications CE, C-Tick, 4-Hour Fire Rated (AS) Recommended Accessories & Compatible Products LOX DB1260PTO – Fail-Secure (Power to Open) version of the DB1260 for applications where the door must remain locked during a power failure. Strike Plate / Bolt Receiver – Matching LOX strike plate for correct bolt engagement and full holding force. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup to maintain lock operation during outages. Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release. Door Closer – Overhead door closer to ensure the door returns to the locked position after each use; required for fire door compliance in Australia. Access Control Panel / Door Controller – Compatible with any panel accepting DSS reed switch monitoring input. Frequently Asked Questions What is the difference between Fail-Safe (PTL) and Fail-Secure (PTO)?The DB1260PTL is Fail-Safe (Power to Lock) — it locks when power is applied and releases when power is cut. This is the correct configuration for most commercial and fire-rated door applications in Australia where safe egress during a power failure is required. If you need the door to remain locked during a power failure, the Fail-Secure (Power to Open) DB1260PTO is the alternative. What door frame width does the DB1260PTL fit?The DB1260PTL has a 35mm body depth and is designed to fit into a 44mm door frame. Its 25mm faceplate makes it suitable for narrow aluminium, timber, and glass door frames where standard-width locks cannot be used. Does the DB1260PTL include door position monitoring?Yes. The DB1260PTL includes an integrated Door Status Sensor (DSS) via a reed switch, providing real-time door position feedback to your access control panel. What is the re-lock time delay and how do I set it?The re-lock delay is selectable at 0, 3, 6, or 10 seconds and is set via an internal switch. This allows you to match the lock’s re-engagement timing to your door closer speed, preventing the bolt from striking the frame before the door is fully closed. Is the DB1260PTL suitable for fire-rated doors?Yes. The DB1260PTL carries a 4-hour fire rating to Australian Standards (AS), making it suitable for use on fire-rated door assemblies in commercial buildings. Do you ship Australia-wide?Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

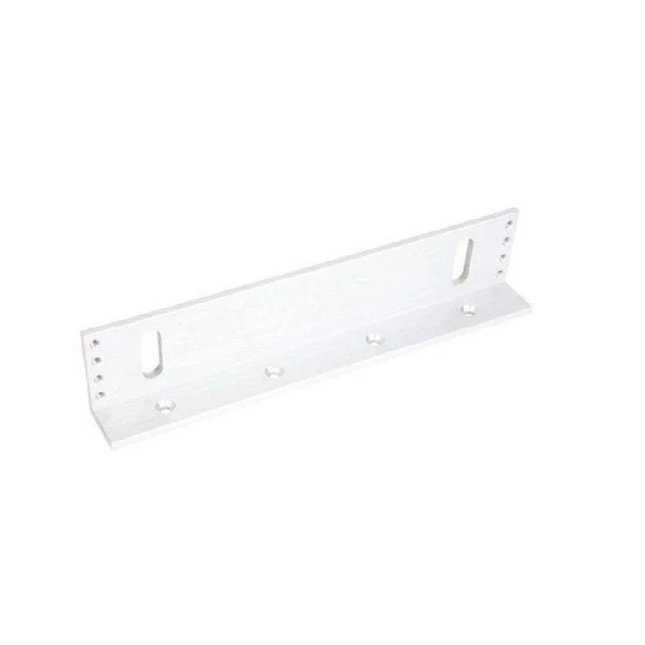

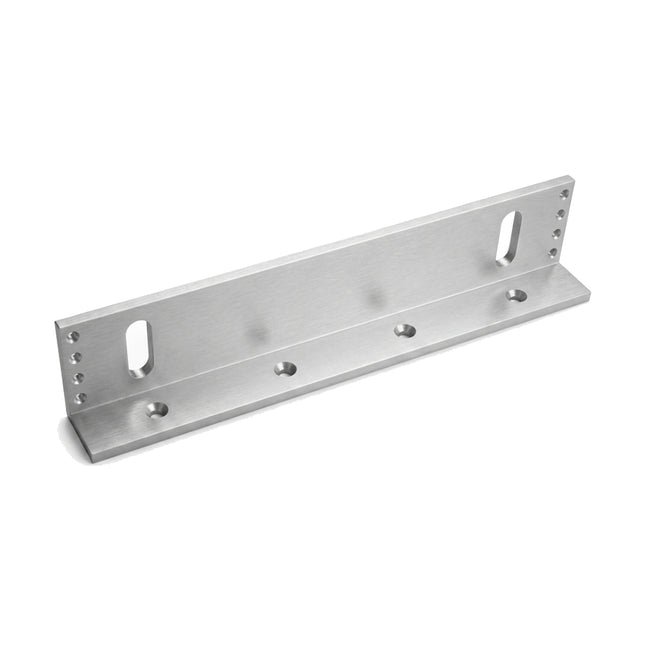

LOX AMLB4 Adjustable L-Bracket – EM3500 Series Maglock Mounting for Outward-Opening & Narrow Frame Doors Overview The LOX AMLB4 is a heavy-duty adjustable L-bracket engineered for mounting the LOX EM3500 series electromagnetic locks on outward-opening doors and narrow door frames where a direct surface mount isn’t possible. Compatible with the EM3500 (Single), EM3500M (Monitored), EM3500D (Double), and EM3500DM (Double Monitored), the AMLB4’s horizontal sliding adjustment ensures precise armature alignment — critical for achieving the full 280kg holding force of your maglock. A practical, professional solution for security installers and integrators across Australia. Description When a door frame header is too narrow to mount a maglock directly, or when the door swings outward, the AMLB4 is the correct solution. Its sliding track design extends the mounting surface beyond the frame edge, positioning the lock body so the armature plate on the door leaf seats flush against the magnet — maintaining full holding force and preventing premature lock wear. Constructed from high-strength aluminium alloy with a satin anodised finish, the AMLB4 is lightweight, corrosion resistant, and blends cleanly with modern commercial door hardware. Pre-drilled fixing holes reduce installation time, and fire-rated compatibility ensures your door assembly maintains its safety certification. Whether you’re fitting a single or double maglock on a narrow aluminium frame, the AMLB4 is the go-to bracket for LOX EM3500 series installations across Australia. Key Features Compatible with Full EM3500 Series: Suits LOX EM3500, EM3500M, EM3500D, and EM3500DM electromagnetic locks — single and double configurations. Horizontal Sliding Adjustment: Sliding track design allows fine-tuning of lock position on narrow or non-standard door headers for perfect armature alignment. Outward-Opening Door Solution: Correct bracket type for doors that swing away from the secured area, where a direct frame mount is not possible. Satin Anodised Aluminium Finish: Corrosion resistant and aesthetically suited to modern commercial interiors and aluminium door frames. Pre-Drilled Fixing Holes: Precision-machined mounting holes reduce installation time and labour costs on site. Fire-Rated Compatibility: Maintains the fire integrity of your door assembly when used with LOX EM3500 series locks. High-Strength Aluminium Alloy: Lightweight yet rigid — resists flex under load in high-frequency commercial environments. Use Cases Outward-opening commercial office entry and exit doors Narrow aluminium door frames where direct maglock mounting is not possible Retail shopfronts and back-of-house outward-swing doors School and university secure access doors with narrow headers Healthcare facility entry points with outward-opening fire doors Strata and apartment building common area doors Industrial facilities with non-standard door frame profiles Technical Specifications Specification Detail Model AMLB4 Bracket Type Adjustable L-Bracket Compatible Locks LOX EM3500, EM3500M, EM3500D, EM3500DM Material High-Strength Aluminium Alloy Finish Satin Anodised Aluminium (Silver) Adjustment Type Horizontal Sliding Adjustment Application Outward-Opening Doors & Narrow Frames Fire-Rated Compatibility Yes – maintains LOX EM3500 series fire rating Brand LOX Recommended Accessories & Compatible Products LOX EM3500 – Single non-monitored electromagnetic lock (280kg); primary compatible lock for this bracket. LOX EM3500M – Single monitored electromagnetic lock with Hall Effect LSS for access control integration. LOX EM3500DM – Double monitored electromagnetic lock (560kg combined); use two AMLB4 brackets or the dedicated double bracket for wide frames. LOX AMZB4-LP L & Z Bracket – Required instead of the AMLB4 when the door opens inward (swing-in); provides the Z-offset geometry for inward-opening doors. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup for reliable maglock operation. Exit Button / Request-to-Exit (RTE) – Surface-mount egress button for compliant door release on maglock installations. Frequently Asked Questions When do I need the AMLB4 instead of a direct surface mount?The AMLB4 is required when the door frame header is too narrow to mount the maglock body directly, or when the door opens outward. Its sliding adjustment extends the mounting surface beyond the frame edge, ensuring the lock and armature plate align correctly for full holding force. What is the difference between the AMLB4 and the AMZB4-LP L & Z Bracket?The AMLB4 (L-bracket) is for outward-opening doors. The AMZB4-LP (L & Z bracket) is for inward-opening doors — the Z-plate provides the additional offset needed when the door swings into the secured area. Using the wrong bracket type will result in misalignment and reduced holding force. Does the AMLB4 work with double door maglocks?Yes. For a double door setup using the EM3500D or EM3500DM, you would typically use two AMLB4 brackets — one per lock body — or the dedicated double bracket depending on your frame width and configuration. Contact us if you need help selecting the right hardware for your project. Is the AMLB4 fire rated?Yes. The AMLB4 maintains the fire integrity of the LOX EM3500 series lock system when used as part of a fire-rated door assembly, in compliance with Australian building and safety standards. Do you ship Australia-wide?Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

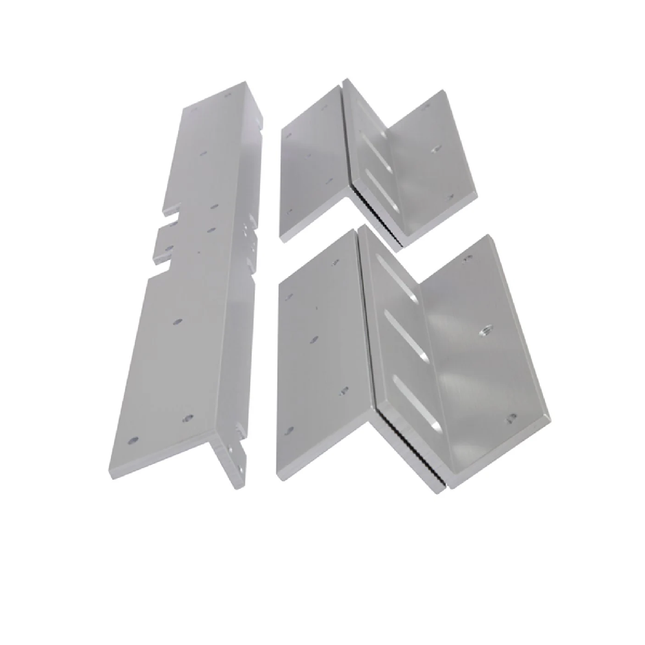

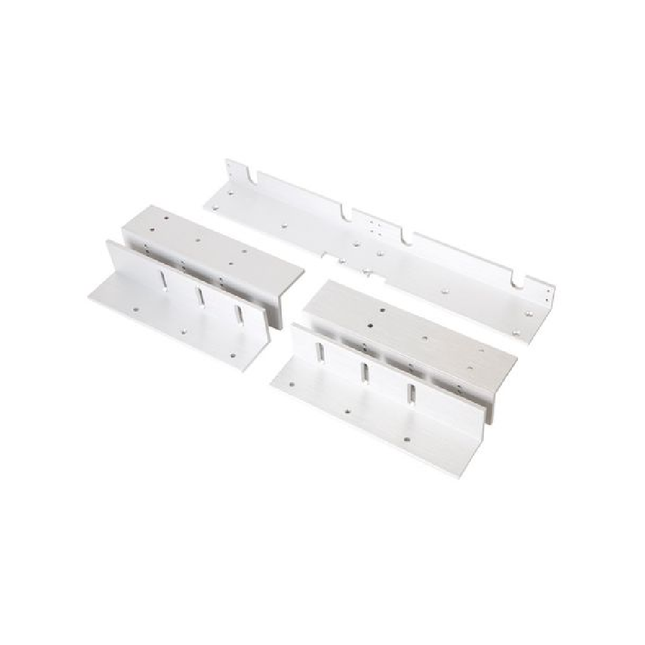

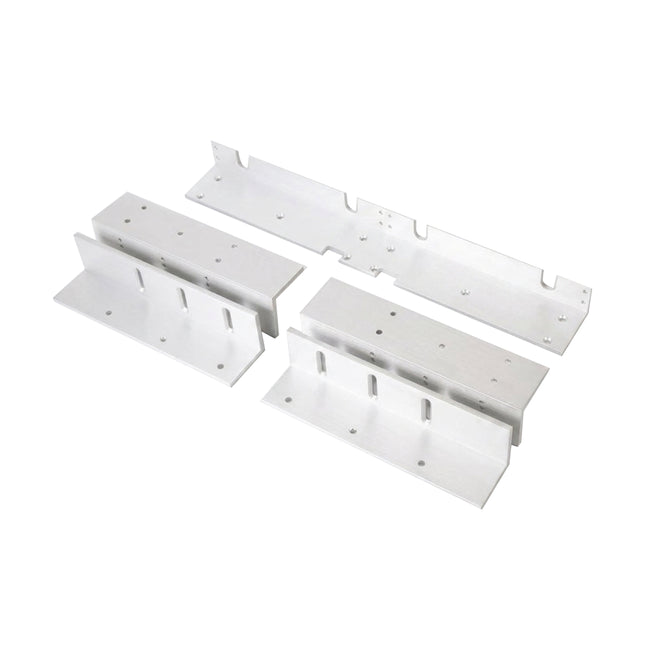

LOX AMZB4D-LP Double L & Z Bracket – EM3500D & EM3500DM Maglock Mounting for Inward-Opening Double Doors Overview The LOX AMZB4D-LP is a professional-grade, adjustable L & Z bracket engineered specifically for mounting the LOX EM3500D and EM3500DM series double electromagnetic locks on inward-opening (swing-in) double doors. The L & Z configuration provides the correct geometric offset to keep the armature plates flush against the magnets when the door swings inward — ensuring maximum holding force and long-term security. A trusted solution for security installers and integrators across Australia. Description When a double door swings inward, mounting a maglock directly to the frame is not possible — the door leaf would collide with the lock body on opening. The AMZB4D-LP solves this with its combined L and Z plate geometry, positioning the lock on the frame while keeping the armature plates correctly aligned on each door leaf. Without the right bracket, even a high-quality double maglock will underperform or fail prematurely. The bracket’s multiple mounting points allow precise horizontal and vertical adjustment, accommodating minor frame irregularities without custom fabrication — saving installers time on site. Constructed from high-grade aluminium alloy with a satin anodised finish, it is lightweight, corrosion resistant, and suited to the demands of 24/7 commercial operation in Australian conditions. All necessary hardware is included for a complete installation. Key Features Compatible with LOX EM3500D & EM3500DM: Purpose-built for both the non-monitored and monitored double maglock variants — ensures correct fitment and full holding force. Inward-Opening Double Door Solution: L & Z geometry provides the essential offset for doors that swing into the secured area. Fully Adjustable: Multiple mounting points allow precise horizontal and vertical alignment of armature plates across varying door and frame profiles. Satin Anodised Aluminium Finish: Corrosion resistant and aesthetically suited to modern commercial interiors and aluminium door frames. High-Grade Aluminium Alloy Construction: Lightweight yet rigid — resists flex under load in high-traffic commercial environments. Complete Hardware Kit: Includes all necessary fixings for a straightforward, professional installation. Fire-Rated Compatibility: Maintains the fire integrity of the LOX EM3500 series lock system when used on fire-rated door assemblies. Use Cases Commercial office building entry and exit inward-opening double doors Retail shopfronts with inward-swing double aluminium or glass doors Schools and universities with secure access double door zones Healthcare facility controlled entry points Strata and apartment complex common area double doors Government and council facility secure entry points Industrial facilities requiring high-security double door access control Technical Specifications Specification Detail Model AMZB4D-LP Bracket Type Double L & Z Bracket (Low Profile) Compatible Locks LOX EM3500D & EM3500DM (Double Maglocks) Door Type Inward-Opening (Swing-In) Double Doors Material High-Grade Aluminium Alloy Finish Satin Anodised (Corrosion Resistant) Adjustment Horizontal & Vertical (Multiple Mounting Points) Approx. Weight 1.2kg Hardware Included Yes – complete fixing kit included Fire-Rated Compatibility Yes – maintains LOX EM3500 series fire rating Brand LOX Recommended Accessories & Compatible Products LOX EM3500DM – Double monitored electromagnetic lock (560kg combined); primary compatible lock for this bracket. LOX EM3500D – Double non-monitored electromagnetic lock variant for this bracket series. LOX AMZB4D-BLK – Matte black version of the double L & Z bracket for the EM3500D-BLK and EM3500DM-BLK black series maglocks. LOX AMLB4 Adjustable L-Bracket – Use instead of the AMZB4D-LP when the double door opens outward; the L-bracket provides the correct geometry for outward-swing configurations. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup for reliable double maglock operation. Exit Button / Request-to-Exit (RTE) – Surface-mount egress button for compliant door release on double door installations. Door Closer – Overhead door closer to ensure both door leaves return to the locked position; required for fire door compliance in Australia. Frequently Asked Questions Do I need this bracket for every double maglock installation?Only when your double door opens inward. For outward-opening double doors, the LOX AMLB4 adjustable L-bracket is the correct choice. Using the wrong bracket type will result in misalignment and reduced holding force. What is the difference between the AMZB4D-LP and the AMZB4D-BLK?The AMZB4D-LP has a satin anodised silver finish and is designed for the standard silver EM3500D and EM3500DM maglocks. The AMZB4D-BLK has a matte black powder coat finish and is matched to the EM3500D-BLK and EM3500DM-BLK black series locks. Dimensionally they are identical. Can I adjust the bracket after installation if the alignment is off?Yes. The AMZB4D-LP features multiple mounting points for both horizontal and vertical adjustment, allowing you to fine-tune armature plate alignment on site without replacing the bracket. Is the bracket corrosion resistant?Yes. The satin anodised finish provides excellent resistance to corrosion, making it suitable for Australian coastal and high-humidity environments. For fully exposed outdoor installations, additional weatherproofing of the lock itself is recommended. Does the kit include all necessary fixings?Yes. The AMZB4D-LP includes all hardware required for a complete installation. Always refer to the LOX installation guide for your specific lock model for wiring and mounting instructions. Do you ship Australia-wide?Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

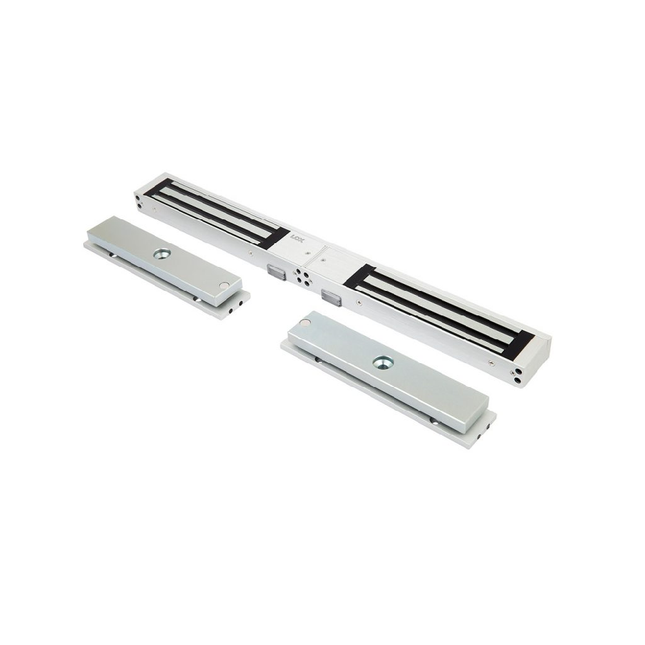

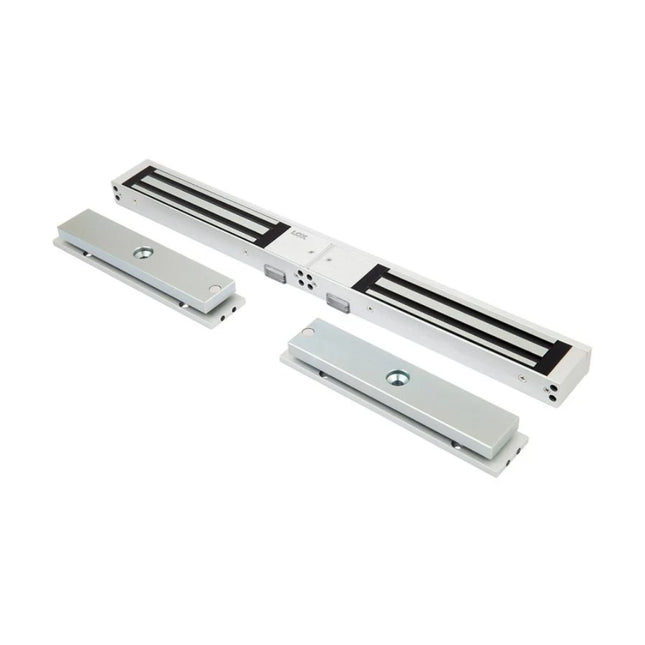

LOX EM3500DM Monitored Double Electromagnetic Lock – 280kg Per Leaf (560kg Total), Dual Voltage, Fire Rated Overview The LOX EM3500DM is a premium slimline double-door electromagnetic lock built for high-security commercial and industrial access control across Australia. Delivering 280kg (600 lb) of holding force per door leaf — 560kg total — and featuring an integrated Hall Effect Lock Status Sensor (LSS) and Reed Switch Door Status Sensor (DSS), the EM3500DM provides complete real-time visibility over both lock engagement and door position. With a 4-hour fire rating, lifetime warranty, and dual 12V/24VDC compatibility, it is the industry-standard monitored double maglock for Australian security installations. Description Where a single maglock secures one door leaf, the EM3500DM secures both — in a single, slimline 476mm body that mounts cleanly across the top of a double door frame. The dual monitoring system sets it apart from the non-monitored EM3500D: the Hall Effect LSS confirms the lock is properly engaged, while the reed switch DSS detects whether each door leaf is physically closed. Together, they give your access control panel the full picture — essential for alarm integration, audit trails, and compliance-driven environments. The anti-tamper mounting plate conceals all fixings once installed, deterring forced entry attempts, while zero residual magnetism ensures instant door release the moment power is cut — critical for safe egress in fire or emergency situations. Built-in MOV surge protection guards the internal circuitry against voltage spikes, and the high-visibility red/green LED panel gives security staff and installers immediate visual confirmation of lock status. Tested to over 1,000,000 cycles and backed by a lifetime warranty, the EM3500DM is built for the long haul. Key Features 280kg Holding Force Per Leaf (560kg Total): Industry-standard double door holding force — tested to over 1,000,000 cycles for maintenance-free commercial reliability. Dual Monitoring – Hall Effect LSS & Reed Switch DSS: Real-time lock status and door position feedback to your access control panel — essential for alarm integration and audit trail compliance. 4-Hour Fire Rating: Certified to Australian Standards (AS) for use on fire-rated double door assemblies. Fail-Safe Operation: Releases instantly when power is removed — correct configuration for commercial and fire-rated door applications. Zero Residual Magnetism: Innovative coil design ensures immediate door release on power loss, critical for safe emergency egress. Anti-Tamper Mounting Plate: Conceals all fixings once installed, deterring unauthorised removal and forced entry attempts. Red/Green LED Indicator: High-visibility panel provides instant visual confirmation of locked or unlocked status. Dual Voltage – 12VDC / 24VDC: Compatible with the vast majority of access control power supplies and panels used in Australian installations. Built-In MOV Surge Protection: Guards internal circuitry against voltage spikes — extends product life in variable power environments. Lifetime Warranty: Manufacturer’s lifetime warranty for long-term peace of mind. Use Cases Commercial office building double door entry and exit points Government buildings and council facilities Retail shopfronts with double inward or outward-swing doors Schools, universities, and TAFE campuses Hospitals and healthcare facility controlled entry points Data centres and server room double door access Strata and apartment building common area double doors Industrial facilities requiring high-security double door access control Technical Specifications Specification Detail Model LOX EM3500DM (Monitored) Holding Force 280kg (600 lb) per leaf  |  560kg total Operating Voltage 12VDC / 24VDC (Dual Voltage) Current Draw 530mA @ 12VDC  |  260mA @ 24VDC (per lock body ×2) Monitoring Hall Effect LSS (Lock Status) & Reed Switch DSS (Door Status) Lock Type Double Electromagnetic (Fail-Safe) Dimensions (Lock Body) 476mm (L) × 48mm (H) × 26mm (D) Operating Temperature -20°C to +60°C Fire Rating Up to 4 Hours (AS Certified) LED Indicator Red/Green High-Visibility Panel Surge Protection MOV Varistor (Built-In) Residual Magnetism None (Instant Release) Cycle Rating 1,000,000+ cycles Warranty Lifetime (Manufacturer) Certifications CE, C-Tick, 4-Hour Fire Rated Recommended Accessories & Compatible Products LOX AMZB4D-LP Double L & Z Bracket – Required for inward-opening double door installations; ensures correct armature plate alignment for full holding force. LOX AMZB4D-BLK Double L & Z Bracket (Matte Black) – Matching black bracket for the EM3500DM-BLK black series variant. LOX AMLB4 Adjustable L-Bracket – For outward-opening double door configurations where a direct frame mount is not possible. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup to maintain lock operation during power outages. Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress buttons for compliant door release on double door installations. Door Controller / Access Panel – Single or multi-door panels compatible with the EM3500DM’s LSS and DSS monitoring outputs for full system integration. Door Closer – Overhead door closer to ensure both door leaves return to the locked position; required for fire door compliance in Australia. LOX EM3500D – Non-monitored version of this lock; suitable where LSS/DSS monitoring is not required. Frequently Asked Questions What is the difference between the EM3500D and the EM3500DM?The EM3500D is the non-monitored version — it locks and unlocks but provides no status feedback. The EM3500DM adds dual monitoring via Hall Effect LSS (lock status) and reed switch DSS (door status), an anti-tamper mounting plate, and is the correct choice for access control systems requiring real-time feedback, alarm integration, or audit trail compliance. Is the EM3500DM fail-safe or fail-secure?The EM3500DM is a fail-safe electromagnetic lock — it releases (unlocks) when power is removed. This is the standard and required configuration for most commercial and fire-rated double door applications in Australia. What brackets do I need for the EM3500DM?The correct bracket depends on your door swing direction. For inward-opening double doors, use the LOX AMZB4D-LP (or AMZB4D-BLK for black finish). For outward-opening double doors, the LOX AMLB4 adjustable L-bracket is the correct choice. Using the wrong bracket will result in misalignment and reduced holding force. Is the EM3500DM suitable for outdoor use?The EM3500DM is designed for indoor use or weather-protected environments. For fully exposed outdoor installations, an IP-rated electromagnetic lock is recommended. Contact us for guidance on outdoor-rated options. What voltage does the EM3500DM operate on?The EM3500DM supports both 12VDC and 24VDC operation, making it compatible with the vast majority of access control power supplies used in Australian installations. Is the EM3500DM suitable for fire-rated double doors?Yes. The EM3500DM is certified to Australian Standards (AS) for use on fire-rated door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware. Do you ship Australia-wide?Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

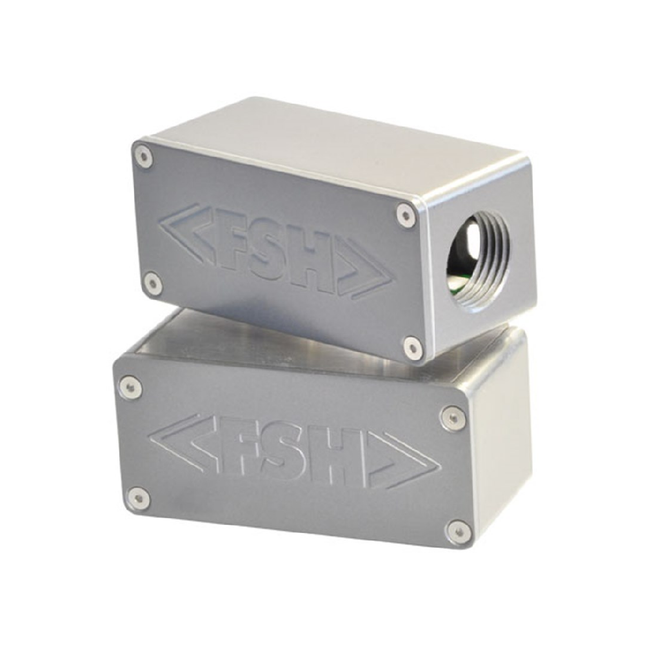

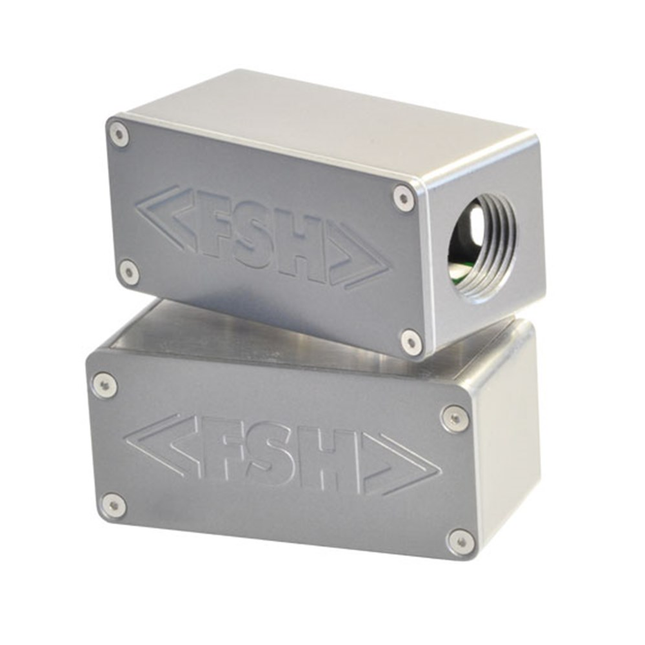

Overview The FSH FSS1-S is an award-winning, high-security door position sensor (DPS) engineered for government, defence, and high-risk installations across Australia. As a superior alternative to traditional balanced magnetic reed sensors, the FSS1-S uses seven Hall-effect sensors to detect a unique 3D magnetic footprint that cannot be defeated by external magnets or bypass attempts. This surface mount version suits both new construction and retrofits, and carries SCEC Security Level 4 (SL4) approval — the highest rating for Australian Government and defence use. Key Features SCEC SL4 Approved – Rated at Security Level 4, suitable for Australian Government, defence, and high-risk facility use. 7 Hall-Effect Sensors – Detects a unique 3D magnetic footprint using up to 8 magnets — cannot be defeated by external magnets or standard bypass techniques. IP67 Environmental Protection – Fully sealed for indoor and outdoor high-security applications. Smart Self-Calibration – Learns its environment on first door closure; can be recalibrated to account for door drop or maintenance. Advanced Anti-Tamper – Multiple tamper switches with sophisticated detection to prevent bypass attempts. Wide Voltage Range – Operates on 10–30VDC; compatible with Type 1/1A and Class 5 E.O.L. modules. Surface Mount with Conduit Entry – Suitable for new builds and retrofits on existing high-security door frames. UL 634 Level 2 Listed – Internationally recognised security standard in addition to SCEC SL4. Technical Specifications Specification Detail Model FSH FSS1-S (Surface Mount) Security Level SCEC SL4 Approved / UL 634 Level 2 Mounting Type Surface Mount (with conduit entry) Operating Voltage 10–30VDC Current Consumption ~10mA (Normal) / 45mA (Calibration) Sensors 7 Hall-Effect Sensors / Up to 8 Magnets Door Gap Range 1.5mm – 7mm Alarm Trigger 15mm door movement Alarm Outputs 2× N.O. & Common, 0.25A @ 30V Tamper Contacts N.C. & Common, 0.2A @ 30V Environmental Rating IP67 Weatherproof Dimensions 75mm (L) × 34mm (H) × 35mm (D) What’s in the Box FSH FSS1-S Sensor Unit Magnetic Array Faceplate Conduit Entry Parts Quick Installation Guide Use Cases Australian Government Facilities – SCEC SL4 approval meets the highest Australian Government security requirements for door monitoring. Defence & Military Installations – Tamper-resistant 3D magnetic footprint detection for perimeter and internal high-security doors. High-Risk Commercial Facilities – Suitable for data centres, critical infrastructure, and secure storage areas requiring advanced door position monitoring. Outdoor & Exposed Environments – IP67 rating handles harsh Australian conditions including dust, moisture, and temperature extremes. Retrofit Installations – Surface mount design allows installation on existing high-security door frames without major modification. Official Video Frequently Asked Questions What does SCEC SL4 approval mean? SCEC (Security Construction and Equipment Committee) Security Level 4 is the highest security rating for door monitoring sensors used in Australian Government and defence facilities. SL4 approval means the FSS1-S has been independently evaluated and certified for use in the most sensitive and high-risk environments. How does the FSS1-S differ from a standard balanced magnetic sensor? A standard balanced magnetic sensor uses a single magnet and can be defeated by placing an external magnet near the sensor. The FSS1-S uses seven Hall-effect sensors to detect a unique 3D magnetic footprint created by up to 8 magnets — this combination cannot be replicated or defeated by external magnets, making it significantly more secure. What is the difference between the FSS1-S and the FSS1-F? The FSS1-S is the surface mount version, suitable for retrofitting onto existing door frames. The FSS1-F is the flush mount version, designed for concealed installation within the door frame during construction or major refurbishment. How does the self-calibration work? On first door closure after installation, the FSS1-S learns its magnetic environment and stores this as its reference ‘footprint’. If the door drops over time or maintenance is performed, the sensor can be recalibrated to the new door position without replacement. Is the FSS1-S suitable for outdoor installation? Yes. The FSS1-S carries an IP67 rating, meaning it is fully protected against dust ingress and temporary immersion in water — suitable for outdoor and exposed door frame installations in Australian conditions.

Read more less

FSH FSS1-F High Security Electric Strike – Monitored | Fire Rated | 10–30VDC Overview The FSH FSS1-F is a premium high-security electric strike engineered for commercial and institutional environments where maximum reliability, full monitoring, and fire compliance are non-negotiable. Delivering a tested holding force of up to 1,500kg, it features triple monitoring (LSS, DSS, and OSS), auto-sensing 10–30VDC operation, and field-selectable fail-safe or fail-secure modes — making it one of the most versatile and capable electric strikes available in Australia. Constructed from high-grade stainless steel and rated for up to a 4-hour fire door assembly, it is the go-to choice for security installers specifying high-traffic, high-security access points. Key Features 1,500kg Holding Force – Tested static strength providing superior resistance against forced entry on high-security door sets. Triple Monitoring (LSS, DSS & OSS) – Lock Status Sensor, Door Status Sensor, and Optical Status Sensor provide complete real-time integration with access control and alarm systems. Auto-Sensing 10–30VDC Operation – Built-in intelligence accepts any voltage from 10VDC to 30VDC without manual adjustment; compatible with virtually any access control power supply. Field-Selectable Fail-Safe / Fail-Secure – Easily switch between operating modes on-site to suit specific safety and security requirements without replacing hardware. Up to 4-Hour Fire Rating – Certified for use on fire-resistant door sets to Australian and international standards; suitable for compliant fire egress paths. Stainless Steel Construction – High-grade stainless steel strike face and body for long-term durability in high-traffic commercial environments. 1,000,000+ Cycle Endurance – Tested to over one million operational cycles for exceptional service life. Package Includes – Electric strike, mounting screws, instruction manual, and warranty documentation. Use Cases High-security commercial office entry doors and lobbies Government, defence, and institutional access-controlled doors Fire-rated exit and egress doors requiring certified hardware Hospitals, aged care facilities, and secure medical zones Schools, universities, and education facility entry points Data centres and critical infrastructure access doors High-traffic retail and hospitality environments requiring monitored access Technical Specifications Specification Details Model FSS1-F (Monitored) Holding Force Up to 1,500kg Operating Voltage 10–30VDC (Auto-Sensing) Current Draw (12V) 250mA Current Draw (24V) 125mA Monitoring LSS, DSS & OSS (Triple Monitoring) Material Stainless Steel (Strike Face & Body) Fire Rating Up to 4 Hours (Standard Dependent) Operating Mode Fail-Safe / Fail-Secure (Field Selectable) Cycle Endurance 1,000,000+ Cycles Vendor FSH Frequently Asked Questions What is the difference between an electric strike and a magnetic lock? An electric strike replaces the fixed strike plate in a door frame and works with the door’s existing latch or lock bolt, allowing the door to be released electrically while maintaining a mechanical locking point. A magnetic lock (maglock) uses electromagnetic force to hold the door closed and has no mechanical latch. Electric strikes like the FSS1-F are often preferred where a more traditional door hardware appearance is required or where fail-secure operation is needed. What does triple monitoring (LSS, DSS, OSS) mean? The FSS1-F provides three independent monitoring outputs: Lock Status Sensing (LSS) confirms whether the strike is energised, Door Status Sensing (DSS) confirms whether the door is open or closed, and Optical Status Sensing (OSS) detects whether the latch bolt is engaged in the strike. Together, these give your access control system complete real-time visibility of the door’s security state. Can I switch between fail-safe and fail-secure on site? Yes. The FSS1-F is field-selectable between fail-safe (releases on power loss) and fail-secure (remains locked on power loss) modes. This allows the installer to configure the correct mode for the specific door application without replacing the hardware. Is the FSS1-F suitable for fire-rated doors? Yes. The FSS1-F carries a fire rating of up to 4 hours, making it suitable for installation on fire-resistant door sets and compliant egress paths to Australian and international standards. Confirm the specific fire rating requirement for your door assembly with your certifier. What voltage does the FSS1-F require? The FSS1-F auto-senses any voltage between 10VDC and 30VDC, drawing 250mA at 12V or 125mA at 24V. This makes it compatible with virtually any standard access control power supply without manual voltage adjustment. How long will the FSS1-F last in a high-traffic environment? The FSS1-F has been tested to over 1,000,000 operational cycles, making it suitable for the most demanding high-traffic commercial and institutional door applications. Installer Note: Confirm fail-safe or fail-secure mode requirements with the building certifier before installation, particularly on fire-rated egress doors. The FSS1-F is field-selectable, so mode changes can be made on-site without replacing the unit.

Read more less

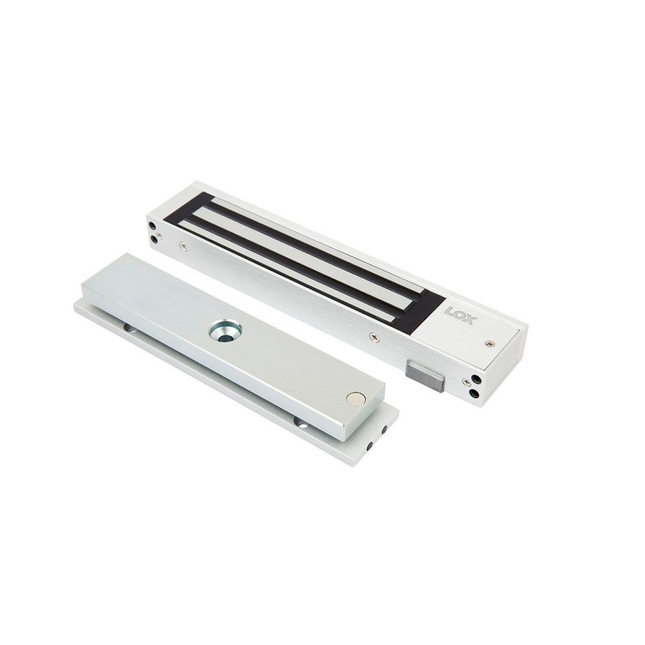

LOX EM3500M Monitored Single Electromagnetic Lock – 280kg Holding Force, Dual Voltage, Fire Rated Overview The LOX EM3500M is a professional-grade slimline single-door electromagnetic lock built for high-security commercial access control across Australia. Delivering a proven 280kg holding force and featuring integrated Hall Effect Lock Status Sensor (LSS) and Reed Switch Door Status Sensor (DSS), the EM3500M gives your access control system complete real-time visibility over both lock engagement and door position. With a 4-hour fire rating, anti-tamper plate, zero residual magnetism, and dual 12V/24VDC compatibility, it is the go-to monitored single maglock for Australian security installers and integrators. Description The “M” in EM3500M stands for monitored — and that distinction matters. Where the standard EM3500 simply locks and unlocks, the EM3500M continuously reports back to your access control panel: the Hall Effect LSS confirms the lock is properly engaged, while the reed switch DSS detects whether the door is physically closed. Together, they eliminate blind spots in your security system — triggering alerts if a door is forced, left ajar, or the lock fails to engage. The slimline 238mm body mounts cleanly on single door frames without dominating the aesthetic, while the satin anodised aluminium and zinc-plated body resist corrosion in Australian commercial environments. The included anti-tamper fixing plate conceals the armature bolt fixings once installed, deterring physical attacks on the lock. Built-in MOV surge protection guards the internal circuitry, and zero residual magnetism ensures instant door release the moment power is cut — critical for safe egress in fire or emergency situations. Tested to over 1,000,000 cycles for long-term, maintenance-free reliability. Key Features 280kg Holding Force: Industry-standard single door holding force, tested to over 1,000,000 cycles for maintenance-free commercial reliability. Dual Monitoring – Hall Effect LSS & Reed Switch DSS: Real-time lock status and door position feedback to your access control panel — essential for alarm integration and audit trail compliance. 4-Hour Fire Rating: Certified to Australian Standards (AS) for use on fire-rated single door assemblies. Fail-Safe Operation: Releases instantly when power is removed — the correct and required configuration for most commercial and fire-rated door applications in Australia. Zero Residual Magnetism: Innovative coil design ensures immediate door release on power loss, critical for safe emergency egress. Anti-Tamper Fixing Plate: Included as standard — conceals armature bolt fixings once installed, deterring unauthorised removal and physical attacks. Red/Green LED Indicator: High-visibility panel provides instant visual confirmation of locked or unlocked status for security staff and installers. Dual Voltage – 12VDC / 24VDC: Compatible with the vast majority of access control power supplies and panels used in Australian installations. Built-In MOV Surge Protection: Guards internal circuitry against voltage spikes — extends product life in variable power environments. Slimline Profile: 238mm (L) × 48mm (H) × 25mm (D) body mounts cleanly on standard single door frames without bulk. Use Cases Commercial office building single door entry and exit points Government buildings and council facilities Retail stores and shopping centre back-of-house doors Schools, universities, and TAFE campuses Hospitals and healthcare facility controlled entry points Data centres and server room single door access Strata and apartment building common area doors Industrial facilities requiring monitored single door access control Technical Specifications Specification Detail Model LOX EM3500M (Monitored) Holding Force Up to 280kg (600 lb) Operating Voltage 12VDC / 24VDC (Dual Voltage) Current Draw 530mA @ 12VDC  |  260mA @ 24VDC Monitoring Hall Effect LSS (Lock Status) & Reed Switch DSS (Door Status) Lock Type Single Electromagnetic (Fail-Safe) Dimensions (Lock Body) 238mm (L) × 48mm (H) × 25mm (D) Fire Rating Up to 4 Hours (AS Certified) LED Indicator Red/Green High-Visibility Panel Surge Protection MOV Varistor (Built-In) Residual Magnetism None (Instant Release) Finish Satin Anodised Aluminium / Zinc-Plated Body Cycle Rating 1,000,000+ cycles Anti-Tamper Plate Included as Standard Certifications CE, RCM (C-Tick), 4-Hour Fire Rated (AS) Recommended Accessories & Compatible Products LOX AMZB4-LP L & Z Bracket – Required for inward-opening single door installations; ensures correct armature plate alignment for full holding force. LOX AMLB4 Adjustable L-Bracket – For outward-opening single door configurations or narrow door frames where a direct surface mount is not possible. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup to maintain lock operation during power outages. Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release on single door installations. Door Controller / Access Panel – Single or multi-door panels compatible with the EM3500M’s LSS and DSS monitoring outputs for full system integration. Door Closer – Overhead door closer to ensure the door returns to the locked position after each use; required for fire door compliance in Australia. LOX EM3500 – Non-monitored version of this lock; suitable where LSS/DSS monitoring is not required and cost is a primary consideration. Frequently Asked Questions What is the difference between the EM3500 and the EM3500M?The EM3500 is the non-monitored version — it locks and unlocks but provides no status feedback to your access control panel. The EM3500M adds dual monitoring via Hall Effect LSS (lock status) and reed switch DSS (door status), plus an anti-tamper fixing plate as standard. It is the correct choice for systems requiring real-time feedback, alarm integration, or audit trail compliance. Is the EM3500M fail-safe or fail-secure?The EM3500M is a fail-safe electromagnetic lock — it releases (unlocks) when power is removed. This is the standard and required configuration for most commercial and fire-rated single door applications in Australia. What brackets do I need for the EM3500M?The correct bracket depends on your door swing direction. For inward-opening doors, use the LOX AMZB4-LP L & Z bracket. For outward-opening doors or narrow frames, the LOX AMLB4 adjustable L-bracket is the correct choice. Using the wrong bracket will result in misalignment and reduced holding force. Is the EM3500M suitable for fire-rated doors?Yes. The EM3500M is certified to Australian Standards (AS) for use on fire-rated door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware. What voltage does the EM3500M operate on?The EM3500M supports both 12VDC and 24VDC operation, making it compatible with the vast majority of access control power supplies used in Australian installations. Is the anti-tamper plate included?Yes. The anti-tamper fixing plate is included as standard with the EM3500M. It conceals the armature bolt fixings once installed, deterring physical attacks and unauthorised removal of the armature plate. Do you ship Australia-wide?Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

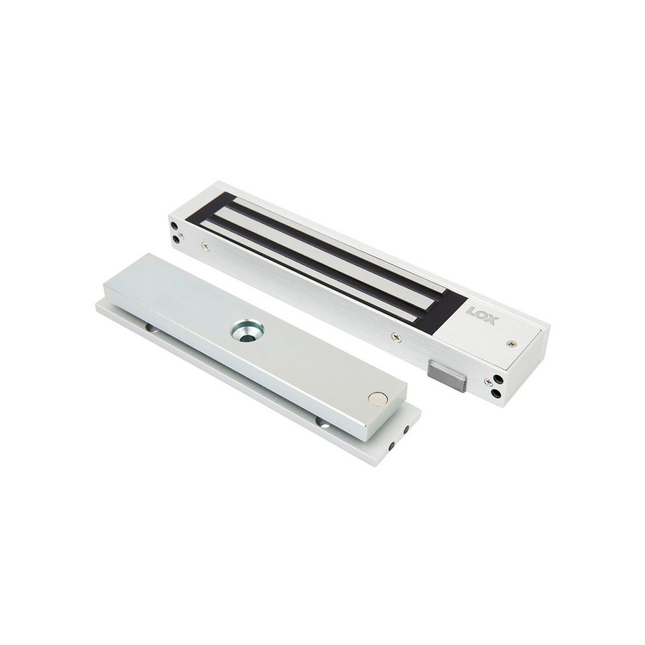

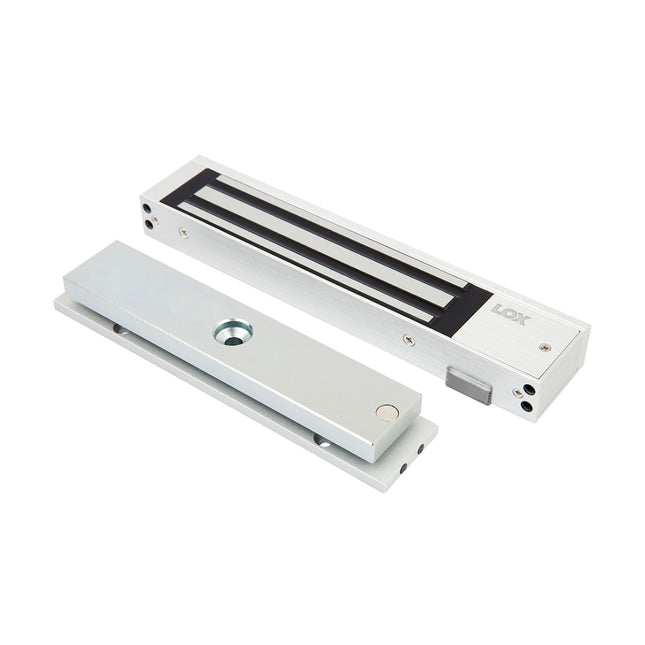

LOX EM3500 Non-Monitored Single Electromagnetic Lock – 280kg Holding Force, Dual Voltage, Fire Rated Overview The LOX EM3500 is a high-performance slimline single-door electromagnetic lock built for reliable commercial and residential access control across Australia. Delivering a proven 280kg (600 lb) holding force from a compact 238mm body, the EM3500 is the cost-effective, non-monitored choice for standard secure doors where external monitoring sensors are already in place or not required. With a 4-hour fire rating, zero residual magnetism, and dual 12V/24VDC compatibility, it is one of the most widely installed single maglocks in Australian commercial buildings. Description The EM3500 is the entry point to the LOX electromagnetic lock range — and it sets a high bar. Its slimline satin anodised aluminium body mounts cleanly on standard single door frames without dominating the aesthetic, making it equally at home in a modern office fitout or a utilitarian warehouse entry. The non-monitored design keeps the installation straightforward: power on to lock, power off to release — no additional sensor wiring required. Zero residual magnetism means the door releases the instant power is cut, with no sticking or delay — critical for safe egress in fire or emergency situations. Built-in MOV surge protection guards the internal circuitry against voltage spikes, and dual 12VDC/24VDC compatibility ensures it integrates with virtually any access control power supply or panel in use across Australia. Tested to over 1,000,000 cycles for long-term, maintenance-free reliability. For applications requiring real-time lock status or door position monitoring, consider the LOX EM3500M (monitored version) which adds Hall Effect LSS and reed switch DSS sensors as standard. Key Features 280kg Holding Force: Industry-standard single door holding force, tested to over 1,000,000 cycles for maintenance-free commercial reliability. Slimline 238mm Body: Compact profile fits narrow door frames and suits modern commercial interiors without visual bulk. Non-Monitored Design: Straightforward installation — ideal where external monitoring sensors are already in place or monitoring is not required. 4-Hour Fire Rating: Certified to AS/NZS Standards for use on fire-rated single door assemblies in Australian commercial buildings. Fail-Safe Operation: Releases instantly when power is removed — the correct and required configuration for most commercial and fire-rated door applications in Australia. Zero Residual Magnetism: Innovative coil design ensures immediate door release on power loss — no sticking, no delay, safe egress every time. Dual Voltage – 12VDC / 24VDC: Compatible with the vast majority of access control power supplies and panels used in Australian installations. Built-In MOV Surge Protection: Guards internal circuitry against voltage spikes — extends product life in variable power environments. Satin Anodised Aluminium Housing: Corrosion resistant and aesthetically suited to modern commercial interiors and aluminium door frames. CE & RCM (C-Tick) Certified: Compliant with Australian and international standards for commercial access control hardware. Use Cases Commercial office building single door entry and exit points Retail stores and shopping centre back-of-house doors Schools, universities, and TAFE campuses Strata and apartment building common area doors Industrial facilities and warehouse entry points Hospitality and hotel back-of-house access Healthcare facility non-critical entry points Any single door application where external monitoring is already provided or not required Technical Specifications Specification Detail Model LOX EM3500 (Non-Monitored) Holding Force Up to 280kg (600 lb) Operating Voltage 12VDC / 24VDC (Dual Voltage) Current Draw 530mA @ 12VDC  |  260mA @ 24VDC Monitoring None (Non-Monitored) Lock Type Single Electromagnetic (Fail-Safe) Lock Body Dimensions 238mm (L) × 48mm (H) × 25mm (D) Armature Plate Dimensions 185mm (L) × 38mm (H) × 12mm (D) Fire Rating Up to 4 Hours (AS/NZS Certified) Housing Material Satin Anodised Aluminium Surge Protection MOV Varistor (Built-In) Residual Magnetism None (Instant Release) Cycle Rating 1,000,000+ cycles Certifications CE, RCM (C-Tick), AS/NZS Fire Rated Recommended Accessories & Compatible Products LOX EM3500M – Monitored version of this lock; adds Hall Effect LSS and reed switch DSS sensors for real-time lock status and door position feedback — recommended for access control systems requiring monitoring or alarm integration. LOX AMZB4-LP L & Z Bracket – Required for inward-opening single door installations; ensures correct armature plate alignment for full 280kg holding force. LOX AMLB4 Adjustable L-Bracket – For outward-opening single door configurations or narrow door frames where a direct surface mount is not possible. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup to maintain lock operation during power outages. Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release. Door Controller / Access Panel – Single or multi-door access control panels compatible with the EM3500 for card reader, keypad, or intercom integration. Door Closer – Overhead door closer to ensure the door returns to the locked position after each use; required for fire door compliance in Australia. Frequently Asked Questions What is the difference between the EM3500 and the EM3500M?The EM3500 is the non-monitored version — it locks and unlocks but provides no status feedback to your access control panel. The EM3500M adds dual monitoring via Hall Effect LSS (lock status) and reed switch DSS (door status), plus an anti-tamper fixing plate as standard. If your access control system requires real-time feedback, alarm integration, or audit trail compliance, the EM3500M is the correct choice. Is the EM3500 fail-safe or fail-secure?The EM3500 is a fail-safe electromagnetic lock — it releases (unlocks) when power is removed. This is the standard and required configuration for most commercial and fire-rated single door applications in Australia. What brackets do I need for the EM3500?The correct bracket depends on your door swing direction. For inward-opening doors, use the LOX AMZB4-LP L & Z bracket. For outward-opening doors or narrow frames, the LOX AMLB4 adjustable L-bracket is the correct choice. Using the wrong bracket will result in misalignment and reduced holding force. Is the EM3500 suitable for fire-rated doors?Yes. The EM3500 is certified to AS/NZS Standards for use on fire-rated door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware. Does the EM3500 include an armature plate?Yes. The EM3500 is supplied with a matching armature plate (185mm × 38mm × 12mm). Mounting brackets are sold separately depending on your door configuration. What voltage does the EM3500 operate on?The EM3500 supports both 12VDC and 24VDC operation, making it compatible with the vast majority of access control power supplies used in Australian installations. Do you ship Australia-wide?Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

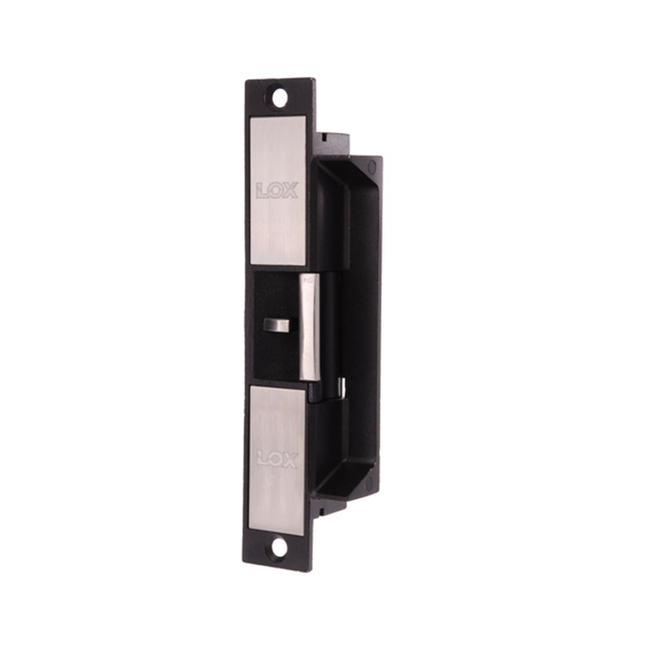

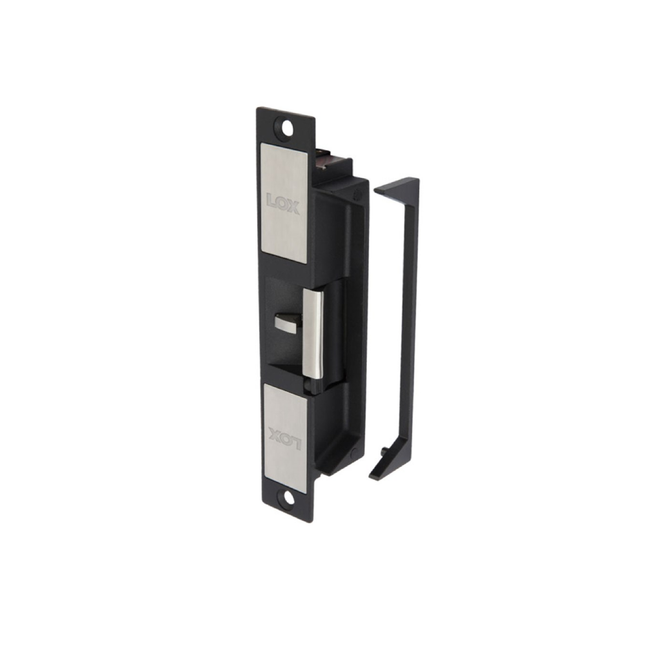

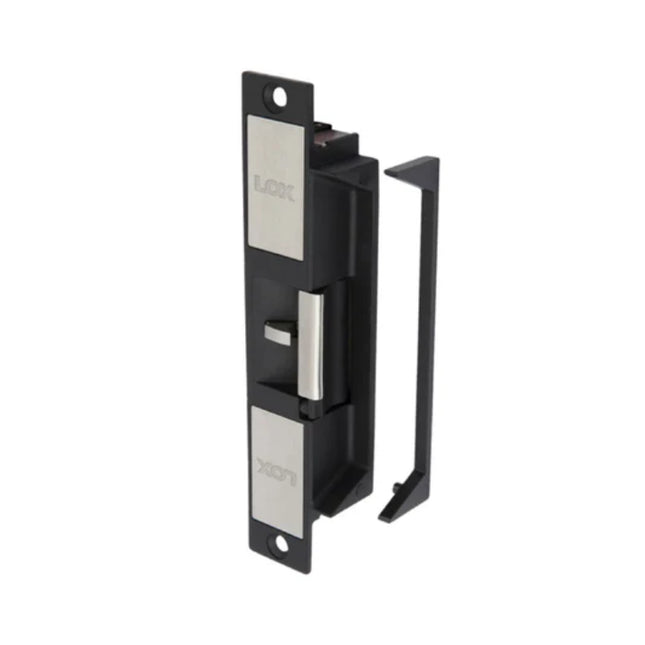

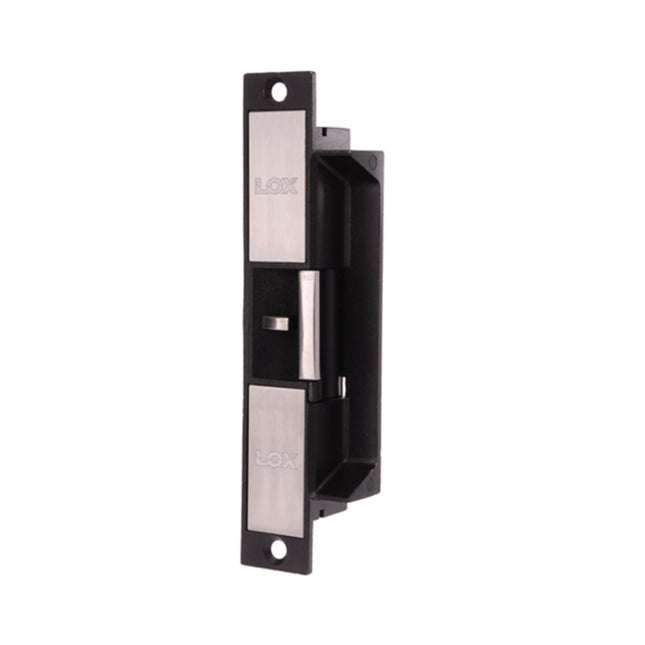

Overview The LOX ES20M is a commercial-grade, fully monitored high-security electric strike built for hinged doors in demanding Australian access control applications. Engineered with an Australian Footprint — a form factor designed to retrofit cleanly into standard Australian commercial door frames — the ES20M delivers a 1,000kg holding force from a solid stainless steel body. Triple monitoring via LSS (Lock Status), DSS (Door Status), and ATS (Anti-Tamper) sensors gives your access control system complete real-time visibility, while multi-voltage 10–30VDC operation and field-selectable Fail-Safe or Fail-Secure modes make it one of the most versatile and compliant electric strikes available in Australia. Key Features 1,000kg Holding Force – Solid stainless steel body tested to 1.5 million cycles for high-traffic, high-security commercial doors. Triple Monitoring – LSS, DSS & ATS – Real-time lock status, door position, and anti-tamper feedback to your access control panel. Multi-Voltage 10–30VDC – Compatible with virtually all access control power supplies used in Australian installations. Field-Selectable Fail-Safe / Fail-Secure – Switch between Power-to-Lock and Power-to-Release on site without replacing hardware. 4-Hour Fire Rating – Certified to AS/NZS Standards for fire-rated hinged door assemblies. Australian Footprint – Retrofits into standard Australian commercial door frames, reducing installation time and modification costs. 10mm Safety Strike Lip – Prevents personal injury and clothing snagging during normal door use. Solid Stainless Steel Construction – Corrosion resistant and built for 24/7 commercial operation. Available in Stainless Steel & Matte Black (ES20M-BLK) – Two finish options to suit standard and architectural door hardware. Technical Specifications Specification Detail Model LOX ES20M (Fully Monitored) Holding Force Up to 1,000kg Operating Voltage 10–30VDC (Multi-Voltage) Current Draw 250mA @ 12VDC / 125mA @ 24VDC Monitoring LSS (Lock Status), DSS (Door Status), ATS (Anti-Tamper) Operating Mode Field Selectable – Fail-Safe or Fail-Secure Construction Solid Stainless Steel Dimensions 175mm (L) × 44mm (W) × 27mm (D) Strike Lip 10mm Safety Lip Fire Rating Up to 4 Hours (AS/NZS Certified) Cycle Rating 1,500,000 cycles Available Finishes Stainless Steel / Matte Black (ES20M-BLK) Certifications CE, RCM (C-Tick), AS/NZS Fire Rated Use Cases Commercial Office Buildings – Secure hinged door entry and exit points with full monitoring feedback. Government & Council Facilities – Meets compliance requirements for monitored, fire-rated access control hardware. Schools, Universities & TAFE Campuses – High cycle rating handles heavy daily use across education facilities. Hospitals & Healthcare – Controlled entry with real-time door and lock status for security and compliance. Strata & Apartment Buildings – Common area hinged doors with reliable fail-safe egress during power outages. Industrial & Warehouse Facilities – Robust stainless steel construction handles demanding environments. Recommended Accessories Access Control Power Supply (12VDC / 24VDC) – Regulated supply with battery backup; the ES20M’s 10–30VDC range is compatible with virtually any standard Australian access control power supply. Door Controller / Access Panel – Single or multi-door panels that accept LSS, DSS, and ATS monitoring outputs for full system integration. Card Reader / Keypad / Intercom – Any 12VDC or 24VDC compatible credential device for controlling access at the door. Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release from the secure side. Door Closer – Required for fire door compliance and correct electric strike operation; ensures the door returns to the latched position after each use. LOX ES20M-BLK – Matte black version for architectural commercial door hardware where a black finish is specified. Frequently Asked Questions What is the difference between an electric strike and an electromagnetic lock? An electric strike replaces the door frame’s strike plate and works with the door’s existing latch or deadbolt — the lock stays in the door leaf, allowing free egress from the inside at all times. A maglock holds the door closed magnetically and requires a separate egress button. Electric strikes are generally preferred for hinged doors where existing door hardware is retained. What is the difference between Fail-Safe and Fail-Secure on the ES20M? Fail-Safe (Power-to-Lock): Locks when power is applied, releases when power is cut — correct for most commercial and fire-rated applications requiring safe egress during a power failure. Fail-Secure (Power-to-Release): Remains locked when power is cut — correct for high-security applications where the door must stay locked during a power failure. The ES20M is field-selectable between both modes on site. What does the ATS (Anti-Tamper Sensor) do? The ATS detects if the ES20M strike body is physically tampered with, forced, or removed from the door frame, and outputs an alert to your access control panel — a layer of security that LSS/DSS-only strikes cannot provide. What is the “Australian Footprint”? The ES20M is dimensioned to retrofit directly into standard Australian commercial door frame strike pockets without modification, reducing installation time and eliminating the need for custom routing or adaptor plates on most Australian commercial frames. Is the ES20M suitable for fire-rated doors? Yes. The ES20M is certified to AS/NZS Standards for use on fire-rated hinged door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware. Do you ship Australia-wide? Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

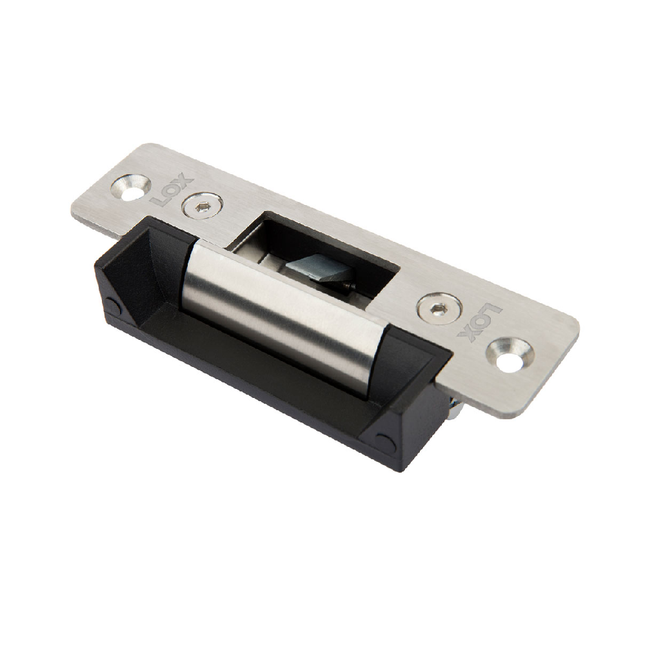

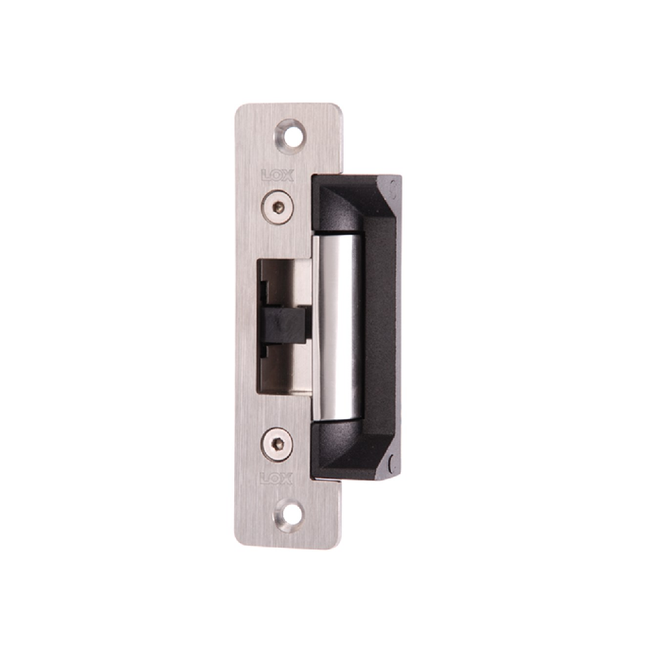

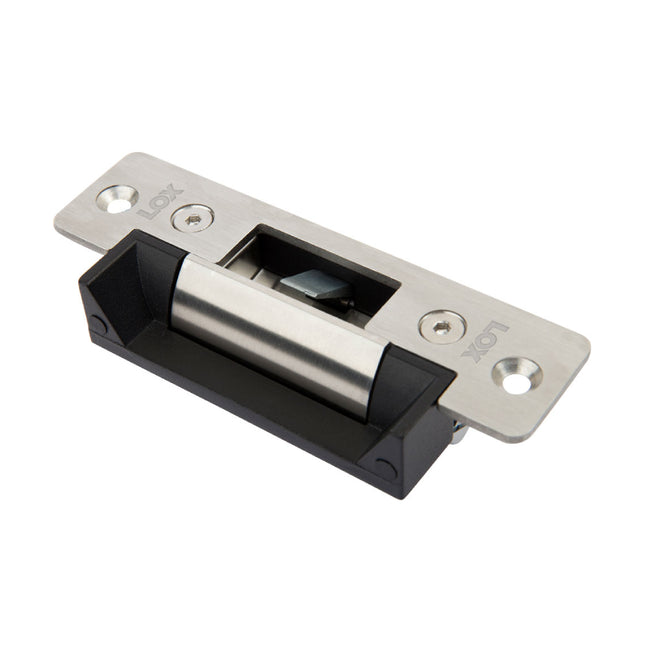

LOX ES10M Monitored ANSI Electric Strike – 1200kg Holding Force, DSS Monitoring, Fail-Safe & Fail-Secure, Fire Rated Overview The LOX ES10M is a premium, high-security ANSI-style monitored electric door strike built for both residential and commercial access control applications across Australia. Delivering an impressive 1,200kg holding force from a compact stainless steel body, the ES10M includes an integrated Door Status Sensor (DSS) for real-time latch position monitoring — ideal for alarm system integration and access control audit trails. Field-selectable Fail-Safe or Fail-Secure operation, dual 12V/24VDC compatibility, and a 4-hour fire rating make it a versatile and compliant choice for Australian security installers. Description ANSI-style electric strikes are the standard format for most residential and light commercial door hardware in Australia, designed to work with cylindrical and mortice latches on hinged doors. The ES10M’s compact 124mm body fits the ANSI strike pocket found in the majority of Australian door frames, making it a straightforward retrofit or new installation without frame modification. The integrated DSS (Door Status Sensor) monitors latch position in real time, feeding status back to your access control panel or alarm system — so you know whether the door is properly latched and the strike is engaged. Field-selectable Fail-Safe or Fail-Secure modes are set on site with a small screwdriver, giving installers the flexibility to configure the correct egress behaviour without replacing hardware. The high-grade stainless steel striker and faceplate are built for long-term operational life in high-traffic commercial environments, and the 4-hour fire rating ensures compliance with Australian building codes for fire-rated door assemblies. Key Features 1,200kg Holding Force: High-grade stainless steel construction delivers exceptional resistance against forced entry in residential and commercial applications. DSS Latch Monitoring: Integrated Door Status Sensor provides real-time latch position feedback to your access control panel or alarm system. Field-Selectable Fail-Safe / Fail-Secure: Switch between Power-to-Lock (Fail-Safe) and Power-to-Release (Fail-Secure) on site with a small screwdriver — no hardware replacement required. Dual Voltage – 12VDC / 24VDC: Compatible with the vast majority of access control power supplies and panels used in Australian installations. ANSI-Style Form Factor: Compact 124mm body fits standard ANSI strike pockets in most Australian door frames — straightforward retrofit or new installation. 4-Hour Fire Rating: Certified to AS Standards for use on fire-rated hinged door assemblies in Australian commercial buildings. Stainless Steel Striker & Faceplate: Corrosion resistant and built for long-term reliability in high-traffic commercial environments. CE & C-Tick (RCM) Certified: Compliant with Australian and international standards for commercial access control hardware. Available in Stainless Steel & Matte Black (ES10M-BLK): Two finish options to suit standard and architectural commercial door hardware. Use Cases Commercial office building hinged door entry and exit points Residential apartment and townhouse entry doors Retail stores and shopfront entry doors Schools, universities, and TAFE campuses Strata and apartment building common area hinged doors Healthcare facility non-critical entry points Hospitality and hotel room and back-of-house doors Any hinged door with a standard ANSI latch requiring monitored electric strike access control Technical Specifications Specification Detail Model LOX ES10M (Monitored) Holding Force Up to 1,200kg Operating Voltage 12VDC / 24VDC (Dual Voltage) Current Draw 200mA @ 12VDC  |  100mA @ 24VDC Monitoring DSS (Door Status / Latch Monitoring) Operating Mode Field Selectable – Fail-Safe or Fail-Secure Strike Style ANSI Style Dimensions 124mm (L) × 43mm (W) × 35mm (D) Material Stainless Steel Fire Rating Up to 4 Hours (AS Certified) Available Finishes Stainless Steel  |  Matte Black (ES10M-BLK) Certifications CE, RCM (C-Tick), AS Fire Rated Recommended Accessories & Compatible Products LOX ES20M – Upgrade option with triple monitoring (LSS, DSS & ATS), 1,000kg holding force, and multi-voltage 10–30VDC operation — ideal for higher-security or fully monitored access control systems. LOX ES10M-BLK – Matte black version of the ES10M for architectural commercial door hardware where a black finish is specified. Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup for reliable electric strike operation. Door Controller / Access Panel – Single or multi-door panels compatible with the ES10M’s DSS monitoring output for alarm integration and access logging. Card Reader / Keypad / Intercom – Any 12VDC or 24VDC compatible credential device for controlling access at the door. Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release from the secure side. Door Closer – Overhead door closer to ensure the door returns to the latched position after each use; required for fire door compliance and correct electric strike operation in Australia. Frequently Asked Questions What is an ANSI-style electric strike?ANSI-style electric strikes follow the standard ANSI/BHMA dimensions used for most residential and light commercial door hardware in Australia. The ES10M’s 124mm body fits the ANSI strike pocket found in the majority of Australian door frames, making it a straightforward retrofit without frame modification. What does the DSS (Door Status Sensor) monitor?The DSS monitors the position of the door latch in real time. It detects whether the latch is engaged in the strike (door properly closed) or retracted (door open or ajar), feeding this status back to your access control panel or alarm system for monitoring and alert triggering. What is the difference between the ES10M and the ES20M?The ES10M is an ANSI-style strike with DSS latch monitoring and 1,200kg holding force. The ES20M is a larger format strike with triple monitoring (LSS, DSS & ATS), 1,000kg holding force, multi-voltage 10–30VDC operation, and an “Australian Footprint” designed to retrofit into standard Australian commercial door frames. The ES20M is the preferred choice for higher-security or fully monitored commercial access control systems. What is the difference between Fail-Safe and Fail-Secure?Fail-Safe (Power-to-Lock): The strike locks when power is applied and releases when power is cut — correct for most commercial and fire-rated door applications where safe egress during a power failure is required. Fail-Secure (Power-to-Release): The strike remains locked when power is cut and releases only when power is applied — correct for high-security applications where the door must remain locked during a power failure. The ES10M is field-selectable between both modes on site. Is the ES10M suitable for fire-rated doors?Yes. The ES10M is certified to AS Standards for use on fire-rated hinged door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware. Do you ship Australia-wide?Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.

Read more less

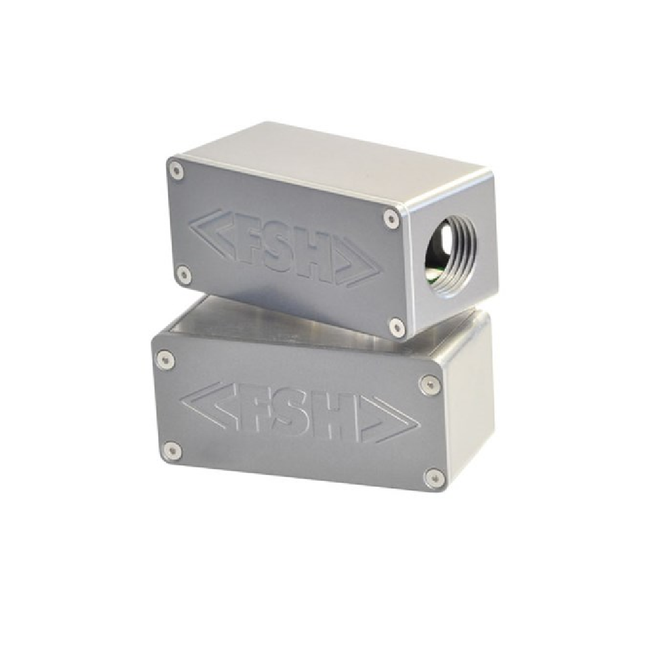

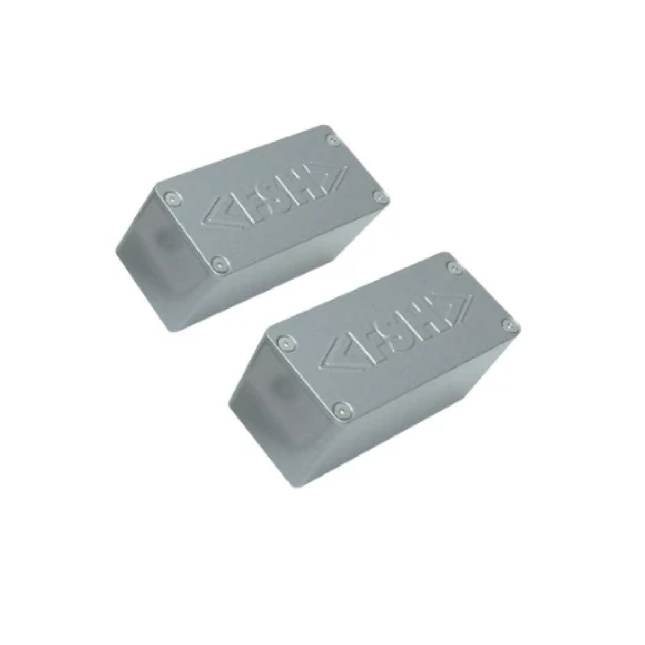

Overview The FSH FSS1-S-NC is a world-class high-security door position sensor (DPS) engineered for government, defence, military, and financial institution installations across Australia. The NC (No Conduit) variant features a rear-cable entry design for a clean, tamper-resistant finish without external conduit — ideal for installations where aesthetics and covert cable routing are required. Like the FSS1-S, it uses seven Hall-effect sensors to detect a unique 3D magnetic footprint, carrying SCEC Security Level 4 (SL4) approval — the highest rating for Australian Government and defence door monitoring. Key Features SCEC SL4 Approved – Highest Australian Government security rating for door monitoring sensors; also UL 634 Level 2 certified. No-Conduit (NC) Design – Rear-cable entry provides a clean, tamper-resistant finish without external conduit runs. 7 Hall-Effect Sensors – Detects a unique 3D magnetic footprint using up to 8 magnets — cannot be defeated by external magnets or standard bypass techniques. IP67 Environmental Protection – Fully sealed for indoor and outdoor high-security applications in Australian conditions. Smart Self-Calibration – Learns its environment on first door closure; recalibrates to account for door drop or maintenance over time. Advanced Anti-Tamper – Detects magnetic, electronic, and physical attacks via a memorised magnetic signature and multiple tamper switches. Wide Voltage Range – Operates on 10–30VDC; compatible with Type 1/1A and Class 5 E.O.L. modules. Technical Specifications Specification Detail Model FSH FSS1-S-NC (Surface Mount, No Conduit) Security Level SCEC SL4 Approved / UL 634 Level 2 Mounting Type Surface Mount – Rear Cable Entry (No Conduit) Operating Voltage 10–30VDC Current Consumption <45mA Sensors 7 Hall-Effect Sensors / Up to 8 Magnets Door Gap Tolerance 1mm – 7mm Contacts N.C. / N.O. (0.2A @ 30V) Environmental Rating IP67 Weatherproof Dimensions 75mm (L) × 34mm (H) × 35mm (D) Use Cases Australian Government Facilities – SCEC SL4 approval meets the highest Australian Government security requirements for door monitoring. Defence & Military Installations – Tamper-resistant 3D magnetic footprint detection for perimeter and internal high-security doors. Financial Institutions – Secure vault, server room, and controlled access doors requiring advanced, defeat-resistant door monitoring. Data Centres & Critical Infrastructure – Covert rear-cable entry suits installations where concealed wiring and clean aesthetics are required. Retrofit Installations – Surface mount design allows installation on existing high-security door frames; no-conduit entry simplifies cable routing in finished environments. Frequently Asked Questions What is the difference between the FSS1-S and the FSS1-S-NC? Both are surface mount versions of the FSS1 high-security door sensor. The FSS1-S includes a conduit entry for external cable routing, while the FSS1-S-NC uses a rear-cable (no conduit) entry for a cleaner finish and more covert installation. Choose the NC version when external conduit is not permitted or aesthetics require concealed cabling. What does SCEC SL4 approval mean? SCEC (Security Construction and Equipment Committee) Security Level 4 is the highest security rating for door monitoring sensors used in Australian Government and defence facilities. SL4 approval means the FSS1-S-NC has been independently evaluated and certified for use in the most sensitive and high-risk environments. How does the FSS1-S-NC differ from a standard balanced magnetic sensor? A standard balanced magnetic sensor uses a single magnet and can be defeated by placing an external magnet near the sensor. The FSS1-S-NC uses seven Hall-effect sensors to detect a unique 3D magnetic footprint created by up to 8 magnets — this combination cannot be replicated or defeated by external magnets. How does the self-calibration work? On first door closure after installation, the FSS1-S-NC learns its magnetic environment and stores this as its reference footprint. If the door drops over time or maintenance is performed, the sensor can be recalibrated to the new door position without replacement. Is the FSS1-S-NC suitable for outdoor installation? Yes. The FSS1-S-NC carries an IP67 rating, meaning it is fully protected against dust ingress and temporary immersion in water — suitable for outdoor and exposed door frame installations in Australian conditions.

Read more less

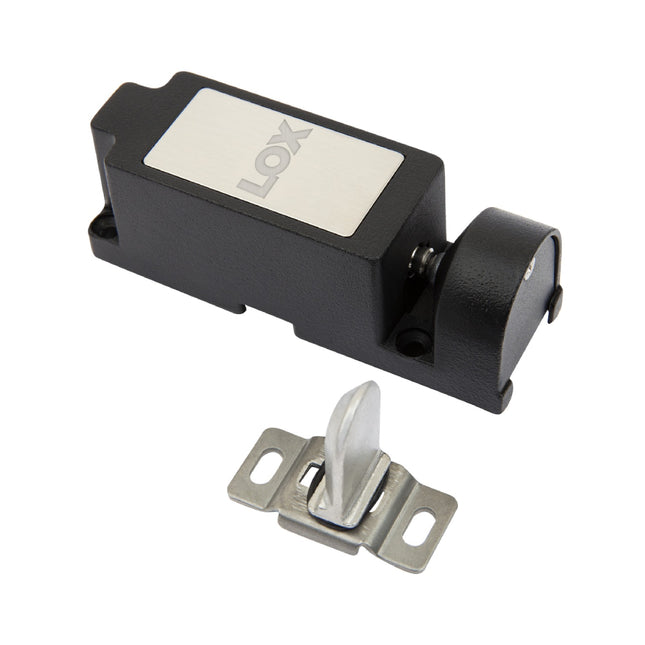

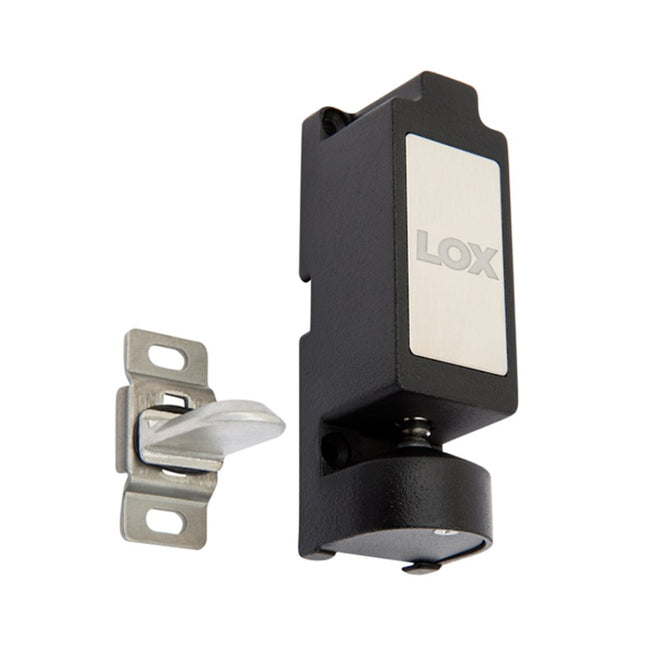

LOX CL0002 Electromechanical Cabinet & Locker Lock The LOX CL0002 is a compact, internally mounted electromechanical lock engineered for discreet, high-security applications. Invisible once installed, it delivers reliable fail-secure locking for cabinets, drawers, and lockers across retail, medical, and commercial environments throughout Australia. Key Features 150kg Holding Force — robust resistance against forced entry in a compact form factor Dual Voltage (12VDC / 24VDC) — integrates seamlessly with existing access control and alarm systems Fail-Secure Operation — remains locked during a power outage, maintaining security at all times Compact Dimensions — 72.7mm(L) × 28.6mm(W) × 28mm(H), fits tight internal spaces where traditional locks cannot Flexible Mounting — horizontal or vertical installation to suit doors, drawers, and locker configurations Hidden Installation — internally mounted design keeps the lock invisible to end users Low Current Draw — 150mA @ 12V / 75mA @ 24V, minimising load on your power supply Commercial Grade Durability — tested for high-cycle use in demanding environments Use Cases Retail — jewellery display cases, smartphone kiosks, and high-value merchandise cabinets Medical & Healthcare — pharmaceutical storage, patient record cabinets, and controlled substance lockers Office & Workplace — staff lockers, filing cabinets, and secure document storage Automation & Logistics — vending machines, parcel delivery lockers, and automated dispensing units Technical Specifications Model LOX CL0002 (Non-Monitored) Holding Force Up to 150kg Operating Voltage 12VDC or 24VDC Current Draw 150mA @ 12V  /  75mA @ 24V Dimensions (L × W × H) 72.7mm × 28.6mm × 28mm Operation Mode Fail-Secure (locked without power) Mounting Orientation Horizontal or Vertical SKU CL0002 Brand LOX Downloads LOX CL0002 Installation Manual (PDF) LOX CL0001 / CL0002 Datasheet (PDF) Frequently Asked Questions Is the LOX CL0002 fail-secure or fail-safe? The CL0002 is fail-secure — it remains locked when power is removed. This makes it suitable for applications where security must be maintained during a power outage. Can it be used with a standard 12V access control power supply? Yes. The CL0002 operates on 12VDC or 24VDC and draws only 150mA at 12V, making it compatible with most standard access control power supplies. Is the lock visible once installed? No. The CL0002 is designed for internal (hidden) mounting, so it is completely concealed within the cabinet or locker once installed. Can it be mounted in any orientation? Yes. The CL0002 supports both horizontal and vertical mounting to accommodate a wide range of cabinet and drawer configurations. Does CCTV Guru ship the LOX CL0002 Australia-wide? Yes. We ship to all states and territories across Australia, including metro and regional areas.

Read more less

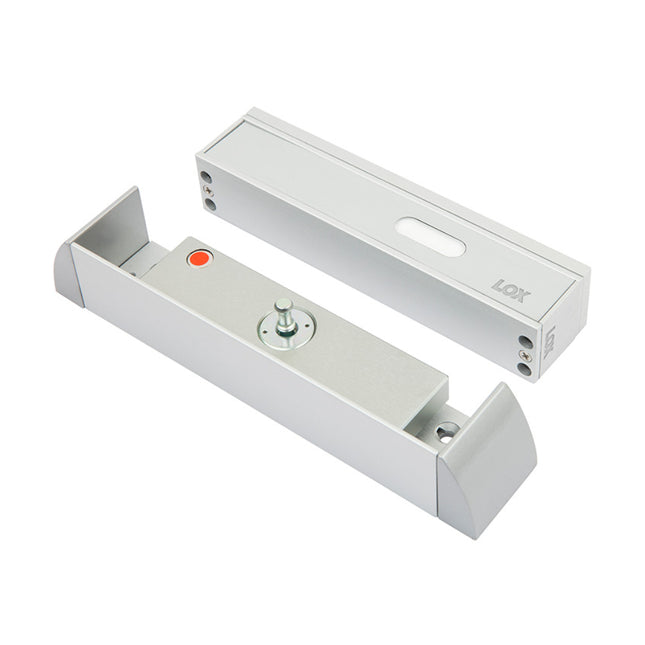

LOX MML2400 Micro Magnetic Lock – 280kg Holding Force (Monitored) Overview The LOX MML2400 is an ultra-compact electromagnetic lock engineered for applications where space is at a premium but security cannot be compromised. Despite its slim micro form factor — just 180mm long and 32mm high — it delivers a substantial 280kg holding force, far exceeding standard cabinet and locker locks. With built-in Hall Effect lock status monitoring and a satin anodised aluminium finish, it integrates cleanly into modern interior environments including medical facilities, retail displays, IT rooms, and architectural glass door applications across Australia. Key Features 280kg Holding Force – Industrial-strength security in a micro body; significantly stronger than standard cabinet or locker locks. Ultra-Compact Form Factor – 180mm(L) × 32mm(H) × 25mm(D); designed for discreet installation where space is limited. Hall Effect Lock Status Monitoring (LSS) – Built-in sensor provides real-time lock status feedback to your access control system. Zero Residual Magnetism – Instant, clean release on power-off; no sticking or delayed access. Dual Voltage Operation – Accepts 12VDC or 24VDC with low power consumption for easy integration. Satin Anodised Aluminium Finish – Premium, low-profile finish that blends seamlessly into modern interior architecture and cabinetry. Fail-Safe Operation – Releases automatically on power loss for safe egress compliance. Lifetime Warranty – Manufacturer-backed for long-term confidence in demanding installations. Use Cases Medical and pharmacy drug safes and controlled substance cabinets IT server racks, network cabinets, and secure lockers Retail glass display cases and high-value merchandise cabinets Compact office doors and internal access-controlled partitions Architectural glass doors in corporate and hospitality environments Museum display cases and secure archival storage Technical Specifications Specification Details Model MML2400 (Monitored) Holding Force 280kg (approx. 615lbs) Dimensions (Lock Body) 180mm(L) × 32mm(H) × 25mm(D) Finish Satin Anodised Aluminium Monitoring Output Hall Effect Sensor (Lock Status Sensing) Input Voltage 12VDC / 24VDC Current Draw (12V) 420mA Current Draw (24V) 210mA Safety Type Fail-Safe (Releases on Power Loss) Warranty Lifetime Downloads LOX MML2400 Installation Manual (PDF) LOX MML2400 Data Sheet (PDF) Frequently Asked Questions What makes the MML2400 different from a standard magnetic lock? The MML2400 is specifically designed for confined spaces where a full-size mag lock won’t fit. At just 180mm long and 32mm high, it installs discreetly inside cabinets, lockers, and slim door frames while still delivering a 280kg holding force — far stronger than conventional mechanical cabinet locks. Can the MML2400 be used on glass doors? Yes. Its slim, satin anodised aluminium profile makes it well-suited to architectural glass door applications in corporate offices, hospitality venues, and retail environments where aesthetics matter as much as security. Does the MML2400 provide lock status monitoring? Yes. The built-in Hall Effect Sensor outputs a Lock Status Sensing (LSS) signal to your access control panel, providing real-time confirmation of whether the lock is energised and secured. Is the MML2400 fail-safe or fail-secure? The MML2400 is a fail-safe (fail-open) device — it releases automatically when power is removed. This is the standard behaviour for electromagnetic locks and is required for fire egress compliance on designated exit paths. What power supply does the MML2400 require? The MML2400 operates on 12VDC (420mA) or 24VDC (210mA). A standard access control power supply is suitable. Ensure your supply can deliver sufficient current for the lock plus any other devices on the same circuit. Is there an armature plate included? Please refer to the LOX MML2400 Installation Manual above or contact us to confirm armature plate inclusion and compatible accessories for your specific application. Installer Note: The MML2400’s micro form factor requires precise armature plate alignment to achieve the rated 280kg holding force. Ensure the mounting surface is rigid and flat. Contact us if you need application-specific installation advice.

Read more less

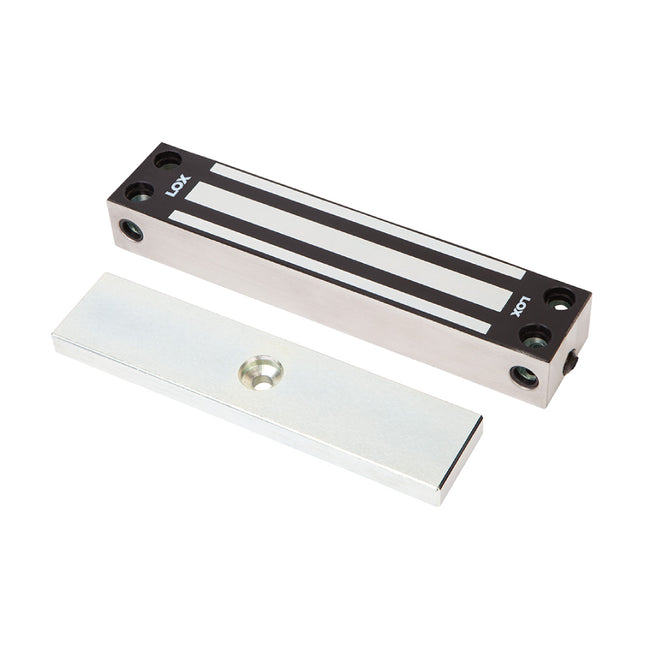

LOX EM4700 IP67 Weatherproof Magnetic Gate Lock – 380kg Holding Force Overview The LOX EM4700 is a heavy-duty electromagnetic gate lock built for demanding outdoor environments where a standard mag lock simply won’t cut it. Housed in fully enclosed 304-grade stainless steel and rated IP67, it delivers a robust 380kg holding force — nearly double that of entry-level gate locks — with built-in lock status monitoring and surge protection. It is the industry-standard choice for high-exposure Australian sites including coastal perimeters, industrial gates, and high-security access points. Key Features 380kg Holding Force – Heavy-duty security for high-traffic or high-risk gate applications where maximum resistance to forced entry is required. IP67 Weatherproof Rating – Fully sealed against dust and water immersion; proven in surf lifesaving clubs, coastal sites, and tropical environments across Australia. 304-Grade Stainless Steel Housing – Fully enclosed corrosion-resistant construction for long-term performance in salt air, humidity, and harsh outdoor conditions. Lock Status Monitoring (LSS) – Built-in Hall Effect Sensor provides real-time lock status feedback to your access control system. Built-In Surge Protection – Protects the lock and connected access control equipment from voltage spikes. Zero Residual Magnetism – Instant, clean gate release on power-off; no sticking or delayed egress. Dual Voltage Operation – Accepts 12VDC or 24VDC for flexible integration with existing access control infrastructure. Dual Fixing Arrangement – Supports both front and header mounting to suit a wide range of gate configurations. Lifetime Warranty – Manufacturer-backed for long-term confidence in demanding outdoor installations. Use Cases Coastal perimeter gates at surf lifesaving clubs, marinas, and beachfront facilities Industrial and commercial site entry gates requiring high holding force School, childcare, and aged care facility gates with monitored access control Residential estate and apartment complex perimeter gates Car parks, loading docks, and service yard entry points Any high-exposure outdoor gate where IP67 protection and 380kg security are required Technical Specifications Specification Details Model EM4700 (Monitored) Housing Material 304-Grade Stainless Steel (Fully Enclosed) IP Rating IP67 (Dust & Water Immersion) Holding Force 380kg Monitoring Output Hall Effect Sensor (Lock Status Sensing) Surge Protection Built-In Input Voltage 12VDC / 24VDC Current Draw (12V) 400mA Current Draw (24V) 200mA Mounting Options Front Mount / Header Mount (Dual Fixing) Warranty Lifetime Downloads LOX EM4700 Installation Manual (PDF) LOX EM4700 Data Sheet (PDF) LOX Accessories Guide (PDF) Frequently Asked Questions How does the EM4700 compare to the EM4500? Both are IP67-rated stainless steel gate locks, but the EM4700 offers 380kg holding force versus the EM4500’s 200kg, and adds a Hall Effect LSS sensor and built-in surge protection. The EM4700 is the preferred choice for higher-security or higher-traffic gate applications. Is the EM4700 suitable for coastal and marine environments? Yes. The fully enclosed 304-grade stainless steel housing and IP67 rating make it one of the most corrosion-resistant electromagnetic locks available. It is widely used at surf lifesaving clubs, marinas, and beachfront facilities across Australia. What does IP67 mean in practice? IP67 means the lock is fully protected against dust ingress (6) and can withstand temporary water immersion up to 1 metre for 30 minutes (7). This makes it suitable for gates subject to heavy rain, hose-down cleaning, or occasional flooding. What bracket do I need for an inward-opening gate? For inward-opening gates, the LOX AMZB4-LP L & Z Bracket is recommended for correct armature plate alignment and a professional finish. Refer to the LOX Accessories Guide above for the full range of compatible brackets. Does the EM4700 provide lock status monitoring? Yes. The EM4700 includes a built-in Hall Effect Sensor that outputs a Lock Status Sensing (LSS) signal to your access control panel, providing real-time confirmation of whether the lock is energised and secured. Is this lock fail-safe or fail-secure? The EM4700 is a fail-safe (fail-open) device — it releases when power is removed. This is the standard and required behaviour for fire egress compliance on designated exit paths. For fail-secure applications, a different locking mechanism is required. What power supply do I need? The EM4700 operates on 12VDC (400mA) or 24VDC (200mA). For outdoor installations, use a weatherproof power supply enclosure rated for continuous outdoor use. Ensure your supply can deliver sufficient current for the lock plus any other devices on the same circuit. Installer Note: For inward-opening gates, pair the EM4700 with the LOX AMZB4-LP L & Z Bracket for correct alignment and a professional finish. Always use a weatherproof power supply enclosure for fully exposed outdoor installations.

Read more less

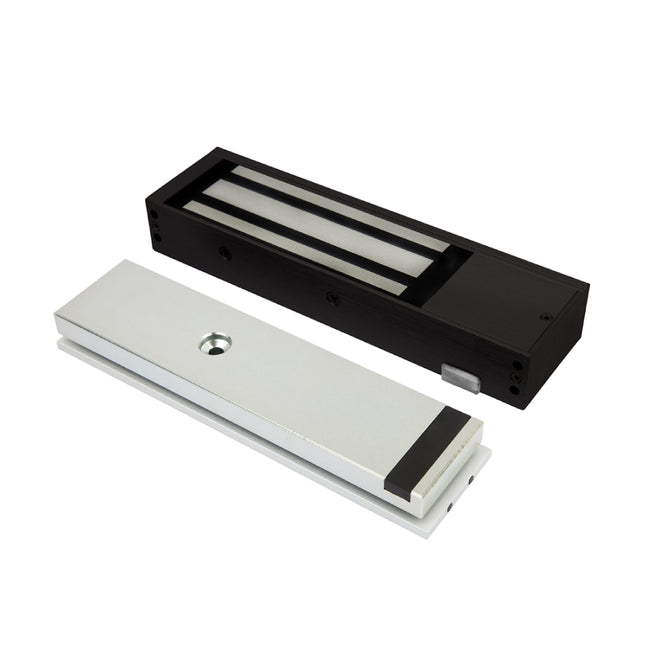

LOX EM5700M-BLK Monitored Magnetic Lock – Matte Black | 600kg Holding Force Overview The LOX EM5700M-BLK is a premium single-door electromagnetic lock that pairs a 600kg holding force with an architectural matte black finish and full monitoring capability. Designed for environments where security performance and interior aesthetics must coexist, it is the go-to choice for modern commercial fit-outs, designer retail spaces, and high-security access points across Australia. Key Features 600kg Holding Force – Robust resistance against forced entry on single door applications. Monitored Output (LSS & DSS) – Built-in Hall Effect Sensor provides real-time Lock Status Sensing and Door Status Sensing for integration with access control systems. Architectural Matte Black Finish – Durable, premium coating engineered to complement all-black door hardware and contemporary interior design schemes. LED Status Indicator – High-visibility LED gives instant visual confirmation of lock state at the door. 4-Hour Fire Rating – Certified to Australian Standards for use on fire door assemblies and compliant egress paths. Zero Residual Magnetism – Immediate door release on power-off; no sticking or delayed egress in an emergency. Dual Voltage Operation – Accepts 12VDC or 24VDC for straightforward integration with existing access control infrastructure. Lifetime Warranty – Manufacturer-backed for long-term confidence in demanding installations. Use Cases Modern corporate offices with black door frames and designer hardware High-end retail boutiques, galleries, and showrooms Access-controlled perimeters requiring remote lock and door status monitoring Fire-rated exit doors where visual aesthetics are a priority Hotels, serviced apartments, and premium hospitality environments Technical Specifications Specification Details Model EM5700M-BLK (Monitored) Finish Architectural Matte Black Holding Force 600kg (1,320lbs) Monitoring Output LSS & DSS (Lock & Door Status Sensing) Sensor Type Hall Effect Input Voltage 12VDC / 24VDC Current Draw (12V) 500mA Current Draw (24V) 250mA Fire Rating 4 Hours (AS Standard) LED Indicator Yes Warranty Lifetime Downloads LOX EM5700M-BLK Installation Manual (PDF) LOX EM5700M-BLK Data Sheet (PDF) LOX Accessories Guide (PDF) Frequently Asked Questions What does “monitored” mean on the EM5700M-BLK? The monitored version includes a built-in Hall Effect Sensor that outputs both Lock Status Sensing (LSS) and Door Status Sensing (DSS) signals. These connect to your access control panel to provide real-time alerts on whether the lock is energised and whether the door is open or closed. Is the matte black finish durable in high-traffic areas? Yes. The matte black coating is a high-quality architectural finish engineered for commercial use. It is resistant to everyday wear and maintains its appearance in high-traffic environments. Avoid abrasive cleaners to preserve the finish. What is the difference between the EM5700M-BLK and the standard EM5700M? The EM5700M-BLK is functionally identical to the EM5700M but features an architectural matte black finish instead of the standard silver/aluminium anodised finish. Both are monitored models with LSS and DSS outputs. Can I use this lock with a 12V power supply? Yes. The EM5700M-BLK operates on both 12VDC (500mA) and 24VDC (250mA). Ensure your power supply can deliver sufficient current for continuous operation. Is this lock suitable for fire-rated doors? Yes. The EM5700M-BLK carries a 4-hour fire rating to Australian Standards, making it compliant for installation on fire door assemblies and designated egress paths. What brackets should I use to match the matte black finish? LOX offers matching matte black L-brackets and Z-brackets to maintain a consistent architectural look. Refer to the LOX Accessories Guide above or contact us for configuration-specific advice. Installer Note: To maintain the all-black architectural look, pair this lock with LOX Matte Black Brackets (L-Bracket or Z-Bracket) suited to your door configuration. Refer to the Accessories Guide above for compatible options.

Read more less

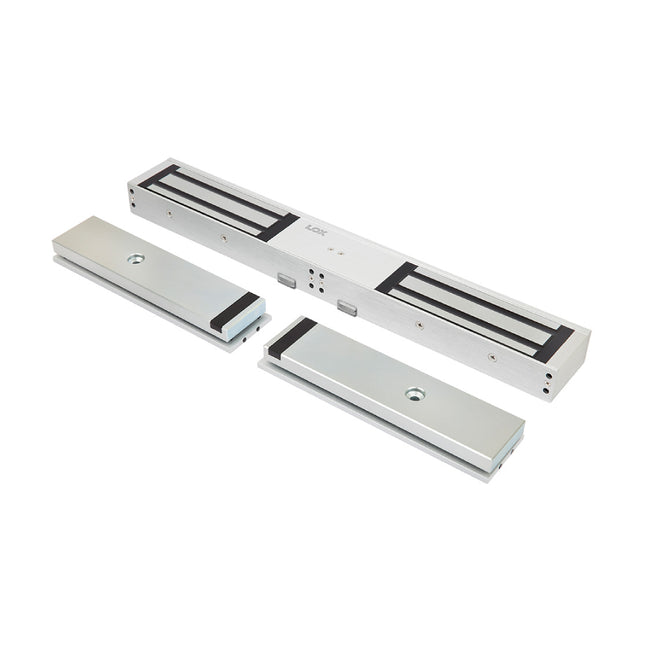

LOX EM5700D Double Door Magnetic Lock – 1200kg Holding Force Overview The LOX EM5700D is a heavy-duty electromagnetic lock engineered for double door applications where maximum security and fire compliance are essential. Delivering a combined 1200kg (600kg per leaf) holding force, it is trusted by security installers and facilities managers across Australia for high-traffic commercial and institutional environments. Key Features 1200kg Total Holding Force – 600kg per magnet provides exceptional resistance against forced entry on double door sets. 4-Hour Fire Rating – Certified for use on fire door assemblies to Australian Standards, suitable for compliant exit paths. Zero Residual Magnetism – Immediate door release on power-off; no sticking or delayed egress. Dual Voltage Operation – Intelligent circuitry accepts 12VDC or 24VDC for straightforward integration with existing access control systems. Lifetime Warranty – Manufacturer-backed for long-term reliability in demanding installations. RCM & CE Certified – Compliant with Australian regulatory requirements. Zinc-Plated Finish – High-quality corrosion resistance for indoor and semi-exposed environments. Non-Monitored Model – Straightforward fail-safe operation; see the EM5700DM for monitored (LSS/DSS) functionality. Use Cases Commercial office lobbies with heavy double-glass or timber doors Warehouses and distribution centres requiring perimeter security Government buildings, correctional facilities, and secure zones Fire-rated exit doors on compliant egress paths Schools, hospitals, and aged care facilities with high-traffic double doors Technical Specifications Specification Details Model EM5700D (Non-Monitored) Holding Force 600kg × 2 (1200kg total) Input Voltage 12VDC / 24VDC Current Draw (12V) 500mA × 2 Current Draw (24V) 250mA × 2 Fire Rating 4 Hours (AS Standard) Finish Zinc Plated Certifications CE, RCM (C-Tick) Monitoring Non-Monitored Warranty Lifetime Downloads LOX EM5700D Installation Manual (PDF) LOX EM5700D Data Sheet (PDF) LOX Accessories Guide (PDF) Frequently Asked Questions Is the EM5700D suitable for fire-rated exit doors? Yes. The EM5700D carries a 4-hour fire rating to Australian Standards, making it compliant for use on fire door assemblies and designated egress paths. What is the difference between the EM5700D and the EM5700DM? The EM5700D is a non-monitored model providing straightforward fail-safe locking. The EM5700DM adds Lock Status Sensing (LSS) and Door Status Sensing (DSS) for remote monitoring and security alerts via your access control system. Can I use this lock with my existing 12V access control power supply? Yes. The EM5700D operates on both 12VDC and 24VDC, drawing 500mA per magnet at 12V or 250mA per magnet at 24V. Confirm your power supply can deliver sufficient current for both magnets simultaneously. Does the lock hold if power is lost? No. The EM5700D is a fail-safe (fail-open) device — it releases when power is removed, which is the required behaviour for fire egress compliance. For fail-secure applications, a different locking mechanism is required. What brackets are compatible with the EM5700D? LOX offers a range of mounting brackets for various door configurations including Z-brackets, L-brackets, and armature plates. Refer to the LOX Accessories Guide above or contact us for installation-specific advice. Installer Note: This is a non-monitored model. If your project requires Lock Status Sensing (LSS) or Door Status Sensing (DSS) for remote security alerts, please refer to the LOX EM5700DM (Monitored) variant.

Read more less

LOX EM3500D Double Door Electromagnetic Lock | 560kg | 12/24VDC | Fire Rated The LOX EM3500D is one of Australia's most trusted electromagnetic locks for double-door applications. Delivering 280kg of holding force per magnet (560kg combined), it is engineered for commercial, institutional, and industrial facilities where reliable, fire-rated access control is non-negotiable. Zero residual magnetism ensures instant door release the moment power is removed. Key Features 560kg Total Holding Force — 280kg per magnet, providing robust security across both leaves of a double door Up to 4-Hour Fire Rating — certified to Australian Standards (AS), suitable for fire-rated exit routes and compliance-critical installations Dual Voltage (12VDC / 24VDC) — compatible with most standard access control and alarm power supplies Zero Residual Magnetism — door releases instantly when power is removed, preventing sticking or delayed egress 1 Million+ Cycle Tested — built for long-term, high-frequency commercial use Integrated MOV (Varistor) — built-in surge protection guards against power spikes and voltage transients CE & RCM (C-Tick) Approved — meets Australian and international compliance requirements Non-Monitored — clean, cost-effective solution where door or lock status monitoring is not required Use Cases Commercial Building Entrances — main lobby double doors in offices, retail centres, and mixed-use buildings Healthcare Facilities — hospital ward entries, pharmacy access, and controlled egress doors Education — school and university double-door entries requiring fire-rated locking Emergency Exit Routes — fire-rated double doors on compliant egress paths Glass Double Doors — when used with compatible LOX glass door brackets or armature holders Industrial & Warehouse — high-traffic double-door access points requiring heavy-duty holding force Technical Specifications Model LOX EM3500D (Non-Monitored) Door Configuration Double Door Holding Force 280kg × 2 (560kg total) Operating Voltage 12VDC or 24VDC Current Draw 530mA × 2 @ 12V  /  260mA × 2 @ 24V Fire Rating Up to 4 hours (to Australian Standards) Residual Magnetism Zero Cycle Life 1,000,000+ cycles Surge Protection Integrated MOV (Varistor) Operating Temperature −20°C to +60°C Approvals CE, RCM (C-Tick) Monitoring Non-Monitored (see EM3500DM for monitored version) SKU EM3500D Brand LOX Downloads LOX EM3500D Installation Manual (PDF) LOX EM3500D Datasheet (PDF) LOX Accessories Catalogue (PDF) Frequently Asked Questions What is the difference between the EM3500D and the EM3500DM? The EM3500D is the non-monitored version — ideal where lock or door status feedback is not required. The EM3500DM adds Lock Status Sensing (LSS), Door Status Sensing (DSS), and LED indicators for integration with access control panels that require door monitoring. Is the LOX EM3500D suitable for fire-rated doors? Yes. The EM3500D is fire rated to up to 4 hours in accordance with Australian Standards, making it suitable for installation on fire-rated double doors on compliant egress routes. Can the EM3500D be used on glass double doors? Yes, when paired with compatible LOX glass door brackets or armature holders. Refer to the LOX Accessories Catalogue (available in the Downloads section above) for suitable bracket options. What does “zero residual magnetism” mean? It means the maglock releases the door instantly when power is cut, with no lingering magnetic force. This is critical for egress compliance and ensures the door does not stick after the lock is de-energised. Does CCTV Guru ship the LOX EM3500D Australia-wide? Yes. We ship to all states and territories across Australia, including metro and regional areas.

Read more less

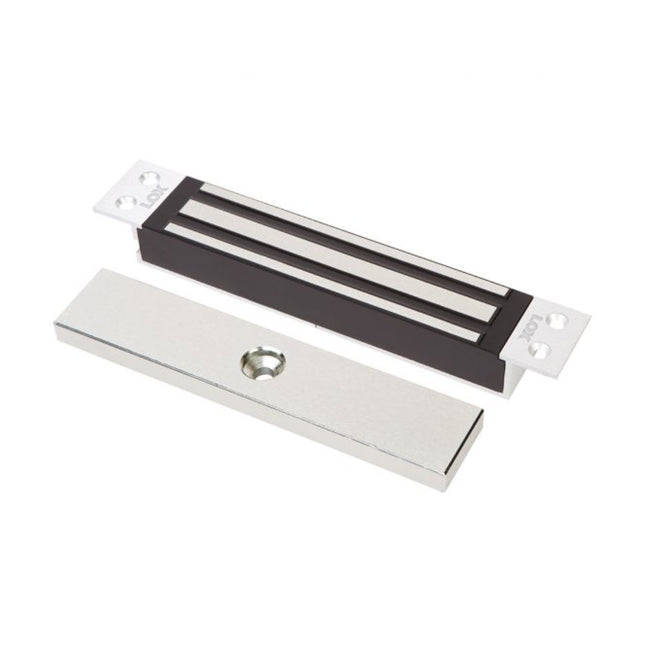

LOX EM3500FM Flush Mount Electromagnetic Lock | 280kg | Monitored | Fire Rated The LOX EM3500FM is a high-performance, flush-mount (recessed) electromagnetic lock engineered for architectural applications where a clean, concealed finish is essential. Delivering 280kg of holding force with integrated dual monitoring — Lock Status Sensing (LSS) and Door Status Sensing (DSS) — it provides both robust security and full access control system integration, all hidden neatly within the door frame. Key Features 280kg Holding Force — reliable, heavy-duty security in a concealed form factor Flush / Recessed Mount — lock body installs within the door frame header for a seamless, architectural finish on timber or metal frames Dual Monitoring (LSS & DSS) — Lock Status Sensor monitors the magnetic bond (locked/unlocked); Door Status Sensor uses a built-in reed switch to track door position (open/closed) Up to 4-Hour Fire Rating — tested and certified to Australian Standards (AS), CE & RCM approved Dual Voltage (12VDC / 24VDC) — site-selectable voltage, compatible with most access control power supplies Anti-Tamper Plate — protects the armature bolt from tampering or forced manipulation No Moving Parts — 1,000,000+ cycle tested for high-traffic, long-life commercial use Lifetime Warranty — covered by the LOX Locking lifetime replacement warranty Use Cases Architectural & High-End Commercial Fitouts — offices, hotels, and corporate lobbies where aesthetics and security must coexist Sliding Doors — flush mount design is ideal for sliding door headers where surface-mount locks are not practical Swinging Doors with Concealed Hardware — internal doors requiring a hidden locking solution Healthcare & Education — monitored access on fire-rated doors in hospitals, aged care, and schools Government & Institutional Buildings — high-security doors requiring both fire compliance and door status feedback Access Control Systems Requiring Monitoring — any installation where the panel needs real-time lock and door status signals Technical Specifications Model LOX EM3500FM (Monitored) Mounting Type Flush / Recessed Mount Holding Force 280kg (approx. 600 lbs) Operating Voltage 12VDC or 24VDC (site selectable) Current Draw 530mA @ 12VDC  /  260mA @ 24VDC Monitoring Dual — LSS (Lock Status Sensor) & DSS (Door Status Sensor / Reed Switch) Fire Rating Up to 4 hours (to Australian Standards) Tamper Protection Anti-tamper armature plate Cycle Life 1,000,000+ cycles Approvals CE, RCM (C-Tick) Warranty Lifetime (LOX Locking replacement warranty) SKU EM3500FM Brand LOX Downloads LOX EM3500FM Installation Manual (PDF) LOX EM3500FM Datasheet (PDF) Frequently Asked Questions What is the difference between LSS and DSS monitoring? LSS (Lock Status Sensor) monitors whether the electromagnetic bond is engaged — confirming the lock is physically holding the door. DSS (Door Status Sensor) uses a built-in reed switch to detect whether the door is physically open or closed, independent of the lock state. Together, they give your access control panel complete real-time visibility of both the lock and the door. Is the EM3500FM suitable for sliding doors? Yes. The flush-mount (recessed) design makes the EM3500FM particularly well suited to sliding door applications, where the lock body is installed within the door frame header and remains completely hidden when the door is closed. Is the LOX EM3500FM fire rated? Yes. The EM3500FM is fire rated to up to 4 hours in accordance with Australian Standards, and carries CE and RCM (C-Tick) approvals, making it suitable for fire-rated doors on compliant egress paths. What warranty does the EM3500FM carry? The EM3500FM is covered by the LOX Locking lifetime replacement warranty, reflecting the brand’s confidence in the long-term reliability of this product. Does CCTV Guru ship the LOX EM3500FM Australia-wide? Yes. We ship to all states and territories across Australia, including metro and regional areas.

Read more less

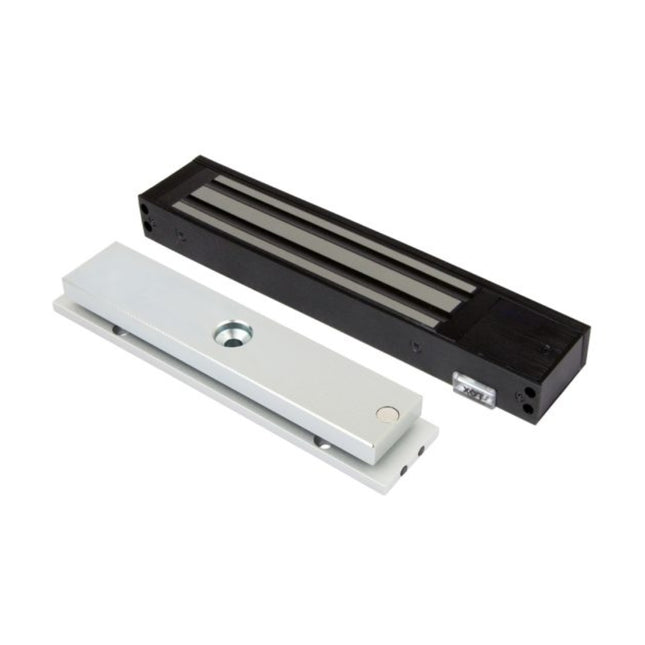

Overview The LOX EM3500M-BLK is a premium monitored electromagnetic lock engineered for high-security commercial and architectural applications across Australia. Part of the LOX Black Series, it combines a sleek black anodised finish with a 280kg holding force and integrated door and lock status monitoring — making it the go-to choice for installers who demand reliability and aesthetics in one package. Key Features 280kg Holding Force – Tested to 1 million cycles for long-term dependability. Dual Monitoring Sensors – LSS (Lock Status Sensor) via Hall Effect and DSS (Door Status Sensor) via integrated reed switch. Red/Green LED Indicator – Instant visual status at a glance for installers and end users. 4-Hour Fire Rating – Tested to Australian Standards (AS), suitable for fire-rated door assemblies. Dual Voltage Operation – Accepts 12VDC or 24VDC for flexible system integration. No Residual Magnetism – Instant door release when power is cut, ensuring safe egress. Anti-Tamper Fixing Plate – Protects the armature bolt against hostile removal attempts. Black Anodised Finish – Ideal for modern interiors, dark door frames, and architectural glass doors. Lifetime Warranty – Manufacturer-backed guarantee for peace of mind. Technical Specifications Specification Detail Model EM3500M-BLK Holding Force Up to 280kg Voltage 12VDC / 24VDC Current Draw 530mA (12VDC) / 260mA (24VDC) Lock Status Sensor (LSS) Hall Effect Sensor Door Status Sensor (DSS) Integrated Reed Switch LED Indicator Red/Green Finish Black Anodised Fire Rating Up to 4 Hours (AS Standard) Operating Temperature -20°C to 60°C Certifications CE, RCM, C-Tick Cycle Tested 1,000,000 cycles Warranty Lifetime Use Cases Commercial Office Buildings – Secure entry and exit points with real-time door and lock status feedback. Architectural Glass Doors – Slimline black finish complements frameless and dark-framed glass door installations. Fire-Rated Door Assemblies – Compliant with Australian fire door requirements up to 4 hours. Access Control Integration – Compatible with most access control panels requiring fail-safe electromagnetic locking. High-Traffic Entrances – 1 million cycle rating ensures durability in busy commercial environments. Recommended Accessories LOX AMZB4-BLK – L & Z Bracket Kit (Black) – for standard door frame mounting. LOX U-Bracket (Black) – For frameless glass door applications. Downloads LOX EM3500M-BLK Installation Manual (PDF) LOX EM3500M-BLK Datasheet (PDF) LOX Accessories Catalogue (PDF) Frequently Asked Questions What is the difference between the EM3500M-BLK and the standard EM3500-BLK? The EM3500M-BLK is the monitored version, featuring both a Lock Status Sensor (LSS) and a Door Status Sensor (DSS). These allow your access control system to track whether the lock is engaged and whether the door is open or closed — the standard model does not include these sensors. Is this maglock suitable for fire-rated doors in Australia? Yes. The EM3500M-BLK has been tested to Australian Standards and carries a 4-hour fire rating, making it suitable for use on fire-rated door assemblies. Can I use this lock with a 24VDC power supply? Yes. The lock operates on either 12VDC (530mA) or 24VDC (260mA), giving you flexibility to match your existing power supply infrastructure. Does the lock release immediately when power is cut? Yes. The EM3500M-BLK is designed with no residual magnetism, ensuring the door releases instantly upon power loss — a critical safety requirement for egress compliance. What brackets are compatible with this lock? The LOX AMZB4-BLK L & Z bracket kit and black U-brackets for glass doors are the recommended accessories for this model.

Read more less

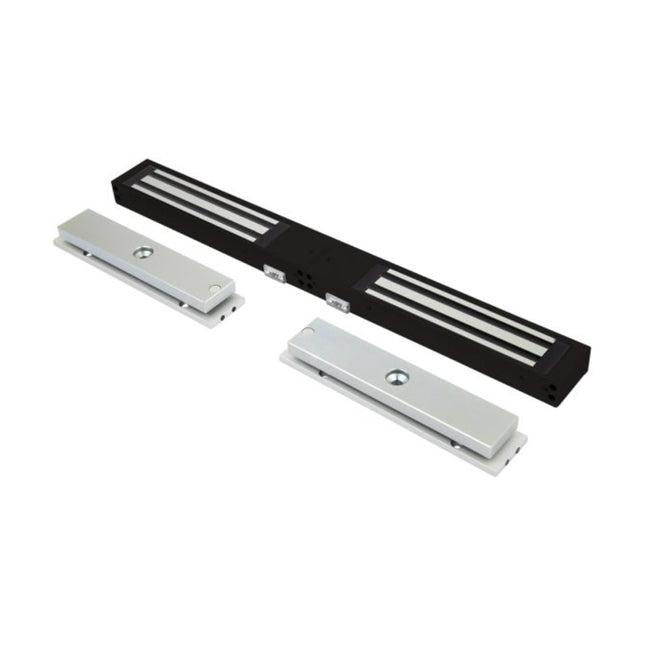

LOX EM3500DM-BLK Double Door Slimline Maglock | Black Anodised | 280kg | Monitored The LOX EM3500DM-BLK is a premium black anodised double-door electromagnetic lock from the LOX Slimline Series, engineered for high-traffic commercial and architectural environments where aesthetics matter as much as security. Delivering 280kg of holding force per door with integrated dual monitoring (LSS & DSS), a 4-hour fire rating, and a lifetime warranty, it is one of the most capable and trusted maglocks available in Australia. Key Features 280kg Holding Force Per Door — robust double-door security with 560kg combined holding strength Black Anodised Aluminium Housing — sleek, modern finish that integrates seamlessly with contemporary architectural hardware and dark door frames Dual Monitoring (LSS & DSS) — built-in Hall Effect Sensor (Lock Status) and Reed Switch (Door Status) for full access control panel integration Up to 4-Hour Fire Rating — certified to Australian Standards (AS), suitable for fire-rated exit doors and egress compliance Dual Voltage (12VDC / 24VDC) — compatible with most standard access control and alarm power supplies Fail-Safe Operation — door releases when power is removed, ensuring safe egress in emergencies Zero Residual Magnetism — instant door release with no magnetic sticking after de-energisation Anti-Tamper Fixing Plate — protects armature plate bolts against forced manipulation Slimline Profile — compact 477mm × 48mm × 25mm body for discreet header installation Lifetime Warranty — covered by the LOX Locking lifetime replacement warranty Use Cases Commercial Office Buildings — double-door lobby entries and internal access points with dark or black hardware finishes Retail & Hospitality — boutique retail, hotels, and restaurants requiring discreet, high-performance locking Healthcare Facilities — monitored double-door access on fire-rated egress paths in hospitals and aged care Education — school and university double-door entries requiring fire-rated, monitored locking Government & Institutional — high-security double doors requiring both fire compliance and real-time door status feedback Architectural Fitouts — any project where a black anodised finish is specified for access control hardware Technical Specifications Model LOX EM3500DM-BLK (Double Monitored) Door Configuration Double Door Holding Force 280kg per door (560kg combined) Operating Voltage 12VDC or 24VDC Current Draw 1060mA @ 12VDC  /  540mA @ 24VDC Dimensions (L × H × D) 477mm × 48mm × 25mm Monitoring LSS (Hall Effect — Lock Status) & DSS (Reed Switch — Door Status) Fail Mode Fail-Safe (releases on power loss) Residual Magnetism Zero Fire Rating Up to 4 hours (to Australian Standards) Finish Black Anodised Aluminium Tamper Protection Anti-tamper fixing plate Warranty Lifetime (LOX Locking replacement warranty) SKU EM3500DM-BLK Brand LOX Downloads LOX EM3500DM-BLK Datasheet (PDF) LOX EM3500 Installation Manual (PDF) LOX Accessories Catalogue (PDF) Frequently Asked Questions What is the difference between the EM3500DM-BLK and the standard EM3500D? The EM3500DM-BLK adds dual monitoring (LSS Hall Effect sensor and DSS reed switch) and comes in a black anodised finish. The standard EM3500D is non-monitored and available in a silver/natural anodised finish. Choose the DM-BLK when your access control panel requires real-time lock and door status feedback, or when a black finish is specified. Is the EM3500DM-BLK fail-safe or fail-secure? The EM3500DM-BLK operates in fail-safe mode — the door releases when power is removed. This is the required configuration for fire egress doors, ensuring occupants can always exit in an emergency. Is this maglock fire rated? Yes. The EM3500DM-BLK is fire rated to up to 4 hours in accordance with Australian Standards, making it suitable for installation on fire-rated double doors on compliant egress routes. What does “zero residual magnetism” mean in practice? It means the door releases instantly the moment power is cut, with no lingering magnetic force. This is critical for egress compliance and prevents the door from sticking after the lock is de-energised. Does CCTV Guru ship the LOX EM3500DM-BLK Australia-wide? Yes. We ship to all states and territories across Australia, including metro and regional areas.

Read more less

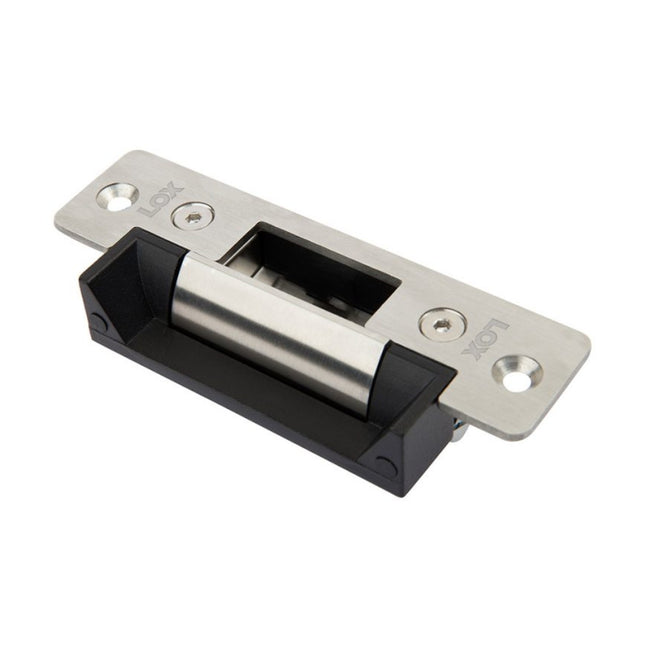

LOX ES20 High Security Electric Strike | Mortice Mount | 10–30VDC | Fire Rated The LOX ES20 is one of Australia's most trusted commercial electric strikes, engineered for high-security mortice mount applications. Built from stainless steel with a wide multi-voltage input range, site-switchable fail modes, and up to 4-hour fire rating to Australian Standards, the ES20 is the go-to choice for security installers and facilities managers who need proven, long-lasting performance. Key Features 1100kg Holding Force — one of the strongest electric strikes in its category Multi-Voltage (10–30VDC) — compatible with virtually any access control or alarm power supply Site-Switchable Fail Mode — change between Fail-Secure and Fail-Safe on-site with a small screwdriver, no rewiring required Up to 4-Hour Fire Rating — certified to Australian Standards (AS), CE & RCM (C-Tick) approved Stainless Steel Construction — corrosion-resistant and built for demanding commercial environments 10mm Strike Lip — reduces risk of personal injury and clothing damage compared to 15mm lip strikes; pre-drilled for extension lips in various sizes No Loose Pins or Springs — simplified internals for reliable, low-maintenance operation 5-Year Warranty — backed by LOX’s commercial-grade quality assurance Australian Profile — designed specifically for Australian door hardware profiles Use Cases Commercial Office Buildings — secure entry doors, server rooms, and restricted access areas Healthcare Facilities — ward entries, pharmacy doors, and controlled access zones Education — school and university access control on fire-rated doors Government & Institutional — high-security doors requiring fire-rated electric locking Retail & Hospitality — staff entries, back-of-house doors, and secure storage rooms Strata & Residential Complexes — common area doors and lift lobby access Technical Specifications Model LOX ES20 (Non-Monitored) Mounting Type Mortice Mount Holding Force Up to 1100kg Operating Voltage 10–30VDC (Multi-Voltage) Current Draw 250mA @ 12VDC  /  125mA @ 24VDC Fail Mode Fail-Secure / Fail-Safe (site switchable) Strike Lip 10mm standard (pre-drilled for extension lips) Fire Rating Up to 4 hours (to Australian Standards) Approvals CE, RCM (C-Tick) Operating Temperature −20°C to +60°C Material Stainless Steel Monitoring Non-Monitored Warranty 5 Years SKU ES20 Brand LOX Downloads LOX ES20 Datasheet (PDF) LOX ES20 Installation Manual (PDF) Frequently Asked Questions Is the LOX ES20 fire rated? Yes. The ES20 is fire rated to up to 4 hours in accordance with Australian Standards, and carries CE and RCM (C-Tick) approvals, making it suitable for installation on fire-rated doors in commercial and institutional buildings. What is the difference between Fail-Secure and Fail-Safe? Fail-Secure keeps the door locked when power is lost — best for security-critical areas. Fail-Safe releases the door when power is lost — required for fire egress compliance. The ES20 can be switched between both modes on-site with a screwdriver, no rewiring needed. Why does the ES20 have a 10mm strike lip instead of 15mm? The 10mm lip reduces the risk of personal injury and clothing snagging compared to standard 15mm lip strikes. The ES20 is also pre-drilled to accept extension lips in various sizes if a longer lip is required for your door hardware. Is the ES20 compatible with my existing access control system? Very likely yes. The ES20 accepts any DC voltage between 10V and 30V, drawing 250mA at 12VDC or 125mA at 24VDC, making it compatible with the vast majority of access control panels and power supplies used in Australia. Does CCTV Guru ship the LOX ES20 Australia-wide? Yes. We ship to all states and territories across Australia, including metro and regional areas.

Read more less

Overview The LOX ES10 is one of Australia’s most trusted ANSI-style electric door strikes for residential and light commercial applications. Designed to mortice into a standard door frame, it works with mortice locks and cylindrical tongue locks on single swing doors. With a 1000kg holding force, IP56 weather resistance, and site-switchable fail-safe/fail-secure operation, the ES10 delivers reliable access control without the complexity. Key Features 1000kg Holding Force – Robust locking strength suitable for residential and light commercial doors. Site-Switchable Fail-Safe / Fail-Secure – Easily convert between Power to Release (fail-safe) and Power to Lock (fail-secure) using a small screwdriver — no rewiring required. Dual Voltage – Accepts 12VDC (200mA) or 24VDC (100mA) for flexible system integration. IP56 Weather Resistant – Suitable for outdoor and exposed installations. 4-Hour Fire Rating – Tested to Australian Standards (AS), suitable for fire-rated door assemblies. Pre-Drilled for Extension Lips – Accommodates a range of lip configurations for easier installation. 5-Year Warranty – Backed by LOX’s manufacturer warranty for long-term confidence. ANSI Style – Compatible with standard ANSI mortice and cylindrical lock hardware. Technical Specifications Specification Detail Model ES10 (S114862) Holding Force Up to 1000kg Voltage 12VDC / 24VDC Current Draw 200mA (12VDC) / 100mA (24VDC) Operation Mode Fail-Safe / Fail-Secure (site switchable) IP Rating IP56 Fire Rating Up to 4 Hours (AS Standard) Operating Temperature -20°C to 60°C Certifications CE, C-Tick Lock Compatibility Mortice lock, Cylindrical tongue lock Door Type Single swing door Warranty 5 Years Use Cases Residential Entry Doors – Retrofit access control onto existing mortice or cylindrical locks without replacing the door hardware. Light Commercial Offices – Secure staff entry points with keypad, card reader, or intercom integration. Outdoor & Exposed Installations – IP56 rating handles dust and water ingress in covered outdoor environments. Fire-Rated Door Assemblies – 4-hour fire rating meets Australian Standards for fire door compliance. Fail-Safe Egress Applications – Switch to fail-safe mode to ensure doors unlock automatically during a power outage or fire alarm event. Frequently Asked Questions What is the difference between the ES10 and the ES10M? The ES10M is the monitored version and includes a Door Status Sensor (DSS) that tracks whether the door latch is engaged. The standard ES10 does not include monitoring but is IP56 weather rated. Choose the ES10M if your access control panel requires latch status feedback. Can I switch between fail-safe and fail-secure on site? Yes. The ES10 is site-interchangeable between fail-safe (Power to Release) and fail-secure (Power to Lock) using only a small screwdriver — no rewiring or additional components needed. What lock types is the ES10 compatible with? The ES10 is designed for single swing doors fitted with either a mortice lock or a cylindrical tongue lock. It is not suitable for deadbolts or multi-point locking systems. Is the ES10 suitable for outdoor use? Yes. The ES10 carries an IP56 rating, making it resistant to dust ingress and water jets — suitable for covered outdoor door frames and exposed environments. Does the ES10 meet Australian fire door requirements? Yes. The ES10 is fire rated up to 4 hours to Australian Standards (AS), making it suitable for installation on fire-rated door assemblies.

Read more less

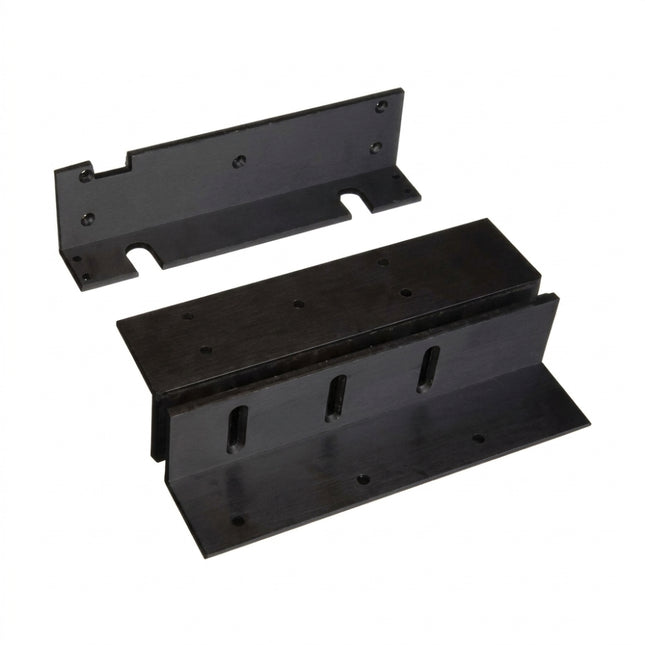

LOX AMZB4-BLK L&Z Bracket | Black Anodised | For EM3500 & EM4700 Series Maglocks The LOX AMZB4-BLK is a black anodised L&Z mounting bracket designed to extend the installation versatility of LOX EM3500 and EM4700 series electromagnetic locks. It allows maglocks to be correctly positioned on inward or outward swinging doors where a standard header mount is not suitable, ensuring full armature plate contact and maximum holding force. Key Features Black Anodised Finish — matches the EM3500M-BLK and other black anodised LOX maglocks for a consistent, professional appearance L&Z Bracket Design — provides the correct offset and alignment for swinging door applications where a direct header mount is not possible Broad Compatibility — suits the LOX EM3500, EM3500M, EM3500M-BLK, and EM4700 series electromagnetic locks Robust Construction — engineered to maintain structural integrity under the full holding force of compatible maglocks Installer-Friendly — pre-drilled mounting points for straightforward installation on timber, aluminium, and steel door frames Use Cases Inward Swinging Doors — positions the maglock correctly when the door swings toward the lock body Outward Swinging Doors — provides the necessary offset to achieve full armature plate contact on outward-opening doors Commercial & Institutional Fitouts — offices, schools, hospitals, and government buildings using EM3500 or EM4700 series maglocks with a black hardware specification Retrofit Installations — adapts existing door frames to accept LOX maglocks without structural modification Compatible Maglocks LOX EM3500 (Single Door, Non-Monitored) LOX EM3500M (Single Door, Monitored) LOX EM3500M-BLK (Single Door, Monitored, Black Anodised) LOX EM4700 Series Technical Specifications Model LOX AMZB4-BLK Bracket Type L&Z Mounting Bracket Finish Black Anodised Aluminium Compatible Models EM3500, EM3500M, EM3500M-BLK, EM4700 Series Application Inward & outward swinging doors SKU AMZB4-BLK Brand LOX Frequently Asked Questions What is an L&Z bracket used for? An L&Z bracket is a two-part mounting bracket that positions an electromagnetic lock on swinging doors where a direct header mount is not achievable. The “L” section mounts to the door frame and the “Z” section attaches to the door, ensuring the maglock body and armature plate align correctly for full holding force regardless of door swing direction. Which LOX maglocks is the AMZB4-BLK compatible with? The AMZB4-BLK is compatible with the LOX EM3500 (non-monitored), EM3500M (monitored), EM3500M-BLK (monitored, black anodised), and EM4700 series electromagnetic locks. Why choose the black anodised version? The AMZB4-BLK is specifically designed to match the black anodised finish of the EM3500M-BLK and other black LOX hardware, ensuring a consistent, professional appearance across the entire installation — particularly important in architectural and high-end commercial fitouts. Does CCTV Guru ship the LOX AMZB4-BLK Australia-wide? Yes. We ship to all states and territories across Australia, including metro and regional areas.

Read more less

LOX ES15 Electric Strike | Rim-Mounted | IP56 Weather Resistant | 12/24VDC The LOX ES15 is a heavy-duty, surface-mounted (rim-mounted) electric strike engineered for pedestrian gates and light commercial access control applications. With an IP56 weather resistance rating, site-switchable fail modes, and a 1200kg holding force, it delivers reliable, installer-friendly performance in demanding Australian outdoor environments. Key Features 1200kg Holding Force — robust security for pedestrian gates and commercial entry points IP56 Weather Resistant — rated for outdoor and exposed installations, resisting dust and water jets Dual Voltage (12VDC / 24VDC) — integrates with most standard access control and intercom systems Site-Switchable Fail Mode — change between Fail-Secure and Fail-Safe on-site with a small screwdriver — no rewiring required Rim / Surface Mounted — straightforward installation without mortising; ideal for retrofits and new installations 5-Year Warranty — backed by LOX’s commercial-grade quality assurance Non-Monitored Version — clean, cost-effective solution where door position monitoring is not required Use Cases Pedestrian Gates — residential complexes, strata buildings, and commercial premises Light Commercial Doors — offices, retail entries, and staff access points Outdoor & Exposed Installations — car parks, loading docks, and external building entries Retrofit Access Control — upgrading existing mechanical strikes to electronic access without major door modifications Intercom & Video Intercom Systems — pairs with door intercoms for remote electric release Technical Specifications Model LOX ES15 (Non-Monitored) Part Number S114868 Holding Force Up to 1200kg Operating Voltage 12VDC or 24VDC Mounting Type Rim / Surface Mounted Fail Mode Fail-Secure / Fail-Safe (site switchable) IP Rating IP56 (Weather Resistant) Monitoring Non-Monitored Warranty 5 Years SKU ES15 Brand LOX Frequently Asked Questions What is the difference between Fail-Secure and Fail-Safe on the ES15? Fail-Secure means the strike remains locked when power is lost — ideal for security-critical doors. Fail-Safe means the strike releases (unlocks) when power is lost — required for fire egress doors. The ES15 can be switched between both modes on-site using a small screwdriver, with no rewiring needed. Is the LOX ES15 suitable for outdoor use? Yes. The ES15 carries an IP56 rating, meaning it is protected against dust ingress and powerful water jets, making it well suited to outdoor gates, car parks, and exposed entry points across Australia. Can the ES15 work with my existing 12V access control system? Yes. The ES15 accepts both 12VDC and 24VDC, so it is compatible with the vast majority of standard access control panels and intercom power supplies. Does the ES15 require mortising into the door frame? No. The ES15 is a rim-mounted (surface-mounted) strike, meaning it mounts directly onto the door frame surface — no chiselling or mortising required. This makes it particularly suitable for retrofits. Does CCTV Guru ship the LOX ES15 Australia-wide? Yes. We ship to all states and territories across Australia, including metro and regional areas.
