Description

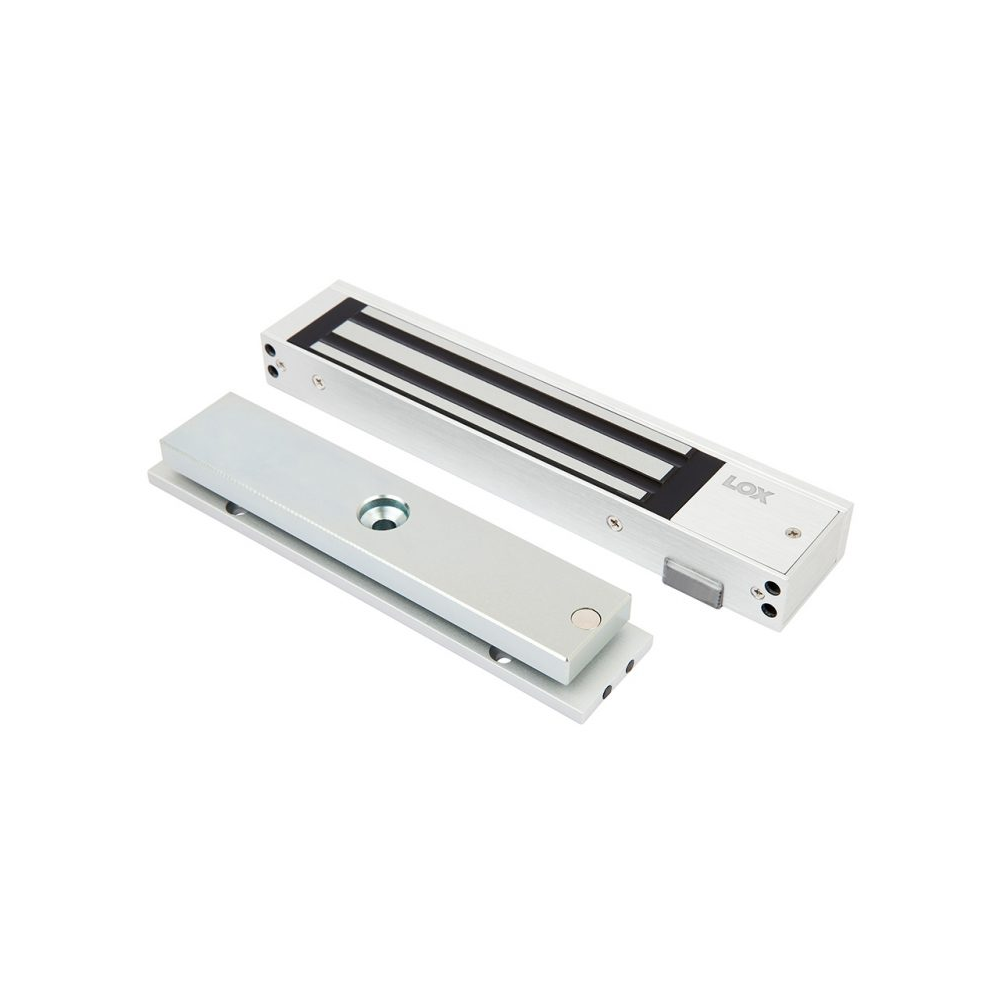

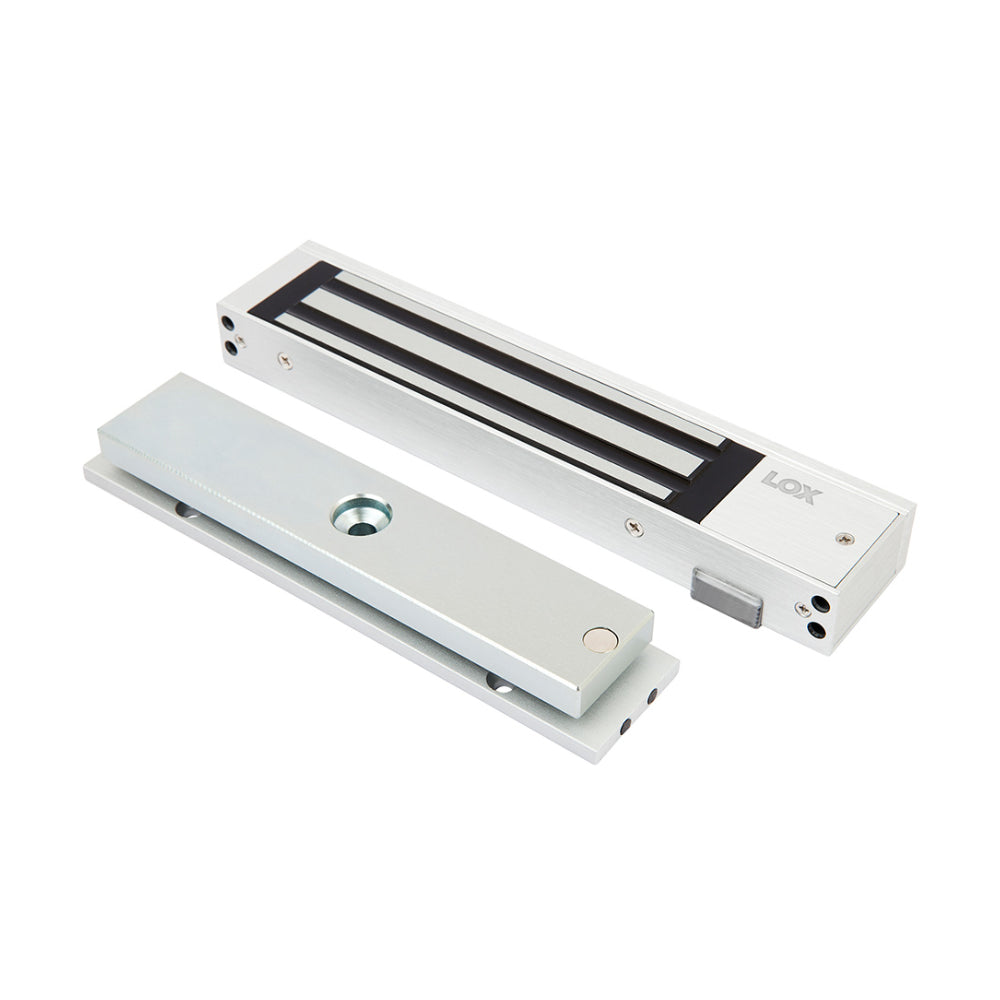

LOX EM3500 Non-Monitored Single Electromagnetic Lock – 280kg Holding Force, Dual Voltage, Fire Rated
Overview
The LOX EM3500 is a high-performance slimline single-door electromagnetic lock built for reliable commercial and residential access control across Australia. Delivering a proven 280kg (600 lb) holding force from a compact 238mm body, the EM3500 is the cost-effective, non-monitored choice for standard secure doors where external monitoring sensors are already in place or not required. With a 4-hour fire rating, zero residual magnetism, and dual 12V/24VDC compatibility, it is one of the most widely installed single maglocks in Australian commercial buildings.
Description
The EM3500 is the entry point to the LOX electromagnetic lock range — and it sets a high bar. Its slimline satin anodised aluminium body mounts cleanly on standard single door frames without dominating the aesthetic, making it equally at home in a modern office fitout or a utilitarian warehouse entry. The non-monitored design keeps the installation straightforward: power on to lock, power off to release — no additional sensor wiring required.
Zero residual magnetism means the door releases the instant power is cut, with no sticking or delay — critical for safe egress in fire or emergency situations. Built-in MOV surge protection guards the internal circuitry against voltage spikes, and dual 12VDC/24VDC compatibility ensures it integrates with virtually any access control power supply or panel in use across Australia. Tested to over 1,000,000 cycles for long-term, maintenance-free reliability.
For applications requiring real-time lock status or door position monitoring, consider the LOX EM3500M (monitored version) which adds Hall Effect LSS and reed switch DSS sensors as standard.
Key Features
-
280kg Holding Force: Industry-standard single door holding force, tested to over 1,000,000 cycles for maintenance-free commercial reliability.
-
Slimline 238mm Body: Compact profile fits narrow door frames and suits modern commercial interiors without visual bulk.
-
Non-Monitored Design: Straightforward installation — ideal where external monitoring sensors are already in place or monitoring is not required.
-
4-Hour Fire Rating: Certified to AS/NZS Standards for use on fire-rated single door assemblies in Australian commercial buildings.
-
Fail-Safe Operation: Releases instantly when power is removed — the correct and required configuration for most commercial and fire-rated door applications in Australia.
-
Zero Residual Magnetism: Innovative coil design ensures immediate door release on power loss — no sticking, no delay, safe egress every time.
-
Dual Voltage – 12VDC / 24VDC: Compatible with the vast majority of access control power supplies and panels used in Australian installations.
-
Built-In MOV Surge Protection: Guards internal circuitry against voltage spikes — extends product life in variable power environments.
-
Satin Anodised Aluminium Housing: Corrosion resistant and aesthetically suited to modern commercial interiors and aluminium door frames.
-
CE & RCM (C-Tick) Certified: Compliant with Australian and international standards for commercial access control hardware.
Use Cases
- Commercial office building single door entry and exit points
- Retail stores and shopping centre back-of-house doors
- Schools, universities, and TAFE campuses
- Strata and apartment building common area doors
- Industrial facilities and warehouse entry points
- Hospitality and hotel back-of-house access
- Healthcare facility non-critical entry points
- Any single door application where external monitoring is already provided or not required
Technical Specifications
| Specification |
Detail |
| Model |
LOX EM3500 (Non-Monitored) |
| Holding Force |
Up to 280kg (600 lb) |
| Operating Voltage |
12VDC / 24VDC (Dual Voltage) |
| Current Draw |
530mA @ 12VDC | 260mA @ 24VDC |
| Monitoring |
None (Non-Monitored) |
| Lock Type |
Single Electromagnetic (Fail-Safe) |
| Lock Body Dimensions |
238mm (L) × 48mm (H) × 25mm (D) |
| Armature Plate Dimensions |
185mm (L) × 38mm (H) × 12mm (D) |
| Fire Rating |
Up to 4 Hours (AS/NZS Certified) |
| Housing Material |
Satin Anodised Aluminium |
| Surge Protection |
MOV Varistor (Built-In) |
| Residual Magnetism |
None (Instant Release) |
| Cycle Rating |
1,000,000+ cycles |
| Certifications |
CE, RCM (C-Tick), AS/NZS Fire Rated |
Recommended Accessories & Compatible Products
-
LOX EM3500M – Monitored version of this lock; adds Hall Effect LSS and reed switch DSS sensors for real-time lock status and door position feedback — recommended for access control systems requiring monitoring or alarm integration.
-
LOX AMZB4-LP L & Z Bracket – Required for inward-opening single door installations; ensures correct armature plate alignment for full 280kg holding force.
-
LOX AMLB4 Adjustable L-Bracket – For outward-opening single door configurations or narrow door frames where a direct surface mount is not possible.
-
Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup to maintain lock operation during power outages.
-
Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release.
-
Door Controller / Access Panel – Single or multi-door access control panels compatible with the EM3500 for card reader, keypad, or intercom integration.
-
Door Closer – Overhead door closer to ensure the door returns to the locked position after each use; required for fire door compliance in Australia.
Frequently Asked Questions
What is the difference between the EM3500 and the EM3500M?
The EM3500 is the non-monitored version — it locks and unlocks but provides no status feedback to your access control panel. The EM3500M adds dual monitoring via Hall Effect LSS (lock status) and reed switch DSS (door status), plus an anti-tamper fixing plate as standard. If your access control system requires real-time feedback, alarm integration, or audit trail compliance, the EM3500M is the correct choice.
Is the EM3500 fail-safe or fail-secure?
The EM3500 is a fail-safe electromagnetic lock — it releases (unlocks) when power is removed. This is the standard and required configuration for most commercial and fire-rated single door applications in Australia.
What brackets do I need for the EM3500?
The correct bracket depends on your door swing direction. For inward-opening doors, use the LOX AMZB4-LP L & Z bracket. For outward-opening doors or narrow frames, the LOX AMLB4 adjustable L-bracket is the correct choice. Using the wrong bracket will result in misalignment and reduced holding force.
Is the EM3500 suitable for fire-rated doors?
Yes. The EM3500 is certified to AS/NZS Standards for use on fire-rated door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware.
Does the EM3500 include an armature plate?
Yes. The EM3500 is supplied with a matching armature plate (185mm × 38mm × 12mm). Mounting brackets are sold separately depending on your door configuration.
What voltage does the EM3500 operate on?
The EM3500 supports both 12VDC and 24VDC operation, making it compatible with the vast majority of access control power supplies used in Australian installations.
