8MP Panoramic · 180° View · ColorVu 3.0 · Live-Guard
Hikvision 8MP Panoramic Turret
See the full width of the scene from one camera position
The Hikvision DS-2CD2387G3P-LIS2UY/SL is an 8MP panoramic turret camera designed for wide areas where a normal fixed camera leaves blind spots. Its ultra-wide optical system produces a single 180°-class panoramic image, making it well suited to building fronts, broad driveways, loading docks, forecourts, shopfronts and open indoor spaces.
ColorVu 3.0, HikAI-ISP processing and Smart Hybrid Light provide flexible low-light imaging, while AcuSense person and vehicle classification, a white strobe, audible warnings and two-way audio add active deterrence. Choose white or black to suit the installation.
Resolution
8MP · 4256 × 1888
Panoramic View
Approx. 180° horizontal
Night Lighting
IR + white light · 30m
Audio
Arrayed dual mic + speaker
Local Storage
MicroSD up to 512GB
Protection
IP67 · NEMA 4X
Australian Stock
3-Year Australian Warranty
Local Technical Support
Why choose a panoramic camera?
One camera, much wider coverage
A conventional 2.8mm turret typically covers a little over 100° horizontally. This model covers approximately 180°, helping reduce blind spots across wide, shallow scenes.
Detailed panoramic video
The 4256 × 1888 image preserves 8MP of detail across the broad scene. It records at up to 20 fps at maximum resolution.
Flexible night-time operation
Choose discreet infrared, visible white light for colour imaging, or Smart mode that can switch lighting when a configured person or vehicle event occurs.
Active deterrence
A white strobe and configurable audible warning can respond to supported smart events, helping discourage an intruder before an incident develops.
Clear two-way audio
Arrayed dual microphones capture clearer sound, while the built-in speaker supports talk-down and live communication through compatible Hikvision software or recorder workflows.
Smarter alerts
Deep-learning classification can distinguish people and vehicles for supported events, helping reduce notifications caused by irrelevant movement.
White or black?
Option
Store SKU
Best suited to
White
DS-2CD2387G3P-LIS2UY/SL
Light soffits, ceilings and rendered façades
Black
DS-2CD2387G3P-LIS2UY/SL-BLK
Dark cladding, commercial interiors and discreet black installations
Both colour options use the same 180° panoramic optical system and core specifications.
Is 180° coverage right for your site?
Ideal: wide façades, loading docks, courtyards, shopfronts, forecourts and broad entrances.
Less suitable: long, narrow driveways or distant identification points where a narrower lens places more pixels on the target.
Published DORI planning figures: detect 62m, observe 24m, recognise 12m and identify 6m.
Panoramic edge detail and object shape naturally differ from a conventional narrow camera. Mounting position and height are especially important.
Smart Hybrid Light in action
This official Hikvision overview explains how ColorVu 3.0 and Smart Hybrid Light adapt to changing night-time conditions.
Hikvision ColorVu 3.0 technology overview
Key technical specifications
DS-2CD2387G3P-LIS2UY/SL
Camera type
8MP panoramic ColorVu fixed turret network camera
Image sensor
1/2.5-inch progressive-scan CMOS
Maximum resolution
4256 × 1888
Maximum frame rate
Up to 20 fps at maximum resolution
Lens
Fixed panoramic optical system · F1.0
Field of view
Horizontal 182.6° · vertical 74.6°
Minimum illumination
Colour: 0.0005 lux @ F1.0, AGC on · 0 lux with supplementary light
Supplementary light
850nm IR and white light · up to 30m · infrared, white-light and Smart Hybrid Light modes
Wide dynamic range
130 dB WDR
Video compression
H.265+, H.265, H.264+ and H.264
Analytics
Person and vehicle classification for supported smart events
Active deterrence
White strobe light and configurable audio alarm
Audio
Arrayed dual microphones, built-in speaker, audio input and output
Alarm I/O
1 input · 1 output
Local storage
MicroSD/microSDHC/microSDXC up to 512GB
Network
1 × RJ45 10/100Mbps Ethernet
Power
12V DC or IEEE 802.3at PoE+
Protection
IP67 weather resistance · NEMA 4X anti-corrosion design
Operating temperature
−30°C to 60°C
Dimensions
Approximately Ø138.6 × 125mm
Weight
Approximately 840g
Warranty
36-month Australian back-to-base warranty
Compatibility and installation notes
Confirm the recorder supports the camera’s 4256 × 1888 panoramic stream, required bandwidth, H.265/H.265+ and smart features.
Use an IEEE 802.3at PoE+ port with sufficient available budget, or a correctly rated 12V DC supply. A power supply is not included unless stated.
For best panoramic stitching, keep nearby walls, posts and roof edges from blocking either side of the view.
Two-way audio, smart-event linkage and active deterrence depend on compatible recorder/client software and correct configuration.
This listing is the /SL white-strobe version, not the separate /SRB red-and-blue-strobe variant.
Recommended add-ons

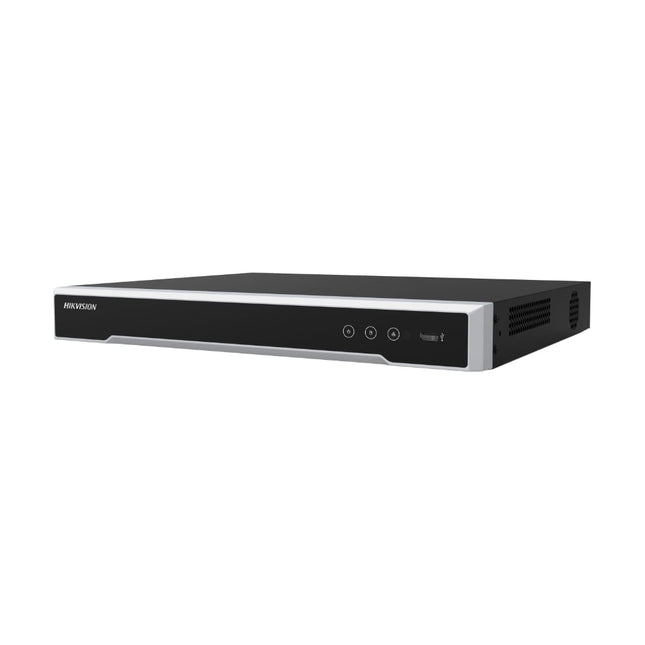

Compatible Hikvision NVR
Choose an NVR that accepts the panoramic resolution and has adequate incoming bandwidth, recording capacity and PoE+ power.
View the DS-7608NI-M2/8P
Smart PoE switch
The Hikvision DS-3E1105P-EI is a compact option for a small network deployment. Confirm its power budget against all connected devices.
View the DS-3E1105P-EI
CAT6 cabling
Use quality full-copper CAT6 cable and weather-protected terminations for reliable PoE and data.
Browse Ethernet cables
UPS protection
A correctly sized UPS can keep the NVR, PoE switch and network equipment operating through short power interruptions.
View Hikvision UPS options
Found It Cheaper?
We’ll beat an eligible Australian competitor’s advertised price by 5%.
Send us the current in-stock Australian listing for the same genuine model, colour and configuration. Price Beat is subject to verification and our standard terms.
Chat with us for a Price Beat
Frequently asked questions
Is this a true 180° panoramic camera?Yes. It produces a single 4256 × 1888 panoramic image with a published horizontal field of view of 182.6°.
Is it better than using two normal cameras?It can be more efficient for a wide, shallow scene because it reduces the gap between views and uses one network connection. Two conventional cameras may still be better when you need independent angles or more pixels on distant targets.
Does it show colour at night?It can use white light for colour imaging. Infrared mode produces monochrome video, while Smart mode can change lighting for a configured event.
Can I talk through the camera?Yes. It has arrayed dual microphones and a built-in speaker. Compatible software or recorder support and correct configuration are required.
Can it record without an NVR?Yes. It supports a microSD card up to 512GB. An NVR is recommended for longer retention, centralised playback and multi-camera systems.
Will any PoE NVR power it?No. Confirm an IEEE 802.3at PoE+ port, sufficient power budget and support for the panoramic resolution and features.
Is the black camera technically different?No. The black and white variants share the same main optical, imaging, audio and weather-protection specifications.
Is this the red-and-blue strobe version?No. This is the /SL model with white strobe lighting. The /SRB version is a separate model family.
Downloads & resources
Official Australian datasheet
Quick start guide
Current user manual
Dimensions diagram
Firmware V5.8.110 build 260605
The datasheet, quick start guide, user manual and dimensions diagram are copied from the official Hikvision Australia product page and hosted in Shopify Files. The firmware button opens Hikvision Australia’s protected download directly. Before updating firmware, confirm the camera label shows DS-2CD2387G3P-LIS2UY/SL, retain a configuration backup and keep power connected throughout the update. The /SL and /SRB deterrence-light variants are not interchangeable names.
