Hikvision KD8 Pro Modular Kit · Camera + Keypad · PoE
Hikvision Modular Video Door Station Kit with Keypad — 2MP Camera, PIN Entry & 2-Module Flush Mount

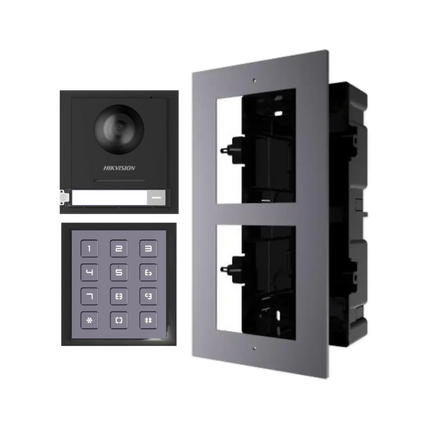

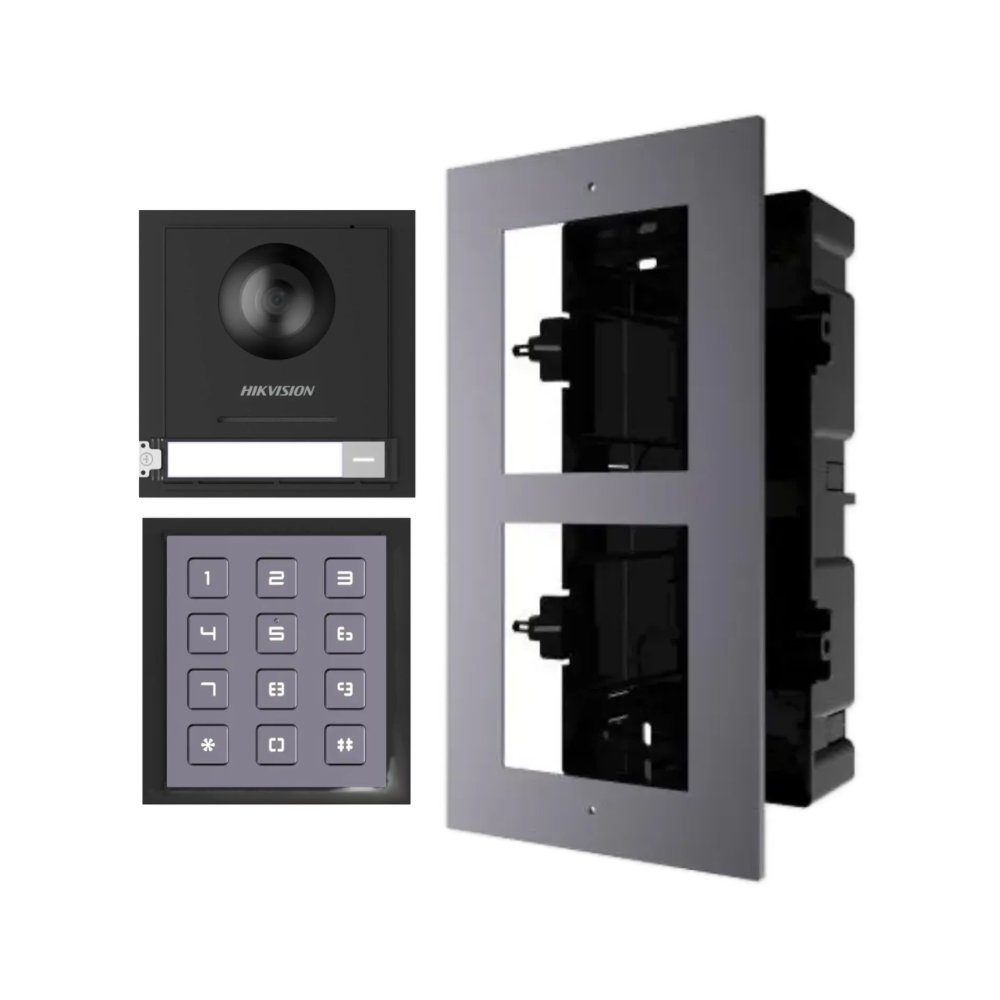

This Hikvision KD8 Pro modular door station kit combines everything you need for a professional flush-mounted entry point in one package: the DS-KD8003-IME1 2MP IP camera module, the DS-KD-KP keypad module for PIN-code access, and the matching DS-KD-ACF2 2-module flush-mount bracket. Together they form a clean, vandal-resistant door station that lets visitors call the indoor station and lets staff or residents unlock with a PIN.
Built for Australian homes, offices, apartments and gated entries, the kit runs on a single PoE cable or 12–24 VDC, integrates with Hikvision's IP intercom indoor and master stations, and controls up to two locks. Just add your indoor station and lock hardware to complete the system.
Camera
2MP Colour Fisheye
Protection
IP65 Weatherproof
What's Included
1 × Hikvision DS-KD8003-IME1 Camera ModuleModular IP door station main unit with a 2MP HD colour fisheye camera, IR supplement, one call button, two lock relays and a 4-channel alarm input. IP65 rated, powered by PoE or 12–24 VDC.
1 × Hikvision DS-KD-KP Keypad ModuleGen 2 backlit keypad module for PIN-code door release and calling the indoor station. IP65 and IK07 rated for exposed entrances.
1 × Hikvision DS-KD-ACF2 2-Module Flush MountDouble-module flush-mount bracket that houses the camera and keypad modules together for a neat, recessed finish.
Ready to ExpandAdd a Hikvision indoor station, master station and lock hardware to complete a full IP intercom and access-control system.
Why Choose This Kit?
Video + PIN in One Door StationCombine visitor video calling with keypad PIN access so residents and staff can enter without a physical key or card.
Clean Flush-Mount FinishThe 2-module bracket recesses both modules into the wall for a professional, vandal-resistant look.
Single-Cable PoEPower and data over one network cable simplifies installation versus separate power runs.
Two-Lock ControlThe camera module's two relays can release a gate and a door, or a strike and a maglock.
Matched Modular PartsPre-selected KD8 Pro components remove compatibility guesswork for your installer.
Genuine Australian StockBacked by a 3-year Australian warranty and local technical support.
Recommended For
Homes & VillasFront-door or gate entry with video calling and keypad PIN access.
Offices & StudiosLet staff enter by PIN while visitors call reception from the door.
Apartments & StrataShared-entry control with PIN codes and IP intercom calling.
Gated EntriesTwo-lock control for pedestrian gates, strikes or maglocks.
Technical Specifications
Kit Components & Key Specs
| Camera Module |
DS-KD8003-IME1 — 2MP HD colour fisheye, IR supplement, 1 call button |
| Keypad Module |
DS-KD-KP — backlit PIN keypad, call function, IP65 / IK07 |
| Mounting |
DS-KD-ACF2 — 2-module flush-mount bracket |
| Access Methods |
PIN code + call button (add card/app via compatible modules & config) |
| Lock Control |
2 lock relays |
| Alarm Input |
4-channel (camera module) |
| Power |
Standard PoE or 12–24 VDC |
| Protection |
IP65 weatherproof |
| System |
Hikvision Gen 2 KD8 Pro modular IP door station |
Downloads & Resources
Frequently Asked Questions
What's in this kit?
The DS-KD8003-IME1 2MP camera module, the DS-KD-KP keypad module and the DS-KD-ACF2 2-module flush-mount bracket.
Can visitors unlock with a PIN?
Yes. The DS-KD-KP keypad lets users enter a PIN code to release the door, or call the indoor station.
Do I need anything else?
To complete the system, add a Hikvision indoor station (and master station if required) plus your lock hardware and power.
How is it powered?
Standard PoE over one network cable, or 12–24 VDC local power.
Is it weatherproof?
Yes — the modules are IP65 rated (keypad also IK07) for outdoor entrances.
Is it flush or surface mounted?
This kit is configured for flush mounting using the DS-KD-ACF2 bracket. Ask us if you need a surface-mount option.
Is installation included?
No — this is a hardware kit. We recommend a licensed security or data-cabling technician.
Order the Hikvision Modular Door Station Keypad Kit from CCTV Guru
Order this Hikvision KD8 Pro modular video door station kit with keypad from CCTV Guru for a complete, flush-mounted entry solution with video calling and PIN access. Genuine Australian stock, backed by a 3-year warranty, fast AU-wide shipping and local tech support.
