X2 Access Control · Press-to-Exit · 304 Stainless Steel
X2 Mushroom Press-to-Exit Button — 304 Stainless Steel Request-to-Exit

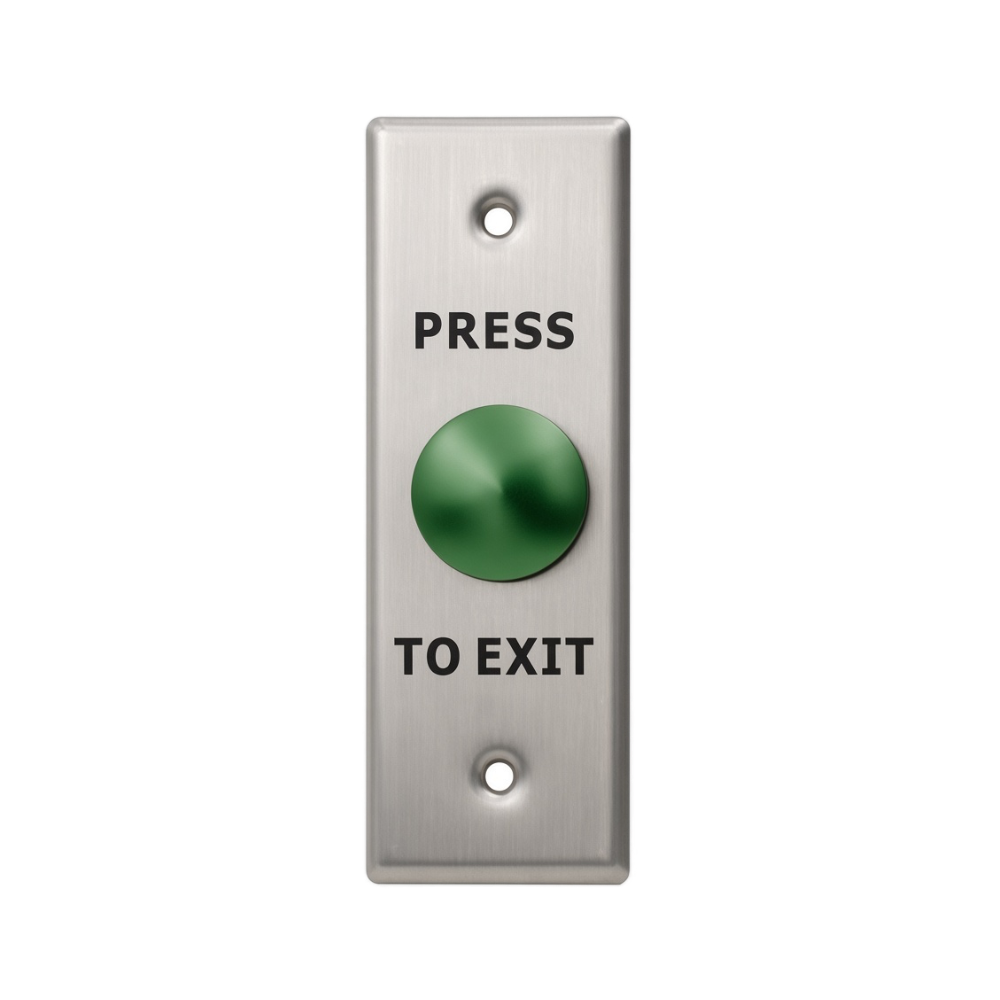

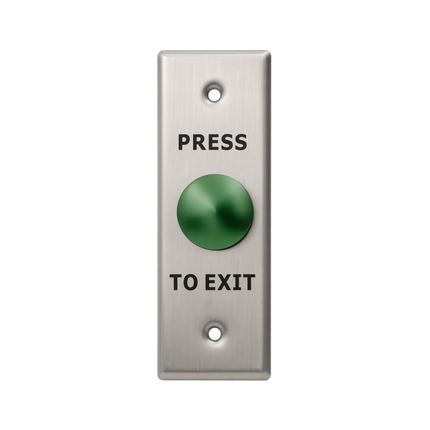

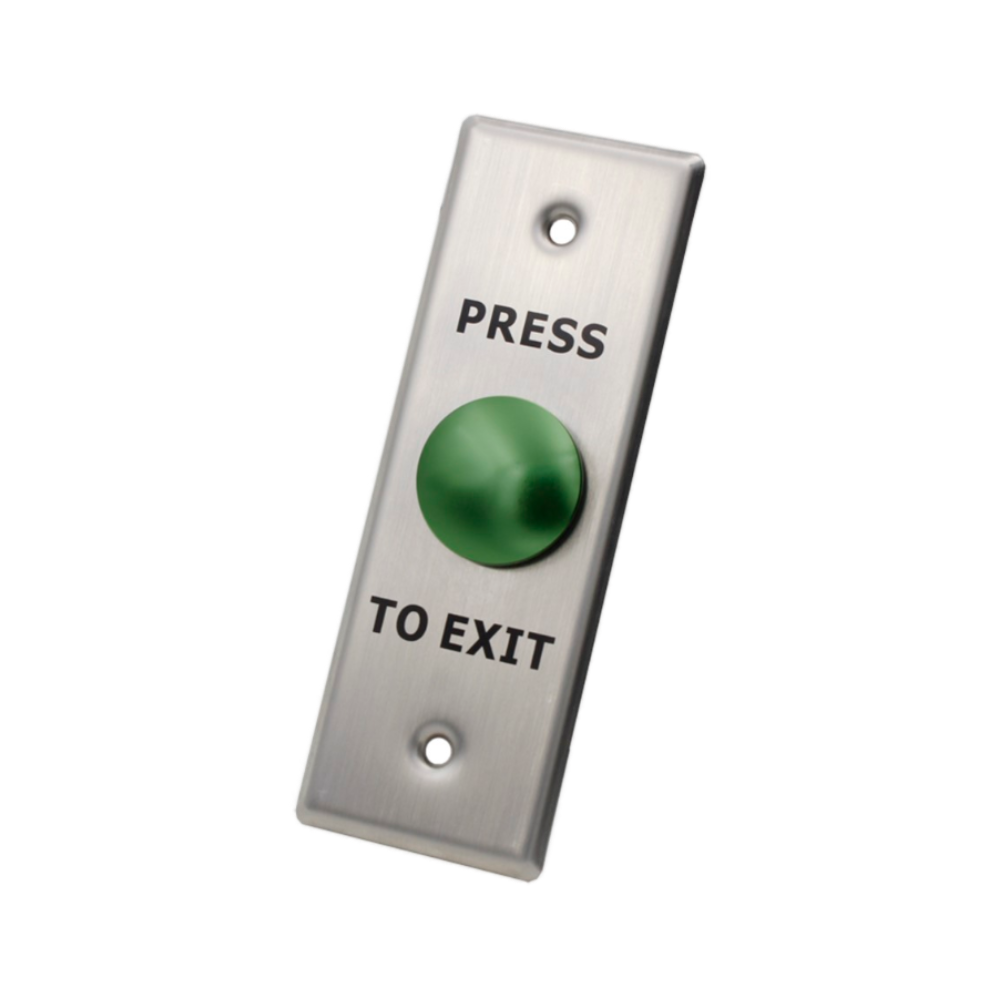

The X2 Mushroom Exit Button (X2-EXIT-001) is a mechanical press-to-exit switch mounted on an elegant, hard-wearing 304 stainless steel panel. Its large mushroom-style button makes it easy to hit by hand or elbow, giving a simple, reliable way to release a door from the secure side of any access-control installation.
With a normally-open (N/O) SPST dry contact and screw-terminal wiring, it drops straight into virtually any access controller, electric strike, magnetic lock or door station request-to-exit (REX) input — no power supply of its own required. Rated to 500,000 operations, it's built to keep working at busy commercial and residential entrances for years.
Mushroom Mechanical ButtonLarge, easy-press mushroom actuator for fast, dependable door release by hand or elbow.
304 Stainless Steel PanelCorrosion-resistant, vandal-tough 304 stainless faceplate that suits interior and sheltered entry points.
Universal N/O Dry ContactNormally-open SPST contact (3A @ 36 VDC max) with screw terminals — wires to any access controller, strike, maglock or REX input.
Long Mechanical LifeTested to 500,000 operations for reliable everyday use at high-traffic doors.
Technical Specifications
X2-EXIT-001 · Mushroom Exit Button
| Type |
Mechanical mushroom press-to-exit button |
| Panel Material |
304 stainless steel |
| Contact |
Normally Open (N/O), SPST — NO / COM |
| Rating |
3A @ 36 VDC (max) |
| Connection |
Screw terminal |
| Mechanical Life |
500,000 operations (tested) |
| Dimensions |
115 × 40 × 25 mm |
| Operating Temperature |
10°C to 55°C |
| Operating Humidity |
0% to 90% |
Downloads & Resources
Frequently Asked Questions
What is a press-to-exit button?
It's a manual switch that releases an electrically-locked door from the inside, letting people exit without a card or code.
Does it need its own power?
No. It's a passive dry-contact switch — it simply opens/closes the circuit for your access controller, strike or maglock.
What can I wire it to?
Any access controller, electric strike, magnetic lock or door station with a request-to-exit (REX) or push-button input.
Is it suitable outdoors?
The 304 stainless panel resists corrosion, but as a mechanical button it's best used indoors or in sheltered entryways.
Order the X2 Mushroom Exit Button from CCTV Guru
Order the X2-EXIT-001 Mushroom Press-to-Exit Button from CCTV Guru — a simple, reliable 304 stainless steel door-release switch for access control, intercom and electric-locking installations. Australian stock with fast AU-wide shipping and local support.
