Ubiquiti UniFi Protect G4 Instant Wireless Camera - Compact, wide-angle, two-way audio - NO PSU (Requires USB-C AC Adaptor or Hub)
Compact, wide-angle, WiFi-connected camera with two-way audio.
The Ubiquiti UniFi Protect G4 Instant Wireless Camera is a compact and versatile camera with a wide-angle lens and two-way audio capabilities. Easily monitor your space with WiFi connectivity and stay connected with the ability to communicate through the camera. Please note, this camera does not come with a power supply and requires a USB-C AC adaptor or hub.
Features:
2K HD, 30 FPS camera
Built-in IR LEDs with an automatic IR cut filter for optimal nighttime surveillance
Built-in microphone and speakers
IPX5-rated, weatherproof casing
Wall-mountable
Managed with the UniFi Protect application: Version 1.20.0-beta.5 and later (web) / 1.5.6 and later (iOS) / 1.4.7 and later (Android)
Downloads
DatasheetInstallation Guide

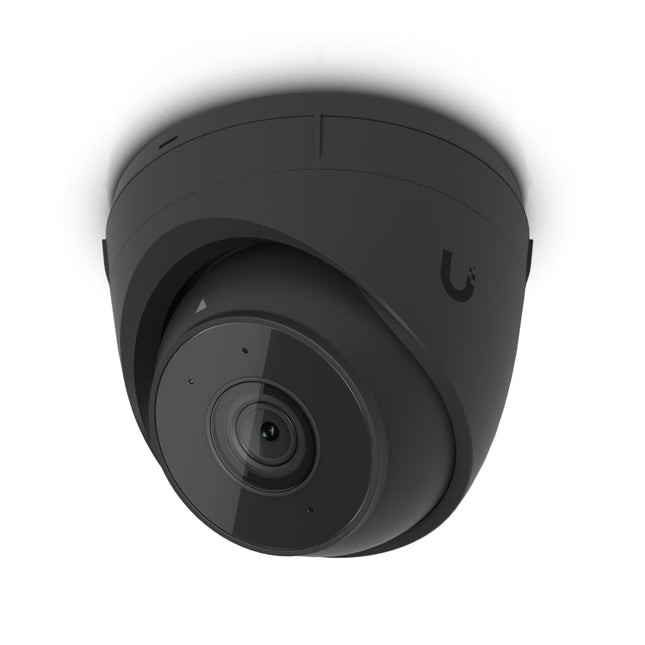

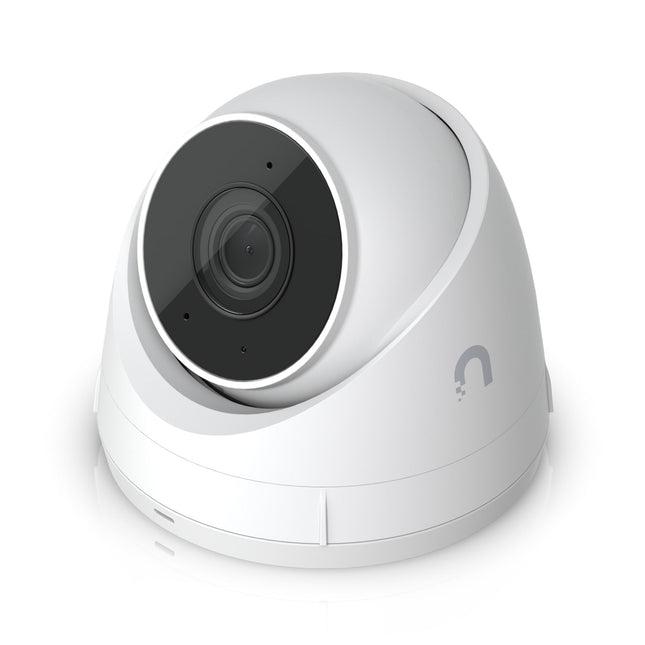

Ubiquiti UniFi G5 Turret Ultra, Ultra-compact, Tamper-resistant IK04, IP66 Weatherproof 2K HD PoE Camera, Long-range Night Vision
The Ubiquiti UniFi G5 Turret Ultra is an ultra-compact 2K HD PoE camera designed for demanding security environments. Featuring a tamper-resistant IK04-rated enclosure and IP66 weatherproofing, it ensures durability against harsh outdoor conditions. Its 4MP resolution combined with a 102.4° ultra-wide angle lens captures detailed footage, while 30-meter IR night vision provides clear imaging in low light. Integrated AI event detection and audio recording enhance situational awareness. Powered via PoE, this camera offers reliable connectivity and ease of installation, available in both white and black finishes to suit any setting.
Features
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 30 m (98 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Ø90 x 71.2 mm (Ø3.5 x 2.8")
Weight
330 g (11.6 oz)
Enclosure material
Aluminum alloy, UV-stabilized polycarbonate
Weatherproofing
IP66
Resistance
IK04
Cable jacket enclosure dimensions
Ø20 x 70.6 mm (0.8 x 2.8")
Cable jacket enclosure materials
Thermoplastic elastomer, polycarbonate, silicone rubber
Cable length
30 cm (1 ft)
Cable diameter
5 mm (0.2")
Cable jacket material
Polycarbonate
Cable connector type
RJ45
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Surface mount
Ambient operating temperature
-30 to 50º C (-22 to 122º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Downloads
UniFi G5 Turret Ultra Installation Guide
Ubiquiti UniFi Protect Camera G5-Bullet, Next-gen indoor/outdoor 2K HD PoE Camera
The Ubiquiti UniFi Protect Camera G5-Bullet is a next-generation 2K HD PoE camera suitable for indoor and outdoor use. With 4MP resolution, 9 meters of IR night vision, and AI event detection, this camera provides high-quality footage and advanced security features. Its flexible mount allows for easy adjustment and it can be powered using PoE for convenience. Made with a weatherproof polycarbonate housing, it is partially outdoor capable.
Features:
2K (4MP) video resolution Flexible 3-axis adjust mount 9 m (30 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Without mount: Ø75.5 x 74.4 mm (Ø3 x 2.9")With mount: Ø75.5 x 150 mm (Ø3 x 5.9")
Weight
Without mount: 225 g (8 oz)With mount: 315 g (11.1 oz)
Enclosure material
Polycarbonate, aluminum alloy
Mount material
Wall mount: aluminum alloy, polycarbonatePole mount: aluminum alloy
Weatherproofing
IPX4
Resistance
IK04
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 84.4°, V: 45.4°, D: 99.8°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
Installation Guide
Image Performance
Ubiquiti UniFi Protect UVC-G5-PRO, IR Night Vision, 4K Resolution, 3x Optical Zoom, Intergrated microphone, PoE
G5 Professional
Indoor/outdoor 4K PoE Camera with exceptional image performance and 3x optical zoom lens.
4K (8MP) video resolution 3x optical zoom 25 m (82 ft) IR night vision AI event detections Built-in IR LEDs and an automatic IR cut filter Record audio with an integrated microphone Connect and power using PoE Optional Enhancer for integrated floodlight and extended IR* Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Ø86 x 154.3 mm (Ø3.4 x 6.1")
Weight
650 g (1.4 lb)
Enclosure materials
UV stabilized polycarbonate, aluminum alloy
Mount material
Aluminum alloy
Weatherproofing
IP65
Resistance
IK04
Optics
Sensor
1/2" 8MP sensor
Lens
F 4.1 - 12.3 mm; f/1.53 - f/3.3
View angle
Wide: H 109.9°, V 60°, D 127.7°Zoom: H 35°, V 19.8°, D 40°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Video compression
H.264
Resolution
8MP 3840 x 2160 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A53 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
Device: 10WDevice with the Enhancer: 12.95W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Operating temperature
-20 to 50º C (-4 to 122º F)
Operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
Downloads
Installation Guide
Ubiquiti UniFi Protect Cam Dome Camera G5 2K HD PoE ceiling camera NHU-UVC-G5-DOME
Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 9 m (30 ft) IR night vision AI event detections Integrated 2-way audio Connect and power using PoE Weather-resistant (outdoor covered) Vandal resistant
Technical Specifications
Mechanical
Dimensions
Ø109.2 x 64.5 mm (Ø4.3 x 2.5")
Weight
Without mount: 370 g (13.1 oz)With mount: 390 g (13.8 oz)
Enclosure material
Aluminum alloy, polycarbonate, hard-coated dome
Mount material
Polycarbonate, stainless steel
Weatherproofing
IPX4
Resistance
IK08
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
5W
Power method
PoE
Supported voltage range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Wall, ceiling mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Speaker
Yes
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
DatasheetInstallation Guide
Ubiquiti UniFi Protect Camera UVC-G4-PRO Infrared IR 4K Video- 802.3af is embedded
Capture every detail with the 4K resolution G4-PRO camera. The G4-PRO is our most powerful camera yet, with a large 1/2" image sensor, 3X powered optical zoom lens, and integrated high-power infrared LEDs for night vision. The adjustable base can be mounted to a flat surface or a pole with the included mounting hardware.Features:
3x optical zoom
Infrared LEDs
Waterproof, IP67-rated casing
Managed with the UniFi Protect application
Downloads
DatasheetInstallation Guide
Ubiquiti Full HD (1080p) Mini Turret Camera with Infrared LEDs and Versatile Mounting Options for Indoor and Outdoor InstallationsThe UniFi Camera G3 Flex is a Day/Night security camera that features crisp 1080p video with IR capability. The flexibility of mount allow to put the camera anywhere, like on-table, on the indoor wall, on the outdoor wall, on pole, even put them in or on the ceiling.Features:
1080p, 25 FPS video
Day and night recording with integrated IR LEDs
Weather-resistant with plastic injection parts
Versatile mounts for table, in/outdoor on-wall, pole, & in/on ceiling
Built-in microphone
PoE compliant
Managed with the UniFi Protect application
Downloads
Datasheet Installation Guide
The Innovative Ubiquiti UniFi G5 Dream Machine 2K Resolution Surveillance Kit comes with 2 x bullet style UniFi cameras, 2 x dome cameras, 1 x G5 flex indoor camera and 1 x Dream Machine Special Edition, UDM-SE, with 8 x PoE ports which comes with 128GB 128 GB SSD for NVR detection recordings.
1 x UDM-SE
The UniFi Dream Machine - Special Edition is the first UniFi Console that offers a full UniFi application suite right out of the box. Instantly run a complete UniFi deployment without the need for an additional PoE Switch, NVR, or Hard Disk Drive for storage. The UDM SE is an all-in-one router/security gateway that can power your UniFi devices directly from the integrated 8 port gigabit PoE switch and store your UniFi Protect recordings on the integrated 128GB internal hard drive. UDM SE is completely scalable and customizable, so you can easily expand your deployment.
Includes full UniFi application suite for device management 3.5+ Gbps routing with IDS/IPS (1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports (1) 3.5" NVR HDD bay Built-in 128 GB SSD for NVR detection recordings 1.3" touchscreen
2 x UVC-G5-Dome
Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 9 m (30 ft) IR night vision AI event detections Integrated 2-way audio Connect and power using PoE Weather-resistant (outdoor covered) Vandal resistant
2 x UVC-G5-Bullet
Ubiquiti UniFi Protect Camera G5-Bullet, Next-gen indoor/outdoor 2K HD PoE Camera
2K (4MP) video resolution Flexible 3-axis adjust mount 9 m (30 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
1 x UVC-G5-Flex
Compact, easy-to-deploy 2K HD PoE camera that can be staged indoors or outside.
2K (4MP) video resolution Versatile table or ceiling mounting 6 m (20 ft) IR night vision AI event detections Connect and power using PoE Record audio with an integrated microphone Weather-resistant (outdoor covered)
Ubiquiti UniFi Protect UVC-G4-PRO, IR Night Vision, 4K Resolution, 3x Optical Zoom, IP67 Weatherproof, LED Notification Ring - 2 Pack
4K night-vision camera designed for long-range, indoor and outdoor surveillance.Features:
3x optical zoom
Infrared LEDs
Waterproof, IP67-rated casing
Managed with the UniFi Protect application
Downloads
Datasheet
Installation Guide
Ubiquiti high-resolution PoE camera designed for overhead and wide-area surveillance.
Compact 4MP vandal-resistant (IK08) and weatherproof (IPx4) dome camera with integrated IR LEDs for crystal clear day and night vision.Features:
4MP, 24 FPS Video
Day or Night with Infrared LEDs
IPx4 weatherproof Enclosure
Built-in Microphone & Speaker
Powered by Power over Ethernet (PoE)
Managed by UniFi Protect Software
IK08 vandal resistant
Note: UniFi Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine Pro or UniFi Protect Network Video Recorder
Downloads
Datasheet Installation Guide
Ubiquiti UniFi Protect Camera G5-Bullet 3-Pack, Next-gen Indoor/Outdoor 2K HD PoE Camera, Polycarbonate Housing, Partial Outdoor Capable
The Ubiquiti UniFi Protect Camera G5-Bullet 3-Pack offers superior 2K HD video quality, advanced motion detection, and flexible mounting options for both indoor and outdoor use. With 30 ft of night vision and an integrated microphone, it provides professional-level surveillance and weatherproof capabilities. Powered by PoE for easy installation and connection.
Features:
2K (4MP) video resolution Flexible 3-axis adjust mount 9 m (30 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Without mount: Ø75.5 x 74.4 mm (Ø3 x 2.9")With mount: Ø75.5 x 150 mm (Ø3 x 5.9")
Weight
Without mount: 225 g (8 oz)With mount: 315 g (11.1 oz)
Enclosure material
Polycarbonate, aluminum alloy
Mount material
Wall mount: aluminum alloy, polycarbonatePole mount: aluminum alloy
Weatherproofing
IPX4
Resistance
IK04
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 84.4°, V: 45.4°, D: 99.8°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
Installation Guide
Image Performance
Ubiquiti UniFi Protect Dome Camera UVC-G4-DOME 4MP, Vandal-Resistant (IK08), Weatherproof (IPx4), Integrated IR LEDS - 3 Pack
High-resolution PoE camera designed for overhead and wide-area surveillance.Features:
4MP, 24 FPS camera
Built-in infrared LEDs for nighttime surveillance
IPX4-rated, weatherproof enclosure with IK08-rated vandal resistance
Built-in microphone
Ceiling or wall-mountable
Managed with the UniFi Protect application
Downloads
Datasheet
Installation Guide

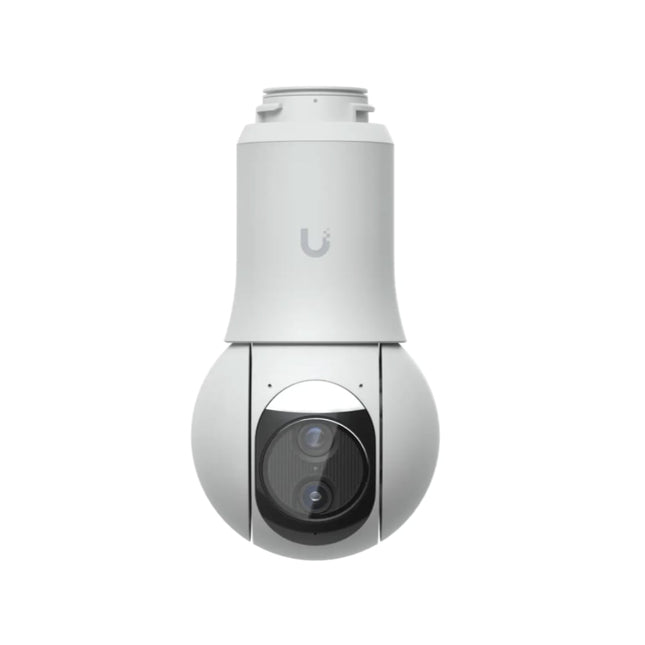

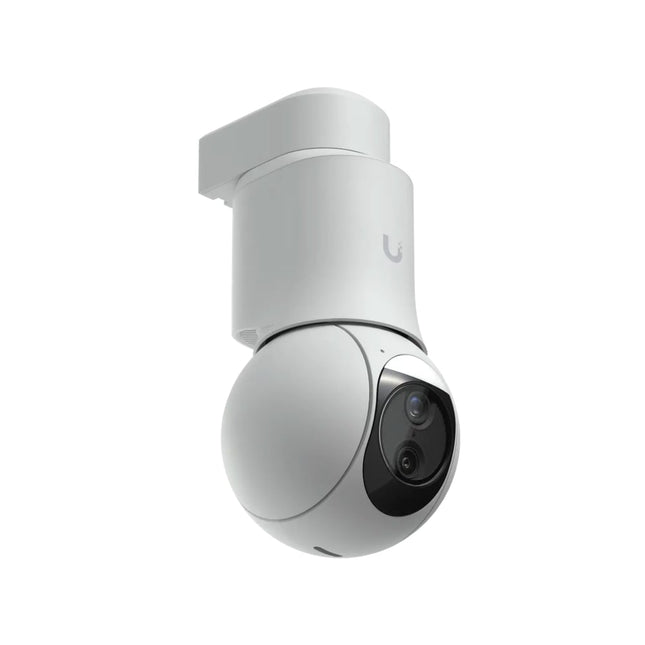

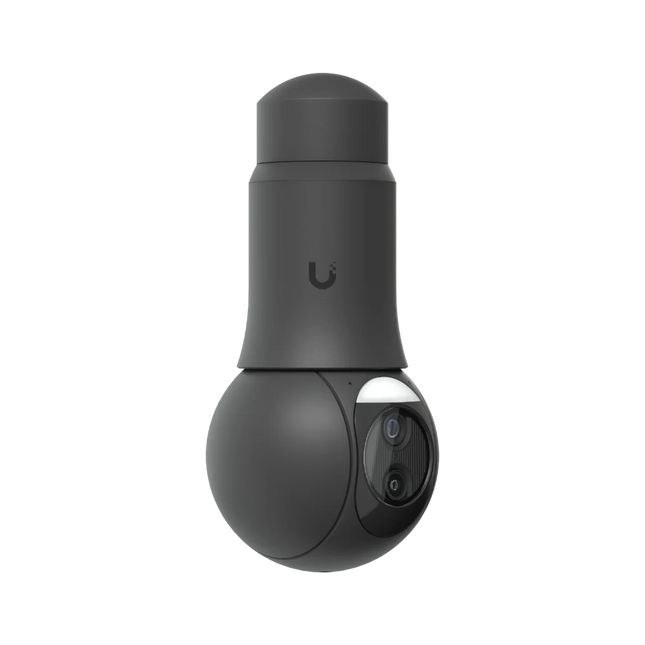

Ubiquiti G6 PTZ, White, IP66, 4K Dual-lens Camera,10x Hybrid Zoom, 1/1.8 8MP Image Sensor, Multi-TOPS AI Engine, Ultra-low Latency Pan-tilt-zoom Control
The Ubiquiti UVC-G6-PTZ is a premium 4K PTZ camera for UniFi Protect, featuring 22× optical zoom, long-range IR night vision, smart AI detection and full motorised pan-tilt-zoom control. Designed for large outdoor spaces, commercial CCTV and high-security surveillance deployments across Australia.
Key Features
4K Ultra HD resolution (8MP) for crystal-clear detail
Full motorised PTZ — pan, tilt & 22× optical zoom
Long-range IR night vision for large outdoor areas
AI human/vehicle/motion detection with smart alerts
UniFi Protect native support — no cloud subscription
Weather-sealed outdoor housing
Ideal for large properties, car parks, warehouses & commercial CCTV
Technical Specifications
Image Sensor
4K (8MP) ultra-HD sensor
Lens
Motorised PTZ lens with 22× optical zoom
Pan Range
Variable speed motorised pan (spec from data sheet)
Tilt Range
Motorised tilt with full PTZ control
Zoom
22× optical · AI-optimised digital zoom
Night Vision
High-power IR long-range night vision
AI Detection
Person, vehicle, motion, zone detection
Ingress Protection
Outdoor-rated weather resistance
Connectivity
Gigabit Ethernet (PoE)
Audio
Microphone + speaker (model dependent)
Management
UniFi Protect
Compliance
NDAA compliant, CE/FCC/IC
PTZ & Zoom Capabilities
Smooth motorised pan & tilt
22× optical zoom for long-range identification
Ideal for monitoring large open areas
AI-assisted zoom & tracking (UniFi Protect)
Remote control via UniFi Protect apps
AI Detection Features
Person detection
Vehicle detection
Motion zones
Smart region surveillance
AI-optimised zoom assistance
On-device processing (no cloud required)
Why Choose the UVC-G6-PTZ
Designed for professional surveillance environments, the UVC-G6-PTZ combines 4K clarity, long-range zoom and intelligent AI analytics in one powerful package. Its PTZ motor delivers flexible, responsive coverage, while UniFi Protect integration ensures seamless control and reliable recording — perfect for Australian businesses, campuses and high-security installations.
Ideal Use Cases
Commercial sites
Car parks & loading docks
Schools & campuses
Warehouses & industrial areas
Farm & rural property perimeter surveillance
Large retail centres
Council facilities and public areas
In the Box
UVC-G6-PTZ camera
Mounting hardware
Quick-start guide(PoE injector or PoE switch sold separately)
More Information
UVC-G6-PTZ-W Installation Guide

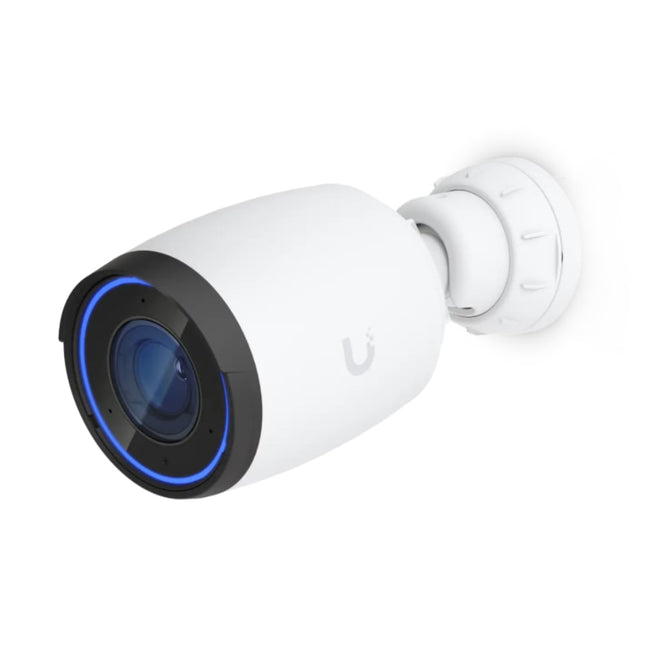

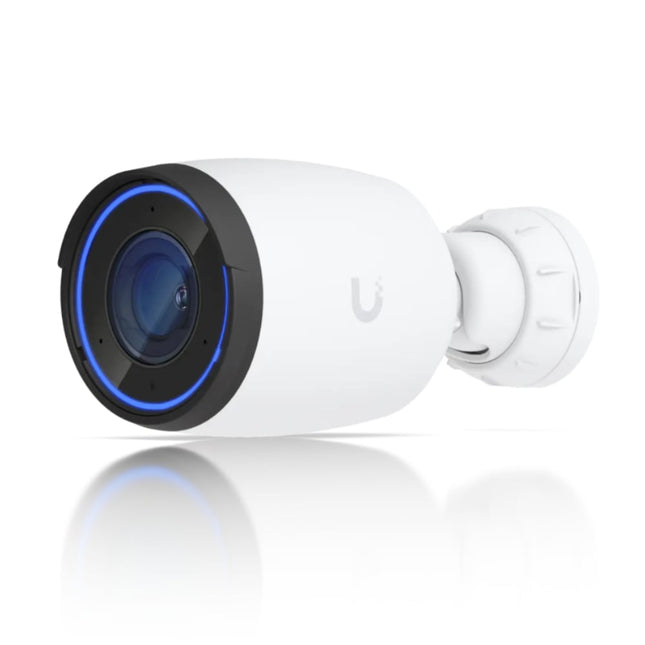

The Ubiquiti UVC-AI-Pro is a premium 4K AI-powered security camera for UniFi Protect, featuring an 8MP sensor, advanced night vision, dual-band WiFi, smart human/vehicle detection and a weather-resistant IP65 housing. Ideal for professional CCTV installations across Australian homes and businesses.
Key Features
4K Ultra HD (8MP) professional-grade video
Advanced AI detection: human, vehicle, package & motion
Dual-band WiFi connectivity + Ethernet option
Full-duplex microphone and speaker for two-way audio
IP65 weather resistance — ideal for indoor & outdoor
Wide-angle lens with AI image optimisation
Optimised for UniFi Protect — simple setup & management
Technical Specifications
Image Sensor
8MP (3840 × 2160) 4K UHD
Lens
Wide-angle lens with AI-optimised correction
Night Vision
Enhanced IR night vision
AI Detection
Person, vehicle, package, motion
Connectivity
Dual-band WiFi (2.4 GHz / 5 GHz) + Ethernet
Audio
Full duplex microphone + speaker
Ingress Protection
IP65 weather resistant
Operating Temperature
-20°C to 50°C
Power
PoE or USB-C (depending on installation)
Dimensions
Based on official product sheet
Management
UniFi Protect
Compliance
NDAA compliant, CE/FCC/IC certified
More Information
UniFi AI Pro Camera Installation Guide
Ubiquiti UniFi G5 Dome Ultra, Ultra-compact & IK06 Tamper-resistant 2K HD PoE Camera, Night Vision For Low-profile Indoor Security
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
Features
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 20 m (65 ft) IR night vision AI event detections Connect and power using PoE Optional Flush Mount for in-ceiling installation
Technical Specifications
Mechanical
Dimensions
Ø63.6 x 68.2 mm (Ø2.5 x 2.7")
Weight
175 g (6.2 oz)
Enclosure material
Aluminum alloy, polycarbonate
Mount material
Stainless steel
Resistance
IK06
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
IR distance
20 m (65 ft)
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4.2W
Power method
PoE
Supported voltage range
37–57V DC
Button
Factory reset
Mounting
Surface mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
Downloads
UniFi G5 Dome Ultra Installation Guide
The UniFi Protect ViewPort allows you to view your UniFi Protect camera feeds on an HDMI display. It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort offers 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.
Features
View Unifi Protect cameras on an HDMI display
Display up to 16 IP cameras simultaneously
Easy setup with UniFi Protect System
Powered by Power over Ethernet up to 1 Gbps
HDMI video output up to 4K @ 30 fps
Ubiquiti UniFi 4MP G4 Bullet + 1TB NVR CCTV Kit
With this 2K resolution 4MP Indoor/outdoor PoE security cameras and Compact UniFi Console bundle includes:
3 x UVC-G4-BULLET
The UniFi Video Camera G4 Bullet delivers clear 4MP, 24 fps video over Gigabit Ethernet. The ball joint mount design allows indoor or outdoor installation and offers flexible 3-axis adjustment. The camera has infrared LEDs with an automatic IR cut filter for day and night surveillance. It features a built-in microphone and supports 802.3af PoE for power.
4MP, 24 FPS Video
Day or Night with Infrared LEDs
Weatherproof Enclosure
Built-in Microphone
Powered by Power over Ethernet (PoE)
Managed by UniFi Protect Software
1 x Ubiquiti UniFi Cloud Key Gen2 Plus – Includes 1TB HDD Storage
Manage your UniFi networking and video devices simultaneously with the new multi-application UniFi Cloud Key G2 Plus. Designed for easy deployment, the Cloud Key G2 Plus can be quickly configured over Bluetooth using the UniFi mobile application. The front panel display shows vital system stats for your UniFi networking hardware and UniFi video cameras. A built-in battery provides protection against power loss. For video storage, it also includes a 1 TB HDD, which is upgradeable to 5 TB.Features:
Easy setup with UniFi and UniFi Protect mobile apps
Powered by 802.3af PoE or QC 2.0 USB-C
Built-in battery for automatic safe shutdown
1 TB 2.5' hard drive included (upgradeable to 5 TB)
Front panel display for at-a-glance system details
Eight-port, Layer 2 PoE switch supporting silent fanless cooling.
1 x Ubiquiti UniFi Switch Lite 8 PoE, 4x PoE Output Ports
Features:
(4) GbE, PoE+ RJ45 ports
(4) GbE RJ45 ports
52W total PoE supply*
Wall-mountable (kit included)
Managed with the UniFi Network application: Version 7.2.94 and later
*With an external 60W power adapter.
Plug-and-play high performance 2-way audio module for AI Theta.Features:
Included in-wall mount and Theta audio cable (1 m / 3.3 ft)
Managed with the UniFi Protect application: Version 2.7.18 and later (web) / 1.11.0 and later (mobile)
Downloads
Datasheet
Installation Guide

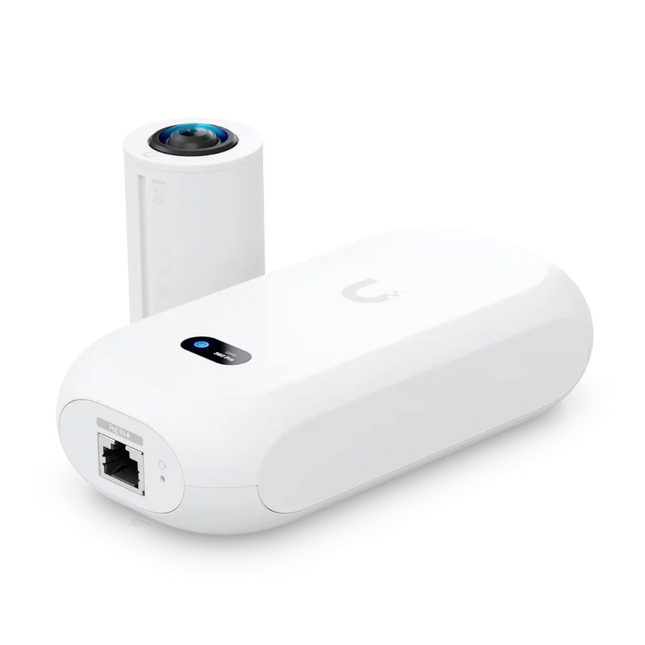

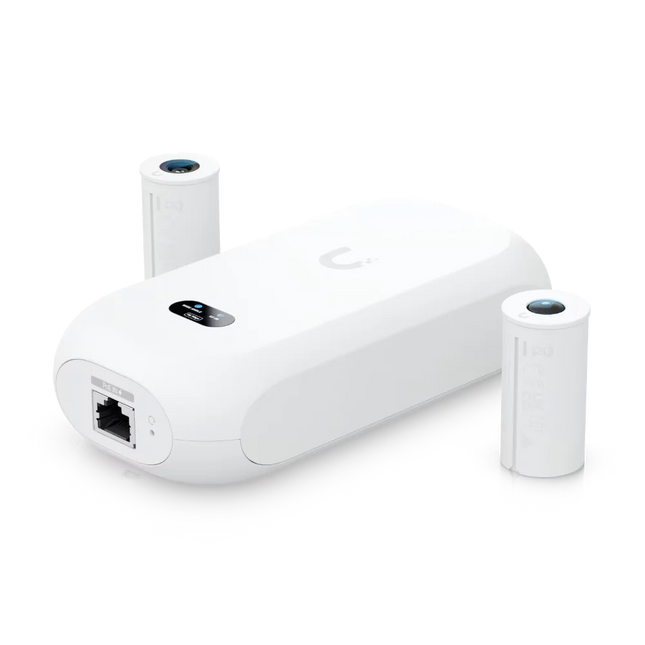

The world’s first security camera system designed for interior design professionals.Features:
8 MP wide angle lens 97.5˚(H) for wall mounted application (included)
12 MP fisheye 360° lens for ceiling mounted applications (included)
Two-way audio*
Advanced AI processing engine for long-range smart detections
Color LCM display for device status monitoring
Managed with the UniFi Protect application: Version 2.7.18 and later (web) / 1.11.0 and later (mobile)
*UVC-AI-Theta-Audio sold separately.
Mechanical
Dimensions UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”)
Weight UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
Enclosure materials UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Mount materials UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Cable jacket enclosure dimensions 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
Cable jacket enclosure material PVC
Cable length 1 m (3.3 ft)
Cable diameter 3.7 mm (0.15")
Cable jacket material Woven fabric
Cable weight 18 g (0.63 oz)
Cable connector type Theta proprietary
Optics
Sensor UVC-AI-Theta-Lens: 8MP CMOS sensor
UVC-AI-Theta-Lens-360: 12MP CMOS sensor
Lens Fixed focal length
View angle UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°
UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°
Video
Video compression H.264, MJPEG
Resolution UVC-AI-Theta-Lens: 3264 x 2448 (4:3)
UVC-AI-Theta-Lens-360: 2560 x 2560 (1:1)
Max. frame rate UVC-AI-Theta-Lens: 24 FPS
UVC-AI-Theta-Lens-360: 20 FPS
Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Downloads
Datasheet
Installation Guide
High-resolution pan-tilt-zoom camera with a 360° fisheye lens and built-in IR LEDs for panoramic, around-the-clock surveillance
The Camera AI 360 (AI 360) is a pan-tilt-zoom (PTZ) camera that provides panoramic, overhead surveillance of heavily populated indoor and outdoor areas. The AI 360 streams sharp 1920x1920 video at a smooth 30 frames per second (FPS), and its built-in IR LEDs ensure that every frame is crystal clear—day or night. Equipped with a 5 MP CMOS sensor and an ultra-wide, 360° fisheye lens, the AI 360 can quickly detect finite details within its expansive coverage area and capture them with pristine clarity. It's also protected with rugged, weather and tamper-resistant housing, making it an ideal choice for shopping centers, parking lots, airports, train stations, and other transportation hubs. The AI 360 is a sophisticated, feature-rich camera, but it's also designed to be incredibly easy to set up and incorporate into existing Protect deployments. It can be adopted in minutes and managed with either the UniFi Protect web application or mobile app.
Features:
Captures 1920x1920, 30 FPS video
5 MP CMOS sensor
Ultra-wide, 360° fisheye lens
IPX4-rated, weatherproof housing
IK08-rated tamper resistance
Built-in IR LEDs for clear nighttime surveillance
Powered by 802.3af PoE
Downloads
Datasheet
Installation Guide
