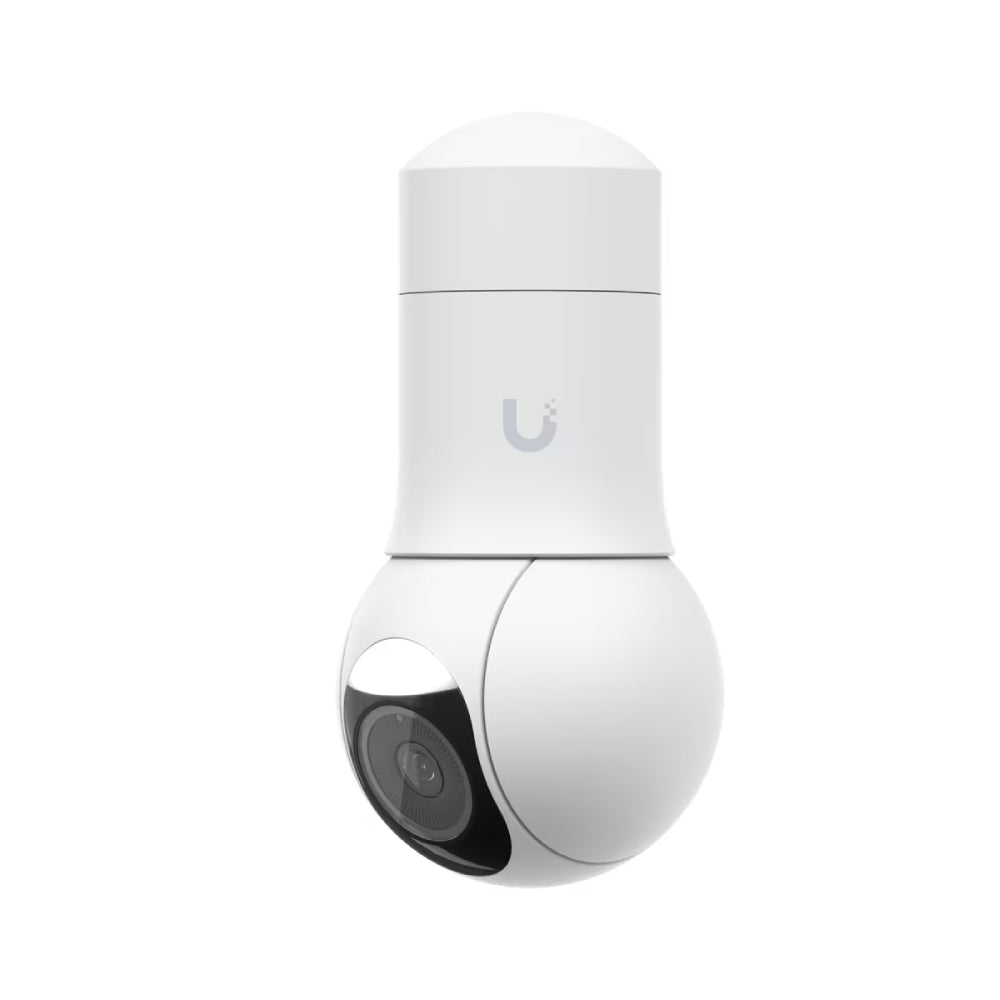

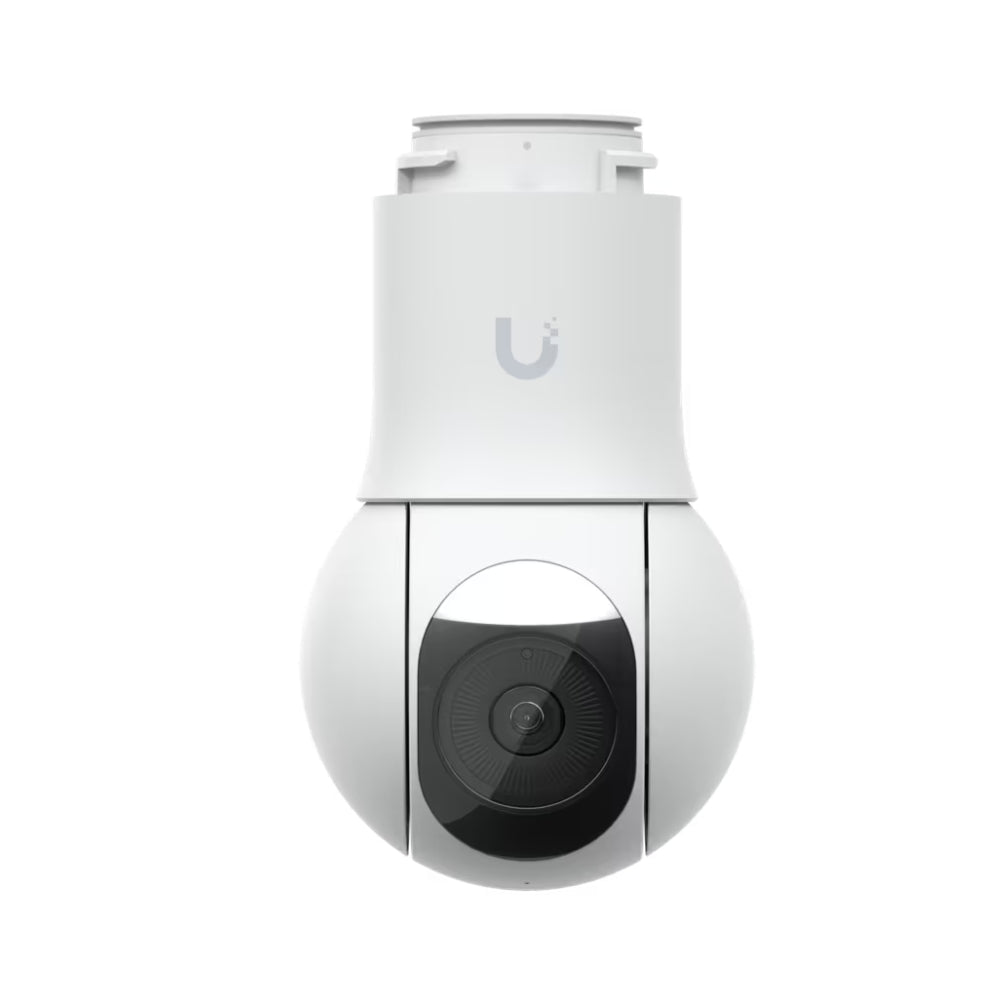

Ubiquiti UniFi Protect · NDAA COMPLIANT
Ultra-Compact 2K HD Pan-Tilt-Zoom Surveillance for Enterprise Security
Engineered to provide high-speed tactical coverage over critical commercial areas, the Ubiquiti UVC-G5-PTZ delivers crisp 2K (4MP) video performance paired with ultra-low latency pan, tilt, and zoom capabilities. Available in both Black and White options to complement modern architectural facades, this outdoor-ready camera combines powerful optical clarity with seamless integration into the UniFi Protect ecosystem for zero-subscription, enterprise-grade video management.
Resolution / Optics
2K (4MP) / 2x Optical
Finish Options
Black & White
Night Vision / Weather
20m IR / IP66 Rated
Compliance
NDAA Compliant
Advanced Edge AI Detection & High-Speed PTZ Responsiveness
The UVC-G5-PTZ features high-precision motorized controls delivering smooth, immediate pan and tilt adjustments directly through the UniFi Protect mobile app or web console. Equipped with integrated Smart AI Analytics, it intelligently detects people, vehicles, and license plates in real time to reduce false alerts. Powered by Standard PoE (802.3af), this unit encapsulates high-performance 20m (65 ft) IR night vision and an IP66 weather-resistant housing into a remarkably compact footprint.
Real-Time Mechanical Response
Precision servos enable high-speed manual pan-tilt tracking and preset positioning with minimal delay, allowing operators to actively monitor dynamic site environments.
Edge AI Video Analytics
Built-in neural processing detects subjects automatically, categorizing human and vehicle events on-device without relying on costly external cloud processing.
Technical Specification Matrix
| Model |
UVC-G5-PTZ |
| Resolution |
2K HD (2688 x 1520 / 4MP) at 30 FPS |
| Color Options |
Black / White |
| Optical Zoom |
2x Optical Zoom (Clear Lossless Detail) |
| Night Vision |
High-Power IR LEDs with IR Cut Filter (20m / 65ft Range) |
| Ingress Protection |
IP66 Weather-Resistant, IK04 Impact-Resistant |
| Power Method |

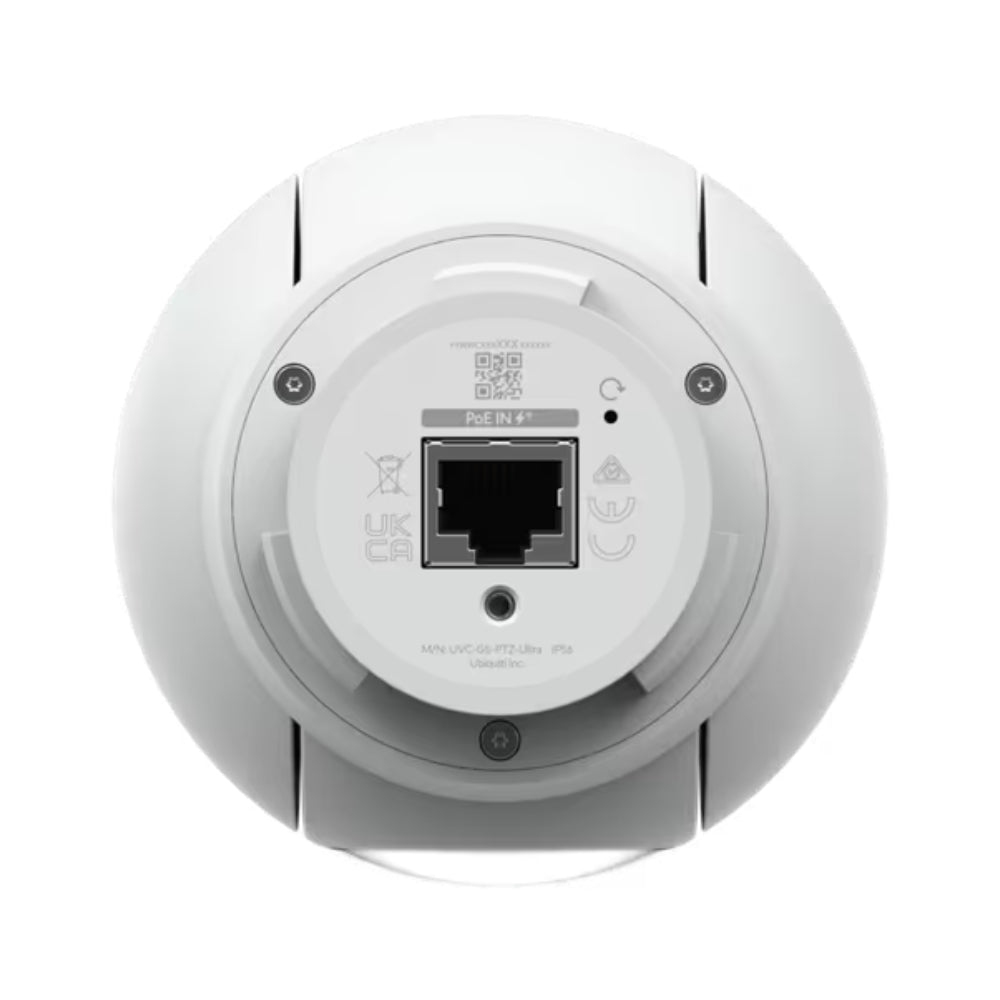

PoE (802.3af Standard PoE) |
| Networking Interface |
1x 10/100 MbE RJ45 Port |
| Compliance |
NDAA Compliant |

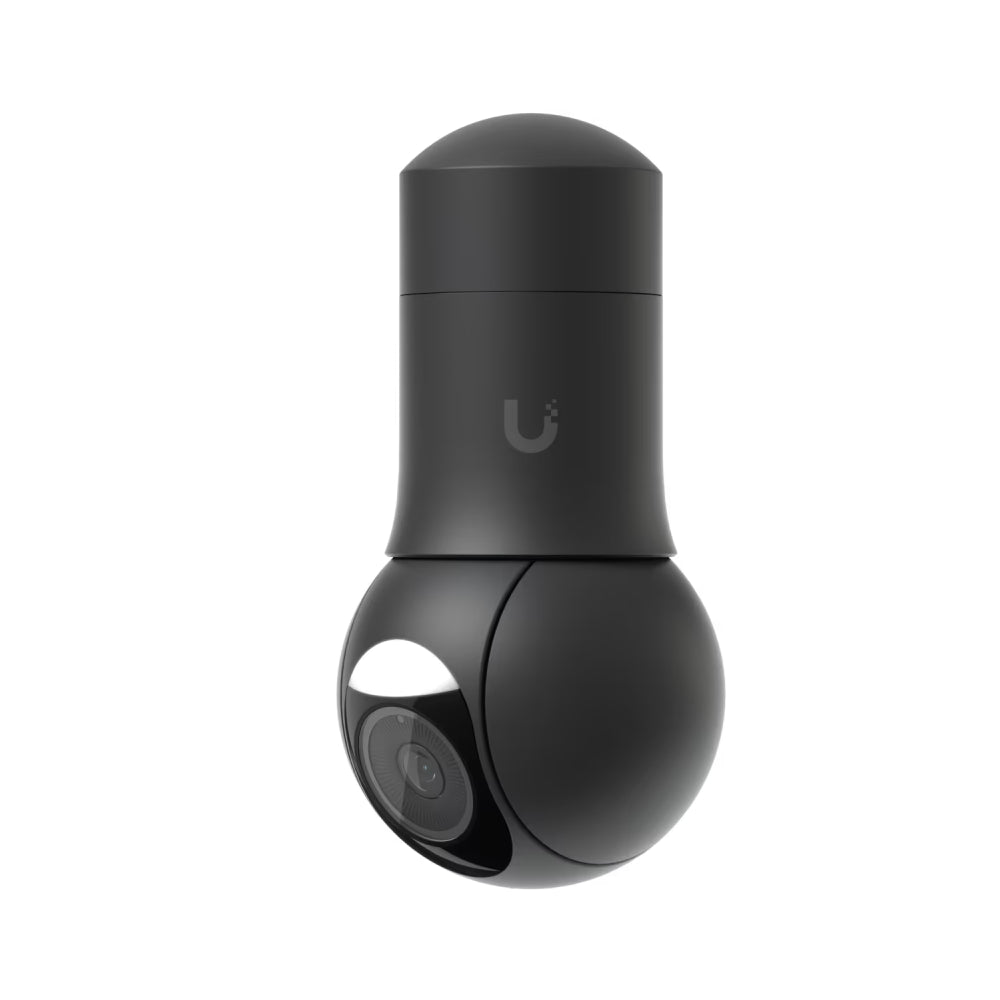

Is the UVC-G5-PTZ available in both Black and White finishes?
Yes, the UVC-G5-PTZ is available in factory Black and White color options to complement modern dark cladding or traditional white exterior surfaces.
Does the UVC-G5-PTZ require a separate power supply or injector?
The camera is powered via Standard 802.3af Power over Ethernet (PoE), allowing power and data to be delivered through a single Cat5e/Cat6 cable.
Is the UVC-G5-PTZ NDAA compliant?
Yes, the UVC-G5-PTZ camera is fully NDAA compliant and authorized for deployment across enterprise, government, and municipal infrastructure projects.
Can this camera be installed outdoors in harsh weather conditions?
Yes, it features an IP66 weather-resistant rating designed to withstand direct exposure to rain, snow, dust, and outdoor temperature swings.
