Dahua Keyboard Villa Door Station
Keyboard villa door station
Supplemental lighting with white light
2MP CMOS camera
Mechanical button with Braille
Aluminium alloy plate, IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Door release via password and Mifare card
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface & Flush
MATERIAL
Alumimum
Downloads
Datasheet of DHI-VTO3221E-PQuick Start Guide of DHI-VTO3221E-PDahua Villa Intercom Setup GuideDahua Villa N VTHx NVTO via template
Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port
The Dahua 2-wire IP Villa Door Station is a state-of-the-art security solution designed to enhance the safety and convenience of your home or office. This versatile device features both 2-wire and Ethernet ports, allowing flexible installation options to suit your needs. The anodised aluminium front panel ensures durability and a sleek appearance, making it a stylish addition to any entrance.
Features
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful 160° fisheye camera
Video intercom function
Access control function that supports two locks
Mobile phone app, talk to the visitor or unlock the door remotely on
Compatible with 2-wire interface & RJ45 interface
IK07 & IP65
Support H.265
Support surface and flush mount
PoE
Specifications
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Button Type
Mechanical
Interoperability
ONVIF; CGI
Network Protocol
SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
Basic
Camera
1/2.5" 2MP CMOS Low Illumination HD Colourful Fisheye Camera
Field of View
Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
Focal Length
1.9 mm
WDR
120 dB
Noise Reduction
3D NR
Video Compression
H.265
Video Resolution
50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps)
Video Frame Rate
25 fps
Video Bit Rate
256 Kbps to 4 Mbps
Light Compensation
Auto IR
Day/Night
Auto (ICR)
Audio Compression
G.711u
Audio Input
1 channel
Audio Output
Built-in speaker
Audio Mode
2-way voice communication
Audio Enhancement
Echo suppression/digital noise reduction
Audio Bit Rate
16 KHz, 16 Bit
Status Indicator Light
3
Port
Electric Lock
1
Alarm Output
1
Power Output
1-ch 12 VDC 100mA
Exit Button
1
Door Status Detection
1
Lock Control
1
Network Port
One RJ45 10M/100M network port
General
Appearance colour
Silver
Power Supply
Dahua 2-wire switch (max. power supply distance 50 m)DC 48V 1AStandard PoE
Power Adapter
Optional
Installation
Flush/surface mount
Certifications
CE; FCC; UL
Accessory
Flush/surface mount
Product Dimensions
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection
IK07; IP65
Operating Temperature
–30°C to +60°C (–22°F to 140°F)
Operating Humidity
10%–90% (RH, non-condensing)
Operating Altitude
0 m–3000 m
Power Consumption
≤ 12W
Net Weight
0.35 kg (0.77 lb)
Gross Weight
0.4 kg (0.88 lb)
Downloads
DHI-VTO2202F-P-S3 DatasheetQuick Start Guide of DHI-VTO2202F-P-S2Villa Door Station_User's_Manual_V1.0.0-EngDahua Villa Intercom Setup GuideDahua Villa N VTHx NVTO via template
Dahua 2MP IP Villa Outdoor Station, Viewing Wide Angle 100 degree, Adjustable Viewing Angle, ICR 5m Night Vision DHI-VTO2101E-P-S2
HD CMOS camera.
Zinc alloy panel, IP65 and IK10 rated.
ICR night vision and voice prompt.
Video and audio messaging.
TCP/IP, and SIP.
Surface mounted.
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK10
MOUNT
Surface
MATERIAL
Front Panel: Zinc alloy Rear Panel: Aluminum alloy Holder: Aluminum alloy
Downloads
Datasheet of DHI-VTO2101E-P
Quick Start Guide of DHI-VTO2101E-P
Dahua Villa Intercom Setup Guide
Dahua Villa N VTHx NVTO via template

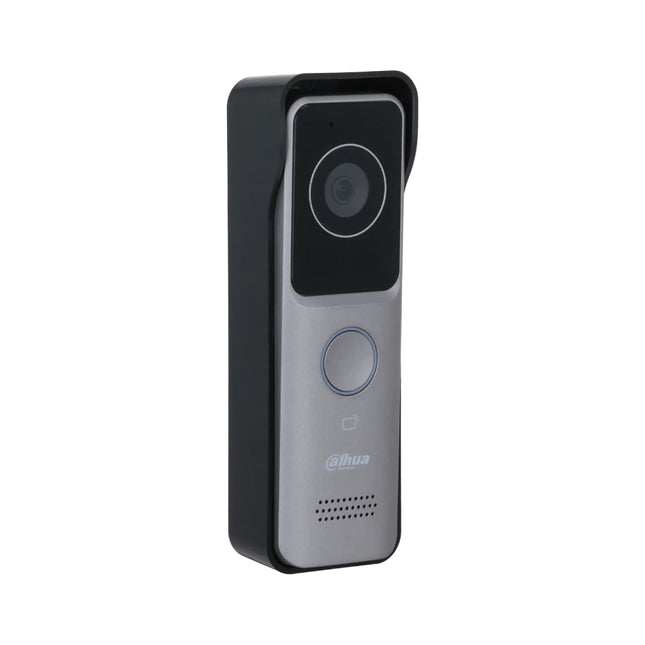

Dahua IP & Wi-Fi Villa Door Station, DHI-VTO2311R-WP
The Dahua IP & Wi-Fi Villa Door Station, DHI-VTO2311R-WP, features an ultra slim design with durable PC and ABS material for both indoor and outdoor use. With a 1/2.8" 2-MP HD CMOS camera, it offers a two-way video call and allows for checking video and voice messages from visitors on the indoor monitor. The door station also includes convenient features such as video call and unlocking through the app, IR illumination, auto WDR, Wi-Fi connection, and unlock with an IC card. With an IP65 rating and options for both DC 12V and PoE power supply, this outdoor station is a reliable and advanced solution for any villa or home.
Features
Ultra slim design.
PC and ABS material make it ideal for indoor and outdoor use.

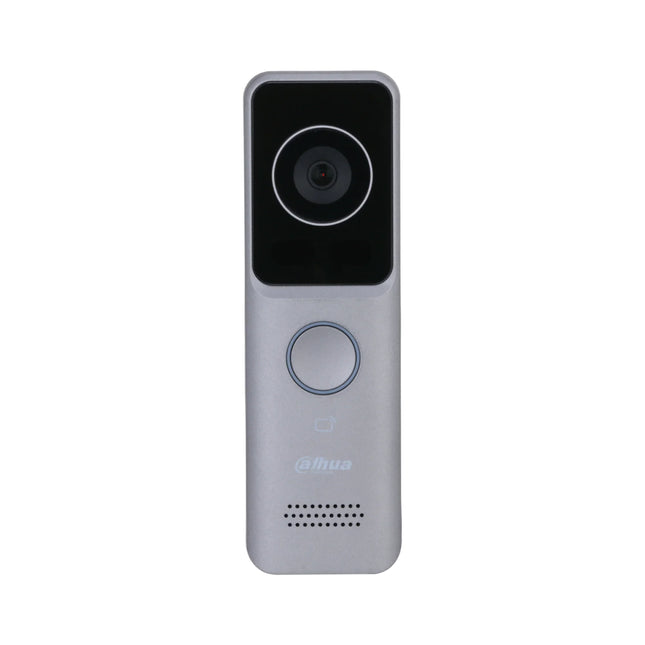

1/2.8" 2-MP HD CMOS camera.
Offers two–way video call with indoor monitors.
Video and voice messages from visitors can be checked on the indoor monitor
Video call and unlocking through app.
IR illumination and auto WDR.
Wi-Fi connection.
IP65 rated.
H.264 and H.265.
Unlock with IC card.
PoE power supply.
Specifications
Dahua Outdoor Station
Resolution
2MP
Technology
IP
Power Supply
DC 12V, PoE
Protection
IP65
Mount
Surface Mount
Downloads
DHI-VTO2311R-WP DatasheetVilla Door Station_User's Manual_V1.0.0Quick Installation Guide

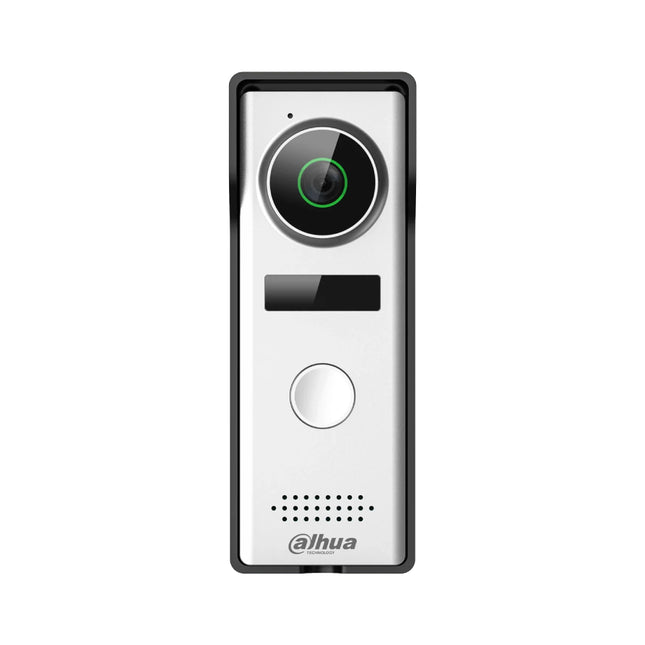

Dahua 4-Wire Analog Indoor Outdoor Station DHI-VTO1000J
Dahua 4-wire indoor outdoor station
Video intercom function: Unlock, voice call, video call and volume adjustment
Multiple bell sounds
Supports digital wide dynamic range (DWDR)
Mechanical button
Specifications
OUTDOOR STATION
RESOLUTION
1.3MP
TECHNOLOGY
Analog
POWER SUPPLY
DC 12V
PROTECTION
IP66
MOUNT
Surface
MATERIAL
Front Panel: Zinc alloy Rear Panel: Aluminum alloy Holder: Aluminum alloy
Downloads
DHI-VTO1000J_datasheet_20200824
DHI-VTO1000J_INSTALLATION_PROCEDURE
DHI-VTO1000J_DIMENSIONS
DHI-VTO1000J_INSTALLATION_METHOD_EN

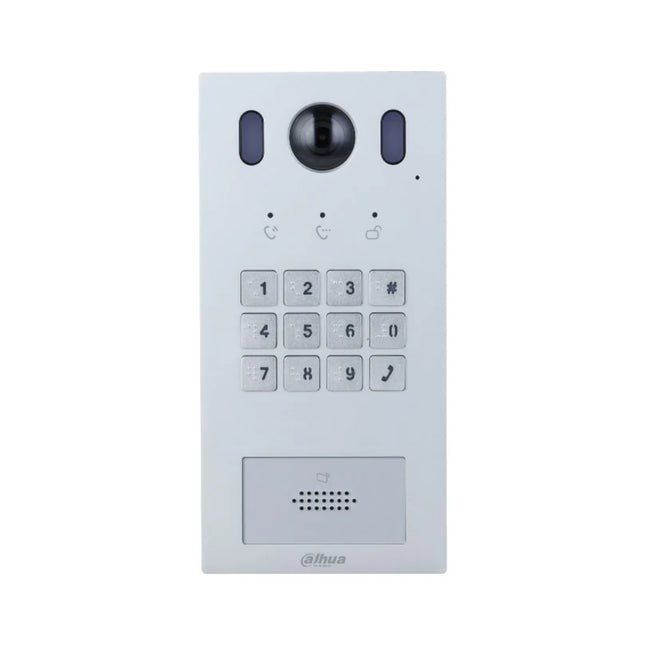

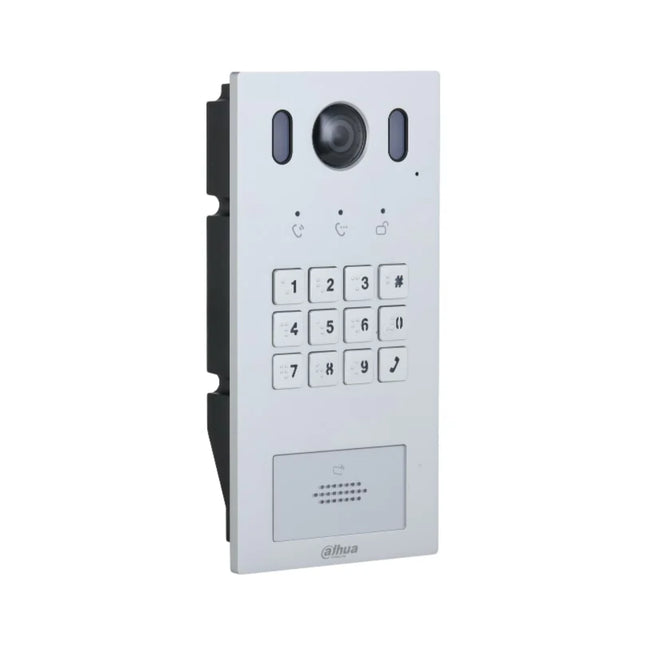

Dahua VTO3222E-P 2-wire IP Villa Door Station, DHI-VTO3221E-P
As a leading expert in the industry, the Dahua VTO3222E-P 2-wire IP Villa Door Station offers high durability and elegance with an aluminum panel and mechanical keypad. Its 2MP HD camera provides crystal-clear images, and it supports up to 5,000 users and 10,000 cards for added convenience. With multiple unlock methods and Wiegand compatibility, this IP65 and IK08 rated device also provides 12 VDC, 600 mA power and can be easily connected to a PSE switch for charging. Trust in Dahua for the best in door station technology.
Features
Highly durable and elegant, it is made of aluminum panel，and has a mechanical keypad.
2MP HD camera.
Supports 5,000 users and 10,000 cards.
Supports multiple unlock methods including password, IC card, and unlocks remotely.
Connects card readers and controllers through Wiegand.
Provides 12 VDC, 600 mA power.
IP65 rated (silicone sealant is required for the shell, see the quick start guide).
IK08 rated.
Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
Specifications
Dahua Outdoor Station
Resolution
2MP
Technology
2-Wire
Power Supply
2-Wire (48 VDC, 0.4 A, PoE (802.3af/at))
Protection
IK08, IP65
Mount
Surface & Flush
Material
Alumimum
Downloads
VTO3222E-P DatasheetVilla Door Station User's Manual V1.0.4 Video Door Phone (Version 4.7) Quick Start Guide V1.0.0 VTO3222E-P DIMENSIONS

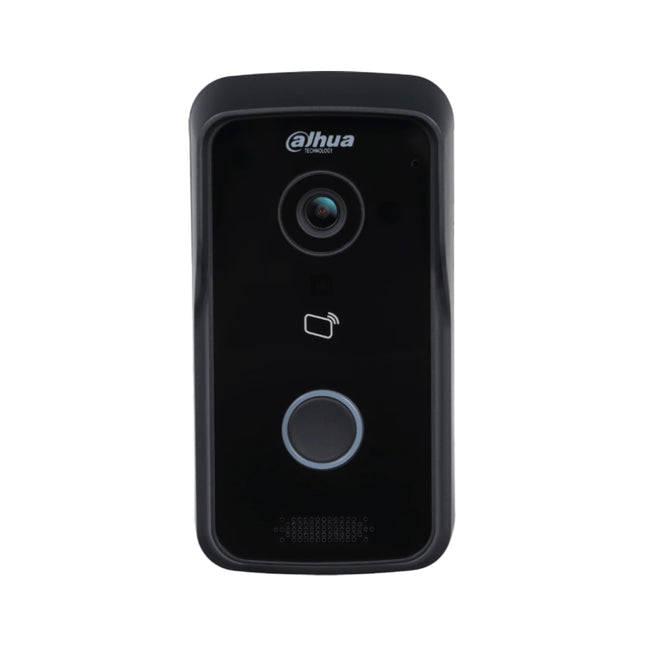

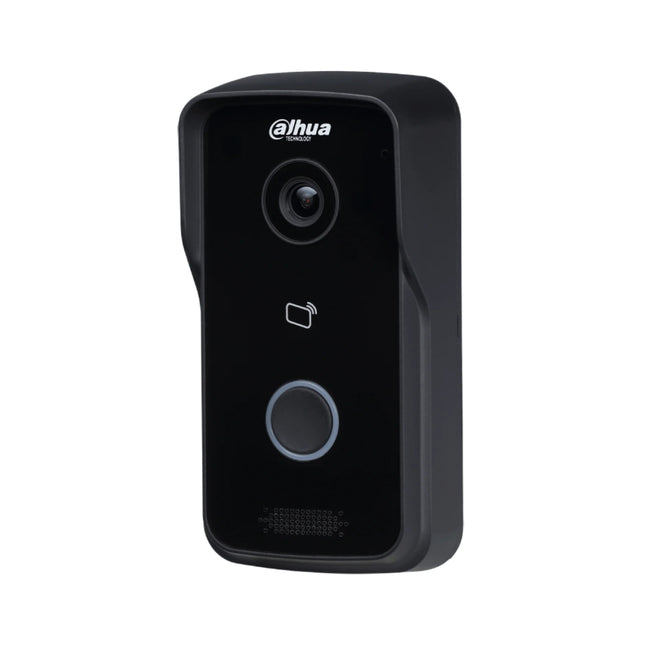

Dahua Lite Series VTO2111D IP Villa Outdoor Station, Black, 1MP, Card Unlock, PoE
Features
High definition camera; WDR
Operating temperature -30°C–60°C
IP65(Silicone sealant is needed. For details, see the quick start guide.)
Supports auto IR illumination and D/N
Card/app remote/indoor monitor unlock
Supports two-way voice call; support calls between door stations and app
10,000 cards
Tamper Alarm
Support standard PoE power supply
Control two locks
Downloads
Datasheet

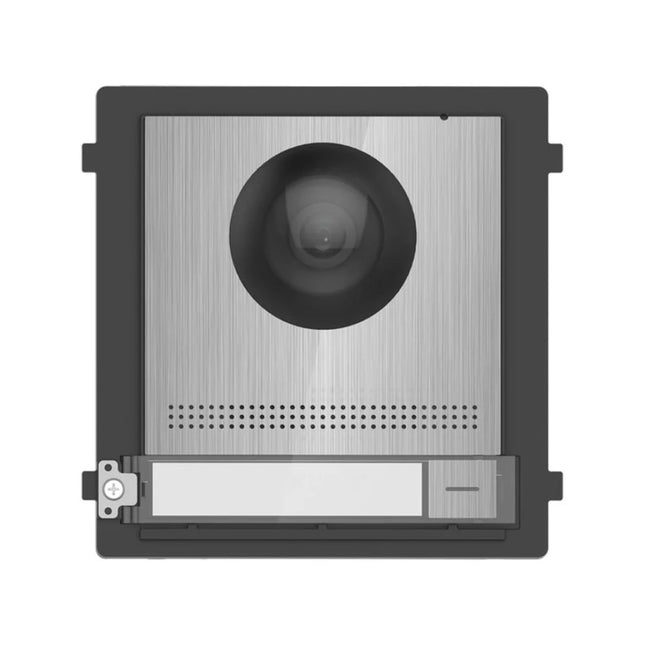

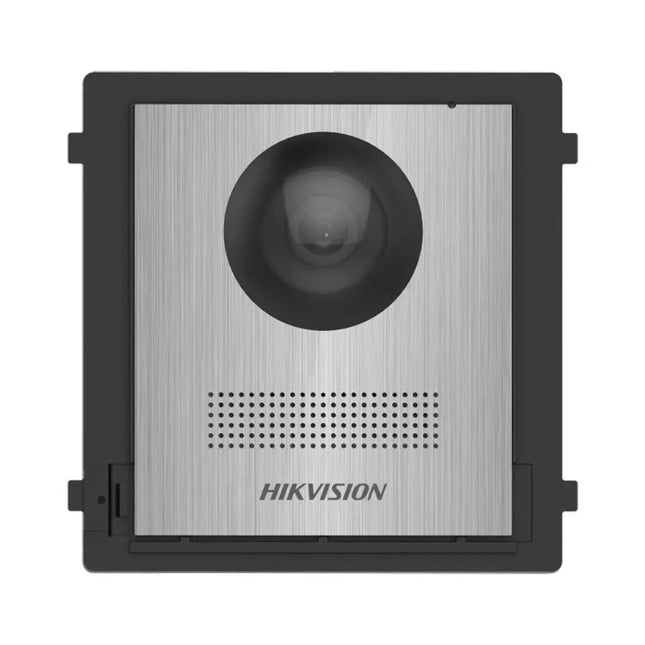

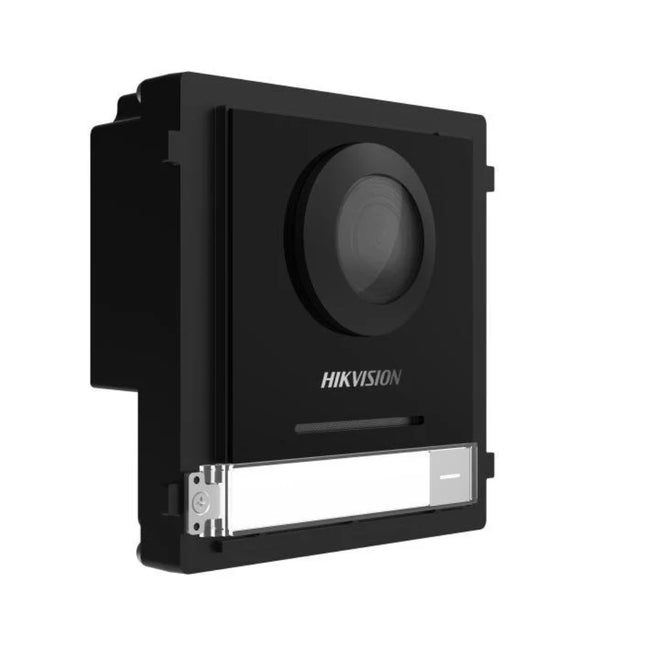

Hikvision Intercom, KD8003-IME1-S 2MP, G2 Modular Door Station, Stainless Steel, IP65
Experience secure and efficient entry control with the Hikvision Intercom, featuring a 2MP HD camera with fish eye and IR supplement for clear footage. Its modular design and call button allow for easy installation, while its IP65 rating and POE compatibility ensure durability. Enjoy video intercom capabilities to both indoor and main stations.
Features
Modular door station Main unit, needs mounting bracket
2MP HD Camera, Fish eye, IR Supplement
1 Call physical Button, 2 lock relays, 4-ch alarm input
IP65, 12 VDC or standard POE
Video intercom to indoor station and main station
Downloads
DS-KD8003-IME1/S Datasheet

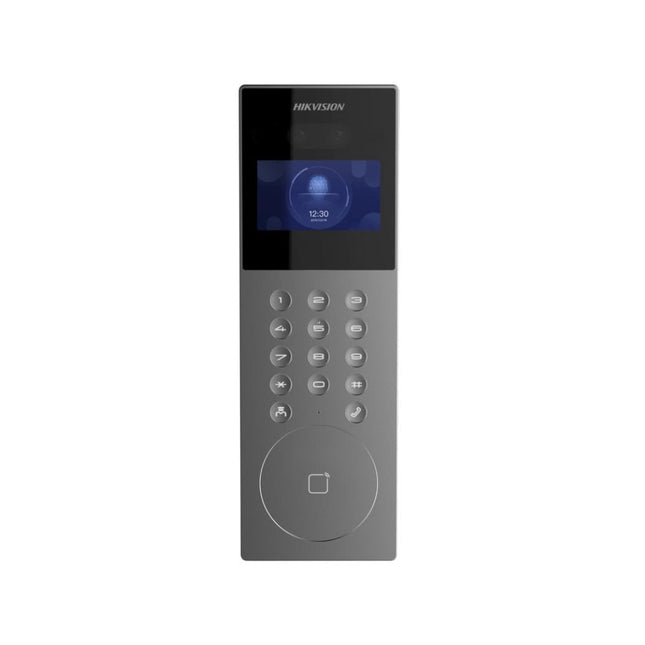

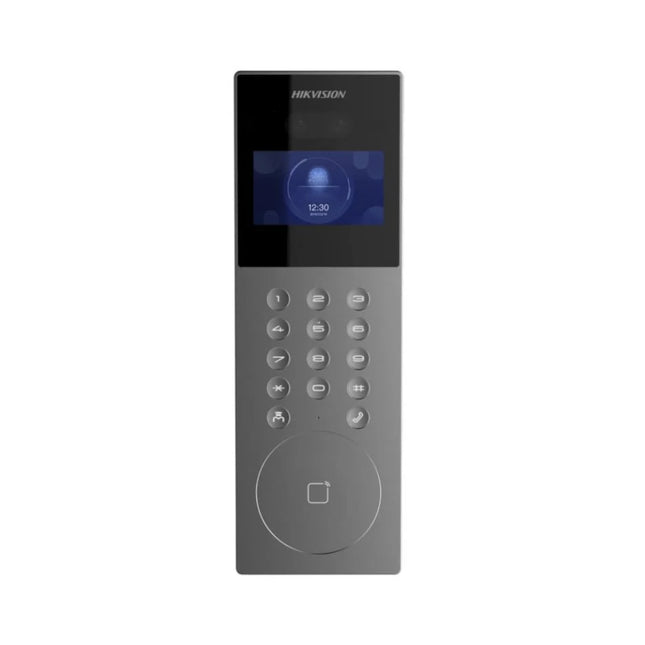

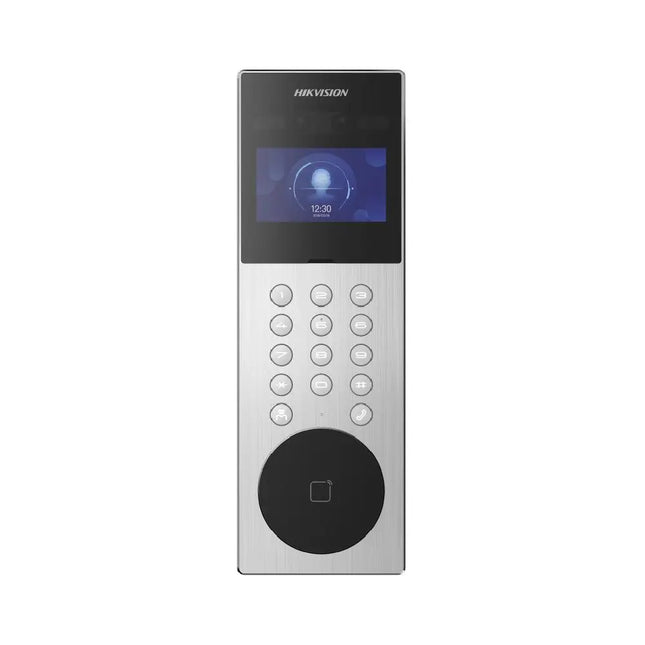

Hikvision Intercom Door Station DS-KD9203-E6, 4.3", Face Recognition, Up to 5000 Faces
The Hikvision Intercom Door Station DS-KD9203-E6 features a 4.3-inch color LCD with 800 × 480 resolution and dual 2 MP wide-angle HD cameras for clear video. It supports face recognition for up to 5,000 users, alongside card and PIN code access, enhancing security and convenience. With IP65-rated weather resistance and multiple interfaces including RJ45, RS-485, alarm input, relay, and Wiegand, it integrates seamlessly into various security systems. Remote configuration via web interface simplifies management, making it ideal for professional access control applications.
Features
4.3-inch colorful LCD screen with 800 × 480 resolution
2 × 2 MP wide-angle HD lens
IP65 protection level
Built-in M1 card reading module
Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
Convenient configuration via Web remotely
Convenient unlock methods: face, cards, PIN code
DownloadDS-KD9203-E6 Datasheet

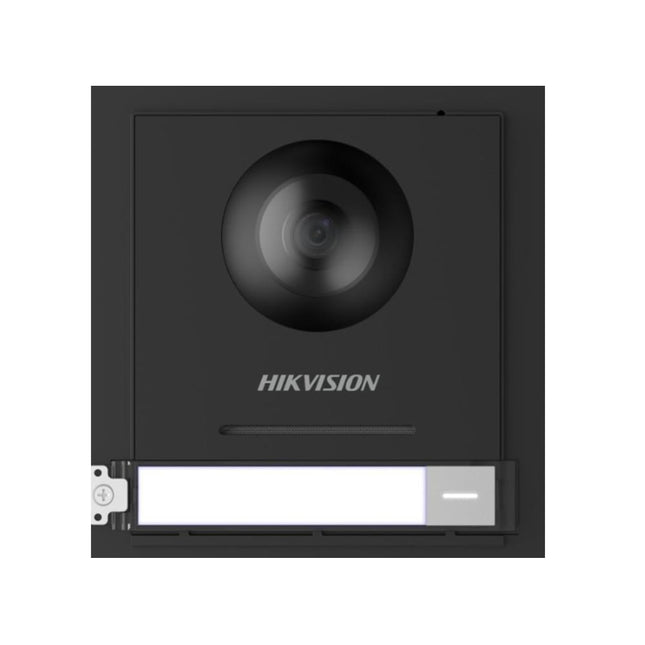

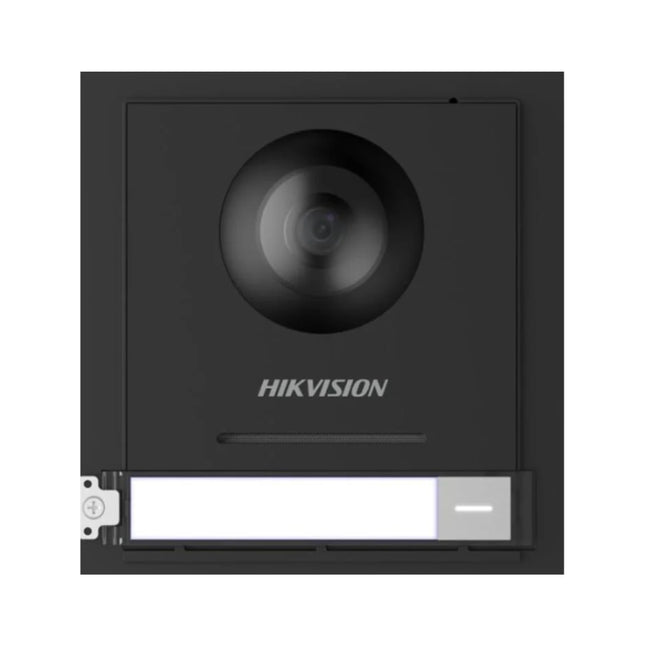

Hikvision IP Intercom Modular Door Station DS-KD8003-IME1, G2, Colour, PoE
Expertly designed for security and convenience, the Hikvision IP Intercom DS-KD8003-IME1, GEN 2, Colour Camera Module, 1 Button, POE KD8 Series Pro Modular Door Station (KD8003) offers a 2MP HD colorful camera with fish eye and IR supplement for clear visuals. With a weatherproof IP65 rating and 1 call button and 2 lock relays, this modular door station provides added protection. Can be powered by 12 VDC or standard PoE, and allows for video intercom to indoor and master stations.
Features
Modular door station Main unit, needs mounting bracket
2MP HD Colorful Camera, Fish eye, IR Supplement
1 Call physical Button, 2 lock relays, 4-ch alarm input
IP65, 12 VDC or standard PoE
Video intercom to indoor station and master station
Downloads
DS-KD8003-IME1 Datasheet
Dahua 2MP IP Villa 2 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
This Dahua IP outdoor station features a 2MP HD camera with a wide angle of 140 degrees for clear and comprehensive viewing. With night vision and a Mifare card reader, this station offers secure access day and night. Plus, it allows for remote intercom communication through a mobile app. Durable and easy to install with its surface mount design.
Features
2MP HD CMOS camera
Aluminum panel, IP65,IK08
ICR Night vision &Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface
MATERIAL
Alumimum
Downloads
Datasheet of DHI-VTO3211D-P2
Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng
Villa Door Station_Installation Guide_V1.0.0-Eng
Villa VTO_User's Manual_V1.0.0-Eng

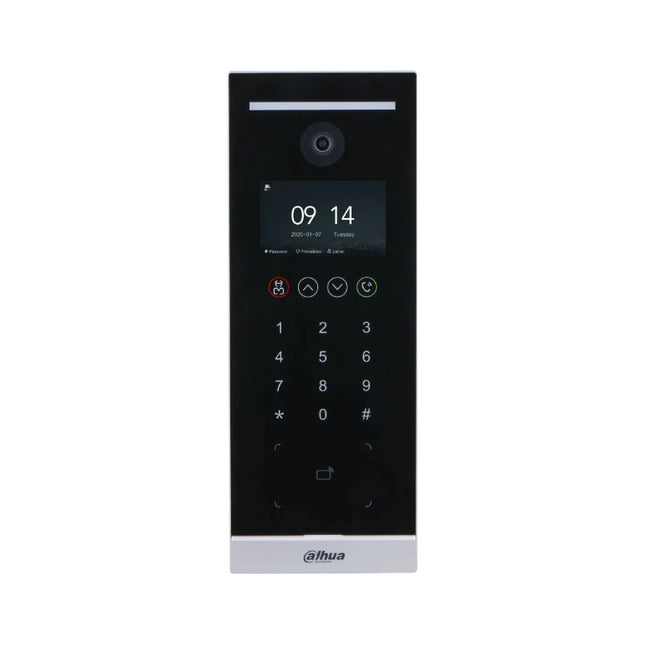

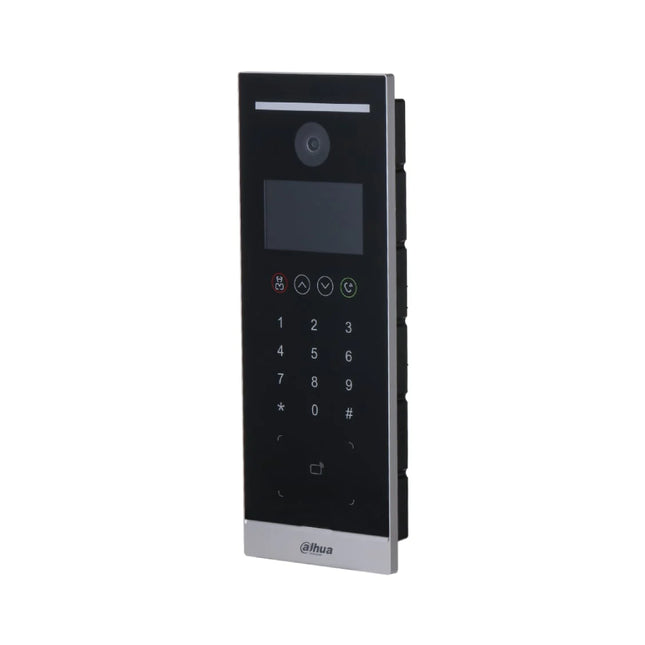

Dahua IP Apartment Door Station, VTO6521H
4.3 inch IPS display; screen resolution 800×480
2MP CMOS; true WDR
Touch button; IP65
Operating temperature: -30°C to +60°C · Auto light illumination reduces light pollution
Multiple unlock modes: Password unlock, IC card unlock, and remote unlock
Support 20,000 users and 10,000 cards
Support full duplex; management platform, and voice call through APP
Support SIP server
Support duress alarm, tamper alarm, and door sensor timeout alarm
Downloads
VTO6521H Datasheet 20230302 Video Door Phone Quick Start Guide_V1.0.1 Unit VTO (Version 4.6) User's Manual_V1.0.0 Unit VTO (Version-4.3) Users-Manual_V1.0.11 VTO6521H Installation Procedure VTO6521H Dimensions

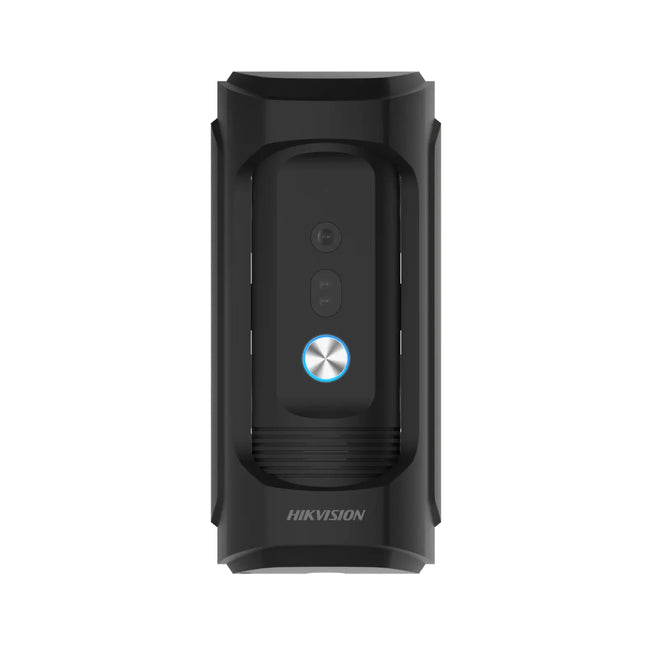

Hikvision IP Intercom, Gen 2, Vandal-resistant Door Station, 1 Button, IP, 2MP, POE/12VDC, IP65, IK09 (8113), Vandal-resistant Doorbell, HIK-DS-KB8113-IME1
Call the mobile APP directly
Remote unlocking via the indoor station or the mobile APP
2MP HD Camera with IR supplement
Standard PoE
Noise suppression and echo cancellation
Configuration remotely via Web
DownloadDatasheet

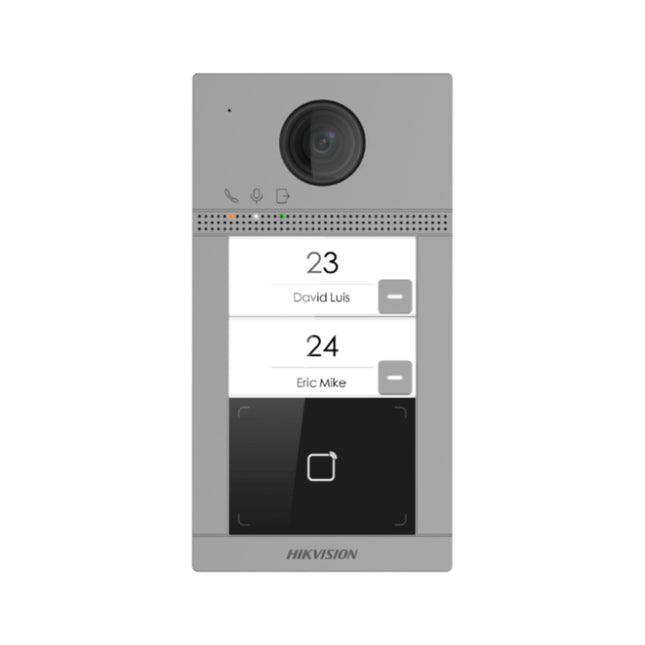

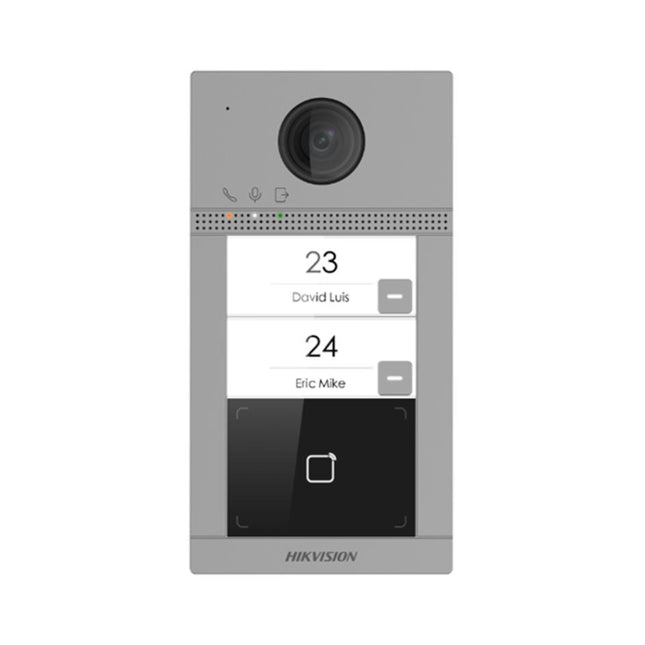

Hikvision Ip Intercom, Gen 2, Villa Door Station, 2 Button, Wifi, Mifare, Aluminium (8213), HIK-DS-KV8213-WME1/Surface
Hikvision 2 Button Metal Villa Door Station
Support Wifi, Convenient Setting Up And No Wiring Required
Support Web Configuration
Aluminum Alloy, Nice Industry Design, IP65, Ik08, 3 Indicator Integrated;
Internal Mifare Card Reader, 2-Ch Indoor Station Access Control;
Noise Suppression And Echo Cancellation
2mp Hd Camera With Ir Supplement
Standard Poe/ 12 Vdc
Vendor Code: DS-KV8213-Wme1(B)

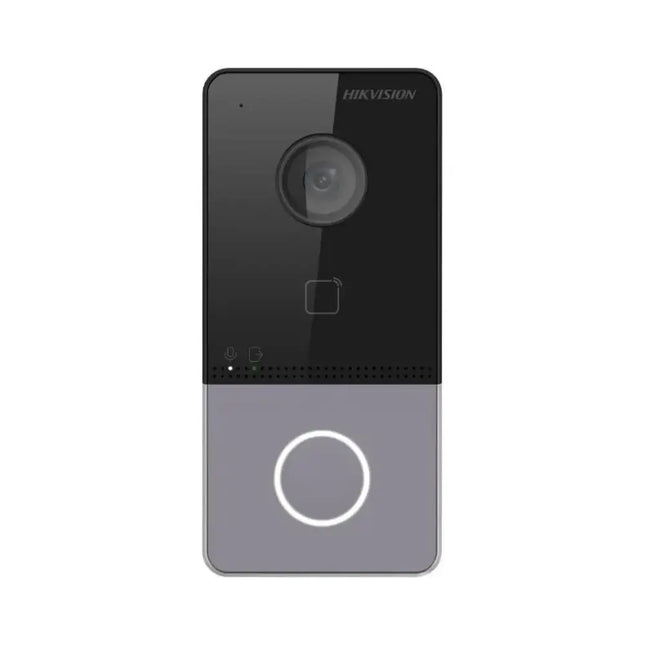

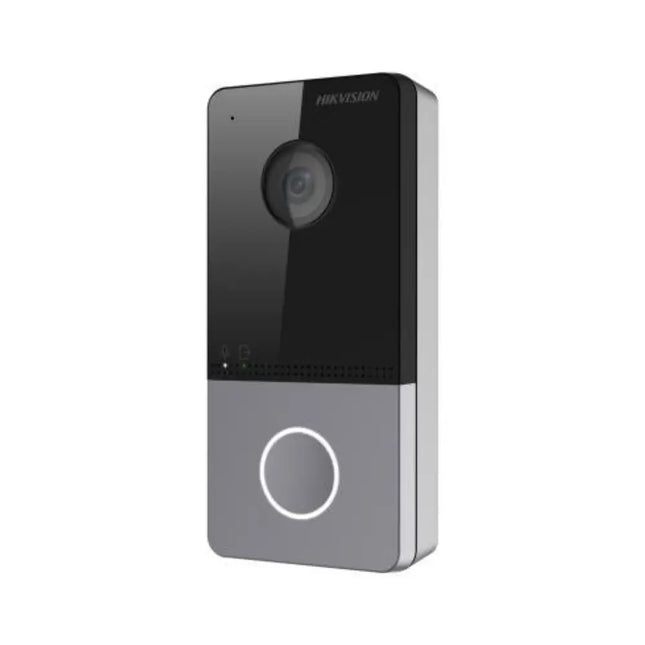

Hikvision Intercom, Gen 2, Villa Door Station, 1 Button, Wifi, Mifare Reader, Plastic (6113), Plastic Villa Door Station, HIK-DS-KV6113-WPE1
2 MP camera with IR supplement
One-touch button calling design for easier calls
Built-in card reader module
Standard PoE power supply
IP65 protection level
Convenient Hik-Connect APP mobile control
DownloadDS-KV6113-WPE1 DatasheetDS-KV6113-WPE1 Quick Start Guide
Dahua IP Apartment Door Station DHI-VTO6521K
IP Apartment Door Station
Feature
4.3-inch LCD display with easy-to-press metal buttons; screen resolution 800 x 480
2MP CMOS; true WDR
316 stainless steel panel; IP65, IK08
Operating temperature: ?C30 degree centigrade to +60 degree centigrade
Auto light illumination reduces light pollution
Multiple verification methods: Password, IC card, QR code, and remote unlocking
Support 20,000 users and 10,000 cards
Support full duplex; management platform, and voice call through APP
Support SIP server
Support duress alarm, tamper alarm, and door sensor timeout alarm
Specification
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V
PROTECTION
IP65
MOUNT
Surface & Flush
MATERIAL
PC+ABS
Downloads
VTO6521K_datasheet_20230302Digital Door Station_Quick Start Guide_V1.0.0Door Station_Installation Guide_V1.0.0Unit-VTO-(Version-4.3)_Users-Manual_V1.0.13
Dahua Small Size Apartment Outdoor Station, 2.3-inch OLED, Aluminium alloy plate, IP55, IK08, Door release via password and Mifare card
Enhance security and convenience with the Dahua Apartment Outdoor Station. Featuring a 2.3-inch OLED screen, 2MP camera, and supplemental white lighting, this small size station offers clear video and Braille mechanical button for easy access. Made with durable aluminium alloy, it has IK08 and IP65 ratings and allows door release through password or Mifare card.
Features
Small size apartment door station
Supplemental lighting with white light
2MP CMOS camera
Mechanical button with Braille
Aluminium alloy plate, IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Door release via password and Mifare card
Specifications
Dahua Outdoor Station
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface & Flush
MATERIAL
Alumimum
Downloads
Datasheet of DHI-VTO6221E-P
Villa Door Station_User's_Manual_V1.0.0-EngVilla Door Station (Version 4.5)_Quick Start Guide_V1.0.0-Eng

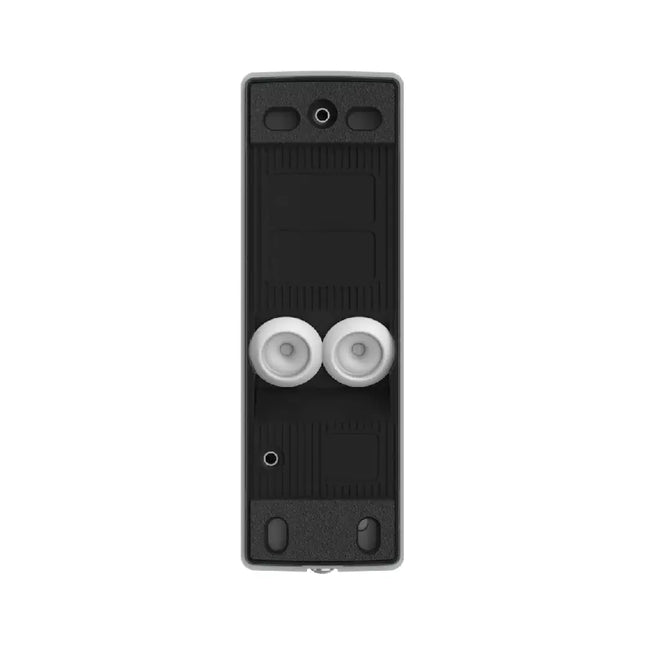

AXIS I8116-E Network Video Intercom 02408-001, Two-way Comms, Remote Entry
Small and powerful door security
Mullion form factor
High quality 5 MP video with audio
SIP support
Support for analytics based on deep learning
Built-in cybersecurity features
This small and powerful outdoor-ready network video intercom offers easy installation in tight spaces. It features built-in cybersecurity features and support for advanced analytics based on deep learning.
Unlimited mounting options
Measuring only 48 mm (1.89 in.) in width, AXIS I8116-E fits where you want it to go – on walls, doorframes, and mullions. Plus, a flush mounting accessory enables recessed mounting in walls. This powerful intercom offers fast and flexible installation, keeping costs low. Using one PoE cable you can enhance door security by controlling locks and adding video surveillance. Plus, it’s possible to switch the I/O ports to a reader port for tighter integration with access control solutions.
Secure and easy to integrate
Thanks to built-in cybersecurity features, AXIS I8116-E helps prevent unauthorized access and safeguards your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. This outdoor-ready network intercom offers seamless integration with global leading VMS systems. Furthermore, it supports Session Initiation Protocol (SIP) for IP phone system integration as well as open programming interfaces for software integration, including VAPIX and ONVIF.
Powerful performance on the edge
AXIS I8116-E doesn’t just let you identify and control who enters your premises, it connects to your system just like any other surveillance camera and records what’s happening outside your door. This powerful intercom supports advanced analytics based on deep learning on the edge. With Axis Object Analytics, you can detect and classify humans and vehicles—all tailored to your surveillance needs. Furthermore, this 5 MP intercom provides clarity when there’s both dark and light areas in the scene, thanks to WDR.
Download
AXIS I8116-E Datasheet

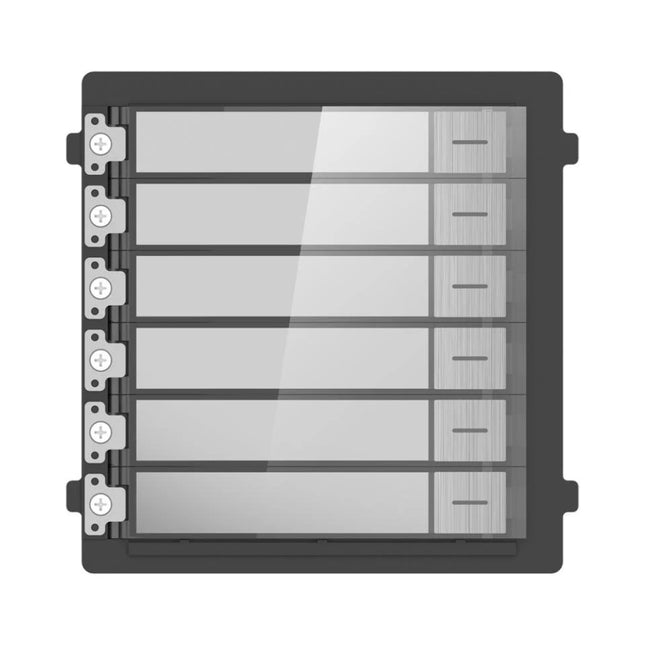

Hikvision Intercom KD-KK-S G2 Nametag KD8 Series Pro Modular Door Station, Stainless Steel, 6 x Button, IP65
Nametag module of modular door station
Six nametag buttons calling Design For easier calls
IP65 protection level
Backlight compensation behind the nametag buttons
Easy to use and extend
Stainless Steel high quality material
Downloads
DS-KD-KK/S Datasheet

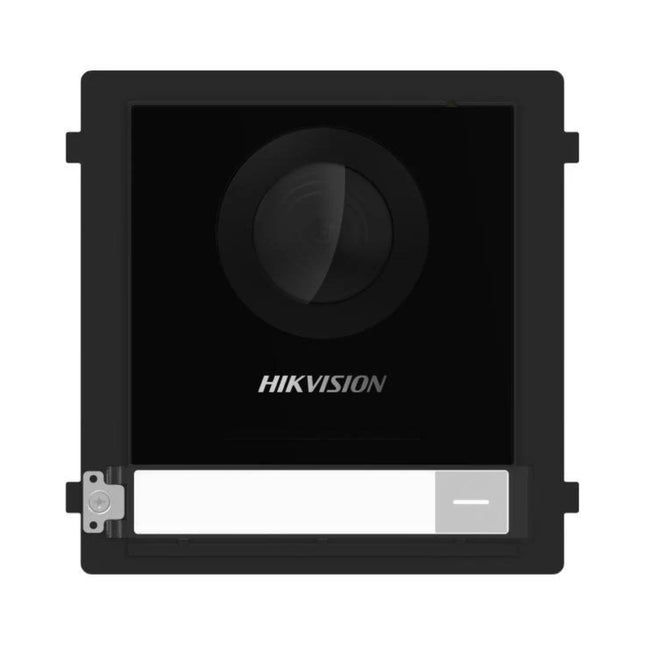

Hikvision Intercom, GEN 2, Two-wire, Door Station Module 1 Button (KD8003Y)
Expertly designed for convenience, the Hikvision Intercom GEN 2 is a two-wire door station module with a 2MP fisheye camera and IR supplement. With a one-call physical button and two-lock control, it offers easy and secure communication. The IP65 protection and remote configuration make it perfect for any setting, while the power output of 12V and 500mA eliminates the need for additional power supply.
Features
2-Wire main unit of modular door station
2MP fisheye camera with IR supplement
One call Physical Button For easier calls
Two-lock control
IP65 protection level
Convenient configuration via Web remotely
Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
Downloads
DS-KD8003Y-IME2 DatasheetDS-KD8003Y-IME2 Quick Start GuideDS-KD8003Y-IME2 User Manual

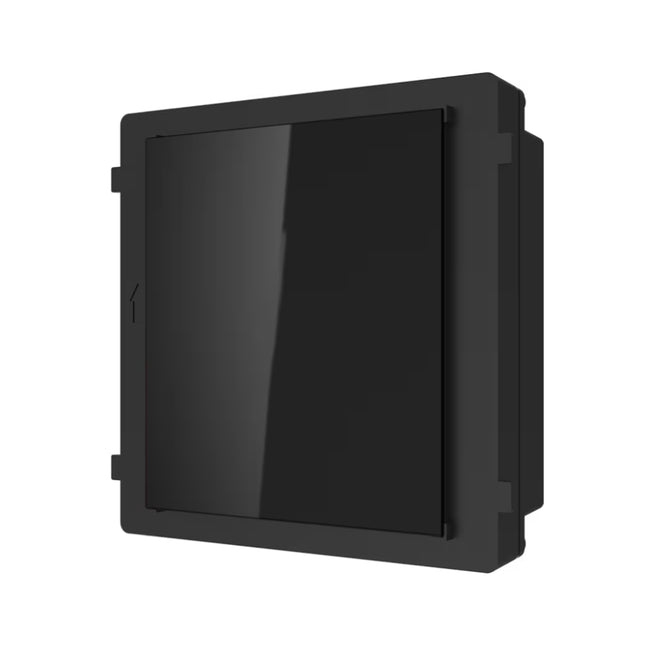

Hikvision Intercom, Gen 2, Blank Module (KD-BK), KD8 Series Pro Modular Door Station, Hik-DS-KD-BK
Blank module of modular door station
Designed for the fill blank grid during installation
IP65 protection level
Easy to use and extend
DownloadDatasheet

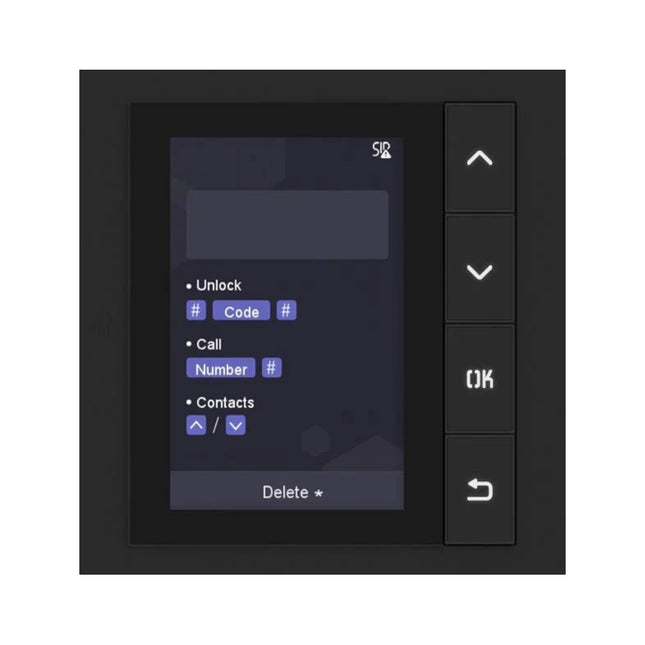

Hikvision Intercom, Gen 2, Display Module, 3.5in Monitor, 4 Scroll Buttons (KD-DIS), KD8 Series Pro Modular Door Station, HIK-DS-KD-DIS
Display module of modular door station
3.5-inch LCD screen with rich information display: Dial number, pin code unlock, contact list
Store up to 2000 contacts
IP65 protection level
Backlight compensation behind the module
Support multiple languages
DownloadDatasheet

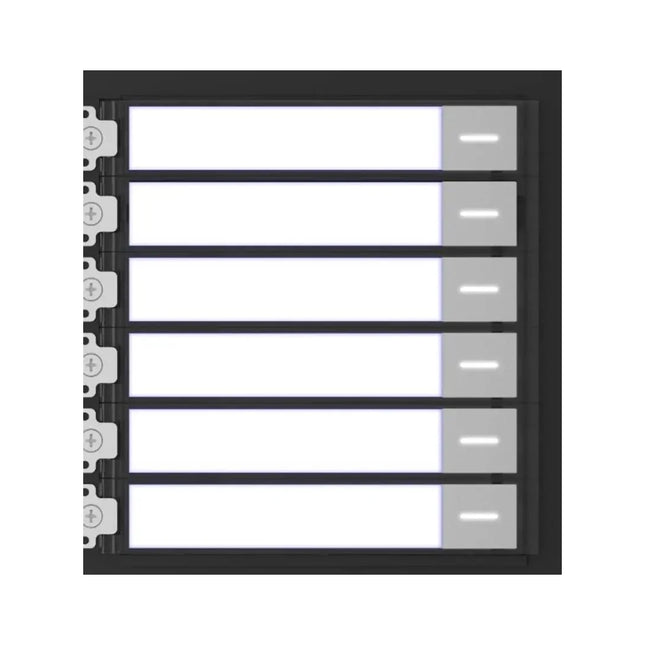

Hikvision Intercom, Gen 2, Nametag Module, 6 Button (KD-KK), KD8 Series Pro Modular Door Station, HIK-DS-KD-KK
Nametag module of modular door station
Six nametag buttons calling Design For easier calls
IP65 protection level
Backlight compensation behind the nametag buttons
Easy to use and extend
DownloadDatasheet

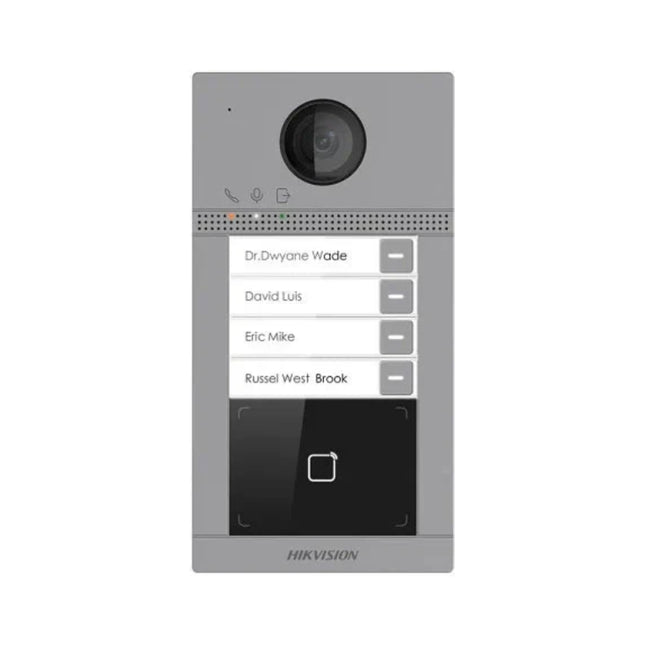

Hikvision Ip Intercom, Gen 2, Villa Door Station, 4 Button, Wifi, Mifare, Aluminium (8413), HIK-DS-KV8413-WME1/Surface
Hikvision 4 Button Metal Villa Door Station
Support Wifi, Convenient Setting Up And No Wiring Required
Support Web Configuration
Aluminum Alloy, Nice Industry Design, IP65, Ik08, 3 Indicator Integrated
Internal Mifare Card Reader, 4-Ch Indoor Station Access Control
Noise Suppression And Echo Cancellation
2mp Hd Camera With Ir Supplement
Standard Poe/12 Vdc
Vendor Code: DS-KV8413-Wme1(B)
Hikvision Ip Intercom, Gen 2, Villa Door Station, 2 Button, Wifi, Mifare, Aluminium (8213), 2 Buttons Metal Villa Door Station, HIK-DS-KV8213-WME1/Flush
2 MP camera with IR supplement
Two nametag buttons calling design for easier calls
Built-in card reader module
Standard PoE power supply
IK08 & IP65 higher protection level with aluminum alloy material
Convenient Hik-Connect APP mobile control
DownloadDatasheet
Hikvision Ip Intercom, Gen 2, Villa Door Station, 1 Button, Wifi, Mifare, Aluminium (8113), 1 Button Metal Villa Door Station, HIK-DS-KV8113-WME1/Flush
2 MP camera with IR supplement
One nametag button calling design for easier calls
Built-in card reader module
Standard PoE power supply
IK08 & IP65 higher protection level with aluminum alloy material
Convenient Hik-Connect APP mobile control
DownloadDatasheet
Hikvision IP Intercom, Gen 2, Villa Door Station, 1 Button, Wifi, Mifare, Aluminium (8113), 1 Button Metal Villa Door Station, HIK-DS-KV8113-WME1/Surface
Support Wifi, convenient setting up and no wiring required
Support web configuration
Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated
Internal Mifare card reader, 1-ch Indoor station access control
Noise suppression and echo cancellation
2MP HD Camera with IR supplement
Standard PoE/12 VDC
DownloadDatasheet
Hikvision Ip Intercom, Gen 2, Colour Camera Module, No Button, POE, Stainless Steel (KD8003), KD8 Series Pro Modular Door Station, HIK-DS-KD8003-IME1/NS-STAINLESS
Modular door station Main unit, needs mounting bracket
2MP HD Camera, Fish eye, IR Supplement
2 lock relays, 4-ch alarm input
IP65, 12 VDC or standard POE
Video intercom to indoor station and main station
DownloadDatasheet
Hikvision Intercom, Gen 2, Indicator Module (KD-IN), KD8 Series Pro Modular Door Station, HIK-DS-KD-IN
Indicator module of modular door station
Rich device status indication: call, door open and two-way audio
IP65 protection level
Backlight compensation behind the module
Easy to use and extend
DownloadDatasheet

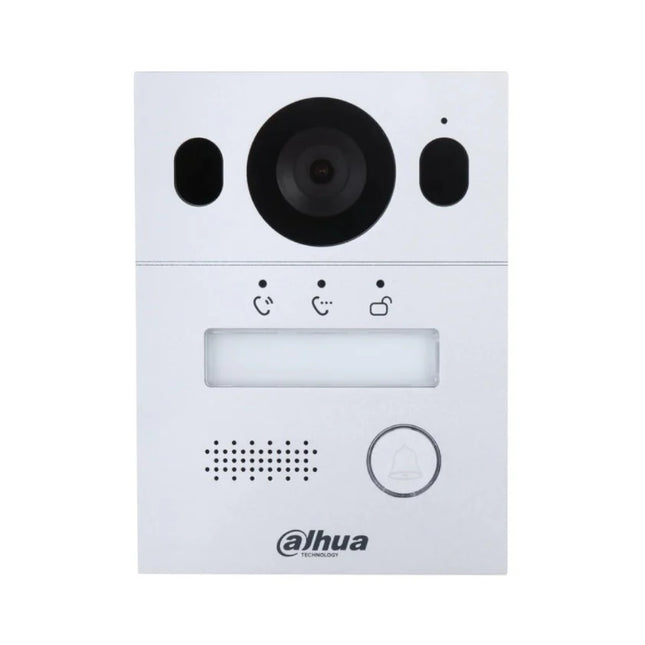

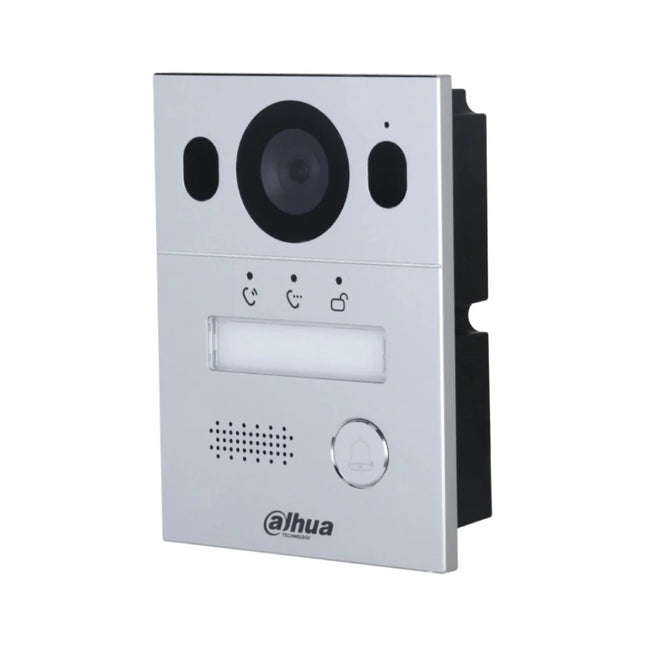

Dahua 2-Wire Hybrid VIlla Door Station DHI-VTO2003F
Expertly designed the Dahua 2-Wire Hybrid Villa Door Station DHI-VTO2003F combines aluminium alloy panel, auto IR illumination, and video messaging. Unlock your door with local and secondary lock options or automatically record unanswered calls with included SD card. Tamper-proof, it boasts IP65 and IK07 ratings.
Features
Aluminum alloy front panel
Offers video intercom which communicates through half-duplex
Auto IR illumination
Video messages can be left for unanswered calls(SD card is required for VTH)
Features nameplate and DWDR
Supports local lock and second lock
Offers anti-tampering alarm
IP65 and IK07 rated
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
2- wire
POWER SUPPLY
2- wire controller
PROTECTION
IP65
MOUNT
Surface & Flush
MATERIAL
Aluminum Alloy
Downloads
DHI-VTO2003F Datasheet_202212202-Wire Hybrid Door Station User's Manual_V1.0.3Dahua 2-wire Hybrid Door Station_OPEN SOURCE SOFTWARE NOTICEDHI-VTO2003F DIMENSIONSDHI-VTO2003F Rendergraph Application_EN
Dahua 2MP IP Villa 1 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
2MP HD CMOS camera
Aluminum panel, IP65, IK08
ICR Night vision & Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface
MATERIAL
Alumimum
Downloads
Datasheet of VTO3211D
Quick Start Guide of VTO3211D
Villa VTO_User's Manual_V1.0.0-Eng
Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng
Villa Door Station_Installation Guide_V1.0.0-Eng

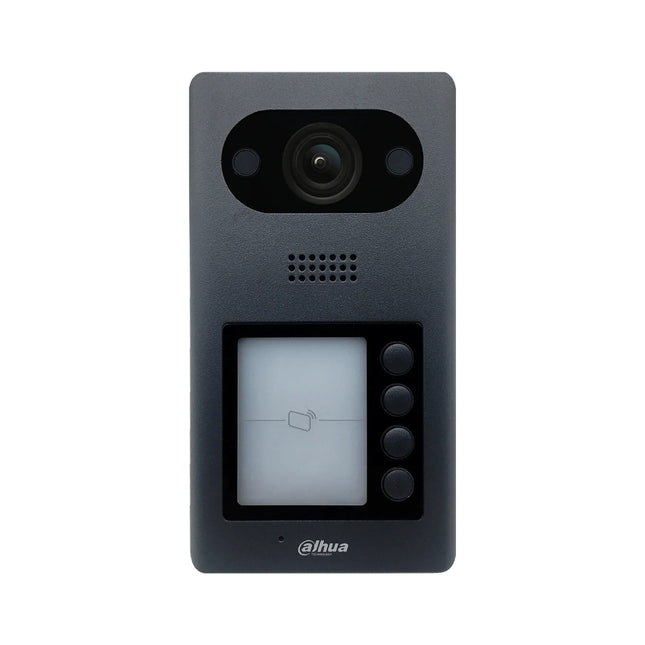

Dahua 2MP IP Villa 4 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
2MP HD CMOS camera
Aluminum panel, IP65, IK08
ICR Night vision &Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface
MATERIAL
Alumimum
Downloads
Datasheet of DHI-VTO3211D-P2
Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng
Villa Door Station_Installation Guide_V1.0.0-Eng
Villa VTO_User's Manual_V1.0.0-Eng
