Hikvision Ultra Series · Commerical Grade
Enterprise Multi-Authentication IP Video Intercom Station

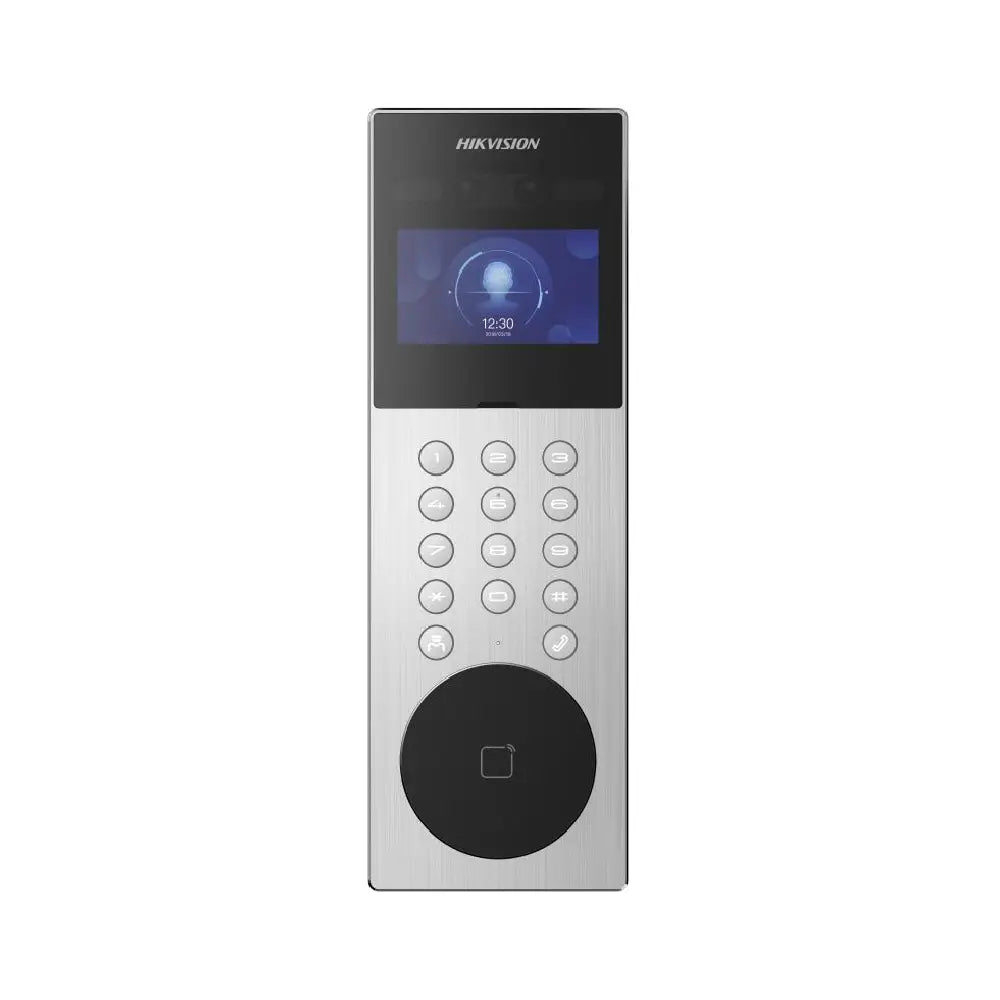

The DS-KD9203-ME6 is a flagship IP facial recognition door station engineered by Hikvision for high-density residential towers, commercial office complexes, and gated facilities. Housed in a durable metallic enclosure with an IP65 ingress protection rating, it combines biometrics, RFID card verification, and direct numerical dialing into a streamlined access management terminal. Featuring dual 2 MP wide-angle optical sensors and a high-brightness 4.3-inch colour LCD display, this unit ensures crisp visual communication and anti-spoofing security at high-traffic entry points.
Resolution / Screen
Dual 2MP / 4.3" LCD
Auth Modes
Face, Card, PIN
Face Capacity
Up to 5,000 Users
Protection Rating
IP65 Weatherproof
Advanced Biometric Access & Network Integration
The Hikvision DS-KD9203-ME6 is powered by an embedded Linux OS to provide zero-latency local facial recognition with built-in anti-spoofing technology. Capable of storing up to 5,000 face templates and 50,000 M1 (13.56 MHz) RFID cards, it effortlessly manages entry permissions for thousands of occupants. Equipped with 120 dB Wide Dynamic Range (WDR) and built-in IR supplement lighting effective up to 3 metres, the terminal maintains accurate face detection even under severe backlight or nighttime outdoor conditions. Integrated web-based remote management, dual RS-485 interfaces, and 2 relay lock controls make it an adaptable hub for enterprise access topologies.
Deep Learning Facial Recognition
Equipped with dual 2MP optics and live body detection to eliminate photo and video spoofing, delivering rapid verification speed under varying light conditions.
Dual Relay Door Control
Includes 2 relay outputs (30 VDC, 2 A) allowing independent management of pedestrian gates, automatic doors, or turnstiles from a single terminal.
Technical Specification Matrix
| Camera Model |
DS-KD9203-ME6 |
| Display Screen |
4.3-inch Colorful LCD (800 × 480 Resolution) |
| Camera Sensor |
2 × 2 MP HD Camera with 120 dB WDR |
| Supplement Light |
IR Light, up to 3 m range |
| Authentication Modes |
Face Recognition, Mifare Card (13.56 MHz), PIN Code |
| System Capacity |
5,000 Faces, 50,000 Cards, 10,000 Users |
| Network & Control Interfaces |
1x RJ-45 (10/100/1000 Mbps), 2x RS-485, 4x Alarm Input, 2x Lock Relays |
| Environmental Rating |
IP65 Weatherproof, -30 °C to 60 °C Operating Temperature |
How many doors can the DS-KD9203-ME6 control directly?
The unit features 2 integrated relay outputs (Max 30 VDC, 2A), enabling direct trigger and pulse control for up to two separate door strikes or gate actuators.
Does the camera perform effectively in low-light and high-glare environments?
Yes. It integrates 120 dB WDR along with IR supplement illumination, allowing clear image capture and biometrics up to 3 metres in total darkness or direct backlight.
Which RFID card formats are compatible with the built-in reader?
The door station has an integrated M1 card module operating on the 13.56 MHz Mifare standard, supporting up to 50,000 credentials.
How is the device configured and managed?
Configuration can be performed remotely via a standard Web browser, Hikvision iVMS-4200 software, or integrated into HikCentral management platforms.
