Bosch Hardwired Keypad White Icon Lcd With Backlit Plastic Wall Mount 12VDC Suits Solution 2000/ 3000
Single button arming of alarm system
Fire, medical and panic alarms
Clear and easy to use
Backlit buttons for illuminated operation during day or night
Product Code: BOSIUI-SOL-ICON
Product No.: F.01U.301.794
Specifications
Dimensions
132 mm x 74 mm x 25 mm
Voltage
12 VDC norminal
Temperature (storage)
0°C to +50°C
Relative humidity
20% to 90%, non-condensing
Parts Included
Quantity
Component
1
Keypad

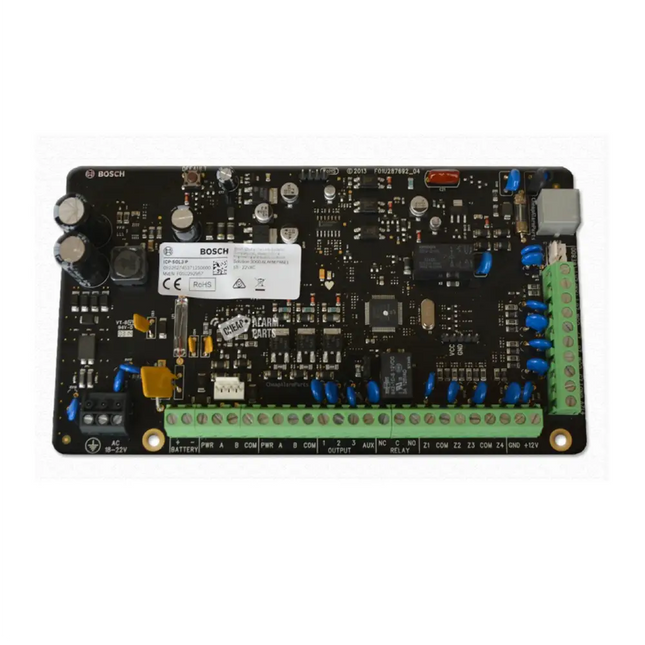

Bosch Solution 3000 Hardwired Alarm Panel Black 8x/16x Split Zone Not Expandable 4x Output 2 Areas 32 Users 4 Keypad 16 Wireless 256 Events PCB Enclosure Mount Built in PSTN 18VAC
8/16 Fully Programmable Zones
41 Codes – 1 Installers, 20 User Codes, 20 RF Keyfobs
16 Wireless Devices (on Solution 3000)
Partitionable into 2 Separate Areas
STAY / AWAY Arming Options
Product Code: BOSICP-SOL3-P
Product No.: F.01U.292.967
Specifications
Dimensions (H x W x D) (mm)
306 x 262 x 84 mm
Number of areas
16
Weight (kg)
2.50 kg
Downloads
Datasheet
Installation Manual
Bosch Solution 2000 Hardwired Alarm Panel Black 8x Zone Not Expandable 4x Output 2 Areas 32 Users 4 Keypad 256 Events PCB Enclosure Mount Built in PSTN 18VAC
8/16 Fully Programmable Zones
41 Codes – 1 Installers, 20 User Codes, 20 RF Keyfobs
16 Wireless Devices (on Solution 3000)
Partitionable into 2 Separate Areas
STAY / AWAY Arming Options
Product Code: BOSICP-SOL2-P
Product No.: F.01U.292.968
Specifications
Dimensions (H x W x D) (mm)
306 x 262 x 84 mm
Number of areas
8
Weight (kg)
2.50 kg
Downloads
Datasheet
Installation Manual
Bosch Hardwired Keypad White 5" Touch Screen With Backlit Plastic Wall Mount SDI2 12VDC Suits Solution 2000/ 3000,
Durable touch screen with adjustable LED backlight
Graphic interface consisting of intuitive icons and menus
Language option, individually selectable by user
Setup wizard for easy configuration
Specifications
Dimensions
145 mm x 80 mm x 13.6 mm
Maximum screw size
6G pan head
Power (Operating)
12VDC 600mA (peak)
LCD
5” HD WXGA 1280 px x 720 px, IPS, 400 nits.
Touch Panel
5 point multi-touch, capacitive, GF glass touch sensor.
SD Card
MicroSD (SDHC) 2GB to 32GB
Parts Included
Quantity
Component
1
TouchOne Mini keypad
1
Installation manual
Downloads

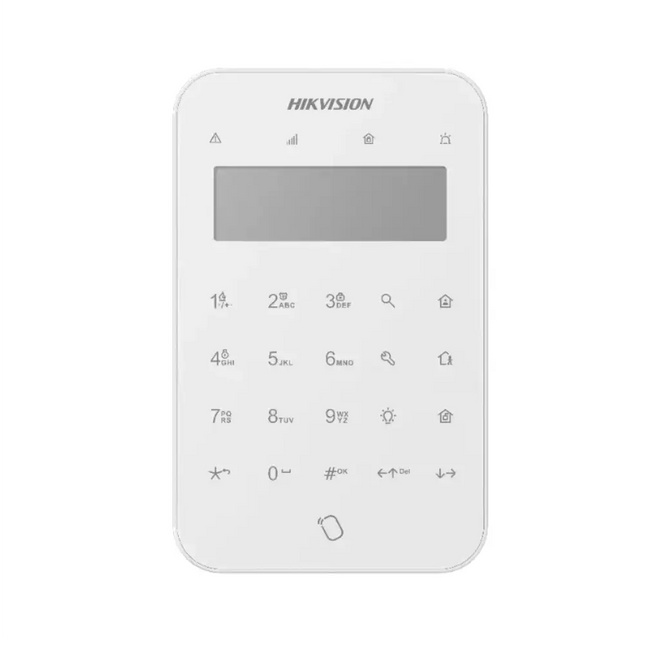

Hikvision AX PRO Series Wireless Keypad and Tag Reader 433MHz (DS-PK1-LT-WB)
433MHz two-way wireless communication
LCD screen and LED to indicate system status
System configuration through LCD screen
Multiple operations like stay/away arm, disarm, silent alarm, output control
One-Push fire alarm, panic alarm, and medical alarm
Full touch key design with LED backlight
Fully remote configurable through App
DownloadDatasheetQuick Start GuideUser Manual

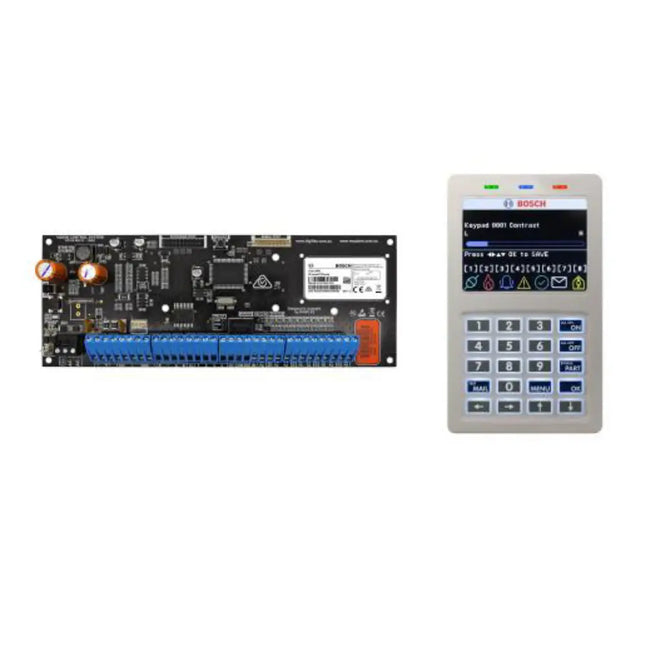

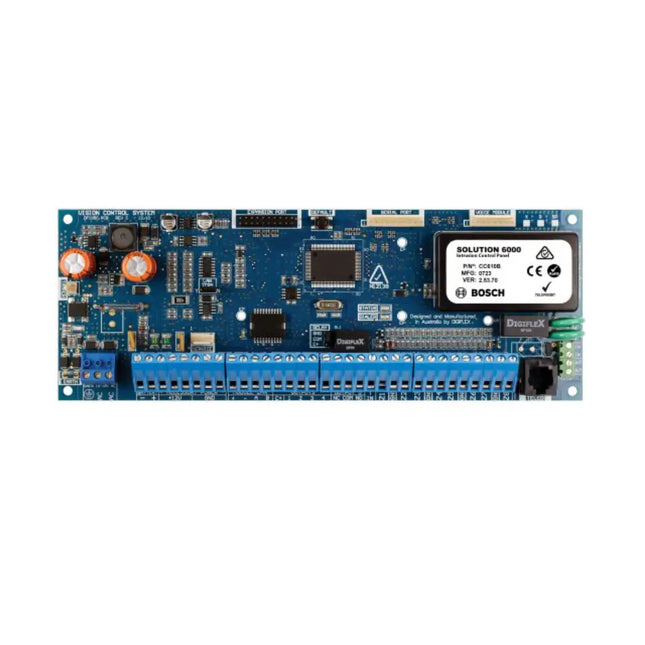

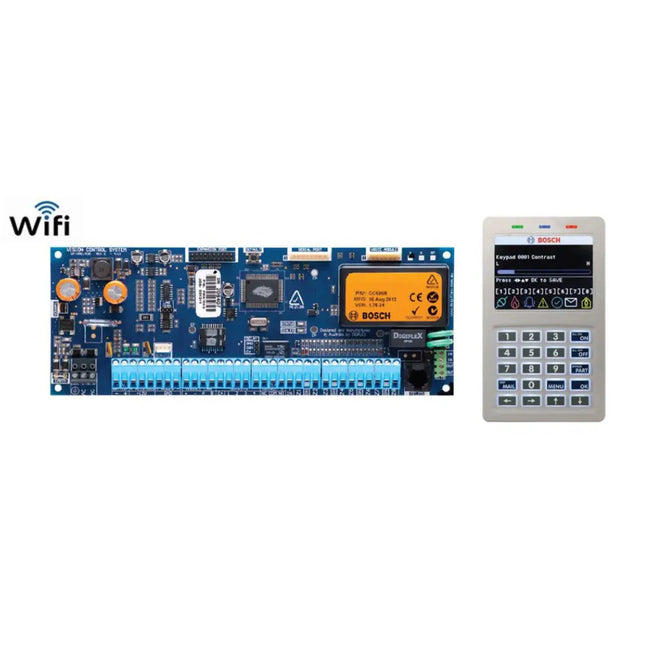

Bosch Solution 6000 Hardwired Alarm Panel PCB Board Kit With Built-in IP Module and Wi-Fi Keypad 16 X Zone Expandable to 144 Zones 5 X Outputs Expandable to 37 X Outputs 8 Areas 990 Users 16 Doors 2000 Events PCB Enclosure Mount 16-18VAC, BOSCC615GWF
Integrated access control for up to 16 doors
MiFare Smart Card keypads, weather-proof external metal keypads, Internal & External LAN readers available
IP Reporting via CSV-IP, Connetix, SIA, MyAlarm
5 onboard outputs (expandable to 37)
16 onboard zones (expandable to 144 wired or wireless), partitionable to 8 areas with 990 PIN, token, keyfob and Fingerprint users
Specification
Module Connection (RS485 LAN): Max. total LAN length using multi strand security cable = 300m Max. total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. See installation manual for complete wiring instructions.
Communications: CID, SIA, E-mail, Voice, GMS-SMS, Connetix IP, CSV-IP
Connectivity: Proprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported
Battery capacity (Ah): 7.2 Ah
Input voltage (VAC): 16 VAC – 18 VAC
Operating voltage (VDC): 10.2 VDC
Type of power supply: VAC; Battery
Battery Type: Bosch BA 12V 7.2AH or equivalent. (Secondary Power Source).
Battery Charger: Pulse by pulse charger. (Note: Charge voltage cannot be measured unless battery is fitted.)
Continuous Power: 1 Amp MAX (combined power drawn from Accessory Power (+12V) LAN Power (Module LAN +) and Output Power (C+) terminals must not exceed 1 Amp.
Power: +12VDC, 110mA Max (LAN powered +9VDC - +16VDC)
Operating temperature (°C): 0 °C – 55 °C
Operating relative humidity, non-condensing (%): 5% – 85%
Color: White
Dimensions (H x W x D) (mm): 149 mm x 88 mm x 21.5 mm
Wi-Fi standard: IEEE 802.11n; IEEE 802.11g; IEEE 802.11b
Display color: Color
DownloadDatasheet
Bosch SOL 6000 H/wired Graphics K/pad W/ Prox 4x3 STD WHT Alphanum LCD W/ Backlit Plastic Wall MTD 12VDC, BOSCP736B
Customizable Installer banner display
3.5” Color graphical display with LED backlight
40bit MiFare smart card reader built-in
Alpha-numeric text prompting/programming
Specification
Connectivity: Proprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported
Power: +12VDC, 110mA Max (LAN powered +9VDC - +16VDC)
Operating temperature (°C): 0 °C – 55 °C
Operating relative humidity, non-condensing (%): 5% – 85%
Color: White
Dimensions (H x W x D) (mm): 149 mm x 88 mm x 21.5 mm
Display color: Color
DownloadDatasheet
Bosch Hardwired Keypad White Alphanum LCD With Backlit Plastic Wall Mount 12VDC Suits Solution 2000/ 3000
3-line LCD display with up to 18 characters
Menu-style user interface makes system operation simple and easy
Highly visible on arm, disarm, power and fault indicators
Simple installation with self-locking base
Product Code: BOSIUI-SOL-TEXT
Product No.: F.01U.301.795
Specifications
Dimensions
139 mm x 117 mm x 23 mm
Display window
3 line display 18 characters per line
Votage
12 VDC norminal
Temperature (operating)
-10°C to +55°C
Relative humidity
5% to 95%, non-condensing
Parts Included
Quantity
Component
1
Keypad

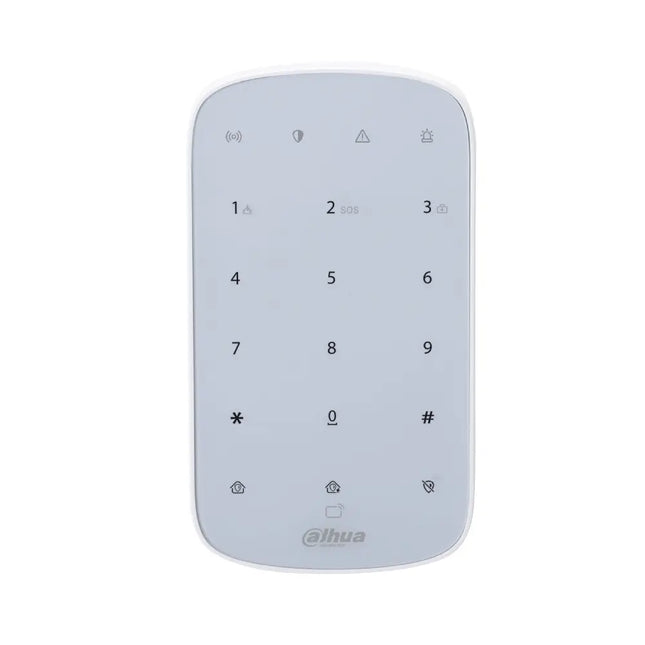

Dahua Wireless Keypad, ARK30T-W2
Supports 3 shortcut alarms: Medical, fire, emergency.
Arm/Disarm with password or IC card.
Supports signal strength detection to select suitable installation sites.
Low battery alarm.
Temperature measurement.
Frequency hopping function and two-way communication.
Cloud update and automatic recovery from update failure.
Downloads
DHI-ARK30T-W2 Datasheet

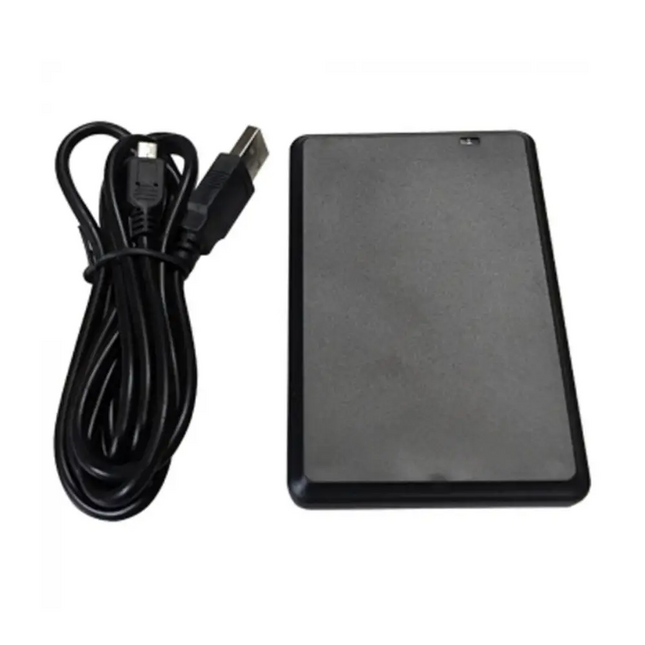

Bosch USB Desktop RDR Smartcard BLK Plastic Desktop MTD USB (5V) USB to PC/ Use With SOL Link/ Site Man to Register FOBS (Smart Cards Only), BOSCM439B
Specifications
Brand: Bosch
Device Type: Reader
Colour: Black
Alarm I/o: None
Material: Plastic
Mounting: Desktop Mount
Power: Usb Powered
Suits: Suits Sol 6000/ 144
DownloadUser-Guide
Bosch Solution 16I Hardwired Alarm Panel Blue 8x/16x Split Zone Not Expandable 4x Output Expand Up to 16 Zone 4 Areas 32 Users 8 Keypad 256 Events PCB Enclosure Mount Built in PSTN 2.8kg 18VAC
Specifications
Brand: Bosch
Series: Solution 16i
Wiring: Hardwired
Device Type: Alarm Panel
Colour: Blue
Zone: 8x/16x Split Zone
Expandable Zone: Not Expandable
Output: 4x Output
Expandable Output: Expand Up to 16 Zone
Area: Max 4 Areas
User: 32 Users
Max Keypads: 8 Keypad
Max Events: 256 Events
Material: Pcb
Mounting: Enclosure Mount
On Board Port: Built in Pstn
Weight: 2.8kg
Power: 18VAC
DownloadFamily-DatasheetRange-BrochureSolution-16I-MatrixUser-Manual
Bosch Solution 3000 Hardwired Alarm Panel With Enclosure White 8x/16x Split Zone Not Expandable 4x Output 2 Areas 32 Users 4 Keypad 16 Wireless 256 Events PCB Enclosure Mount Built in PSTN 18VAC, BOSICP-SOL3-PE
Specifications
Brand: Bosch
Series: Solution 3000
Wiring: Hardwired
Device Type: Alarm Panel With Enclosure
Colour: White
Zone: 8x/16x Split Zone
Expandable Zone: Not Expandable
Output: 4x Output
Area: Max 2 Areas
User: 32 Users
Max Keypads: 4 Keypad
Max Rf Zones: 16 Wireless
Max Events: 256 Events
Material: Pcb
Mounting: Enclosure Mount
On Board Port: Built in Pstn
Power: 18VAC
DownloadFamily-Datasheet

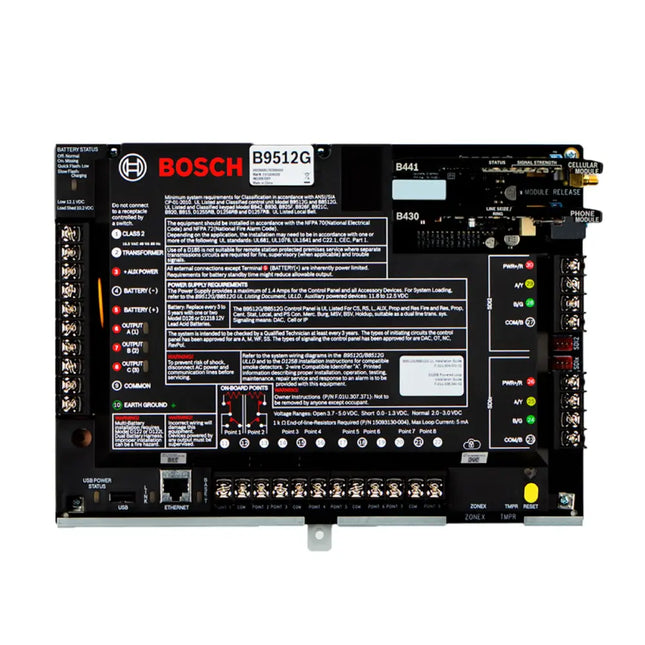

Bosch G-series Hardwired Alarm Panel/ Access Control Panel Black 8x Zone Expand Up to 599 Zone 3x Output Expand Up to 599 Zone 32 Areas 2000 Users 32 Doors 32 Keypad 504 Wireless 10,192 Events PCB Enclosure Mount 16-18VAC Max 16 IP CAM *required PSU*, BOSB9512G
Specifications
Brand: Bosch
Series: G-series
Wiring: Hardwired
Device Type: Alarm Panel/ Access Control Panel
Colour: Black
Zone: 8x Zone
Expandable Zone: Expand Up to 599 Zone
Output: 3x Output
Expandable Output: Expand Up to 599 Zone
Area: Max 32 Areas
User: 2000 Users
Max Doors: 32 Doors
Max Keypads: 32 Keypad
Max Rf Zones: 504 Wireless
Max Events: 10, 192 Events
Material: Pcb
Mounting: Enclosure Mount
Power: 16-18VAC
DownloadDatasheet
Bosch Solution 6000 Hardwired Alarm Panel/ Access Control Panel 16x Zone Expand Up to 144 Zone 5x Output Expand Up to 37 Zone 8 Areas 256 Users 16 Doors 16 Keypad 144 Wireless 1000 Events PCB Enclosure Mount Built in Dialler 16-18vac, BOSCC610PB
Specifications
Brand: Bosch
Series: Solution 6000
Wiring: Hardwired
Device Type: Alarm Panel/ Access Control Panel
Zone: 16x Zone
Expandable Zone: Expand Up to 144 Zone
Output: 5x Output
Expandable Output: Expand Up to 37 Zone
Area: Max 8 Areas
User: 256 Users
Max Doors: 16 Doors
Max Keypads: 16 Keypad
Max Rf Zones: 144 Wireless
Max Events: 1000 Events
Material: Pcb
Mounting: Enclosure Mount
On Board Port: Built in Dialler
Power: 16-18VAC
DownloadFamily-Datasheet

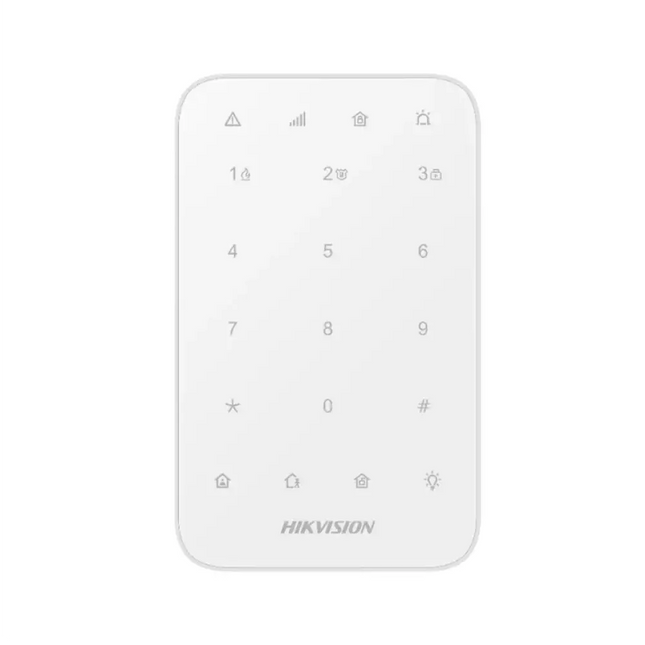

Hikvision AX PRO Series Wireless Keypad 433MHz (DS-PK1-E-WB)
433 MHz two-way wireless communication
AES-128 encryption
Stay/away arming, disarming, alarm clearing for specified area or all areas
LED indicates the programmed area
One-Push fire alarm, panic alarm, and medical alarm. Silent/Audible alarm selectable. etc.
Output control
Full touch key design with LED backlight
Fully remote configurable through App
Multiple enrollment methods and easy installation design
Easy replaceable battery
Frequency hopping against jamming for reliable transmission
DownloadDatasheetQuick Start GuideUser Manual

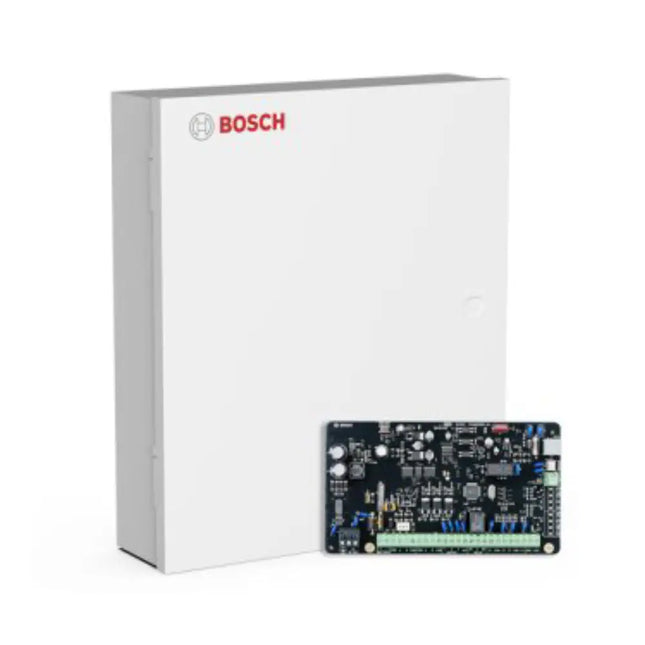

Bosch Solution 2000 Hardwired Alarm Panel With Enclosure White 8x Zone Not Expandable 4x Output 2 Areas 32 Users 4 Keypad 256 Events PCB Enclosure Mount Built in PSTN 18VAC, BOSICP-SOL2-PE
8/16 Fully Programmable Zones
41 Codes - 1 Installers, 20 User Codes, 20 RF Keyfobs
Partitionable into 2 Separate Areas
STAY / AWAY Arming Options
Specification
Dimensions (H x W x D) (mm): 374 x 322 x 87 mm
DownloadDatasheet

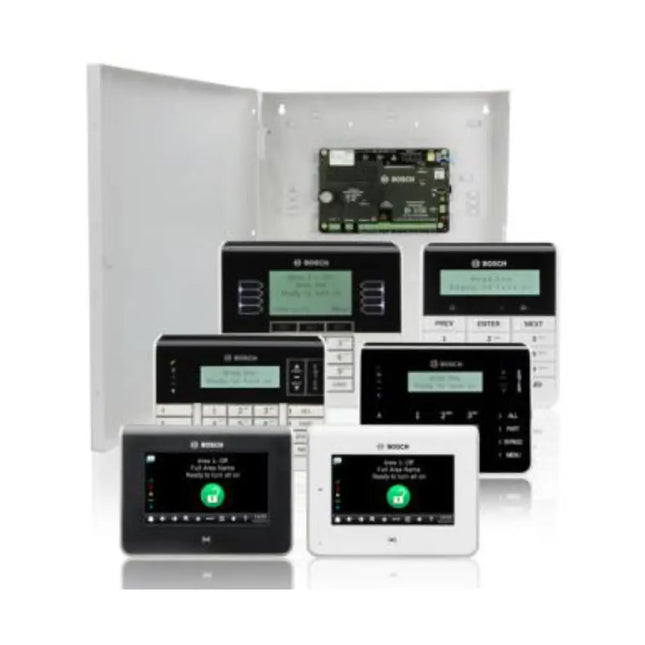

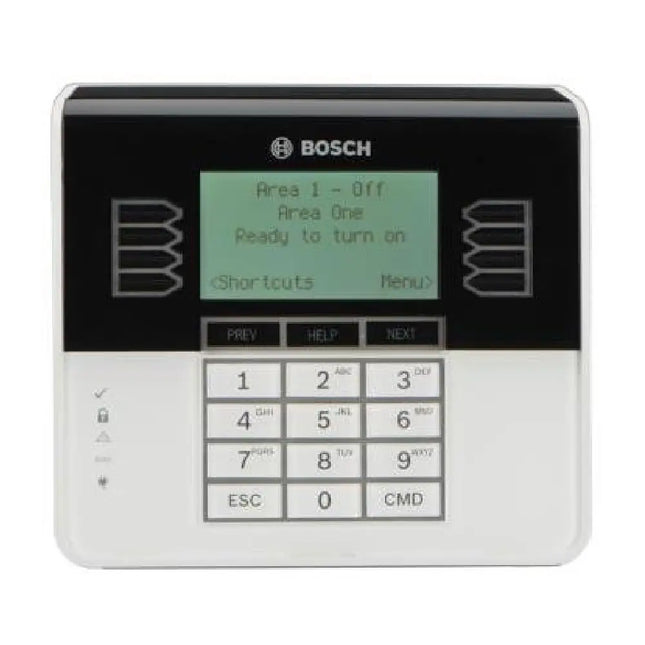

Bosch ATM-style LCD Alpha-numeric G Series Keypad Black, BOSB930
5-line ATM style LCD display with up to 32 character point, user, and area names
Simple menu-style user interface with dedicated function buttons for common commands
Programmable keypad shortcuts and situation sensitive on-screen help makes system operation simple and easy
Highly visible on (arm)/alarm, ready to turn on (arm), power and gas alarm indicators
Simple installation with self-locking base and chassis design, plus built-in bubble level
Specification
Cable length (m): 305 m
Color: Black
Current consumption (mA): 35 – 85 mA
Dimensions (H x W x D) (mm): 140 x 158 x 26 mm
Material: Plastic (ABS)
Nominal voltage (VDC): 12 VDC
Number of inputs: 4
Operating relative humidity, non-condensing (%): 5 – 93 %
Operating temperature (°C): 0 – 50 °C
Weight (kg): 0.40 kg
Wire size (AWG): 22 AWG
DownloadDatasheet

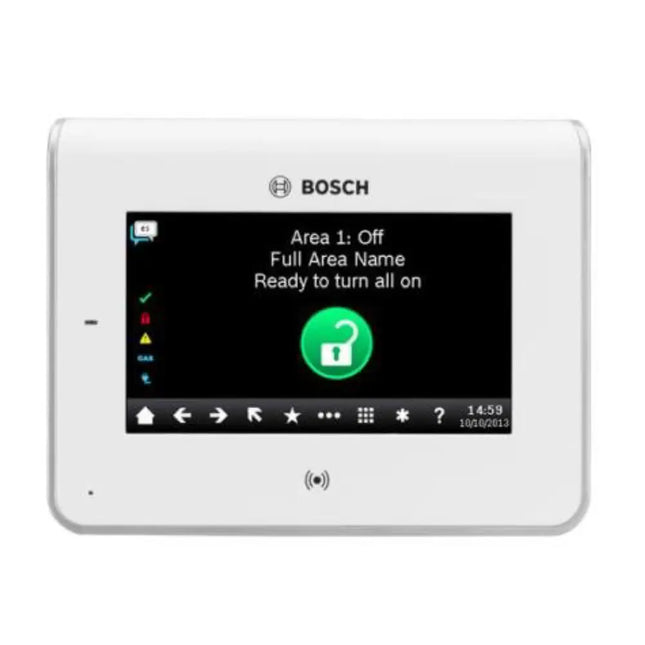

Bosch G-series Hardwired Touchscreen With Prox Reader White 4x Zone 1x Output 4.3" Touch Screen With Backlit Plastic Wall Mount SDI2 320g 12VDC, BOSB942W
Color graphic touch screen display
Built-in presence detector lights the display when user approaches keypad
Built-in proximity reader allows use of a token or card as replacement for a passcode, or for use with dual authentication for high security areas
Four inputs and one output provide cost effective expansion
Slim, modern design in the color white
Specification
Color: White
Current consumption (mA): 200 – 400 mA
Dimensions (H x W x D) (mm): 158 x 120 x 16.50 mm
Material: Plastic (ABS)
Nominal current (mA): 2.30 mA
Nominal voltage (VDC): 12 VDC
Number of inputs: 4
Number of outputs: 1
Operating relative humidity, non-condensing (%): 5 – 93 %
Operating temperature (°C): 0 – 50 °C
Usage: Indoor
Weight (kg): 0.32 kg
Wire size (AWG): 18 AWG
DownloadDatasheet

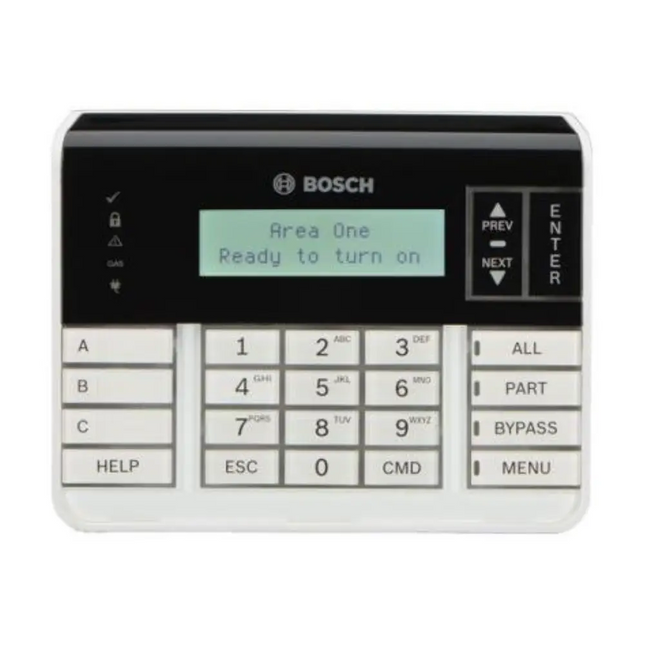

Bosch Standard LCD Alpha-numeric G Series Keypad Black/white, BOSB920
2-line LCD display with up to 32 character point, user, and area names
Simple menu-style user interface with dedicated function buttons for common commands, including status indication
Situation sensitive on-screen help makes system operation simple and easy
Highly visible on (arm)/alarm, ready to turn on (arm), power and gas alarm indicators
Simple installation with self-locking base and chassis design, plus built-in bubble level
Specification
Color: Black
Current consumption (mA): 35 – 70 mA
Dimensions (H x W x D) (mm): 158 x 120 x 26 mm
Keypad: Yes
Material: Plastic
Nominal voltage (VDC): 12 VDC
Operating relative humidity, non-condensing (%): 5 – 93 %
Operating temperature (°C): 0 – 50 °C
Usage: Indoor
Weight (kg): 0.32 kg
Wire size (AWG): 12 AWG
DownloadDatasheet
Axis T8312 Keypad, Professional 22 Button Keypad for Quick Navigation Between Workspaces, Camera Views and PTZ, 5020-201
For quick navigation between views
Modular system
Accurate control of PTZ cameras
Professional design
Durable quality
Easy to install
Bosch Hardwired Keypad White 7" Touch Screen With Backlit Plastic Wall Mount SDI2 12VDC Suits Solution 2000/ 3000
Durable touch screen with adjustable LED backlight
Graphic interface consisting of intuitive icons and menus
Language option, individually selectable by user
Setup wizard for easy configuration
Product Code: BOSIUI-SOL-TS7
Product No.: F.01U.303.249
Specifications
Dimensions
192.69 mm x 115.69 mm x 13.83 mm
Maximum screw size
6G pan head
Voltage (Operating)
12VDC
Current
Normal: 400mA Peak: 800mA
LCD
7” HD WXGA 1280 px x 800 px, IPS, 400 nits.
Touch Panel
5 point multi-touch, capacitive, GF glass touch sensor.
SD Card
MicroSD (SDHC) 2GB to 32GB
Compatibility
ICP-SOL2 & ICP-SOL3 Firmware version 1.0.3+
Parts Included
Quantity
Component
1
TouchOne keypad
1
Installation manual
