HIKVISION AX PRO SERIES
Next-Generation Wireless System Control & Monitoring

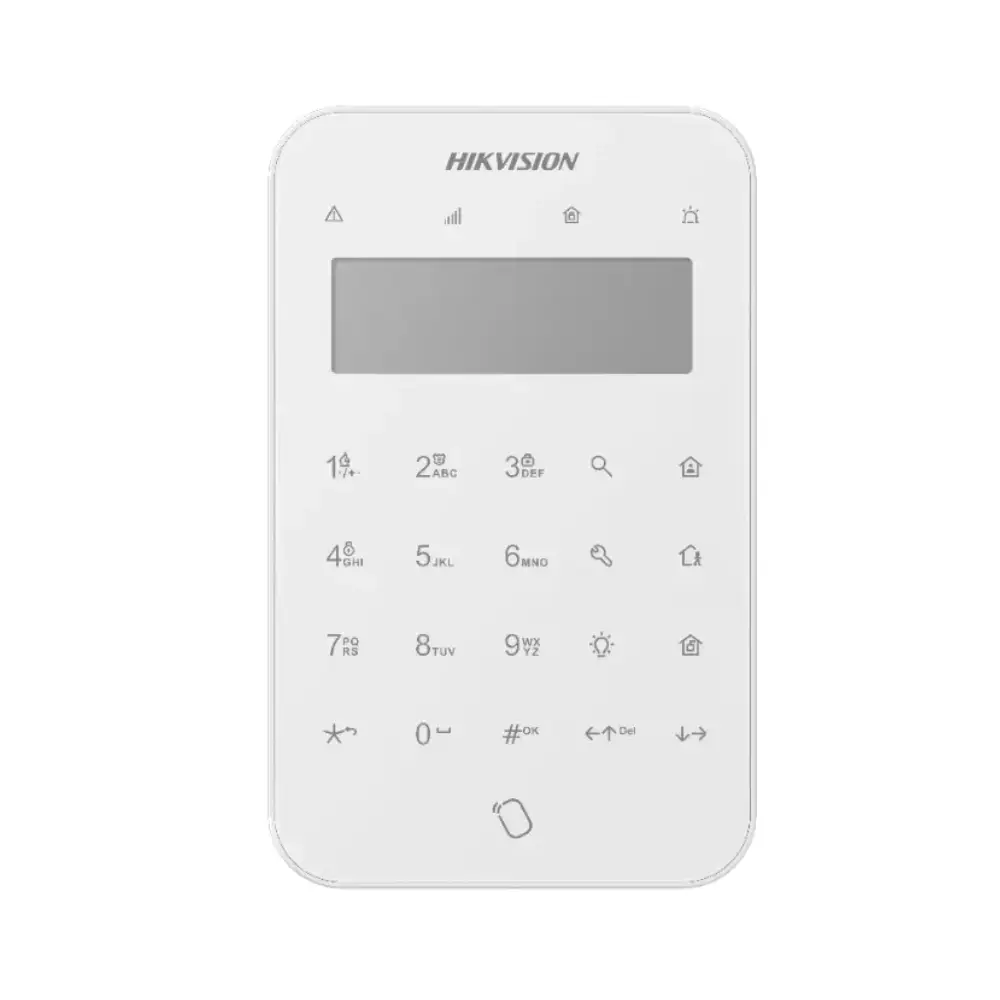

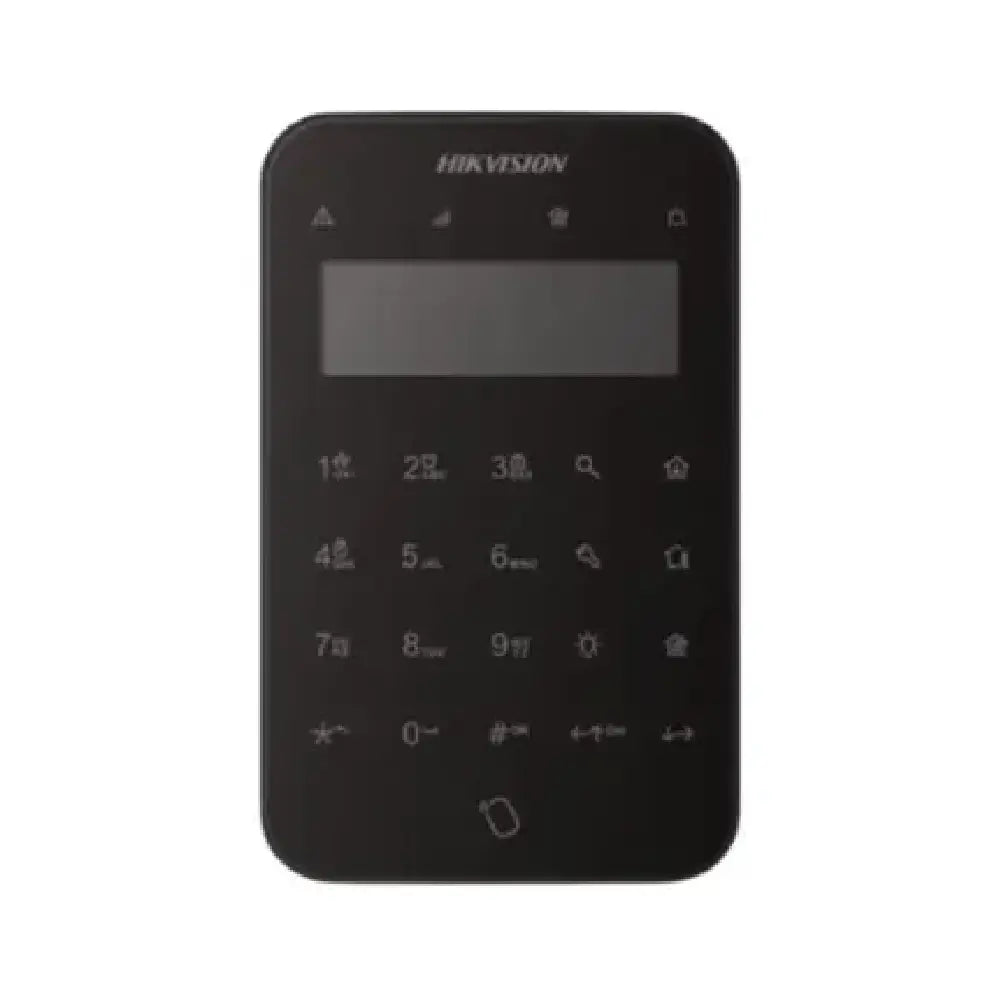

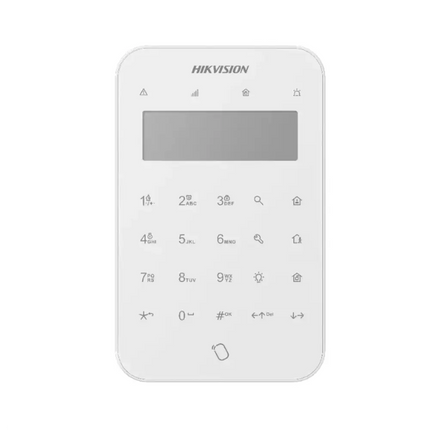

The DS-PK1-LT-WB is an advanced wireless LCD keypad designed for intuitive management of Hikvision AX PRO wireless intrusion alarm systems. Featuring a backlit LCD display, a full-touch key interface, and an integrated proximity tag reader, this unit provides seamless local system control for commercial offices, retail environments, and modern residential installations. Built to deliver reliable operation with two-way encrypted wireless communication, it streamlines daily arming, disarming, and emergency signaling without complex wiring.
Display & Interface
Backlit LCD + Touch Keys
RF Technology
433MHz Tri-X Wireless
Authentication
Built-In Tag Reader
Power & Lifespan
4x CR123A (Up to 2 Yrs)
Advanced Secure Wireless Protocol & Multi-Functional Control
Operating on a secure 433MHz two-way RF frequency utilizing Hikvision's proprietary Tri-X Wireless Technology, the Hikvision DS-PK1-LT-WB Wireless Keypad communicates across distances up to 800 meters in open areas. It features AES-128 encryption and frequency hopping to resist signal jamming and unauthorized interception. Users can execute multi-partition operations, view system fault diagnostics, configure system parameters directly on-screen, or trigger instant one-push Panic, Medical, and Fire emergency alarms. Additionally, remote management and pairing are simplified via the Hik-Connect mobile application.
Integrated Proximity Tag Reader
Streamline daily operations for employee or family access. Authorize users to instantly arm or disarm system zones by simply tapping a compatible RFID tag against the keypad face, eliminating the necessity of remembering numeric PIN codes.
Comprehensive Tamper & Diagnostic Alerts
Designed with dual tamper protection across both front and rear enclosures, any attempt to unmount or force open the casing triggers instant system alarms. The multi-color LED indicators and integrated buzzer provide real-time visual and acoustic feedback.
Technical Specification Matrix
| Camera Model |
DS-PK1-LT-WB |
| Wireless Frequency |
433 MHz (Tri-X Two-Way Wireless) |
| Transmission Range |
Up to 800 m (Open Space) |
| Display & Backlight |
LCD Screen with status LED indicators and touch-key LED backlight |
| Tag Reader |
Built-in RFID Tag Reader supported |
| Emergency Alarms |
One-Push Fire, Panic, and Medical Alarms |
| Tamper Protection |
Front and Rear tamper detection |
| Power Supply & Battery Life |
4 x CR123A 3V Batteries (Up to 2 years standby) |
| Dimensions & Weight |
174.63 mm x 109.62 mm x 25.25 mm (348 g with batteries) |
Is the DS-PK1-LT-WB compatible with all Hikvision AX PRO alarm hubs?
The DS-PK1-LT-WB operates on the 433MHz Tri-X wireless protocol and is designed specifically for 433MHz Hikvision AX PRO control panels. Please verify that your control hub uses the matching 433MHz frequency before deployment.
How long do the internal batteries typically last?
Powered by four CR123A batteries, the keypad provides up to 2 years of standby battery life depending on usage frequency, key backlight duration, and environment conditions.
How do emergency alarm buttons function on this keypad?
The keypad features designated one-push emergency function keys for Panic, Fire, and Medical alerts. When pressed, the keypad instantly transmits the specific emergency signal to the AX PRO control panel for immediate notification dispatch.
Can the keypad be configured using a smartphone?
Yes, installers and system owners can configure settings, adjust key functions, manage users/tags, and enroll the keypad into the control panel using the Hik-Connect or Hik-ProConnect app.
