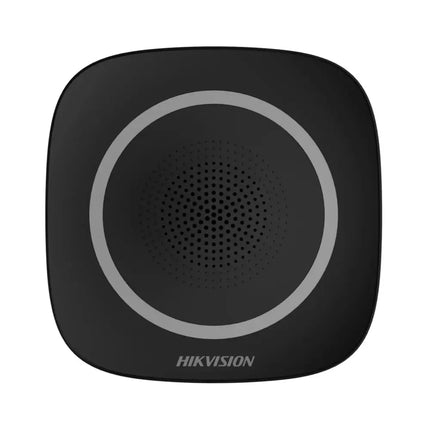

HIKVISION DS-PS1-I-WB AX PRO Wireless Internal Sounder

Description

HIKVISION AX PRO SERIES

Commercial Grade Wireless Sounder for Advanced Intrusion Alerting

The DS-PS1-I-WB is a high-performance two-way wireless internal sounder designed as a core audio alert component for the HIKVISION AX PRO wireless intrusion alarm system. Operating on a 433 MHz RF frequency with robust AES-128 encryption, it ensures immediate, tamper-proof acoustic signaling upon event triggers. Engineered for rapid installation in office spaces, retail environments, and residential properties, this indoor sounder features dynamic chime notifications, configurable decibel outputs up to 110 dB, and effortless app-based control via Hik-Connect.

Acoustic Output
90 to 110 dB Configurable
Wireless Protocol
433 MHz Tri-X Two-Way
Power & Battery
3x CR123A (Up to 3 Yrs)
Security Protection
Front/Rear Tamper Proof

Seamless Tri-X Wireless Integration & Enhanced Signal Protection

Built to deliver instant, high-decibel auditory deterrence, the DS-PS1-I-WB leverages proprietary Tri-X wireless technology to establish secure two-way transmission over distances up to 1,200 meters in open spaces. Utilizing frequency hopping and AES-128 encryption, the sounder effectively eliminates communication interference and unauthorized signal interception. System operators can remotely configure volume levels, strobe/sounder duration, and system prompt tones via the Hik-Connect mobile application, ensuring tailored acoustic behavior for entry/exit delays, alarm events, and system status changes.

Configurable High-Decibel Buzzer

Delivers clear, powerful audible alerts ranging from 90 dB to 110 dB. Multiple tone variations allow distinct acoustic differentiation between intrusion, fire, emergency, and entry/exit status chimes.

Smart App Enrollment & Management

Features fully automated remote enrollment via single-button pairing or QR code scanning. System administrators can configure all sounder operational parameters directly through the Hik-ProConnect or Hik-Connect interface.

Technical Specification Matrix
Camera Model DS-PS1-I-WB
RF Frequency 433 MHz
Modulation & Protocol 2GFSK / Tri-X Wireless Technology (Two-Way)
Transmission Range Up to 1,200 m (Open Area)
Audio Output & Decibel 90 dB to 110 dB Configurable Buzzer
Sounder Options Arm/Disarm Chime, Alarm Alert, Entry/Exit Delay Tones
Tamper Protection Front Cover & Wall Rear Mounting Tamper Detection
Power Supply & Battery 3x CR123A Batteries (Up to 3 Years Standby Life)
Operating Environment -10 °C to 57 °C (14 °F to 134 °F), Humidity 10% to 90%
Dimensions & Weight 88 x 88 x 32 mm (3.46" x 3.46" x 1.26"), 169.5 g
How is the DS-PS1-I-WB sounder paired with the AX PRO hub?

The sounder is enrolled wirelessly via the Hik-Connect app by scanning the QR code on the device housing or initiating automatic pairing mode directly on the AX PRO control panel.

What is the expected battery lifespan of this internal sounder?

Powered by three standard CR123A lithium batteries, the sounder delivers up to 3 years of operational life under normal standby and alert frequency usage.

Can the buzzer volume be adjusted for residential environments?

Yes, the sounder output is fully configurable via the software application, allowing custom settings from 90 dB up to a maximum 110 dB output.

What happens if someone attempts to remove or dismantle the sounder?

The unit features integrated front and rear tamper switches that immediately trigger an alarm and notify the central monitoring system/app if the cover is opened or the device is removed from the wall.

Technical Datasheet Quick Start Guide
Installation Manual
Official HIKVISION Stock
3-Year Commercial Warranty
Aust-Wide Delivery

HIKVISION DS-PS1-I-WB AX PRO Wireless Internal Sounder

Product form

SKU: DS-PS1-I-WB-1

$102.00  $79.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    HIKVISION AX PRO SERIES

    Commercial Grade Wireless Sounder for Advanced Intrusion Alerting

    The DS-PS1-I-WB is a high-performance two-way wireless internal sounder designed as a core audio alert component for the HIKVISION AX PRO wireless intrusion alarm system. Operating on a 433 MHz RF frequency with robust AES-128 encryption, it ensures immediate, tamper-proof acoustic signaling upon event triggers. Engineered for rapid installation in office spaces, retail environments, and residential properties, this indoor sounder features dynamic chime notifications, configurable decibel outputs up to 110 dB, and effortless app-based control via Hik-Connect.

    Acoustic Output
    90 to 110 dB Configurable
    Wireless Protocol
    433 MHz Tri-X Two-Way
    Power & Battery
    3x CR123A (Up to 3 Yrs)
    Security Protection
    Front/Rear Tamper Proof

    Seamless Tri-X Wireless Integration & Enhanced Signal Protection

    Built to deliver instant, high-decibel auditory deterrence, the DS-PS1-I-WB leverages proprietary Tri-X wireless technology to establish secure two-way transmission over distances up to 1,200 meters in open spaces. Utilizing frequency hopping and AES-128 encryption, the sounder effectively eliminates communication interference and unauthorized signal interception. System operators can remotely configure volume levels, strobe/sounder duration, and system prompt tones via the Hik-Connect mobile application, ensuring tailored acoustic behavior for entry/exit delays, alarm events, and system status changes.

    Configurable High-Decibel Buzzer

    Delivers clear, powerful audible alerts ranging from 90 dB to 110 dB. Multiple tone variations allow distinct acoustic differentiation between intrusion, fire, emergency, and entry/exit status chimes.

    Smart App Enrollment & Management

    Features fully automated remote enrollment via single-button pairing or QR code scanning. System administrators can configure all sounder operational parameters directly through the Hik-ProConnect or Hik-Connect interface.

    Technical Specification Matrix
    Camera Model DS-PS1-I-WB
    RF Frequency 433 MHz
    Modulation & Protocol 2GFSK / Tri-X Wireless Technology (Two-Way)
    Transmission Range Up to 1,200 m (Open Area)
    Audio Output & Decibel 90 dB to 110 dB Configurable Buzzer
    Sounder Options Arm/Disarm Chime, Alarm Alert, Entry/Exit Delay Tones
    Tamper Protection Front Cover & Wall Rear Mounting Tamper Detection
    Power Supply & Battery 3x CR123A Batteries (Up to 3 Years Standby Life)
    Operating Environment -10 °C to 57 °C (14 °F to 134 °F), Humidity 10% to 90%
    Dimensions & Weight 88 x 88 x 32 mm (3.46" x 3.46" x 1.26"), 169.5 g
    How is the DS-PS1-I-WB sounder paired with the AX PRO hub?

    The sounder is enrolled wirelessly via the Hik-Connect app by scanning the QR code on the device housing or initiating automatic pairing mode directly on the AX PRO control panel.

    What is the expected battery lifespan of this internal sounder?

    Powered by three standard CR123A lithium batteries, the sounder delivers up to 3 years of operational life under normal standby and alert frequency usage.

    Can the buzzer volume be adjusted for residential environments?

    Yes, the sounder output is fully configurable via the software application, allowing custom settings from 90 dB up to a maximum 110 dB output.

    What happens if someone attempts to remove or dismantle the sounder?

    The unit features integrated front and rear tamper switches that immediately trigger an alarm and notify the central monitoring system/app if the cover is opened or the device is removed from the wall.

    Technical Datasheet Quick Start Guide
    Installation Manual
    Official HIKVISION Stock
    3-Year Commercial Warranty
    Aust-Wide Delivery
