Uniview UNV · 4 × 6MP OwlView ColorHunter · 24/7 Full Colour · 8CH AI IQ NVR · NDAA 4 × 6MP OwlView Kit Uniview UNV 6MP OwlView CCTV Kit — 4 × Full 24/7 Colour Cameras + 8-Channel AI IQ NVR This Uniview UNV 6MP OwlView kit pairs four IPC3626LE-ADF28K-WP ColorHunter turret cameras with the NVR501-08B-P8-IQ 8-channel AI IQ recorder for true full-colour surveillance around the clock. Each camera uses a large 1/1.8″ sensor, a fast F1.0 2.8 mm lens and Wise-ISP processing to capture bright, vivid colour after dark — with smart warm-light LEDs reaching 30 m for driveways, yards and entries. All four run on a single Cat6 cable each into the NVR's 8 built-in PoE ports, leaving 4 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Available in white or black. Cameras 4 × 6MP OwlView ColorHunter Recorder 8CH AI IQ NVR · 8 PoE Night Vision 24/7 Full Colour · 30 m AI Search AcuSearch · AcuTrack · SeekFree Audio Built-in Mic Weatherproof IP67 Rated OwlView ColorHunter — Full Colour All Night The 1/1.8″ sensor, F1.0 lens and Wise-ISP processing capture true full-colour detail in near-darkness, with smart warm-light LEDs to 30 m — so you record clothing colour, faces and vehicles in colour 24/7, not just black-and-white IR. Smart AI Detection On-camera human and vehicle detection with line-crossing and intrusion alerts filters out trees, rain and shadows, so only real events reach your phone. 120 dB true WDR keeps bright and shaded areas balanced. AI IQ Recorder — Find Events Fast The NVR501-IQ adds AcuSearch, AcuTrack and SeekFree: filter footage by people or vehicles, follow a target across cameras, or search recordings in plain language — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Eight built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 4 spare channels to grow into. What's Included 4 × Cameras IPC3626LE-ADF28K-WP — 6MP OwlView ColorHunter turret, 1/1.8″ sensor, F1.0 2.8 mm lens, warm light to 30 m, 120 dB WDR, built-in mic, IP67. White or black option available. 1 × Recorder NVR501-08B-P8-IQ — 8-channel 4K AI IQ NVR, 8 built-in PoE ports, 1 SATA bay (to 16 TB), 4K HDMI + VGA, AcuSearch/AcuTrack/SeekFree. 4 channels used, 4 spare. Power 8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits four 6MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Homes & residential Full-colour night coverage of the front door, driveway, yard and side access on a single recorder. Retail shopfronts Colour identification at the till and entry, with clear footage across aisles and the stockroom. Offices & reception Colour ID at reception and entries, plus cover of corridors and back exits. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Warehouses & yards Colour on the loading dock and gate, with room to add 4 more cameras as the site grows. Small business A clean 4-camera full-colour system with AI search and 4 spare channels to scale up later. Camera — Uniview UNV IPC3626LE-ADF28K-WP (×4) Camera Type 6MP OwlView ColorHunter Fixed Eyeball Turret (Wise-ISP) Image Sensor 1/1.8″ progressive-scan CMOS Max. Resolution 6MP · 3072 × 2048 @ 25 fps Lens Fixed 2.8 mm @ F1.0 (wide field of view) Night Vision ColorHunter + Wise-ISP — true full colour · smart warm light up to 30 m Wide Dynamic Range 120 dB true WDR · 2D/3D DNR · BLC/HLC · Digital Defog Smart Analytics Human & vehicle detection · line crossing · intrusion Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG · dual streams Edge Storage MicroSD up to 512 GB · ANR · NAS Power PoE (IEEE 802.3af) · max ~2.8 W Ingress Protection IP67 · 4 kV surge · −30 °C ~ 60 °C Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-08B-P8-IQ Channels 8 IP channels (4 used, 4 spare) Built-in PoE 8 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 75 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SeekFree · SmartSearch VCA (by IPC) Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD · People Counting Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 16 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~12 days continuous · ~25 days motion-based 4 TB ~24 days continuous · ~50 days motion-based 8 TB ~48 days continuous · ~100 days motion-based 12 TB ~70 days continuous · ~150 days motion-based 16 TB (max) ~95 days continuous · ~200 days motion-based Retention depends on your cameras. Figures above assume all 4 × 6MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep warm-light LEDs clear of walls and eaves to avoid glare. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3626LE-ADF28K-WP Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do the cameras record in colour at night?Yes. These are OwlView ColorHunter cameras — the 1/1.8″ sensor, F1.0 lens and Wise-ISP deliver true full-colour video 24/7, with warm-light LEDs reaching up to 30 m in dark scenes. Is this kit NDAA compliant?Yes. Both the Uniview UNV ColorHunter cameras and the NVR501-08B-P8-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. How much recording time will I get?It depends on your cameras and settings. With all 4 × 6MP cameras recording continuously, roughly 4 TB holds about 3–4 weeks; switching to motion/smart-event recording or fewer cameras extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 4, so you can add up to 4 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch, AcuTrack and SeekFree?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, AcuTrack follows a target across cameras, and SeekFree lets you search recordings by typing what you're after — so you find events in seconds. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 4 × 8MP OwlView ColorHunter · 24/7 Full Colour · 8CH AI IQ NVR · NDAA 4 × 8MP OwlView Kit Uniview UNV 8MP OwlView CCTV Kit — 4 × Full 24/7 Colour Cameras + 8-Channel AI IQ NVR This Uniview UNV 8MP OwlView kit pairs four IPC3628LE-ADF28K-WP ColorHunter turret cameras with the NVR501-08B-P8-IQ 8-channel AI IQ recorder for true full-colour surveillance around the clock. Each camera uses a large 1/1.8″ sensor, a fast F1.0 2.8 mm lens and Wise-ISP processing to capture bright, vivid colour after dark — with smart warm-light LEDs reaching 30 m for driveways, yards and entries. All four run on a single Cat6 cable each into the NVR's 8 built-in PoE ports, leaving 4 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Available in white or black. Cameras 4 × 8MP OwlView ColorHunter Recorder 8CH AI IQ NVR · 8 PoE Night Vision 24/7 Full Colour · 30 m AI Search AcuSearch · AcuTrack · SeekFree Audio Built-in Mic Weatherproof IP67 Rated OwlView ColorHunter — Full Colour All Night The 1/1.8″ sensor, F1.0 lens and Wise-ISP processing capture true full-colour 4K detail in near-darkness, with smart warm-light LEDs to 30 m — so you record clothing colour, faces and vehicles in colour 24/7, not just black-and-white IR. Smart AI Detection On-camera human and vehicle detection with line-crossing and intrusion alerts filters out trees, rain and shadows, so only real events reach your phone. 120 dB true WDR keeps bright and shaded areas balanced. AI IQ Recorder — Find Events Fast The NVR501-IQ adds AcuSearch, AcuTrack and SeekFree: filter footage by people or vehicles, follow a target across cameras, or search recordings in plain language — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Eight built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 4 spare channels to grow into. What's Included 4 × Cameras IPC3628LE-ADF28K-WP — 8MP OwlView ColorHunter turret, 1/1.8″ sensor, F1.0 2.8 mm lens, warm light to 30 m, 120 dB WDR, built-in mic, IP67. White or black option available. 1 × Recorder NVR501-08B-P8-IQ — 8-channel 4K AI IQ NVR, 8 built-in PoE ports, 1 SATA bay (to 16 TB), 4K HDMI + VGA, AcuSearch/AcuTrack/SeekFree. 4 channels used, 4 spare. Power 8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits four 8MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Homes & residential Full-colour night coverage of the front door, driveway, yard and side access on a single recorder. Retail shopfronts Colour identification at the till and entry, with clear footage across aisles and the stockroom. Offices & reception Colour ID at reception and entries, plus cover of corridors and back exits. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Warehouses & yards Colour on the loading dock and gate, with room to add 4 more cameras as the site grows. Small business A clean 4-camera full-colour system with AI search and 4 spare channels to scale up later. Camera — Uniview UNV IPC3628LE-ADF28K-WP (×4) Camera Type 8MP OwlView ColorHunter Fixed Eyeball Turret (Wise-ISP) Image Sensor 1/1.8″ progressive-scan CMOS Max. Resolution 8MP · 3840 × 2160 @ 20 fps Lens Fixed 2.8 mm @ F1.0 (wide field of view) Night Vision ColorHunter + Wise-ISP — true full colour · smart warm light up to 30 m Wide Dynamic Range 120 dB true WDR · 2D/3D DNR · BLC/HLC · Digital Defog Smart Analytics Human & vehicle detection · line crossing · intrusion Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG · dual streams Edge Storage MicroSD up to 512 GB · ANR · NAS Power PoE (IEEE 802.3af) Ingress Protection IP67 · 4 kV surge · −30 °C ~ 60 °C Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-08B-P8-IQ Channels 8 IP channels (4 used, 4 spare) Built-in PoE 8 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 75 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SeekFree · SmartSearch VCA (by IPC) Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD · People Counting Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 16 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~11 days continuous · ~24 days motion-based 4 TB ~23 days continuous · ~48 days motion-based 8 TB ~46 days continuous · ~97 days motion-based 12 TB ~69 days continuous · ~145 days motion-based 16 TB (max) ~92 days continuous · ~195 days motion-based Retention depends on your cameras. Figures above assume all 4 × 8MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep warm-light LEDs clear of walls and eaves to avoid glare. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3628LE-ADF28K-WP Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do the cameras record in colour at night?Yes. These are 8MP OwlView ColorHunter cameras — the 1/1.8″ sensor, F1.0 lens and Wise-ISP deliver true full-colour video 24/7, with warm-light LEDs reaching up to 30 m in dark scenes. Is this kit NDAA compliant?Yes. Both the Uniview UNV ColorHunter cameras and the NVR501-08B-P8-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. How much recording time will I get?It depends on your cameras and settings. With all 4 × 8MP cameras recording continuously, roughly 4 TB holds about 3 weeks; switching to motion/smart-event recording or fewer cameras extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 4, so you can add up to 4 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch, AcuTrack and SeekFree?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, AcuTrack follows a target across cameras, and SeekFree lets you search recordings by typing what you're after — so you find events in seconds. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 4 × 8MP TriGuard · Strobe + Siren + Two-Way Audio · 8CH AI IQ NVR · NDAA 4 × 8MP TriGuard Kit GR-UNV-48TC8R · 4 × 8MP All-in-One Active-Deterrence Cameras + 8CH AI NVR — Australian Stock & 3-Year Warranty This Uniview UNV 8MP TriGuard kit pairs four IPC3638SS-ADF28KMC-I1 Tri-Guard turret cameras with the NVR501-08B-P8-IQ 8-channel AI IQ recorder for proactive, full-colour protection around the clock. Each 4K camera combines ColorHunter 24/7 full colour, a fast F1.0 2.8 mm lens and active deterrence — a built-in strobe, audible siren and two-way audio that trigger on AI human/vehicle detection to warn intruders off in real time. All four run on a single Cat6 cable each into the NVR's 8 built-in PoE ports, leaving 4 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 4 × 8MP TriGuard 4K Recorder 8CH AI IQ NVR · 8 PoE Deterrence Strobe + Siren Night Vision 24/7 Full Colour Audio Two-Way Talk Weatherproof IP67 Rated TriGuard Active Deterrence When the AI detects a person or vehicle, each camera flashes its strobe, sounds an audible siren and lets you talk through two-way audio — proactive protection that warns intruders off, not just after-the-fact evidence. ColorHunter — Full Colour 24/7 A super-fast F1.0 2.8 mm lens with ColorHunter warm-light imaging captures vivid full-colour 4K detail even in darkness — so you record clothing colour, faces and vehicles in colour around the clock, not grainy black-and-white IR. AI IQ Recorder — Find Events Fast The NVR501-IQ adds AcuSearch, AcuTrack and SeekFree: filter footage by people or vehicles, follow a target across cameras, or search recordings in plain language — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Eight built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 4 spare channels to grow into. What's Included 4 × Cameras IPC3638SS-ADF28KMC-I1 — 8MP 4K TriGuard turret, 2.8 mm F1.0 lens, ColorHunter 24/7 colour, strobe + siren + two-way audio, 120 dB WDR, built-in mic, IP67. White or black option available. 1 × Recorder NVR501-08B-P8-IQ — 8-channel 4K AI IQ NVR, 8 built-in PoE ports, 1 SATA bay (to 16 TB), 4K HDMI + VGA, AcuSearch/AcuTrack/SeekFree. 4 channels used, 4 spare. Power 8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits four 8MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Homes & residential Active deterrence and full-colour night coverage of the front door, driveway, yard and side access on a single recorder. Retail shopfronts Strobe-and-siren warning at entries plus colour ID at the till, with clear 4K footage across aisles and the stockroom. Offices & reception Two-way talk at reception and entries, plus deterrence and cover of corridors and back exits after hours. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Warehouses & yards Active warning on the loading dock and gate, with room to add 4 more cameras as the site grows. Small business A clean 4-camera active-deterrence system with AI search and 4 spare channels to scale up later. Camera — Uniview UNV IPC3638SS-ADF28KMC-I1 (×4) Camera Type 8MP 4K TriGuard Fixed Turret (ColorHunter · active deterrence) Max. Resolution 8MP 4K · 3840 × 2160 Lens Fixed 2.8 mm @ F1.0 · ~110° horizontal Night Vision ColorHunter — true 24/7 full colour (warm light) Wide Dynamic Range 120 dB true WDR Active Deterrence Built-in strobe + audible siren · two-way audio (triggers on AI detection) Smart Analytics Smart Intrusion Prevention — human / vehicle classification Audio Built-in mic + speaker · two-way audio Compression Ultra 265 / H.265 / H.264 / MJPEG Edge Storage MicroSD · ANR Power PoE (IEEE 802.3af) / DC 12V Ingress Protection IP67 weatherproof turret Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-08B-P8-IQ Channels 8 IP channels (4 used, 4 spare) Built-in PoE 8 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 75 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SeekFree · SmartSearch VCA (by IPC) Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD · People Counting Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 16 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~12 days continuous · ~25 days motion-based 4 TB ~23 days continuous · ~48 days motion-based 8 TB ~46 days continuous · ~97 days motion-based 12 TB ~69 days continuous · ~145 days motion-based 16 TB (max) ~93 days continuous · ~195 days motion-based Retention depends on your cameras. Figures above assume all 4 × 8MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep warm-light LEDs clear of walls and eaves to avoid glare. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3638SS-ADF28KMC-I1 Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual How does the active deterrence work?When the camera's AI detects a person or vehicle, it flashes a strobe, sounds an audible siren and lets you speak through two-way audio — warning intruders off in real time rather than just recording them. Do the cameras record in colour at night?Yes. These are ColorHunter TriGuard cameras — the F1.0 lens and warm-light technology deliver true full-colour 4K video 24/7, not grainy black-and-white IR. Is this kit NDAA compliant?Yes. Both the Uniview UNV TriGuard cameras and the NVR501-08B-P8-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. Does it support two-way audio?Yes. Each camera has a built-in mic and speaker, so you can listen and talk live through the app or NVR to challenge trespassers or greet visitors (check local laws before recording audio). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 4, so you can add up to 4 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch, AcuTrack and SeekFree?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, AcuTrack follows a target across cameras, and SeekFree lets you search recordings by typing what you're after — so you find events in seconds. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 4 × 8MP IR Turret · Smart IR 30 m · 8CH AI NVR · NDAA 4 × 8MP IR Kit Uniview UNV 4K CCTV Kit — 4 × 8MP IR Turret Cameras + 8-Channel AI NVR This Uniview UNV 4K kit pairs four IPC3618LE-ADF28K-GM 8MP EasyStar turret cameras with the NVR501-08B-P8-IQ 8-channel AI recorder for ultra-clear 4K surveillance day and night. Each camera uses a 1/2.7″ sensor and a wide 2.8 mm lens with EasyStar low-light imaging and 120 dB true WDR, plus Smart IR night vision up to 30 m for crisp black-and-white footage after dark. All four run on a single Cat6 cable each into the NVR's 8 built-in PoE ports, leaving 4 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 4 × 8MP IR Turret Recorder 8CH AI NVR · 8 PoE Night Vision Smart IR up to 30 m AI Search AcuSearch · AcuTrack · SeekFree Audio Built-in Mic Weatherproof IP67 Rated 4K Ultra-HD Detail Four 8MP (3840 × 2160) turret cameras capture faces, number plates and product labels with clarity that 1080p systems simply can't match — across entries, driveways, yards and shopfronts. Smart IR Night Vision EasyStar low-light processing and 120 dB true WDR balance bright and shaded scenes, while Smart IR LEDs deliver crisp black-and-white footage up to 30 m after dark. AI Recorder — Find Events Fast The NVR501-IQ adds AcuSearch, AcuTrack and SeekFree: filter footage by people or vehicles, follow a target across cameras, or search recordings in plain language — find what you need in seconds. One-Cable PoE Install Eight built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 4 spare channels to grow into. What's Included 4 × Cameras IPC3618LE-ADF28K-GM — 8MP (4K) EasyStar IR turret, 1/2.7″ sensor, 2.8 mm wide lens, Smart IR to 30 m, 120 dB WDR, built-in mic, IP67. 1 × Recorder NVR501-08B-P8-IQ — 8-channel 4K AI IQ NVR, 8 built-in PoE ports, 1 SATA bay (to 16 TB), 4K HDMI + VGA, AcuSearch/AcuTrack/SeekFree. 4 channels used, 4 spare. Power 8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits four 8MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Homes & residential 4K coverage of the front door, driveway, yard and side access on a single recorder. Retail shopfronts Sharp footage at the till and entry, with clear detail across aisles and the stockroom. Offices & reception Clear ID at reception and entries, plus cover of corridors and back exits. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Warehouses & yards 4K detail on the loading dock and gate, with room to add 4 more cameras as the site grows. Small business A clean 4-camera 4K system with AI search and 4 spare channels to scale up later. Camera — Uniview UNV IPC3618LE-ADF28K-GM (×4) Camera Type 8MP (4K) EasyStar Fixed Eyeball Turret · IR Image Sensor 1/2.7″ progressive-scan CMOS Max. Resolution 8MP · 3840 × 2160 @ 20 fps (5MP/4MP/2MP options) Lens Fixed 2.8 mm (wide field of view) Night Vision Smart IR up to 30 m · black-and-white at night Low-Light / WDR EasyStar starlight · 120 dB true WDR Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG · dual streams Edge Storage MicroSD up to 256 GB Power PoE (IEEE 802.3af) Ingress Protection IP67 weatherproof · 3-axis turret Network RJ45 · ONVIF Profile S/G/T · RTSP Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-08B-P8-IQ Channels 8 IP channels (4 used, 4 spare) Built-in PoE 8 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 75 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SeekFree · SmartSearch VCA (by IPC/NVR) Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD · People Counting Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 16 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~12 days continuous · ~24 days motion-based 4 TB ~23 days continuous · ~48 days motion-based 8 TB ~46 days continuous · ~97 days motion-based 12 TB ~69 days continuous · ~145 days motion-based 16 TB (max) ~93 days continuous · ~195 days motion-based Retention depends on your cameras. Figures above assume all 4 × 8MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep IR LEDs clear of walls and eaves to avoid glare and reflection at night. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3618LE-ADF28K-GM Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do the cameras record in colour at night?These are IR turret cameras — at night they use Smart IR LEDs (up to 30 m) for crisp black-and-white night vision. EasyStar low-light processing still delivers detailed footage at dusk. For full-colour night vision, choose a ColorHunter kit. Is this kit NDAA compliant?Yes. Both the Uniview UNV IPC3618LE-ADF28K-GM cameras and the NVR501-08B-P8-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. How much recording time will I get?It depends on your cameras and settings. With all 4 × 8MP cameras recording continuously, roughly 4 TB holds about 3 weeks; switching to motion/smart-event recording or fewer cameras extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 4, so you can add up to 4 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch, AcuTrack and SeekFree?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, AcuTrack follows a target across cameras, and SeekFree lets you search recordings by typing what you're after — so you find events in seconds. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 4 × 6MP IR Turret · Smart IR 30 m · 4 or 8CH AI NVR · NDAA 4 × 6MP IR Kit Uniview UNV 6MP CCTV Kit — 4 × IR Turret Cameras + 4 or 8-Channel AI NVR This Uniview UNV 6MP kit pairs four IPC3616LE-ADF28KM-G 6MP EasyStar turret cameras with your choice of the NVR501-04B-P4-IQ (4-channel) or NVR501-08B-P8-IQ (8-channel) AI recorder. Each camera uses a 1/2.7″ sensor and a wide 2.8 mm lens with EasyStar low-light imaging and 120 dB true WDR, plus Smart IR night vision up to 30 m for crisp black-and-white footage after dark. Each camera runs on a single Cat6 cable into the NVR's built-in PoE ports. Pick the 8-channel recorder if you want 4 spare channels to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 4 × 6MP IR Turret Recorder 4 or 8CH AI NVR · PoE Night Vision Smart IR up to 30 m AI Search AcuSearch · AcuTrack Audio Built-in Mic Weatherproof IP67 · IK10 6MP Sharp Detail Four 6MP (3072 × 2048) turret cameras capture faces, vehicles and entries with crisp detail — with a wide ~112° field of view ideal for driveways, yards and shopfronts. Smart IR Night Vision EasyStar low-light processing and 120 dB true WDR balance bright and shaded scenes, while Smart IR LEDs deliver crisp black-and-white footage up to 30 m after dark. AI Recorder — Find Events Fast The NVR501-IQ adds AcuSearch and AcuTrack: filter footage by people or vehicles and follow a target across cameras — the 8-channel model adds SeekFree text search too. One-Cable PoE Install Built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output and free EZCloud/UNV-Link remote viewing. What's Included 4 × Cameras IPC3616LE-ADF28KM-G — 6MP EasyStar IR turret, 1/2.7″ sensor, 2.8 mm wide lens (~112°), Smart IR to 30 m, 120 dB WDR, built-in mic, IP67 + IK10 metal body. 1 × Recorder Choose NVR501-04B-P4-IQ (4-channel, 4 PoE) or NVR501-08B-P8-IQ (8-channel, 8 PoE, 4 spare). Both are 4K AI IQ NVRs with AcuSearch & AcuTrack, 1 SATA bay, 4K HDMI + VGA and ANR. Power Built-in PoE ports on the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits four 6MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Homes & residential Coverage of the front door, driveway, yard and side access on a single recorder. Retail shopfronts Clear footage at the till and entry, with detail across aisles and the stockroom. Offices & reception Clear ID at reception and entries, plus cover of corridors and back exits. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Corridors & narrow areas 9:16 corridor mode suits hallways, driveways and side paths without wasting pixels. Small business A clean 4-camera system with AI search — choose the 8CH NVR for spare channels to scale up later. Camera — Uniview UNV IPC3616LE-ADF28KM-G (×4) Camera Type 6MP EasyStar Fixed Eyeball Turret · IR Image Sensor 1/2.7″ progressive-scan CMOS Max. Resolution 6MP · 3072 × 2048 @ 25 fps Lens Fixed 2.8 mm @ F1.6 · 112.9° (H) field of view Night Vision Smart IR up to 30 m · black-and-white at night Low-Light / WDR EasyStar starlight · 120 dB true WDR Smart Analytics Human & vehicle detection · line crossing · intrusion Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG · dual streams Edge Storage MicroSD up to 256 GB · ANR · NAS Power PoE (IEEE 802.3af) / DC 12V Ingress / Vandal IP67 · IK10 metal housing · 3-axis turret · corridor mode Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — NVR501-04B-P4-IQ (4CH) or NVR501-08B-P8-IQ (8CH) Channels 4CH model: 4 IP channels · 8CH model: 8 IP channels (4 used, 4 spare) Built-in PoE 4CH: 4 × PoE (50 W total) · 8CH: 8 × PoE (75 W total) · IEEE 802.3at/af, 30 W per port Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack (8CH adds SeekFree) · SmartSearch Smart by NVR Face Detection · SIP (Intrusion, Cross Line) · UMD · vehicle / plate search Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay (HDD sold separately) — 4CH to 24 TB, 8CH to 16 TB Network / Remote 1 × RJ45 · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~12 days continuous · ~24 days motion-based 4 TB ~23 days continuous · ~48 days motion-based 8 TB ~46 days continuous · ~97 days motion-based 12 TB ~69 days continuous · ~145 days motion-based 16 TB (max) ~93 days continuous · ~195 days motion-based Retention depends on your cameras. Figures above assume all 4 × 6MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras will reduce it. The 4-channel NVR accepts a single drive up to 24 TB for even longer retention. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep IR LEDs clear of walls and eaves to avoid glare and reflection at night. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3616LE-ADF28KM-G Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do the cameras record in colour at night?These are IR turret cameras — at night they use Smart IR LEDs (up to 30 m) for crisp black-and-white night vision. EasyStar low-light processing still delivers detailed footage at dusk. For full-colour night vision, choose a ColorHunter kit. What's the difference between the 4 and 8-channel NVR?Both record all four cameras with AcuSearch & AcuTrack AI search. The 4-channel NVR501-04B-P4-IQ has 4 PoE ports (no spare channels), while the 8-channel NVR501-08B-P8-IQ has 8 PoE ports — 4 spare for adding cameras later — and adds SeekFree text search. Is this kit NDAA compliant?Yes. Both the Uniview UNV IPC3616LE-ADF28KM-G cameras and the NVR501-IQ recorders are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive. How much recording time will I get?It depends on your cameras and settings. With all 4 × 6MP cameras recording continuously, roughly 4 TB holds about 3 weeks; motion/smart-event recording or fewer cameras extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Choose the 8-channel NVR and you'll have 4 spare PoE ports to add up to 4 more cameras with no recorder upgrade. The 4-channel model uses all 4 ports for this kit. What is AcuSearch and AcuTrack?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, and AcuTrack follows a target across cameras — so you find events in seconds instead of scrubbing. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 10 × 8MP OwlView Plus · 24/7 Full Colour · 16CH AI IQ NVR · 2-Bay RAID · NDAA 10 × 8MP OwlView Plus Kit GR-UNV-8M10T16R · 10 × 8MP OwlView Plus Turret Cameras + 16CH AI NVR — Australian Stock & 3-Year Warranty This Uniview UNV OwlView Plus kit is a professional-grade 4K solution pairing ten IPC3638SE-ADF28K-WP-I1 8MP OwlView Plus turret cameras with the NVR502-16B-P16-IQ 16-channel AI IQ recorder. Each camera uses a large 1/1.2″ sensor, ColorHunter with Wise-ISP and an F1.0 2.8 mm lens for true 24/7 full-colour 4K footage with warm white light to 30 m, plus on-camera AI perimeter protection, people counting, two-way audio and a rugged IK10 / IP67 / NEMA 4X body. The recorder offers 16 built-in PoE ports (240 W), two SATA bays to 16 TB each with RAID 1, and AcuSearch AI review — with 6 spare channels to expand. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 10 × 8MP OwlView Plus Recorder 16CH AI IQ NVR · 16 PoE Night Vision 24/7 Full Colour · 30 m AI Search AcuSearch · VCA · Search by Image Storage 2 × 16 TB · RAID 1 Weatherproof IK10 · IP67 · NEMA 4X OwlView Plus — Full Colour 24/7 A large 1/1.2″ sensor, ColorHunter with Wise-ISP and an F1.0 2.8 mm lens capture true full-colour 4K detail down to near-darkness, with warm white light to 30 m — so you record clothing, faces and vehicles in colour around the clock, not grainy black-and-white IR. Smart AI Detection & People Counting On-camera perimeter protection classifies humans, vehicles and non-motor vehicles with false-alarm filtering, plus people-flow counting and crowd-density monitoring — ideal for retail, schools and busy commercial sites. 130 dB true WDR balances bright and shaded areas. AI IQ Recorder — Find Events Fast The NVR502-IQ runs AcuSearch, VCA Search and Search by Image: filter footage by people, vehicles and attributes, or drop in a reference image to surface matches across all channels — turning an hours-long review into minutes. 16-Port PoE & RAID Storage Sixteen built-in PoE ports (240 W total) power and connect every camera over a single Cat6 run — no separate switch. Two SATA bays to 16 TB each support RAID 1 mirroring, with 4K HDMI + VGA output and 6 spare channels to grow into. What's Included 10 × Cameras IPC3638SE-ADF28K-WP-I1 — 8MP 4K OwlView Plus turret, 1/1.2″ sensor, F1.0 2.8 mm lens, ColorHunter + Wise-ISP 24/7 colour, warm light to 30 m, 130 dB WDR, people counting, two-way audio, built-in mic, IK10 / IP67 / NEMA 4X. 1 × Recorder NVR502-16B-P16-IQ — 16-channel 4K AI IQ NVR, 16 built-in PoE ports (240 W), 2 SATA bays (to 16 TB each, RAID 1), 4K HDMI + VGA, AcuSearch / VCA Search / Search by Image. 10 channels used, 6 spare. Power 16 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 2 SATA bays — HDD not included. Add surveillance-grade Seagate SkyHawk or WD Purple drives; for ten 8MP cameras, larger capacities and dual drives are recommended (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Retail & shopping centres Full-colour evidence at tills and entries, with people counting and crowd-density insights across the floor. Warehouses & factories Wide 4K coverage of docks, aisles and yards with AI intrusion detection and false-alarm filtering. Schools & offices Crowd monitoring and perimeter protection across multiple entries, corridors and grounds. Car parks & commercial Colour night footage up to 30 m across bays, gates and access roads for clear vehicle and plate detail. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Medium–large deployments A 10-camera 4K system with AI search, RAID storage and 6 spare channels to scale up later. Camera — Uniview UNV IPC3638SE-ADF28K-WP-I1 (×10) Camera Type 8MP 4K OwlView Plus Fixed Turret (ColorHunter + Wise-ISP) Image Sensor 1/1.2″ progressive-scan CMOS Max. Resolution 8MP 4K · 3840 × 2160 Lens Fixed 2.8 mm @ F1.0 · 105° horizontal Min. Illumination 0.0003 lux (Colour, F1.0, AGC ON) Night Vision ColorHunter with Wise-ISP — 24/7 full colour · warm white light to 30 m Wide Dynamic Range 130 dB true WDR Smart Analytics Perimeter protection (human/vehicle/non-motor) · people counting · crowd density Audio & I/O Built-in mic · two-way audio · Audio I/O 1/1 · Alarm I/O 1/1 Compression Ultra 265 / H.265 / H.264 / MJPEG · triple stream Edge Storage MicroSD up to 512 GB · ANR · NAS Power PoE (IEEE 802.3af) / DC 12V Protection IP67 · IK10 vandal-resistant · NEMA 4X metal housing Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR502-16B-P16-IQ Channels 16 IP channels (10 used, 6 spare) Built-in PoE 16 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 240 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 Bandwidth 320 Mbps incoming / 160 Mbps outgoing AI Search AcuSearch · Search by Image · VCA Search (motor/non-motor/human/general) Smart by NVR Face Detection · Smart Intrusion Prevention (SIP) · Ultra Motion Detection (UMD) Video Output 1 × HDMI (4K) + 1 × VGA — independent output Storage 2 × SATA bays, up to 16 TB each (32 TB max) · RAID 1 (HDD sold separately) Alarm / Audio 8-in / 2-out alarm · RS485 · 1-ch RCA in/out two-way audio Network / Remote 1 × RJ45 10/100/1000M gigabit · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 4 TB ~9 days continuous · ~19 days motion-based 8 TB ~19 days continuous · ~39 days motion-based 16 TB ~37 days continuous · ~78 days motion-based 2 × 16 TB (32 TB max) ~74 days continuous · ~156 days motion-based Retention depends on your cameras. Figures above assume all 10 × 8MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or RAID 1 mirroring (which halves usable capacity) will reduce it. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, car parks and perimeters; keep warm-light LEDs clear of walls and eaves to avoid glare. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit surveillance-grade HDDs before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3638SE-ADF28K-WP-I1 Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do the cameras record in colour at night?Yes. These are OwlView Plus cameras — the large 1/1.2″ sensor, F1.0 lens and ColorHunter with Wise-ISP deliver true full-colour 4K video 24/7, with warm white light to 30 m in dark scenes. Is this kit NDAA compliant?Yes. Both the Uniview UNV OwlView Plus cameras and the NVR502-16B-P16-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. How many drives can it hold, and does it support RAID?The NVR has two SATA bays taking up to 16 TB each (32 TB total) and supports RAID 1 mirroring, so critical footage can be written to two drives for redundancy. HDDs are sold separately. How much recording time will I get?It depends on your cameras and settings. With all 10 × 8MP cameras recording continuously, roughly 16 TB holds about five weeks; switching to motion/smart-event recording or fewer cameras extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports (240 W total) — no separate switch or power supplies. Can I add more cameras later?Yes. The NVR has 16 PoE ports and you're using 10, so you can add up to 6 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch?AcuSearch is the recorder's -IQ AI review tool. With VCA Search and Search by Image, it lets you filter footage by people, vehicles and attributes, or drop in a reference image to surface matches — so you find events in seconds. Do the cameras support two-way audio?Yes. Each OwlView Plus camera has a built-in mic and two-way audio support plus audio/alarm I/O (check local laws before recording audio). Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 4 × 8MP LightHunter · People Counting · 8CH AI IQ NVR · NDAA 4 × 8MP People Counting Kit Uniview UNV 8MP AcuTrack CCTV Kit — 4 × People-Counting Cameras + 8-Channel AI IQ NVR This Uniview UNV 8MP AcuTrack kit pairs four IPC3618SS-ADF28K-I1 LightHunter turret cameras with the NVR501-08B-P8-IQ 8-channel AI IQ recorder for sharp 4K surveillance with built-in business analytics. Each camera uses a 1/2.8″ sensor, a wide 2.8 mm F1.6 lens and LightHunter low-light processing for clean colour in dim scenes, with Smart IR night vision to 40 m. On top of human/vehicle detection, the cameras add people-flow counting and crowd-density monitoring — ideal for retail stores, restaurants and venues. All four run on a single Cat6 cable each into the NVR's 8 built-in PoE ports, leaving 4 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 4 × 8MP LightHunter Recorder 8CH AI IQ NVR · 8 PoE Analytics People Counting / Crowd AI Search AcuSearch · AcuTrack · SeekFree Audio Built-in Mic Weatherproof IP67 Rated People Counting & Crowd Analytics Each camera supports people-flow counting and crowd-density monitoring, so you can measure foot traffic at entries, track occupancy and spot busy periods — turning your CCTV into a business-insight tool for retail, hospitality and venues. 4K LightHunter Imaging The 1/2.8″ sensor and LightHunter processing deliver crisp 8MP detail with clean low-light colour, while 130 dB true WDR balances bright entries against shaded interiors. Smart IR night vision reaches up to 40 m. AI IQ Recorder — Find Events Fast The NVR501-IQ adds AcuSearch, AcuTrack and SeekFree: filter footage by people or vehicles, follow a target across cameras, or search recordings in plain language — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Eight built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 4 spare channels to grow into. What's Included 4 × Cameras IPC3618SS-ADF28K-I1 — 8MP (4K) LightHunter turret, 1/2.8″ sensor, 2.8 mm F1.6 lens, Smart IR to 40 m, 130 dB WDR, people counting & crowd density, built-in mic, IP67. 1 × Recorder NVR501-08B-P8-IQ — 8-channel 4K AI IQ NVR, 8 built-in PoE ports, 1 SATA bay (to 16 TB), 4K HDMI + VGA, AcuSearch/AcuTrack/SeekFree + People Counting reports. 4 channels used, 4 spare. Power 8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~8 TB suits four 8MP cameras for around six weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit and ceiling installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Retail stores Count shoppers at the entry, measure foot traffic and busy periods while keeping 4K security cover across the floor. Restaurants & cafés Monitor occupancy and queues at the door, with clear footage over the till and dining areas. Venues & events Crowd-density monitoring for entries and gathering points, plus AI search to review incidents fast. Offices & reception Visitor counting at reception and entries, with cover of corridors and back exits on a single recorder. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Growing businesses A clean 4-camera analytics system with AI search and 4 spare channels to scale up later. Camera — Uniview UNV IPC3618SS-ADF28K-I1 (×4) Camera Type 8MP (4K) LightHunter Fixed Eyeball Turret Image Sensor 1/2.8″ progressive-scan CMOS Max. Resolution 8MP · 3840 × 2160 @ 30 fps Lens Fixed 2.8 mm @ F1.6 · 97° (H) · 52° (V) Low-Light / Night Vision LightHunter low-light colour · Smart IR up to 40 m Wide Dynamic Range 130 dB true WDR Smart Analytics People-flow counting · crowd density · human & vehicle classification · line crossing · intrusion Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG · triple stream Edge Storage MicroSD up to 512 GB Power PoE (IEEE 802.3af) / DC 12V Ingress Protection IP67 weatherproof housing Compliance NDAA / Section 889 compliant · ONVIF Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-08B-P8-IQ Channels 8 IP channels (4 used, 4 spare) Built-in PoE 8 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 75 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SeekFree · SmartSearch VCA (by IPC) People Counting · Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 16 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~11 days continuous · ~24 days motion-based 4 TB ~23 days continuous · ~48 days motion-based 8 TB ~46 days continuous · ~97 days motion-based 12 TB ~69 days continuous · ~145 days motion-based 16 TB (max) ~92 days continuous · ~193 days motion-based Retention depends on your cameras. Figures above assume all 4 × 8MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›People-counting placement: for accurate counts, mount the counting camera overhead or angled down across the entry line so people pass through cleanly; keep the count zone clear of doors and reflections. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3618SS-ADF28K-I1 Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do these cameras count people?Yes. Each IPC3618SS-ADF28K-I1 supports people-flow counting and crowd-density monitoring, and the -IQ NVR can compile People Counting reports — so you can measure foot traffic and occupancy alongside normal security recording. Is this kit NDAA compliant?Yes. Both the Uniview UNV LightHunter cameras and the NVR501-08B-P8-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does it record in colour at night?These are LightHunter cameras — they hold detailed low-noise colour in dim light, then switch to Smart IR for crisp black-and-white night vision up to 40 m once light drops too low. For full-colour-at-night under no light, choose a ColorHunter dual-light kit. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. How much recording time will I get?It depends on your cameras and settings. With all 4 × 8MP cameras recording continuously, roughly 8 TB holds about six weeks; switching to motion/smart-event recording or fewer cameras extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 4, so you can add up to 4 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch, AcuTrack and SeekFree?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, AcuTrack follows a target across cameras, and SeekFree lets you search recordings by typing what you're after — so you find events in seconds. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 4 × 6MP LightHunter · People Counting · 8CH AI IQ NVR · NDAA 4 × 6MP People Counting Kit Uniview UNV 6MP AcuTrack CCTV Kit — 4 × People-Counting Cameras + 8-Channel AI IQ NVR This Uniview UNV 6MP AcuTrack kit pairs four IPC3616SS-ADF28K-I1 LightHunter turret cameras with the NVR501-08B-P8-IQ 8-channel AI IQ recorder for sharp 6MP surveillance with built-in business analytics. Each camera uses a 1/2.7″ sensor, a wide 2.8 mm F1.6 lens (107° view) and LightHunter low-light processing for clean colour in dim scenes, with Smart IR night vision to 40 m. On top of human/vehicle detection, the cameras add people-flow counting and crowd-density monitoring — ideal for retail stores, restaurants and venues. All four run on a single Cat6 cable each into the NVR's 8 built-in PoE ports, leaving 4 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 4 × 6MP LightHunter Recorder 8CH AI IQ NVR · 8 PoE Analytics People Counting / Crowd AI Search AcuSearch · AcuTrack · SeekFree Audio Built-in Mic Weatherproof IP67 Rated People Counting & Crowd Analytics Each camera supports people-flow counting and crowd-density monitoring, so you can measure foot traffic at entries, track occupancy and spot busy periods — turning your CCTV into a business-insight tool for retail, hospitality and venues. 6MP LightHunter Imaging The 1/2.7″ sensor and LightHunter processing deliver crisp 6MP detail with clean low-light colour, while 130 dB true WDR balances bright entries against shaded interiors. Smart IR night vision reaches up to 40 m. AI IQ Recorder — Find Events Fast The NVR501-IQ adds AcuSearch, AcuTrack and SeekFree: filter footage by people or vehicles, follow a target across cameras, or search recordings in plain language — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Eight built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 4 spare channels to grow into. What's Included 4 × Cameras IPC3616SS-ADF28K-I1 — 6MP LightHunter turret, 1/2.7″ sensor, 2.8 mm F1.6 lens (107° view), Smart IR to 40 m, 130 dB WDR, people counting & crowd density, built-in mic, IP67. 1 × Recorder NVR501-08B-P8-IQ — 8-channel 4K AI IQ NVR, 8 built-in PoE ports, 1 SATA bay (to 16 TB), 4K HDMI + VGA, AcuSearch/AcuTrack/SeekFree + People Counting reports. 4 channels used, 4 spare. Power 8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~8 TB suits four 6MP cameras for around six weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit and ceiling installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Retail stores Count shoppers at the entry, measure foot traffic and busy periods while keeping clear security cover across the floor. Restaurants & cafés Monitor occupancy and queues at the door, with clear footage over the till and dining areas. Venues & events Crowd-density monitoring for entries and gathering points, plus AI search to review incidents fast. Offices & reception Visitor counting at reception and entries, with cover of corridors and back exits on a single recorder. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Growing businesses A clean 4-camera analytics system with AI search and 4 spare channels to scale up later. Camera — Uniview UNV IPC3616SS-ADF28K-I1 (×4) Camera Type 6MP LightHunter IR Fixed Eyeball Turret Image Sensor 1/2.7″ progressive-scan CMOS Max. Resolution 6MP · 3072 × 2048 @ up to 25 fps Lens Fixed 2.8 mm @ F1.6 · 107.2° (H) Low-Light / Night Vision LightHunter · 0.002 lux @ F1.6 · Smart IR up to 40 m Wide Dynamic Range 130 dB true WDR Smart Analytics People-flow counting · crowd density · human & vehicle classification · line crossing · intrusion Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG Edge Storage MicroSD up to 256 GB Power PoE (IEEE 802.3af) / DC 12V · max 6.5 W Ingress Protection IP67 · −30 °C ~ 60 °C Compliance NDAA / Section 889 compliant · ONVIF Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-08B-P8-IQ Channels 8 IP channels (4 used, 4 spare) Built-in PoE 8 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 75 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SeekFree · SmartSearch VCA (by IPC) People Counting · Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 16 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~11 days continuous · ~24 days motion-based 4 TB ~23 days continuous · ~48 days motion-based 8 TB ~46 days continuous · ~97 days motion-based 12 TB ~69 days continuous · ~145 days motion-based 16 TB (max) ~92 days continuous · ~193 days motion-based Retention depends on your cameras. Figures above assume all 4 × 6MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›People-counting placement: for accurate counts, mount the counting camera overhead or angled down across the entry line so people pass through cleanly; keep the count zone clear of doors and reflections. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3616SS-ADF28K-I1 Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do these cameras count people?Yes. Each IPC3616SS-ADF28K-I1 supports people-flow counting and crowd-density monitoring, and the -IQ NVR can compile People Counting reports — so you can measure foot traffic and occupancy alongside normal security recording. Is this kit NDAA compliant?Yes. Both the Uniview UNV LightHunter cameras and the NVR501-08B-P8-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does it record in colour at night?These are LightHunter cameras — they hold detailed low-noise colour in dim light, then switch to Smart IR for crisp black-and-white night vision up to 40 m once light drops too low. For full-colour-at-night under no light, choose a ColorHunter dual-light kit. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. How much recording time will I get?It depends on your cameras and settings. With all 4 × 6MP cameras recording continuously, roughly 8 TB holds about six weeks; switching to motion/smart-event recording or fewer cameras extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 4, so you can add up to 4 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch, AcuTrack and SeekFree?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, AcuTrack follows a target across cameras, and SeekFree lets you search recordings by typing what you're after — so you find events in seconds. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

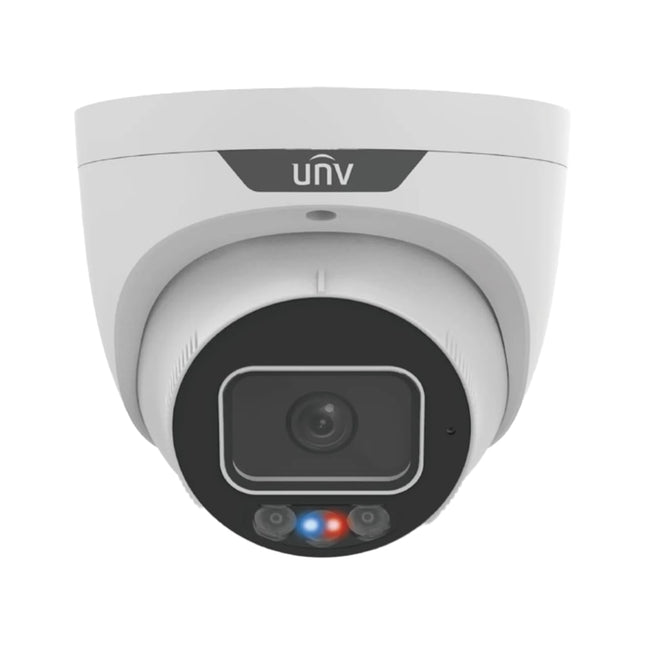

Uniview UNV · 4 × 6MP TriGuard · Red/Blue Strobe + Siren + Two-Way Audio · 8CH AI IQ NVR · NDAA 4 × 6MP TriGuard Kit GR-UNV-46TC8R · 4 × 6MP All-in-One Active-Deterrence Cameras + 8CH AI NVR — Australian Stock & 3-Year Warranty This Uniview UNV 6MP TriGuard kit pairs four IPC3636SS-ADF28KMC-I1 ColorHunter active-deterrence eyeball cameras with the NVR501-08B-P8-IQ 8-channel AI IQ recorder for proactive, full-colour protection around the clock. Each camera combines ColorHunter 24/7 full colour down to 0.001 lux with Tri-Guard active deterrence — red & blue strobe lights, a built-in siren and two-way audio that trigger on deep-learning human/vehicle AI to warn intruders off in real time. 130 dB true WDR keeps bright and shaded areas balanced. All four run on a single Cat6 cable each into the NVR's 8 built-in PoE ports, leaving 4 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 4 × 6MP TriGuard Recorder 8CH AI IQ NVR · 8 PoE Deterrence Red/Blue Strobe + Siren Night Vision 24/7 Full Colour Audio Two-Way Talk Weatherproof IP67 Rated TriGuard Active Deterrence When the AI detects a person in a restricted zone, each camera flashes red & blue strobe lights, sounds a siren and lets you talk through two-way audio — proactive protection that stops trouble before it starts, not just after-the-fact evidence. ColorHunter — Full Colour 24/7 ColorHunter warm-light imaging keeps footage in vivid full colour around the clock down to 0.001 lux — capturing clothing, vehicle and skin tones that grainy black-and-white IR cameras miss. AI IQ Recorder — Find Events Fast The NVR501-IQ adds AcuSearch, AcuTrack and SeekFree: filter footage by people or vehicles, follow a target across cameras, or search recordings in plain language — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Eight built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 4 spare channels to grow into. What's Included 4 × Cameras IPC3636SS-ADF28KMC-I1 — 6MP TriGuard ColorHunter eyeball, 2.8 mm lens, 24/7 full colour to 0.001 lux, red/blue strobe + siren + two-way audio, 130 dB WDR, built-in mic, IP67. White or black option available. 1 × Recorder NVR501-08B-P8-IQ — 8-channel 4K AI IQ NVR, 8 built-in PoE ports, 1 SATA bay (to 16 TB), 4K HDMI + VGA, AcuSearch/AcuTrack/SeekFree. 4 channels used, 4 spare. Power 8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits four 6MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Homes & residential Active deterrence and full-colour night coverage of the front door, driveway, yard and side access on a single recorder. Retail shopfronts Strobe-and-siren warning at entries plus colour ID at the till, with clear footage across aisles and the stockroom. Offices & reception Two-way talk at reception and entries, plus deterrence and cover of corridors and back exits after hours. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Warehouses & yards Active warning on the loading dock and gate, with room to add 4 more cameras as the site grows. Small business A clean 4-camera active-deterrence system with AI search and 4 spare channels to scale up later. Camera — Uniview UNV IPC3636SS-ADF28KMC-I1 (×4) Camera Type 6MP TriGuard Fixed Eyeball (ColorHunter · active deterrence) Image Sensor 1/2.7″ progressive-scan CMOS Max. Resolution 6MP · 2880 × 1620 @ 30 fps Lens Fixed 2.8 mm · ~109° horizontal Min. Illumination 0.001 lux · 0 lux with warm light Night Vision ColorHunter — true 24/7 full colour (warm light) Wide Dynamic Range 130 dB true WDR Active Deterrence Red & blue strobe lights + audible siren · two-way audio (triggers on AI detection) Smart Analytics SIP — human/vehicle, cross line, intrusion, enter/leave area Audio Two-way audio (built-in mic & speaker) Compression Ultra 265 / H.265 / H.264 / MJPEG Edge Storage MicroSD up to 256 GB Power PoE (IEEE 802.3af) / DC 12V Ingress Protection IP67 full-metal housing · −30 °C ~ 60 °C Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-08B-P8-IQ Channels 8 IP channels (4 used, 4 spare) Built-in PoE 8 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 75 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SeekFree · SmartSearch VCA (by IPC) Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD · People Counting Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 16 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~12 days continuous · ~25 days motion-based 4 TB ~23 days continuous · ~48 days motion-based 8 TB ~46 days continuous · ~97 days motion-based 12 TB ~69 days continuous · ~145 days motion-based 16 TB (max) ~93 days continuous · ~195 days motion-based Retention depends on your cameras. Figures above assume all 4 × 6MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep warm-light LEDs clear of walls and eaves to avoid glare. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3636SS-ADF28KMC-I1 Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual How does the active deterrence work?When the camera's AI detects a person in a restricted zone, it flashes red & blue strobe lights, sounds an audible siren and lets you speak through two-way audio — warning intruders off in real time rather than just recording them. Do the cameras record in colour at night?Yes. These are ColorHunter TriGuard cameras — warm-light technology keeps footage in full colour 24/7 down to 0.001 lux, not grainy black-and-white IR. Is this kit NDAA compliant?Yes. Both the Uniview UNV TriGuard cameras and the NVR501-08B-P8-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. Does it support two-way audio?Yes. Each camera has a built-in mic and speaker, so you can listen and talk live through the app or NVR to challenge trespassers or greet visitors (check local laws before recording audio). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 4, so you can add up to 4 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch, AcuTrack and SeekFree?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, AcuTrack follows a target across cameras, and SeekFree lets you search recordings by typing what you're after — so you find events in seconds. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 2 × 6MP OwlView ColorHunter · 24/7 Full Colour · 4CH AI IQ NVR · NDAA 2 × 6MP OwlView Kit Uniview UNV 6MP OwlView CCTV Kit — 2 × Full 24/7 Colour Cameras + 4-Channel AI IQ NVR This Uniview UNV 6MP OwlView kit pairs two IPC3626LE-ADF28K-WP ColorHunter turret cameras with the NVR501-04B-P4-IQ 4-channel AI IQ recorder for true full-colour surveillance around the clock. Each camera uses a large 1/1.8″ sensor, a fast F1.0 2.8 mm lens and Wise-ISP processing to capture bright, vivid colour after dark — with smart warm-light LEDs reaching 30 m for driveways, yards and entries. Both cameras run on a single Cat6 cable each into the NVR's 4 built-in PoE ports, leaving 2 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Available in white or black. Cameras 2 × 6MP OwlView ColorHunter Recorder 4CH AI IQ NVR · 4 PoE Night Vision 24/7 Full Colour · 30 m AI Search AcuSearch · AcuTrack Audio Built-in Mic Weatherproof IP67 Rated OwlView ColorHunter — Full Colour All Night The 1/1.8″ sensor, F1.0 lens and Wise-ISP processing capture true full-colour detail in near-darkness, with smart warm-light LEDs to 30 m — so you record clothing colour, faces and vehicles in colour 24/7, not just black-and-white IR. Smart AI Detection On-camera human and vehicle detection with line-crossing and intrusion alerts filters out trees, rain and shadows, so only real events reach your phone. 120 dB true WDR keeps bright and shaded areas balanced. AI IQ Recorder — Find Events Fast The NVR501-IQ adds AcuSearch and AcuTrack: filter footage by people or vehicles, or follow a target across cameras — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Four built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 2 spare channels to grow into. What's Included 2 × Cameras IPC3626LE-ADF28K-WP — 6MP OwlView ColorHunter turret, 1/1.8″ sensor, F1.0 2.8 mm lens, warm light to 30 m, 120 dB WDR, built-in mic, IP67. White or black option available. 1 × Recorder NVR501-04B-P4-IQ — 4-channel 4K AI IQ NVR, 4 built-in PoE ports, 1 SATA bay (to 24 TB), 4K HDMI + VGA, AcuSearch/AcuTrack. 2 channels used, 2 spare. Power 4 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits two 6MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Apartments & units Full-colour night coverage of a front door and one approach without overkill on cameras. Small homes Cover the front entry and driveway in colour after dark, with room to add two more cameras. Shops & cafes Colour identification at the till and entry for a compact retail or hospitality site. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Side & rear access Add full-colour cover to a gate or back entry, expandable on the 2 spare channels. Starter system A clean 2-camera full-colour kit with AI search and 2 spare channels to scale up later. Camera — Uniview UNV IPC3626LE-ADF28K-WP (×2) Camera Type 6MP OwlView ColorHunter Fixed Eyeball Turret (Wise-ISP) Image Sensor 1/1.8″ progressive-scan CMOS Max. Resolution 6MP · 3072 × 2048 @ 25 fps Lens Fixed 2.8 mm @ F1.0 (wide field of view) Night Vision ColorHunter + Wise-ISP — true full colour · smart warm light up to 30 m Wide Dynamic Range 120 dB true WDR · 2D/3D DNR · BLC/HLC · Digital Defog Smart Analytics Human & vehicle detection · line crossing · intrusion Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG · dual streams Edge Storage MicroSD up to 512 GB · ANR · NAS Power PoE (IEEE 802.3af) Ingress Protection IP67 · 4 kV surge · −30 °C ~ 60 °C Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-04B-P4-IQ Channels 4 IP channels (2 used, 2 spare) Built-in PoE 4 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 50 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · Human/Vehicle Search · SmartSearch VCA (by NVR) Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Bandwidth 80 Mbps in / 80 Mbps out Storage 1 × SATA bay, up to 24 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~23 days continuous · ~48 days motion-based 4 TB ~46 days continuous · ~97 days motion-based 8 TB ~92 days continuous · ~195 days motion-based 12 TB ~139 days continuous · ~290 days motion-based 16 TB ~185 days continuous · ~390 days motion-based Retention depends on your cameras. Figures above assume both 2 × 6MP cameras recording continuously in H.265 at ~4 Mbps. Running a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. The single SATA bay accepts a drive up to 24 TB. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep warm-light LEDs clear of walls and eaves to avoid glare. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3626LE-ADF28K-WP Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do the cameras record in colour at night?Yes. These are 6MP OwlView ColorHunter cameras — the 1/1.8″ sensor, F1.0 lens and Wise-ISP deliver true full-colour video 24/7, with warm-light LEDs reaching up to 30 m in dark scenes. Is this kit NDAA compliant?Yes. Both the Uniview UNV ColorHunter cameras and the NVR501-04B-P4-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. How much recording time will I get?It depends on your cameras and settings. With both 6MP cameras recording continuously, roughly 2 TB holds about 3 weeks; switching to motion/smart-event recording extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 4 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 4 PoE ports and you're using 2, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch and AcuTrack?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, and AcuTrack follows a target across cameras — so you find events in seconds instead of scrubbing for hours. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 6MP ColorHunter Active-Deterrence + 6MP IR · 4CH AI IQ NVR · NDAA 6MP Mixed CCTV Kit Uniview UNV 6MP CCTV Kit — ColorHunter Active-Deterrence + IR Camera + 4-Channel AI IQ NVR This mixed Uniview UNV 6MP kit teams a IPC3636SS-ADF28KMC-I1 ColorHunter active-deterrence eyeball — with full-colour night imaging, red & blue strobe, siren and two-way audio — alongside a IPC3616LE-ADF28KM-G EasyStar IR turret for crisp Smart-IR night vision, all recording to the NVR501-04B-P4-IQ 4-channel AI IQ recorder. Use the deterrence camera on your highest-risk approach and the IR turret to cover a second entry or path. Both run on a single Cat6 cable each into the NVR's 4 built-in PoE ports, leaving 2 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 6MP ColorHunter + 6MP IR Recorder 4CH AI IQ NVR · 4 PoE Deterrence Strobe + Siren + Talk Night Vision Full Colour + Smart IR 30 m AI Search AcuSearch · AcuTrack Weatherproof IP67 Rated ColorHunter Active Deterrence The IPC3636SS eyeball records true full colour down to 0.001 lux, and when its AI detects a person in a restricted zone it flashes red & blue strobe lights and sounds a siren — with two-way audio so you can warn intruders off live through the app. EasyStar IR Coverage The IPC3616LE-ADF28KM-G turret adds Smart IR night vision to 30 m with 120 dB true WDR and EasyStar low-light — ideal for a second entry, path or driveway where deterrence isn't needed. AI IQ Recorder — Find Events Fast The NVR501-IQ adds AcuSearch and AcuTrack: filter footage by people or vehicles, or follow a target across cameras — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Four built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 2 spare channels to grow into. What's Included 1 × ColorHunter Camera IPC3636SS-ADF28KMC-I1 — 6MP ColorHunter active-deterrence eyeball, full-colour to 0.001 lux, red & blue strobe + siren, two-way audio, 130 dB WDR, F1.0 2.8 mm lens, IP67 metal body. 1 × IR Camera IPC3616LE-ADF28KM-G — 6MP EasyStar turret, Smart IR to 30 m, 120 dB WDR, 2.8 mm lens, built-in mic, IP67 + IK10 metal housing. 1 × Recorder NVR501-04B-P4-IQ — 4-channel 4K AI IQ NVR, 4 built-in PoE ports, 1 SATA bay (to 24 TB), 4K HDMI + VGA, AcuSearch/AcuTrack. 2 channels used, 2 spare. Power 4 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits two 6MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Front-door deterrence Put the strobe-and-siren ColorHunter camera on your main approach to actively warn off intruders. Homes & residential Active deterrence out front and reliable IR cover on a side path or driveway. Shops & cafes Talk-down deterrence at the entry, with a second camera covering the till or stockroom. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Perimeter & gates Deter at the gate and monitor the boundary, expandable on the 2 spare channels. Mixed-need sites One deterrence camera plus one cost-effective IR camera — the best of both worlds. Camera 1 — Uniview UNV IPC3636SS-ADF28KMC-I1 (ColorHunter Active Deterrence) Camera Type 6MP ColorHunter Active-Deterrence Fixed Eyeball (Tri-Guard) Image Sensor 1/2.7″ progressive-scan CMOS Max. Resolution 6MP · 2880 × 1620 @ 30 fps Lens Fixed 2.8 mm (109° H wide) Min. Illumination 0.001 lux (F1.0, AGC ON) · 0 lux with warm light Night Vision ColorHunter warm-light — true full colour 24/7 Active Deterrence Red & blue strobe lights · built-in siren · two-way audio Wide Dynamic Range 130 dB true WDR Smart Analytics SIP — human/vehicle, cross line, intrusion, enter/leave area Audio Two-way audio (built-in mic & speaker) Compression Ultra 265 / H.265 / H.264 / MJPEG Edge Storage MicroSD up to 256 GB Power PoE (IEEE 802.3af) / DC 12V Ingress Protection IP67 full-metal housing · −30 °C ~ 60 °C Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Camera 2 — Uniview UNV IPC3616LE-ADF28KM-G (EasyStar IR Turret) Camera Type 6MP EasyStar Fixed Turret (Smart IR) Image Sensor 1/2.7″ progressive-scan CMOS Max. Resolution 6MP · 3072 × 2048 @ 25 fps Lens Fixed 2.8 mm @ F1.6 (112.9° H wide) Night Vision Smart IR up to 30 m · EasyStar low-light Wide Dynamic Range 120 dB true WDR Smart Analytics Human & vehicle detection · line crossing · intrusion Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG Edge Storage MicroSD up to 256 GB · ANR · NAS Power PoE (IEEE 802.3af) / DC 12V Ingress Protection IP67 · IK10 vandal-resistant metal housing Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-04B-P4-IQ Channels 4 IP channels (2 used, 2 spare) Built-in PoE 4 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 50 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · Human/Vehicle Search · SmartSearch VCA (by NVR) Face Detection · SIP (Intrusion, Cross Line, Enter/Leave) · UMD Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Bandwidth 80 Mbps in / 80 Mbps out Storage 1 × SATA bay, up to 24 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~23 days continuous · ~48 days motion-based 4 TB ~46 days continuous · ~97 days motion-based 8 TB ~92 days continuous · ~195 days motion-based 12 TB ~139 days continuous · ~290 days motion-based 16 TB ~185 days continuous · ~390 days motion-based Retention depends on your cameras. Figures above assume both 2 × 6MP cameras recording continuously in H.265 at ~4 Mbps. Running a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. The single SATA bay accepts a drive up to 24 TB. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: put the active-deterrence ColorHunter camera on your highest-risk approach; mount both 2.5–3 m high, angled down across entries and perimeters. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3636SS-ADF28KMC-I1 Datasheet IPC3616LE-ADF28KM-G Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Does this kit record in colour at night?The ColorHunter eyeball (IPC3636SS) records true full colour 24/7 down to 0.001 lux with warm-light LEDs. The EasyStar turret (IPC3616LE) uses Smart IR for crisp black-and-white night vision up to 30 m. How does the active-deterrence camera work?When the AI detects a person in a restricted zone, the ColorHunter eyeball flashes red & blue strobe lights and sounds a siren — and two-way audio lets you speak live through the app to warn intruders off. Is this kit NDAA compliant?Yes. Both Uniview UNV cameras and the NVR501-04B-P4-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive. How much recording time will I get?It depends on your cameras and settings. With both 6MP cameras recording continuously, roughly 2 TB holds about 3 weeks; switching to motion/smart-event recording extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 4 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 4 PoE ports and you're using 2, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch and AcuTrack?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, and AcuTrack follows a target across cameras — so you find events in seconds. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 2 × 8MP IR Turret · Smart IR 30 m · 4CH AI NVR · NDAA 2 × 8MP IR Kit Uniview UNV 4K CCTV Kit — 2 × 8MP IR Turret Cameras + 4-Channel AI NVR This Uniview UNV 4K kit pairs two IPC3618LE-ADF28K-GM 8MP EasyStar turret cameras with the NVR501-04B-P4-IQ 4-channel AI recorder for ultra-clear 4K surveillance day and night. Each camera uses a 1/2.7″ sensor and a wide 2.8 mm lens with EasyStar low-light imaging and 120 dB true WDR, plus Smart IR night vision up to 30 m for crisp black-and-white footage after dark. Both run on a single Cat6 cable each into the NVR's 4 built-in PoE ports, leaving 2 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 2 × 8MP IR Turret Recorder 4CH AI NVR · 4 PoE Night Vision Smart IR up to 30 m AI Search AcuSearch · AcuTrack Audio Built-in Mic Weatherproof IP67 Rated 4K Ultra-HD Detail Two 8MP (3840 × 2160) turret cameras capture faces, number plates and product labels with clarity that 1080p systems simply can't match — ideal for the front and rear of a home or shopfront. Smart IR Night Vision EasyStar low-light processing and 120 dB true WDR balance bright and shaded scenes, while Smart IR LEDs deliver crisp black-and-white footage up to 30 m after dark. AI Recorder — Find Events Fast The NVR501-IQ adds AcuSearch and AcuTrack: filter footage by people or vehicles, and follow a target across cameras — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Four built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 2 spare channels to grow into. What's Included 2 × Cameras IPC3618LE-ADF28K-GM — 8MP (4K) EasyStar IR turret, 1/2.7″ sensor, 2.8 mm wide lens, Smart IR to 30 m, 120 dB WDR, built-in mic, IP67. 1 × Recorder NVR501-04B-P4-IQ — 4-channel 4K AI IQ NVR, 4 built-in PoE ports, 1 SATA bay (to 24 TB), 4K HDMI + VGA, AcuSearch/AcuTrack. 2 channels used, 2 spare. Power 4 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits two 8MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Small homes & units Cover the front door and back/side access in 4K on a compact recorder. Shopfront entry Sharp footage at the entry and till, with room to add two more cameras later. Driveways & gates 4K detail to capture vehicles and faces at the entrance, day or night. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Offices & reception Clear ID at reception or the main entry, with a spare channel for a back exit. Starter system A clean 2-camera 4K system with AI search and 2 spare channels to scale up later. Camera — Uniview UNV IPC3618LE-ADF28K-GM (×2) Camera Type 8MP (4K) EasyStar Fixed Eyeball Turret · IR Image Sensor 1/2.7″ progressive-scan CMOS Max. Resolution 8MP · 3840 × 2160 @ 20 fps (5MP/4MP/2MP options) Lens Fixed 2.8 mm (wide field of view) Night Vision Smart IR up to 30 m · black-and-white at night Low-Light / WDR EasyStar starlight · 120 dB true WDR Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG · dual streams Edge Storage MicroSD up to 256 GB Power PoE (IEEE 802.3af) Ingress Protection IP67 weatherproof · 3-axis turret Network RJ45 · ONVIF Profile S/G/T · RTSP Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-04B-P4-IQ Channels 4 IP channels (2 used, 2 spare) Built-in PoE 4 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 50 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SmartSearch · vehicle / plate search Smart by NVR Face Detection · SIP (Intrusion, Cross Line) · UMD Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 24 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~23 days continuous · ~48 days motion-based 4 TB ~46 days continuous · ~97 days motion-based 8 TB ~92 days continuous · ~195 days motion-based 12 TB ~139 days continuous · ~290 days motion-based 16 TB ~185 days continuous · ~385 days motion-based Retention depends on your cameras. Figures above assume both 2 × 8MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. The NVR accepts a single drive up to 24 TB for even longer retention. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep IR LEDs clear of walls and eaves to avoid glare and reflection at night. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3618LE-ADF28K-GM Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do the cameras record in colour at night?These are IR turret cameras — at night they use Smart IR LEDs (up to 30 m) for crisp black-and-white night vision. EasyStar low-light processing still delivers detailed footage at dusk. For full-colour night vision, choose a ColorHunter kit. Is this kit NDAA compliant?Yes. Both the Uniview UNV IPC3618LE-ADF28K-GM cameras and the NVR501-04B-P4-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. How much recording time will I get?It depends on your cameras and settings. With both 8MP cameras recording continuously, roughly 2 TB holds about 3 weeks; switching to motion/smart-event recording extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 4 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 4 PoE ports and you're using 2, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch and AcuTrack?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, and AcuTrack follows a target across cameras — so you find events in seconds instead of scrubbing. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Uniview UNV · 2 × 6MP IR Turret · Smart IR 30 m · 4CH AI NVR · NDAA 2 × 6MP IR Kit Uniview UNV 6MP CCTV Kit — 2 × IR Turret Cameras + 4-Channel AI NVR This Uniview UNV 6MP kit pairs two IPC3616LE-ADF28KM-G 6MP EasyStar turret cameras with the NVR501-04B-P4-IQ 4-channel AI recorder for sharp, reliable surveillance day and night. Each camera uses a 1/2.7″ sensor and a wide 2.8 mm lens with EasyStar low-light imaging and 120 dB true WDR, plus Smart IR night vision up to 30 m for crisp black-and-white footage after dark. Both run on a single Cat6 cable each into the NVR's 4 built-in PoE ports, leaving 2 channels free to expand later. The whole kit is NDAA Section 889 compliant and backed by a 3-year Australian warranty. Cameras 2 × 6MP IR Turret Recorder 4CH AI NVR · 4 PoE Night Vision Smart IR up to 30 m AI Search AcuSearch · AcuTrack Audio Built-in Mic Weatherproof IP67 · IK10 6MP Sharp Detail Two 6MP (3072 × 2048) turret cameras capture faces, vehicles and entries with crisp detail — with a wide ~112° field of view ideal for the front and rear of a home or shopfront. Smart IR Night Vision EasyStar low-light processing and 120 dB true WDR balance bright and shaded scenes, while Smart IR LEDs deliver crisp black-and-white footage up to 30 m after dark. AI Recorder — Find Events Fast The NVR501-IQ adds AcuSearch and AcuTrack: filter footage by people or vehicles, and follow a target across cameras — find what you need in seconds instead of scrubbing for hours. One-Cable PoE Install Four built-in PoE ports power and connect each camera over a single Cat6 run — no separate switch or power supplies. 4K HDMI output, free EZCloud/UNV-Link remote viewing, and 2 spare channels to grow into. What's Included 2 × Cameras IPC3616LE-ADF28KM-G — 6MP EasyStar IR turret, 1/2.7″ sensor, 2.8 mm wide lens (~112°), Smart IR to 30 m, 120 dB WDR, built-in mic, IP67 + IK10 metal body. 1 × Recorder NVR501-04B-P4-IQ — 4-channel 4K AI IQ NVR, 4 built-in PoE ports, 1 SATA bay (to 24 TB), 4K HDMI + VGA, AcuSearch/AcuTrack. 2 channels used, 2 spare. Power 4 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. Storage 1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits two 6MP cameras for around three weeks of continuous recording (see retention table below). Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Uniview wall-mount bracket or junction box per camera for tidy cable management. Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Uniview UNV Australian stock. Best For Small homes & units Cover the front door and back/side access on a compact recorder. Shopfront entry Clear footage at the entry and till, with room to add two more cameras later. Driveways & gates Sharp detail to capture vehicles and faces at the entrance, day or night. NDAA / government sites Section 889-compliant cameras and recorder for government, education and enterprise projects. Corridors & narrow areas 9:16 corridor mode suits hallways, driveways and side paths without wasting pixels. Starter system A clean 2-camera system with AI search and 2 spare channels to scale up later. Camera — Uniview UNV IPC3616LE-ADF28KM-G (×2) Camera Type 6MP EasyStar Fixed Eyeball Turret · IR Image Sensor 1/2.7″ progressive-scan CMOS Max. Resolution 6MP · 3072 × 2048 @ 25 fps Lens Fixed 2.8 mm @ F1.6 · 112.9° (H) field of view Night Vision Smart IR up to 30 m · black-and-white at night Low-Light / WDR EasyStar starlight · 120 dB true WDR Smart Analytics Human & vehicle detection · line crossing · intrusion Audio Built-in microphone Compression Ultra 265 / H.265 / H.264 / MJPEG · dual streams Edge Storage MicroSD up to 256 GB · ANR · NAS Power PoE (IEEE 802.3af) / DC 12V Ingress / Vandal IP67 · IK10 metal housing · 3-axis turret · corridor mode Compliance NDAA / Section 889 compliant Warranty (Australia) 3 years · CCTV Guru Australia Recorder — Uniview UNV NVR501-04B-P4-IQ Channels 4 IP channels (2 used, 2 spare) Built-in PoE 4 × RJ45 PoE — plug & play, IEEE 802.3at/af · 30 W per port, 50 W total Max. Recording Up to 16MP · Ultra 265 / H.265 / H.264 AI Search AcuSearch · AcuTrack · SmartSearch · vehicle / plate search Smart by NVR Face Detection · SIP (Intrusion, Cross Line) · UMD Video Output 1 × HDMI (4K) + 1 × VGA — simultaneous Storage 1 × SATA bay, up to 24 TB (HDD sold separately) Network / Remote 1 × RJ45 10/100M · ONVIF S/G/T · P2P cloud via UNV app & EZCloud ANR Supported — edge recording backfill on network drop Compliance NDAA Compliant · CE / FCC / UL / RoHS Warranty (Australia) 3 years · CCTV Guru Australia How Much Footage Can It Hold? (HDD Retention) 2 TB ~23 days continuous · ~48 days motion-based 4 TB ~46 days continuous · ~97 days motion-based 8 TB ~92 days continuous · ~195 days motion-based 12 TB ~139 days continuous · ~290 days motion-based 16 TB ~185 days continuous · ~385 days motion-based Retention depends on your cameras. Figures above assume both 2 × 6MP cameras recording continuously in H.265 at ~4 Mbps. Running fewer cameras, a lower resolution/frame rate, or motion/smart-event recording will extend storage time considerably; higher bitrate or more cameras added to the spare channels will reduce it. The NVR accepts a single drive up to 24 TB for even longer retention. Estimates are a guide only and vary with scene activity and camera settings. Installation Notes ›Camera placement: mount cameras 2.5–3 m high, angled down across entries, driveways and perimeters; keep IR LEDs clear of walls and eaves to avoid glare and reflection at night. ›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air. ›NVR & storage: fit a surveillance-grade HDD before first boot, and place the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording. Downloads & Resources IPC3616LE-ADF28KM-G Datasheet Uniview UNV Turret Quick Start Guide Uniview UNV Turret User Manual Do the cameras record in colour at night?These are IR turret cameras — at night they use Smart IR LEDs (up to 30 m) for crisp black-and-white night vision. EasyStar low-light processing still delivers detailed footage at dusk. For full-colour night vision, choose a ColorHunter kit. Is this kit NDAA compliant?Yes. Both the Uniview UNV IPC3616LE-ADF28KM-G cameras and the NVR501-04B-P4-IQ recorder are NDAA Section 889 compliant, making this kit suitable for government, education and security-sensitive sites in Australia. Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD. See the retention table above to size your drive to how long you want to keep footage. How much recording time will I get?It depends on your cameras and settings. With both 6MP cameras recording continuously, roughly 2 TB holds about 3 weeks; switching to motion/smart-event recording extends that significantly (full table above). How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 4 built-in PoE ports — no separate power supplies or powerpoints at the camera. Can I add more cameras later?Yes. The NVR has 4 PoE ports and you're using 2, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed. What is AcuSearch and AcuTrack?They're the recorder's -IQ AI review tools: AcuSearch filters footage by people and vehicles, and AcuTrack follows a target across cameras — so you find events in seconds instead of scrubbing. Can I view it remotely?Yes. Free P2P cloud access through the Uniview UNV app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less
