Description
The Uniview UNV 10-Camera OwlView Plus CCTV Kit is a professional-grade 4K surveillance solution designed for businesses and sites that require 24/7 full-colour footage, advanced AI analytics, and high-capacity PoE recording.

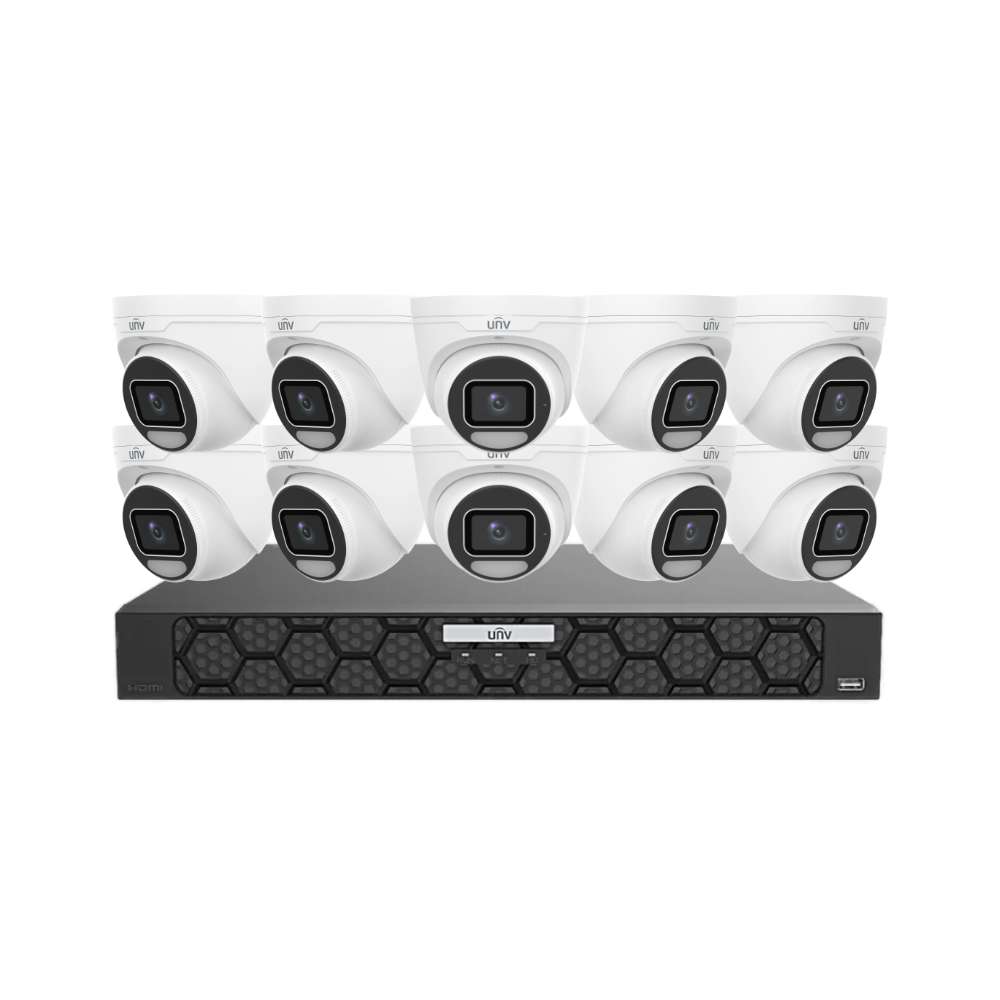

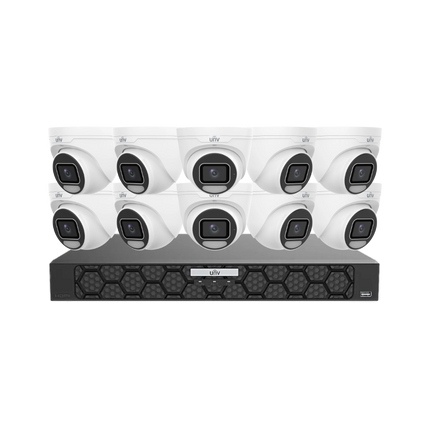

This kit combines 10 × Uniview UNV IPC3638SE-ADF28K-WP-I1 8MP OwlView Plus Turret Cameras with the powerful Uniview UNV NVR502-16B-P16-IQ 16-Channel AI PoE NVR. Featuring ColorHunter + Wise-ISP technology, 130 dB true WDR, and AI-powered intrusion detection, the system delivers crystal-clear colour images day and night, even in very low-light environments.
With warm white illumination, people counting, crowd density monitoring, and RAID-supported storage, this kit is ideal for retail, warehouses, offices, schools, car parks, and perimeter security.
This UNV Security Kit includes:
Key Features
OwlView Plus 8MP Turret Cameras (×10) IPC3638SE-ADF28K-WP-I1
Uniview UNV IPC3638SE-ADF28K-WP-I1 8MP OwlView Plus Turret Camera (2.8mm)
-
8MP / 4K (3840×2160) ultra-high-definition recording
-
ColorHunter + Wise-ISP for true 24/7 full-colour images
-
130 dB true WDR for strong backlight environments
-
2.8mm fixed lens, F1.0 – wide viewing angle and excellent low-light performance
-
Warm white light up to 30m for colour night footage
-
AI perimeter protection with false alarm filtering
- (human / vehicle / non-motor vehicle)
-
People flow counting & crowd density monitoring
-
Audio I/O 1/1, Alarm I/O 1/1, built-in microphone
-
microSD support up to 512GB + ANR / NAS
- IK10 vandal-resistant, IP67 weatherproof, NEMA 4X
16-Channel AI PoE NVR (×1) NVR502-16B-P16-IQ
Uniview UNV NVR502-16B-P16-IQ 16-Channel PoE AI NVR, 2 x HDD Bay, ONVIF
-
16-channel IP input with 16× PoE ports (IEEE 802.3af/at)
-
Ultra 265 / H.265 / H.264 compression
-
Supports up to 16MP cameras
-
HDMI up to 4K + VGA (independent outputs)
-
320 Mbps incoming / 160 Mbps outgoing bandwidth
-
AI features: Face, SIP, UMD, smart VCA search & reports
-
2× SATA bays, up to 16TB each, RAID 1 support
-
ANR failover for recording continuity
-
Alarm 8-in / 2-out, RS-485, USB 2.0 + USB 3.0
- Compact 1U chassis, low power consumption
Recommended For
-
Retail stores & shopping centres – full-colour evidence and people counting
-
Warehouses & factories – wide coverage and AI intrusion detection
-
Schools & offices – crowd monitoring and perimeter protection
-
Car parks & commercial buildings – colour night footage up to 30m
- Medium to large business CCTV deployments
Specifications
| Brand |
Uniview UNV 8MP CCTV Kit |
| Camera Model |
IPC3638SE-ADF28K-WP-I1 (×10) |
| Camera Resolution |
8MP / 4K (3840 × 2160) |
| Lens |
2.8mm fixed, F1.0 |
| Night Performance |
ColorHunter full colour + warm light up to 30m |
| AI Features |
Intrusion detection, human/vehicle filtering, people counting, crowd density |
| Camera Protection |
IK10, IP67, NEMA 4X |
| NVR Model |
NVR502-16B-P16-IQ |
| NVR Channels / PoE |
16 channels / 16× PoE ports |
| Video Output |
HDMI up to 4K + VGA (independent) |
| Storage |
2× SATA, up to 16TB each, RAID 1 supported |
| Bandwidth |
320 Mbps incoming / 160 Mbps outgoing |
Recommended HDD Configuration
| Retention Period |
Estimated Storage Required |
Recommended HDD Configuration |
| 7 Days |
~6 TB |
1 × 8TB Surveillance HDD |
| 14 Days |
~12 TB |
2 × 8TB HDD (RAID 1 optional) |
| 30 Days |
~26 TB |
2 × 16TB HDD |
