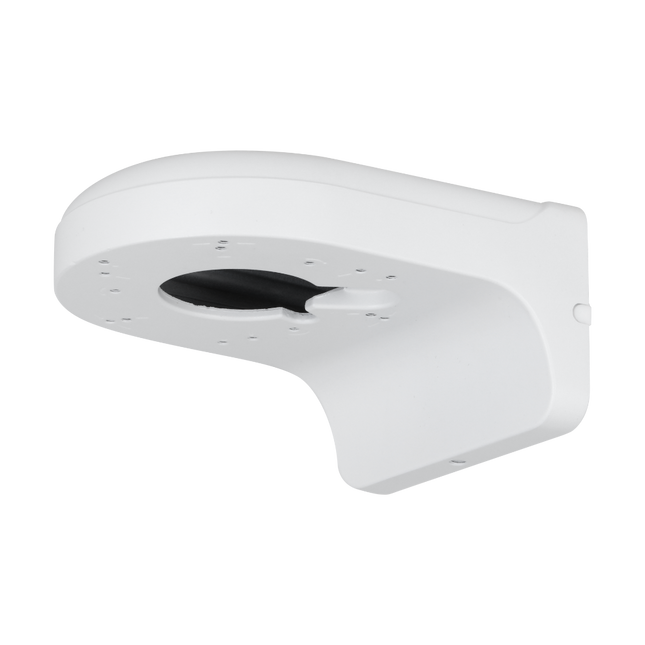

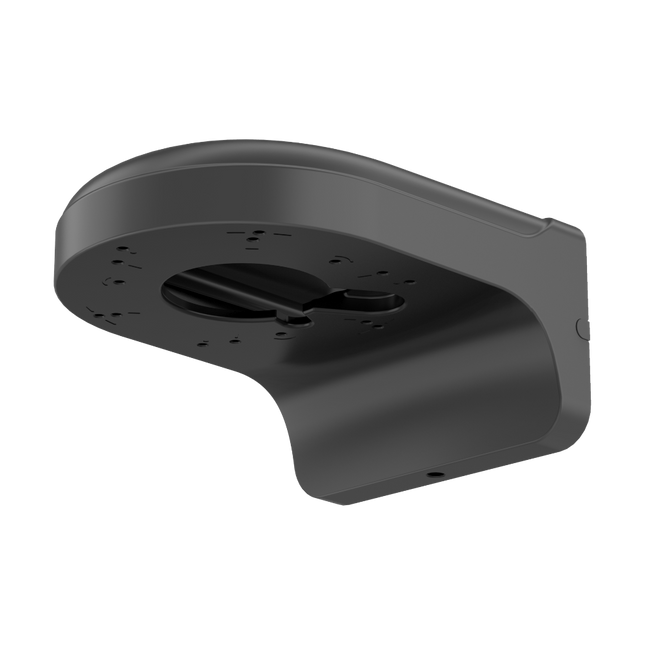

The Dahua PFB2203W is a professional-grade wall mount bracket designed to provide a secure and aesthetically pleasing mounting solution for Dahua dome cameras. Constructed from high-quality aluminum, this bracket is built to withstand harsh environments while ensuring your surveillance equipment remains stable and correctly positioned.
Key Performance Features
High-Quality Material: Manufactured from durable aluminum alloy, providing excellent structural integrity and corrosion resistance.
Weatherproof Design: With an IP66 rating, this bracket is ideal for both indoor and outdoor installations, protecting connections from dust and water.
Integrated Junction Box: Features a hollow center design that allows for clean cable management, hiding connectors and wires from view and protecting them from tampering.
High Load Capacity: Engineered to support up to 1.0kg (2.2lb), ensuring compatibility with a wide range of Dahua mini-dome and turret cameras.
Why Use the PFB2203W Bracket?
Professional Finish: Provides a clean, "factory" look for residential and commercial security installations.
Easy Installation: The bracket features pre-drilled holes for standard wall mounting and simple camera attachment points.
Optimized Viewing: Extends the camera away from the wall to reduce reflections and provide a better angle of the monitored area.
The Dahua PFB2203W wall mount bracket is highly versatile, designed primarily for dome and eyeball (turret)cameras. Based on Dahua’s technical compatibility data, it is compatible with a wide range of series.
Compatible Camera Series & Models
The PFB2203W is typically used for cameras with a base diameter that matches its mounting plate (approx. 122mm to 129mm). Key compatible series include:
WizMind & WizSense Series:
IPC-HDW5X59 Series: (e.g., IPC-HDW5859H-ZE-PV-PRO, IPC-HDW5459TM-ASE-IL)
IPC-HDBW5X41 Series: (e.g., IPC-HDBW5441R-ASE)
IPC-HDW3X49 Series: (e.g., IPC-HDW3849QM-S-IL TiOC models)
IPC-HDBW3X41/3X49 Series: (e.g., IPC-HDBW3849E-AS-IL)
IPC-HDW2X49 Series: (e.g., IPC-HDW2549T-S-IL)
HDCVI (Analog) Series:
HAC-HDW1249 Series: (e.g., HAC-HDW1249X-A-PRO)
HAC-HDBW Series: Most standard size vandal-proof domes.
Specialty Models:
IPC-PDW3849-A180-AS-PV: 180° Duo Splicing cameras.
How to Confirm Compatibility
Because Dahua frequently updates their camera housings, the most accurate way to confirm is to check the Camera Accessory Selection guide or the specific camera's datasheet under the "Accessories" section.
General Compatibility Rule: If your camera is compatible with the PFA137 or PFA130-E junction boxes, it is almost certainly compatible with the PFB2203W wall mount, as they share the same mounting hole patterns.
Key Specs for Installation:
Load Bearing: Supports up to 1.0 kg (2.2 lb).
Material: Aluminum alloy & SGCC (provides high durability and corrosion resistance).
Dimensions: 162.0 mm × 129.4 mm × 80.0 mm.
Technical Specifications
Feature
Specification
Model
PFB2203W
Material
Aluminum Alloy
Dimensions
160.0mm x 122.0mm x 76.0mm
Pipe Thread
G1/2"
Load Bearing
1.0kg (2.2lb)
Weight
0.49kg (1.08lb)
Color
White
Operating Temp.
-40ºC to +60ºC (-40ºF to +140ºF)
Protection Rating
IP66
Guru Tip: To ensure a fully waterproof seal for outdoor use, always use the included G1/2” pipe thread or applicable conduit and apply waterproof tape to the cable entry points.

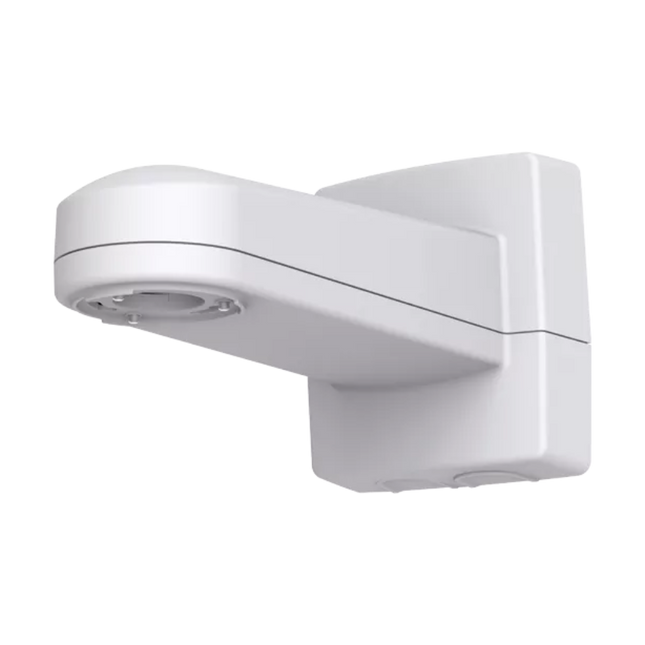

The AXIS T91G61 Wall Mount (5506-951) is a professional-grade mounting solution specifically designed for Axis PTZ and multi-sensor network cameras. It stands out by featuring a spacious internal compartment that safely houses connectivity devices, midspans, and service loops, protecting them from water ingress and environmental damage. With its pre-mounted Ethernet cable and IP66-rated connector, it significantly simplifies and speeds up your installation.
Key Features
Internal Accessory Compartment: Provides ample room to accommodate midspans, media converters, and cable loops safely inside the mount.
Pre-Mounted IP66 RJ45 Connector: Includes a high-quality Ethernet cable with a waterproof gasketed connector for fast, reliable power and data hookups.
Elite Durability: Constructed from powder-coated aluminum with IK10 impact resistance and IP66/NEMA 4X weather ratings for harsh outdoor use.
Retrofit Friendly: Features a standardized hole pattern that matches both standard Axis PTZ mounts and Pelco PTZ mounts, allowing for easy upgrades without new drilling.
Versatile Mounting Options: Can be used on walls directly or combined with optional accessories for pole (AXIS T91B57) or corner (AXIS T91A64) installations.
Flexible Cable Routing: Supports internal routing through the back cable hole or external routing via 3/4" conduit entrances at the bottom.
Technical Specifications
SKU / Part Number
5506-951 (White) / 01444-001 (Grey)
Max Load
30 kg (66 lb)
Material
Powder-coated Aluminum
Ratings
IP66, NEMA 4X, IK10
Dimensions
185 x 214 x 404 mm (7.28 x 8.43 x 15.9 in)
Weight
3.5 kg (7.7 lb)
Compatibility
The AXIS T91G61 is recommended for use with the following series:
AXIS Q60, Q61, and Q63 Series PTZ Cameras
AXIS P56 Series PTZ Cameras
AXIS Q37 and Q38 Series Panoramic Cameras
AXIS M55 Series PTZ Cameras
Download AXIS T91G61 Datasheet (PDF)
The Uniview TR-CM24-IN is a professional-grade indoor pendant mount specifically engineered for the IPC323X Series fixed dome cameras. Constructed from high-quality aluminum alloy, this bracket provides a stable and secure overhead mounting solution for indoor surveillance applications.
Key Features
Dedicated Compatibility: Expertly designed for seamless integration with the Uniview IPC323X Series fixed dome cameras.
Durable Construction: Built from robust aluminum alloy to ensure long-term stability and reliability in indoor environments.
Lightweight Design: Weighing only 0.25kg (0.55lb), it offers a sturdy yet manageable solution for pendant installations.
Standardized Threading: Features a 3/4" NPS thread for compatibility with standard mounting poles and accessories[cite: 177].
Professional Aesthetics: The sleek, industrial design ensures it blends perfectly into modern indoor commercial and residential settings.
Technical Specifications
Model
TR-CM24-IN
Application
Pendant mount for IPC323X Series fixed dome
Material
Aluminum alloy
Dimensions
110.0 mm x 223.5 mm (4.3" x 8.8")
Weight
0.25kg (0.55lb)
More Information
For a complete mounting solution, the TR-CM24-IN is compatible with the following accessories:
TR-SE24-IN: Dome Pendant Mounting Pole 200mm[cite: 190].
TR-SE24-A-IN: Dome Pendant Mounting Pole 500mm[cite: 192].
TR-JB08: Junction Box for 322x Dual-lens Dome[cite: 196, 197].
Download TR-CM24-IN Datasheet (PDF)

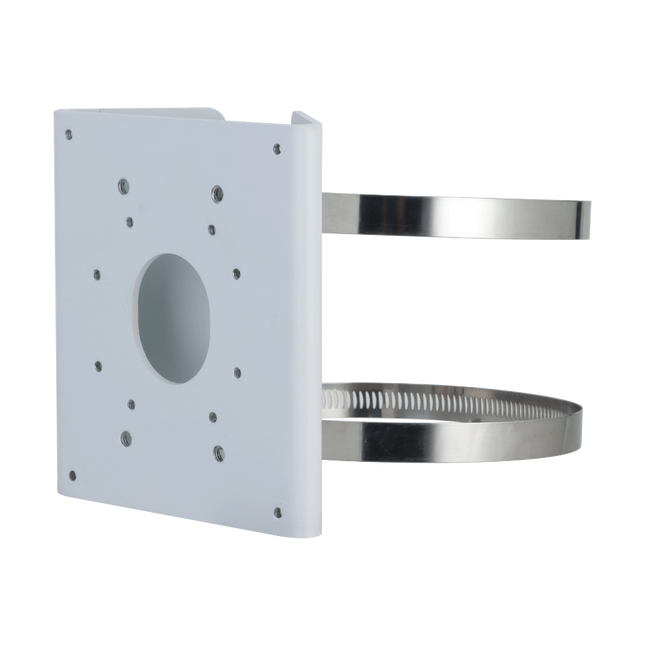

The Dahua DH-PFA156 is a professional-grade, heavy-duty pole mount bracket designed for the secure installation of security cameras and outdoor intercom stations. Constructed from high-quality SECC steel, this bracket provides a stable mounting platform for devices in both residential and commercial environments, ensuring long-lasting performance in outdoor conditions.
Key Features
Heavy-Duty Construction: Manufactured from SECC (Steel Electro-galvanized Cold-rolled Coil) for superior strength and corrosion resistance.
High Load Capacity: Engineered to support a structural load of up to 10.0 kg (22.05 lb), making it suitable for larger cameras and heavy outdoor stations.
Versatile Pole Compatibility: Designed to fit a wide range of pole diameters, from 80mm to 150mm (3.15" to 5.91"), using adjustable stainless steel hoops.
All-Weather Reliability: Built to operate in extreme temperature ranges from -40 °C to +60 °C (-40 °F to +140 °F) with up to 90% relative humidity.
Seamless Integration: Features a clean, aesthetic design in Dahua White that matches professional security hardware.
Technical Specifications
Material
SECC Steel
Dimensions
130.4 mm x 170.0 mm x 45.0 mm
Pole Diameter
Φ80 mm to Φ150 mm
Load Bearing
10.0 kg (22.05 lb)
Color
Dahua White
Operating Temp
-40 °C to +60 °C
More Information
For detailed dimensions and compatibility charts for Dahua cameras and brackets, please refer to the official documentation:
Download Technical Data Sheet
ZKTeco Angle Bracket for VE01-A50L Outdoor Station
The ZKTeco VE01-A50L Angle Bracket is a dedicated mounting accessory specifically designed for the ZKTeco VE01-A50L 4-wire Villa Outdoor Station. This bracket is essential for installations where the outdoor station cannot be mounted directly facing the visitor, such as on side walls, narrow gate posts, or corners. By providing a fixed angular offset, it ensures the intercom's 2MP camera is perfectly positioned to capture a clear, centered view of visitors.
Key Features
Optimized Viewing Angle: Adjusts the orientation of the outdoor station to provide better coverage of the entry path, improving security and visitor identification.
Perfect Compatibility: Custom-engineered specifically for the VE01-A50L outdoor station, ensuring a flush and secure fit.
Weather-Resistant Build: Constructed from high-durability, outdoor-grade materials designed to withstand harsh environmental conditions without corroding or degrading.
Versatile Mounting: Ideal for residential villas, apartment entryways, and commercial gates where flexible positioning is required.
Simplified Installation: Includes pre-drilled holes and necessary mounting hardware for a quick setup on flat or uneven surfaces.
Technical Specifications
Model
VE01-A50L Angle Bracket
Compatible Device
ZKTeco VE01-A50L (4-Wire Analog)
Material
Durable, weather-resistant construction
Installation Type
Surface Wall/Corner Mount
Application
Outdoor Intercom Angle Adjustment
More Information
For detailed dimensions and installation guides, please refer to the official ZKTeco support documentation:Download User Manual & Installation Guide
Note: This product includes the mounting bracket and screws only. The VE01-A50L Outdoor Station is sold separately or as part of the VK07-A50L Intercom Kit.
Vivotek AM-525 Professional NPT Mounting Adapter
The Vivotek AM-525 is a precision-engineered mounting adapter designed to facilitate the installation of Vivotek network cameras onto standard 1-inch NPT threaded pipes. This adapter is essential for pendant-style mounting, providing a secure and professional connection for both indoor and outdoor surveillance setups.
Key Features & Benefits
Standardized Threading: Features a 1" NPT thread for seamless integration with third-party mounting arms and pendant pipes.
Durable Aluminum Construction: Manufactured from high-quality aluminum alloy to ensure stability and long-term resistance to environmental stress.
Sleek Design: Finished in a clean white powder coating to match Vivotek camera aesthetics and resist corrosion.
Simplified Installation: Allows for quick attachment and detachment of camera units during maintenance or upgrades.
Technical Specifications
Model
AM-525
Material
Aluminum Alloy
Thread Size
1" NPT
Color
White
Dimensions
Ø 133 x 35 mm
Compatibility Guide
The AM-525 is compatible with a wide range of Vivotek fixed dome and turret cameras, including:
Fixed Dome Series: FD9360-H, FD9368-HT, FD9380-H, FD9388-HTV.
Turret Series: IT9389-H, IT9360-H, IT9380-H.
Accessories: Use with standard 1" NPT pendant pipes or wall mount arms.
Package Contents
1x Vivotek AM-525 Mounting Adapter
Screw Pack for Camera Attachment
The Dahua PFB5310C is a reliable in-ceiling mount bracket designed to provide a clean and secure mounting solution for compatible network and PTZ cameras. The bracket supports a variety of recessed ceiling installations, offering a neat finish with minimal intrusion into the camera’s field of view. Built with rugged materials and an anti-drop safety rope, it ensures secure, safe installation even in commercial environments.
Installation is quick and simple, and the bracket design allows easy disassembly and maintenance when needed — making it ideal for offices, retail spaces, warehouses, schools, and other professional CCTV installations.
Key Features
Designed for in-ceiling mounting of compatible Dahua cameras
Screws embedded in the frame — clean installation with full visual range
Includes anti-drop rope for added safety
Works with standard recessed ceiling types
Durable SECC & PC construction for long-lasting reliability
White finish blends with most ceilings
Easy to install and maintain
Specifications
Specification
Details
Model / SKU
PFB5310C
Mount Type
In-ceiling mount bracket
Material
SECC and PC (polycarbonate)
Colour
White
Product Dimensions
Ø 238.0 mm × 78.0 mm (Ø 9.37″ × 3.07″)
Net Weight
0.35 kg (0.77 lb)
Gross Weight
0.62 kg (1.37 lb)
Load Bearing Capacity
Up to 3.0 kg (6.61 lb)
Installation
In-ceiling mount for recessed ceilings
Operating Temp.
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
< 90 % RH
Storage Temp.
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
10 %–90 % RH
Anti-corrosion Level
Basic Protection
AXIS I/O Indication LED – 12 V Camera Status & Recording Indicator Accessory (4-Pack)
The AXIS I/O Indication LED (SKU 01765‑001) is a compact 12 V LED accessory designed to clearly indicate camera activity—such as recording or motion‑triggered events. Simple to install and highly visible, it provides visual reassurance that surveillance is active and operational. Ideal for retail, healthcare, transportation, and office environments where transparency and deterrence are essential.
Key Features
Visual status indicator – lights up during active recording or when triggered by motion or sound.
Plug‑and‑play installation – connects directly to the camera’s 12 V I/O port; no extra power supply required.
Compact & discreet design – minimal footprint; blends neatly into most environments.
Flexible mounting – can be mounted on walls, ceilings, or directly adjacent to cameras.
Durable build – lightweight ABS plastic with white finish (NCS S 1002‑B).
Compatible with Axis cameras – works seamlessly with Axis models featuring I/O ports.
Technical Specifications
Specification
Details
Model
AXIS I/O Indication LED
SKU / MPN
01765‑001
Power Input
12 V DC via I/O port
Current Draw
~ 10 mA
LED Colour
Red (indicates recording / triggered state)
Connection
2‑wire connection to Axis camera I/O port
Housing Material
ABS plastic, white (NCS S 1002‑B)
Operating Temperature
‑30 °C to +55 °C (‑22 °F to 131 °F)
Dimensions
Φ 26 × 21 mm (1.0 × 0.8 in)
Weight
Approx. 18 g (0.04 lb)
Compatibility
All Axis network cameras with 12 V I/O port
Compliance
CE, RoHS
Typical Use Cases
Retail – show active recording to deter theft or tampering.
Healthcare – visually indicate monitored areas while respecting privacy rules.
Transportation – display live recording status in buses, trains, or stations.
Office / Commercial – inform occupants of active surveillance.
Why Choose the AXIS I/O Indication LED?
This simple yet powerful accessory increases transparency and trust in your security system. With straightforward 12 V I/O integration, the AXIS I/O Indication LED adds clear visual signalling to your Axis camera setup—an ideal choice for Australian businesses seeking professional, standards‑compliant surveillance solutions.
Dahua DH-PFA112 Extension Pole 200mm Suits Box/ Fisheye/ Dome/ Speed Dome PTZ/ Mini PTZ/ UFO White Aluminium 7kg Max. Load 0.51kg
The Dahua DH-PFA112 Extension Pole is a 200mm aluminum mounting solution designed for various camera types including box, fisheye, dome, speed dome PTZ, mini PTZ, and UFO models. Its sleek white finish and aesthetic design integrate seamlessly with ceiling setups. Constructed from durable aluminum, it supports a maximum load of 0.51kg, providing reliable stability. Ideal for secure ceiling mounting, this extension pole enhances camera positioning flexibility while maintaining a professional appearance.
Features
Aesthetic design
Material: aluminum
Ceiling mount bracket
Dahua Pendant Mount Bracket Suits Speed Dome PTZ White Aluminium Alloy 10 KG Max Load 0.21 KG
The Dahua Pendant Mount Bracket is designed for secure ceiling installation of Speed Dome PTZ cameras. Constructed from durable white aluminium alloy, it supports up to 10 kg, ensuring robust performance. This bracket features a clean, elegant design with integrated wiring for a neat setup. It includes an 8-inch ball joint and requires a mount adapter for compatibility. Ideal for professional surveillance installations, it offers convenient installation and reliability.
Features
Aluminium alloy.
Convenient Installation.
Simple and elegant design.
Wires in the bracket.
8-inch ball, need to be used with mount adapter.

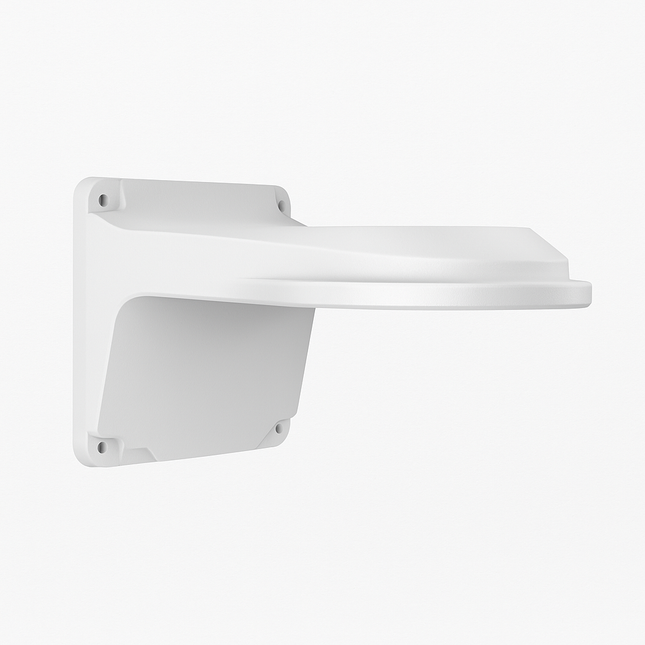

Uniview UNV Dome Wall Mount Bracket for CCTV Cameras
The Uniview UNV Dome Wall Mount Bracket delivers a reliable and professional mounting solution for Uniview dome cameras. Built from
high-strength aluminum alloy with a powder-coated finish, it is designed to withstand harsh conditions while keeping cables concealed for a clean look.
Key Features
Brand: Uniview UNV
Product Type: Dome Wall Mount Bracket
Durable aluminum alloy construction
Weather-resistant for sheltered outdoor use
Internal cable management for neat installations
Pre-drilled mounting holes for easy installation
Compatible with Uniview dome cameras (model specific)
Technical Specifications
Specification
Details
Brand
Uniview UNV
Product Type
Dome Wall Mount Bracket
Material
Aluminum Alloy
Finish
Powder-coated
Cable Management
Internal routing
Weather Resistance
Yes – sheltered outdoor use
Mounting Surface
Wall, column, vertical surface
Compatibility
Select Uniview dome camera models
Included
Bracket, mounting hardware
What's Included
Dome wall mount bracket
Mounting hardware
User guide
Customer Requirements
Compatible Uniview UNV dome camera
RJ45 Cat6 cable if using PoE
Wall fasteners appropriate for your surface type

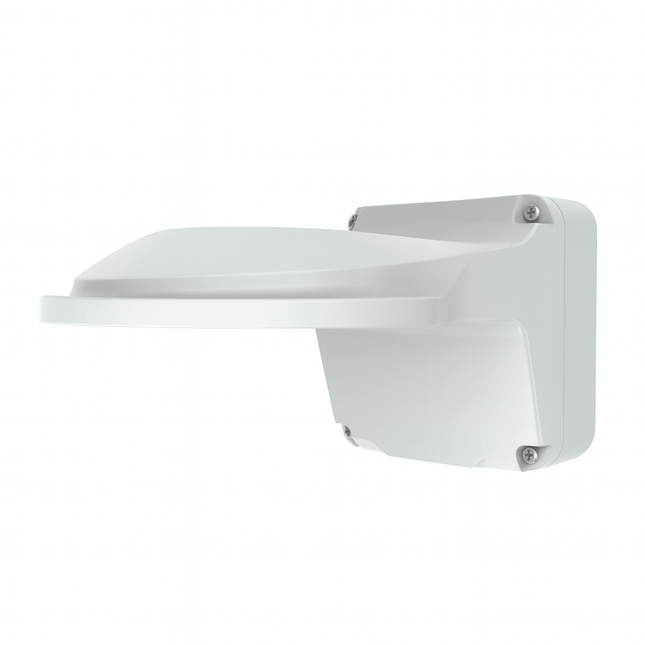

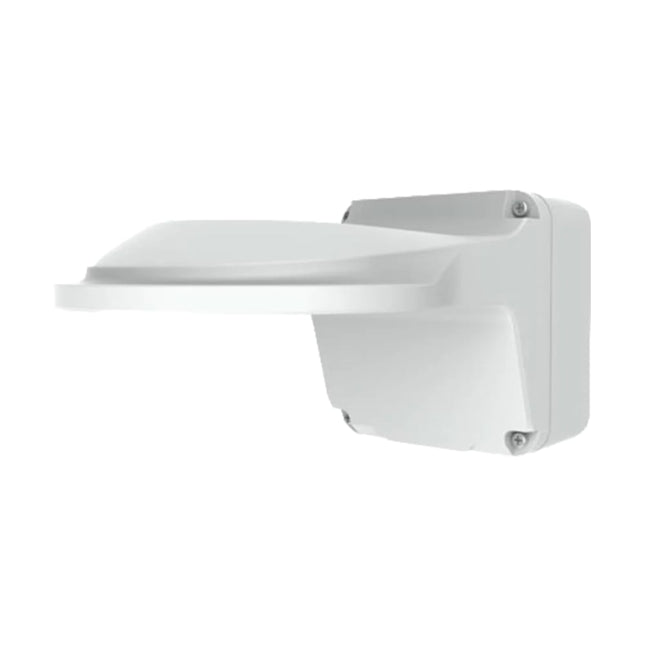

Uniview UNV TR-JB07/WM03-F-IN Fixed Dome Outdoor Wall Mount Bracket
The Uniview UNV TR-JB07/WM03-F-IN Fixed Dome Outdoor Wall Mount Bracket offers a professional-grade solution for securely mounting Uniview fixed dome cameras.
Made from durable aluminum alloy with a powder-coated finish, it is built to withstand harsh outdoor conditions while keeping camera wiring concealed and protected.
Key Features
Brand: Uniview UNV
Model: TR-JB07/WM03-F-IN
Outdoor wall mount for Uniview fixed dome cameras
Durable aluminum alloy construction
Weatherproof housing for long-lasting performance
Internal cable management for neat, secure installs
Pre-drilled mounting holes for fast installation
Technical Specifications
Specification
Details
Brand
Uniview UNV
Model
TR-JB07/WM03-F-IN
Product Type
Outdoor Wall Mount Bracket
Material
Aluminum Alloy
Finish
Powder-coated
Cable Management
Internal routing for concealed wiring
Weather Resistance
Yes – outdoor rated
Mounting Type
Pre-drilled wall mount
Compatibility
Uniview fixed dome cameras (model-specific)
What's Included
TR-JB07/WM03-F-IN wall mount bracket
Mounting hardware
User guide
Customer Requirements
Compatible Uniview fixed dome camera
RJ45 Cat6 cable if camera uses PoE
Appropriate wall fasteners for your surface type
Uniview UNV Junction Box Bracket – White & Black Variants
The Uniview UNV Junction Box Bracket delivers a professional, secure mounting solution for Uniview dome
and bullet cameras. Available in white and black, it blends with your camera finish for
a clean, coordinated look while protecting and hiding cables.
Built from durable aluminum alloy, the bracket features an internal junction cavity with
rear and side cable entries for neat routing. Ideal for indoor or
sheltered outdoor installations, it provides quick service access and a polished result on walls,
eaves, and façades.
Key Features
Brand: Uniview UNV
Color options: White or Black to match your camera
Aluminum alloy construction with weather-resistant finish
Internal cavity conceals wiring; rear & side cable entries
Pre-drilled mounting pattern for fast, secure installs
Compatible with Uniview dome & bullet camera bases (model dependent)
Technical Specifications
Specification
Details
Brand
Uniview UNV
Product Type
Junction Box Bracket
Color Options
White / Black
Material
Aluminum alloy
Cable Routing
Internal cavity; rear & side entries
Mounting
Pre-drilled hole pattern; wall/eave installs
Environment
Indoor / Sheltered outdoor
Finish
Weather-resistant powder coating
Compatibility
Uniview UNV dome & bullet bases (check specific model)
In the Box
Junction box bracket, mounting screws, quick guide
What’s Included
Uniview UNV junction box bracket (White or Black)
Mounting hardware
Quick guide
Customer Requirements
Compatible Uniview UNV camera/base
RJ45 Cat6 cable (for PoE cameras)
Appropriate wall fasteners and sealant for your surface

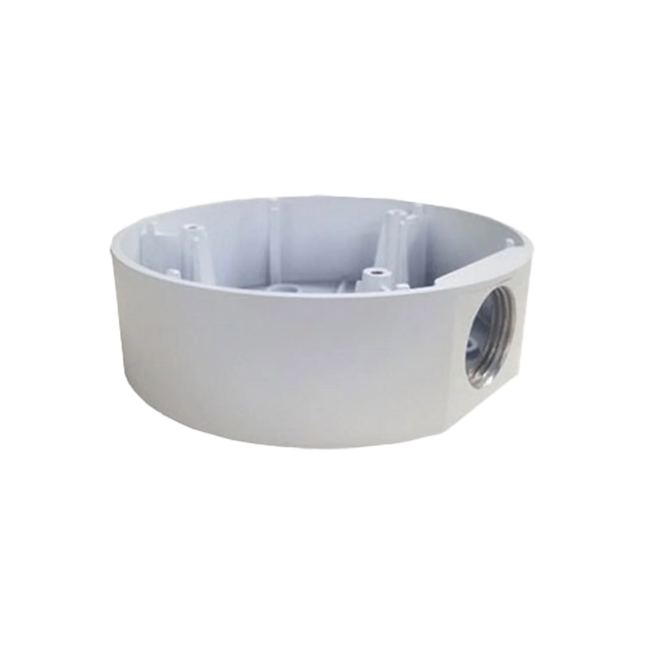

Uniview UNV Junction Box TR-JB03-I-IN for IPC36XXL Series (Wall-Mount)
The Uniview UNV junction box for IPC36XXL series provides a clean, secure way to mount Uniview fixed dome/turret cameras while concealing and protecting cables. Built from durable aluminum alloy with tidy rear/side cable entries, it delivers a professional finish for indoor or sheltered outdoor installations.
Key Features
Brand: Uniview UNV; made for IPC36XXL series (and selected UNV turrets/domes)
Integrated junction box cavity for neat cable management
Aluminum construction for strength and longevity
Suitable for indoor or sheltered outdoor wall installations
Compact profile; pre-drilled pattern for fast mounting
Technical Specifications
Specification
Details
Brand
Uniview UNV
Compatibility
UNV IPC36XXL series (and selected fixed dome/turret models)
Mount Type
Wall-mount bracket with integrated junction box
Material
Aluminum alloy
Cable Management
Rear/side cable entries; internal junction cavity
Environment
Indoor or sheltered outdoor use
Finish/Color
White (UNV standard finish)
Typical Use
Neat wall installations under eaves, entries, and corridors
What’s Included
Uniview UNV junction box & wall-mount bracket
Mounting hardware & quick guide
Customer Requirements
Compatible UNV camera (e.g., IPC36XXL series)
RJ45 Cat6 network cable (if camera uses PoE)
Appropriate fasteners for your wall surface
Sealant/gasket where required for weather protection
The Uniview UNV TR‑JB07/WM03‑G‑IN is a rugged outdoor wall mount bracket featuring a built-in junction box, tailored for Uniview IPC36XXL, IPCD1XX, and IPCT1XX fixed dome cameras. Made of durable aluminum alloy and engineered for clean cable routing via an extra back outlet, it delivers both aesthetic appeal and reliable protection for professional camera installations.
Key Features
Application: Wall mounting for IPC36XXL, IPCD1XX, and IPCT1XX fixed dome and plastic turret cameras
Dimensions: 126.7 × 126.4 × 228.4 mm (4.99” × 4.98” × 8.99”)
Weight: Approximately 1 kg (2.20 lb)
Material: High-quality aluminum alloy for durability
Cable Management: Integrated junction box with extra back outlet ensures tidy cable routing and protection
Highlights
Dual Function Design: Combines a solid wall mount with an integrated junction box for streamlined installation.
Clean & Professional Placement: Built-in back outlet hides and protects wiring for a polished look.
Weather & Wear Resistant: Robust aluminum construction ensures longevity in outdoor environments.
Perfect Fit for Specific Series: Optimized for Uniview IPC36XXL, IPCD1XX, and IPCT1XX fixed dome cameras.
Technical Specifications
Specification
Details
Model
TR-JB07/WM03-G-IN
Product URL
Official Uniview Page
Compatible Cameras
IPC36XXL, IPCD1XX & IPCT1XX fixed dome/turret cameras
Dimensions
126.7 × 126.4 × 228.4 mm (4.99″ × 4.98″ × 8.99″)
Weight
~1 kg (2.20 lb)
Material
Aluminum alloy
Cable Management
Integrated junction box with extra back outlet
Mount Type
Outdoor wall mount

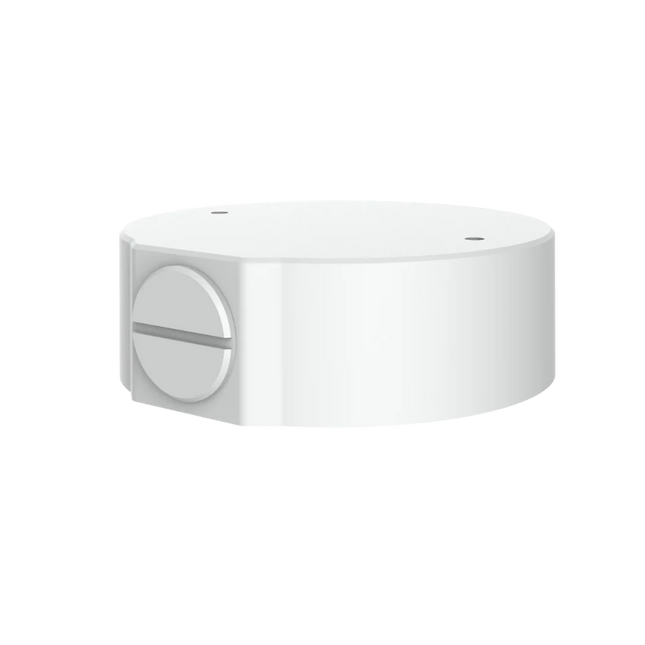

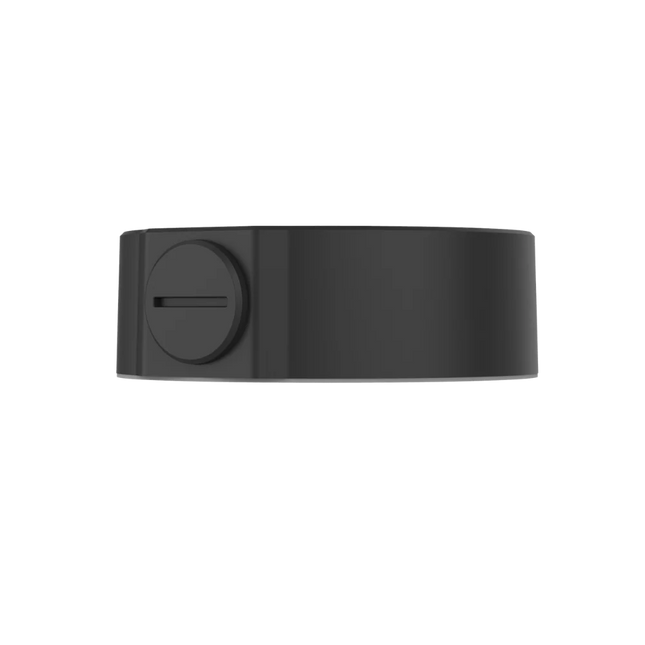

The Uniview UNV TR‑JB03‑G‑IN is a robust aluminum junction box tailored for IPC32X, IPC31X, and IPCD1XX series fixed dome cameras. Designed for sleek and safe wall mounting, it offers clean cable routing from both the back and side, ensuring a tidy and durable installation.
Key Features
Compatibility: IPC32X, IPC31X, and IPCD1XX fixed dome cameras
Dimensions: Ø108.6 × 36 mm (Ø4.28″ × 1.42″)
Weight: 0.2 kg (0.44 lb)
Material: Lightweight, durable aluminum alloy
Mounting Support: Supports wiring from behind; neat cable concealment
Environmental Protection: Waterproof gasket and optional conduit threading allow reliable use in varied installations
Highlights
Tailored Design: Engineered to perfectly fit Uniview IPC32X, IPC31X, and IPCD1XX dome cameras.
Compact & Lightweight: Minimal bulk — compact size and only 0.2 kg.
Effortless Cable Management: Back and side cable entries keep wiring organized and secure.
Solid Construction: Durable aluminum alloy ensures installation longevity.
Weather-Ready Installation: Includes waterproofing measures and conduit-ready side/top threading for added protection.
Specificartions
Specification
Details
Model
TR-JB03-G-IN
Product URL
Official Uniview Page
Compatible Cameras
IPC32X, IPC31X & IPCD1XX series fixed dome
Dimensions
Ø108.6 × 36 mm (Ø4.28″ × 1.42″)
Weight
0.2 kg (0.44 lb)
Material
Aluminum alloy
Cable Routing
Back and side entries
Waterproofing
Gasket included; conduit threading (3/4″ NPS)
Use Case
Indoor wall-mount installation of fixed dome cameras
Hikvision 1273ZJ-140-DM45-BLK Wall Mount for IPC-T269H-MU/SL
The Hikvision 1273ZJ-140-DM45-BLK is a robust wall mount designed specifically for the IPC-T269H-MU/SL camera. Crafted from durable aluminum alloy and finished in sleek black, it ensures long-lasting support and corrosion resistance. With dimensions of 140 mm x 183.5 mm x 232 mm, this mount provides a secure and stable installation, optimizing camera positioning for enhanced surveillance coverage. Ideal for professional security setups requiring reliable and precise mounting solutions.
Hikvision Security Camera Wall Mount Bracket
Type
Wall mount
Material
Aluminum Alloy
Colour
Black
Dimension
140 mm x 183.5 mm x 232 mm (5.51" x 7.22" x 9.13")
Hikvision HiLook Wall/ Ceiling Mount, ALARM-BKT
The HiLook Wall/Ceiling Mount ALARM-BKT offers versatile installation with 0-90 degree vertical and -40 to 40 degree horizontal adjustment, ensuring optimal camera positioning. Designed for secure mounting on walls or ceilings, it provides reliable support for your surveillance equipment, enhancing coverage flexibility and installation precision. Ideal for professional security setups requiring adaptable camera angles.
Features
0-90 degree vertical
-40 degree to 40 degree horizontal
Wall/Ceiling mount
Dahua DH-PFH101 Rack Mount Tray
The Dahua DH-PFH101 Rack Mount Tray is made of durable SPCC material and is highly compatible with standard storage devices. Designed to fit into a 19'' rack, this tray provides convenient and organized storage for your equipment. Streamline your setup with this reliable and versatile rack mount tray.
Features
Material: SPCC
High compatibility for standard storage device
19'' standard rack mount tray
Downloads
DH-AC-PFH101 Datasheet
Dahua PFA101 Mount Adapter
Features
Aesthetic design
Material: aluminum
Mount adapter
Specifications
Dahua Camera Bracket
Type
Mount adapter
Material
Aluminum
Colour
White
Dimension
159mmx159mmx35mm (6.26''x6.26''x1.38'')
Downloads
DH-AC-PFA101 Datasheet
Dahua HAP320-V Hi-fidelity Pickup
Dahua Hi-fidelity Pickup, metal shell, plating processing surface, high sensitivity waterproof and dust-proof microphone head, IP66, Ambient noise cancellation (ANC) technology
Features
Use metal shell, surface is through plating processing;
Use high sensitivity waterproof and dust-proof microphone head, pickup clear
sound;
Ambient noise cancellation（ANC）technology;
Waterproof and dust-proof level are IP66.
Downloads
DH-HAP320-V Datasheet
VIVOTEK 5MP + 8 Channel kit : 6 x Motorised Dome Cameras & NVR with 4Tb, Kit-VIVO-5MP8064DM
This VIVOTEK CCTV Kit comes with
6 x FD9388-HTV
1 x ND9326P
1 x 4TB Hard Drive Installed
6 x 5MP MOTORISED DOME CAMERA FD9388-HTV
H.265 Compression Technology
20 fps @ 2560x1920 (WDR Pro on)
2.8-12 mm, Remote Focus
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Built-in Microphone
1 x 8CH NVR ND9326P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 4TB HARD DRIVE INSTALLED
Storage Capacity 4TB
Vivotek AM-719_V01 Outdoor Junction Box
Heavy-Duty Weatherproof Protection for Surveillance Cabling
The Vivotek AM-719_V01 is a robust outdoor junction box designed for professional security installations. Crafted from die-cast aluminum alloy, it provides a secure, tidy, and weatherproof housing for camera connectors and excess cabling, ensuring long-term system reliability.
Key Features
Durable Construction: Built with high-quality aluminum alloy to withstand harsh outdoor environments.
Weatherproof Design: IP-rated protection to keep your electrical connections safe from rain, dust, and debris.
Versatile Mounting: Supports various Vivotek bullet and fixed dome cameras.
Professional Finish: Clean white aesthetic that matches Vivotek hardware for a seamless look.
Technical Specifications
Material
Aluminum Alloy
Dimensions
153 (L) x 153 (W) x 55 (H) mm
Weight
750g
Color
White
Installation Tip: Ensure all unused cable entries are properly plugged to maintain the weatherproof seal of the junction box.
More Information
AM-719 DatasheetAM-719 User Manual
Vivotek AM-529 Mounting Adapter for Speed Dome
Secure & Precise Mounting for Speed Dome Cameras
The Vivotek AM-529 is a high-quality mounting adapter specifically designed for Vivotek Speed Dome cameras. It acts as a bridge between the camera unit and various mounting accessories, ensuring a stable and secure fit for high-performance surveillance setups.
Key Features
Engineered for Precision: Provides a perfect fit for Vivotek Speed Dome series cameras.
Durable Construction: Made from high-strength aluminum alloy to support the weight of heavy PTZ units.
Corrosion Resistant: Finished with a professional white powder coating to withstand outdoor environments.
Simplified Setup: Designed for quick attachment to compatible brackets and camera housings.
Technical Specifications
Material
Aluminum Alloy
Dimensions
Ø 125 x 42 mm
Weight
380g
Color
White
Expert Tip: This adapter is essential when wall-mounting or pendant-mounting larger PTZ Speed Dome cameras that do not attach directly to standard brackets.
More Information
AM-529 User Manual
Vivotek AM-520_V05 Professional Mounting Adapter
The Vivotek AM-520_V05 is a high-quality mounting adapter designed to provide a secure interface between Vivotek fixed dome cameras and various mounting accessories. This Version 5 adapter is engineered for durability and precision, ensuring a professional and stable installation for your IP surveillance system.
Key Features & Benefits
Robust Construction: Manufactured from high-strength aluminum alloy, providing long-term reliability for both indoor and outdoor setups.
Version 5 Optimized: The latest revision ensures perfect mechanical alignment with current Vivotek camera hardware.
Weather Resistant: Features a white powder-coated finish that resists corrosion and matches Vivotek’s professional aesthetic.
Seamless Integration: Designed to work perfectly with Vivotek wall mount brackets, pendant pipes, and junction boxes.
Technical Specifications
Model
AM-520_V05
Material
Aluminum Alloy
Color
White
Dimensions
Ø 150 x 37 mm
Weight
430 g
Compatibility Guide
The AM-520_V05 is designed for use with a wide range of Vivotek equipment, including:
Supported Cameras: FD9365-EHTV-V2, FD9367-EHTV-V2, FD9387-EHTV-V2, FD9389 series, and more.
Mounting Brackets: AM-218 (Wall Mount), AM-114 (Pendant Head).
Junction Boxes: AM-719.
Package Contents
1x Vivotek AM-520_V05 Mounting Adapter
Screw Kit for Camera Mounting
More Information
User Manual
Vivotek AM-414 Heavy-Duty Corner Mount Bracket
The Vivotek AM-414 is a professional-grade corner mount bracket engineered to provide a stable and secure mounting solution for Vivotek speed dome and multi-sensor network cameras. Constructed from high-strength aluminum alloy, this bracket is designed to maximize your field of view by utilizing corner placements, effectively reducing blind spots in perimeter security.
Key Features & Benefits
Optimized Field of View: Designed for 270-degree corner mounting, allowing cameras to monitor two sides of a building simultaneously.
Industrial Grade Material: Made from durable aluminum alloy with a clean white powder-coated finish for maximum weather resistance.
Internal Cable Management: Spacious design allows for clean cable routing, protecting connectors from environmental damage.
High Load Capacity: Engineered to support the weight of heavy-duty speed domes and multi-sensor panoramic cameras.
Technical Specifications
Model
AM-414
Material
Aluminum Alloy
Color
White
Dimensions
240 (L) x 165 (W) x 152 (H) mm
Weight
1,900 g
Compatibility Guide
The AM-414 is designed to work with Vivotek's professional mounting ecosystem:
Speed Dome Series: SD9361-EHL, SD9362-EH/EHL, SD9363-EHL, SD9364-EHL, SD9365-EHL, SD9366-EH/EHL.
Multi-Sensor Series: MA9322-EHTVL, MA9321-EHTV.
Wall Mount Brackets: Required for use with AM-21C wall mount arm.
Package Contents
1x Vivotek AM-414 Corner Mount Bracket
Installation Screw Kit
Mounting Template
More Information
AM-414 User Manual
Vivotek AM-412_V03 Heavy-Duty Corner Mount Adapter
The Vivotek AM-412_V03 is a professional-grade corner mounting solution designed to provide a secure and stable platform for your IP surveillance cameras. Built from high-quality SECC steel with a clean white finish, this Version 3 adapter is engineered to withstand harsh environments while maximizing coverage by utilizing corner spaces typically hard to monitor.
Key Features & Benefits
Optimized Coverage: Enables cameras to monitor two perpendicular directions simultaneously, significantly reducing blind spots in perimeter security.
Rugged Construction: Manufactured from durable SECC steel, making it ideal for both indoor and outdoor professional installations.
NDAA Compliant: Suitable for government and high-security projects requiring compliant surveillance hardware.
Easy Installation: Includes a comprehensive screw kit and hex wrenches for a seamless setup process.
Technical Specifications
Model / Version
AM-412_V03 (Version 3)
Material
SECC (Steel)
Color
White
Dimensions
315 (L) x 216 (W) x 170 (H) mm
Weight
2,186 g (Approx. 4.8 lbs)
Compatibility Guide
The AM-412_V03 is designed to work seamlessly with Vivotek’s mounting ecosystem:
Wall Mount Brackets: Compatible with AM-218.
Junction Boxes: Compatible with AM-719.
Supported Camera Series: IB9360-H, IB9365-EHT-A, IB9367 series, IB9368-HT, IB9380-H, IB9387 series, IB9391 series, MS9390-HV, MS9321-EHV, and TB9330-E / TB9331-E.
Package Contents
1x Vivotek AM-412 Corner Mount Bracket
Installation Hardware Kit (M6x20mm, M5x20mm, M4x15mm screws)
Hex L Wrenches (4mm & 5mm)
M8 Nuts
More Information
AM-412 User Manual
Vivotek AM-314 Pole Mount Adapter
Rugged Outdoor Pole Mounting Solution
The Vivotek AM-314 is a heavy-duty pole mount adapter designed for secure camera installations on circular poles. Compatible with pole diameters ranging from 89mm to 152.4mm (3.5" to 6"), this adapter provides a stable foundation for Vivotek wall mount brackets and junction boxes.
Key Features
Wide Compatibility: Fits poles with a diameter of 89mm to 152.4mm using adjustable stainless steel straps.
Industrial Strength: Manufactured from high-quality aluminum alloy for maximum durability and weather resistance.
Professional Finish: Powder-coated in white to resist corrosion and match Vivotek’s outdoor hardware.
Versatile Mounting: Pre-drilled hole patterns support a wide range of Vivotek wall mount brackets (such as the AM-212 and AM-218).
Technical Specifications
Material
Aluminum Alloy
Supported Pole Diameter
89mm ~ 152.4mm
Dimensions
230 (L) x 170 (W) x 70 (H) mm
Weight
1,250g
Package Contents: Includes 1x Pole Mount Adapter and 2x Stainless Steel Straps for immediate installation.
More Information
AM-314 User Manual
Vivotek AM-312_V03 Heavy-Duty Pole Mount Adapter
The Vivotek AM-312_V03 is a professional pole mounting solution designed for versatile security camera installations. This Version 3 adapter allows for the secure attachment of cameras to poles with diameters ranging from 60mm to 152mm. Constructed from high-quality SECC steel, it is built to provide long-lasting stability in both indoor and outdoor environments.
Key Features & Benefits
Broad Compatibility: Fits pole diameters from 60mm to 152mm (2.3" to 5.9"), making it suitable for various utility and light poles.
Rugged Build: Made from durable SECC steel with a white powder-coated finish for superior weather resistance and durability.
Complete Kit: Comes equipped with two high-strength stainless steel straps to ensure a tight, slip-free grip on the pole.
System Integration: Works seamlessly with Vivotek wall mount brackets and junction boxes for a complete mounting ecosystem.
Technical Specifications
Model
AM-312_V03
Material
SECC Steel & Stainless Steel Straps
Pole Diameter Range
60 mm ~ 152 mm
Color
White
Weight
1,215 g
Compatibility Guide
The AM-312_V03 is designed to be used in conjunction with the following Vivotek accessories:
Wall Mount Brackets: AM-212, AM-218, AM-221
Junction Boxes: AM-712, AM-714, AM-718, AM-719
Package Contents
1x Vivotek AM-312 Pole Mount Adapter
2x Stainless Steel Straps (Large)
Screw Kit (M6x20mm, M5x20mm)
More Information
AM-312_V03 User Manual
Vivotek AM-218_V02 Wall Mount Bracket
Industrial-Grade Wall Mounting for Professional Surveillance
The Vivotek AM-218_V02 is a high-performance wall mount bracket designed for secure pendant-style camera installations. Built from die-cast aluminum alloy, it provides a stable and elevated platform for your cameras, ensuring an optimal field of view in both indoor and outdoor environments.
Key Features
Heavy-Duty Build: Constructed with premium aluminum alloy for maximum strength and vibration resistance.
Pendant Mount Ready: Designed to facilitate professional pendant mounting for large dome and PTZ cameras.
Weatherproof Finish: Features a durable white powder-coating to resist corrosion and environmental wear.
Internal Cable Routing: Allows for clean, hidden cable management through the bracket arm to protect wiring.
Technical Specifications
Material
Aluminum Alloy
Dimensions
301 (L) x 150 (W) x 135 (H) mm
Weight
1220g
Load Capacity
Up to 5kg
Expert Tip: This bracket is best paired with a compatible Vivotek mounting adapter or junction box for a fully integrated, weatherproof seal.
More Information
AM-218_V02 User Manual
Vivotek AM-118_V02 Indoor Pendant Head
Sleek & Secure Indoor Pendant Mounting
The Vivotek AM-118_V02 is a professional indoor pendant head designed to connect Vivotek cameras to pendant pipes for ceiling-mount installations. Crafted from high-grade aluminum alloy, it provides a stable and aesthetically pleasing mounting solution for modern indoor surveillance.
Key Features
Indoor Optimized: Specifically designed for indoor environments where a clean, professional look is required.
Durable Build: Manufactured from die-cast aluminum alloy for long-lasting structural integrity.
Standard Threading: Features 1-1/2" PS threading for seamless compatibility with Vivotek pendant pipes (like the AM-116 or AM-117).
Easy Integration: Works in conjunction with camera-specific pendant caps to provide a complete mounting system.
Technical Specifications
Material
Aluminum Alloy
Dimensions
Ø 120 x 51 mm
Weight
320g
Thread Size
1-1/2" PS
Expert Tip: This pendant head is the "cap" that connects the camera assembly to the extension pipe. Ensure your pipe threading matches the 1-1/2" PS specification.
More Information
AM-118 User Manual
Vivotek AM-117_V02 Pendant Pipe (40cm)
Extended Ceiling Mount Support for Vivotek Cameras
The Vivotek AM-117_V02 is a professional 40cm pendant pipe designed to provide additional clearance for ceiling-mounted surveillance cameras. Constructed from high-grade aluminum alloy, it offers a stable and secure extension for pendant-style installations in high-ceiling environments.
Key Features
Optimal Length: 40cm extension allows for superior positioning and camera clearance.
Heavy-Duty Build: Crafted from die-cast aluminum alloy for maximum durability and rust resistance.
Standard Threading: Features 1-1/2" PS threading for seamless compatibility with Vivotek pendant caps and mounting brackets.
Professional Look: Sleek white finish to maintain a clean aesthetic across your surveillance hardware.
Technical Specifications
Material
Aluminum Alloy
Length
400 mm (40cm)
Thread Size
1-1/2" PS
Weight
720g
Expert Tip: This pipe is designed to be used in conjunction with a compatible Vivotek pendant cap (sold separately) to attach the camera unit.
More Information
AM-117 User Manual
Vivotek AM-114_V02 Heavy-Duty Pendant Head Mount
The Vivotek AM-114_V02 is a professional-grade pendant head adapter engineered for secure outdoor surveillance. This Version 2 mount provides a rugged interface between Vivotek speed dome cameras and various mounting pipes or arms, ensuring a stable, weatherproof connection for critical monitoring environments.
Key Features & Benefits
Precision Threading: Features a standard 1.5" NPT male thread, offering wide compatibility with professional mounting accessories.
Industrial Construction: Manufactured from high-strength aluminum alloy to provide long-lasting support against wind and environmental stress.
Optimized for Speed Domes: Designed specifically for Vivotek’s high-performance speed dome series to ensure perfect alignment.
Corrosion Protection: Finished with a durable white powder coating to resist UV damage and oxidation in outdoor settings.
Technical Specifications
Model
AM-114_V02 (Version 2)
Material
Aluminum Alloy
Thread Size
1.5" NPT
Color
White
Weight
550 g
Compatibility Guide
This pendant head is designed for use with the following Vivotek series:
Speed Dome Cameras: SD9361-EHL, SD9362-EH/EHL, SD9363-EHL, SD9364-EHL, SD9365-EHL, SD9366-EH/EHL, and SD9161-H series.
Mounting Hardware: Compatible with Vivotek wall mount arms and pendant pipes utilizing a 1.5" NPT connection.
Package Contents
1x Vivotek AM-114_V02 Pendant Head
Installation Hardware & Waterproof Gasket
More Information
For a complete list of compatible cameras and mechanical drawings, please refer to the official Vivotek accessory guides:
View Vivotek Accessory Compatibility TableDownload Installation Manuals
Note: Depending on your camera model, an additional mounting adapter (cap) may be required to complete the installation.
Vivotek AM-71E_V02 Outdoor Conduit Box
Secure & Weatherproof Cable Management
The Vivotek AM-71E_V02 is a professional-grade outdoor conduit box designed to house and protect security camera cabling. Constructed from high-quality aluminum alloy, it provides a clean, tamper-resistant installation for both indoor and outdoor environments.
Key Features
Durable Construction: Made from robust aluminum alloy for long-term outdoor reliability.
Precise Compatibility: Designed specifically for Vivotek models including IB9360-H, IB9380-H, IB9369, and FD9369.
Standard Integration: Features a PF 1/2" pipe thread for seamless connection to standard conduits.
Clean Aesthetics: Sleek white finish to match your Vivotek hardware and maintain a professional look.
Technical Specifications
Material
Aluminum Alloy
Dimensions
Ø 117 x 40 mm
Weight
373g
Pipe Thread
PF 1/2"
Note: While designed for outdoor use, this product is not recommended for high-salinity coastal environments.
More Information
AM-71E_V02 Dimension
Vivotek AM-71D_V01 Outdoor Conduit Box
Heavy-Duty Cable Protection for Fixed Dome Cameras
The Vivotek AM-71D_V01 is a professional-grade outdoor conduit box engineered to provide a secure and weatherproof housing for camera cabling. Constructed from high-strength aluminum alloy, it ensures long-term protection against environmental wear and physical tampering.
Key Features
Rugged Build: Durable aluminum alloy construction designed for harsh outdoor environments.
Weatherproof Integrity: Safely houses cable connectors to prevent moisture-related failures.
Optimized Compatibility: Ideal for Vivotek fixed dome camera series (verify mounting pattern for AM-71D compatibility).
Conduit Ready: Features 3/4" NPT pipe threading for standard industrial conduit integration.
Technical Specifications
Material
Aluminum Alloy
Dimensions
132 (L) x 132 (W) x 50 (H) mm
Weight
550g
Pipe Thread
3/4" NPT
Expert Tip: For the best weatherproof seal, apply a small amount of silicone sealant around the conduit entry points during installation.
More Information
AM-71D_V01 Dimension
Vivotek AM-71C Waterproof Junction Box
Reliable Weatherproof Protection for Security Cabling
The Vivotek AM-71C is a high-quality outdoor junction box designed to house and protect camera connectors from the elements. Constructed from die-cast aluminum alloy, it provides a tidy and professional mounting solution that prevents cable tampering and moisture damage.
Key Features
Waterproof Integrity: Specifically engineered to maintain a dry environment for sensitive electrical connections.
Solid Construction: Built with rugged aluminum alloy for long-lasting durability in outdoor conditions.
Sleek Profile: Compact design that provides ample space for cable management without being bulky.
Corrosion Resistant: Finished with a professional white coating to resist oxidation and match your Vivotek hardware.
Technical Specifications
Material
Aluminum Alloy
Dimensions
Ø 115 x 45 mm
Weight
350g
Color
White
Pro Tip: Ensure the rubber gasket is properly seated during installation to guarantee a full waterproof seal against the mounting surface.
More Information
AM-71C User ManualAM-71C Dimension
Vivotek AM-71B-V02 Waterproof Conduit Box
Superior Environmental Protection for Professional Surveillance
The Vivotek AM-71B-V02 is a heavy-duty outdoor conduit box designed for demanding security environments. Engineered from die-cast aluminum alloy, it provides a spacious and watertight housing for your camera’s electrical connections, ensuring protection against moisture, dust, and physical tampering.
Key Features
Maximum Durability: Rugged aluminum alloy construction with a NEMA 4X-rated design for extreme weather resistance.
Spacious Interior: Provides ample room for cable slack, PoE splitters, or connectors, making installation easier.
Versatile Integration: Features standard conduit entries (3/4" NPT) for seamless piping connections.
Professional Aesthetics: Finished in a clean white powder coating to match Vivotek’s outdoor camera lines.
Technical Specifications
Material
Aluminum Alloy
Dimensions
150 (L) x 150 (W) x 60 (H) mm
Weight
820g
Pipe Thread
3/4" NPT
Expert Tip: This model is ideal for installations where you need to house extra equipment like PoE surge protectors alongside your camera cabling.
More Information
AM-71B-V02 User ManualAM-71B-V02 Dimension
Vivotek AM-21O_V01 L-Shape Wall Mount Bracket
Professional Wall Mounting for Vivotek Dome Cameras
The Vivotek AM-21O_V01 is a robust L-shape bracket specifically engineered for wall-mounting Vivotek dome cameras. Constructed from high-grade aluminum alloy, it provides a stable and secure platform that ensures your camera maintains the perfect field of view in both indoor and outdoor environments.
Key Features
Durable Construction: Built with premium aluminum alloy with a weather-resistant powder-coated finish.
Internal Cable Routing: Designed with a hollow interior to allow for hidden and protected cable management.
Stable L-Shape Design: Specifically shaped to provide the necessary offset for dome cameras to overlook vertical surfaces.
Easy Installation: Features a simplified mounting pattern for quick attachment to flat wall surfaces.
Technical Specifications
Material
Aluminum Alloy
Dimensions
155 (L) x 120 (W) x 150 (H) mm
Weight
490g
Color
White
Expert Tip: This bracket is a direct alternative to the AM-21M series; always verify your specific camera's mounting plate screw alignment before purchase.
More Information
AM-21O_V01 User ManualAM-21O_V01 Dimension
Vivotek AM-21N_V01 Wall Mount Bracket
Stable & Professional Wall Mounting for Dome Cameras
The Vivotek AM-21N_V01 is a high-quality L-shape wall mount bracket designed to provide a stable, elevated perspective for your security cameras. Constructed from die-cast aluminum alloy, it is engineered for both indoor and outdoor durability, ensuring your surveillance setup remains secure.
Key Features
Rugged Construction: Made from high-strength aluminum alloy with a weather-resistant powder coating.
Clean Cable Management: Integrated internal routing allows you to hide and protect cables for a tamper-resistant install.
Easy Installation: Designed for direct mounting to flat wall surfaces with standard hardware.
Optimized Field of View: Provides the necessary reach to position dome cameras effectively for wide-area coverage.
Technical Specifications
Material
Aluminum Alloy
Dimensions
155 (L) x 120 (W) x 195 (H) mm
Weight
520g
Color
White
Expert Tip: This bracket is commonly paired with Vivotek's fixed dome camera series to convert them into a wall-mounted configuration.
More Information
AM-21N_V01 DatasheetAM-21N_V01 User ManualAM-21N_V01 Dimension
Vivotek AM-21M_V03 L-Shape Wall Mount Bracket
Durable Wall-Mount Solution for Vivotek Dome Cameras
The Vivotek AM-21M_V03 is a professional L-shape wall mount bracket designed to provide a stable and elevated perspective for your security cameras. Constructed from high-grade aluminum alloy, this bracket is built to offer long-lasting support in both indoor and outdoor environments.
Key Features
Stable L-Shape Design: Specifically engineered for wall-mounting dome cameras to provide the ideal viewing angle.
Heavy-Duty Construction: Made from durable aluminum alloy with a clean white powder-coated finish.
Simplified Installation: Designed for quick and secure mounting to flat wall surfaces.
Weather Resistant: Built to withstand outdoor conditions when paired with compatible weatherproof cameras.
Technical Specifications
Material
Aluminum Alloy
Dimensions
155 (L) x 120 (W) x 211 (H) mm
Weight
580g
Color
White
Expert Tip: When mounting on masonry or brick, ensure you use high-quality wall plugs (anchors) to support the combined weight of the bracket and the camera.
More Information
AM-21M User ManualAM-21M Dimension
Vivotek AM-21C_V01 Professional Wall Mount Bracket
The Vivotek AM-21C_V01 is a high-quality, professional wall mount bracket designed for secure installation of Vivotek speed dome and multi-sensor network cameras. Constructed from a durable aluminum alloy with a clean white finish, this bracket provides a stable mounting platform suitable for both indoor and demanding outdoor surveillance environments.
Key Features & Benefits
Heavy-Duty Construction: Built with premium aluminum alloy to ensure high strength and long-term durability against environmental factors.
Sleek Design: Features integrated cable management to protect wiring and provide a professional, clean installation.
Weather Resistant: Recommended for general outdoor environments (excluding high-salinity coastal areas), ensuring reliability in various weather conditions.
Easy Integration: Designed to work seamlessly with Vivotek junction boxes and pole/corner adapters for maximum mounting flexibility.
Technical Specifications
Model / P/N
AM-21C_V01 / 900037701G
Material
Aluminum Alloy
Color
White
Dimensions
276 (L) x 140 (W) x 202 (H) mm
Weight
1,100 g (Approx. 2.4 lbs)
Compatibility List
The AM-21C_V01 supports a wide range of Vivotek equipment, including:
Supported Cameras: SD9161-H, SD9161-H-V2, MA8391-ETV, MA9321-EHTV, MA9322-EHTV, MA9322-EHTVL.
Pole Mount Adapters: AM-314, AM-315.
Corner Mount Adapters: AM-414.
Junction Boxes: AM-718.
What’s in the Box?
1x Vivotek AM-21C_V01 Wall Mount Bracket
Installation Hardware Kit
User Guide
More Information
AM-21C_V01 User Manual
Professional Wall Mounting Solution for Vivotek Dome Cameras
The Vivotek AM-11G is a rugged, outdoor-ready wall mount bracket designed to provide a secure and stable platform for your fixed dome network cameras. By extending the camera away from the wall, it allows for better positioning and an improved field of view, ensuring your security system captures every angle.
Built for Durability and Ease of Use
Constructed from high-quality aluminum alloy, the AM-11G is built to withstand harsh outdoor conditions. Its clean, white finish matches Vivotek’s camera line for a seamless and professional look. The integrated cable management design allows you to hide wiring inside the bracket, protecting cables from weather and potential tampering.
Key Advantages
Enhanced Perspective: Ideal for mounting cameras on flat vertical surfaces to monitor walkways and perimeters.
Weather Resistant: Durable construction suitable for both indoor and outdoor environments.
Clean Installation: Internal cable routing for a professional, tamper-resistant finish.
Camera Compatibility
The Vivotek AM-11G is specifically engineered for the FD series dome cameras. It is commonly used with:
Vivotek FD9380-H
Vivotek FD9187-H / FD9387-HV
Vivotek FD9189-H / FD9389-HV
Vivotek FD8369A-V
Note: Please check your camera's mounting hole pattern for confirmed compatibility.
Technical Specifications
Model
AM-11G
Mount Type
Wall Mount Bracket
Material
Aluminum Alloy
Color
White
Weight
Approx. 650g
Dimensions
168 x 120 x 185 mm
Achieve a Low-Profile, Professional Finish with the AM-10H
The Vivotek AM-10H Recessed Mount Kit is the perfect solution for users looking to achieve a clean, unobtrusive security installation. Designed specifically for in-ceiling mounting, this kit allows your Vivotek dome camera to sit flush against the surface, blending seamlessly into offices, retail spaces, and high-end residential interiors.
Key Benefits of Recessed Mounting
Standard surface mounts can sometimes be visually intrusive. The AM-10H kit minimizes the camera's footprint, making the surveillance system less noticeable while maintaining full coverage and performance. It is ideal for drop ceilings and plasterboard installations where aesthetics are a priority.
Robust Design and Easy Installation
Constructed from high-quality materials, the AM-10H ensures a secure fit for your camera. The kit includes all necessary hardware for a straightforward installation process, reducing time on-site for installers.
Compatibility
The Vivotek AM-10H is designed for use with specific Vivotek FD series dome cameras, including:
Vivotek FD9187-H / FD9187-HT
Vivotek FD9387-H / FD9387-HTV / FD9387-EHTV
Vivotek FD9380-H / FD9388-HTV
Note: Always verify your specific camera model dimensions before purchase.
Technical Specifications
Model
AM-10H
Mount Type
Recessed In-Ceiling Mount
Material
Steel & Plastic
Color
White
Dimensions
Ø 200 x 95 mm (approx.)
More Information
AM-10H User Manual
AXIS TQ1501-E Crane and Traffic Mount, 02384-001
AXIS TQ1501-E Crane and Traffic Mount is a great mount for reducing vibrations and offering more stability to your camera installations in demanding situations, such as mounting on cranes or traffic lights. It’s robust and corrosion resistant with its IK10- and NEMA 4X-ratings. The mount can be tilted up to 45 degrees.
Fewer vibrations and more stability
Alleviates vibrations
Pivot mount for more stability
Robust, IK10
Coating in corrosion resilient material
Designed for demanding situations
Downloads
AXIS TQ1501-E Datasheet
Hikvision DS-1291ZJ-BL Desktop/Pendant Mount For Covert Camera, Black
Desktop/Pendant Mount for Covert Camera
Plastic
Black
Specifications
Parameters
Weight: 70.5g
Appearance: Black
Material: Plastic
Dimension: 87x73x73mm
Description: Desktop/Pendant Mount for Covert Camera
