Vivotek Mounting Accessories
Engineered Integration for Commercial Security Infrastructure

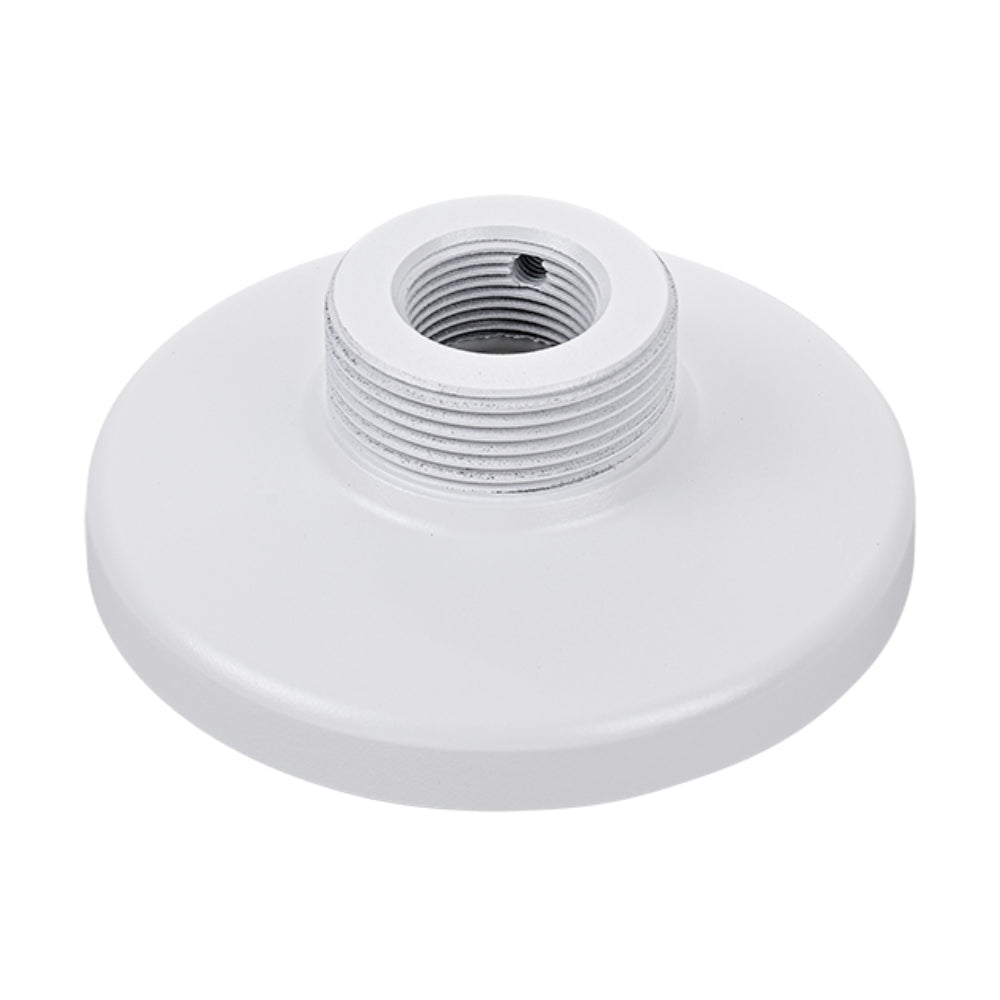

The Vivotek AM-52E (Model: AM-52E_V02) is a precision-engineered mounting adapter designed to bridge compatible Vivotek fixed dome, fisheye, and bullet cameras to standard 1.5-inch NPT threaded extensions, wall arms, and pendant pipe mounts. Constructed from high-grade aluminum alloy, this industrial mounting accessory ensures structured, long-term stability and optimal load distribution across demanding commercial surveillance deployments.
Mount Interface
1.5" NPT Threaded
Material Build
Aluminum Alloy
Application
Indoor & Outdoor
Finish / Colour
Vivotek White
Seamless Hardware Alignment & Cable Management
Engineered to exact manufacturer tolerance specifications, the Vivotek AM-52E mounting adapter allows installers to pass wiring directly through standard conduit piping into the housing. This internal pass-through capability protects Ethernet cables and terminal connections against environmental wear, physical strain, and tampering. Designed specifically for integration with Vivotek's modular brackets, the AM-52E simplifies drop-ceiling, wall-extension, and pole-top mounting configurations.
Standardized 1.5" NPT Compatibility
Features standardized 1.5-inch NPT threading for effortless mating with industry-standard pendant pipes, gooseneck wall brackets, and drop-down extension pipes, reducing installation labor and installation complexity across large commercial sites.
Commercial-Grade Weatherproof Build
Manufactured from corrosion-resistant die-cast aluminum with a durable protective powder coat, guaranteeing reliable physical structural support in harsh outdoor locations and high-humidity indoor facilities alike.
Technical Specification Matrix
| Model Name |
AM-52E (AM-52E_V02) |
| Part / Ordering Code |
AM-52E_V02 |
| Product Type |
Mounting Adapter Bracket |
| Thread Interface |
1.5" NPT Threaded Interface |
| Material Construction |
Aluminum Alloy |
| Color / Finish |
Vivotek Commercial White |
| Supported Placement |
Indoor / Outdoor Environmental Applications |
| Compatible Systems |
Select Vivotek Cameras & 1.5" NPT Mounting Brackets/Pipes |
What is the primary function of the Vivotek AM-52E adapter?
The AM-52E acts as an intermediate adapter that connects compatible Vivotek cameras to standardized 1.5-inch NPT threaded pendant arms, extension poles, or ceiling mounts.
Is the AM-52E suitable for outdoor installations?
Yes. Constructed from robust die-cast aluminum alloy, the AM-52E is designed to withstand outdoor environmental conditions when installed alongside compatible outdoor-rated camera housings.
Does the adapter support internal cable routing?
Yes. The hollow 1.5" NPT center column allows network cabling to feed directly through the adapter structure, keeping wires completely concealed and shielded from weather or vandalism.
Is hardware included with the AM-52E_V02 model?
The unit comes prepared for installation with standard mounting points engineered to match specified Vivotek camera bases and 1.5" NPT fittings.
