Dahua 10 x 8MP + 16CH CCTV Kit: 4 x TiOC and 6 x IR Turret Cameras with 16CH AI NVR
Complete surveillance solution for medium to large properties. This Dahua kit combines 10 cameras with a 16-channel AI NVR for comprehensive coverage. Six 8MP turret cameras deliver sharp 4K resolution with 30m infrared range, while four 8MP TiOC cameras provide flexible positioning. The NVR features AI analytics, H.265 compression for efficient storage, and 16-port PoE for simplified installation. Ideal for businesses and residential estates requiring professional-grade monitoring with intelligent detection capabilities.
This Dahua CCTV Bundle includes:
DH-IPC-HDW3866EMP-S-AUS x 6
DH-IPC-HDW3849H-AS-PV-ANZ-S2 x 4
DHI-NVR4216-16P-AI/ANZ x 1
Dahua 10 Cameras CCTV Kits Product Overview
6 x 8MP Fixed Turret DH-IPC-HDW3866EMP-S-AUS
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
4 x 8MP TiOC Fixed Turret DH-IPC-HDW3849H-AS-PV-ANZ
8MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 ×2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
· Sound and light alarm (red and blue lights).
· SMD 4.0.
· Supports AI SSA and one-tap arming and disarming.
· SMD area can be set in warm light areas that support triggering alarms.
1 x 16CH NVR DHI-NVR4216-16P-AI/ANZ
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
Connected to the third-party network cameras.
Security baseline 2.3.
* NOTE: HDD NOT INCLUDED

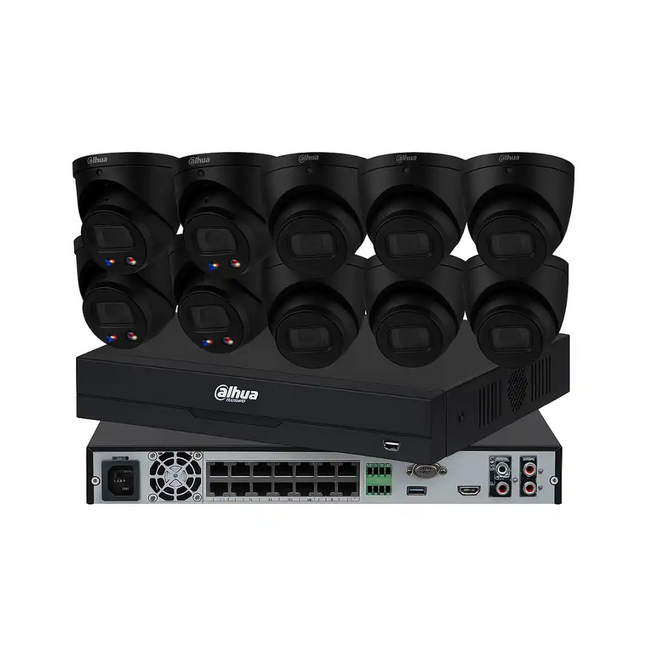

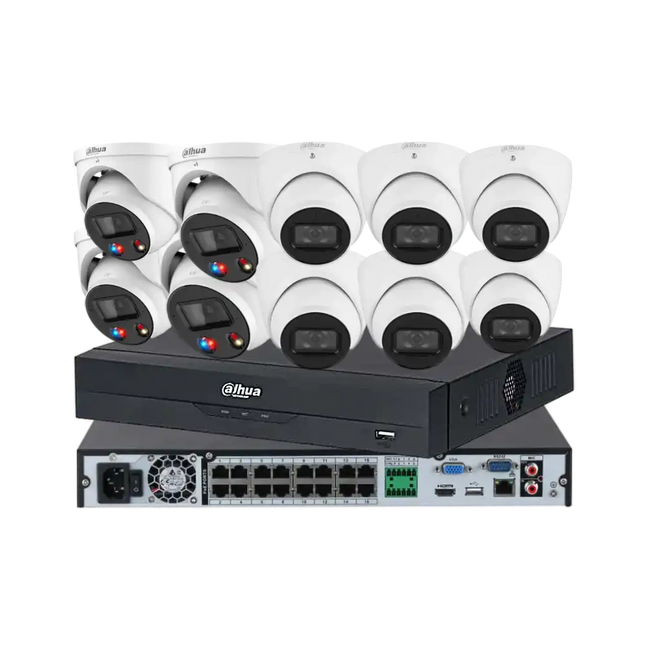

Dahua 6 MP + 16 Channels Kit: 4 x 6MP TiOC 3.0 & 6 x 6MP Turret Cameras with 16CH AI NVR, GR-DH-6MP16CH
The Dahua 6 MP + 16 Channels Kit features 4 cutting-edge 6MP TiOC 3.0 cameras and 6 high-resolution 6MP fixed turret cameras, all managed by a 16-channel AI NVR. Each turret camera is equipped with a 1/2.7" CMOS sensor delivering sharp 6MP images at up to 30 fps, supported by built-in IR LEDs for clear night vision up to 30 meters. Advanced H.265 compression and AI-enhanced encoding optimize storage and bandwidth efficiency. Additional technologies such as WDR, 3D noise reduction, and digital watermarking ensure superior image clarity and security across diverse surveillance scenarios.
This Dahua CCTV kit comes with:
DH-IPC-HDW3666EMP-S-AUS x 6
DH-IPC-HDW3649H-AS-PV-ANZ-S2 x 4
DHI-NVR4216-16P-AI/ANZ x 1
Dahua CCTV Kit Overview:
6 x 6MP Fixed Turret DH-IPC-HDW3666EMP-S-AUS
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
4 x 6MP TiOC Fixed Turret DH-IPC-HDW3649H-AS-PV-ANZ-S2
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 6 MP (3072x2048)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms
1 x 16CH NVR DHI-NVR4216-16P-AI/ANZ
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
Connected to the third-party network cameras.
Security baseline 2.3.
* NOTE: HDD NOT INCLUDED
Dahua 8MP + 16 Channels CCTV Kit: 10 x WizSense IR Turret Cameras & AI NVR
Dahua 10 x 8MP + 16 Channel Kit includes:
10 x DH-IPC-HDW3866EMP-S-AUS (Black option available)
1 x DHI-NVR4216-16P-AI/ANZ
Product Overview
10 x DH-IPC-HDW3866EMP-S-AUSDahua 8MP 4K AI Turret Camera – DH-IPC-HDW3866EMP-S-AUS | Built-in Mic, IR Night Vision, IP67
8MP ultra-HD clarity for precise image capture
AI SMD+ technology: smart human & vehicle detection
Built-in mic for real-time audio monitoring
40m IR night vision and 120dB WDR
IP67 weatherproof & dustproof housing
ONVIF compatible and easy PoE setup
1 x DHI-NVR4216-16P-AI/ANZDahua 16-Channel 4K Smart 2.0 AI NVR with 16 PoE Ports, 2 HDD Bays, ONVIF Support
16-channel 4K AI NVR with WizSense Smart 2.0
16 × PoE ports for plug-and-play IP camera setup
Supports up to 16MP camera input
AI functions: SMD+, Face Detection, IVS, Perimeter Protection
Dual SATA bays (supports 2 × 10TB HDD, not included)
4K HDMI and VGA video output
H.265+/H.264 video compression for efficient storage
Remote access via DMSS mobile app & SmartPSS
ONVIF compatible with 3rd-party IP cameras
Ideal for small business, retail, schools, or office setups
VIVOTEK AI 5MP + 16 Channel Kit : 10 x Motorised Bullet Cameras & NVR with 6TB, Kit-VIVO-AI-5MP16106BM
This VIVOTEK CCTV Kit comes with
10 x IB9383-HTV
1 x ND9426P
1 X 6TB Hard Drive Installed
10 x 5MP MOTORISED BULLET CAMERA IB9383-HTV
30 fps @ 2560x1920
H.265 Compression Technology with Smart Stream III
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
30M Smart IR III
Signed Firmware and Secure Boot
Smart Motion Detection
Trend Micro IoT Security
Smart VCA and Vision Object Analytics
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
Hikvision 10 x 6MP AcuSense Camera & 16 Channel NVR CCTV Kit
This security bundle includes
10 x Hikvision DS-2CD2366G2-IU-2 6MP AcuSense Turret, IP67, IR, Built-in Mic, 2.8mm (2366)
1 x Hikvision Pro Series 16 Channel 4K NVR DS-7616NI-I2/16P-3TB with 16 PoE Ports, 2 x HDD Bay, 1U Network Video Recorder (7616)
10 x Hikvision HIK-DS-2CD2366G2-IU-2 6MP AcuSense Turret, IP67, IR, Built-in Mic, 2.8mm (2366)
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
1 x Hikvision Pro Series 4K NVR DS-7616NI-I2/16P with 3TB and 6TB storage to choose from. This NVR comes with 16 Channel with 16 PoE port and can handle 4K resolution.
Up to 16 channel IP cameras can be connected
Up to 2-ch@12 MP/16-ch@1080p decoding capacity
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
2 HDDs for continuous video recording
Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Supports dual-stream recording to save time and bandwidth
VIVOTEK AI 5MP + 16 Channel Kit : 10 x Fixed Dome Cameras & NVR with 6TB, Kit-VIVO-AI-5MP16106D
This VIVOTEK CCTV Kit comes with
10 x FD9383-HV
1 x ND9426P
1 X 6TB Hard Drive Installed
10 x 5MP MOTORISED CAMERA FD9383-HV 2.8MM
30 fps @ 2560x1920
H.265 Compression Technology with Smart Stream III
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
30M Smart IR III
Signed Firmware and Secure Boot
Smart Motion Detection
Trend Micro IoT Security
Smart VCA and Vision Object Analytics
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
VIVOTEK AI 5MP + 16 Channel kit : 10 x Motorised Dome Cameras & NVR with 6TB, Kit-VIVO-AI-5MP16106DM
This VIVOTEK CCTV Kit comes with
10 x FD9383-HTV
1 x ND9426P
1 X 6TB Hard Drive Installed
10 x 5MP MOTORISED DOME CAMERA FD9383-HTV 2.8-12MM
30 fps @ 2560x1920
H.265 Compression Technology with Smart Stream III
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
30M Smart IR III
Signed Firmware and Secure Boot
Smart Motion Detection
Trend Micro IoT Security
Smart VCA and Vision Object Analytics
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
VIVOTEK 5MP + 16 Channel kit : 10 x Motorised Dome Cameras & NVR with 6TB, Kit-VIVO-5MP16106DM
This VIVOTEK CCTV Kit comes with
10 x FD9388-HTV
1 x ND9426P
1 X 6TB Hard Drive Installed
10 x 5MP MOTORISED DOME CAMERA FD9388-HTV
H.265 Compression Technology
20 fps @ 2560x1920 (WDR Pro on)
2.8-12 mm, Remote Focus
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Built-in Microphone
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
VIVOTEK 5MP + 16 Channel kit : 10 x Motorised Turret cameras & NVR with 6TB, Kit-VIVO-5MP16106TM
This VIVOTEK CCTV Kit comes with
10 x IT9388-HT
1 x ND9426P
1 x 6TB Hard Drive Installed
10 x 5MP MOTORISED TURRET CANERA IT9388-HT
H.265 Compression Technology
20fps @ 2560x1920 (WDR Pro on)
Smart Stream III to Optimize Bandwidth Efficiency
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
SNV (Supreme Night Visibility) for Low Light Conditions
Built-in IR Illuminators, Effective up to 30 Meters
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Trend Micro IoT Security
Built-in Microphone
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
VIVOTEK 5MP + 16 Channel Kit: 10 x Motorised Bullet Cameras & NVR with 6TB, Kit-VIVO-5MP16106BM
This VIVOTEK CCTV Kit comes with
10 x IB9388-HT
1 x ND9426P
1 X 6TB Hard Drive Installed
10 x 5MP MOTORISED BULLET CAMERA IB9388-HT
H.265 Compression Technology
20 fps @ 2560x1920 (WDR Pro on)
2.8-12 mm, Remote Focus
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
VIVOTEK 5MP + 16 Channel Kit: 10 x Fixed Turret Cameras & NVR with 6TB, Kit-VIVO-5MP16106T
This VIVOTEK CCTV Kit comes with
10 x IT9380-H
1 x ND9426P
1 X 6TB Hard Drive Installed
10 x 5MP FIXED TURRET CAMERA IT9380-H 2.8MM
H.265 Compression Technology
20fps @ 2560x1920 (WDR Pro on)
Smart Stream III to Optimize Bandwidth Efficiency
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
SNV (Supreme Night Visibility) for Low Light Conditions
Built-in IR Illuminators, Effective up to 30 Meters
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Trend Micro IoT Security
Built-in Microphone
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
VIVOTEK 5MP + 16 Channel Kit: 10 x Fixed Dome Cameras & NVR with 6TB, Kit-VIVO-5MP16106D
This VIVOTEK CCTV Kit comes with
10 x FD9380-H
1 x ND9426P
1 X 6TB Hard Drive Installed
10 x 5MP FIXED DOME CAMERA FD9380-H 2.8MM LENS
H.265 Compression Technology
20 fps @ 2560x1920 (WDR Pro on)
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
VIVOTEK 5MP + 16 Channel Kit: 10 x Fixed Bullet Cameras & NVR with 6TB, Kit-VIVO-5MP16106B
This VIVOTEK CCTV Kit comes with
10 x IB9380-H
1 x ND9426P
1 X 6TB Hard Drive Installed
10 x 5MP FIXED BULLET CAMERA IB9380-H
H.265 Compression Technology
SNV (Supreme Night Visibility) for Low Light Conditions
20 fps @ 2560x1920 (WDR Pro on)
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
1 x 16CH NVR ND9426P
4K Camera Supported
Decoding Ability Up to 1080P 480 fps
More VIVOTEK VCA Event Supported
VIVOTEK Smart VCA Camera Supported for Event Search & Recording
Simplify Judgment with Deep Search
Chrome Browser Supported without Plugins
Manage with VORTEX and VAST Security Station (VSS)
1 x 6TB HARD DRIVE INSTALLED
Storage Capacity 6TB
Dahua 8 MP + 16 Channels Kit: 10 x WizSense Motorised Starlight Turret Cameras, AI NVR, 3X66-K81610TM-B-6TB
Dahua 3x66 8MP 16ch Kit includes:
10 x 8MP 2.7-13.5mm Motorised Lens DH-IPC-HDW3866TP-ZS-AUS-BLK
1 x 16ch DHI-NVR4216-16P-AI/ANZ-6TB
DH-IPC-HDW3866TP-ZS-AUS-BLKDahua Security Camera 8MP (4K) WizSense Motorised Starlight Turret, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, POE, black
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
DHI-NVR4216-16P-AI/ANZDahua 16ch NVR Record Up to 16MP, 16 Port PoE, HDMI(4K), Smart 2.0, P2P (without HDD), Support 2 HDD DHI-NVR4216-16P-AI/ANZ
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
Connected to the third-party network cameras.
Security baseline 2.3.

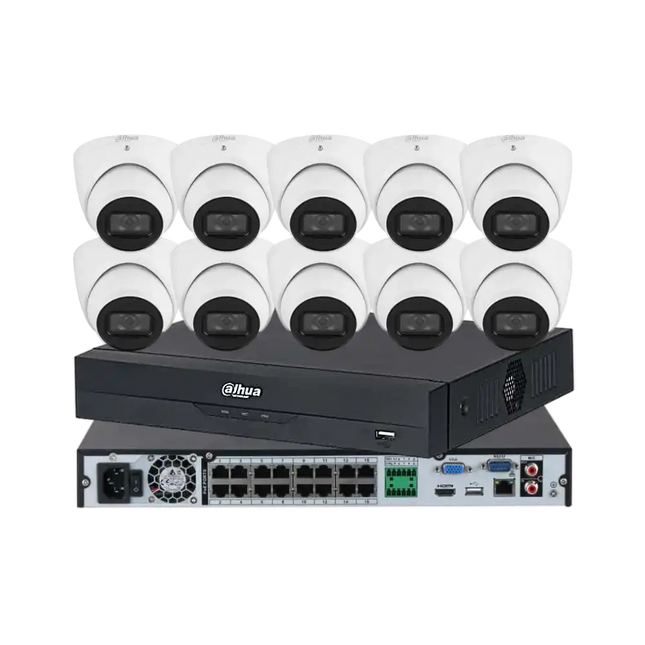

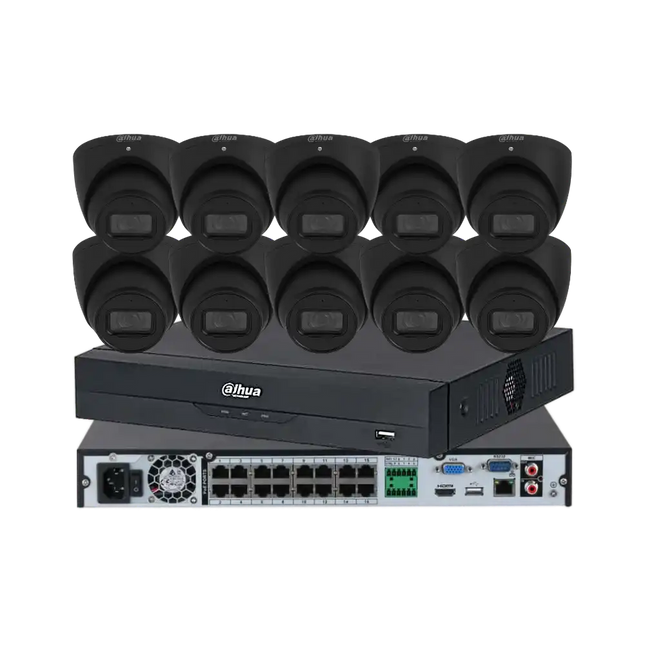

Dahua 6 MP + 16 Channels Kit: 10 x WizSense Fixed Starlight Turret Cameras, AI NVR, 3X66-K61610T-B-6TB
Dahua 3x66 6MP 16ch Kit includes:
10 x 6MP 2.8mm Fixed Lens DH-IPC-HDW3666EMP-S-AUS-BLK
1 x 16ch DHI-NVR4216-16P-AI/ANZ-6TB
DH-IPC-HDW3666EMP-S-AUS-BLKDahua Security Camera 6MP WizSense Fixed Starlight Turret, 2.8mm, Perimeter, SMD, SD Card, WDR, IR50m, Built-in Mic, IP67, PoE, black
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
DHI-NVR4216-16P-AI/ANZDahua 16ch NVR Record Up to 16MP, 16 Port PoE, HDMI(4K), Smart 2.0, P2P, Support 2 HDD, DHI-NVR4216-16P-AI/ANZ
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
Connected to the third-party network cameras.
Security baseline 2.3.
Dahua 5 MP + 16 Channels Kit: 4 x 6MP TiOC and 6 x 5MP Turret Cameras with 16CH AI NVR, GR-DH-5MP16CH
This kit includes:
DH-IPC-HDW2531EMP-AS-0280B-S2-AUS x 6
DH-IPC-HDW3649H-AS-PV-ANZ x 4
DHI-NVR4216-16P-AI/ANZ x 1
Overviews
6 x 5MP Fixed Turret DH-IPC-HDW2531EMP-AS-0280B-S2-AUS
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in MIC
12V DC/PoE power supply
IP67 protection
4 x 6MP TiOC Fixed Turret DH-IPC-HDW3649H-AS-PV-ANZ
6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
Outputs max. 6 MP (3200 x 1800) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One press arming/disarming through alarm input
1 x 16CH NVR DHI-NVR4216-16P-AI/ANZ
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
Connected to the third-party network cameras.
Security baseline 2.3.
Downloads
DH-IPC-HDW2531EMP-AS-0280B-S2-AUS_DatasheetIPC-HDW3649H-AS-PV-ANZ_datasheetDahua Eyeball Network Camera_Quick Start Guide_V1.0.4DHI-NVR4216-16P-AIANZ_datasheet_20221209Dahua Network Video Recorder_User's_Manual_V2.3.0-Eng
