Hikvision ColorVu 3.0 · 10 × 8MP Live-Guard Bullet · 16CH 8K NVR · White or Black
10 × 8MP Bullet Kit

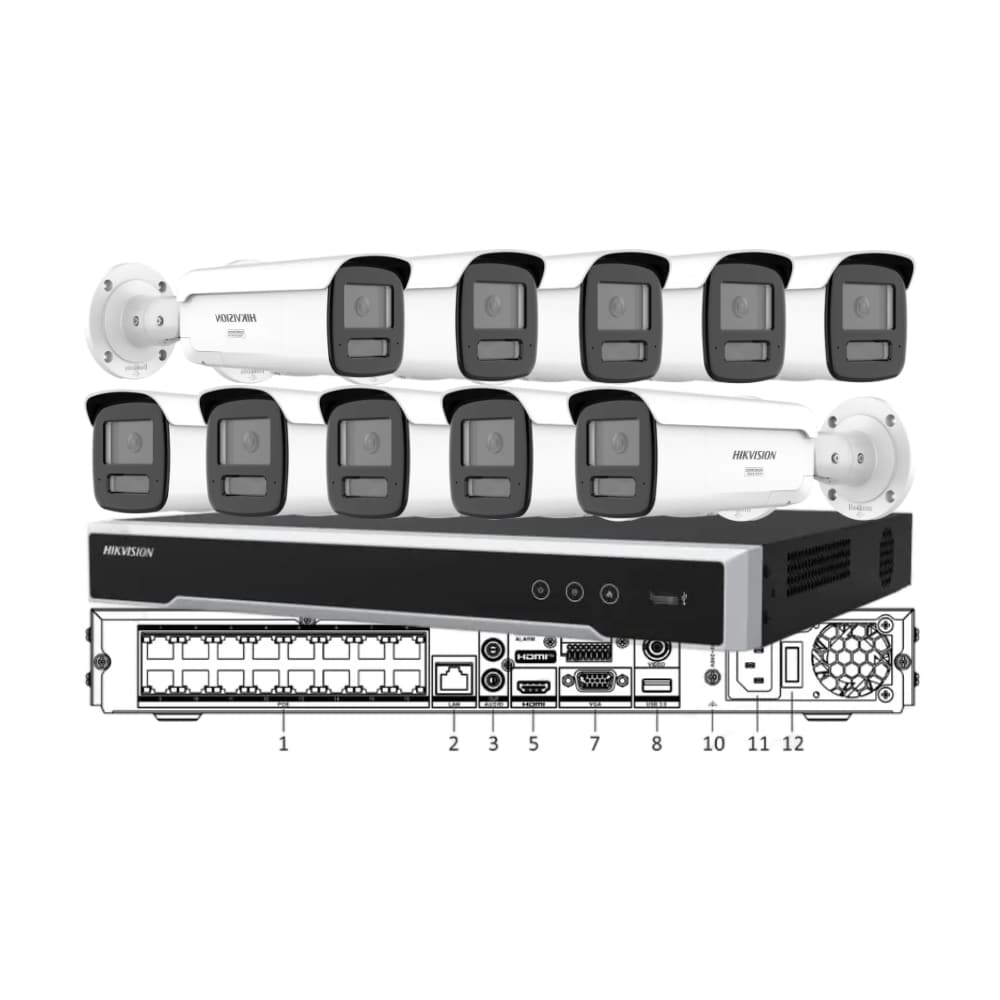

Hikvision 10-Camera 8MP 4K ColorVu 3.0 Live-Guard Bullet CCTV Kit with 16-Channel 8K NVR
The Hikvision 10-Camera ColorVu 3.0 Live-Guard Bullet Kit is a long-range active-deterrence system for larger Australian homes, estates, warehouses, yards and commercial sites. It pairs ten DS-2CD2T87G3-LIS2UY/SL 8 MP ColorVu 3.0 Smart Hybrid Light Live-Guard bullets with the DS-7616NI-M2/16P 16-channel 8K PoE NVR. On AcuSense human/vehicle detection every camera fires a white-light strobe, siren and live two-way audio — stopping intruders instead of just recording them — while delivering true 24/7 colour to 0.0005 lux. Choose White or Black cameras in the dropdown above. This kit ships without a hard drive — add a surveillance HDD separately from the options below the listing. All ten cameras power over a single Cat6 run from the NVR's 16 built-in PoE ports.
Cameras
10 × 8MP ColorVu Bullet
Recorder
16CH 8K NVR · 16 PoE
Active Deterrence
Strobe + Siren + Audio
Colour Night
24/7 ColorVu · 0.0005 lux
Smart AI
AcuSense Human/Vehicle
ColorVu 3.0 — True 24/7 Colour
A 1/1.8" sensor and F1.0 super-aperture deliver full-colour images down to 0.0005 lux. Smart Hybrid Light adds white light or IR so you capture clothing and number-plate colour all night, not grey IR.
Live-Guard Active Deterrence
On AcuSense human/vehicle detection each bullet flashes a white strobe, sounds an audible siren and lets you talk down live via Hik-Connect — turning intruders away before they reach the building.
16-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 16 built-in PoE ports — no separate power supplies, and 6 spare channels to grow to 16 cameras.

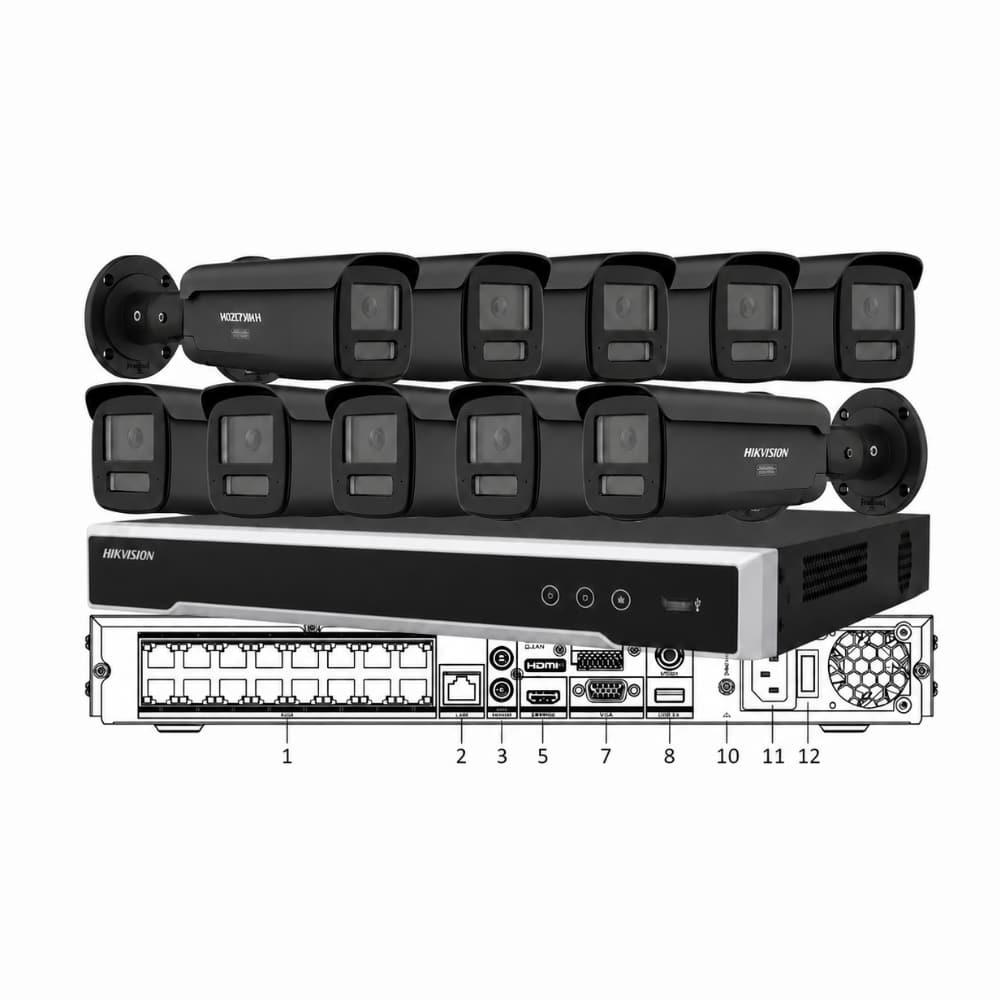

White or Black Finish
Choose a white or black bullet finish to suit the building. This kit ships without a hard drive — add a surveillance HDD separately from the options below. Two SATA bays support up to 32 TB total.
| 10 × Cameras |
DS-2CD2T87G3-LIS2UY/SL — 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard bullet, 2.8 mm, white strobe + siren + two-way audio, F1.0 24/7 colour, AcuSense, IP67 + NEMA 4X. Available in White or Black — choose in the Colour dropdown. Each ships with mounting base, drill template, screws & quick start guide. |
| 1 × Recorder |
DS-7616NI-M2/16P — 16-channel 8K M-Series NVR with 16 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access. |
| Storage |
This kit ships without a hard drive. Add a surveillance-grade drive separately from the options below the listing (up to 16 TB per bay, 32 TB total). |
| Power |
16 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. |
| Mounting |
Bullets include an adjustable base and templates for eave, wall and soffit installs. Add a junction box for tidy cabling and a weatherproof RJ-45 join. |
| Warranty |
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock. |
Best For
Large homes & estates
Long driveways, fence lines, gates and yards — bullets project deterrence down long approaches.
Warehouses & yards
Loading docks, hardstands and perimeters with full-colour plate capture and strobe deterrence.
Car parks & dealerships
Deter after-hours theft across open lots with visible strobe and audible warnings.
Rural & acreage
Sheds, gates and boundaries across large properties, all on one 16-channel recorder.
Commercial & industrial
Building perimeters, entries and plant areas with IP67 + NEMA 4X weatherproof cameras.
Construction sites
Deter theft of plant and materials with active-deterrence bullets and remote talk-down.
Camera Specifications — DS-2CD2T87G3-LIS2UY/SL
| Camera Type |
8MP 4K ColorVu 3.0 Smart Hybrid Light AcuSense Live-Guard Bullet |
| Finish |
White or Black (select in the Colour dropdown) |
| Image Sensor |
1/1.8" Progressive Scan CMOS · ColorVu 3.0 |
| Max. Resolution |
8MP · 3840 × 2160 |
| Min. Illumination |
Colour 0.0005 lux @ F1.0 · 0 lux with white light |
| Lens |
Fixed 2.8 mm · F1.0 · 108.8° horizontal FOV |
| Supplement Light |
Smart Hybrid Light (white + IR) · up to 60 m · 3 modes |
| WDR |
130 dB scene-adaptive |
| DORI (2.8 mm) |
Detect 89 m · Observe 35 m · Recognise 17 m · Identify 8 m |
| AI Functions |
AcuSense · human & vehicle classification · perimeter protection · face capture |
| Active Deterrence |
White-light strobe · built-in speaker (audible warning, 120 dB) · two-way audio |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Power |
12 VDC / PoE (IEEE 802.3at, Class 4) · max 18 W |
| Ingress Protection |
IP67 · NEMA 4X anti-corrosion (moderate) |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Recorder Specifications — DS-7616NI-M2/16P
| Channels |
16 IP channels · up to 32 MP input |
| Incoming Bandwidth |
160 Mbps |
| PoE |
16 × PoE ports (IEEE 802.3 af/at) |
| Storage |
2 × SATA (up to 16 TB per bay, 32 TB total) |
| Video Output |
1 × HDMI (up to 8K) + 1 × VGA · simultaneous |
| AI Functions |
AcuSense human/vehicle · perimeter · facial (with compatible cameras) |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Remote / App |
Hik-Connect (iOS & Android) · P2P · ONVIF |
Installation Notes
-
›Cabling: run solid-copper Cat6 from each bullet back to the NVR's PoE ports for stable power and video over long distances.
-
›Aim & weatherproof: angle each bullet down the approach it covers and seal the outdoor RJ-45 join with tape or a junction box against moisture and salt air.
-
›Deterrence zones: set AcuSense detection zones on the highest-risk approaches so the strobe and siren trigger on real human/vehicle events only.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection
Official NVR & Camera Setup Videos
Use these official Hikvision tutorials to complete the recorder startup wizard and connect the supplied PoE cameras. Menu names may vary slightly with firmware version.
NVR 5.0 Startup Wizard — Official Hikvision Tutorial
Add a PoE Camera to NVR 5.0 — Official Hikvision Tutorial
Downloads & Resources
Do the cameras come in black?
Yes — choose White or Black in the Colour dropdown. Both are the same DS-2CD2T87G3-LIS2UY/SL bullet at the same price.
Does the kit include a hard drive?
No. This kit ships without a hard drive — add a surveillance HDD separately from the options below the listing. The NVR takes two drives (up to 32 TB).
What is Live-Guard active deterrence?
On AcuSense human/vehicle detection each bullet flashes a white-light strobe, sounds an audible warning and lets you open live two-way audio via Hik-Connect — actively turning intruders away.
Do these see colour at night?
Yes — ColorVu 3.0 with an F1.0 super-aperture delivers full-colour images down to 0.0005 lux, with Smart Hybrid Light adding white light or IR up to 60 m as needed.
Can I add more cameras later?
Yes — the 16-channel NVR has 6 spare channels and PoE ports, so you can grow to 16 cameras with no extra recorder.
Is this kit NDAA compliant?
No. Hikvision is not NDAA Section 889 compliant, so it isn't suitable for US-federal or NDAA-restricted projects. Ask us about alternative brands if you need NDAA compliance.
