Description
Hikvision Ultra Series · 16CH · 16 PoE

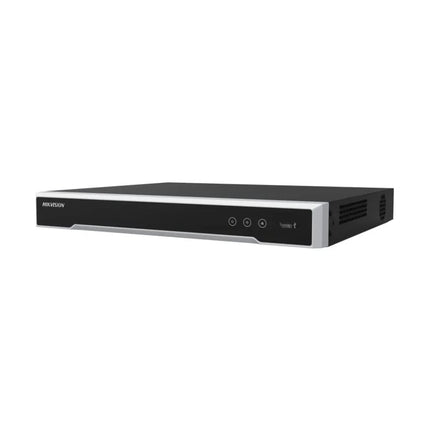

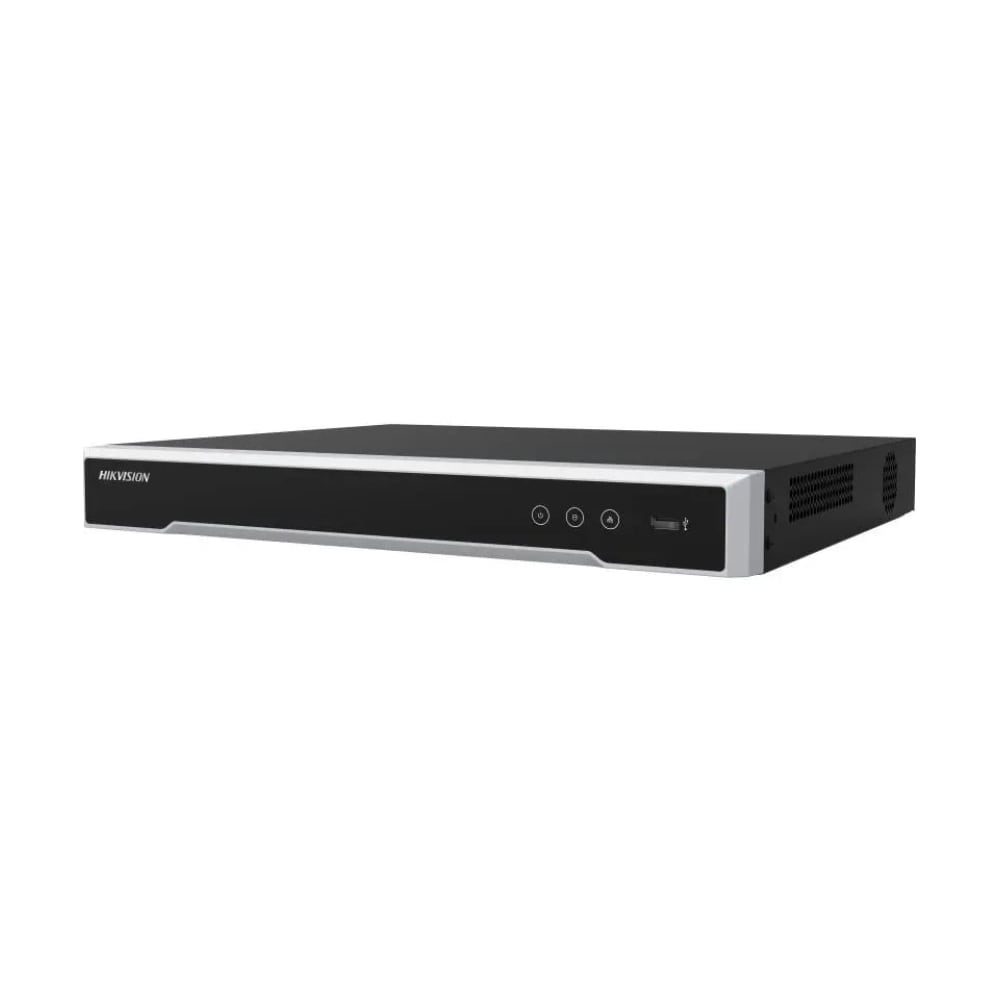

The Hikvision DS-7616NI-M2/16P is a premium 16-channel PoE network video recorder built for larger CCTV systems that need more camera capacity, stronger bandwidth, and simpler installation. With 16 built-in PoE ports, it lets you connect up to 16 compatible IP cameras directly to the recorder without needing a separate PoE switch.
Part of Hikvision’s Ultra Series, this NVR supports up to 32MP camera input, 256 Mbps incoming bandwidth, 256 Mbps outgoing bandwidth, and 8K HDMI output, making it a strong fit for advanced residential, commercial, and industrial surveillance systems. It also includes 2 SATA interfaces for larger local storage capacity.
If you are building a 10 to 16 camera system and want plug-and-play PoE, premium recording performance, and room for larger hard drives, the DS-7616NI-M2/16P is one of Hikvision’s strongest 16-channel recorder options.
Camera Support
Up to 32MP
✔ 16 built-in PoE ports ✔ Supports up to 32MP cameras ✔ Ideal for business & large homes
Best For
The Hikvision DS-7616NI-M2/16P is ideal for medium to large CCTV systems where you need more camera capacity, strong performance, and simple installation with built-in PoE.
🏢 Commercial & Retail
Perfect for shops, offices, warehouses, and workshops requiring up to 16 cameras with reliable recording.
🏫 Schools & Large Sites
Covers larger areas such as campuses, car parks, and multi-zone properties with centralised recording.
🏠 Large Homes & Estates
Ideal for properties with multiple entry points, driveways, and perimeter coverage.
🎥 High-Resolution Systems
Designed for 6MP, 8MP, and higher resolution cameras with strong bandwidth performance.
🔌 Plug & Play Installations
Built-in 16 PoE ports eliminate the need for additional network switches.
📈 Future Expansion
Supports system upgrades with higher resolution cameras and increased storage.
Technical Specifications
| Model |
DS-7616NI-M2/16P |
| NVR Channels |
16-ch IP video input |
| Built-In PoE Ports |
16 |
| Max Camera Resolution |
Up to 32 MP |
| Incoming Bandwidth |
256 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| HDMI Output |
Up to 8K (7680 × 4320) |
| VGA Output |
Up to 1080p |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Decoding Capability |
Up to 16-ch @ 4MP |
| Playback |
16-channel synchronous playback |
| Storage |
2 × SATA HDD |
| Network Interface |
1 × Gigabit Ethernet |
| PoE Interface |
16 × RJ45 PoE ports |
| Operating System |
Embedded Linux |
💾 Recommended Hard Drive (Storage Guide)
To get the best performance from your Hikvision DS-7616NI-M2/16P, we recommend using a dedicated surveillance hard drive such as WD Purple or Seagate SkyHawk.
4TB – 6TB
Suitable for smaller 6–8 camera systems with shorter retention periods.
8TB – 10TB
Best for mid-sized 8–12 camera systems with standard retention periods.
12TB – 14TB
Recommended for full 12–16 camera systems or longer storage retention.
This NVR includes 2 SATA interfaces, so you can expand storage capacity with dual surveillance drives as your system grows.
💡 Tip: Actual storage needs depend on camera resolution, frame rate, bit rate, recording schedule, and whether you use motion recording or continuous recording. For most systems, H.265 or H.265+ helps maximise retention efficiency.
📊 NVR Comparison Guide
Not sure which NVR is right for your system? Compare 8 channel, 16 channel, and 32 channel recorders below.
| Feature |
8CH NVR |
16CH NVR |
32CH NVR |
| Camera Capacity |
Up to 8 Cameras |
Up to 16 Cameras |
Up to 32 Cameras |
| Typical Use |
Homes & Small Shops |
Businesses & Large Homes |
Warehouses & Large Sites |
| Built-In PoE |
8 Ports |
16 Ports |
Usually External Switch Required |
| Recommended Cameras |
2–8 Cameras |
8–16 Cameras |
16–32 Cameras |
| Storage (Typical) |
4TB – 8TB |
8TB – 16TB |
16TB – 40TB+ |
| Best Resolution |
4MP – 8MP |
6MP – 8MP+ |
8MP – 4K+ Systems |
| Future Expansion |
Limited |
Moderate |
High (Enterprise Ready) |
| Best For |
Small Installations |
Growing Systems |
Large / Commercial Projects |
💡 Tip: If you’re unsure, we recommend choosing a larger NVR to allow room for future camera expansion.
⚡ Explore More Hikvision Security Solutions
Looking for compatible cameras? Explore our
Hikvision security cameras
including ColorVu cameras
for full-colour night vision.
For advanced protection, pair this system with
active deterrence cameras
or 180° panoramic cameras
for wider coverage and smarter detection.
Not sure what you need? Use our
CCTV System Builder
to match cameras, storage, and accessories in seconds.
✔ Select camera quantity ✔ Get storage recommendations ✔ Add everything to cart instantly
🎥 See Hikvision NVR in Action
Hikvision NVR 5.0 Overview
Hikvision Technology Overview
Frequently Asked Questions
How many cameras can this NVR support?
This model supports up to 16 IP cameras directly via the built-in PoE ports.
Does this NVR have built-in PoE?
Yes. It has 16 built-in PoE ports, allowing plug-and-play connection for compatible cameras without needing a separate switch.
What camera resolution does it support?
It supports cameras up to 32MP, making it suitable for high-resolution CCTV systems including 6MP, 8MP, and 4K cameras.
How much storage can I add?
The NVR supports 2 SATA hard drives. You can install large surveillance drives depending on your storage needs.
Does it support remote viewing?
Yes. You can view your cameras remotely using the Hik-Connect app on your phone or computer.
Is this suitable for business use?
Yes. With 16 channels and strong bandwidth, it is ideal for retail, warehouses, offices, and larger commercial systems.
What is the difference between this and an 8 channel NVR?
A 16 channel NVR allows you to connect more cameras and handle larger systems, making it better for bigger properties or future expansion.
Do I need a PoE switch?
No. The built-in PoE ports allow you to connect cameras directly without an external switch.
Does it support AI features?
AI features depend on the cameras used. When paired with Hikvision AI cameras, it can support advanced detection such as human and vehicle classification.
More information
Download official Hikvision documents for setup, specifications, and recorder details.
