AX Hybrid Pro · 8 Wired Zones · App Control · Dual Siren 8-Zone Wired Alarm Kit HiLook Hybrid Pro 8-Zone Wired Alarm Kit — Australian Stock & 3-Year Warranty This HiLook (by Hikvision) bundle is a professional-grade wired alarm system built on the AX Hybrid Pro platform. It centres on the HA-ALARM-KIT1 panel with its LCD keypad, three PIR motion detectors in total, three proximity tags, and a complete siren and power package — a high-decibel indoor screamer, a weatherproof outdoor siren with strobe, an Australian-cord power supply and a backup battery. The panel supports 8 on-board wired zones and expands to 48 zones for future growth, with arm/disarm and instant alerts through the Hik-Connect / HiLookVision apps. Backed by genuine Australian stock and a 3-year warranty. Platform AX Hybrid Pro Zones 8 Wired · 48 Max Motion 3× PIR · 18 m · Pet Immune Sirens Indoor + Outdoor 105 dB Control Hik-Connect App Backup 12V 7Ah Battery Smart App Control Arm and disarm from anywhere and get instant push notifications through the Hik-Connect or HiLookVision apps — full visibility of your home or business on your phone. Hybrid Flexibility The AX Hybrid Pro panel runs 8 on-board wired zones out of the box and expands to 48 zones, so the system grows with your property without a full replacement. Dual Siren Alert A high-decibel indoor screamer deters intruders inside, while the IP54 weatherproof outdoor siren with blue LED strobe gives a loud, visible warning at the perimeter. Fewer False Alarms The PIR detectors use digital temperature compensation and 3D optics with up to 10 kg pet immunity, keeping nuisance triggers from pets and weather to a minimum. What's in the Box Bundle Contents Panel Kit 1 × HA-ALARM-KIT1 — AX Hybrid Pro 8-zone panel + LCD keypad (HA-ALARM-KP-WB) + 2× PIRs + 3× proximity tags Extra PIR Detector 1 × HA-ALARM-PIR1 — wired PIR, 18 m range, 10 kg pet immunity Outdoor Siren 1 × HA-ALARM-SIREN1 — 105 dB outdoor siren, blue LED strobe, IP54 Indoor Siren 1 × DS-PS103 — wired indoor screamer (105 dB) for internal audible alerts Power Supply 1 × 15 V 4 A DC power supply with Australian power cord Backup Battery 1 × 12 V 7 Ah SLA battery to keep the system running during outages Zones & Expandability System Specifications Platform HiLook AX Hybrid Pro wired alarm On-Board Wired Zones 8 Maximum Zones Expandable up to 48 Keypad LCD keypad, RS-485 / 433 MHz, supports 2 on-board alarm inputs PIR Detectors 3 total — 18 m range, 85.9° coverage, up to 10 kg pet immunity Sirens Indoor screamer 105 dB + outdoor siren 105 dB (at 30 cm), IP54, blue LED strobe Communication LAN with optional GPRS/4G module for dual-path reporting Video Verification Pre-alarm video clips when integrated with HiLook IP cameras App Control Hik-Connect / HiLookVision — arm/disarm and push alerts Power 15 V 4 A supply + 12 V 7 Ah backup battery Best For Homes & Duplexes8 wired zones suit a typical house, duplex or apartment intrusion system. Small BusinessReliable wired detection for shops, offices and storerooms. Pet OwnersUp to 10 kg pet immunity lets the system stay armed with pets at home. App UsersArm, disarm and receive alerts from anywhere via Hik-Connect. Future GrowthExpand from 8 up to 48 zones as the property or needs grow. CCTV IntegrationPair with HiLook IP cameras for pre-alarm video verification. Installation Notes This is a professional wired system — we recommend installation by a licensed security technician for correct wiring and optimal sensor placement. Mount PIR detectors 2–2.2 m high in corners, angled across likely entry paths, avoiding direct sun and heat sources for fewest false triggers. Fit the 12 V 7 Ah backup battery inside the panel so the system stays armed and reporting through mains power outages. Frequently Asked Questions What's included in this alarm kit?The HA-ALARM-KIT1 panel with LCD keypad, 3 PIR detectors in total, 3 proximity tags, a 105 dB indoor screamer, a 105 dB IP54 outdoor siren with strobe, a 15 V 4 A power supply and a 12 V 7 Ah backup battery. How many zones does it support?The AX Hybrid Pro panel has 8 on-board wired zones and can be expanded up to 48 zones as your needs grow. Can I control it from my phone?Yes. Arm, disarm and receive instant push notifications through the Hik-Connect or HiLookVision apps on iOS and Android. Will it false-alarm on my pets?The PIR detectors use digital temperature compensation and 3D optics with up to 10 kg pet immunity to minimise nuisance triggers from pets. What sirens are included?Both an indoor 105 dB screamer for internal alerts and a weatherproof IP54 outdoor siren with blue LED strobe for a loud, visible perimeter warning. Does it keep working in a power cut?Yes. The included 12 V 7 Ah SLA backup battery keeps the system armed and reporting during mains outages. Can it report over mobile data?The panel supports LAN reporting and an optional GPRS/4G module for redundant dual-path communication to your phone. Should I have it professionally installed?As a professional wired system, we recommend installation by a licensed security technician to ensure correct wiring and optimal sensor placement. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

AX Hybrid Pro · 18 m PIR · 85.9° · 3D Optics · Pet Immunity 18 m PIR Detector HiLook HA-ALARM-PIR1 Wired PIR Detector — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-PIR1 is a wired indoor PIR motion detector for the HiLook AX Hybrid Pro alarm system, delivering up to 18 m of volumetric coverage at an 85.9° angle — enough to protect a large lounge, office or open-plan space from a single corner. Advanced 3D optics focus the infrared signal precisely onto the sensor, while digital temperature compensation keeps detection reliable even when the room temperature is close to body heat. Designed to cut false alarms, the PIR1 offers selectable pet immunity up to 10 kg (auto setting), creep-zone protection for the blind spot directly below it, anti-insect sealing and IFT technology that shifts its trip thresholds before electrical interference can cause a nuisance trip. Selectable EOL resistors and 9–16 V wide-voltage input with reverse-polarity protection make it easy to wire to almost any panel, and it reports through the HiLook hub to the Hik-Connect app. Backed by genuine Australian stock and a 3-year warranty. Detection Range 18 m · 85.9° Pet Immunity Up to 10 kg Reliable Motion Detection, Fewer False Alarms 18 m of Coverage Up to 18 m of volumetric detection at 85.9° lets a single detector watch over a large room or open space, mounted between 1.8 m and 2.4 m high. 3D Optics & Temp Compensation Precision 3D optics focus the infrared signal onto the sensor, and digital temperature compensation maintains the rated range even when the background temperature is near body heat. Pet Immunity to 10 kg Selectable pet immunity ignores animals up to 10 kg (auto setting; up to 15 kg low), so the family dog or cat won't set off the alarm. Anti False-Alarm Design Creep-zone protection, anti-insect sealing and IFT technology work together to shift alarm thresholds before interference or insects can trigger a nuisance alert. Technical Specifications Detection Model / SKU HA-ALARM-PIR1 Detection Method Passive infrared (PIR), NC output Detection Range 18 m Detection Angle 85.9° Detection Velocity 0.3–2 m/s Pet Immunity 5 kg (high) / 10 kg (auto) / 15 kg (low) Optics 3D optics, digital temperature compensation, creep-zone protection Electrical & Build Power 12 VDC standard (9–16 VDC), reverse-polarity protected Current Consumption 12 mA max EOL Resistors Alarm 1K / 2K2 / 4K7 / 5K6 / 8K2 · Tamper 1K / 2K2 / 4K7 / 5K6 Indicator Blue LED (alarm) · front tamper Mounting Height 1.8–2.4 m (wall; optional ceiling bracket) App / Management Hik-Connect (via panel) Dimensions 65.4 × 86.8 × 45.5 mm · approx. 68 g Operating Temp. −10 °C to 55 °C Warranty 3-Year Australian Warranty Downloads & Documentation HA-ALARM-PIR1 Datasheet Frequently Asked Questions How far does it detect movement?Up to 18 m of volumetric coverage at an 85.9° angle, ideal for large rooms and open-plan spaces. Will my pet trigger it?No — selectable pet immunity ignores animals up to 10 kg on the auto setting (up to 15 kg on low). How high should I mount it?Between 1.8 m and 2.4 m on a wall. An optional ceiling-mount bracket is available if needed. Which panels does it work with?It pairs with the HiLook AX Hybrid Pro panel and, thanks to selectable EOL resistors, most wired control panels on the market. How does it avoid false alarms?Through 3D optics, digital temperature compensation, creep-zone protection, anti-insect sealing and IFT interference handling. What power does it need?12 VDC standard (9–16 VDC range) with reverse-polarity protection, drawing just 12 mA. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

AX Hybrid Pro · 15 V 4 A Power Supply · Power Cord Included 15 V 4 A Power Supply HiLook HA-ALARM-POWER (O-STD) 15 V 4 A Power Supply — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-POWER (O-STD) is the standard power supply for the HiLook AX Hybrid Pro alarm system, delivering a stable 15 V DC at 4 A with built-in overload and short-circuit protection for safe, reliable operation. The power cord is included for quick setup, making it the straightforward replacement or spare PSU for your alarm panel installation. Backed by genuine Australian stock and a 3-year warranty. Specifications Model / SKU HA-ALARM-POWER (O-STD) Output 15 V DC, 4 A (60 W max) Input 100–240 V AC, 50/60 Hz Protection Overload & short-circuit Cable Power cord included Use HiLook AX Hybrid Pro alarm panel & security systems Warranty 3-Year Australian Warranty Frequently Asked Questions What does this power supply output?A stable 15 V DC at 4 A (up to 60 W), suitable for the HiLook alarm panel and security equipment. Does it come with a power cord?Yes — the power cord is included for plug-and-go installation. Is it protected against faults?Yes. It has built-in overload and short-circuit protection for safe, reliable operation. What is it used for?It's the standard PSU for the HiLook AX Hybrid Pro alarm system — ideal as a replacement or spare. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

AX Hybrid Pro · 8-Zone Wired Panel · Keypad + 2 PIRs + 3 Tags · Hik-Connect 8-Zone Wired Alarm Kit HiLook HA-ALARM-KIT1 8-Zone Wired Alarm System — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-KIT1 is a complete, professional-grade AX Hybrid Pro wired intrusion alarm system in one box. At its heart is an 8-zone control panel (8 on-board wired zones, expandable to 48 in total) paired with a wired LCD keypad, two 18 m PIR motion detectors and three proximity tags for fast, code-free arming and disarming — everything a home or small business needs to monitor and protect multiple areas independently. The panel speaks TCP/IP over its on-board RJ45 port with optional 4G, GPRS and PSTN modules for dual-path reporting, and connects straight to the Hik-Connect app so you can arm, disarm and receive push alerts from anywhere. Arm and disarm by keypad, tag, keyfob, app or SMS; expand later with extra zones, sirens and detectors as your needs grow. Backed by genuine Australian stock and a 3-year warranty. Zones 8 On-Board (to 48) App Control Hik-Connect Why the HA-ALARM-KIT1? 8 Zones, Expandable to 48 Eight on-board wired zones cover a typical home or shopfront out of the box, and the panel scales to 48 zones and 16 areas as your property or business grows. App & Dual-Path Reporting On-board TCP/IP connects to the Hik-Connect app for remote arm/disarm and push alerts, with optional 4G, GPRS and PSTN modules for backup reporting paths. Multiple Ways to Arm Arm and disarm by LCD keypad PIN, proximity tag, keyfob, the mobile app or SMS — whatever is most convenient for each member of the household or team. Hardwired Reliability A stable, interference-free wired link between detectors and panel makes this kit ideal for permanent installs, backed by on-board outputs for sirens and automation. What's in the Box Kit Contents 1 × Alarm Control Panel 8 on-board wired zones, expandable to 48; 4 on-board outputs (2 relay + 2 I/O) 1 × Wired LCD Keypad Backlit LCD, tag reader, 433 MHz receiver, Fire/Panic/Medical keys (HA-ALARM-KP-WB) 2 × PIR Motion Detectors 18 m, 85.9°, 10 kg pet immunity (HA-ALARM-PIR1) 3 × Proximity Tags For quick, code-free arming and disarming Technical Specifications Control Panel Model / SKU HA-ALARM-KIT1 On-Board Zones 8 wired (expandable to 48 total) Areas Up to 16 Outputs 4 on-board (2 relay + 2 I/O) · 1 wired sounder output Network On-board TCP/IP (RJ45 10/100M) Optional Comms PSTN, GPRS, 3G/4G modules (dual-path) EOL Resistors 1K / 2.2K / 4.7K / 5.6K / 6.8K / 8.2K Control, Power & Build Arm / Disarm Keypad, tag, keyfob, mobile app, SMS Capacity 48 tags · 48 keyfobs · 4 keypads · 8 wireless sounders App / Cloud Hik-Connect, Hik-ProConnect Mains Input 100–240 VAC (on-board transformer) Backup Battery 12 V 7 Ah lead-acid (sold separately) — up to ~36 h standby Panel Dimensions 261 × 199 × 86.4 mm Operating Temp. −10 °C to 40 °C Warranty 3-Year Australian Warranty Downloads & Documentation HiLook Alarm Brochure Frequently Asked Questions What comes in the HA-ALARM-KIT1?An 8-zone wired control panel, one wired LCD keypad, two 18 m PIR motion detectors and three proximity tags — a complete starter system. How many zones does it support?Eight on-board wired zones out of the box, expandable to 48 zones and 16 areas in total. Can I control it from my phone?Yes. The panel connects over TCP/IP to the Hik-Connect app for remote arm/disarm and instant push notifications. How do users arm and disarm?By LCD keypad PIN, proximity tag, keyfob, the mobile app or SMS — whichever suits each user. Does it have a backup battery?The panel accepts a 12 V 7 Ah lead-acid battery (sold separately) for up to around 36 hours of standby during a power cut. Can I add a siren and more detectors later?Yes. The panel has on-board outputs for sirens and expands to 48 zones, so you can add the HiLook SIREN1, extra PIRs and keyfobs over time. Is it suitable for a small business?Absolutely — the multi-area, multi-zone design and dual-path reporting make it well suited to homes and small commercial sites alike. Is this a wired or wireless system?It's a hybrid (AX Hybrid Pro) system that's primarily wired for reliability, with support for wireless keyfobs, tags and sounders. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

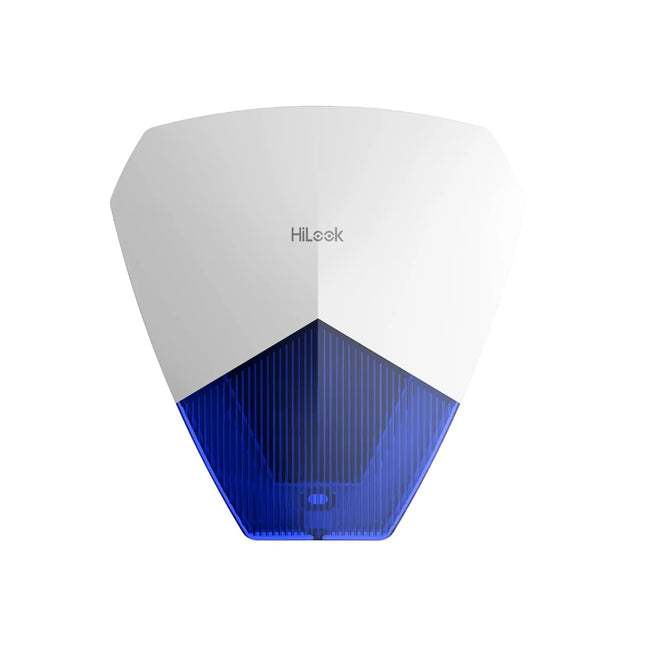

AX Hybrid Pro · 105 dB Siren + LED Strobe · IP54 · Indoor/Outdoor 105 dB Siren HiLook HA-ALARM-SIREN1 Wired Siren — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-SIREN1 is a wired siren for the HiLook AX Hybrid Pro alarm system that makes sure an intrusion is impossible to ignore. It delivers a piercing 105 dB at 30 cm alongside a bright LED strobe — and because the sound and flash are controlled independently, you can configure audible-only, visual-only or full alert behaviour to suit the site. Rated IP54 for dust and water resistance, it's built for both indoor and outdoor mounting and shrugs off Australian weather across a −20 °C to +60 °C range. It runs from the panel's 12 V bell output (8–16 VDC) and installs quickly thanks to a redesigned housing. Backed by genuine Australian stock and a 3-year warranty. Output 105 dB @ 30 cm Rating IP54 · In/Outdoor Loud, Visible, Weatherproof 105 dB Alert A piercing 105 dB (at 30 cm) sounder makes an intrusion impossible to ignore and draws immediate attention from neighbours and passers-by. Independent Sound & Strobe Sound and LED flash are configured separately, so you can run a silent visual warning, audible-only, or both together depending on the situation. IP54 Indoor or Out Dust and splash resistance to IP54 and a −20 °C to +60 °C range mean it can be mounted inside or out in full Australian weather. Fast to Install A redesigned housing simplifies mounting and wiring to the panel's bell output, getting the siren up and running quickly. Technical Specifications Siren Model / SKU HA-ALARM-SIREN1 Sound Output 105 dB at 30 cm Visual Indication LED strobe (configured independently of sound) Mounting Indoor or outdoor Protection IP54 (dust & water resistant) Power & Build Power 8–16 VDC (panel bell output), max 0.22 A Quiescent Power 0.96 W Dimensions 140 × 134 × 33 mm · approx. 185 g Material PC + ABS Operating Temp. −20 °C to +60 °C Warranty 3-Year Australian Warranty Downloads & Documentation HA-ALARM-SIREN1 Datasheet Frequently Asked Questions How loud is it?105 dB measured at 30 cm — loud enough to deter intruders and alert anyone nearby. Can I use it outdoors?Yes. It's IP54-rated for dust and water and built for both indoor and outdoor mounting in a −20 °C to +60 °C range. Does it have a flashing light?Yes — an LED strobe that's configured independently of the sound, so you can run visual-only, audible-only or both. How is it powered?From the alarm panel's 12 V bell output (8–16 VDC), drawing up to 0.22 A. Which system does it work with?It's a wired sounder for the HiLook AX Hybrid Pro alarm panel, connecting to the panel's sounder/bell output. Is it hard to install?No — the redesigned housing simplifies mounting and wiring for a quick, tidy installation. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

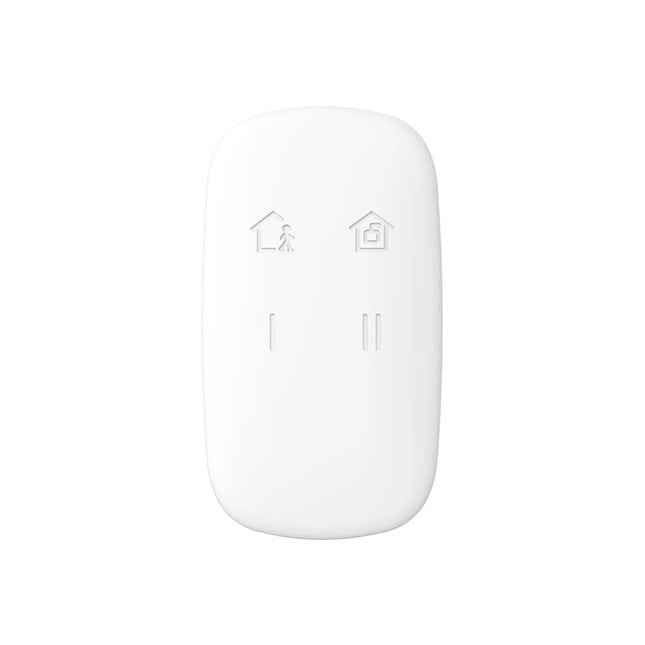

AX Hybrid Pro · Two-Way Wireless Keyfob · 433 MHz · Anti-Jam Two-Way Keyfob HiLook HA-ALARM-KF-WB Two-Way Wireless Keyfob — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-KF-WB is a two-way wireless keyfob for the HiLook AX Hybrid Pro alarm system, letting you arm and disarm at the press of a button from the driveway, the gate or the car. Operating on a secure 433 MHz link with frequency hopping to resist jamming, the keyfob is fully supervised — so the system confirms commands back to you rather than firing blind. It supports stay and away arming, disarming, and a keyfob lock/unlock function, and can be fully configured remotely through the app. With multiple enrolment methods and an easily replaceable, PCB-protected battery rated for up to three years of standby, it's built for everyday use over the long haul. Backed by genuine Australian stock and a 3-year warranty. Wireless Two-Way 433 MHz Battery Replaceable · ~3 yr Arm and Disarm on the Move Two-Way Confirmation Fully supervised two-way communication confirms each command back to the keyfob, so you know the system actually armed or disarmed — no guesswork. Anti-Jam 433 MHz Frequency hopping across the 433 MHz band resists jamming attacks for reliable, secure transmission to the panel. Stay, Away & Lock Dedicated buttons handle stay arming, away arming and disarming, plus a keyfob lock/unlock function to prevent accidental presses. Easy Battery Swap The PCB-protected battery is rated for up to three years of standby and is simple to replace — no tools or service call required. Technical Specifications Wireless & Operation Model / SKU HA-ALARM-KF-WB Frequency 433 MHz (2GFSK), two-way / fully supervised Anti-Jamming Frequency hopping Operation Stay/away arming, disarming, keyfob lock/unlock Transmission Range Up to 500 m (open area) Configuration Fully remote-configurable via app; multiple enrolment methods Power & Build Battery Replaceable, PCB-protected Battery Life Up to ~3 years standby App / Management Hik-Connect (via panel) Dimensions 35.2 × 63.2 × 11.3 mm · approx. 16 g Operating Temp. −10 °C to 55 °C Colour White Warranty 3-Year Australian Warranty Downloads & Documentation HA-ALARM-KF-WB Datasheet Frequently Asked Questions What does the keyfob do?It arms (stay or away) and disarms your HiLook AX Hybrid Pro system wirelessly, with a lock/unlock function to prevent accidental presses. What is "two-way" wireless?The keyfob is fully supervised — the panel confirms each command back to the fob, so you know the action was successful. How far does it work?Up to 500 m in open areas on the secure 433 MHz link, with frequency hopping to resist jamming. Can I replace the battery myself?Yes. The PCB-protected battery is easily replaceable and rated for up to about three years of standby use. How many keyfobs can the system hold?The AX Hybrid Pro panel manages up to 48 keyfobs, so the whole household or team can each have one. How do I add it to my system?It supports multiple enrolment methods and can be fully configured remotely through the Hik-Connect app. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

AX Hybrid Pro · Dual-Tech PIR + 24 GHz MW · 12 m · 30 kg Pet Immunity Dual-Tech Detector HiLook HA-ALARM-PIR2 Dual-Tech Detector — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-PIR2 is a wired dual-technology motion detector that combines a passive infrared (PIR) sensor with a 24 GHz K-band microwave sensor. A target must be confirmed by both technologies before the detector alarms, which dramatically reduces false triggers from heat, draughts and reflections — making it the smart choice for tricky rooms where a standard PIR struggles. It covers up to 12 m at 85.9° across a 52-zone 3D optics array with no dead angle. Built for demanding environments, the PIR2 offers pet immunity up to 30 kg, automatic sensitivity, digital temperature compensation, sealed optics against insects and IFT technology to head off interference-driven false alarms. Selectable EOL resistors and 9–16 V wide-voltage input with reverse-polarity protection make wiring straightforward on the HiLook AX Hybrid Pro panel, reporting through the hub to the Hik-Connect app. Backed by genuine Australian stock and a 3-year warranty. Detection Range 12 m · 85.9° Pet Immunity Up to 30 kg Two Technologies, One Confident Alarm PIR + 24 GHz Microwave Dual-tech detection requires both the infrared and K-band microwave sensors to agree before alarming — virtually eliminating false trips from heating vents, sunlight and air movement. 52-Zone 3D Optics A 52-zone 3D Fresnel lens array delivers full coverage with no dead angle, including creep-zone protection for the area directly beneath the detector. Pet Immunity to 30 kg Ignores larger animals up to 30 kg, so even big dogs won't trigger the alarm — ideal for homes and yards with sizeable pets. Stable in Harsh Rooms Automatic sensitivity, digital temperature compensation, sealed anti-insect optics and IFT interference handling keep performance steady where ordinary PIRs false-alarm. Technical Specifications Detection Model / SKU HA-ALARM-PIR2 Detection Method Dual-tech: PIR + 24 GHz K-band microwave, NC output Microwave Band 24.15–24.25 GHz Detection Range 12 m Detection Angle 85.9° Detection Zones 52 zones (3D optics, no dead angle) Detection Velocity 0.3–2 m/s Pet Immunity Up to 30 kg Electrical & Build Power 12 VDC typical (9–16 VDC), reverse-polarity protected Current Consumption 17 mA @ 12 VDC EOL Resistors Selectable (alarm & tamper) Indicators PIR (green), microwave (orange), alarm (blue) · front tamper Mounting Height 1.8–2.4 m (optional wall/ceiling bracket) App / Management Hik-Connect (via panel) Dimensions 65.7 × 103.8 × 45.5 mm Operating Temp. −10 °C to 55 °C Warranty 3-Year Australian Warranty Downloads & Documentation HA-ALARM-PIR2 Datasheet Frequently Asked Questions What does "dual-tech" mean?The detector uses both a PIR and a 24 GHz microwave sensor, and only alarms when both confirm a target — greatly reducing false alarms. How far does it detect?Up to 12 m at 85.9°, across a 52-zone 3D optics array with no dead angle. Will my dog set it off?No — it offers pet immunity up to 30 kg, so even large dogs won't trigger the alarm. When should I choose this over the PIR1?Choose the PIR2 for rooms prone to false alarms — near heaters, large windows or draughts — where dual-tech confirmation adds stability. Which panel does it work with?It pairs with the HiLook AX Hybrid Pro panel, with selectable EOL resistors for compatibility with most wired panels. How high should I mount it?Between 1.8 m and 2.4 m. Optional wall and ceiling brackets are available separately. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

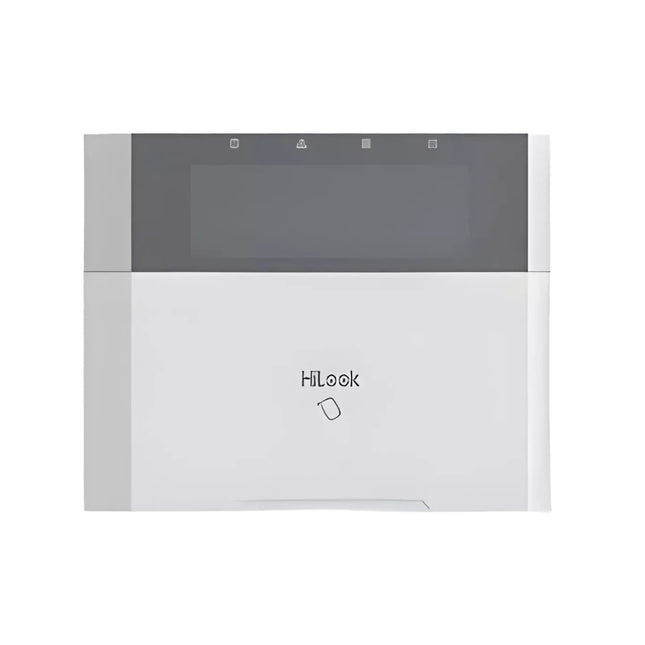

AX Hybrid Pro · Wired LCD Keypad · RS-485 + 433 MHz · Tag Reader Wired LCD Keypad HiLook HA-ALARM-KP-WB Wired LCD Keypad — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-KP-WB is the wired control keypad for the HiLook AX Hybrid Pro alarm system. It connects to the alarm panel over a single RS-485 (Speed-X) bus and adds a clear backlit LCD display, a built-in 433 MHz transceiver and an integrated tag reader — so users can arm and disarm by code, by proximity tag, or with one-touch arming that needs no password at all. Beyond control, the keypad earns its place on the wall with real functionality: dedicated Fire, Panic and Medical emergency keys, support for up to 64 keyfobs, and 2 on-board alarm inputs plus 1 on-board alarm output for wiring local zones and devices straight at the keypad. It shows the time and your company name on screen, and is fully managed through the panel and the Hik-Connect app. Backed by genuine Australian stock and a 3-year warranty. Display Backlit LCD Connectivity RS-485 + 433 MHz Control at Your Fingertips Code, Tag or One-Touch Arm and disarm by PIN on the backlit LCD, tap a proximity tag on the built-in reader, or use one-touch arming with no password — whichever suits each user in the household or office. Built-In 433 MHz Receiver An integrated wireless transceiver enrols and manages up to 64 HiLook keyfobs, so the family can arm and disarm from the driveway without ever touching the keypad. Emergency Keys Dedicated Fire, Panic and Medical keys (held for 3 seconds) raise the right alarm instantly — a fast, deliberate way to call for help in an emergency. On-Board I/O Two on-board alarm inputs and one alarm output let you wire local detectors or a device directly at the keypad, plus a back-cover tamper switch guards against interference. Technical Specifications Keypad & Control Model / SKU HA-ALARM-KP-WB Display Backlit LCD with company name & time display Arming Methods PIN code, proximity tag, one-touch (no password) Emergency Keys Fire / Panic / Medical (hold 3 s) Tag Reader Built-in Keyfob Capacity Up to 64 keyfobs Connectivity & I/O Bus 1 × RS-485 (Speed-X) to AX Hybrid Pro panel Wireless 433 MHz built-in transceiver On-Board Inputs 2 alarm inputs On-Board Output 1 alarm output EOL Resistors 1K / 2.2K / 4.7K / 5.6K / 6.8K / 8.2K (NO/NC/single/double/triple EOL) Tamper Back-cover tamper switch Power & Build Power 12 VDC (from panel AUX) Power Consumption Quiescent 0.972 W · Max 1.33 W App / Management Hik-Connect (via panel) Dimensions 150 × 115 × 28 mm Operating Temp. −10 °C to 55 °C Colour White Warranty 3-Year Australian Warranty Downloads & Documentation HA-ALARM-KP-WB Datasheet Frequently Asked Questions Which alarm system does this keypad work with?It is the wired keypad for the HiLook AX Hybrid Pro alarm panel, connecting over the RS-485 (Speed-X) bus. How do users arm and disarm?By PIN code on the LCD, by tapping a proximity tag on the built-in reader, or with one-touch arming that needs no password. Does it read tags and keyfobs?Yes — it has a built-in tag reader and a 433 MHz transceiver, and supports up to 64 keyfobs. What are the emergency keys?Dedicated Fire, Panic and Medical keys, triggered by holding the key for about 3 seconds. Can I wire detectors directly to the keypad?Yes. It has 2 on-board alarm inputs and 1 on-board alarm output, with selectable EOL resistors for most panels. How is it powered?From the panel's 12 VDC AUX supply over the bus wiring — no separate plug-pack needed. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support
