AX Hybrid Pro · 105 dB Siren + LED Strobe · IP54 · Indoor/Outdoor
105 dB Siren

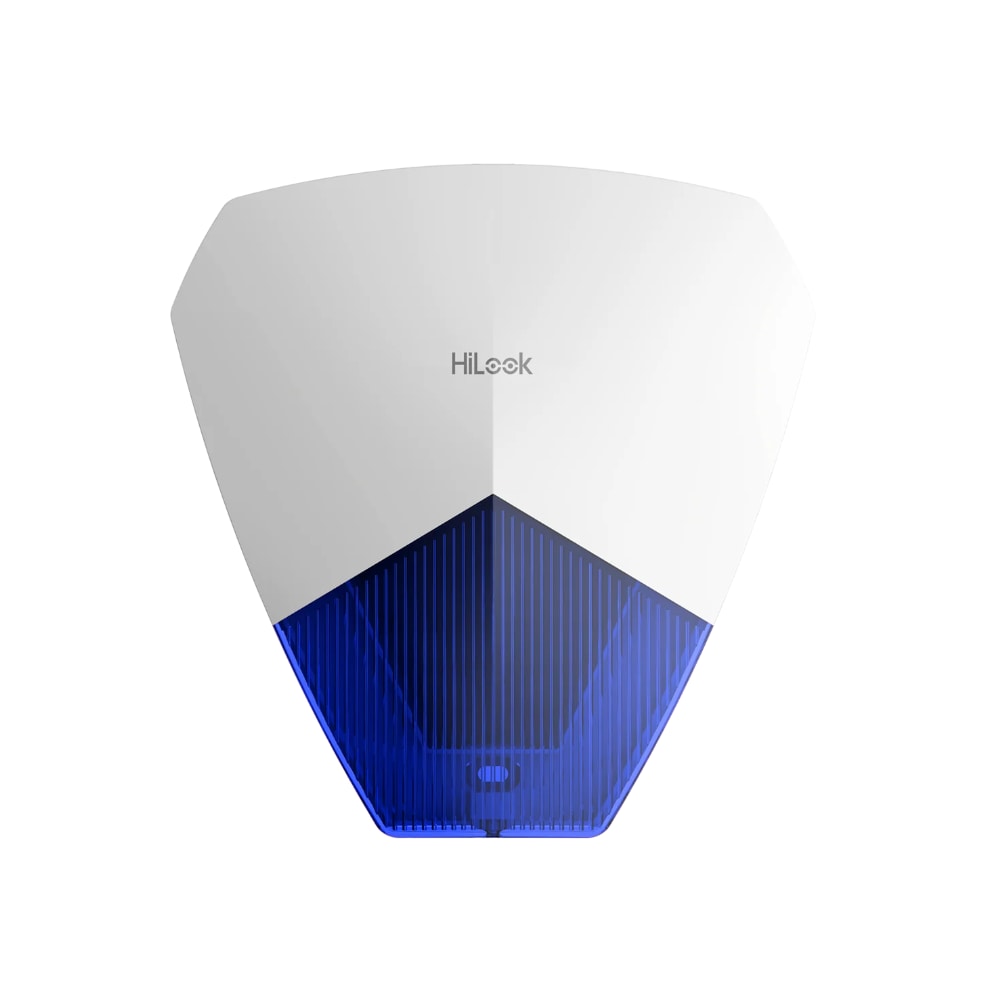

HiLook HA-ALARM-SIREN1 Wired Siren — Australian Stock & 3-Year Warranty
The HiLook HA-ALARM-SIREN1 is a wired siren for the HiLook AX Hybrid Pro alarm system that makes sure an intrusion is impossible to ignore. It delivers a piercing 105 dB at 30 cm alongside a bright LED strobe — and because the sound and flash are controlled independently, you can configure audible-only, visual-only or full alert behaviour to suit the site.
Rated IP54 for dust and water resistance, it's built for both indoor and outdoor mounting and shrugs off Australian weather across a −20 °C to +60 °C range. It runs from the panel's 12 V bell output (8–16 VDC) and installs quickly thanks to a redesigned housing. Backed by genuine Australian stock and a 3-year warranty.
Loud, Visible, Weatherproof
105 dB Alert
A piercing 105 dB (at 30 cm) sounder makes an intrusion impossible to ignore and draws immediate attention from neighbours and passers-by.
Independent Sound & Strobe
Sound and LED flash are configured separately, so you can run a silent visual warning, audible-only, or both together depending on the situation.
IP54 Indoor or Out
Dust and splash resistance to IP54 and a −20 °C to +60 °C range mean it can be mounted inside or out in full Australian weather.
Fast to Install
A redesigned housing simplifies mounting and wiring to the panel's bell output, getting the siren up and running quickly.
Technical Specifications
Siren
| Model / SKU |
HA-ALARM-SIREN1 |
| Sound Output |
105 dB at 30 cm |
| Visual Indication |
LED strobe (configured independently of sound) |
| Mounting |
Indoor or outdoor |
| Protection |
IP54 (dust & water resistant) |
Power & Build
| Power |
8–16 VDC (panel bell output), max 0.22 A |
| Quiescent Power |
0.96 W |
| Dimensions |
140 × 134 × 33 mm · approx. 185 g |
| Material |
PC + ABS |
| Operating Temp. |
−20 °C to +60 °C |
| Warranty |
3-Year Australian Warranty |
Downloads & Documentation
Frequently Asked Questions
How loud is it?
105 dB measured at 30 cm — loud enough to deter intruders and alert anyone nearby.
Can I use it outdoors?
Yes. It's IP54-rated for dust and water and built for both indoor and outdoor mounting in a −20 °C to +60 °C range.
Does it have a flashing light?
Yes — an LED strobe that's configured independently of the sound, so you can run visual-only, audible-only or both.
How is it powered?
From the alarm panel's 12 V bell output (8–16 VDC), drawing up to 0.22 A.
Which system does it work with?
It's a wired sounder for the HiLook AX Hybrid Pro alarm panel, connecting to the panel's sounder/bell output.
Is it hard to install?
No — the redesigned housing simplifies mounting and wiring for a quick, tidy installation.
