HiLook PoE Switches

8-Port · 802.3af/at PoE · Unmanaged · 60W Budget 8-Port · PoE · 60W HiLook NS-0109P-60 8-Port Fast Ethernet Long-Range Unmanaged PoE Switch — Australian Stock & 3-Year Warranty The HiLook NS-0109P-60 is a long-range 8-port unmanaged PoE switch designed for an 8-camera surveillance system on a budget. Eight 100 Mbps PoE ports deliver up to 30 W per port from a shared 60 W PoE budget, while a single 100 Mbps uplink port carries the combined feed to your NVR or router. There is nothing to set up — connect your cameras and they power on instantly. Built around the IEEE 802.3af/at standard with 6 kV surge protection on every PoE port, the NS-0109P-60 is engineered for distance: its Extend mode pushes reliable transmission out to 250 m, well past the usual 100 m Ethernet limit. A solid metal shell and fan-free design keep it silent, cool and rugged. Backed by genuine Australian stock and a 3-year warranty. PoE Ports 8 × 100 Mbps PoE PoE Budget 60 W Total Long-Range Power for 8 Cameras Power 8 Cameras, One Cable Each Eight 100 Mbps PoE ports deliver data and power down a single cable per device — enough for a complete 8-channel home or small-business camera install with no separate power supplies. 60 W Shared PoE Budget Up to 30 W per port (802.3at) from a 60 W total budget runs a full set of IR turret, bullet and dome cameras across all eight ports. 250 m Extend Mode Switch to Extend mode and PoE ports 1–8 reach reliable transmission up to 250 m — ideal for sprawling sites, long driveways, sheds and outbuildings. Plug-and-Play & Silent Unmanaged design means zero configuration. A single 100 Mbps uplink feeds your NVR, 6 kV surge protection guards every port, and the fan-free metal shell runs silent. Technical Specifications Ports & Switching Model / SKU NS-0109P-60(B) PoE Ports 8 × 100 Mbps PoE (RJ45) Uplink Ports 1 × 100 Mbps RJ45 Port Type RJ45, full duplex, MDI/MDI-X adaptive Switching Capacity 1.8 Gbps Packet Forwarding Rate 1.339 Mpps MAC Address Table 2 K Forwarding Mode Store-and-forward switching Standards IEEE 802.3, 802.3u, 802.3x PoE Power PoE Standard IEEE 802.3af / 802.3at PoE Ports Ports 1 to 8 Max. Port Power 30 W per port Total PoE Power Budget 60 W Surge Protection 6 kV on PoE ports Long-Range Transmission Up to 250 m (Extend mode), Ports 1 to 8 Power & Build Max. Power Consumption 65 W Shell Metal material, fan-free design Dimensions (L × H × D) 170 × 27.6 × 93.1 mm Net Weight approx. 0.35 kg Operating Humidity 5% to 95% (no condensation) Warranty 3-Year Australian Warranty Downloads & Documentation NS-0109P-60 Datasheet HiLook PoE Switch Quick Start Guide Frequently Asked Questions How many cameras can it power?Up to eight PoE devices — one per PoE port — provided their combined draw stays within the 60 W total budget. Typical IR cameras draw 5–8 W each, so a full 8-camera kit fits comfortably. What is the total PoE budget?60 W shared across all eight PoE ports, with up to 30 W available on a single port under 802.3at. Is it managed or unmanaged?Unmanaged and fully plug-and-play — no software, web login or configuration. Connect your cameras and uplink and it works straight away. How far can it transmit?Up to 250 m on PoE ports 1–8 in Extend mode — this long-range model is built for distance well beyond standard 100 m Ethernet. What uplink does it have?A single 100 Mbps RJ45 uplink port to connect the switch to your NVR, router or main network. What PoE standard does it use?IEEE 802.3af and 802.3at, compatible with standard PoE and PoE+ cameras and devices. Does it need a fan?No. The metal shell uses a fan-free design, so it runs completely silent in cupboards, ceilings and comms boxes. Will it work with my Hikvision or HiLook NVR?Yes. It is a standard PoE switch and passes data transparently to any NVR, router or network device over the uplink port. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

4-Port · 802.3af/at PoE · Unmanaged · 35W Budget 4-Port · PoE · 35W HiLook NS-0105P-35 4-Port Long-Range Unmanaged PoE Switch — Australian Stock & 3-Year Warranty The HiLook NS-0105P-35 is a compact, plug-and-play 4-port unmanaged PoE switch ideal for small IP camera setups. Four 100 Mbps PoE ports deliver up to 30 W per port from a shared 35 W PoE budget, while a single 100 Mbps uplink port carries the feed to your NVR or router. There is nothing to configure — connect your cameras and they power up instantly. Built on the IEEE 802.3af/at standard with 6 kV surge protection on every PoE port and full 8-core power supply, it adds an Extend mode for reliable transmission up to 250 m — far beyond the standard 100 m limit — plus high-priority ports (1–2) for your most important cameras. A solid metal shell and fan-free design keep it silent and cool. Backed by genuine Australian stock and a 3-year warranty. PoE Ports 4 × 100 Mbps PoE PoE Budget 35 W Total Compact, Silent Power for Small Camera Systems Power 4 Cameras, One Cable Each Four 100 Mbps PoE ports deliver data and power over a single Cat5e/Cat6 run — no separate plug-packs. Perfect for a 4-camera home or small-shop install in a tight space. 35 W Shared PoE Budget Up to 30 W per port (802.3at) within a 35 W total budget comfortably powers typical HiLook and Hikvision IR turret and bullet cameras across all four ports. 250 m Extend & High-Priority Ports Extend mode reaches up to 250 m on the PoE ports, while high-priority ports 1–2 guarantee power to your most important cameras first when the budget is tight. Plug-and-Play & Silent Unmanaged design means zero setup. A single uplink feeds your NVR or router, 6 kV surge protection guards every port, and the fan-free metal shell runs silent and cool. Technical Specifications Ports & Switching Model / SKU NS-0105P-35(B) PoE Ports 4 × 100 Mbps PoE (RJ45) Uplink Port 1 × 100 Mbps RJ45 Port Type RJ45, full duplex, MDI/MDI-X adaptive High-Priority Ports Ports 1 to 2 Switching Capacity 1 Gbps Packet Forwarding Rate 0.744 Mpps MAC Address Table 1 K Forwarding Mode Store-and-forward switching Standards IEEE 802.3, 802.3u, 802.3x PoE Power PoE Standard IEEE 802.3af / 802.3at PoE Ports Ports 1 to 4 Max. Port Power 30 W per port Total PoE Power Budget 35 W PoE Power Pin 8-core power supply (1/2/3/6 and 4/5/7/8) Surge Protection 6 kV on PoE ports Long-Range Transmission Up to 250 m (Extend mode), Ports 1 to 4 Power & Build Power Supply 48 VDC, 0.8 A Max. Power Consumption 38 W Shell Metal material, fan-free design Dimensions (L × H × D) 105 × 27.6 × 83.1 mm Operating Temperature −10 °C to 55 °C Warranty 3-Year Australian Warranty Downloads & Documentation NS-0105P-35 Datasheet Frequently Asked Questions How many cameras can it power?Up to four PoE devices — one per PoE port — as long as their combined draw stays within the 35 W total budget. Most IR turret and bullet cameras draw 5–8 W each, so four fit comfortably. What is the total PoE budget?35 W shared across all four PoE ports, with up to 30 W available on a single port under the 802.3at standard. Is it managed or unmanaged?Unmanaged — completely plug-and-play. There is no software, web login or configuration; just connect your cameras and uplink. How far can it transmit?Standard mode follows the usual 100 m Ethernet limit; switch to Extend mode and PoE ports 1–4 reliably reach up to 250 m. What uplink does it have?A single 100 Mbps RJ45 uplink port to connect the switch to your NVR, router or main network. What are the high-priority ports for?Ports 1 and 2 are high-priority — if the PoE budget runs short, these ports keep your most important cameras powered first. Does it need a fan?No. The compact metal shell uses a fan-free design, so it runs completely silent — ideal for homes, offices and comms cupboards. Will it work with my Hikvision or HiLook NVR?Yes. It is a standard PoE switch and passes data transparently to any NVR, router or network device over the uplink port. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

4-Port · 802.3af/at PoE · Unmanaged · 35W Budget 4-Port · PoE · 35W HiLook NS-0106P-35 4-Port Fast Ethernet Unmanaged PoE Switch — Australian Stock & 3-Year Warranty The HiLook NS-0106P-35 is a plug-and-play 4-port unmanaged PoE switch built to power and connect a small IP camera system in one neat metal box. Four 10/100 Mbps PoE ports deliver up to 30 W per port within a shared 35 W PoE budget, while two extra 100 Mbps uplink ports carry the combined feed back to your NVR or router. There is nothing to configure — connect your cameras and they power up instantly. Powered by the IEEE 802.3af/at standard with 6 kV surge protection on every PoE port, the NS-0106P-35 also features an Extend mode that pushes reliable transmission out to 250 m — far beyond the usual 100 m Ethernet limit. A solid metal shell and fan-free design keep it silent and cool in cupboards, ceilings and comms boxes. Backed by genuine Australian stock and a 3-year warranty. PoE Ports 4 × 100 Mbps PoE PoE Budget 35 W Total Simple, Silent Power for Small Camera Systems Power 4 Cameras, One Cable Each Four 10/100 Mbps PoE ports deliver data and power down a single Cat5e/Cat6 run — no separate plug-packs, no dead zones. Ideal for a 4-camera home or small-business install. 35 W Shared PoE Budget Up to 30 W per port (802.3at) within a 35 W total budget comfortably runs typical HiLook and Hikvision IR turret and bullet cameras across all four ports. 250 m Extend Mode Flip to Extend mode and PoE ports push stable transmission up to 250 m — perfect for long driveways, sheds and back fences where standard Ethernet falls short. Truly Plug-and-Play Unmanaged design means zero setup. Two uplink ports feed your NVR or router, 6 kV surge protection guards every port, and the fan-free metal shell runs silent and cool. Technical Specifications Ports & Switching Model / SKU NS-0106P-35 PoE Ports 4 × 10/100 Mbps PoE (RJ45) Uplink Ports 2 × 100 Mbps RJ45 Port Type RJ45, full duplex, MDI/MDI-X adaptive Switching Capacity 1.6 Gbps Packet Forwarding Rate 0.8928 Mpps MAC Address Table 4 K Forwarding Mode Store-and-forward switching Standards IEEE 802.3, 802.3u, 802.3x PoE Power PoE Standard IEEE 802.3af / 802.3at PoE Ports Ports 1 to 4 Max. Port Power 30 W per port Total PoE Power Budget 35 W Surge Protection 6 kV on PoE ports Long-Range Transmission Up to 250 m (Extend mode), Ports 1 to 4 Power & Build Power Supply 48 VDC, 0.8 A Shell Metal material, fan-free design Dimensions (L × H × D) 145 × 68.45 × 25.6 mm Operating Humidity 5% to 95% (no condensation) Warranty 3-Year Australian Warranty Downloads & Documentation NS-0106P-35 Datasheet HiLook PoE Switch Quick Start Guide Frequently Asked Questions How many cameras can it power?Up to four PoE devices — one per PoE port — as long as their combined draw stays within the 35 W total budget. Most IR turret and bullet cameras draw 5–8 W each, so four cameras fit comfortably. What is the total PoE budget?35 W shared across all four PoE ports, with up to 30 W available on any single port under the 802.3at standard. Is it managed or unmanaged?Unmanaged — completely plug-and-play. There is no software, web login or configuration; just connect your cameras and uplink. How far can it transmit?Standard mode follows the usual 100 m Ethernet limit; switch to Extend mode and PoE ports 1–4 reliably reach up to 250 m. What uplink does it have?Two 100 Mbps RJ45 uplink ports to connect the switch to your NVR, router or main network. What PoE standard does it use?IEEE 802.3af and 802.3at, so it works with standard PoE and PoE+ cameras and access points. Does it need a fan?No. The solid metal shell uses a fan-free design, so it runs completely silent — ideal for offices, homes and comms cupboards. Will it work with my Hikvision or HiLook NVR?Yes. It is a standard PoE switch and passes data transparently to any NVR, router or network device over the uplink ports. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

8-Port · 802.3af/at PoE · Unmanaged · 60W Budget 8-Port · PoE · 60W HiLook NS-0310P-60 8-Port Fast Ethernet Unmanaged PoE Switch — Australian Stock & 3-Year Warranty The HiLook NS-0310P-60 is an 8-port unmanaged PoE switch with two Gigabit uplinks, purpose-built for an 8-camera surveillance system. Eight 10/100 Mbps PoE ports supply up to 30 W per port from a shared 60 W PoE budget, while two Gigabit RJ45 uplink ports give a fast, congestion-free path back to your NVR — important when eight camera streams share a single backhaul. Built on the IEEE 802.3af/at standard with 6 kV surge protection on every PoE port, it adds an Extend mode for reliable transmission up to 250 m. A high-strength metal shell and fan-free design keep it silent and rugged, with a 5.6 Gbps switching capacity and 16 K MAC table for smooth multi-camera throughput. Backed by genuine Australian stock and a 3-year warranty. PoE Ports 8 × 100 Mbps PoE PoE Budget 60 W Total Eight Cameras, Two Gigabit Uplinks, Zero Setup Power 8 Cameras at Once Eight 10/100 Mbps PoE ports deliver data and power on a single cable each — enough for a full 8-channel home or small-business camera system with no separate power supplies. 60 W Shared PoE Budget Up to 30 W per port (802.3at) from a 60 W total budget powers a mix of IR turrets, bullets and compact dome cameras across all eight ports. Twin Gigabit Uplinks Two Gigabit RJ45 uplink ports keep eight camera streams flowing back to the NVR without bottlenecks — a real advantage over 100 Mbps-only switches. 250 m Extend & Silent Build Extend mode reaches up to 250 m on the PoE ports, 6 kV surge protection guards every port, and the fan-free metal shell runs silent and cool. Technical Specifications Ports & Switching Model / SKU NS-0310P-60 PoE Ports 8 × 10/100 Mbps PoE (RJ45) Uplink Ports 2 × Gigabit RJ45 Port Type RJ45, full duplex, MDI/MDI-X adaptive Switching Capacity 5.6 Gbps Packet Forwarding Rate 4.1664 Mpps MAC Address Table 16 K Internal Cache 4 Mbits Forwarding Mode Store-and-forward switching Standards IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3ab PoE Power PoE Standard IEEE 802.3af / 802.3at PoE Ports Ports 1 to 8 Max. Port Power 30 W per port Total PoE Power Budget 60 W Surge Protection 6 kV on PoE ports Long-Range Transmission Up to 250 m (Extend mode), Ports 1 to 8 Power & Build Power Supply 48 VDC, 1.35 A Max. Power Consumption 65 W Shell Metal material, fan-free design Dimensions (L × H × D) 217.6 × 103.35 × 27.8 mm Operating Temperature −10 °C to 40 °C Warranty 3-Year Australian Warranty Downloads & Documentation NS-0310P-60 Datasheet HiLook PoE Switch Quick Start Guide Frequently Asked Questions How many cameras can it power?Up to eight PoE devices — one per PoE port — provided their combined draw stays within the 60 W total budget. Typical IR cameras draw 5–8 W each, so a full 8-camera kit fits within budget. What is the total PoE budget?60 W shared across all eight PoE ports, with up to 30 W available on any single port under 802.3at. Is it managed or unmanaged?Unmanaged and fully plug-and-play — no software, no web login, no configuration. Connect your cameras and uplink and it just works. How far can it transmit?Up to 250 m on PoE ports 1–8 in Extend mode, well beyond the standard 100 m Ethernet limit. What uplink does it have?Two Gigabit RJ45 uplink ports, giving fast, bottleneck-free backhaul of all eight camera streams to your NVR or router. What PoE standard does it use?IEEE 802.3af and 802.3at, compatible with standard PoE and PoE+ cameras and devices. Does it need a fan?No. The high-strength metal shell is fan-free, so it runs silent and cool in cabinets and comms rooms. Will it work with my Hikvision or HiLook NVR?Yes. It is a standard PoE switch and passes data transparently to any NVR, router or network device via the Gigabit uplinks. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

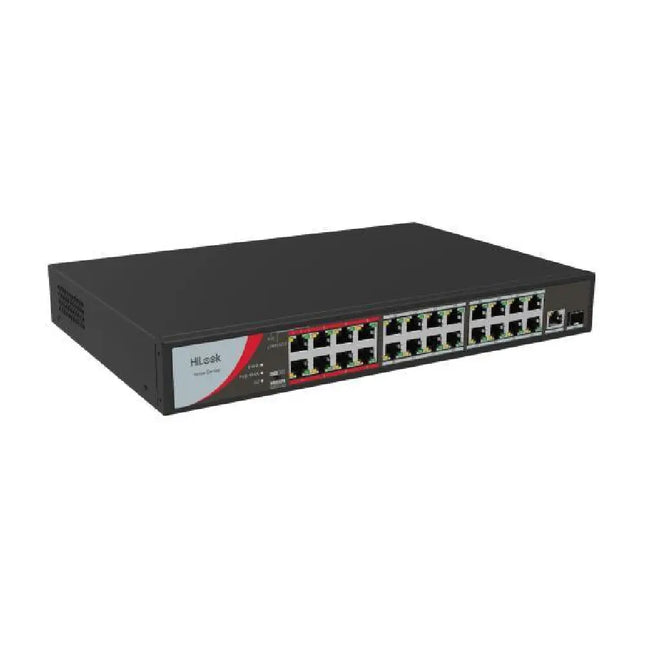

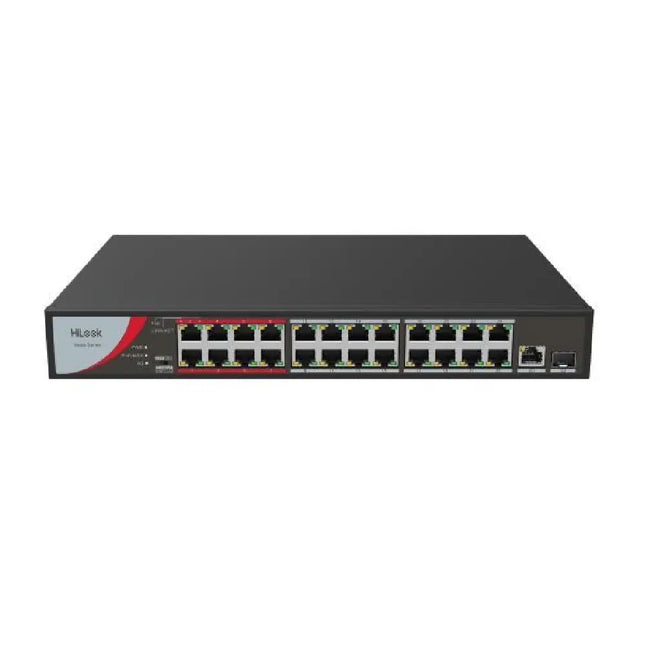

Hilook Value Series High-Performance Connectivity with Hilook NS-0326P-230 Engineered for demanding commercial environments and high-density IP surveillance systems, the Hilook NS-0326P-230 delivers robust network switching capabilities and reliable Power over Ethernet (PoE) delivery. This managed switch optimizes data transmission for security infrastructures, ensuring seamless video streaming, centralized device control, and long-term operational stability across corporate, retail, and industrial sites. Port Capacity 24 Gigabit PoE Power Budget 230W Total Output Management Type Managed L2 Layer Uplink Interfaces Gigabit SFP Ports Advanced Network Control and Protocol Support The NS-0326P-230 features advanced network management protocols, including VLAN configuration, link aggregation, and comprehensive QoS (Quality of Service) to prioritize critical video traffic over standard data. Its enterprise-grade architecture ensures secure data routing, rapid fault recovery, and optimal bandwidth allocation for multi-camera deployments. High PoE Power Budget Delivers up to 230W of total power distribution, easily supporting multiple high-draw PTZ cameras, infrared illuminators, and standard IP security endpoints without external power supplies. Robust Industrial Design Built into a durable rack-mountable metal chassis optimized for superior heat dissipation, guaranteeing reliable 24/7 continuous operation in professional server room environments. Technical Specification Matrix Camera Model NS-0326P-230 Total Port Count 24 Gigabit PoE ports, 2 Gigabit SFP uplink ports PoE Standard IEEE 802.3af, IEEE 802.3at Max. Power Budget 230W Switching Capacity 52 Gbps Packet Forwarding Rate 38.68 Mpps MAC Address Table 8K entries Enclosure Metal material, fanless / fan-cooled design What is the total PoE power budget of the NS-0326P-230? The switch provides a total power budget of 230W, supporting standard IEEE 802.3af/at power delivery across its active ports. Does this switch support fiber uplinks? Yes, it features dedicated Gigabit SFP optical fiber uplink ports for long-distance network connections. Is this model a managed or unmanaged switch? The NS-0326P-230 is a managed Layer 2 switch offering advanced security, VLAN, and traffic prioritization features. Can this switch be installed in a standard server rack? Yes, it comes with rack-mounting accessories designed for standard 19-inch server racks and cabinets. Technical Datasheet Official Hilook Stock Commercial Warranty Aust-Wide Delivery

Read more less
