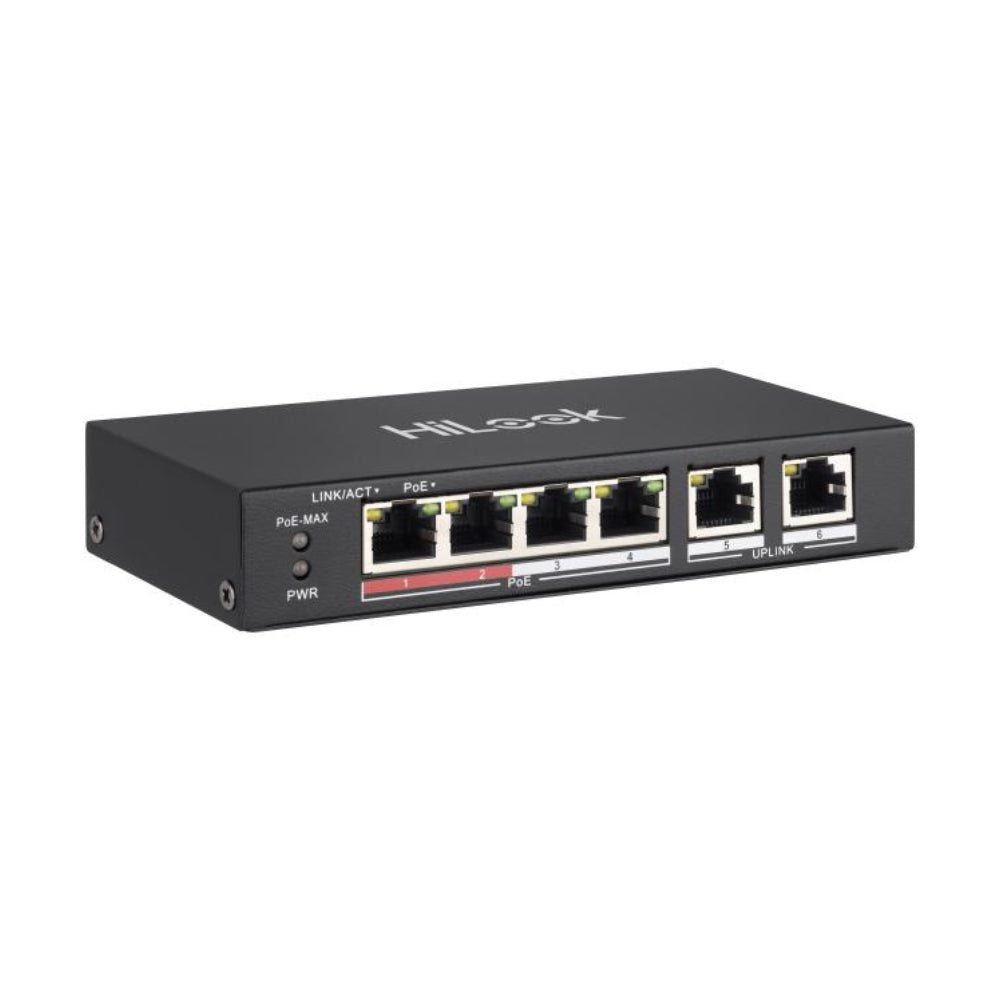

HiLook NS-0106P-35 4 Port Fast Ethernet Unmanaged POE Switch

Description

HiLook NS-0106P-35 4 Port Fast Ethernet Unmanaged POE Switch

  • 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
  • IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
  • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
  • 6 KV surge protection for PoE ports.
  • Up to 250 m long-range transmission.
  • Wire-speed forwarding.
  • Store-and-forward switching.
  • Solid high-strength metal shell.
  • Reliable fan-free design

PoE Power Supply

  • PoE Standard: Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power
  • supply simultaneously.
  • PoE Port: Ports 1 to 4
  • Max. Port Power: Ports 1 to 4: 30 W
  • PoE Power Budget: 35 W

Network Parameters

  • Port Number: 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
  • Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding Mode: Store-and-forward switching
  • High Priority Ports: Ports 1 and 2
  • Ports For Long-Distance Transmission: Ports 1 to 4
  • MAC Address Table: 4 K
  • Switching Capacity: 1.6 Gbps
  • Packet Forwarding Rate: 0.8928 Mpps
  • Internal Cache: 768 Kbits

Dialing Function

  • Long Range: Ports 1 to 4: up to 250m.

General

  • Shell: Metal material, fan-free design
  • Gross Weight: 0.52
  • Net Weight: 0.265
  • Dimension (L × H × D): 145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
  • Operating Temperature: -10°C to 40°C (14°F to 104°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Storage Humidity: 5% to 95% (no condensation)
  • Power Supply: 48 VDC, 0.8 A
  • Power Consumption In Idle: < 5 W
  • Power Souce: 38 W
  • Max. Power Consumption: 38 W

Downloads

Command and Interface File
Data Sheet
Quick Start Guide
Communication Matrix
