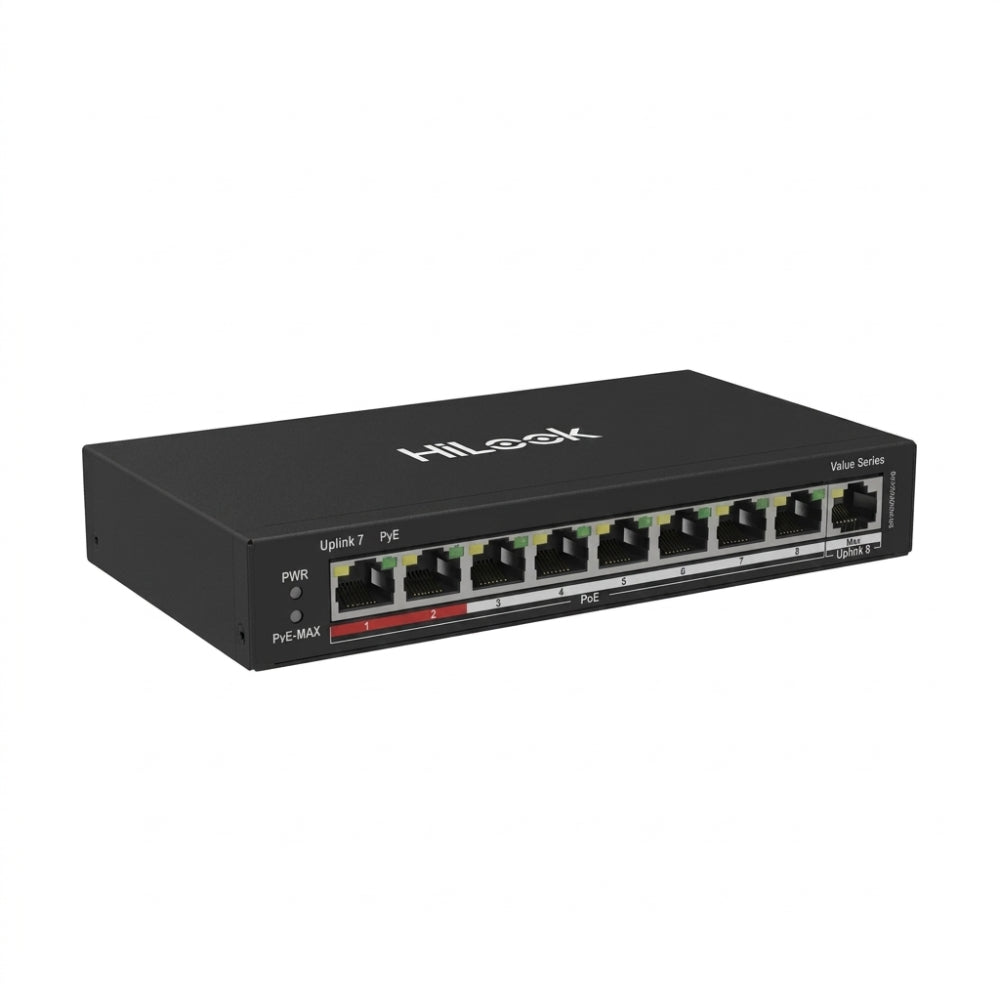

Power 8 Cameras, One Cable Each
Eight 100 Mbps PoE ports deliver data and power down a single cable per device — enough for a complete 8-channel home or small-business camera install with no separate power supplies.
60 W Shared PoE Budget
Up to 30 W per port (802.3at) from a 60 W total budget runs a full set of IR turret, bullet and dome cameras across all eight ports.
250 m Extend Mode
Switch to Extend mode and PoE ports 1–8 reach reliable transmission up to 250 m — ideal for sprawling sites, long driveways, sheds and outbuildings.
Plug-and-Play & Silent
Unmanaged design means zero configuration. A single 100 Mbps uplink feeds your NVR, 6 kV surge protection guards every port, and the fan-free metal shell runs silent.
How many cameras can it power?
Up to eight PoE devices — one per PoE port — provided their combined draw stays within the 60 W total budget. Typical IR cameras draw 5–8 W each, so a full 8-camera kit fits comfortably.
What is the total PoE budget?
60 W shared across all eight PoE ports, with up to 30 W available on a single port under 802.3at.
Is it managed or unmanaged?
Unmanaged and fully plug-and-play — no software, web login or configuration. Connect your cameras and uplink and it works straight away.
How far can it transmit?
Up to 250 m on PoE ports 1–8 in Extend mode — this long-range model is built for distance well beyond standard 100 m Ethernet.

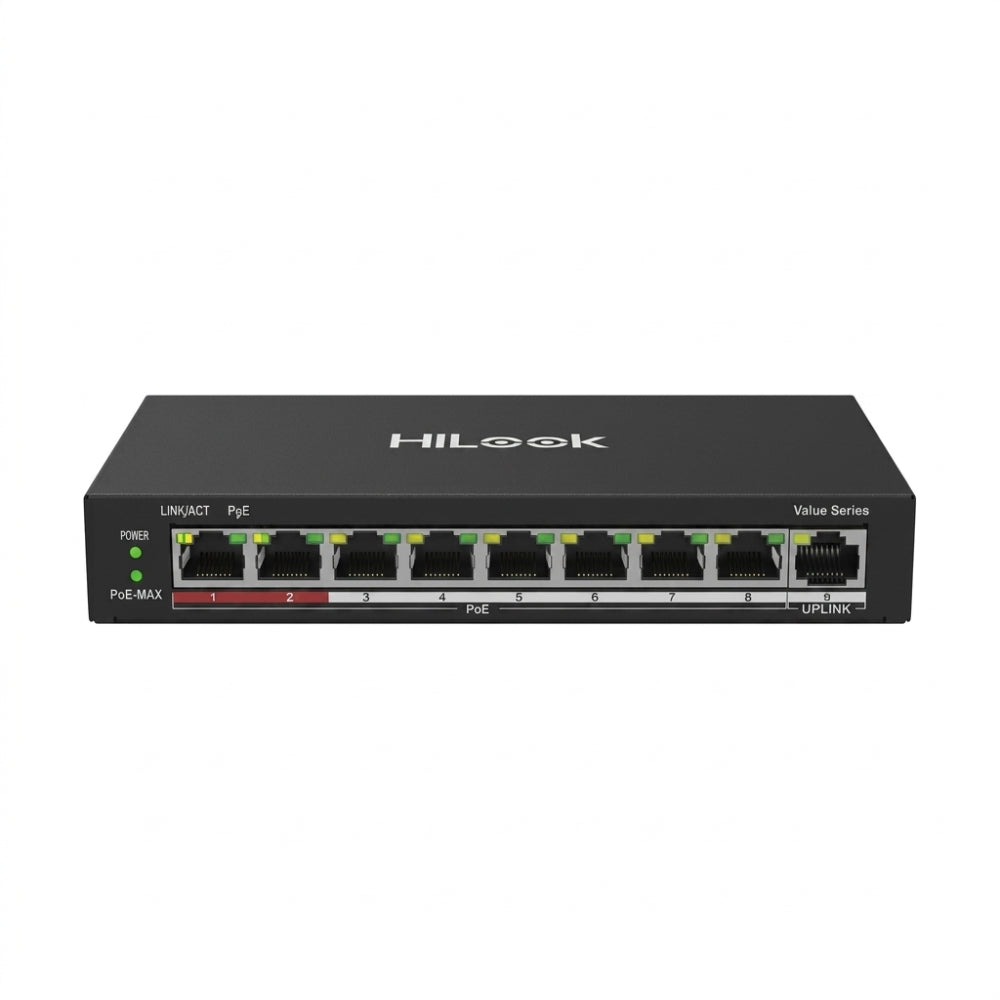

What uplink does it have?
A single 100 Mbps RJ45 uplink port to connect the switch to your NVR, router or main network.
What PoE standard does it use?
IEEE 802.3af and 802.3at, compatible with standard PoE and PoE+ cameras and devices.
Does it need a fan?
No. The metal shell uses a fan-free design, so it runs completely silent in cupboards, ceilings and comms boxes.
Will it work with my Hikvision or HiLook NVR?
Yes. It is a standard PoE switch and passes data transparently to any NVR, router or network device over the uplink port.
