Hilook value series · 16-port poe switch
High-Performance Power and Data Delivery for Commercial Surveillance

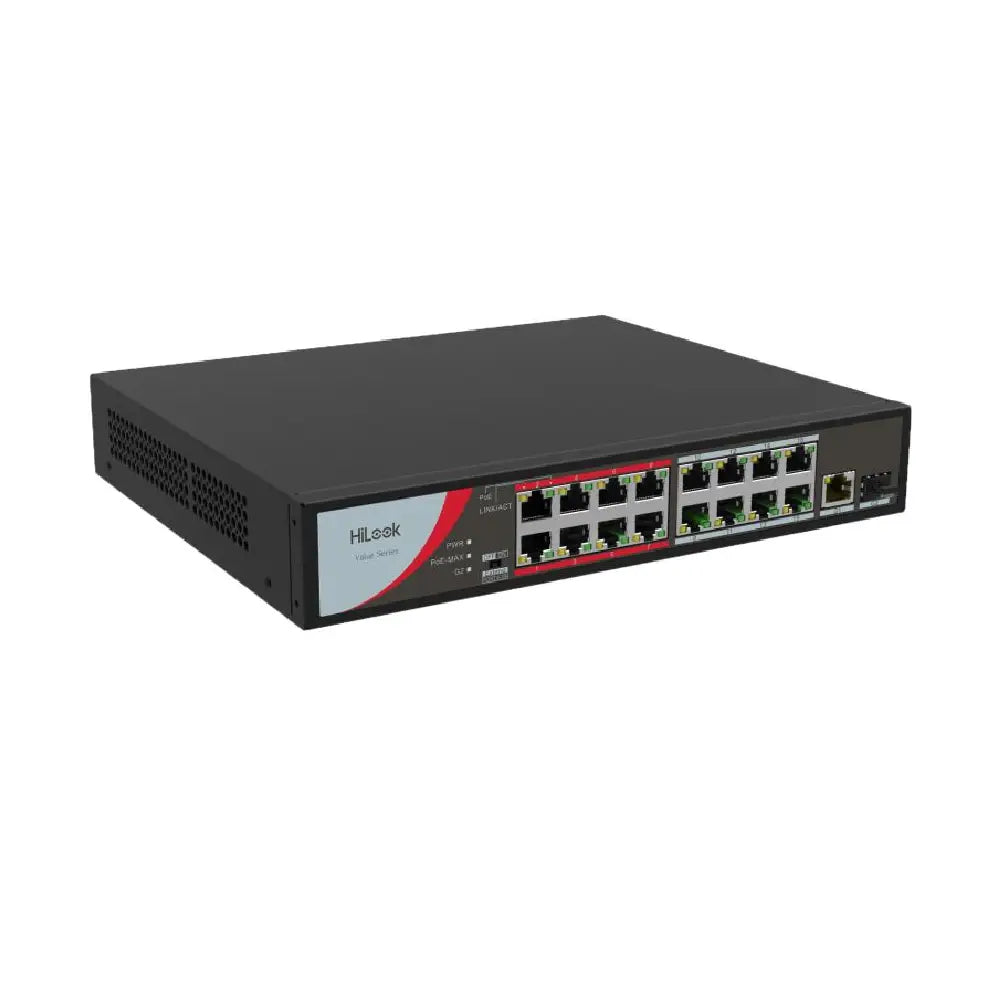

Upgrade your security network infrastructure with the HiLook NS-0318P-130, an advanced 16-port unmanaged Fast Ethernet PoE switch engineered specifically for high-density surveillance applications and growing small-to-medium business environments. Combining robust power delivery, reliable long-range data transmission, and a fan-free metal design, this switch guarantees seamless operation and stable power distribution for professional IP camera networks.

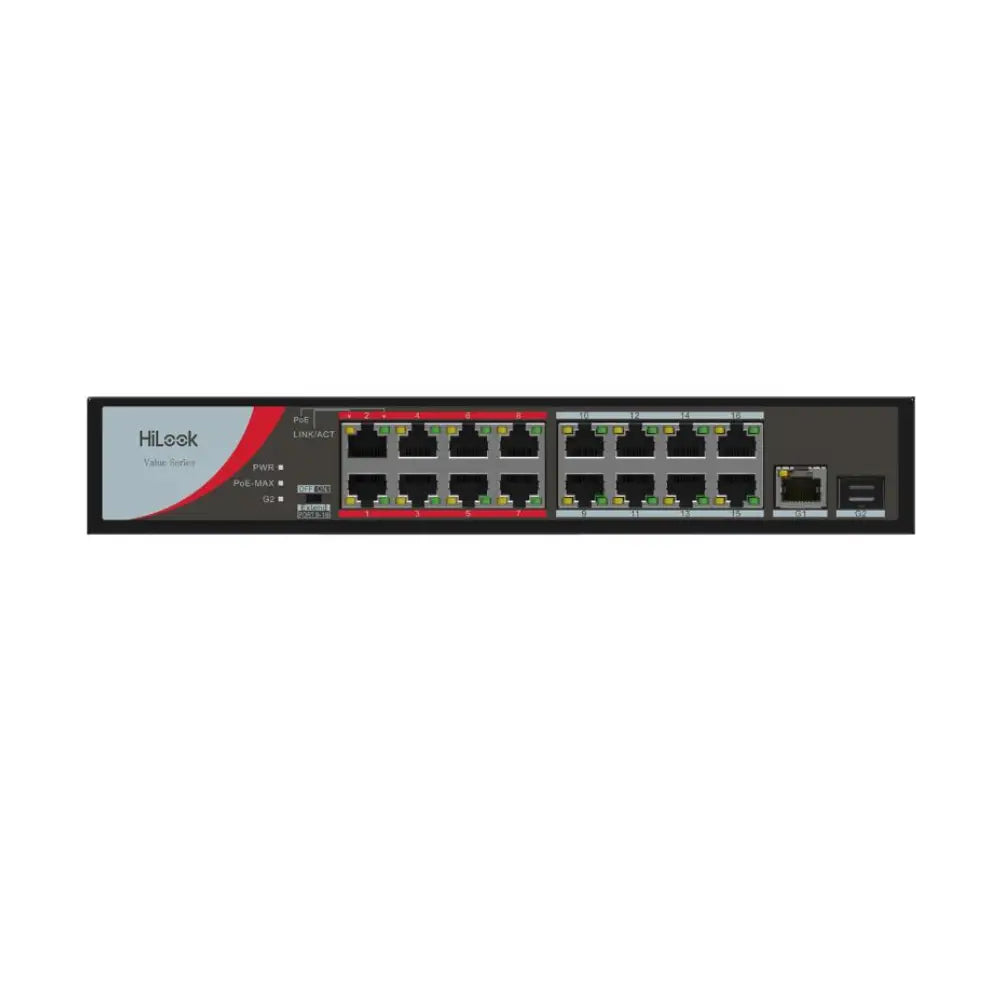

Port Configuration
16× 100M PoE Ports
Uplink Interfaces
1x RJ45 + 1x SFP GbE
Transmission Range
Up to 250m Extend Mode
Surge Protection
6 kV Lightning Defense
Optimized for Extended Reach and Robust Security Deployments
Engineered for effortless plug-and-play installation, the NS-0318P-130 switch eliminates complicated configurations while delivering enterprise-grade capabilities. Featuring a dedicated extend mode, ports 9 through 16 support transmission distances of up to 250 meters, making it easy to connect perimeter security cameras without needing extra repeaters. Integrated 6 kV surge protection safeguards your valuable hardware against electrical spikes, lightning strikes, and environmental disturbances.
130W High PoE Budget
Provides a total power budget of 130 watts with up to 30W per individual port, efficiently driving multiple high-power IP pan-tilt-zoom or infrared security cameras simultaneously without performance degradation.
Gigabit & SFP Fiber Uplinks
Equipped with one gigabit RJ45 port and one gigabit SFP fiber optical port, ensuring high-bandwidth data aggregation back to core network switches or Network Video Recorders (NVRs) without bottlenecks.
Technical Specification Matrix
| Camera Model |
NS-0318P-130 |
| Total Ports |
16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, 1 × 1000 Mbps SFP port |
| PoE Power Budget |
130 W (Max. 30 W per port) |
| Switching Capacity |
7.2 Gbps |
| Packet Forwarding Rate |
5.356 Mpps |
| Surge Protection |
6 kV for all PoE ports |
| Working Mode |
Standard mode (default); Extend mode (up to 250m on ports 9-16) |
| Enclosure Material |
Metal material, fan-free quiet design |
What is the maximum transmission distance available on this switch?
Ports 1 through 8 support standard transmission up to 100 meters, while ports 9 through 16 can achieve up to 250 meters when 'Extend Mode' is enabled, making it ideal for distant camera runs.
Does the NS-0318P-130 require manual software configuration?
No, this is an unmanaged plug-and-play switch featuring auto-learning and auto-aging for MAC addresses, allowing for fast, maintenance-free deployment.
What type of uplink connections are supported?
The switch provides versatile backbone connectivity through one 1000 Mbps adaptive RJ45 port and one high-speed 1000 Mbps SFP fiber optical port.
Is the unit loud during operation?
No, the NS-0318P-130 features a fan-free cooling design engineered for quiet, reliable heat dissipation in office environments or communication cabinets.
