HiLook Wired Alarm Accessory
Audible and flashing alerts outside your property

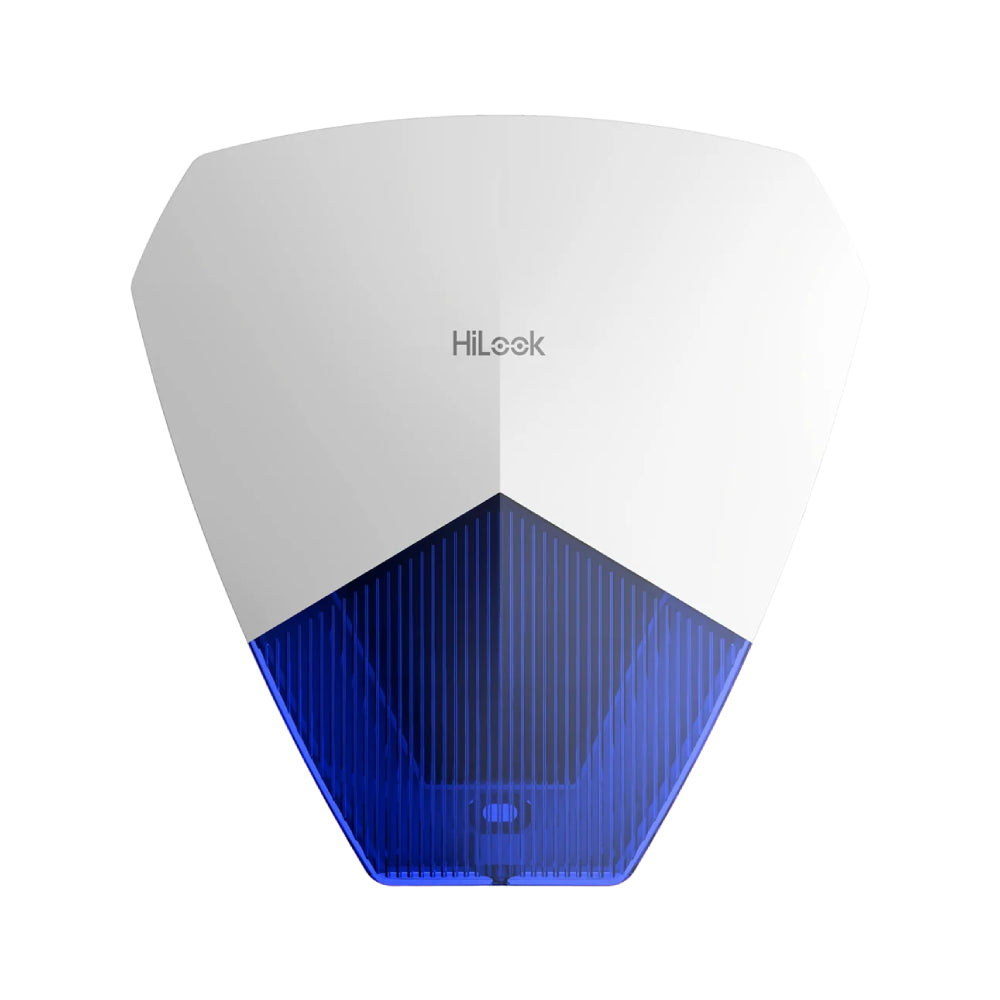

The HA-ALARM-SIREN2 is a wired external sounder with LED flashing indication. It adds a visible and audible warning to a compatible alarm installation; it is not a standalone alarm kit.
Outdoor rating
IP55 protection
Visual alert
Separate LED indication
*Hikvision’s Australian brochure specifies a maximum single-frequency value of 110 dB. This is not a guaranteed sound level at every distance or with every tone.
Choose it as part of a wired alarm system
Sound and lightAudible and LED flashing indications can operate separately.
Selectable warning soundsIntrusion, panic and fire alarm tones are listed. Choose the appropriate configuration with your installer.
Technical specifications
| Model |
HA-ALARM-SIREN2 |
| Product type |
Wired external sounder |
| Maximum sound level |
110 dB at a single frequency point (manufacturer maximum) |
| Protection |
IP55 |
| Indication |
Sound and LED flash indicated separately |
| Available tones |
Intrusion, panic and fire |
Installation and compatibility
The sounder is listed in the HiLook wired alarm range alongside the HA-ALARM-P48 panel. Confirm output ratings, wiring and power requirements with your installer before connection. Panel, detectors and installation materials are separate purchases.
Downloads & resources
Frequently asked questions
Is this a wireless siren?No. It is a wired external sounder and needs a compatible alarm panel, power and cabling.
Can it be installed outdoors?Yes. It has an IP55 rating. Have your installer select a suitable mounting position and seal cable entries correctly.
Does the fire tone make it a smoke alarm?No. A selectable warning tone does not make this product a smoke detector or a complete fire alarm system.
Build a compatible wired alarm system
The add-on options are system components, not items included with this siren. The HA-ALARM-P48 panel, compatible keypad and PIR detector form part of the wired alarm installation.
The HA-ALARM-POWER is a 15V panel supply, not a direct siren power adapter. Connect the siren only through the correctly specified alarm-system wiring and outputs. Have your installer verify the siren’s supply, trigger and current requirements before connection.
The listed 4-core security cable is an option for circuits where four conductors are sufficient. Separate sound, strobe and tamper connections may require additional cores; confirm the wiring diagram, cable distance and voltage drop.
