AX Hybrid Pro · Wired LCD Keypad · RS-485 + 433 MHz · Tag Reader
Wired LCD Keypad

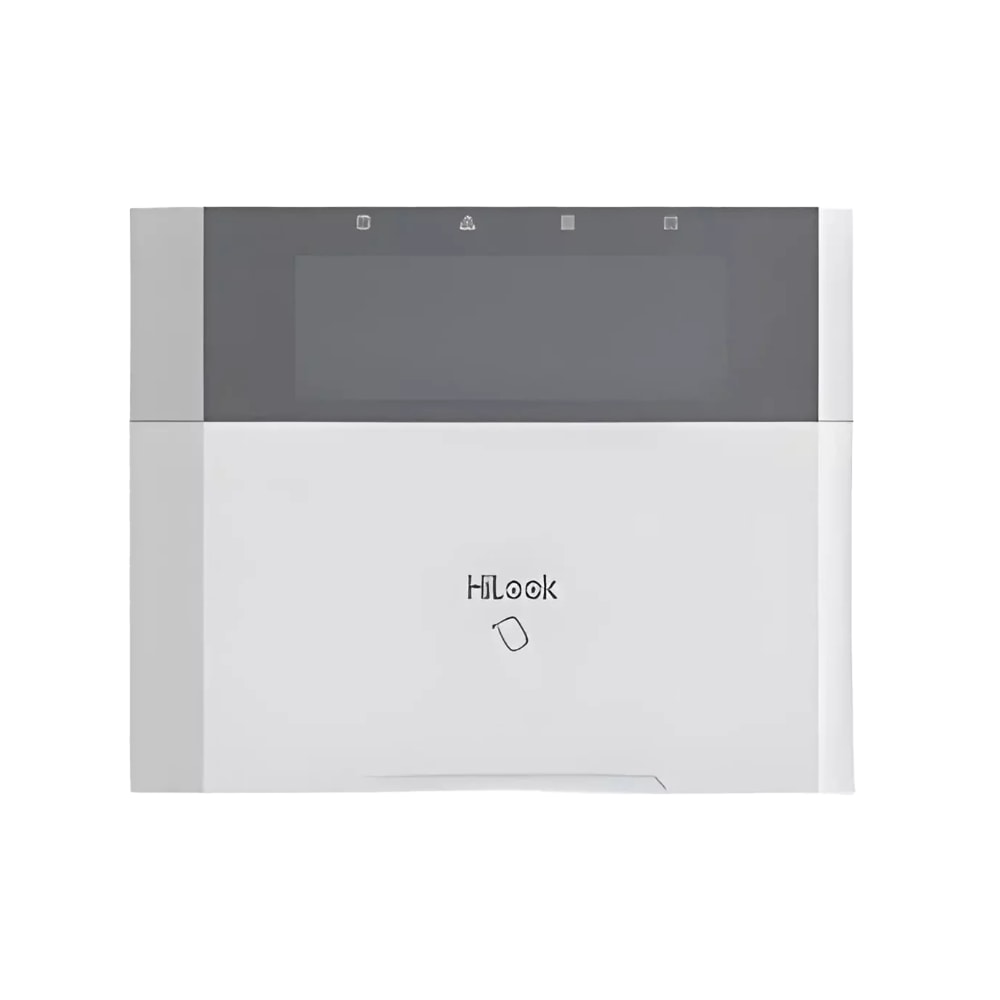

HiLook HA-ALARM-KP-WB Wired LCD Keypad — Australian Stock & 3-Year Warranty
The HiLook HA-ALARM-KP-WB is the wired control keypad for the HiLook AX Hybrid Pro alarm system. It connects to the alarm panel over a single RS-485 (Speed-X) bus and adds a clear backlit LCD display, a built-in 433 MHz transceiver and an integrated tag reader — so users can arm and disarm by code, by proximity tag, or with one-touch arming that needs no password at all.
Beyond control, the keypad earns its place on the wall with real functionality: dedicated Fire, Panic and Medical emergency keys, support for up to 64 keyfobs, and 2 on-board alarm inputs plus 1 on-board alarm output for wiring local zones and devices straight at the keypad. It shows the time and your company name on screen, and is fully managed through the panel and the Hik-Connect app. Backed by genuine Australian stock and a 3-year warranty.
Connectivity
RS-485 + 433 MHz
Control at Your Fingertips
Code, Tag or One-Touch
Arm and disarm by PIN on the backlit LCD, tap a proximity tag on the built-in reader, or use one-touch arming with no password — whichever suits each user in the household or office.
Built-In 433 MHz Receiver
An integrated wireless transceiver enrols and manages up to 64 HiLook keyfobs, so the family can arm and disarm from the driveway without ever touching the keypad.
Emergency Keys
Dedicated Fire, Panic and Medical keys (held for 3 seconds) raise the right alarm instantly — a fast, deliberate way to call for help in an emergency.
On-Board I/O
Two on-board alarm inputs and one alarm output let you wire local detectors or a device directly at the keypad, plus a back-cover tamper switch guards against interference.
Technical Specifications
Keypad & Control
| Model / SKU |
HA-ALARM-KP-WB |
| Display |
Backlit LCD with company name & time display |
| Arming Methods |
PIN code, proximity tag, one-touch (no password) |
| Emergency Keys |
Fire / Panic / Medical (hold 3 s) |
| Tag Reader |
Built-in |
| Keyfob Capacity |
Up to 64 keyfobs |
Connectivity & I/O
| Bus |
1 × RS-485 (Speed-X) to AX Hybrid Pro panel |
| Wireless |
433 MHz built-in transceiver |
| On-Board Inputs |
2 alarm inputs |
| On-Board Output |
1 alarm output |
| EOL Resistors |
1K / 2.2K / 4.7K / 5.6K / 6.8K / 8.2K (NO/NC/single/double/triple EOL) |
| Tamper |
Back-cover tamper switch |
Power & Build
| Power |
12 VDC (from panel AUX) |
| Power Consumption |
Quiescent 0.972 W · Max 1.33 W |
| App / Management |
Hik-Connect (via panel) |
| Dimensions |
150 × 115 × 28 mm |
| Operating Temp. |
−10 °C to 55 °C |
| Colour |
White |
| Warranty |
3-Year Australian Warranty |
Downloads & Documentation
Frequently Asked Questions
Which alarm system does this keypad work with?
It is the wired keypad for the HiLook AX Hybrid Pro alarm panel, connecting over the RS-485 (Speed-X) bus.
How do users arm and disarm?
By PIN code on the LCD, by tapping a proximity tag on the built-in reader, or with one-touch arming that needs no password.
Does it read tags and keyfobs?
Yes — it has a built-in tag reader and a 433 MHz transceiver, and supports up to 64 keyfobs.
What are the emergency keys?
Dedicated Fire, Panic and Medical keys, triggered by holding the key for about 3 seconds.
Can I wire detectors directly to the keypad?
Yes. It has 2 on-board alarm inputs and 1 on-board alarm output, with selectable EOL resistors for most panels.
How is it powered?
From the panel's 12 VDC AUX supply over the bus wiring — no separate plug-pack needed.
