AX Hybrid Pro · 8-Zone Wired Panel · Keypad + 2 PIRs + 3 Tags · Hik-Connect
8-Zone Wired Alarm Kit
HiLook HA-ALARM-KIT1 8-Zone Wired Alarm System — Australian Stock & 3-Year Warranty
The HiLook HA-ALARM-KIT1 is a complete, professional-grade AX Hybrid Pro wired intrusion alarm system in one box. At its heart is an 8-zone control panel (8 on-board wired zones, expandable to 48 in total) paired with a wired LCD keypad, two 18 m PIR motion detectors and three proximity tags for fast, code-free arming and disarming — everything a home or small business needs to monitor and protect multiple areas independently.
The panel speaks TCP/IP over its on-board RJ45 port with optional 4G, GPRS and PSTN modules for dual-path reporting, and connects straight to the Hik-Connect app so you can arm, disarm and receive push alerts from anywhere. Arm and disarm by keypad, tag, keyfob, app or SMS; expand later with extra zones, sirens and detectors as your needs grow. Backed by genuine Australian stock and a 3-year warranty.
Why the HA-ALARM-KIT1?
8 Zones, Expandable to 48
Eight on-board wired zones cover a typical home or shopfront out of the box, and the panel scales to 48 zones and 16 areas as your property or business grows.
App & Dual-Path Reporting
On-board TCP/IP connects to the Hik-Connect app for remote arm/disarm and push alerts, with optional 4G, GPRS and PSTN modules for backup reporting paths.
Multiple Ways to Arm
Arm and disarm by LCD keypad PIN, proximity tag, keyfob, the mobile app or SMS — whatever is most convenient for each member of the household or team.
Hardwired Reliability
A stable, interference-free wired link between detectors and panel makes this kit ideal for permanent installs, backed by on-board outputs for sirens and automation.

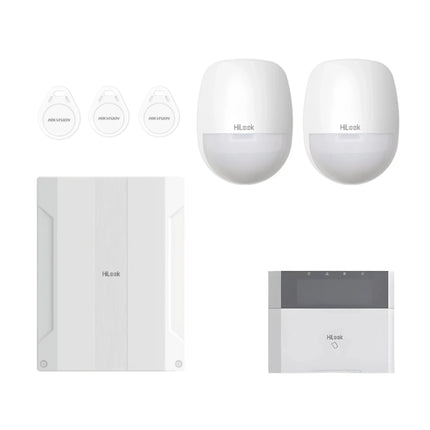

What's in the Box
Kit Contents
| 1 × Alarm Control Panel |
8 on-board wired zones, expandable to 48; 4 on-board outputs (2 relay + 2 I/O) |
| 1 × Wired LCD Keypad |
Backlit LCD, tag reader, 433 MHz receiver, Fire/Panic/Medical keys (HA-ALARM-KP-WB) |
| 2 × PIR Motion Detectors |
18 m, 85.9°, 10 kg pet immunity (HA-ALARM-PIR1) |
| 3 × Proximity Tags |
For quick, code-free arming and disarming |
Technical Specifications
Control Panel
| Model / SKU |
HA-ALARM-KIT1 |
| On-Board Zones |
8 wired (expandable to 48 total) |
| Areas |
Up to 16 |
| Outputs |
4 on-board (2 relay + 2 I/O) · 1 wired sounder output |
| Network |
On-board TCP/IP (RJ45 10/100M) |
| Optional Comms |
PSTN, GPRS, 3G/4G modules (dual-path) |
| EOL Resistors |
1K / 2.2K / 4.7K / 5.6K / 6.8K / 8.2K |
Control, Power & Build
| Arm / Disarm |
Keypad, tag, keyfob, mobile app, SMS |
| Capacity |
48 tags · 48 keyfobs · 4 keypads · 8 wireless sounders |
| App / Cloud |
Hik-Connect, Hik-ProConnect |
| Mains Input |
100–240 VAC (on-board transformer) |
| Backup Battery |
12 V 7 Ah lead-acid (sold separately) — up to ~36 h standby |
| Panel Dimensions |
261 × 199 × 86.4 mm |
| Operating Temp. |
−10 °C to 40 °C |
| Warranty |
3-Year Australian Warranty |
Downloads & Documentation
Frequently Asked Questions
What comes in the HA-ALARM-KIT1?
An 8-zone wired control panel, one wired LCD keypad, two 18 m PIR motion detectors and three proximity tags — a complete starter system.
How many zones does it support?
Eight on-board wired zones out of the box, expandable to 48 zones and 16 areas in total.
Can I control it from my phone?
Yes. The panel connects over TCP/IP to the Hik-Connect app for remote arm/disarm and instant push notifications.
How do users arm and disarm?
By LCD keypad PIN, proximity tag, keyfob, the mobile app or SMS — whichever suits each user.
Does it have a backup battery?
The panel accepts a 12 V 7 Ah lead-acid battery (sold separately) for up to around 36 hours of standby during a power cut.
Can I add a siren and more detectors later?
Yes. The panel has on-board outputs for sirens and expands to 48 zones, so you can add the HiLook SIREN1, extra PIRs and keyfobs over time.
Is it suitable for a small business?
Absolutely — the multi-area, multi-zone design and dual-path reporting make it well suited to homes and small commercial sites alike.
Is this a wired or wireless system?
It's a hybrid (AX Hybrid Pro) system that's primarily wired for reliability, with support for wireless keyfobs, tags and sounders.
