Hikvision AX Hybrid Pro Alarm Bundle
Hikvision AX Hybrid Pro Wired Alarm Kit with 3 PIRs, Keypad, Siren, Battery, PSU & Keytags
Secure your home, shop, office or small business with this complete Hikvision AX Hybrid Pro wired alarm kit.

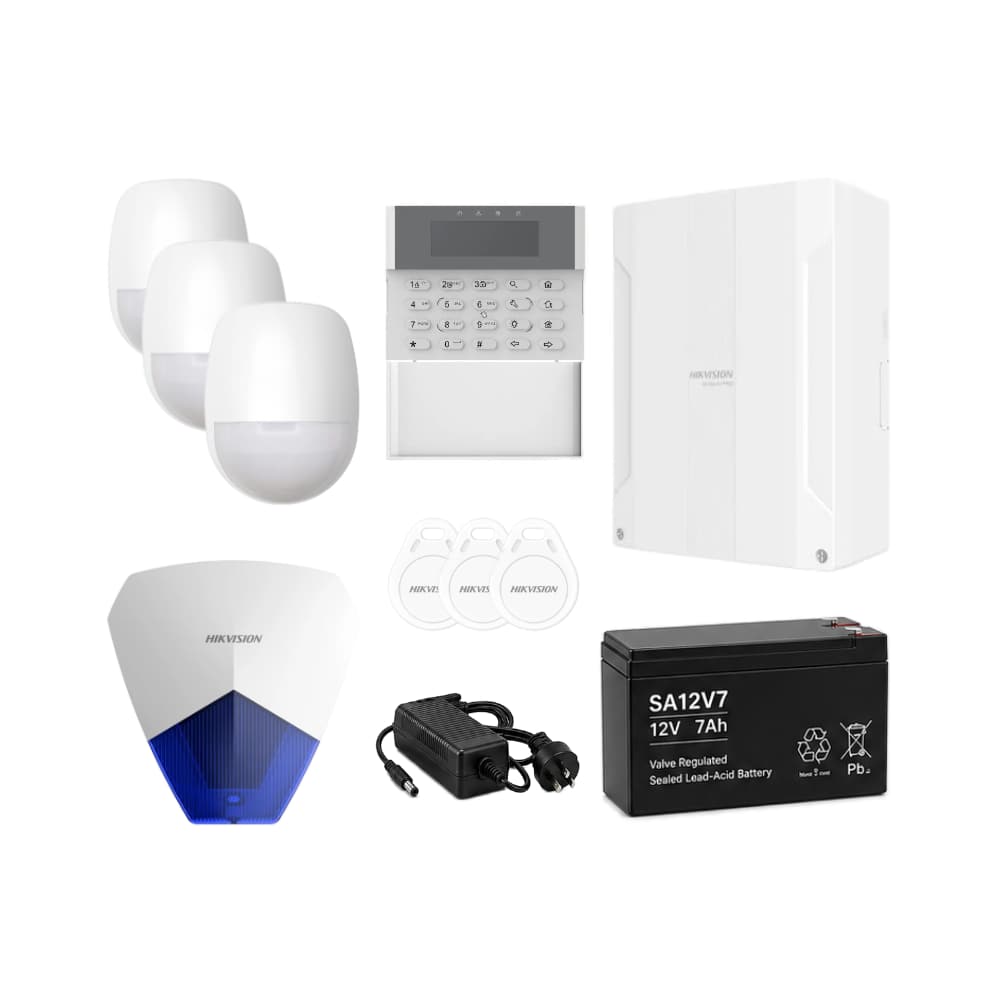

This bundle includes the AX Hybrid Pro control panel, LCD keypad, 3 wired PIR motion detectors, PIR brackets, wired siren,
12V backup battery, PSU and 3 keytags.
Built around the DS-PHA64-LP/NP alarm panel, this kit gives you a professional wired alarm foundation with
room to expand. The panel supports up to 64 alarm inputs, including 8 on-board zones, making it suitable for
both residential and commercial security installations.
Alarm Panel
64-Zone Hybrid Pro
Control
LCD Keypad + Keytags
Detection
3 × 18m PIR Sensors
What’s Included
| 1 × DS-PHA64-LP/NP |
Hikvision AX Hybrid Pro intrusion alarm control panel |
| 1 × DS-PK1-LRT-HWB |
Hikvision wired LCD keypad for everyday arm/disarm control |
| 3 × DS-PDP18-EG2(B) |

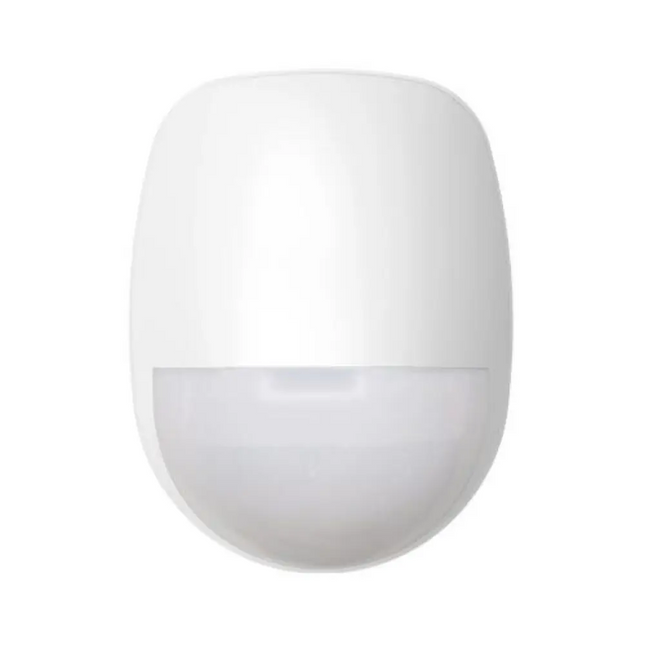

Hikvision wired PIR motion detectors with up to 18m detection range |
| 3 × PIR Brackets |
Mounting brackets for flexible PIR installation |
| 1 × DS-PS1-B |
Hikvision wired siren / sounder with 105dB alarm output |
| 1 × SA12V7 |
12V 7Ah sealed lead-acid backup battery |
| 3 × Keytags |
Convenient keytag access for quick arm/disarm operation |
| 1 × PSU |
Power supply unit included |
Why Choose This Hikvision Alarm Bundle?
Professional Wired Security
A wired alarm system is ideal for permanent installations where stable detection, reliable power and long-term performance matter.
Expandable AX Hybrid Pro Platform
The DS-PHA64-LP/NP supports up to 64 alarm inputs, giving your installer room to expand the system with additional zones and accessories.
3 × Indoor PIR Motion Detectors
The included DS-PDP18-EG2(B) detectors support up to 18m detection range, 85.9° detection angle and 15kg pet immunity.
Loud Local Siren Alert
The included DS-PS1-B wired sounder provides a 105dB alarm output at 30cm with IP54 protection and separate sound/LED flash indication.
Ideal For
Homes
Protect hallways, living areas, garages and key internal movement paths.
Retail Shops
Secure shop floors, rear doors, stock rooms, counters and after-hours entry points.
Offices
Give staff simple keypad/keytag control while protecting work areas and entry paths.
Small Warehouses
Create a strong wired alarm foundation with expansion options for larger layouts.
Key Specifications
| System Type |
Hikvision AX Hybrid Pro wired / hybrid intrusion alarm kit |
| Control Panel |
DS-PHA64-LP/NP |
| Alarm Inputs |
64 total, including 8 on-board zones |
| Alarm Outputs |
64 total, including on-board relay and I/O outputs |
| PIR Detection Range |
Up to 18m |
| PIR Detection Angle |
85.9° |
| PIR Pet Immunity |
Up to 15kg |
| Siren Output |
105dB at 30cm |
| Siren Protection |
IP54 |
| Backup Battery |
12V 7Ah SLA battery included |
More Information
Everything you need to review the main Hikvision alarm components before installation.
Installation Notes
This is a professional wired alarm kit and should be installed, wired and programmed by a qualified security installer.
Final detector placement, zone programming, siren location, battery connection and power setup should be confirmed during installation.
Is this a wired alarm kit?
Yes. This bundle includes a wired/hybrid AX Hybrid Pro panel, wired keypad, wired PIR detectors and wired siren.
Can this alarm system be expanded?
Yes. The DS-PHA64-LP/NP supports up to 64 alarm inputs, making it suitable for future expansion.
Does it include motion detectors?
Yes. This kit includes 3 × DS-PDP18-EG2(B) wired PIR motion detectors and 3 PIR brackets.
Does it include a siren?
Yes. This kit includes 1 × DS-PS1-B wired siren with 105dB alarm output.
Does it include a backup battery?
Yes. This bundle includes 1 × SA12V7 12V 7Ah backup battery.
Who should install this kit?
A qualified security installer is recommended for correct wiring, programming and compliance.
