HIKVISION AX PRO SERIES
Seamless Proximity Arming & Access Control Key Fob

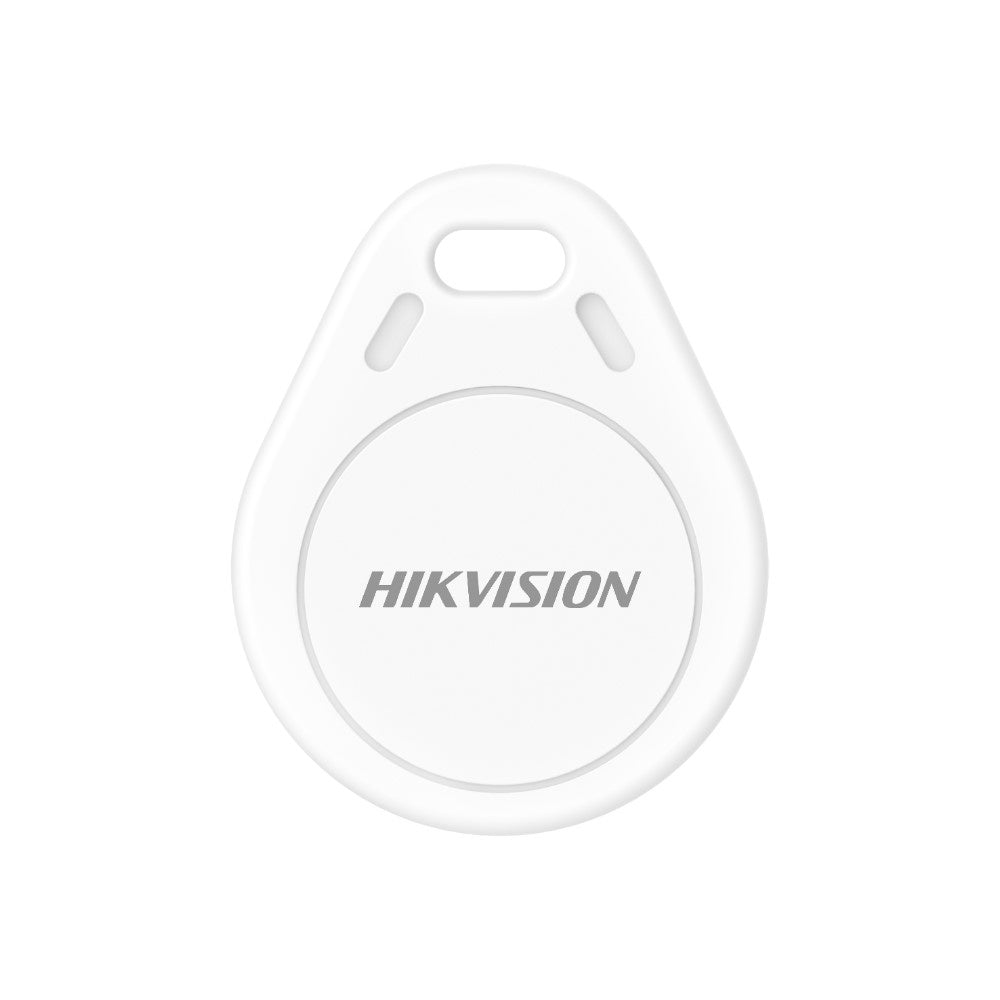

The DS-PT-M1 is a highly durable, compact 13.56 MHz Mifare RFID tag engineered for fast, touchless interaction with Hikvision AX PRO wireless intrusion alarm systems, keypads, and compatible intercom terminals. Designed for daily residential and commercial access management, this lightweight key fob enables staff, family members, or service personnel to instantly arm or disarm alarm zones without entering a PIN or using a smartphone application. Constructed from high-impact ABS and PVC materials, it withstands rigorous daily wear while providing exceptional operational reliability.
Operating Frequency
13.56 MHz Mifare
Induction Distance
5 to 10 cm Range
Memory Capacity
1024 x 8-bit EEPROM
Enclosure & Durability
PVC/ABS Shell
Advanced Architecture & AX PRO Integration
The Hikvision DS-PT-M1 Mifare Tag features a 16-sector memory structure running at 106 Kbps transfer speed, ensuring immediate proximity detection across compatible reader keypads and master control hubs. Up to 48 individual tags can be assigned to a single AX PRO panel, permitting individual user identification, audit trails, and effortless revocation if a fob is lost. Its robust casing supports up to 100,000 scratch cycles and maintains data integrity for up to 10 years, making it an indispensable accessory for high-frequency user management.
Touchless Frictionless Operation
Presents a simple swipe-and-go experience for employees, family members, or maintenance crews. Eliminates passcodes, reducing false alarms and passcode sharing across staff.
Rugged Ultra-Compact Form Factor

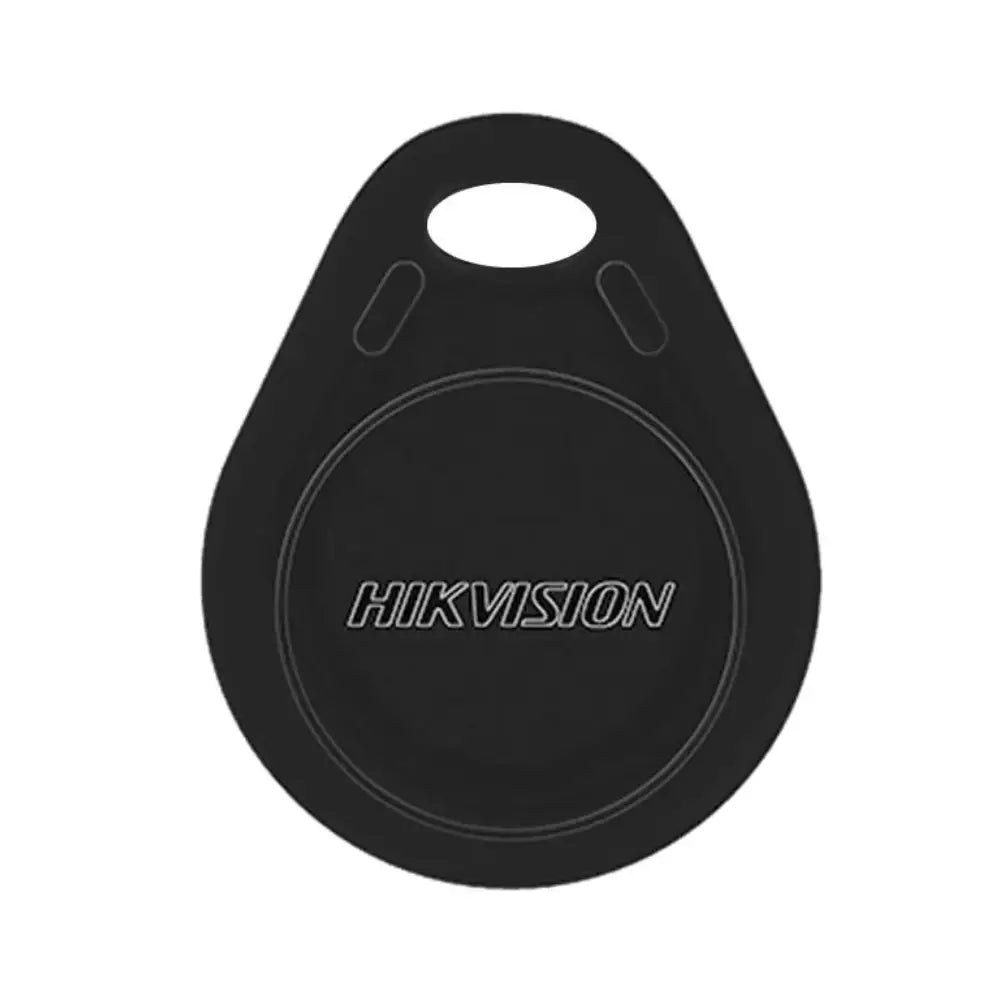

Built with lightweight PVC and ABS composite materials measuring just 41 x 32 x 3.5 mm. Designed to attach effortlessly to keyrings while withstanding physical impacts and harsh temperatures.
Technical Specification Matrix
| Camera Model / Part Code |
DS-PT-M1 |
| Working Frequency |
13.56 MHz |
| Data Rate |
106 Kbps |
| Memory Capacity |
1024 × 8-bit EEPROM |
| Storage Structure |
16 separate sectors |
| Induction Distance |
5 cm to 10 cm |
| Scratch Endurance |
100,000 cycles |
| Data Retention |
10 Years |

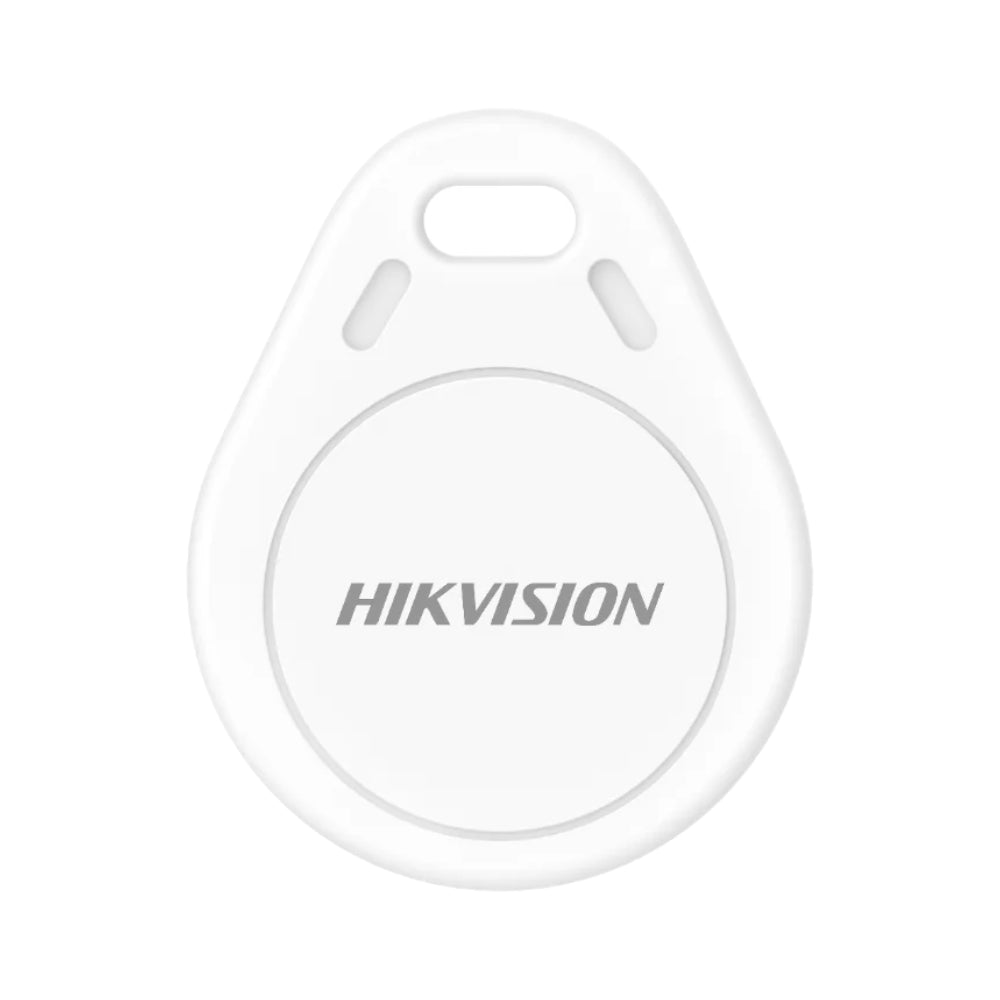

| Shell Material & Colour |
PVC, ABS (White) |
| Dimensions (W × H × D) |
41 mm × 32 mm × 3.5 mm |
| Operating Temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
How do I arm and disarm using the DS-PT-M1 tag?
Simply hold the tag within 5 to 10 cm of an AX PRO control panel's built-in reader or an AX PRO keypad reader to change system armed states instantly.
How many tags can be added to an AX PRO alarm system?
A single AX PRO alarm control panel can support up to 48 individual tags, allowing unique assignment and tracking for every user.
What happens if a user loses their DS-PT-M1 tag?
The system administrator can quickly unbind or revoke the lost tag via the Hik-Connect mobile app or management platform without affecting other tags or codes.
Does the DS-PT-M1 require batteries?
No, the DS-PT-M1 is a passive RFID tag powered wirelessly via induction when placed near a compatible reader, requiring zero batteries or charging.
